Effects of Temporary Respiration Exercise with Individual Harmonic Frequency on Blood Pressure and Autonomic Balance

by
Sungchul Mun
1,
Sangin Park
2,
Sungyop Whang
3 and
Mincheol Whang
4,*
1
Department of Industrial Engineering, Jeonju Universtiy, Jeonju 55069, Republic of Korea
2
Industry-Academy Cooperation Team, Hanyang University, Seoul 04763, Republic of Korea
3
Rotary and Mission Systems, Lockheed Martin, 199 Borton Landing Road, Moorestown, NJ 08054, USA
4
Department of Human-Centered Artificial Intelligence, Sangmyung University, Seoul 03016, Republic of Korea
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2022, 19(23), 15676; https://doi.org/10.3390/ijerph192315676
Submission received: 19 September 2022 / Revised: 18 November 2022 / Accepted: 22 November 2022 / Published: 25 November 2022
(This article belongs to the Special Issue Health Care and Health Services Digital Revolution)
Browse Figures
Review Reports Versions Notes

Abstract

:
This study investigated the effects of modulated respiration on blood pressure and autonomic balance to develop a healthcare application system for stabilizing autonomic balance. Thirty-two participants were asked to perform self-regulated tasks with 18 different respiration sequences, and their electrocardiograms (ECG) and blood pressure were measured. Changes in cardiovascular system functions and blood pressure were compared between free-breathing and various respiration conditions. Systolic and diastolic blood pressures stabilized after individual harmonic breathing. Autonomic balance, characterized by heart rate variability, was also stabilized with brief respiration training according to harmonic frequency. Five machine-learning algorithms were used to classify the two opposing factors between the free and modulated breathing conditions. The random forest models outperformed the other classifiers in the training data of systolic blood pressure and heart rate variability. The mean areas under the curves (AUCs) were 0.82 for systolic blood pressure and 0.98 for heart rate variability. Our findings lend support that blood pressure and autonomic balance were improved by temporary harmonic frequency respiration. This study provides a self-regulated respiration system that can control and help stabilize blood pressure and autonomic balance, which would help reduce mental stress and enhance human task performance in various fields.

1. Introduction

In recent years, people have frequently been exposed to mentally stressful situations at their workplaces, in which cognitive mechanisms in the human brain simultaneously process numerous pieces of information. It is very important to control mental workload or stress while performing work or daily activities under a variety of circumstances [1,2,3,4,5,6,7,8,9,10]. They often refer healthcare professionals to ask for effective ways to manage the level of mental stress themselves or wish to use health monitoring systems before serious diseases occur [11,12,13]. Among those recommended, a controlled respiration method, generally known as deep breathing, has often been suggested to modulate physiological mechanisms underlying mental stress and homeostasis. However, how people control respiration has rarely been studied. People are exposed to different neurophysiological and environmental factors, and individual optimal frequencies and times regarding self-respiration training are yet to be determined.
Many studies have found that controlling respiration alone can reduce the symptoms of major disorders [14], enhance the efficiency of pulmonary gas exchange [15], improve symptoms of fibromyalgia [16], and balance the relationship between sympathetic and parasympathetic regulation [17]. Such findings have supplemented various ways of improving people’s health regarding blood pressure diseases and autonomic balance imperfections, but few studies have focused on how respiratory processes can affect and supplement people’s health, especially with blood pressure and autonomic balance. Currently, blood pressure and autonomic balance are considered clinical markers of human health due to the consequences of their irregularities. Unbalanced blood pressure can result in neurological damage, such as clinical shock and, in a worst-case scenario, death [18,19,20]. In addition, irregular autonomic balance, which describes the balance between the functions of the sympathetic and parasympathetic branches, could result in heart attacks and, in the case of blood pressure, death [21]. Thus, it is important to investigate how respiratory processes modulate blood pressure and autonomic balance.
Autonomic balance and respiration have been found to be closely correlated [22]. These are controlled by the vagus nerve. This nerve partially controls the parasympathetic innervation of autonomic balance, which is affected by respiration through the thoracic ganglia [23]. Inhalation obstructs vagal activity, causing the heart rate to increase, whereas exhalation allows vagal activity to resume, causing the heart rate to slow [23,24]. Variations in the heart rate caused by vagal activity is known as heart rate variability (HRV). The vagal activities of autonomic balance, also known as HRV, and respiration are defined as respiratory sinus arrhythmia (RSA) [25,26,27]. HRV, or variation in the parasympathetic and sympathetic responses, is also partially controlled by the baroreflex system. It is known that blood pressure is affected by cardiac output or regulated by baroreceptors. Many studies have found that HRV and blood pressure are related through the baroreflex system [25,26]. Figure 1 shows a summary of the relationship between respiration, autonomic balance or heart rate, and blood pressure.
Given this relationship, a control method can be developed whereby controlling respiration and autonomic balance could conclusively manipulate blood pressure. The primary purpose of the control is to manipulate the respiration frequency and, by doing so, manipulate the autonomic balance frequency to the same or similar frequency. With two identical frequencies, the amplitude doubles as the frequencies construct with each other. A few papers already have studied and found the optimal frequency, which is known as the “Natural Harmonic Frequency,” of the arterial baroreflex that initiates this phenomenon and its effects [28]. The natural harmonic frequency is the original frequency of the cardiovascular system (CVS). If the CVS is matched to this frequency, all physiological function frequencies will be manipulated to the same frequency; thus, these frequencies will merge together, and the functions will stabilize to their optimal range. The average natural harmonic frequency was found to be 0.1 hertz (Hz), which varies slightly from person to person by approximately ±0.5 Hz [27]. Controlling the breathing frequency to the appropriate natural frequency should stabilize the frequencies of HRV and blood pressure and eventually harmonize the frequencies and amplify their effects on the body. Thus, this study aimed to investigate the effects of individual harmonic frequencies on autonomic balance and blood pressure stabilization. This study mainly investigated and observed the effect of respiratory control on blood pressure and autonomic balance, and developed a reasonable method for mobile healthcare applications.

2. Methods

2.1. Participants

Written informed consent was obtained from each participant prior to the experiment. The Institutional Review Board at Sangmyung University in Seoul, Republic of Korea approved all the protocols used in this study. Thirty-two participants, sixteen women and sixteen men, with ages ranging from 23 to 32 years (mean: 26.43 years), voluntarily participated in the study; incentives of USD 40 were offered to encourage their participation. Only participants with no history of any disorders, particularly cardiovascular diseases that could have affected their heart rates, were included in this experiment. One day prior to the experiment, to minimize possible variations in cardiovascular responses, participants were prohibited from smoking and consuming alcohol or caffeine. Additionally, they were recommended to have a full night of sleep. Before the experiment, participants were informed of the experimental protocols and procedures, except its purpose.

2.2. Experimental Protocol

The room designed for the experiment included a chair and a screen placed in front of the chair. The participants sat on a chair during all trials of the experiment. Before the respiratory experiment, each participant was given a 5 min break to eliminate external influences on both autonomic balance and blood pressure [29,30]. After the rest period, each participant’s blood pressure was recorded using an armband. When a participant’s blood pressure reached the recommended range (systolic pressure: 90–119 mmHg; diastolic pressure: 60–79 mmHg; autonomic balance, reference zone), the experiment commenced [31,32].
As mentioned before, previous studies have proved that the natural harmonic frequency averages at approximately 0.1 Hz [33]. However, studies have also mentioned that the frequency varies slightly from person to person. Natural frequencies are slightly different for each individual; therefore, steps were required to determine the harmonic frequency of each participant. These steps were based on previous studies that focused on determining an individual’s harmonic frequency [25,33]. The 0.1 Hz of the respiration frequency constituted of six cycles per minute. Previous studies have found that the range of people’s harmonic frequency of respiration is 4 to 12 breathing cycles per minute [25,28]. Therefore, each breathing cycle totaled 10 breathing cycles, including the free-respiration cycle. The heart rate of each participant was measured using electrocardiograms (ECG). According to previous findings, the individual harmonic frequency was determined by observing the peak amplitudes of the LF band of HRV for all breathing cycles. The breathing cycles that resulted in the highest peak in HRV were determined to be harmonic frequencies.
To help participants easily follow each breathing pattern, a video of a pump was played on the screen; the pump gage was filled and emptied according to the corresponding breathing cycle for inhalation and exhalation processes. Each participant’s blood pressure was measured before the breathing cycle; for comparison, blood pressure was also measured after the breathing cycle. Respiration (RSP) was measured with an RSP sensor, a band that goes around the participant’s chest, to observe and check if they were correctly following the breathing pattern. After each breathing cycle, a short break was provided to normalize the participants’ physiological signals. An illustration of the experimental procedure is shown in Figure 2.

2.3. Data Collection and Signal Processing

ECG signals were recorded at a 500 Hz sampling rate from Lead-I type, and the R-peaks were detected using QRS detection algorithms given by Pan and Tompkins [34]. The R-peaks were located by following these five steps [31,32]: (1) ECG signals, to attenuate noise, were passed through a band-pass filter (5–11 Hz); (2) the signal was differentiated to clear the inflection point of the QRS wave; (3) the signal was amplified by squaring; (4) to obtain information about the R wave, the moving average technique was used (window size: 150 ms; resolution: 2 ms); and (5) the R-peak was detected based on a threshold. This threshold was defined as the difference between the maximum and minimum values of the filtered ECG signal. The R-peak to R-peak interval (RRI) was calculated using the difference between R-peak to R-peak, and detected RRIs were filtered as normal to normal (NN) intervals of 600–1200 ms, based on previous research [35]. Time domain indices of cardiac activity such as standard deviation of normal-to-normal intervals (SDNN), root-mean-square of successive differences (rMSSD), and proportion of NN50 (pNN50) were extracted as follows. (1) The SDNN was computed as the standard deviation across normal RRIs. (2) The rMSSD was calculated as the root mean square of successive differences between normal heartbeats. (3) The pNN50 was calculated by the percentage of adjacent RR intervals that are >50 ms.
Successive RRI values in normal range were converted to a time series by resampling at 2 Hz. The resampled data were processed using a fast Fourier transformation (FFT). HRV spectra (0–0.4 Hz) were then obtained. The HRV spectrum was used to identify individual harmonic respiration frequencies and autonomic balance. An overview of the signal processing is shown in Figure 3. All signal processing and analysis on HRV parameters were conducted using LabVIEW 2010 software (National Instruments, Austin, TX, USA). The Welch’s method was used to calculate power spectrum density in the frequency domain parameters of cardiac activity.
An individual’s harmonic respiration frequency was defined as the highest amplitude value of the LF band (0.04–0.15 Hz) in the HRV spectrum band (0–0.4 Hz). All respiration tasks (4–12 breaths per minute with a 0.5 min interval and a total of 17 respiratory conditions), excluding the free respiration condition, were extracted from the LF band. The dominant amplitude in the LF band was then compared with that in the other respiratory conditions. The highest amplitude value among the respiratory conditions was determined as the individual’s harmonic respiration frequency, as shown in Figure 4, which is an example of harmonic respiration in participant 1 based on the highest amplitude value among the respiratory conditions.
The normalized HRV technique evaluates autonomic balance based on the sympathetic and parasympathetic nervous systems. The HRV spectrum was categorized into two frequency bands: the LF (0.04–0.15 Hz) and HF (0.15–0.4 Hz) bands. The power spectrum values (LF and HF) were converted into natural logarithms (assuming ln), and nine zones (zones 1–8 plus a reference zone) were created to categorize the autonomic balance (i.e., sympathovagal balance) [21,34,36], as shown in Figure 5. The zone descriptions for autonomic balance are as follows.
  • Zone 1: High parasympathetic/low sympathetic.
  • Zone 2: High parasympathetic/normal sympathetic.
  • Zone 3: High dual autonomic tone.
  • Zone 4: High sympathetic/normal parasympathetic.
  • Zone 5: High sympathetic/low parasympathetic.
  • Zone 6: Normal sympathetic/low parasympathetic.
  • Zone 7: Low sympathetic and parasympathetic.
  • Zone 8: Low sympathetic/normal parasympathetic.
RSP was measured to identify breaths per minute. During the respiration task, RSP signals were recorded at a 500 Hz sampling rate from the thoracic region. This signal was processed using the FFT, and the frequency of the dominant peak was obtained. These values were then compared for each respiratory condition. It was also used to set a standard for task performance to determine the task performance accuracy of each participant. If a subject could not concentrate on the respiration task where the respiratory data did not match the controlled respiratory rates, such data were excluded from this experiment.
The ECG sensor used in the experiment was an SS29L multi-lead ECG cable (BIOPAC System Inc., Goleta, CA, USA) and was operated using Lead-I. The RSP sensor was a TSD201 respiration transducer (BIOPAC System Inc.), which measured the thoracic expansion and contraction. The ECG and RSP signals were recorded using an ECG 100C and RSP 100C amplifier system (BIOPAC System Inc.) and digitalized using NI-DAQ-Pad9205 (BIOPAC System Inc.) at a rate of 500 Hz. Signals were processed using an MP150 data acquisition unit, the AcKnowledge analysis software v 4.1 (BIOPAC System Inc.), and the LabVIEW 2010 software (National Instruments, Austin, TX, USA). An HEM-780 (OMRON system Inc., Kyoto, Japan) was used to measure blood pressure.

2.4. Data Analysis

The individual harmonic frequency of each participant was determined by comparing the HRV spectra (the highest amplitude value in the LF band) between the respiration tasks. To identify the effect of the breathing rate, the optimized breathing rate (individual harmonic frequency) was compared with other breathing conditions, including free respiration. Variations in autonomic balance and blood pressure caused by the breathing rate condition were measured. All the data were recorded before and after the respiration task. However, because the optimized breathing rate differed among participants, the personalized harmonic frequency breathing rate was compared with free breathing using SPSS 17.0 (SPSS IBM, Inc., Chicago, IL, USA). Autonomic balance was evaluated based on nine domains (zones 1 to 8, and the reference zone). Systolic and diastolic blood pressures were measured. To compensate for multiple comparisons, Bonferroni correction was performed for the derived statistical significances [34,37,38]. Statistical significance levels were controlled based on the number of independent hypotheses (i.e., α = 0.05/n); thus, α = 0.007 (blood pressure, autonomic balance, and time domain index, α = 0.05/7) was used. The effect size, based on Cohen’s d (parametric), was calculated to confirm the practical significance of the findings. For Cohen’s d, standard values of 0.20, 0.50, and 0.80 for the effect size are generally regarded as small, medium, and large effects, respectively [39].
The required sample size for our experiment design was determined using G*Power software v.3.1.9.7 (Heinrich Heine University Düsseldorf, Düsseldorf, Germany) with the following parameters: (1) tails = two tailed test. (2) effect size (Cohen’s d) = 0.8 (large effect size). (3) α = 0.01. (4) 1 − β = 0.95. The recommended sample size was obtained at 32 from G*Power software v.3.1.9.7, and a total sample size in this experiment (i.e., 64 samples) was tenable to achieve acceptable statistical power.

3. Results

Each participant underwent breathing cycles and blood pressure was measured. Using these data, the harmonic frequency was determined through an HRV spectrum analysis. Meanwhile, the breathing effects of the harmonic frequency and other breathing cycles on blood pressure and autonomic balance were compared. In conclusion, the effect of harmonic frequency of respiration on an individual’s blood pressure and autonomic balance was confirmed.

3.1. Harmonic Frequency

Table 1 presents the harmonic frequencies of the participants. As mentioned above, the breathing frequency which showed the highest HRV spectrum value was determined to be the harmonic frequency of an individual. For participant 1, in Figure 4, the highest HRV spectrum value was achieved when the participant was breathing 5.5 times per minute, and thus, the breathing cycle was deemed as the individual’s harmonic frequency. The harmonic frequency varied across participants and ranged from 4 breaths/min to 12 breaths/min.

3.2. Blood Pressure

The blood pressure during the harmonic frequency was compared with the blood pressure during other breathing cycles. During the harmonic breathing frequency, both the systolic and diastolic blood pressures of the participants were stabilized, and the blood pressures were increased or decreased to the optimal range. Meanwhile, during other breathing cycles, the systolic, diastolic, or both blood pressures failed to reside in the optimal range. In some cases, the blood pressure of a few participants reached the optimal range in multiple breathing cycles. However, these breathing cycles were similar to their harmonic breathing cycles. For example, participant 8 had a harmonic frequency of 8 breaths/min, and the participant’s blood pressure reached the optimal range at 7.5 and 8 breaths/min.
All participants had different harmonic frequencies; therefore, the free-breathing condition was used as a control for comparison. The effects of the harmonic frequency on the free-breathing cycle were compared for all participants. While the participants’ blood pressures were not within the optimal range during free respiration, the blood pressure was stabilized to the optimal range during the harmonic breathing cycle. As shown in Figure 6 and Figure 7, blood pressure was stabilized to the optimal range regardless of whether it was lower or higher than the optimal range. If the blood pressure was high, it decreased to the optimal range, and vice versa. Normality tests were assumed (p > 0.05) and paired t-tests were conducted. For the resonance frequency condition, systolic blood pressure in the post-task condition was significantly reduced compared with that in the pre-task condition (t(31) = 4.438, p < 0.001, Cohen’s d = 0.785, indicating a medium effect size) as shown in Figure 6. Significantly reduced diastolic blood pressures were also observed (t(31) = 3.679, p = 0.001, Cohen’s d = 0.650, indicating a medium effect size) as shown in Figure 7. In the free respiration condition, no significant changes were observed in systolic blood pressure (t(31) = 0.650, p = 0.521) or diastolic blood pressure (t(31) = 0.906, p = 0.372) of the participants.

3.3. Autonomic Balance

Breathing at the harmonic frequency also stabilized the autonomic balance of the participants, as the values of autonomic balance fell within the reference zone while other respiratory cycles failed to do so. As shown in Figure 8, the autonomic balance of participant 3 resided within the reference zone only during the harmonic frequency, whereas it resided in zones 2, 4, 5, 6, and 8 during other breathing conditions. For participant 8, autonomic balance was also stabilized while residing in the recommended zone for 7.5, 8, and 8.5 breathing cycles including the harmonic frequency. This is illustrated in Figure 9. Similarly to the case with blood pressure, the optimal breathing cycles of the participants were around the harmonic breathing cycle.
During free-breathing cycles, nearly all participants’ autonomic balances were in zones 4 and 5. These zones describe the sympathetic nervous system as highly active and parasympathetic, with little or no activity. Some participants also had autonomic balances residing in zones 2, 3, 6, and 8, but none were in the reference zone during free respiration, as shown in Figure 10.
The normality assumption was tenable (p > 0.05) and paired t-tests were conducted. Paired t-tests indicated that ln LF in the resonance frequency condition significantly decreased (t(31) = 10.814, p < 0.001, Cohen’s d = 1.912, indicating a high effect size) and ln HF power significantly increased relative to those of the free respiration condition (t(31) = 7.046, p < 0.001, Cohen’s d = 1.246, indicating a high effect size) as shown in Figure 10.

3.4. Time Domain Parameters of Cardiac Activity

As for the time domain data of cardiac activity, normality assumption was tenable (p > 0.05) and paired t-tests were conducted. The paired t-tests showed that the time domain parameters of cardiac activity in the resonance frequency condition were significantly higher than those in the free respiration condition: SDNN (t[31] = −4.154, p < 0.001, Cohen’s d = 0.780), rMSSD (t[31] = −3.113, p = 0.004, Cohen’s d = 0.700), and pNN50 (t[31] = −3.445, p = 0.001, Cohen’s d = 0.645). The mean (M) and standard deviation (SD) values were as follows: SDNN (Free: M = 79.874, SD = 64.607; Resonance: M = 99.671, SD = 25.330), rMSSD (Free: M = 27.573, SD = 1.169; Resonance: M = 28.737, SD = 2.040), and pNN50 (Free: M = 10.723, SD = 5.526; Resonance: M = 14.191, SD = 5.226), as shown in Figure 11.

3.5. Classification between the Free and Harmonic Respiration Conditions

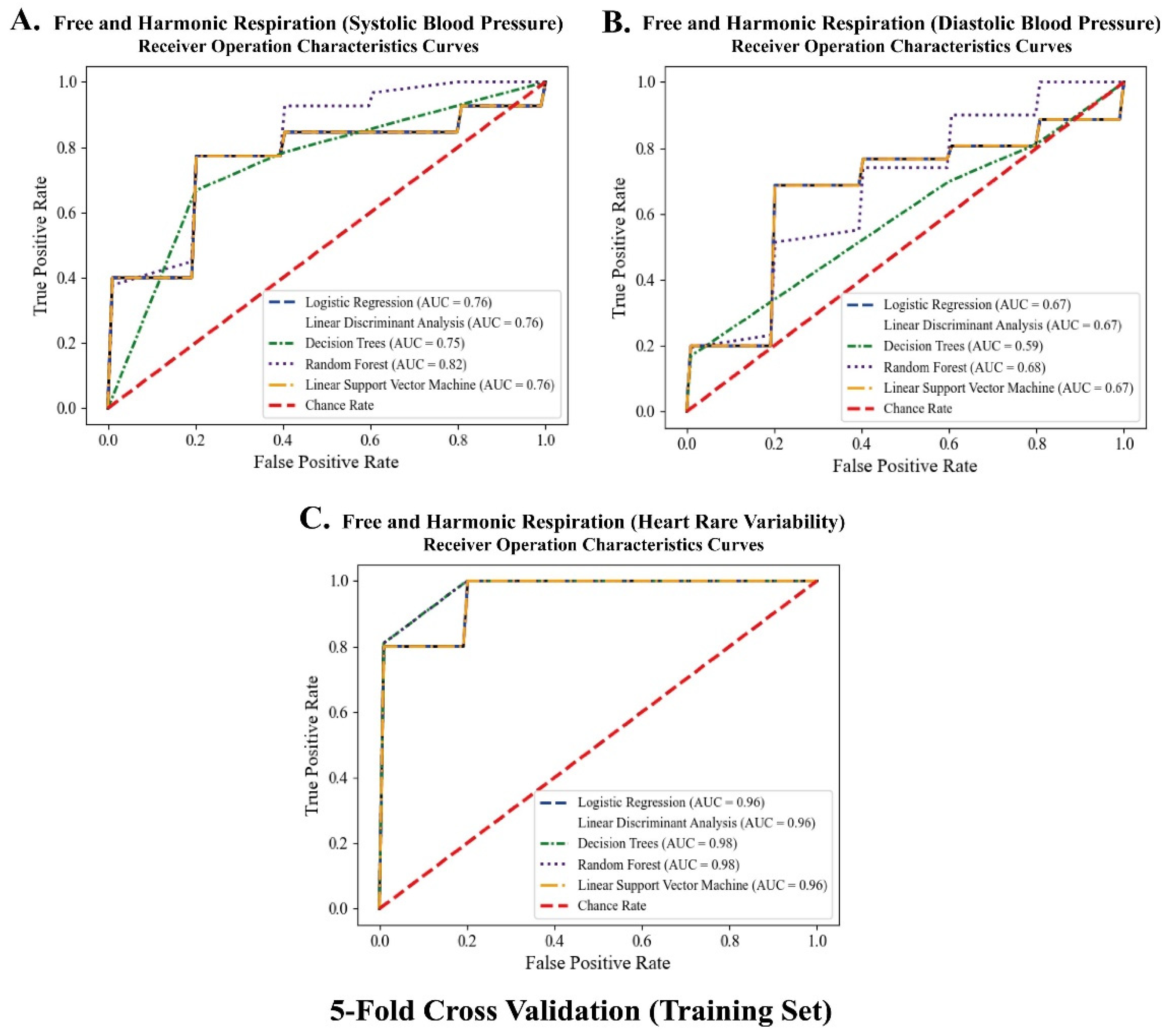

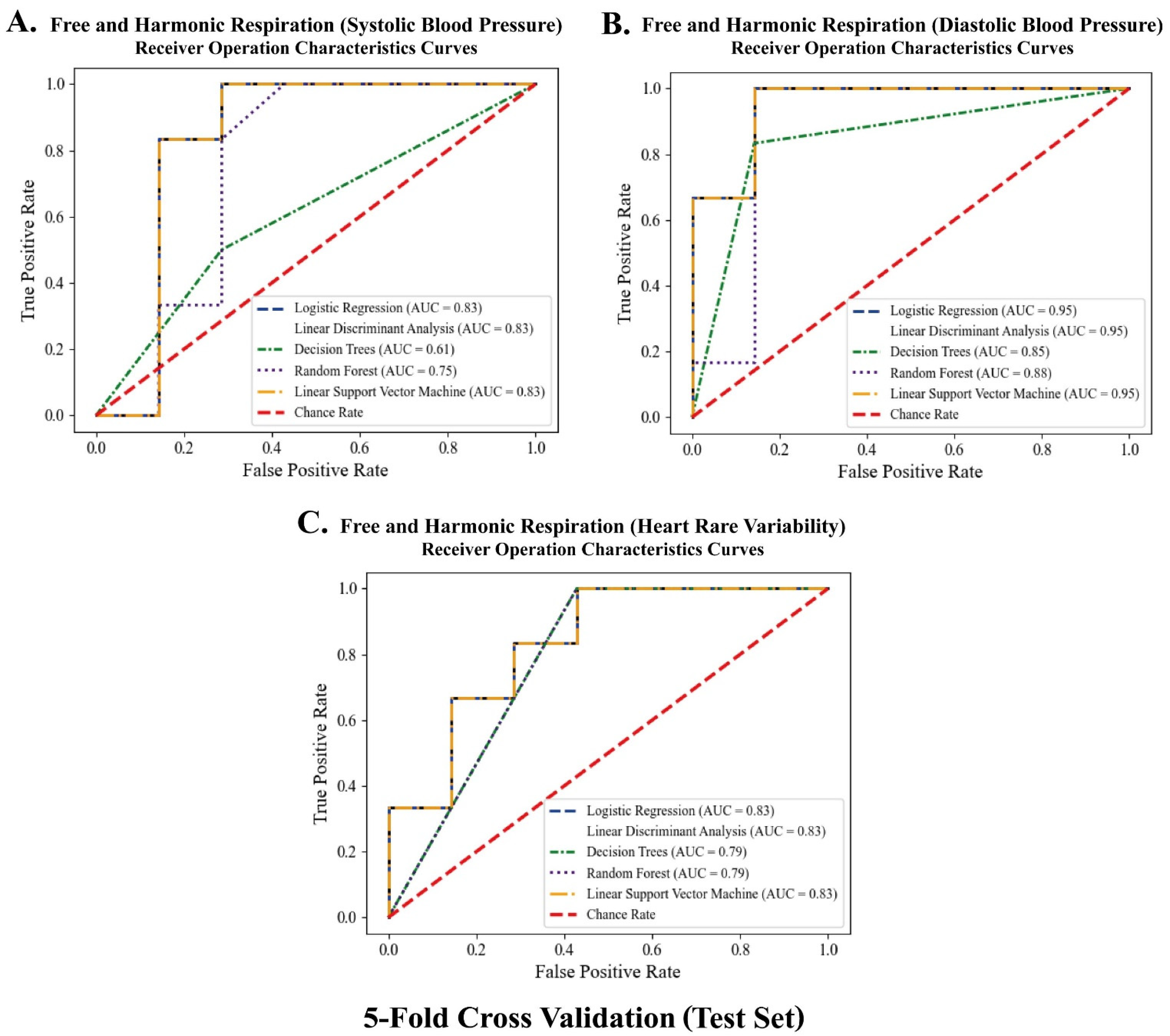

The significant biomarkers demonstrated in this study (i.e., blood pressure and autonomic balance) were classified using machine learning algorithms to develop a mobile healthcare application for harmonic respiration. Before the biomarkers were trained and classified, resampling-based permutation tests were performed to further verify that significant differences would not be observed by chance. One-thousand permutations of the group variables were randomly generated for each blood pressure and heart rate variability indicator. As shown in Figure 12, the computed permutation p-values were in the adjusted critical region (i.e., extreme side of the permuted distributions), implying that no significant differences were found by chance. Five machine learning algorithms (logistic regression (LR), linear discriminant analysis (LDA), decision tree (DT), random forest (RF), and linear kernel support vector machine (LSVM)) were used to classify the two opposite factors of the biomarkers. The significant features were trained using the algorithms on 32 participant datasets with five-fold cross-validation. Classification performances were compared based on the receiver operating characteristic (ROC) curve and area under the curve (AUC) derived from confusion matrix indices (i.e., accuracy, sensitivity, and specificity). Python 3.9.2 (2021, Python Software Foundation) was used to conduct the classification and cross-validation. As for the Python code used, see Supplementary Materials. As shown in Figure 13 and Figure 14, the RF models outperformed the other classifiers for the training datasets of systolic blood pressure and heart rate variability. The mean AUCs of the RFs were 0.82 for the systolic blood pressure and 0.98 for the heart rate variability. However, for the diastolic blood pressure of the training datasets and the three biomarkers of the test datasets, other algorithms (for example, LR, LDA, and LSVM) showed better performance in classification than the RF models, because of the limitation of the single feature and the small number of datasets for the test datasets.
A respiration training system with individual harmonic frequencies was developed using Visual C++ 2013 (Microsoft, Redmond, Washington, United States) and OpenCV 3.0.0 (OpenCV, Palo Alto, CA, USA), as shown in Figure 15. During the offline training stage, users are asked to perform slow breathing training according to the proposed slow breathing frequencies while their blood pressure and ECG data are recorded through wearable sensors. Resampling-based permutation tests validate whether reliable significant changes are observed among the breathing conditions. Then, an individual cardiovascular harmonic frequency was determined, and only significant parameters are trained and classified. The system automatically selects the best-performing machine learning algorithm. During the online testing stage, users are requested to only carry out two free and slow breathing as a function of the determined harmonic frequency for about 7 min with an interval of 1 min. The classifier selected from the best-performing model automatically categorizes significant parameters from blood pressure and ECG data into a binary class between the free and individual harmonic breathing. Then, classification results obtained from the offline and online stage are compared. Unless a clear classification performance is not reported, or if less than mean AUC of 0.70 is reported, the classifier is initialized, and a fine-tuning stage of individualization begins to optimize the parameters with different weights. The mobile healthcare application could determine the individual resonance frequency, which contributes to stabilizing the autonomic balance based on the classification procedures.

4. Discussion

The primary purpose of this study was to investigate the effect of individual harmonic breathing frequencies on blood pressure and the autonomic nervous system. The harmonic frequencies for each participant were determined using the highest LF power among the 17 respiratory conditions, and significant effects were observed. The study clearly showed that temporarily controlled respiration positively influenced blood pressure and the autonomic nervous system, controlling respiration to match the harmonic-frequency-stabilized blood pressure, whether it was high or low, to the optimal range, and the autonomic nervous system to the reference zone. Overall, our findings can be summarized into two significant statements: (1) blood pressure was stabilized to the optimal range, and (2) autonomic balance was stabilized to the reference zone with brief harmonic frequency respiration training.
While this study focused on the effects of harmonic frequency breathing on blood pressure and autonomic balance, several studies have investigated how respiration affects other functions from a physiological or psychological perspective [40,41,42,43,44,45,46]. One study showed that controlling breathing cycles to the harmonic breathing frequency of eight cycles per minute caused a decrease in anxiety levels compared with free respiration. Furthermore, the study found that other breathing frequencies did not show any stabilizing effects on anxiety or stress levels [47,48]. Other studies showed that “shallow” breathing patterns increased anxiety levels more than patterned breathing. Although these studies focused on stress and anxiety, they showed that controlled breathing has many benefits, further emphasizing the significance of harmonic-frequency breathing. Moreover, the act of lowering stress levels is highly correlated with blood pressure stabilization [49]. Another study resulted in the phenomenon, where controlling respiratory rates and thoracic breathing resulted in a drop in arterial CO2 levels [50]. These studies corroborate the findings of our study. Merely controlling breathing patterns to the harmonic frequency allows the blood pressure to fall or rise to the optimal range. In addition, for some people, breathing close to the harmonic frequency stabilized their blood pressure. Although, we have mainly focused on potential effects of short-term slow breathing training based on individual harmonic frequencies on autonomic balance, there might have been potential for extending the controlled harmonic breathing rates from the current slow breathing to normal breathing rates. This is another research topic that needs further experiments and studies to investigate physiological mechanisms underlying the harmonic respiration.
This study found that breathing to harmonic frequencies not only stabilizes the blood pressure, but also the autonomic nervous system. This was due to alterations in the volumetric flow of the heart, which were induced by modifications in respiration. A previous study showed that depending on the respiratory effort, cardiac output was altered by changes in heart rate and/or stroke volume [51]. Therefore, stabilizing the breathing pattern balanced the stroke volume, leading to cardiac output stabilization. Other studies also found that respiration was a powerful source of vagal afferent inputs to the central nervous system. Specifically, a reflex mechanism caused the heart rate to accelerate and inhibited the neural constrictor to other peripheral vascular beds as the lungs inflated [52]. Similarly, with the values of blood pressure, this study found that simply controlling the breathing frequency to the harmonic frequency not only allowed the participant to control the autonomic nervous system but also to reside within the reference zone. However, our study has the following limitations that need further experiments. Although autonomic balance was stabilized after the temporary harmonic breathing as a function of each individual resonance frequency, long-term effects of the breathing protocol remain to be seen with the further studies. We encourage researchers to investigate the effects of the harmonic breathing on stabilization in autonomic balance with a properly designed experimental protocol for the long-term effects. On top of that, the autonomic balance may be influenced by other potential factors (e.g., changes in peripheral vascular resistance, altered airway caliber, and changes in blood flow to other viscera). Notably, potential effects of cardiac vagal activity and vagal nerve mechanisms emphasized in regulating cardiac functioning, which are correlated with the autonomic balance, on sympathetic and parasympathetic regulation, are too complex to be understood and have yet to be determined. Thus, future studies are needed to determine that the other factors may be involved in the autonomic balance control with larger number of participants, varied time, repetitions of the respiration training characterized by each individual harmonic frequency, and other measurements of neurotransmitter levels.
Our study suggested the easiest way to stabilize autonomic balance and blood pressure through temporary harmonic respiration. Harmonic frequency can be defined as the frequency of the arterial baroreflex system [25,28,33]. By controlling respiration to the “natural” frequency of the arterial baroreflex system, the blood pressure and autonomic nervous system were controlled and balanced. This was observed in a study comparing respiratory effects on blood pressure and the autonomic nervous system between free respiration and breathing with harmonic frequency. Furthermore, the graph of systolic and diastolic blood pressures clearly illustrated the effects of breathing harmonic frequency on the human body. Significantly, the blood pressures for the participants were not stable before the experiment, but stabilized after the breathing experiments. In addition, for a few participants, the blood pressure and autonomic nervous system were stabilized not only at the harmonic frequency, but also at frequencies close to it. Hence, this study proved that people have unique harmonic frequencies that are not limited to a single value. Our data lend support to the idea that people have unique harmonic frequencies that are not limited to a single value, and breathing synchrony with the cardiovascular harmonic frequency can improve overall sympathetic and parasympathetic balance. Our findings suggest that modulation of respiration as a function of individual harmonic frequency can lead to reduced mental stress, by stabilizing blood pressure and the autonomic nervous system, because cardiac functions are closely tied to helping manage mental stress. It is expected that people can easily control their cardiac and mental health status if practical mobile applications based on wearable and comfortable ECG sensors are further developed.

5. Conclusions

This study found that matching breathing rates to an individual’s harmonic frequency had a positive effect on the body by balancing blood pressure and autonomic balance. These significant findings provide evidence that blood pressure and autonomic balance can be continuously stabilized solely through harmonic frequency breathing. Respiration is a voluntary process that controls other involuntary functions. Moreover, this study focused only on people with no pre-existing health conditions. Consequently, it cannot be concluded that the method of breathing with harmonic frequency can alleviate hypertension or cardiovascular diseases, but it may contribute to the prevention of these disorders. Therefore, future studies should be directed towards determining the effects of harmonic frequency breathing in patients with hypertension and other cardiovascular diseases.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijerph192315676/s1.

Author Contributions

Conceptualization, S.M., S.P. and S.W.; methodology, S.M. and S.P.; software, S.M. and S.P.; validation, S.M. and S.P.; investigation, S.M. and S.W.; data curation, S.W.; writing—original draft preparation, S.M., S.P. and S.W.; writing—review and editing, S.M., S.P., S.W. and M.W.; visualization, S.M. and S.P.; supervision, M.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partly funded by an Institute of Information & Communications Technology Planning & Evaluation (IITP) grant funded by the Korean government (MSIT) (No. 2022-0-00432, Development of Non-invasive Integrated BCI SW Platform to Control Home Appliance and External Devices by User’s Thought via AR/VR Interface, 50%), and an Electronics and Telecommunications Research Institute (ETRI) grant also funded by the Korean government (No. 22ZS1100, Core Technology Research for Self-Improving Integrated Artificial Intelligence System, 50%).

Institutional Review Board Statement

The study was approved by the Institutional Review Board of Sangmyung University (IRB No. BE2016-12), dated 4 October 2016.

Informed Consent Statement

Informed consent was obtained from all participants involved in the study.

Data Availability Statement

Data are available on request due to privacy/ethical restrictions.

Conflicts of Interest

The authors declare no conflict of interest. The sponsors had no role in the design, execution, interpretation, or writing of the study.

References

  1. Ceruti, A.; Marzocca, P.; Liverani, A.; Bil, C. Maintenance in aeronautics in an Industry 4.0 context: The role of Augmented Reality and Additive Manufacturing. J. Comput. Des. Eng. 2019, 6, 516–526. [Google Scholar] [CrossRef]
  2. Mun, S.; Park, M.-C.; Park, S.; Whang, M. SSVEP and ERP measurement of cognitive fatigue caused by stereoscopic 3D. Neurosci. Lett. 2012, 525, 89–94. [Google Scholar] [CrossRef] [PubMed]
  3. Mun, S.; Kim, E.-S.; Park, M.-C. Effect of mental fatigue caused by mobile 3D viewing on selective attention: An ERP study. Int. J. Psychophysiol. 2014, 94, 373–381. [Google Scholar] [CrossRef] [PubMed]
  4. Mun, S.; Whang, M.; Park, S.; Park, M.-C. Effects of mental workload on involuntary attention: A somatosensory ERP study. Neuropsychologia 2017, 106, 7–20. [Google Scholar] [CrossRef]
  5. Papetti, A.; Gregori, F.; Pandolfi, M.; Peruzzini, M.; Germani, M. A method to improve workers’ well-being toward human-centered connected factories. J. Comput. Des. Eng. 2020, 7, 630–643. [Google Scholar] [CrossRef]
  6. Kim, E.; Ryu, H.; Oh, H.; Kang, N. Safety Monitoring System of Personal Mobility Driving Using Deep Learning. J. Comput. Des. Eng. 2022, 9, 1397–1409. [Google Scholar] [CrossRef]
  7. Park, S.; Kim, L.; Ha, J.; Mun, S. Infrared webcam-based non-contact measurement of event-related potentials from event-related pupillary responses: An approach focused on mental workload. J. Comput. Des. Eng. 2022, 9, 1327–1347. [Google Scholar] [CrossRef]
  8. Chen, X.; Pan, Z. A Convenient and Low-Cost Model of Depression Screening and Early Warning Based on Voice Data Using for Public Mental Health. Int. J. Environ. Res. Public Health 2021, 18, 6441. [Google Scholar] [CrossRef]
  9. Stupak, R.; Dobroczyn’ski, B. From Mental Health Industry to Humane Care. Suggestions for an Alternative Systemic Approach to Distress. Int. J. Environ. Res. Public Health 2021, 18, 6625. [Google Scholar] [CrossRef]
  10. Santos, E.G.d.O.; Queiroz, P.R.; Nunes, A.D.d.S.; Vedana, K.G.G.; Barbosa, I.R. Factors Associated with Suicidal Behavior in Farmers: A Systematic Review. Int. J. Environ. Res. Public Health 2021, 18, 6522. [Google Scholar] [CrossRef]
  11. Atif, M.; Muralidharan, S.; Ko, H.; Yoo, B. COVID-Beat: A low-cost breath monitoring approach for people in quarantine during the pandemic. J. Comput. Des. Eng. 2022, 9, 992–1006. [Google Scholar] [CrossRef]
  12. Goodarzian, F.; Abraham, A.; Ghasemi, P.; Mascolo, M.D.; Nasseri, H. Designing a green home healthcare network using grey flexible linear programming: Heuristic approaches. J. Comput. Des. Eng. 2021, 8, 1468–1498. [Google Scholar] [CrossRef]
  13. Rhee, J.H.; Ma, J.H.; Seo, J.; Cha, S.H. Review of applications and user perceptions of smart home technology for health and environmental monitoring. J. Comput. Des. Eng. 2022, 9, 857–889. [Google Scholar] [CrossRef]
  14. Karavidas, M.; Lehrer, P. A pilot study of heart rate variability (HRV) biofeedback as a treatment for major depression. In Proceedings of the Annual Meeting of the International Society for Advancement of Respiratory Psychophysiology, Princeton, NJ, USA, 17–19 October 2006; Volume 21–23, pp. 234–235. [Google Scholar]
  15. Giardino, H.; Glenny, R.; Borson, W.; Chan, L. Respiratory sinus arrhythmia is associated with efficiency of pulmonary gas exchange in healthy humans. Am. J. Physiol.-Heart Circ. Physiol. 2003, 284, 1585–1591. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Hasset, A.; Radvanski, D.; Lehrer, P.M. Heart rate variability biofeedback as a treatment for fibromyalgia. Biol. Psychol. 2003, 72, 232–233. [Google Scholar]
  17. Acharya, U.R.; Joseph, K.P.; Kannathal, N.; Lim, C.M.; Suri, J.S. Heart rate variability: A review. Med. Biol. Eng. Comput. 2006, 44, 1031–1051. [Google Scholar] [CrossRef]
  18. Perloff, D.; Grim, C.; Flack, J.; Frohlich, E.D.; Hill, M.; McDonald, M.; Morgenstern, B.Z. Human blood pressure determination by sphygmomanometry. Circulation 1993, 88, 2460–2470. [Google Scholar] [CrossRef] [Green Version]
  19. International Consortium for Blood Pressure Genome-Wide Association Studies. Genetic variants in novel pathways influence blood pressure and cardiovascular disease risk. Nature 2011, 478, 103–109. [Google Scholar] [CrossRef] [Green Version]
  20. Parati, G.; Ochoa, J.E.; Lombardi, C.; Bilo, G. Assessment and management of blood-pressure variability. Nat. Rev. Cardiol. 2013, 10, 143–155. [Google Scholar] [CrossRef]
  21. McCraty, R.; Watkins, A. Autonomic assessment report: A comprehensive heart rate variability analysis. Inst. Heart Math 1996, 1–42. Available online: https://www.heartmathbenelux.com/nl/shop/e-boeken/autonomic-assessment-e-book (accessed on 25 July 2022).
  22. Gustafson, K.M.; May, L.E.; Yeh, H.W.; Million, S.K.; Allen, J.J. Fetal cardiac autonomic control during breathing and non-breathing epochs: The effect of maternal exercise. Early Hum. Dev. 2012, 88, 539–546. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Berthoud, H.; Neuhuber, W. Functional and Chemical Anatomy of the Afferent Vagal System. Auton. Neurosci. Basic Clin. 2000, 85, 1–17. [Google Scholar] [CrossRef] [PubMed]
  24. Freeman, R. Assessment of cardiovascular autonomic function. Clin. Neurophysiol. 2006, 117, 716–730. [Google Scholar] [CrossRef] [PubMed]
  25. Vaschillo, E.G.; Vaschillo, B.; Lehrer, P.M. Characteristics of resonance in heart rate variability stimulated by biofeedback. Appl. Psychophysiol. Biofeedback 2006, 31, 129–142. [Google Scholar] [CrossRef]
  26. Uchida, S.; Kagitani, F. Autonomic nervous regulation of ovarian function by noxious somatic afferent stimulation. J. Physiol. Sci. 2015, 65, 1–9. [Google Scholar] [CrossRef] [Green Version]
  27. McCraty, R.; Atkinson, M.; Tomasino, D.; Bradley, R.T. The coherent heart: Heart-brain interactions, psychophysiological coherence, and the emergence of system-wide order. Integral Rev. 2009, 5, 10–115. [Google Scholar]
  28. Halámek, J.; Kára, T.; Jurák, P.; Souček, M.; Francis, D.P.; Davies, L.C.; Shenm, W.K.; Coats, A.J.S.; Novák, M.; Nováková, Z.; et al. Variability of phase shift between blood pressure and heart rate fluctuations a marker of short-term circulation control. Circulation 2003, 108, 292–297. [Google Scholar] [CrossRef] [Green Version]
  29. Lindquist, T.L.; Beilin, L.J.; Knuiman, M.W. Influence of lifestyle, coping, and job stress on blood pressure in men and women. Hypertension 1997, 29, 1–7. [Google Scholar] [CrossRef]
  30. Whelton, P.K.; He, J.; Appel, L.J.; Cutler, J.A.; Havas, S.; Kotchen, T.A.; Roccella, J.; Vallbona, C.; Yasuma, F.; Hayano, J.I. Respiratory sinus arrythmia: Why does the heartbeat synchronize with respiratory rhythm. Chest 2004, 125, 683–690. [Google Scholar] [CrossRef]
  31. Kondo, T.; Osugi, S.; Shimokata, K.; Honjo, H.; Okumura, N.; Matsudaira, K.; Yamashita, K.; Maeda, K.; Muramatsu, T.; Shintani, S.; et al. Cardiovascular events increased at normal and high-normal blood pressure in young and middle-aged Japanese male smokers but not in nonsmokers. J. Hypertens. 2013, 31, 263–270. [Google Scholar] [CrossRef]
  32. American Heart Association. Understanding Blood Pressure Readings. 2014. Available online: https://www.heart.org/en/health-topics/high-blood-pressure/understanding-blood-pressure-readings (accessed on 25 July 2022).
  33. Leher, P.M.; Vaschillo, E.; Vaschillo, B. Resonant Frequency Biofeedback Training to Increase Cardiac Variability: Rationale and Manual for Training. Appl. Psychophysiol. Biofeedback 2000, 25, 177–191. [Google Scholar] [CrossRef] [PubMed]
  34. Pan, J.; Tompkins, W.J. A real-time QRS detection algorithm. IEEE Trans. Biomed. Eng. 1985, 32, 230–236. [Google Scholar] [CrossRef] [PubMed]
  35. Kim, J.; Cho, K.; Kim, Y.-K.; Lim, K.-S.; Shin, S.U. Study on Peak Misdetection Recovery of Key Exchange Protocol Using Heartbeat. J. Supercomput. 2019, 75, 3288–3301. [Google Scholar] [CrossRef]
  36. Kim, C.J.; Park, S.; Won, M.J.; Whang, M.; Lee, E.C. Autonomic nervous system responses can reveal visual fatigue induced by 3D displays. Sensors 2013, 13, 13054–13062. [Google Scholar] [CrossRef] [PubMed]
  37. Park, S.; Won, M.J.; Mun, S.; Lee, E.C.; Whang, M. Does visual fatigue from 3D displays affect autonomic regulation and heart rhythm? Int. J. Psychophysiol. 2014, 92, 42–48. [Google Scholar] [CrossRef] [PubMed]
  38. Lu, G.; Yang, F.; Tian, Y.; Jing, X.; Wang, J. Contact-free measurement of heart rate variability via a microwave sensor. Sensors 2009, 9, 9572–9581. [Google Scholar] [CrossRef] [PubMed]
  39. Dunnett, C.W. A multiple comparisons procedure for comparing several treatments with a control. J. Am. Stat. Assoc. 1955, 50, 1096–1121. [Google Scholar] [CrossRef]
  40. Gholamrezaei, A.; Diest, I.V.; Aziz, Q.; Pauwels, A.; Tack, J.; Vlaeyen, J.W.S.; Oudenhove, L.V. Effect of slow, deep breathing on visceral pain perception and its underlying psychophysiological mechanisms. Neurogastroenterol. Motil. 2022, 34, e14242. [Google Scholar] [CrossRef]
  41. Juventin, M.; Ghibaudo, V.; Granget, J.; Amat, C.; Courtiol, E.; Buonviso, N. Respiratory influence on brain dynamics: The preponderant role of the nasal pathway and deep slow regime. Pfügers Arch.-Eur. J. Physiol. 2022, 1–13. [Google Scholar] [CrossRef]
  42. Laborde, S.; Allen, M.S.; Borges, U.; Dosseville, F.; Hosang, T.J.; Iskra, M.; Mosley, E.; Salvotti, C.; Spolverato, L.; Zammit, N.; et al. Effects of voluntary slow breathing on heart rate and heart rate variability: A systematic review and a meta-analysis. Neurosci. Biobehav. Rev. 2022, 138, 104711. [Google Scholar] [CrossRef]
  43. Laborde, S.; Allen, M.S.; Borges, U.; Hosang, T.J.; Furley, P.; Mosley, E.; Dosseville, F. The Influence of Slow-Paced Breathing on Executive Function. J. Psychophysiol. 2022, 36, 13–27. [Google Scholar] [CrossRef]
  44. Sevoz-Couche, C.; Laborde, S. Heart rate variability and slow-paced breathing: When coherence meets resonance. Neurosci. Biobehav. Rev. 2022, 135, 104576. [Google Scholar] [CrossRef] [PubMed]
  45. Szulczewski, M.T. Transcutaneous Auricular Vagus Nerve Stimulation Combined With Slow Breathing: Speculations on Potential Applications and Technical Considerations. Neuromodul. Technol. Neural Interface 2022, 25, 380–394. [Google Scholar] [CrossRef] [PubMed]
  46. You, M.; Laborde, S.; Zammit, N.; Iskra, M.; Borges, U.; Dosseville, F.; Vaughan, R.S. Emotional Intelligence Training: Influence of a Brief Slow-Paced Breathing Exercise on Psychophysiological Variables Linked to Emotion Regulation. Int. J. Environ. Res. Public Health 2021, 18, 6630. [Google Scholar] [CrossRef]
  47. Park, S.; Won, M.J.; Lee, E.C.; Mun, S.; Park, M.C.; Whang, M. Evaluation of 3D cognitive fatigue using heart–brain synchronization. Int. J. Psychophysiol. 2015, 97, 120–130. [Google Scholar] [CrossRef]
  48. Cohen, J. A power primer. Psychol. Bull. 1992, 112, 155–159. [Google Scholar] [CrossRef]
  49. Lande, S.D. Physiological and subjective measures of anxiety during flooding. Behav. Res. Ther. 1982, 20, 81–88. [Google Scholar] [CrossRef]
  50. Matthew, A.M.; Gelder, M.G. Psychophysiological investigations of brief relaxation training. J. Psychosom. Res. 1969, 13, 1–12. [Google Scholar] [CrossRef]
  51. Owens, J.F.; Stoney, C.M.; Matthews, K.A. Menopausal status influences ambulatory blood pressure levels and blood pressure changes during mental stress. Circulation 1993, 88, 2794–2802. [Google Scholar] [CrossRef] [Green Version]
  52. Grossman, P. Respiration, stress, and cardiovascular function. Psychophysiology 1983, 20, 284–300. [Google Scholar] [CrossRef]
Ijerph 19 15676 g001 550

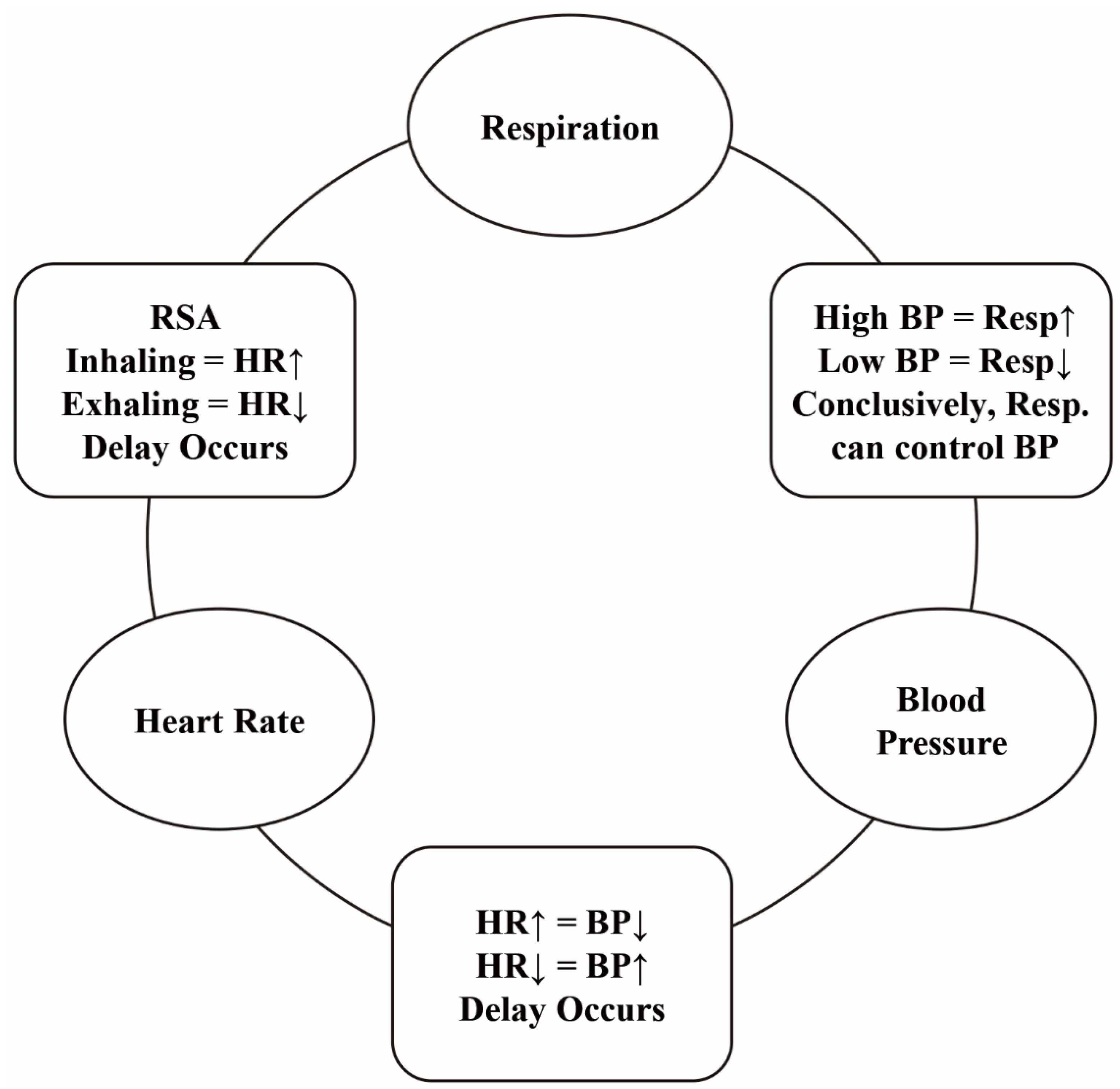

Figure 1. Overview of the closed system between heart rate variability, blood pressure, and respiration.
Figure 1. Overview of the closed system between heart rate variability, blood pressure, and respiration.
Ijerph 19 15676 g001
Ijerph 19 15676 g002 550
Figure 2. The experimental process.
Figure 2. The experimental process.
Ijerph 19 15676 g002
Ijerph 19 15676 g003 550

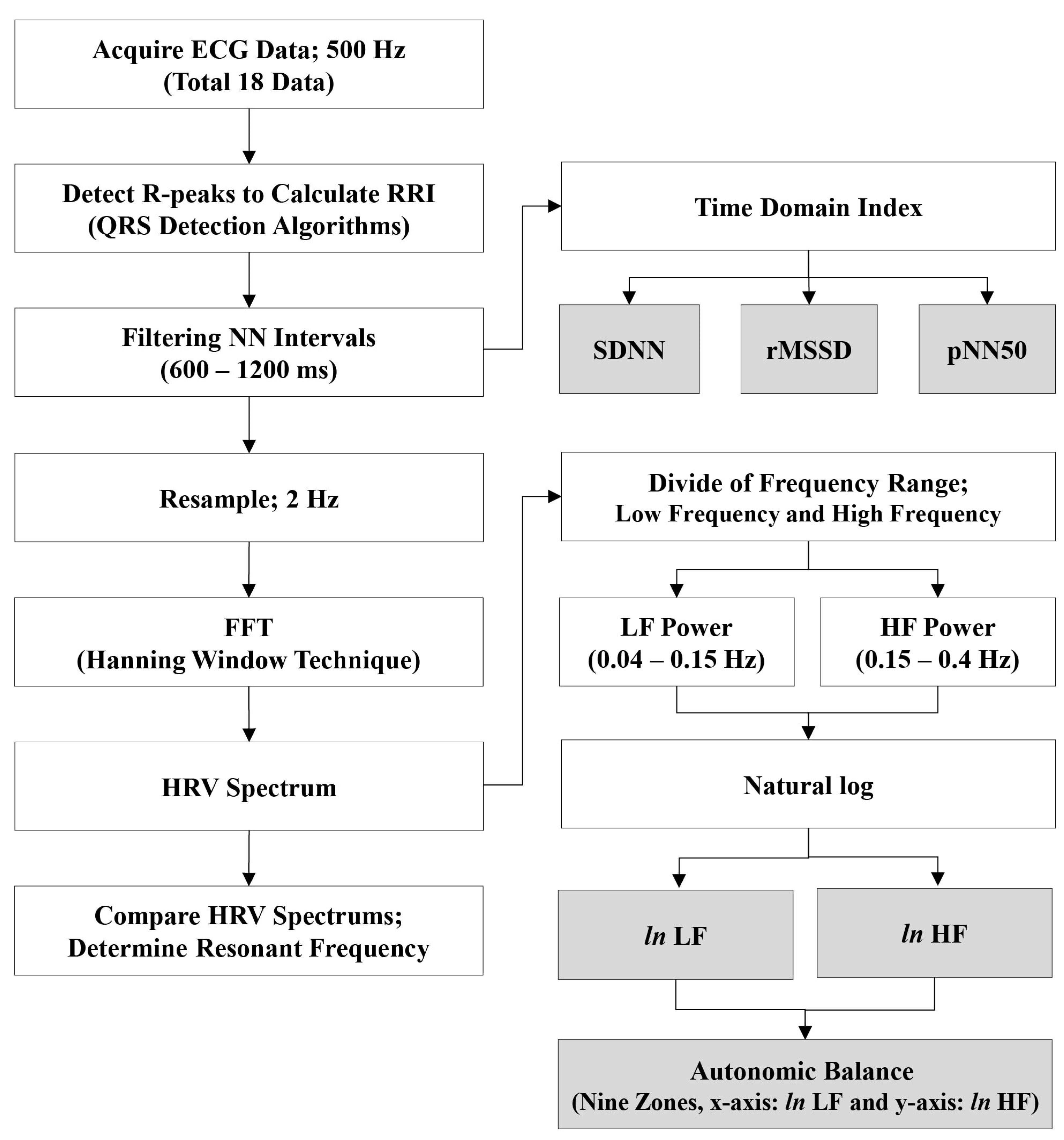

Figure 3. Overview of the signal processing to achieve resonant frequency. Top gray boxes represent the time domain index of the ECG data and the bottom gray boxes represent natural log values of LF and HF characterized for autonomic balance with nine zones.
Figure 3. Overview of the signal processing to achieve resonant frequency. Top gray boxes represent the time domain index of the ECG data and the bottom gray boxes represent natural log values of LF and HF characterized for autonomic balance with nine zones.
Ijerph 19 15676 g003
Ijerph 19 15676 g004 550

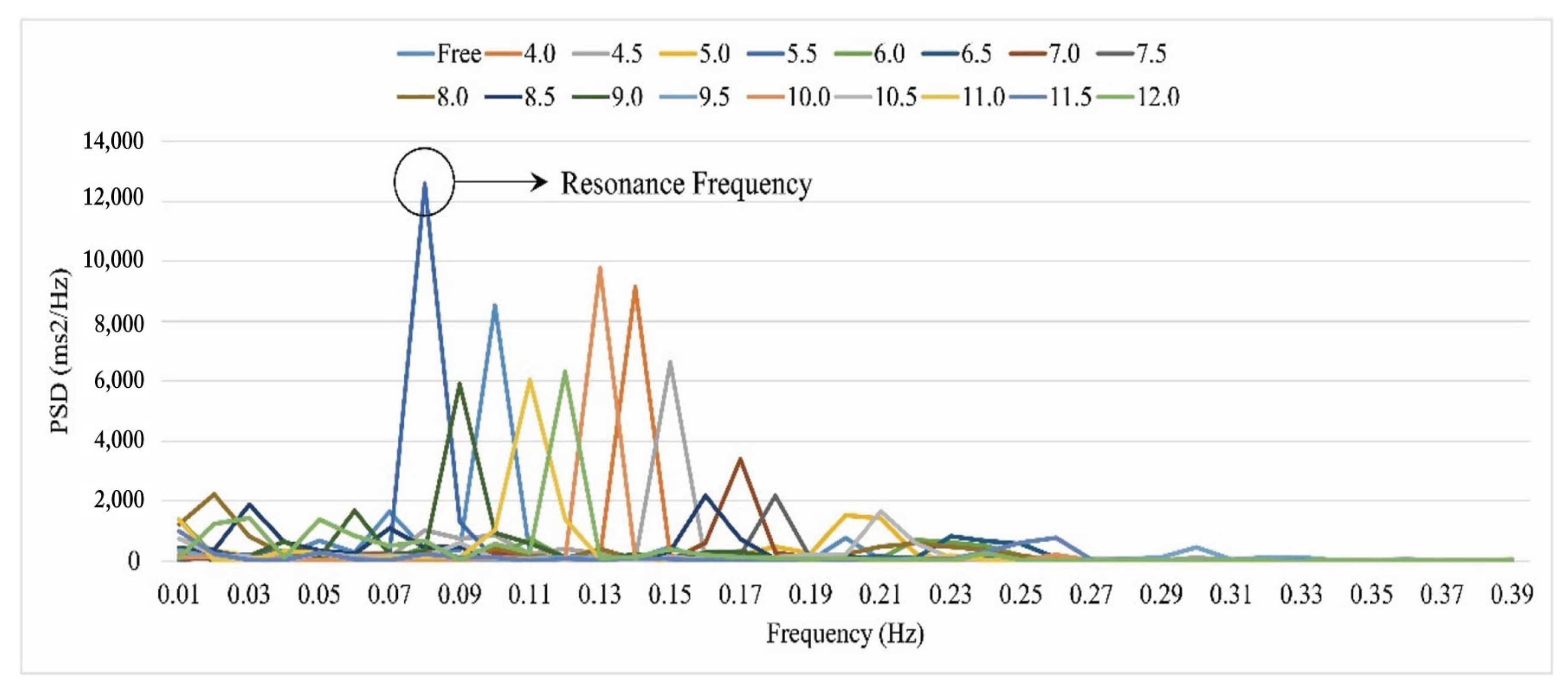

Figure 4. Example of harmonic frequency in participant 1 based on the highest amplitude value among the respiration conditions.
Figure 4. Example of harmonic frequency in participant 1 based on the highest amplitude value among the respiration conditions.
Ijerph 19 15676 g004
Ijerph 19 15676 g005 550

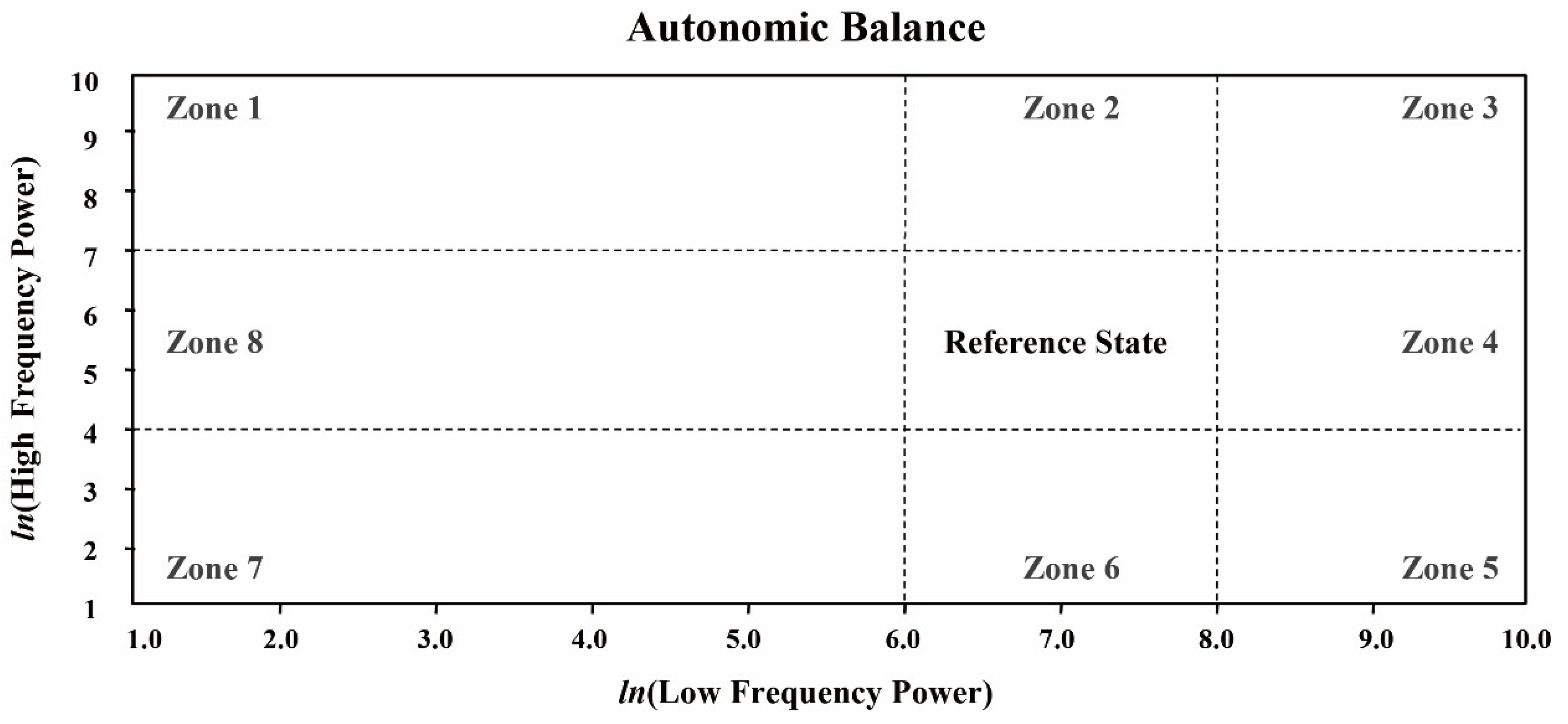

Figure 5. The zone of autonomic balance using HRV spectrum analysis.
Figure 5. The zone of autonomic balance using HRV spectrum analysis.
Ijerph 19 15676 g005
Ijerph 19 15676 g006 550

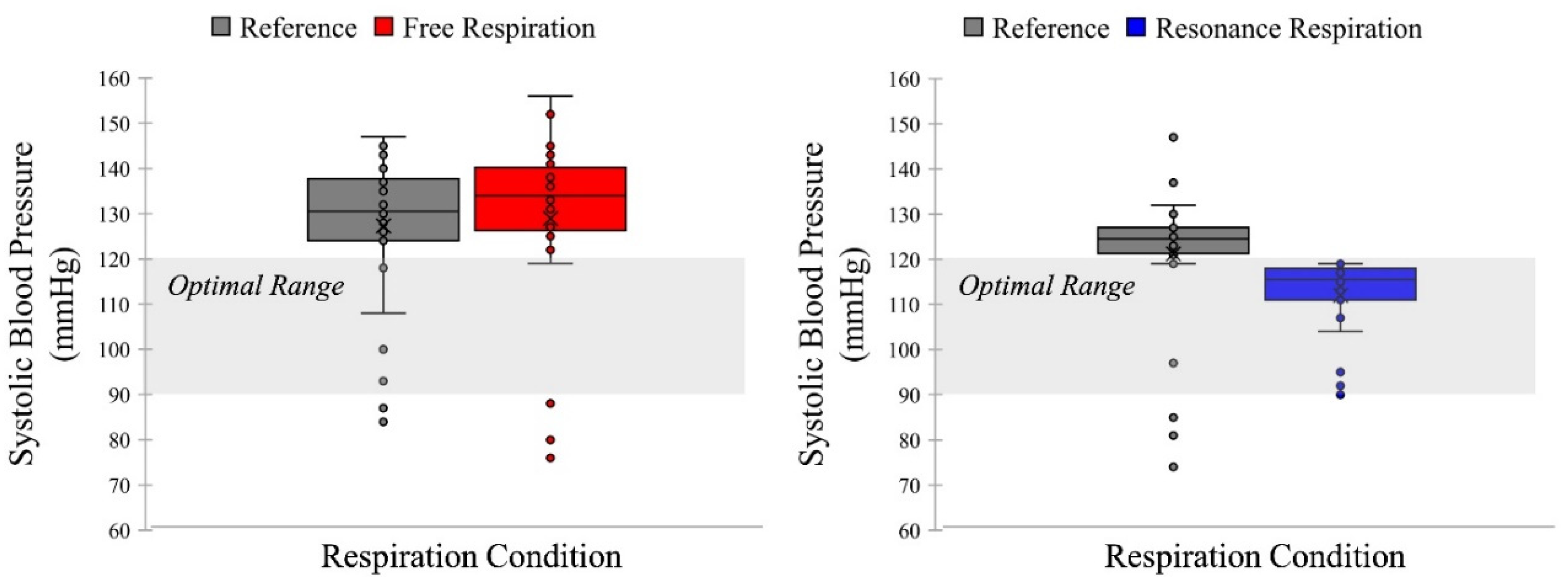

Figure 6. Comparison of results of systolic blood pressure between free respiration and resonance frequency. The resonance frequency was within the optimal range after respiration task, unrelated to the state before the task. On the other hand, the free respiration condition was within the (pre)hypertension state; thus, it was not in the optimal range.
Figure 6. Comparison of results of systolic blood pressure between free respiration and resonance frequency. The resonance frequency was within the optimal range after respiration task, unrelated to the state before the task. On the other hand, the free respiration condition was within the (pre)hypertension state; thus, it was not in the optimal range.
Ijerph 19 15676 g006
Ijerph 19 15676 g007 550

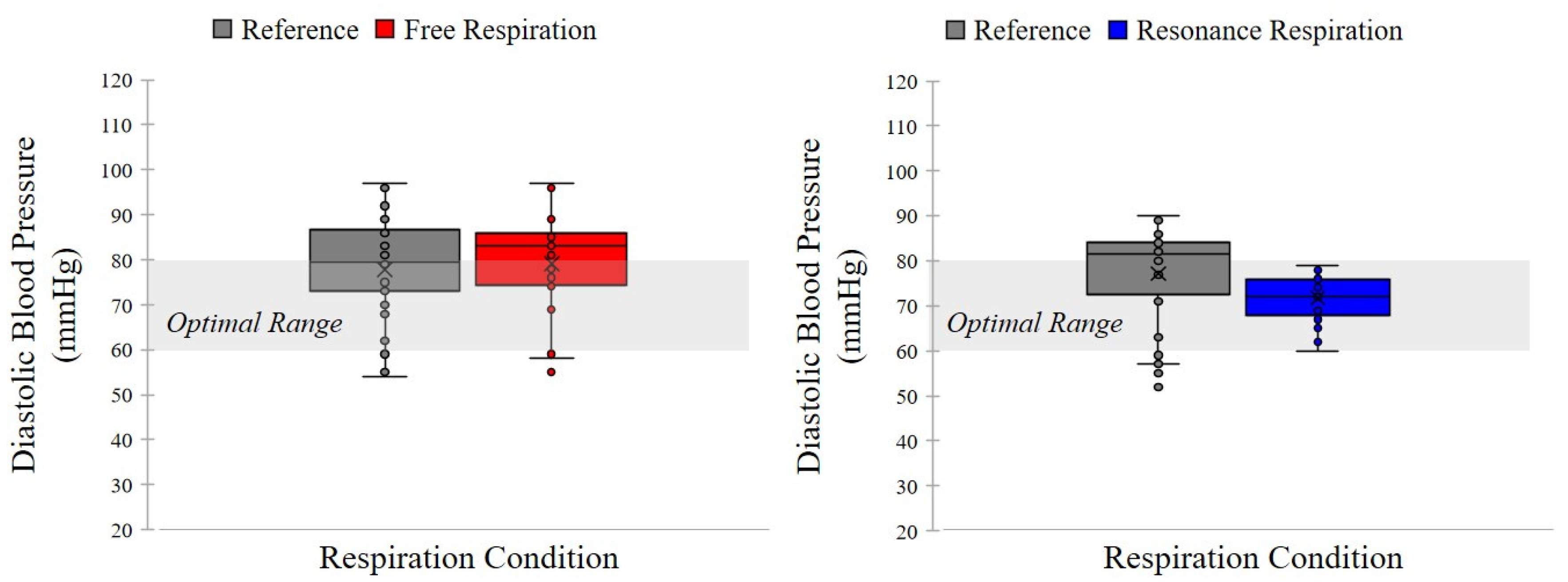

Figure 7. Comparison of results of diastolic blood pressure between free respiration and resonance frequency. The resonance frequency, to diastolic blood pressure, was within the optimal range after respiration task and unrelated to the state before task. However, the free respiration condition was not within the optimal range.
Figure 7. Comparison of results of diastolic blood pressure between free respiration and resonance frequency. The resonance frequency, to diastolic blood pressure, was within the optimal range after respiration task and unrelated to the state before task. However, the free respiration condition was not within the optimal range.
Ijerph 19 15676 g007
Ijerph 19 15676 g008 550

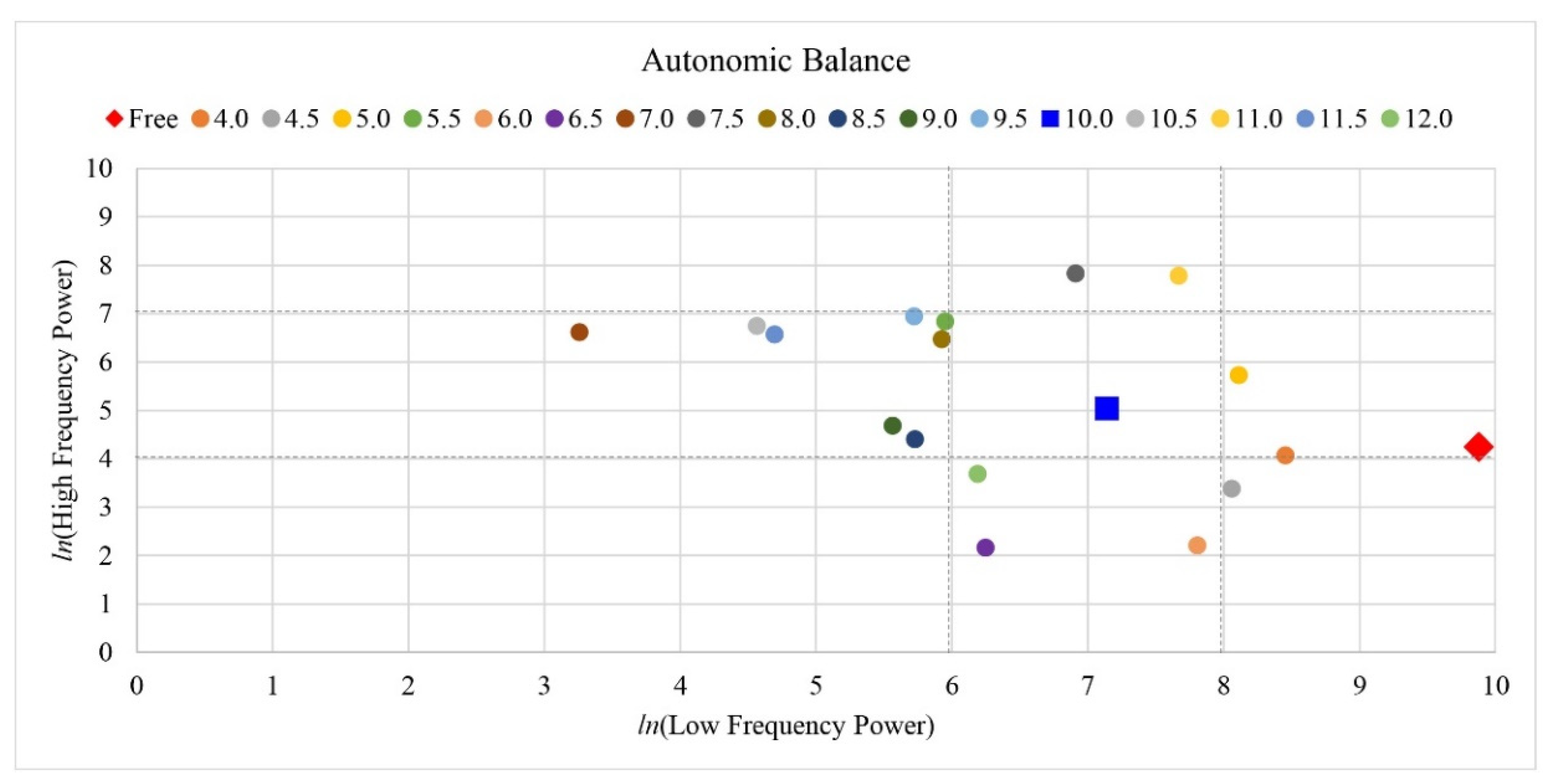

Figure 8. Example of change in autonomic balance in participant 3 causing respiration conditions. The resonance frequency was respiration condition 10, and it was only located in the reference zone. The other respiration condition including free respiration condition was not located in the reference zone.
Figure 8. Example of change in autonomic balance in participant 3 causing respiration conditions. The resonance frequency was respiration condition 10, and it was only located in the reference zone. The other respiration condition including free respiration condition was not located in the reference zone.
Ijerph 19 15676 g008
Ijerph 19 15676 g009 550

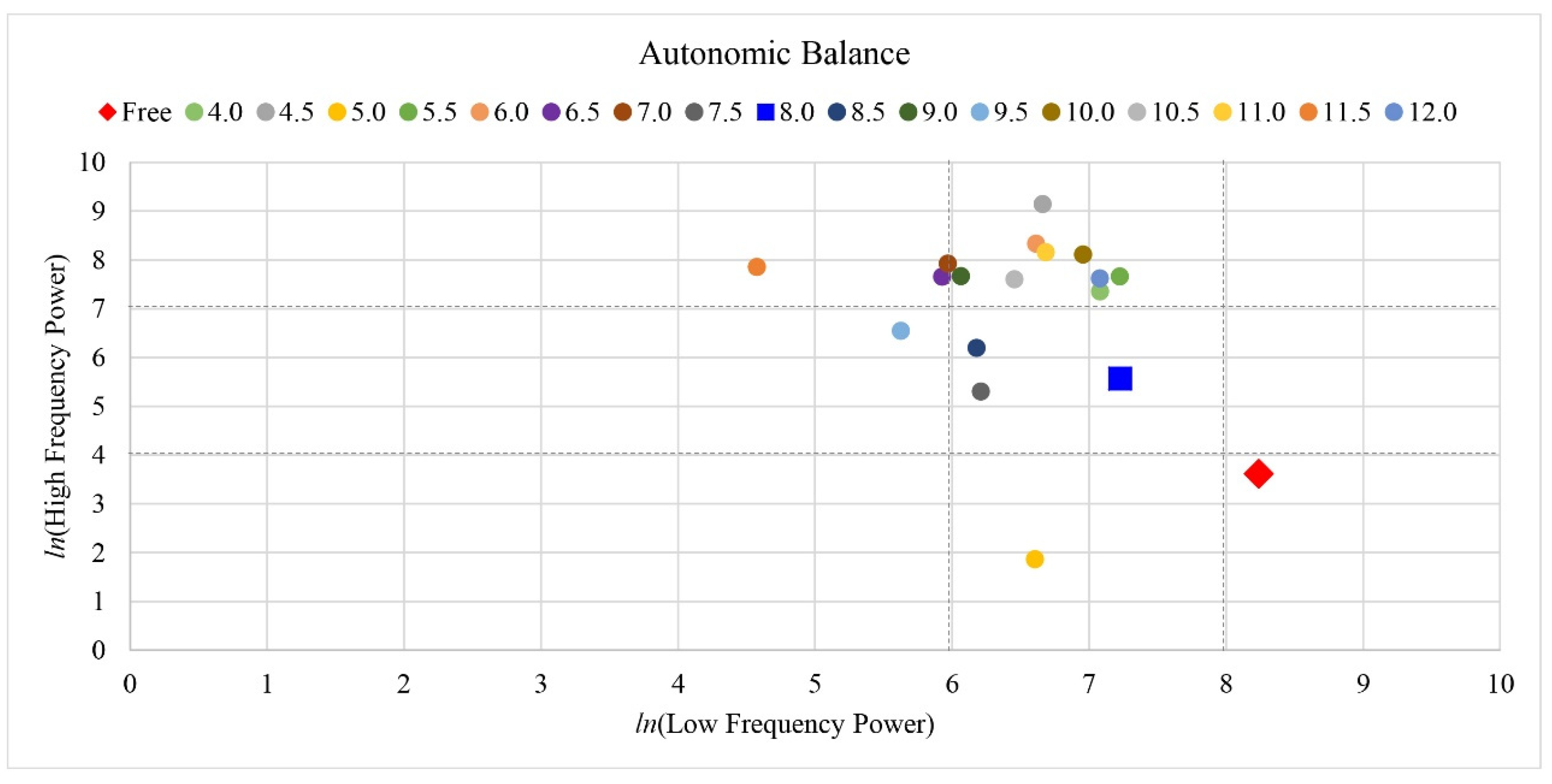

Figure 9. Example of change in autonomic balance in participant 8 causing respiration conditions. The resonance frequency was respiration condition 8, and the other respiration conditions (7.5 and 8.5) with resonance frequency were located in the reference zone.
Figure 9. Example of change in autonomic balance in participant 8 causing respiration conditions. The resonance frequency was respiration condition 8, and the other respiration conditions (7.5 and 8.5) with resonance frequency were located in the reference zone.
Ijerph 19 15676 g009
Ijerph 19 15676 g010 550

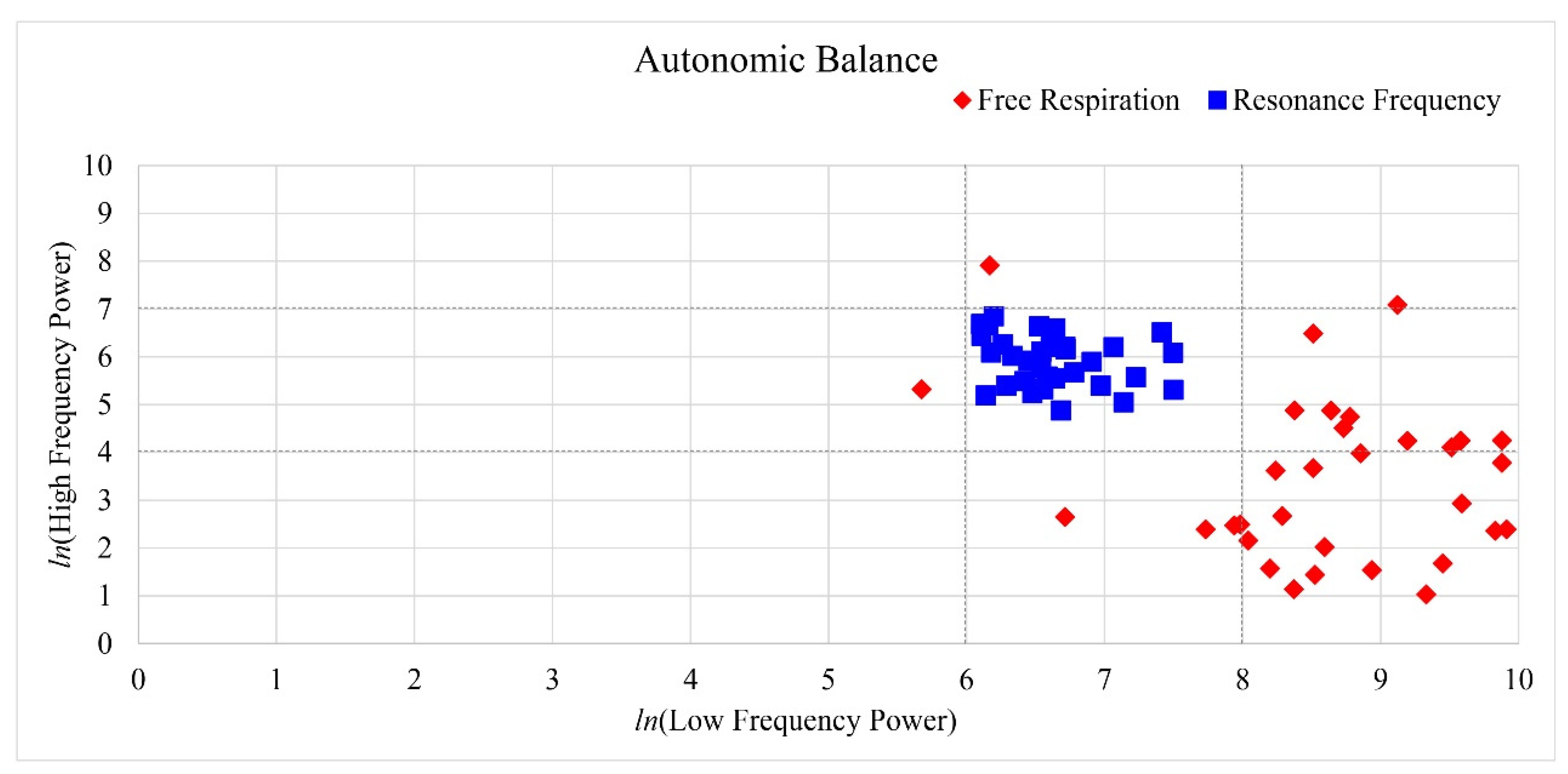

Figure 10. Comparison of results of autonomic balance between free respiration and resonance frequency. The resonance frequency was within the reference zone after respiration task. However, the free respiration condition was not within the reference zone, and almost all participants were located in zones 4 and 5, such as unstable state of autonomic balance (high sympathetic, normal, and low parasympathetic). The time domain LF and HF indices can be quantified during 2 min to 24 h monitoring periods. We obtained the minimum range of ECG data to investigate the short-term harmonic respiration effects; therefore, how changes in autonomic balance evolve over time is not provided here.
Figure 10. Comparison of results of autonomic balance between free respiration and resonance frequency. The resonance frequency was within the reference zone after respiration task. However, the free respiration condition was not within the reference zone, and almost all participants were located in zones 4 and 5, such as unstable state of autonomic balance (high sympathetic, normal, and low parasympathetic). The time domain LF and HF indices can be quantified during 2 min to 24 h monitoring periods. We obtained the minimum range of ECG data to investigate the short-term harmonic respiration effects; therefore, how changes in autonomic balance evolve over time is not provided here.
Ijerph 19 15676 g010
Ijerph 19 15676 g011 550

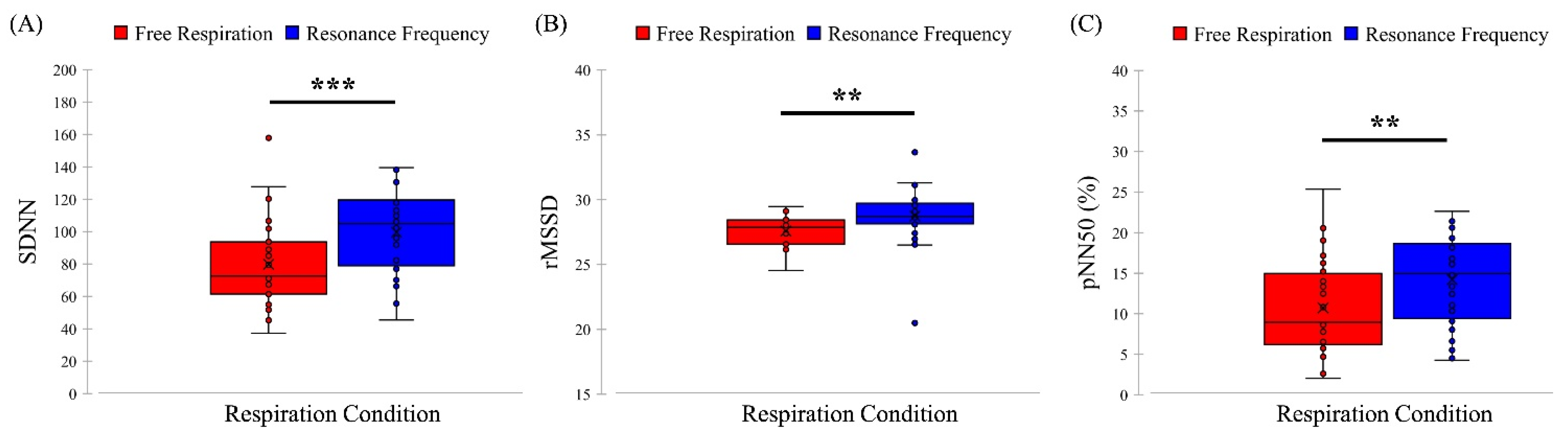

Figure 11. Comparison results of time domain indices of SDNN (A), rMSSD (B), and pNN50 (C) for the free respiration and resonance frequency condition with paired t-tests (*** p < 0.001, ** p < 0.007 adjusted by Bonferroni correction).
Figure 11. Comparison results of time domain indices of SDNN (A), rMSSD (B), and pNN50 (C) for the free respiration and resonance frequency condition with paired t-tests (*** p < 0.001, ** p < 0.007 adjusted by Bonferroni correction).
Ijerph 19 15676 g011
Ijerph 19 15676 g012 550

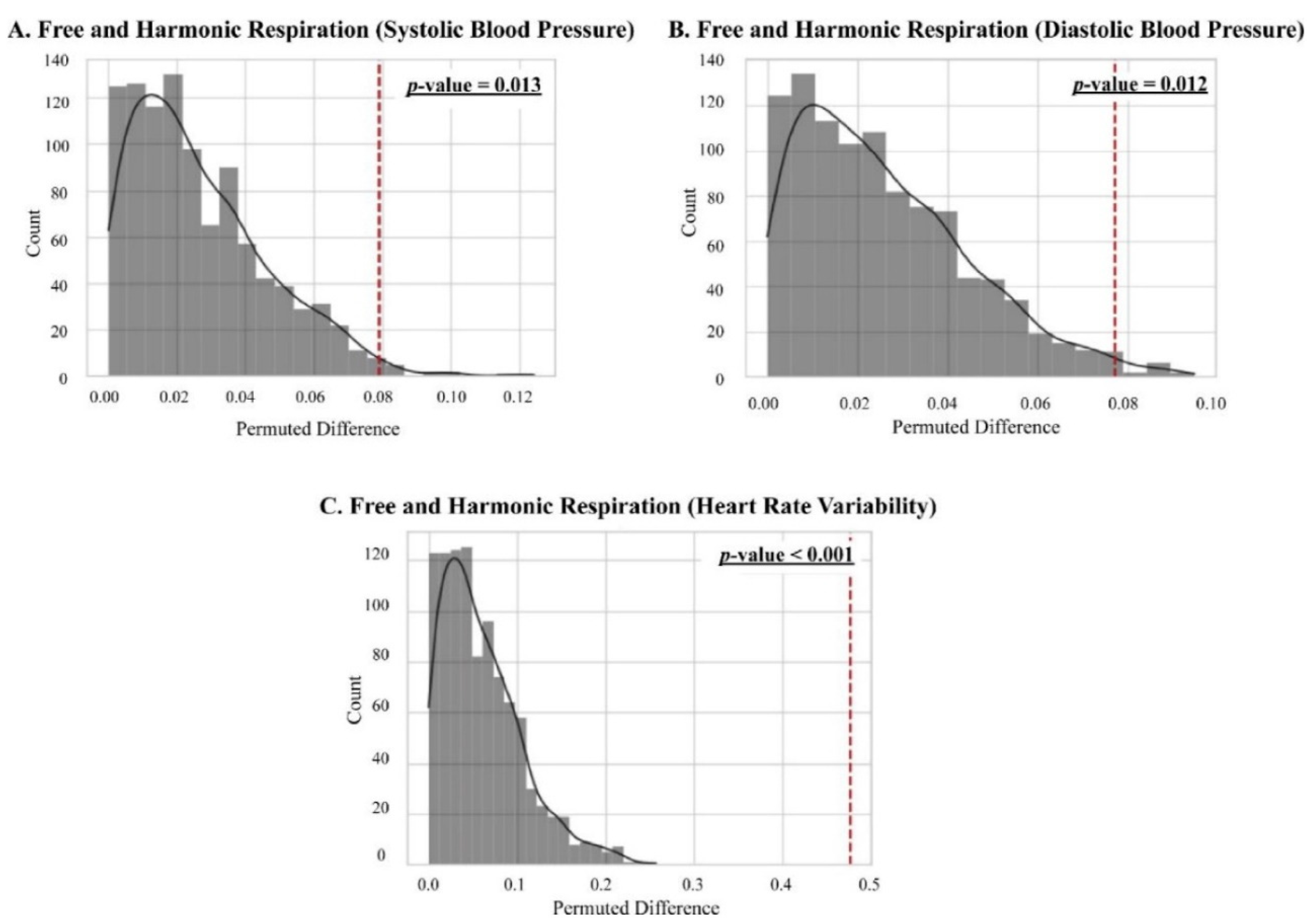

Figure 12. Results of permutation tests for free and harmonic respiration. The underline in the upper right corner of each figure represents empirical p-values.
Figure 12. Results of permutation tests for free and harmonic respiration. The underline in the upper right corner of each figure represents empirical p-values.
Ijerph 19 15676 g012
Ijerph 19 15676 g013 550
Figure 13. Receiver operating characteristics curves for training dataset with 5-fold cross validation according to five classifiers.
Figure 13. Receiver operating characteristics curves for training dataset with 5-fold cross validation according to five classifiers.
Ijerph 19 15676 g013
Ijerph 19 15676 g014 550
Figure 14. Receiver operating characteristics curves for test dataset with 5-fold cross validation according to five classifiers.
Figure 14. Receiver operating characteristics curves for test dataset with 5-fold cross validation according to five classifiers.
Ijerph 19 15676 g014
Ijerph 19 15676 g015 550
Figure 15. Respiration training system with individual harmonic frequencies in real time.
Figure 15. Respiration training system with individual harmonic frequencies in real time.
Ijerph 19 15676 g015
Table
Table 1. Results of breathing cycle (harmonic frequency) of each participant based on highest HRV spectrum value in LF range (0.04–0.15Hz).
Table 1. Results of breathing cycle (harmonic frequency) of each participant based on highest HRV spectrum value in LF range (0.04–0.15Hz).
ParticipantsP1P2P3P4P5P6P7P8P9P10P11
Breathing Cycle5.5610811.54128121110.5
ParticipantsP12P13P14P15P16P17P18P19P20P21P22
Breathing Cycle7.596.511.564.59711.56.55
ParticipantsP23P24P25P26P27P28P29P30P31P32
Breathing Cycle5.57117.596.55.54.556.5
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mun, S.; Park, S.; Whang, S.; Whang, M. Effects of Temporary Respiration Exercise with Individual Harmonic Frequency on Blood Pressure and Autonomic Balance. Int. J. Environ. Res. Public Health 2022, 19, 15676. https://doi.org/10.3390/ijerph192315676

AMA Style

Mun S, Park S, Whang S, Whang M. Effects of Temporary Respiration Exercise with Individual Harmonic Frequency on Blood Pressure and Autonomic Balance. International Journal of Environmental Research and Public Health. 2022; 19(23):15676. https://doi.org/10.3390/ijerph192315676

Chicago/Turabian Style

Mun, Sungchul, Sangin Park, Sungyop Whang, and Mincheol Whang. 2022. "Effects of Temporary Respiration Exercise with Individual Harmonic Frequency on Blood Pressure and Autonomic Balance" International Journal of Environmental Research and Public Health 19, no. 23: 15676. https://doi.org/10.3390/ijerph192315676

APA Style

Mun, S., Park, S., Whang, S., & Whang, M. (2022). Effects of Temporary Respiration Exercise with Individual Harmonic Frequency on Blood Pressure and Autonomic Balance. International Journal of Environmental Research and Public Health, 19(23), 15676. https://doi.org/10.3390/ijerph192315676

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
