Estimation of Fine-Grained Foot Strike Patterns with Wearable Smartwatch Devices
Abstract
:1. Introduction
- With the hypothesis that different types of ground contact during walking and running would result in differences in whole-body movements, we propose an intelligent system that can indirectly observe and recognize the FS patterns based on MTS signals measured from a smartwatch.
- We conducted two experiments (i.e., walking and running) to validate the proposed approach, which aims to investigate whether captured motion signals from the wrist deliver enough information to differentiate FS patterns.
2. Related Work
2.1. Human Activity Recognition
2.2. Recognition of Foot Motions from Other Body Parts Apart from Feet
2.3. Sensor-Based Recognition of Foot Strike Patterns
3. Proposed Approach
3.1. Activity Definition

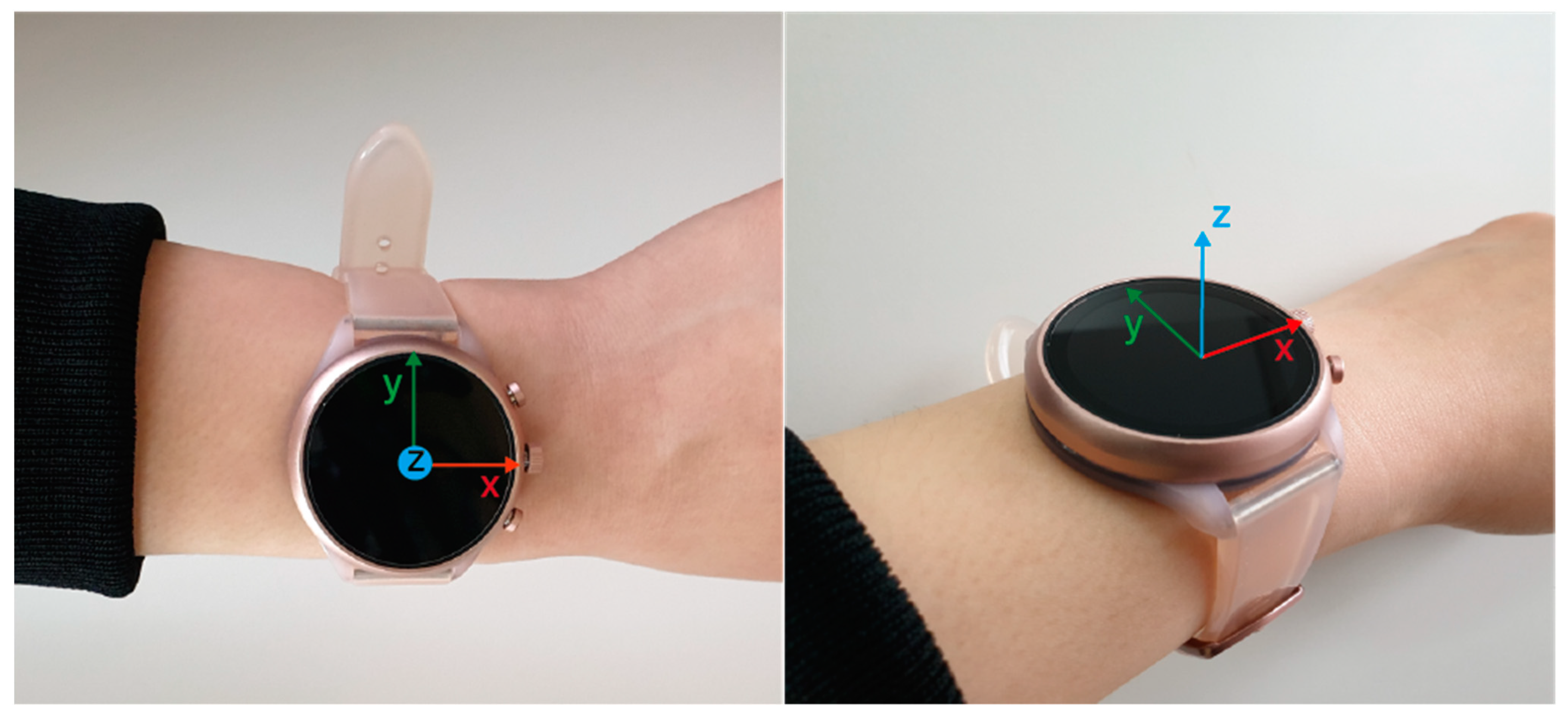

3.2. System for Data Collection
3.3. Models
3.3.1. Baseline: Feature-Based Machine Learning

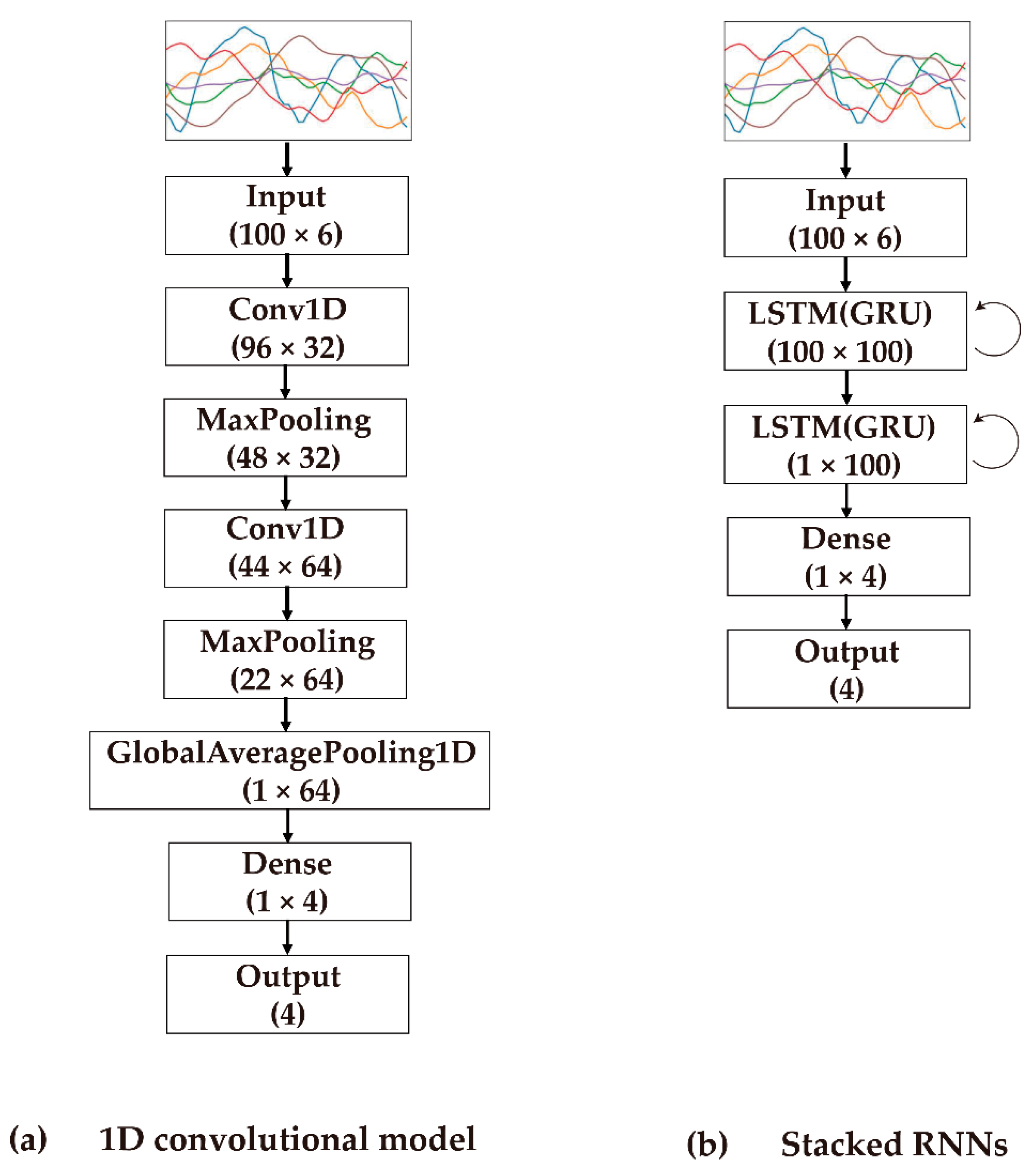

3.3.2. End-to-End Machine Learning
4. Experiment
4.1. Data Acquisition
4.1.1. Walking
4.1.2. Running
4.2. Classification
4.2.1. Feature-Based Classification
4.2.2. End-to-End Machine Learning
4.3. Results
5. Discussion and Limitations
5.1. Classification Performance
5.2. Data Imbalance
5.3. Effect of Waveform Length
5.4. Applications & Explorations
5.5. Limitations and Future Work
5.5.1. Inter-User Variability
5.5.2. Scalability to a Large Dataset
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Acknowledgments
Conflicts of Interest
Appendix A
References
