Implementing High-Flow Nasal Oxygen Therapy in Medical Wards: A Scoping Review to Understand Hospital Protocols and Procedures
1
Melbourne Medical School, University of Melbourne, Corner Grattan Street and Royal Parade, Melbourne 3010, Australia
2
Respiratory Research @Alfred, School of Translational Medicine, The Alfred Centre, Monash University, Melbourne 3004, Australia
3
Department of Respiratory and Sleep Medicine, Austin Health, Heidelberg 3084, Australia
4
Institute for Breathing and Sleep, Heidelberg 3084, Australia
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2024, 21(6), 705; https://doi.org/10.3390/ijerph21060705
Submission received: 15 April 2024
/
Revised: 24 May 2024
/
Accepted: 28 May 2024
/
Published: 30 May 2024
(This article belongs to the Section Environmental Health)
Abstract
:Acute hypoxemic respiratory failure (ARF) is a common cause for hospital admission. High-flow nasal oxygen (HFNO) is increasingly used as a first-line treatment for patients with ARF, including in medical wards. Clinical guidance is crucial when providing HFNO, and health services use local health guidance documents (LHGDs) to achieve this. It is unknown what hospital LHGDs recommend regarding ward administration of HFNO. This study examined Australian hospitals’ LHGDs regarding ward-based HFNO administration to determine content that may affect safe delivery. A scoping review was undertaken on 2 May 2022 and updated on 29 January 2024 to identify public hospitals’ LHGDs regarding delivery of HFNO to adults with ARF in medical wards in two Australian states. Data were extracted and analysed regarding HFNO initiation, monitoring, maintenance and weaning, and management of clinical deterioration. Of the twenty-six included LHGDs, five documents referenced Australian Oxygen Guidelines. Twenty LHGDs did not define a threshold level of hypoxaemia where HFNO use was recommended over conventional oxygen therapy. Thirteen did not provide target oxygen saturation ranges whilst utilising HFNO. Recommendations varied regarding maximal levels of inspired oxygen and flow rates in the medical ward. Eight LHGDs did not specify any system to identify and manage deteriorating patients. Five LHGDs did not provide guidance for weaning patients from HFNO. There was substantial variation in the LHGDs regarding HFNO care for adult patients with ARF in Australian hospitals. These findings have implications for the delivery of high-quality, safe clinical care in hospitals.
1. Introduction
Acute respiratory failure (ARF) encompasses a range of conditions affecting the respiratory system’s ability to provide oxygen to the body (hypoxemic respiratory failure), or clear carbon dioxide (hypercapnic respiratory failure) [1] and is a common cause for hospital admission in the adult population [2]. The overall disease burden is difficult to assess, but ARF has been associated with a mortality rate of 46% in severe cases [3]. In the general medical ward setting, ARF secondary to coronavirus disease (COVID-19) was associated with a mortality rate of 36% [4]. Determining optimal management for and improving survival from ARF remain key priorities for clinicians.
Therapies for ARF in the ward setting (not including intensive care units (ICUs) or emergency departments) include conventional oxygen therapy (COT), non-invasive ventilation, and, since the mid-2000s, high-flow nasal oxygen therapy (HFNO) (Figure 1) [5]. HFNO is a system that allows the delivery of high flows (up to 60 litres per minute) of humified, heated air together with entrained oxygen [6]. A systematic review by Agarwal et al. found that HFNO reduced the need for invasive ventilation and escalation of therapy compared with COT use among people with COVID-19 and ARF [7]. A separate systematic review by Lee et al. identified that HFNO improved patient comfort, work of breathing, and oxygenation when compared with COT and non-invasive ventilation (NIV) [8].
In 2022, the European Respiratory Society published the first comprehensive clinical practice guideline specifically focused on HFNO, recommending HFNO use as first-line therapy over COT or NIV for patients with severe ARF [9]. Since the COVID-19 pandemic, HFNO has been increasingly utilised in the general medical ward setting for people with ARF to alleviate strain on ICU resources [10,11]. Nevertheless, there is a lack of consensus as to the required resources and safest clinical environment in which to provide HFNO to people with ARF given their risk of clinical deterioration and death.
While the use of evidence based national or international clinical practice guidelines can lead to improved outcomes, the lack of effective implementation, poor adoption, and adherence to guidelines remain major challenges [12]. Healthcare organisations have increasingly attempted to develop and implement local guidelines, policies, procedures, and protocols to complement clinical practice guidelines and drive the implementation of safe, timely, evidence-based healthcare [13]. While local health guidelines are less formalised, they aim to provide information to enable clinicians to make decisions and achieve specific health goals for patients. Guidelines and policies support procedures that instruct how such a policy may be implemented through specific interventions, and protocols provide specific information (e.g., steps of required actions) to operationalise a policy in a standardised way [14]. For task-orientated healthcare interventions such as delivery of HFNO to patients with ARF, local health guidance documents (guidelines, protocols, policies, and procedures) are crucial to ensure safe implementation to the right patient groups [15]. However, it is unclear whether hospitals have specific local health guidance documents (LHGDs) for ward-based administration of HFNO, if these draw on and complement clinical practice guidelines, or what the quality of the information provided in these documents is. Furthermore, variations in LHGDs between institutions may contribute to variations in the quality and safety of patient care.
This study aimed to firstly identify LHGDs regarding the delivery of HFNO to adults with ARF in medical wards in Australian hospitals; secondly, to examine the content and structure of the LHGDs; thirdly, to identify if the advice given in these LHGDs regarding clinical management and HFNO implementation varied between hospitals; and finally, to develop a standardised minimum information set regarding HFNO delivery to adults with ARF in medical wards. We hypothesised that informational content and document structure of LHGDs would vary widely between healthcare organisations.
2. Materials and Methods
A scoping review approach was undertaken to identify and examine public hospitals’ LHGDs regarding the delivery of HFNO to adults with ARF in medical wards in the two largest Australian states of Victoria and New South Wales. The search was conducted on 2 May 2022, and then updated on 29 January 2024 using the PROMPT database (https://prompt.org.au/, accessed 29 January 2024). PROMPT is an online management system that houses guidance documents for over 110 public and private health services located in Victoria and New South Wales. This management system supports the sharing of LHGDs amongst participating health services to support the delivery of high quality, safe clinical care in health services, irrespective of their size and resources.
PROMPT was searched using the words ‘nasal high flow oxygen therapy’, which identified any documents that included any one or combinations of these words. This search was supplemented by including LHGDs from Melbourne metropolitan teaching hospitals with which the research team were affiliated and which at the time of the study were not using PROMPT.
2.1. Inclusion and Exclusion Criteria
Only LHGDs that met the following inclusion criteria were included in this scoping review:
- the document was a local guideline, policy, procedure, or protocol;
- the term ‘nasal high flow oxygen therapy’ or similar was included in the title;
- the document focused on the provision of HFNO to adult inpatients being managed in medical wards.
Documents were excluded if they were focused on caring for different patient populations (pregnant or paediatric patients) or providing care to people in aged care facilities, at home, or in palliative care settings; focused on the medical treatment of COVID-19 (not delivery of HFNO to people with COVID-19); or described the provision of HFNO to adult inpatients in the emergency department or ICU only. For institutions with multiple documents meeting the inclusion criteria, all qualifying LHGDs were reviewed.
2.2. Screening, Data Extraction and Analysis
Title and full text screening was conducted by two independent reviewers (TT and MZ), with any differences resolved via discussion with additional reviewers, NS, YK, and CB. A standardised data extraction tool was developed to extract data regarding the following: 1. Indications for HFNO; 2. HFNO initiation, monitoring, maintenance, and weaning; and 3. Managing clinical deterioration whilst on HFNO and/or any pathway for the escalation of care. Data were extracted and cross-checked independently by two reviewers (TT and MZ), with disagreements resolved by discussion with the full study team. Data were analysed using descriptive statistics using Microsoft Excel (v16.83).
3. Results
The initial search yielded 34,352 documents, with 11 additional documents included from two metropolitan Victorian health services not using PROMPT. Following title screening, 32 documents underwent full text screening, with 6 documents then excluded for not meeting eligibility criteria, leaving 26 documents included in the final review (Figure 2). The updated search in 2024 did not identify any new documents for inclusion. Of the 26 included documents from the search on 2 May 2022, 11 were unchanged. Nine documents had been updated with new version numbers or logo changes, but without content changes. Six documents contained minor content changes.
3.1. Characteristics of Included Documents
Eight (30.8%) documents were from metropolitan health services, with the remainder (and thus the majority) from regional and rural services. Most (n = 25) LHGDs were from Victorian health services. High-flow nasal oxygen therapy LHGDs were variously described as local guidelines (n = 13, 50.0%), procedures (n = 9, 34.6%), policies (n = 5, 19.2%), and protocols (n = 3, 11.5%). Nineteen documents (73.1%) solely focused on HFNO guidance, with the other seven documents covering HFNO in addition to COT. Three documents (11.5%) additionally contained specific instructions for HFNO use for people with COVID-19 and ARF. The specified target audience for the LHGDs included nursing staff (n = 18, 69.2%), medical staff (n = 17, 65.4%), and physiotherapists, (n = 10, 38.5%), with 5 LHGDs (19.2%) not specifying the target audience.
Reference to national and international clinical practice guidelines regarding acute oxygen therapy or HFNO varied amongst the LHGDs. Five documents referred to the 2015 Thoracic Society of Australia and New Zealand (TSANZ) Acute Oxygen Guidelines [16], three referred to the 2008 British Thoracic Society Guideline for Emergency Oxygen Use in Adults [17]. None referred to the 2017 update [18]. No documents referred to European Respiratory Society guidelines on HFNO [9].
3.2. Indications for HFNO
The majority of LHGDs (n = 20, 76.9%) did not provide a definition for hypoxaemia using either oxygen saturation (SpO2) values or arterial blood gas (ABG) partial pressure of oxygen (PaO2) parameters. When definitions were provided, the SpO2 parameter varied (Table 1). All but one document provided examples of indications for HFNO use (i.e., refractory hypoxemia despite conventional oxygen therapy, during breaks from non-invasive ventilation, etc). Most documents (n = 23, 88.5%) listed contraindications for HFNO use. Five (19.2%) LHGDs recommended considering the patient’s goals of care prior to commencement of HFNO. Few documents described the need to communicate HFNO treatment plans with the patient (n = 8, 30.7%) or the patient’s informal carers (n = 4, 15.4%). Seven (26.9%) documents described conditions which may predispose a patient to developing hypercapnic respiratory failure.
3.3. HFNO Initiation and Maintenance
Arterial blood gases were rarely recommended prior to initiation of HFNO (Table 2). Most documents did not provide target SpO2 ranges to be achieved either at initiation or during ongoing treatment with HFNO. Recommendations regarding patient observations (including type and frequency) required to inform ongoing care and delivery of HFNO varied widely in the LHGDs.
The staff permitted to prescribe or initiate HFNO were not specified in six (23.1%) documents. The seniority of medical, nursing and physiotherapy staff able to initiate HFNO was not specified in 23 (88.5%), 9 (34.6%), and 18 (69.2%) LHGDs, respectively. The clinical discipline (i.e., medical, nursing or physiotherapy) of health professionals who should reassess patients after initiation of HFNO to determine treatment response, ongoing need for HFNO, adverse effects or clinical deterioration was not specified in any of the documents where multiple target audiences were listed (i.e., nurses and medical staff).
3.4. Escalation of HFNO Care
Maximum fraction of inspired oxygen (FiO2) and device flow rates that could be safely administered in the medical ward setting were variable. Of 17 documents that specified an upper FiO2 limit for the medical ward, the limit varied between 40 and 52%. Similarly, the maximum device flow rate for the medical ward varied between 30 and 60 litres per minute (n = 19) (Table S1).
Twenty-four (92.3%) LHGDs contained at least one descriptor of when a patient using HFNO should be medically reviewed (e.g., ongoing respiratory distress or persisting hypoxaemia on HFNO). Twenty-one documents (80.8%) described potential adverse events related to HFNO administration. The systems used to detect clinically deteriorating patients varied considerably between hospitals, with the most-used system being the medical emergency team criteria (n = 15, 57.7%), followed by the adult deterioration detection system (n = 6, 23.1%). Eight (30.8%) documents did not specify any system for the escalation of treatment for patients deteriorating whilst using HFNO.
3.5. Weaning
Twenty-one documents (80.1%) provided some guidance for weaning patients from HFNO. The time intervals for down-titrating HFNO (e.g., to reduce flow/FiO2 every 6 h) were not specified in 22 (84.6%) documents (Table 3). Nineteen documents (73.1%) did not specify what oxygen source (COT, nasal prongs, or face mask) patients should be transitioned to following HFNO. Some documents specified different targets to cease HFNO for patients with and without chronic obstructive pulmonary disease (COPD) (Supplementary Table S1).
4. Discussion
This is the first scoping review to examine LHGDs regarding ward-based administration of HFNO to adults with ARF. We identified that a small number of health services had specific LHGDs for HFNO use on medical wards, and among those identified, there were several areas of variation or inadequate information, including inconsistent definitions for hypoxemia, variable target saturation ranges for patients being treated with HFNO, limited information regarding detecting deteriorating patients, and minimal guidance regarding safe monitoring of patients during initiation, maintenance, and weaning of HFNO. These inconsistencies are important, as they may contribute to the well-recognised variations in care that occur within countries. Furthermore, inconsistencies in procedural implementation present challenges for clinicians who work across multiple health services, both during routine care but particularly during the COVID-19 pandemic when HFNO was used widely on medical wards [20].
While LHGD variance may be attributed to a lack of high-quality evidence to support policy development [21], it is worth noting that most of the LHGDs identified in this study did not refer to national or international acute oxygen or HFNO clinical practice guidelines, and even recommendations supported by strong evidence, such as the need to maintain patient saturations within a target range [19], were not found consistently. The European Respiratory Society Guidelines for HFNO [9] summarise the recent evidence regarding HFNO and provide key indications for when HFNO should be utilised compared with other oxygen or ventilatory support interfaces in different acute settings. At present, the LHGDs reviewed do not consistently reflect ERS clinical practice guidelines recommendations. While many of the LHGDs predated the ERS guidelines, updates to LHGDs that reflect current international guidelines are required and may support the standardisation of care.
Another option to address the issue of LHGD inconsistency is through the development, testing, and implementation of standardised templates for certain procedures (such as initiation of HFNO or NIV). The template could then be customised to meet the specific needs of individual health services.
Although critical for assessing respiratory status and informing clinical decisions, most LHGDs did not recommend an oxygen saturation (SpO2) or ABG value to define hypoxemia and thus guide clinicians as to when to consider initiating HFNO. The Thoracic Society of Australia and New Zealand Acute Oxygen Guidelines recommend initiating COT when people with ARF have SpO2 < 92% (or <88% for people at risk of hypercapnia) [19]. Both parameters are also suitable when considering commencing HFNO. Furthermore, we found that less than half of the LHGDs provided target oxygen saturation ranges for patients receiving HFNO. The clinical importance of oxygen titration is well documented; a meta-analysis by Chu et al. [22] revealed that for every 1% rise in SpO2, the relative risk of in-hospital death for acutely unwell adult inpatients rose by 25%. Adverse effects of hyperoxia are particularly relevant for patients with COPD, where one study found patients who receive titrated oxygen therapy during acute exacerbation have a 58% reduced risk of death [23].
A significant concern when providing HFNO outside of high acuity wards (such as ICU or HDU) is that deteriorating patients may not be recognised promptly, and thus not receive timely escalation of care. Patients with ARF on the ward are likely to require an ‘escalation therapeutic strategy’ [24] to avoid fatal complications. The importance of prompt recognition of patient deterioration is emphasised by the increased morbidity and mortality observed in deteriorating HFNO patients who are intubated after 48 h [25]. We found that a significant portion of the LHGDs did not specify an alert system for staff to promptly detect patient deterioration and initiate rapid escalation of care [26], which is crucial for safe delivery of HFNO to patients with ARF outside of high acuity wards. Similarly, physiological parameters such as respiratory rate, work of breathing and SpO2 are important predictors of patient deterioration and have been incorporated into clinical assessment tools like the ROX index, which predicts the likelihood of HFNO failure [27,28]. We found that instruction to document these parameters varied across the LHGDs and were often omitted. The need for higher HFNO flow rates or FiO2 has also been cited as a useful trigger to recognise patients who require escalation of care such as ICU admission [19]. Very few LHGDs in this study documented upper limits for HFNO flow rate or FiO2 for patients being cared for in the general medical ward setting.
While this study has identified variation in HFNO LHGDs, future research should seek to clarify several practical aspects of LHGD use. It remains uncertain whether clinicians are aware of, and actively use these documents in routine clinical practice. A previous study on utilisation of hospital policies by nursing staff found that local policies were often under-utilised [29]. Similarly, a study by Cousins et al. [30] found that 37% of surveyed Australian practitioners were not aware of the TSANZ Acute Oxygen Clinical Practice Guidelines [16]. Future research could investigate the extent to which clinicians use LHGDs and explore the factors that facilitate or hinder their implementation. Furthermore, studying patient outcomes in health services with comprehensive HFNO LHGDs could provide insights into the importance of high-quality LHGDs for delivering optimal HFNO care.
Strengths and Limitations
To our knowledge, this is the first study of its kind to assess LHGDs to determine if recommendations are evidence based, consistent, and sufficiently detailed to support clinical implementation. Our study adopted a scoping review approach with a defined protocol and rigorous methodology. We utilised the PROMPT LHGD sharing platform, which is used by over one hundred hospitals in the two largest Australian states (which collectively have a population of over 14 million people [31]), and included LHGDs from a mix of metropolitan, rural, and regional hospitals. This study has a limitation that warrants discussion. It could be postulated that as not all health services use the PROMPT platform, the results may not be a true representation of all the guidance documents used for HFNO in the ward setting. However, we were also able to include LHGDs from some hospitals that did not use the PROMPT platform. Despite these being a small proportion of the documents, it is likely that inclusion of a higher number of these documents in this study would not change the results significantly. Even considering this small limitation, this is a first-of-its-kind study and is important in highlighting variations in HFNO local health documents that have not been identified previously.
5. Conclusions
This innovative study has demonstrated significant variation in the structure and content of HFNO local health guidance documents for adult patients with acute respiratory failure in Australian hospitals. Most notably, we identified major variations in guidance regarding the initiation and titration of HFNO, as well as recognising patient deterioration whilst using HFNO. These findings have implications for the delivery of high-quality, evidence-based, safe clinical care when using HFNO in the medical ward setting. Future research should aim to consider how to standardise LHGDs to minimise variations in care and to understand how clinicians currently use LHGDs in routine practice. It may also assess the variance across international HFNO LHGDs and their alignment with established clinical practice guidelines.
Supplementary Materials
The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/ijerph21060705/s1: Table S1: Further characteristics of included LHGDs.
Author Contributions
Conceptualization, N.S., Y.H.K. and C.B., methodology, N.S., Y.H.K. and C.B.; validation, T.T.; formal analysis, T.T.; investigation, T.T.; resources, N.S. and Y.H.K.; data curation, T.T.; writing—original draft preparation, T.T.; writing—review and editing, T.T., N.S., Y.H.K. and C.B., supervision, N.S., project administration, N.S. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Data Availability Statement
The data used are not publicly available to maintain the anonymity of the health services that were included in the study.
Acknowledgments
We acknowledge and thank Muhtasim Zahin (MZ) who kindly assisted with some of the initial data screening and collection.
Conflicts of Interest
The authors declare no conflicts of interest.
References
- Roussos, C.; Koutsoukou, A. Respiratory failure. Eur. Respir. J. 2003, 22, 3s–14s. [Google Scholar] [CrossRef]
- Lewandowski, K. Contributions to the epidemiology of acute respiratory failure. Crit. Care 2003, 7, 288–290. [Google Scholar] [CrossRef] [PubMed]
- Bellani, G.; Laffey, J.G.; Pham, T.; Fan, E.; Brochard, L.; Esteban, A.; Gattinoni, L.; van Haren, F.; Larsson, A.; McAuley, D.F.; et al. Epidemiology, Patterns of Care, and Mortality for Patients with Acute Respiratory Distress Syndrome in Intensive Care Units in 50 Countries. JAMA 2016, 315, 788–800. [Google Scholar] [CrossRef] [PubMed]
- Cammarota, G.; Esposito, T.; Azzolina, D.; Cosentini, R.; Menzella, F.; Aliberti, S.; Coppadoro, A.; Bellani, G.; Foti, G.; Grasselli, G.; et al. Noninvasive respiratory support outside the intensive care unit for acute respiratory failure related to coronavirus-19 disease: A systematic review and meta-analysis. Crit. Care 2021, 25, 268. [Google Scholar] [CrossRef] [PubMed]
- Roca, O.; Riera, J.; Torres, F.; Masclans, J.R. High-flow oxygen therapy in acute respiratory failure. Respir. Care 2010, 55, 408–413. [Google Scholar] [PubMed]
- Nishimura, M. High-Flow Nasal Cannula Oxygen Therapy in Adults: Physiological Benefits, Indication, Clinical Benefits, and Adverse Effects. Respir. Care 2016, 61, 529–541. [Google Scholar] [CrossRef]
- Agarwal, A.; Basmaji, J.; Muttalib, F.; Granton, D.; Chaudhuri, D.; Chetan, D.; Hu, M.; Fernando, S.M.; Honarmand, K.; Bakaa, L.; et al. High-flow nasal oxygen for acute hypoxemic respiratory failure in patients with COVID-19: Systematic reviews of effectiveness and its risks of aerosolization, dispersion, and infection transmission. Can. J. Anesth./J. Can. D’anesthésie 2020, 67, 1217–1248. [Google Scholar] [CrossRef] [PubMed]
- Lee, C.C.; Mankodi, D.; Shaharyar, S.; Ravindranathan, S.; Danckers, M.; Herscovici, P.; Moor, M.; Ferrer, G. High flow nasal oxygen versus conventional oxygen therapy and non-invasive ventilation in adults with acute hypoxemic respiratory failure: A systematic review. Respir. Med. 2016, 121, 100–108. [Google Scholar] [CrossRef]
- Oczkowski, S.; Ergan, B.; Bos, L.; Chatwin, M.; Ferrer, M.; Gregoretti, C.; Heunks, L.; Frat, J.-P.; Longhini, F.; Nava, S.; et al. ERS Clinical Practice Guidelines: High-flow nasal oxygen in acute respiratory failure. Eur. Respir. J. 2022, 59, 2101574. [Google Scholar] [CrossRef]
- Zhong, Q.; Chaudhary, C.W.; Stellpflug, C.L.; Wolf, C.S.; Diedrich, D.A.; Lehnertz, A.; Meyer, T.J.; Oeckler, R.A.; De Moraes, A.G. High-Flow Nasal oxygen on the General Ward for Patients with COVID-19 Enhances ICU and Rapid Response Team Resource Allocation. Respir. Care 2022, 67, 1606–1608. [Google Scholar] [CrossRef]
- Calligaro, G.L.; Lalla, U.; Audley, G.; Gina, P.; Miller, M.G.; Mendelson, M.; Dlamini, S.; Wasserman, S.; Meintjes, G.; Peter, J.; et al. The utility of high-flow nasal oxygen for severe COVID-19 pneumonia in a resource-constrained setting: A multi-centre prospective observational study. EClinicalMedicine 2020, 28, 100570. [Google Scholar] [CrossRef] [PubMed]
- Pereira, V.C.; Silva, S.N.; Carvalho, V.K.S.; Zanghelini, F.; Barreto, J.O.M. Strategies for the implementation of clinical practice guidelines in public health: An overview of systematic reviews. Health Res. Policy Syst. 2022, 20, 13. [Google Scholar] [CrossRef] [PubMed]
- Australian Commission on Safetyand Quality in Health Care. Action 1.07: Policies and Procedures. Available online: https://www.safetyandquality.gov.au/standards/nsqhs-standards/clinical-governance-standard/patient-safety-and-quality-systems/action-107 (accessed on 10 April 2023).
- Bettal Quality Consultancy. Understanding the Difference between Policies, Procedures, Protocols, and Guidance, PPPGs. Available online: https://www.bettal.co.uk/understanding-the-difference-between-policies-procedures-protocols-and-guidance-pppgs (accessed on 28 May 2023).
- O’Donnell, J.; Vogenberg, F.R. Policies and procedures: Enhancing pharmacy practice and limiting risk. Pharm. Ther. 2012, 37, 341–344. [Google Scholar]
- Beasley, R.; Chien, J.; Douglas, J.; Eastlake, L.; Farah, C.; King, G.; Moore, R.; Pilcher, J.; Richards, M.; Smith, S.; et al. Thoracic Society of Australia and New Zealand oxygen guidelines for acute oxygen use in adults: ‘Swimming between the flags’. Respirology 2015, 20, 1182–1191. [Google Scholar] [CrossRef] [PubMed]
- O’Driscoll, B.R.; Howard, L.S.; Davison, A.G. BTS guideline for emergency oxygen use in adult patients. Thorax 2008, 63 (Suppl. S6), vi1–vi68. [Google Scholar] [CrossRef]
- O’Driscoll, B.R.; Howard, L.S.; Earis, J.; Mak, V. BTS guideline for oxygen use in adults in healthcare and emergency settings. Thorax 2017, 72, ii1–ii90. [Google Scholar] [CrossRef]
- Barnett, A.; Beasley, R.; Buchan, C.; Chien, J.; Farah, C.S.; King, G.; McDonald, C.F.; Miller, B.; Munsif, M.; Psirides, A.; et al. Thoracic Society of Australia and New Zealand Position Statement on Acute Oxygen Use in Adults: ‘Swimming between the flags’. Respirology 2022, 27, 262–276. [Google Scholar] [CrossRef]
- Silverstein, W.K.; Zipursky, J.S.; Amaral, A.C.; Leis, J.A.; Strong, L.; Nardi, J.; Weinerman, A.S.; Wong, B.M.; Stroud, L. Effect of Ward-Based High-Flow Nasal oxygen (HFNO) Oxygen Therapy on Critical Care Utilization During the COVID-19 Pandemic: A Retrospective Cohort Analysis. J. Gen. Intern. Med. 2023, 38, 1160–1166. [Google Scholar] [CrossRef]
- Chughtai, A.A.; Seale, H.; MacIntyre, C.R. Availability, consistency and evidence-base of policies and guidelines on the use of mask and respirator to protect hospital health care workers: A global analysis. BMC Res. Notes 2013, 6, 216. [Google Scholar] [CrossRef]
- Chu, D.K.; Kim, L.H.; Young, P.J.; Zamiri, N.; Almenawer, S.A.; Jaeschke, R.; Szczeklik, W.; Schünemann, H.J.; Neary, J.D.; Alhazzani, W. Mortality and morbidity in acutely ill adults treated with liberal versus conservative oxygen therapy (IOTA): A systematic review and meta-analysis. Lancet 2018, 391, 1693–1705. [Google Scholar] [CrossRef]
- Austin, M.A.; Wills, K.E.; Blizzard, L.; Walters, E.H.; Wood-Baker, R. Effect of high flow oxygen on mortality in chronic obstructive pulmonary disease patients in prehospital setting: Randomised controlled trial. BMJ 2010, 341, c5462. [Google Scholar] [CrossRef] [PubMed]
- Scala, R. Challenges on non-invasive ventilation to treat acute respiratory failure in the elderly. BMC Pulm. Med. 2016, 16, 150. [Google Scholar] [CrossRef] [PubMed]
- Kang, B.J.; Koh, Y.; Lim, C.-M.; Huh, J.W.; Baek, S.; Han, M.; Seo, H.-S.; Suh, H.J.; Seo, G.J.; Kim, E.Y.; et al. Failure of high-flow nasal oxygen therapy may delay intubation and increase mortality. Intensive Care Med. 2015, 41, 623–632. [Google Scholar] [CrossRef] [PubMed]
- Whittington, J.; White, R.; Haig, K.M.; Slock, M. Using an automated risk assessment report to identify patients at risk for clinical deterioration. Jt. Comm. J. Qual. Patient Saf. 2007, 33, 569–574. [Google Scholar] [CrossRef] [PubMed]
- Roca, O.; Messika, J.; Caralt, B.; García-de-Acilu, M.; Sztrymf, B.; Ricard, J.D.; Masclans, J.R. Predicting success of high-flow nasal oxygen in pneumonia patients with hypoxemic respiratory failure: The utility of the ROX index. J. Crit. Care 2016, 35, 200–205. [Google Scholar] [CrossRef] [PubMed]
- Prakash, J.; Bhattacharya, P.K.; Yadav, A.K.; Kumar, A.; Tudu, L.C.; Prasad, K. ROX index as a good predictor of high flow nasal oxygen failure in COVID-19 patients with acute hypoxemic respiratory failure: A systematic review and meta-analysis. J. Crit. Care 2021, 66, 102–108. [Google Scholar] [CrossRef]
- Foley, C.M. A Study of the Relationship between Hospital Policy and Nursing Practice. University of Tasmania. 2020. Available online: https://figshare.utas.edu.au/articles/thesis/A_study_of_the_relationship_between_hospital_policy_and_nursing_practice/23253581/1 (accessed on 18 July 2023).
- Cousins, J.L.; Wark, P.A.B.; Hiles, S.A.; McDonald, V.M. Understanding Clinicians’ Perceived Barriers and Facilitators to Optimal Use of Acute Oxygen Therapy in Adults. Int. J. Chron. Obs. Pulmon Dis. 2020, 15, 2275–2287. [Google Scholar] [CrossRef]
- Australian Bureau of Statistics. National, State and Territory Population. March 2022. Available online: https://population.gov.au/data-and-forecasts/key-data-releases/national-state-and-territory-population-march-2022 (accessed on 18 July 2023).

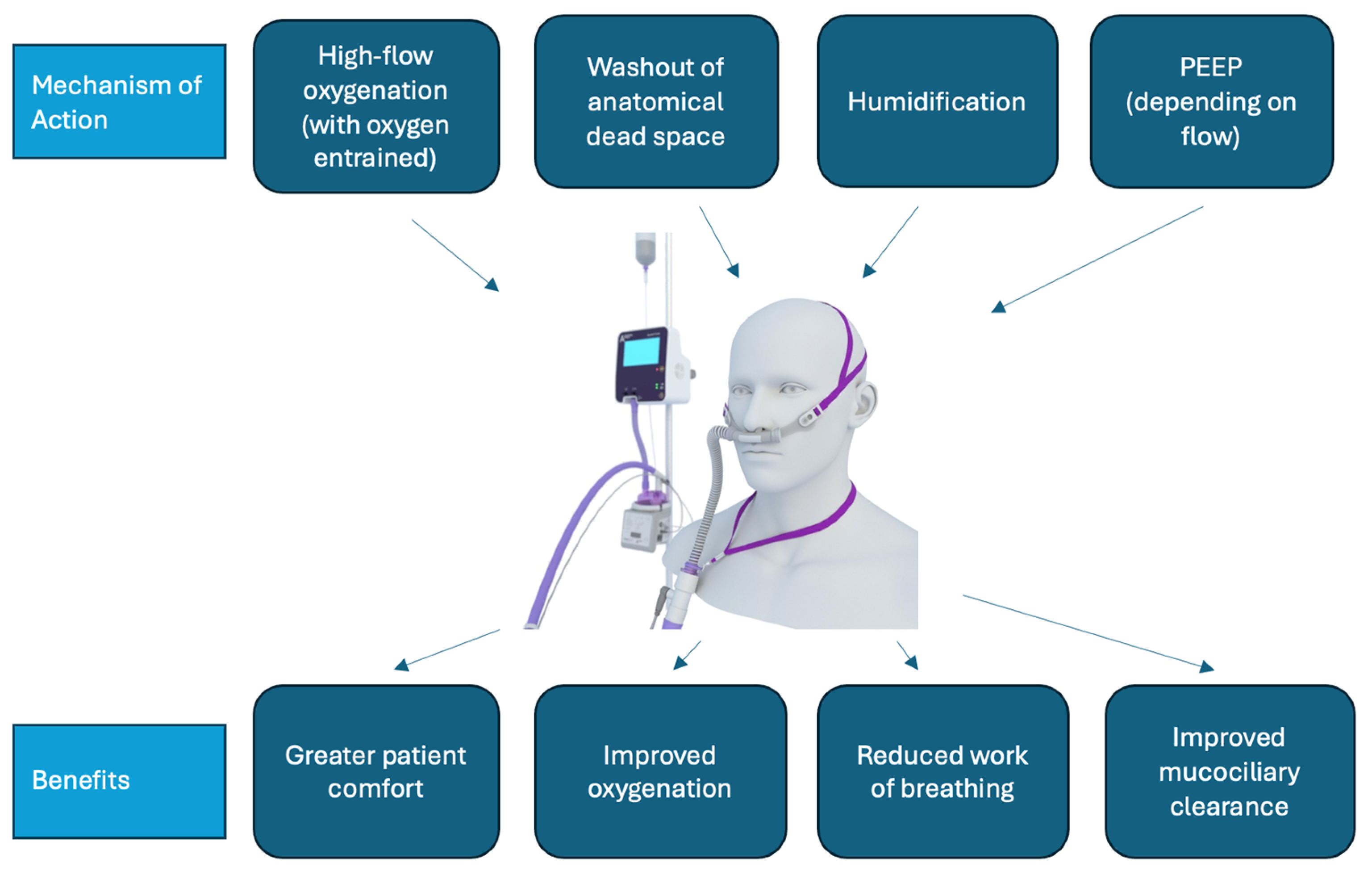

Figure 1.
HFNO mechanism of action and benefit. PEEP: Positive end-expiratory pressure.

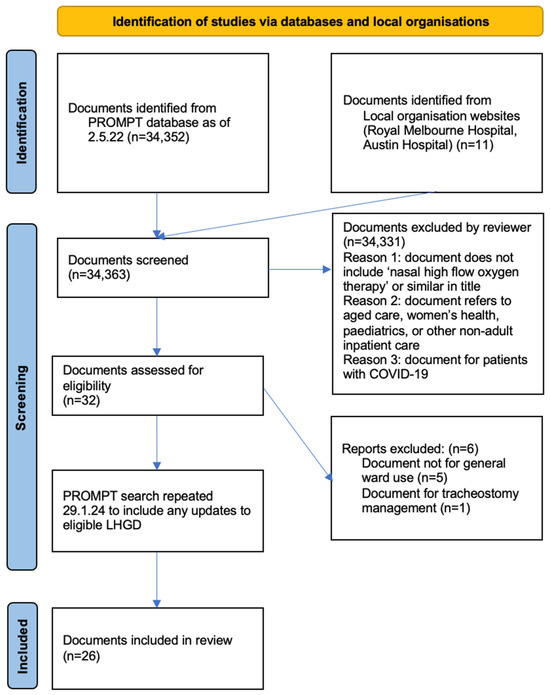

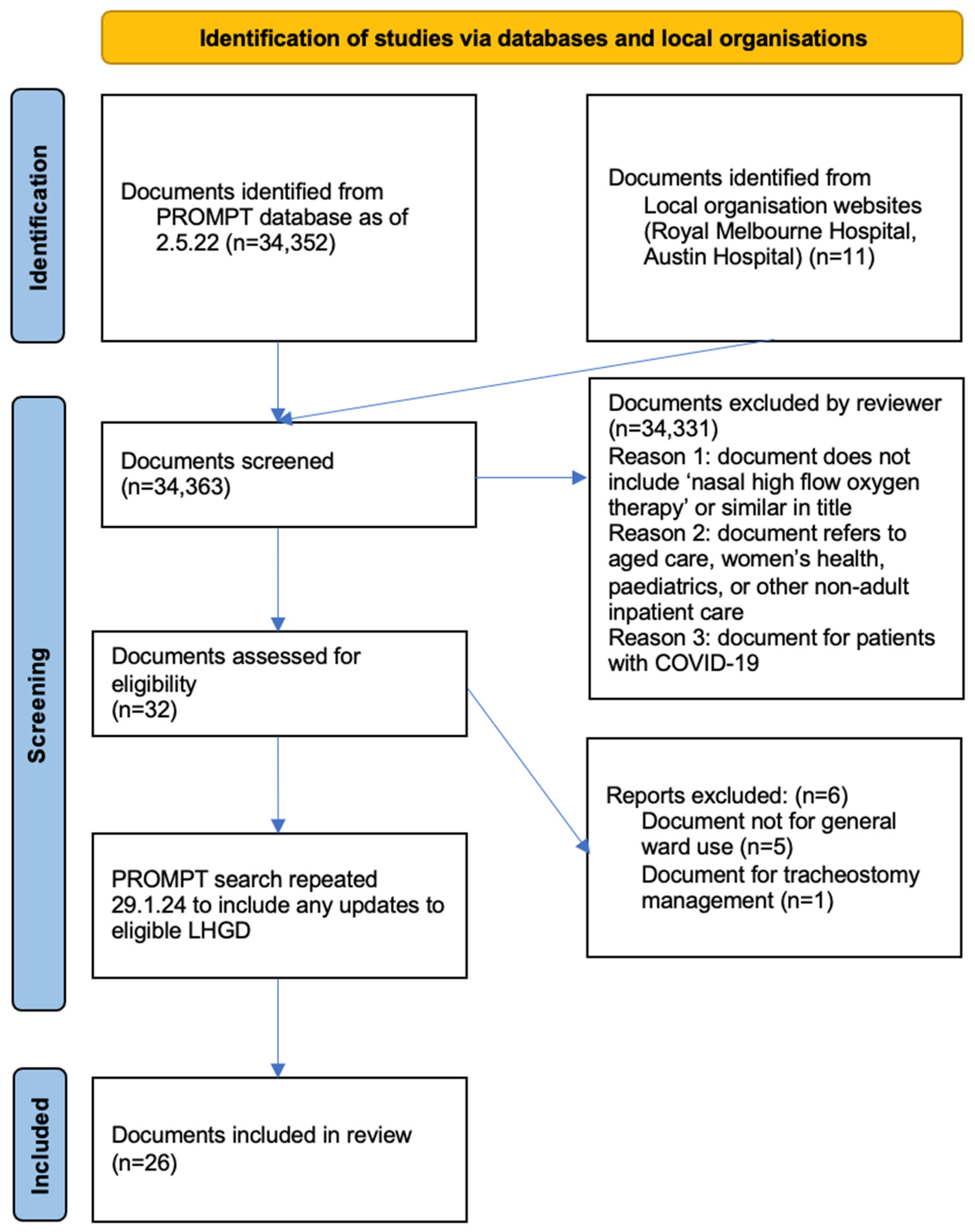

Figure 2.
PRISMA search strategy.
Table 1.
Indications for HFNO.
| Count (n) | Frequency (%) | |
|---|---|---|
| SpO2 hypoxemia definition to trigger HFNO consideration | ||
| -Definition not specified | 20 | 76.9 |
| -<86% | 1 | 7.7 |
| -<90% | 2 | 7.7 |
| -<92–93% | 2 | 3.8 |
| -<95% | 1 | 3.8 |
| PaO2 (ABG) hypoxemia definition to trigger HFNO | ||
| -Definition not specified | 24 | 92.3 |
| -<65 mmHg | 2 | 7.7 |
| Hypoxemia assessed with * | ||
| -Not specified | 2 | 7.7 |
| -Pulse oximetry | 23 | 88.5 |
| -Arterial blood gas | 12 | 46.2 |
| Minimum oxygen flow rate given before initiation of HFNO | ||
| -Not specified | 15 | 57.7 |
| -1–6 LPM | 2 | 7.7 |
| ->4 LPM | 5 | 19.2 |
| ->6 LPM | 4 | 15.4 |
| Minimum conventional oxygen therapy FiO2 given before initiation of HFNO | ||
| -Not specified | 23 | 88.5 |
| ->40% | 3 | 11.5 |
| SpO2 targets (lower level of range) once HFNO initiated | ||
| -Not specified | 13 | 50.0 |
| -92%+ | 6 | 23.1 |
| -93%+ | 7 | 26.9 |
| SpO2 targets (upper level of range) once HFNO initiated | ||
| -Not specified | 18 | 69.2 |
| -96% | 7 | 26.9 |
| -98% | 1 | 3.8 |
* Categories are not mutually exclusive and cumulative percentages may sum to over 100. SpO2: Pulse oximetry oxygen saturation, HFNO: High-flow nasal oxygen, PaO2: Partial pressure of oxygen, ABG: Arterial blood gas, LPM: Litres per minute, FiO2: Fraction of inspired oxygen.
Table 2.
Recommendations for initiation and maintenance of HFNO.
| At Set Up of HFNO | After Initiation of HFNO | |||
|---|---|---|---|---|
| Count (n) | Frequency (%) | Count (n) | Frequency (%) | |
| ABG recommended | 4 | 15.4 | N/A | N/A |
| VBG used to assess need for HFNO | 2 | 7.7 | N/A | N/A |
| Additional SpO2 target range provided for patients at risk of hypercapnic respiratory failure | 10 | 38.5 | N/A | N/A |
| HFNO device flow rate | N/A | N/A | ||
| -Not specified | 8 | 30.8 | ||
| -To meet patient requirements | 14 | 53.8 | ||
| -30 LPM | 4 | 15.4 | ||
| Initial FiO2 | N/A | N/A | ||
| -Not specified | 9 | 34.6 | ||
| -To meet patient requirements | 16 | 61.5 | ||
| -50% | 1 | 3.8 | ||
| Documentation of HFNO settings * | N/A | N/A | ||
| -Device flow rate | 16 | 61.5 | ||
| -FiO2 | 15 | 57.7 | ||
| -Delivered air temperature | 9 | 34.6 | ||
| -Target SpO2 range | 2 | 7.7 | ||
| Documentation of patient observations * | N/A | N/A | ||
| -SpO2 | 22 | 84.6 | ||
| -Respiratory rate | 19 | 73.1 | ||
| -Work of breathing | 15 | 57.7 | ||
| -Heart rate | 9 | 34.6 | ||
| -Blood pressure | 9 | 34.6 | ||
| -Conscious state | 7 | 26.9 | ||
| Time until first observations | N/A | N/A | ||
| -Not specified | 9 | 34.6 | ||
| -0–1 h | 13 | 50.0 | ||
| -1–4 h | 4 | 15.4 | ||
| Observation frequency | N/A | N/A | ||
| -Not specified | 5 | 19.2 | ||
| -Clinical discretion | 5 | 19.2 | ||
| -0–1 h | 6 | 23.1 | ||
| -1–4 h | 9 | 34.6 | ||
| -4+ h | 1 | 3.8 | ||
| Diagram provided for HFNO set up/equipment | 24 | 92.3 | ||
* Categories are not mutually exclusive and cumulative percentages may sum to over 100. SpO2: Pulse oximetry oxygen saturation, HFNO: High-flow nasal oxygen, ABG: Arterial blood gas, VBG: Venous blood gas, LPM: Litres per minute, FiO2: Fraction of inspired oxygen. N/A: Not available.
Table 3.
Recommendations for weaning HFNO.
| Characteristic | Count (n) | Frequency (%) |
|---|---|---|
| Weaning to maintain target SpO2 range | 11 | 42.3 |
| Patient observations to be documented * | ||
| -Not specified | 10 | 38.5 |
| -Respiratory rate | 14 | 53.8 |
| -Work of breathing | 14 | 53.8 |
| -SpO2 | 13 | 50.0 |
| -Heart rate | 7 | 26.9 |
| -Blood pressure | 7 | 26.9 |
| -Consciousness | 5 | 19.2 |
| FiO2 targets before HFNO cessation ** | ||
| -Not specified | 20 | 76.9 |
| -FiO2 < 40% | 2 | 7.7 |
| -FiO2 < 30% | 2 | 7.7 |
| -FiO2 21% | 2 | 7.7 |
| Flow rate targets before HFNO cessation ** | ||
| -Not specified | 15 | 57.7 |
| -Device flow < 30 LPM | 10 | 38.5 |
| -Device flow < 10 LPM | 1 | 3.8 |
* Categories are not mutually exclusive and cumulative percentages may sum to over 100. ** Patients without chronic obstructive pulmonary disease (see Table S1). SpO2: Pulse oximetry oxygen saturation, HFNO: High-flow nasal oxygen, LPM: Litres per minute, FiO2: Fraction of inspired oxygen.
Table 4.
HFNO LHGDs template.
| Document Purpose | To Provide Clinical Guidance for Initiating and Managing HFNO Therapy to Adults with ARF in the Ward Setting |
|---|---|
| Target audience | Medical, nursing, and physiotherapy staff trained in HFNO use for adult patients. |
| Definitions | Hypoxaemia requiring HFNO use: ABG PaO2 < 60 mmHg or SpO2 < 92% Note: Target SpO2 range may vary depending according to individual patient factors e.g., SpO2 < 88% in the setting of hypercapnia. |
| Indications | First-line oxygen therapy for patients with acute hypoxemic respiratory failure:
Intermittent use during breaks from non-invasive ventilation. Tracheostomy patients requiring humidified air. As a palliative measure to manage dyspnoea as part of end-of-life care (please refer to ‘HFNO in ward-based palliation’). The goals of care and patient preferences must be considered and documented for each individual. |
| Contraindications | Recent nasal surgery Recent maxillofacial trauma Suspected base of skull fracture Raised intracranial pressure Persistent epistaxis Pneumothorax Increased work of breathing without hypoxemia (except as a palliative measure) |
| Initiation | As SpO2 and venous blood gases have significant limitations, ABG measurement should be considered when clinically appropriate, particularly when hypercapnic respiratory failure is considered. Steps to set up HFNO equipment (local service to add information). Titrate HFNO device parameters (device flow rate and FiO2) to maintain oxygen saturation in target range:
* Conditions which increase the risk of hypercapnic respiratory failure, e.g., severe chronic obstructive pulmonary disease, respiratory muscle weakness, severe kyphoscoliosis, or a history of hypercapnia or respiratory acidosis. Regularly monitor and document the response to HFNO, including measuring the following parameters (ideally every 15 min in the first hour of therapy, although likely to be influenced by nursing ratios and clinical circumstance):
Adjust and document HFNO device parameters to maintain oxygen saturation in target ranges (as stated above):
|
| Maintenance | Once stable, observation frequency will vary as clinically indicated (i.e., from one to four hourly). Documentation of patient parameters should include:
Documentation of machine parameters should include:
ABG may be considered as per clinical need on an ongoing basis. |
| Criteria for medical review | Increasing
Others as indicated by the standard local hospital alert system |
| Escalation pathway | Patients with ARF using HFNO on a medical ward may deteriorate, therefore require regular clinical assessment and monitoring. Use local documented criteria to escalate care for a deteriorating patient:
Referral pathway to ICU (include contact method e.g., ICU Registrar Pager) |
| Weaning | Aim to maintain patient oxygen saturations in the target range. Wean FiO2 < 40%. Wean flow to <30 LPM. On cessation of HFNO, transition the patient to conventional oxygen therapy as required. Once HFNO ceased, monitor patient parameters 4–6 times hourly (or more frequently if clinically required):
|
| HFNO in ward-based palliation | HFNO may be used on the ward to manage dyspnoea at end of life, as it is often well tolerated and does not interfere with a patient’s ability to communicate. HFNO provided for symptom palliation does not usually require the monitoring or escalation criteria described above. Treatment should be adjusted to patient comfort. |
| Associated documents | e.g., Oxygen therapy LHGDs, escalation of care LHGDs, HFNO user manual |
| References | e.g., ERS HFNO clinical practice guidelines [9], TSANZ Acute Oxygen Guidelines [19]. |
| Authorship and review date | Contributing staff members and positions Date of last LHGDs review Date LHGDs due for review |
SpO2: Pulse oximetry oxygen saturation, HFNO: High-flow nasal oxygen, PaO2: Partial pressure of oxygen, ABG: Arterial blood gas, LPM: Litres per minute, FiO2: Fraction of inspired oxygen.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2024 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Thomas, T.; Khor, Y.H.; Buchan, C.; Smallwood, N. Implementing High-Flow Nasal Oxygen Therapy in Medical Wards: A Scoping Review to Understand Hospital Protocols and Procedures. Int. J. Environ. Res. Public Health 2024, 21, 705. https://doi.org/10.3390/ijerph21060705
AMA Style
Thomas T, Khor YH, Buchan C, Smallwood N. Implementing High-Flow Nasal Oxygen Therapy in Medical Wards: A Scoping Review to Understand Hospital Protocols and Procedures. International Journal of Environmental Research and Public Health. 2024; 21(6):705. https://doi.org/10.3390/ijerph21060705
Chicago/Turabian StyleThomas, Toby, Yet Hong Khor, Catherine Buchan, and Natasha Smallwood. 2024. "Implementing High-Flow Nasal Oxygen Therapy in Medical Wards: A Scoping Review to Understand Hospital Protocols and Procedures" International Journal of Environmental Research and Public Health 21, no. 6: 705. https://doi.org/10.3390/ijerph21060705
APA StyleThomas, T., Khor, Y. H., Buchan, C., & Smallwood, N. (2024). Implementing High-Flow Nasal Oxygen Therapy in Medical Wards: A Scoping Review to Understand Hospital Protocols and Procedures. International Journal of Environmental Research and Public Health, 21(6), 705. https://doi.org/10.3390/ijerph21060705
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
