Fertilizer Reduction Combined with Organic Liquid Fertilizer Improved Canopy Structure and Function and Increased Cotton Yield

Abstract

The application of organic liquid fertilizer combined with chemical fertilizer is one of the key technologies used to simultaneously improve cotton yield and efficiently utilize resources. However, organic fertilizer is usually applied once as a base fertilizer during production, and few studies have been conducted on topdressing with water during the growth period. Therefore, in this study, Xinluzao 74 was used as the experimental material, and a single fertilizer application (CF) was used as a control in 2019–2020 under the conditions of integrated control of water and fertilizer with mulch drip irrigation. Five combinations of reduction in chemical fertilizer combined with organic fertilizer (OF1, OF2, OF3, OF4, and OF5) were used to investigate the influences of chemical fertilizer combined with organic liquid fertilizer on the leaf area index (LAI), canopy openness (DIFN), mean foliage tilt angle (MTA), photosynthetically active radiation (PAR), canopy apparent photosynthesis (CAP), and yield and quality of cotton. The results show that among the different fertilization treatments, the OF2 treatment had the best results, not only ensuring a suitable LAI (4.8) and maintaining a large DIFN (0.1) but also increasing the light transmittance of the middle and lower canopies (0.02–0.03). At the same time, CAP increased significantly compared with that in the CF treatment, with an average increase of 12.8%. The high value lasted for a long time, and the late decay stage remained at 8.9 μmol m⁻² s⁻¹. The ratio of the population respiration rate to total photosynthesis (CR/TCAP) decreased significantly, with an average decrease of 13.5%. Compared with that in CF, the lint yield increased by 27.0% in the other treatments. The correlation analysis showed that lint yield was positively correlated with the relative chlorophyll content (SPAD value), PAR transmittance (PARU) and CAP in the upper canopy (p < 0.05) and significantly negatively correlated with PAR transmittance (PARM) in the middle canopy and PAR transmittance (PARD) and CR/TCAP in the lower canopy (p < 0.05). Therefore, under mulch drip irrigation, the OF2 treatment (OF + 80% CF) improved the canopy structure of cotton at the late growth stage, increased the population photosynthetic rate, and increased lint yield significantly; thus, this approach can be used as an effective fertilization method to achieve the goal of decreasing costs and increasing efficiency in cotton production.

1. Introduction

Cotton is an important cash crop and a major source of natural fiber [1]. As one of the major cotton producers, China accounts for 25.6% of the world’s cotton output [2]. In 2020, Xinjiang’s cotton output accounted for 87.3% of the output of the whole country and 22.3% of the output worldwide [3]. A high yield of cotton is inseparable from the large amount of fertilizer input used in production. For a long time, the view was that the more fertilizer that is applied, the higher the yield will be, and excessive fertilization in production has been common [4]. However, long-term excessive application of chemical fertilizer can lead to a series of environmental problems, such as soil bulk-density reduction, soil consolidation, soil acidification, water eutrophication and soil microbial-diversity reduction [5,6], seriously hindering the sustainable development of the cotton industry [7]. Therefore, identifying sustainable fertilization modes has become the core problem for sustainable cotton production.

Increasing organic fertilizer could not only significantly improve cotton yield and nitrogen-use efficiency [8] but also be of great significance to soil fertility [9]. A reduction in nitrogen and phosphorus combined with organic fertilizer can in practice ameliorate the content of soil nutrients [10] to provide sufficient nutrients to crops, which is conducive to crop growth and yield increases [11]. A 20% reduction in nitrogen fertilizer combined with organic liquid fertilizer had the best effect on the physiological characteristics and yield of cotton [12]. Therefore, exploring the potential of the combined effect of chemical fertilizer and organic liquid fertilizer is a way to sustainably increase crop yield and efficiency.

An appropriate canopy structure is the basis of efficient crop production [13], and soil moisture and nutrients are important environmental factors affecting the cotton canopy [14]. Most previous studies have focused on the effects of organic fertilizer base application combined with fertilizer reduction on soil nutrients, cotton growth and yield formation [15], and few studies have been conducted on the influence of liquid organic fertilizer combined with reduced chemical fertilizer on the canopy structure and function of cotton during its growth period. Previous studies have shown that [16] compared with chemical fertilizer alone, organic liquid-fertilizer investment could improve the total boll amount per unit area of cotton and then increase lint yield. We hypothesized that a reduction in chemical fertilizer combined with organic liquid fertilizer would optimize the canopy structure of cotton, enhance the photosynthetic capacity of the cotton population, and ultimately promote an increase in cotton yield.

Therefore, in this study, with drip irrigation under mulch, (1) the effects of liquid organic fertilizer combined with chemical fertilizer on the canopy structure and photosynthetic characteristics of cotton were investigated. (2) In addition, the correlation between canopy structure and cotton yield was analyzed, and the best combination of chemical fertilizer and organic liquid fertilizer was selected to achieve high yields and efficient cotton production.

2. Materials and Methods

2.1. Experimental Area and Soil Characteristics

A two-year field experiment was conducted during 2019–2020 at the Shihezi Experimental Station for Crop Water Use of the Ministry of Agriculture, Shihezi, China (45°38′ N latitude, 86°09′ E longitude). The cotton cultivar Xinluzao 74 (Gossypium hirsutum L.) (with a growth period of 124 d) was used. The basic physical and chemical characteristics of the 0–20 cm topsoil layer are shown in (

Table 1. The basic physical and chemical characteristics of the 0–20 cm topsoil layer.

Characteristic	Mean Value
Organic matter (g kg−1)	15.00
Alkali-hydrolyzable (mg kg−1)	42.20
Available phosphorus (mg kg−1)	19.81
Available potassium (mg kg−1)	274.28
pH	7.86

). The meteorological data during the cotton-growing stage are shown in (Figure 1)

Each experimental plot was 10 m long and 6.84 m wide, and the total area was 68.4 m². Chemical fertilizers included urea (46.0% N), monoammonium phosphate (12.0% N and 61.0% P₂O₅), and potassium sulfate (50.0% K₂O). The organic liquid fertilizer was soluble organic matter (humic acid ≥30 g⁻¹, amino acid ≥10 g⁻¹), trace elements (manganese, zinc, boron ≥ 1 g⁻¹), and microbial flora (Bacillussubtilis ≥ 2 × 10⁸ g⁻¹) [17].

2.2. Experimental Design and Crop Management

An experiment was designed with six treatments and three replications applied to a randomized block. The treatments included a single-use chemical fertilizer (CF) used as a control and a combination of chemical fertilizer and organic liquid fertilize (OF) with CF in the following ratios, i.e., OF₁, OF₂, OF₃, OF₄, and OF₅, with adjusted ratios of N, P₂O₅, and K₂O. These treatments were as follows: CF, where N, P₂O₅, and K₂O were applied at 228–131–95 kg ha⁻¹ (Ma et al., 2020); OF₁ = (OF + 60% CF), where N, P₂O₅, and K₂O were applied at 137–78–57 kg ha⁻¹; OF₂ = (OF + 80% CF), where N, P₂O₅, and K₂O were applied at 182–104–76 kg ha⁻¹; OF₃ = (OF + 100% CF), where N, P₂O₅, and K₂O were applied at 228–131–95 kg ha⁻¹; OF₄ = (OF + 120% CF), where N, P₂O₅, and K₂O were applied at 273–157–114 kg ha⁻¹; and OF₅ = (OF + 140% CF), where N, P₂O₅, and K₂O were applied at 319–183–133 kg ha⁻¹.

The cotton-cultivation method was 66 + 10 cm with six rows in each mulch sheet, relying on drip irrigation technology under membrane. Seeds were sown on 18 April 2019 and 13 April 2020, with a planting density of 20.07 × 10⁴ plants ha⁻¹. The quantity of irrigation water applied was 4350 m³ ha⁻¹, and fertilizers were applied as topdressing under drip irrigation. Crop-management measures including irrigation, thinning, hoeing, and weeding were used.

2.3. Relative Chlorophyll Content

The relative chlorophyll content (SPAD values) of fully expanded functional leaves (from the fourth vertex) was obtained at different growth periods using a chlorophyll meter (SPAD—502Plus, KONICA MINOLTA, Chiyoda-ku, Tokyo, Japan). Fifteen leaves were selected for each treatment; each leaf was measured 3 times and the average value was taken, avoiding the leaf veins during the measurement.

2.4. Canopy Structure

The leaf area index (LAI) was measured by an LAI-2200 canopy analyzer (LI-COR, USA), and it included the mean foliage tilt angle (MTA) and canopy openness (DIFN) at the initial flowering stage (IF), full-flowering stage (FF), full-boll stage (FB), late full-boll stage (LFB), and boll-opening stage (BO) from 11:00 to 14:00. Each treatment was repeated 4–6 times.

2.5. Canopy Light Transmittance Rate

On days with clear fine bright weather, from 11:00 to 14:00, SUNSCAN was used to measure the natural total light (Io) 30 cm above the top of the canopy with the instrument’s probe plane horizontally upward, reflected light intensity (In) with the probe plane horizontally downward, light transmittance rate (LLR); light transmittance of the upper canopy (IU), mid (IM), and lower (IL) canopy layer was then calculated using the equation: LLR (%) = IU/Io × 100, IM/Io × 100, IL/Io × 100.

2.6. Canopy Apparent Photosynthesis and Canopy Respiration

Canopy apparent photosynthesis (CAP) and canopy respiration rate (CR) were measured using the assimilation chamber method on the same day described by Reddy et al. [18]. A Li-8100A soil CO₂ flux system (Li-Cor Inc., Lincoln, NE, USA) was used to measure indoor CO₂ concentrations. The CAP measurements were taken on clear windless days between 12:00 and 14:00. The assimilation chamber (0.9 m long × 0.7 m wide × 1 m high) had two fans installed to mix the chamber inside the air, and the frame cover was transparent polyester film. A closed-circuit system was used for the measurements. Gas-exchange rates in different treatments were measured at 60 s intervals. Then, the data were logged when the chamber inside CO₂ concentrations decreased steadily. The ratio of respiration rate to total photosynthetic rate was calculated as CR/TCAP = CR/(CR + CAP)Each treatment was repeated 4–6 times.

2.7. Yield and Quality

During the cotton harvest period (22 September 2019 and 26 September 2020), three representative sampling points (2 m × 2.28 m) were selected in each treatment. Fifty bolls were picked in each plot and put into mesh bags for indoor measurement of lint percentage. Lint yield was converted into lint percentage after sampling 50 bolls. Lint quality (including specific breaking strength, fiber elongation, and micronaire value) was measured at the Ministry of Agriculture center (Anyang, China) with an HVI 900 large-capacity fiber tester.

2.8. Data Analysis

Data processing was performed using Microsoft Excel 2016. All data were analyzed using SPSS (IBM Inc., Chicago, IL, USA) software, and multiple comparisons were conducted by standard analyses of variance (ANOVA) and the Duncan method (p ≤ 0.05). Significant differences were separated among treatments at the 5% probability level (p ≤ 0.05). Data presented are the mean ± SEM (standard error of the mean).

3. Results

3.1. Chlorophyll SPAD Value

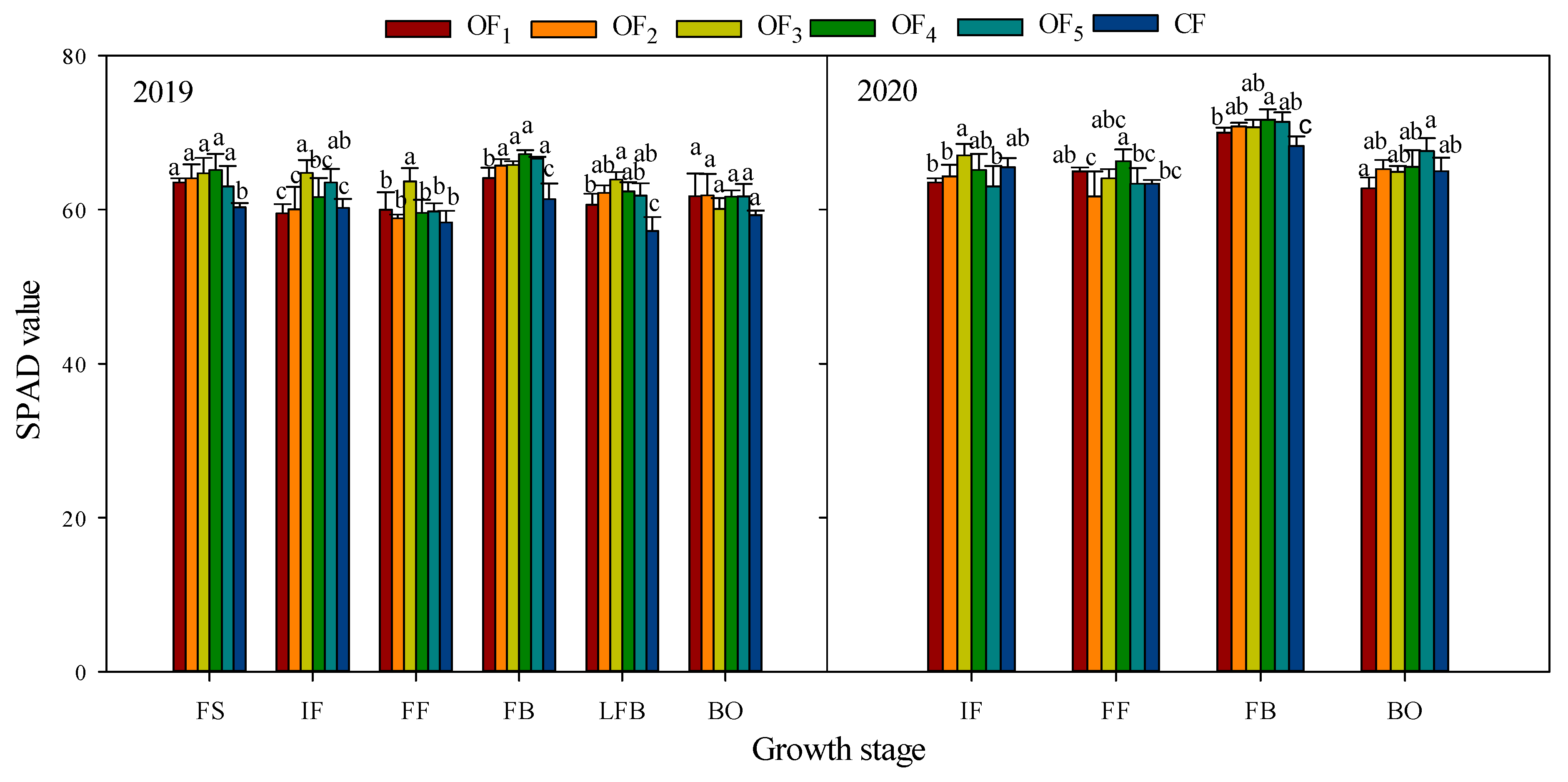

FS, full-squaring stage; IF, initial flowering stage; FF, full-flowering stage; FB, full-boll stage; LFB, late full-boll stage; BO, boll-opening stage. Different letters for a particular growth stage indicate significant treatment differences at the p ≤ 0.05. The same applies in the figures below.

The SPAD values were affected by the different fertilization treatments (Figure 2). The SPAD values of the different fertilization treatments all reached maximum values at the full-boll stage, and the SPAD values of the OF₁~OF₅ treatments increased significantly compared with those of the CF treatment, with average increases of 3.4%, 5.3%, 5.3%, 7.1%, and 6.5% for OF₅, OF₄, OF₂, OF₃, and OF₁, respectively. The chlorophyll SPAD values of the OF₁~OF₅ treatments increased by 0.2%, 2.3%, 0.6%, 2.4%, and 6.6% compared with the CF treatment, indicating that organic liquid fertilizer combined with chemical fertilizer can effectively delay leaf senescence.

3.2. Leaf Area Index

The LAI was affected by the different fertilization treatments, as shown in Figure 3. The LAI changed with different fertilization treatments, and the LAI in all treatments reached peak values at the later full-boll stage. ANOVA showed that the OF₁~OF₂ treatments were obviously lower than the CF treatment (p < 0.05), while no obvious difference was found in the LAI of the OF₃, OF₄ and OF₅ treatments and the CF treatment, with the LAI occurring in the order of OF₃ > OF₅, OF₄ > OF₁, OF₂. In the boll-opening stage, the OF₁–OF₅ treatments had a smaller decrease in LAI than that of the CF treatment—55.5%, 62.7%, 51.7%, 81.5%, and 38.7%, respectively.

3.3. Canopy Openness

The cotton canopy decreased rapidly after the initial flowering stage (Figure 4). The DIFN decreased initially and then increased during the growth stage under the different fertilization treatments. The minimum value (0.01~0.03) was reached at the LFB with DIFN, and the different treatments were OF₂ > OF₄, OF₃, OF₅, CF, and OF₁. At the later full boll stage, the DIFN of the OF₂ treatment was obviously higher than that of the CF treatment, and the OF₁~OF₅ treatments had no significant difference in their DIFN compared with that of the CF treatment. In the boll-opening stage, in the OF₂, OF₃, and OF₄ treatments, the DIFN was obviously larger than that in the CF treatment. DIFN occurred in the order of OF₂ > OF₄ > OF₁ > OF₅ > OF₃ in the treatment of organic liquid fertilizer combined with chemical fertilizer.

3.4. Mean Foliage Tilt Angle

The MTA of the different fertilization treatments increased initially and then decreased throughout the whole period and peaked at the later full-boll stage (Figure 5). No obvious difference in MTA values was found in the OF₁–OF₅ treatments and the CF treatment from the later full-boll stage to the boll-opening stage; however, the OF₁ treatment had a minimum reduction of 10.4%, and the CF treatment had a maximum reduction of 24.4%. The results showed that increasing the organic liquid fertilizer effectively adjusted the cotton leaf angle and made the leaves more upright.

3.5. Canopy Transmittance

The canopy transmittance of the different fertilization treatments decreased initially and then increased with the growth period (Figure 6). The vertical distance and transmittance of PAR within the canopy were higher in the upper layer and lower in the lower layer. At the later full-boll stage, PARM and PARD in the OF₁, OF₂, and OF₃ treatments increased significantly by 1.8~2.2%, 1.3~1.8%, and 0.3~1.7%, respectively, compared with the CF treatment, while the OF₄ and OF₅ treatments showed no obvious difference in their PARM and PARD values compared with that in the CF treatment. At the beginning of the boll-opening stage, compared with that in the CF treatment, PARU in the OF₁ and OF₂ treatments significantly increased by 11.2% and 17.7%, respectively. The OF₃, OF₄, and OF₅ treatments increased significantly by 5.1%, 0.7%, and 0.4%, respectively. Compared with that in the CF treatment, in the OF₁ and OF₂ treatments PARM increased significantly by 3.6% and 2.4%, respectively. No obvious difference was found in the OF₃ treatment, and PARM decreased significantly by 0.8% and 1.1% in the OF₄ and OF₅ treatments, respectively. Compared with the CF treatment, PARD in the OF₂ treatment showed a significant increase of 2.2%, a significant decrease of 2.2% in the OF₄ treatment, and no significant difference in the OF₁, OF₃, and OF₅ treatments. The PARU values occurred in the order of OF₂ > OF₁ > OF₃, OF₄, and OF₅, and the PARM and PARD values occurred in the order of OF₂ > OF₁ > OF₃, CF > OF₅, and OF₄.

3.6. Canopy Apparent Photosynthesis and Canopy Respiration

The CAP was significantly influenced by the different fertilization treatments (Figure 7). The CAP under the different fertilization treatments first increased and then decreased with the development of the entire period. The CF treatment showed that the peak CAP value occurred at the initial flowering stage, while the OF₁, OF₂, and OF₃ treatments had later peak CAP values at the full-flowering period. The OF₄ and OF₅ treatments showed a peak CAP value at the initial flowering stage, and the CAP values in these treatments were obviously larger than those in the CF treatment. In the later growth stage, the CAP values in the OF₁~OF₅ treatments increased by 5.0%, 12.8%, 11.3%, 12.9%, and 15.7% on average compared with the CF treatment, respectively. In the boll-opening stage, the CAP values in the OF₁, OF₂, and OF₄ treatments remained at a high level and increased significantly (p < 0.05) compared with the CF treatment, increasing by 48.6%, 52.2%, and 28.2%, respectively.

The change trend of the CR value was consistent with that of the CAP value during the growth stage. Except in the OF₁ treatment, the CR values of the other treatments peaked at the full-flowering period. In the OF₁ and OF₂ treatments, CR increased by 9.4% and 1.1%, respectively, compared with the CF treatment at the full-flowering stage. Compared with the CF treatment, the OF₃, OF₄, and OF₅ treatments had CR values that occurred in the order of OF₃ > OF₅, CF, and OF₄, and the ratio of population respiration rate to total photosynthesis (CR/TCAP) was also higher. In the boll-opening stage, the CR of the OF₁–OF₅ treatments was not obviously different from that of the CF treatment, but the CR/TCAP in the OF₁ and OF₂ treatments was obviously lower than that in the CF treatment (p < 0.05). From the initial flowering stage to the later full-boll stage, CR and CR/TCAP were obviously lower in the OF₂ treatment than in the CF treatment (p < 0.05).

3.7. Yield and Fiber Quality

Both cotton yield and fiber quality were obviously influenced under the different fertilization treatments (Figure 8). The lint yield of each fertilization treatment was OF₂ > OF₄ > OF₃ > OF₁ > CF and OF₅. Compared with the CF treatment, the lint yield in the OF₂ and OF₄ treatments increased significantly, with average increases of 27.0% and 18.1%, respectively. The OF₅ treatment lint yield decreased by 1.7% compared with the CF treatment, and the difference was not significant. No obvious difference was found in breaking strength or fiber elongation under the different fertilization treatments. The micronaire value in the CF treatment combined with organic liquid fertilizer was slightly lower than that in the CF treatment, while that in the OF₃ and OF₅ treatments decreased by 4.5~8.3%.

3.8. Correlation Analysis between Yield and Cotton Indices in Different Periods

The correlation analysis between yield and various cotton indicators in different periods is shown in Figure 9. The SPAD value at the full-squaring stage, PARU at the boll-opening stage, and canopy apparent photosynthesis were significantly positively correlated with yield. A significant negative correlation was found between PARM and PARD at the initial flowering stage and the ratio of respiration rate to total photosynthetic rate at the full-boll stage and late full-boll stage and yield.

4. Discussion

4.1. Chemical Fertilizer Combined with Organic Liquid Fertilizer Improved Cotton Canopy Structure

The SPAD value reflects the total chlorophyll content in leaves and is used to measure the nutrient growth status and degree of premature senescence of crop leaves and canopy [19]. Previous studies have shown that organic and inorganic compound fertilizers increase leaf SPAD values [20]. In this study, fertilizer combined with organic liquid fertilizer obviously increased the full-boll stage SPAD value, and the SPAD value increased with increasing fertilizer-application rate.

LAI can reflect the ability of plants to intercept light and is an important indicator of canopy structure performance [21]. Previous studies have shown that organic fertilizer with the chemical fertilizer NPK can significantly increase crop LAI and leaf size and delay function, maintaining a higher photosynthetic rate and LAI after reaching 4.8. However, leaf blades shade each other, and the light entering through the canopy is insufficient, leading to premature birth, premature leaf aging, leaf fall-off, decreases in photosynthetic effective area, and decreases in group photosynthetic capacity [22]. The results showed that the OF₂ treatments’ lint yield reached 2955.2~3225.7 kg ha⁻¹, while the LAI was approximately 4.8, which may be related to the fact that cotton leaves still had a high chlorophyll content in the later growth period, prolonging photosynthesis and promoting the production and accumulation of photosynthetic substances.

4.2. Chemical Fertilizer Combined with Organic Liquid Fertilizer Affected the Canopy Light Distribution of Cotton

Leaf distribution in a canopy is the main factor determining canopy light capture and transmittance [23,24]. Previous studies have shown that the cotton LAI should be kept in an appropriate range. An excessive LAI may lead to shade in the lower and middle parts of the canopy, resulting in a decrease in the effective photosynthetic area and affecting the interception of light energy at the cotton canopy bottom [22]. Canopy light distribution is determined by PAR interception [25], and light energy is reasonably distributed in the canopy within the appropriate range in LAI, which can effectively improve the light energy utilization efficiency [26]. Previous studies have shown that the optimal light-receiving structure is the minimum light interception at the upper part, which makes the middle blade fully exposed to light and reduces the light leakage loss at the lower part [27]. If the DIFN remains relatively stable and reaches an optimal value, the canopy light transmittance will increase, the light-energy waste will decrease, and light-energy capture and photosynthetic accumulation will be facilitated [28].

Our research results also showed that the high LAI (5.3~6.6) of cotton in the OF₃~OF₅ treatments in the late full-boll stage resulted in severe canopy shading and low light transmittance (0.52~2.85%) in the lower and middle parts of cotton, which were not conducive to the absorption of light energy. The optimal canopy shade for cotton in the OF₁ and OF₂ treatments was smaller. The upper part of the canopy had higher light transmittance (2.97~15.07%), and the lower part of the canopy could absorb more light energy, which improved the light environment of the lower and middle leaves and reduced the possibility of leaf shedding caused by insufficient light [29].

4.3. Chemical Fertilizer Combined with Organic Liquid Fertilizer Enhanced the Photosynthetic Capacity of Cotton

Photosynthesis is responsible for 90 to 95% of the dry matter of crop yields [30,31]. This study showed that the photosynthetic rate of the cotton population was significantly positively correlated with lint yield; in addition, the results were similar among the treatments [27], but the peak times were different [32], as the peak value was advanced at the full flowering period. The CAP in the OF₂ treatment was 33.0~52.2% higher than that in the CF treatment from the full-flowering stage to the boll-opening stage, which might have been related to the higher LAI and larger canopy opening in the late growth stage.

The respiration of crops provides energy and intermediate products for the movement, synthesis, and metabolism of substances during the growth and development of crops [33]. Previous studies have shown that the population respiration rate affects the yield of cotton, and the CR/TCAP of high-yield cotton was lower. The results of this study showed that CR/TCAP remained at a low level of 46.6~72.2% during the whole growth period in the OF₂ treatment; the results were similar among the treatments [32], especially at the boll-opening stage, which was 13.5% lower than that in the CF treatment, and the research results were different [34]. The lower respiration rate was beneficial for accumulating photosynthetic substances, which may be the main reason for the large accumulation of photosynthetic substances in the late growth period.

4.4. Fertilizer Combined with Organic Liquid Fertilizer Affected Cotton Yield and Quality

Studies have shown [12] that the yield of cotton could reach its highest value (3078 kg ha⁻¹) with a 20% reduction in nitrogen fertilizer combined with organic liquid fertilizer. The difference was significant compared with that in the control. Studies have shown [15] that when the replacement ratio of organic fertilizer is 20~40%, the yield of cotton is 4945~4978 kg ha⁻¹. In this study, CAP had a positive correlation with seed cotton yield at the later growth stage [35]. The results showed that lint yield was significantly correlated with the chlorophyll SPAD value at the full-squaring stage, PARM and PARD at the initial flowering stage, CR/TCAP at the full-boll stage, CR and CR/TCAP at the late full-boll stage and PARU and CAP at the boll-opening stage. In the OF₂ (OF + 80% CF) treatment, the yield was significantly higher than that in the other organic liquid fertilizer (OF) combined with reduced chemical fertilizer treatments and the CF treatment. The seed cotton yield was 6977~7142 kg ha⁻¹ compared with that in the CF treatment, and the increase was 21.8%. However, increasing the dosage of the organic liquid fertilizer resulted in a small production increase. The reason for this result may have been that the organic liquid fertilizer improved the utilization rate of the fertilizer; thus, the increases in fertilizer applications resulted in the cotton LAI being too large, causing the canopy to shade the areas below it, leading to photosynthetic effective area decreases, and affecting the lower part of cotton canopy ability to capture light energy, eventually reducing CAP and the yield.

The study found that [36] compared with conventional fertilization, 25% organic fertilizer could replace conventional fertilizer to increase crop yield and improve crop quality. Our study showed no obvious difference in fiber elongation between the CF treatment and the other treatments in terms of specific breaking strength. Low temperature, overcast conditions, and rain are other important reasons for the low micronaire value [37]. The results show that the fiber quality in 2019 was lower than that in 2020. The reason may be that precipitation during the flowering and boll periods from July to September was significantly higher than that in 2020, which hindered the growth of the cotton fibers, resulting in inadequate maturity and fineness and low micronaire values.

5. Conclusions

Compared with the CF treatment, organic liquid fertilizer (OF) combined with reduced chemical fertilizer (CF) increased the leaf SPAD value, reduced the leaf area index at the late growth stage, and increased PARM and PARD, which improved the light environment in the lower and middle canopy and ensured higher canopy apparent photosynthesis values. The OF combined with CF treatment improved the canopy structure of cotton, while the OF₁–OF₅ treatments reduced the photosynthetic area, which was not conducive to increasing cotton yields. In the OF₂ treatment (OF + 80% CF, 182 – 104 – 76 (N – P₂O₅ – K₂O) kg ha⁻¹), these rates maintained a suitable leaf area index (4.8) and a large canopy opening (0.1), improved the light distribution in the middle and lower canopy, ensured a higher population photosynthetic rate in the later growth period, and achieved the goal of decreasing costs and increasing efficiency in cotton production. Improving cotton yield and efficiently utilizing resources are of great significance.
