New Theoretical and Methodological Approaches to the Study of Heat Transfer in Coal Dust Combustion

Abstract

The existing theories of heat transfer in combustion chambers of boiler units fail to take into account a number of important factors that affect the reliability of results, and the methodological approaches to optimizing combustion processes can be revised in view of the spatial and temporal parameters of flame. Hence, the research aimed to improve the fundamental theoretical and methodological principles of studying heat transfer in coal dust combustion in the combustion chambers of industrial steam generators. The authors proposed to extend the theory of heat transfer with the mathematical description of particle size distribution of coal dust. In addition, the authors used the developed mathematical model of coal dust combustion based on a continuous curve of the particle size distribution in the ensemble. The mathematical model is consistent with the aeromechanical and thermal characteristics of flame. This work introduced a concept of flame continuum as a continuous medium, where the processes of combustion and heat transfer are studied. To achieve the research aim, in this paper, the methods of combustion chamber zoning, the equations of stationary and non-stationary heat conduction, radiation, and convective heat transfer, were used. These methods were tested on a number of high-temperature units.

1. Introduction

Fuel combustion and heat transfer in the sections of a boiler unit (BU) are optimized and harmful emissions are minimized at the input of the BU gas path and in the combustion preparation system [1,2,3,4]. In turn, the BU arrangement and the fuel type must be adjusted to the system for preparing and supplying combustion components, the design of fuel-burning appliances (FBA), and the design of the intense combustion zone (ICZ). Thus, the system for preparing and supplying the combustion components and the FBA design provide the conditions for stable ignition and effective fuel burn-out in the ICZ, which is related to the flame temperature and heat transfer in the ICZ that is described in the paper [5]. There is a similar description in the paper [6]. The composition of solid fuels was studied in [7], the fluidized bed fuel delivery system was described in [8].

Mathematical models, on the basis of which researchers conduct computer simulations, are shown in the papers [8,9]. In the paper [8], computer fluid dynamics (CFD) was considered in a specialized program based on a mathematical model developed by the authors of the paper [8]. In the paper [9], the simulation of the jet outflow process consisting of a mixture of air and coal dust was considered. The process of fuel preparation is described in some detail, namely it’s grinding, mixing, and feeding into the furnace through low-emission burners. In this part, the physical modeling is well analyzed. In addition, in the same paper, the authors consider mathematical modeling, on the basis of which the computer modeling process is built.

The system for preparing and supplying the combustion components and the FBA design provide the conditions for stable ignition and effective fuel burn-out in the ICZ, which is related to the flame temperature and heat exchange in the ICZ that is described in the paper [5]. There is a similar description in the paper [6]. The composition of solid fuels was studied in [7], the fluidized bed fuel delivery system was described in [8], and the influence of the design of burners on the formation of nitrogen oxides (NO_x) and underburning of fuel was shown in [9].

Studies made by authors such as L. Rosendahl support the theory of weak methodological assurance of heat exchange processes in high-temperature installations; this researcher, together with M. Mando, published an article with his own mathematical model [9]. In the article [8], T. Asotani and his co-authors also consider a model of the behavior of coal particles mixed with air, and the proposed mathematical model correlates well with [9], as well as with some propositions from the authors of [5]. The mathematical models proposed in the review do not contradict each other, as well as the fundamental laws of physics, and heat transfer in particular.

The widely applied analysis of the particle size distribution of fuel dust is based on calculating the total residue according to the Rosin-Rammler formula R_δ = exp(−bδⁿ), where b and n are constant coefficients which characterize the comminution fineness and the homogeneity of the grain-size distribution of fuel dust, respectively. Application of the total residue characteristic R_δ facilitates reducing all dust fractions to 1.0, taking into account the losses in the analysis, which is consistent with the mass conservation law. This analysis is also consistent with the accepted standard method for sizing disperse solid particles [10,11] and is widely applied.

But, when moving in the flame continuum during heating, volatilization, and burning of volatiles and coke, the fuel dust flows in as a mixture according to its particle size, small-sized particles of δ_min being the first and large-sized particles of δ_max being the last. Therefore, to analyze the thermal processes in the flame continuum, it is necessary to relate the analysis of the total residue to the local particle size value in the ensemble of fuel particles F(δ_i).

The generally applied method is based on the analysis of particle size distribution F(δ₁/δ₂) in the range of δ-value between δ₁ and δ₂, which corresponds to the discrete process of sizing the fuel dust. To obtain a continuous dependence of F(δ_i), it is necessary to choose a representative point for the interval (δ₁;δ₂). The method for particle size analysis recommended in [10,11], where F(δ + Δδ) is divided by the variation interval in the particle size distribution from δ to Δδ, that is, by Δδ, is not adequate to the research task, since, according to the definition, F[δ/(δ + Δδ)] = R(δ) − R(δ + Δδ), and

$$\frac{F\left[\delta /\left(\delta +\Delta \delta \right)\right]}{\Delta \delta }=\frac{R\left(\delta \right)-R\left(\delta +\Delta \delta \right)}{\Delta \delta }=\frac{\exp \left(-b{\delta }^n\right)-\exp \left(-b{\left(\delta +\Delta \delta \right)}^n\right)}{\Delta \delta }.$$

(1)

For the value of the total residue R(δ) that monotonically decreases with the increasing δ, Formula (1) yields a relative decrease in the total residue in the interval [δ, δ + Δδ], which is conventionally determined in fractions of the total fuel mass. This means that Formula (1) yields the variation in the total residue with the change Δδ. This is the rate of change of the total residue R(δ) in the interval of variation δ with a change of this interval, which is almost unrelated to the change in the residue of coal dust particles in this interval.

Our developed methods were tested on a number of high-temperature units, including boiler units with natural circulation, and direct-flow boilers, when burning fuels of different thermalphysic characteristics. As a result, we proved that the parameters of the heterogeneous flame depend on the mathematical description of the particle size distribution of coal dust; the authors determined the characteristics of the combustion process that previously had not been taken into account in the theory of heat transfer; the authors provided theoretical evidence for new methodological approaches to the theory of heat transfer in the furnace of a boiler unit. In addition, the authors theoretically confirmed the possibility of considering a flame as a continuous medium and showed the prospects of determining the adiabatic temperature distribution along the length and height of the flame continuum in the intense combustion zone in the combustion chamber of a boiler unit. The conceptual issues of gas-solid heat transfer with respect to the conditions of the combustion chamber of the boiler unit have been solved. Hot flue gases and screen tubes are considered as part of a single continuum environment.

High-temperature installations should include boiler units with natural circulation, direct-flow boilers. It should be noted, the analysis of the above scientific works showed that when burning fuels with different thermal characteristics in high-temperature installations, there is currently no single methodological basis for studying heat transfer processes during exothermic combustion reactions in boiler units. Researchers consider the boiler unit as a set of individual elements that are not related to each other. Thus, there is a scientific basis for the development of new theoretical and methodological approaches in the study of heat transfer processes in high-temperature installations. Therefore the aim of our investigation is to improve the fundamental theoretical and methodological principles of studying heat transfer in coal dust combustion in the combustion chambers of industrial steam generators.

According to known mathematical dependencies, for example [12], the confidence values of the argument of a monotonically decreasing function can be determined in various ways. At the suggestion of the authors, the function should be presented as continuous, that in the sieve analysis neither in theory nor in practice, the researchers did not apply. The continuous function allows operations such as differentiation and integration.

2. Problem Statement

It is rational to use the arithmetic mean value of two intervals F(δ₁/δ₂) and F(δ₂/δ₃) to determine the representative value of the residue of coal dust particles in the interval of size change δ. The authors should bear in mind that there is a relation y_s^m ≤ y_g^m ≤ y_ar^m between the arithmetic mean of any value y_ar^m, the geometric mean value y_g^m, and the harmonic mean value y_s^m [12,13]. Therefore

$$F_i=0.5\left[F\left({\delta }_1/{\delta }_2\right)+F\left({\delta }_2/{\delta }_3\right)\right]=0.5\left[\exp \left(-b{\delta }_1^n\right)-\exp \left(-b{\delta }_3^n\right)\right].$$

(2)

The representative points F_i thus obtained make it possible to plot a continuous curve of the particle size distribution of the fuel particle ensemble, which allows application of differential and integral calculus to mathematically describe the behavior of particle ensemble in a furnace. The reliability of this approximation, that is, the adequacy of replacing the step function F[δ/(δ + Δδ)] with the continuous curve F_i, increases due to the increase in the number of measurements taken with screens for sizing fuel dust. It is also noteworthy that a sufficiently large number of particles correspond to a single point in the particle size distribution; since 1% of the weighed sample mass, equal to 25 g and 200 μm, corresponds to 330 particles of this size. It is also noteworthy that a sufficiently large number of particles correspond to a single point in the particle size distribution; since 1% of the weighed sample mass, equal to 25 g and 200 μm, corresponds to 330 particles of this size, that is confirmed by experimental studies in the laboratory of Heat Power Engineering of the scientific and technical Center under the Ministry of energy of the Kyrgyz Republic.

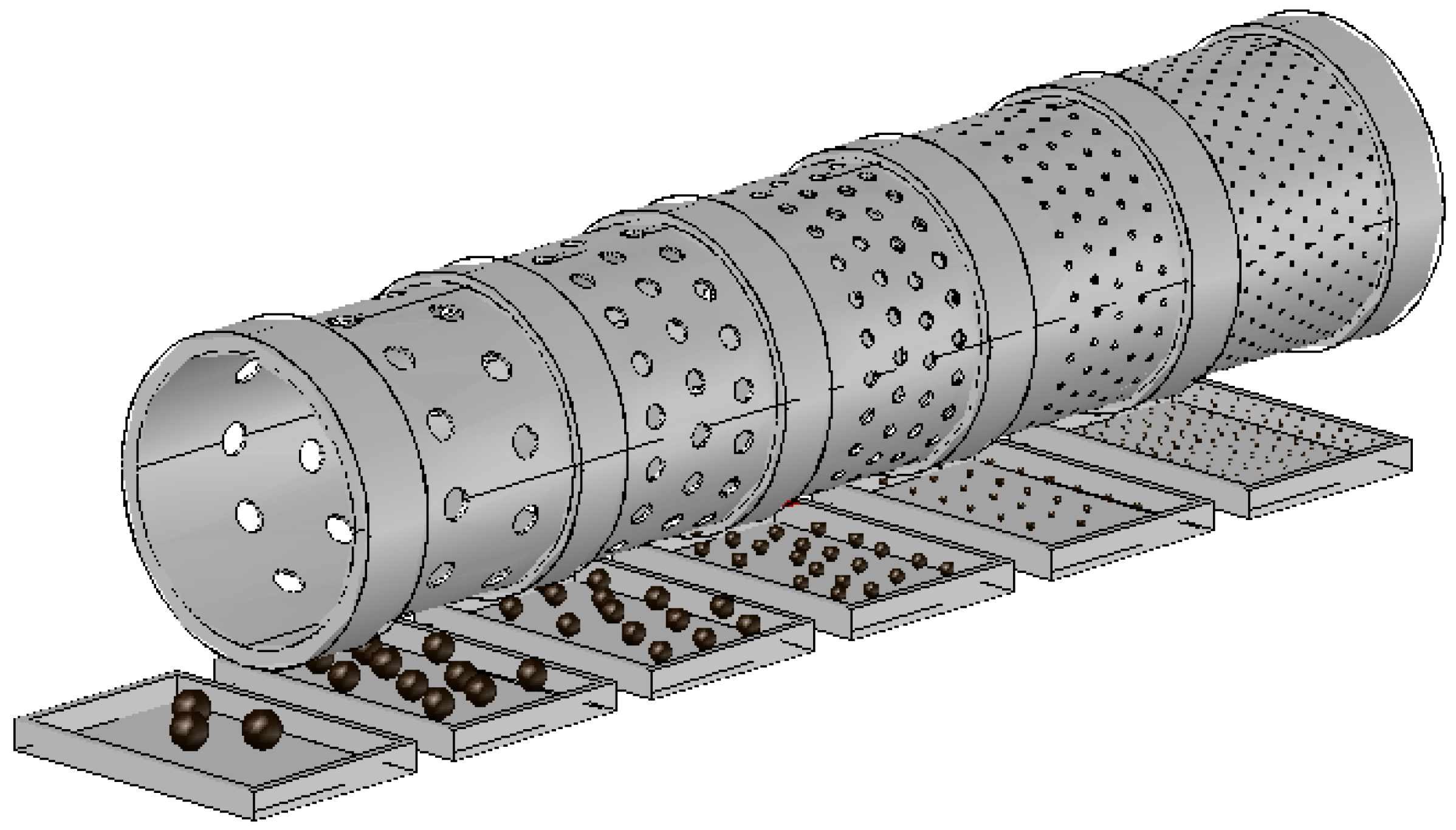

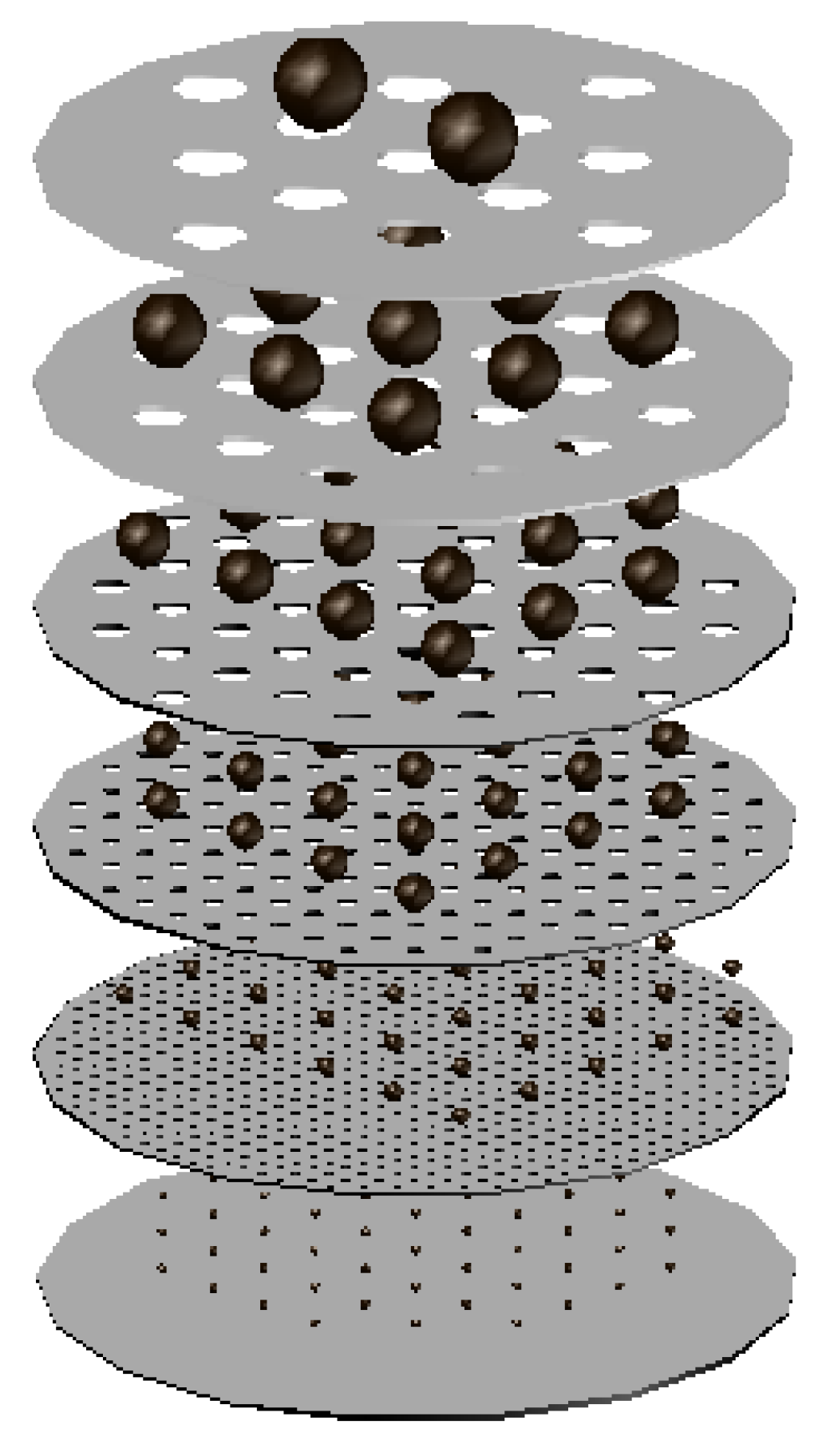

Figure 1 shows a screen for screening coal dust. Figure 2 shows a rotating coal (biofuel) vibrating screen.

3. Development of Fundamental Mathematics

The qualitative analysis in the framework of the special probability distribution theory [14,15] shows that the particle size distribution of solid fuel dust can be described by the equation of hypergeometric distribution, which leads to a binomial distribution if the number of measurements is increased. As shown above, when transformed to the continuous probability distribution, it corresponds to the Gauss curve with the density of normal distribution of probability to deviate from the mean value

$$\varphi \left(u\right)=\exp \left(-0.5u^2\right)/\sqrt{2\pi },$$

(3)

where the standard normal deviation u = (δ − ξ)/(ξ·σ) is introduced as the argument; ξ corresponds to the particle size δ marking the maximum on the curve F_i = f(δ); σ² is the dispersion, σ is the deviation standard. Normalization, in this case, means placing the ensemble of fuel particles according to their number near the maximum ξ and reducing all values to the dimensionless form; standardization is reducing the ensemble characteristics to the form of dependence on the deviation standard σ. The error function φ(u), which in this case should be referred to as the deviation function, is tabulated and given in the reference books [14,15]. Figure 3 and Figure 4 show the deviation function for the conditions of the research problem with help of different graphs. It is noteworthy that the standard deviation as a generalizing argument uniquely determines function (3) and the values u = 1 and u = −1 correspond to inflection points on the curve plotted according to the dependence (3). σ² = (δ − ξ)²/(ξ·u)². Furthermore, the curve φ(u) plotted in accordance with the particle size distribution makes it possible to easily determine the dispersion σ² = (δ − ξ)²/(ξ·u)².

The authors calculated the correlation coefficient r_y1,y2 that characterizes the tightness of the close linear connection between y₁ and y₂ to determine how reliable the equation of the Gaussian curve (3), plotted according to the proposed technique y_calc ≡ y₂, was for the description of the practical particle size distribution of fuel dust y_pr ≡ y₁. Thus, it is rational to subject the dependence (3) to the logarithmic linearization

$$y_2=\ln \varphi \left(u\right)=-\left(0.92+0.5u^2\right)$$

(4)

In the papers [14,15], they try to solve similar mathematical problems, as in the sieving of particles. Having determined the correlation coefficient [16,17] −1.0 ≤ r_1,2 ≤ 1.0 between the practical results of fuel dust sizing and the Gaussian curve in a conventional way [18], we quantified the reliability of description (3). This technique can also be applied at the F(δ_i) determination stage. In [19] a solution was proposed to solve similar problems using computer simulation, and in [20,21] the authors approached the exact definition of the desired quantities using specific methods, but they obtained quite realistic and practically applicable results.

The ensemble of fuel particles with characteristics (1)–(3) moves with the air flow at the velocity w_l that varies along the flame length l due to the flame expansion and the change in its temperature and dimensions through fuel heating and burn-out. The flame expansion can be registered by the drop in the average kinetic energy E_l/E₀ = 0.56d₀/0.15l of the circular jet with the exit diameter of the fuel-burning device d₀ [22,23]. Then the local velocity of the flame continuum without taking into account the change in its temperature is the following w_l² = 3.73w₀²d₀/l, whence it follows that w_l = 1.93w₀(l/d₀)^−0.5. Similar dependencies are proposed for flat and swirling flames.

The temperature factor in the velocity variation can be taken into account as a first approximation basing on the following relations. Since E_l/E₀ = ρw²/ρ₀w₀², the temperature dependence can be determined as E_l,T/E₀ = (ρ₀w₀w_T)/(ρ₀w₀w₀) = w_T/w₀ when the mass ρw is released in the flux density ρw², which is constant according to the continuity equation ρw = ρ₀w₀ = const, and hence

$$w_{l,T}=1.93w_0\left(T/T_0\right){\left(l/d_0\right)}^{-0.5}.$$

(5)

Thus, within the scope of the stated problem, the velocity of the flame continuum increases in direct proportion to the increase in its absolute temperature and decreases in inverse proportion to the square root of the relative length in calibers l/d₀. A more accurate consideration of the temperature factor is possible when calculating the heat of advective mass flows produced by the ejection effect of the flame and the heat released during fuel combustion.

We present experimental data for the operation of boilers E-210-140 and E-160. For the boiler, E-210-140 data are given at the nominal load of the boiler Dnom = 53 kg of steam per second, in addition, when burning coal with the heat of combustion of Kazakhstan 24,560 kJ/kg. Measured in the experiment parameters: speed w₀ = 8 m/s, T₀ = 1371 K, d₀ = 0.9 m, T = 1721 K, l = 5.33. For the e-160 boiler, the data are given at the nominal load of the boiler Dnom = 44 kg of steam per second, in addition, when burning Kyrgyz coal with a combustion heat of 22,450 kJ/kg. The measured experimental parameters: velocity w₀ = 9.2 m/s, T₀ = 1389 K, d₀ = 0.86 m, T = 1685 K, l = 4.75. After that, we calculate the desired speed of the flare continuum within the framework of the problem (

Table 1. The desired speed of the flare continuum.

Boiler	E-210-140	E-160
wl,T, m/s	7.964	9.165

).

4. Adapting the Model to Flame Characteristics

When adapting the relations of the multiple-size fuel flux to the aeromechanics of the flame continuum, it is necessary to define two asymptotic conditions that are associated with the initial and final flame sections. The formula u_lim = (δ_lim − ξ)/(ξ·σ) is used to determine limiting minimum value of coordinate u_lim, corresponding to the size of the fuel dust particle δ_lim, which does not yet participate in heating and ignition, and is not involved in calculation. If we place the flame cross-section $l_f$= 0 at the point where the fuel flux starts to mix with the air and assume that δ_lim = 0 in this cross-section, then u_lim = −ξ/(ξ·σ), that is, the location of the initial cross-section of the flame continuum depends on the characteristics of particles of the fuel dust ensemble.

The fuel particles of small thermal mass (the number Bi ≤ 0.1) are heated practically without temperature drop in the particle cross-section, therefore the dimensionless temperature Θ of a particle with the diameter δ_i can be described by the dependence

$$\mathsf{\Theta }=\exp \left(-3BiFo\right),$$

(6)

thermal conductivity, density, and mass heat capacity of the particle material in regulated units. Here Bi = αλ/δ, Fo = aτ/δ², where α is heat transfer coefficient, W/(m²K), λ is thermal conductivity, W/(m K), a is thermal diffusivity, m²/s, τ is time, s, δ defines the size of the surface, m.

The numerical analysis shows that the Bi number can exceed 0.1 when large fuel particles with a high heat transfer rate are heated. The effect produced by the thermal mass of particles on the temperature field (6) can be taken into account by introducing the thermal mass coefficient.

The thermal mass coefficient m of the fuel particle is determined by the relation of the heat-transfer coefficient on the fuel particle surface α to the heat-transfer coefficient k, including only a part of the internal thermal resistance and taking into account the particle shape factor ς

$$m=1+0.5Bi/\left(\varsigma +2\right).$$

(7)

To a spherical fuel particle approximation ς = 3 and m = 1 + 0.1Bi with the maximum value of Bi = 1.0, the thermal mass coefficient in this case is m = 1.10. If we take the thermal conductivity coefficient of a coal particle equal to λ = 0.15 W/m·K, we can obtain Bi_min = 0.03, m = 1.003 for a particle with a size of 50 μm = 0.05 × 10⁻³ m and a heat-transfer coefficient per particle surface of α = 100 W/m²·K, which refers to the field of thermally thin bodies. Under the same conditions, a particle of maximum size δ = 1000 μm = 1·10⁻³ m will correspond to the Bi_max = 0.67, while the deviation from the calculation of the particle temperature field according to the laws of thermally thin bodies will reach 6.7% with mass ratio m = 1.067. The time of heating to the specified temperature of intensive volatilization should be calculated according to the formula obtained by taking the logarithm of dependence (7)

$${\tau }_{int}=\left[\delta \rho cm/\left(2\alpha \varsigma \right)\right]\ln \left({\theta }_0/{\theta }_{int}\right),$$

(8)

where θ₀ = t_g − t₀ is the difference in the temperatures between the flue gases t_g and the initial temperature of the particle t₀; θ_int = t_g − t_int is the difference in the temperature between the flue gases and the temperature of intensive volatilization. As the first approximation, t_int can be considered the ignition temperature of the combustible mixture. When t_int increases, the temperature difference θ_int decreases and the required time τ_int increases; according to the results of [24], the drying time of the fuel particle can be ignored.

The gradual start of the fuel particles into the heat transfer processes in the flame and the additive dependence of the total heat content are defined by the integral of the distribution function of the deviation probability (3), and it is rational to set the integration limits from minus ∞ to the maximum fuel particle size δ_max corresponding to the upper limit of integration U

$$\mathsf{\Phi }\left(\delta \right)=\frac{1}{\sigma \sqrt{2\pi }}{\displaystyle \underset{-\infty }{\overset{{\delta }_{\max }}{\int }}\exp \langle -0.5{\left[\left(\delta -\xi \right)/\left(\sigma \cdot \xi \right)\right]}^2\rangle }d\delta ={\mathsf{\Phi }}_u\left(U\right).$$

(9)

Moreover, the normal distribution function Φ(U) is associated with the probability integral Φ(U) and the error function erf(U/2^0.5) by the dependence

$${\mathsf{\Phi }}_i\left(U\right)-1/2=0,5erf\left(U/\sqrt{2}\right)=\mathsf{\Phi }\left(U\right).$$

(10)

Thus, the normal distribution function Φ_i(U) can be defined by the probability integral Φ(U) or by the error function erf(U/√2), both dependences are tabulated [14,15]. But the practical adaptation of these dependences has a number of features that are related to the reliability of the dependences used. These features can be determined by the numerical analysis of the dependences (8) and (9) when changing the variability intervals of the arguments and their functions. Figure 5 shows the distribution function Ф_i(U).

The normal distribution law is characterized by a distribution function, which is determined in this case via the tabulated Laplace integral or via the tabulated error function. Figure 5 shows the normal distribution function through the tabulated error function, which is convenient for interpretation by scientists in the field of sieve analysis of particle sieving. The lower limit of integration in the definition of the error function is determined by the fractional composition of fuel particles in the region of small values of δ, and the upper limit is associated with the calculation of the incomplete combustion of fuel in a given length of torch. The specified range of values on the axes corresponds to the most common case of dust sieving with fractional composition R₉₀.

$$erf\left(U/\sqrt{2}\right)=2/\sqrt{\pi }{\displaystyle {\int }_0^{\pi }\exp \left(-{\left[U/\sqrt{2}\right]}^2\right)}du.$$

(11)

The numerical analysis shows that when the probability integral (9) is used for the range of positive and negative values u = (δ − ξ)/(ξ·σ), the difference between Φ(U) and Φ(δ) does not exceed 0.10% in the whole variation interval u. When calculating Φ_u(U) according to the dependence (10), the difference may exceed 10% in the range of negative values u, which is related to the lower limit of integration when obtaining the error function.

The resulting integral function is related to the known probability integral [14,15], which is given in tables in reference books; it makes it possible to calculate not only the total residue of the known particle size distribution, but also to define a number of properties of the multiple-size fuel flame. Thus, the reduced dependence (8) makes it possible to determine the start of a certain temperature regime depending on the particle size and the conditions of its motion with the multiple-size flame. In order to determine the burnout of fuel particles of different sizes, the adopted model should be complemented with the conditions under which the burning particle interacts with the flux of the furnace and flame medium.

If we assume that the interaction pattern of a burning fuel particle with the furnace atmosphere [23,24] has a surface model, which corresponds to a plane diffusion layer between a spherical particle and the furnace atmosphere, the burnout rate of the particle can be determined at G_c = const according to the equation dδ/dτ = −2M_cG_c/ρ, where M_c = 12 kg/kmol is the molar mass of carbon, ρ ≈ 800 kg/m³ is the density of coke. The flow of burnable carbon in the flat diffusion layer, the most common model layer in simulation of moving burning particles of coal dust is assumed to be a constant to simplify the calculations, which does not contradict the actual conditions of combustion, because the boiler unit in a certain mode for a long time period supply a fuel-air mixture constant, and the fractional composition is determined by the operation of the mill devices and also with a certain mode of operation the boiler unit remains virtually unchanged.

The adopted pattern of surface one-dimensional burning in the primary reaction with CO₂ generation has the first order in oxygen; combustion is considered quasi-stationary and self-similar in time. In this case, the total burnout time of a particle with the initial size δ₀ is the following:

$$\tau =-\frac{1}{2M_c}{\displaystyle \underset{{\delta }_0}{\overset{\delta }{\int }}\left(\rho /G_c\right)}d\delta =0.0417{\displaystyle \underset{\delta }{\overset{{\delta }_0}{\int }}\left(\rho /G_c\right)}d\delta$$

(12)

If we substitute the integral expression of time τ in (7) for the process associated with heating and burning of fuel in the flame, we can obtain the distribution function of heat release in the flame along its length. But this pattern requires refinement both in terms of assuming spherical surfaces to be flat, and in terms of the dependence of G_c on δ.

To take into account the polydispersity of the medium in the flame continuum, we need to apply the dependence for the single-particle burnout function associated with the local value of the kinetic and diffusive characteristics of the process. As a first approximation, we can neglect the effect of CO burning within the boundary layer, the reducing reactions, and the internal response [23,24]. Then, a one-dimensional model of the combustion process of the first-order oxygen reaction, with oxygen being insufficient, has the dependence for the burnable carbon flux G_c: G_c = ωC_ox, where ω is the kineticity parameter of the fuel burnout process, determined in accordance with Kirchhoff’s second electrical rule for a parallel circuit of two conduction bands. The oxidation function is determined by the amount of oxygen in the flame gas 0.21P_g/RT and its consumption for the combustion of volatile substances and carbon in stoichiometric ratios.

5. Dynamics of Particle Combustion

The dynamics of multiple-size fuel combustion is associated with the distribution of temperature and concentration of components along the length of the flame continuum; the application of electrothermal analogy and Kirchhoff’s electrical rules for nodes and circuits allow us to relate a number of factors. Marking with nodes the points on the burning particle surface without oxidizer C_ox = 0 and those on the outer surface of the diffusive boundary layer, where the concentration of the oxidizer is equal to that of the flame continuum C_ox^f, we obtain the difference in oxidizer transport potentials ΔC_ox = C_ox^f − 0 = C_ox^f. Arranging the distributed diffusive resistance 1/α_D parallel to the lumped kinetic resistance 1/k₁, we obtain the total diffusive-kinetic resistance to the combustion process R_Σ = 1/α_D + 1/k₁ = 1/ω, where the diffusive-kinetic conductivity ω = 1/R_Σ = α_Dk₁/(α_D + k₁).

The factor ω can also be referred to as a kinetic index of the fuel burnout process ω_k for α_D ≫ k₁, when the diffusion processes do not limit the burning rate, ω_k = 1.0; for α_D ≪ k₁, when the diffusion processes become limiting, ω_k → 0. For α_D = k₁ ω_k = k₁/2, which corresponds to the intermediate regime; thus, applying the kinetic index of the combustion process ω_k we can formally designate the boundaries of the kinetic and diffusion regimes including the intermediate region, which corresponds to the trans-regime representations in the dynamics of the solid-fuel burnout process.

The local concentration of oxygen in the flame continuum C_ox^f, kmol/m³, is determined by the initial volumetric concentration of C_ox.i, associated with the combustion method and the burner with air blast C_ox.i = 0.21, and with oxygen consumption for the combustion of volatiles and coke according to the oxygen balance

$$C_{ox}^f=\frac{C_{ox.i}{P}_T{V}_k^0}{RT{V}_g}\left[\left(\alpha -1\right)\frac{V^0}{V_k^0}+K_H^p\right].$$

(13)

(13) takes into account that the stoichiometric air consumption V⁰, m³/kg, is equal to the air consumption for the combustion of coke and volatiles V⁰ = V_k⁰K^c + V_v⁰V_v^c. The oxygen content according to (13) ensures the local burnout of the fuel particle with the initial size δ_i with respect to this dependence without taking into account the variability of the variability of the kinetic factor [23,24]

$$\frac{d{\delta }_i}{d\tau }=-\frac{2M}{{\rho }_k}{\omega }_k{C}_{ok}^f.$$

(14)

The diffusion coefficient of mass delivery α_D is generally determined by the dependence of Nu_D on numbers Re and Pr, where the former includes the relative velocity of a particle in the flux. When the flame flux develops, the relative velocity and the Re number reduce to zero, with Nu_D ≈ 2. Thus, the kinetic index of the process of fuel particle burning under these conditions is defined by the formula

$${\omega }_k=k_{1}N{u}_{D}D/{\delta }_i/\left(k_1+N{u}_{D}D/{\delta }_i\right)=2k_{1}D/{\delta }_i/\left(k_1+2D/{\delta }_i\right).$$

(15)

Here Nu_D is Nusselt diffusion criterion (dimensionless), δ_i is the size of the i-th particle, m, k₁ is kinetic mass transfer coefficient, m/s, D is diffusion coefficient, m²/s, ${\omega }_k$ is process kinetics index, m/s.

Taking into account (13)–(15), the combustion velocity of a fuel particle with size δ_i is determined by the formula

$$\frac{d{\delta }_i}{d\tau }=-\frac{2M}{{\rho }_k}\frac{2k_{1}D/{\delta }_i}{\left(k_1+2D/{\delta }_i\right)}\frac{C_{ok.H}{P}_T{V}_k^0}{RT{V}_g}\left[\left(\alpha -1\right)\frac{V^0}{V_k^0}+K_H^p\right]=-{\omega }_k\frac{B}{T}.$$

(16)

Depending on (16), parameter B includes all the constants of the specified task, the proportion of unburned coke K_u^r is assumed to be the same for the particle of any size, the temperature of the flame continuum T can be related to the abscissa X and the flame length, thus the effect of the particle size distribution consists in the factor ω_k. This allows separation of the differentials and integration of the dependence (16) for obtaining the burnout function of fuel particles of size δ_i.

$${\tau }_{vyg}=-\frac{T}{B}{\displaystyle \underset{{\delta }_{i0}}{\overset{0}{\int }}\frac{2D+k_1{\delta }_i}{2k_{1}D}d{\delta }_i}=\frac{T}{B}\left(\frac{{\delta }_{i0}}{k_1}+\frac{{\delta }_{i0}^2}{4D}\right)$$

(17)

The change of sign in (17) is connected with the change in the limits of integration from 0 to δ_i0, which corresponds to the dynamics of fuel particle burnout. The temperature of the flame continuum, which affects the time of fuel particle burnout, is determined here by the approximation from T_int = t_int + 273 to T_con, corresponding to the final flame cross-section $l_f$ = 1.0

$$T=T_{int}+l_f\left(T_{con}-T_{int}\right).$$

(18)

The longitudinal dimensions of the flame continuum can be determined using different thermal physic techniques of diagnosis in the field of aeromechanics, temperature and radiation, concentration and analysis, as well as using techniques of mathematical statistics. The method for diagnosis should be selected in accordance with the main research task. In this paper, determination of flame characteristics is based on the dispersion analysis of fuel dust, so it is rational to determine the initial flame section l₀ by the ignition time of the smallest fuel dust particles according to (8). In this case, l₀ will differ from the distance to the burner port by the amount that is required to heat and ignite the smallest dust particles.

The main task under the stated conditions is to determine how much the initial velocity at the nozzle outlet F₀ = πr₀² is influenced by three main factors: jet expansion due to the involvement of the ICZ medium into the flux, change in velocity due to the change in particle size distribution of the flux caused by combustion and temperature change of the flame medium from T₀ to T_f. Thus, the change in velocity of the flame medium from $l_f$ = 0 to $l_f$ = 1.0 during its motion and combustion process can be represented by the dependence

$${\mathrm{w}}_f=w_0{k}_F{k}_V{k}_T,$$

(19)

where k_F, k_V, k_T are the influences of change in flame cross-section, change in volumetric flow in the flame, and its temperature change, correspondingly:

$$k_F=\frac{1}{{\left(1+0.21l_f/d_0\right)}^2};$$

(20)

$$k_V=\frac{1}{\left[1+l_f\left(\frac{V_g^{\alpha }}{{\mathrm{V}}_v^{\alpha }}-1\right)\right]};$$

(21)

$$k_T=T_f/T_0=1+\Delta T_{gor}{l}_f/T_0.$$

(22)

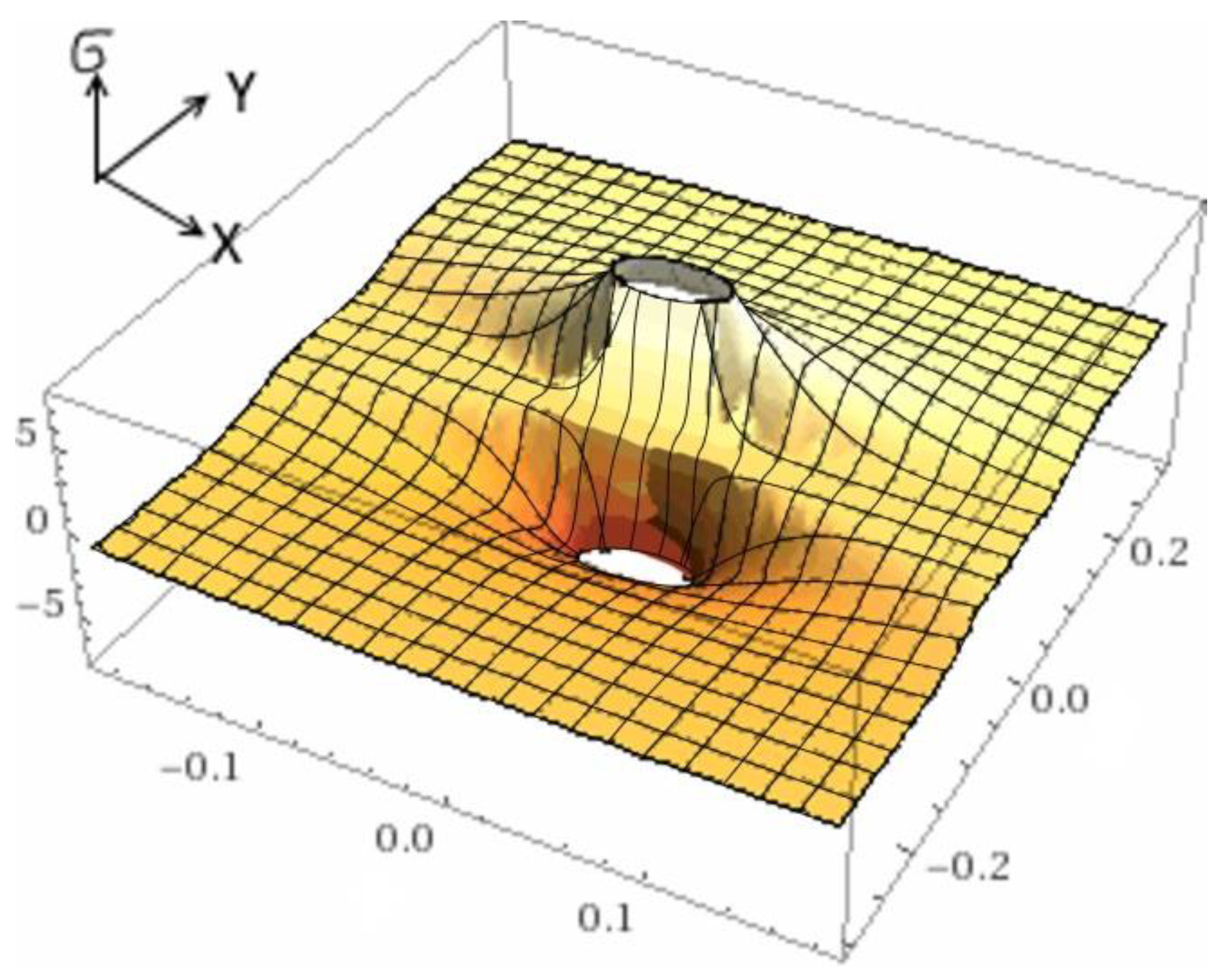

The relation (20) is obtained geometrically on the basis of central angles of the heterogeneous flame divergence equal to 12⁰ that are experimentally measured taking into account the advective mass fluxes. Relations (21) and (22) admit the linear approximation of the dependence Ф = f(X,) associated with fuel burnout and temperature rise in the flame, as Figure 3 shows. The factor l_f/d₀ is the distance from the nozzle in calibers. This factor is applied here because the flame jet advances up to the plane of fuel ignition initiation according to the aeromechanic laws and without internal heat sources. The factor ΔT_com takes into account the effect of flame temperature increases due to the combustion reaction of fuel.

After the fuel ignition at $l_f$= 0, particle size related burnout of fuel and temperature increase of the flame continuum take place in accordance with the integral curve Ф = f(X). By taking into account this factor, we make the task iterative, therefore the linear approximation Ф = f(X) is a possible solution, while dependences (20)–(22) describe the second-order influences. In fact, these approximations result from the expansion of the V($l_f$) function, as shown below.

The amount of gas phase in the flame continuum V_g, m³/kg, changes from αV⁰ at the flame starting point with $l_f$ = 0 before the ignition (α − 1) to V⁰ + V_g^α=1 at the flame end when the combustion is completed, where $l_f$ = 1.0. If the function V_g($l_f$) is expanded in the Taylor series, the first two addends of the series give

$$V_g\left(l_f\right)=\alpha V^0+l_f\frac{\partial V_g^{\alpha =1}}{\partial l_f}.$$

(23)

The authors determine the variables V⁰ and V_g^α=1 that form part of Formula (23) by the reference data for a specific type of solid fuel [8] at 0 ≤ $l_f$ ≤ 1.0. Similarly, the authors determine the flame continuum enthalpy in its temperature change function, and the temperature changes can be determined in the first approximation by the enthalpy change with c_r = const.

The determined flame boundaries make it possible to plot the starting and final points of the flame continuum on the X-axis, and, accordingly, to find the starting and final points of the flame on the Φ-axis, considering it as the heat source and taking into account the initial flame section. The corrections to the flame continuum velocity (19) are applied sequentially: only the correction k_F is applied in the range from l_f = 0 to l_f = l_i, after that all three corrections up to the final flame cross-sections are applied.

The length of the initial section preceding the ignition initiation l_i depends on the initial velocity of the flame flux w₀ and the heat transfer rate in terms of convection α, W/m²K, which gives the following if only k_F is taken into account

$$l_i^3+19.0476l_i^2+90.703r_0^3{l}_i=0.22576\cdot {10}^3{w}_0{r}_0^2/\alpha ,$$

(24)

or if l_i is substituted with l_i,f = l_i/d₀ and dimensionless similarity numbers Re = w₀d₀/ν and Nu = αd₀/λ are applied

$$l_{i,f}^3+9.5238l_{i,f}^2+5.6689d_0{l}_{i,f}=0.04\cdot {10}^{-6}\mathrm{Re}/d_{0}Nu.$$

(25)

Equation (24) can be solved either by Cardano’s method, or numerically; adaptation calculations show that the length of the initial section is 0.95 ... 1.30 calibers, which is consistent with the experimental data.

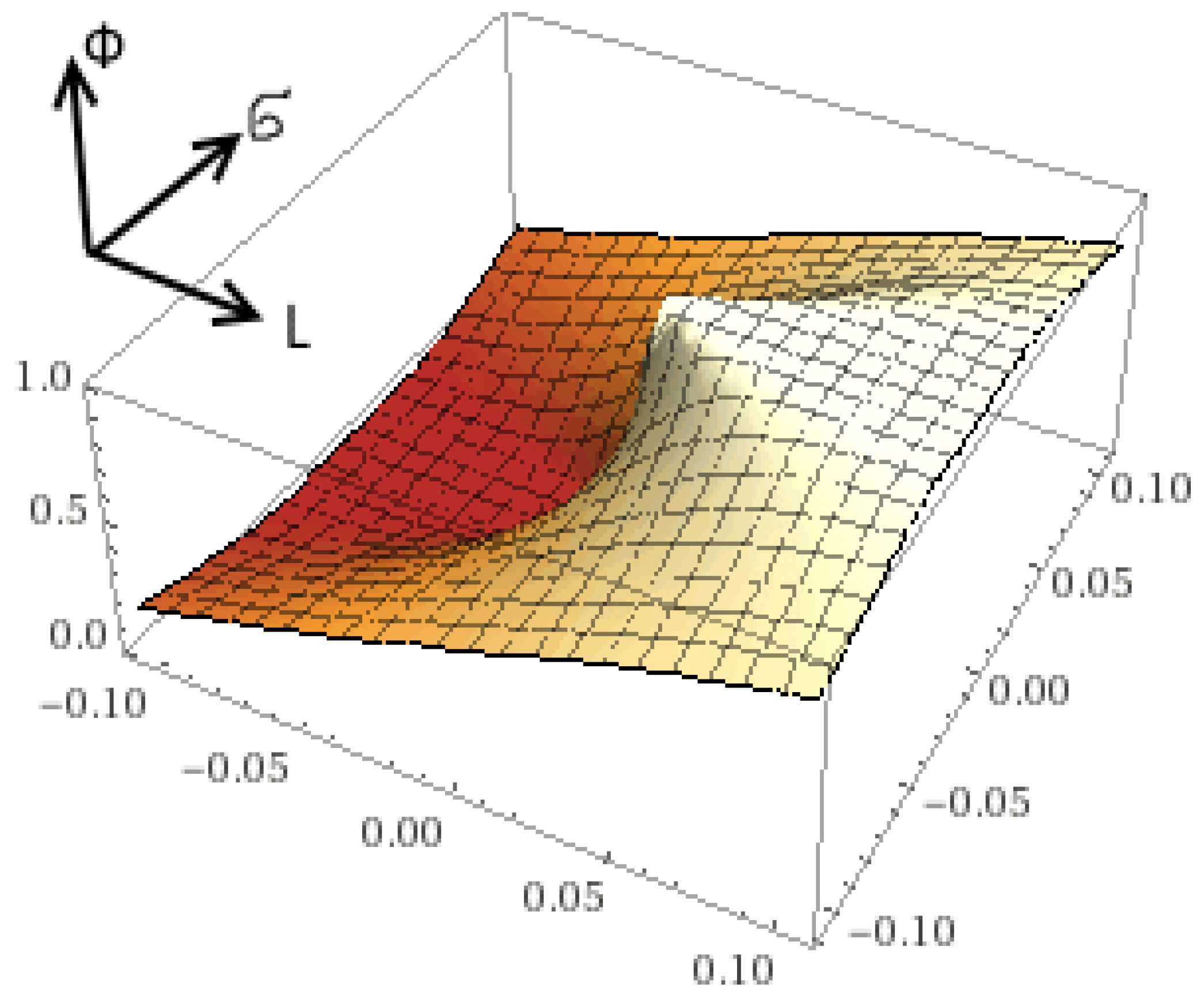

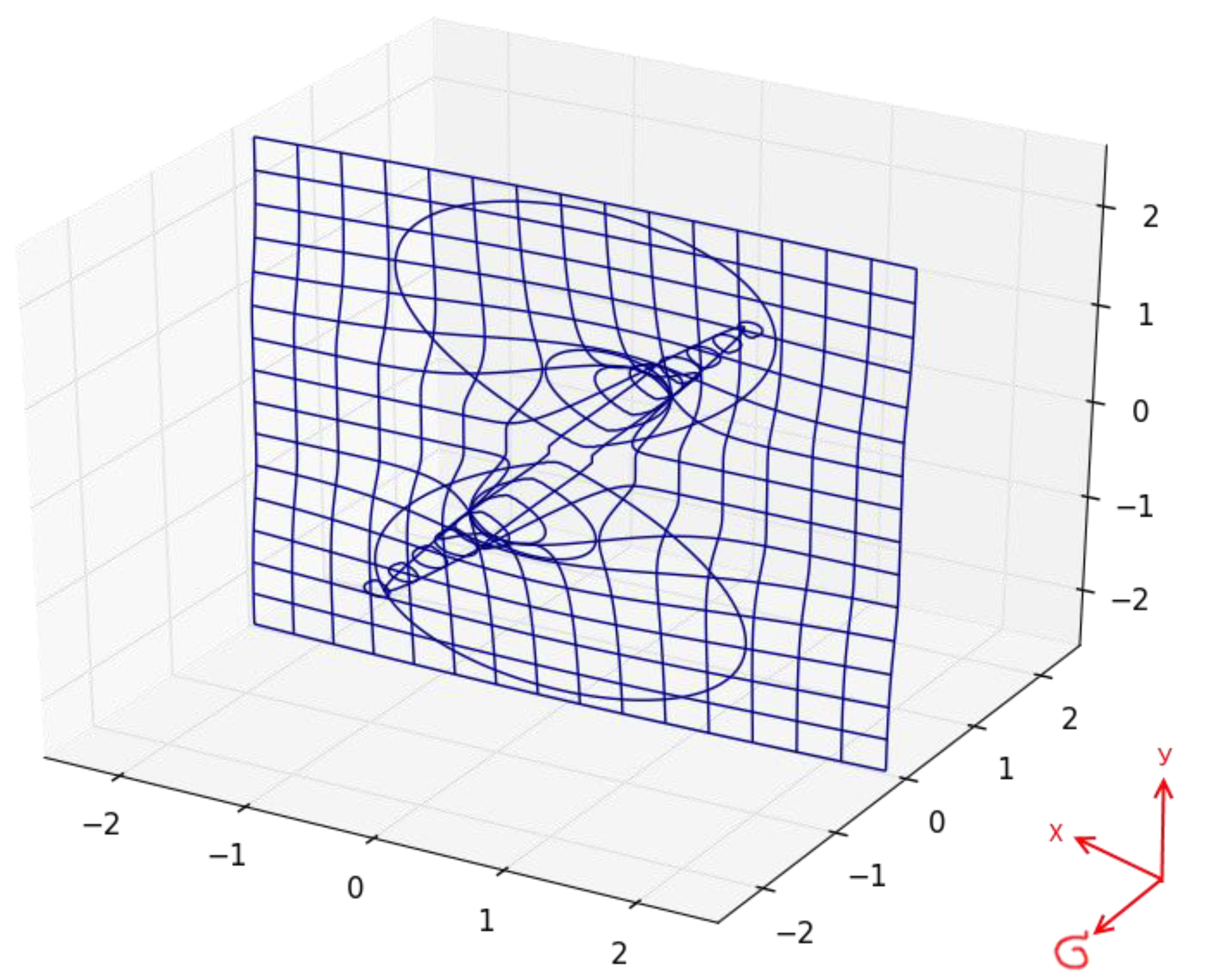

The transformations of the abscissa, make it possible to numerically determine the function Φ on the graph ordinate as an integral function of the increase in the flame continuum enthalpy, which can be related to its adiabatic temperature

$$t_{ad}=\mathsf{Ф}\left(l_f\right)\frac{Q_T^T}{c_T{V}_g}.$$

(26)

If the available heat of the fuel flux Q_p^p and the yield of combustion products per the fuel mass unit V_g with the heat capacity of the combustion products c_p are substituted in the Formula (26), the local adiabatic temperature value of the flame continuum t_ad can be determined when the obtained result is multiplied by the normal deviation function Ф($l_f$) for the given coordinate $l_f$ [25,26,27]. The transition from Φ(U) to Ф($l_f$) is realized by calculating the time of the particle size related burnout of fuel in accordance with (17), which corresponds to the time determined by the actual velocity of particles in the flame τ = l_f/w_f according to (19). The obtained dependence is solved with respect to the relation between l_f and u = (δ_i − ξ)/(ξ·σ).

6. Validation of the Results

The following results were obtained: the dependence of the parameters of the heterogeneous flame on the mathematical description of the fractional composition of coal dust was substantiated; the characteristics of the combustion process that were previously not taken into account in the theory of heat transfer were revealed; theoretically confirmed new methodological approaches to the theory of heat transfer in the furnace of the boiler unit.

The results of theoretical studies were checked by the authors at operating thermal power plants, in particular, when burning coal dust in E-160 boilers. In the laboratory of thermal power engineering of the scientific and technical center under the Ministry of Energy of the Kyrgyz Republic, comparative analyzes [28] and experimental studies were conducted on samples of coal dust of various compositions. The movement of coal dust through the sampling tubes of devices, as well as the degree of grinding in roller and hammer mills was taken into account. The results showed good convergence within the engineering error of theoretical and experimental data.

In addition, the possibility of treating the torch as a continual medium was theoretically confirmed; the prospects for identifying the distribution of the adiabatic temperature along the length and height of the torch continuum in the zone of intense combustion of the combustion chamber of the boiler unit are shown.

On boilers E-210-140, experiments were carried out to measure the length of the torch, in particular, its initial part, as well as the height of the zone of intense combustion. In the course of the experiments, techniques approved during the operation and measurement of parameters at high-temperature installations were used, for example, the errors of the primary and secondary measuring instruments were multiplied. The discrepancy between the results of theoretical and experimental studies on the measurement of the temperature and length of the torch tended to 3%, which could be explained by some error in conducting experiments at high temperatures in boiler installations, for example, re-radiation and high dust content of the torch in the combustion space.

Table 2. The length $l_f$ and the temperature of the torch at the length of the torch $l_f$.

Load of Boiler	0.75·Dnom	0.85·Dnom	0.95·Dnom	1.00·Dnom
$l_f$, m	2.32	3.16	3.91	4.9
T, K	1648	1673	1693	1721

shows our results for the length $l_f$ and the temperature of the torch at the length of the torch $l_f$ during the operation of the boiler E-210-140. Data is given depending on the steam output of the boiler unit. The nominal load of the boiler is ${\mathrm{D}}_{\mathrm{nom}}$ = 53 kg of steam per second. In addition, the data are given when burning Kazakhstan coal with a heat of combustion of 24,560 kJ/kg.

7. Conclusions

The possibility of considering the torch as a single continuum, to which the authors refer flue gases in the zone of intense combustion and screen tubes, is theoretically confirmed. The prospects of determining the type of distribution of the adiabatic temperature along the length and height of the flare continuum in the zone of intense combustion of the combustion chamber of the boiler unit are shown.

The authors applied a new mathematical method to describe the behavior of the polydisperse flux ensemble of fuel particles in a combustion process, which allowed us to determine the function of particle size related burnout of fuel and the related enthalpy and local adiabatic temperature of the flame continuum.

Besides, the authors determined the length l_i of the initial flame section, where the fuel does not ignite yet. It depends on the intensity of heat supply to the initial section α, the accepted temperature t_int of intensive volatilization, the velocity of flux w₀ at the burner exit and its change due to the temperature rise and flame divergence.

The burnout time of δ_i-size particles of the multiple-size particle flux depends on the fuel characteristics and the kinetic parameter ω_k of the combustion process, the temperature T_f of the flame continuum being taken into account.
