Investigation of Laser Power Output and Its Effect on Raman Spectrum for Marine Metal Corrosion Cleaning

Abstract

The relationship between the laser power output and its effect on Raman spectrum is investigated for a laser cleaning application of marine metal corrosion processing. First, an image feature based on a corrosion degree evaluation is implemented before cleaning. The image features include texture coarseness, texture entropy, texture intensity, texture contrast, the texture’s cluster degree, and texture homogeneity. To decrease the image feature dimension for a convenient application, the Analytic Hierarchy Process (AHP) method is used to estimate the weight of each feature. Then the linear weighted sum of image features can be computed to get only one evaluation result. Second, a series of laser power outputs are implemented for the cleaning application under a typical corrosion degree. Then the analysis results of Raman spectrum can be obtained. The analyzed spectrum results include the corrosion components and their contents. Lastly, the relationship between laser power output and Raman spectrum under a typical initial corrosion degree can be constructed. This research study can build the prediction result of the cleaning effect map for the workpiece and guide the secondary processing of metal surface cleaning.

1. Introduction

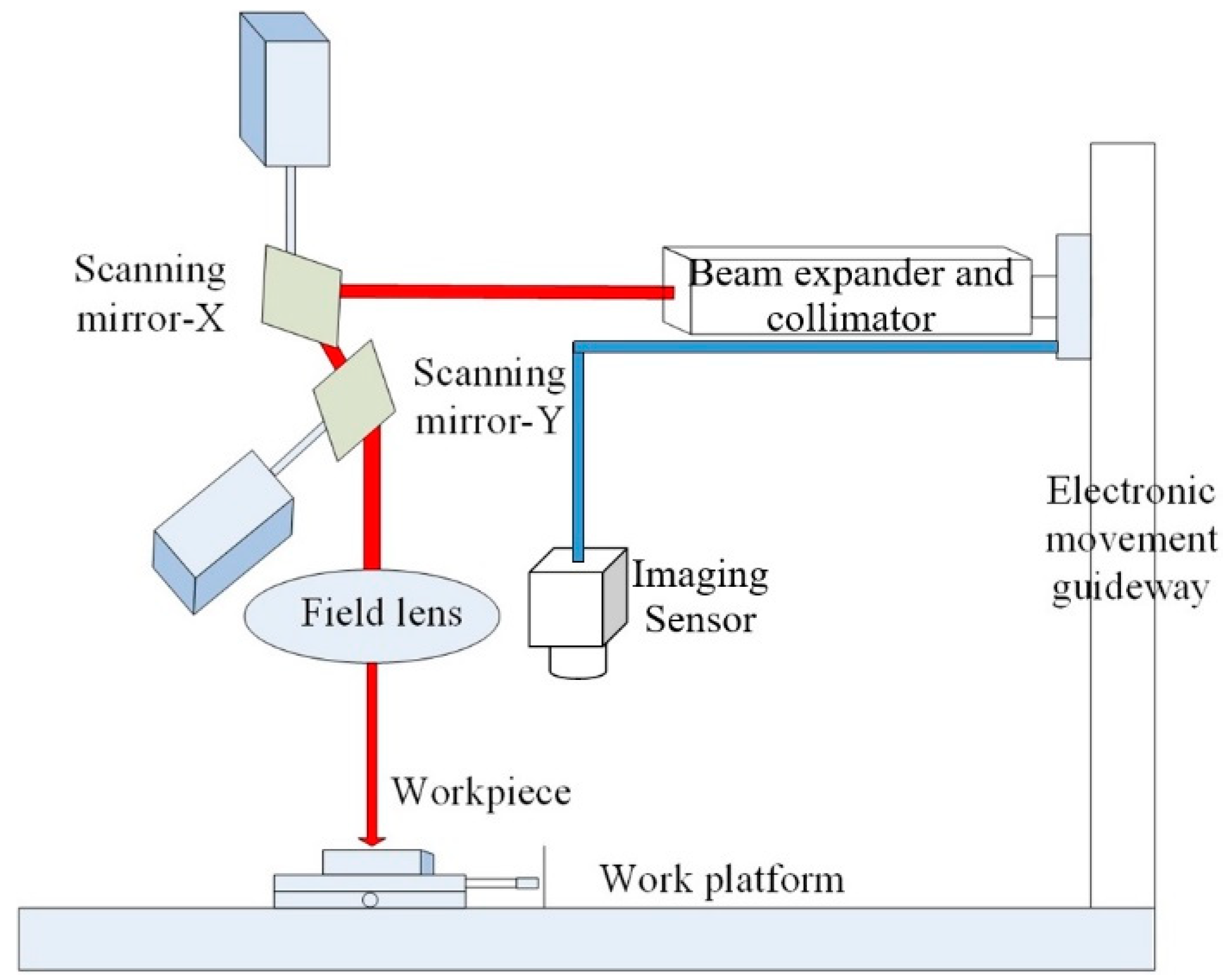

With the rapid advancement of information technology, the laser cleaning technique [1] is currently at its intelligent development stage. The intelligent laser cleaning technology utilizes multiple sensors to monitor the cleaning process [2] and controls the output energy of the laser. Therefore, the cleaning efficiency and effect [3] can be improved. Figure 1 shows the sketch map of a kind of intelligent laser cleaning system. In Figure 1, the intelligent laser cleaning system includes, at minimum, three parts: the laser and its optic path, the cleaning effect perception sensor, and the motion control guideway [4]. In general, the laser and its optic path include the laser, the beam expander and collimator, and the scanning mirrors. The cleaning effect perception sensor is always designed by an imaging sensor because of its capture ability for rich details [5]. Lastly, both the laser and the imaging sensor are installed in an electronic movement guideway. Then their working distance from the workpiece can be controlled automatically. When designing the intelligent cleaning method, some difficulties still exist. For example, regarding the imaging sensor, its imaging perception ability [6] of the metal surface state will create a great influence on the working effect of the laser. As for the laser, what kind of cleaning effect can be achieved should be investigated for a typical cleaning application.

Some excited technique challenges can be researched in the field of an intelligent laser cleaning application. First, the corrosion degree evaluation before laser cleaning should be studied. Apparently, the final cleaning effect is related to the initial corrosion state of the metal. The corrosion components, the corrosion thickness, and the corrosion distribution [7] will all affect the cleaning effect. Thus, it is necessary to assess it before implementing laser cleaning. Second, the dynamic parameters’ tuning of the laser should be researched. That means the adaptive tuning of laser process parameters, according to the changes of the corrosion state during the cleaning process, should be studied. Third, the cleaning effect evaluation after laser cleaning should also be investigated. The developments of the multi-function and mini-type sensor [8] and its data processing method are major topics in this research field. In this paper, because most of commercial laser cleaning machines do not open their functions of dynamic laser parameter tuning, we only focus on the new technique developments of the initial corrosion state evaluation using image data and building the relationship between the laser power output and the analyzed result of Raman spectrum [9]. The Raman spectrum is considered in this case because it can analyze the component and the content of corrosion metal, which has an important application value [10] in engineering.

Many research works have been done to improve the intelligent degree of the laser-related processing method. In Reference [11], a selective laser melting process was proposed. The external sensors were used to detect the working state of the production process. In Reference [12], the transient thermos-optical effects in protective windows for selective laser melting were analyzed. The temperature distribution was simulated for different scanning strategies and orders of exposure. In addition, in Reference [13], the acoustic signal detection technique was used to assist the monitor of laser welding for the cold-rolled steel strip application. The microphone arrays were utilized in that research work. After a comparable study, it can be found that previous methods have achieved many successful applications. However, some problems still exist. For example, on one hand, although the machine learning-based method can be used to improve the intelligent degree of the laser cleaning machine. The training data still create great influence on its processing effect [14]. Regarding the commercial laser cleaning product, the adjustable parameters are limited, which will greatly influence the training effect of the machine learning-based algorithm. On the other hand, the extensive adoption of image features for the corrosion degree analysis or the cleaning effect evaluation will create confusion for workers. After all, they are not the experts of image processing.

In this paper, we mainly consider the corrosion cleaning problem of a kind of carbon steel, which is widely utilized in the marine application in China, such as the building of a ship or a boat. It is also supposed that the surface lacquer of carbon steel has exfoliated naturally. Even some lacquers still exist in the metal surface. They can be removed easily by simple tools.

Table 1. The components and their contents of a kind of carbon steel.

C	Si	Mn	S	P	Fe
0.14	0.13	0.44	0.031	0.015	0.244

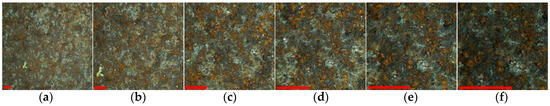

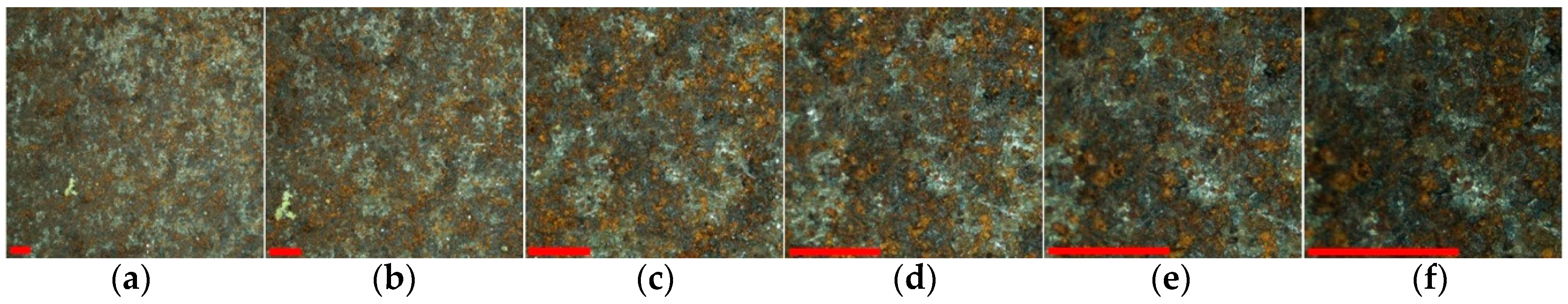

shows the corresponding components and their contents of carbon steel in our application. For the sake of simpleness, it is thought that the generation reason of the corrosion layer comes from the integrated effects of the sun light, the rain, the wind, and especially the seawater. The function time of these factors is about several months. As a result, the thickness of the corrosion layer can reach 4–6 μm or 6–8 μm. Its distribution is always uniform. Figure 2 shows the corrosion photo samples of our application. Figure 2a shows the macroscopic visible light image of the corrosion metal in a ship shell, the photography distance is about 10.0 cm, and the photography environment is a sunny day. Figure 2b–f are the imaging results of 10, 20, 30, 40, and 50 times magnification of Figure 2a, respectively. From Figure 2, it can be seen that some big variegated textures can be observed from the metal surface easily because the marine corrosion belongs to a kind of electrochemical corrosion, which always destroys the passive film of the metal surface. In order to further decrease the analysis complexity, we suppose the observed metal is flat. For example, if the ship or the boat is big enough, this hypothesis can be accepted. The working distance between the laser device and the ship shell can be measured by a laser rangefinder or other shape scanning device.

To realize the intelligent cleaning to some extent, the following processing steps are employed in this paper. First, an image feature analysis-based corrosion degree evaluation is proposed. A visible light camera is used to capture the corresponding image data. The computed image features include texture coarseness [15], texture entropy [16], texture intensity, texture contrast [17], the texture’s cluster degree [18], and texture homogeneity [19]. The Analytic Hierarchy Process (AHP) method [20] is used to decrease the dimension of the image feature vector above. The importance weights of AHP can be proposed by the system user. The AHP is considered in this case to reduce the application complexity of the image feature for the system user. Only one evaluation result is obtained after the linear weighted sum computation of image features. Second, the typical power outputs of the laser [21] are performed under the initial corrosion degrees above. Then the analysis results of Raman spectrum can be gotten. The analysis results of Raman spectrum [22] include the corrosion components and their corresponding contents. Lastly, the relationship between the typical laser power output and the analysis result of Raman spectrum can be constructed. These relationships above can be used to build the prediction result of the cleaning effect map for the workpiece and guide the secondary cleaning [23].

The main contributions of this paper include a kind of image analysis-based corrosion assessment method before laser cleaning is proposed. The multiple image texture features together with the AHP method are considered in this scenario. Second, the relationships among the initial corrosion state, the laser power output, and the Raman spectrum are investigated. The corrosion components and their corresponding contents under a typical initial corrosion state after cleaning are disclosed. Third, the practical application of the proposed method is illustrated. The advantages and the disadvantages of the proposed technique are also discussed.

In the following sections, the proposed image feature computation and the Raman spectrum analysis methods will be presented. In addition, experiment results will be shown. Lastly, some discussions and analysis results will also be illustrated.

2. Image Feature and Raman Spectrum Analysis Methodologies

2.1. Image Feature Analysis Methodology

When assessing the metal corrosion state, the corrosion rate [24] is the most interested index. Generally, this index can be measured by the weight measurement or the component analysis method. However, it cannot represent the corrosion appearance vividly. In practical terms, a more familiar evaluation, which is preferred by the engineering department, is the method of appearance observation.

Table 2. The description method of the corrosion degree.

Corrosion Degree	Description	Image Example
A	The metal is covered by the oxide layer and almost no corrosion component can be found.
B	The corrosion has happened, parts of the oxide layer have fallen off, and some small corrosion blocks can be observed.
C	The oxide layer has fallen off and many big corrosion blocks can be observed.
D	The oxide layer has fallen off completely. The corrosion layer has covered the metal surface completely.

shows one of the most commonly used corrosion degree description methods in many Chinese factories. In Table 2, the corrosion state is classified into four degrees. Clearly, the imaging analysis can be used for the corrosion degree evaluation [25]. From Table 2, regarding the corrosion degree A, almost no corrosion happens. Thus, it is not necessary to carry out any laser cleaning operations. In addition, as for the corrosion degree D, the serious corrosion occurs. In that situation, this carbon steel will be scrapped by the marine industrial department. After all, the navigation safety is the most important thing. Lastly, only two kinds of corrosion degrees are left, which should experience the laser cleaning processing. Regarding the corrosion degree B, the thin corrosion layer can be observed throughout the metal surface because the erosion time of the external environment is not long and most of the initial oxide layers can protect the metal substrate to some extent. From the imaging point of view, only the small textures can be found in the metal surface. As for the corrosion degree C, some large corrosion blocks begin to appear and the initial oxide layers fall off. As a result, some big textures can be observed in the captured image.

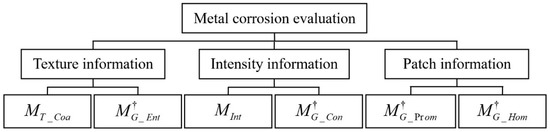

In this paper, many image features including the texture coarseness, the texture entropy, the texture intensity, the texture contrast, the texture cluster degree, and the texture homogeneity are used to assess the corrosion degree. First, the Tamura coarseness is used to compute the texture coarseness. Its computation method is shown by Equations (1) and (2). The Tamura coarseness presents the refinement degree of the image texture. The larger the value of Tamura coarseness is, the rougher the image texture would be. Second, the Gray-Level Co-Occurrence Matrix (GLCM) is computed. The GLCM entropy, the GLCM contrast, the GLCM cluster prominence, and the GLCM homogeneity are all utilized. Equations (3)–(6) show their computational methods. The GLCM entropy represents the chaos degree of the image texture. The larger the entropy is, the bigger the chaos degree would be. The GLCM contrast indicates the definition of image texture and its depth. The larger the contrast is, the clearer the texture would be. The GLCM cluster prominence describes the distinguishment of different texture types. The larger the cluster prominence is, the bigger the texture difference would be. In addition, the GLCM homogeneity means the local uniformity. The larger the homogeneity is, the better the local uniformity would be. Additionally, the GLCM features in 0°, 45°, 90°, and 135° are all considered in this paper. Lastly, the arithmetic average of the image intensity is employed to assess the texture intensity of the metal image. Equation (7) shows its computational method. Clearly, the image intensity can represent the color of the corrosion component to some extent.

$$M_{T\_Coa}=\frac{1}{M\times N}{\displaystyle \sum _i{\displaystyle \sum _j{S}_{opt}(i,j)}}$$

(1)

$$S_{opt}(i,j)=2^k$$

(2)

$$M_{G\_Ent}^{†}={\displaystyle \sum _i{\displaystyle \sum _{j}G(i,j){\log }_{2}G(i,j)}}$$

(3)

$$M_{G\_C\mathrm{on}}^{†}={\displaystyle \sum _i{\displaystyle \sum _j{\left(i-j\right)}^{2}G(i,j)}}$$

(4)

$$M_{G\_\mathrm{Pr}om}^{†}={\displaystyle \sum _i{\displaystyle \sum _j{\left(i+j-{\mu }_x-{\mu }_y\right)}^{4}G(i,j)}}$$

(5)

$$M_{G\_Hom}^{†}={\displaystyle \sum _i{\displaystyle \sum _j\frac{1}{1+{\left(i-j\right)}^2}G(i,j)}}$$

(6)

$$M_{Int}={\displaystyle \sum _i{\displaystyle \sum _{j}I(i,j)}}$$

(7)

where S_opt(i, j) is an optimal function for each pixel when k can maximize the average intensity difference in the horizontal and the vertical directions, M and N are the width and the height of the image block, respectively, G(i, j) is a normalized gray tone of the spatial-dependence matrix, μ_x and μ_y are the mean values of p_x and p_y, p_x = Σ_j=1^KG(i, j), p_y = Σ_i=1^KG(i, j), K is the gray degree, I(i, j) is the image intensity in pixel position (i, j), and symbol “$†$” can be chosen by 0°, 45°, 90°, and 135°, respectively.

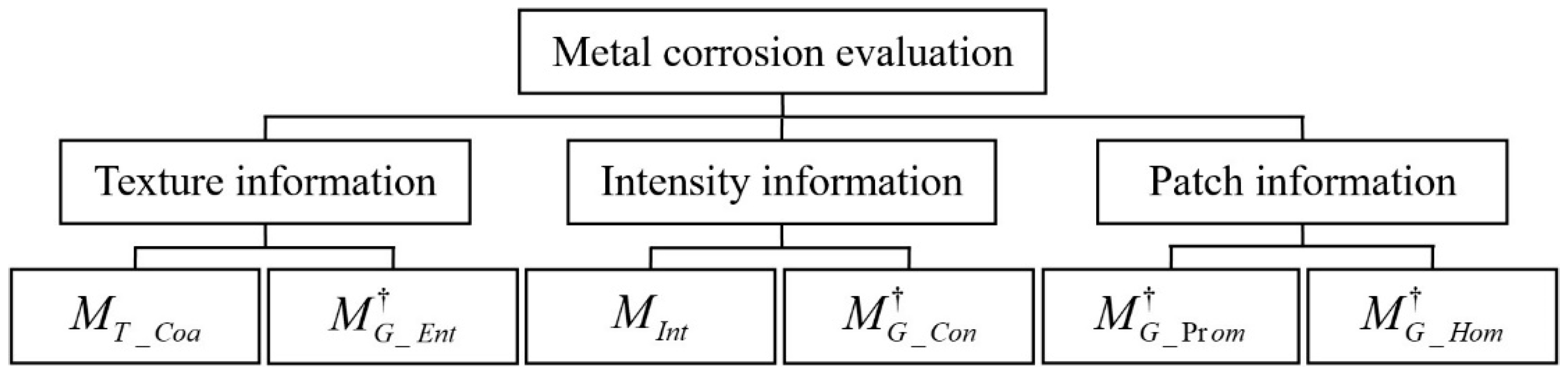

After the computations above, six image features can be obtained. However, they are difficult for use in practice. One on hand, it will be very hard to evaluate the corrosion degree by using six criteria simultaneously. The users have to build six different distribution regulations for them. On the other hand, the system users are also not the experts of the image feature. They cannot give out the proper evaluation results of the corrosion degree in many cases. To conquer that problem, the AHP method is used. The AHP is an operational method, which can get the importance weights by the hierarchical sorting. When implementing the AHP computation, first, the hierarchical model will be built for the typical application. Figure 3 shows the AHP model for our application. Six image features are classified into three groups, according to their functions. Second, the evaluation matrixes will be constructed.

Table 3. The evaluation criterion of Analytic Hierarchy Process (AHP).

Intensity of Importance	Definition
1	Equally important
3	Weakly important
5	Essentially important
7	Very strongly important
9	Absolutely important
2, 4, 6, 8	Importance between the above odd numbers

shows the evaluation criterion of AHP. Apart from other methods, the construction of the AHP evaluation matrix needs to compare the importance between any two factors. Third, the eigenvector matrix will be calculated for the evaluation matrix above, and the hierarchy single ranking and its uniformity inspection can be performed. Lastly, the hierarchy general ranking and the uniformity inspection will be implemented. In this paper, the initial importance comparisons between any two image features are given by the opinions of image processing experts or system users. Then, after the computation of AHP, the weights of each image feature can be obtained. Lastly, a final evaluation index can be computed by using Equations (8) and (9).

$$M_{*}^{Ave}=\frac{1}{4}\left[M_{*}^0+M_{*}^{45}+M_{*}^{90}+M_{*}^{135}\right]$$

(8)

$$M_{\mathrm{Im}g}=w_1\times M_{T\_Coa}+w_2\times M_{G\_Ent}^{Ave}+w_3\times M_{Int}+w_4\times M_{G\_Con}^{Ave}+w_5\times M_{G\_\mathrm{Pr}om}^{Ave}+w_6\times M_{G\_Hom}^{Ave}$$

(9)

where M_∗⁰, M_∗⁴⁵, M_∗⁹⁰, and M_∗¹³⁵ are the GLCM features of Equations (3)–(6) in the directions of 0°, 45°, 90°, and 135°, respectively, and the symbol “∗” can be chosen by G_Ent, G_Con, G_Prom, and G_Hom. w_i (i = 1, 2, …, 6) are the weights of these features above.

2.2. Raman Spectrum Analysis Methodology

The Raman spectrum is a kind of analysis tool for estimating the scattering spectrum. It can measure the spectrum of scattering light, which has a different frequency with respect to the input light source, and get the vibration and the rotation information of the molecule. Then the molecule type and structure can be deduced. Comparing with the measurement method of the other spectroscopy technique, e.g., the middle infrared spectrum, the Raman-based method has strong robustness to the environmental changes. Thus, it has a wide application in the engineering site. When measuring the Raman spectrum, a calibration step, which uses a standard silicon as the reference, will be performed. Then the spectrometer will cast the typical laser beam on the surface of the sample and observe its reflection to implement the spectrum analysis. After the spectrum data collection, the measured data should be processed by some mathematical methods. In this paper, two kinds of data processing methods are considered. The first one is the baseline removal technique. The method in Reference [26] is utilized in this scenario. In Reference [26], a baseline model, which is illustrated in Equation (10) was considered. The zero-order Savitzky-Golay filter [27] was employed to estimate the baseline. Then this filter could use the local polynomial function and the least square method to estimate the baseline and extract the original signal. Equation (11) shows its polynomial function. Equation (12) presents its residual and Equation (13) illustrates its final filtering result. It should be emphasized that the computation result of the baseline correction is not always as accurate as we have expected, especially when it comes to the area estimation of the Raman peak. However, it is still helpful to identify the Raman peak from the complex measurement data. As a result, this computation step is considered in this paper.

$$O_{Raman}(n)=\left[S_{baseline}(n)+x(n)\right]\ast S_{blurring}(n)+S_{noise}(n)$$

(10)

$$p(n)={\displaystyle \sum _{k=0}^N{a}_k{n}^k}$$

(11)

$${\phi }_N={\displaystyle \sum _{n=-M}^M{\left[p(n)-x(n)\right]}^2}$$

(12)

$$x^{\prime }(n)=\frac{1}{2M+1}{\displaystyle \sum _{k=-M}^{M}C(k)x(k+n)}$$

(13)

where O_Raman(n) is the output of the Raman spectrum device, S_baseline(n) is the baseline of the Raman spectrum, x(n) is the actual signal, S_blurring(n) is the instrumental blurring function, S_noise(n) is the system noise, p(n) is a polynomial function, a_k is the polynomial weight, N is the item number, φ_N is the residual, x′(n) is the result after filter processing, C(k) is the weight of the filter, and 2M+1 is the size of the observation window.

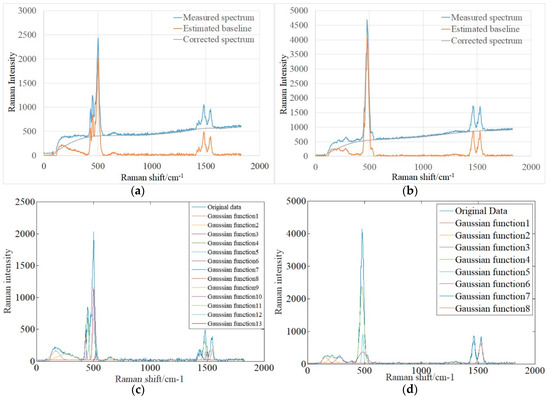

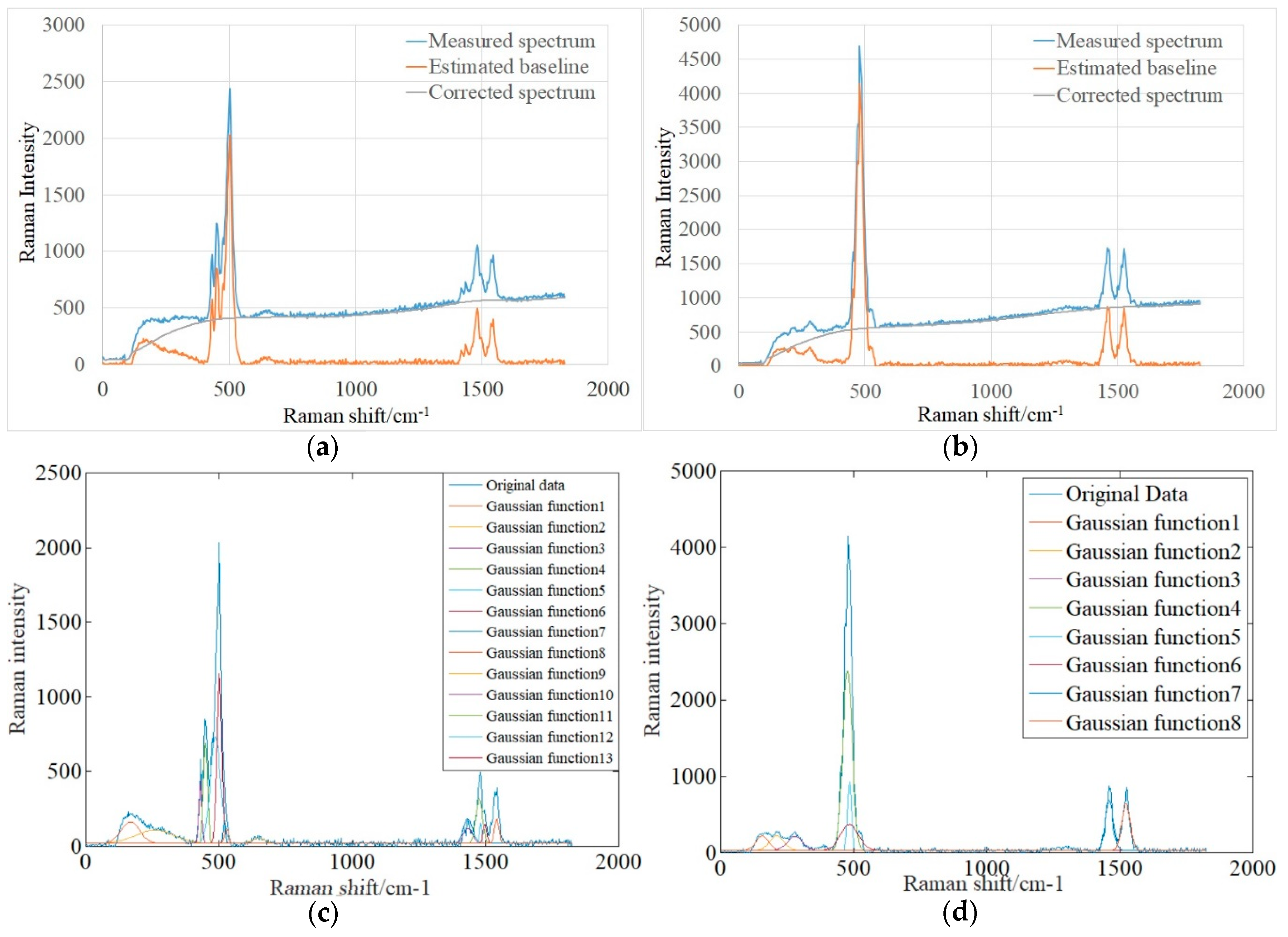

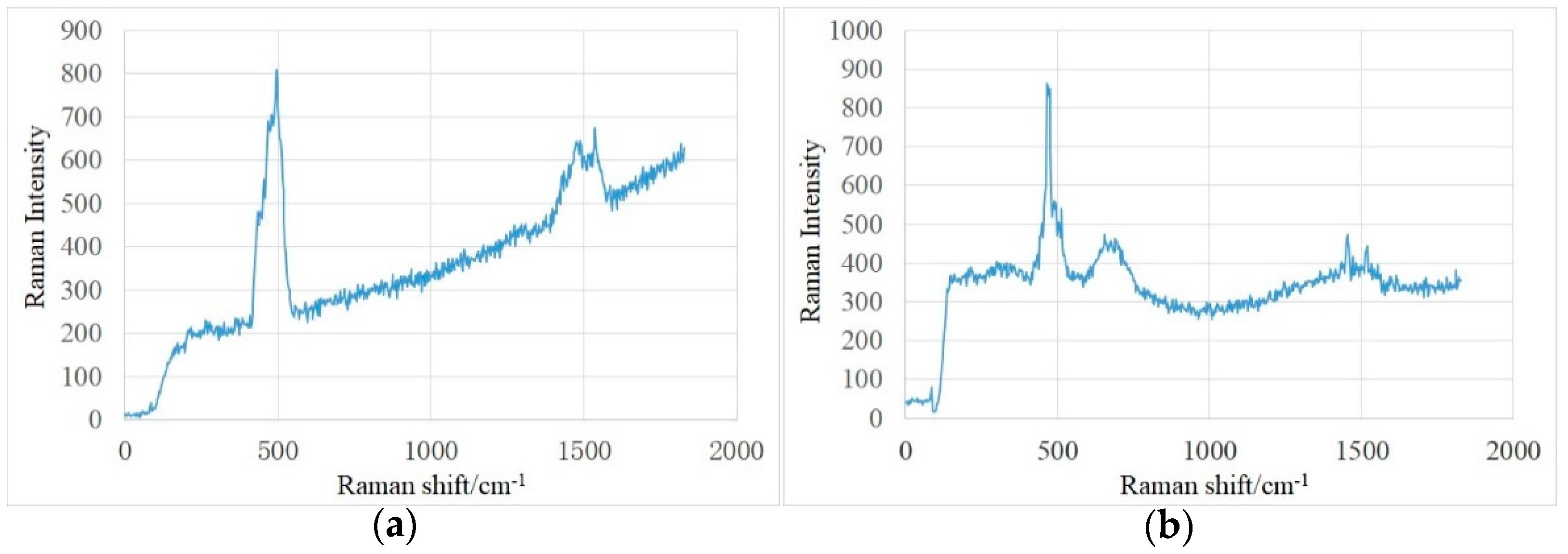

The second data processing method is the content estimation of the Raman spectrum. Figure 4 shows the measurement examples of Raman spectrum before and after the laser cleaning application. It can be seen that some peaks can be observed in both Figure 4a,b. Regarding the Raman spectrum, its peak always indicates the specific component in the observed metal surface. The intensity of the peak and its corresponding area can also represent the component content [28] to some extent. Due to the existence of system noises, the content measurement of Raman is always inaccurate. In engineering, some statistical distribution functions can be used to fit the Raman peak. Then the area of the distribution function can be employed to represent the content of the typical component. From Figure 4, many distribution functions can be used here, such as the Gaussian distribution function, the Cauchy distribution function, or the Laplacian distribution function. However, only the Gaussian distribution function is used to solve the fitting problem in this paper for two reasons. Many statistical data have shown the measurement data collected from the natural environment, which always combines with the Gaussian distribution [29]. Second, our practical tests also indicate the good performance of that function in both precision and stability. Equation (14) shows the distribution function of the Gaussian distribution. In Figure 4, it should be emphasized that some Gaussian distributions overlap with each other. To analyze that spectrum, only the least amount of Gaussian function is preferred in engineering if the fitting result is accepted. In addition, if we use the Gaussian distribution function to fit a complex spectrum curve, the center position of the Gaussian function may be estimated in the decimal degree.

$$f(x;\sigma ,\mu )=\frac{1}{\sqrt{2\pi }\sigma }{\exp }^{\left[-\frac{{(x-\mu )}^2}{2{\sigma }^2}\right]}$$

(14)

where f(x; σ, μ) is the probability density function of the Gaussian distribution and σ and μ are its parameters.

3. Experiments and Results

A series of experiments are implemented to test the validity of the proposed method. The relationships between the laser power output and the Raman spectrum are also investigated. All the simulation programs are written by C (Microsoft Visual Studio free version, Washington, DC, USA) in our PC (4.0 GB RAM, 1.70GHz Intel (R) Core (TM) i3-4005U CPU, Lenovo, Beijing, China).

3.1. Experimental System and Data

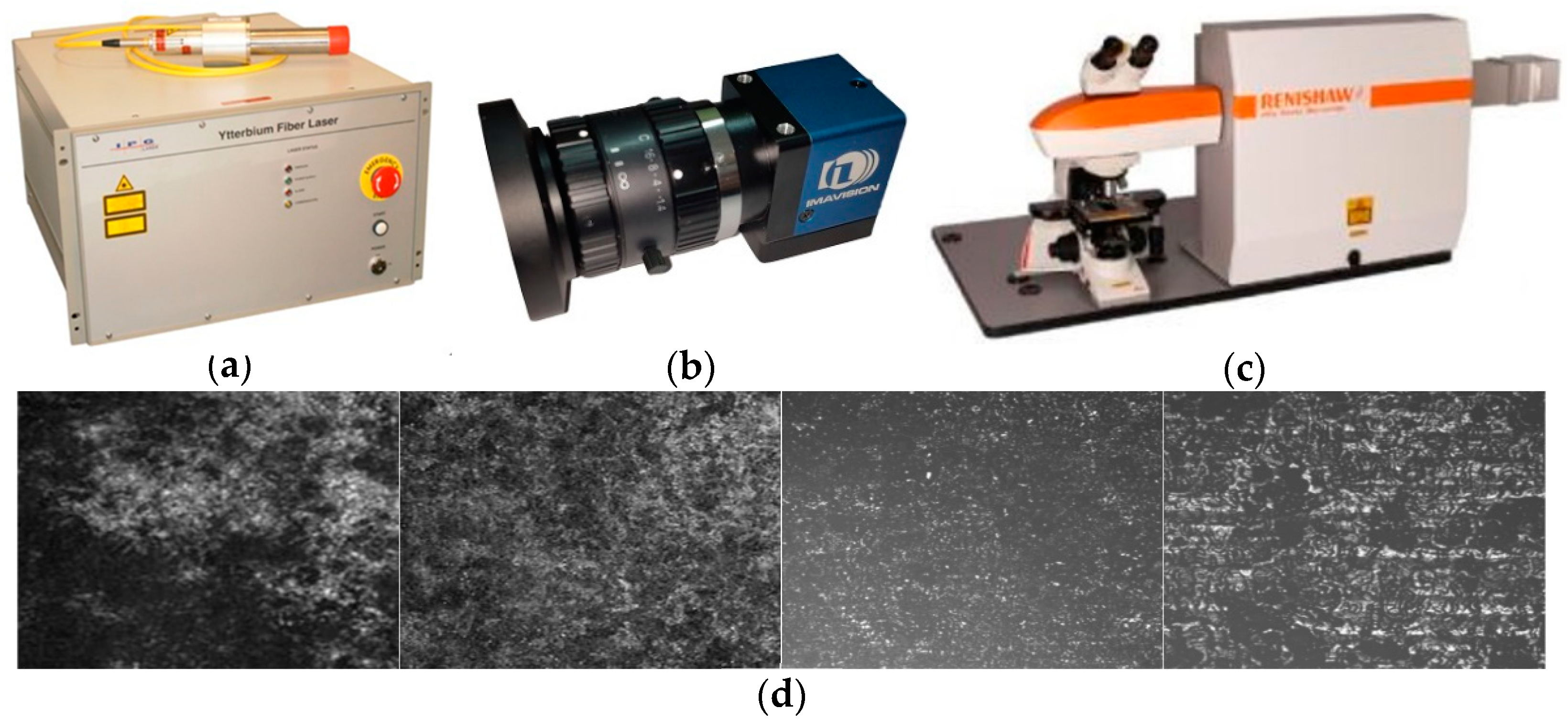

Figure 5 shows the photos of the experiment system and the corresponding image data. Figure 5a shows the photo of the laser in the laser cleaning device. Figure 5b shows the photo of a visible light camera (including both the sensor and the lens) while Figure 5c presents the photo of the Raman spectrometer. Figure 5d gives out the photo of corrosive metal before and after cleaning. Figure 5a shows a YLP-HP-10-30× 400-20-200 pulsed laser, which is made by the IPG company in German. Its maximum average output power is about 200 W. Its working distance between the output port of the laser and the metal sample is about 222 mm. Its working frequency is 20 KHz, its pulse width is 60 ns, its single pulse energy is 3.99 mJ, and its line space is 0.05 mm. Figure 5b shows an industrial camera which is made by Daheng company in China; while Figure 5c presents an Invia confocal-micro-Raman spectrometer, which is made by the Renishaw company in United Kingdom. Figure 5d shows the image captured by the camera. In Figure 5b, the left two data are the images before laser cleaning. Some corrosion components can be observed in them and the right two data are the images after cleaning.

Table 4. The principle parameters of the laser.

Maximum Average Output Power (W)	Central Emission Wavelength (nm)	Emission Bandwidth (nm)	Pulsed Energy (mJ)
190–210	1055–1075	5–10	10
Pulse Repetition Rate (kHz)	Pulse Duration Time (ns)	Initial Output Beam Diameter (mm)	Beam Quality
2–50	30–400	6–9	10–14

,

Table 5. The principle parameters of a visible light camera.

Sensor Type	Sensor Size (μm)	Maximum Resolution	Focal Length (mm)	Frame Rate (Hz)	Working Wavelength
CMOS	3.2 × 3.2	2048 × 1536	5.0	12	Visible light waveband

and

Table 6. The principle parameters of the Raman spectrometer.

Laser Type	Laser Wavelength (nm)	Spatial Resolution (μm)
Argon ion laser	514.5	X, Y coordinate directions~1 μm Z coordinate direction~ 2 μm
Spectral Range (cm−1)	Spectral Resolution (cm−1)	Spectral Repeatability (cm−1)
100–4000	1	≤0.1

present the principle parameters of the laser, the visible light camera, and the Raman spectrometer, respectively. When using the Raman spectrometer, its laser power is set by 10% of its maximum output, the amplification of objective lens is 50 times, its scan scope is 100–1800 cm⁻¹, its scan step is 2.5 cm⁻¹, and its integration time is 20.0 s. The environmental light will create some negative effects on the image data. Thus, only the gray images are captured in this experiment. The standard histogram equalization method is used to preprocess the image data before they are saved.

3.2. Results of a Corrosive Degree Evaluation

In this paper, an image feature analysis-based corrosive degree evaluation is proposed.

Table 7. The result examples of image features.

Num	MT_Coa	M0G_Ent	MInt	M0G_Con	M0G_Prom	M0G_Hom
1	2.12781	2.811652	106	0.593458	187.165814	0.774368
2	2.233168	2.583998	93	0.449418	678.798712	0.830039
3	2.270004	2.470134	80	0.387261	849.111131	0.843735
4	2.377367	2.649662	94	0.446554	880.062174	0.831126
5	2.236245	2.762098	99	0.426323	204.382459	0.810559
6	2.31929	2.758776	96	0.41641	212.443985	0.815336
7	2.227868	2.749216	100	0.415732	227.420047	0.815706
8	2.299521	2.740829	93	0.415828	247.127022	0.818207
9	2.336464	2.747704	101	0.380215	244.702209	0.827395
10	2.365239	2.72145	101	0.354979	243.449295	0.837478

shows some practical computation results of the corresponding image features. The GLCM results in 0° are illustrated in this scenario. To simplify the evaluation process, AHP is used to get only one assessment index.

Table 8. The judgmental matrix results of the AHP criteria hierarchy.

Criteria	Texture Information	Intensity Information	Patch Information
Texture information	1	9	9
Intensity information	1/9	1	1/2
Patch information	1/9	2	1

shows the judgmental matrix results of the AHP criteria hierarchy.

Table 9. The judgmental matrix results of the AHP alternative hierarchy.

Alternatives	MT_Coa	MG_Ent	Alternatives	MInt	MG_Con	Alternatives	MG_Prom	MG_Hom
MT_Coa	1	7	MInt	1	1/4	MG_Prom	1	3
MG_Ent	1/7	1	MG_Con	4	1	MG_Hom	1/3	1

gives out the judgmental matrix results of the AHP alternative hierarchy and

Table 10. The final estimated importance weights of the AHP model.

Name	MT_Coa	MG_Ent	MInt	MG_Con	MG_Prom	MG_Hom
Value	0.7124	0.1018	0.0144	0.0574	0.0855	0.0285

is the final estimated weights of the AHP model. Then we can use the weights in Table 10 and the image feature data in Table 7 to compute the final evaluation result of the metal corrosion degree by using Equation (8). From Table 8, Table 9 and Table 10, it can be seen that, among these image feature factors, the texture coarseness plays the most important role in the corrosion degree evaluation while the texture intensity is the least important factor because their weights are 0.7124 (the maximum value) and 0.0144 (the minimum value), respectively. To assess the validity of our method, a comparison experiment is made. We compare the results of our proposed method and those of the method illustrated in Table 2. The evaluation method in Table 2 uses the subjective experience to discern the corrosion degree. A performance evaluation index is defined in Equation (15). In this experiment, 80 images before the cleaning application are utilized, where 36 images belong to the corrosion degree B and 44 images are the corrosion degree C. Additionally, as we have stated above, the corrosion degrees A and D need not experience laser cleaning. Thus, it is not necessary to evaluate their corrosion degrees by the image analysis-based method. After the computation, it can be found that the correct classification ratio, i.e., the index in Equation (15), can be larger than 93.375%. That result indicates the validity of our proposed method to some extent.

$$CCR=\frac{N_{Correct}}{N_{Total}}$$

(15)

where N_Correct is the correct classification number of the corrosion degree evaluation using the feature analysis-based method. In this case, the correct classification means that the assessment result, which uses our method, has the same evaluation output with the subjective method presented in Table 2. N_Total means the total times of the evaluation experiment. Clearly, in this paper, N_Total = 36 + 44 = 80.

The imaging analysis of the metal corrosion degree before cleaning is necessary for the development of an intelligent laser cleaning technique. First, it can provide an objective evaluation result for corrosive metal. Traditionally, the corrosion degree evaluation is always implemented by the method presented in Table 2. The workers will decide the corrosion degree by their personal experiences. Clearly, the proposed method can give a stable evaluation result comparing the subjective method above. Second, the proposed method can save the image, which can be used as a product quality dataset. Third, the image-based method can discern some details that humans cannot percept, which indicates a better evaluation precision. After the tests of a series of experiments, some experience distributions of the evaluation index M_Img can be deduced. Regarding the marine corrosive metal, the M_Img distribution of corrosion degree B can be located in [1.0, 19.5] while the distribution of corrosion degree C can be found in the scope of (19.5, 92.5]. Currently, our image-based evaluation method also has some shortcomings. For example, during the image collection process, even though the image preprocessing methods have been utilized, the image analysis result is still affected by the environment light, the photography distance, and the magnification of the camera. To conquer these problems, on one hand, some fixed supports such as the Cartesian coordinate robot [30] can be used to control the photography state of the camera. On the other hand, some machine learning-based methods [31] can be researched in the future.

3.3. Results of Raman Spectrum Data Processing

In this paper, the Raman spectrometer is used to analyze the components and their contents of metal samples after laser cleaning. Figure 6 shows the corresponding results of the Raman spectrum experiment. Figure 6a,b present the examples of Raman spectrum correction, i.e., the baseline estimation. Figure 6c,d are the results of Gaussian distribution fitting of Figure 6a,b, respectively. Figure 6a comes from the image data with the corrosion degree B and Figure 6b derives from the image with the corrosion degree C. The output powers of the laser are both 120 W and their energy densities are 8.493 J/cm². From Figure 6, it can be seen that the baseline estimation processing can identify most parts of the spectrum base and the Gaussian distribution can fit the spectrum peak well. Regarding the distribution fitting of the spectrum peak, whether the fitting processing is necessary is decided by the opinion of the analysis expert of the Raman spectrum. Then the area of the spectrum peak can be calculated. Clearly, many factors will influence the computation result of the spectrum peak area including the system noise and the estimation precision of the spectrum baseline. That is why most of research studies do not use the area of Raman spectrum to evaluate the component content. However, after using the chemical measurement method to analyze the component content of corrosion metal, an apparent positive correlation can be observed between the peak area of the Raman spectrum and the practical corrosion content [32]. Thus, in this paper, we still calculate the peak area as a reference to assess the laser cleaning effect.

3.4. Results of Laser Power Output and its Effect on the Raman Spectrum

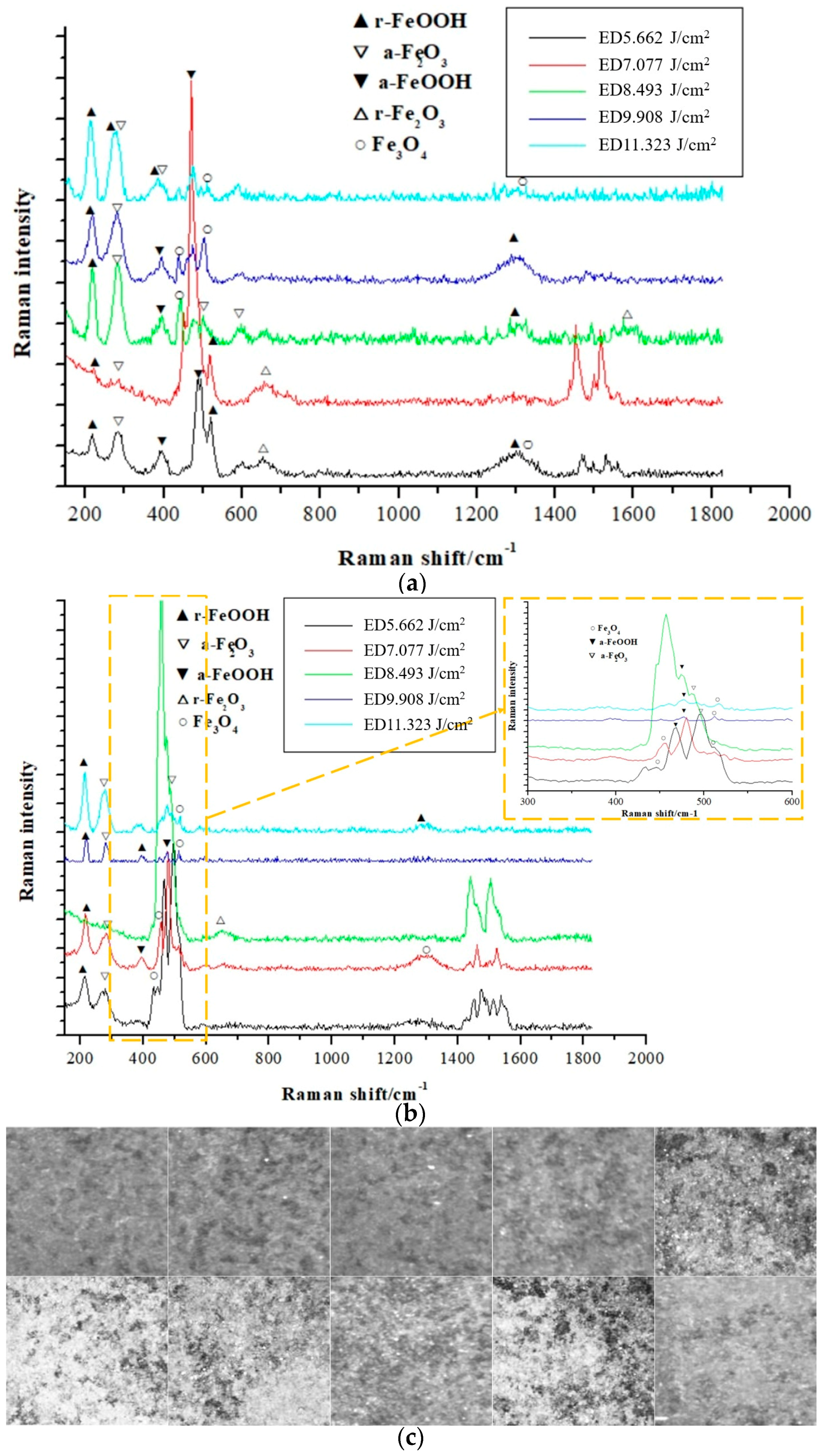

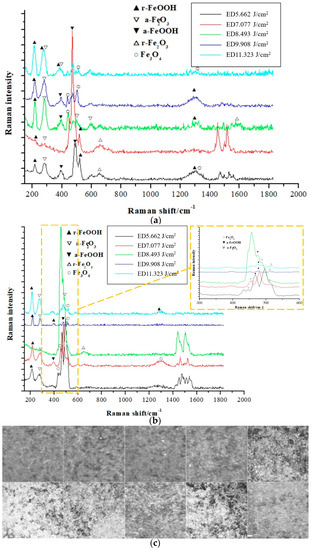

After the implementation of the laser cleaning and the Raman spectrum measurement, some relationships between the laser power and the Raman spectrum can be deduced. Figure 7 shows the corresponding results, and the main Raman peaks are marked here. In this paper, the typical laser power outputs of 80 W, 100 W, 120 W, 140 W, and 160 W are investigated. Considering the laser frequency is 20 KHz and the final laser beam radius is 150 μm. Thus, the energy densities of the typical power above are 5.662 J/cm², 7.077 J/cm², 8.493 J/cm², 9.908 J/cm², and 11.323 J/cm², respectively. In the following section, we will use the energy density to represent the laser power. Figure 7a,b are the Raman spectrum measurement results using different laser power outputs, where Figure 7a is the processing results using the images with corrosion degree B, and Figure 7b is the processing results using the images with corrosion degree C. In Figure 7b, a sub-window with the orange dash line frame is also illustrated to show the marked results of the Raman shift. In Figure 7a,b, to improve the visualizing effects, some processing steps are performed. Regarding the vertical coordinate of each data, a series of increments, i.e., 50, 400, 100, 200, and 200 for Figure 7a and −20, 50, −100, 100, and 50 for Figure 7b, are added to the original data from the bottom to the top, respectively. In addition, as for the horizontal coordinate, we think the data that are less than 150 cm⁻¹ are unreliable and the Raman peaks of the corrosion component will not occur in this region. As a result, they are not drawn here. Figure 7c presents the corresponding image data before laser cleaning. The first line is the images with the corrosion degree B, and the second line is the data with the corrosion degree C. From left to right, the imposed laser energy densities are 5.662 J/cm², 7.077 J/cm², 8.493 J/cm², 9.908 J/cm², and 11.323 J/cm², respectively. Compared with the images in Figure 5d, the sizes of the image in Figure 7c are smaller because the Raman spectrometer can only measure the limited area (e.g., 100 μm × 100 μm) in the metal sample each time. From Figure 7, regarding the initial corrosion degree B, the laser energy density with 8.493 J/cm² can get a comparable good cleaning effect. As for degree C, the energy density with 9.908 J/cm² can get an ideal result.

Table 11. The typical characteristic peaks of corrosion components in the research.

α-Fe2O3	Fe3O4	γ-Fe2O3
220, 293, 404, 495, 612	432, 513, 1322	517, 655, 1580
γ-FeOOH	α-FeOOH	FeO
216, 269, 380, 525, 1307	396, 483	595

presents the typical Raman feature peaks of corrosion components, which can be found in some literatures [33].

Table 12. The peak and area fitting results of the Raman spectrum.

Corrosion Degree B			Corrosion Degree C
Laser Energy Density (J/cm2)	Corrosion Component	Raman Shift (peak area)	Laser Energy Density (J/cm2)	Corrosion Component	Raman Shift (peak area)
5.662	α-FeOOH	490.3 (11,518.88), 392.8 (2425.73)	5.662	α-FeOOH	466.9 (12,997.08)
	γ-FeOOH	216.9 (7401.40), 520.1 (4482.71), 1301.1 (98.98)		γ-FeOOH	212.2 (10,467.41)
	α-Fe2O3	282.8 (8309.26)		α-Fe2O3	497.5 (38,790.21), 272.5 (13,488.55)
	γ-Fe2O3	640.8 (5231.48)		γ-Fe2O3	-
	Fe3O4	1322.0 (3007.09)		Fe3O4	430.8 (1125.86)
	FeO	-		FeO	-
7.077	α-FeOOH	-	7.077	α-FeOOH	394.3 (1701.64)
	γ-FeOOH	208.0 (2185.95)		γ-FeOOH	212.0 (3762.90)
	α-Fe2O3	274.4 (2979.47)		α-Fe2O3	281.6 (5765.28)
	γ-Fe2O3	476.7 (26211.11)		γ-Fe2O3	-
	Fe3O4	450.2 (2996.49)		Fe3O4	454.7 (4919.38), 505.938 (5360.09), 1322.0 (1641.25)
	FeO	-		FeO	-
8.493	α-FeOOH	392.8 (2639.24), 476.3 (1692.18)	8.493	α-FeOOH	-
	γ-FeOOH	217.0 (5715.80), 1310.2 (3222.05)		γ-FeOOH	238.7 (1553.6)
	α-Fe2O3	282.1 (9718.34), 502.326 (2209.62), 596.0 (1303.29)		α-Fe2O3	484.3 (32,360.16)
	γ-Fe2O3	1580.0 (3343.43)		γ-Fe2O3	653.4 (2749.88)
	Fe3O4	442.2 (2342.28)		Fe3O4	-
	FeO	-		FeO	-
9.908	α-FeOOH	392.7 (2675.52), 470.7 (4229.27)	9.908	α-FeOOH	475.7 (543.99)
	γ-FeOOH	213.5 (16,940.84), 1308.2 (6210.08)		γ-FeOOH	217.7 (1848.46), 395.845 (544.35), 1304.3 (107.90)
	α-Fe2O3	281.1 (9671.83)		α-Fe2O3	282.2 (1903.03)
	γ-Fe2O3	-		γ-Fe2O3	-
	Fe3O4	439.2 (854.79)		Fe3O4	511.8 (394.78)
	FeO	-		FeO	595.5 (148.63)
11.323	α-FeOOH	473.7 (2564.50)	11.323	α-FeOOH	475.5 (1191.03)
	γ-FeOOH	212.8 (7475.18), 271.9 (6789.98), 383.3 (2340.0)		γ-FeOOH	213.1 (7357.98), 1294.3 (2154.61)
	α-Fe2O3	287.0 (2735.15), 401.6 (329.61)		α-Fe2O3	276.9 (8337.21), 489.8 (3448.43)
	γ-Fe2O3	-		γ-Fe2O3	-
	Fe3O4	508.5 (1025.06), 1322.7 (869.99)		Fe3O4	516.8 (846.0)
	FeO	-		FeO	601.4 (247.48)

gives out the practical identification results of the Raman shift and their Gaussian distribution-related areas. The corresponding fitting areas are given in the brackets. From Table 11 and Table 12, some change laws can be deduced. First, before laser cleaning, the main components of corrosion include γ-FeOOH, α-Fe₂O₃, and Fe₃O₄. The β-FeOOH can be observed occasionally. Second, when we carry out the laser cleaning using the energy intensity 5.662 J/cm², the peak intensities of 216 cm⁻¹ and 281 cm⁻¹ become bigger, and some new peaks appear in the Raman spectrum. For example, the peak shift 392 cm⁻¹ can be observed, and its possible component is α-FeOOH. The peak shift is 521 cm⁻¹, and its possible component is γ-FeOOH or γ-Fe₂O₃. The peak shift is 282 cm⁻¹, and its possible component is α-Fe₂O₃. The peak shift is 1322 cm⁻¹, and its possible component is γ-FeOOH or Fe₃O₄. Regarding the corresponding results above, we think the laser power is not strong enough. Only parts of the corrosion layer are exfoliated. As a result, lots of corrosion components can still be observed. Third, when the laser energy density reaches 7.077 J/cm², only small amounts of Fe₃O₄, γ-Fe₂O₃, and γ-FeOOH can be observed. That may indicate that the corrosion has been removed well. Fourth, when the laser energy density reaches 8.493 J/cm², some new oxides appear. That can be observed by the increasing contents of α-Fe₂O₃, γ-FeOOH, γ-Fe₂O₃, and Fe₃O₄. Fifth, when the laser energy density climbs to 9.908 J/cm², the components of γ-Fe₂O₃ and Fe₃O₄ decrease or disappear. When the laser energy density becomes 11.323 J/cm², the amount of α-Fe₂O₃ increases as well. From the results above, it can be seen that, regarding our application, the laser power outputs with the energy densities of 7.077 J/cm² or 8.493 J/cm² can get the comparable proper cleaning effects. Their subjective corrosion degrees are A (see Table 2). In our experiment, we do not find the β-FeOOH after cleaning. It may be explained that the β-FeOOH has been cleaned completely from the corrosion layer.

3.5. Discussions

In this paper, a kind of marine corrosion application is investigated. In general, the local corrosion, such as the interval or the gap, is easier to observe in the marine corrosion case. When the metal is immersed in the seawater, its corrosion types and amounts will change a lot with the lapse of time [34], and their colors will become darker and darker. In the early stage, the corrosions mainly belong to the pitting corrosions. It will distribute in the metal surface sporadically where the microscopic defects or scratches can be observed. Due to the chlorine element in the seawater, the components of corrosion mainly include γ-FeOOH and β-FeOOH. Their colors would be faint yellow and tan. In the next stage, the corrosions become the rust spots. It will extensively distribute in the metal surface with some large areas. Most of the time, the corrosion will have a multi-layer [35]. The components in the surface layer is mainly γ-FeOOH. While in the inner layer, they are Fe₃O₄, γ-FeOOH, and β-FeOOH. The colors of the corrosion layer would be reddish brown and brown. In the last stage, the corrosions become a thick corrosion layer. That means the surface of the metal will be covered by the corrosion layer completely. In addition, no metallic luster can be observed. The components of the corrosion layer are mainly β-FeOOH, γ-Fe₂O₃, and Fe₃O₄. The colors of the corrosion layer are black and dark brown. When the laser cleaning method is utilized, the corrosion layer will be exfoliated from the metal surface. In the meantime, some oxides will also be created because of the thermal effect of the laser. However, most of the time, the contents of all kinds of oxides after laser cleaning should be smaller than the corrosion component contents before laser cleaning if the output power of the laser can be controlled properly.

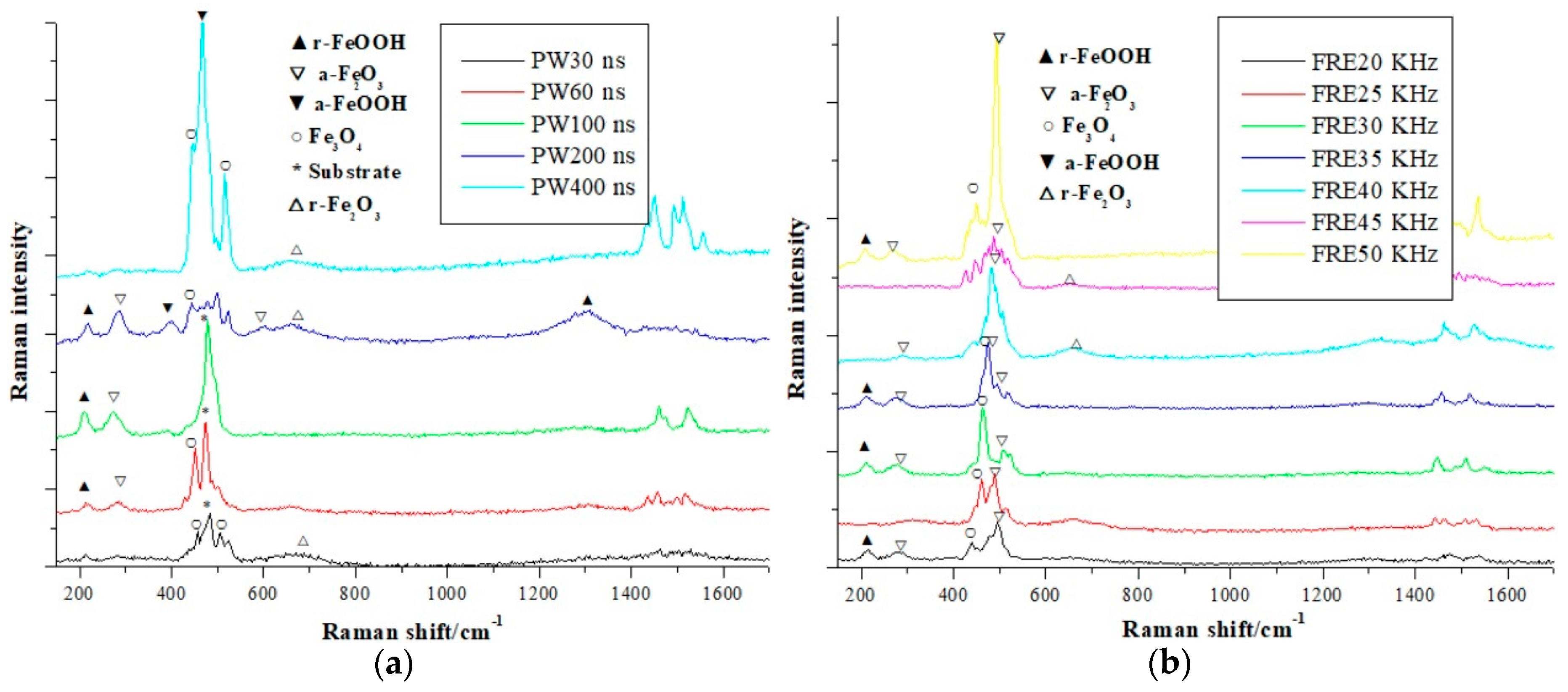

To evaluate the effect of the laser power output on the Raman spectrum further, other comparison experiments are also performed. Figure 8 shows the experiment’s results, which use different laser pulse widths and frequencies. Figure 8a illustrates a result using different laser pulse widths and Figure 8b presents a result using different laser frequencies. Their main Raman peaks are also marked in this case. In Figure 8a, the pulse widths of 30 ns, 60 ns, 100 ns, 200 ns, and 400 ns are compared. In Figure 8b, the frequencies of 20 KHz, 25 KHz, 30 KHz, 35 KHz, 40 KHz, 45 KHz, and 50 KHz are considered. To improve the visualizing effects, all the vertical coordinates in Figure 8a subtract 800 and the vertical coordinate increments in Figure 8b are 0, 100, 200, −100, 500, 100, and −100, respectively. The pulse width [36] represents the maximum energy duration of the pulsed laser. The smaller the pulse width is, the bigger the laser energy output would be. The frequency [37] can reflect the pulse times of the laser in the unit time. The larger the frequency is, the bigger the laser output times would be. From Figure 8, it can be seen that the amounts of oxides are comparably low when the pulse width output is small. This is because the thermal effect is weak in this situation. In addition, with the increase of the pulse width, extra oxides appear. The result above means that the pulse width should not be too high when carrying out the cleaning task. Second, some oxides appear and their contents also increase plenty when the laser frequency becomes large. For example, the components Fe₃O₄, α-FeOOH, and α-Fe₂O₃ can be observed with the increase of the frequency. In many practical cases, the pulse width and the frequency cannot be tuned during cleaning. Only the laser power can be changed sometimes, which also means they are not as important as the laser power from the practical application point of view. Thus, in this paper, we mainly consider the relationship evaluation between the laser power and the Raman spectrum.

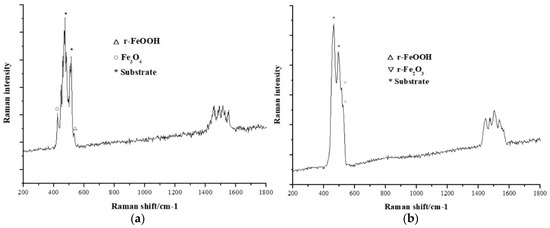

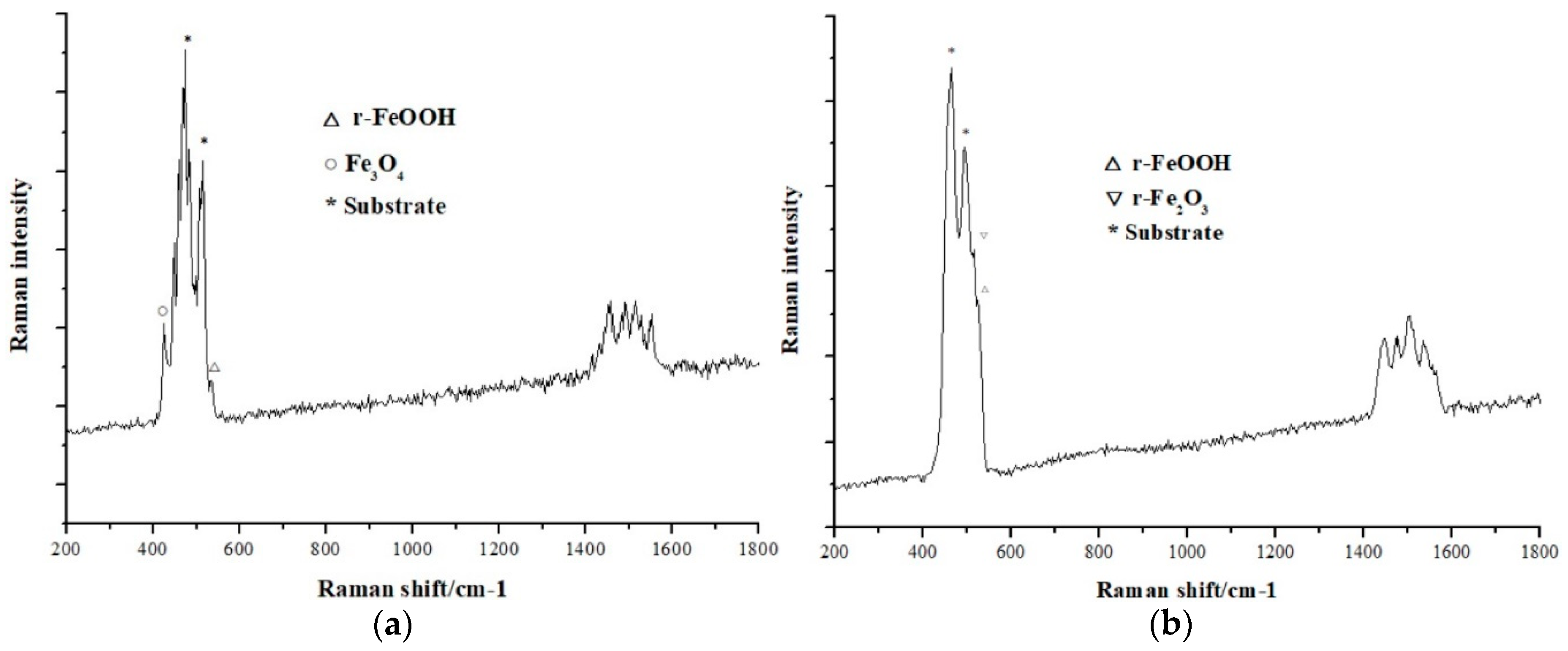

In this paper, the ultimate cleaning target is to get a processed metal surface with the corrosion degree A (see Table 2), i.e., almost no corrosions can be observed directly in the metal surface. As a result, the Raman spectrum of the corrosion degree A is also investigated in this case. Figure 9 shows the corresponding results. Figure 9a,b are the Raman spectrum results of our investigated carbon steel. Their subjective corrosion degrees are A (see Table 2). To get these metal surfaces, the traditional physical-based and chemical-based cleaning methods are used including buffing and washing. From Figure 9, both the metal substrate [38,39] and different oxides, such as γ-FeOOH, Fe₃O₄, and γ-Fe₂O₃, can be observed. The corresponding Raman peaks and their areas are also fitted by the Gaussian distribution function. Regarding Figure 9a, the peak shift of γ-FeOOH is 525.5 cm⁻¹, and its peak area is 1433.7. The peak shift of Fe₃O₄ is 425.9 cm⁻¹, and its area is 2779.3. The peak shifts of substrate are 471.0 cm⁻¹ and 512.3 cm⁻¹. Their areas are 35,042.3 and 10,827.7, respectively. As for Figure 9b, their peak shift of γ-FeOOH is 529.4 cm⁻¹, and its peak area is 4154.9. The peak shift of γ-Fe₂O₃ is 514.0 cm⁻¹, and its area is 34,388.1. The peak shifts of the substrate are 461.9 cm⁻¹ and 493.6 cm⁻¹. Their areas are 75,234.0 and 34,936.7. In Figure 9, although the specific components in Figure 9a,b are different, their approximate Raman peak shapes are similar. Our proposed laser cleaning method can also get the cleaning effect of corrosion degree A (see Table 2). In this paper, compared with the laser cleaning effects illustrated in Figure 7, it can be seen that the laser energy densities of 5.662 J/cm² and 7.077 J/cm² with the initial corrosion degree B. The laser energy densities of 7.077 J/cm² and 8.493 J/cm² with the initial corrosion degree C can get a similar cleaning effect like the results presented in Figure 9. The fact is that the practical situation is far more complex because of the diversity of the metal corrosion state. However, the analysis results of Figure 9 can still be looked on as a kind of reference for the cleaning effect evaluation in the future.

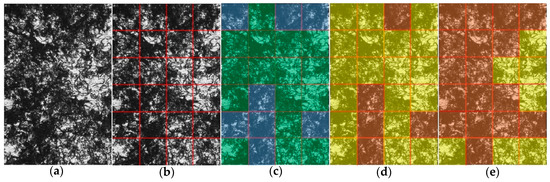

The corresponding research results above are useful for the practical engineering application. Figure 10 shows an example of the cleaning application. We can use the relationship above to generate a prediction map of the laser cleaning effect for the corrosion metal approximately. In Figure 10, the macroscopic photo of an original corrosion metal specimen is shown and the gray image is illustrated here. Figure 10b is the mesh generation result of Figure 10a, where 24 meshes are generated and the shape of each mesh is square. In general, the size of each mesh should be similar to the photography size of the visible light camera. Figure 10c is the image-based evaluation result of the corrosion degree, where the green regions mean the corrosion degree B and the blue regions indicate the corrosion degree C (see Table 2). Figure 10d,e are the forecasted results of the Raman measurement, which use different laser energy density outputs, where Figure 10d uses the laser energy density of 7.077 J/cm² and Figure 10e employs the energy density of 8.493 J/cm². The yellow regions mean the Raman result with the corrosive component of Fe₃O₄, γ-FeOOH, and γ-Fe₂O₃ while the brown regions indicate the Raman result with the corrosive component of α-Fe₂O₃, γ-FeOOH, and Fe₃O₄. From Figure 10, it can be seen that different predicted cleaning effects, i.e., the cleaning effect maps, can be obtained by using the corresponding experimental results above. Then these maps can be used to design the cleaning process and guide the secondary cleaning of the corrosive metal. It should be emphasized that the specific photography conditions (such as the environmental lighting and the photography distance, etc.) and the cleaning processes used in our experiment should be kept strictly when using this method above to implement the prediction.

Compared with other existing laser cleaning methods, our proposed research technique has three advantages. First, our method considers the initial corrosion state of the metal surface quantitatively. Although some research studies mentioned the initial corrosion issue [40,41,42], more of them [43,44] still did not consider the initial corrosion state problem when performing their research studies. Clearly, our research has indicated the initial corrosion will affect the cleaning effect to some extent. Second, our method uses the analysis results of the Raman spectrum to evaluate the cleaning effect. Like our proposed method in Section 2.1, the imaging sensor [45,46] can also be used to assess the processing effect after laser cleaning. However, because of multiple factors, such as the complex environment light or the exposed metal texture after cleaning, the computation accuracy of the imaging sensor will not be as good as that of the Raman spectrum. Third, our method utilizes the Gaussian distribution function to analyze the Raman spectrum data, and the corresponding results are more compelling. Many research studies [47,48] did not investigate the Raman spectrum by the distribution fitting-based technique. Thus, the estimated Raman results were not accurate in some cases. Our proposed method also has some shortcomings. For example, this method is not fit for solving the pitting corrosion issue. Since the proposed image analysis method can only process the macroscopic image with a big image texture, the pitting corrosion issue cannot be solved by this method currently. In the future, more corrosion images and their corresponding Raman spectrum data will be accumulated, and the processing effect of our proposed method can definitely be improved.

4. Conclusions

The relationships between the laser power output and the analysis result of Raman spectrum are investigated. First, an image feature analysis-based corrosion degree evaluation is proposed. The corresponding image features include texture coarseness, texture entropy, texture intensity, texture contrast, the texture’s cluster degree, and texture homogeneity. Then the AHP method is used to decrease the dimension of the image feature vector for a convenient engineering application. Second, the laser cleaning operations, which use the typical power output, are performed under the defined initial corrosion degrees above. Then the Raman spectrum can be analyzed. The investigated parameters of the Raman spectrum include the corrosion components and their contents. The Savitzky-Golay filter-based method is employed to implement the baseline estimation. The Gaussian distribution-based method is utilized to carry out the peak area fitting. Lastly, the relationships between the laser power output and the Raman spectrum result can be constructed. The proposed methods and results can be used to guide the secondary cleaning of corrosion metal in the future.
