Article

Different Conventional and Soft Computing MPPT Techniques for Solar PV Systems with High Step-Up Boost Converters: A Comprehensive Analysis

School of Electrical Engineering, VIT University, Vellore 632014, India
*
Author to whom correspondence should be addressed.
Energies 2020, 13(2), 371; https://doi.org/10.3390/en13020371
Submission received: 4 December 2019 / Revised: 8 January 2020 / Accepted: 10 January 2020 / Published: 12 January 2020
(This article belongs to the Section A2: Solar Energy and Photovoltaic Systems)

Abstract

:
Solar photovoltaic (PV) systems are attracting a huge focus in the current energy scenario. Various maximum power point tracking (MPPT) methods are used in solar PV systems in order to achieve maximum power. In this article, a clear analysis of conventional MPPT techniques such as variable step size perturb and observe (VSS-P&O), modified incremental conductance (MIC), fractional open circuit voltage (FOCV) has been carried out. In addition, the soft computing MPPT techniques such as fixed step size radial basis functional algorithm (FSS-RBFA), variable step size radial basis functional algorithm (VSS-RBFA), adaptive fuzzy logic controller (AFLC), particle swarm optimization (PSO), and cuckoo search (CS) MPPT techniques are presented along with their comparative analysis. The comparative analysis is done under static and dynamic irradiation conditions by considering algorithm complexity, tracking speed, oscillations at MPP, and sensing parameters. The single-diode model PV panel and double-diode model PV panel are also compared in terms of fill factor (FF) and maximum power extraction. Clear insight is presented supporting the suitability of MPPT techniques for different types of converter configurations.

Graphical Abstract

1. Introduction

Due to the depletion of fossil fuels and the increment in energy demand, a new era has begun with a huge welcome for renewable energy sources (RESs) all over the world. RESs, such as solar, tidal, and wind that are free from environmental pollution and with excess availability have become important during recent years [1,2,3]. The worldwide concern about CO2 reduction has led to RES deployment. A solar photovoltaic (PV) system has become a much more flexible RES due to its availability everywhere on the earth [4]. The installation and operating costs of a PV system are reduced to a greater extent due to the development of semiconductor manufacturing technology [5].
There are three types of PV cell technologies, i.e., mono, poly, and thin film [6]. The mono and polycrystalline PV cells are designed using a microelectronic manufacturing technique and their efficiencies, as per REC solar energy reviews, are 21.7% [7] and 17.8% [8], respectively. Thin film PV cells are designed using CdTe, A-Si, and CuInse2 semiconductor materials with efficiencies ranging from 15% to 15.8% [9]. Hence, most of the PV system designers are considering high-efficiency monocrystalline silicon technology.
From the literature survey [10,11,12,13], many researchers have used different circuit topologies to model the PV array at different atmospheric conditions. Some researchers have focused on single-diode model PV panel modeling and some other researchers have preferred double-diode model PV panel modeling based on their application. In this article, a single- and double-diode model PV panel-based comparative analysis was carried out in terms of fill factor (FF), maximum power extraction, and efficiency. From the comparison results, a double-diode circuit PV panel was used to assess the maximum power point tracking (MPPT) techniques for controlling the boost converter duty cycle.
Research areas in solar have included PV modeling, MPPT techniques, design of high step-up DC-DC converter, duty cycle control, and efficiency improvement [14]. In this article, PV array modeling, variable step size MPPT controller implementation, and design of high step-up boost converters have been carried out. The main issue of PV power generation is its continuous output power variation. In order to overcome this problem, a boost converter is interfaced to harvest the peak power from a solar PV system. From the literature survey [14,15], the boost converter is interfaced between the PV panel and the DC-load in order to improve the efficiency of a solar PV system. In addition, it provides isolation between the PV power generation system and the load so that the PV array operation is not affected by sudden changes in DC-loads and short circuit faults at the load side.
From the literature survey [16,17,18], different types of conventional DC-DC converters are available to control PV voltage such as Boost [19], Buck-Boost [20], single ended primary inductance converter (SEPIC) [18], and CUK [21]. The Boost converter is used to step up the DC voltage, but it does not have overcurrent protection. In order to overcome this issue, a CUK converter is used in [22] to stabilize the PV output voltage. The drawback of the CUK converter is high complexity of implementation and also it requires two switches, two capacitors, and two inductors. The SEPIC voltage gain is high when compared to boost and CUK converters. The problem of a SEPIC is high magnetic inrush current and that it lacks short circuit faults current protection on the load side [23]. Therefore, most of the conventional boost converters are not suitable for achieving constant output voltage, less current ripples, as well as wide input (i/p) and output (o/p) operations. In this work, recently developed high step-up DC-DC converters are presented, a switched capacitor boost converter (SCBC) [24] and a stackable switching boost converter (SSBC) [25], and they are compared with a conventional boost converter (CBC) [19].

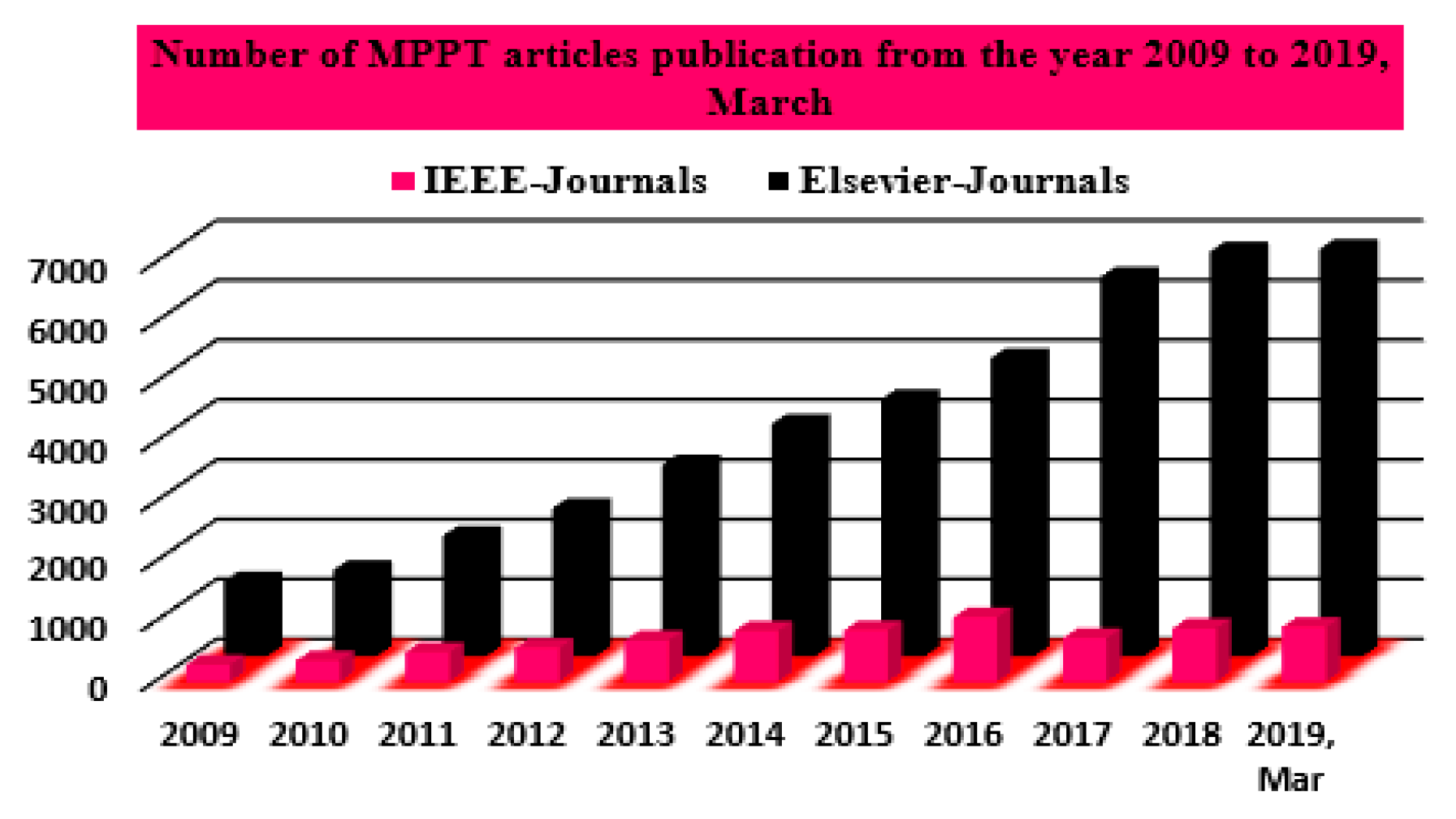

There are so many conventional and evolutionary MPPT techniques illustrated in the literature that are based on the technique of controlling the duty cycle and the output voltage of the boost converter [26,27,28]. The overall publications of MPPT techniques, annually, are given in Figure 1. As shown in Figure 1, it is observed that the number of publications, annually, has continued to increase, which shows that most of the researchers have been working on the development of different advanced MPPT techniques and it is the most popular aspect in solar power generation to improve the performance of a PV system [29]. Among all the conventional techniques, fractional open circuit voltage (FOCV) and fractional short circuit (FSC) current techniques have less complexity for implementation [30]. However, these techniques suffer from MPP tracking that is inaccurate and are suitable only for low power applications. Other conventional MPPT techniques such as perturb and observe (P&O) [31], incremental conductance (IC) [32], hill climb (HC) [33], state flow [34], Kalman filter [35], adaptive IC [36], ripple correlation (RC) [37], (dP/dI) variation of power with respect to current or power/voltage (dP/dV) feedback control [38], slider controller [39] and incremental resistance (INR) [40] are applicable for low, as well as high, power application where higher accuracy in MPP tracking is needed.
In the P&O MPPT method [31], the PV array output voltage is adjusted, and the respective power variation is observed. In this P&O, the operating power point oscillates around the MPP that can be handled through a propositional integral (PI) controller. The drawback is that this method causes power loss at the time of a perturbation and it fails to track the MPP at diverse irradiation and temperature conditions. In order to avoid the difficulties of P&O, while tracking the MPP with rapid changes in atmospheric conditions, an incremental conductance (IC) technique is applied [32]. In addition, in IC, the oscillations across the MPP are much less as compared with P&O. However, the major drawback of the IC technique is the complexity of its implementation.
The hill climbing method works similar to the P&O MPPT method to track MPP [33]. Here, voltage is taken as a control variable, and hence by incrementing the PV voltage, the respective increment in PV power can be observed when the operating point is on the left side of the MPP. If the operating point is located on the right side of the MPP, the voltage is incremented to cause a decrement in power. This process is repeated until the MPP is reached. The state flow MPPT method is easy to implement with accuracy and speed of MPP tracking as compared with the P&O and IC MPPT techniques [34]. The dithering effect increases the signal-noise ratio in the linear state space region of the state flow MPPT technique which can be overcome using the Kalman filter MPPT technique [35]. To track the rapid changes of irradiances and to obtain maximum PV voltage that is nearly equal to the open-circuit voltage (Voc) of PV, an adaptive IC MPPT technique is applied [36]. The major advantage of this technique is its high intrinsic robustness and negligible uncertainties.
The switching states of the boost converter create voltage and current ripples in a PV system. As a result, the PV array generates ripple power [37]. In RC control, the PV power ripples are used to control and extract the maximum power of a solar PV system. The time derivative of voltage and current components in the RC control consists of mutual relationships that make the power gradient zero. Hence, the operating point of the PV system reaches the true MPP. In [38], the slope of dP/dV or dP/dI is calculated from the I-V (Current against Voltage) characteristics of solar PV system and is given as the feedback to the boost converter through a microcontroller to track the MPP. According to the slope of the sign (+ or −), the boost converter duty value either increases or decreases until the operating point reaches the true MPP. In the slider MPPT technique, the switching function of the boost converter is derived from the I-V and P-V (Power against Voltage) characteristics [39,40]. If the switching function consists of a positive sign, then the MPP of the PV system is considered to be on the left side of the PV curve otherwise it is assumed to be on the right side.
At present, most of the authors have focused on soft computing or evolutionary MPPT techniques to solve the issues of conventional MPPT techniques [41,42,43]. The main features of evolutionary algorithms are nonlinear handling capability, broaden search space, and intelligible expertise. All of the soft computing and biological algorithms are used to optimize the nonlinear behavior of the PV system. The evolutionary algorithms have included neural network (NN) [44], fuzzy logic controller (FLC) [45], artificial neuro fuzzy interface system (ANFIS) [46], cuckoo search [47] and particle swarm optimization (PSO) [48], etc.
The ANN (Artificial Neural Network) method is used in [44] to reduce the steady-state oscillations at the MPP during dynamic irradiation conditions. In article [49], the PV voltage and current or sun irradiation and temperature, or any of the two combinations of data, are used to train the NN. The learning process of ANN has been done by updating the weights. The weight updating is carried out using the backpropagation Levenberg Marquardt method. The performance of ANN is analyzed using the mean square error method and the obtained mean square error of NN to track the MPP at epoch 738 which is 0.010516. The major drawback of the ANN method is that it requires lots of data when the architecture has multiple layers. In article [50], the multilayer perceptron (MLP) type of network is used in the NN to track the MPP. The MLP consist of an input layer, output layer, and hidden layer. In the input layer, one neuron is assigned as sun irradiations and another is assigned as sun temperature in order to extract the maximum power from a solar PV system. The training is done using the standard degradation method and the activation function is sigmoidal.
Article [51] explains that the fuzzy MPPT technique is the most popular technique to track MPP and it does not require any mathematical equation computations to solve the nonlinearity issues. In addition, it works for both precise and imprecise input functions as compared with the ANN systems. The drawbacks of the fuzzy technique are that it cannot be altered once the rules are finalized and the selection of membership function purely depends on the knowledge of the user. Without the proper knowledge, the tracking of MPP in fuzzy technique is inaccurate. In order to overcome the drawbacks of the fuzzy technique, in [52], an adaptive fuzzy logic controller (AFLC) based MPPT technique is used to track the MPP. The adaptive neuro fuzzy inference system (ANFIS) is used in solar PV systems in order to overcome the drawbacks of ANN and fuzzy. The attractive features of ANFIS are fast learning capacity, proficiency of adaptation, and that it does not require an expert knowledge person [53].
In this article, a comprehensive comparative analysis has been carried out on the recently developed MPPT techniques such as VSS-P&O [54], modified incremental conductance (MIC) [55], FOCV [56], fixed step size radial basis functional algorithm (FSS-RBFA) [57], variable step size radial basis functional algorithm (VSS-RBFA) [58], AFLC [52], PSO [59], and cuckoo search (CS) [60]. The schematic of a PV-fed MPPT controlled boost converter power generation system is illustrated in Figure 2. The rest of this article is organized as follows: In Section 2, the mathematical modeling of the single- and double-diode circuit PV array is presented along with its comparative performance characteristics. In Section 3, the necessity of MPPT technique is explained under different irradiation and load conditions. The explanation about different MPPT techniques and analysis of high step-up DC-DC converters are detailed in Section 4 and Section 5, respectively. The simulated static and dynamic irradiation conditions performance results of PV-fed high step-up boost converters are explained in Section 6. The comparative analysis of MPPT techniques is illustrated in Section 7.

2. Mathematical Modeling of PV Panel

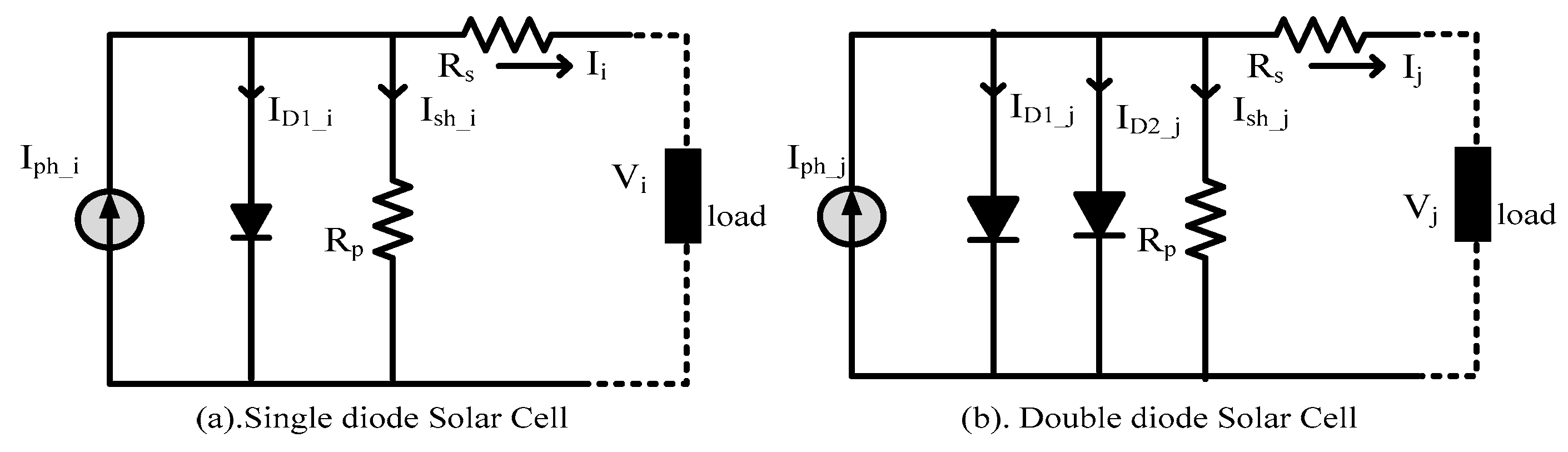

The single-diode PV panel is designed by considering open circuit voltage Voc, short circuit current, Isc, maximum peak voltage, Vmpp, and current, Impp, at the MPP of the I-V curve [61]. The double-diode PV panel can be modeled by considering two more additional parameters as compared with a single-diode model which are reverse saturation current, I0, and ideality factor, a, [62]. A few more parameters are also required to model the single- and double-diode models’ PV panels that can be determined by applying different optimization techniques. The equivalent circuits of single-diode circuit PV cell and double-diode circuit PV cell are shown in Figure 3a,b and its comparative analysis has been done using the experimental data of Sun Power systems California [63].
From the single-diode circuit PV cell, the output current (Ii) is derived as,
I i   =   I p h _ i N p p _ i I 0 _ i N p p _ i ( e x p ( V i + I R s _ i ( N s s _ i N p p _ i ) a V t _ i N s s _ i ) 1 ) V i + I R s _ i ( N s s _ i N p p _ i ) R p ( N s s _ i N p p _ i )
Similar to the single-diode circuit PV cell, the double circuit output current (Ij) is derived as,
I j   =   I p h j N p p _ j I 01 j N p p j ( e x p ( V j + I R s j ( N s s j N p p j ) a 1 V t 1 j N s s j ) 1 ) I x
I x   =   I 02 _ j N p p _ j ( e x p ( V j + I R s _ j ( N s s _ j N p p _ j ) a 2 V t 2 _ j N s s _ j ) 1 ) V j + I R s _ j ( N s s _ j N p p _ j ) R p _ j ( N s s _ j N p p _ j )
I p h i , j   =   ( I p h _ S T C + k I Δ T ) G i , j G S T C i , j
where Δ T and k i , j are the change of temperature and current coefficient of the PV panel. The index terms, i and j, indicate the classification of single-diode circuit and double-diode circuit PV module parameters. The nominal irradiance ( G S T C i , j ) and temperature ( T n ) of a solar PV system are 1000 W/m2 and 25 °C. From Equation (4), we can say that the photovoltaic current is directly proportional to the ratio of instant irradiation with respect to the irradiation at standard test conditions. Whenever the solar irradiations reduce gradually, the PV output voltage decreases because there is a direct proportionality between irradiation and PV power which is given in Figure 4a,b.
  I 01 _ j   =   I 02 _ j   =   I 01 _ i   =   I s c _ S T C + K i Δ T e x p ( ( V o c _ S T C + K v Δ T ) / { a 1 + a 2 p } V t i , j ) 1
where I01-i, I01-j, and I02-j are the reverse saturation currents of single-diode model PV panel and double-diode circuit PV panel. From Equation (6), it can be seen that when the number of PV panel series-connected cells are increased and its equivalent voltage of PV increases [58,64].
V t _ i   =   V t 1 _ j   =   V t 2 _ j   =   N s K T q
At MPP, the ratio of derivation photovoltaic power with respect to the derivate voltage is zero which is given in Equation (7).
( Δ p p v Δ v ) V   =   V M P P T   =   0
The shunt resistance of the PV panel at short-circuited current is derived as [64],
( Δ I Δ v ) I   =   i s c   =   1 R s h o

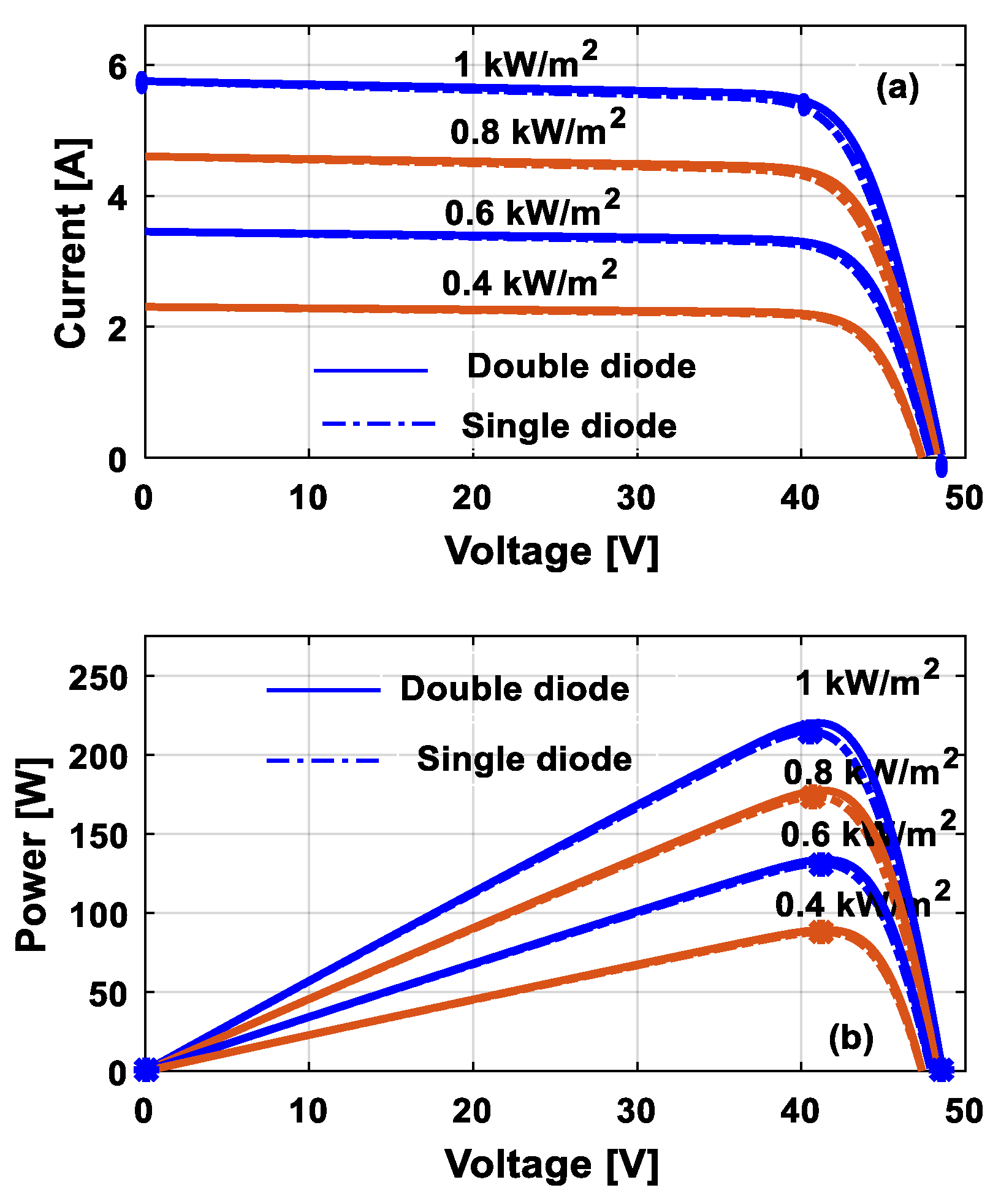

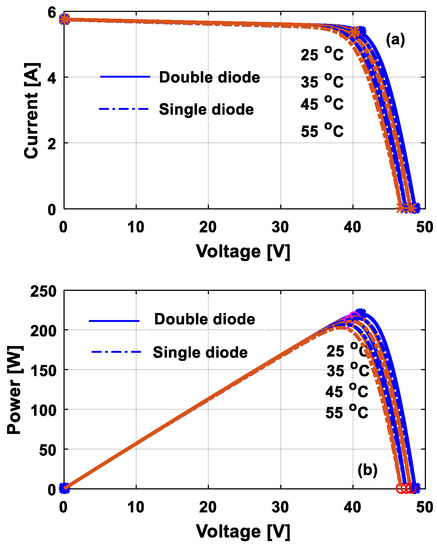

The single- and double-diode circuit models’ PV panel dynamic characteristics under different irradiation conditions (1000, 800, 600, and 400 W/m2) are shown in Figure 4a,b. From Equation (4), it is observed that the reverse saturation current of the PV panel depends on the operating temperature of the PV system. The PV panel’s I-V and P-V characteristics at different temperature conditions are shown in Figure 5a,b. From Figure 5a,b, it is observed that at static irradiation condition (1000 W/m2), the MPP of the PV panel varies for each operating temperature (25, 35, 45, and 55 °C) condition.
The ratio of maximum peak power with respect to the nominal power is called FF which is used to measure the quality of the PV cell. The single-diode model PV panel and double-diode model PV panel are compared by considering the parameters such as maximum power extraction, FF, and efficiency. From Figure 4a,b, at 1000W/m2 the single- and double-diode PV panels’ FF and efficiencies are 0.787, 17.69%, 0.765, and 17.26% respectively. Similarly, from Figure 5a,b, at 25 °C, the single- and double-diode PV panels’ FF and efficiencies are 0.787, 17.69%, 0.782, and 17.2% respectively. Hence, from the above observation, it is concluded that the fill factor and efficiency for a double-diode model is slightly higher than the single-diode model PV panel. Consequently, we can say that the double-diode circuit model PV panel extracts maximum peak power as compared with the single-diode model PV panel.

3. Necessity of the MPPT Technique

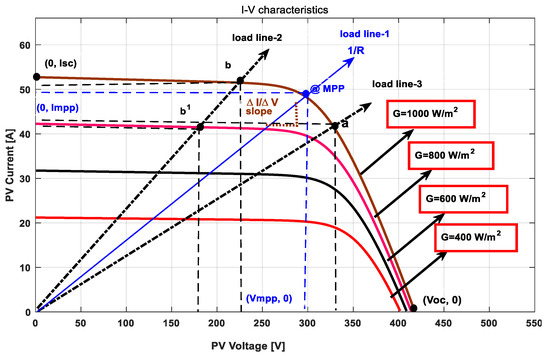

To explain the importance of the MPPT technique, the simulated double-diode circuit model PV panel current against voltage characteristics is given in Figure 6. From Figure 6, it is noticed that a unique MPP exists on I-V and P-V curves for every irradiance condition and, conversely, it shifts for different irradiance (1000, 800, 600, and 200 W/m2) conditions. To reduce the cost of PV systems it is necessary to operate the PV power generation system at the MPP. The MPPT controllers are used for continuous MPP tracking and these controllers form an integral part of the PV system [65].

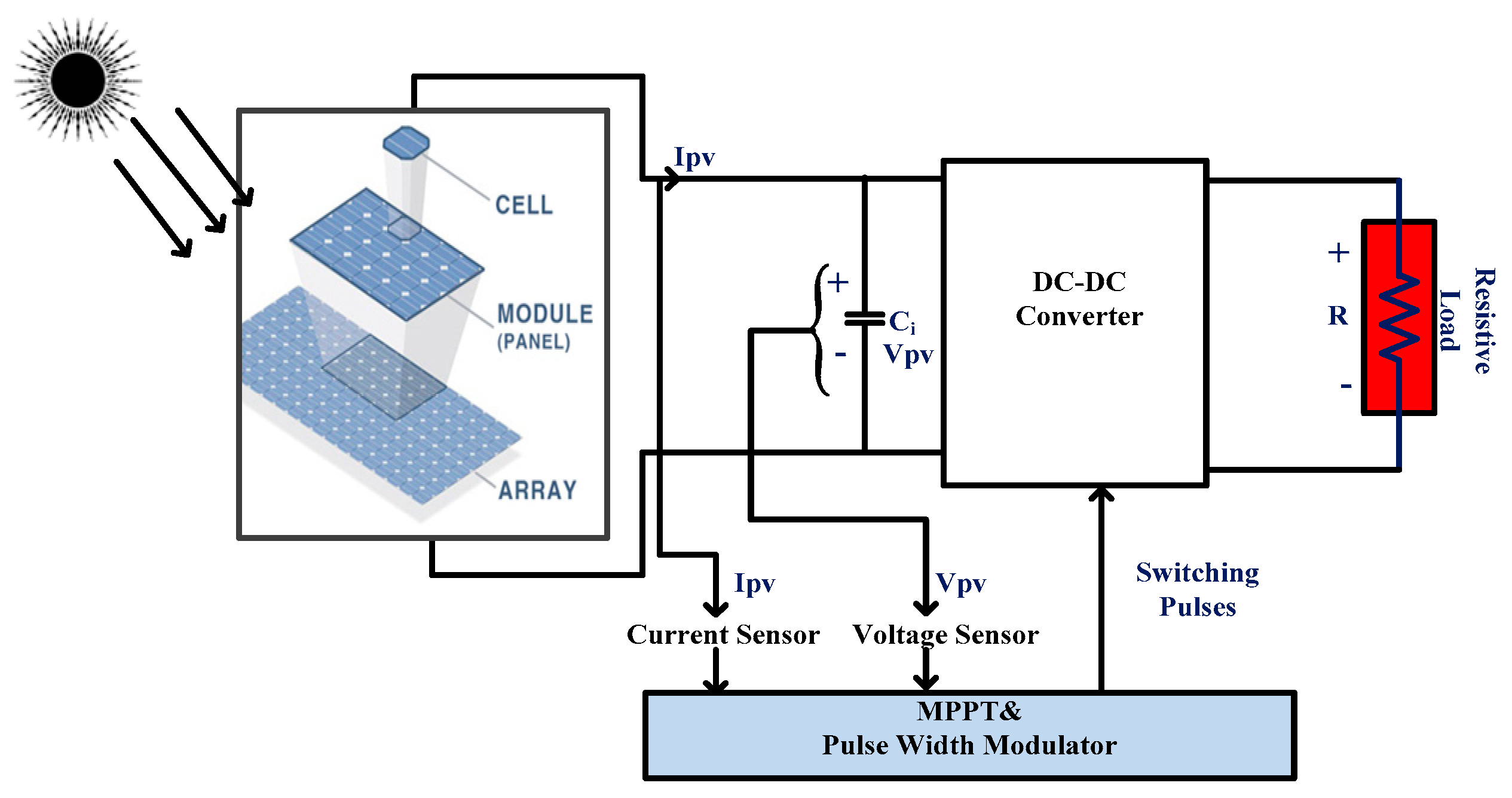

The MPPT controller controls the equivalent resistance of the PV panel to move the operating point closer to the true MPP. For the dynamic loads, different expertise MPPT techniques are applied to vary the duty cycle of the boost converter. The function of MPP in the PV power generation system is evaluated using I-V characteristics, and its load line is shown in Figure 6. If the PV panel is directly connected to a load, the operating point at the resistive load is nothing but the slope of the load line-1 (1/R), which is shown in Figure 6. From Figure 6, when resistance changes from 45 to 50 Ω, the operating point moves from ”a” to ”b”. Similarly, the operating point varies from ”b” to ”b1 “ when irradiance changes from 1000 to 800 W/m2. From Figure 6, it is seen that when the load resistance changes from one level to another level, the corresponding MPP I-V characteristics vary. For the real-time operating conditions, the load resistance and I-V characteristics are not constant. Therefore, to alter the load resistance, a boost converter is placed in between the source and the load.

4. Design and Analysis of MPPT Techniques

Different literature studies have illustrated that the PV panel absorbs 35% to 45% of incident solar energy which is converted to electrical energy [66]. In order to improve the efficiency of the PV power generation system, an MPPT is used to harvest the maximum PV power by finding Vmpp and Impp at different atmospheric conditions [66,67]. In this article, the VSS-P&O, MIC, FOCV, FSS-RBFA, VSS-RBFA, AFLC, PSO, and CS-based MPPT techniques are used to track MPP.

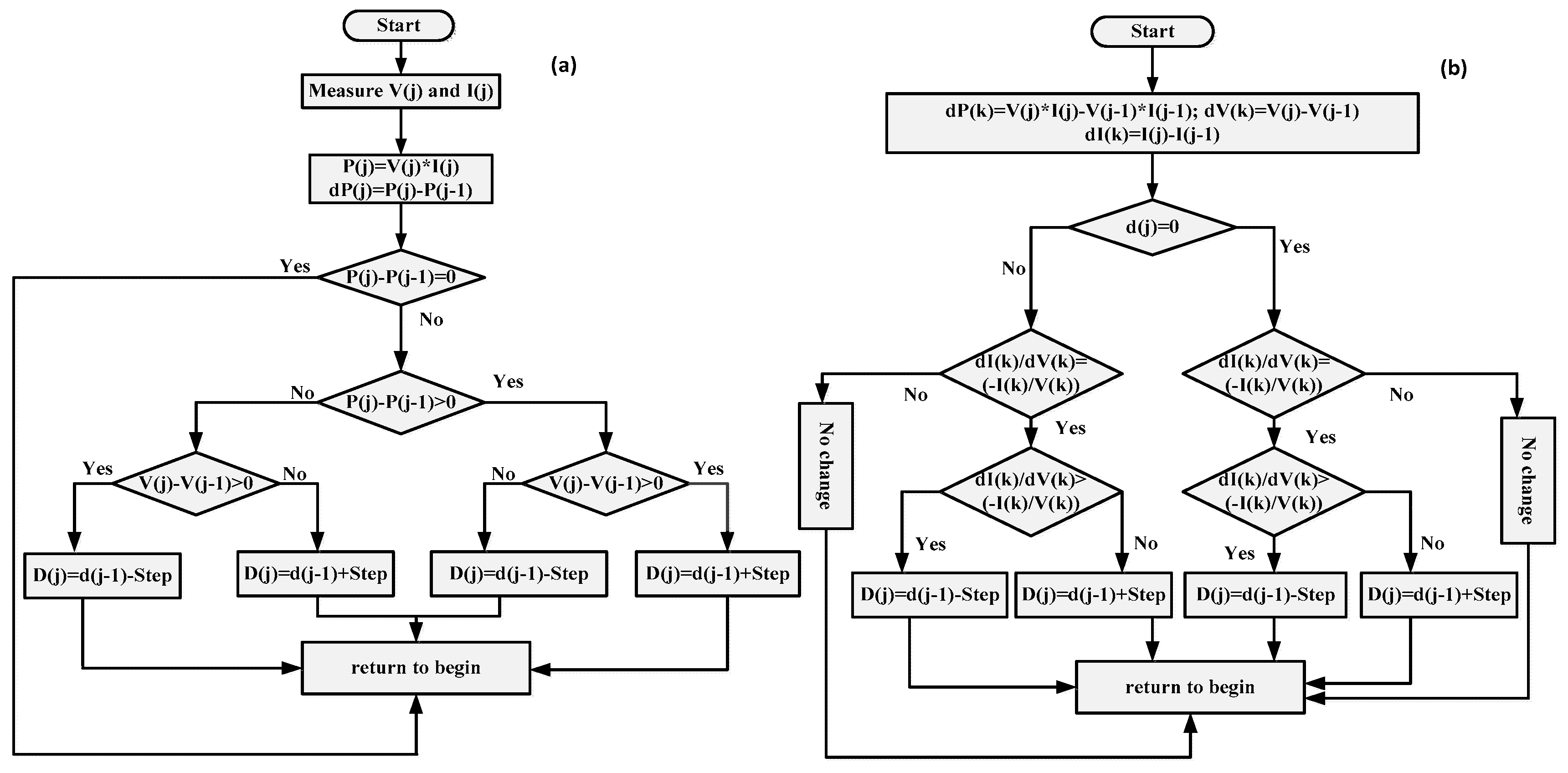

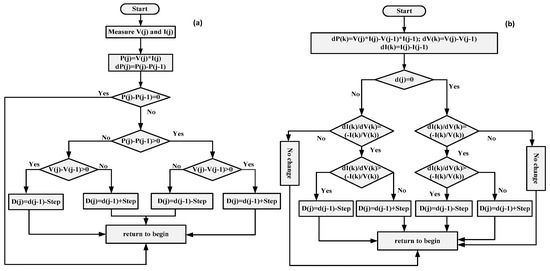

4.1. Variable Step Size Perturb and Observe MPPT Technique

Among all the MPPT technologies, the P&O is the most commonly used technique because of its simplicity and accurate steady-state response but the drawback of this method is that it is applicable only at steady-state operating conditions of a solar PV system [28]. In order to overcome the drawback of conventional P&O, a variable step size P& O MPPT technique is used in article [54] to track MPP. At the start, a large step size is used to improve the tracking speed and finally step size is reduced to reduce the oscillations across the MPP. The operational flow chart of the VSS-P&O MPPT technique is shown in Figure 7a.

4.2. Modified IC MPPT Technique

In this MIC MPPT method, the continuous MPP tracking is done by comparing instantaneous conductance with previous conductance. Here, the reference voltage, Vref, is used to operate the PV panel closer to the MPP and when it reaches the VMPP point the variation in incremental conductance is stopped. The tracking speed of this method purely depends on the step change of incremental conductance [55].
The MPP tracking speed can be improved by increasing the step size of conductance. In the MIC method, for the first step change in the size of conductance, the operating point of PV panel is close to the MPP and the second time it reaches the MPP of the solar PV system. In this way, the step size continuously varies until achieving the MPP at dynamic irradiation conditions. To properly control the DC-DC converter, the operating point of PV steadily matches with the load line interaction point of the I-V curve and it is directly proportional to the ratio of open-circuit voltage (Voc) to the short circuit current (Isc). The duty of a high step-up DC-DC converter is updated using Equation (9).
D ( y )   =   D ( y 1 ) ± N | P ( y ) P ( y 1 ) V ( y ) V ( y 1 ) |
where D is the duty cycle, y is the iteration value, N is the scaling factor, V(y) and P(y) are the PV panel voltage and power, respectively. The operational flow chart of the MIC MPPT technique is shown in Figure 7b.

4.3. Fractional Open Circuit Voltage (FOCV) MPPT Technique

In this technique, there is a direct relation between maximum voltage, VMPP, and open-circuit voltage, Voc. The open-circuit voltage of the PV is measured by connecting an additional switch across the PV output terminals. Evaluation of maximum peak voltage is taken from [56].
V M P P   =   k a V o c
where ka is a proportionality parameter that is calculated from the nonlinear characteristics of the PV panel. The proportionality constant is used to obtain the MPP of the PV panel and its value is between 0.72 to 0.76 for non-uniform irradiation conditions. Once the suitable value of ka is selected for the PV panel, the maximum peak voltage of PV is calculated using Equation (10).

4.4. Fixed Step Size RBFA Based MPPT Technique

From the literature survey [57], the fixed step size RBFA based NN structure is used in the MPPT controller design to reduce the system cost and size. The NN is an information processing system and it consists of highly interconnected neurons in the form of layers. In this FSS-RBFA technique, three layers are used which are shown in Figure 8. The first layer consist of two neurons and the second layer has twenty neurons. The optimum number of neurons in the output layer is one. In the second layer, the neurons are selected based on the empirical process. The error values of PV voltage (dV) and power (dP) are the inputs to the first layer. The output of NN is a normalized duty cycle which is either zero or one. The adjustment of the duty cycle is mainly dependent on the sign of dP/dV. The working behavior of the technique is shown in Table 1.

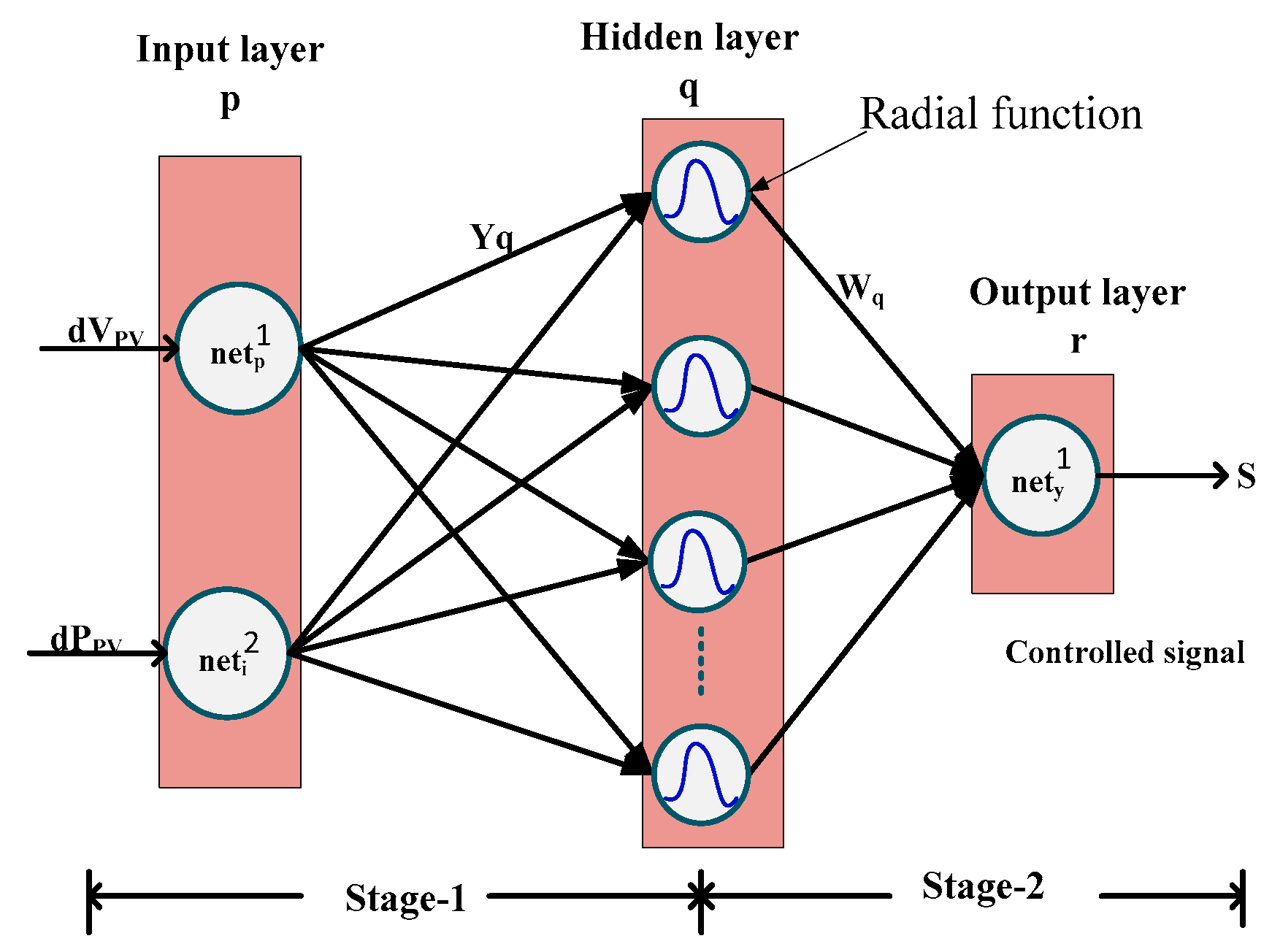

4.5. Variable Step Size RBFA Based NN MPPT Technique

As discussed previously, the fixed step size RBFA based NN technique gives a good performance. However, the drawbacks of this method are less convergence speed, high steady-state oscillations, and less accuracy for MPP tracking at dynamic irradiation conditions. When the step size is high, the tracking speed of the MPP is high but the drawback is the occurrence of excessive oscillations across the MPP. While the step size is less, the oscillations are reduced but the tracking speed reduces gradually. In order to overcome the dilemma of this condition, a variable step size RBFA based NN MPPT technique is used in [58] to extract the maximum power of a solar PV system at dynamic irradiation conditions.
The training of the RBFA has been done in two stages. In the first stage, the unsupervised learning methodology is used to define the basic factors of the input layer and, in the second stage, the output layer weights are updated. In this RBFA-based NN, there are three layers which are the input, hidden, and output layers, as shown in Figure 8. The instantons PV output voltage and power parameters are the inputs to the VSS-RBFA-based NN MPPT controller which generate the switching pulses to the DC-DC converter. The tracking speed of this MPPT controller depends mainly on the interconnection of weights and the selection of step size. In this method, the duty cycle is updated using Equation (11).
D ( j )   =   D ( j 1 ) ± ( S t e p + N · d P )
where D (j) and D (j − 1) are the duty values at the instant of j and j − 1. The scaling factor, N, is used to adjust the step size of the controller and dP is the variation of PV power.

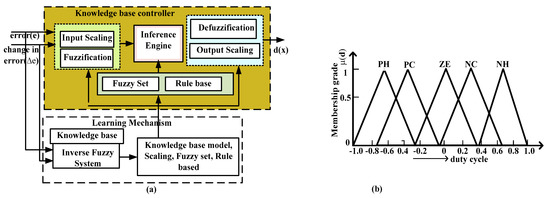

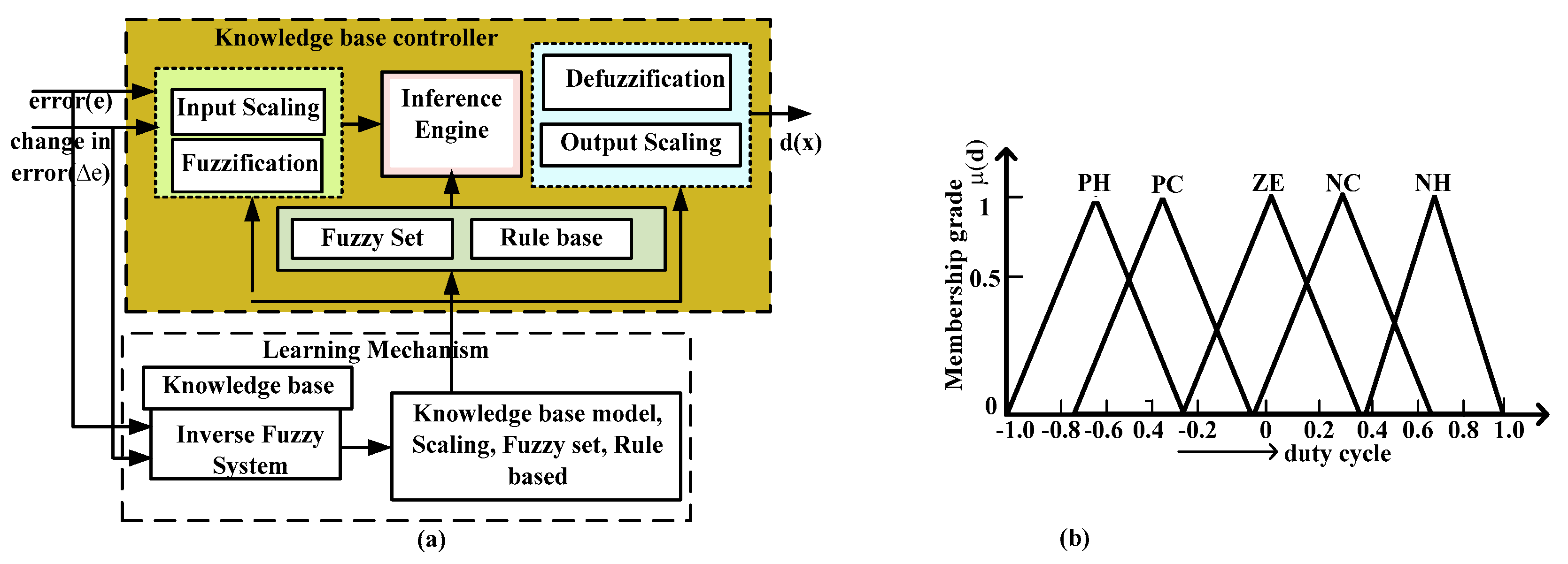

4.6. Adaptive Fuzzy Logic MPPT Controller

The major drawback of fuzzy is that the rules cannot be updated within the time and expert knowledge is required for the parameter initialization. In order to overcome these drawbacks, an adaptive fuzzy is proposed in [52] to track the MPP, thereby transferring the maximum power from the PV system to the load. The features of the adaptive fuzzy controller are good performance and fast response as compared with P&O and fuzzy controllers. In addition, the adaptive fuzzy itself changes the parameters of fuzzy in order to improve the overall system response. The block diagram of the AFLC is shown in Figure 9a and it consists of two major parts which are the FLC and a learning mechanism. The knowledge-based fuzzy system consists of three parts which are fuzzification, inference engine, and defuzzification. The position of fuzzy sets and its corresponding membership functions are shown in Figure 9b. The value of error ( e ) and change of error ( Δ e ) are standardized by utilizing the scaling factor. The scaling factor range is chosen in between the range of negative one to one. The error and change of error parameters are derived from the maximum power of the solar PV system follows as,
e ( i )   =   P ( i ) P ( i 1 ) V ( i ) V ( i 1 ) ;   Δ e ( k )   =   e ( k ) e ( k 1 )
The AFLC rules are shown in Table 2. In AFLC, the pulse width modulator takes real values to generate the switching pulses to the boost converter. Hence, in the defuzzification process, a height method is used to convert linguistic variables to real values. The rules involved in defuzzification are followed as shown in (13).
d x   =   C ( 1 ) W 1 + C ( 2 ) W 2 + C ( 3 ) W 3 + C ( 4 ) W 4 +         + C ( n ) W n W 1 + W 2 + W 3 + W 4 +             + W n
where d x is changing in output and W n is the height and maximum output of rule, n.
A learning mechanism is used in the AFLC to learn the rapid change of environmental conditions. According to that, the fuzzy controller parameters are adjusted to operate the operating point of PV at the optimum point. The learning of fuzzy has been done using two methods which are inverse fuzzy system and knowledge-based modifier. In the inverse fuzzy system, the knowledge-based modifier and change of error values are used to modify the FLC parameters in order to optimize the system performance. The learning process of AFLC is given in Table 3.

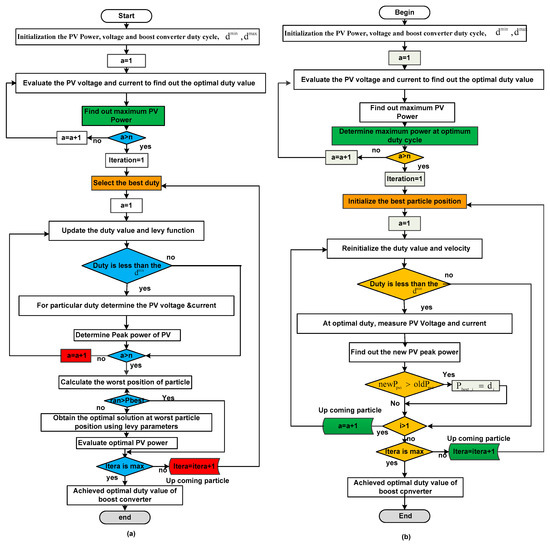

4.7. PSO-Based MPPT Technique

In the PSO technique, there are multiple cooperative agents and each agent is considered as one particle. At the first iteration, all the particles move randomly with a velocity, V. After computing the number of iterations, all the particles move towards the main object [55]. The cooperative particles exchange their information in their searching process to obtain the best optimum duty cycle of boost converter [59]. The particle’s velocity and position are obtained using Equations (14) and (15).
V a + 1   =   w V i a + C 1 r 1 ( P b e s t _ i x i a ) + C 2 r 2 ( G b e s t _ i x i a )
x a + 1   =   x i a + V i a + 1
where a indicates the number of iterations and x is a particle position. The acceleration parameters are C1 and C2 and random variables are r1 and r2. The weight, w, is the inertial weight which is updated continuously based on the number of iterations and Pbest_i is used to store the best particle position in the first iteration and Gbest_i is the best particle position among all of the particles after completing “a” number of iterations. The implementation flowchart of the PSO technique is given in Figure 10a.

4.8. Cuckoo Search-Based MPPT Technique

The CS MPPT technique works based on three rules. First, each cuckoo should generate only one egg and, second, the existed egg in the first iteration should be good quality, then, only it will go to the next step. Finally, the host nets are fixed values [60]. The levy function is used in CS to determine the step size of each particle in each and every iteration. The mathematical derivation of Levy is derived as,
L v y ( β e t a )   =   L β e t a   ;   1 < β e t a < 3
where L is the length of the step size and βeta is an operating constant. In practical, the βeta is considered as either one or three. The optimizing flight size is α which is a fraction of discharged eggs, Pa. The Levy function is used to update the cuckoos walk which is given in Equation (17).
y m k + 1   =   y m k + α l e v y ( β e t a )
where α   =   α 0 ( y b e s t y i ) , then, the modified levy function is derived as,
l   =   α 0 ( y b e s t y i ) l e v y ( β e t a ) c ( u v 1 β e t a ) · ( y b e s t y i )
The parameters u and v are measured from the nonlinear distribution curves.
u n ( 0 ,   ρ u 2 ) ,   v n ( 0 ,   ρ v 2 )
where ρ u   =   ( Γ ( 1 + β ) · s i n ( π β 2 ) Γ ( 1 + β 2 ) · β · 2 β 1 2 ) and ρ v   =   1 . The flowchart of CSO is given in Figure 10b.

5. Analysis and Comparison of DC-DC Converters

From the literature survey [18,19,20,21,22,23,24,25,26,27], it is evident that there are different types of DC/DC converters used in standalone and grid-connected PV systems to control the load voltage. However, in this article, two high step-up DC-DC converters are discussed which are a SCBC and a SSBC at static and dynamic irradiation conditions and their performance results are compared with CBC.

5.1. Conventional Boost Converter

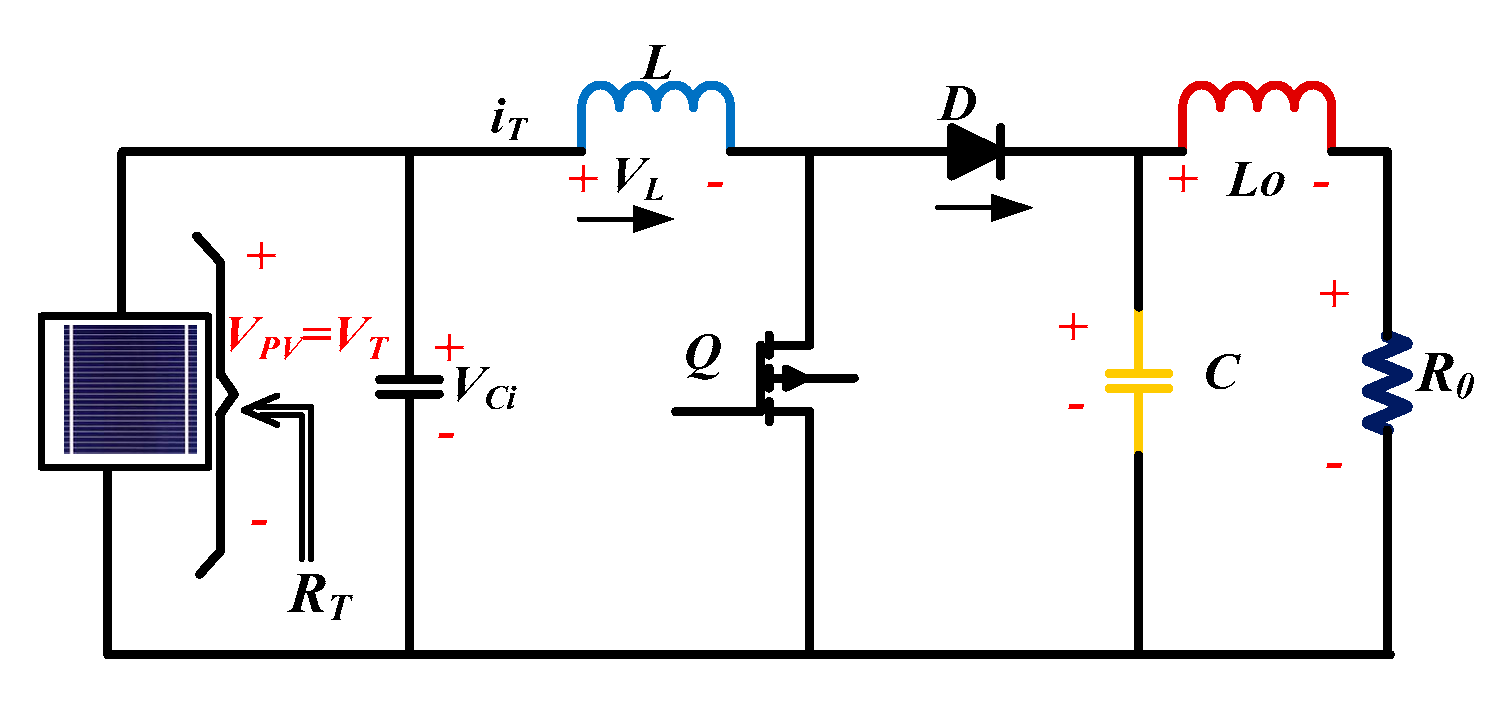

The conventional boost converter (Figure 11) has been used extensively due to its high reliability and flexibility as compared with other converters [19]. The boost converter operates in two modes of operation which are a conduction mode and a blocking mode. In the conduction mode dTS, the switch, Q, operates in forward biasing and the diode, D, operates with reverse biased condition. Hence, there is no supply from the source, VP, to load. Similarly, when the switch is in blocking state (1 − D) ∙ TS, the diode, D, gets forward biased. Eventually, the energy stored in an inductor, L, is transferred to load.
From Figure 11, the voltage balance equation across the input inductor L is derived as,
V T · d T S + ( ( V T V 0 ) · ( 1 d ) T S   =   0
Similar to the inductor property, the average current flowing through the capacitor C is zero.
i 0 d T S + ( ( I T I 0 ) · ( 1 d ) T S   =   0
By solving Equations (20) and (21), the output voltage and current of the boost converter are derived as,
V 0   =   V T ( 1 d )   and ,   i 0   =   i T ( 1 d )

5.2. Switched Capacitor Boost Converter

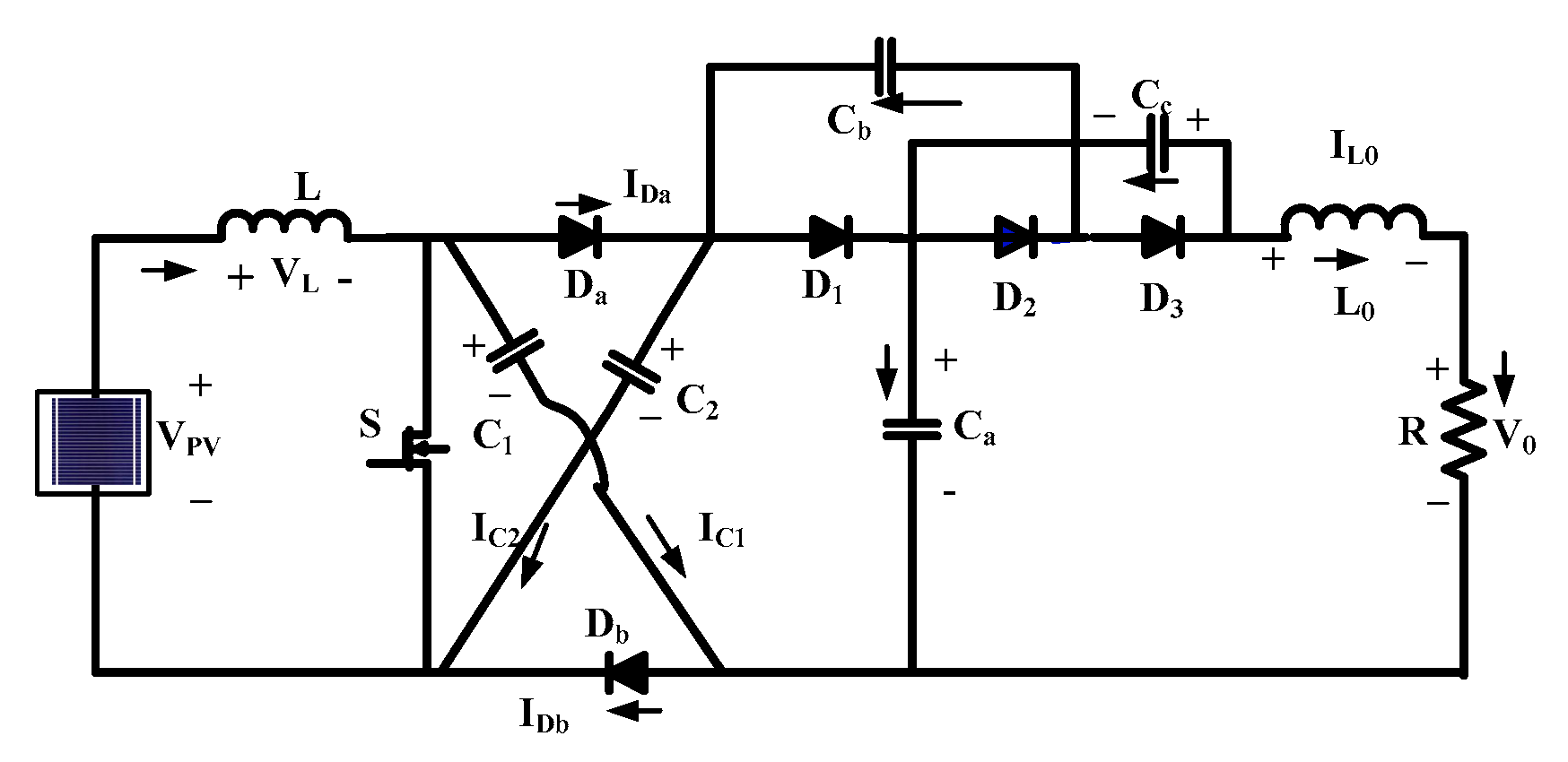

The equivalent resistance across PV terminals can be equalized with the load resistance by varying the duty cycle of the SCBC, and this is shown in Figure 12. The SCBC operates in two modes of operation which are a continuous conduction mode (CCM) and a discontinuous conduction mode (DCM) [24]. The most preferable mode is the CCM because of its continuity of power supply to the load.
In CCM, when the switch, S, is ON, the capacitors, C1 and C2, start charging with the constant charge rate and the inductor charging voltage, VL, is equal to the supply voltage, VPV. The diodes Da, Db, and D2 operate in reverse biased condition, whereas D1 and D3 operate in forward biased condition. The voltage across capacitors is calculated using Equation (23).
{ V P V   =   V L V C a   =   V C 1 + V C 2 V C b   =   V C c
when the switch is OFF, the diodes Da and Db are forward biased and the inductor stored energy transfers to the load through diode D3. The voltage across input inductor, L, and the output voltage of the converter are derived as shown in Equation (24).
{ V L   =   V P V V C 1 V C 1   =   V C 2 V 0   =   V C a + V C c + V L 0
From Figure 12, at the steady-state operating condition, the inductor property is used to determine the voltage gain of the SCBC. The voltage balance equation across the inductor, L, is derived as,
V P V · d T S + ( ( V P V V C 1 ) · ( 1 d ) T S   =   0
The capacitors C1 and C2 charge equally and discharges to the load through the capacitors Ca and Cc.
{ V C   =   V C 1   =   V C 2   =   V C b   =   V C c   =   1 ( 1 D ) V P V V C a   =   2 V C   =   2 ( 1 D ) V P V V 0   =   V C 1 + V C b + V C c   =   3 V C   =   3 ( 1 D ) V P V
From Equations (22) and (26), the SCBC voltage gain is high as compared with the conventional boost converter.

5.3. Stackable Switching Boost Converter

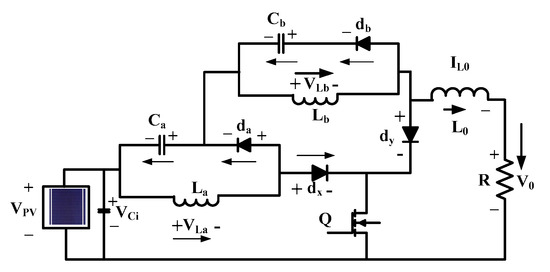

The topology of a SSBC is shown in Figure 13. It consists of the single switch (Q), two capacitors (Ca, Cb), three inductors (La, Lb, and L0), and four diodes (da, db, dx, and dy) [25]. When the switch (Q) is ON, the inductor current, iLa, flows through the diode, dx, and the capacitor Ca gets charged. The stored capacitor and inductor voltages (VCa + VLa) are transferred to the load when the diode dx gets reverse biased. The switching state of the SSBC is derived as,
Switch   ON   condition :   { L a d i a d t   =   V P V C a d V C a d t   =   i L b V 0 R L b d i b d t   =   V P V + V C a C b d V C b d t   =   V 0 R
when the switch is in OFF condition, the diode (da) is forward biased and the capacitor Ca starts charging. The inductor (La) stored energy is transferred to the load with a slope of VCa/La. Similarly, the inductor Lb discharges the energy with a slope of VCb/Lb. The switching state of the converter when the switch is in OFF condition is given in Equation (28).
Switch   OFF   condition :   { L a d i a d t   =   V C a C a d V C a d t   =   i L a V 0 R L b d i b d t   =   V C b C b d V C b d t   =   i L b V 0 R
In both the conditions, the output voltage of the SSBC is the sum of input voltage (VPV), and the output voltage across the capacitors (VCa, VCb). From Equations (27) and (28), the voltage gain of the SSBC is derived as,
V 0   =   V P V + V C a + V C b   =   V P V ( 1 d ) 2
The comparison of the conventional boost converter, the SCBC, and the SSBC was done by considering the parameters such as voltage gain, the voltage stress on switches, and the number of switches used, etc. The comparison of the step-up DC-DC converters is given in Table 4.

6. Discussion of Simulation Results

In this article, VSS-P&O, MIC, FOCV, FSS-RBFA, VSS-RBFA, AFLC, PSO, and CS MPPT techniques are applied to the PV-fed boost converter to extract the peak power of a solar PV system. The performance of the PV-fed boost converter system is analyzed at static (800 W/m2) and dynamic (800, 400, and 1000 W/m2) irradiation conditions. The operating switching frequency of DC-DC converters is 20 kHz and their design parameters are shown in Table 5.

6.1. Static Irradiation Condition

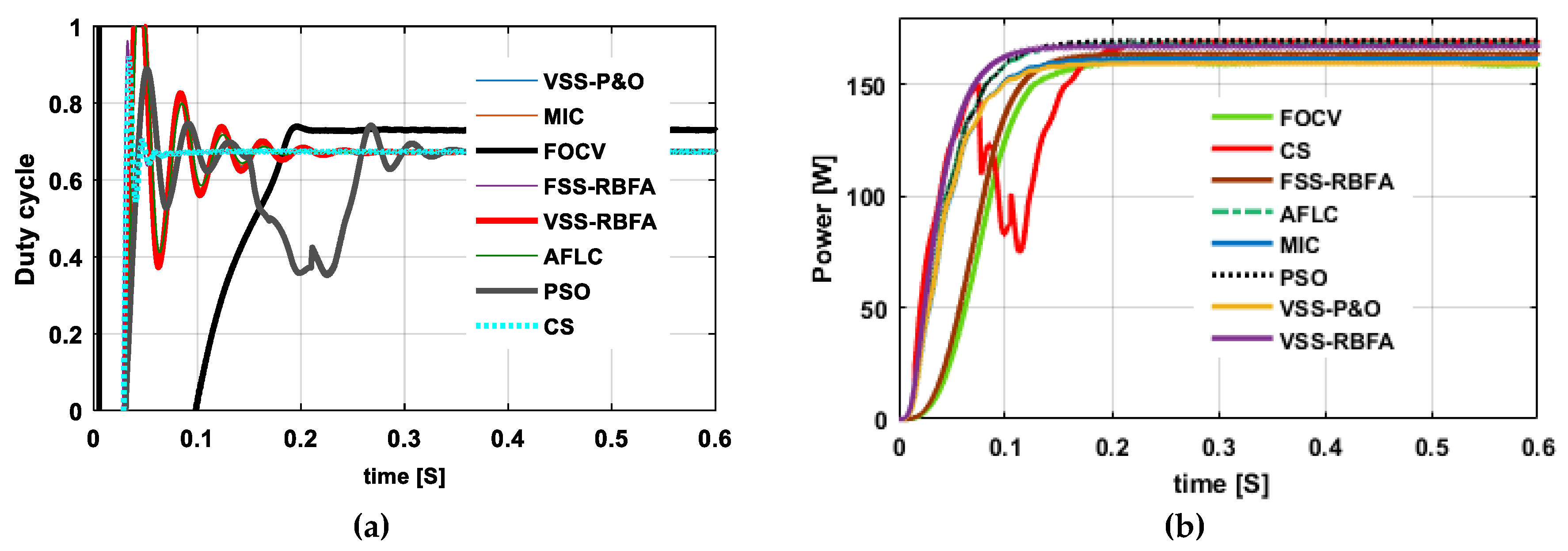

At irradiance of 800 W/m2, the MPPT controller takes the instantaneous changes of PV voltage, current, and power variables to extract and transfer the maximum power of a solar PV system. Here, the recently developed MPPT techniques (VSS-P&O, MIC, AFLC, PSO, and CS) use only the PV voltage and current parameters to determine the optimum duty cycle of the DC-DC converter. The FOCV MPPT technique takes only open circuit voltage of PV to track the MPP. The FSS-RBFA and VSS-RBFA-based MPPT techniques take the input parameters based on their application. But here, the change of PV power and voltage variables are considered as inputs to adjust the duty of DC-DC converter based on the change in irradiation conditions.

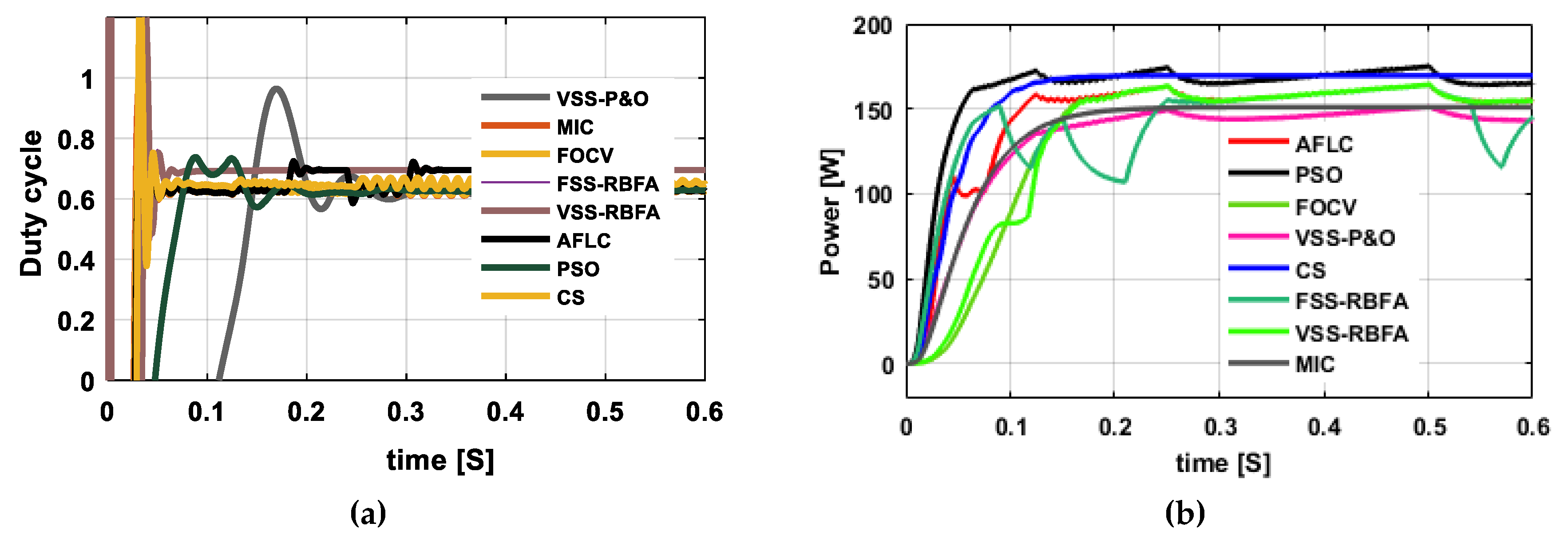

6.1.1. Conventional Boost Converter at 800 W/m2

The conventional boost converter is designed and simulated by considering the parameters given in Table 5. The simulated duty cycle waveform using different MPPT techniques is given in Figure 14a. From Figure 14a, the maximum duty of the conventional boost converter using the PSO-based MPPT technique is 0.622 and its corresponding converter output power is 158.5 W. Similarly, the duty cycle of the boost converter using CS MPPT technique is 0.59 and its corresponding converter output power is 161.73 W. From Figure 14b, it is observed that the output power of the boost converter is less while we apply the VSS-P&O MPPT technique and its corresponding duty cycle at 800 W/m2 is 0.604. The PV power extraction using FSS-RBFA and VSS-RBFA is 155.76 W, 156.5 W, respectively. Hence, from the above observation, it is concluded that the CS MPPT technique is extracting maximum power as compared with VSS-P&O, MIC, FSS-RBFA, VSS-RBFA, AFLC, and PSO-based MPPT techniques.

6.1.2. Switched Capacitor Boost Converter at 800 W/m2.

Similar to the CBC, the duty cycle waveforms of the SCBC by applying different MPPT techniques is shown in Figure 15a, and its corresponding converter output power is shown in Figure 15b. From Figure 15a, it is observed that the duty of the SCBC using the FOCV MPPT technique is 0.43 and its corresponding converter output power is 170.5W, which is higher than that of the FSS-RBFA, MIC, and VSS-P&O MPPT techniques. However, the drawback is high conduction loss. Moreover, the FOCV MPPT method is an inaccurate method because of its approximation in MPP tracking. The output power of the SCBC using PSO and CS MPPT techniques is 171.8 W and 172.2 W, respectively. From the above observation, it is concluded that the SCBC gives a slightly higher output power by applying the CS MPPT technique as compared with PSO and AFLC techniques. The drawback of the CS technique is high steady-state oscillations. Hence, the PSO-based MPPT technique is used in the PV-fed SCBC system to step-up the PV voltage.

6.1.3. Stackable Switching Boost Converter at 800 W/m2

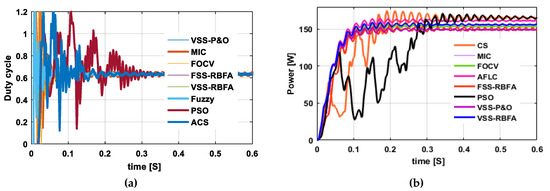

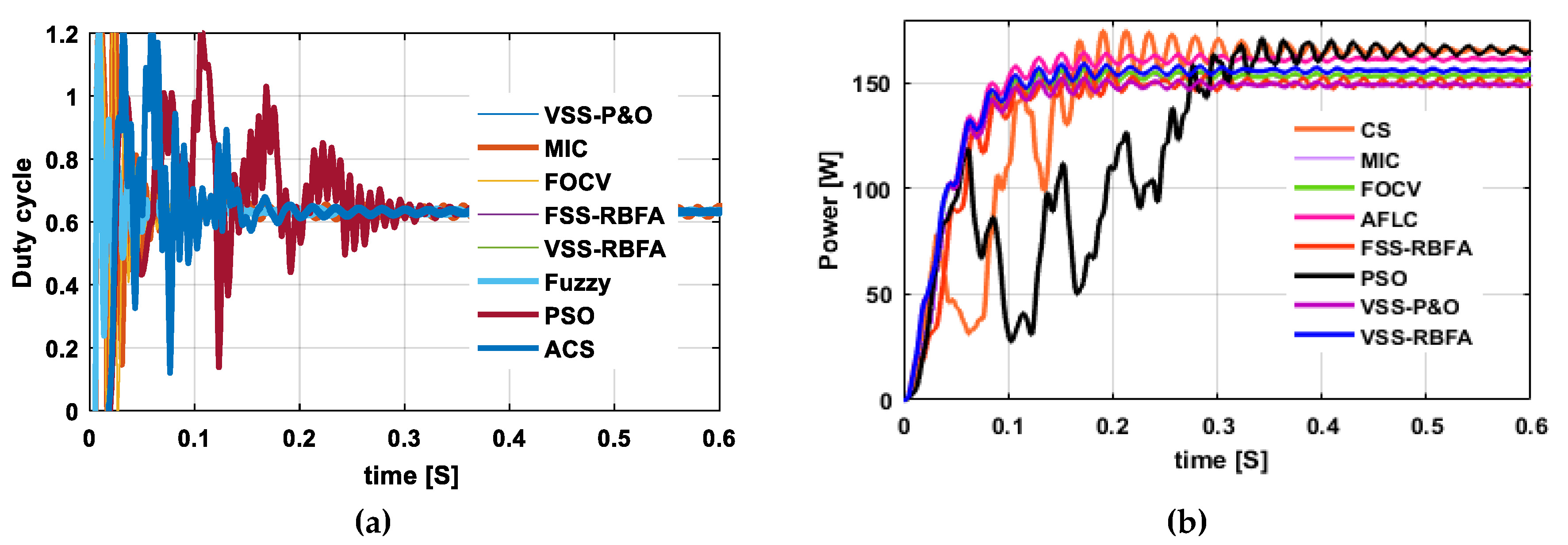

From Figure 16a, the VSS-RBFA-based MPPT technique extracts the maximum PV power of 169.05 W and its corresponding duty is 0.6. The SSBC steps up the PV voltage using the AFLC MPPT technique and it transfers the maximum power from the source to load of 167.98 W which is nearly equal to the FOCV MPPT technique. The SSBC output power using the MIC MPPT technique is 166 W and its corresponding duty cycle is 0.55. From Figure 16b, it can be observed that the CS MPPT is extracting the maximum power but higher steady-state oscillations. In addition, it takes nearly 0.55 s to come to a steady-state condition. As a result, the conduction losses in the system increase. Hence, it is concluded that the VSS-RBFA-based MPPT technique is suitable for the SSBC application.

6.2. Dynamic Irradiation Condition

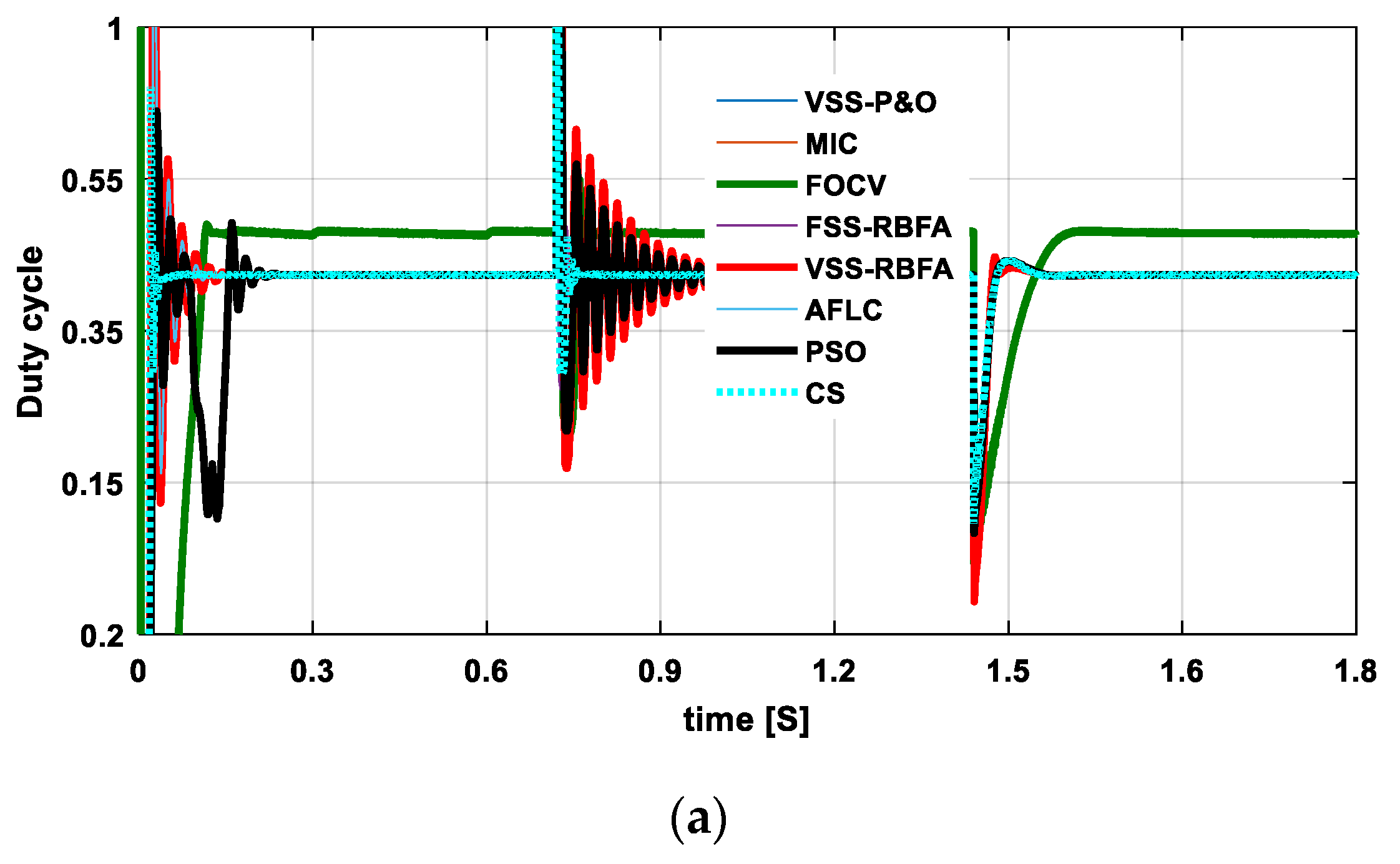

At dynamic irradiation conditions, the VSS-P&O, MIC, and FOCV MPPT techniques are compared with FSS-RBFA, VSS-RBFA, AFLC, PSO, and CS MPPT techniques in terms of converter output voltage and power. Here, at dynamic irradiation condition, the irradiations start increasing (0 to 0.6 section) from 0 to 800 W/m2. At 0.6 s, the irradiations are stepped down from 800 W/m2 to 400 W/m2 up to the time duration of 1.2 s. Finally, at 1.2 s, the irradiations are changing from 400 W/m2 to 1000 W/m, which is shown in Figure 17a. The high step-up conventional boost converters, SCBC and SSBC, are discussed at dynamic irradiation conditions in the next section.

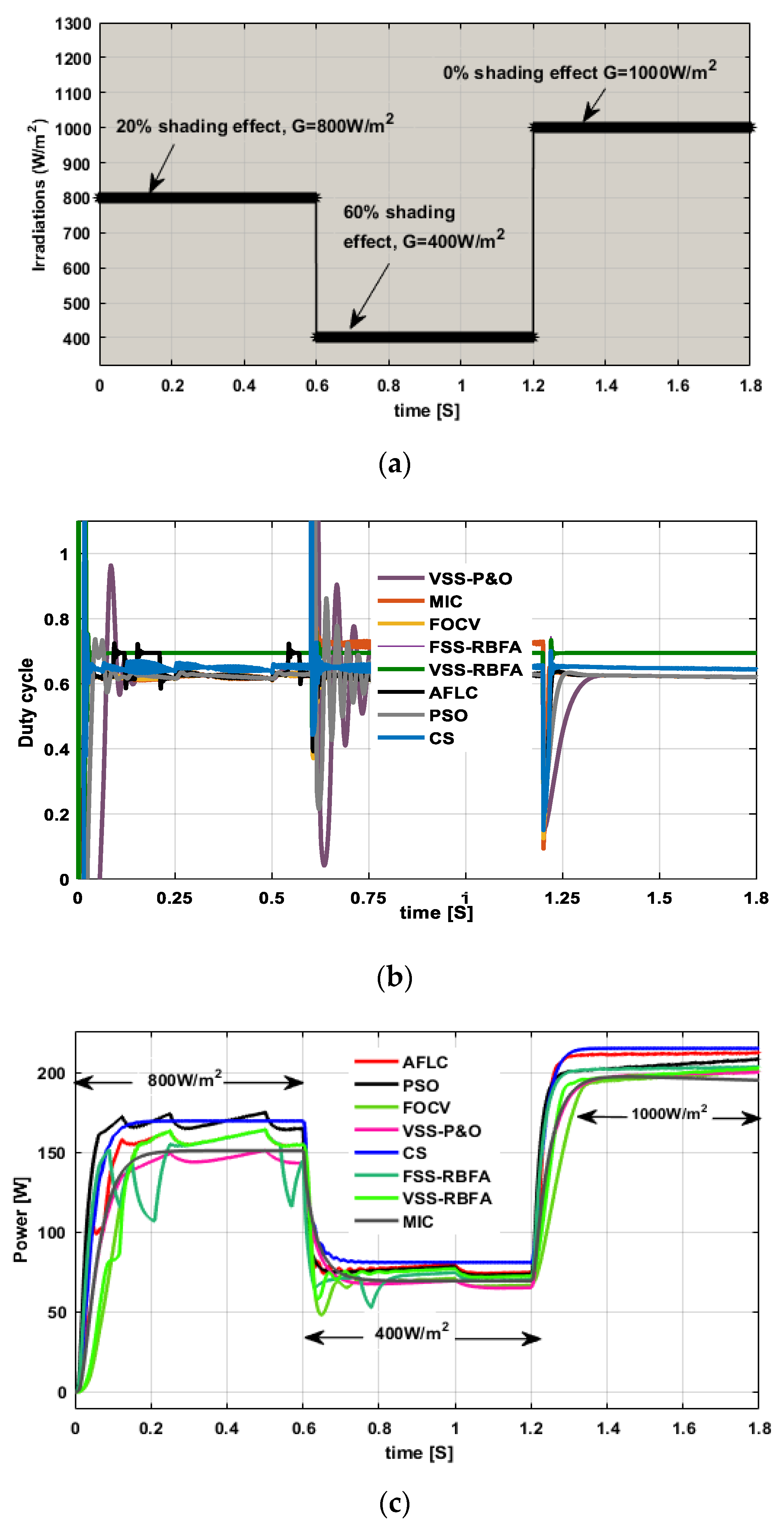

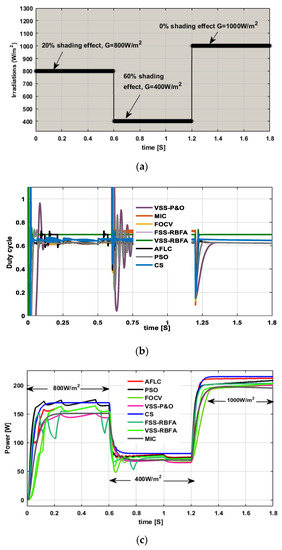

6.2.1. Conventional Boost Converter at (800, 400, and 1000 W/m2)

The duty cycle variation of the CBC is shown in Figure 17b. At starting (800W/m2), the obtained power using the VSS-P&O MPPT technique is 148.44 W and it is reduced to 77 W when the irradiations are reduced to 50%. At 1000 W/m2, the output power of the converter using the FOCV MPPT technique is 197.5 W, which is higher than that of the MIC and VSS-P&O techniques. The output powers of the converter, by applying different MPPT techniques under dynamic irradiation conditions, are shown in Figure 17c and recorded in Table 6. From Figure 17c, it is observed that the CS-based converter output power at 1000 W/m2 is 205.18 W which is higher than the VSS-P&O, MIC, VSS-RBFA, and AFLC MPPT techniques but the drawbacks are high steady-state oscillations and that it takes high conversion time. The drawbacks of the PSO MPPT technique are suppressed using the CS technique.

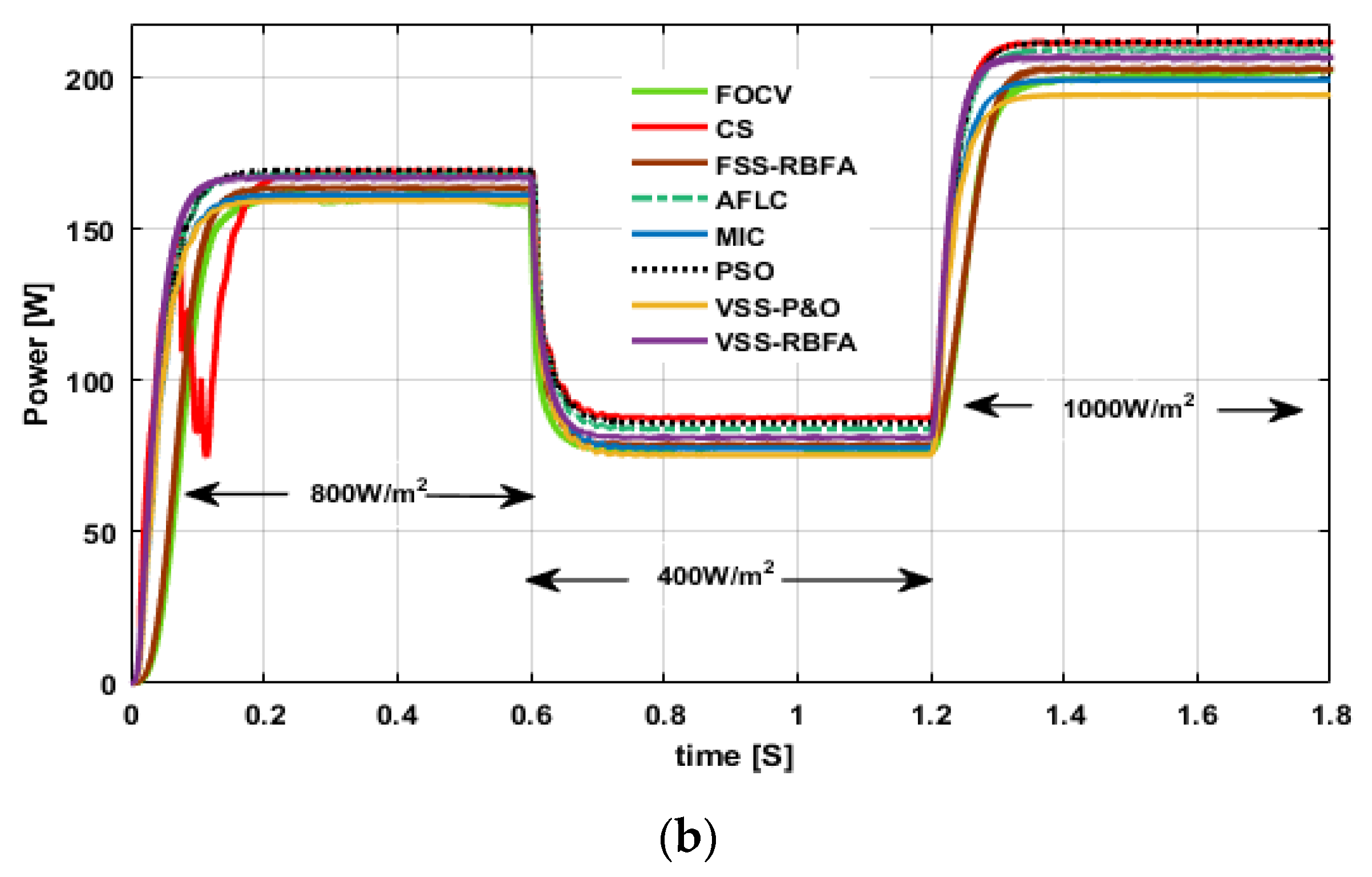

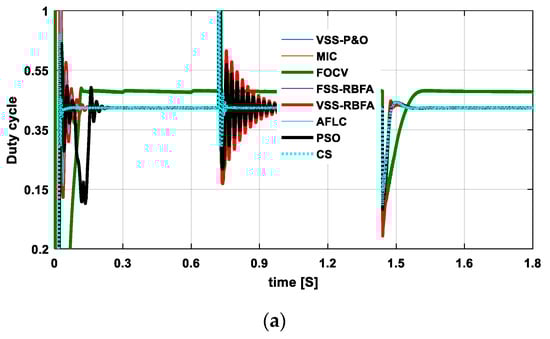

6.2.2. Switched Capacitor Boost Converter at (800, 400, and 1000 W/m2)

In this converter, at an irradiance of 400 W/m2, the FOCV MPPT technique is extracting maximum power of the PV system which is nearly equal to the 68.1 W with a duty cycle of 0.35 and this power is increased to 198.5 W when irradiations increase to 1000 W/m2 (Figure 18b). The CS MPPT technique-based SCBC transfers the maximum power of 206.29 W at 1000W/m2 which is higher than the PSO MPPT technique, but the drawbacks are less MPPT tracking speed and higher steady-state oscillations. Hence, the PSO-based MPPT technique is used for the SCBC to step up the PV voltage. Moreover, its duty cycle is constant at different irradiation conditions, as shown in Figure 18a. The analytical results of the SCBC, applying different MPPT techniques, are shown in Table 7.

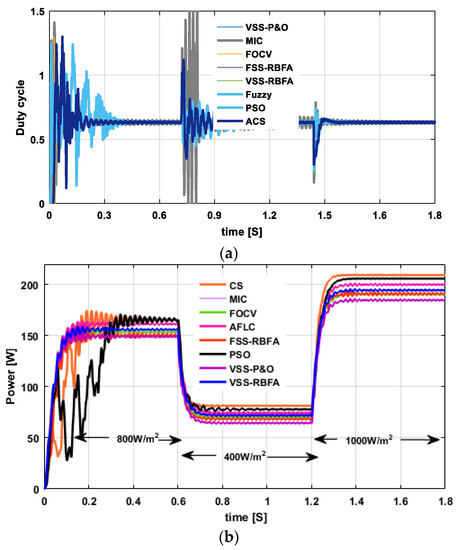

6.2.3. Stackable Switching Boost Converter at (800, 400, and 1000 W/m2)

The operation of a SSBC is similar to a conventional and SCBC but the difference is stackable switching. The operating duty cycle of the SSBC using the MIC MPPT technique is 0.62 which is higher than that of all the other MPPT techniques (Figure 19a), and the extracted power of the PV using the MIC technique is very low. The VSS-RBFA-based MPPT technique varies the duty cycle of the SSBC to transfer the maximum power from the source to load. From Figure 19b, the CS, and PSO-based MPPT techniques are applied to the converter to extract the maximum PV power. The drawbacks of CS and PSO are high steady-state oscillations, large time to convergence, and high conduction losses. The performance parameters of a SSBC at different irradiations are recorded in Table 8.

7. Comparison of MPPT Techniques at Different Irradiation Conditions

In order to compare the conventional and soft computing MPPT techniques, the following five parameters are considered: The number of sensors required to sense the PV parameters, the ability to handle multiple MPP under partial shading condition, the tracking speed of the MPPT controllers, and the implementation complexity. However, this is not a final comparison of the MPPT techniques because different researchers have used different parameters for the comprehensive assessment of MPPT techniques at different irradiation and temperature conditions. In this study, different MPPT techniques are compared under dynamic irradiation conditions.

7.1. Sensing Parameters

From the observation of the above results, the MIC, PSO, CS, and VSS-P&O MPPT techniques required one voltage sensor and one current sensor. The FOCV technique required only one voltage sensor. As a result, the cost of the FOCV MPPT controller is much less as compared with other MPPT controllers. The FSS-RBFA, VSS-RBFA, and AFLC-based MPPT techniques used one differentiable voltage sensor and one differentiable power sensor to sense the voltage error and power error. The detailed analysis of the MPPT techniques at different irradiation conditions is given in Table 9.

7.2. Ability to Handle the Multiple MPP

In a static irradiation condition, there is only one MPP with I-V and P-V characteristics but it varies based on the load operating conditions, which is explained in Section 3. In real-time operating conditions, the solar PV system characteristics consist of multiple MPPs and one global MPP which is required to extract the maximum power of a PV system. The tracking of MPP under dynamic irradiation using conventional MPPT techniques is very difficult because it can track the local MPP instead of the global MPP. In order to overcome this problem, the hybrid conventional MPPT techniques are used in article [71] and [72] to track global MPP under partial shading conditions. Among all the soft computing techniques, FSS-RBFA, VSS-RBFA, AFLC, PSO, and CS-based MPPT techniques are the most popular techniques to track MPP because their advantages are fewer oscillations across the MPP and high tracking speed. The FOCV MPPT technique is not an accurate method because of its approximation in MPP tracking.

7.3. Tracking Speed of MPP

In real time, the PV I-V and P-V characteristics vary continuously at diverse environmental conditions. The tracking speed of different conventional MPPT techniques is less because of its fixed step change in the duty cycle. In [73], the optimized P&O MPPT technique is used to track MPP with the convergence time of 1.3 s. The advantage of this method is less oscillations across the MPP (less than 3%). The HC MPPT technique is used in [74] to perturb the duty of boost converter. The tracking speed of this method is 6 s and its incremental step size is 1.5%. However, in order to improve the tracking speed of conventional methods a variable step size P&O MPPT technique is was used to obtain the optimum duty cycle of the boost converter. The convergence speed of VSS-P&O at 800 W/m2 is 0.28 s and the oscillations across the MPP are less than 2%. From Figure 18b, at 800 W/m2, the convergence speed of AFLC is 0.185 s, which is less than the MIC and FSS-RBFA-based MPPT techniques. The convergence speed of PSO is 0.13 s which is less than the CS-based MPPT controller.

7.4. Implementation Complexity

From the literature survey, the implementation of conventional MPPT techniques is simple. In addition, these methods required less memory. In [75], the authors used dSPACE 1104 software with DSP to implement soft computing-based MPPT techniques. The implementation complexity of VSS-P&O and FOCV was easy as compared with the MIC MPPT techniques and the implementation complexity of PSO and CS was high as compared with FSS-RBFA and VSS-RBFA.

8. Conclusions

Using real-time data, the single- and double-diode models’ PV panels are compared successfully in terms of maximum power extraction, FF, and efficiency. From the comparison results, the double-diode model PV panel harvests maximum PV power with high efficiency as compared to a single-diode model PV panel. The performance evaluation of all conventional and soft computing MPPT techniques was carried out to achieve the optimum duty cycle of the boost converter. From the performance results, it is inferred that the CS MPPT technique is suitable for conventional boost converter applications, and PSO is suitable for SCBC applications at static and dynamic irradiation conditions. The VSS-RBFA-based MPPT technique is suitable for a SSBC due to its high tracking speed and low steady-state oscillations. From the comparison results of DC-DC converters, it is concluded that a SSBC gives high voltage gain, less voltage stress on switches, and required a single switch for wide output voltage applications.

Author Contributions

Data curation, writing—original draft preparation, formal analysis, C.H.B.; writing—review and editing, supervision, C.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

SymbolsParametersValues
PMPPPV power at maximum power point220.17 W
VMPPPV current at maximum power point41 V
IMPPPV voltage at maximum power point5.37 A
VocOpen circuit voltage48.6 V
IscShort circuit current5.75 A
Npp_i,jParallel connected strings1
Nss_i,jSeries connected modules per string1
Ns_i,jCells per module72
Rs_i, jSeries resistance0.5 Ω
Rp_i.jParallel resistance103.36 Ω
I0-nNominal diode saturation current8.234 × 10−10 A
a1, a2Diode ideality factors1, 1.3
GDynamic irradiation condition0.8 k, 0.4 k and 1 kW/m2
KiPV panel current coefficient0.0035 A/deg.C
KvPV panel voltage coefficient−0.1325 V/deg.C
qElectric charge1.6 × 10−19 C

References

  1. Kapadia, K.; Agrawal, A.; Sharma, H.; Malviya, N. India’s Renewable Energy Potential: A Review. In Proceedings of the 10th International Conference on Digital Strategies for Organizational Success (ICDSOS 2019), Gwalior, India, 7 February 2019; pp. 1150–1159. [Google Scholar]
  2. Curto, D.; Trapanese, M. A renewable energy mix to supply the Balearic Islands: Sea Wave, Wind, and Solar. In Proceedings of the 2018 IEEE International Conference on Environment and Electrical Engineering and 2018 IEEE Industrial and Commercial Power Systems Europe (EEEIC/I&CPS Europe), Palermo, Italy, 12–15 June 2018. [Google Scholar]
  3. Baydyk, T.; Kussul, E.; Wunsch, D.C., II. Renewable Energy: Solar, Wind, and Others. In Intelligent Automation in Renewable Energy; Springer: Cham, Switzerland, 2019; pp. 1–11. [Google Scholar]
  4. Hodge, B.M.; Martinez-Anido, C.B.; Wang, Q.; Chartan, E.; Florita, A.; Kiviluoma, J. The combined value of wind and solar power forecasting improvements and electricity storage. Appl. Energy 2018, 214, 1–15. [Google Scholar] [CrossRef]
  5. Kabir, E.; Kumar, P.; Kumar, S.; Adelodun, A.A.; Kim, K.H. Solar energy: Potential and future prospects. Renew. Sustain. Energy Rev. 2018, 82, 894–900. [Google Scholar] [CrossRef]
  6. Nandakumar, N.; Rodriguez, J.; Kluge, T.; Groβe, T.; Fondop, L.; Padhamnath, P.; Balaji, N.; König, M.; Duttagupta, S. Approaching 23% with large-area monoPoly cells using screen-printed and fired rear passivating contacts fabricated by inline PECVD. Prog. Photovolt. Res. Appl. 2019, 27, 107–112. [Google Scholar]
  7. REC - Profile & Reviews. Available online: https://www.energysage.com/supplier/20083/rec/ (accessed on 9 August 2017).
  8. Narayanan, S.; Wenham, S.R.; Green, M.A. 17.8-percent efficiency polycrystalline silicon solar cells. IEEE Trans. Electron Devices 1990, 37, 382–384. [Google Scholar] [CrossRef]
  9. Britt, J.; Ferekides, C. Thin-film CdS/CdTe solar cell with 15.8% efficiency. Appl. Phys. Lett. 1993, 62, 2851–2852. [Google Scholar] [CrossRef]
  10. Yahya-Khotbehsara, A.; Shahhoseini, A. A fast modeling of the double-diode model for PV modules using a combined analytical and numerical approach. Sol. Energy 2018, 162, 403–409. [Google Scholar] [CrossRef]
  11. Han, J.; Lu, L.; Yang, H.; Cheng, Y. Thermal regulation of PV façade integrated with thin-film solar cells through a naturally ventilated open air channel. Energy Procedia 2019, 158, 1208–1214. [Google Scholar] [CrossRef]
  12. Ahmad, T.; Sobhan, S.; Nayan, M.F. Comparative analysis between single diode and double diode model of PV cell: Concentrate different parameters effect on its efficiency. J. Power Energy Eng. 2016, 4, 31. [Google Scholar] [CrossRef] [Green Version]
  13. Basha, C.H.; Rani, C.; Brisilla, R.M.; Odofin, S. Mathematical Design and Analysis of Photovoltaic Cell Using MATLAB/Simulink. In Soft Computing for Problem Solving; Springer: Singapore, 2020; pp. 711–726. [Google Scholar]
  14. Islam, M.T.; Huda, N.; Abdullah, A.B.; Saidur, R. A comprehensive review of state-of-the-art concentrating solar power (CSP) technologies: Current status and research trends. Renew. Sustain. Energy Rev. 2018, 91, 987–1018. [Google Scholar] [CrossRef]
  15. Linares-Flores, J.; Guerrero-Castellanos, J.F.; Lescas-Hernández, R.; Hernández-Méndez, A.; Vázquez-Perales, R. Angular speed control of an induction motor via a solar powered boost converter-voltage source inverter combination. Energy 2019, 166, 326–334. [Google Scholar] [CrossRef]
  16. Zapata, J.W.; Kouro, S.; Carrasco, G.; Renaudineau, H.; Meynard, T.A. Analysis of partial power DC–DC converters for two-stage photovoltaic systems. IEEE J. Emerg. Sel. Top. Power Electron. 2018, 7, 591–603. [Google Scholar] [CrossRef]
  17. Del Moral, D.L.; Barrado, A.; Sanz, M.; Lázaro, A.; Zumel, P. AFZ converter: A new DC-DC topology applied to photovoltaic panels. In Proceedings of the 2018 IEEE 19th Workshop on Control and Modeling for Power Electronics (COMPEL), Padua, Italy, 25–28 June 2018; pp. 1–6. [Google Scholar]
  18. Basha, C.H.; Rani, C.; Odofin, S. Analysis and Comparison of SEPIC, Landsman and Zeta Converters for PV Fed Induction Motor Drive Applications. In Proceedings of the 2018 International Conference on Computation of Power, Energy, Information and Communication (ICCPEIC), Chennai, India, 28–29 March 2018. [Google Scholar]
  19. Ayop, R.; Tan, C.W. Design of boost converter based on maximum power point resistance for photovoltaic applications. Sol. Energy 2018, 160, 322–335. [Google Scholar] [CrossRef]
  20. Siouane, S.; Jovanović, S.; Poure, P. Service continuity of PV synchronous Buck/Buck-Boost converter with energy storage. Energies 2018, 11, 1369. [Google Scholar] [CrossRef] [Green Version]
  21. Kumar, R.S. Solar Powered BLDC Motor Drive using CUK Converters for Water pumping. In Proceedings of the 2019 5th International Conference on Advanced Computing & Communication Systems (ICACCS), Coimbatore, India, 15–16 March 2019. [Google Scholar]
  22. Priyadarshi, N.; Padmanaban, S.; Holm-Nielsen, J.B.; Ramachandaramurthy, V.K.; Bhaskar, M.S. An Adaptive Neuro-Fuzzy Inference System Employed Cuk Converter for PV Applications. In Proceedings of the 2019 IEEE 13th International Conference on Compatibility, Power Electronics and Power Engineering (CPE-POWERENG), Sonderborg, Denmark, 23–25 April 2019; pp. 1–5. [Google Scholar]
  23. Anuradha, C.; Chellammal, N.; Saquib Maqsood, M.; Vijayalakshmi, S. Design and analysis of non-isolated three-port SEPIC converter for integrating renewable energy sources. Energies 2019, 12, 221. [Google Scholar] [CrossRef] [Green Version]
  24. Tran, V.T.; Nguyen, M.K.; Choi, Y.O.; Cho, G.B. Switched-capacitor-based high boost DC-DC converter. Energies 2018, 11, 987. [Google Scholar] [CrossRef] [Green Version]
  25. Valdez-Resendiz, J.E.; Rosas-Caro, J.C.; Mayo-Maldonado, J.C.; Llamas-Terres, A. Quadratic boost converter based on stackable switching stages. IET Power Electron. 2018, 11, 1373–1381. [Google Scholar] [CrossRef]
  26. Dolara, A.; Grimaccia, F.; Mussetta, M.; Ogliari, E.; Leva, S. An evolutionary-based MPPT algorithm for photovoltaic systems under dynamic partial shading. Appl. Sci. 2018, 8, 558. [Google Scholar] [CrossRef] [Green Version]
  27. Tey, K.S.; Mekhilef, S.; Seyedmahmoudian, M.; Horan, B.; Oo, A.T.; Stojcevski, A. Improved differential evolution-based MPPT algorithm using SEPIC for PV systems under partial shading conditions and load variation. IEEE Trans. Ind. Inform. 2018, 14, 4322–4333. [Google Scholar] [CrossRef]
  28. Gosumbonggot, J.; Fujita, G. Global maximum power point tracking under shading condition and hotspot detection algorithms for photovoltaic systems. Energies 2019, 12, 882. [Google Scholar] [CrossRef] [Green Version]
  29. Ho, K.C.; Lin, C.C.; Bagci, F.S.; Wang, S.C.; Liu, Y.H.; Cheng, Y.S. Comparison of swarm intelligence based global maximum power point tracking methods for photovoltaic generation system. In Proceedings of the 2019 10th International Conference on Power Electronics and ECCE Asia (ICPE 2019-ECCE Asia), Busan, Korea, 27–30 May 2019; pp. 1–6. [Google Scholar]
  30. Shebani, M.M.; Iqbal, T.; Quaicoe, J.E. Comparing bisection numerical algorithm with fractional short circuit current and open circuit voltage methods for MPPT photovoltaic systems. In Proceedings of the 2016 IEEE Electrical Power and Energy Conference (EPEC), Ottawa, ON, Canada, 12–14 October 2016. [Google Scholar]
  31. Zainuri, M.A.A.M.; Radzi, M.A.M.; Rahman, N.F.A. Photovoltaic Boost DC/DC Converter for Power Led with Adaptive P&O-Fuzzy Maximum Power Point Tracking. In Proceedings of the 10th International Conference on Robotics, Vision, Signal Processing and Power Applications; Springer: Singapore, 2019. [Google Scholar]
  32. Alsumiri, M. Residual Incremental Conductance Based Nonparametric MPPT Control for Solar Photovoltaic Energy Conversion System. IEEE Access 2019, 7, 87901–87906. [Google Scholar] [CrossRef]
  33. Bertin, N.F.C.; Patrice, W.I.R.A.; Martin, K.A.M.T.A.; Abderrezak, B.A.D.J.I.; Hyacinthe, T.C.H.A.K.O.U.N.T.E. Real-Time Experimental Assessment of Hill Climbing MPPT Algorithm Enhanced by Estimating a Duty Cycle for PV System. Int. J. Renew. Energy Res. (IJRER) 2019, 9, 1180–1189. [Google Scholar]
  34. Ahmed, R.; Abdelsalam, A.K.; Namaan, A.; Dessouky, Y.G.; M’Sirdi, N.K. Improved performance state-flow based photovoltaic maximum power point tracking technique. In Proceedings of the 3rd Renewable Power Generation Conference (RPG 2014), Naples, Italy, 24–25 September 2014. [Google Scholar]
  35. Kumar, N.; Singh, B.; Panigrahi, B.K. Integration of Solar PV with Low-Voltage Weak Grid System: Using Maximize-M Kalman Filter and Self-tuned P&O Algorithm. IEEE Trans. Ind. Electron. 2019, 66, 9013–9022. [Google Scholar]
  36. Al-Dhaifallah, M.; Nassef, A.M.; Rezk, H.; Nisar, K.S. Optimal parameter design of fractional order control based INC-MPPT for PV system. Sol. Energy 2018, 159, 650–664. [Google Scholar] [CrossRef]
  37. Jason, G.; Krein, P.T. Ripple Correlation Control with Capacitive Compensation for Photovoltaic Applications. In Proceedings of the 2018 IEEE 19th Workshop on Control and Modeling for Power Electronics (COMPEL), Padua, Italy, 25–28 June 2018. [Google Scholar]
  38. Singh, N.; Singh, A.; Chauhan, Y.K.; Srivastava, A.K. A Comprehensive Review on Different MPPT Techniques for Solar Photo-voltaic System. In Proceedings of the 2018 International Conference on Computing, Power and Communication Technologies (GUCON), Greater Noida, India, 28–29 September 2018; pp. 1146–1154. [Google Scholar]
  39. Kihal, A.; Krim, F.; Laib, A.; Talbi, B.; Afghoul, H. An improved MPPT scheme employing adaptive integral derivative sliding mode control for photovoltaic systems under fast irradiation changes. ISA Trans. 2019, 87, 297–306. [Google Scholar] [CrossRef] [PubMed]
  40. Muni, T.V.; Lalitha, S.V.N.L.; Suma, B.K.; Venkateswaramma, B. A new approach to achieve a fast acting MPPT technique for solar photovoltaic system under fast varying solar radiation. Int. J. Eng. Technol. 2018, 7, 131–135. [Google Scholar] [CrossRef]
  41. Hashim, N.; Salam, Z. Critical evaluation of soft computing methods for maximum power point tracking algorithms of photovoltaic systems. Int. J. Power Electron. Drive Syst. 2019, 10, 548. [Google Scholar] [CrossRef]
  42. Pathy, S.; Subramani, C.; Sridhar, R.; Thentral, T.; Padmanaban, S. Nature-inspired MPPT algorithms for partially shaded PV systems: A comparative study. Energies 2019, 12, 1451. [Google Scholar] [CrossRef] [Green Version]
  43. Premkumar, M.; Sowmya, R. Certain Study on MPPT Algorithms to track the Global MPP under Partial Shading on Solar PV Module/Array. Int. J. Comput. Digit. Syst. 2019, 8, 405–416. [Google Scholar] [CrossRef]
  44. Elobaid, L.M.; Ahmed, K.A.; Ezeldin, E.Z. Artificial neural network-based photovoltaic maximum power point tracking techniques: A survey. IET Renew. Power Gener. 2015, 9, 1043–1063. [Google Scholar] [CrossRef]
  45. Chowdary, V.G.; Sankar, V.U.; Mathew, D.; Basha, C.H.; Rani, C. Hybrid Fuzzy Logic-Based MPPT for Wind Energy Conversion System. In Soft Computing for Problem Solving; Springer: Singapore, 2020; pp. 951–968. [Google Scholar]
  46. Aldair, A.A.; Obed, A.A.; Halihal, A.F. Design and implementation of ANFIS-reference model controller based MPPT using FPGA for photovoltaic system. Renew. Sustain. Energy Rev. 2018, 82, 2202–2217. [Google Scholar] [CrossRef]
  47. Basha, C.H.; Bansal, V.; Rani, C.; Brisilla, R.M.; Odofin, S. Development of Cuckoo Search MPPT Algorithm for Partially Shaded Solar PV SEPIC Converter. In Soft Computing for Problem Solving; Springer: Singapore, 2020; pp. 727–736. [Google Scholar]
  48. Basha, C.H.; Rani, C.; Brisilla, R.M.; Odofin, S. Simulation of Metaheuristic Intelligence MPPT Techniques for Solar PV under Partial Shading Condition. In Soft Computing for Problem Solving; Springer: Singapore, 2020; pp. 773–785. [Google Scholar]
  49. Arora, A.; Gaur, P. Comparison of ANN and ANFIS based MPPT Controller for grid connected PV systems. In Proceedings of the 2015 Annual IEEE India Conference (INDICON), New Delhi, India, 17–20 December 2015. [Google Scholar]
  50. Yaichi, M.; Fellah, M.K.; Mammeri, A. A neural network based MPPT technique controller for photovoltaic pumping system. Int. J. Power Electron. Drive Syst. 2014, 4, 241. [Google Scholar] [CrossRef]
  51. Chekired, F.; Larbes, C.; Rekioua, D.; Haddad, F. Implementation of a MPPT fuzzy controller for photovoltaic systems on FPGA circuit. Energy Procedia 2011, 6, 541–549. [Google Scholar] [CrossRef] [Green Version]
  52. Bendib, B.; Krim, F.; Belmili, H.; Almi, M.F.; Boulouma, S. Advanced Fuzzy MPPT Controller for a stand-alone PV system. Energy Procedia 2014, 50, 383–392. [Google Scholar] [CrossRef] [Green Version]
  53. Farayola, A.M.; Hasan, A.N.; Ali, A.; Twala, B. Distributive MPPT approach using ANFIS and perturb&observe techniques under uniform and partial shading conditions. In Artificial Intelligence and Evolutionary Computations in Engineering Systems; Springer: Singapore, 2018; pp. 27–37. [Google Scholar]
  54. Loukriz, A.; Messalti, S.; Harrag, A. Design, simulation, and hardware implementation of novel optimum operating point tracker of PV system using adaptive step size. Int. J. Adv. Manuf. Technol. 2019, 101, 1671–1680. [Google Scholar] [CrossRef]
  55. Tey, K.S.; Mekhilef, S. Modified incremental conductance MPPT algorithm to mitigate inaccurate responses under fast-changing solar irradiation level. Sol. Energy 2014, 101, 333–342. [Google Scholar] [CrossRef]
  56. Frezzetti, A.; Manfredi, S.; Suardi, A. Adaptive FOCV-based Control Scheme to improve the MPP Tracking Performance: An experimental validation. IFAC Proc. Vol. 2014, 47, 4967–4971. [Google Scholar] [CrossRef] [Green Version]
  57. Mirza, A.F.; Ling, Q.; Javed, M.Y.; Mansoor, M. Novel MPPT techniques for photovoltaic systems under uniform irradiance and Partial shading. Sol. Energy 2019, 184, 628–648. [Google Scholar] [CrossRef]
  58. Saravanan, S.; Babu, N.R. RBFN based MPPT algorithm for PV system with high step up converter. Energy Convers. Manag. 2016, 122, 239–251. [Google Scholar] [CrossRef]
  59. Priyadarshi, N.; Padmanaban, S.; Holm-Nielsen, J.B.; Blaabjerg, F.; Bhaskar, M.S. An Experimental Estimation of Hybrid ANFIS–PSO-Based MPPT for PV Grid Integration under Fluctuating Sun Irradiance. IEEE Syst. J. 2019. [Google Scholar] [CrossRef]
  60. Abo-Elyousr, F.K.; Abdelshafy, A.M.; Abdelaziz, A.Y. MPPT-Based Particle Swarm and Cuckoo Search Algorithms for PV Systems. In Modern Maximum Power Point Tracking Techniques for Photovoltaic Energy Systems; Springer: Cham, Switzerland, 2020; pp. 379–400. [Google Scholar]
  61. Ayang, A.; Wamkeue, R.; Ouhrouche, M.; Djongyang, N.; Salomé, N.E.; Pombe, J.K.; Ekemb, G. Maximum likelihood parameters estimation of single-diode model of photovoltaic generator. Renew. Energy 2019, 130, 111–121. [Google Scholar] [CrossRef]
  62. Bouraiou, A.; Hamouda, M.; Chaker, A.; Sadok, M.; Mostefaoui, M.; Lachtar, S. Modeling and simulation of photovoltaic module and array based on one and two diode model using Matlab/Simulink. Energy Procedia 2015, 74, 864–877. [Google Scholar] [CrossRef] [Green Version]
  63. SUN POWER CORP. Available online: http://www.ecocool-technics.be/beta/images/pdf/modules/sunpower/220black.pdf (accessed on 6 April 2008).
  64. Khan, M.F.N.; Ali, G.; Khan, A.K. A Review of Estimating Solar Photovoltaic Cell Parameters. In Proceedings of the 2019 2nd International Conference on Computing, Mathematics and Engineering Technologies (iCoMET), Sukkur, Pakistan, 30–31 January 2019. [Google Scholar]
  65. Gomes, A.C.; De Campos, A.S.C.; Lopes, L.A.C.; De Morais, A.S.; Tofoli, F.L.; Da Silva, F.V.R. Analysis of a static model for DC microgrids based on droop and MPPT control. Int. Trans. Electr. Energy Syst. 2019, 29, e2778. [Google Scholar] [CrossRef]
  66. Kuvshinov, V.V.; Ali, L.A.; Kakushina, E.G.; Krit, B.L.; Morozova, N.V.; Kuvshinova, V.V. Studies of the PV Array Characteristics with Changing Array Surface Irradiance. Appl. Sol. Energy 2019, 55, 223–228. [Google Scholar] [CrossRef]
  67. Javed, K.; Ashfaq, H.; Singh, R. A new simple MPPT algorithm to track MPP under partial shading for solar photovoltaic systems. Int. J. Green Energy 2020, 17, 48–61. [Google Scholar] [CrossRef]
  68. Jin, K.; Yang, M.; Ruan, X.; Xu, M. Three-level bidirectional converter for fuel-cell/battery hybrid power system. IEEE Trans. Ind. Electron. 2009, 57, 1976–1986. [Google Scholar] [CrossRef]
  69. Villarreal-Hernandez, C.A.; Mayo-Maldonado, J.C.; Valdez-Resendiz, J.E.; Rosas-Caro, J.C. Modeling and control of an interleaved DC-DC multilevel boost converter. In Proceedings of the 2017 IEEE 18th Workshop on Control and Modeling for Power Electronics (COMPEL), Stanford, CA, USA, 9–12 July 2017; pp. 1–6. [Google Scholar]
  70. Wu, G.; Ruan, X.; Ye, Z. Nonisolated high step-up DC–DC converters adopting switched-capacitor cell. IEEE Trans. Ind. Electron. 2014, 62, 383–393. [Google Scholar] [CrossRef]
  71. Sher, H.A.; Murtaza, A.F.; Noman, A.; Addoweesh, K.E.; Al-Haddad, K.; Chiaberge, M. A new sensorless hybrid MPPT algorithm based on fractional short-circuit current measurement and P&O MPPT. IEEE Trans. Sustain. Energy 2015, 6, 1426–1434. [Google Scholar]
  72. Manickam, C.; Raman, G.R.; Raman, G.P.; Ganesan, S.I.; Nagamani, C. A hybrid algorithm for tracking of GMPP based on P&O and PSO with reduced power oscillation in string inverters. IEEE Trans. Ind. Electron. 2016, 63, 6097–6106. [Google Scholar]
  73. Femia, N.; Petrone, G.; Spagnuolo, G.; Vitelli, M. Optimization of perturb and observe maximum power point tracking method. IEEE Trans. Power Electron. 2005, 20, 963–973. [Google Scholar] [CrossRef]
  74. Xiao, W.; Dunford, W.G. A modified adaptive hill climbing MPPT method for photovoltaic power systems. In Proceedings of the 2004 IEEE 35th annual power electronics specialists conference (IEEE Cat. No. 04CH37551), Aachen, Germany, 20–25 June 2004; Volume 3. [Google Scholar]
  75. Radjai, T.; Rahmani, L.; Mekhilef, S.; Gaubert, J.P. Implementation of a modified incremental conductance MPPT algorithm with direct control based on a fuzzy duty cycle change estimator using dSPACE. Sol. Energy 2014, 110, 325–337. [Google Scholar] [CrossRef]
Figure 1. Number of maximum power point tracking (MPPT) articles published annually [27].
Figure 1. Number of maximum power point tracking (MPPT) articles published annually [27].
Energies 13 00371 g001
Figure 2. Block diagram of a photovoltaic (PV) fed high step-up boost converter system.
Figure 2. Block diagram of a photovoltaic (PV) fed high step-up boost converter system.
Energies 13 00371 g002
Figure 3. Equivalent circuit of (a) a single-diode cell and (b) a double-diode cell.
Figure 3. Equivalent circuit of (a) a single-diode cell and (b) a double-diode cell.
Energies 13 00371 g003
Figure 4. PV system: (a) I-V and (b) P-V characteristics at different irradiation conditions.
Figure 4. PV system: (a) I-V and (b) P-V characteristics at different irradiation conditions.
Energies 13 00371 g004
Figure 5. PV system: (a) I-V and (b) P-V characteristics at different temperature conditions.
Figure 5. PV system: (a) I-V and (b) P-V characteristics at different temperature conditions.
Energies 13 00371 g005
Figure 6. I-V curve of a PV system at different resistive load conditions.
Figure 6. I-V curve of a PV system at different resistive load conditions.
Energies 13 00371 g006
Figure 7. (a) A variable step size perturb and observe (P&O) technique and (b) a modified incremental conductance (MIC) based MPPT technique.
Figure 7. (a) A variable step size perturb and observe (P&O) technique and (b) a modified incremental conductance (MIC) based MPPT technique.
Energies 13 00371 g007
Figure 8. The architecture of a RBFA-based NN MPPT controller.
Figure 8. The architecture of a RBFA-based NN MPPT controller.
Energies 13 00371 g008
Figure 9. (a) Block diagram of the adaptive fuzzy system and (b) membership functions of an adaptive fuzzy logic controller (AFLC).
Figure 9. (a) Block diagram of the adaptive fuzzy system and (b) membership functions of an adaptive fuzzy logic controller (AFLC).
Energies 13 00371 g009
Figure 10. Flowchart for (a) particle swarm optimization (PSO) [41] and (b) cuckoo search MPPT techniques [55].
Figure 10. Flowchart for (a) particle swarm optimization (PSO) [41] and (b) cuckoo search MPPT techniques [55].
Energies 13 00371 g010
Figure 11. Conventional boost converter [19].
Figure 11. Conventional boost converter [19].
Energies 13 00371 g011
Figure 12. Switched capacitor boost converter [24].
Figure 12. Switched capacitor boost converter [24].
Energies 13 00371 g012
Figure 13. Stackable switching boost converter.
Figure 13. Stackable switching boost converter.
Energies 13 00371 g013
Figure 14. (a) Duty cycle and (b) output power of a conventional boost converter (CBC) by applying different MPPT techniques at 800 W/m2.
Figure 14. (a) Duty cycle and (b) output power of a conventional boost converter (CBC) by applying different MPPT techniques at 800 W/m2.
Energies 13 00371 g014
Figure 15. (a) Duty cycle and (b) output power of a switched capacitor boost converter (SCBC) by applying different MPPT techniques at 800W/m2.
Figure 15. (a) Duty cycle and (b) output power of a switched capacitor boost converter (SCBC) by applying different MPPT techniques at 800W/m2.
Energies 13 00371 g015
Figure 16. (a) Duty cycle and (b) output power of a stackable switching boost converter (SSBC) by applying different MPPT techniques at 800W/m2.
Figure 16. (a) Duty cycle and (b) output power of a stackable switching boost converter (SSBC) by applying different MPPT techniques at 800W/m2.
Energies 13 00371 g016
Figure 17. (a) Variable irradiation condition (0.8, 0.4, and 1 kW/m2); (b) duty cycle of CBC by applying different MPPT techniques at (0.8, 0.4, and 1 kW/m2); and (c) output power of CBC by applying different MPPT techniques at (0.8, 0.4, and 1 kW/m2).
Figure 17. (a) Variable irradiation condition (0.8, 0.4, and 1 kW/m2); (b) duty cycle of CBC by applying different MPPT techniques at (0.8, 0.4, and 1 kW/m2); and (c) output power of CBC by applying different MPPT techniques at (0.8, 0.4, and 1 kW/m2).
Energies 13 00371 g017
Figure 18. (a) Duty cycle of SCBC by applying different MPPT techniques at (0.8, 0.4, and 1 kW/m2) and (b) output power of SCBC by applying different MPPT techniques at (800, 40, and 1000 W/m2).
Figure 18. (a) Duty cycle of SCBC by applying different MPPT techniques at (0.8, 0.4, and 1 kW/m2) and (b) output power of SCBC by applying different MPPT techniques at (800, 40, and 1000 W/m2).
Energies 13 00371 g018aEnergies 13 00371 g018b
Figure 19. (a) Duty cycle of a SSBC by applying different MPPT techniques at (0.8, 0.4, and 1 kW/m2) and (b) output power of a SSBC by applying different MPPT techniques at (0.8, 0.4, and 1 kW/m2).
Figure 19. (a) Duty cycle of a SSBC by applying different MPPT techniques at (0.8, 0.4, and 1 kW/m2) and (b) output power of a SSBC by applying different MPPT techniques at (0.8, 0.4, and 1 kW/m2).
Energies 13 00371 g019
Table 1. Working behavior of the fixed step size radial basis functional algorithm (RBFA) based MPPT technique.
Table 1. Working behavior of the fixed step size radial basis functional algorithm (RBFA) based MPPT technique.
dVPVdPPVdPPV/dVPVChange of Duty Cycle
−1−1+1d (j) = d (j − 1) + Step
+1−1−1d (j) = d (j − 1) − Step
−1+1−1d (j) = d (j − 1) − Step
+1+1+1d (j) = d (j − 1) + Step
Table 2. Rule-based AFLC for MPPT tracking.
Table 2. Rule-based AFLC for MPPT tracking.
Change in Error (Δe)
Error (e)NBNSZPSPB
PBNBNBNBZBZB
PSNSNSNSZZ
ZPSZZZNS
NSZZPSPSPS
NBZZPBPBPB
Table 3. Learning process of AFLC.
Table 3. Learning process of AFLC.
Inverse Fuzzy SystemKnowledge-Based Modifier
Error   ( e ) Change   of   Error   ( Δ e ) Membership Peak ValueScaling Factor
σ < e ( n ) < σ σ < Δ e ( n ) < σ c ( n ) e ( n )   =   e ( n ) · ε 3
e ( n ) > σ Δ e ( n ) > σ c ( n ) + ε 1 Unchanged
e ( n ) > σ Δ e ( n ) < σ c ( n ) Δ e ( n )   =   e ( n ) · ε 3
e ( n ) < σ σ < Δ e ( n ) < σ c ( n ) ε 2 Unchanged
e ( n ) < σ Δ e ( n ) < σ c ( n ) ε 1 Unchanged
σ , minimum error and c ( n ) , maximum peak value
Table 4. Comparison of high step-up voltage DC-DC converters.
Table 4. Comparison of high step-up voltage DC-DC converters.
ConverterDiodesVoltage Stress (VD)InductorsVoltage GainSwitchesCapacitorsVoltage Stress (VS)
CBC [19]1V0/221/(1 − D)12V0/2
IDDBC [23]-V0/222/(1 − D)42V0/2
SCBC [24]5V0/323/(1 − D)15V0/3
SSBC [25]4V0/231/(1 − D)212V0/3
CUK [29]1V0-Vc/22D/(1 − D)12V0 − VL/2
TBBC [68]2V0/21(1 + D)/(1 − D)22V0/2
ICBC [69]6V0/313/(1 − D)16V0/3
NHSDC [70]3V0/212/(1 − D)13V0/2
Table 5. Design parameters of a high step-up boost converters.
Table 5. Design parameters of a high step-up boost converters.
ConvertersI/P InductorsI/P CapacitorsO/P CapacitorsO/P Inductors
CBC [19]L = 100 mHCi = 370   μ FC = 300   μ FL0 = 1000 mH
SCBC [24]L = 100 mHC1 = C2 = 470   μ FCa, b, c = 370   μ FL0 = 10 mH
SSBC [25]La = Lb = 100 mHCa = Cb = 100   μ FC0 = 370   μ FL0 = 90 mH
Table 6. Performance results of CBC at different irradiation conditions (0.8, 0.4, and 1 kW/m2).
Table 6. Performance results of CBC at different irradiation conditions (0.8, 0.4, and 1 kW/m2).
MPPT MethodPerformance of Conventional Boost Converter at Different Irradiation Conditions
800 W/m2 (0 to 0.6 s)400 W/m2 (0.6 to 1.2 s)1000 W/m2 (1.2 to 1.8 s)
VPV (V)DutyV0 (V)P0 (W)VPV (V)DutyV0 (V)P0 (W)VPV (V)DutyV0 (V)P0 (W)
VSS-P&O340.60486148.44170.7115977380.5994196.31
MIC34.30.60186.1150.717.50.759.677.839.20.5895.31197.48
FOCV33.80.6289155170.71559.87839.280.5996197.5
FSS-RBFA330.62787155.7617.40.7196279.5340.10.58696.8198.78
VSS-RBFA34.20.60987.5156.518.50.7266.479.639.80.6100.5200.2
AFLC34.80.61490.32158.2240.64688045.30.56105201.8
PSO34.710.62292158.524.80.6673.78247.070.64132204.40
CS37.270.5993.17161.7325.760.6573.8982.247.540.65138205.18
Table 7. Performance results of SCBC at different irradiation conditions (800, 400, and 1000 W/m2).
Table 7. Performance results of SCBC at different irradiation conditions (800, 400, and 1000 W/m2).
MPPT MethodPerformance of Switched Capacitor Boost Converter at Different Irradiation Conditions
800 W/m2 (0 to 0.6 s)400 W/m2 (0.6 to 1.2 s)1000 W/m2 (1.2 to 1.8 s)
VPV (V)DutyV0 (V)P0 (W)VPV (V)DutyV0 (V)P0 (W)VPV (V)DutyV0 (V)P0 (kW)
VSS-P&O30.130.3128.57167.3514.30.3364.0578.430.20.40151194.5
MIC28.50.35131.53167.512.30.4364.7379.2132.870.38154.83196.48
FOCV27.180.43142.27170.514.30.3568.179.431.80.4159198.5
FSS-RBFA30.310.35138.46169.514.50.3667.9682.7335.120.34159.09198.3
VSS-RBFA270.45147.27170.814.80.3568.385.934.890.35161.03198.9
AFLC27.040.5162.01170.2112.800.4569.8186.535.80.35165.23201.4
PSO26.80.46149.22171.812.50.575.0386.935.20.37167.55205.7
CS29.50.45158.43172.212.50.51577.3187.535.280.315153.28206.29
Table 8. Performance results of a SSBC at different irradiation conditions (0.8, 0.4, and 1 kW/m2).
Table 8. Performance results of a SSBC at different irradiation conditions (0.8, 0.4, and 1 kW/m2).
MPPT MethodPerformance of Switched Capacitor Boost Converter at Different Irradiation Conditions
800 W/m2 (0 to 0.6 s)400 W/m2 (0.6 to 1.2 s)1000 W/m2 (1.2 to 1.8 s)
VPV (V)DutyV0 (V)P0 (W)VPV (V)DutyV0 (V)P0 (kW)VPV (V)DutyV0 (V)P0 (kW)
VSS-P&O28.20.55139.25168.215.20.5563.3079.1031.310.55154.56196
MIC28.70.55138.2716615.10.5162.4778.528.20.62153.08195.29
FOCV280.57151.43168.713.810.5564.1981.2331.20.55153.08196.22
FSS-RBFA30.220.555153.29167.3116.080.564.1080.0135.010.52151.90195.8
VSS-RBFA30.420.60154.3169.0517.90.4865.8282.9135.920.525155.12200
AFLC29.50.56152.37167.9816.50.4864.0580.935.770.53154.79199.89
PSO30.050.56154.84172.2716.200.5166.6383.528.80.58158.73206.5
CS29.010.57156.84172.9317.630.5466.7883.932.50.549159.78208.27
Table 9. Comprehensive analysis of different conventional and soft computing MPPT techniques.
Table 9. Comprehensive analysis of different conventional and soft computing MPPT techniques.
ParametersTypes of MPPT Techniques
VSS-P&OMICFOCVAFLCFSS-RBFAVSS-RBFAPSOCS
Sensing variablesI, VI, VVVariesI, VVariesVariesVaries
Design complexityEasyMediumEasyMediumMediumMediumMediumMedium
Tracking speed0.28 s0.25 s0.2 s0.185 s0.2 s0.18 s0.15 s0.13 s
Settling time0.2 s0.23 s0.12 s0.1 s0.18 s0.15 s0.25 s0.25 s
Operated duty cycle0.6 to 0.70.5 to 0.60.6 to 0.70.4 to 0.60.5 to 0.80.3 to 0.70.4 to 0.70.3 to 0.7
Oscillations at MPP2%2.2%3.5%1.8%1.85%2%2.5%2.0%
Is it true MPPYesYesNoYesYesYesYesYes
PV panel dependsNoNoYesNoYesYesNoNo
Periodic tuningNoNoRequireNoNoNoRequireRequire
Analog or digitalBothDigitalBothBothBothBothBothBoth
Error detection accuracyMediumMediumLessMediumMediumHighMediumHigh
Dynamic responseMediumMediumLessMediumMediumHighMediumHigh
Non-linearityMediumModeratePoorGood GoodGoodGoodGood
Hardware complexityLessLessLessMediumMediumMediumMediumMedium
Algorithm complexityMediumMediumLessMediumLessLessMediumMedium
EfficiencyMediumMediumLessMediumMediumHighHighHigh
Cost LessMediumHighLessLessLessMediumMedium

Share and Cite

MDPI and ACS Style

Basha, C.H.; Rani, C. Different Conventional and Soft Computing MPPT Techniques for Solar PV Systems with High Step-Up Boost Converters: A Comprehensive Analysis. Energies 2020, 13, 371. https://doi.org/10.3390/en13020371

AMA Style

Basha CH, Rani C. Different Conventional and Soft Computing MPPT Techniques for Solar PV Systems with High Step-Up Boost Converters: A Comprehensive Analysis. Energies. 2020; 13(2):371. https://doi.org/10.3390/en13020371

Chicago/Turabian Style

Basha, CH Hussaian, and C Rani. 2020. "Different Conventional and Soft Computing MPPT Techniques for Solar PV Systems with High Step-Up Boost Converters: A Comprehensive Analysis" Energies 13, no. 2: 371. https://doi.org/10.3390/en13020371

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
