A Systematic Methodology for Optimal Design of Wireless Power Transfer System Using Genetic Algorithm

Abstract

This paper presents a systematic methodology for the optimal design of wireless power transfer (WPT) systems. To design a WPT for a specific application, the values of coil geometric parameters and the number of resonators should be chosen such that an objective function is maximized while satisfying all the design constraints. The conventional methodologies, which are based on cyclic coordinate optimization, are not comprehensive and efficient methods. This paper presents a design methodology based on the genetic algorithm (GA). The optimization method has been applied to designing different WPTs with series and parallel connections of load and different design constraints. Moreover, the number of resonators is considered as the design parameters. In addition, WPTs with parallel and series connections of load are compared from different aspects. The results of calculation, simulation and measurements demonstrate that the 2-coil WPT can be optimized to achieve maximum efficiency compared to the previously reported 2-coil and multi-coil WPTs. In a fabricated 2-coil configuration, a power transfer efficiency (PTE) of 82.7% and a power delivered to the load (PDL) of 173.89 mW are achieved.

1. Introduction

Wireless implantable microelectronic devices (IMDs) are being widely used today in diagnostic as well as therapeutic purposes [1,2]. A critical issue in the design of IMDs is the transferring of the required power to the implanted microelectronic device. To overcome the limitations of the current battery technologies and transcutaneous energy transfer for implanted devices, the wireless power transfer (WPT) system using inductively coupled coils has received considerable attention in recent years, not only in biomedical implants but also in a variety of industrial applications [3,4,5,6,7,8]. A WPT system consists of a highly efficient power amplifier (PA) connected to the transmitter (Tx) coil on the external side of the body and a secondary power receiver (Rx) coil on the internal side of the body. A critical issue in designing an inductively coupled power transfer is the power transfer efficiency (PTE) which requires to be high while the size of coils need to be minimized, voltage transfer gain to be maximized, power delivered to the load (PDL) to be maximized and to obtain larger bandwidth of operation. High efficiency is especially important for the wireless power transfer in biomedical applications. High PTE is required to satisfy the tissue safety requirements and electromagnetic compatibility between the powering link and other nearby communication devices [9,10].

Over the past decades, several methods have been proposed for the design and geometrical optimization of coupled coils [4,10,11,12,13]. In References [10,12], an iterative design procedure was employed to optimize the geometries of different pairs of printed spiral coils (PSCs) and multi-coil inductive links with the aim of improving PTE. In Reference [4], with the guide of the iterative design procedure [11], different wire-wound multi-coil inductive power transmission links were designed for industrial applications to provide sufficient PDL while maintaining a high PTE. RamRakhyani et al. designed a 4-coil power transmission link for biomedical applications based on a model of a multilayer helical coil that uses Litz wire [13]. Based on the analysis on the effect of design parameters on power transfer efficiency, the design constraints and a heuristic search method, they determined the number of layers and turns per layer to obtain an efficient power transfer system.

All the above-mentioned design methods used a search algorithm, which is based on the cyclic coordinate optimization method [14]. In this method, the coordinate axes are used as the search directions. Along each search direction, the corresponding variable is the only variable that is changed and the objective function is maximized; the rest of the parameters remain fixed at their previous values. However, this iteration search method may get stuck in a local minimum if the level curves of a function are not smooth. Moreover, as the number of parameters to be optimized increases, the size of the search space increases exponentially, requiring excessive simulation making the problem intractable. These facts serve as a motivation to pursue a systematic approach for optimal design of the WPT system. To deal with this problem, Genetic algorithm (GA) has been already employed for optimization of the WPT system [15,16]. In Reference [15], GA was used to first determine the value of equivalent circuit parameters of the WPT system to overcome the frequency splitting phenomenon and then to extract the optimal values of two added capacitors at the source and the load. However, the GA was not used in determining the coil parameters. In Reference [16], the GA was used to determine the parameters of the printed spiral coils (PSCs) to maximize the power transmission efficiency in the dual band power and data telemetry system. A PTE of 69.8% was reported. To define the design constraints, a minimum value was considered for the conductor space and no constraint was defined for the number of turns (n). This may result in an infeasible solution and inaccuracy of the model. It should be noted that the accuracy of the model degrades with n ≤ 2 [12]. The authors did not report the number of turns and the GA was used to determine the values of the conductor space and thickness. Moreover, the simulation and measurement values for L, R and C of the designed coils were not reported. Hence, it is not possible to determine how much the measurement values agree with the values obtained by the GA. In addition, self-resonance frequency (SRF), which is a key factor in determining the power carrier frequency, was not considered in the design process.

To design an optimal WPT for a specific application, there are a number of parameters (e.g., the number of turns, thickness, the line width and the spacing between the metal traces of the inductor, load and operating frequency) from which the optimal values should be chosen so that certain objective functions (e.g., PTE, PDL, voltage gain, bandwidth of operation) are maximized while satisfying all the required design constraints (e.g., coil size, SRF, fabrication limitation, tissue safety requirements and electromagnetic compatibility). Moreover, the nonlinearity of the constraints, coupled with the combinatorial possibilities for the WPT design, make it difficult to solve the optimization problem by means of empirical cyclic coordinate optimization or traditional optimization methods [17].

To overcome the aforementioned limitations of the design method, in the current study, we use the GA for the optimal design of WPT links. Although, the GA can provide an optimal solution with respect to the defined figure-of-merit, the solution may not be a practical solution. To provide an optimal practical solution, a suitable range of designed parameters should be defined. In this paper, the effects of different ranges of the design parameters on the solutions optimized by the GA are investigated. For this purpose, different inductive WPTs with a pair of printed spiral coils are designed and simulated using an electromagnetic solver (EM solver) (i.e., high-frequency structure simulator (HFSS)) and the practical optimal solutions are fabricated on a printed circuit board.

Series-resonant and shunt-resonant structures are two common circuit models which are widely used in WPT. In this paper, the advantages and shortcomings of the two models, which are optimized by GA, are presented. The effects of different parameters including the load and source resistance variations, coupling distance and operation frequency variations, for both models are presented and compared. Moreover, the effects of the load resistance and coupling distance variations on the reflected impedance and the load resistance on the input power for both resonant coupling structures are investigated. These investigations help the designer to select a suitable structure for a give specific application.

2. Inductive Link Model

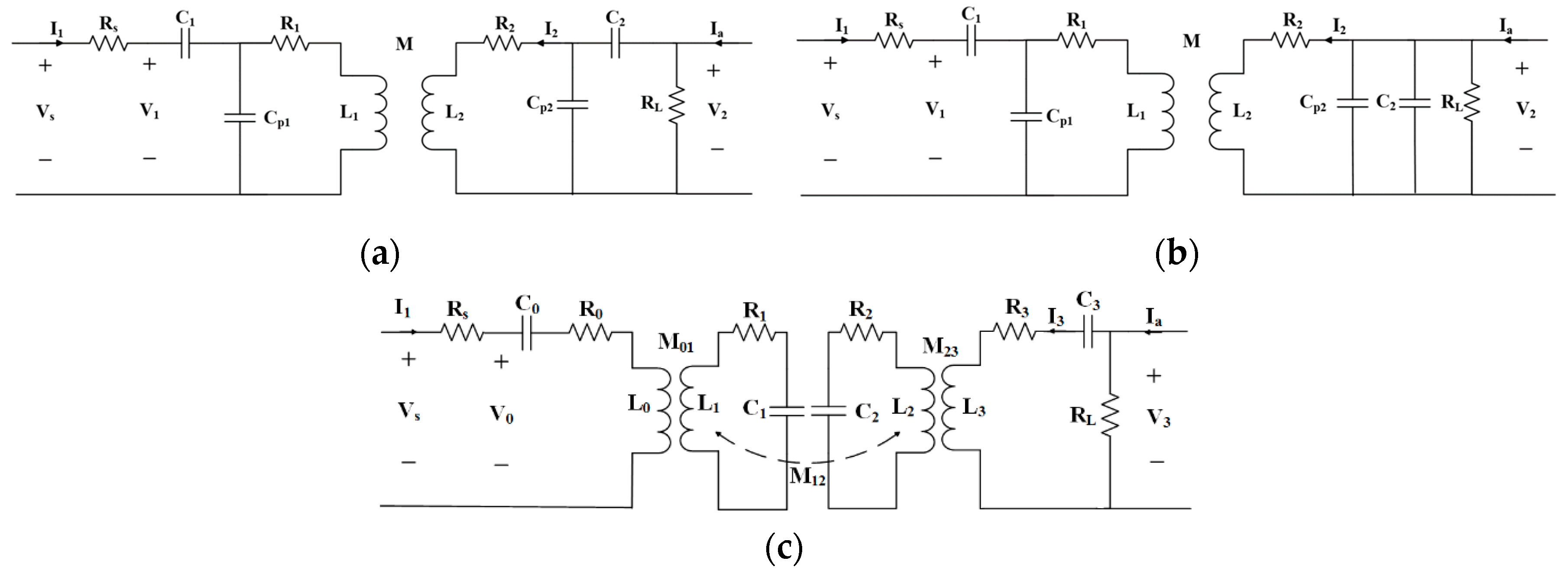

An equivalent circuit of a WPT using the 2-coil inductive link with parallel and series connection of load is shown in Figure 1. Where $L_1$ and $L_2$ are the self-inductance of the Tx and the Rx coils, respectively. Capacitors $C_1$ and $C_2$ are also added to form a pair of resonant LC-tank circuits with $L_1$ and $L_2$, respectively, at the power carrier frequency. Lumped elements $R_1$, $R_2$, $C_{p1}$ and $C_{p2}$ represent the distributed parasitic resistance and capacitance of the coils. A power source, $V_S$, drives the Tx coil at the carrier frequency, while $R_s$ is the internal resistance of the source. The Rx coil is loaded by $R_L$. For the sake of simplicity, the parasitic capacitances $C_{p1}$ and $C_{p2}$ are neglected in the following analysis. Then Kirchhoff’s voltage law (KVL) can be applied to determine the currents in each resonant circuit as follows:

$${\mathit{I}}_{\mathbf{1}}{R}_s+{\mathit{I}}_{\mathbf{1}}\frac{1}{C_1\omega j}+{\mathit{I}}_{\mathbf{1}}{L}_1\omega j+{\mathit{I}}_{\mathbf{1}}{R}_1+j\omega M{\mathit{I}}_{\mathbf{2}}={\mathit{V}}_{\mathit{S}}$$

(1)

$${\mathit{I}}_{\mathbf{2}}{R}_2+{\mathit{I}}_{\mathbf{2}}\frac{1}{C_2\omega j}+{\mathit{I}}_{\mathbf{2}}{L}_2\omega j+j\omega M{\mathit{I}}_{\mathbf{1}}={\mathit{V}}_{\mathit{L}}$$

(2)

$${\mathit{I}}_{\mathbf{1}}\frac{1}{C_1\omega j}+{\mathit{I}}_{\mathbf{1}}{L}_1\omega j+{\mathit{I}}_{\mathbf{1}}{R}_1+j\omega M{\mathit{I}}_{\mathbf{2}}={\mathit{V}}_{\mathbf{1}},$$

(3)

where $M=k.\sqrt{L_1{L}_2}$ ($0\le k\le 1$) is the mutual inductance between the Tx and Rx coil. From (1)–(3), we have

$${\mathit{I}}_{\mathbf{1}}=\frac{{\mathit{V}}_{\mathit{s}}}{(R_S+\frac{1}{C_1\omega j}+L_1\omega j+R_1)+\frac{{\left(\omega M\right)}^2}{(R_L+R_2+\frac{1}{C_2\omega j}+L_2\omega j)}}$$

(4)

$${\mathit{I}}_{\mathbf{2}}=\left(\frac{-j\omega M}{R_L+R_2+j\omega L_2+\frac{1}{j\omega C_2}}\right)\times \left(\frac{{\mathit{V}}_{\mathit{s}}}{(R_S+\frac{1}{C_1\omega j}+L_1\omega j+R_1)+\frac{{\left(\omega M\right)}^2}{(R_L+R_2+\frac{1}{C_2\omega j}+L_2\omega j)}}\right)$$

(5)

To calculate the power transmission efficiency (${\eta }_s$) for series connection of the load using the equivalent circuit model at resonance, the following definitions are presented:

$$Q_1=\frac{\omega L_1}{\left(R_1+R_S\right)},Q_2=\frac{\omega L_2}{R_2},\omega =\frac{1}{\sqrt{LC}},$$

(6)

where $Q_1$ is loaded quality factor of the Tx coil and $Q_2$ is unloaded quality factor of the Rx coil. The ${\eta }_s$ can be expressed as:

$${\eta }_s=\frac{P_L}{P_S}=\frac{K^2{Q}_1{Q}_2}{\left(\raisebox{1ex}{$R_L$}\!\left/ \!\raisebox{-1ex}{$R_2$}\right.+1+K^2{Q}_1{Q}_2\right)}\times \frac{R_L}{\left(R_L+R_2\right)},$$

(7)

where $P_S$ is the active input power delivered from the source and $P_L$ is the active power consumed by the load (i.e., $P_L=R_L{\left|{\mathit{I}}_{\mathbf{2}}\right|}^2$). It can be shown that $PDL=P_L={\eta }_s{P}_S.$ Note that at the carrier frequency, LC tanks operate at resonance frequency. Therefore, self-inductances and capacitors of coils act as short circuits and only parasite resistances remain. The value of the parasite capacitances is small and is neglected [4,10,11,13,16,18,19]. The power transmission efficiency (${\eta }_p$) for parallel connection of the load is expressed as [4]:

$${\eta }_p=\frac{k^2{Q}_1{Q}_{2L}}{1+k^2{Q}_1{Q}_{2L}}\times \frac{Q_{2L}}{Q_L},$$

(8)

where $Q_{2L}=Q_2{Q}_L/(Q_2+Q_L)$ and $Q_L=R_L/\omega L_2$. Note that Equations (7) and (8) can be extended to apply for multi-coil WPTs. For example, Equation (8) in multi-coil WPTs can be written as [4]:

$${\eta }_{{\mathrm{p}}_{\mathrm{multi}-\mathrm{coil}}}={\prod }_{i=1}^{m-1}{\eta }_{pi,i+1}\frac{Q_{mL}}{Q_L},$$

(9)

where m is the number of coils in multi-coil WPT, $Q_{mL}=Q_m{Q}_L/\left(Q_m+Q_L\right)$ and ${\eta }_{pi,i+1}$ is the PTE from ith coil to (i + 1)th coil and expressed as [4]:

$${\eta }_{pi,i+1}=\frac{R_{refi,i+1}}{R_i+R_{refi,i+1}}=\frac{k_{i,i+1}^2{Q}_i{Q}_{\left(i+1\right)L}}{1+k_{i,i+1}^2{Q}_i{Q}_{\left(i+1\right)L}}.$$

(10)

$R_{refi,i+1}$, $k_{i,i+1}$ and $Q_{\left(i+1\right)L}$ are reflected impedance, coupling coefficient and loaded quality factor between the ith coil and (i + 1)th coil, respectively. The quality factor and parasitic resistance of the ith coil are $Q_i$ and $R_i$. The reflected impedance, which is the transformed load impedance by the inductive link from the (i + 1)th coil to the ith coil is modeled as follows [4]:

$$R_{refi,i+1}=k_{i,i+1}^2\omega L_i{Q}_{\left(i+1\right)L}\hspace{1em}\hspace{1em}i=1,2,\dots ,m-1.$$

(11)

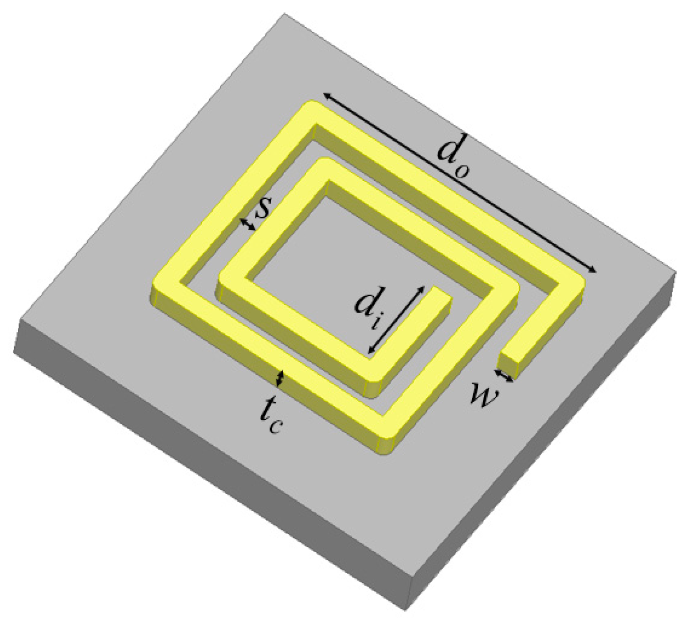

The PSC geometrical parameters that affect the circuit parameters and, consequently, the figures of merit are the line width $\left(w\right)$, the spacing between the metal traces of the inductor $\left(\mathrm{s}\right)$, line thickness $\left(t_c\right)$, inner diameter $\left(d_i\right)$, outer diameter $\left(d_o\right)$ and the number of turns $\left(n\right)$ (Figure 2). The relationship between the circuit parameters and the coil geometries is presented in Appendix A.

3. Design Procedure

This section presents steps of the WPT system using GA. GAs are direct, parallel, probabilistic methods for global search and optimization. GAs are initiated with a randomly generated population of chromosomes (or individuals). Then, the fitness-based selection principle is applied to select the best individuals (solutions) in a population. Selected individuals are chosen for reproduction (crossover), with an appropriate mutation factor to randomly modify the genes of an individual, and, consequently, develop the new population. This process is iterated until certain stopping criteria are satisfied. In the current study, the MATLAB GA toolbox is used to find the optimal solution. The steps for implementing GA towards the optimal design of a wireless power transmission link can be summarized as follows:

• Define the Fitness Function: The fitness function, an objective function, which evaluates the quality of the chromosome as a solution to a particular problem, will be optimized. For the design of a WPT link, the PTE, voltage gain, PDL or combination of these figure of merits can be considered as the fitness function in GA.
• Define Design Parameters: In the next step, the design parameters (i.e., the geometrical parameters that their values are determined by the proposed algorithm) and constants are defined according to the application and coil types. For example, the parameters $n$, $t_c$, $w$, $s$, $R_L$ and operating frequency ($f$) can be considered as the design parameters of the PSC.
• Define Constraints: To obtain a feasible solution for the fitness function, we should take into account the major design constraints imposed by regulations, application and the PSC fabrication technology. For this purpose, it is necessary to select an acceptable range for the design parameters. The lower and upper bounds of the variables should be selected such that the implementation of the PSC can be realistically achieved and an acceptable HFSS simulation is obtained for verifying the values suggested by theoretical calculations. To achieve the maximum magnetic field strength, the outer diameter of the Tx coil ($d_{o1}$) should satisfy the constraint $d_{o1}\ge d·2\surd 2$ [11]. Increasing the size of the receiver coil enhances the PTE, however, there is a limitation on the coil size in IMDs. Another important constraint is the constraint on the SRF, which is a key factor in determining the power carrier frequency. Reducing the SRF limits the power carrier frequency. The inductance of the coil and its parasite capacitance determine the SRF ($f_{SRF}={(2\pi \sqrt{L{C}_p})}^{-1}$).
• Generate an Initial Random Population of Chromosomes: Before generating the population, the type of encoding should be defined. In the current study, the real encoding was used to encode the chromosomes.
• Calculate the Fitness of Each Chromosome: The fitness score of each chromosome is calculated by the fitness function and then converted to a value within a range that is suitable for the selection function by the scaling function.
• Selection: The selection function chooses chromosomes for recombination on the basis of fitness. Those with higher fitness should have a greater chance of selection than those with lower fitness.
• Reproduction: In this step, a new population with new chromosomes is created from the above selected individuals by using the crossover (recombination) and mutation operations.
• Evolution: After recombination, the resultant chromosomes are passed into the successor population. The processes of selection and recombination are then iterated until a complete successor population is produced. At that point, the successor population becomes a new source population (i.e., the next generation).
• Repeat from step 5 until the appropriate stopping criteria are met, for example, an upper limit on the number of generations is reached.

4. Design Examples

In this section, we used the method presented in Section 3 to design different sets of 2-coil and multi-coil inductive links for the WPT (Figure 1). Both parallel and series connections of load resistance were considered and the effects of constraint on feasible optimal solution were investigated. Results of the HFSS simulation and experiment are presented in the next section. Moreover, the results of the multi-coil design were presented. In this case the number of resonators was also considered as the design parameter.

Table 1. Design parameters and defined constraints.

Problem Setup	Parameter	Series Connection Load			Parallel Connection Load
		WPT1	WPT2	WPT3	WPT4	WPT5
Design parameters	Tx coil inner diameter (mm)	$1\le d_{i1}\le 40$	$1\le d_{i1}\le 40$	$1\le d_{i1}\le 40$	$1\le d_{i1}\le 60$	$1\le d_{i1}\le 60$
	Rx coil inner diameter (mm)	$1\le d_{i2}\le 20$	$1\le d_{i2}\le 20$	$1\le d_{i2}\le 20$	$1\le d_{i2}\le 20$	$1\le d_{i2}\le 20$
	Width of tracks (µm)	$150\le w\le 3500$	$200\le w\le 3500$	$200\le w\le 3500$	$200\le w\le 4000$	$200\le w\le 4000$
	Space between tracks (µm)	$150\le s\le 500$	$200\le s\le 500$	$200\le s\le 500$	$200\le s\le 1000$	$200\le s\le 1000$
	Number of turns	$2\le n\le 11$	$2\le n\le 20$	$2\le n\le 20$	$2\le n\le 40$	$2\le n\le 40$
	Metal thickness (µm)	$t_c=35$	$35\le t_C\le 100$	$1\le t_C\le 50$	$t_C=35$	$t_C=35$
Constraints	Rx coil parasitic resistance (Ω)	-	-	-	-	$R_2\ge 0.2$
	Tx coil outer diameter (mm)	$d_{O1}\le 40$	$d_{O1}\le 40$	$d_{O1}\le 40$	$d_{O1}\le 60$	$d_{O1}\le 60$
	Rx coil outer diameter (mm)	$d_{02}\le 20$	$d_{02}\le 20$	$d_{02}\le 20$	$d_{02}\le 20$	$d_{02}\le 20$
	Self-Resonance-Frequency (MHz)	$SRF\ge 100$	$SRF\ge 100$	$SRF\ge 100$	$SRF\ge 100$	$SRF\ge 100$
	Distance between coils (mm)	$10$	$10$	$10$	$10$	$10$
	Power Carrier Frequency (MHz)	$13.56$	$13.56$	$13.56$	$13.56$	$13.56$
	Source resistance (Ω)	$R_S=0.5$	$R_S=0.5$	$R_S=0.5$	$R_S=0.5$	$R_S=0.5$
	Load resistance (Ω)	$R_L=100$	$R_L=100$	$R_L=100$	$R_L=100$	$R_L=100$

summarizes the design parameters and defines the constraints for each WPT system. Equations (7) and (8) were considered as the fitness function for the optimal design of the inductive link system with the series and parallel connections of the load, respectively. One important factor in designing a WPT system is defining a set of realistic design constraints imposed by conditions, application and PSC fabrication technology to derive a feasible solution. To evaluate the effects of the design constraints on deriving a feasible solution, different constraints were considered. For the first WPT system, the optimal solution was obtained for a given fixed conductor thickness, $t_c=35$ μm, while for the second and third ones, a range of conductor thicknesses was considered for determining the optimal solution. Moreover, two WPT designs with parallel connection of load resistance were considered (Table 1): one with no constraint on the Rx coil parasitic resistance (i.e., $R_2)$ (WPT4) and another with a constraint (WPT5).

Table 2. Results of optimizing the geometries of the printed spiral coils using the proposed optimization algorithm.

Coil	Parameter	WPT1	WPT2	WPT3	WPT4	WPT5	WPT6	WPT7
Driver Coil	n0	-	-	-	-	-	-	14
	w0 (µm)	-	-	-	-	-	-	439
	s0 (µm)	-	-	-	-	-	-	427
	di0 (mm)	-	-	-	-	-	-	4
	tc0 (μm)	-	-	-	-	-	-	35
	L0 (μH)	-	-	-	-	-	-	3.08
	R0 (Ω)	-	-	-	-	-	-	2.08
	Cp0 (pF)	-	-	-	-	-	-	0.77
	do0 (mm)	-	-	-	-	-	-	28.25
	SRF0 (MHz)	-	-	-	-	-	-	103.41
	Q1	-	-	-	-	-	-	100.01
Tx Coil	n1	11	11	8	8	11	8	6
	w1 (µm)	1490	1398	1613	2561	1979	1280	2123
	s1 (µm)	282	374	262	349	603	282	357
	di1 (mm)	1	1	10	11	2	15	30
	tc1 (μm)	35	48	46	35	35	35	35
	L1 (μH)	2.11	2.11	1.78	2.27	3.16	2.28	2.46
	R1 (Ω)	0.56	0.55	0.44	0.59	0.63	0.68	0.5
	Cp1 (pF)	1.17	1.2	1.42	1.11	0.8	1.12	1.02
	do1 (mm)	39.98	39.98	40	57.56	58.8	40	59.76
	SRF1 (MHz)	101.27	100.10	100.02	100	100.01	100.14	100.34
	Q1	169.77	170.79	161.89	212.11	233.8	162.09	410.95
Rx Coil	n2	11	13	20	2	3	4	4
	w2 (µm)	264	283	239	4000	901	546	550
	s2 (µm)	236	255	236	200	432	150	186
	di2 (mm)	9	6	1	1	12	14	14
	tc2 (μm)	35	35	18	35	35	35	35
	L2 (μH)	2.5	2.6	3.68	0.03	0.25	0.55	0.54
	R2 (Ω)	2.52	2.46	4.87	0.002	0.2	0.5	0.5
	Cp2 (pF)	0.98	0.97	0.69	0.079	0.11	0.54	0.44
	do2 (mm)	20	19.99	20	17.8	20	19.57	19.89
	SRF2 (MHz)	101.52	100.16	100.08	3271.1	948.53	291.4	325.18
	Q2	84.49	89.89	64.36	1899.9	105.94	93.18	92.46
Load Coil	n3	-	-	-	-	-	9	14
	w3 (µm)	-	-	-	-	-	200	198
	s3 (µm)	-	-	-	-	-	150	168
	di3 (mm)	-	-	-	-	-	7	3
	tc3 (μm)	-	-	-	-	-	35	35
	L3 (μH)	-	-	-	-	-	1.29	1.72
	R3 (Ω)	-	-	-	-	-	1.9	2.35
	Cp3 (pF)	-	-	-	-	-	0.87	1
	do3 (mm)	-	-	-	-	-	13.3	13.25
	SRF3 (MHz)	-	-	-	-	-	150.31	121.49
	Q3L	-	-	-	-	-	1.08	1.43
Results	k01	-	-	-	-	-	-	0.26
	k12	0.12	0.12	0.12	0.15	0.14	0.13	0.11
	k23	-	-	-	-	-	0.37	0.33
	PTE (%)	82.65	82.58	83.3	97.64	91.45	86.32	87.46

summarizes the results of the inductive link design using the proposed design procedure in Section 2. The results show that the PTEs of about 83% and 95% were obtained using the series and parallel connections of the load resistance, respectively, while the defined constraints on the designed parameters were satisfied. It is observed that the PTE achieved by the WPT4 is higher than that obtained by the WPT5. The PTEs achieved by the WPT4 and WPT5 are 98% and 91%, respectively. This is because no constraint was considered on the Rx coil parasitic resistance to determine the optimal solution for the WPT4, while a maximum range of 0.2 Ω was imposed for the WPT5. The obtained Rx coil parasitic resistance values were 0.002 Ω and 0.2 Ω for the WPT4 and WPT5 designs, respectively. It should be noted that a low Rx value (i.e., 0.002 Ω) provides a high-quality factor (i.e., 1899.9) for WPT4 (see (6)). Moreover, a low Rx value imposes a fabrication limitation for PSC implementation. By comparing (7) and (8), it can be seen that the Rx coil parasitic resistance has a more severe effect on the inductive link with a parallel connection than that with series connection. While the SRFs obtained for the Rx and Tx coils used in the WPTs with series connection of the load were about 100 MHz, the SRFs obtained for the Rx coil used in the WPT4 and WPT5 were 3.27 GHz and 948 MHz, respectively. The lower constraint considered for SRF was 100 MHz.

It can be seen in Equations (6) and (8) that the PTE for the inductive links with parallel connection of the load decreases with increasing the value of $L_2$. As a result, the optimization algorithm selected the design parameters such that a low value of $L_2$ was obtained, which in effect increased the SRF. In contrast, the PTE increases with increasing the value of $L_2$ for the inductive links with series connection of the load.

Two solutions (i.e., WPT6 and WPT7) were considered for the multi-coil design with series connections of the load resistance. In this case, the number of coils was also considered as the design parameter. For multi-coil inductive link optimization, the fitness function (6) was selected. The constraints considered for the WPT6 design were the same as the 2-coil configuration (i.e., WPT1). The multi-coil inductive link model presented in Reference [4] was used to design the link using the proposed optimization algorithm. In the multi-coil inductive link, the driver and load coils were added to the 2-coil inductive link in a co-planar and co-centric fashion. The driver coil ($L_0$) was connected to the source placed in the middle of $L_1$. On the internal side, the load coil ($L_3$) was connected to the load and placed in the middle of $L_2$ (Figure 1). Since the driver and load coils should be smaller than the Tx and Rx coils, the inner diameter of Tx and Rx coils were constrained to be greater than the outer diameter of the driver and load coils ($d_{o0}<d_{i1}$ and $d_{o3}<d_{i2}$). Also, due to fabrication limitations, all parasite resistances were constrained and set to be $R\ge 0.5$ Ω. The results of the optimization show that the WPT with 3 coils is the optimal solution for the given constraints. The PTE obtained was 86.32%. The same constraints as the WPT1, except the inner and outer diameters of the Tx and deriver coils, which were set to be $1\le d_{i1}\le 60$, $1\le d_{o1}\le 60$, $1\le d_{i0}\le 60$, $1\le d_{io}\le 60$ (WPT7), were considered for another multi-coil design. In this case, the 4-coil configuration was obtained as the optimal solution with a PTE of 87.46%. The SRFs obtained were more than 100 MHz for both the 3-coil and 4-coil structures.

5. Simulation Results

To evaluate the model-based theoretical results obtained by the proposed optimization method, the designed wireless power links were simulated by HFSS. The inductive links were exactly simulated based on the values listed in Table 2.

Table 3. Results of high-frequency structure simulator (HFSS) simulation.

Coil	Parameter	WPT1	WPT2	WPT3	WPT4	WPT5	WPT6	WPT7
Driver Coil	L0 (μH)	-	-	-	-	-	-	3.1
	R0 (Ω)	-	-	-	-	-	-	2.05
	Cp0 (pF)	-	-	-	-	-	-	1.07
	SRF0 (MHz)	-	-	-	-	-	-	87.3
	Q0	-	-	-	-	-	-	103.28
Tx Coil	L1 (μH)	2.07	2.11	1.75	2.19	3.25	2.26	2.51
	R1 (Ω)	1.67	1.43	1.13	1.25	1.56	1.44	1.13
	Cp1 (pF)	2.49	2.4	2.58	2.81	2.29	2.03	3.06
	SRF1 (MHz)	70.06	70.65	74.86	64.2	58.36	74.3	57.4
	Q1	81.52	92.94	91.68	106.94	134.13	98.94	188.65
Rx Coil	L2 (μH)	2.59	2.69	1 -	0.04	0.27	0.33	0.56
	R2 (Ω)	2.08	2.14	106.87	0.05	0.21	0.44	0.56
	Cp2 (pF)	1.7	1.57	-	0.14	1.96	1.97	2.11
	SRF2 (MHz)	75.82	77.43	-	2142	219	198.7	146
	Q2	106.02	107.28	-	59.74	110	63.13	85.24
Load Coil	L3 (μH)	-	-	-	-	-	1.28	1.73
	R3 (Ω)	-	-	-	-	-	1.58	1.79
	Cp3 (pF)	-	-	-	-	-	0.86	0.7
	SRF3 (MHz)	-	-	-	-	-	151.3	144.9
	Q3L	-	-	-	-	-	1.07	1.45
Results	PTE (%)	82.26	83.42	-	69.05	89.22	83.22	85.99

¹ HFSS simulation shows that the imaginary part of the coil impedance is negative.

summarizes the results. It is observed that the theoretical and HFSS simulation results for the WPT1 and WPT2 systems were very close. The PTEs are 82% and 83% for the WPT1 and WPT2, respectively. The HFSS simulation results show that the Rx coil of the WPT3 behaves as a capacitor. Other than the constraint on the metal thickness, all defined constraints for the WPT2 and WPT3 were similar. Ranges $35\le t_C\le 100$ and $1\le t_C\le 50$ were considered for the optimal design of the WPT2 and WPT3, respectively. The optimal thicknesses obtained for the Rx coils of WPT2 and WPT3 were 35 μm and 18 μm, respectively. The results of HFSS simulation show that the obtained optimal solution for the WPT3 was not a feasible solution because the Rx coil of the WPT3 behaved as a capacitor for the thickness of less than 35 µm. The PTEs obtained for WPT6 and WPT7 were 83.22% and 85.99%, respectively. The performance obtained using a 3-coil configuration was almost the same as that obtained by the 2-coil configurations of the WPT1 and WPT2. However, the 4-coil link provided higher performance than the WPT1 and WPT2. The PTE obtained by HFSS simulation of the 4-coil link was 85.99%.

5.1. Effects of Load Resistance

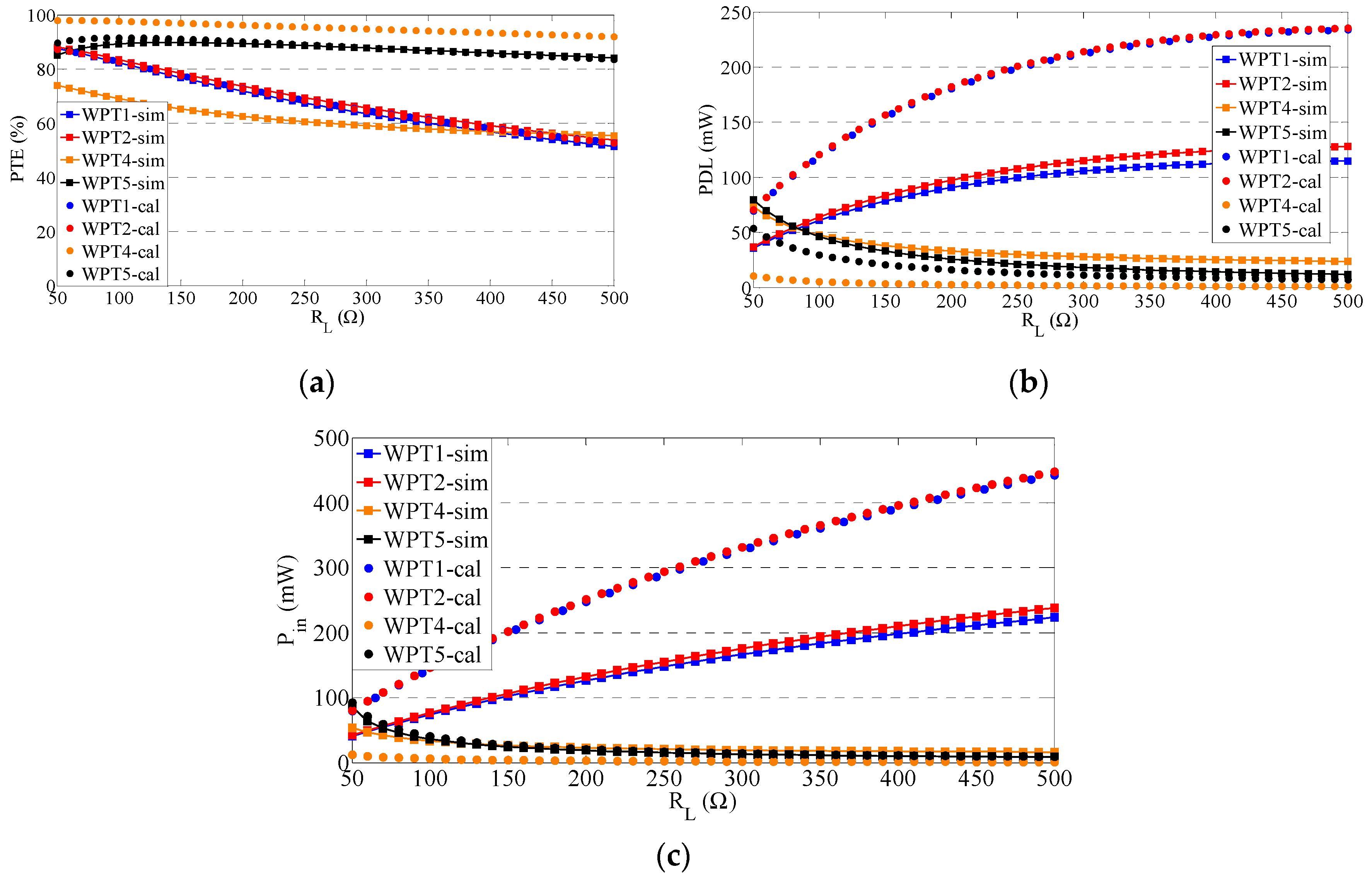

Figure 3a illustrates the PTE versus load resistance for different designed WPTs. It is observed that the HFSS simulation results are in very good agreement with the theoretical results for the WPT1, WPT2 and WPT5; however, a significant difference between the theoretical and simulation results is observed for the WPT4 design, which is not a feasible design. The PTE obtained by the WPT5 is higher than that obtained by the inductive links with series connection of load (WPT1 and WPT2). However, it should be noted that the PDL obtained by the inductive link with parallel connection of load was lower than that obtained by the series connection (Figure 3a). Moreover, the PDL versus the load resistance for different designed inductive links is shown in Figure 3b. It is observed that the PDL decreases with increasing the load resistance for the inductive link with parallel connection of load, while the PDL increases and becomes saturated with increasing the load for the series connection. This is because $R_2$ and $R_L$ are parallel in the inductive links with parallel connections of load at the resonance frequency. It can be seen from Figure 3c that input power decreases with increasing $R_L$ in the inductive link with parallel connection of load. The results of these analyses demonstrate that there is a major difference between the behavior of the inductive links with parallel and series connections of load during load variations.

Note that $C_2$ was computed such that the second circuit resonated for each load resistance. The value of $C_2$ was computed from $f={\left(2\pi \sqrt{L_2{C}_2}\right)}^{-1}$ for the inductive link with series connection of load and from $f={\left(2\pi \sqrt{\frac{1}{C_2{L}_2}-\frac{1}{C_2^2{R}_L^2}}\right)}^{-1}$ for the link with parallel connection. It is worthy to note that the resonant frequency does not depend on $R_L$ for the link with series connection, while it is related to $R_L$ for the parallel connection.

5.2. Effects of Source Resistance

The effects of source resistance, $R_s$, in the optimization of the inductive link was investigated in References [4,10,13]. This section analyzes the effects of $R_s$ variations on the WPT performance with series and parallel connections of load (Figure 4). Although the WPT with parallel connection of load provides a higher PTE than the WPT with series connection, however, the PDL of the WPT with parallel connection is lower than that of the series connection.

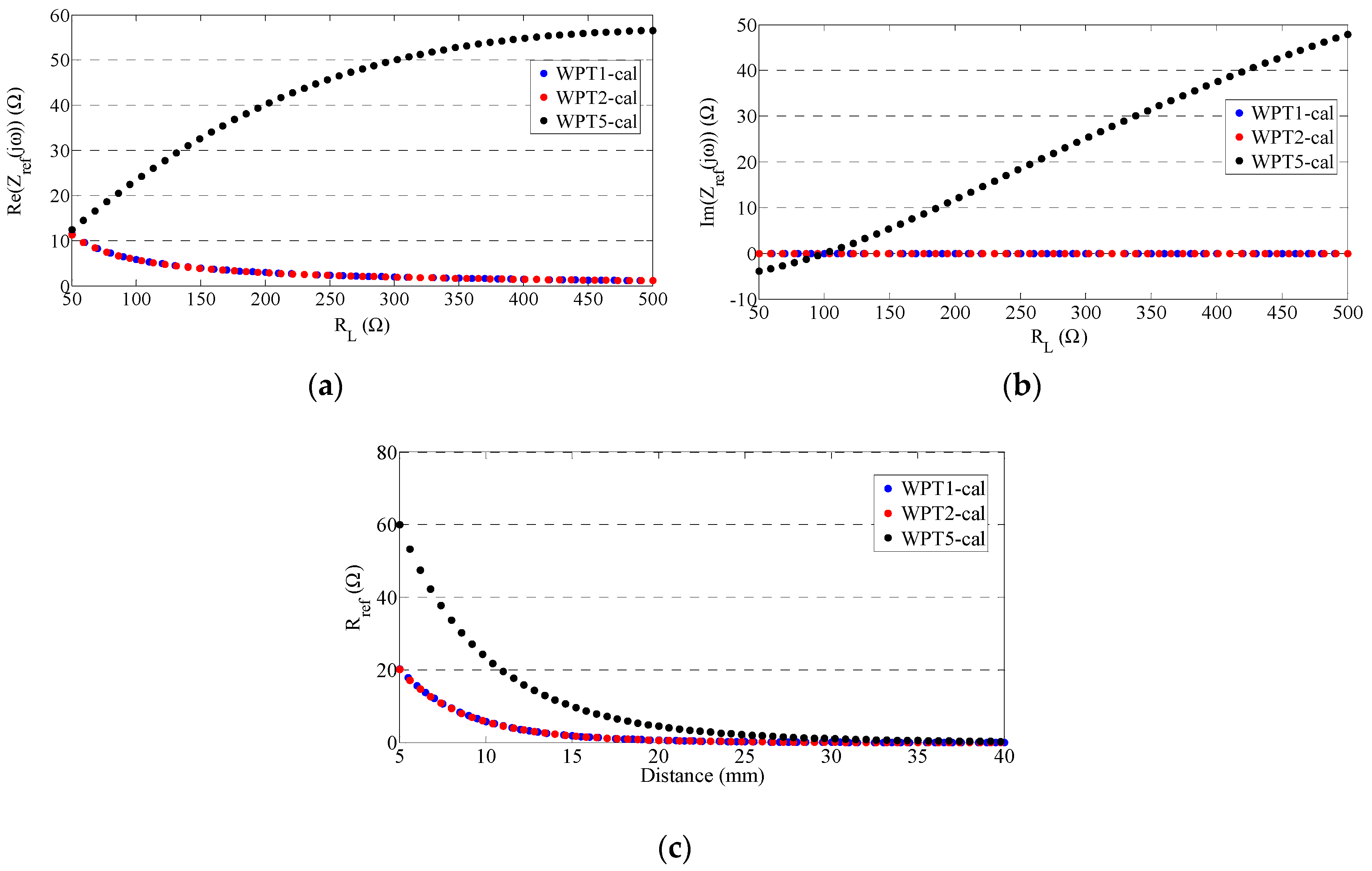

5.3. Effects on Reflected Impedance

The reflected impedance limits the available power from the source and drastically reduces the PDL. Figure 5 shows the effects of coils distance and load resistance on the reflected resistance. All inductive links were designed for a 100 Ω load resistance and 10 mm distance between the coils. The reflected resistances obtained at the operating values of the parameters are 5.5 Ω and 22.5 Ω for the inductive links with series and parallel connections of the load, respectively. Note that the reflected impedance only has real values at the resonant frequencies. It can be seen that the reflected resistance obtained for the inductive links with parallel connection of load is higher than that with a series connection for different coupling distances and load resistances. Interestingly, it is observed that the reflected impedance is not very sensitive to the load resistance variations in the inductive link with series connection of the load. It is worthy to note that only the reflected impedance for the series connection of load has real value. This indicates the resonance operation of the circuit even with variation of the load resistance.

5.4. Effects of Distance

Figure 6 illustrates the efficiency variations with respect to the coils relative distance. It is observed that the PTE is almost 92% for all WPT systems with 5 mm distances. The efficiency decreases with increasing the distance. However, the decreasing rate of efficiency for WPTs with series connection of load is greater than that with parallel connection of load. The PTE decreased from 92.2% to 40.9% for WPT1 (55.7% decrease), from 92.4% to 43.8% for WPT2 (52.6% decrease) and from 92.9% to 70.7% for WPT5 (23.9% decrease) when the coils distance increased from 5 mm to 20 mm.

6. Measurement Results

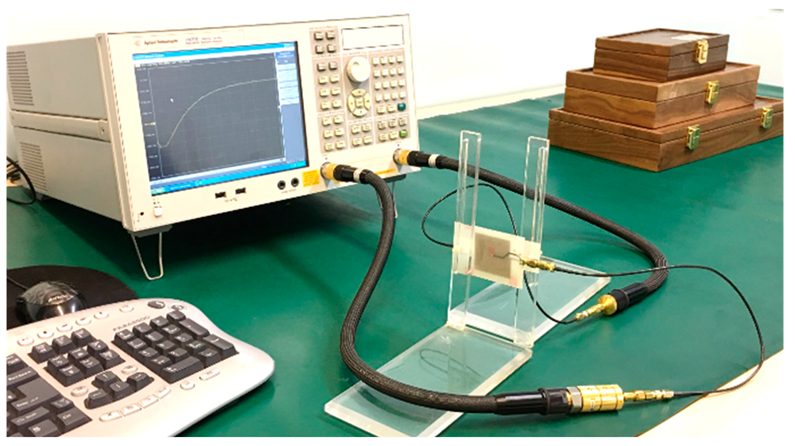

This section presents the experimental results of the WPT1 and WPT2 designed inductive links. Although the obtained PTE of WPT7 was higher than that of WPT1 and WPT2, we chose to fabricate a 2-coil link, as the 4-coil link imposes more complexity, cost and size. The selected inductive links were exactly fabricated based on the values listed in Table 2. The Tx and Rx coils were fabricated on FR4 and were mechanically supported by a non-conducting Plexiglas frame. The S-parameters of each coupled PSC pair were measured using a network analyzer (Agilent E5071C) (Figure 7). The PTE was measured using the conventional method proposed in Reference [10]. In this method, the S-parameters are measured using a network analyzer connected directly to the Tx and Rx coils. The S-parameters were converted to Z-parameters to calculate the self-inductance, parasitic resistance and the coupling coefficient of the inductive link as follows:

$$L_1=\frac{Im\left(Z_{11}\right)}{\omega },L_2=\frac{Im\left(Z_{22}\right)}{\omega }$$

(12)

$$R_1=Re\left(Z_{11}\right),R_2=Re\left(Z_{22}\right)$$

(13)

$$k=\sqrt{\frac{Im\left(Z_{21}\right)Im\left(Z_{12}\right)}{Im\left(Z_{11}\right)Im\left(Z_{22}\right)}}.$$

(14)

The quality factors were then calculated from (6) and the PTE from (7). To calculate the parasitic capacitance, the inductance-frequency response was extracted using the network analyzer for each coil. Due to the parasitic capacitance $\left(C_p\right)$, the inductor has a maximum impedance point at the SRF. The reactance in the low frequency region below the SRF is inductive. After the resonant frequency, the capacitive reactance is dominant because of the parasitic capacitance.

The measurements, summarized in

Table 4. Measured coils’ electrical specification.

Coil	Symbol	WPT1	WPT2
Tx Coil	L1 (μH)	2.29	2.37
	R1 (Ω)	2.78	2.89
	Cp1 (pF)	3.83	3.69
	SRF1 (MHz)	53.74	53.74
Rx Coil	L2 (μH)	2.83	2.96
	R2 (Ω)	3.29	2.31
	Cp2 (pF)	2.61	2.48
	SRF2 (MHz)	58.61	58.71
Results	PTE (%)	80.32	82.72
	PDL (mW)	155.24	173.89

, show a good agreement between the calculation (Table 2), simulation (Table 3) and measurement results. The measured values of the parasitic resistance and capacitance are a little more than HFSS results but it has no considerable effect on the calculated PTE. The PTE values of 80.32% and 82.72% were achieved for the WPT1 and WPT2, respectively. To measure the PDL, the Keysight 33522B waveform generator (Keysight Technologies, Santa Rosa, CA, USA) was connected to the Tx coil via 0.5 Ω resistance as $R_s$, while Rx was connected to 100 Ω resistance as the load (see Figure 1). The Keysight MSOX3054 oscilloscope (Keysight Technologies, Santa Rosa, CA, USA) was used to measure the load voltage. The former has a PDL of 155.24 mW for $V_s=11.8 \mathrm{V}$ and the latter can deliver 173.89 mW to the load.

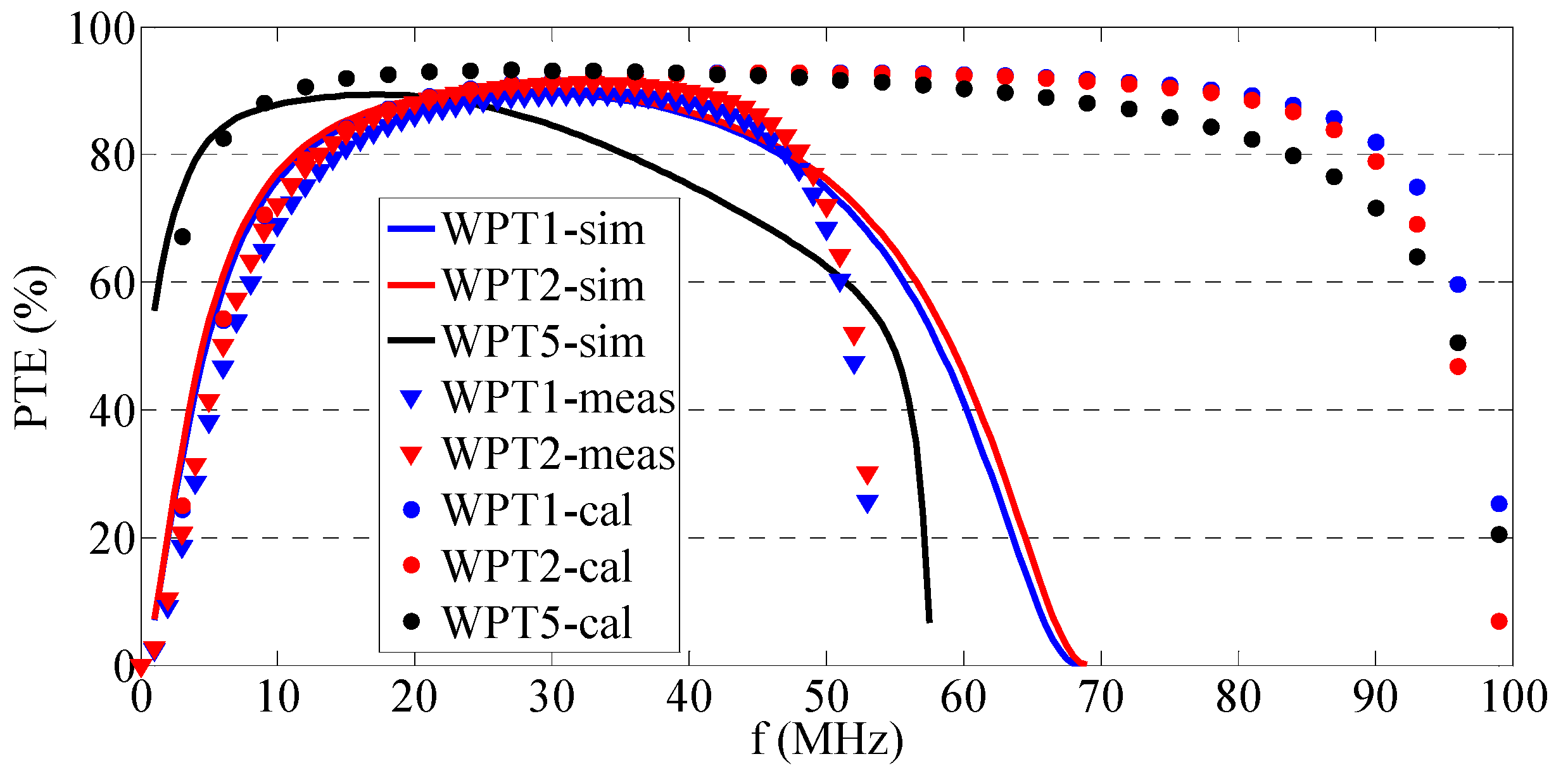

Figure 6 and Figure 8 show the calculated, simulated and measured PTEs versus the distance and frequency, respectively. The results show a close agreement between the simulated and measured PTEs. The results of simulation and calculation show that inductive links with parallel connection of load achieve better efficiency than that with series connection during changing the coils distance. However, the performances of both series and parallel connection comparable with respect to the frequency changes. Note that in Figure 8, the capacitors of LC tanks (i.e., C1 and C2) were tuned for each frequency to operate in the resonance mode.

7. Comparison

Different inductive links with different types of coil arrangements (i.e., multicoil structure), different types of coil (i.e., wire-wound coil, printed spiral coil) and with different operating frequency, relative coils distance, coil diameter, $R_s$ and $R_L$ were designed and implemented.

Table 5. Comparison with previously published works.

Ref.	Type of Links/Coils	Frequency (MHz)	Diameter of Tx Coil (mm)	Diameter of Rx Coil (mm)	Distance between to Coils (mm)	Source Resistance (Ω)	Load Resistance (Ω)	Power Transfer Efficiency (%)	Power Delivered to the Load (mW)
[4]	2-coil/Wire wound	13.56	125	40	100	0.5	5	28.4	79
	3-coil/Wire wound		117					36.1	92
	4-coil/Wire wound		150					42.8	114.4
	2-coil/Wire wound	0.145	750	500	200	0.5	20	60.8	176.4
	3-coil/Wire wound		620					69.3	169.3
	4-coil/Wire wound		343					66.7	163
[11]	2-coil/Printed spiral	5	40	20	10	Not considered	500	78	Not reported
[12]	2-coil/Printed spiral	13.56	38	10	10	Not considered	500	72.22	Not reported
[10]	2-coil/Printed spiral and wire wound	13.56	168	40	120	0.1	100	15	170
	3-coil/Printed spiral and wire wound							37	260
	4-coil/Printed spiral and wire wound							35	4.4
[13]	4-coil/Multi strands Litz wire	0.7	64	22	20	5.6	100	82	Not reported
[16]	4-coil/Printed spiral (2 coils for power transfer)	1	36.4	13.67	10	Not mentioned	Not mentioned	69.8	Not reported
[18]	3-coil/Printed array	0.2	300 × 300	54	<10	1	10	83.3	3870
[19]	2-coil/Multi strands Litz wire	3	40	15	12	5.1	100	35	Not reported
	3-coil/Multi strands Litz wire			36	12	5.1	100	65	Not reported
This work	2-coil/Printed spiral	13.56	40	20	10	0.5	100	82.72	173.89

summarizes the results of the comparison between the WPT designed by the proposed optimization method and previously published inductive links. All the inductive links mentioned in Table 5 were designed for biomedical applications except for [4,18]. The WPT in Reference [4] was designed for industrial applications such as wireless charging. 3-coil array configuration designed for animal research and charging systems. It can be seen that the best result reported in the previously published works for biomedical application is 82% in a 4-coil configuration, with external and implanted coils that have outer diameters of 64 mm and 22 mm and a separation distance of 2 cm at a carrier frequency of 700 kHz [14]. However, the system is based on a multilayer helical coil that uses the Litz wire with a 2.5 mm implanted coil thickness and 5.5 mm transmitter thickness. In a 2-printed spiral coil configuration, a PTE of 78% and 72% for a separation distance of 1 cm was reported in References [11,12], respectively. However, the source resistance had not been taken into account in the design equations. It should be noted that the source resistance has a significant effect on the link performance. The best result reported in a previously published system is 83%, which belongs to a 3-coil array configuration with a Tx coil of 300 × 300 mm array size and Rx coil of 54 mm outer diameter for the separation distance below 1 cm at a carrier frequency of 200 kHz [18]. The 2-coil configuration design proposed in this paper presents a PTE of 83% for separation distance of 1 cm with outer diameters of 40 mm and 20 mm for the transmitter and implanted coils, respectively. The measurement results of the current study show that a maximum PDL of 173.89 mW with $V_s=11.8\mathrm{V}$ and $R_s=0.5$ Ω was obtained. For a 2-printed spiral coil configuration, a maximum PTE of 15% and PDL of 170 mW with $V_s=1\mathrm{V}$ and $R_s=0.1$ Ω has been already reported [12], however, an input power of 1133 mW is required to deliver 170 mW to the load. The results of the previous works (Table 5) show that the power carrier frequency, diameter of coils, coils distance and coil type have significant effect on the efficiency of WPT. Increasing the power carrier frequency and the diameter of coils can increase the efficiency but increasing the distance between coils reduce the efficiency. Moreover, increasing the number of coils can improve the efficiency.

8. Conclusions

A systematic optimization approach based on the genetic algorithm was proposed for designing inductive links. The method was applied to optimize PSC geometries in order to achieve the highest PTE in a 2-coil configuration with series and parallel connections of load for biomedical applications. However, other figure of merits (e.g., PDL, voltage gain and bandwidth) can be considered and included in the design of an efficient WPT system. The results show that compared with the traditional inductively coupled 2-coil systems or even 3- or 4-coil inductive links, the proposed approach significantly improves the power transfer efficiency. The experimental results were in good agreement with the theoretical and simulation results. The results demonstrated that the WPT with parallel connection of load could achieve a higher PTE than that with series connection. In contrast, the PDL of series connection was higher than that of parallel connection. Moreover, the reflected impedance of the inductive link with parallel connection of load is very sensitive to the load and distance variations (Figure 5). The results of this work show that the 4-coil WPT can be optimized to achieve higher power transfer efficiency than the 2-coil configurations. However, such performance comes at the cost of additional inductors and capacitors in the system, which is not suitable for implantable applications. In general, the 2-coil systems are suitable for short-range applications and their energy efficiencies drop rapidly with mid-range transmission distances [12]. Moreover, the WPT with 2-coil configuration provides a lower reflected resistance than the 3- or 4-coil configurations [12]. The proposed prototype provides a larger bandwidth of operation compared with the results reported in References [10,12]. Furthermore, the efficiency of the prototypes is robust with respect to the variations in $R_s$ and $R_L$. Another positive point of the proposed design is the stability of PTE against shifting in the resonant frequency (Figure 8). The results show that the robustness of the WPT with parallel connection of load is higher than that with series connection. Interestingly, it is observed that the load resistance variations have more effect on the reflected resistance in the inductive link with parallel connection of load than that with series connection. An important challenge in the design of an inductive link for the implantable device is the load variations, which prevent the inductive link with parallel connection of load from operating at resonance and cause the PA to operate under non-optimal conditions. Nevertheless, it should be noted that in inductive links with series connection, the resonant frequency does not depend on the load and the reflected impedance only has real value during load variations.
