Conceptual Design Development of Coal-to-Methanol Process with Carbon Capture and Utilization

Abstract

Methanol is a clean fuel and an important feedstock for the petrochemical industry. Conventionally, the coal-to-methanol process generates a substantial amount of CO₂ emissions with a low yield of methanol. In this study, we propose the conceptual design development of coal-to-methanol process using captured CO₂ from the gasification plant by implying process intensification. The base case and three alternative designs have been developed using the Aspen Plus to analyze the process performance. The four designs have been compared in terms of their energy consumption, economics, methanol production rate, and carbon emissions while maintaining the gasifier operation conditions, sulfur content in the syngas, and stoichiometric number at the methanol synthesis reactor. Among the developed designs, the most feasible design requires an energy requirement and product cost of 21.9 GJ and $142.5 per ton of methanol product. The study also showed that the coal-to-methanol process assisted with external hydrogen from electrolysis plant for achieving higher production rates and low CO₂ emissions is currently not economical due to the high H₂ cost.

1. Introduction

Despite significant advancements and commercialization of the renewable energy, fossil fuel remains the major contributor in the global energy share. Meanwhile, the impact of climate change and rising carbon emissions are serious concerns that need to be responded quickly. Intergovernmental Panel on Climate Change (IPCC) and other global agencies have warned that if not enough action is taken rapidly, the climate change will bring extensive droughts and famines, spread of diseases and displacement of populations [1]. Carbon capture, utilization, and storage (CCUS) is a potential technology that can help with the reduction of CO₂ emissions. The conversion of CO₂ to valuable chemicals offer cleaner environment as well as an economic advantage. Among many options, CO₂ conversion to methanol is one of the key routes and is important feedstock for the downstream production of many other valuable chemicals. Due to its clean combustion characteristics, many countries are promoting methanol blending with the gasoline for its usage in the vehicles. Methanol is also gaining fast acceptance as a marine fuel because of its low emissions compared to the heavy fuel oil [2]. In addition, methanol has a wide range of applications including biodiesel production, as a solvent in paints and resins, as an antifreeze agent, and in denitrification of wastewater [3,4]. Methanol has an ever-increasing strong market demand and its market increased with a compound annual growth rate (CAGR) of 6% from 2013 to 2018 and is forecasted to increase with a growth rate of 5% in the next four years mainly led by methanol-to-olefins (MTO) [5]. Currently, China is the largest consumer of global methanol production, accounting for around 58% of the methanol usage [5].

Currently, most of the methanol is produced by the catalytic reaction of synthesis gas as shown in Equation (1). Synthesis gas is mainly a mixture of gases containing H₂, CO and CO₂ and is mostly produced through the steam reforming of natural gas [6]. Figure 1 shows the simple process flow diagram for the methanol production from the reforming of natural gas.

CO + 2H₂ ↔ CH₃OH   ∆H = −90.64 kJ/mol

(1)

In recent years, direct hydrogenation of CO₂ for methanol production has been a subject of an extensive research due to an alarming level of CO₂ in the atmosphere. Many studies have been conducted exploring the thermodynamic, kinetic, catalytic, and process design aspects of CO₂ conversion to methanol. Nguyen and Zondervan [7] performed the economic evaluation of CO₂ to methanol routes including hydrogenation, bi-reforming, and tri-reforming at three different capacities. Their results showed that bi- and tri-reforming offer 37% and 39% lower total annual cost (TAC) respectively compared to the direct CO₂ hydrogenation route. Leonzio et al. [8] studied various reactor configurations for CO₂ to methanol hydrogenation reaction. They reported the reaction conversion to be 38%, 58% and 69% for once through reactor, membrane reactor and reactor with recycle respectively. Tamnitra et al. [9] performed the kinetic modelling of methanol synthesis reaction by modifying the work of Setinc and Levec [10] to match the experimental data. Lee et al. [11] proposed an economically optimized design using complex superstructure optimization. The study found that the CO₂ conversion can be increased to 52% using a multistage reactor design with inter-stage product recovery. Xiang et al. [12] proposed the methanol and hydrogen production through chemical looping reforming process by integrating the combustion process to utilize the CO₂ emissions. Kim et al. [13] performed the techno-economic evaluation for the poly-generation of methanol, power and heat from the coke oven gas as the feedstock. Similar analysis was performed by Ahmed [14] with the integration of a coal gasification and natural gas reforming process for the methanol production.

Conventionally, the catalyst employed for methanol synthesis is a combination of Cu/ZnO/Al₂O₃ as reported in the literature. Recently, Agarwal [15] proposed CO₂ hydrogenation using metal-organic frameworks (MOFs) for an improved catalytic activity and selectivity of the catalyst. Ting et al. [16] reported the hydrogenation of CO₂ to methanol under low reaction temperature condition using TiO₂ supported catalysts. Li et al. [17] studied the CO₂ hydrogenation Cu/AlCeO catalyst and reported that the Cu/AlCeO catalyst had the lowest apparent activation barriers for CO₂ activation and methanol synthesis.

One of the key economic hurdles in the production of methanol via CO₂ hydrogenation is the source of H₂. The production of H₂ using the conventional reforming processes is energy intensive and contribute to carbon emissions. Some studies have explored the generation of renewable H₂ integrated with the methanol synthesis process. Van-Dal et al. [18] designed and simulated the conversion of CO₂ and H₂ to methanol using Aspen Plus. They proposed to capture CO₂ from a coal fired power plant and produce H₂ from the water electrolysis. Their results showed that 1.6 ton of CO₂ can be abated per ton of methanol production. Similarly, Asif et al. [19] studied the methanol production assuming the H₂ from the electrolysis unit and CO₂ stream from 600 MW supercritical coal power plant using post-combustion chemical solvent based technology. Charoensuppanimit et al. [20] proposed to utilize H₂ as a by-product produced from the sodium methoxide (NaOCH₃) production integrated with methanol synthesis process. A chemical reaction between sodium hydroxide and methanol releases a large amount of H₂ that can be utilized to produce back methanol through CO₂ hydrogenation. Kiss et al. [21] simulated the methanol synthesis process by CO₂ hydrogenation using wet hydrogen by-product from the chlor-alkali production. Chlor-alkali process produces wet H₂ as a by-product by performing the salt electrolysis. The energy analysis of this study showed the electricity consumption of 550 kWh and 0.48–1.16 ton steam per ton methanol produced. Luu et al. [22] studied the dry reforming of CO₂ with methane to produce syngas for the methanol production. They evaluated five scenarios for the CCU-methanol system and reported the DMR with additional H₂ from carbon-free water splitting plant to be the best case in terms of CO₂ emission intensity.

Considering the availability and price fluctuations of the natural gas, alternative feedstocks such as coal and biomass are under investigation to produce syngas. Puig-Gamero et al. [23] simulated the pine gasification process for the production of methanol and performed a sensitivity analysis on some of the variables in the gasification and methanol synthesis section. Liu [24] studied the effect of plant size on the methanol production cost using coal and biomass as the feedstock. The study concluded the coal gasification to be more economical compared to the biomass or biomass-coal feedstocks. Herdem et al. [25] studied the biomass gasification assisted with photovoltaic hydrogen production system for the methanol production under different climatic conditions of Canada and Italy. Rivarolo et al. [26] compared the methanol production from different renewable sources such as solar, wind and hydroelectric to produce renewable H₂. Their results showed that there is a great potential for methanol production from renewable sources provided governments provide financial incentives. Wang and Demirel [27] studied the oxy-combustion plant with carbon capture to produce power and methanol through coal gasification. They reported the input energy of 0.56 MW per ton of methanol produced. The study performed a life-cycle assessment to estimate the GHG emissions, water consumption, and energy consumption for coal to methanol process. Similar studies [28,29] have been conducted to analyze the technical and economic aspects of combined power and methanol production process. Gu et al. [30] proposed a coal-based gasification process for the co-production of LNG and methanol. The study performed the energy and economic analysis for the co-production process and reported the IRR to be 19%.

All the existing coal-to-methanol (CTM) plants employ coal gasification to produce syngas. Depending on the coal composition and gasifier technology, the typical syngas ratio (H₂:CO) produced from the coal gasification process is in the range of 0.5–0.95 [31,32] which does not achieve the required stoichiometric ratio as shown in Equation (1). Therefore, the hydrogen amount is increased by reacting the CO with steam through water gas shift (WGS) to produce additional CO₂ which is usually vented to the atmosphere. Similarly, most of the previous studies focusing on CTM process considered the sequestration of CO₂ produced from the process and methanol was mainly produced from CO as shown in Equation (1). This study is focused on the conceptual design of CTM process where the energy intensive carbon capture and WGS units can be removed from the process while utilizing the CO₂ for the methanol production. The goal of this work is to propose an improved design for CTM process using process intensification concept whereby minimizing the CO₂ emissions from the process. First a base case model is developed by modifying the CTM process reported in literature [33]. Then, three alternative designs have been developed, implying the principles of process intensification to study the feasibility of the proposed designs. Finally, a detailed energy and cost analysis has been performed to ascertain the techno-economic viability of the processes.

2. Simulation Methodology

The general methodology followed in this study comprise of following steps: design conceptualization, process simulation and techno-economic analysis. First, three alternative CTM processes are developed by design intensification of the base case design that can reduce the carbon emissions while maximizing the methanol production. In order to have a fair comparison among various design alternatives, the inlet coal feed rate is fixed for all the cases. In addition, the maximum allowed H₂S concentration in the syngas is 100 ppbv, while the CO₂ removal rate is assumed to be 95%. The stoichiometric number at the inlet of methanol synthesis reactor is maintained at 2 for all the cases. Second, the simulation models have been developed using a commercial tool Aspen Plus. The thermodynamic package employed is the Peng-Robinson with Boston Mathias (PR-BM) equation of state (EOS) as the base method. This property method is recommended for the petrochemical applications where non-polar or mildly polar mixtures of hydrocarbons and light gases, such as CO₂, H₂S, and H₂, are present [34]. Depending on the coal type, it may have a varied composition and heating value. In this study, coal is defined as an unconventional component for the purpose of simulation and the composition of coal is shown in

Table 1. Composition of coal used in the study.

Proximate Analysis		Ultimate Analysis		Sulfur Content
Element	Value	Element	Value	Element	Value
Moisture	9.53	Ash	9.66	Pyritic	100
Fixed Carbon	50.91	Carbon	74.45	Sulfate	0
Volatile matter	39.45	Hydrogen	4.95	Organic	0
Ash	9.64	Nitrogen	1.58
		Chlorine	0.065
		Sulfur	2.44
		Oxygen	6.84

. The heating value and density of the coal are specified using the HCOALGEN and DCOALGEN models respectively in the Aspen Plus. RGIBBS reactor model which is based on the minimization of Gibbs free energy is used as the gasifier in the simulation. WGS reactor is based on the REquil reactor model since the reaction stoichiometry is known and the reaction reach its chemical equilibrium. For the methanol synthesis, RPlug reactor has been employed using Vanden Bussche and Froment [35] reaction kinetics with adjusted parameters [18]. RPlug assumes that perfect mixing happens in the radial direction and that no mixing happens in the axial direction. The key specifications used in the Aspen Plus simulations are shown in

Table 2. Key specifications used in the simulation.

Equipment	Description	Aspen Model
Coal flowrate	Coal = 34.95 kg/s (65% coal, 35% water)	-
Gasifier	Temperature = 1300 °C Pressure = 50 bar Carbon conversion = 99%	RYield, RGibbs
Water gas shift	Reactor configuration = 2 stage Overall CO conversion = 99.5%	REquil
Methanol reactor	Temperature = 210 °C Pressure = 76 bar Cu-based catalyst Catalyst density = 1725 kg/m3 Bed voidage = 0.4	RPlug
Methanol distillation	Product purity ≥ 99 mol.% Reflux ratio = 1.5	Radfrac

. Finally, the proposed designs are compared in terms of energy consumption, methanol production, carbon emissions, and economic feasibility.

3. Process Description

3.1. Base Case Design

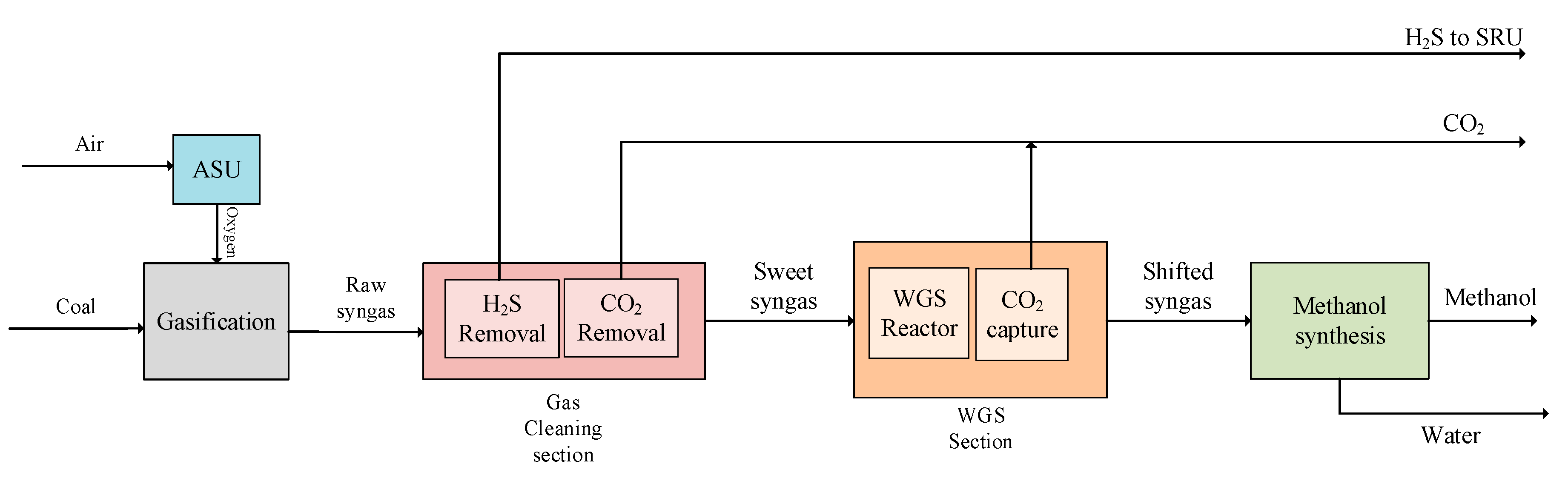

The CTM base case design consists of four steps as shown in Figure 2. The first section in the process is coal preparation and gasification where the coal is grinded to prepare a coal slurry with 35 wt.% water. A calculator block is installed using a Fortran statement to calculate the required water flowrate for the desired coal slurry composition. The coal slurry is pumped to an elevated pressure of 50 bar before feeding it to the gasifier. The high temperature entrained-flow gasifier is fed with a controlled amount of 95 mol.% pure oxygen. The coal is gasified at 1300 °C and 50 bar with 99% carbon conversion forming ash, slag and raw syngas. Most of the slag leaves at the bottom of the gasifier, while the ash and other particulates are removed in a cyclone separator. The high temperature and high pressure raw syngas is cooled by exchanging heat to produce steam which is used to generate power through a steam cycle. Steam generated from the gasifier is also used in the WGS which is located downstream of the syngas cleaning unit. The raw syngas contains varying concentrations of H₂S, COS and SOx depending on the coal type used. These sulfur based compounds must be removed from the syngas as they can poison the catalyst employed in the WGS reactor and methanol synthesis reactor. The maximum H₂S quantity allowed in the methanol synthesis reactor should be no more than 100 ppbv. For this purpose, the raw syngas is routed to the gas cleaning unit, where a physical solvent is employed to remove the unwanted sulfur components. The gas cleaning unit is a conventional absorber-regenerator system where low temperature methanol at −34 °C is used as a solvent to absorb the sulfur components along with some CO₂ in the absorber. The syngas free of H₂S is then routed to CO₂ capture unit where chilled methanol is employed the remove 95% of the CO₂. Design Spec function in Aspen Plus has been used to adjust the lean solvent flowrate for the desired level of acid gases removal from the syngas. The syngas produced from the coal gasification usually have a low stoichiometric number (SN) which is defined in Equation (2).

$$\mathrm{SN}=\frac{{\mathrm{H}}_2-{\mathrm{CO}}_2}{\mathrm{CO}+{\mathrm{CO}}_2}$$

(2)

It has been widely reported in the literature that a methanol reactor should be operated with a stoichiometric number of 2 for maximum efficiency [8,36,37]. Therefore, in order to increase the H₂ content, the cleaned syngas is passed through a two-stage WGS unit where the CO reacts with steam to form CO₂ and H₂ as shown in Equation (3).

CO + H₂O ↔ CO₂ + H₂   ∆H = −41 kJ/mol

(3)

The steam supplied to the WGS reactor comes from the gasification section. The WGS reaction is an exothermic reaction increasing the temperature of the first stage effluent to around 395 °C which is cooled before feeding it to the second reactor. The steam flowrate required in the WGS reactor is manipulated using Design Spec function to achieve 99.5% conversion of CO. Additional CO₂ capture unit is installed in the WGS section to remove the excess CO₂ in order to maintain the SN of 2. The SN is maintained by adjusting the CO₂ removal rate in the WGS section using the Design Spec function. The clean and shifted syngas is then fed to the catalytic packed bed methanol reactor at 210 °C and 76 bar where the crude methanol is produced by the reaction shown in Equation (4).

CO₂ + 3H₂ ↔ CH₃OH + H₂O   ∆H = −49.47 kJ/mol

(4)

The crude methanol is separated from the unreacted gas stream by reducing the reactor effluent temperature and pressure. The unreacted syngas is recycled back to the reactor with small amount being purged to limit the inert gas accumulation, while the 99.4 mol.% pure methanol is produced by distillation.

3.2. Modified Design 1 (MD1)

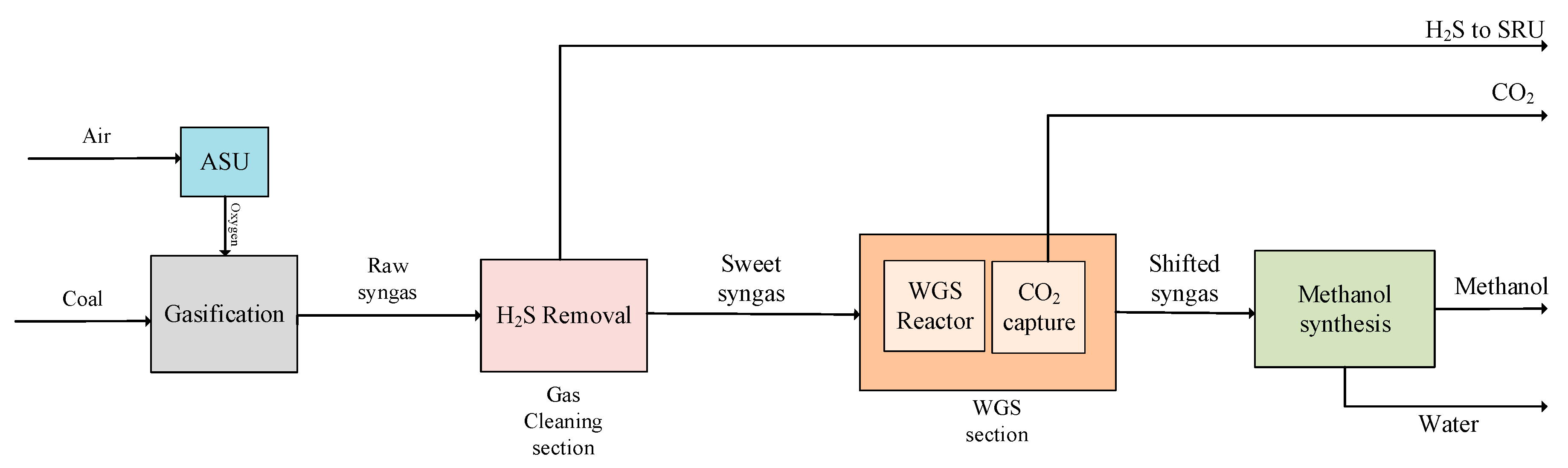

The modified design 1 proposed in this study contains the gasification, H₂S gas cleaning, WGS, and methanol synthesis sections similar to the base case design as shown in Figure 3. However, the main difference is the absence of CO₂ removal unit in the gas cleaning section compared to the base case design. In MD1, all the CO₂ is captured after the WGS reactor in contrast to the base case design where most of the CO₂ produced in the gasifier is removed prior to the WGS reactor and CO₂ produced from the shift reaction is captured in a separate unit. This design alternative offers energy and cost savings due to the removal of CO₂ capture unit in the gas cleaning section. On the other hand, the WGS reactor size and utilities consumption are increased because of the larger syngas flowrate. All the design variables are kept same as that of the base case design.

3.3. Modified Design 2 (MD2)

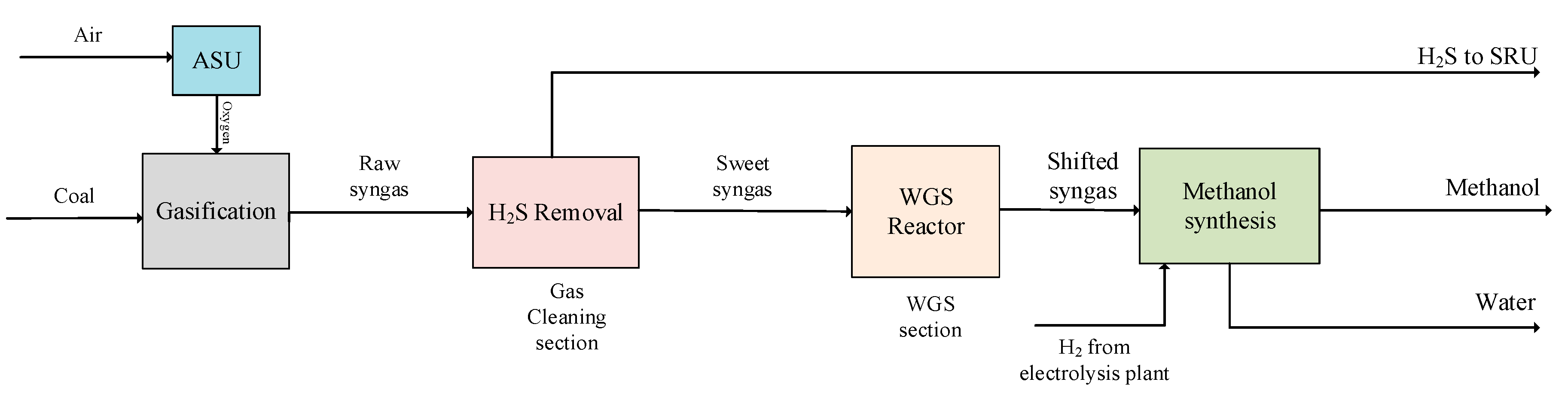

The modified design 2 contains the gasification, H₂S gas cleaning, WGS and methanol synthesis sections, however, no CO₂ is captured and removed from the process. Figure 4 shows the simplified block flow diagram for the MD2. The CO₂ produced from the gasification unit and WGS reaction is directed to the methanol synthesis. However, in order to maintain the SN at the inlet of the methanol reactor, an additional quantity of external H₂ is added to the process. In this study, the external H₂ is assumed to be available from the alkaline water electrolysis plant costing an energy consumption of 4.5 kWh/m³ of H₂ [38]. The energy consumption, and consequently the production cost of H₂ from the electrolysis, is on the high side compared to the conventional process mainly because of the expensive electrodes employed in the process. This design alternative offers significant energy savings in gas cleaning and WGS sections together with higher methanol production and low carbon emissions. However, all of these benefits are negated by the high cost of external H₂ supply to maintain the SN in the methanol synthesis section.

3.4. Modified Design 3 (MD3)

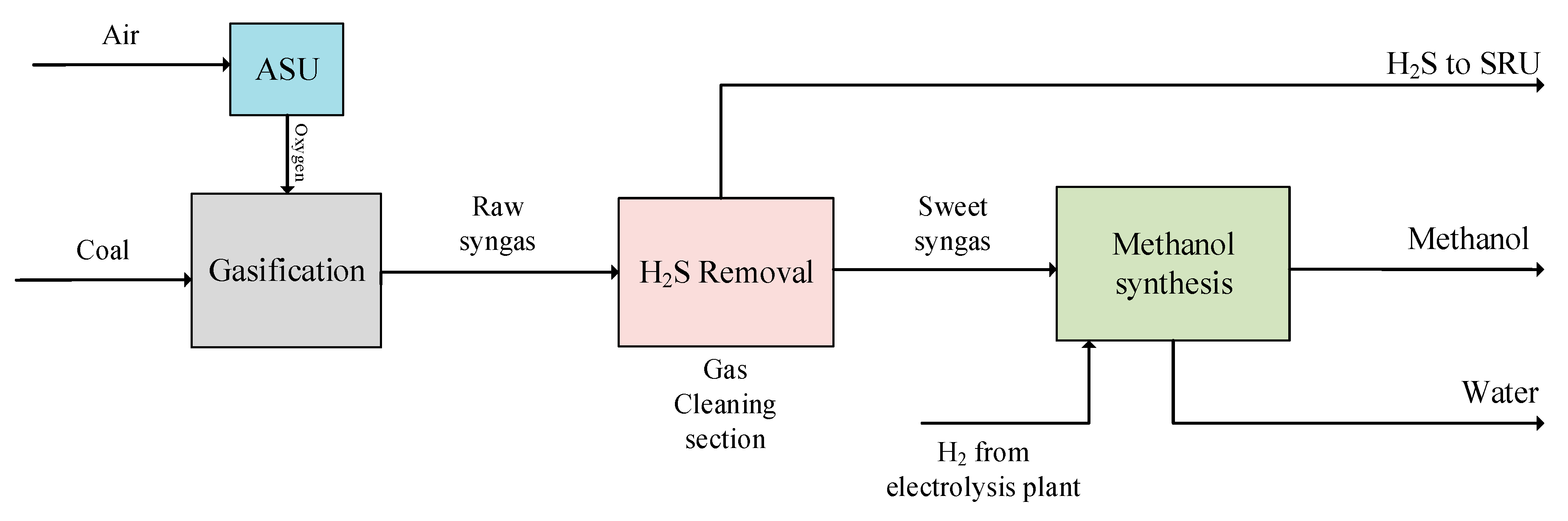

In modified design 3, both the CO₂ cleaning and WGS units have been removed from the flowsheet as shown in Figure 5. The syngas from the gasification unit is sent to the H₂S cleaning unit for the removal of sulfur compounds. The cleaned syngas mainly containing CO, CO₂ and H₂ is then routed to the methanol synthesis block. Similar to MD2, additional H₂ is added from the electrolyser in order to maintain the SN at the inlet of the methanol reactor. This design offers better process performance in terms of lower carbon emissions, higher methanol production and lower capital cost compared to the MD2-CTM. However, similar to the MD2-CTM case, an expensive external H₂ supply from the electrolyser makes the overall process infeasible. The quantitative analysis in terms of design performance indicators is discussed in the following sections. The stream information for all the four cases is shown in

Table 3. Main stream information for the four cases.

		Coal Feed	Raw Syngas	H2S to SRU	CO2		Sweet Syngas		Shifted Syngas			Ext. H2	Methanol
		BC/MD1/MD2/MD3	BC/MD1/MD2/MD3	BC/MD1/MD2/MD3	BC	MD1	BC	MD1/MD2/MD3	BC	MD1	MD2	MD2/MD3	BC	MD1	MD2	MD3
Temp.	°C	55	152.5	−9.5	−31.6	−27.6	93.3	93.3	−1.2	−2.4	0.0	25.0	52.5	52.3	52.5	33.1
Pressure	bar	50	27.6	1.1	1.0	1.0	27.6	27.6	24.1	24.1	24.1	30.0	1.0	1.0	1.0	1.0
Mass flowrate	t/h	193.6	284.7	13.0	148.1	157.3	169.5	224.3	165.2	165.7	322.4	21.5	81.6	86.0	174.6	197.6
Mole flowrate	kmol/h		13,924	314	3387	3588	9714	10,970	12,815	12,850	16,420	10,660	2552	2693	5463	6168
Comp.	mole.fr
N2		-	0.009	0.002	0.001	0.000	0.012	0.011	0.009	0.009	0.007	0.000	0.000	0.000	0.000	0.000
Ar		-	0.009	0.002	0.001	0.001	0.012	0.011	0.009	0.009	0.007	0.000	0.000	0.000	0.000	0.000
H2O		-	0.190	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.008	0.008	0.008	0.005
CO		-	0.394	0.025	0.006	0.000	0.561	0.499	0.002	0.002	0.002	0.000	0.000	0.000	0.000	0.000
CO2		-	0.107	0.783	0.985	0.992	0.002	0.113	0.244	0.244	0.407	0.000	0.002	0.002	0.002	0.005
H2S		-	0.004	0.162	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
H2		-	0.288	0.005	0.003	0.003	0.413	0.366	0.736	0.736	0.576	1.000	0.000	0.000	0.000	0.000
CH3OH		-	0.000	0.016	0.003	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.990	0.989	0.990	0.990

.

4. Results and Discussions

4.1. Energy Analysis

Energy efficiency is calculated for the developed designs based on the first law of thermodynamics as shown in Equation (5).

$$\mathrm{Energy}\mathrm{Efficiency}=\frac{\mathrm{Energy}\mathrm{content}\mathrm{in}\mathrm{MeOH}+\mathrm{Heat}\&\mathrm{Power}}{\mathrm{Feed}\mathrm{heating}\mathrm{value}+\mathrm{Energy}\mathrm{Consumed}}\times 100 [\%]$$

(5)

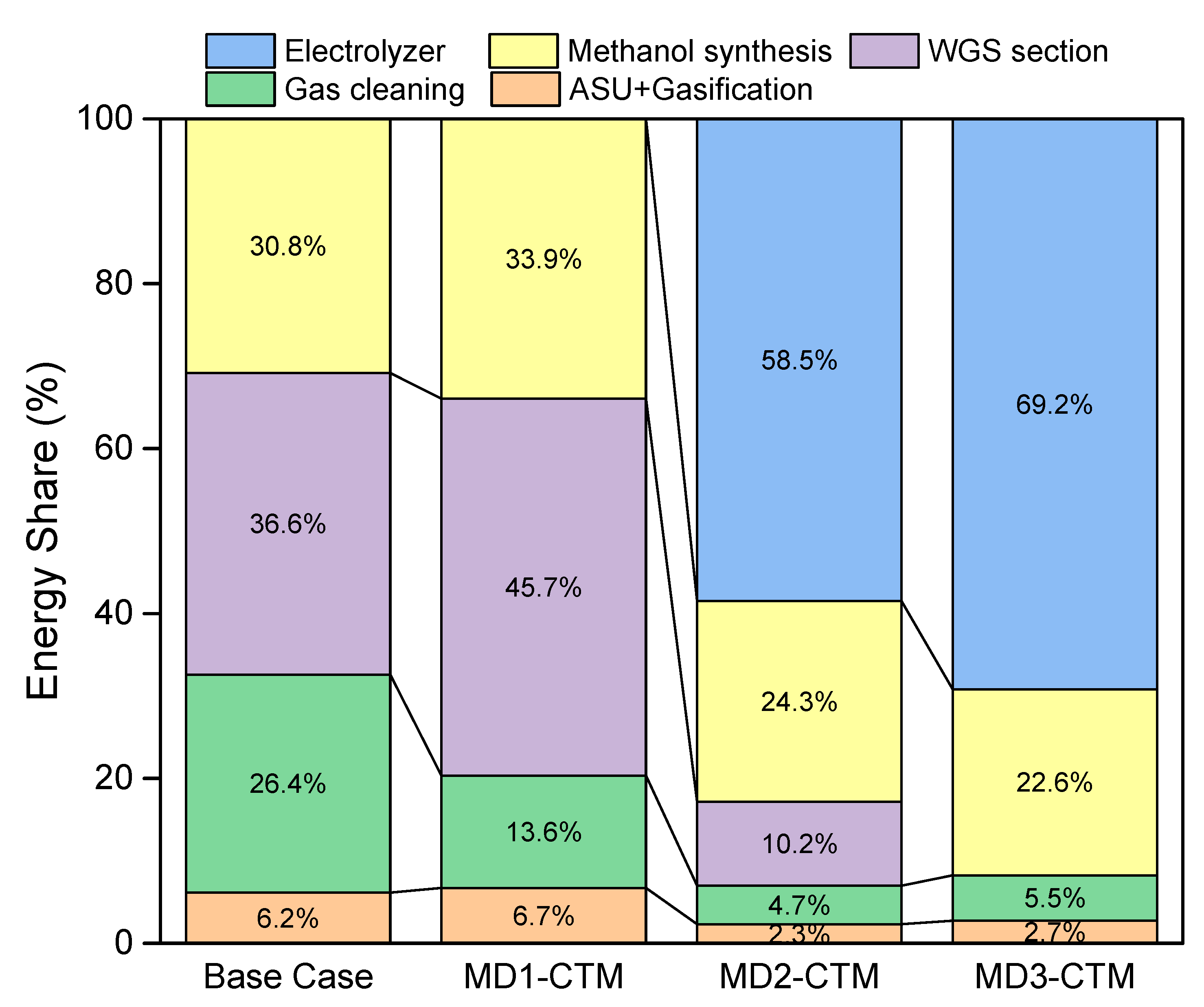

The calculated energy efficiencies for the four configurations are shown in Figure 6. The results show that base case design has the lowest efficiency among all the designs while MD3 has the highest efficiency. Feedstock heating value is same for all the cases, however, amount of methanol produced and energy requirement for each design is different. A detailed energy analysis has been performed in order to identify and improve the most energy consuming sections. Figure 7 shows the breakdown of energy requirement in terms of percent energy share for the base case and modified designs. For the base case and MD1, WGS section is the most energy consuming part of the plant contributing to 36% and 45% respectively, of the total energy requirement. The second most energy consuming section for the base case and MD1 is methanol synthesis section. Methanol synthesis is one of the energy intensive sections in the CTM process because of the severe operating conditions required in the methanol reactor. The methanol reactor operates at a high temperature and high pressure for the conversion of feed gas streams to the methanol product. In this study, the reactor effluent stream is at 270 °C and 76 bar. In order to have an efficient separation structure, the reactor effluent stream is cooled down and the pressure is reduced to near atmospheric pressure conditions. The single pass conversion of methanol reactor is low, which requires the huge recycle stream to be compressed back to the reactor pressure. Therefore, the above-mentioned reactor feed preparation and separator feed preparation steps require significant energy, with cooling being the most contributing utility in the methanol synthesis section. The energy requirement in the gas cleaning section for MD1 is almost reduced to half compared to the base case because of no CO₂ capture unit. However, the consequence of this change is visible in the WGS section of MD1, where the energy requirement increased significantly, since CO₂ removal unit is installed downstream of WGS reactor. Since, the coal feed rate and gasification process is same for all the cases, the energy requirement for (ASU + Gasification) for all the designs is 42.47 MW. In the case of MD2 and MD3, the energy requirement share in the cleaning section reduces significantly, since only H₂S is removed from the syngas and no CO₂ capture unit is installed. However, in order to maintain the stoichiometric ratio of 2 at the inlet of methanol synthesis reactor, external H₂ is supplied for MD2 and MD3, which is assumed to be supplied by the electrolysis plant. The results show that, electrolyser plant contributes more than 58% and 69% of the energy requirement in the case of MD2 and MD3 respectively. An insight into the methanol synthesis section reveals that around 70% of the energy requirement is from the cooling utilities, while the heating utilities and electricity to operate compressors contribute around 20% and 10%, respectively.

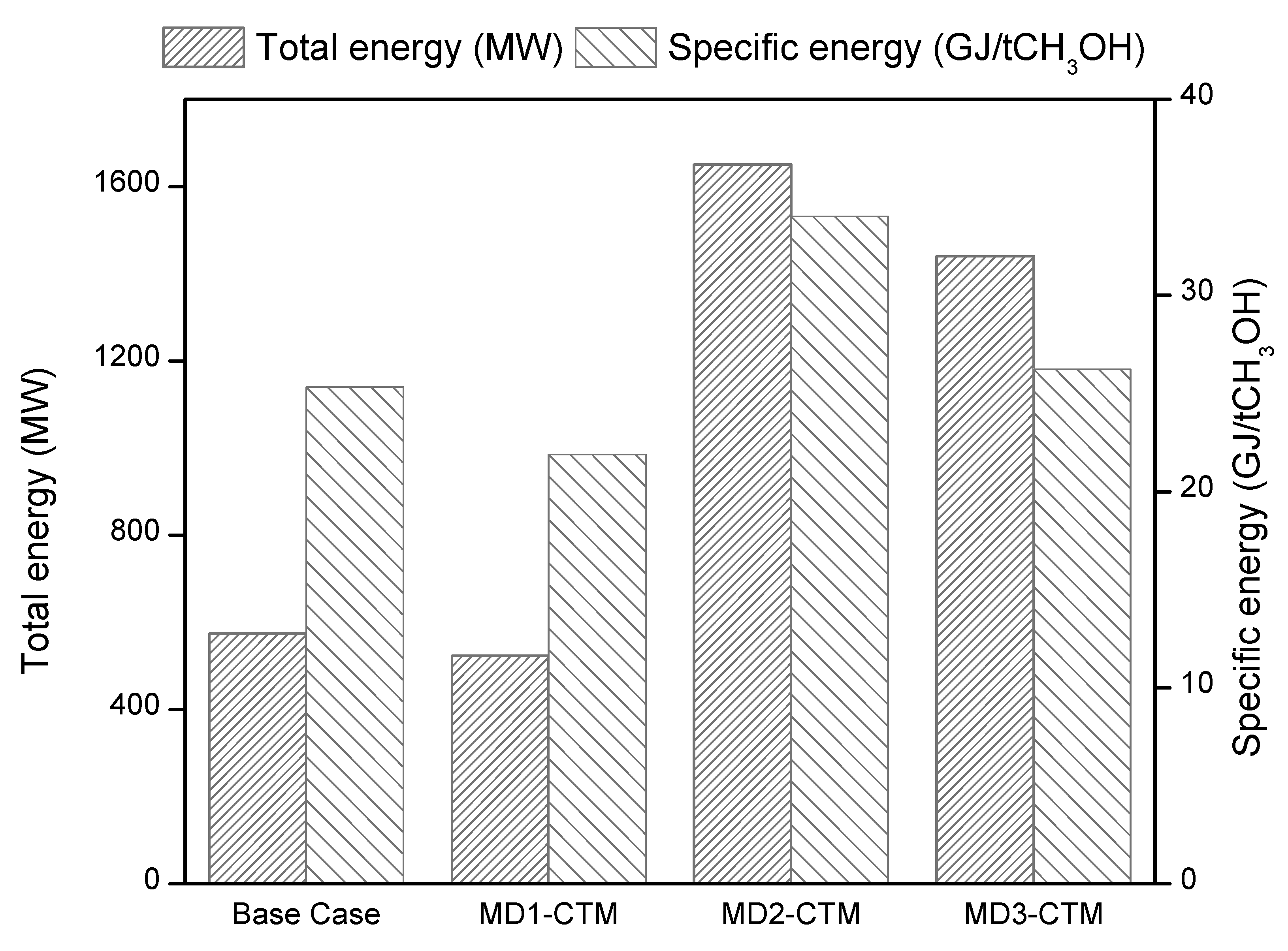

Figure 8 shows the total energy requirement and energy requirement per ton of methanol produced. The results show that MD1 requires the least amount of energy per unit production of methanol, while the MD2 consumes the most energy per unit of methanol product. In the case of MD1 where CO₂ capture unit is only located in the WGS section, around 9% energy savings are achieved compared to the base case design. This improvement is mainly attributed to the better resource utilization and optimizing the CO₂ capture rate. The energy requirement per unit ton of methanol production reported in the literature based on the various reforming technologies range between 33.4–37.2 GJ [39]. As evident from the results, energy consumption per unit ton of methanol production for all the designs is competitive compared to the reforming technologies.

4.2. Methanol Production Rate

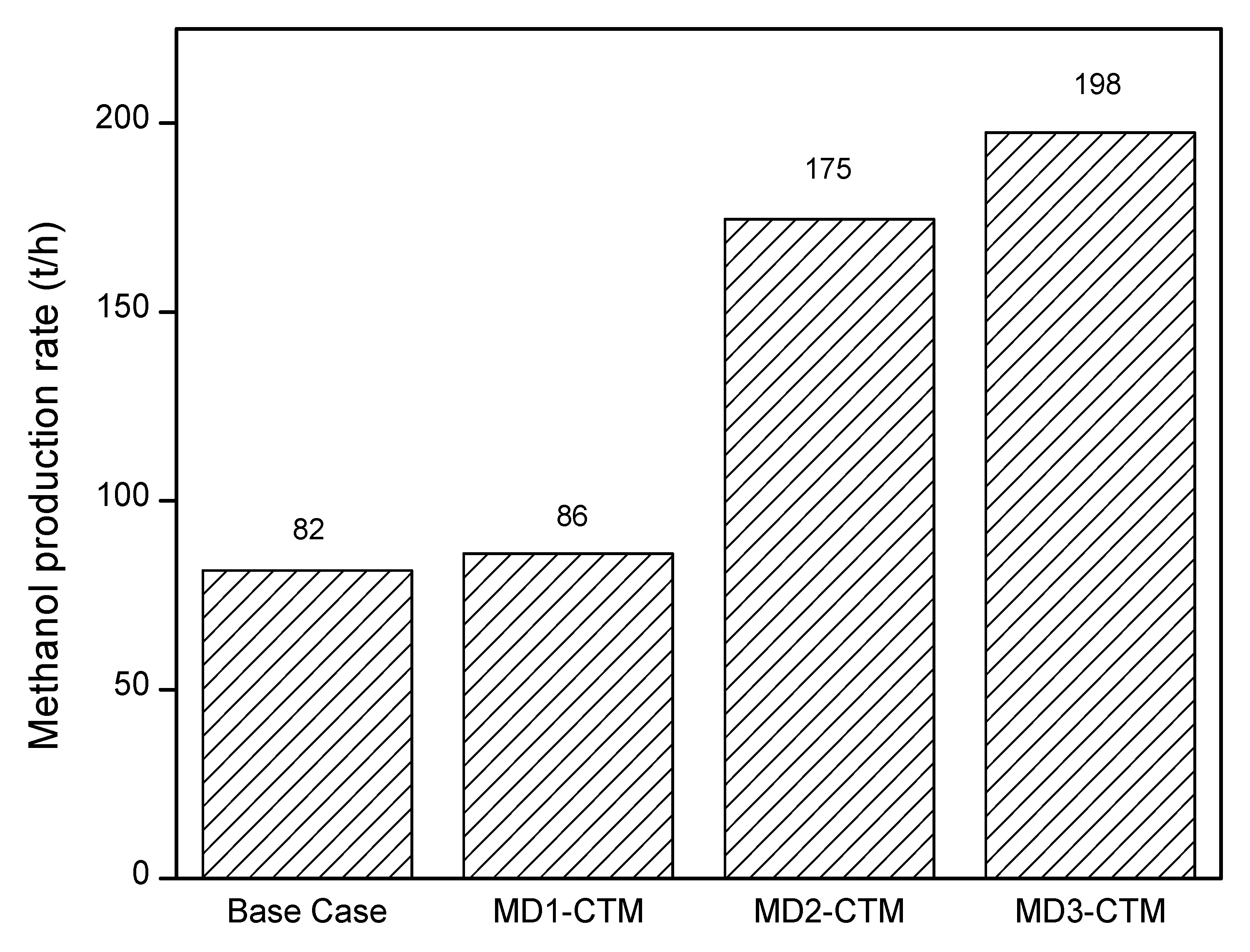

All the designs for the methanol production developed in this study assume an identical coal feed rate of 125.8 ton/h. Hence, the composition of raw syngas produced at the outlet of the gasifier is same for all the designs. However, due to different design configurations based on the availability and location of CO₂ removal unit, WGS unit and external H₂ supply, the amount of methanol production varies for all the designs. Figure 9 shows the methanol production rates for the base case, MD1, MD2 and MD3. Methanol production increases around 5% for the MD1 compared to the base case because of an optimized CO₂ removal rate. On the other hand, methanol production for MD2 and MD3 increased around 2.1 and 2.4 times compared to the base case design. The significant increase in the methanol production is due to the presence of an extra amount of carbon in the methanol reactor which has not been removed in the CO₂ capture unit. The results show that the single pass conversion for the base case, MD1, and MD2 is 19.6%, 22.5%, and 20.2% respectively. On the other hand, in the case of MD3 where the feed at the inlet of methanol synthesis reactor contains CO in addition to H₂ and CO₂, the production of methanol is positively impacted by the CO presence. Single pass conversion is calculated to be 13.5% and 57.8% for the CO₂ and CO, respectively.

4.3. Carbon Emissions

The main aim of various designs developed in this study is to utilize the CO₂ emissions produced from the CTM process. Therefore, it is pertinent to investigate the amount of CO₂ emissions produced from the proposed designs. Some of the standard environmental performance indicators such as CO₂ specific emissions and carbon efficiency are investigated in this section. CO₂ specific emission is the defined as the amount of emitted CO₂ from the process per unit of the methanol production as shown in Equation (6).

$${\mathrm{CO}}_2\mathrm{specific}\mathrm{emissions}=\frac{{\mathrm{CO}}_2\mathrm{emissions}(\frac{\mathrm{kg}}{\mathrm{h}})}{\mathrm{Methanol}\mathrm{production}(\frac{\mathrm{kg}}{\mathrm{h}})}$$

(6)

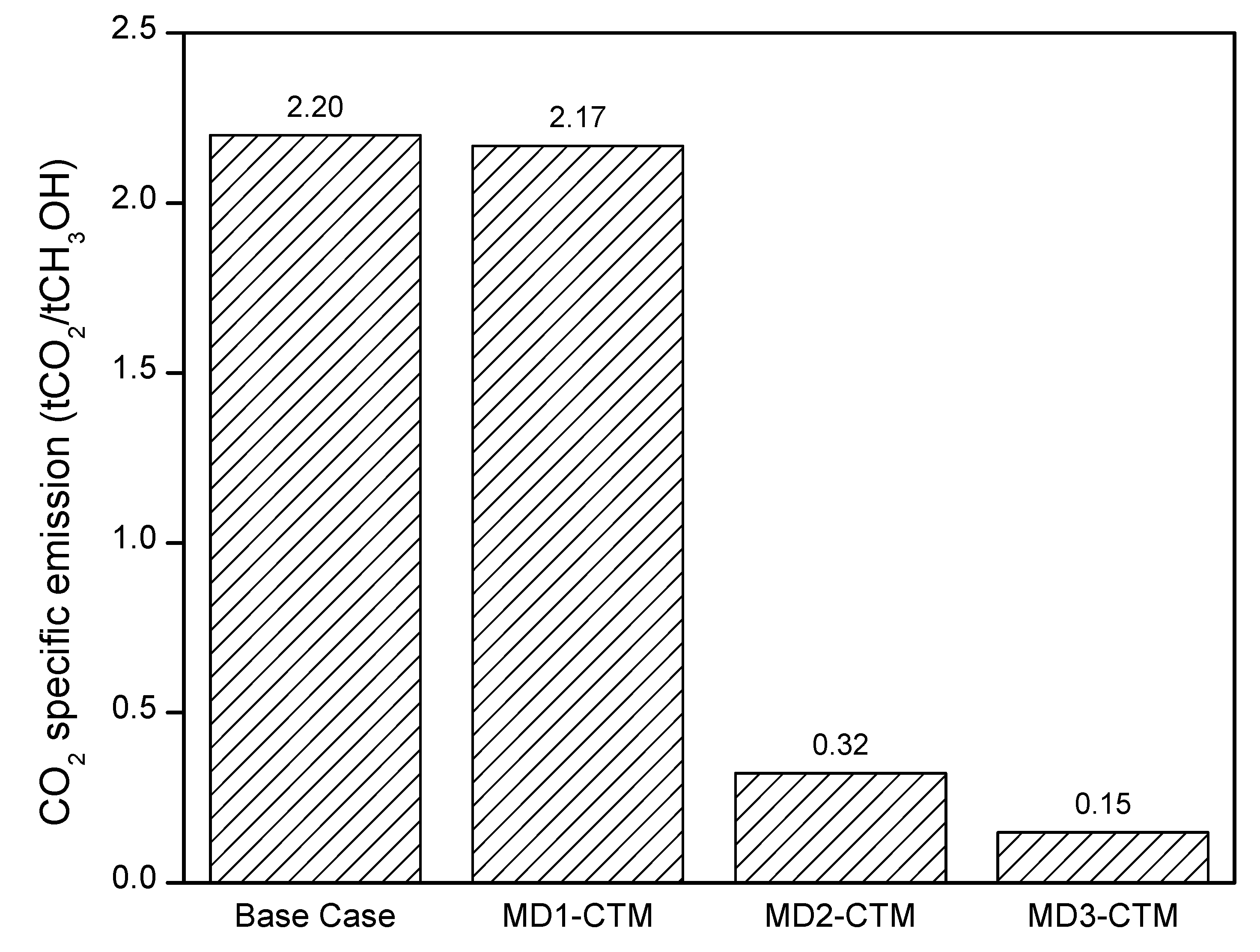

Figure 10 shows the CO₂ specific emissions for the four cases. The results show that base case and MD1 have almost the same CO₂ specific emissions, however, the CO₂ specific emissions for MD2 and MD3 are approximately 85% and 93% lower compared to the base case design. The significant reduction in the CO₂ specific emissions is due to the higher utilization of carbon content by the addition of external H₂.

Carbon efficiency is another variable which shows the amount of carbon present in the feed to the desired product. The carbon present in the coal is mainly converted to CO₂ and CO with small quantities of CH₄, COS and ash. Equation (7) shows the relation for the calculation of carbon efficiency (η_C), which is defined as the ratio of carbon content in the methanol to the carbon content in all the components of the feed stream.

$${\mathsf{\eta }}_{\mathrm{C}}=\frac{{\mathrm{Carbon}}_{\mathrm{MeOH}}}{{\mathrm{Carbon}}_{\mathrm{feed}}} [\%]$$

(7)

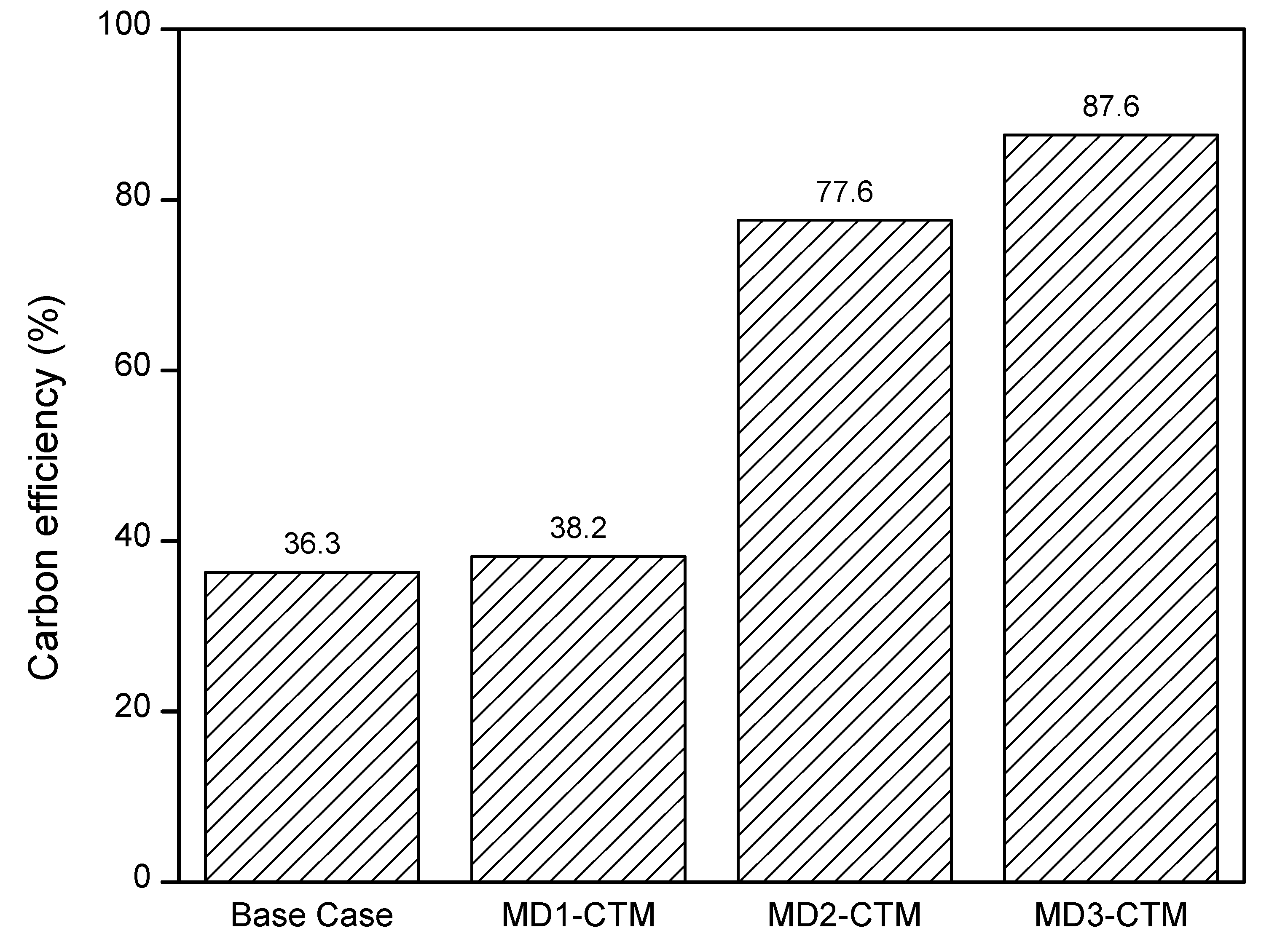

The results show that the carbon efficiency for the MD2 and MD3 is around 41% and 51% higher respectively compared to the base case design as shown in Figure 11. The higher carbon efficiency is directly related to the lower carbon specific emission and higher methanol production rate, as shown previously.

4.4. Economic Analysis

The results discussed in the previous sections clearly show that the MD2 and MD3 configurations perform considerably better compared to the base case design in terms of methanol production rate and emissions. However, these improved results are achieved at the cost of additional H₂ supplied from an electrolyser plant. Therefore, an economic analysis is performed to investigate the impact of different design configurations on the product cost. Aspen Economic Analyzer V10 has been used for the purpose of economic analysis along with other literature resources. The key economic assumptions in this study are shown in

Table 4. Economic assumptions used in the analysis [13,40,41].

Parameter	Value
Project life	30 year
Tax rate	25%
Interest rate	10%
Stream factor	0.95
Salvage value	10% of TCI
Depreciation	Straight line method
Coal price	35 $/t
External Hydrogen price	2.3 $/kg
Operating labor rate	$20/operator/h
Electricity cost	$0.0775/kWh
LP steam cost	$14.05/GJ
MP steam cost	$14.83/GJ
HP steam cost	$17.70/GJ
Refrigeration cost	$13.11/GJ

[13,40,41]. The methodology employed for the calculation of product cost is a standard procedure described in the literature [34].

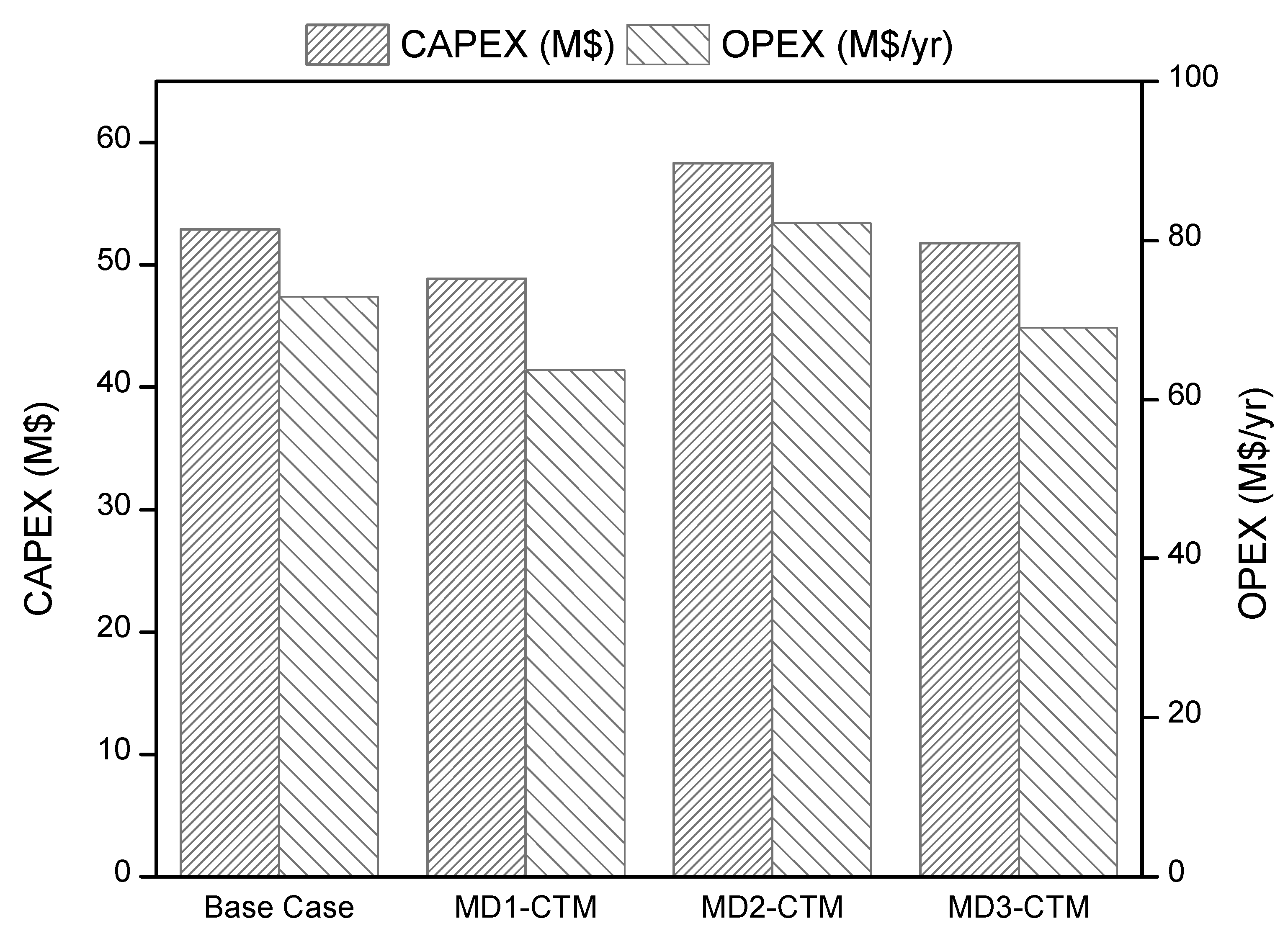

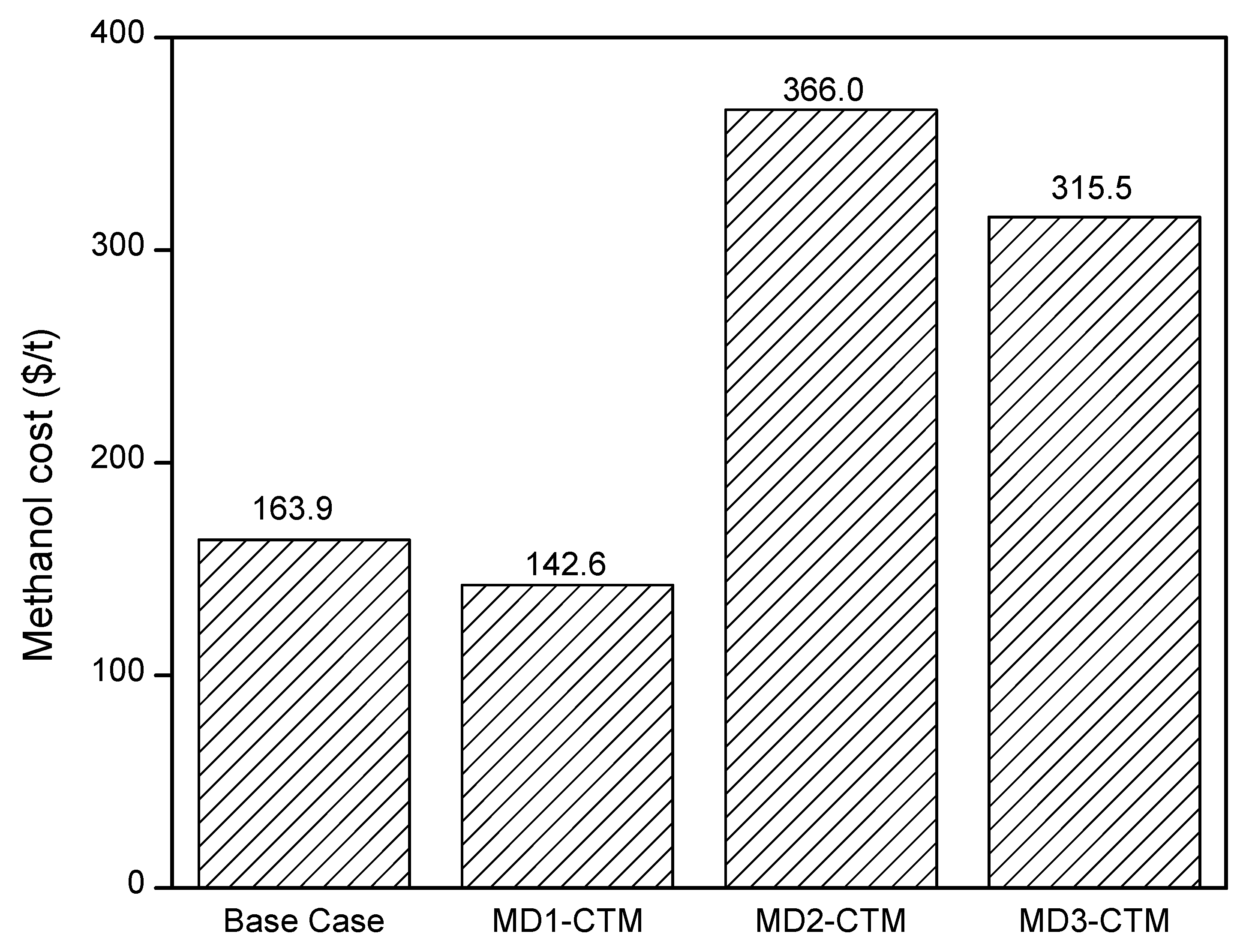

Figure 12 shows the required capital expenditure (CAPEX) and annual operating cost (OPEX) for the developed cases. The results show that the CAPEX of MD1 is 4 M$ less than the base case design due to the intensification of CO₂ removal unit. The CAPEX required for the MD2 is the highest among all the designs because of the larger equipment size and addition of an electrolyser plant. The results also reveal that around 9.2 M$ per year can be saved in the case of MD1 by slight modification of the base case design. Overall, MD3 has the highest CAPEX and OPEX among all the designs. Figure 13 shows the TAC breakdown in terms of annualized CAPEX and OPEX (including utilities and raw materials) for the four designs. As evident from the results, OPEX is the main cost contributor for all the cases. In the case of base case and MD1, utilities contribute to more than 50% of the TAC. However, in the case of MD2 and MD3, around 80% and 86% of the TAC respectively is contributed because of an external H₂ supply. Figure 14 shows the utilities consumption rate for the four designs. The electricity consumption for MD2 and MD3 is higher compared to base case and MD1 because of increase in compression energy required for an additional H₂ compression in the methanol synthesis section. Since all the four designs have different methanol production rates, therefore, in order to have fair comparison, utilities cost per unit of methanol is calculated. The results show that utility cost per unit ton of methanol product for the base case, MD1, MD2, and MD3 configurations is $89.7, $73.8, $47.4, and $34.9 respectively. The results further reveal that in order for MD3 to be competitive with the MD1, the maximum price of external H₂ should be $0.71 per kg or below. Figure 15 shows the product cost per unit ton of methanol. MD1 offers the lowest methanol production cost. On the other hand, MD2 has the highest per unit cost.

4.5. Comparative Analysis with the Literature

In order to ascertain the performance of simulation models developed in this study, a qualitative comparison has been made to the other recent studies.

Table 5. Comparison of key results with the literature findings.

	Base Case	MD-1	MD-2	MD-3	Literature
Energy efficiency (%)	43.3	45.7	51.9	45.7	41–55 [42]
					51.0 [43]
					45.5 [45]
Carbon efficiency (%)	36.3	38.2	77.6	87.6	37.3 [43]
					38.4 [44]
					37.0 [45]
CO2 emissions (t/t CH3OH)	2.20	2.17	0.32	0.15	2.6 [43,46]
					2.3 [44]
					5.31 [45]
					2.97 [47]
Methanol cost (US $/t)	163.9	142.6	366.0	315.5	267.0 [43]
					290.0 [44]
					272.6 [45]

shows the comparative results in terms of energy efficiency, carbon efficiency, CO₂ emissions, and methanol product price. The energy efficiencies of the models in this study range between 43.3% and 57.9%. Depending on the feedstock, the practical efficiencies range between 40% and 55% for the CTM process, while in the case of natural gas feed, the energy efficiency is 50–65% [42]. The results show that the energy efficiencies of the proposed CTM processes agree with the practical efficiencies. Carbon efficiency reported in the recent studies is 37–38% [43,44,45], which indicates a good match with the results of base case and MD-1 design. Moreover, MD-2 and MD-3 alternative designs have shown that the carbon efficiency can be increased to 77.6% and 87.6% respectively by utilizing more CO₂ for the methanol production. As stated earlier that the goal of this study is to propose a CTM design with minimal CO₂ emissions. Literature has widely reported CO₂ emissions of about 2.6 t/t-CH₃OH for the CTM process [46]. The results show that the calculated CO₂ emissions for the base case and MD-1 are relatively lower compared to the recent works. In addition, the MD-2 and MD-3 designs have the potential to significantly reduce the CO₂ emissions to 0.32 t and 0.15 t respectively per ton of methanol production. The comparison of methanol cost with the recent works show that the per unit ton product cost for the base case and MD-1 design is lower, leading to the higher profit margins.

5. Conclusions and Recommendations

CTM is a commercial process emitting large amount of emissions. The goal is to reduce the carbon emissions while utilizing the existing fossil fuels without adding significant process complexities. In this study, three CTM process designs are proposed and compared with the base case design employing process intensification techniques while utilizing the CO₂ emissions produced from the coal gasification process. The major findings are summarized here:

• CTM production with CCUS is technically and economically feasible process. The MD1-CTM offers the best results with an energy requirement of 21.9 GJ/tCH₃OH and a product cost of 142.5 $/tCH₃OH.
• CTM process is complex process with many energy intensive equipment including gasification section, gas cleaning section, WGS section and methanol synthesis section. However, the process development based on intensification concepts can simplify the process, leading to significant CAPEX and OPEX savings.
• CO₂ emissions from the CTM process can be curtailed up to a certain limit. In order to further minimize the CO₂ emissions from the process, H₂ supply from an external source is required. In the case of CTM process integration with an electrolysis plant for the supply of clean H₂, the overall economics are not feasible.
• The proposed MD2 and MD3 configurations have 8.6% and 14.6% higher process efficiency respectively compared to the base case design. However, the economics of these designs are not feasible. In particular, MD3 can become economically attractive if, (a) the carbon tax is implemented due to its low emission benefits; (b) technological advancement in the electrolysis process are made for the supply of clean and cheap H₂.

Despite the advancements made in CTM plants focusing on CO₂ utilization, the single pass conversion of the methanol synthesis reactor is still low, requiring efforts to develop new catalyst materials and improved reactor configurations. As shown in this study for the case of MD-2 and MD-3, design intensification is technically feasible but would require a cheap source of H₂ supply for higher CO₂ utilization and methanol production. Therefore, further investigation is needed to study the feasibility of design integration between the renewable H₂ units and conventional methanol plants. Currently, acid gas cleaning technologies offer a wide range of options for the efficient removal of H₂S and CO₂. There is a further need to assess gas cleaning options, including various physical and chemical solvents, ionic liquids, membranes, adsorption, and other methods that may perform better in the CTM processes. Economies of scale can affect the project’s profitability. Therefore, additional case studies are required to explore the impact of methanol production capacities on the process economics.
