Microstructural Investigation of Nanocrystalline Hydrogen-Storing Mg-Titanate Nanotube Composites Processed by High-Pressure Torsion

by
Marcell Gajdics
1,
Tony Spassov
2,
Viktória Kovács Kis
3,4,
Ferenc Béke
5,
Zoltán Novák
5,
Erhard Schafler
6 and
Ádám Révész
1,*
1
Department of Materials Physics, Eötvös University, P.O.B. 32, H-1518 Budapest, Hungary
2
Department of Chemistry, University of Sofia “St.Kl.Ohridski”, 1164 Sofia, Bulgaria
3
Center of Energy Research, Hungarian Academy of Sciences, H-1121 Budapest, Hungary
4
Institute of Environmental Sciences, University of Pannonia, Egyetem u. 10., 8200 Veszprem, Hungary
5
Department of Organic Chemistry, Eötvös University, P.O.B. 32, H-1518 Budapest, Hungary
6
Faculty of Physics, University of Vienna, A-1090 Vienna, Austria
*
Author to whom correspondence should be addressed.
Energies 2020, 13(3), 563; https://doi.org/10.3390/en13030563
Submission received: 23 December 2019 / Revised: 13 January 2020 / Accepted: 16 January 2020 / Published: 23 January 2020
(This article belongs to the Special Issue Design of Materials for Solid State Hydrogen Storage)
Browse Figures
Versions Notes

Abstract

:
A high-energy ball milling and subsequent high-pressure torsion method was applied to synthesize nanocrystalline magnesium samples catalyzed by TiO2 or titanate nanotubes. The microstructure of the as-milled powders and the torqued bulk disks was characterized by X-ray diffraction. The recorded diffractograms have been evaluated by the convolutional multiple whole profile fitting algorithm, which provided microstructural parameters (average crystal size, crystallite size distribution, average dislocation density). The morphology of the nanotube-containing disks has been examined by high-resolution transmission electron microscopy. The effect of the different additives and preparation conditions on the hydrogen absorption behavior was investigated in a Sieverts’-type apparatus. It was found that the ball-milling route has a prominent effect on the dispersion and morphology of the titanate nanotubes, and the absorption capability of the Mg-based composite is highly dependent on these features.

Graphical Abstract

1. Introduction

The coupling between continuing growth of the world’s population and industrialization means that the transportation segment of the economy is responsible for significant part of petroleum consumption, and accordingly transportation is one of the main source of global CO2 emission [1]. In addition, the world’s energy consumption is expected to be doubled by 2050, which requires the introduction of alternative energy sources to the energy grid [2]. Even though these alternative renewable sources are not competitive with fossil fuels at the moment [3], hydrogen as a secondary energy carrier has gained increasing attention in the last decade; however, significant technical and economical challenges, such as efficient production and storage need to be solved [4]. It has been reported that hydrogen can be stored either in molecular form by physisorption on the surface of carbon-based materials [5,6], or in atomic form by chemisorption in metal-based compounds [7,8].
As has been extensively studied, absorption of hydrogen in metal-based compounds results in higher energy density and safety when compared to gas storage of molecular hydrogen or low-temperature liquefaction [7]. Among the vast variety of chemisorbing solid-state storage systems, magnesium-based materials have been extensively and systematically studied owing to their high energy density up to 2600 Wh/kg or 3700 Wh/l, relatively low cost, non-toxic nature, and abundance which allows them to be considered as a potential candidate for future applications [8,9,10,11]. On the other hand, the poor thermodynamics, high thermal stability of MgH2 and the sluggish kinetics of dehydrogenation below 300 °C are significant obstacles which still hinder the practical utilization of the Mg-H system [11,12,13].
In order to overcome these limitations of Mg-based systems, nanotechnology and nanoscale material design with different dimensionalities have been in the forefront of recent research [14,15]. Among the huge number of different processing techniques, nanocrystallization of metallic powders by high energy ball milling (HEBM) has been extensively applied world-wide to reduce the crystallite size down to the nanometric regime [10,11,15,16,17,18]. Due to improved hydrogen diffusion length created by the lattice defects and increased volume fraction of grain boundaries during the severe plastics deformation (SPD), these nanocrystalline powders exhibit significantly improved hydrogen sorption kinetics [18,19,20].
Parallel to HEBM, recently other SPD-based processing techniques resulting in massive bulk samples have been applied to magnesium-based alloys. Among these techniques, high-pressure torsion (HPT) exhibits the largest equivalent strain, coupled with advantages such as less energy consumption, less surface oxidation and smaller safety concerns [21]. Separately, HPT provides an opportunity to process materials at room temperature with low formability such as magnesium [22]. As has been shown, the uniaxial pressure combined with simultaneous heavy shear deformation during the HPT torsional straining can significantly enhance the hydrogen sorption properties due to the high volume fraction of grain boundaries and large defect density [23,24,25,26,27]. In addition, the nanostructure generated by HPT is practically preserved through several subsequent hydrogenation/dehydrogenation reactions resulting in a significant cyclic stability of nanocrystalline Mg-based alloys [28,29].
Besides nanocrystallization by the top-down approach, the hydrogen storage properties of Mg-based materials can be further enhanced by the addition of catalysts such as different transition metals [30,31,32,33,34], transition metal oxides [17,20,34,35,36] and carbon-based materials, such as carbon nanotubes [37,38,39,40,41]. Among various transition metal oxide additives, TiO2 has proved to be one of the most effective in improving the hydrogen sorption kinetics of MgH2 [38,42,43,44]. It was shown that upon mixing TiO2 to MgH2 by means of HEBM, the desorption temperature decreased significantly [44,45]. According to M. Chen and coworkers, the dehydrogenation of MgH2 takes place at a temperature 80 °C lower in the presence of TiO2 catalyst than without it [45]. The reduction of the kinetic barrier for hydrogen release was demonstrated quantitatively by M. Polanski and J. Bystrzycki, and the calculated desorption activation energy was decreased from 150 to 94 kJ/mol upon TiO2 addition [44]. Starting from TiO2 powder, Jardim P.M. and co-workers prepared titanate nanotubes via hydrothermal method for the catalysis of MgH2 H-sorption reactions. It was shown that the titanate nanotubes can also improve the desorption kinetics of MgH2, as they act as diffusion channels for hydrogen atoms, similar to carbon nanotubes [46].
In a recent work we investigated the influence of simultaneous mixing of transition metal oxide and carbon nanotube catalysts on the hydrogen storage performance of severely deformed nanocrystalline magnesium [40]. The idea of the current research is to substitute these two kinds of catalyst by applying only metal oxide-based nanotubes prepared from TiO2. The microstructure morphology and nanocrystalline Mg-based composite materials containing titanate nanotube additive prepared by the combined method of HEBM and HPT will be demonstrated. For comparison, a magnesium sample catalyzed with TiO2 powder was also synthesized. We also present the effect of the preparation conditions on the microstructure, morphology and hydrogen storage properties of these materials.

2. Materials and Methods

2.1. Sample Preparation

2.1.1. Preparation of Titanate Nanotubes

Titanate nanotubes (TN) were prepared via the microwave-assisted hydrothermal method [47,48]. The starting material was anatase TiO2 powder (supplied by Reanal; purity 99.9%) which was filtered using cotton wool and distilled water. 0.35 g of filtered TiO2 powder was mixed with 7 mL of NaOH aqueous solution (10 M), the suspension was stirred ultrasonically for 20 min. The mixture was then heated to 135 °C for 8 h in a closed SiC vial by microwave irradiation using a Monowave 300 microwave reactor in the presence of continuous stirring. The product was then dispersed in 300 mL distilled water and centrifuged for 5 min at 1500 RPM, this procedure was repeated two more times. The remaining material was dried overnight at 60 °C. As seen in Figure 1, the as-prepared titanate nanotubes are multi-wall tubes, with a length ranging from 40 nm to several hundreds of nanometers and their diameter is in the range of 10 nm.

2.1.2. Preparation of Magnesium–Titanate Nanotube Composites

Mg–TN composites were prepared by mixing Mg powder (supplied by Sigma-Aldrich; purity 99.9%, initial powder particle size ~100 μm), 5 wt.% titanate nanotube (described in the previous section) and 3 mL n-hexane. The resulting suspension was ball-milled in a stainless steel vial (volume: 65 mL) using a SPEX 8000M Mixer Mill operating at 1425 RPM. For all samples, 10 stainless steel balls (1/4 in.) were used, thus the ball-to-powder weight ratio was 10:1. Two milling routes were applied:
  • all the constituents were milled together for 3 h (denoted as MgTN_3h);
  • the magnesium powder was pre-milled for 2.5 h in hexane before the titanate nanotubes were added for an additional 0.5 h milling (denoted as MgTN_0.5h).
For comparison, a Mg-TiO2 composite was also prepared, using 5 wt.% TiO2 commercial powder via wet ball-milling in 3 mL n-hexane (denoted as MgTiO2_3h). Here, milling route #1 was applied, i.e., the materials were milled together for 3 h, other milling parameters were the same as above. Sample handling was carried out in a glove box and HEBM was processed in argon atmosphere in order to minimize the oxidation of the powder samples.
The as-milled powders were pre-compacted into pellets with a diameter of 8 mm and height of 0.8 mm under ~200 MPa of hydraulic pressure. High-pressure torsion of these pellets was carried out in air, under an applied pressure of 4 GPa at room temperature. N = 3 and N = 10 whole revolutions were performed for all types of powder samples with an angular speed of ω = 0.2 revolution/min. These disk shape samples will be denoted as: MgTN_3h_N3, MgTN_3h_N10, MgTN_0.5h_N3, MgTN_0.5h_N10, MgTiO2_3h_N3 and MgTiO2_3h_N10.

2.2. Microstructural Characterization

2.2.1. X-ray Diffraction (XRD)

The overall microstructure of the powders and HPT-disks was examined by X-ray powder diffraction (XRD). The measurements were carried out on a Rigaku SmartLab diffractometer in θ–2θ geometry using Cu-Kα radiation. The data were collected from 20° to 75° with a step size of 0.01°. The recorded powder diffraction patterns have been evaluated by the Williamson-Hall method [49]. The average crystallite size (DWH) and the square root of the mean square strain (〈ε2〉1/2) can be determined from the positions and widths of the Bragg reflections according the following equation [49]:
ΔK = 0.9/DWH + A 〈ε2〉1/2 K
where K = 2sinθ/λ and ΔK = 2cosθ(Δθ)/λ. Here θ is the Bragg angle, Δθ denotes the half of the full width at half maximum of the crystalline peaks, A is geometrical constant, usually taken as A = 1 and λ is the wavelength of the radiation (λ = 0.154 nm).
In order to reveal the possible differences in microstructure along the radius of the HPT disks, a Rigaku rotating anode high resolution X-ray diffraction instrument with Cu-Kα radiation was also applied. The spot size of the X-ray beam was 1 mm x 0.1 mm which enabled us to characterize separate regions with different ultimate strain along the disks, i.e., center, half-radius and edge regions were studied. The operating voltage and current were 40 kV and 80 mA, respectively. For detection of the diffracted X-ray photons, image plates (IP) were used at a distance of 200 mm from the sample.
The XRD profiles measured by the rotating anode instrument have been evaluated by the convolutional multiple whole profile (CMWP) fitting algorithm which incorporates the direct fit of the whole measured diffraction profile by the sum of theoretically constructed profile functions, background and measured instrumental profiles [50]. In brief, the contribution of lattice strain and coherently scattering domains on peak broadening can be separated on the basis of their different diffraction order dependence. The applied profile functions are generated for each Bragg-reflection of each crystalline phase as the inverse Fourier transform of the product of the size and strain Fourier coefficients providing both the strain and size parameters of the microstructure [51]. In this model, it is assumed that the crystallites have a lognormal size distribution:
G(x) = (2π)− 1/2 σ− 1 x− 1 exp[−(ln(x/m))2/2σ2]
where σ and m are the variance and median of the histogram, respectively. As a result, the average size of the coherently scattering domains can be given as
DCMWP = m exp(3.5σ2)
The CMWP algorithm also provides the strain parameters, i.e., the average dislocation density (ρ) can also be determined [50].

2.2.2. Transmission Electron Microscopy (TEM)

Local structure of the HPT-disks were characterized by high-resolution transmission electron microscopy (HR-TEM) using a JEOL JEM 3010 electron microscope equipped with a LaB6 cathode and working at 300 keV (point resolution 1.7 Å). Sample preparation for TEM investigations was carried out with focused ion beam (FIB) milling, i.e., a lamella was cut out from the disk (close to the edge) and subsequently thinned in a FEI QUANTA 3D scanning electron microscope equipped with FIB.

2.3. Hydrogen Storage Experiments

The hydrogen storage properties of the samples were investigated using a home-made Sieverts’ type apparatus. Isothermal absorption and desorption measurements were performed at 573 K, with an initial hydrogen pressure of 1 MPa and 1 kPa, respectively. The actual measurements were carried out after two full hydrogenation–dehydrogenation cycles. For all the experiments, the whole HPT-disks (~80–90 mg each) were used as prepared.

3. Results and Discussion

The XRD patterns of the as-milled composites along with the commercial Mg and TiO2 powders and the as-prepared titanate nanotubes are presented in Figure 2. As is apparent, the main constituent phase is hexagonal Mg (JCPDS: 00-035-0821) for all composite samples. In addition, Bragg peaks of TiO2 (JCPDS: 01-084-1285) can also be recognized for the MgTiO2_3h powder. On the other hand, no reflection corresponding to titanate nanotubes can be visualized in either nanotube containing samples (MgTN_0.5h and MgTN_3h), which might be attributed to the low crystallinity of the additive or to a possible partial amorphization, which can occur during the HEBM process when the milling balls impact the tubes. At the same time, a broad peak of MgO (JCPDS: 45-0946) at around 2θ = 43 deg is present for all the as-milled powders.
Based on preliminary experiments, we chose two rotation numbers N = 3 and N = 10 for further processing the compacted pellets by HPT. The corresponding powder diffractograms averaging the X-ray scattering from the whole disks indicate only a slight deviation compared to those of the as-milled powders (Figure 3), i.e., all patterns are dominated by the crystalline peaks of hexagonal Mg. It is also noted that the intensity of the MgO phase remains practically the same after the HPT-processing carried out under air. As one can also notice, the peaks of TiO2 are still visible after the HPT deformation (MgTiO2_3h_N3 and MgTiO2_3h_N10 samples).
The relative intensities of the Mg peaks vary considerably between specimens prepared by the different routes (see Table 1). Notably, the intensity ratio of the (101) and (002) Mg reflections can be used as a measure of texture generated during deformation processes [40]. As one can recognize, the HEBM procedure results in some reduction of the I(101)/I(002) ratio, as compared to the commercial Mg powder (initially I(101)/I(002) = 3.04). However, a more prominent change can be observed as a result of the torsion process, i.e., I(101)/I(002) decreases down to the 0.3–0.4 interval even after N = 3 whole revolutions. Interestingly, additional shear deformation (N = 10) does not further alter the texture of the Mg phase for the MgTN_0.5h type sample, meanwhile the I(101)/I(002) ratio slightly increase and decrease for the MgTN_3h and MgTiO2_3h type samples, respectively.
The average grain size values (DWH) and the square root of the mean square strain (〈ε2〉1/2) for all the as-milled powders and HPT-disks were obtained by the Williamson–Hall analysis and are plotted in Figure 4a,b, respectively. As can be seen, some variation takes place in the DWH values (65–85 nm range) of hexagonal magnesium when it is milled together with different additives. The HPT-deformation results in some further nanocrystallization, i.e., the decrease of the average grain size for the TiO2 containing composite (MgTiO2_3h) and for the sample MgTN_3h occurs between N = 3 and N = 10 revolutions (DWH ~ 55–60 nm). A similar reduction can be observed in case of the MgTN_0.5h composite, however, this change occurs already during the first 3 revolutions. Rather similar trends can be visualized for the mean square strain (see Figure 4b). As the powders have been subjected to HEBM, a 〈ε2〉1/2 ~ 0.37%–0.45% strain already develops as a result of the severe plastic deformation generated by the colliding balls. As HPT is introduced, a general decrease for all the composites can be recognized after N = 10 revolutions, reaching an ultimate value of 〈ε2〉1/2 ~ 0.35%, corresponding to some kind of strain release during the shear deformation. It is also noted that a slight increase can be observed of the MgTN_3h_N3 disk.
As the HPT procedure imposes inhomogeneous strain along the radius of the disk, smaller revolution numbers can result in a deformation-dependent structure [52] and mechanical properties [53], however, larger rotations can homogenize the material [54,55]. Therefore, we chose the disks that performed for N = 3 rotations for subsequent investigations.
In order to explore the radius dependent microstructure, position sensitive high resolution XRD was carried out on different parts of the disks. Figure 5 shows one set of diffractograms taken at different positions of the MgTN_3h_N3 disk. As seen, the XRD profiles are qualitatively similar, i.e., hexagonal Mg reflections dominate the patterns. These high-resolution XRD profiles were analyzed by the CMWP method in order to obtain several microstructural parameters. A typical example of the measured and fitted profiles together with the difference plot corresponding to the half radius of the MgTN_3h_N3 sample unambiguously confirms that the numerical algorithm has satisfactorily converged (see Figure 6).
Based on the evaluation of the line profiles by the CMWP method, the average coherently scattering crystallite size of Mg phase can be determined as shown in Figure 7a. In general, the DCMWP values are fairly constant along the radius for all the disks after N = 3 revolutions. Nevertheless, the type of additive has an influence on the crystallite size, i.e., the addition of titanate nanotubes results in smaller DCMWP of Mg than in case of TiO2 catalyst, in accordance with Figure 4a. In spite of the apparent invariance of the average crystallite size along the disk radius, some microstructural differences between the different sectors can be identified. Using the m and σ parameters determined from the fitting procedure, the G(x) lognormal size-distribution functions can be generated (Figure 7b). In the case of the MgTN_3h_N3 disk, the histograms are markedly different for the edge region and for the rest of the disk, i.e., the distribution has smaller median, but larger variance corresponding to a more homogeneous nanostructure at the perimeter of the specimen, despite the rather similar average crystallite size values. Similar tendency was observed for the other two disks processed for N = 3 turns. Figure 7c presents the dislocation density values across the disk radius after N = 3 revolutions. For the MgTiO2_3h_N3 and the MgTN_3h_N3 samples, the ρ values are practically constant throughout the disk (1.7·1015 m−2 and 2.1·1015 m−2 respectively) which clearly indicates that the dynamic equilibrium between dislocation generation and annihilation is already present even after N = 3 rotations. Slightly different behavior can be seen for the MgTN_3h_N3 specimen, i.e., the center of the disk exhibits somewhat lower dislocation density than the rest of the disk.
For local structural and morphological analysis, transmission electron microscopy was carried out (Figure 8). The low magnification micrograph of the MgTN_0.5h_N3 sample presents inhomogenities in the HPT-disk as several darker regions can be recognized on the lamella (Figure 8a). An enlarged view, Figure 8b, shows one of these areas where straight bundles of nanotubes can be recognized along with some amorphous-like regions. Noticeably different features can be identified for the MgTN_3h_N3 disk (Figure 8c,d). On the lower magnification image similar inhomogenities can be seen as for the MgTN_0.5h_N3 disk (Figure 8c), however, these inhomogenities are finer and their density is significantly higher compared to Figure 8a. The better distribution of the nanotube additive material is not surprising due to the longer milling time. Closer examination again proves that the darker areas contain titanate nanotubes (see Figure 8d), nevertheless the 3 h of milling partially destroys the tube structure as significantly amorphized regions can be identified in the vicinity of the tubes. It is noteworthy that the remaining nanotubes are considerably shorter and more curved than the fairly straight and mostly intact nanotubes of MgTN_0.5h_N3 sample.
Figure 9 presents the absorption kinetic curves of the Mg-based disks with different additives after N = 3 revolutions. The sample containing TiO2 reaches almost 4.5 wt.% hydrogen storage capacity after 4500 s of absorption. Interestingly, the TN-catalyzed samples have markedly different sorption properties, i.e., the specimen with 0.5 h co-milling (MgTN_0.5h_N3) obeys poor kinetics and capacity, since it absorbs only a very small amount of hydrogen (~0.5 wt.%), despite the largest lattice defect density of the Mg-lattice (see Figure 7c). However, when the titanate nanotubes are milled together with the Mg powder for longer durations (MgTN_3h_N3 disk), the observed kinetics and maximum storage capacity (4.7 wt.%) seemingly exceed those of the TiO2 catalyzed sample, which means that properly dispersed TNs can effectively enhance the hydrogen storage properties of Mg.
The significant differences obtained between the storage properties of the MgTN_0.5h_N3 and MgTN_3h_N3 disks cannot be solely related to the microstructural parameters of the hexagonal magnesium phase obtained from the CMWP analysis, since they exhibit very similar DCMWP values and comparable dislocation density throughout their radii (see Figure 7a,c). Likewise, the detected minor variation in the I(101)/I(002) texture cannot be responsible for such distinct hydrogenation performance [40]. On the other hand, the TEM micrographs present substantial differences in the morphology and distribution of the titanate nanotube additives (see Figure 8). Therefore, we can conclude that the better dispersion of TN catalyst after 3 h of milling together with the Mg powder has a vital effect on the hydrogen uptake capability of the material. The defected nature of the nanotubes in the MgTN_3h_N3 disk could also be accounted for enhanced H-storage properties, due to the higher activity of destructed TN regions towards hydrogen [56].
Table 2 presents some other Mg-based hydrogen storage materials processed by HPT for comparison. As seen, the addition of titanate nanotubes to Mg by the combination of HEBM and HPT of the present work (MgTN_3h_N3) results in a higher hydrogen storage capability than that of pure Mg processed by HPT [57,58]. Nevertheless, the achieved capacity is somewhat lower than was obtained for Mg catalyzed by Nb2O5 powder and carbon nanotubes synthesized under similar deformation conditions [59], and therefore the extension of this investigation is required. The obtained storage capacity of our MgTN_3h_N3 disk is similar to the value of magnesium milled with 5 wt.% TiO2 powder for 10 h [60]. Very recent works on ball-milled nanocrystalline MgH2 catalyzed by special flower-like TiO2 [61] or TiO2 nanosheet [62] additives resulted in a somewhat better hydrogenation performance.

4. Conclusions

The HEBM + HPT deformation route was applied to Mg powders catalyzed by titanate nanotubes (MgTN_0.5h_N3 and MgTN_3h_N3) and TiO2 (MgTiO2_3h_N3). It was shown that HPT processing can further decrease the average crystallite size of ball-milled catalyzed Mg (from 65–85 nm to 55–60 nm) and can also introduce texture. In order to study the deformation-dependent microstructure of the HPT-disks, position-sensitive high-resolution XRD was carried out on the center, half-radius and edge regions of the specimens processed for N = 3 rotations. The CMWP analysis has revealed that the disks are abundant in lattice defects (~2∙1015 m − 2), however, the average dislocation density values do not vary significantly throughout the disks, which clearly indicates that the dynamic equilibrium between dislocation generation and annihilation is already present even after N = 3 rotations. Although the average crystallite size values are practically constant along the radii, a sharper crystallite size distribution corresponding to a more homogeneous nanostructure characterizes the edge region of the MgTN_3h_N3 disk.
It was found that the processing route considerably influences the H-sorption, as the hydrogenation performance of the composite produced for longer co-milling of the titanate nanotubes together with Mg (MgTN_3h_N3) significantly exceeds that of MgTN_0.5h_N3. This observation can be attributed to the different morphology of the additives (better dispersed and partially damaged TN sections) and less to the microstructural parameters of the nanocrystalline Mg phase.

Author Contributions

Sample preparation, M.G.; preparation of titanate nanotubes, M.G., F.B., Z.N.; hydrogen storage experiments, T.S.; transmission electron microscopy, V.K.K.; HPT processing, E.S. Á.R.; writing and data evaluation, M.G., Á.R. All authors have read and agreed to the published version of the manuscript.

Funding

This work was completed in the ELTE Institutional Excellence Program (1783-3/2018/FEKUTSRAT) supported by the Hungarian Ministry of Human Capacities. Z.N. is indebted for the National Research, Development and Innovation Office for providing financial support under the Grant No. NN118172. This work was also supported by the European Regional Development Fund within the Operational Programme “Science and Education for Smart Growth 2014–2020” under the Project CoE “National center of mechatronics and clean technologies“ BG05M2OP001-1.001-0008. Contribution of VKK is supported by the ÚNKP-19-4 New National Excellence Program of the Ministry for Innovation and Technology.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Yang, J.; Sudik, A.; Wolwerton, C.; Siegel, D.J. High capacity hydrogen storage materials: Attributes for automotive applications and techniques for materials discovery. Chem. Soc. Rev. 2010, 39, 656–675. [Google Scholar] [CrossRef] [Green Version]
  2. Sahaym, U.; Norton, M.G. Advances in the application of nanotechnology in enabling a hydrogen economy. J. Mater. Sci. 2008, 43, 5395–5429. [Google Scholar] [CrossRef] [Green Version]
  3. Ren, J.; Musyoka, N.M.; Langmi, H.W.; Mathe, M.; Liao, S. Current research trends and perspectives on materials-based hydrogen storage solutions: A critical review. Int. J. Hydrogen Energy 2017, 42, 289–311. [Google Scholar]
  4. Borgschulte, A. The hydrogen grand challenge. Front. Energy Res. 2016, 4, 11. [Google Scholar]
  5. Faye, O.; Szpunar, J.A. An efficient way to suppress the competition between adsorption of H2 and desorption of nH2−Nb complex from graphene sheet: A promising approach to H2 storage. J. Phys. Chem. C 2018, 122, 28506–28517. [Google Scholar] [CrossRef]
  6. Hussain, T.; Mortazavi, B.; Bae, H.; Rabczuk, T.; Lee, H.; Karton, A. Enhancement in hydrogen storage capacities of light metal functionalized Borone-Graphdiyne nanosheets. Carbon 2019, 147, 199–205. [Google Scholar] [CrossRef]
  7. Schlabach, L.; Zuttel, A. Hydrogen-Storage Materials for Mobile Applications. Nature 2001, 414, 353–358. [Google Scholar] [CrossRef]
  8. Luo, Q.; Li, J.; Li, B.; Liu, B.; Shao, H.; Li, Q. Kinetics in Mg-based hydrogen storage materials: Enhancement and mechanism. J. Magnes. Alloys 2019, 7, 58–71. [Google Scholar]
  9. Wang, H.; Lin, H.J.; Cai, W.T.; Ouyang, L.Z.; Zhu, M. Tuning kinetics and thermodynamics of hydrogen storage in light metal element based systems—A review of recent progress. J. Alloys Compd. 2016, 658, 280–300. [Google Scholar]
  10. Varin, R.A.; Czujko, T.; Wronski, Z.S. Nanomaterials for Solid State Hydrogen Storage; Springer: New York, NY, USA, 2009. [Google Scholar]
  11. Aguey-Zinsou, K.-F.; Ares-Fernández, J.R. Hydrogen in magnesium: New perspectives toward functional stores. Energy Environ. Sci. 2010, 3, 526–543. [Google Scholar]
  12. Crivello, J.-C.; Dam, B.; Denys, R.V.; Dornheim, M.; Grant, D.M.; Huot, J.; Jensen, T.R.; de Jongh, P.; Latroche, M.; Milanese, C.; et al. Review of magnesium hydride-based materials: Development and optimization. Appl. Phys. A 2016, 122, 97. [Google Scholar] [CrossRef] [Green Version]
  13. Pasquini, L. The effect of nanostructure on the hydrogen sorption properties of magnesium-based metallic compounds: A review. Crystals 2018, 8, 106. [Google Scholar] [CrossRef] [Green Version]
  14. Shao, H.; Xin, G.; Zheng, J.; Li, X.; Akiba, E. Nanotechnology in Mg-based materials for hydrogen storage. Nano Energy 2012, 1, 590–601. [Google Scholar] [CrossRef]
  15. Sadhasivam, T.; Kim, H.-T.; Jung, S.; Roh, S.-H.; Park, J.-H.; Jung, H.-Y. Dimensional effects of nanostructured Mg/MgH2 for hydrogen storage applications. Renew. Sustain. Energy Rev. 2017, 72, 523–534. [Google Scholar] [CrossRef]
  16. Révész, Á.; Fátay, D. Microstructural evolution of ball-milled MgH2 during a complete dehydrogenation–hydrogenation cycle. J. Power Sources 2010, 195, 6997–7002. [Google Scholar] [CrossRef]
  17. Fátay, D.; Révész, Á.; Spassov, T. Particle size and catalytic effect on the dehydriding of MgH2. J. Alloys Compd. 2005, 399, 237–241. [Google Scholar] [CrossRef]
  18. Fátay, D.; Spassov, T.; Delchev, P.; Ribárik, G.; Révész, Á. Microstructural development in nanocrystalline MgH2 during H-absorption/desorption cycling. Int. J. Hydrogen Energy 2007, 32, 2914–2919. [Google Scholar] [CrossRef]
  19. Novakovic, J.G.; Novakovic, N.; Kurko, S.; Govedarovic, S.M.; Pantic, T.; Mamula, B.P.; Batalovic, K.; Radakovic, J.; Rmus, J.; Shelyapina, M.; et al. Influence of defects on the stability and hydrogen-sorption behavior of Mg-based hydrides. Chem. Phys. Chem. 2019, 20, 1216–1247. [Google Scholar] [CrossRef]
  20. Polanski, M.; Bystrzycki, J.; Plocinski, T. The effect of milling conditions on microstructure and hydrogen absorption/desorption properties of magnesium hydride (MgH2) without and with Cr2O3 nanoparticles. Int. J. Hydrogen Energy 2008, 33, 1859–1867. [Google Scholar] [CrossRef]
  21. Valiev, R.Z.; Ishlamgaliev, R.K.; Alexandrov, I.V. Bulk nanostructured materials from severe plastic deformation. Prog. Mater. Sci. 2000, 45, 103–189. [Google Scholar] [CrossRef]
  22. Silva, C.L.P.; Tristao, I.C.; Sabbaghianrad, S.; Torbati-Sarraf, S.A.; Figueiredo, R.B.; Langdon, T.G. Microstructure and hardness evolution in magnesium processed by HPT. Mater. Res. 2017, 20, 2–7. [Google Scholar] [CrossRef] [Green Version]
  23. Kusadome, Y.; Ikeda, K.; Nakamori, Y.; Orimo, S.; Horita, Z. Hydrogen storage capability of MgNi2 processed by high pressure torsion. Scr. Mater. 2007, 57, 751–753. [Google Scholar] [CrossRef]
  24. Révész, Á.; Kánya, Z.; Verebélyi, T.; Szabó, P.J.; Zhilyaev, A.P.; Sapssov, T. The effect of high-pressure torsion on the microstructure and hydrogen absorption kinetics of ball-milled Mg70Ni30. J. Alloys Compd. 2010, 504, 83–88. [Google Scholar] [CrossRef]
  25. Hongo, T.; Edalati, K.; Arita, M.; Matsuda, J.; Akiba, E.; Horita, Z. Significance of grain boundaries and stacking faults on hydrogen storage properties of Mg2Ni intermetallics processed by high-pressure torsion. Acta Mater. 2015, 92, 46–54. [Google Scholar] [CrossRef]
  26. Edalati, K.; Akiba, E.; Horita, Z. High-pressure torsion for new hydrogen storage materials. Sci. Technol. Adv. Mater. 2018, 19, 185–193. [Google Scholar] [CrossRef]
  27. Kitabayashi, K.; Edalati, K.; Li, H.-W.; Akiba, E.; Horita, Z. Phase transformations in MgH2-TiH2 hydrogen storage system by high-pressure torsion process. Adv. Eng. Mater. 2019, 22, 1900027. [Google Scholar] [CrossRef]
  28. Gajdics, M.; Calizzi, M.; Pasquini, L.; Schafler, E.; Révész, Á. Characterization of a nanocrystalline Mg-Ni alloy processed by high-pressure torsion during hydrogenation and dehydrogenation. Int. J. Hydrogen Energy 2016, 41, 9803–9809. [Google Scholar]
  29. Révész, Á.; Gajdics, M.; Schafler, E.; Calizzi, M.; Pasquini, L. Dehydrogenation-hydrogenation characteristics of nanocrystalline Mg2Ni powders compacted by high-pressure torsion. J. Alloys Compd. 2017, 702, 84–91. [Google Scholar] [CrossRef]
  30. Kumar, S.; Singh, A.; Tiwari, G.P.; Kojima, Y.; Kain, V. Thermodynamics and kinetics on nano-engineered Mg-MgH2 system for reverible hydrogen storage applications. Thermochem. Acta 2017, 652, 103–108. [Google Scholar]
  31. Révész, Á.; Gajdics, M.; Spassov, T. Microstructural evolution of ball-milled Mg–Ni powder during hydrogen sorption. Int. J. Hydrogen Energy 2013, 38, 8342–8349. [Google Scholar] [CrossRef]
  32. Yasuoka, S.; Ishida, J.; Kishida, K.; Inui, H. Effects of cerium on the hydrogen absorption-desorption properties of rare earth-Mg-Ni hydrogen-absorbing alloys. J. Power Sources 2017, 346, 56–62. [Google Scholar] [CrossRef]
  33. Yu, H.; Bennici, S.; Auroux, A. Hydrogen storage and release: Kinetic and thermodynamic studies of MgH2 activated by transition metal nanoparticles. Int. J. Hydrogen Energy 2014, 39, 11633–11641. [Google Scholar] [CrossRef]
  34. Oelerich, W.; Klassen, T.; Bormann, R. Comparison of the catalytic effects of V, V2O5, VN, and VC on the hydrogen sorption of nanocrystalline Mg. J. Alloys Compd. 2001, 322, L5–L9. [Google Scholar] [CrossRef]
  35. Révész, Á.; Fátay, D.; Spassov, T. Microstructure and hydrogen sorption kinetics of Mg nanopowders with catalyst. J. Alloys Compd. 2007, 434, 725–728. [Google Scholar]
  36. Barkhordarian, G.; Klassen, T.; Bormann, R. Fast hydrogen sorption kinetics of nanocrystalline Mg using Nb2O5 as catalyst. Scr. Mater. 2003, 49, 213–217. [Google Scholar]
  37. Ruse, E.; Buzaglo, M.; Pevzner, S.; Pri-Bar, I.; Skripnyuk, V.M.; Rabkin, E.; Regev, O. Tuning Mg hydriding kinetics with nanocarbons. J. Alloys Compd. 2017, 725, 616–622. [Google Scholar] [CrossRef]
  38. Zhang, X.; Leng, Z.; Gao, M.; Hu, J.; Du, F.; Yao, J.; Pan, H.; Liu, Y. Enhanced hydrogen storage properties of MgH2 catalyzed with carbon-supported nanocrystalline TiO2. J. Power Sources 2018, 398, 183–192. [Google Scholar] [CrossRef]
  39. Zhao, D.-L.; Zhang, Y.-H. Research progress in Mg-based hydrogen storage alloys. Rare Met. 2014, 33, 499–510. [Google Scholar] [CrossRef]
  40. Gajdics, M.; Spassov, T.; Kis, V.K.; Schafler, E.; Révész, Á. Microstructural and morphological investigations on Mg-Nb2O5-CNT nanocomposites processed by high-pressure torsion for hydrogen storage applications. Int. J. Hydrogen Energy 2019. [Google Scholar] [CrossRef]
  41. Campos, R.B.V.; Camargo, S.A.S., Jr.; Brum, M.C.; Dos Santos, D.S. Hydrogen uptake enhancement by the use of a magnesium hydride and carbon nanotubes mixture. Mater. Res. 2017, 20, 85–88. [Google Scholar]
  42. Croston, D.L.; Grant, D.M.; Walker, D.S. The catalytic effect of titanium oxide based additives on the dehydrogenation and hydrogenation of milled MgH2. J. Alloys Compd. 2010, 492, 251–258. [Google Scholar] [CrossRef]
  43. Oelerich, W.; Klassen, T.; Bormann, R. Mg-based hydrogen storage materials with improved hydrogen sorption. Mater. Trans. 2001, 42, 1588–1592. [Google Scholar] [CrossRef] [Green Version]
  44. Polanski, M.; Bystrzycki, J. Comparative studies of the influence of different nano-sized metal oxides on the hydrogen sorption properties of magnesium hydride. J. Alloys Compd. 2009, 486, 697–701. [Google Scholar] [CrossRef]
  45. Chen, M.; Xiao, X.; Zhang, M.; Zheng, J.; Liu, M.; Wang, X.; Jiang, L.; Chen, L. Highly dispersed metal nanoparticles on TiO2 acted as nano redox reactor and its synergistic catalysis on the hydrogen storage properties of magnesium hydride. Int. J. Hydrogen Energy 2019, 44, 15100–15109. [Google Scholar] [CrossRef]
  46. Jardim, P.M.; da Conceicao, M.O.T.; Brum, M.C.; dos Santos, D.S. Hydrogen sorption kinetics of ball-milled MgH2-TTNT nanotubes with different sodium contents. J Alloys Compd. 2014, 615, S711–S714. [Google Scholar] [CrossRef]
  47. Wu, X.; Jiang, Q.-Z.; Ma, Z.-F.; Fu, M.; Shangguan, W.-F. Synthesis of titania nanotubes by microwave irradiation. Solid State Commun. 2005, 136, 513–517. [Google Scholar]
  48. Wong, C.L.; Tan, Y.N.; Mohamed, A.R. A review on the formation of titania nanotube photocatalysts by hydrothermal treatment. J. Environ. Manag. 2011, 92, 1669–1680. [Google Scholar] [CrossRef]
  49. Williamson, G.K.; Hall, W.H. X-ray line broadening from filed aluminium and wolfram. Acta Metall. 1953, 1, 22. [Google Scholar]
  50. Ribárik, G.; Gubicza, J.; Ungár, T. Correlation between strength and microstructure of ball-milled Al–Mg alloys determined by X-ray diffraction. Mater. Sci. Eng. A 2004, 387, 343–347. [Google Scholar] [CrossRef]
  51. Ribárik, G.; Jóni, B.; Ungár, T. Global optimum of microstructure parameters in the CMWP line-profile-analysis method by combining Marquardt-Levenberg and Monte-Carlo procedures. J. Mater. Sci. Technol. 2019, 35, 1508–1514. [Google Scholar]
  52. Estrin, Y.; Vinogradov, A. Extreme grain refinement by severe plastic deformation: A wealth of challenging science. Acta Mater. 2013, 61, 782–817. [Google Scholar] [CrossRef]
  53. Xu, C.; Horita, Z.; Langdon, T.G. The evolution of homogeneity in an aluminium alloy processed using high-pressure torsion. Acta Mater. 2008, 56, 5168–5176. [Google Scholar] [CrossRef]
  54. Kapoor, G.; Huang, Y.; Sarma, V.S.; Langdon, T.G.; Gubicza, J. Effect of Mo addition on the microstructure and hardness of ultrafine-grained Ni alloys processed by a combination of cryorolling and high-pressure torsion. Mater. Sci. Eng. A 2017, 688, 92–100. [Google Scholar] [CrossRef] [Green Version]
  55. Gubicza, J.; Hung, P.T.; Kawasaki, M.; Han, J.K.; Zhao, Y.; Xue, Y.; Lábár, J.L. Influence of severe plastic deformation on the microstructure and hardness of a CoCrFeNi high-entropy alloy: A comparison with CoCrFeNiMn. Mater. Charact. 2019, 154, 304–314. [Google Scholar] [CrossRef]
  56. Skripnyuk, V.M.; Rabkin, E.; Bendersky, L.A.; Magrez, A.; Carreno-Morelli, E.; Estrin, Y. Hydrogen storage properties of as-synthesized and severely deformed magnesium—Multiwall carbon nanotubes composite. Int. J. Hydrogen Energy 2010, 35, 5471–5478. [Google Scholar] [CrossRef]
  57. Edalati, K.; Yamamoto, A.; Horita, Z.; Ishihara, T. High-pressure torsion of pure magnesium: Evolution of mechanical properties, microstructures and hydrogen storage capacity with equivalent strain. Scr. Mater. 2011, 64, 880–883. [Google Scholar] [CrossRef]
  58. Révész, Á.; Gajdics, M. Correlation between Microstructure and Hydrogen Storage Properties of Nanocrystalline Magnesium Subjected to High-Pressure Torsion. Mater. Sci. Forum 2017, 885, 67–73. [Google Scholar] [CrossRef]
  59. Révész, Á.; Spassov, T.; Kis, V.K.; Schafler, E.; Gajdics, M. The Influence of Preparation Conditions on the Hydrogen Sorption of Mg-Nb2O5-CNT Produced by Ball Milling and Subsequent High-Pressure Torsion. J. Nanosci. Nanotechnol. 2020. [Google Scholar] [CrossRef]
  60. Zhang, J.; Shi, R.; Zhu, Y.; Liu, Y.; Zhang, Y.; Li, S.; Li, L. Remarkable Synergistic Catalysis of Ni-Doped Ultrafine TiO2 on Hydrogen Sorption Kinetics of MgH2. Appl. Mater. Interfaces 2018, 10, 24975–24980. [Google Scholar] [CrossRef]
  61. Zhang, M.; Xiao, X.; Luo, B.; Liu, M.; Chen, M.; Chen, L. Superior de/hydrogenation performances of MgH2 catalyzed by 3D flower-like TiO2@C nanostructures. J. Energy Chem. 2020, 46, 191–198. [Google Scholar] [CrossRef]
  62. Ma, Z.; Liu, J.; Zhu, Y.; Zhao, Y.; Lin, H.; Zhang, Y.; Li, H.; Zhang, J.; Liu, Y.; Gao, W.; et al. Crystal-facet-dependent catalysis of anatase TiO2 on hydrogen storage of MgH2. J. Alloys Compd. 2020, 822, 153553. [Google Scholar] [CrossRef]
Energies 13 00563 g001 550
Figure 1. Transmission electron microscopy (TEM) micrograph of the as-prepared titanate nanotubes.
Figure 1. Transmission electron microscopy (TEM) micrograph of the as-prepared titanate nanotubes.
Energies 13 00563 g001
Energies 13 00563 g002 550

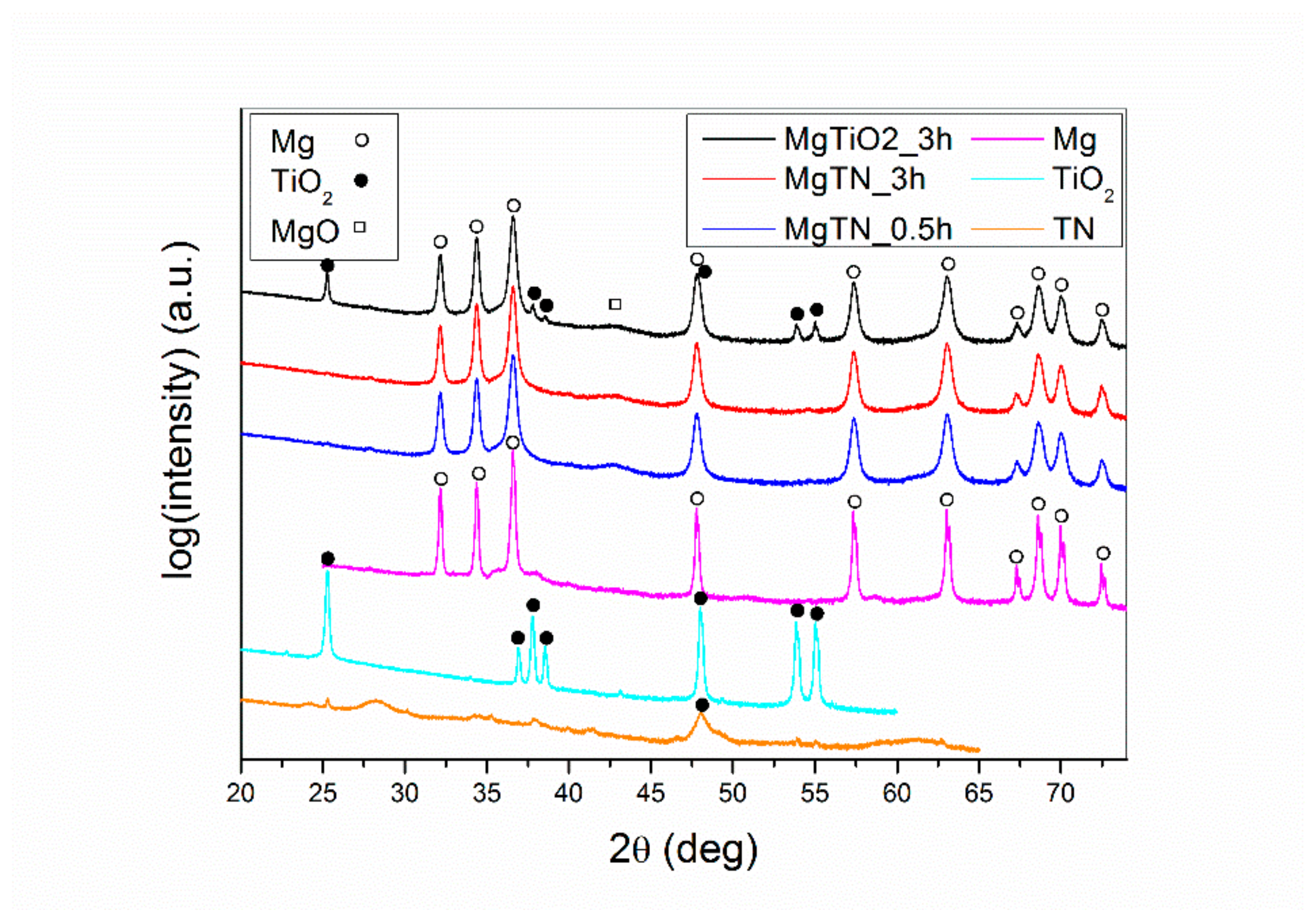

Figure 2. X-ray powder diffractograms of commercial Mg, TiO2 powders, as-prepared titanate (TN) nanotubes and the as-milled MgTiO2_3h, MgTN_0.5h and MgTN_3h composites.
Figure 2. X-ray powder diffractograms of commercial Mg, TiO2 powders, as-prepared titanate (TN) nanotubes and the as-milled MgTiO2_3h, MgTN_0.5h and MgTN_3h composites.
Energies 13 00563 g002
Energies 13 00563 g003 550

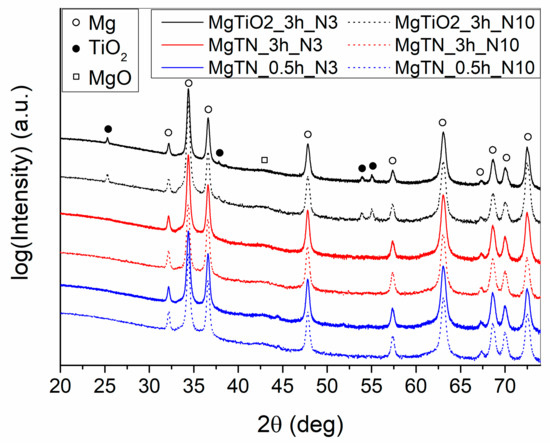

Figure 3. X-ray diffraction (XRD) patterns of the high-pressure torsion (HPT) processed Mg composites after N = 3 and N = 10 revolutions.
Figure 3. X-ray diffraction (XRD) patterns of the high-pressure torsion (HPT) processed Mg composites after N = 3 and N = 10 revolutions.
Energies 13 00563 g003
Energies 13 00563 g004 550

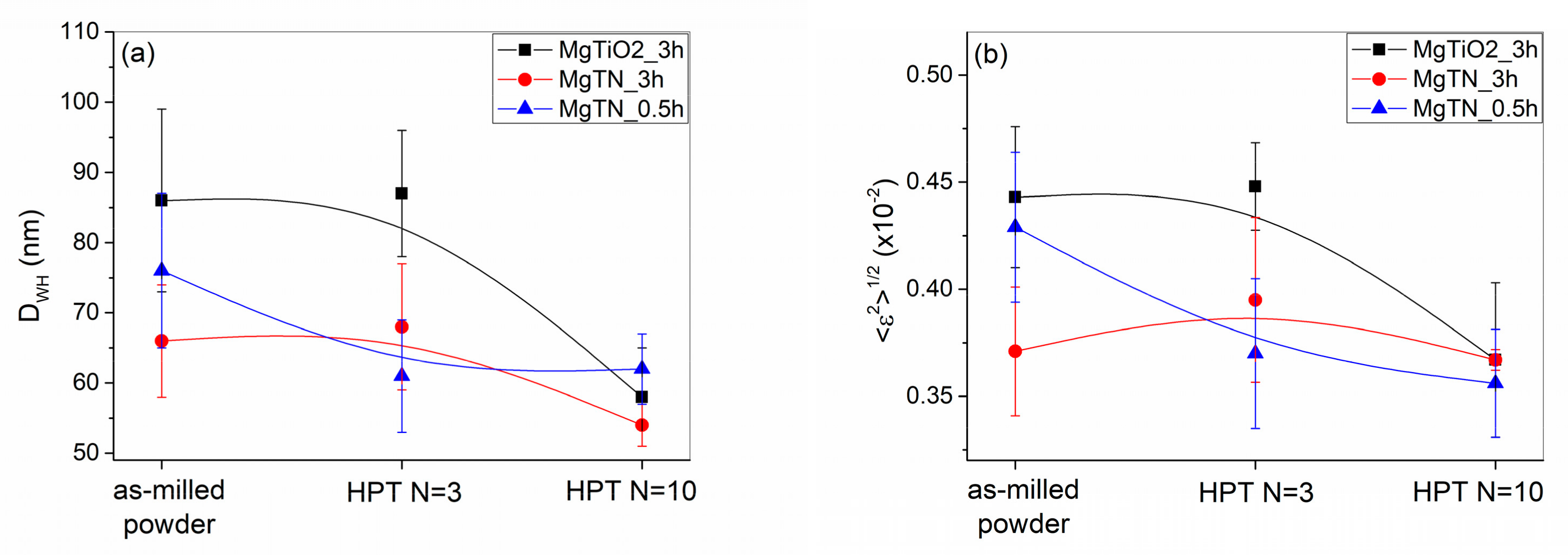

Figure 4. Average crystallite size DWH (a) and square root of the mean square strain 〈ε2〉1/2 (b) of the hexagonal Mg phase for the as-milled powders and HPT-disks obtained by the Williamson–Hall method.
Figure 4. Average crystallite size DWH (a) and square root of the mean square strain 〈ε2〉1/2 (b) of the hexagonal Mg phase for the as-milled powders and HPT-disks obtained by the Williamson–Hall method.
Energies 13 00563 g004
Energies 13 00563 g005 550

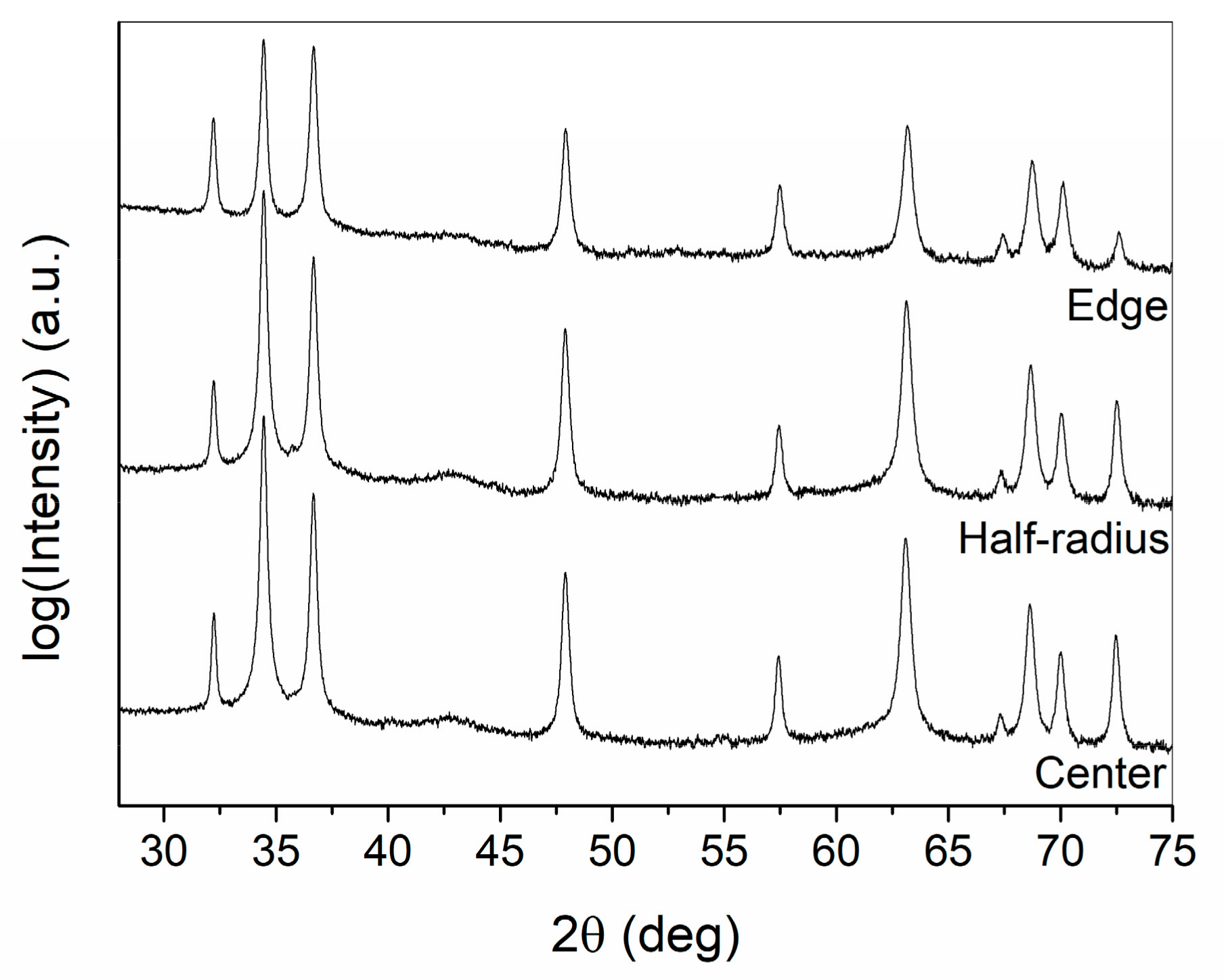

Figure 5. High resolution XRD patterns of the MgTN_3h_N3 sample taken at the center, half radius and edge of the disk.
Figure 5. High resolution XRD patterns of the MgTN_3h_N3 sample taken at the center, half radius and edge of the disk.
Energies 13 00563 g005
Energies 13 00563 g006 550

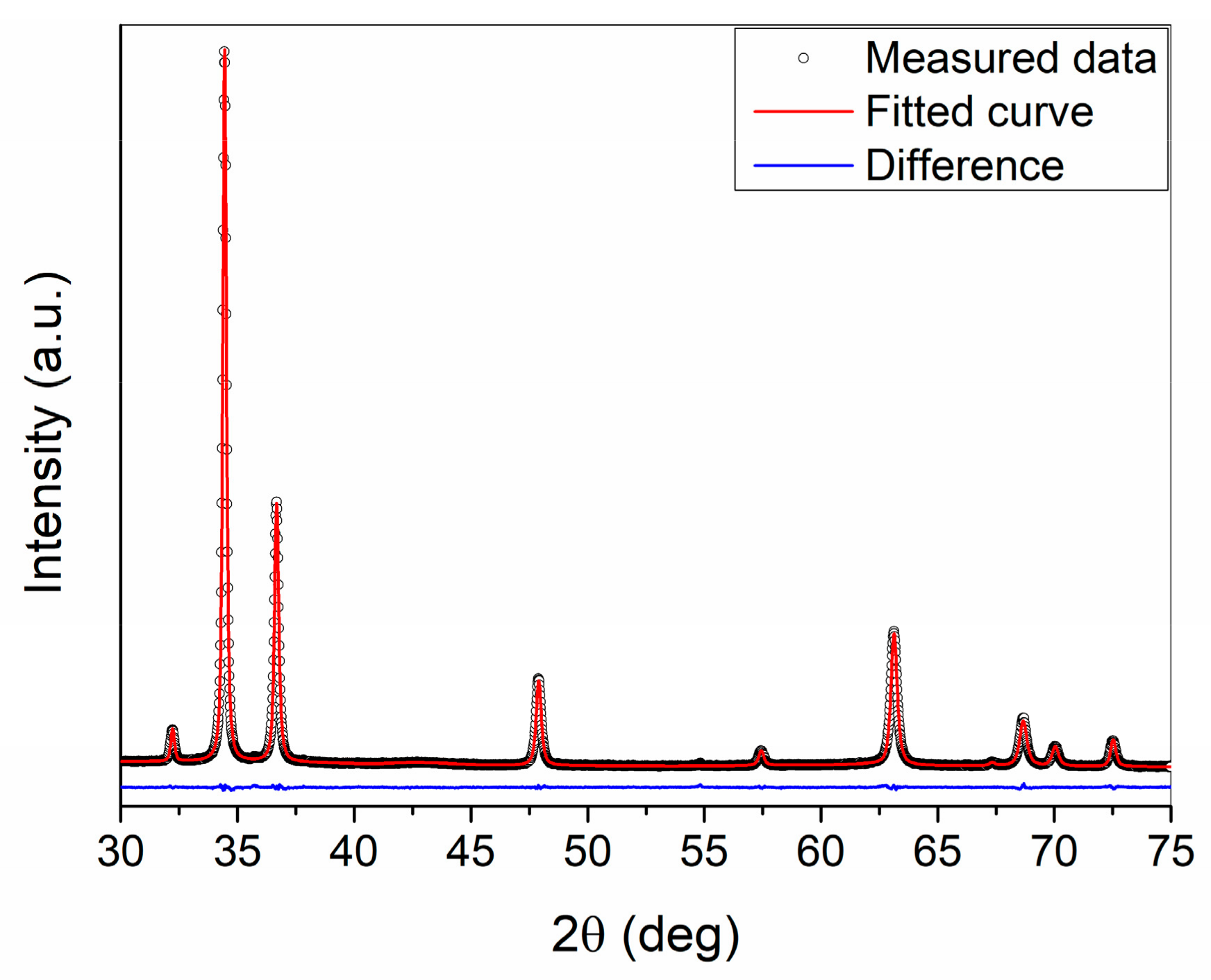

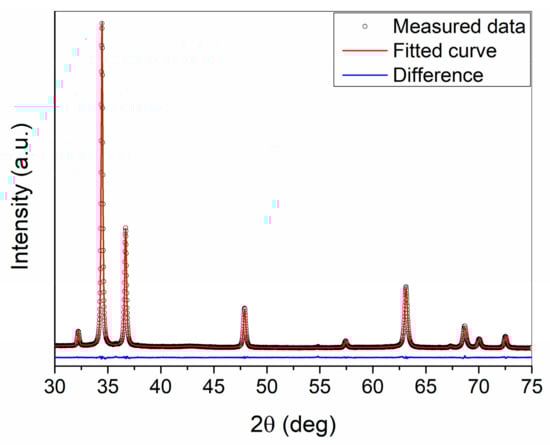

Figure 6. XRD profile of the MgTN_3h_N3 sample (at half radius) fitted by the convolutional multiple whole profile (CMWP) method.
Figure 6. XRD profile of the MgTN_3h_N3 sample (at half radius) fitted by the convolutional multiple whole profile (CMWP) method.
Energies 13 00563 g006
Energies 13 00563 g007a 550Energies 13 00563 g007b 550

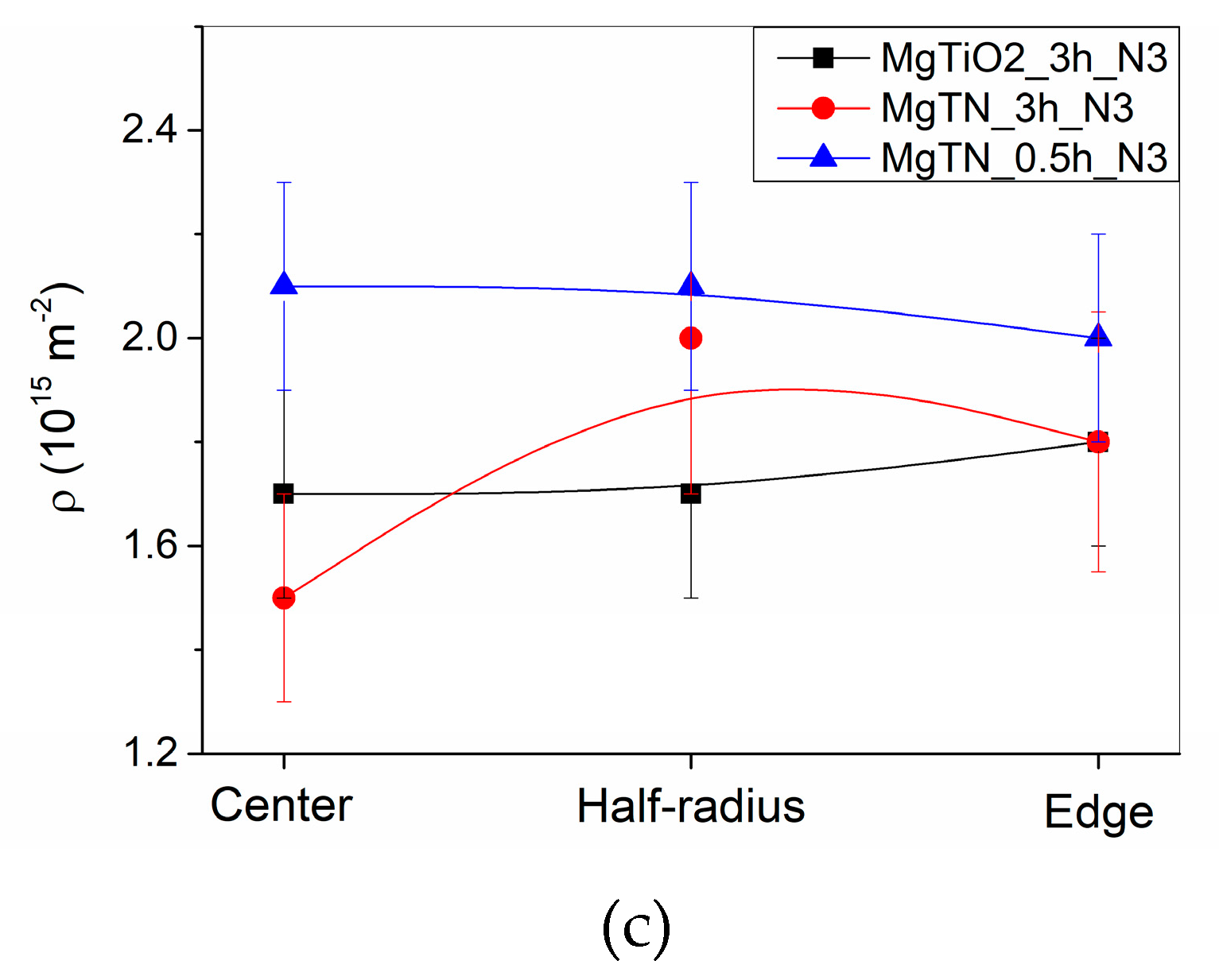

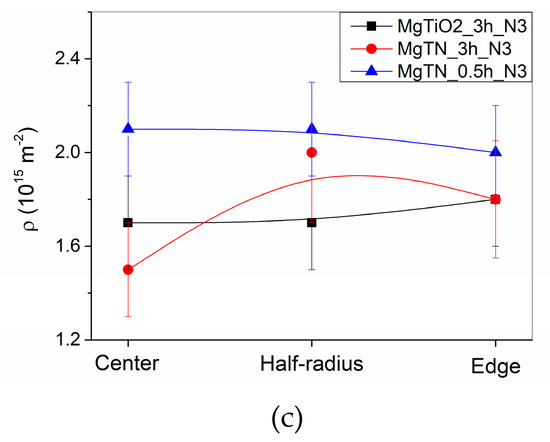

Figure 7. Microstructural parameters obtained by the CMWP analysis of the Mg-based disks (N = 3) along their radius. Average crystallite sizes (a), lognormal size-distribution functions of MgTN_3h_N3 (b) and average dislocation densities (c).
Figure 7. Microstructural parameters obtained by the CMWP analysis of the Mg-based disks (N = 3) along their radius. Average crystallite sizes (a), lognormal size-distribution functions of MgTN_3h_N3 (b) and average dislocation densities (c).
Energies 13 00563 g007aEnergies 13 00563 g007b
Energies 13 00563 g008a 550Energies 13 00563 g008b 550
Figure 8. TEM micrographs taken at different magnifications of the MgTN_0.5h_N3 (a,b) and MgTN_3h_N3 (c,d) disks. White arrows indicate titanate nanotube sections.
Figure 8. TEM micrographs taken at different magnifications of the MgTN_0.5h_N3 (a,b) and MgTN_3h_N3 (c,d) disks. White arrows indicate titanate nanotube sections.
Energies 13 00563 g008aEnergies 13 00563 g008b
Energies 13 00563 g009 550

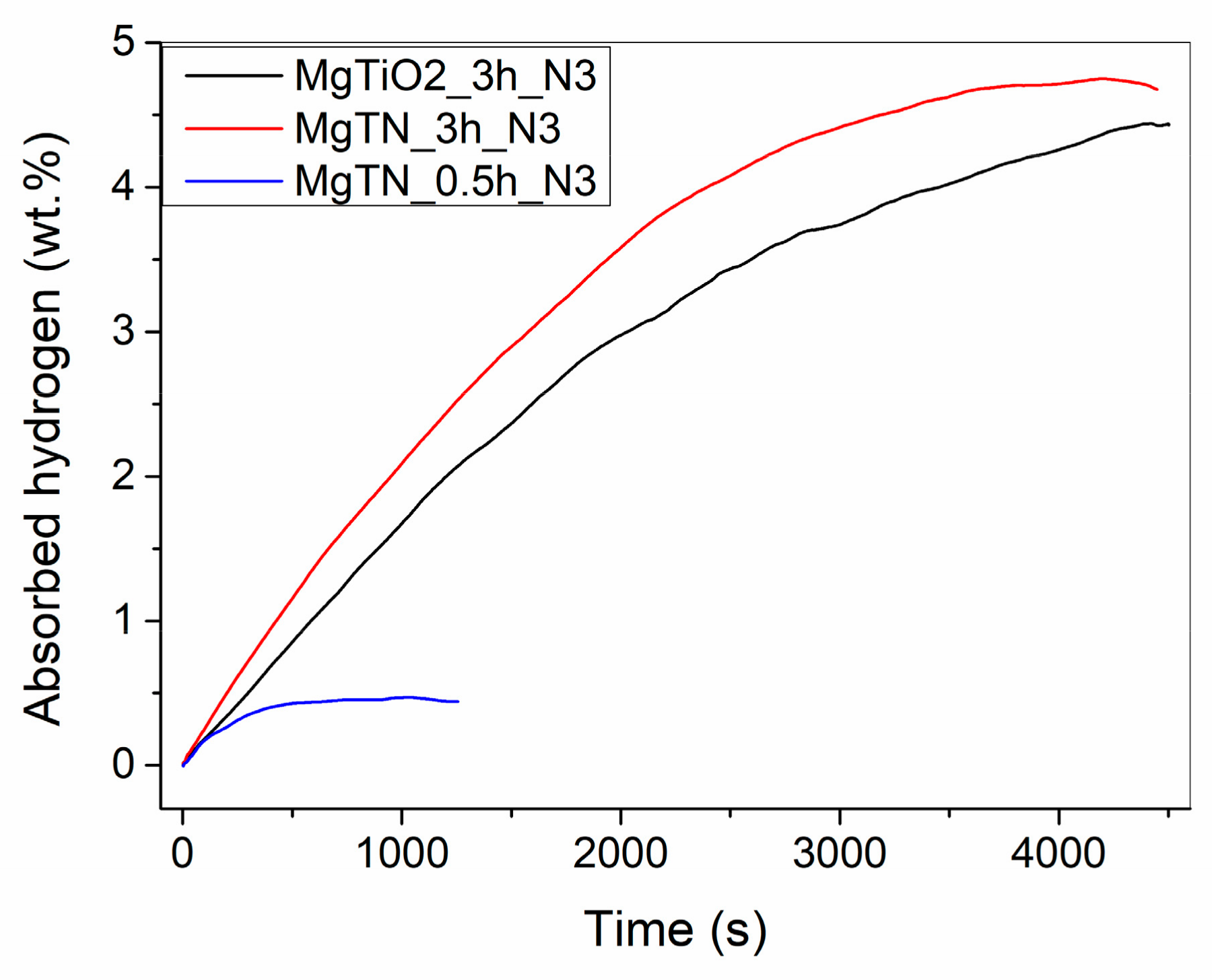

Figure 9. Absorption kinetic curves of the Mg-based composites processed by HPT for N = 3 rotations.
Figure 9. Absorption kinetic curves of the Mg-based composites processed by HPT for N = 3 rotations.
Energies 13 00563 g009
Table
Table 1. Intensity ratios of the (101) and (002) Mg reflections for the different composite powders and HPT disks.
Table 1. Intensity ratios of the (101) and (002) Mg reflections for the different composite powders and HPT disks.
SamplePowderHPT (N = 3)HPT (N = 10)
MgTiO2_3h2.110.280.12
MgTN_3h1.860.280.54
MgTN_0.5h2.320.390.33
Table
Table 2. Comparison of different Mg-based hydrogen storage systems.
Table 2. Comparison of different Mg-based hydrogen storage systems.
SampleProcessing RouteHydrogen Content after 1h of Hydrogenation (wt.%)Ref.
MgHPT N = 100.5[57]
MgHPT N = 103.5[58]
MgTN_3h_N3HEBM 3h + HPT N = 34.6this work
Mg-Nb2O5-CNTHEBM 3h + HPT N = 37.2[59]
MgH2 + TiO2HEBM 10h4.9[60]
MgH2 + flower-like TiO2HEBM 4h6[61]
MgH2 + TiO2 nanosheetsHEBM 10h6[62]

Share and Cite

MDPI and ACS Style

Gajdics, M.; Spassov, T.; Kovács Kis, V.; Béke, F.; Novák, Z.; Schafler, E.; Révész, Á. Microstructural Investigation of Nanocrystalline Hydrogen-Storing Mg-Titanate Nanotube Composites Processed by High-Pressure Torsion. Energies 2020, 13, 563. https://doi.org/10.3390/en13030563

AMA Style

Gajdics M, Spassov T, Kovács Kis V, Béke F, Novák Z, Schafler E, Révész Á. Microstructural Investigation of Nanocrystalline Hydrogen-Storing Mg-Titanate Nanotube Composites Processed by High-Pressure Torsion. Energies. 2020; 13(3):563. https://doi.org/10.3390/en13030563

Chicago/Turabian Style

Gajdics, Marcell, Tony Spassov, Viktória Kovács Kis, Ferenc Béke, Zoltán Novák, Erhard Schafler, and Ádám Révész. 2020. "Microstructural Investigation of Nanocrystalline Hydrogen-Storing Mg-Titanate Nanotube Composites Processed by High-Pressure Torsion" Energies 13, no. 3: 563. https://doi.org/10.3390/en13030563

APA Style

Gajdics, M., Spassov, T., Kovács Kis, V., Béke, F., Novák, Z., Schafler, E., & Révész, Á. (2020). Microstructural Investigation of Nanocrystalline Hydrogen-Storing Mg-Titanate Nanotube Composites Processed by High-Pressure Torsion. Energies, 13(3), 563. https://doi.org/10.3390/en13030563

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
