Single-Solution-Based Vortex Search Strategy for Optimal Design of Offshore and Onshore Natural Gas Liquefaction Processes

Abstract

Propane-Precooled Mixed Refrigerant (C3MR) and Single Mixed Refrigerant (SMR) processes are considered as optimal choices for onshore and offshore natural gas liquefaction, respectively. However, from thermodynamics point of view, these processes are still far away from their maximum achievable energy efficiency due to nonoptimal execution of the design variables. Therefore, Liquefied Natural Gas (LNG) production is considered as one of the energy-intensive cryogenic industries. In this context, this study examines a single-solution-based Vortex Search (VS) approach to find the optimal design variables corresponding to minimal energy consumption for LNG processes, i.e., C3MR and SMR. The LNG processes are simulated using Aspen Hysys and then linked with VS algorithm, which is coded in MATLAB. The results indicated that the SMR process is a potential process for offshore sites that can liquefy natural gas with 16.1% less energy consumption compared with the published base case. Whereas, for onshore LNG production, the energy consumption for the C3MR process is reduced up to 27.8% when compared with the previously published base case. The optimal designs of the SMR and C3MR processes are also found via distinctive well-established optimization approaches (i.e., genetic algorithm and particle swarm optimization) and their performance is compared with that of the VS methodology. The authors believe this work will greatly help the process engineers overcome the challenges relating to the energy efficiency of LNG industry, as well as other mixed refrigerant-based cryogenic processes.

1. Introduction

The continuous growth of human society will adversely affect the world energy requirements in the near future [1]. The estimates indicate an increase in the worldwide energy of up to 56% from 2010 to 2040 where India and China are the main contributors with increments of 112% in the same era [1]. Despite the intense research on renewable resources, it is projected that 76% of energy needs will be met by fossil fuels until 2040 [2]. Among conventional energy resources (i.e., gas, oil, and coal), Natural Gas (NG) has become essential because of its low Greenhouse Gas (GHG) emissions and increased thermal efficiency [3]. NG is the cleanest fuel with least contribution to climate change and air pollution [4,5]. As a result, a significant shift from coal to NG has been witnessed worldwide [6,7].

Most of the NG reservoirs are located in the remote areas, thus NG is transported to markets in gaseous or liquid (LNG) forms. The economical and easy transportation of NG over long distances (>2000 km) is a critical factor, which is solved through liquefaction approach. The transportation of NG as LNG is preferred because of its lower cost and high safety compared with a pipeline (gaseous) transportation over long distances [8]. Due to this, the pipeline gas trade has been reduced by seven times than the LNG trade [9]. However, a primary issue with LNG processes is operating expenditure in terms of energy required to liquefy NG. It exhibits low energy efficiency, and the energy required is related to the compression power (shaft work) for refrigeration to liquefy NG. The shaft work for refrigeration cycles is dependent on the flow rates of the ingredients of mixed refrigerant (MR) and cycle operating conditions (e.g., refrigerant evaporation and condensation pressure) [10]. The optimal execution (i.e., via determining the optimal operating pressures and composition of the mixed refrigerant) of the liquefaction processes is minimized by the overall compression power [11,12]. This eventually enhances process efficiency by exploiting economic advantages with low energy requirements. Hence, several studies have improved liquefaction processes via sole optimization. For example, Lee et al. [13] determined the optimal design of the SMR case with minimum shaft work. Shah et al. [14] were the first to study multi-objective optimization of the C3MR process. They optimized the C3MR process by considering the total shaft work requirement, capital cost, total annual cost, and total hydrocarbon inventory as objective functions.

The process optimization is developed through adaptation of commercial process simulators, and this exhibits comprehensive thermodynamic libraries. The LNG processes are simulated in commercial simulators and optimized by developing a connection between both software environments. For instance, Aspelund et al. [15] built a simulation environment linked with the optimization algorithm. They used Aspen Hysys^® to model SMR process and subsequently optimized it using a hybrid strategy by combining Nelder–Mead Downhill Simplex and Tabu search algorithms. Khan et al. [16] decreased the overall compression energy requirement of the SMR process using Non-Linear Programming (NLP) and particle swarm paradigm. Wang et al. [17] designed the C3MR process in Aspen Plus^® and presented an optimal design through Sequential Quadratic Programming (SQP). Hatcher et al. [18], Lee et al. [19], and Mortazavi et al. [20] also modeled the C3MR process and subsequently optimized it via the Box method, Successive Reduced Quadratic Programming (SRQP), and hybrid optimization (i.e., Genetic Algorithm (GA) and SQP). Lee et al. [21] applied multi-objective optimization (using SQP) via gProms process simulator to find an optimal design of SMR process. Furthermore, Lee and Moon [22] have also used the SRQP to find optimal designs of SMR and C3MR liquefaction processes. They applied a mathematical optimization model that includes the cost model, as well as thermodynamic model. However, Tsay and Baldea [23] reported that modeling, simulation, and optimization become more complicated when phase transition and recycle streams are incorporated into refrigeration cycles. Therefore, they used equation-oriented modeling and optimization strategies [24,25] to find the optimal design of SMR liquefaction processes. Moreover, Vikse et al. [26] presented a versatile simulation method to find an optimal design of complex SMR process. They investigated the capability of nonsmooth framework (i.e., equation-oriented modeling) for the optimal design of SMR process. Ali et al. [27] employed Generalized Polynomial Chaos (gPC) based surrogate modeling approach to study the operational reliability of the SMR process. Most recently, Zhu et al. [28] performed experimental investigation to analyze the flow distribution in plate-fin heat exchanger that is mostly used in the SMR process. Khan et al. [11] proposed a mixed refrigerant composition selection method based on the boiling point difference and specific refrigeration effect of individual components in mixed refrigerant. The proposed selection criteria were applied to the MR used in SMR and C3MR system; and a decrease in energy consumption for compression was observed. In another similar study, Xu et al. [29] developed a correlation between the ambient temperature and mixed refrigerant composition to evaluate energy utilization for PRICO LNG process. Qadeer et al. [30] adopted krill-herd optimization strategy for optimal solution of process conditions and MR composition of the SMR process.

Recently, a single-solution based Vortex Search (VS) [31] algorithm has been evaluated for the design optimization of complex processes such as modified SMR [32] and self-recuperative high temperature co-electrolysis-based methanol production [33]. Authors have found best optimal designs through the VS approach. Previously [32], the VS algorithm was used for the design optimization of modifed SMR process (MR consists of five components; nitrogen, methane, ethane, propane, and i-pentane) instead of conventional and well known SMR process that uses four components, i.e., nitrogen, methane, ethane, and propane. Since the optimization of LNG processes exhibited a significant reduction in exergy destruction and an enhanced the energy efficiency. The process engineers always focus on optimizing the plant design and operation to increase the profits of the chemical processes by improving the energy efficiency (reducing the operating costs). However, the energy efficiency enhancement for the LNG plants through exclusive optimization is a challenging task by virtue of highly complex and nonlinear thermodynamic interactions between the constrained design variables and energy efficiency. Therefore, efficient and rigorous optimization of the LNG processes continues to be an ongoing issue.

The major contribution of this study is the implementation and evaluation of the single-solution based Vortex Search (VS) [31] methodology to find the optimal design variables (corresponding to minimal energy consumption) of the SMR (for offshore applications) and C3MR (for onshore applications) processes. The SMR and C3MR processes are simulated in Aspen Hysys^® v9. The VS algorithm is coded and modified in MATLAB version 2018b. The simulated LNG processes are linked with VS through ActiveX functionality. Optimal findings are analyzed and compared with the well-known algorithms including the GA and Particle Swarm Optimization (PSO). The VS algorithm can be applied to find the optimal design of any complex chemical process by simulating in Aspen Hysys.

2. Vortex Search Strategy

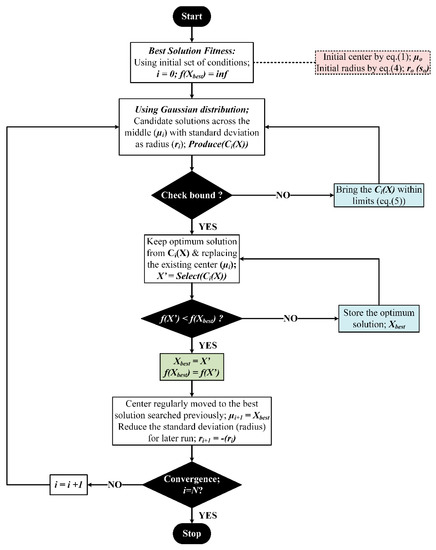

The single-solution based VS algorithm was developed by Doğan and Ölmez [31]. The dominant characteristic of the VS algorithm is the adaptive interval (step) size phenomenon that significantly improves the functionality of the search mechanism. The VS algorithm program balances neighborhood weak locality and strong locality to determine the optimal solution. Furthermore, the algorithm almost converges at the optimum point, and thus, it reacts in an exploitative (strong locality) manner to adjust the updated solution towards the optimal result. Hence, the hunted radius decreases with the completion of each iteration. The VS algorithm deterministically locates a solution in the specified lower and upper bounds and converges to a global optimal point for the optimization. To examine the performance, the VS approach has been employed to solve the issue of the selection of an analog active filter component [34] and the optimal design of analog filter group delay [35].

In the Vortex Search Optimization (VSO) approach, the effectiveness and success of optimal solutions significantly depend on weak and strong locality. The weak and strong locality refers to small and large changes that occur in the current solution. A weak locality is required when the search procedure begins whereas strong locality is required when the optimization algorithm converges successfully close to the best optimal solution. Further, Figure 1 shows the optimization procedure using the VS algorithm. The major steps of the VS algorithm searching are; primary estimation (initialization of VS), candidate solutions, current solution substitution, and radius reduction methodology.

2.1. Primary Estimation

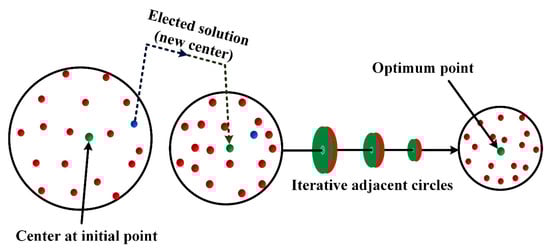

The search strategy of the said algorithm is explained using a nested vortex pattern. Figure 2 shows a model of the VS algorithm in a bidimensional nested circle. The rivet of the search under the initial conditions is determined by the diameter of the outermost circle. The rivet or initial center (µ₀) is given by Equation (1) as follows:

$${\mu }_0=\frac{upperbound+lowerbound}{2}$$

(1)

2.2. Candidate Solutions

After evaluating the initial solution, a Gaussian distribution is used to calculate next neighbor solutions $C_i\left(X\right)=\left\{x_1,x_2,x_3,\dots ,x_k\right\},k=1,2,\dots ,n$ as expressed in Equation (2) as follows:

$$p(\zeta |\mu ,\upsilon )=\frac{1}{\sqrt{{(2\pi )}^d|\upsilon |}}\exp \left(-\frac{1}{2}\frac{{\left(\zeta -\mu \right)}^T\left(\zeta -\mu \right)}{\upsilon }\right)$$

(2)

where n denotes number of candidates’ local optimal points, i defines the number of count and d represents the dimension number, and ζ and µ denote the vector for a haphazardly yielded variable and the sample mean (chosen as the center), respectively. Additionally, ν denotes the covariance matrix that is given by Equation (3) as follows:

$$\upsilon =s^2[I],\mathrm{dimesion}:\mathrm{d}\times \mathrm{d}$$

(3)

where s² denotes the variance distribution and I denotes the identity matrix. The standard deviation (s₀) under the initial conditions is given by Equation (4) as follows:

$$s_0(=r_0)=\frac{\max (upperbound)-\min (lowerbound)}{2}$$

(4)

where s₀ is considered as the initial radius (r₀) and is differentiated to yield an entire covering of the weak vicinity in the neighborhood search area for a fully weak locality at the initial stage.

2.3. Current Results Substitution

The replacement phase of the nearest candidate result with the current solution commences with the solution $X^{\prime }\in C_0\left(X\right)$, (i = 0) from C₀(X), wherein the current circle center µ₀ lies within the search space limits. If the new solutions are beyond the search space boundaries, then the candidate solutions are shifted into the specified bounds as given in Equation (5) as follows:

$${(lowerbound)}^d\le s_k^d\le {(upperbound)}^d$$

(5)

where k varies from 1 to n, and d symbolizes the dimension of bound limits. In the ensuant iteration, the obtained optimum solution X′ denotes the center of the next circle. In the second step of the coevals phase, the active radius (r₁) of the circle decreases, and a new set of vectors C₁(X) is obtained across the new center. In the second step of the selection phase, the new solution set C₁(X) is evaluated via $X^{\prime }\in C_1\left(X\right)$. If the selected solution advances to the old solutions, then it is saved.

Similarly, the assigned center in the third step is hypothetically saved as the new advanced/optimum solution to the point, as shown in Figure 3. The phenomenon continues until the completion criterion is satisfied.

2.4. Radius Reduction Methodology

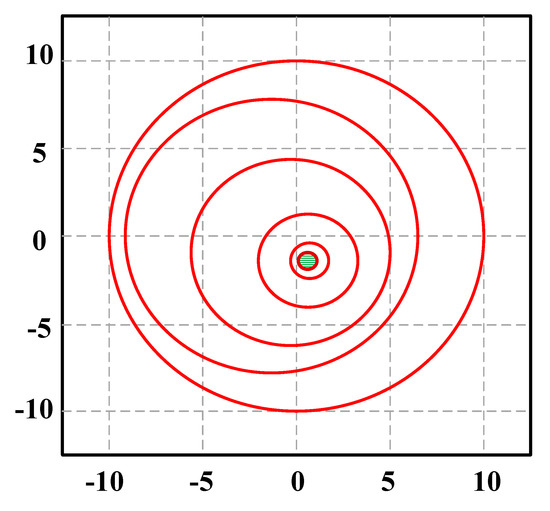

This is viewed as a type of reconciliation step-size improvement strategy that is employed in random seeking mechanisms to realize the potential benefits of the VS approach. The approach ensures the VS program to act in an exploratory (weak locality) fashion at the beginning and in the manner of a strong locality in the final measurements. To attain this type of a search mechanism, it is necessary to appropriately adjust the gain of the radius during optimization in each iteration. Therefore, the radius decrement process is described as an inverse incomplete gamma function. The VS algorithm is used to optimize a few benchmark objective functions to demonstrate the effectiveness of the algorithm, and the results are listed in

Table 1. Benchmark functions optimized using the VS algorithm.

Name of Function and (Global Value)	Objective Function Equation	Minimum	Search Bound	Plot
Schafer, (0)	$f(x)=0.5+\frac{{\sin }^2\left(\sqrt{x_1^2+x_2^2}\right)-0.5}{{\left(1+0.001\left(x_1^2+x_2^2\right)\right)}^2}$	0	[−100,100]
Goldstein-Price, (3)	$\begin{array}{l}f(x)=\left[1+{\left(x_1+x_2+1\right)}^2\left(19-14x_1+3x_1^2-14x_2+6x_1{x}_2+3x_2^2\right)\right]\cdot \\ \left[30+{\left(2x_1-3x_2\right)}^2\left(18-32x_1+12x_1^2+48x_2-36x_1{x}_2+27x_2^2\right)\right]\end{array}$	3	[−2,2]
Six Hump Camel Back, (−1.0316)	$f(x)=4x_1^2-2.1x_1^4+\frac{1}{3}{x}_1^6+x_1{x}_2-4x_2^2+4x_2^4$	−1.0316	[−5,5]
Matyas, (0)	$f(x)=0.26\left(x_1^2+x_2^2\right)-0.48x_1{x}_2$	0	[−10,10]

.

3. Onshore and Offshore LNG Processes

Many liquefaction technologies have been developed for onshore and offshore LNG production. The C3MR, DMR, and cascade processes are considered suitable candidates for onshore LNG production. Whereas, for offshore applications, the SMR, nitrogen-expander-based, and DMR processes are the promising options. The DMR process is considered for both onshore, as well as offshore applications [36]. Generally, the liquefaction process is selected based on NG reserve’s location (onshore or offshore), production capacity, degree of complexity, and environmental conditions. However, considering the energy efficiency (operating costs), the SMR (PRICO^®) process is the most suitable candidate for small-scale and offshore applications compared with the expander-based LNG processes [37]. Although, for offshore applications, the nitrogen-expander-based liquefaction process have several dominant features such as safety and simplicity in operation but thermodynamically it is less attractive than the SMR process, due to high exergy destruction. Whereas, the C3MR process is considered as a promising candidate for onshore applications due to its relative high energy efficiency. Furthermore, this process is capable of producing 81% of the base-load LNG [38]. It is reported [39] that about 77% of the world’s LNG plants are using the C3MR technology. Nevertheless, the process exhibits a high degree of complexity. Detailed process descriptions of the SMR and C3MR liquefaction processes are described in the forthcoming sections.

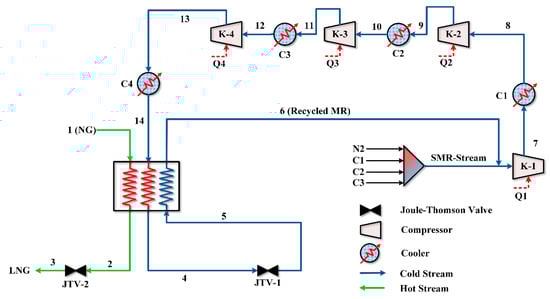

3.1. SMR LNG Process Description

A conventional SMR, alternatively known as the PRICO (poly refrigerant integrated cycle operations) process, was first introduced by Black and Veatch in 1970 [40]. Figure 4 shows that the SMR process consists of compressors to compress the MR in steps with intermediate coolers (air/water), i.e., a cryogenic multistream exchanger for exchanging heat between MR and feed natural gas and expansion valves (Joule–Thomson (JT)). In the SMR LNG cycle, a mixed refrigerant stream comprised of a range of mixture of methane, ethane, propane, and nitrogen is employed to produce a significant refrigeration effect to liquefy natural gas up to a temperature of approximately −159 °C and a pressure of 1.3–2.0 bar. First, the SMR stream is introduced into a refrigeration cycle loop equipped with compression units, including after-coolers/inter-stage coolers. The MR gains heat during the compression process and is removed by air/water-cooled inter-stage coolers. Subsequently, the MR stream enters the cryogenic multistream exchanger and gets condensed. Then, the pressurized liquid MR passes through a JT valve where its pressure is lowered. At the outlet of this JT valve, the MR is obtained with liquid fraction >0.85. This MR (stream-5) exchanges the latent heat with incoming high-pressure MR (stream-14), as well as feed NG (stream-1) and is evaporated. Finally, it is exited as a superheated vapor (stream-6) from the LNG heat exchanger and is subsequently introduced into the compressor (K-1), thereby completing the refrigeration loop.

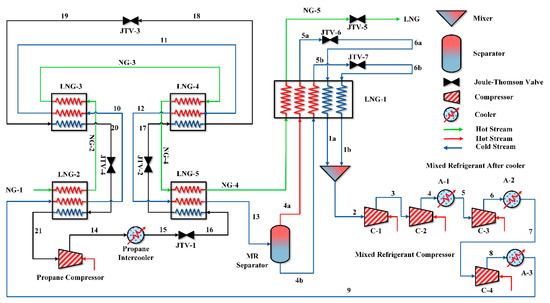

3.2. C3MR LNG Process Description

Although the SMR and C3MR exhibit resemblance in terms of the MR cycle, the degree of complexity of C3MR exceeds that of SMR. They utilize the same cryogenic heat exchanger (i.e., a plate and fin brazed with aluminum core) [11]. The C3MR process is less inviting for offshore applications due to its complex structure and large space requirements. Given its ability to match hot (natural gas) and cold (MR boiling) composite curves, the C3MR process performance is lower than that of other available LNG processes. The C3MR process uses the two refrigeration cycles; pure propane (C3) and MR-based refrigeration cycles as shown in Figure 5. The propane-based refrigeration loop is employed to precool the feed natural gas, as well as the mixed refrigerants. Subsequently, the process of liquefaction and subcooling of the feed natural gas stream is performed through the MR cycle.

3.3. Simulation Basis for LNG Process Modeling

In the study, Aspen Hysys is used to model the SMR and C3MR processes. Optimal conditions for the processes as determined by Khan et al. [32] are selected to create the base case study. Natural gas feed quality, other process conditions, and assumptions used in the simulation are highlighted in

Table 2. Natural gas feed conditions and assumptions for Hysys modeling of the SMR and C3MR.

Property	Condition
NG feed condition
Flow rate	1.0 kg/h
Temperature	32 °C
Pressure	50 bar
NG feed composition	Mole fraction
Methane	0.9133
Ethane	0.0536
Propane	0.0214
n-Butane	0.0047
i-Butane	0.0046
n-Pentane	0.0001
i-Pentane	0.0001
Nitrogen	0.0022
Intercooler outlet temperature	40 °C
Vapor fraction boil-off-gas	8.0%
Compressor isentropic efficiency	0.75
Fluid package	Peng–Robinson
Enthalpy/entropy calculation	Lee Kesler
Pressure drops across LNG cryogenic exchanger in SMR process
“Stream-1” to “Stream-2”	1.0 bar
“Stream-14” to “Stream-4”	1.0 bar
“Stream-5” to “Stream-6”	0.1 bar
Pressure drops across LNG exchanger in C3MR process
“Stream-NG-1” to “Stream-NG-5”	1.0 bar
“Stream-4a” to “Stream-5a”	1.0 bar
“Stream-4b” to “Stream-5b”	0.5 bar
“Stream-6a” to “Stream-1a”	0.05 bar
“Stream-6b” to “Stream-1b”	0.05 bar
Heat loss to the environment in both SMR and C3MR processes	negligible

. Binary interactions parameters are predicted using the popular Peng–Robinson model, whereas the entropies and enthalpies are evaluated via the Lee–Kesler thermodynamic model. A Minimum Internal Temperature Approach (MITA) value is specified as 3 °C to obtain a more efficient design for the LNG multistream exchangers.

4. Optimization Problem Formulation for SMR and C3MR Processes

The effectiveness of any optimization problem is examined by the mathematical problem formulation. The effectiveness significantly affects the type of optimal candidate set results and optimization elapse time. The following constitute the major components for any general optimization problem:

• Target function(s).
• Constraint function(s) and their limits(s).
• Optimization variables.
• Optimizing variable bounds (search area).
• Other design parameters, if any.

Total energy requirement in terms of compression power for LNG processes is considered as a target/objective in several different design optimization studies. Therefore, the compression power required as an operating cost is considered as the objective function to liquefy unit mass flow of NG in both LNG processes. Hence, the mathematical optimization problem is expressed as follows:

$$Minimizef\left(Y\right)=Min.\left({\displaystyle \sum _{i=1}^n\raisebox{1ex}{$W_i$}\!\left/ \!\raisebox{-1ex}{$m_{LNG}$}\right.}\right)$$

(6)

subject to the MITA values (inside all LNG heat exchangers) as constraints:

$$\Delta T_{\left(min\right)}\left(Y\right)\ge 3.0$$

(7)

where Y denotes the set of optimizing decision variables and i denotes the number of compressors.

Parameters including the MR flow rate, condensation pressure, and evaporation pressure were selected as the design variables for SMR process. Whereas, for the C3MR process, the temperatures of the cooling stages in the propane cycle were also considered as the design variables in addition to the MR components flowrates, MR condensation, and evaporation pressures.

Table 3. Decision variables of the SMR and C3MR processes with their upper and lower bounds.

Decision Variables	Lower Bound	Upper Bound
Design (decision) variables for SMR process
High pressure of MR, P13 (bar)	35.0	70.0
Evaporation pressure, P5 (bar)	1.1	4.0
Flow rate of nitrogen, $m_{N2}$ (kg/h)	0.1	0.65
Flow rate of methane, $m_{C1}$ (kg/h)	0.25	0.85
Flow rate of ethane, $m_{C2}$ (kg/h)	0.45	1.15
Flow rate of propane, $m_{C3}$ (kg/h)	2.0	3.5
Design (decision) variables for C3MR process MR cycle
High pressure of MR, P8 (bar)	50.0	70.0
Evaporation pressure, P6a (bar)	2.5	10.0
Evaporation pressure, P6b (bar)	2.5	10.0
Flow rate of nitrogen, $m_{N2}$ (kg/h)	0.05	0.45
Flow rate of methane, $m_{C1}$ (kg/h)	0.25	0.85
Flow rate of ethane, $m_{C2}$ (kg/h)	0.65	1.40
Flow rate of propane, $m_{C3}$ (kg/h)	0.15	0.8
Propane cycle
Propane 1st cooling stage (°C)	15.0	30.0
Propane 2nd cooling stage (°C)	0.0	10.0
Propane 3rd cooling stage (°C)	−20.0	−5.0

lists all decision variables (with their bounds) of the SMR and C3MR processes.

Since the optimization of LNG processes is constrained by the MITA inside the LNG heat exchangers. Therefore, the overall compression power (i.e., objective function) was constrained by the MITA value of 3 °C. The MITA value can be 1~3 °C. However, the MITA value of 3 °C is more flexible to ensure the feasibility of the liquefaction with affordable economics.

4.1. Constraint Handling Approach

An exterior penalty function was used to handle the constraints (i.e., MITA value of 3.0 °C), and to further fold the constraints into overall compression power. It has been carried out by several LNG design optimization studies [12,30,32,41].

Since the overall objective function is formed by combining the required power and constraint as specified in Equations (6) and (7) as follows:

Finally, the objective function is reformulated in Equation (8) as follows:

$$\mathrm{Minimize}P(Y)=Min\left({\displaystyle \sum _{i=1}^z{W}_i}/m_{LNG}+w(\max \{0,(3.0-MITA(Y)\}\right)$$

(8)

where w denotes a positive penalty parameter, whose values correspond to 1.

4.2. Exergy Destruction Analysis

Exergy for a refrigeration cycle is the minimum theoretical work required from the environment as the system comes from the dead state to the desired state. Exergy analysis identifies the energy flaws mainly due to the thermodynamic irreversibilities associated with each equipment, as well as the whole process. Thus, exergy analysis provides rigorous directions and attention for further improvement in order to reduce the exergy destruction as much as possible, which ultimately leads to enhance the overall process performance. The exergy destruction associated with SMR and C3MR processes for all cases (i.e., base case, GA-optimized, PSO-optimized, and VS-optimized) were performed using the expressions listed in

Table 4. Exergy destruction calculations expressions.

Equipment	Exergy Destruction (kJ/h)
Compressor	$E{x}_{des}=\left(\mathsf{ṁ}\right)\left(E{x}_{in}-E{x}_{out}\right)-\mathsf{Ẇ}$
Interstage coolers	$E{x}_{des}=\left(\mathsf{ṁ}\right)\left(E{x}_{in}-E{x}_{out}\right)$
Multistream LNG heat exchanger	$E{x}_{des}=\sum \left(\mathsf{ṁ}\right)E{x}_{in}-\sum \left(\mathsf{ṁ}\right)E{x}_{out}$
JT valves	$E{x}_{des}=\left(\mathsf{ṁ}\right)\left(E{x}_{in}-E{x}_{out}\right)$

[42].

5. Results and Discussion

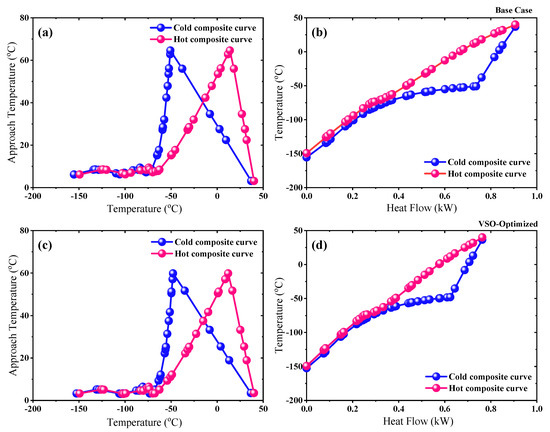

The approach temperature (temperature difference) curve also known as TDCC provides information about the behavior of MITA value along the length of the LNG heat exchangers. Accordingly, the efficient heat transfer can be achieved when the height of the TDCC is close to the specified MITA value of 3 °C. The performance of the LNG processes can also be observed through temperature-heat flow composite curves (THCC). The gap between THCC presents the exergy destruction associated with the LNG heat exchanger. Figure 6 shows the TDCC and THCC comparison of the VSO-optimized SMR process and the published base case. It can be observed that there is a larger gap between the THCC of base case and the VSO-optimized SMR; especially in a temperature range of −70 to 40 °C. This large gap indicates the exergy destruction inside the cryogenic LNG heat exchanger, which ultimately leads to low energy efficiency. It is necessary to reduce the space/gap between THCC to decrease exergy destruction. Thus, the MR flow should be at the optimal values to cope with the inefficiency present in the system and minimize the compression power required to liquefy the natural gas. Given the application of VS optimization approach, as clearly seen in Figure 6d, the triangular space is smaller than that of triangular area in Figure 6b. This reduction in the gap between THCC provides a significant energy savings compared with the base case of the SMR process. It is noted that high MITA value inside multistream heat exchanger continues to exist in the temperature range of −50 and 40 °C (Figure 6d).

The high MITA value is principally due to the existence of the more volatile component, i.e., propane. The MITA value is reduced via precooling the feed gas and MR prior to entering the LNG cryogenic heat exchanger. This type of precooling conclusively enhances the operation of the C3MR plant by decreasing the temperature gradient in the LNG cryogenic exchanger through propane precooling.

Figure 7 shows the graphical results of the C3MR process for the VS-optimized and base case study. The VS-optimized C3MR process significantly reduces the enclosed space between the THCC as shown in Figure 7d, whereas the composite curves in the base case exhibit a relatively larger gap.

With respect to a feasible and reliable operation of any cryogenic plant, the composite curve matching approach is widely used as a thermodynamic graphical approach to determine the optimal performance of any heat exchange processes. To obtain high energy efficiency of a LNG process with low required compression power, the hot and cold steam temperature profile (i.e., composite curves) must be close to each other provided it follows the feasible approach temperature of 3 °C.

Table 5. Temperature and pressure for all streams of SMR and C3MR processes.

SMR Process			C3MR Process
Stream	T, (℃)	P, (bar)	Stream	T, (℃)	P, (bar)
1	32.0	50.0	1a	−136.5	3.0
2	−149.3	49	1b	−136.5	3.0
3	−158.5	1.209	2	−56.4	3.0
4	−149.3	58.5	3	−16.22	6.2
5	−152.6	1.65	9	40.0	55.0
6	36.54	1.55	4a	−33.34	54.0
7	90.39	3.858	4b	−33.34	54.0
8	40.0	3.858	5a	−119.4	53.99
9	94.71	9.603	6a	−152.7	3.0
10	40.0	9.603	5b	−130.6	54.0
11	96.53	23.9	6b	−136.5	3.0
12	40.0	23.9	NG-1	32.0	50.0
13	101.5	59.5	NG-4	−33.34	49.0
14	40.0	59.5	NG-5	−149.5	48.99
SMR-stream	36.54	1.55	LNG	−158.5	1.209

also lists the temperature and pressure for all streams of VS-optimized SMR and C3MR processes.

The optimization of both SMR and C3MR processes was performed by employing well-matured GA and PSO algorithms. The GA and PSO both are categorized as population-based algorithms. The performance of these algorithms strongly depends on the tuning parameters, as well as initial point generation.

Table 6. Particle swarm optimization (PSO) and genetic algorithm (GA) parameters used to set the optimization framework for SMR and C3MR processes.

PSO		GA
Parameter	Value	Parameter	Value
Number of particles	30.0	Number of population	200.0
Cognition learning parameter	2.0	Selection method	Stochastic uniform
Social learning parameter	2.1	Mutation	Adaptive feasible
Maximum velocity of particle	4.0	Crossover function	Scatter
Inertial weight	0.9–0.2	Fraction of migration	0.2
		Number of generations	200.0

lists the tuning parameters of PSO and GA, which were fixed during the optimization of SMR and C3MR. These parameters for GA and PSO were adopted from the recent LNG optimization studies [12,41,43].

Furthermore,

Table 7. Summary and comparison of the optimization results of the VS-optimized SMR with optimized SMR process using other well-known optimization algorithms.

Decision Variables	Base Case [44]	GA Optimized	PSO Optimized	VS Optimized
High pressure of MR, P13 (bar)	48.0	45.72	54.50	59.50
Evaporation pressure of MR, P5 (bar)	1.30	1.680	2.10	1.550
Flow rate of nitrogen, $m_{N2}$ (kg/h)	0.2690	0.3300	0.2200	0.1650
Flow rate of methane, $m_{C1}$ (kg/h)	0.5290	0.4510	0.5900	0.4630
Flow rate of ethane, $m_{C2}$ (kg/h)	0.6190	0.7062	0.6740	0.6360
Flow rate of propane, $m_{C3}$ (kg/h)	2.847	2.930	2.649	2.288
Constraints
MITA (°C)	3.0	3.0	3.0	3.0
Liquefaction rate (%)	92.0	92.0	92.0	92.0
Required specific power (kWh/kg-LNG)	0.4400	0.4034	0.3862	0.3691
Relative energy saving (%)	-	8.32	12.23	16.1

and

Table 8. Summary and comparison of the optimization results of the VS-optimized C3MR with optimized C3MR process using other well-known optimization algorithms.

Decision Variables	Base Case [44]	GA Optimized	PSO Optimized	VS Optimized
MR cycle
Condensation pressure of MR, P8 (bar)	55.0	61.24	50.0	43.43
Evaporation pressure, (P6a, P6b) (bar)	3.0	4.55	5.49	2.75
Flow rate of nitrogen, $m_{N2}$ (kg/h)	0.30	0.2331	0.2519	0.08
Flow rate of methane, $m_{C1}$ (kg/h)	0.75	0.5764	0.5959	0.4490
Flow rate of ethane, $m_{C2}$ (kg/h)	0.95	0.9204	1.210	0.8430
Flow rate of propane, $m_{C3}$ (kg/h)	0.70	0.4989	0.30	0.5690
Propane cycle
Propane 1st cooling stage (°C)	20.00	19.48	15.54	18.40
Propane 2nd cooling stage (°C)	3.5	1.919	4.50	0.0
Propane 3rd cooling stage (°C)	−16.0	−15.27	−14.70	−16.75
Constraints
MITA (°C)	3.0	3.0	3.0	3.0
Liquefaction rate (%)	92.0	92.0	92.0	92.0
Required specific power (kWh/kg-LNG)	0.3602	0.2778	0.2754	0.2600
Relative energy saving (%)	-	22.9	23.5	27.8

list a comparison of the VS-optimized results of SMR and C3MR processes, respectively, with their previously published study results using other well-known optimization algorithms. The base cases for SMR and C3MR were taken from [44]. The SMR and C3MR processes consume 0.44 and 0.3602 kW compression power to liquefy 1 kg NG with 92% liquefaction rate, respectively.

In case of the SMR process optimization, the operational energy improvements in the compression power correspond to 0.4034 and 0.3862 kW via GA and PSO approaches, respectively. The GA optimized SMR process consumes 8.32% less energy when compared to that of the SMR base case, whereas the PSO-optimized SMR process exhibits 12.23% energy savings when compared with that of the SMR base case. Finally, the VS algorithm is used to optimize the SMR process, and this ensures top-rated optimal conditions over the present approaches. The total compression power decreases by up to 0.3691 kW, and this corresponds to energy savings of 16.1% when compared to that of the base process. In the case of GA and PSO optimization of C3MR, the compression power decreases from 0.3602 to 0.2778 kW and 0.2754 kWh with energy savings equivalent to 22.9% and 23.5%, respectively, when compared to those of the base case. Finally, the VS algorithm results in a power saving of 0.26 kWh in the compression mode having power savings of approximately 27.8% when compared to that of the base case.

Exergy Destruction Analysis and Figure of Merit

The exergy destruction of the C3MR process for all cases (base case, GA-optimized, PSO-optimized, and VS-optimized) is shown in Figure 8. Exergy analysis of propane precooling refrigeration cycles and mixed refrigerant refrigeration cycles were performed, separately (Figure 8). In the case of propane precooling section, the highest exergy destruction was found in VS-optimized air coolers and compressors, i.e., 67.3 and 73.5 kJ/h, respectively. However, in case of VS-optimized MR section of C3MR process, the exergy destruction through primary LNG exchanger was reduced by 69.5% as compared to the base case. Moreover, exergy destruction through compressors was reduced by 34% as compared to the base case. It was observed that compressors and main LNG exchanger of MR section have the highest exergy destructions, which lead to lower exergy efficiency of that section in comparison to propane precooling section.

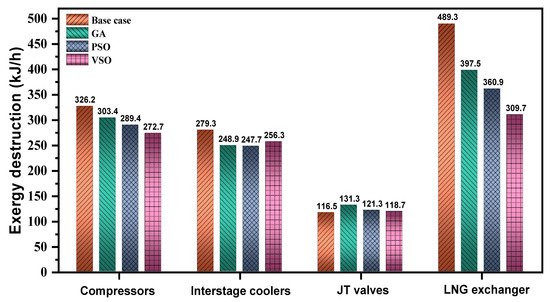

Exergy analysis for SMR process is illustrated in Figure 9. According to Figure 9, the exergy analysis in comparison to other components was also performed. The highest exergy destruction was found in VS-optimized primary LNG exchanger, i.e., 38.5%. In addition, in both C3MR and SMR processes, primary LNG exchanger and compressors can be further optimized by stochastic optimization algorithm (i.e., Coggins [45], modified coordinate descent, etc.) in minimization of exergy destruction.

In addition to exergy destruction minimization, Figure of Merit (FOM) plays a vital role to design efficient refrigeration and liquefaction processes. The higher value of FOM presents higher energy efficiency, and vice versa.

Table 9. Figure of merit (FOM) comparison analysis with base case for C3MR and SMR processes.

FOM for C3MR Process
MFC Process	Precooling Section			MR Section
	Min. Required Work	Total Energy	FOM	Min. Required Work	Total Energy	FOM
	kJ/h	kJ/h	%	kJ/h	kJ/h	%
Base Case	99.69	356.4	28.08	356.13	943.2	37.81
GA_C3MR	86.03	306	28.00	356.13	691.2	51.40
PSO_C3MR	101.19	349.2	28.96	356.13	640.8	55.48
VSO_C3MR	83.63	302.4	27.68	356.14	633.6	56.18
FOM for SMR Process
Base Case	372.22	1584	23.50
GA_SMR	371.17	1440	25.56
PSO_SMR	371.17	1404	26.69
VSO_SMR	371.20	1332	27.94

lists the FOM analysis of C3MR and SMR processes. Accordingly, the overall FOM of VS-optimized C3MR and SMR were calculated as 47.0% and 27.9%, respectively. In case of propane precooling section, the lowest total energy was observed due to the lower range of temperature used in propane 2nd and 3rd stages of C3MR process (see Table 8).

6. Conclusions

This study investigated the optimization by applying a VS algorithm to improve the design of workhorse commercial SMR and C3MR cycles corresponding to the total required energy. The VS algorithm utilized the advantage of simple implementation and enhanced search by exploiting a more rigorous and sophisticated vortex pattern search via balancing the weak and strong localities in neighborhood candidate solutions. Furthermore, it was observed that its implementation for optimal search in this type of a complex LNG process was achieved via tuning only a few parameters over GA and PSO. The algorithm was extremely sophisticated such that the constraints were easily handled via augmenting into the objective function and producing results with assurance the defined temperature approach (i.e., 3 °C) for both the SMR and C3MR processes. In the study, it was observed that the VS-optimized SMR and C3MR processes consumed 16.1% and 27.8% less energy, respectively, when compared to that of the base case study, respectively. Furthermore, the results obtained by the VS algorithm exhibited superior performance with low parameter adjustment when compared to those of GA and PSO. Exergy destruction analysis of the VS-optimized C3MR and SMR liquefaction processes revealed that the liquefaction process could be improved further through better compressor, intercooler, and LNG exchanger designs or further design optimization. This study does not claim the superiority of the VS algorithm for general problems but highlights its potential and possibility for finding an improved optimal solution for the particular LNG processes. It is expected that the VS algorithm is an easy and systematic approach. Hence, a future study will investigate using the approach in other MR-based LNG processes including dual MR and cascade processes.
