Ag Nanowires/C as a Selective and Efficient Catalyst for CO2 Electroreduction

by
Li Zeng
,
Jun Shi
,
Hanxin Chen
* and
Chong Lin
*
School of Mechanical and Electrical Engineering, Wuhan Institute of Technology, Wuhan 430205, China
*
Authors to whom correspondence should be addressed.
Energies 2021, 14(10), 2840; https://doi.org/10.3390/en14102840
Submission received: 23 March 2021 / Revised: 6 May 2021 / Accepted: 7 May 2021 / Published: 14 May 2021
(This article belongs to the Section D1: Advanced Energy Materials)
Browse Figures
Versions Notes

Abstract

:
The development of a selective and efficient catalyst for CO2 electroreduction is a great challenge in CO2 storage and conversion research. Silver metal is an attractive alternative due to its enhanced catalytic performance of CO2 electroreduction to CO. Here, we prepared Ag nanowires anchored on carbon support as an excellent electrocatalyst with remarkably high selectivity for the CO2 reduction to CO. The CO Faradic efficiency was approximately 100%. The enhanced catalytic performances may be ascribed to dense active sites exposed on the Ag nanowires’ high specific surface area, by the uniform dispersion of Ag nanowires on the carbon support. Our research demonstrates that Ag nanowires supported on carbon have potential as promising catalysts in CO2 electroreduction.

1. Introduction

With the continuous consumption of fossil fuels, the anthropogenic global warming caused by CO2 emissions into the atmosphere has attracted significant attention to the energy storage and conversion research field [1,2,3]. CO2 conversion to useful fuel/chemical feedstock can alleviate the challenging environmental problems [4,5,6]. The utilization of renewable energy, for instance, solar and wind, during this conversion is promising. However, the intermittent properties of these resources restrict their further application. By comparison, the defects can be overcome by the electrocatalysis of CO2 gas into energy fuels [7,8]. Boosting the selectivity and efficiency of CO2 reduction is the overarching challenge for industrializing CO2 reduction. Aqueous electrocatalytic reduction of CO2 at ambient temperature, which is a cost-effective method compared with the electrocatalysis in ionic liquids, has attracted significant attention recently [9,10]. Nevertheless, the electrocatalytic reduction of CO2 in aqueous solution continually competes with the hydrogen evolution reaction (HER), which is a side reaction accompanying CO2 reduction [11,12]. Thus, an efficient electrocatalyst with high selectivity is crucial for the fulfillment of energy conversion [13].
Metallic catalysts are appealing for CO2 electroreduction due to their excellent catalytic activity and selectivity [14,15,16,17]. It is acknowledged that CO is an indispensable constituent of syngas (a mixture of CO and H2), which is generally used to produce Fischer–Tropsch fuels such as gasoline, methanol and ammonia [18,19]. Gold (Au) [20,21], silver (Ag) [22,23], palladium (Pd) [24,25] and zinc (Zn) [26,27], which exhibit outstanding selectivity to CO, have been demonstrated to be efficient electrocatalysts for CO2 reduction. Nevertheless, gold and palladium are improper for large-scale utilization owing to their rarity and costliness [28]. Zinc possesses poorer stability compared with the other three metals [29]. Silver provides an appreciable compromise between expense and performance and is an attractive option.
Three-dimensional porous Ag, or Ag foam electrodes, present remarkable Faradic efficiencies of CO, over 90% [30,31]. However, a large quantity of Ag is required to achieve high catalytic activity on these macroscopic Ag bulk electrodes, which is the inherent defect of Ag bulk materials. Nanostructured Ag catalysts provide a multitude of active sites for CO2 reduction owing to their high specific surface areas, thus surpassing bulk materials in efficiency and selectivity [32]. Salehi-Khojin et al. demonstrated that Ag nanoparticles with a size of 5 nm exhibited CO2 conversion rates 10 times higher than bulk silver [33]. Liu et al. indicated that triangular silver nanoplates possessed a remarkably greater Faradaic efficiency of 96.8%, superior durability of up to 7 days, and an ultralow overpotential of 96 mV, which is attributed to the shape-controlled structure optimizing the edge-to-corner ratio and facets with low activation energy to initiate CO2 reduction [34]. Luan et al. reported that readily prepared large-scale silver nanowire arrays, with a diameter of 200 nm, exhibited enhanced current density with an efficiency over 90% under a moderate potential of −0.49 V [35]. Liu et al. investigated the catalytic activity of Ag nanowires of 25 nm diameter, achieving a maximum Faradaic efficiency of 99.3%, remarkably low overpotential, and excellent durability [36]. Furthermore, a Ag catalyst alloying with other metals also displayed enhanced catalytic activity [37,38,39]. Despite the intrinsic performance of Ag nanocatalysts which is evidently reinforced via modification, the shortcoming is that discrete nanostructured catalysts are dispersed on the glass carbon electrode (GCE) inhomogeneously, thus the electrical conductivity is weakened and the catalytic performance is degraded. The application of support can promote electron transfer to the active sites by intense coupling between the catalyst particles and the support, consequently improving the catalytic activity of the nanoparticles [40].
In this study, silver nanowires (Ag NWs) with a diameter of ~200 nm, supported on carbon, were synthesized using the facile polyol-based method. The characterization analysis indicated that Ag NWs were uniformly scattered on the carbon support without accumulation. The as-fabricated Ag NWs/C displayed outstanding catalytic performance in the CO2 reduction reaction (CO2RR) with a remarkably enhanced Faradaic efficiency, comparable to that of Ag nanowires with a diameter of 25 nm, as reported by Liu et al., and superior to that of silver nanowire arrays with a similar diameter.

2. Materials and Methods

2.1. Synthesis of Ag NWs/C

In brief, 0.2 g of poly(vinylpyrrolidone) (PVP, 58,000 g mol−1) was first dissolved in 50 mL of ethylene glycol (EG) by continuous agitation at ambient temperature. Then, 0.25 g of silver nitrate (AgNO3) was dissolved in the PVP/EG solution and transparent liquid mixtures were achieved. Next, 19.2 mg of FeCl3 was added to 20 mL of EG. Then, 200 μL of FeCl3 /EG mixtures was transferred into the AgNO3/PVP/EG mixtures and stirred for 2 min to form a uniform solution. Finally, 160 mg amorphous carbon black (CB, CABOT, VXC72) was added into the mixture, which was then decanted to an autoclave for generating Ag NWs/C at 130 °C for 5 h. The as-fabricated precipitation was cleaned with deionized water and ethyl alcohol, followed by centrifugation and freeze-drying treatment. As a reference, powders consisting of 5 mg of Ag bulk and 5 mg of carbon black were mixed.

2.2. Characterization of Ag NWs/C

The chemical phase structure of the as-obtained Ag NWs/C catalyst was determined by powder X-ray diffraction (XRD) with Rigaku Rotaflex Cu Kα radiation. The mass fraction of Ag NWs from Ag NWs/C composites was ascertained by Leeman inductively coupled plasma-atomic emission spectrometry (ICP-AES). The micromorphologies of the catalyst were identified by Zeiss Sigma field emission scanning electron microscopy (FESEM) with an acceleration voltage of 10 kV. Transmission electron microscopy (TEM) and high-resolution transmission electron microscope (HRTEM) were conducted on a JEOL JEM 2100 microscope, which was operated at an accelerating voltage of 200 kV.

2.3. Electrochemical Measurements

All electrochemical measurements of CO2 reduction were performed in a homemade three-electrode electrochemical H-cell, as shown in Figure 1. The two compartments were segregated by a piece of Nafion 117 membrane. A CHI 660E potentiostat was employed for the electrochemical tests. The catalyst-coated GCE was the working electrode. To fabricate the working electrode, 10 mg of Ag NWs/C was dispersed in the mixed solvent, consisting of 700 μL of isopropanol, 200 μL of deionized water and 100 μL of 5.0 wt.% Nafion solution to form a homogeneous ink by half hour ultrasonic treatment. Afterwards, 5.0 μL of catalyst ink was transferred onto a GCE with a diameter of 5 mm and solid loading of about 0.26 mg cm−2. The GCE was naturally air-dried at ambient temperature. A platinum plate was used as the auxiliary electrode and a saturated calomel electrode as the reference electrode. The electrolyte adopted was 0.1 M KHCO3 solution. The electrochemical tests were carried out atmospherically at room temperature (25 °C). The electrolyte was deaerated via bubbling Ar or CO2 gas at 20 mL min−1 for 2 h before each electrochemical test to assure an Ar or CO2 saturation state. During the electromechanical measurements, Ar or CO2 gas was continuously purged into the solution to preserve saturation levels throughout the tests. Linear sweep voltammetries (LSVs) were carried out at a scanning rate of 20 mV s−1. The durability of the catalysts was tested in CO2-saturated electrolytes with a potentiostatic pattern for 40 h. All the measured potentials were reported with respect to a reversible hydrogen electrode (RHE) by E (V vs. RHE) = E (V vs. SCE) + 0.241 V + 0.0592 × pH with the iR drop calibration by Eactual = Emeasure − iRsolution.

2.4. Product Analysis

To determine the products of CO2 reduction, and corresponding FEs and selectivity, potentiostatic electrolysis was imposed on the Ag NWs/C and Ag bulk-modified GCE. Briefly, 50 μL of catalyst ink was transferred onto a GCE of 10 mm diameter (solid loading ~0.64 mg cm−2). The gas phase products in the cathode compartment were quantified by Agilent 6890N gas chromatography (GC). The liquid-phase products were analyzed via 1H nuclear magnetic resonance (NMR). The electrolyte in the cathode compartment was agitated with continuous CO2 gas purging throughout the electrolysis process. The FEs of gaseous products were determined in S1 in supplementary materials.

3. Results and Discussion

The XRD pattern of Ag NWs/C illustrated in Figure 2 shows that diffraction peaks appearing at 38.6, 44.8, 64.9, 77.8 and 81.8° corresponded to (111), (200), (220), (311) and (222) planes of face-centered cubic Ag (JCPDS No. 87-0719). It is noteworthy that a signal for the peak of carbon black (002) was not observed, which is ascribed to the faint signals of amorphous carbon black overlaid by the intense diffraction peaks of Ag NWs with excellent crystalline quality [41,42]. The XRD analysis demonstrated that pure Ag NWs supported on carbon were mildly fabricated. The mass fraction of Ag loaded on carbon was 86.9%.
The micromorphology and microstructure of Ag NWs/C were characterized by SEM and TEM. It can be seen from the SEM image under lower magnification (Figure 3a) that loose Ag NWs were uniformly distributed without accumulation, which is due to excellent dispersion of Ag NWs by the carbon support. The SEM image under higher magnification shows that the prepared Ag NWs possessed a smooth surface with the diameter normally in the range from 200 to 400 nm. The lengths of Ag NWs were up to hundreds of micrometers.
The carbon support was not obviously observed, which may be a result of the amount of carbon black added in the process of synthesizing the catalyst. By contrast, Ag NWs with 0, 300 mg and 640 mg of carbon black were synthesized as shown in Figure 4. It is observed that the Ag NWs without carbon black are formed with considerable accumulation. Large pieces of silver can also be observed. The Ag NWs were scattered on the flocculent carbon support for Ag NWs with 300 mg of carbon black. However, for Ag NWs with 640 mg of carbon black, the Ag NWs were largely covered by carbon support.
The TEM images in Figure 5 show that the Ag NWs were of several micrometers in length with a width of about 200 nm, which is consistent with those observed by SEM. The HRTEM images in the inset further confirmed the successful fabrication of Ag NWs nanocrystallines with interfringe distances of 0.231 nm and 0.207 nm, which correspond to (111) and (200) planes of Ag NWs, respectively. The crystalline structure captured in the HRTEM images was in agreement with the analysis from XRD data.
The catalytic activity of the as-prepared Ag NWs/C was evaluated by electrochemical measurements. Figure 6a depicts the LSVs of the Ag NWs/C catalyst where the 0.1 M KHCO3 electrolyte was saturated with Ar and CO2 gas. The onset potential initiating CO2 reduction was −0.32 V with a maximum current density of 1.46 mA cm−2 in CO2-saturated solution. The onset potential was observed at −0.50 V, and the maximum current density was only 0.55 mA cm−2 in Ar-saturated solution. By comparison, the cathodic current density gained in CO2-saturated solution was much higher (~2.7-fold) and the onset potential was considerably more positive than those under Ar-saturation, which is attributed to reactions of CO2 reduction in parallel with HER. CVs of Ag NWs/C catalyst, where the 0.1 M KHCO3 electrolyte was saturated with Ar and CO2 gas, also showed much higher cathodic current density and more positive onset potential in CO2-saturated solution. LSVs for Ag NWs/C and Ag bulk in CO2-saturated solution are shown in Figure 6b. It can be seen that Ag bulk exhibited a reduction current density of 1.49 mA cm−2 at −0.83 V, while Ag NWs/C displayed a higher current density of 1.77 mA cm−2 at −0.82 V, manifesting enhanced cathodic kinetics of Ag NWs/C catalyst for CO2 electroreduction, which is also evidenced by comparing CVs for Ag NWs/C and Ag bulk in CO2-saturated solution. The value of ECSA of the Ag NWs- and Ag bulk-modified electrode was 3.88 cm2 and 3.75 cm2 (See Figure S1 in Supplementary Materials). Therefore, the current densities calculated by the electrode geometric area is used in present study.
To verify the occurrence of CO2RR driven by Ag NWs/C, electrolysis under potentiostatic pattern at different potentials combining with GC and NMR was performed. FEs of gas-phase products over the Ag NWs/C catalyst are shown in Figure 7a. The distributions of gas-phase products demonstrated that CO and H2 were the major gaseous products (See Tables S1 and S2 in Supplementary Materials), and no liquid products were detected during the electrolysis process. The variation of FEs with the applied potentials demonstrated that the synthesized Ag NWs/C catalyst was highly selective (exceeding 90%) to CO products, ranging from −0.650 V to −0.718 V, with the maximum FE of CO reaching 100% at −0.67 V. The maximum FE of CO was much higher than that (84%) of the Ag nanowire arrays electrode of 200 nm in diameter, as reported by Luan et al. [35] and comparable to that (99.3%) with five-fold twinned Ag NWs of 25 nm diameter, as reported by Liu et al. [36]. A mixture of CO and H2, which is known as syngas, was formed with the drop of potential. The FEs of Ag bulk are shown in Figure 7b for comparison. Clearly, Ag NWs/C exhibited significantly higher FEs over the range of the applied potentials. Furthermore, CO gas could only be detected at the potentials more negative than −0.58 V for Ag bulk, with the maximum FE of 41% obtained at the considerably negative potential of −0.86 V. Comparatively, the maximum FE of Ag NWs/C was ~2.4-fold higher than Ag bulk, demonstrating that Ag NWs/C outperform Ag bulk in catalytic selectivity and efficiency. To obtain further insights into the catalytic selectivity of Ag NWs/C, the partial current densities of CO production at different applied cell potentials for Ag NWs/C and Ag bulk are compared in Figure 8. The value of jCO for Ag NWs/C was 0.23 mA cm−2, which was ~4.6-fold higher than that (0.05 mA cm−2) of Ag bulk at the potential where the maximum FE of Ag NWs/C was obtained. The values of jCO were enhanced as the measured potentials scanned cathodically, demonstrating that CO2 reduction kinetics were augmented with the more negative applied potential exerted on the Ag NWs/C catalyst.
The Tafel plots of Ag NWs/C and Ag bulk catalysts are plotted in Figure 9 to compare the intrinsic activities. The Tafel slope of 200 mV dec−1 for Ag NWs/C was much higher than the theoretical value of 120 mV dec−1, according to the kinetics under the assumption that the first step proceeds at a much more negative potential than the second step in CO2 electrocatalytic reduction, indicating that the first step is a rate-determining step for CO2 reduction [23]. Additionally, the Tafel slope achieved from the Ag NWs/C electrode was much lower than that of Ag bulk (260 mV dec−1), suggesting enhanced kinetics with a more prominent intrinsic activity [36]. The durability tests of the prepared Ag NWs/C and Ag bulk catalysts were conducted at the specific potentials of −0.67 V for 40 h, as shown in Figure 10. Remarkably, the current density decayed slowly at the beginning before it became steady, which may be ascribed to the mass-transportation balance process during CO2 reduction [35]. No apparent slowdown in current density for Ag NWs/C was observed after 40 h testing, while the current density of Ag bulk displayed a continuous decline throughout the testing. CO and H2 were the gas-phase products, and no liquid products were detected during the potentiostatic measurement at −0.67 V vs. RHE for about 40 h (See Figures S2 and S3 in Supplementary Materials). The FE of CO decreased from 100% to 71.4% during the potentiostatic measurement, indicating that the long-term performance decayed with time.

4. Conclusions

Silver nanowires loaded on carbon supports were synthesized for carbon dioxide electroreduction. The Ag NWs/C with a diameter of 200–400 nm exhibited excellent catalytic activity for the CO2 reduction to CO, with a high CO Faradic efficiency. Our work highlights that Ag NWs with a diameter of hundreds of nanometers, anchored on carbon by facile synthesis, can also provide preeminent catalytic performance.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/en14102840/s1, Figure S1: Figure S1. CV curves of (a) Ag NWs and (b) Ag bulk at different sweep rates; (c) The difference between anodic current densities and cathodic current densities at −0.25 V vs. SCE as a function of sweep rates, Figure S2: Spectra of (a) FID and (b) TCD during potentiostatic measurement at −0.67 V vs RHE, Figure S3. The 1H NMR spectrum for the electrolytic solution prepared with KHCO3 and D2O after potentiostatic electrolysis at −0.67 V, Table S1: The calibration of GC by standard gas, Table S2: The concentration of CO at different potentials.

Author Contributions

Conceptualization, L.Z.; methodology, J.S.; data curation, C.L.; writing—original draft preparation, L.Z.; writing—review and editing, H.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Natural Science Foundation of China (Grant No. 51901164), and the National Natural Science Foundation of China (Grant Nos. 51775390, 51805378). This work was also supported by the Science Foundation of Wuhan Institute of Technology (Grant No. K201842).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rockström, J.; Gaffney, O.; Rogelj, J.; Meinshausen, M.; Nakicenovic, N.; Schellnhuber, H.J. A roadmap for rapid decarbonization. Science 2017, 355, 1269–1271. [Google Scholar] [CrossRef] [Green Version]
  2. Field, C.B.; Mach, K.J. Rightsizing carbon dioxide removal. Science 2017, 356, 706–707. [Google Scholar] [CrossRef]
  3. Khezri, B.; Fisher, A.C.; Pumera, M. CO2 reduction: The quest for electrocatalytic materials. J. Mater. Chem. A 2017, 5, 8230–8246. [Google Scholar] [CrossRef]
  4. Jones, J.-P.; Prakash, G.K.S.; Olah, G.A. Electrochemical CO2 reduction: Recent advances and current trends. Isr. J. Chem. 2014, 54, 1451–1466. [Google Scholar] [CrossRef]
  5. Mistry, H.; Varela, A.S.; Kuhl, S.; Strasser, P.; Cuenya, B.R. Nanostructured electrocatalysts with tunable activity and selectivity. Nat. Rev. Mater. 2016, 1, 1–14. [Google Scholar] [CrossRef]
  6. Kumar, B.; Llorente, M.; Froehlich, J.; Dang, T.; Sathrum, A.; Kubiak, C.P. Photochemical and photoelectrochemical reduction of CO2. Annu. Rev. Phys. Chem. 2012, 63, 541–569. [Google Scholar] [CrossRef] [Green Version]
  7. Gattrell, M.; Gupta, N.; Co, A.C. Electrochemical reduction of CO2 to hydrocarbons to store renewable electrical energy and upgrade biogas. Energy Convers. Manage. 2007, 48, 1255–1265. [Google Scholar] [CrossRef]
  8. Whipple, D.T.; Kenis, P.J.A. Prospects of CO2 utilization via direct heterogeneous electrochemical reduction. J. Physical. Chem. Lett. 2010, 1, 3451–3458. [Google Scholar] [CrossRef]
  9. Kondratenko, E.V.; Mul, G.; Baltrusaitis, J.; Larrazabal, G.O.; Perezramirez, J. Status and perspectives of CO2 conversion into fuels and chemicals by catalytic, photocatalytic and electrocatalytic processes. Energ. Environ. Sci. 2013, 6, 3112–3135. [Google Scholar] [CrossRef] [Green Version]
  10. Mikkelsen, M.; Jørgensen, M.; Krebs, F.C. The teraton challenge. A review of fixation and transformation of carbon dioxide. Energ. Environ. Sci. 2010, 3, 43–81. [Google Scholar] [CrossRef]
  11. Kuhl, K.P.; Cave, E.R.; Abram, D.N.; Jaramillo, T.F. New insights into the electrochemical reduction of carbon dioxide on metallic copper surfaces. Energy Environ. Sci. 2012, 5, 7050–7059. [Google Scholar] [CrossRef]
  12. Costentin, C.; Robert, M.; Savéant, J.-M. Catalysis of the electrochemical reduction of carbon dioxide. Chem. Soc. Rev. 2013, 42, 2423–2436. [Google Scholar] [CrossRef] [PubMed]
  13. Rosen, B.A.; Salehikhojin, A.; Thorson, M.R.; Zhu, W.; Whipple, D.T.; Kenis, P.J.A.; Masel, R.I. Ionic liquid–mediated selective conversion of CO2 to CO at low overpotentials. Science 2011, 334, 643–644. [Google Scholar] [CrossRef]
  14. Lu, Q.; Rosen, J.; Jiao, F. Nanostructured metallic electrocatalysts for carbon dioxide reduction. ChemCatChem 2015, 7, 38–47. [Google Scholar] [CrossRef]
  15. Zhang, S.; Kang, P.; Meyer, T.J. Nanostructured tin catalysts for selective electrochemical reduction of carbon dioxide to formate. J. Am. Chem. Soc. 2014, 136, 1734–1737. [Google Scholar] [CrossRef]
  16. Qiao, J.L.; Liu, Y.Y.; Hong, F.; Zhang, J.J. A review of catalysts for the electroreduction of carbon dioxide to produce low-carbon fuels. Chem. Soc. Rev. 2014, 43, 631–675. [Google Scholar] [CrossRef]
  17. Zhu, W.L.; Michalsky, R.; Metin, Ö.; Lv, H.F.; Guo, S.J.; Wright, C.J.; Sun, X.L.; Peterson, A.A.; Sun, S.H. Monodisperse Au nanoparticles for selective electrocatalytic reduction of CO2 to CO. J. Am. Chem. Soc. 2013, 135, 16833–16836. [Google Scholar] [CrossRef]
  18. Yang, J.; Ma, W.P.; Chen, D.; Holmen, A.; Davis, B.H. Fischer–Tropsch synthesis: A review of the effect of CO conversion on methane selectivity. Appl. Catal. A Gen. 2014, 470, 250–260. [Google Scholar] [CrossRef]
  19. Weststrate, C.J.; De Loosdrecht, J.V.; Niemantsverdriet, J.W. Spectroscopic insights into cobalt-catalyzed Fischer-Tropsch synthesis: A review of the carbon monoxide interaction with single crystalline surfaces of cobalt. J. Catal. 2016, 342, 1–16. [Google Scholar] [CrossRef]
  20. Verma, S.; Hamasaki, Y.; Kim, C.; Huang, W.X.; Lu, S.; Jhong, H.R.M.; Gewirth, A.A.; Fujigaya, T.; Nakashima, N.; Kenis, P.J.A. Insights into the low overpotential electroreduction of CO2 to CO on a supported gold catalyst in an alkaline flow electrolyzer. ACS Energy Lett. 2018, 3, 193–198. [Google Scholar] [CrossRef]
  21. Chen, Y.H.; Li, C.W.; Kanan, M.W. Aqueous CO2 reduction at very low overpotential on oxide-derived Au nanoparticles. J. Am. Chem. Soc. 2012, 134, 19969–19972. [Google Scholar] [CrossRef]
  22. Dufek, E.J.; Lister, T.E.; Stone, S.G.; Mcilwain, M.E. Operation of a pressurized system for continuous reduction of CO2. J. Electrochem. Soc. 2012, 159, F514–F517. [Google Scholar] [CrossRef]
  23. Lu, Q.; Rosen, J.; Zhou, Y.; Hutchings, G.S.; Kimmel, Y.C.; Chen, J.G.; Jiao, F. A selective and efficient electrocatalyst for carbon dioxide reduction. Nat. Commun. 2014, 5, 3242. [Google Scholar] [CrossRef] [PubMed]
  24. Gao, D.F.; Zhou, H.; Wang, J.; Miao, S.; Yang, F.; Wang, G.X.; Wang, J.G.; Bao, X.H. Size-dependent electrocatalytic reduction of CO2 over pd nanoparticles. J. Am. Chem. Soc. 2015, 137, 4288–4291. [Google Scholar] [CrossRef] [PubMed]
  25. Lu, H.; Zhang, L.; Zhong, J.H.; Yang, H.G. Partially oxidized palladium nanodots for enhanced electrocatalytic carbon dioxide reduction. Chem. Asian J. 2018, 13, 2800–2804. [Google Scholar] [CrossRef]
  26. Nguyen, D.L.T.; Jee, M.S.; Won, D.H.; Jung, H.; Oh, H.-S.; Min, B.K.; Hwang, Y.J. Selective CO2 reduction on zinc electrocatalyst: The effect of zinc oxidation state induced by pretreatment environment. ACS Sustain. Chem. Eng. 2017, 5, 11377–11386. [Google Scholar] [CrossRef]
  27. Jiang, X.L.; Cai, F.; Gao, D.F.; Dong, J.H.; Miao, S.; Wang, G.X.; Bao, X.H. Electrocatalytic reduction of carbon dioxide over reduced nanoporous zinc oxide. Electrochem.Commun. 2016, 68, 67–70. [Google Scholar] [CrossRef]
  28. Ge, J.Y.; Long, J.; Sun, Z.X.; Feng, H.; Hu, J.; Koh, S.W.; Yu, Q.; Xiao, J.P.; Li, H. Vertical silver@silver chloride core–shell nanowire array for carbon dioxide electroreduction. ACS Appl. Energy Mater. 2019, 2, 6163–6169. [Google Scholar] [CrossRef]
  29. Hu, L.; Zhang, Y.C.; Han, W.Q. Boosting CO2 electroreduction over silver nanowires modified by wet-chemical sulfidation and subsequent electrochemical de-sulfidation. New J. Chem. 2019, 43, 3269–3272. [Google Scholar] [CrossRef]
  30. Abeyweera, S.C.; Yu, J.; Perdew, J.P.; Yan, Q.M.; Sun, Y.G. Hierarchically 3D porous Ag nanostructures derived from silver benzenethiolate nanoboxes: Enabling CO2 reduction with a near-unity selectivity and mass-specific current density over 500 A/g. Nano Lett. 2020, 20, 2806–2811. [Google Scholar] [CrossRef]
  31. Daiyan, R.; Lu, X.; Ng, Y.H.; Amal, R. Highly selective conversion of CO2 to CO achieved by a three-dimensional porous silver electrocatalyst. Chemistryselect 2017, 2, 879–884. [Google Scholar] [CrossRef]
  32. Xi, W.; Ma, R.Z.; Wang, H.; Gao, Z.; Zhang, W.Q.; Zhao, Y.F. Ultrathin Ag nanowires electrode for electrochemical syngas production from carbon dioxide. ACS Sustain. Chem. Eng. 2018, 6, 7687–7694. [Google Scholar] [CrossRef]
  33. Salehi-Khojin, A.; Jhong, H.-R.M.; Rosen, B.A.; Zhu, W.; Ma, S.C.; Kenis, P.J.A.; Masel, R.I. Nanoparticle silver catalysts that show enhanced activity for carbon dioxide electrolysis. J. Phys. Chem. C 2013, 117, 1627–1632. [Google Scholar] [CrossRef]
  34. Liu, S.; Tao, H.; Zeng, L.; Liu, Q.; Xu, Z.; Liu, Q.; Luo, J.L. Shape-dependent electrocatalytic reduction of CO2 to CO on triangular silver nanoplates. J. Am. Chem. Soc. 2017, 139, 2160–2163. [Google Scholar] [CrossRef] [PubMed]
  35. Luan, C.H.; Shao, Y.; Lu, Q.; Gao, S.H.; Huang, K.; Wu, H.; Yao, K.F. High-performance carbon dioxide electrocatalytic reduction by easily fabricated large-scale silver nanowire arrays. ACS Appl. Mater. Inter. 2018, 10, 17950–17956. [Google Scholar] [CrossRef]
  36. Liu, S.B.; Wang, X.Z.; Tao, H.B.; Li, T.F.; Liu, Q.; Xu, Z.H.; Fu, X.Z.; Luo, J.L. Ultrathin 5-fold twinned sub-25 nm silver nanowires enable highly selective electroreduction of CO2 to CO. Nano Energy 2018, 45, 456–462. [Google Scholar] [CrossRef]
  37. Larrazabal, G.O.; Martin, A.J.; Mitchell, S.; Hauert, R.; Perezramirez, J. Synergistic effects in silver-indium electrocatalysts for carbon dioxide reduction. J. Catal. 2016, 343, 266–277. [Google Scholar] [CrossRef]
  38. Luc, W.; Collins, C.V.; Wang, S.W.; Xin, H.L.; He, K.; Kang, Y.J.; Jiao, F. Ag–Sn bimetallic catalyst with a core–shell structure for CO2 reduction. J. Am. Chem. Soc. 2017, 139, 1885–1893. [Google Scholar] [CrossRef]
  39. Singh, S.N.; Gautam, R.K.; Malik, K.; Verma, A. Ag-Co bimetallic catalyst for electrochemical reduction of CO2 to value added products. J. CO2 Util. 2017, 18, 139–146. [Google Scholar] [CrossRef]
  40. Voiry, D.; Fullon, R.; Yang, J.; Silva, C.D.; Kappera, R.; Bozkurt, I.; Kaplan, D.; Lagos, M.J.; Batson, P.E.; Gupta, G. The role of electronic coupling between substrate and 2D MoS2 nanosheets in electrocatalytic production of hydrogen. Nat. Mater. 2016, 15, 1003–1009. [Google Scholar] [CrossRef]
  41. Zeng, L.; Shi, J.; Luo, J.L.; Chen, H.X. Silver sulfide anchored on reduced graphene oxide as a high-performance catalyst for CO2 electroreduction. J. Power Sources 2018, 398, 83–90. [Google Scholar] [CrossRef]
  42. Zhu, Y.W.; Murali, S.; Cai, W.W.; Li, X.S.; Suk, J.W.; Potts, J.R.; Ruoff, R.S. Graphene and graphene oxide: Synthesis, properties, and applications. Adv. Mater. 2010, 22, 3906–3924. [Google Scholar] [CrossRef] [PubMed]
Energies 14 02840 g001 550

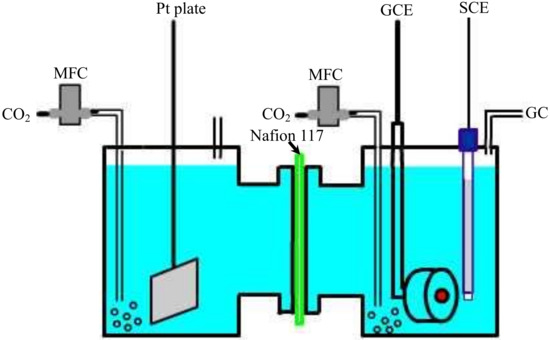

Figure 1. Schematic illustration of three-electrode electrochemical H-cell.
Figure 1. Schematic illustration of three-electrode electrochemical H-cell.
Energies 14 02840 g001
Energies 14 02840 g002 550

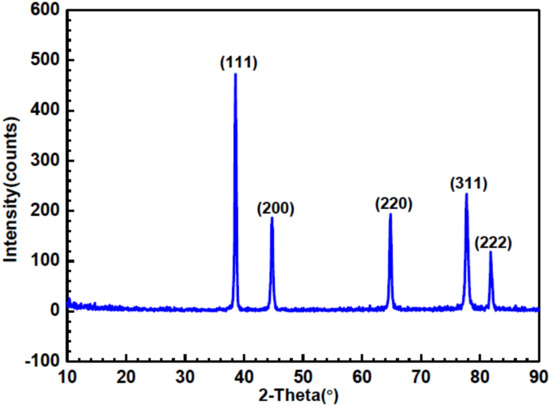

Figure 2. XRD patterns of AgNWs/C.
Figure 2. XRD patterns of AgNWs/C.
Energies 14 02840 g002
Energies 14 02840 g003 550
Figure 3. SEM images of (a) Ag NWs/C under lower magnification, (b) Ag NWs/C under higher magnification.
Figure 3. SEM images of (a) Ag NWs/C under lower magnification, (b) Ag NWs/C under higher magnification.
Energies 14 02840 g003
Energies 14 02840 g004 550
Figure 4. SEM images of (a) Ag NWs; (b) Ag NWs + 300 mg carbon black; (c) Ag NWs + 640 mg carbon black.
Figure 4. SEM images of (a) Ag NWs; (b) Ag NWs + 300 mg carbon black; (c) Ag NWs + 640 mg carbon black.
Energies 14 02840 g004
Energies 14 02840 g005 550
Figure 5. TEM images of Ag NWs/C and corresponding HRTEM images (inset).
Figure 5. TEM images of Ag NWs/C and corresponding HRTEM images (inset).
Energies 14 02840 g005
Energies 14 02840 g006 550

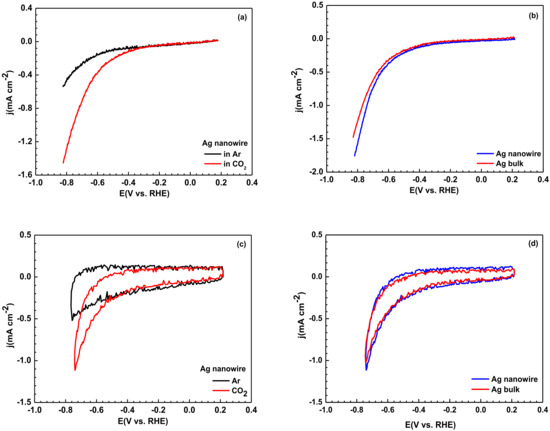

Figure 6. (a) LSV for Ag NWs/C in Ar- and CO2-saturated 0.1 M KHCO3 electrolyte; (b) LSV for Ag NWs/C and Ag bulk in CO2-saturated solution; (c) CV for Ag NWs/C in Ar- and CO2-saturated 0.1 M KHCO3 electrolyte; (d) CV for Ag NWs/C and Ag bulk in CO2-saturated solution.
Figure 6. (a) LSV for Ag NWs/C in Ar- and CO2-saturated 0.1 M KHCO3 electrolyte; (b) LSV for Ag NWs/C and Ag bulk in CO2-saturated solution; (c) CV for Ag NWs/C in Ar- and CO2-saturated 0.1 M KHCO3 electrolyte; (d) CV for Ag NWs/C and Ag bulk in CO2-saturated solution.
Energies 14 02840 g006
Energies 14 02840 g007 550
Figure 7. (a) FEs of gas-phase products over Ag NWs/C; (b) FEs of CO on applied cell potentials for Ag NWs/C and Ag bulk catalysts.
Figure 7. (a) FEs of gas-phase products over Ag NWs/C; (b) FEs of CO on applied cell potentials for Ag NWs/C and Ag bulk catalysts.
Energies 14 02840 g007
Energies 14 02840 g008 550

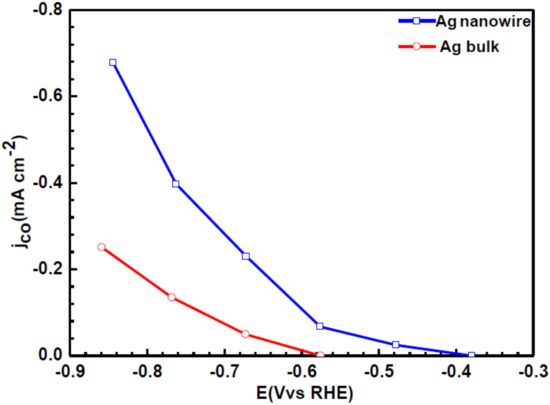

Figure 8. Partial current densities of CO at different applied cell potentials for Ag NWs/C and Ag bulk catalysts.
Figure 8. Partial current densities of CO at different applied cell potentials for Ag NWs/C and Ag bulk catalysts.
Energies 14 02840 g008
Energies 14 02840 g009 550

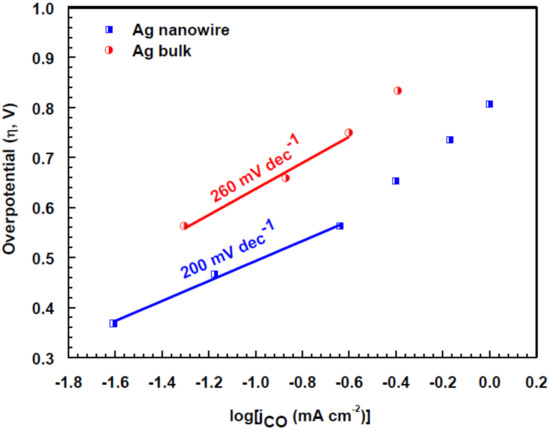

Figure 9. Tafel plots of Ag NWs/C and Ag bulk catalysts.
Figure 9. Tafel plots of Ag NWs/C and Ag bulk catalysts.
Energies 14 02840 g009
Energies 14 02840 g010 550

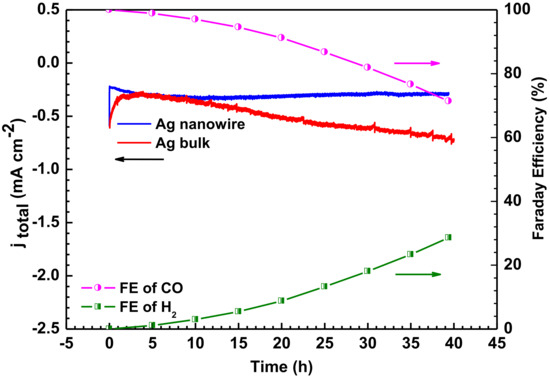

Figure 10. The durability tests of Ag NWs/C and Ag bulk catalysts, and the variation of FE of CO and H2 with time on Ag NWs/C-modified electrode.
Figure 10. The durability tests of Ag NWs/C and Ag bulk catalysts, and the variation of FE of CO and H2 with time on Ag NWs/C-modified electrode.
Energies 14 02840 g010
