Effect of Molybdenum Disulfide on the Performance of Polyaniline Based Counter Electrode for Dye-Sensitized Solar Cell Applications

Abstract

Dye-sensitized solar cells are gaining interest in the aerospace industry, extending their applications from solar-powered drones to origami-style space-based solar power stations due to their flexibility, light weightiness, and transparency. The major issue with its widespread commercial use is the employment of expensive Pt-based counter electrodes. In this study, an attempt has been made to replace the Pt with Polyaniline (PANI)/Molybdenum sulfide (MoS₂) nanocomposite. The nanocomposites i.e., PANI-0.5wt% MoS₂, PANI-2wt%MoS₂, PANI-5wt%MoS₂, and PANI-7wt%MoS₂and PANI-9wt%MoS₂, have been synthesized and compared with standard Pt-based CE. Scanning electron microscopy, transmission electron microscopy, and X-ray diffraction methods have been utilized to study both surface morphology and structural composition. Fourier transform infrared has also been used to identify redox-active functionalities. Electron impedance spectroscopy and cyclic voltammetry have been employed to study electron transfer and catalytic activity. Finally, I-V testing has been conducted using a sun simulator. A maximum efficiency of 8.12% has been observed with 7wt% MoS₂ in the PANI matrix at 6 µm thickness, which is 2.65% higher compared to standard Pt-based CE (7.91%). This is due to high electronic conduction with the addition of MoS₂, improved catalytic activity, and the high surface area of the PANI nano-rods.

1. Introduction

The technology of DSSC has attained immense attention in the scientific community as a promising future photovoltaic due to its ease in fabrication, optimum efficiency, cost-effectiveness, environment-friendly manufacturing, and optimum life span [1]. Effectively extending its applications from portable electronic devices to building integrated systems, solar-powered drone applications have a huge potential to be explored in the field of space technology as flexible origami-style solar power stations and for easy lift-off, even in confined areas of space crafts and rockets [2]. The DSSC device is essentially a sandwich structure consisting of a semi-conductor light-harvesting layer (mostly TiO₂), dye sensitizer, electrolyte, and a catalyst layer (mostly Pt), sandwiched between two conducting substrates (mostly FTO coated glass). In principle, the sunlight is absorbed by the dye sensitizer and becomes oxidized. The ejected electron is then picked by the semi-conductor layer and transferred to the outer circuit through a conducting substrate. The oxidized dye takes an electron from the electrolyte which has been further reduced by an incoming outer electron with the help of a catalyst. This process of regeneration keeps occurring until the sunlight is present [3,4,5].

The rare earth element Pt has proved to be the most effective and efficient catalyst for DSSC, being coated on a counter electrode (in brief, a counter electrode is any conducting substrate coated with a suitable catalyst). The counter electrode acts as a cathode, which is responsible for accepting electrons from the outer circuit and regenerating electrolytes. The limited availability and expensive nature of Pt limits the use of DSSC technology and is probably one of the main hurdles in the commercialization of this technology [6,7]. Various materials and their combinations have been tried to replace Pt with promising results. In this regard, conducting polymers such as polyaniline, polypyrrole, poly(3,4-ethylene-dioxythiophene, etc., have shown encouraging electronic and catalytic properties [8].

Among conducting polymers, PANI and its nanocomposites with various inorganic materials such as Au [9], Al [10], and other transition metals [11] have been investigated and the results have revealed comparable electronic and catalytic properties. Other advantages include low-cost synthesis, low-temperature coating, and ease in availability of raw materials. In one study, porous PANI nanotubes were investigated as a counter electrode. The claimed efficiency of porous PANI as a counter electrode was 5.57% (at optimized layer thickness), which is higher compared to standard reference Pt-based CE (5.20%) [12]. In another study, PANI was doped with reduced grapheme nano sheets with comparable results [13]. In a recent study, a combination of polyacrylonitrile/polyaniline/tungsten dioxide was investigated, which increased catalytic activity in the iodide/triiodide electrolyte [14]. Recently, PANI was doped with molybdenum diselenide and its effects were investigated as a counter electrode for DSSC. The remarkable overall conversion efficiency of 8.04% and the high cathodic current density in the iodide/triiodide electrolyte has been claimed to be 4.68% higher compared to the standard Pt-based CE [15].

Recently, a MoS₂ transparent thin film has been deposited on FTO glass using both one-step potentiostat and potential-reversal electrodeposition methods. This film has been employed as a counter electrode for the bifacial DSSC device. The highest efficiency of 8.77% has been claimed, which is close to the standard Pt-based CE [16]. Herein, we synthesized PANI/MoS₂ nanocomposites with varying MoS₂ concentrations in order to investigate the effect of MoS₂ concentration in the PANI matrix. The oxidation polymerization method has been employed in order to synthesize the PANI nano-rods. A simple solution mixing method has been used to prepared nanocomposites and a heat-assisted drop-casting method has been employed to fabricate CE specimens.

2. Experimental Investigation

2.1. Polyaniline Nano-Rods (PANI) Synthesis

Conducting polyaniline (emeraldine salt) was prepared using chemical oxidation method mentioned in the literature [17]. Briefly, a certain amount of monomer of aniline (0.0215 mol) was treated with a certain amount of HCl (30 mL) solution with a 1 molar aq concentration. The ammonium peroxydisulfate (acting as an oxidant) was added to the solution of aniline and HCl and stirred continuously below 5 °C using a magnetic stirrer for 3 h. The solution was filtered and dried at 60 °C overnight. The dry greenish powder was then stored in a refrigerator until further use.

2.2. Preparation of PANI-MoS₂ Nanocomposite

The PANI and MoS₂ nanocomposites were prepared using a simple chemical mixing method. In brief, powder PANI was suspended in de-ionized water using ultrasonication and stirred for 3 h at room temperature. A certain amount of HCl was added to the suspension followed by an introduction of MoS₂ into the suspension with continuous stirring for further 5 h. The mixture was centrifuged and washed using de-ionized water five times, followed by drying at 60 °C overnight. All of the samples with varying concentrations were prepared using the same procedure.

2.3. Counter Electrode Fabrication

The CEs have been prepared using drop casting method. A stable ink was prepared using a suitable solvent (toluene) and binder (polystyrene) in 70wt% and 3wt% concentrations with respect to the wt% of nanocomposite. To cast the ink, the fluorine doped tin oxide (FTO) glass was washed properly using ethanol and masked with a 6µm high-density polyethylene (HDPE) film with a 1 × 1 cm² window. The masked FTO glass was placed over the heating plate and the temperature was set to 60 °C prior to drop casting. The ink was drop-casted slowly using a medical syringe and the temperature was raise to 90 °C and maintained for 1 h after the casting. After that, the temperature was raised to 120 °C and the samples were kept at the same temperature for 1 h for proper drying and crack-free coating. All of the samples were prepared using the same method. For comparison, the Pt coated FTO glass was prepared using Pt paste and annealed to 450 °C for 1 h.

2.4. DSSC Fabrication

To prepare an efficient DSSC device, great care was practiced for the fabrication of a photoanode. A layered approach was used to fabricate high efficiency photoanode. In brief, FTO glass was washed using ethanol and dried in oven. After that, the FTO glass was immersed in TiCl₄ solution and annealed at 400 °C for 30 min. The TiCl₄ treated FTO glass was coated with TiO₂ (P25) paste and annealed at 450 °C for 1 h. The as0prepared coated glass was again treated with TiCl4 solution and annealed for another 30 min at 400 °C. This procedure created a blocking layer that would minimize the recombination reactions. The now prepared samples were again coated with TiO₂ paste with coarse TiO₂ particles and annealed at 450 °C for 1 h. This layer of coarse TiO₂ particles would improve the high scattering ability and improve the light harvesting capability of photoanode. The samples were again treated with TiCl₄ to create a blocking layer.

The prepared photoanodes were immersed in Ru(dcbpy)2(NCS)2 (dcbpy ¼ 2,2-bipyridyl-4,4-dicarboxylato) dye solution (535-bisTBA (N719), Solaronix) with acetonitrile overnight and rinsed with DI water. The prepared counter electrode was placed over the dye impregnated photoanode and sealed by heating after placing a hot melt film between them. Electrolyte Z-150 was filled using a medical syringe and sealed using hot glue. It is worth mentioning here that five specimens for each DSSC device were prepared and testing using the same conditions. The mean value for V_oc, I_sc and the efficiency has been presented through the manuscript.

2.5. Characterization

The morphological and phase identification (composition) analysis was performed using scanning electron microscopy (SEM) and X-ray diffraction (XRD). A Fourier transformed infrared (FTIR) study has also been conducted to examine the chemical groups and nature of the bonds. For the electrochemical studies, cyclic voltametery (CV) and electrochemical impedance spectroscopy were conducted. The CV was conducted in a three-electrode setup where the counter electrode was Pt wire, the reference electrode was Ag/AgCl, and the as-prepared electrodes were used as working electrodes. The range of electrical potential was set from −1.0 to 1.0 V with an optimized scan rate of 20 mVs⁻¹. The frequency range of 0.1–1 MHz was used for the EIS studies. The I-V characteristics, V_oc and I_sc, have been measured using a solar simulator at a 1000 W/m² irradiation level.

3. Results and Discussion

Figure 1a,b illustrates the SEM images of the as-synthesized PANI nano-rods and as-received MoS₂ nanoparticles. A solid rod-like morphology of the PANI is evident from Figure 1a, along with a rough surface. The approximate diameter of the PANI nano-rod ranged between 50 and 90 nm. The length ranged from between 500 nm to more than 2 µm. On the other hand, the SEM image of the raw MoS₂ shows irregular sheet-like morphology along with smooth surfaces. The MoS₂ sheets size ranged between 200 and 800 nm and the thickness of MoS₂ sheets ranged between 20 and 50 nm.

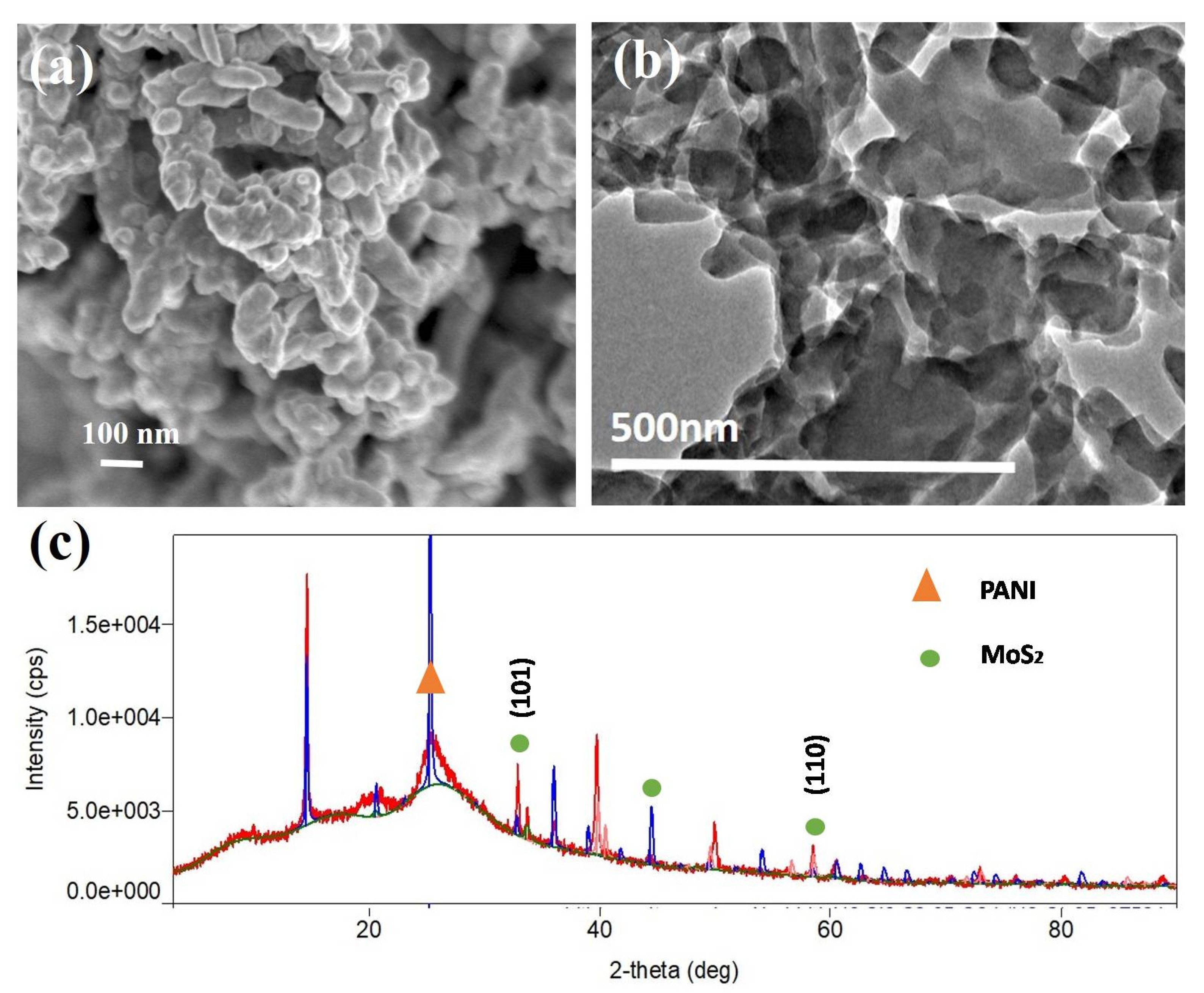

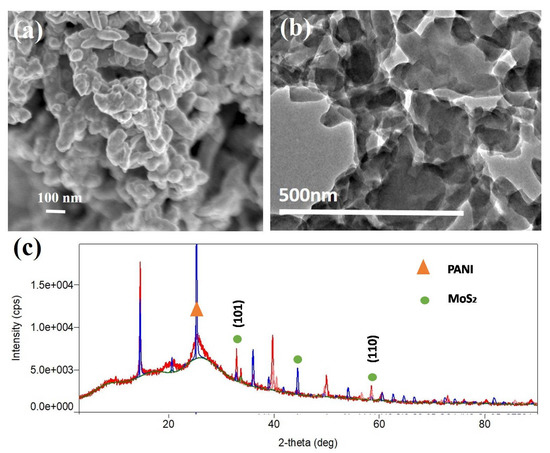

Figure 2a,b shows the SEM and TEM images of the highest performing nanocomposite (i.e., PANI/7wt%MoS₂₎. Figure 2a shows homogenous mixing of two phases while TEM was conducted in order to examine the internal structure of the nanocomposite. No contrast through the thickness was observed for PANI, which suggests a solid rod-like internal structure. The XRD pattern of PANI/7wt% MoS₂ is shown in Figure 2c. The peaks at close to 25 2-theta values represent the PANI phase. On the other hand, the 2 theta peaks at 30, 45, and 60 represent the MoS₂ phase. Note that the XRD of the best performing specimen has been presented here. The XRD patterns of bare PANI, PANI—0.5wt%MoS₂, PANI—2wt%MoS₂, PANI—5wt%MoS₂, and PANI—9wt%MoS₂ are presented in Figures S1–S5, respectively, and in the Supplementary Materials. The FTIR (Figure S6) was conducted in the range of 500–4500 cm⁻¹. The convoluted set of peaks between 1000 and 1500 cm⁻¹ shows a mix of stretching and bending modes of C-C, C-O, and C-H functionalities. The result most interesting to the present study is the presence of redox-active functionalities, such as unsaturated ketones or quinone-like moieties (1600–1700 cm⁻¹), that can participate in redox cycling [18].

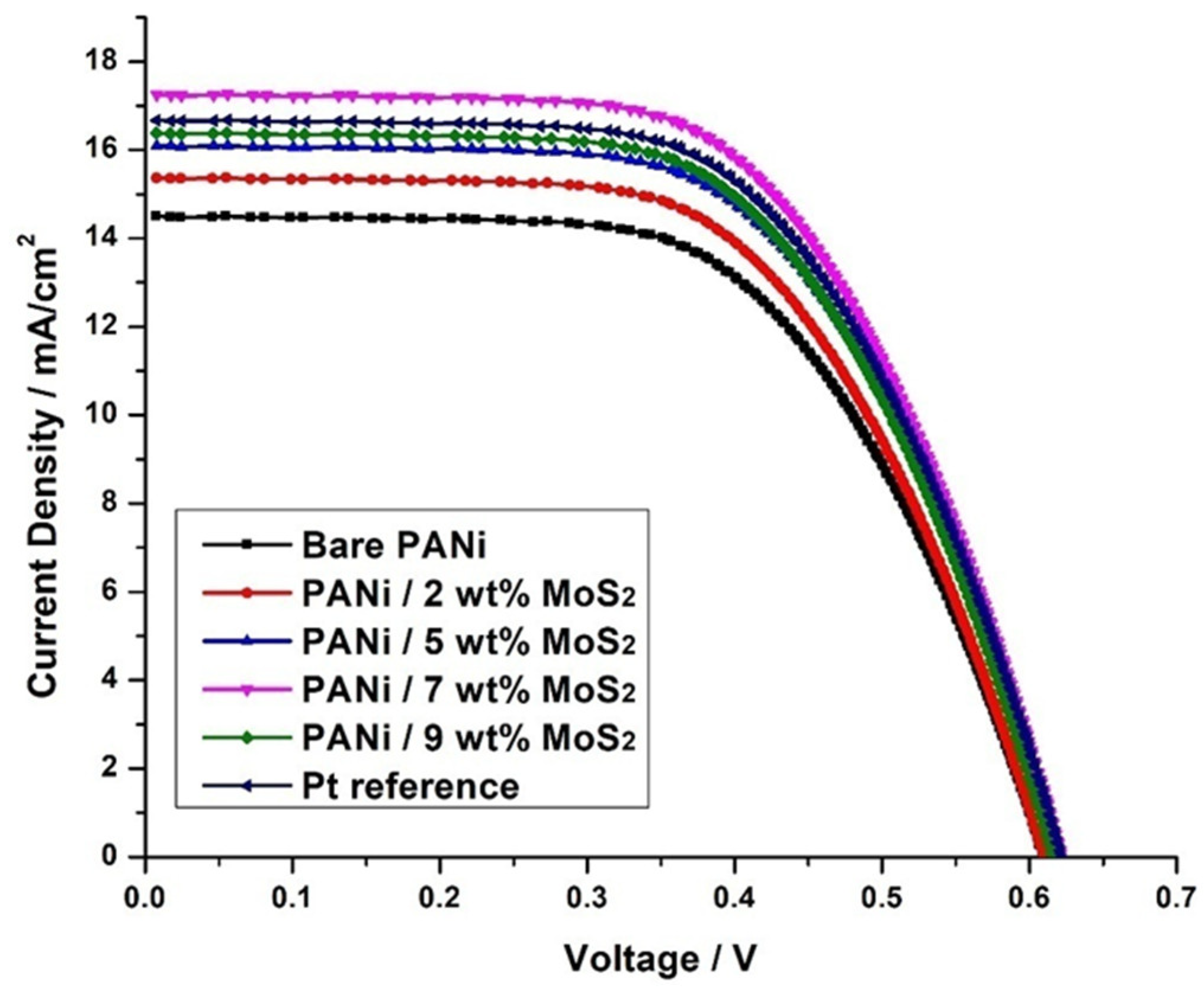

Figure 3 shows the current voltage curves of specimens under investigation. The detailed summary of parameters has been presented in

Table 1. A detailed summary of I-V parameters.

Sr. No.	Specimen ID	Voc (V)	Isc (mA/cm2)	FF (%)	EFF (%)
1	PANI CE based DSSE	0.61	14.49	71	7.46
2	PANI—2wt% MoS2 CE based DSSC	0.61	15.36	72	7.73
3	PANI—5wt% MoS2 CE based DSSC	0.62	16.08	71	7.98
4	PANI—7wt% MoS2 CE based DSSC	0.62	17.24	73	8.12
5	PANI—9wt% MoS2 CE based DSSC	0.61	16.37	72	7.87
6	Pt reference	0.62	16.68	74	7.91

. It was observed that with the incorporation of MoS₂nanosheets in the PANI matrix of CE, the overall photo-conversion efficiency increased. The PANI/2wt% MoS₂ CE-based DSSC device exhibited a conversion efficiency of 7.73% along with values of V_oc and I_sc as 0.61V and 15.36 mA/cm², respectively, which is 3.62% higher compared to bare PANI CE based DSSC. The addition of 5wt% MoS₂ in PANI led to a further increase in efficiency (by 7.98%). The best performance was achieved at 7wt% MoS₂. The PANI/7wt% MoS₂ CE-based DSSC exhibited a remarkable 8.12% conversion efficiency along with values of V_oc and I_sc as 0.62 V and 17.24 mA/cm². This efficiency is 8.84% higher compared to the bare PANI CE-based DSSC and 2.65% higher compared to the Pt CE-based reference DSSC. A further increase in the concentration of MoS₂ in PANI led to a reduction in overall efficiency. This may be due to an increase in defects and electron trapping sites.

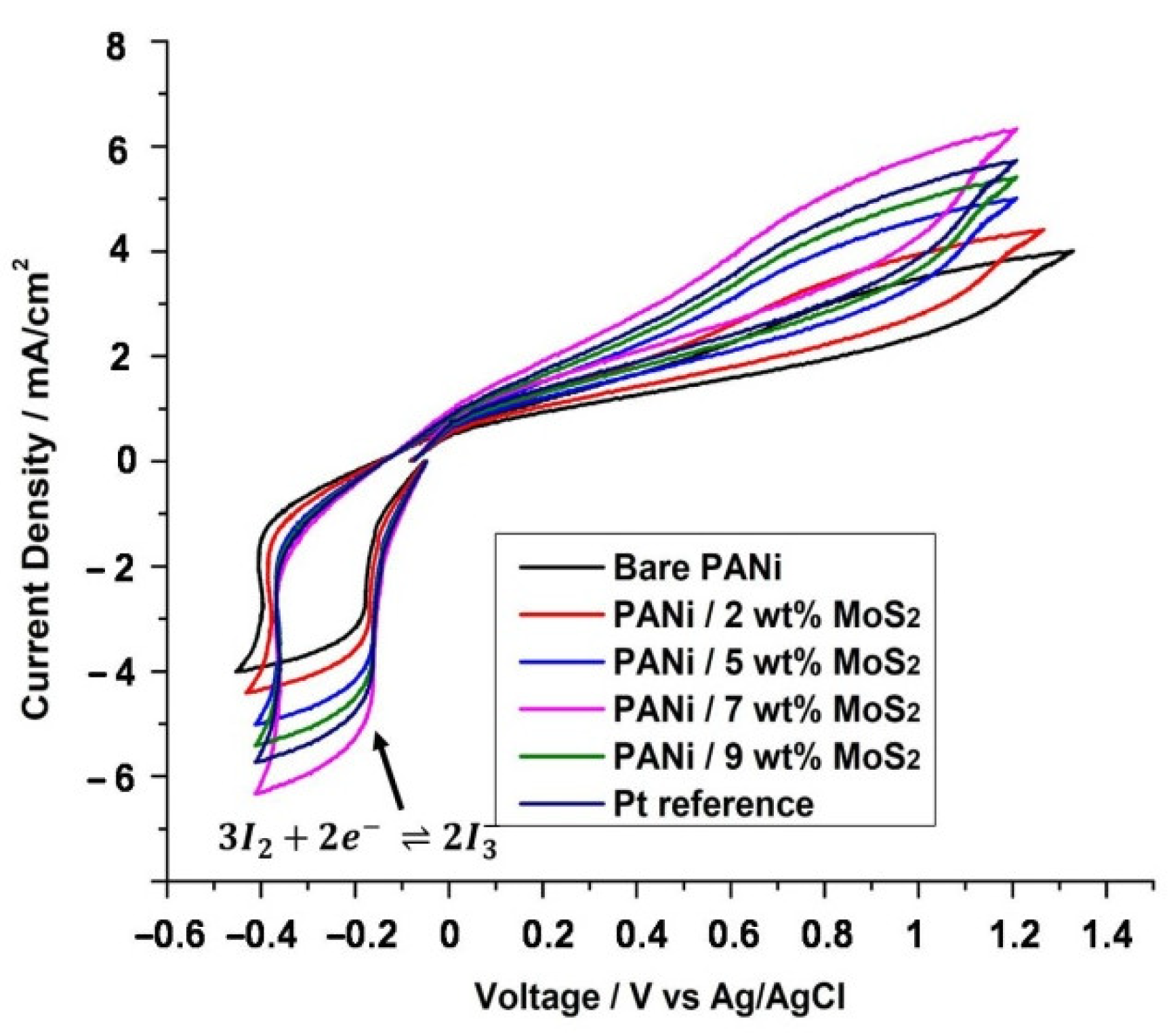

To understand the increasing trend in conversion efficiency with the addition of MoS₂ in PANI, a CV of all the nanocomposites was performed, along with the bare PANI and Pt for comparison purposes. Figure 4 shows the cyclic voltammograms of the specimens under investigation. Iodolyte Z-150 (0.01 M concentration in acetonitrile) electrolyte was used for the CV. Redox peaks for each curve can be observed in Figure 3, suggesting a reduction of $I_3^{-}$ to $I^{-}$ (left side) and oxidation of $I^{-}$ to $I_3^{-}$ (right side). The equation presented in Figure 3 represents a reduction reaction. It is well known that the performance of DSSC is directly related to the electrocatalytic activity of catalysts towards the reduction of $I_3^{-}$. High cathodic current density suggests faster kinetics of the electrocatalytic process of electrodes [19]. An increase in redox peaks was observed with the introduction of MoS₂ in PANI, suggesting an increase in the catalytic activity of the PANI matrix with the addition of MoS₂. A further increase in the concentration of MoS₂ led to an increase in redox peaks. The PANI/7wt% MoS₂ nanocomposite exhibited the highest redox peaks, outperforming the bare PANI and Pt references. The CV results correspond with the I-V curves and overall efficiency, which are in agreement with each other. It can be said with confidence that the increase in overall conversion efficiency was due to an increase in the catalytic activity of PANI/MoS₂ nanocomposite which led to an increase in the current density of the DSSC device.

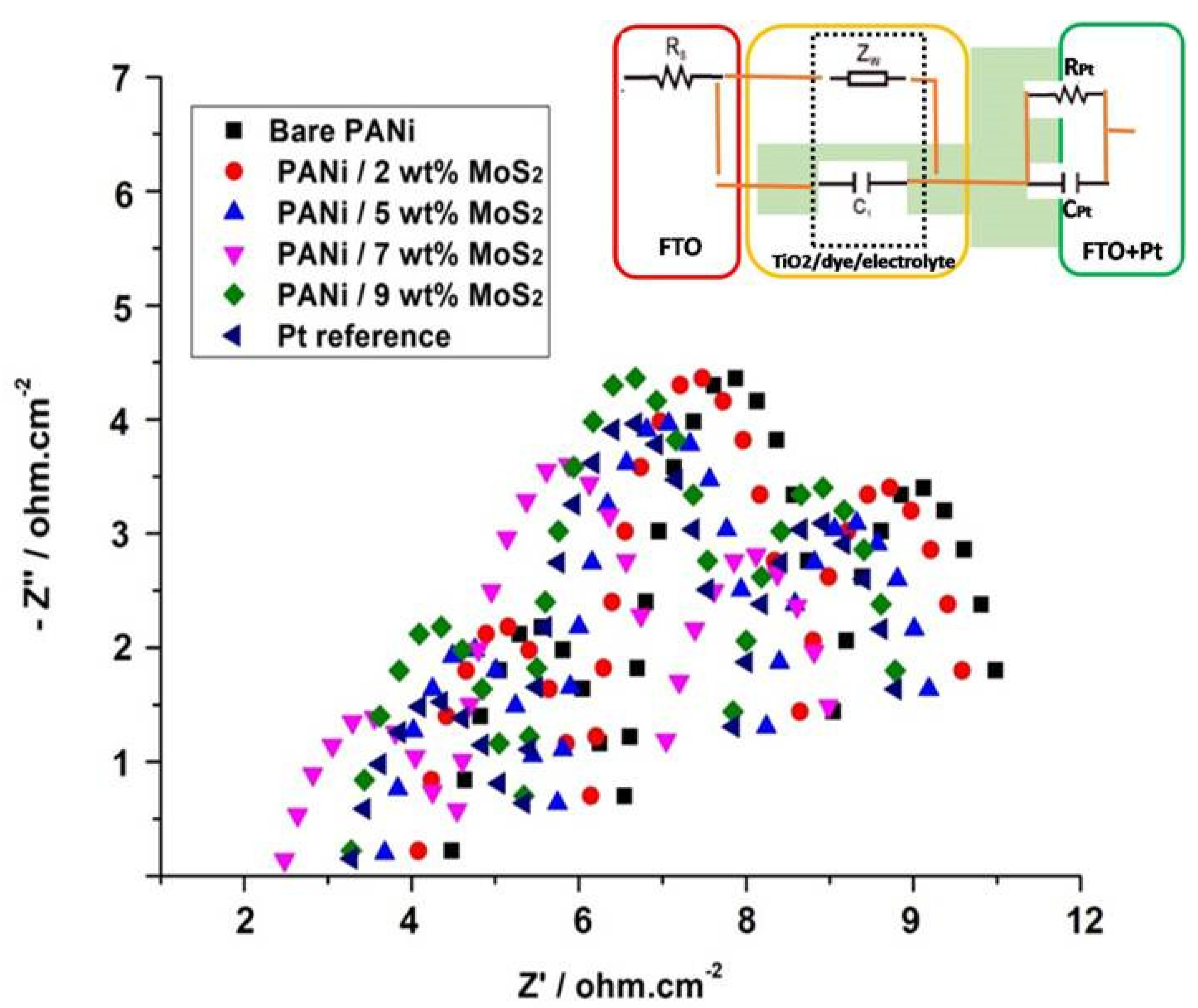

To further study the electron kinetics and their effect on the overall charge transfer resistance, an EIS was performed. Figure 5 shows the EIS pattern of specimens under investigation. Three semi-circles are evident for each specimen from high frequency to low frequency. The first semi-circle at high frequency represents the charge transfer properties (Faraday’s redox reaction resistance) at the counter electrode (catalyst/electrolyte interface) which is the main focus of the present study. The second semi-circle represents electron kinetics at the interfaces present at photoanode (i.e., the nano-architecture (TiO₂)/dye/electrolyte interface). The third semi-circle belongs to the Warburg diffusion process of iodide ions in the electrolyte. The graph has been adjusted on ZVIEW software and drawn against an imaginary axis. The equivalent circuit is shown in Figure 5. The onset point of the first semicircle at the high-frequency range represents the series resistance (R_s) and its radius refers to the charge transfer resistance (R_ct) which corresponds to the catalytic process at the film/electrolyte interface. A negative shift in R_s and R_ct values has been observed that, with the addition of the MoS₂ nano-sheets in PANI, imply a reduction of the overall charge transfer resistance. The lowest R_s and R_ct values have been displayed by the PANI/7wt% MoS₂ nanocomposite, outperforming the reference Pt CE. A further increase in the concentration of MoS₂ led to an increase in the charge transfer resistance, which can be co-related with the CV and I-V results.

The increase in resistance led to a reduction in current density, which affected the overall conversion efficiency. The EIS results are in agreement with the CV and I-V results presented in Figure 3 and Figure 4. The best performance exhibited by PANI/7wt% MoS₂ CE-based DSSC was due to high catalytic activity, optimum available catalytic cites, and high electron transfer ability, which led to an increase in the current density of the DSSC device.

4. Conclusions

The high achievable module flexibility, low cost, lightweight nature, and ability of DSSC to harvest indoor light make it a potential candidate to be used in aerospace technologies such as electrically operated solar-powered drones, lightweight portable structures (such as origami-style space solar power stations), and the powering of high-altitude blimps. In this study, the effect of MoS₂ on the catalytic and charge transfer ability of PANI-based CE has been investigated. SEM and XRD methods have been utilized to study both surface morphology and structural composition. EIS and CV have been employed to study the electron transfer and catalytic activity, respectively. Finally, I-V testing has been conducted using a sun simulator. A maximum efficiency of 8.12% was observed with 7wt% MoS₂ in the PANI matrix at a 6µm thickness, which is 2.65% higher compared to the standard Pt-based CE (7.91%). This is due to high electronic conduction with the addition of MoS₂, improved catalytic activity, and the high surface area PANI. The proposed CE material has the potential to replace Pt-based CEs due to its cost-effectiveness, chemical inertness, and ease in fabrication.
