Measurements of Flammable Gas Concentration in Landfill Areas with a Low-Cost Sensor

Abstract

Global warming, as the result of the negative impact of humans on climate change, has been observed based on various data sources. Various measures have aimed to reduce anthropogenic factors, and also to lower carbon dioxide (CO₂) and methane CH₄ emissions. One of the main contributors to anthropogenic factors is organic waste in municipal solid waste landfills. There are many landfills where cost-effective rapid technologies for the identification and quantification of CH₄ emission sites are not applied. There is still a need for the development of accessible and cost-effective methods that react in a real-time manner for the rapid detection and monitoring of methane emissions. This paper’s main goal is to create a prototype sensor suitable for operational measurement of the gas value, suitable for integration into geodetic equipment or an unmanned aerial vehicle system. A sensor system (device) was developed, which consisted of three semiconductor sensors—MQ2, MQ4, and MQ135—which aimed to capture flammable gases (CO₂, CH₄, O₂ purity) and to evaluate the averages of the measured values from the components mounted on the board—the semiconductor sensors. The sensors were calibrated in a laboratory and tested in a closed landfill. The measurement data consisted of the read resistances (analog signal) from the MQ2, MQ4, and MQ135 sensors, and the relative humidity and the temperature (digital signal) of the DHT2 sensor with a timestamp calculated by the RTC module. The use of the method was confirmed because the sensors reacted as expected when placed in the vicinity of the gas collection well. Furthermore, the sensor will be tested and improved for field work in landfill sites.

1. Introduction

Greenhouse gas (GHG) emissions are one of the main drivers of climate change [1,2]. It is therefore important to monitor and forecast the release of GHG, such as carbon dioxide (CO₂), nitrogen dioxide (NO₂) and methane (CH₄) into the environment. Municipal solid waste (MSW) landfills are among the important contributors of CH₄ and CO₂ to the atmosphere. Effective and cost-efficient detection technologies of the uncontrolled GHG emissions to the environment are needed.

At present, gas monitoring at MSW landfills in Lithuania is carried out in points defined in a monitoring plan. Emissions of CH₄, CO₂, hydrogen sulphide (H₂S) and oxygen (O₂), alongside air temperature and atmospheric (barometric) pressure are measured. At the points where the gas emissions from the landfill surface are detected, the gas flow density and emission flow are calculated. Atmospheric emissions (CO₂, CH₄ and N₂O) can be determined with a Dräger multi-channel analyser X-am 7000 [3]. This sensor complies with the European Union Directive 94/9/EC for biogas meters. Measurements are performed in a 6877 cm³ stainless steel flow box [4,5,6,7]. Based on the performed gas concentration measurements in the “flow box” and the calculation results, a graph of the gas concentration change over time is plotted and a repeated monitoring report is prepared. A disadvantage of a closed gas flow measuring box is that the measurements are performed occasionally, e.g., several times a year to estimate seasonal or annual gas flow [5]. By this, uncontrolled emissions occurring in between the measurements are missed.

Methods providing more continuous measurements of changes in gas emissions and their composition might reduce the uncertainties. One such way is using remote sensing, where environmental information is obtained using open-platform electronic sensors and lasers integrated with cameras [8,9,10,11]. Various sensors capture the range of wavelengths and frequencies of electromagnetic radiation. The common sensor types are Red–Green–Blue (RGB), which is the most common colour model of visible light, and spectral, which can be single-spectrum or multispectral [12], and in recent years—hyper-spectral. This last type of camera has been used in research laboratories, artificial Earth satellites, airplanes, and in recent years, in unmanned aerial vehicles (UAV) to study the composition of the Earth’s surface (including its chemistry) [11,12]. NASA (USA) has constructed the HyTES spectrometer for Earth science research, which can be used to detect individual spatial structures of plumes arising from CH₄, H₂S, NH₃, NO₂, and SO₂ pollution sources [13,14,15]. Nevertheless, access to such techniques for a landfill operator is limited.

The abundance of sensors currently in production allows the development of open-source electronic systems suitable for air pollution monitoring, including meteorological indicators, such as temperature, wind speed, relative humidity, and pressure, and chemical indicators, such as SO₂, NO, NO₂, PM10, PM2.5, O₃, CO, and volatile organic compounds (VOCs) [16]. Open-source systems can be used by a UAV due to their low cost, relatively small size and weight. A general spatial trend of concentrations and an accuracy of ±30% could be acceptable for the detection and localisation of gas emission sources and for the additional monitoring of weak spots. Further investigations would require an accuracy of <20% [16,17]. To detect traces of GHG and VOCs in the lower atmosphere, a UAV can be fitted with various types of sensors and data results, supplemented by high-resolution processed RGB camera images, incorporated into Earth spatial GIS database systems for storage and further analysis [17]. Such solutions can be more accessible to landfill operators and provide data of acceptable quality for the fast identification of landfill gas leaks.

The aim of this study was to manufacture a prototype microcontroller based on a gas sensor array specialised for landfill area roving in points of interest that are selected from satellite and UAV images or in situ measurements. This prototype microcontroller can be a simple and cost-efficient alternative to the flow box method, affordable to any landfill operator.

2. Materials and Methods

2.1. Study Area

Testing was performed at the Kariotiskes landfill, located in Lithuania, Europe. This was the main municipal solid waste landfill for the capital city, Vilnius. The landfill was closed in 2008 and planted with vegetation a year later. Over two decades, the landfill has accumulated 3 million tons of waste. An observation deck has been built on the very top of the heap, and a thermal power plant has been opened at the Kariotiskes landfill, which produces energy from the landfill gas extracted here. However, whole territory must be observed for at least three decades.

The study was designed to check certain locations described by other remote sensing methods or find the weakest spot of the final landfill cover by moving in a site towards increasing readings in real-time. For better absolute accuracy or better precision, voltage readings, temperature, humidity, and flow regulation needed to be taken into account, as these are sources of errors in the field. After the localisation of certain problematic areas in landfills, at the moment, other methods should be used with better concentration accuracy; however, this prototype could solve the problem of finding hot spots influenced by CH₄ emission quickly and cheaply for every landfill, as a complementary method to remote sensing. This is because other methods are expensive, require long or complex preparation and application, or results come after a couple of weeks because of logistics and laboratory work.

2.2. Methods

As this type of application of sensors in the device for landfills is novel, first of all, the principle and design of the prototype is provided. Then, a section on device calibration follows, and lastly, a section on measurement processes in the area of interest.

2.2.1. Concept and System Design

A new specialised sensor array was designed to measure the average concentration values of flammable gases (specific goal—CH₄) from the components mounted on the board—semiconductor sensors. Semiconductor sensors respond to the ratio of the gas mixture to oxygen (O₂). Electronic humidity and vapour sensors, which measure the concentration of a liquid while it is in a gas phase, also work on this principle. The selected components used in household and industrial equipment (heating, ventilation, air conditioning, medical, meteorological equipment, warehousing, archive maintenance processes) are of high quality and have been improved according to user feedback because of a high demand lasting a couple of decades (Figure 1).

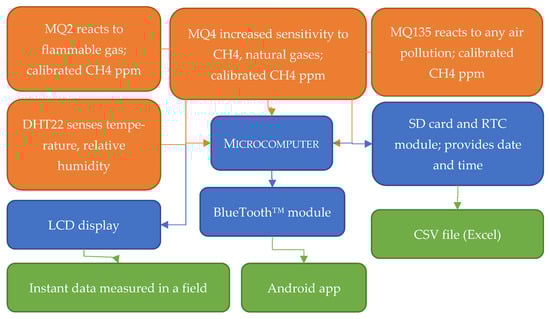

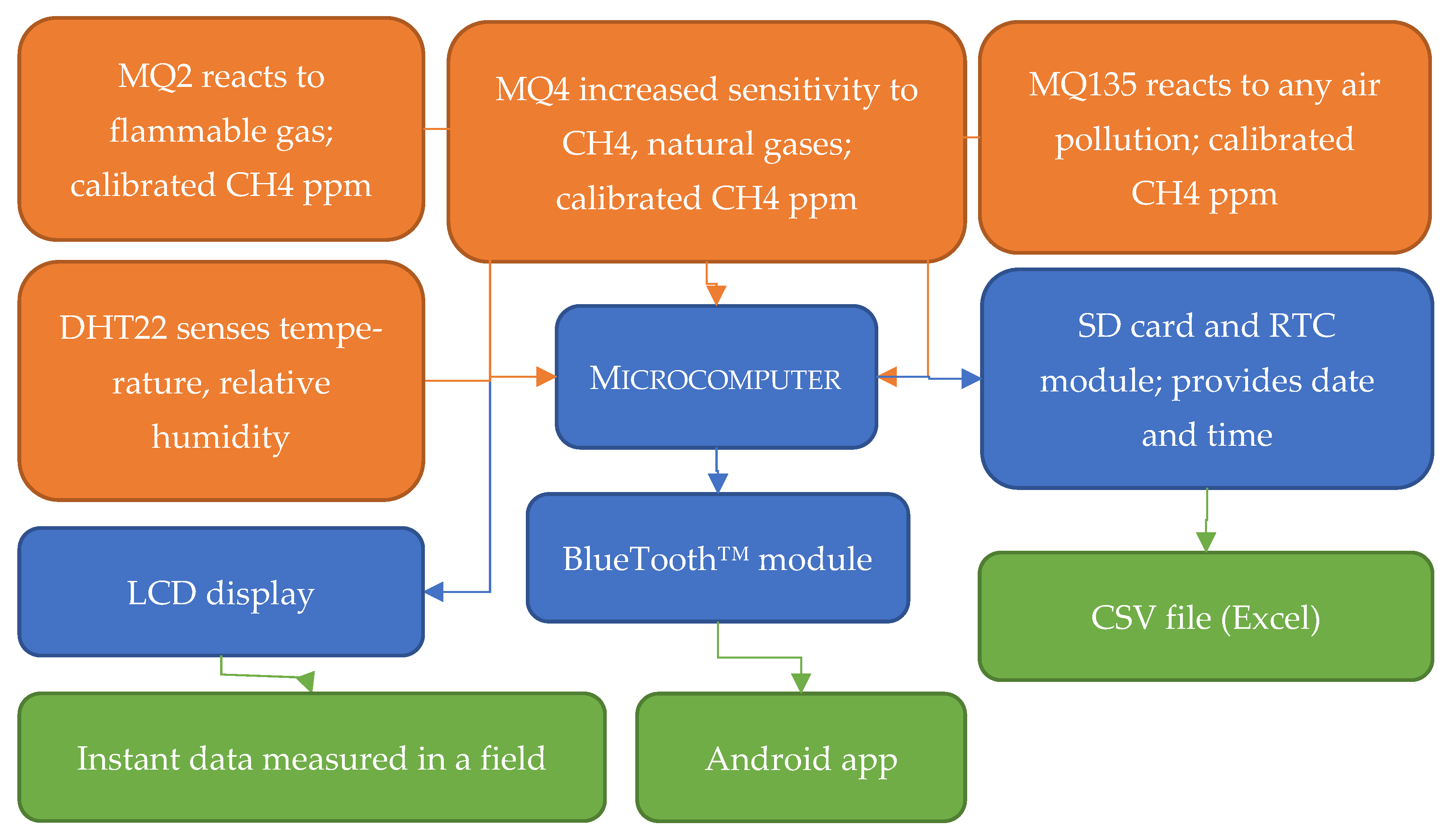

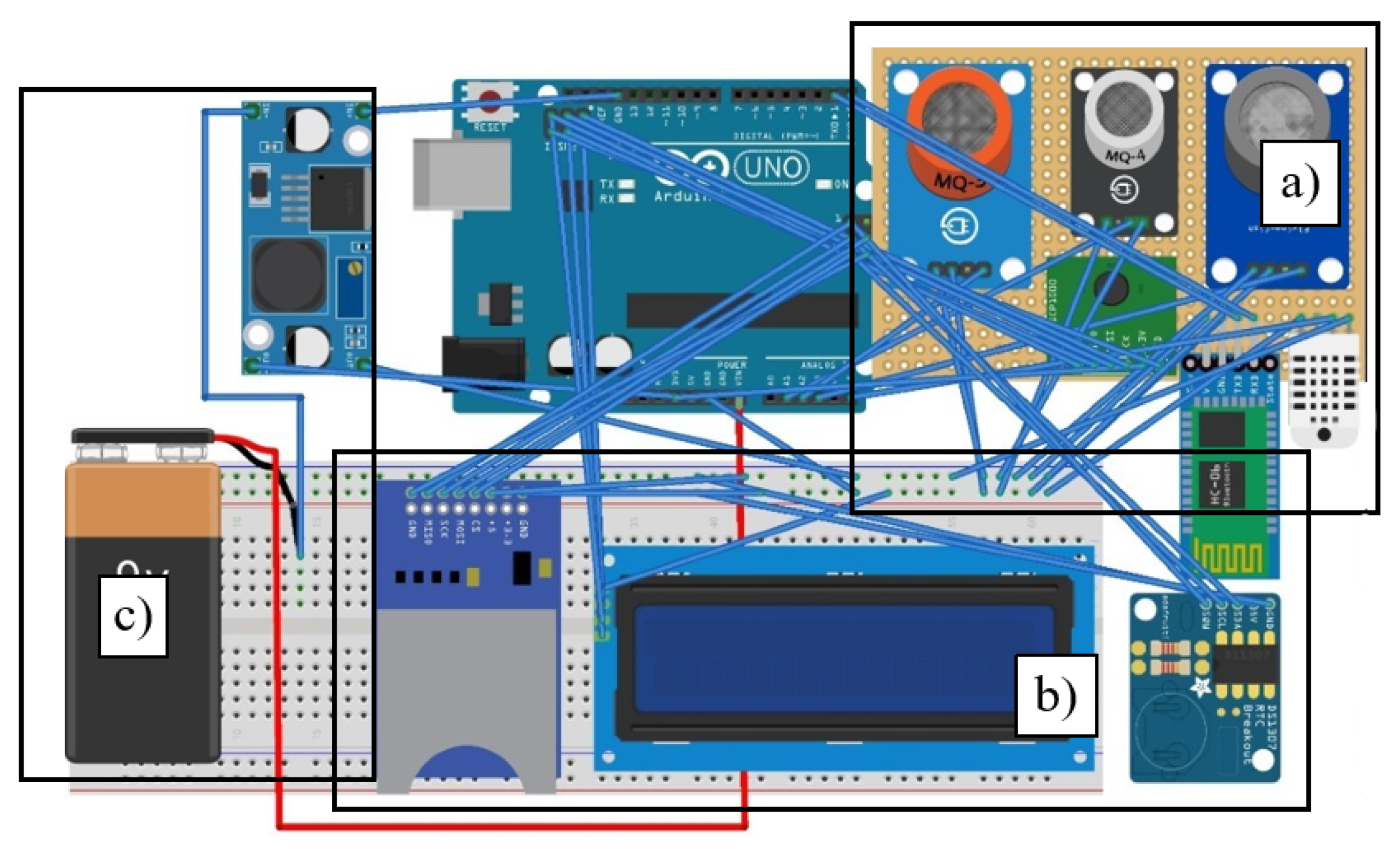

The main components of new sensor system are illustrated in Figure 2. The system consists of three modules: (1) gas sensors array (MQ2, MQ4, MQ135, DHT22); (2) system controller; and (3) measurement—data capture.

The main sensor system module component MQ4 sensor is specialised in capturing flammable gases in the environment and has an increased sensitivity to CH₄ gas (compared to other explosive gases). An additional component integrated to the module is the MQ2 explosive gas sensor, which is a semiconductor sensor optimised for a faster response and sensitivity to lower gas concentrations. The MQ135 sensor is sensitive to various air pollutants and changes in the ratio of carbon dioxide (CO₂) with other gases in the air. DHT22 registers current temperature and relative humidity.

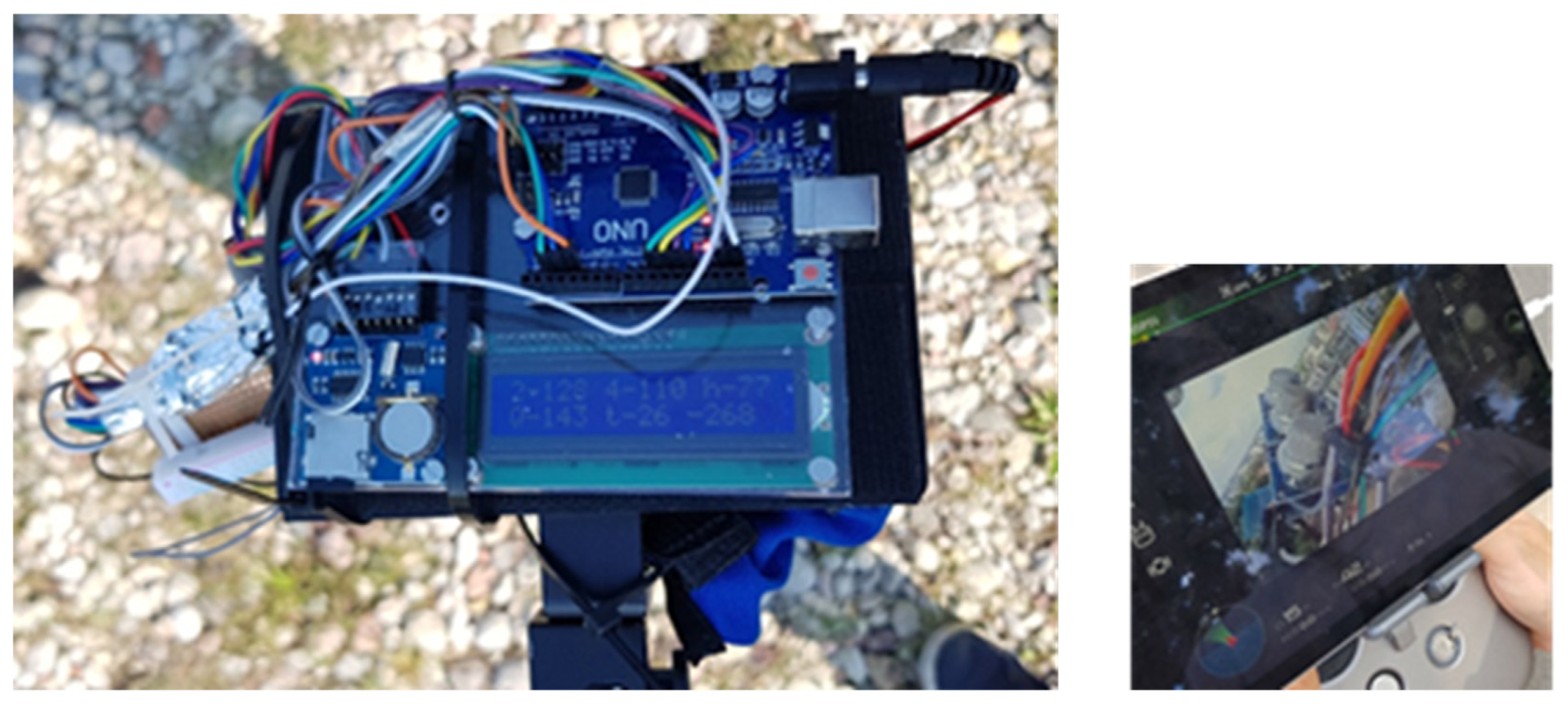

The sensor system is controlled by an Arduino microcontroller, a two-line liquid crystal display (LCD) connected to its data output, an integrated module with a real-time clock (RTC) chip, and a secure digital (SD) card reader for date and time stamps recording (Figure 3).

The data flow is transmitted in real time through the integrated BlueTooth^TM module HC-06 to any device capable of receiving within a radius of 10 m or more (the exact maximum distance was not tested, as it varies due to environmental conditions). An algorithm in Arduino programming language (C/C ++ based) was developed and implemented for the sensor control.

Multiple sensors in the sensor system allow the results between sensors to be checked in real time and reject incorrect readings or estimate the mean values between several sensors and apply sensor fusion and machine learning algorithms, thus avoiding incorrect measurements with cost-effective electronic components. One data line consists of the read resistances (analogue signal) from the MQ2, MQ4, and MQ135 sensors, and the relative humidity and the temperature (digital signal) from the DHT22 sensor with a time stamp calculated by the RTC module. The data string is saved to the SD card (4 Gb, speed class 10 used) using the RTC module in CSV format by creating a new file after starting the device or adding a new line at the end of the opened digital file. The HC-06 module pairs with the desired Android device and receives a data packet when streaming at a speed of 115,200 kbps to a mobile device (a Samsung S6 Edge + was used) running the Android operating system via a Bluetooth scanning application (the free application ArduTooth was used). During the experimental studies, the data were also transferred to the controller Spectra Precision MobileMapper 50 of the Spectra Precision geodetic GPNS receiver SP60 (Figure 4).

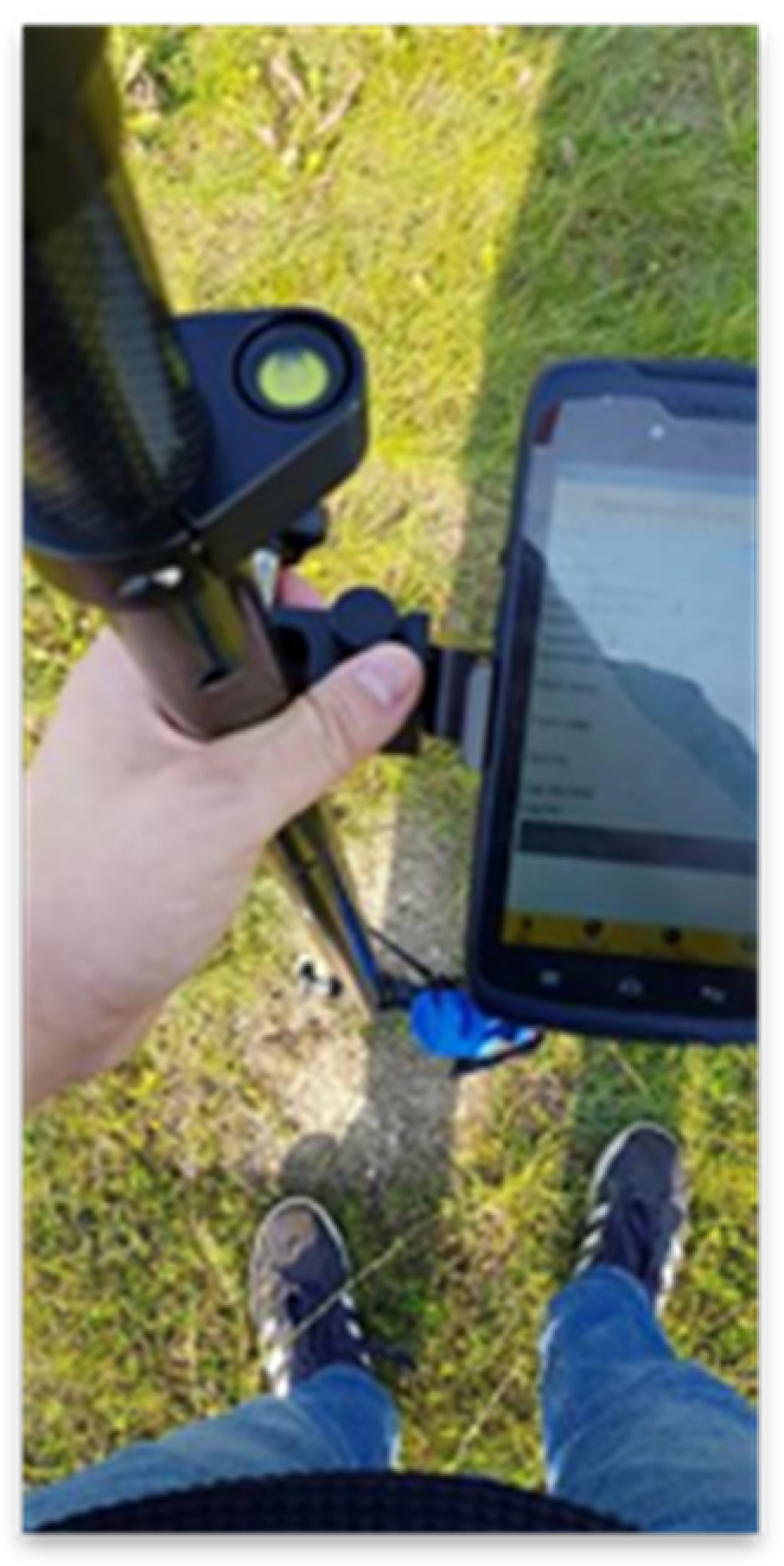

Global geographic coordinates recorded by a professional geodetic (leisure equipment or consumer grade if necessary) GNSS device moving at the landfill site, in characteristic places or at a given interval (time or distance) are recalculated in the state coordinate system and the height of each point. The sensor measures, records, and transmits readings continuously at a frequency of 1 Hz. The GPNS receiver operates in RTK mode, is configured to, and receives corrections via GSM connection from the network of permanent continuous stations of the control (LitPOS) information system, thus obtaining an average error of no more than 2 cm for the horizontal position. Pre-processing is not required after measurements with the device are made in the area, but in the event of technical obstacles, some data rows may be damaged or recorded incompletely. Such rows need to be taken care of by deleting or manually filling in most common or average values to incomplete rows by using programming tools or Microsoft Excel.

The device was calibrated before using in field measurements.

2.2.2. Device Calibration

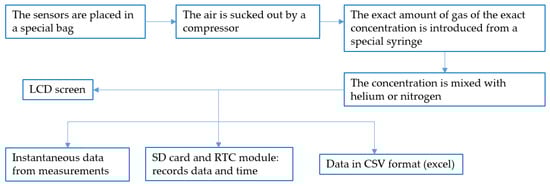

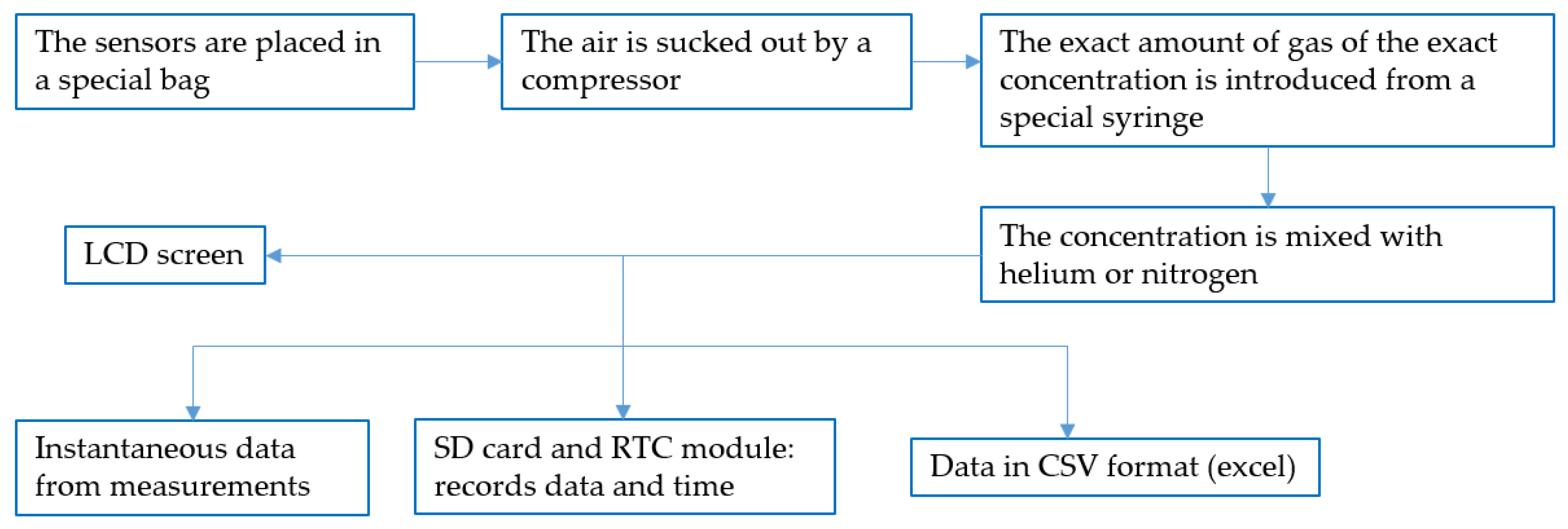

The calibration of the gas sensor prototype was performed in the environmental laboratory of Luleå University of Technology in Sweden. A sealed diffusion-proof gas collection bag was used for the tests. Air was removed from the bag before the test by an air compressor. After the electronic components had warmed up (stable readings had been reached), a known amount of gas was injected into the bag through a valve system with a glass syringe (Figure 5). A high purity gas for laboratory instrument calibration from AGA Gas AB was used for the sensor calibration.

After extracting the gas with an air compressor, known amounts of known gases (CH₄, CO₂) were injected using a glass syringe. Resistance values measured with the electronic sensor were converted into the gas concentration expressed in ppm. After the first attempt at calibrating the sensors, the device was improved by redesigning the connections, separating the sensor block, and repeating the measurements. The obtained data were used to generate a calibration curve. Additionally, several tests were performed to determine the sensitivity of the sensors and to define the measurement limits and conditions.

Twelve-point tables with increasing known CH₄ concentrations and other gases were compiled for each sensor. The values were in a range of 100k ppm up to 500k ppm. Each gas concentration was compared to the decimal analogue value obtained over an average of several 300 s readings. Three test sessions were performed at different concentrations of CH₄ and He as the background gas.

The values of each sensor were compared with the precisely known amount of gas through the linear regression equation for the calibration of each sensor. To derive the equation, a linear correlation between the parameters was calculated. The straight-line approximation of the true relationship was made. An important objective of regression analysis is to estimate the unknown parameters in the regression model; this process is also called fitting the model to the data [18,19]

The purpose of OLS is to determine estimates of regression parameters that minimise the sum of the squares of the values of the variable dependent on the actual ($y_i$) and calculated (${\widehat{y}}_i$) dependences of the selected regression equation. The method of ordinary least squares mathematically is written as follows:

$${\displaystyle \sum }{(y_i-{\widehat{y}}_i)}^2={{\displaystyle \sum }}^{{\displaystyle \sum }}{e}_i^2\to min,$$

(1)

where $y_i$ is the actual value, ${\widehat{y}}_i$ is the calculated value and e_i is residual of each data point.

Using the statistics theory [18,19], the correlation coefficients and the coefficient of determination were calculated, and the analogue values of the decimal system of the sensors and the known concentrations were related.

During testing, calibration, and experiments, the sensor readings and transmissions of the measurement data occurred once a second. After device calibration, an equation for each sensor was obtained; the variance of sample values was calculated, and goodness of fit was expressed by the coefficient of determination.

Using a factory datasheet, another slope was made from the table of points represented in a figure with logarithmic base. The ordinate was the resistance ratio of the sensor (R_s/R_o), and the abscissa was the concentration of gases. R_s represented the resistance in a target gas with different concentrations, R_o indicated the resistance of the sensor in clean air [20]. Eighteen data points were extracted using the graphing software called “GetData Graph Digitizer”, by extracting values from the intersections of sloped typical sensitivity curve lines and minor axis [21]. Then, the equation used for the calibration of concentrations from 200 ppm to 5000 ppm was derived. To obtain the R_s/R_o ratio, an equation was used to convert analogue values to digital ones of the microcontroller to R_o in clean air, and later, analogue to digital values were recalculated again for each second of measurements in field and divided by Ro to obtain R_s/R_o ratio of the landfill site measurements. Then, inverses of laboratory and factory calibration equations were used again. Using the equations, the values measured at the landfill site were transformed into amounts of methane at a certain location and time.

2.2.3. Measurement Processes in the Area of Interest

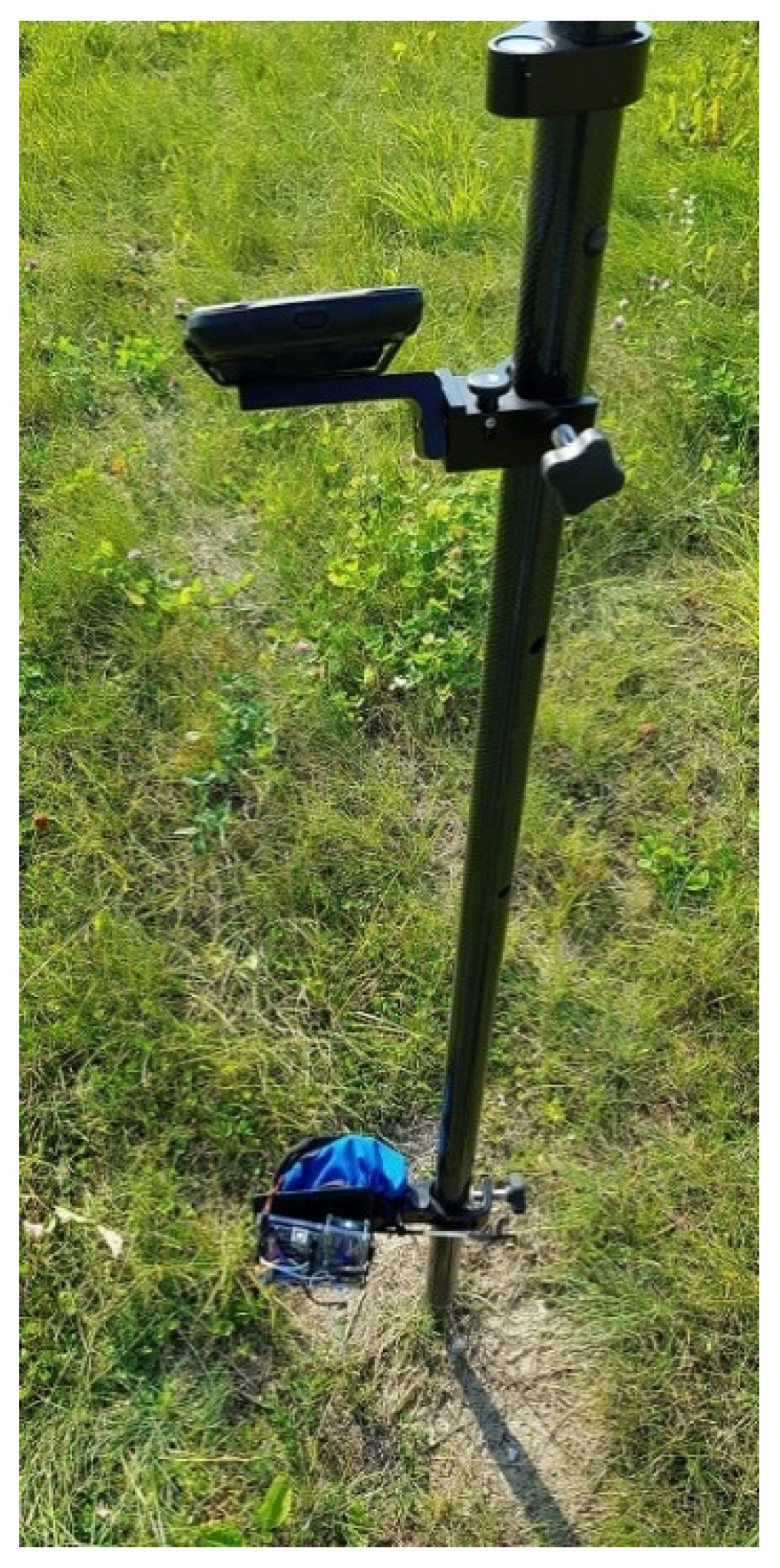

The main module of the sensor system consisted of an analogue of the open platform microcontroller Arduino Uno with a package of six AA batteries and a compatible cable connector attached to a metal plate using a holder for the GNSS receiver rod, which was fixed 20 cm above the ground (Figure 6).

Measurements were started by initialising each sensor. The gas sensors started immediately (<1 s), but it took time before the readings stabilised. The time duration depended on how frequently the device was used and on the temperature of each gas sensor. If the device had been switched on during the last couple of hours, it only took around 30 s for the readings to become stable. Otherwise, if the device was kept in warm, it would take some minutes, if used within a month. The device was restarted when stable readings were achieved.

Firstly, R_o values were derived from at least a 30 s average of readings in clean air (clear of gases to be detected). Then, the readings were recalculated based on the calibration equation and R_o for particular air conditions (temperature, humidity, pressure) and voltages, which depended on the sum of all hardware components (inner resistance) and battery charge level. Then, the real-time resistances were recalculated to quantities of the amount of CH₄ gas in ppm.

For sensor measurements to be more accurate, the temperature should be close to that previously recommended during the calibration and in the factory specification (approximately 22 °C); the wind should not be strong or there should be a constant internal flow. A strong change in humidity should be avoided if the change is not compensated by a real-time algorithm. The sensors can be upgraded to newer ones or be constructed with better characteristics, in most cases with little or no change to the algorithm code and circuit, and some sensors can be sold pre-calibrated at the factory.

3. Experimental Results and Analysis

This subsection presents the measurement results obtained with the developed sensor array. Firstly, the system calibration results to determine the correlation between voltage values and gas concentration are provided, alongside a concise description of the experimental data with methane gas measurements at the landfill site.

An equation was derived for Rs/Ro ratio to be expressed as CH₄ concentration ppm from the known characteristics of hardware and guidelines according to the manufacturer specifications:

R_s/R_{o ppm} = ((V/(V/ADC_scale·ADC_val))-1)·R_L/R_clean

(2)

where V—voltage of power supply of sensor (here 5V), ADC_scale—maximum value of analogue to digital converter of microcontroller (here 1024), ADC_val—current reading of microcontroller, R_L—load resistance (here 500 ohm), R_clean—R_s/R_o ratio in clean air (or when gas concentration we are calibrating is not present in sensors vicinity).

3.1. Sensor System Calibration Results

For each sensor, linear regression using the OLS method was fitted, and the main statistics (coefficient of determination, adjusted, p and t statistics) were calculated and provided. The Python 3 programming environment with matplotlib, statsmodels, and pandas libraries were used for calculations.

All results are shown in Figure 7, Figure 8 and Figure 9. The vertical axis shows the ratio of sensor resistance while in contact with CH₄ divided by resistance in so-called clean air (no CH₄ or similar gases). The horizontal axis shows CH₄ concentration in a thousand parts per million (in short k ppm or 10³ ppm). Linear regression equations were obtained with a good fit, as the coefficients of determination r² were ranging from 0.937 to 0.987.

Based on recent traditional landfill site monitoring reports in Lithuania, when results are reported, it is common to state that the correlation of calibration is considered reliable when r² > 0.8.

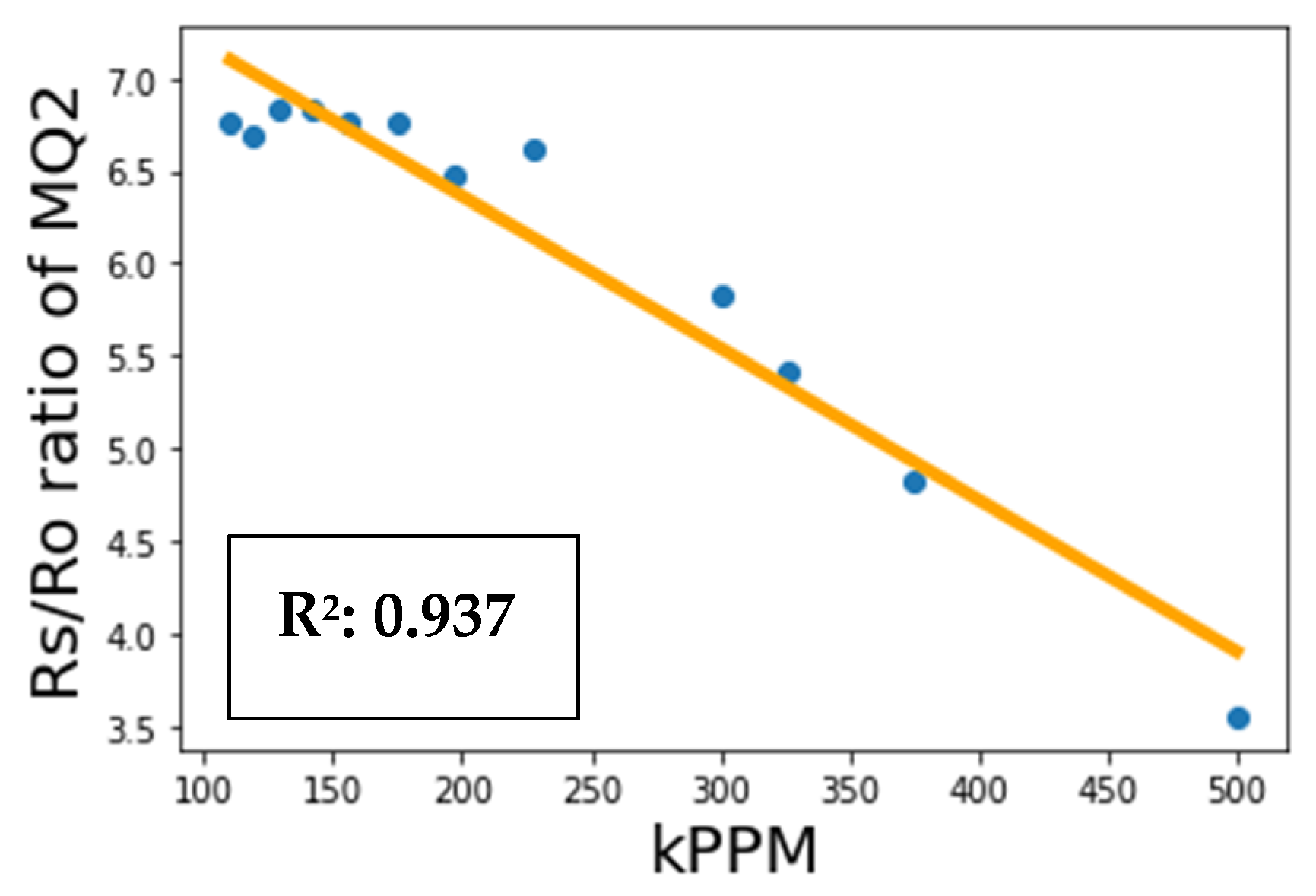

According to the calibration curve (Figure 7), the equation is formed as:

ŷ = −0.0082·x₁ + 8.0024

(3)

for which p = 0.001 (p < 0.05), and the adjusted coefficient of determination r²_adj = 0.930 (

Table 1. OLS regression results (MQ2).

Dep. Variable:	MQ2	R-squared:	0.937
Model:	OLS	Adj. R-squared:	0.930
Method:	Least Squares	F-statistic:	148.2
No. Observations:	12	Prob (F-statistic):	<0.001
Df. Residuals:	10	Log-Likelihood:	−0.34493
Df. Model:	1	AIC:	4.690
Covariance Type:	nonrobust	BIC:	5.660

). The “statmodels” library was used to calibrate the MQ2 sensor, and Table 1 and

Table 2. OLS regression results (MQ2 continued).

Value	Coef.	Std. err	t	p > [t]	[0.025	0.975]
Constant	8.0024	0.174	45.896	0.000	7.614	8.391
PPM	−0.0082	0.001	−12.173	0.000	−0.010	−0.007

show the results of the mathematical statistics that were created.

The “statsmodels” library was used to calibrate the MQ4 sensor, and

Table 3. OLS regression results (MQ4).

Dep. Variable:	MQ4	R-squared:	0.965
Model:	OLS	Adj. R-squared:	0.961
Method:	Least Squares	F-statistic:	273.9
No. Observations:	12	Prob (F-statistic):	<0.001
Df. Residuals:	10	Log-Likelihood:	21.327
Df. Model:	1	AIC:	−38.65
Covariance Type:	nonrobust	BIC:	−37.68

and

Table 4. OLS regression results (MQ4 continued).

Value	Coef.	Std. err	t	p > [t]	[0.025	0.975]
Const	1.0981	0.029	38.329	0.000	1.034	1.162
PPM	−0.0018	0.000	−16.551	0.000	−0.002	−0.002

display the results of the created mathematical statistics, as shown in Figure 8.

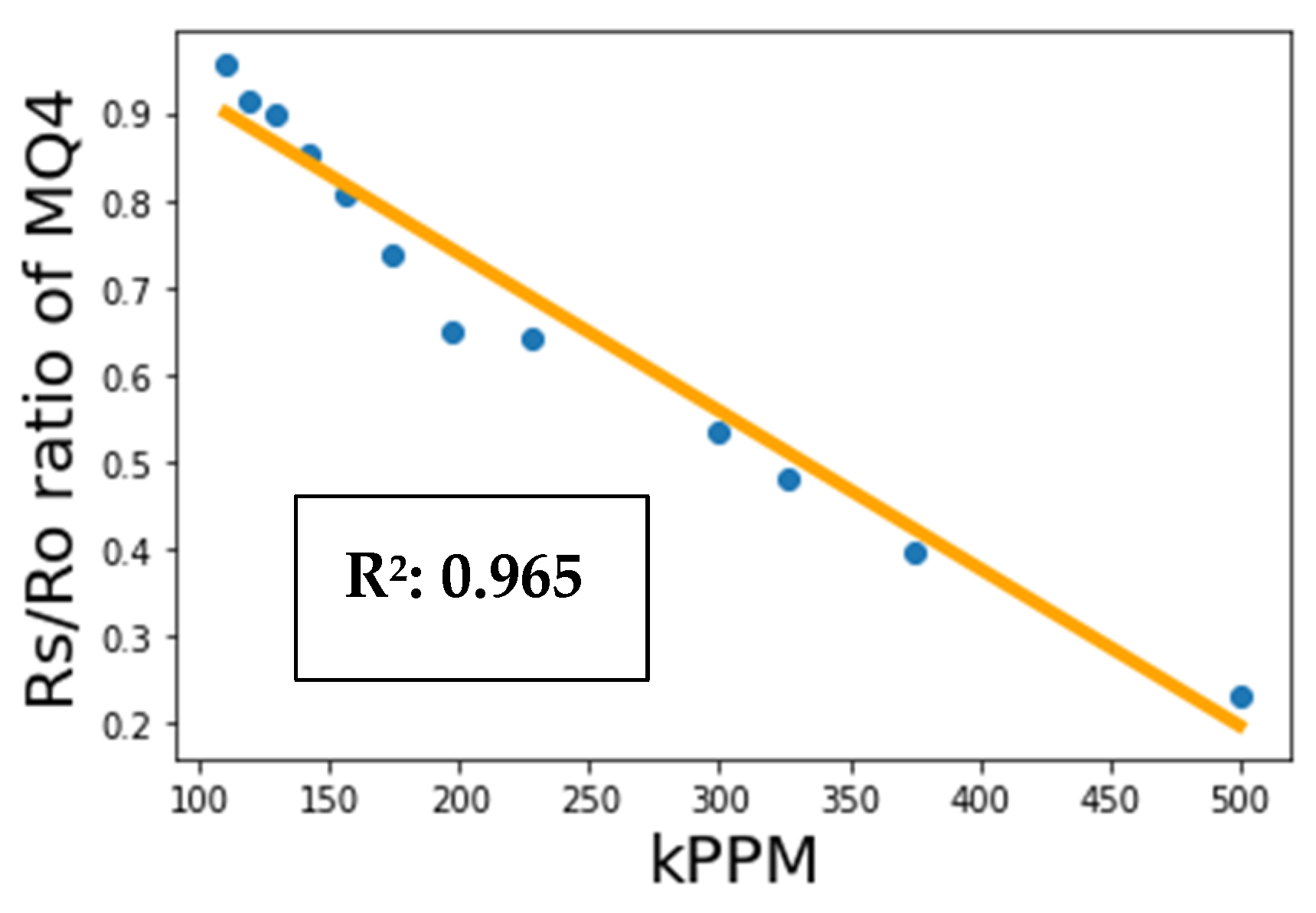

According to the calibration curve (Figure 8), the equation is formed as:

ŷ = −0.0018·x₁ + 1.0981

(4)

which is p = 0.001 (p < 0.05). The adjusted coefficient of determination r²_adj = 0.961 (Table 3).

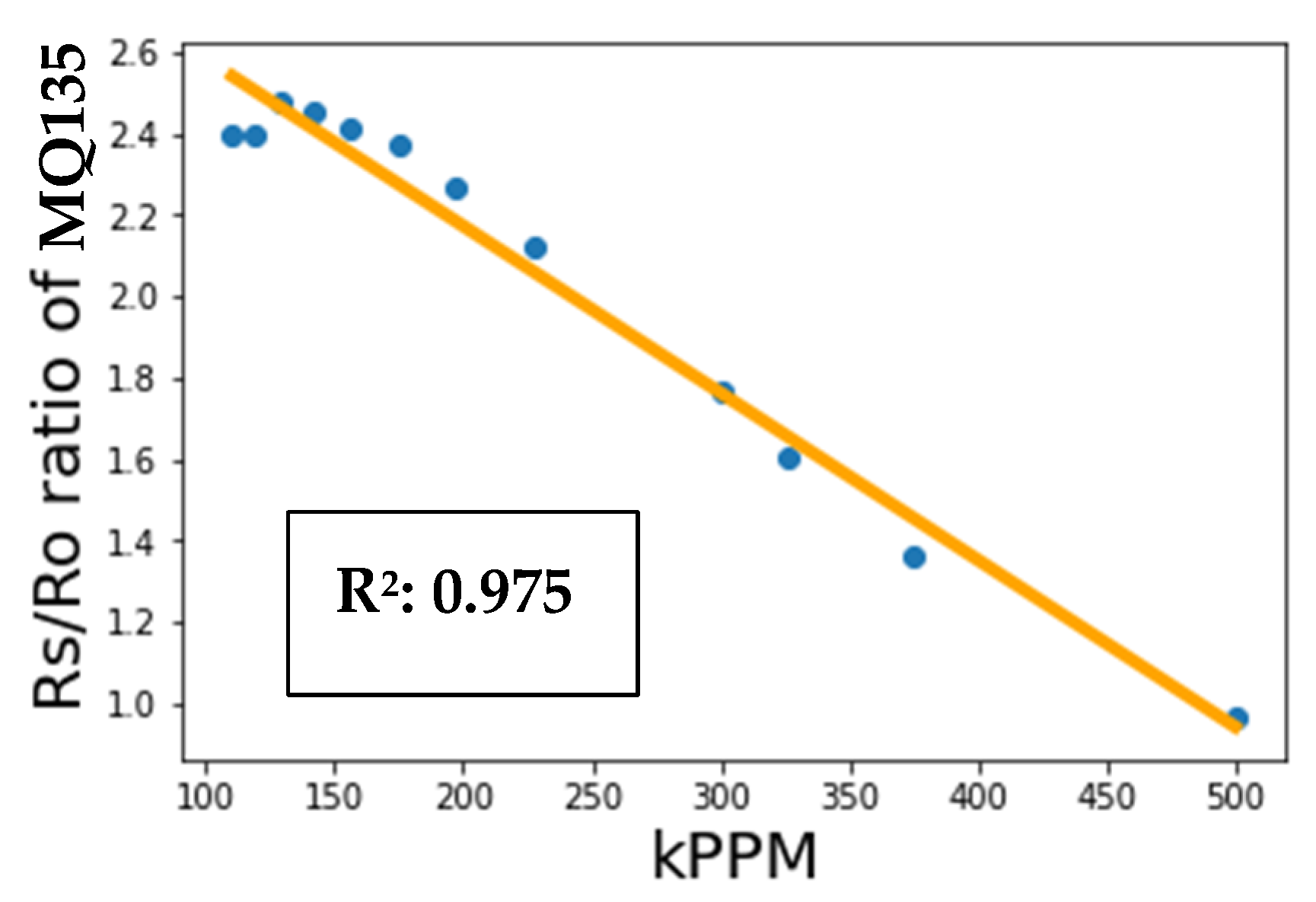

According to the calibration curve (Figure 9), the equation is formed as:

ŷ = −0.0041·x₁ + 2.9936

(5)

which is p = 0.001 (p < 0.05). Adjusted coefficient of determination r²_adj = 0.972 (

Table 5. OLS regression results (MQ135).

Dep. Variable:	MQ135	R-squared:	0.975
Model:	OLS	Adj. R-squared:	0.972
Method:	Least Squares	F-statistic:	387.9
No. Observations:	12	Prob (F-statistic):	<0.001
Df. Residuals:	10	Log-Likelihood:	13.802
Df. Model:	1	AIC:	−23.60
Covariance Type:	nonrobust	BIC:	−22.63

). Coefficients described in

Table 6. OLS regression results (MQ135 continued).

Value	Coef.	Std. err	t	p > [t]	[0.025	0.975]
Const	2.9936	0.054	55.813	0.000	2.874	3.113
PPM	−0.0041	0.000	−19.694	0.000	−0.005	−0.004

.

The data fit description shows a confident correlation in high concentrations from roughly 100k to 500k ppm CH₄, and an even better resolution could be achieved by calibrating for shorter ranges such as 250k–500k ppm or fitting 2-degree polynomials, or in some cases, applying logarithmic scales for a wider range.

For smaller than previously described concentrations from 200 ppm to 10k ppm, the manufacturer provided this data table (

Table 7. Rs/Ro and concentration values of CH₄ from the MQ4 sensor datasheet.

PPM	200	300	400	500	600	700	800	900	1000
Rs/Ro ratio	1.752	1.518	1.369	1.264	1.186	1.122	1.070	1.028	0.988
PPM	2000	3000	4000	5000	6000	7000	8000	9000	10,000
Rs/Ro ratio	0.772	0.675	0.613	0.566	0.527	0.495	0.468	0.450	0.432

):

From following data, the equation is derived as:

y = 11.531x^−0.355

(6)

with R² = 0.9998. After tests in the field, the inverse of this equation was used.

3.2. Result of Measurement in the Landfill

The sensor, tested under laboratory conditions, was used in the research object under the conditions of the Kariotiskes landfill. The gas concentration change measurement data are plotted on an absolute time scale and, if a professional geodetic GPS device is used, a thematic map of the landfill area, where the ordinates and abscissas of the measured points are related to the measured CH₄ concentrations or mV values from each sensor, can be derived. The test was only conducted in parts of the landfill site where vegetation conditions were lower than in their surroundings.

Prior to the measurements, the sensor was initialised at the landfill site (central part). The measured gas emanated from the well by enclosing it in a bag and five regions were selected in the area where the previous plant NDVI index had values from 0.1–0.2 and may have contained vegetation experiencing water stress due to Land Field Gas exposure. Vegetation and cover observations results were generated using Trimble UX5 UAV data acquired in 2018. The NIR sensor (a Sony mirrorless NEX-5R camera) was used to capture two coloured bands and one NIR band. The same-day TIR images were generated from data acquired using the DJI Matrice 200 UAV in 2018. The images were acquired in areas found to have unusually low NDVI values to determine whether their temperatures differed from those of their surroundings (Figure 10) [22].

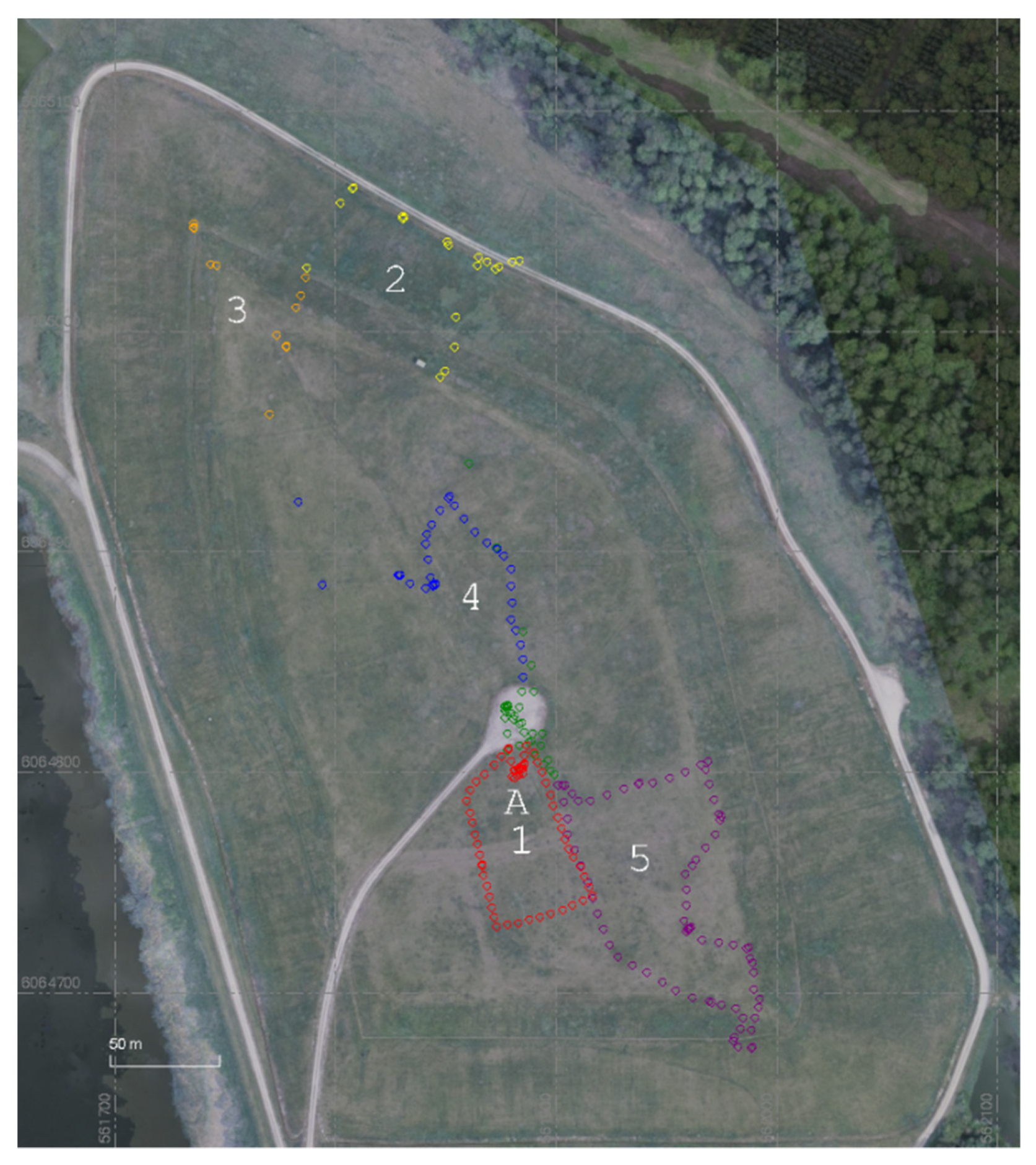

The first point was south of the central part near the gas collection well, the second in the centre of the north-eastern slope, the third in the northernmost part of the hump, the fourth in the northern part of the hub, and the fifth in the south-eastern part of the hump (Figure 10).

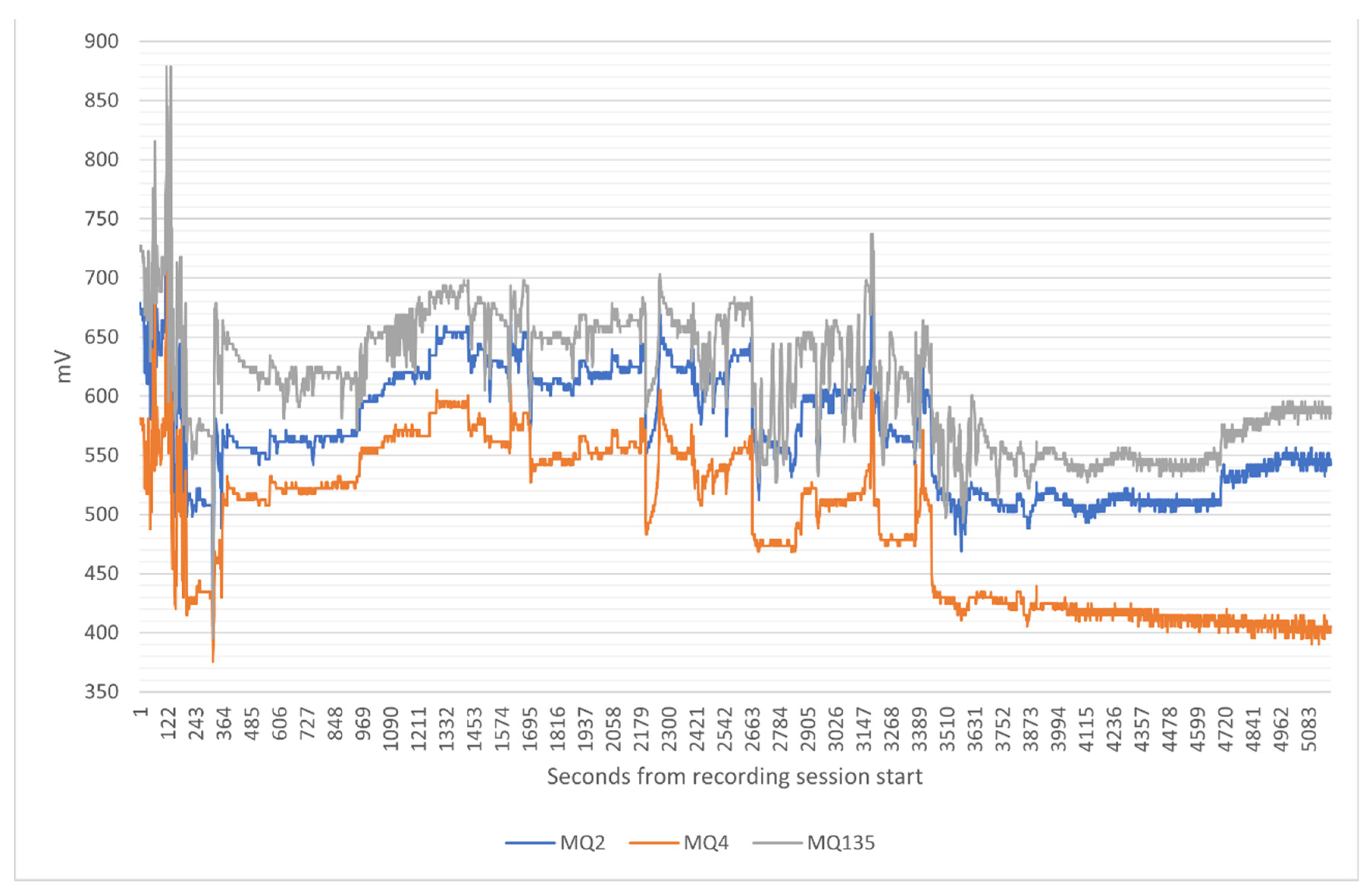

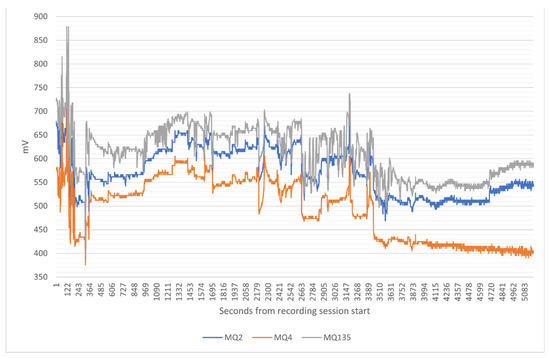

Figure 11 shows data collected during ca. after two hours of roving across the field and more than 5000 lines of data with sensor voltage values (results of 10-bit analogue to digital converter onboard of microcontroller) expressed as a function of time.

The data recorded by the MQ2 sensor showed a minimum value of 390 mV, a maximum value of 835 mV, an average value of 571 mV, and a standard deviation of 49 mV; the average of the 75% highest values was 615 mV. The data recorded by the sensor MQ4 showed a minimum value of 376 mV, with a mean value 493 mV, a standard deviation of 49 mV, and 75% of the highest values with a mean of 552 mV. The data recorded by the sensor MQ135 showed a minimum value of 396 mV, a maximum value of 879 mV, an average value of 616 mV, and a standard deviation of 52 mV; the average of the 75% highest values was 654 mV.

In summary, the minimum sensor values from 376 mV to 879 mV for all measurement data and the average values from 493 to 612 mV were obtained. Although the absolute values did not coincide between the sensors, in most cases, the trends (increase or decrease) coincided.

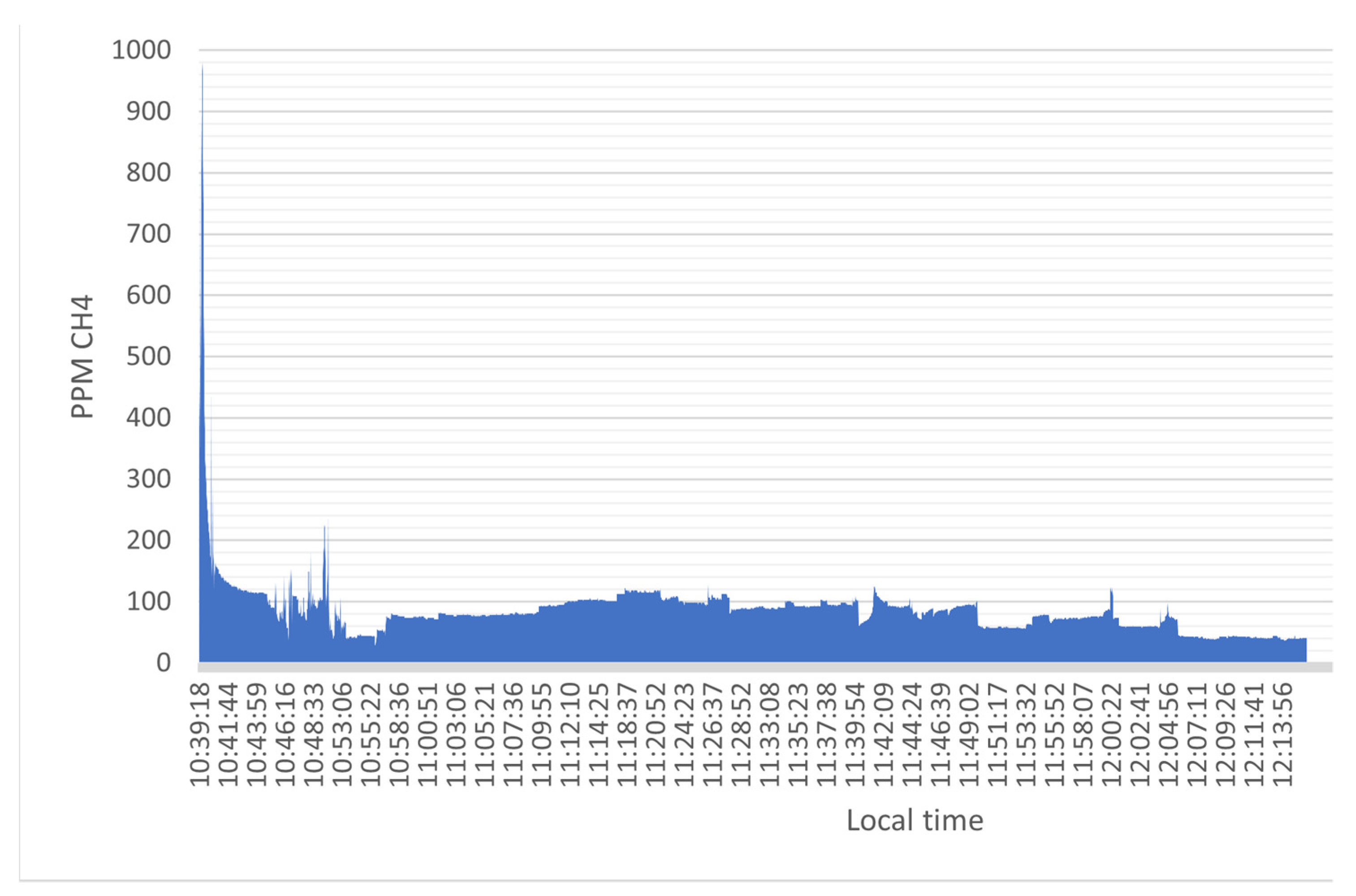

The values detected with a specialised methane gas sensor were converted from millivolts to ppm and are plotted in Figure 12.

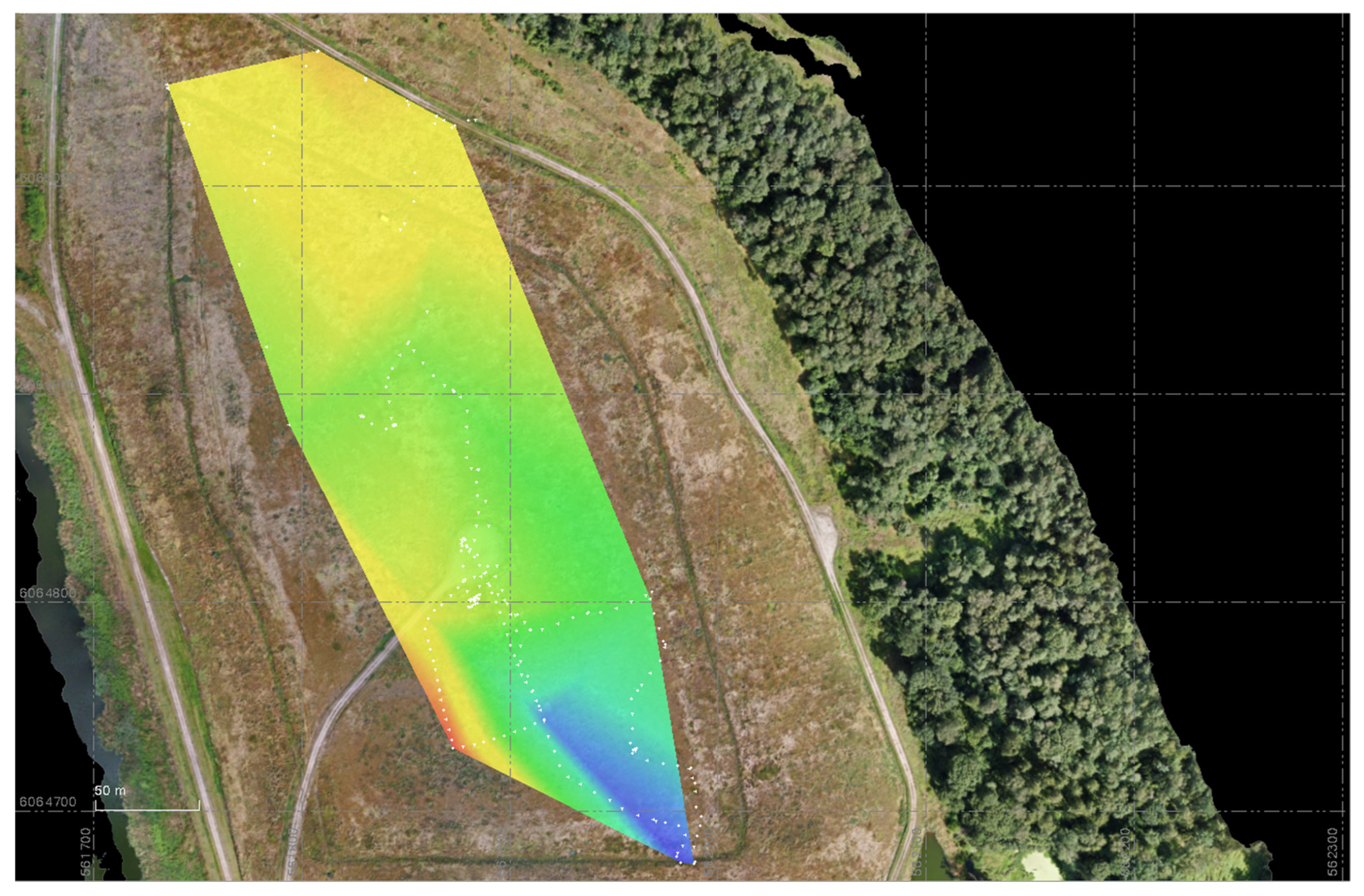

The measured values were generalised, interpolated and overlayed on an ortophotographic map, shown in Figure 13.

Previously mentioned areas or points of interest showed different values, but all were below the minimum detectable value of the specified gas sensor.

4. Discussion and Conclusions

A prototype sensor was constructed in order to easily and quickly check landfill sites for CH₄ gas emissions. The components and system design were aimed at creating a fast response device with roving capabilities to improve the process of gas monitoring and detection. Such a solution has a potential to replace the static flux chamber in certain situations, is economically more available than laser detection systems, and is better at the detailed detection of small emission sources than satellite images. There are other more accurate devices and technologies available, but they are high-cost and lack either the speed of detection or an ability to scan the whole area with a good resolution.

The calibration of the tested low-cost semiconductor gas sensors showed a good fit of the model to data, indicating that these sensors can be used beyond the household application and outside the limits specified in a datasheet. The calibration of the sensor array (for sensors MQ2, MQ4, and MQ135) from 100k ppm to 500k ppm of CH₄ resulted in coefficients of determination r² ranging from 0.94 to 0.99; these and other parameters indicate that formulas provided can be used for conversion from a resistance ratio to ppm of CH₄ in similar conditions using this prototype. Although the risk of damaging the sensor was possible when dealing with such high concentrations, the performed tests indicated that the application of the sensor array was capable of showing gas leaks up to 500k ppm. Although in the studied landfill site, no gas leaks were found, which would indicate any sign of cracks with CH₄ emissions through the landfill cover, the sensor array reacted to the gas flow from the gas collection well when in its vicinity. For concentrations from 200 ppm to 10k ppm, data points from the factory datasheet graph were extracted and the logarithmic equation obtained with r² = 0.9998. The sensor reacts proportionally with a similar curve through a long range of concentrations with a good fit to a statistical model. The main idea is not to find an exact amount of CH₄, but to find the geographical direction in which the amount increases, while roving through the landfill site or checking points of interest and determining whether it is under influence of air contamination. Based on the results, it is shown that it is possible to use the prototype to check for leaks with CH₄ emission.

Real-time measurements of the relative amounts of particular gases with specific contents, in this case applied in a landfill site for CH₄ detection, can provide a rapid and roving tool to check any location or part of territory almost instantly, as opposed to collecting air samples statically in predefined locations or with far more expensive equipment. Economical and accessible parts available around the world could provide a possibility for many closed landfill site engineers to try this sensor setup to scan large areas for cracks with CH₄ leakage in the case of some visual indications or monitoring with UAVs. When small to negligible concentrations are expected, the factory datasheet with the calibration curve can be used. For concentrations above 100k, a specific calibration of the sensor is recommended.
