Sulfonated Polyimide Membranes Derived from a Novel Sulfonated Diamine with Pendant Benzenesulfonic Acid for Fuel Cells

Abstract

For improving the hydrolytic stability of sulfonated polyimides consisting of five membered anhydrides, novel sulfonated polyimides (NSPIs) were prepared via polymerization of 3,3′,4,4′-benzophenonetetracarboxylic dianhydride (BTDA), with a novel diamine monomer with a pendant sulfonic acid group and 4,4-oxydianiline. Water uptake of this NSPI with an excellent film-forming ability was almost equal to that of Nafion^® 117, while their ion exchange capacity (IEC) was 22% higher than Nafion^® 117. The loss in weight decreased by 53% and loss in IEC decreased by 66% compared to that of Nafion^® 117; both were used to quantitatively measure hydrolytic stability, and radical oxidative stability also increased by 75% when compared with Nafion^® 117. Mechanically, this NSPI was superior, and its proton conductivity was higher than Nafion^® 117 at elevated temperatures. All these improvements were due to the introduction of this pendant group. Taken together, we herein report a promising renewable energy source based on SPIs capable of displaying proton conductivity and enhanced hydrophilicity.

1. Introduction

Awareness about the environment and availability of renewable energy sources are encouraging the people to find alternative solutions to fossil fuel. Possible available options are hydropower, wind energy, solar cells, and fuel cells. It takes 5 to 10 years to construct a dam as a source of hydropower and it also requires a large sum of finances. From the remaining options and for power generation, wind energy requires wind and solar cells require sun, respectively. This represents a limitation that is overcome by fuel cells. Depending on the availability of variety as well as provision of clean and efficient energy, fuel cell technology is one of the most promising alternatives [1,2,3]. Among the different available fuel cells, PEMFCs have been mostly used because of their high-power conversion, quick start up, low operating temperature, simplicity, and low cost [4]. The polymer electrolyte membrane (PEM) is a key part of PEMFCs, and perfluorinated sulfonic acid is mostly used for this because of its high proton conduction and appropriate chemical and thermal stability [5,6]. However, Nafion^® is expensive and its proton conduction decreases as the temperature goes beyond 80 °C [7,8,9]. PEMFCs are capable of operating at elevated temperature and display several advantages (e.g., enhanced operating voltage, performance, and CO tolerance). This results in extensive research for alternate PEM materials with suitable properties [10,11,12,13,14].

Among polymeric materials, polyimide is considered as a prospective candidate to substitute Nafion^®, due to the amide ring in its backbone. This amide ring in the polyimides provides tremendous mechanical strength, excellent chemical stability, and high thermal stability [15]. However, one of the major drawbacks of polyimides are the lack of proton conductivity. This shortcoming can be overcome by converting polyimide into sulfonated polyimides with the introduction sulfonic acid group, which not only promotes proton conduction, but also makes the polymer chain hydrophilic [16]. However, the hydrolytic stability of these sulfonated polyimides, which is associated with its mechanical stability in a strongly swelled state and its robustness in fuel cell conditions, is compromised due to the presence of a sulfonic acid group. At high water content and elevated temperatures, the aromatic imide linkage is vulnerable to hydrolysis resulting in depolymerization, due to which the mechanical strength of the SPI membranes decreases substantially [17].

Keeping the above points in mind, this paper reports the synthesis of a novel diamine with a sulfonic acid group on the ring other than the amino group [18]. This inclusion is expected to enhance the hydrolytic stability by diminishing the electrophilicity of the carbonyl from the imide ring [19,20]. Novel sulfonated diamines (NSDAs) were characterized by nuclear magnetic resonance (¹H NMR and ¹³C NMR) and Fourier-transform infrared spectroscopy (FTIR). NSDAs were also investigated for their thermal stability, absorption, proton conductivity, and IEC. Eventually, the prepared NSPIs (and a non-sulfonated diamine) resulted in thin films, which were then characterized by FTIR.

2. Experimental

2.1. Materials

3,3′,4,4′-benzophenonetetracarboxylic dianhydride (BTDA; 96%), 4,4′-oxydianiline (ODA, 97%), dimethylacetamide (DMAc; 99.8%, water content < 0.005%), 2-formylbenzenesulfonic acid sodium salt (FBSASS, 95%), and Nafion^® 117 were all purchased from Sigma-Aldrich, USA. Ethanol was bought from Lab-Scan, Ireland.

2.2. Synthesis of Novel Sulfonated Diamine (NSDA)

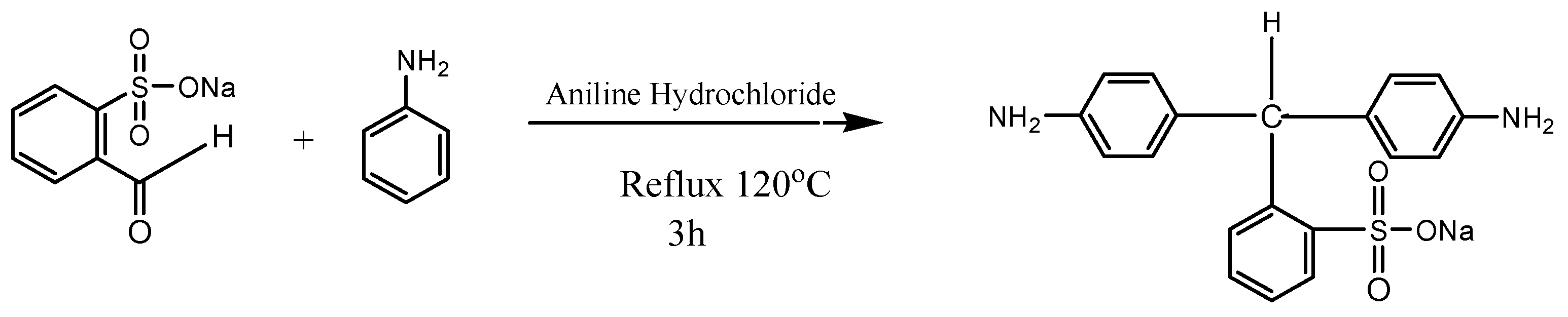

After preheating the reaction flask at 50 °C, it was purged with nitrogen for 30 min. Then, 0.24 mol of aniline was taken as a solvent in the reaction flask and 0.08 mol of 2-Formylbenzenesulfonic acid sodium salt along with 1.07 g of aniline hydrochloride were added into it. The reaction mixture was then refluxed at 120 °C under the nitrogen atmosphere for 3 h. After cooling, 30 mL of ethanol was added to this mixture, which was then heated to 80 °C again. It was kept for overnight at room temperature (RT). Purple crystals formed were filtered and washed for the removal of traces of reactants. The recrystallization of crude materials was carried out in ethanol [18]. The synthesis of the NSDA is illustrated in Figure 1.

2.3. Synthesis of Novel Sulfonated Polyimide

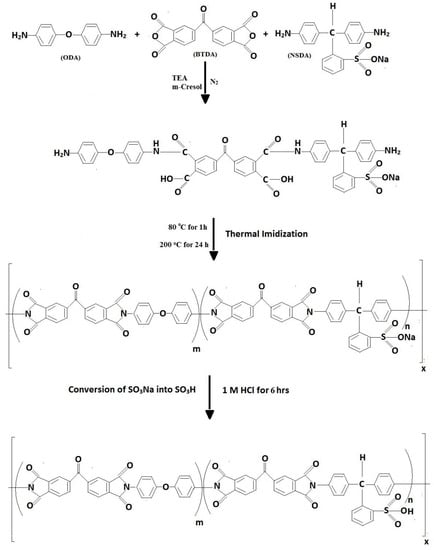

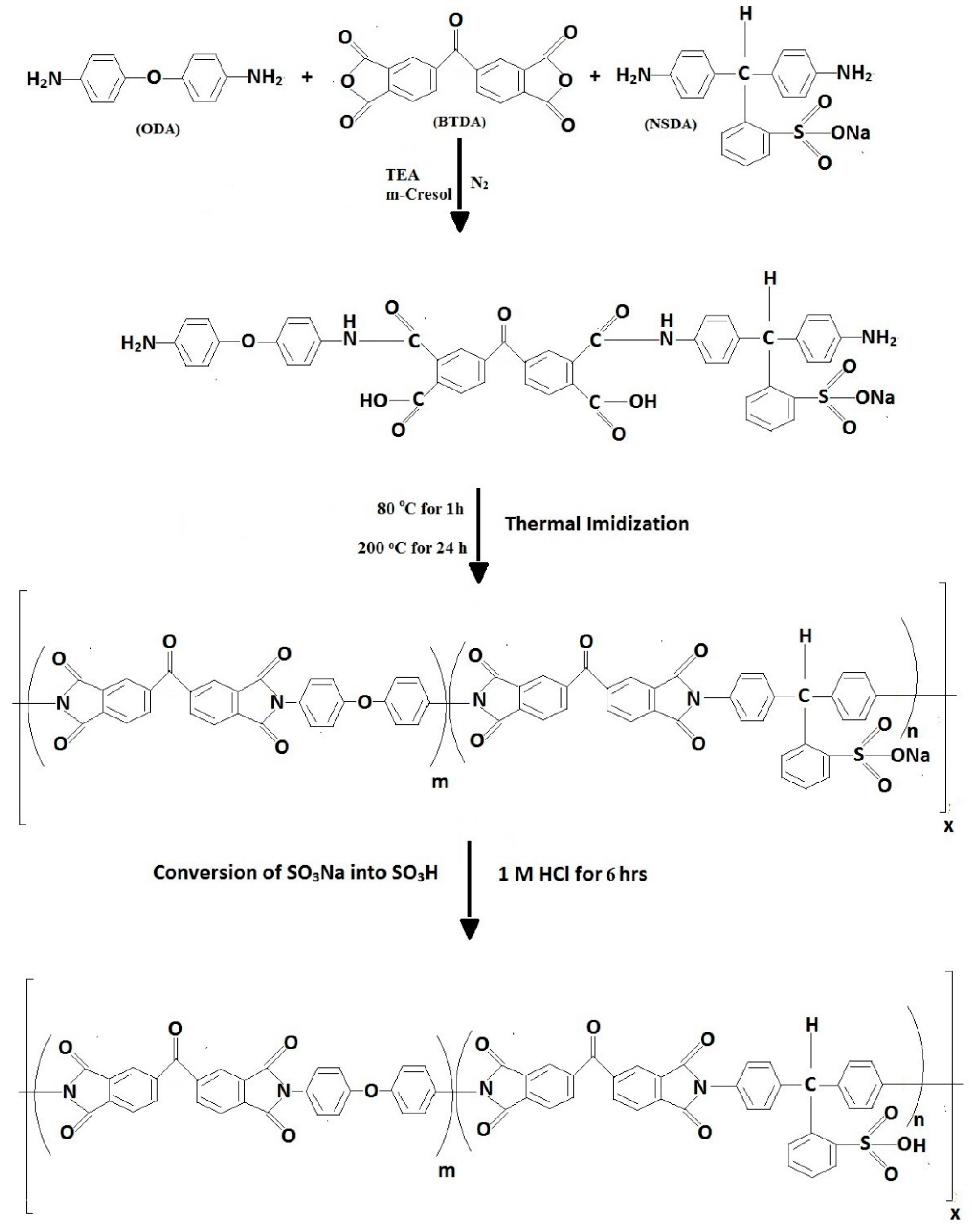

m-cresol was taken in a round bottom flask, in which NSDA and triethylamine were dissolved by stirring. Later, 4,4′-oxydianiline (ODA) and 4,4′-benzophenonetetracarboxylic dianhydride (BTDA) were dissolved into this mixture under continuous stirring and in the presence of N₂ for 24 h. The prepared films of viscous novel sulfonated polyamic acid (NSPAA) were casted by the solvent elution technique and subsequently thermally imidized to NSPIs. NSPAA films were heated to 80 °C for 1 h, this temperature was raised to 200 °C at a heating rate of 2 °C/min, and maintained for 24 h after which it was dropped to 50 °C at a rate of 1 °C/min. As obtained, the NSPI films were in the form of benzenesulfonic sodium acid salt and were then converted into benzenesulfonic acid by dipping into 1 M HCl solution for 6 h (Figure 2). The same procedure can be used to synthesize NSPIs with different concentrations of NSDA [21].

2.4. Characterization Methods

2.4.1. Spectroscopy

NSDA formation was confirmed by ¹³C NMR (NMR-200, OXFORD). To confirm the thermal imidization (process), FTIR spectroscopy (Mattson Galaxi 6030, Mattson Instruments Inc., Madison, WI, 53717) was used.

2.4.2. Oxidative Stability

To study the oxidative stability, NSPI membranes were dissolved into Fenton reagent at RT, following a previously described method [22].

2.4.3. Hydrolytic Stability

This was measured in terms of the loss in weight and loss in ion exchange capability of NSPI membranes at 140 °C under pressurized steam, following a previously reported method [23].

2.4.4. Water Uptake

A standard test based on ASTM D570-98(2010)e1 was carried out for determining the water uptake (WU) value of NSPI membranes, following previously published methods [24,25]. NSPI membranes were heated in an oven at 105 °C for 1 h, followed by heating at 50 °C for 24 h. After cooling to RT, these membranes were weighted and dipped into deionized water for 24 h. After 24 h, these membranes were cleaned with the tissue paper and weighted again. The WU value was determined by applying the following Formula (1):

$$\mathrm{WU} (\%)=\frac{W_w-W_d}{W_d} \times 100$$

(1)

where W_w is the weight of wet membranes, and W_d is the weight of the dry membranes.

2.4.5. Ion Exchange Capacity

The ion exchange capacity (IEC) was measured by titration method, as previously described [21]. Briefly, a weighted sample of membrane was dipped into saturated solution of sodium chloride at 50 °C for 48 h, resulting in the replacement of H⁺ ions by Na⁺ ions, as illustrated in the following reaction:

-SO₃H → -SO₃Na

Subsequently, 0.01 M sodium hydroxide (NaOH) was used to titrate these H⁺ ions in the presence of bromophenol blue indicator. IEC of membranes was calculated by using Formula (2):

$$\mathrm{IEC} \left(\mathrm{meq}/\mathrm{g}\right)=\frac{\mathrm{X} \times { \mathrm{N}}_{{\mathrm{N}}_{\mathrm{a}}\mathrm{OH}}}{\mathrm{Weight} \mathrm{of} \mathrm{Polymer}}$$

(2)

where X is the volume of NaOH consumed, and N_NaOH is the normality.

2.4.6. Thermogravimetric Analysis (TGA)

TGA was performed by using the instrument NETZSCH TG 209 F1 at a heating rate of 10 °C/min in the range of 30 °C to 800 °C in a nitrogen atmosphere.

2.4.7. Proton Conductivity

Proton conductivity (PC) was measured by the Auto Lab Impedance Analyzer and conductivity cell. The following formula was used for converting resistance into conductance:

$$\mathrm{PC}=\left(\frac{1}{\Omega }\right)\times (\frac{\mathrm{d}}{\mathrm{A}})$$

(3)

where Ω is resistance, d is thickness, and A is the cross-sectional area of the NSPI films, respectively [26].

2.4.8. Fuel Cell Performance

The catalyst-coated gas diffusion layer (CCGDL) method was made of Teflon Treated Toray Carbon Paper 060 (TGP-H-060) that was 10% wet proofed (TGP-H60, PEMEAS, E-TEK Division). This carbon fiber composite is suitable for use as a catalyst backing layer and represents a great low-cost alternative to conventional woven carbon cloth gas diffusion layer (GDL) materials. The Teflon gives the carbon material a hydrophobic property to better function as an electrode backing material. Herein, the TGP-H-060 was coated with a catalyst layer spray deposited from a heterogeneous mixture composed of 20% Pt/C (0.40 mg/cm²) and 30 wt% Nafion^® ionomer (as a solid) in an aqueous solution of isopropanol. NSPI (thickness ¼ 30 mm) was sandwiched at high pressure (w1280 psi, 90 kg/cm²) between two CCGDLs for 90 s at 135 °C. A triple serpentine (5 cm²) single cell (Teledyne Energy Systems, Inc., Los Angeles, CA, USA) was used for the fuel cell polarization measurement. The fuel cell operated in a H₂ (anode)-O₂ mixture (cathode) with 200 mL/min, at room temperature and constant pressure. Fully humidified fuel cell reactant gases were supplied, and the temperature was set at 50 °C in a co-flow manner. All polarization curves (n = 8) were obtained in the same manner (to confirm the polarization behavior), i.e., by reducing the cell potential with 30 s hold times, starting from open circuit voltage (OCV) to 0.2 V in 50 mV increments [27].

3. Results and Discussion

3.1. Spectroscopic Analysis

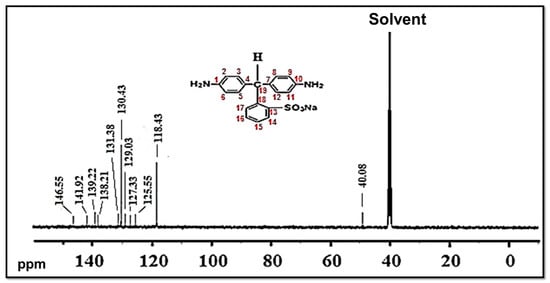

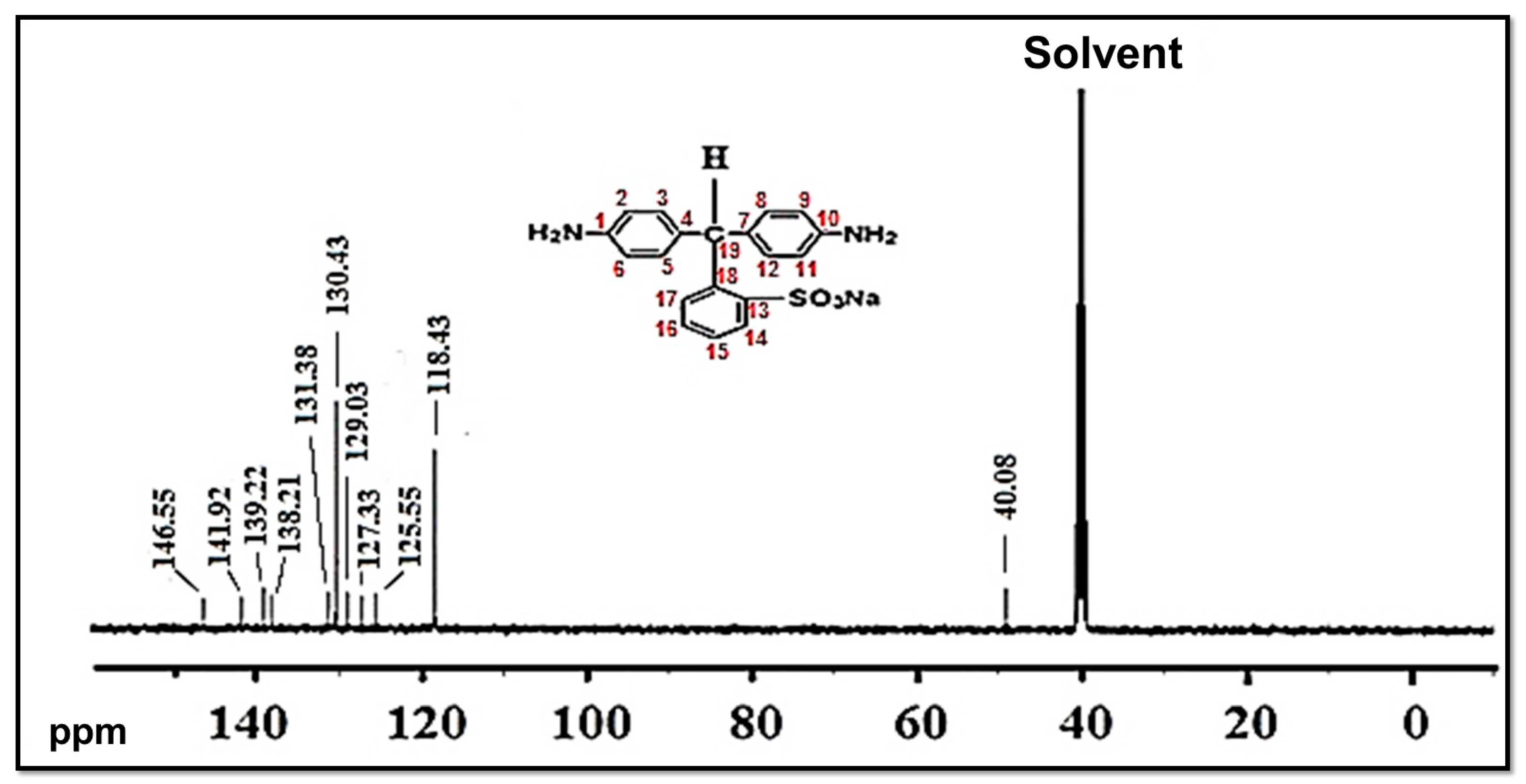

The composition and structure of the NSDAs were studied by ¹³C-NMR (Figure 3). Carbon atoms numbered as “1 and 10” are represented by a peak at 146.55 ppm. Carbons numbered as “2, 6, 9, and 11” are represented by a peak at 118.43 ppm, whereas carbons numbered as “3, 5, 8, and 12” are expressed by a peak at 130.43 ppm. Carbons numbered as “4 and 7” are represented by a peak at 129.03 ppm. The peak at 139.22 ppm is assigned to the carbon atom numbered as “13”, which is attached to sulfonic acid group (SO₃H). Carbons marked as “14 and 15” are represented by peaks at 141.92 ppm and 138.21 ppm, respectively. Carbons marked as “16, 17, 18, and 19” are displayed by peaks at 125.55 ppm, 131.38 ppm, 127.33 ppm, and 49.13 ppm, respectively. The solvent is represented by a peak at 40.08 ppm [15].

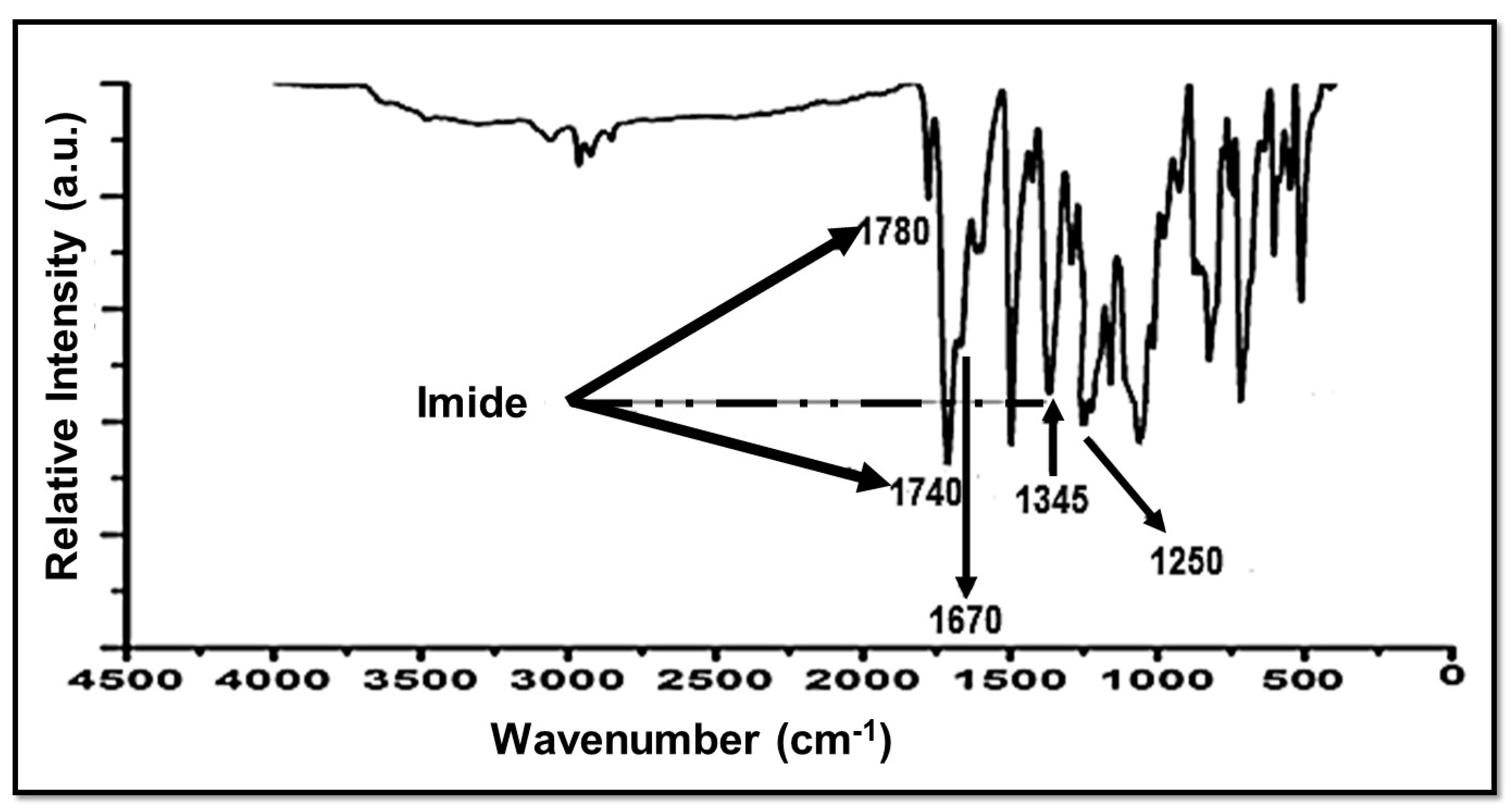

Thermal imidization of NSPAA into a NSPI was confirmed by FTIR spectroscopy. In Figure 4, peaks at 1780 cm⁻¹ and 1740 cm⁻¹ are attributed to C=O asymmetric and symmetric stretching of imide, respectively. The peak at 1670 cm⁻¹ is assigned to the C=O stretching vibration of BTDA. The C-N-C bond of imide is represented by a peak at 1345 cm⁻¹. The thermal imidization of NSPPA into NSPI is confirmed by these peaks [28]. The peak at 1250 cm⁻¹ is due to the SO₃H group [29].

3.2. Ion Exchange Capacity (IEC)

In fuel cells, the IEC value of SPIs is used for ascertaining the actual ion exchange sites for proton conduction. It is a measurement of presence of –SO₃H groups and free protons of these groups. In moisture condition, SPIs membranes swell to conduct the protons, as their –SO₃H groups are hydrophilic in nature. Generally, a higher IEC results in increased proton conductivity, but in case of SPIs, it lowers their hydrolytic stability. Therefore, both improved hydrolytic stability and proton conductivity contents of the –SO₃H group need optimization, which can be achieved by adjusting the ratio of sulfonated and unsulfonated diamine [30].

Table 1. Water uptake, ion exchange capacity, and film=forming ability of NSPI membranes.

Membranes	WU (%)	IEC (meq/g)	FFA
NSPI 10 [(NSDA-ODA–10/90) BTDA]	31.81	1.09	Excellent
NSPI 30 [(NSDA-ODA–30/70) BTDA]	32.92	1.25	Brittle
NSPI 50 [(NSDA-ODA–50/50) BTDA]	36.50	1.31	Very brittle
Nafion® 117	33.98	0.89	Excellent

WU: water uptake; IEC: ion exchange capacity; FFA: film-forming capacity.

indicates that as NSDA content increases from 10 to 50 mole%, IEC value increases from 1.06 to 1.30 meq/g, whereas the film-forming capacity decreases. The IEC value in our case is small as compared to Umsarika et al.’s work, in which they synthesized sulfonated poly(aromatic imide-co-aliphatic imide) based on BTDA, which might be due to presence of aromatic-co-aliphatic imide linkages [31].

3.3. Water Uptake

Water uptake (WU) is an essential parameter of the NSPI membranes in fuel cell application, which was determined at RT (25–30 °C). Higher WU means more ionic content and, ultimately, an increase of proton conductivity. WU is usually determined by the ion exchange capacity (IEC) or SO₃H content in the polymer. Nevertheless, an increase in WU also results from flexibility of the polymer backbone that causes the membrane to swell. Generally, water uptake of SPIs is lower than the Nafion^® because of crosslinking, due to which swelling of the membrane is restricted [32]. NSPIs with different percentages of NSDA are presented in Table 1, which concluded that the WU of NSPI membranes is directly proportional to the NSDA contents and is almost the same as that of Nafion^® 117. This higher WU is due to the presence of the pendant sulfonic acid group and agrees with the previous study of Yin et al., in which the authors reported that the water uptake value of SPIs varied with the position of the pendant sulfonic acid group directly attached to those SPIs [33]. The WU value that we obtained is far better than that of Umsarika et al.’s work, in which they reported synthesized sulfonated poly (aromatic imide-co-aliphatic imide) based on BTDA [31].

3.4. Film-Forming Ability (FFA)

Although both NSPI 10 (with NSDA/ODA in 10/90 ratio) and Nafion^® 117 exhibited outstanding FFA, the increase of SDA content up to 50 mol% (NSPI 50) caused a too brittle film (Table 1).

3.5. Oxidative Stability

The ^•OH and ^•OOH radicals form during the fuel cell operation attacks on the polymer backbone and deteriorate NSPIs [34]. The ex-situ oxidative stability of PEM is usually evaluated by Fenton’s test (i.e., NSPIs are submerged into Fenton’s reagent (30% H₂O₂ containing 30 ppm FeSO₄) at RT, and the time taken from breaking (τ₁) to complete dissolution (τ₂) is used to estimate the oxidative stability of the NSPIs).

Data summarized in

Table 2. Oxidative stability of NSPI membranes as measured by Fenton’s reagent.

	Oxidative Stability (Time)		Hydrolytic Stability (Loss %)
Membranes	τ1 a (h)	τ2 b (h)	Weight	IEC
NSPI 10 [(NSDA-ODA–10/90) BTDA]	24	38	0.98	1.08
NSPI 30 [(NSDA-ODA–30/70) BTDA]	28	46	0.85	0.91
NSPI 50 [(NSDA-ODA–50/50) BTDA]	32	56	0.73	0.81
Nafion® 117	2	10	1.50	1.80

^a Time when membrane start to dissolve; ^b Time when membrane completely dissolved. NSPI: novel sulfonated polyimide; NSDA: novel sulfonated diamine; ODA: 4,4’-oxydianiline; BTDA: 3,3′,4,4′-Benzophenonetetracarboxylic dianhydride.

show that NSPIs are superior to Nafion^® 117 in terms of oxidative stability. Additionally, oxidative stability is enhanced as the SDA content of NSPIs increased, and this is most likely due to pendant sulfonic acid, which could protect the polymer main chain from being attacked by water molecules containing highly oxidized radical species [35].

3.6. Hydrolytic Stability

NSPIs can also be deteriorated by hydrolysis, as carbonyl carbons of imide rings have the affinity for water molecules resulting in the disclosure of the ring, and subsequently the scissoring of the polymer backbone. The hydrolytic stability of SPIs depends on the following: (a) the distancing of the sulfonic acid group from the imine functionality by the presence of the spacer group, thereby hindering protonation of the carbonyl group, which results in decreased hydrolytic stability; (b) strength of the basic nitrogen [36,37,38,39]. Another factor that enhances the hydrolytic stability of side chain-type SPIs is their ability to form microphase-separated structures [40]. Keeping these two factors in mind, we synthesized NSDAs with the sulphonic acid group hanging as a side chain. Their hydrolytic stability was estimated in terms of the loss in weight and loss in IEC at 140 °C under pressurized steam. The results, presented in Table 2, indicate that NSPIs are superior to Nafion^® 117 in terms of hydrolytic stability, which increased with the increase in sulfonated content. This is evidenced from the fact that, when the SDA content increased from 10 to 50 mol%, the loss in weight and the loss in IEC decreased from 0.97% to 0.72% and from 1.07% to 0.80%, respectively. This might be explained by the difficulty of nucleophilic attack of the -OH ion on the imide bond due to the specific structure of the SDAs. Consequently, -OH attacked the sulphonic acid group, which is not a part of polymer backbone.

3.7. Thermal Stability

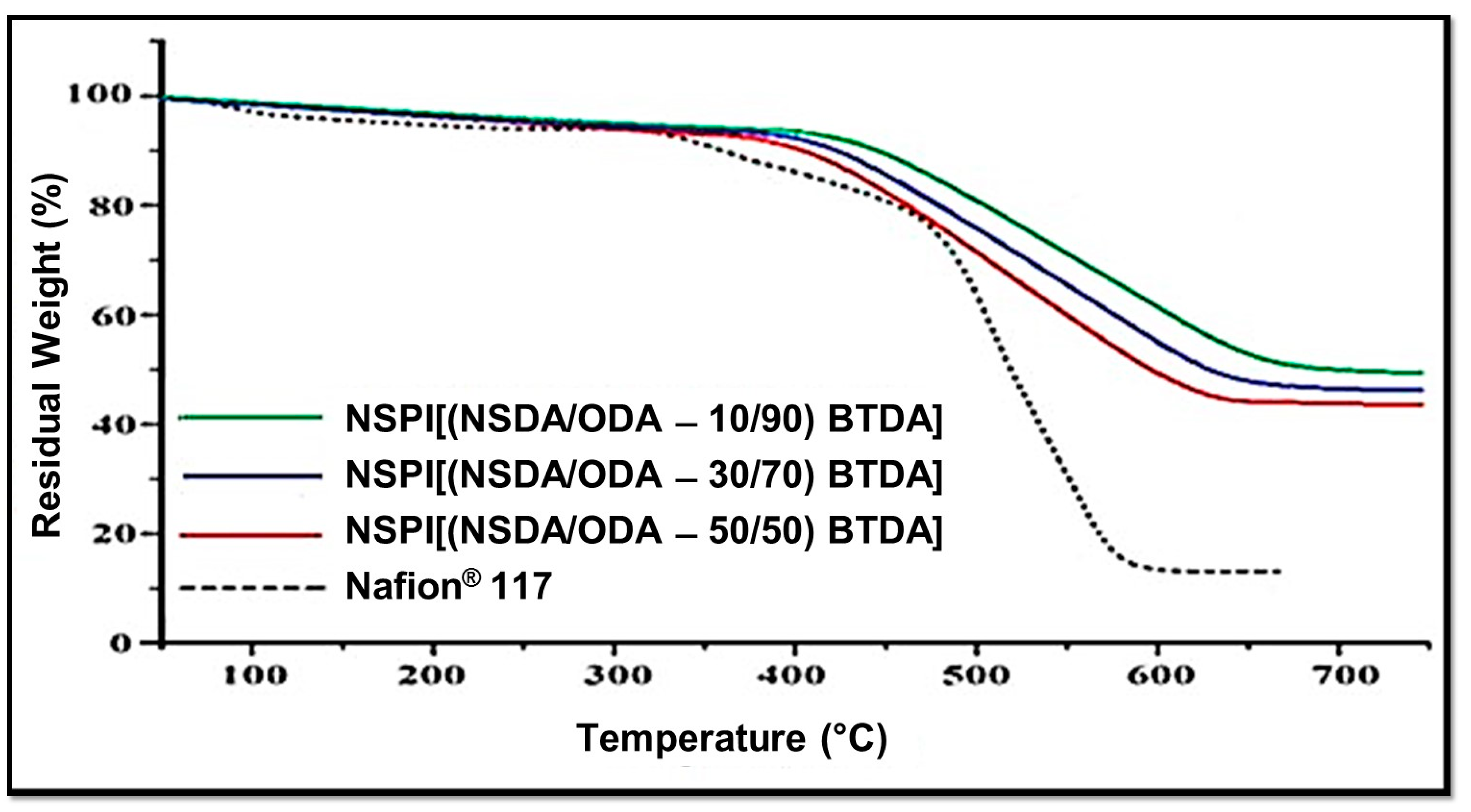

Thermal gravimetric analysis (TGA) was carried out for evaluating the effect of varying SDA/ODA contents on the ex-situ thermal stability of BTDA-based NSPIs membranes. Figure 5 shows that the TGA stability of NSPI is higher compared to that of Nafion^® and it is inversely linked to the SDA content (i.e., TGA stability decreases with the increase in SDA content).

Initial weight loss, which starts at 100 °C, is due to moisture content, whereas weight loss due to SO₃H decomposition starts at 220 °C, and with the increase in SDA content this weight loss increases. The third weight loss related to the polymer backbone degradation starts at 550 °C for NSPI membranes, confirming that NSPIs membranes are thermally stable [36]. As the PEMFC working temperature is far below 200 °C, the thermal stability of these NSPIs is high enough for practical purposes.

3.8. Mechanical Stability

Since NSPI 10 (with 10 mol% SDA content/[(NSDA/ODA–10/90) BTDA]) shows excellent FFA, we then characterized its mechanical properties (stability) in comparison with Nafion^® 117. As shown in

Table 3. Comparison of NSPI 10 and Nafion® 117 mechanically.

Membrane	Soaking Time (h)	Young’s Modulus (GPa)	Maximum Stress (MPa)	Elongation at Break (%)
NSPI 10 [(NSDA/ODA–10/90) BTDA]	0	2.58	159.00	19
	100	2.57	158.00	19
	200	2.56	157.00	18
	300	2.55	156.00	18
	400	2.53	155.00	17
Nafion® 117	400	0.21	50.50	24

, NSPI 10 is mechanically stable as compared to Nafion^® 117. Additionally, a decrease in young modulus, tension, and elongation by 1.94%, 2.51%, and 10.52%, respectively, was observed after 400 h of soaking time. These decreases are negligible after keeping in mind the soaking time of 400 h.

3.9. Proton Conductivity

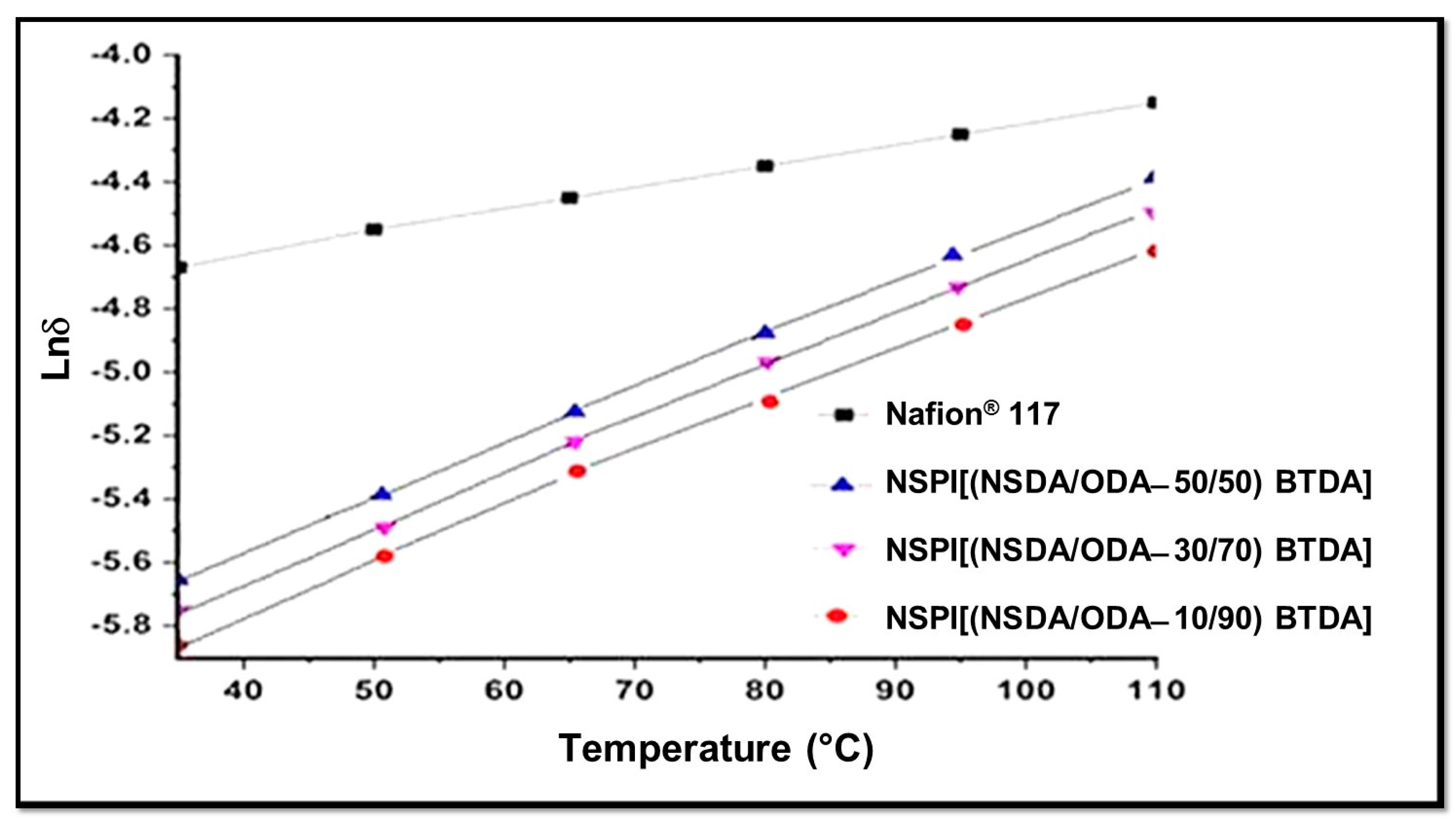

The hydrophilic segment of SPIs is responsible for the conduction of protons, resulting from the movement of protons between ionic clusters made up of polar groups such as -SO₃H. The number of these ionic clusters is dependent on the number of −SO₃H groups and water content in SPI membranes [23,41]. The greater the number of −SO₃H groups, the greater the generation of free protonic ions, ionic clusters, and free volume will be, resulting in the improved mobility of free protons, through the ionic clusters in the form of hydronium ions [42]. Temperature-dependent NSPIs proton conductivity is shown in the Figure 6, which represents that proton conductivity of the NSPI membranes increases with the increase in SDA (hydrophilic segment) content. In the studied temperature range, proton conductivity varies directly with the temperature, which is lower for all NSPI membranes having pendent sulfonic acid group membranes as compared to Nafion^® 117, which might be due to improperly connected hydrophilic ionic domains resulting in the lack of ionic channels for proton transport [43]. Conversely, the rates of proton conductivity for NSPI membranes are likely to be higher (by extrapolation) than Nafion^® 117 at elevated temperatures (>110 °C), making them more adaptive at extreme temperatures as compared to Nafion^®.

3.10. Fuel Cell Performance

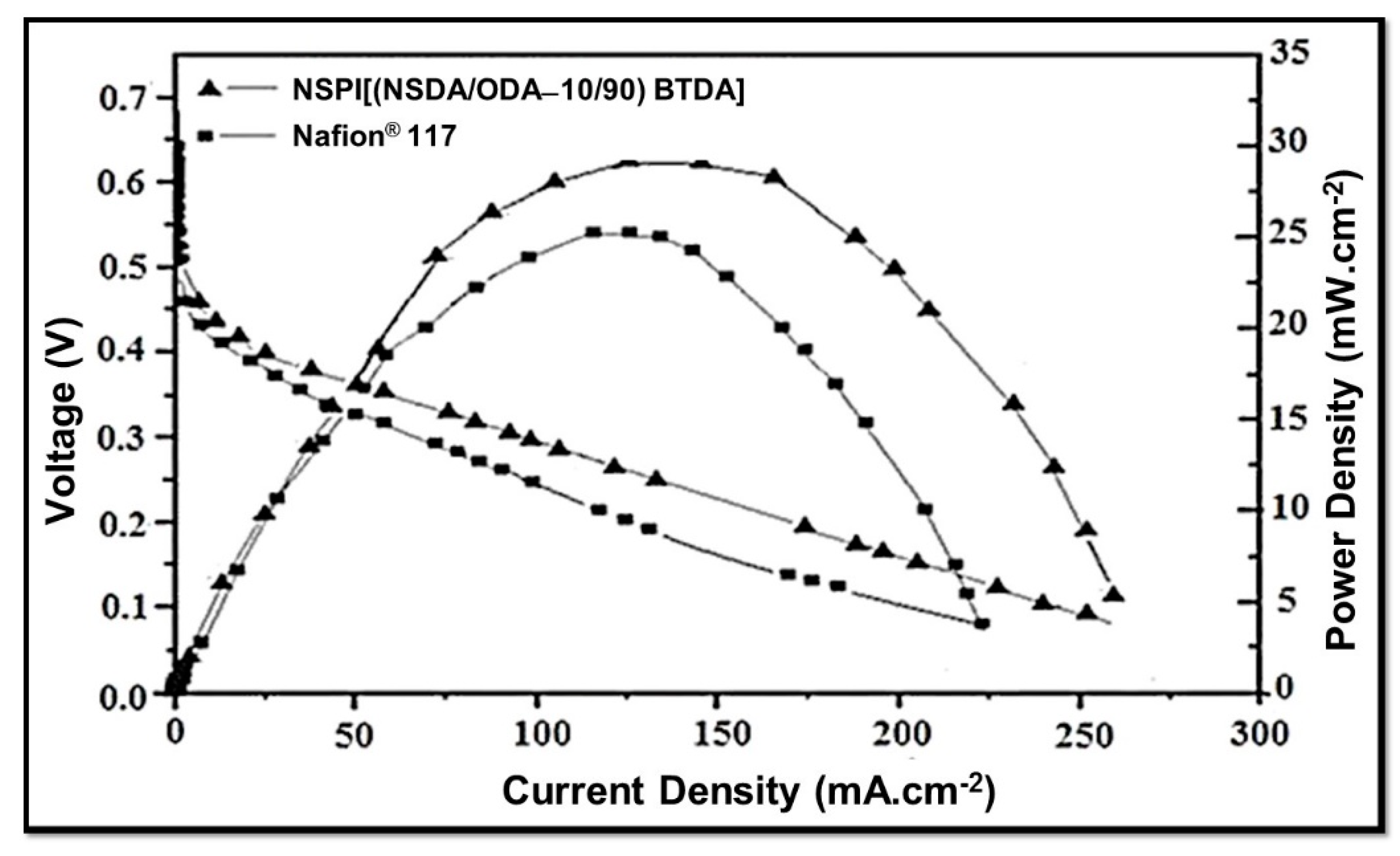

The performance of NSPI 10 (i.e., [(NSDA/ODA-10/90) BTDA]) and Nafion^® 117 at 70 °C in a direct methanol fuel cell (DMFC) is presented in Figure 7. Interestingly, the open circuit voltage in the case of NSPI 10 is found to be 0.65 V, whereas it is lower for Nafion^® 117 (0.54 V). The maximum power density of the NSPI 10 membrane (28.5 mW.cm⁻²) is also higher compared to that of Nafion^® 117 (25 mW.cm⁻²). In addition, the current density for NSPI 10 (275 mA.cm⁻²) is higher compared to that of Nafion^® 117 (230 mA.cm⁻²).

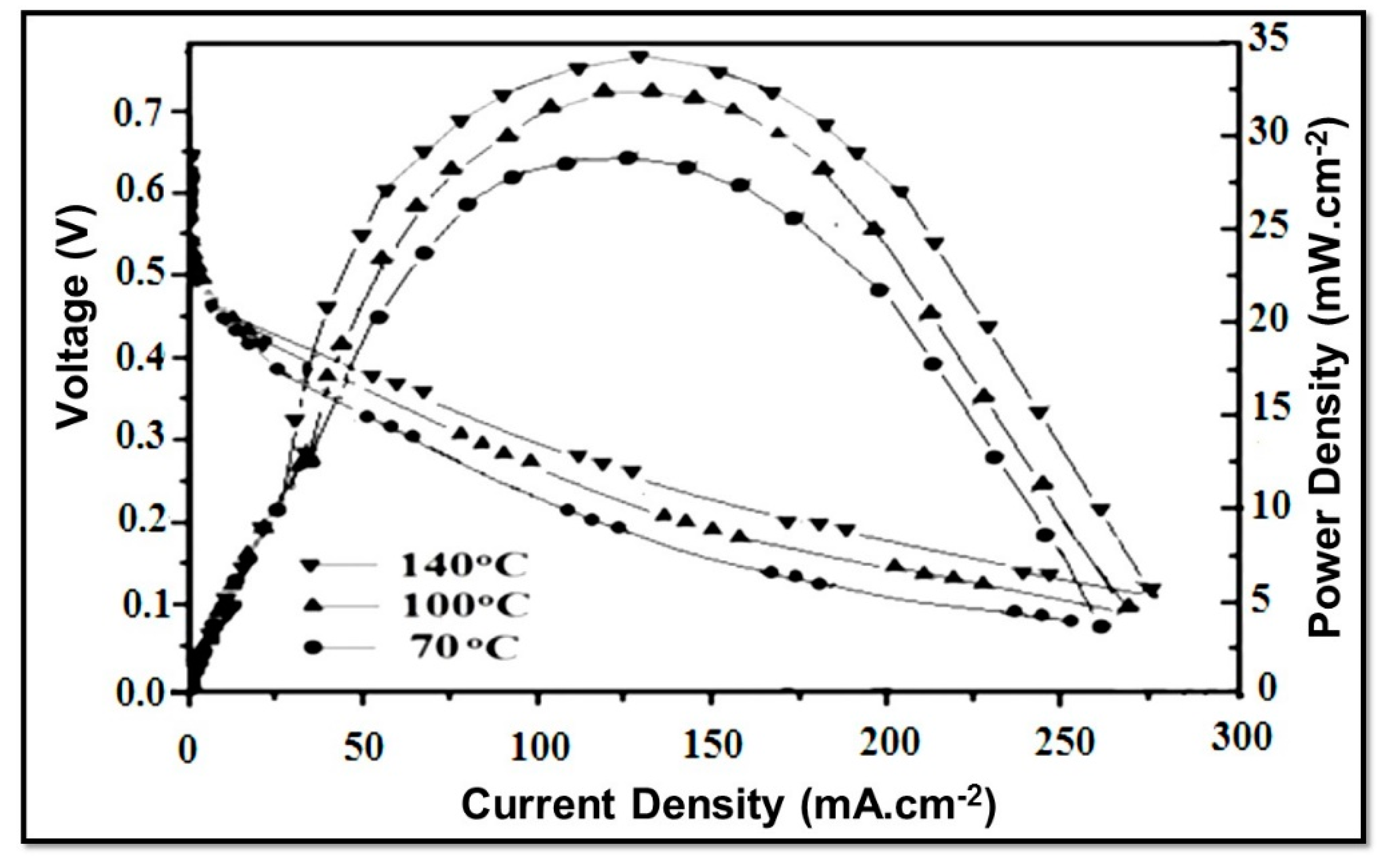

Furthermore, it appears that the maximum power density of NSPI 10 increased from 28.5 mW.cm⁻² to 34.75 mW.cm⁻² with the rise in temperature from 70 °C to 140 °C, which is clearly an indication of its stability and suitability for DMFC applications (Figure 8).

4. Conclusions

A diamine monomer containing benzenesulfonic acid (SDA) as a pendant group was successfully synthesized, as evidenced by ¹³C NMR. NSPI was then prepared by the random copolymerization of BTDA, NSDA, and ODA via thermal imidization and confirmed by FTIR. The prepared NSPI membranes elicited a remarkable hydrolytic stability and a high proton conductivity at elevated temperatures. These characteristics make NSPIs suitable candidates to be used as PEMFCs for efficient renewable energy.
