Feasibility of Using Electrodes with Ultralow Pt Loading in Two-Chamber Microbial Electrolysis Cells

Abstract

Decreasing the Pt loading and surface area of the cathode was found to accelerate the hydrogen evolution reaction in microbial electrolysis cells (MEC) at low substrate concentrations. The experimental wire cathode used in this study had a reduced Pt loading of 20 µg Pt/cm² and only 14% of the surface area of the control disk-type cathode. With the wire cathodes, peak current densities of 33.1 ± 2.3 A/m² to 30.4 ± 0.5 A/m² were obtained at substrate concentrations of 0.4 g/L and 1.0 g/L, respectively, which were 5.4 to 6.2 times higher than those obtained with the disk electrode (5.1–5.7 A/m²). The higher cathode overpotentials and higher current densities obtained with the wire electrode compared to those observed with the disk electrode were advantageous for hydrogen recovery, energy recovery efficiencies, and the hydrogen volume produced (8.5 ± 1.2 mL at 0.4 g/L to 23.0 ± 2.2 mL at 1.0 g/L with the wire electrode; 6.8 ± 0.4 mL at 0.4 g/L to 21.8 ± 2.2 mL at 1.0 g/L with the disk electrode). Therefore, the wire electrode, which used only 0.6% of the Pt catalyst amount in typical disk-type electrodes (0.5 mg Pt/cm²), was effective at various substrate concentrations. The results of this study are very promising because the capital cost of the MEC reactors can be greatly reduced if the wire-type electrodes with ultralow Pt loading are utilized in field applications.

1. Introduction

The microbial electrolysis cell (MEC) is a novel technology that converts organic matter into waste and wastewater into hydrogen gas [1,2]. In MECs, electrochemically active bacteria in the anode chamber oxidize various substrates, such as domestic wastewater, sewage sludge, dairy wastewater, etc., producing a current in the process [3,4]. The current is then passed to the cathode, where hydrogen gas is generated under the influence of external power. While separators such as ion exchange membranes (anion exchange membrane (AEM) and cation exchange membrane (CEM)), bipolar membranes, and porous membranes are typically used between the cathode and anode in typical two-chamber MECs, membrane-less single-chamber MECs exhibit superior hydrogen production rates and yields in comparison, owing to low internal resistance [5]. However, single-chamber MECs are very challenging to control because the hydrogen generated at the cathode may follow various reaction pathways and convert into low-value products, becoming detrimental to the overall MEC performance [6,7]. Therefore, the presence of a separator between the electrodes becomes inevitable and could cause potential losses, which need to be minimized [8].

Another important challenge in the study of MECs is the design of cathodes and suitable catalysts for hydrogen generation. While cathode overpotential can be effectively decreased using a Pt-based cathode owing to low activation overpotential, the high costs associated with Pt tend to increase the overall capital cost of the MEC. Therefore, large surface area non-Pt cathodes that exhibit high current densities, as well as some alternatives to Pt catalysts, such as nickel foam, stainless steel, and molybdenum disulfide, have been successfully examined [9,10,11,12,13]. However, in some of these studies, the significantly larger cathode size relative to the anode surface area was detrimental to hydrogen production in MECs, since large area cathodes appear to provide conducive conditions for methanogens to thrive, leading to the loss of hydrogen [14,15]. In addition, most MEC studies use high concentrations of organic substances as fuel, which may not be representative of domestic wastewater conditions [4].

In view of the above considerations, small area cathodes with ultralow Pt loading, which would have competitive pricing compared to conventional Pt cathodes, might be preferable to bulky non-Pt cathodes with all their associated disadvantages as outlined above. It is also known that high overpotentials, although undesirable, are inevitable at the high current density conditions required for efficient hydrogen production. Pt cathodes can be used to reduce the high overpotentials but have high capital costs, as outlined previously, causing a dilemma [16]. Therefore, in this study, we tested a small area cathode (14% of the surface area of the control electrode) with very low Pt loading (20 µg Pt/cm²) and a low chemical oxygen demand (COD) substrate in two-chamber MECs

2. Materials and Methods

2.1. Reactor Set-Up

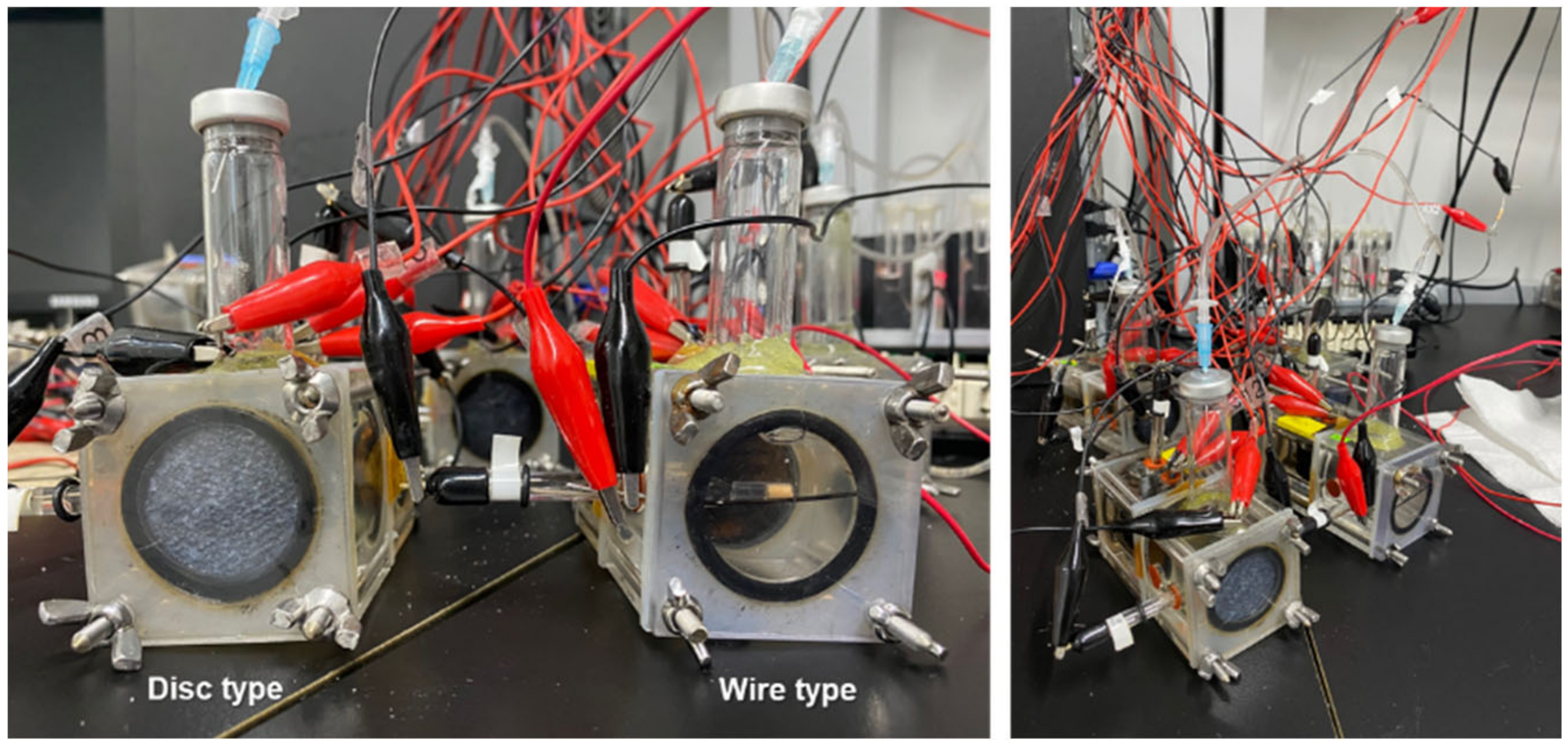

Two-chamber MECs were constructed using two polycarbonate cubes with cylindrical chambers (3 cm inner diameter, 4 cm length). The polycarbonate cubes were separated by an AEM (Neosepta AMX, ASTOM, Tokyo, Japan). The anode chamber contained a graphite fiber brush (Mill-ROSE Company, Mentor, OH, USA) as the electrode, which was preheated to 450 °C for 30 min. Two types of cathodes, a disk-type cathode and a wire-type cathode, were fabricated. The disk-type cathode (loading of 0.5 mg Pt/cm² and surface area of 7 cm²) was prepared from wet-proofed carbon cloth coated with a carbon black-based slurry containing the Pt catalyst (10% Pt on Vulcan XC 71) and 5% Nafion binder. The wire-type cathode (surface area = 1 cm²) was made of Ti wire coated with the same Pt catalyst slurry. However, the Pt loading on the Ti wire was only 20 µg Pt/cm² (Figure 1).

2.2. Reactor Operation and Measurements

The anode was inoculated with activated sludge taken in an aeration tank from a wastewater treatment plant (Jeju city, Korea) in fed-batch mode, with an external resistance of 1 kΩ. The external resistance was then switched to 10 Ω and stabilized. The MECs were operated at an applied voltage of 0.9 V using an external power supply. The anode chamber was fed with the substrate (sodium acetate concentration ranging from 0.4 to 1.0 g/L) and 50 mM phosphate buffer solution (4.58 g/L Na₂HPO₄, 2.45 g/L NaH₂HPO₄·H₂O, 0.31 g/L NH₄Cl, and 0.13 g/L KCl) and supplied with 12.5 mL/L of minerals and 5 mL/L of vitamins [4]. The cathode chamber was filled with a 100 mM PBS buffer solution. All the experiments were performed at 30 °C with an external resistance of 10 Ω, and the system voltages were recorded using a multimeter (2700 Multimeter, Keithley Instruments Inc., Cleveland, OH, USA). A reference electrode (Ag/AgCl, RE-1B, ALS Co., Ltd, Osaka, Japan) was inserted into each chamber to monitor the electrode potentials.

The initial and final pH and conductivity were measured at the beginning and end of the reaction cycles using pH and conductivity meters (SevenMulti, Mettler-Toledo International Inc., Columbus, OH, USA), respectively. Acetate concentrations were analyzed using high-performance liquid chromatography (1200 Series, Agilent Technologies, Santa Clara, CA, USA). Gas compositions were analyzed by gas chromatography (GC 2014AT, Shimadzu, Kyoto, Japan).

2.3. Calculation

Coulombic efficiency (CE) was calculated in terms of electrons recovered from the supplied substrate, as given in Equation (1).

$$\mathrm{CE}=\frac{{{\displaystyle \int }}_{t_i}^{t_f}I dt}{F·b·V·\Delta c·M^{-1}}$$

(1)

where I =V/R_ex is the current (A) calculated from the voltage across the resistor (R_ex, 10 Ω), t_i and t_f are the initial and final time for a bath cycle, respectively, F is Faraday’s constant (96,485 C/mol e⁻), b is the number of electrons transferred per mole of substrate (i.e., 8 mol e⁻/mol acetate), V is the final liquid volume in the reactor, Δc is the substrate concentration change between t_i and t_f, and M is the molecular weight of acetate (59 g/mol acetate).

Cathodic hydrogen recovery (r_cat), is defined as the ratio of the number of moles of hydrogen recovered to that expected based on the measured current, as given in Equation (2),

$$r_{cat}=\frac{n_{H_2}}{{\eta }_{CE} }$$

(2)

where $n_{H_2}$ is the number of moles of H₂ recovered over 24 h and ${\eta }_{CE}$ is the coulombic efficiency. ${\eta }_{CE}$, which is based on the total coulombs recovered compared to that expected based on the initial mass of the substrate, was calculated as reported previously [8].

The energy recovery efficiency (${\eta }_E$) is the ratio of the energy of hydrogen produced to that added to the circuit by the power source, as shown in Equation (3),

$${\eta }_E=\frac{n_{H_2}·\Delta H_{H_2}}{{{\displaystyle \int }}_{t_{=0}}^{t_{}}\left(I_{MEC}·E_{\mathrm{v}}-I_{MEC}{}^2·R_{ex}\right)dt}$$

(3)

where $\Delta H_{H_2}$ is the heat of combustion of hydrogen (285.83 kJ/mol), I_MEC is the current (A) calculated based on the voltage drop across the external resistor (R_ex, 10 Ω), and E_v is the applied voltage (V).

3. Results and Discussion

3.1. Effect of Electrode Type and Substrate Concentration on the Current Produced

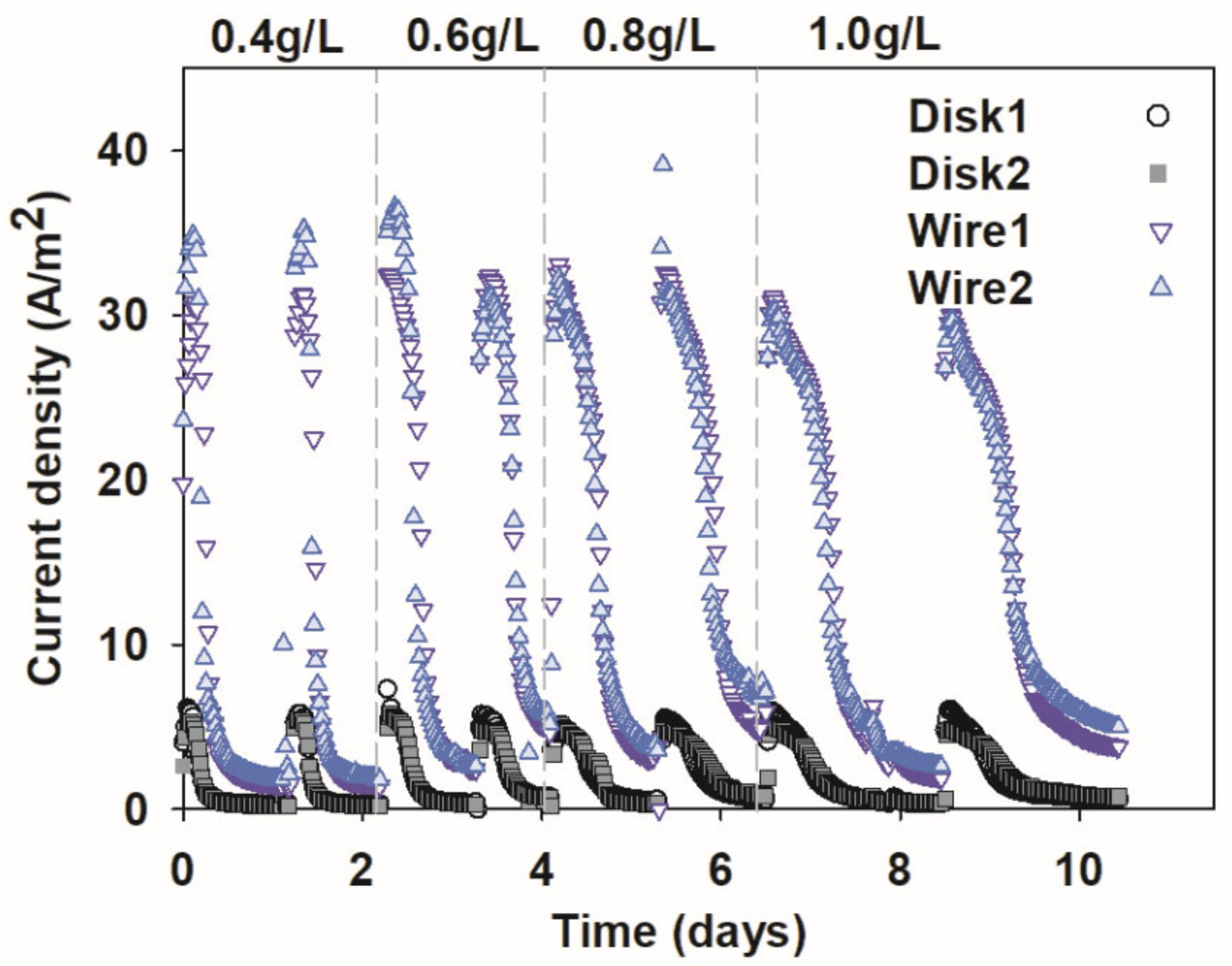

The peak current densities (calculated based on cathode area) obtained with the wire and disk electrodes were 33.1 ± 2.3 A/m² vs. 5.7 ± 0.4 A/m² at 0.4 g/L substrate concentration, respectively, suggesting that the former produced a 5.8 times higher current density than the latter (Figure 2). However, the volumetric peak current densities, calculated as the ratio of current generated to the anode working volume, obtained with the disk electrodes were 1.1–1.2 times higher under all the conditions studies, compared to those obtained with the wire electrodes, at a given applied potential of 0.9 V (

Table 1. Volumetric peak current density at different substrate concentrations.

Substrate Concentration (g/L)	Disk Electrode (A/m3)	Wire Electrode (A/m3)
0.4	132.5 ± 7.7	111.6 ± 7.6
0.6	131.9 ± 12.4	110.8 ± 7.8
0.8	119.2 ± 10.6	108.1 ± 2.1
1.0	128.4 ± 13.4	101.2 ± 1.7

). This apparent inconsistency is due to the reduced area of the wire electrodes, as a result of which they showed significantly higher current densities when calculated based on the cathode size. The peak current densities measured with the wire electrode at various substrate concentrations were 33.1 ± 2.3, 33.0 ± 1.9, 32.4 ± 0.6, and 30.4 ± 0.5 A/m² for 0.4, 0.6, 0.8, and 1.0 g/L, respectively (Figure 2). These high current densities resulted in increased overpotential, which is favorable for hydrogen generation at low substrate concentrations [16,17]. At the lowest substrate concentration with the wire electrodes, the current density was 10% higher than that for a higher substrate concentration. On the other hand, the MECs with disk electrodes had similar peak current densities (5.7 ± 0.1, 5.7 ± 0.5, 5.1 ± 0.5, and 5.5 ± 0.6 A/m² for 0.4, 0.6, 0.8, and 1.0 g/L, respectively) at all substrate concentrations, but the reaction times became longer at higher substrate concentrations (Figure 2).

3.2. Effect of Cathode Type and Substrate Concentration on Electrode Potential, pH, and COD Removal

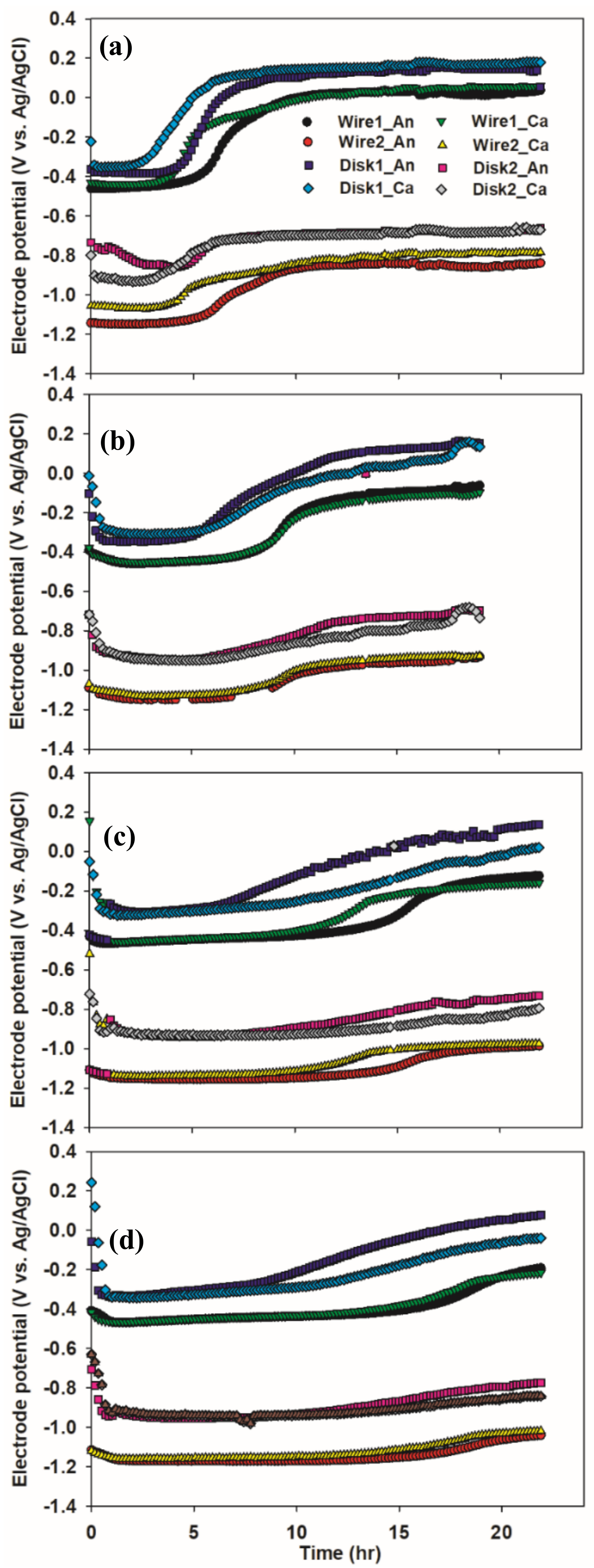

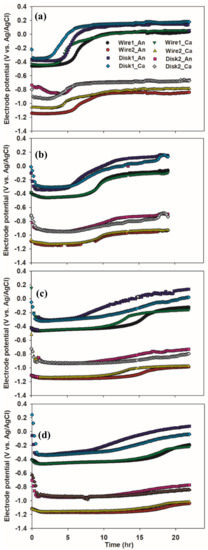

The measured anode potentials were dependent on the type of cathode and substrate concentration (Figure 3). The anode potentials in MECs equipped with wire-type cathodes were more negative (−0.444 V to −0.461 V vs. Ag/AgCl), compared to those with the disk-type cathode (−0.341 V to −0.331 V vs. Ag/AgCl), owing to the reduced cathode size in the former. Further, wire-type cathodes under conditions producing high current densities also exhibited more negative cathode potentials (from −1.104 V to −1.165 V vs. Ag/AgCl) compared to the disk-type cathode (−0.874 V to −1.017 V vs. Ag/AgCl).

Although PBS was used in the cathode chamber, the catholyte pH under all the conditions increased from 6.9 to 8.0, while the anolyte pH decreased from 7.9 to 6.8 over the course of operation of the MECs. These changes are normal, as protons are generated at the anode due to oxidation of the organic matter, whereas hydroxyl ions are generated at the cathode due to HER [4]. Acetate (COD), which was added as a substrate in the anode chamber in all the reactors, was completely removed.

3.3. Hydrogen Production and Operational Efficiencies

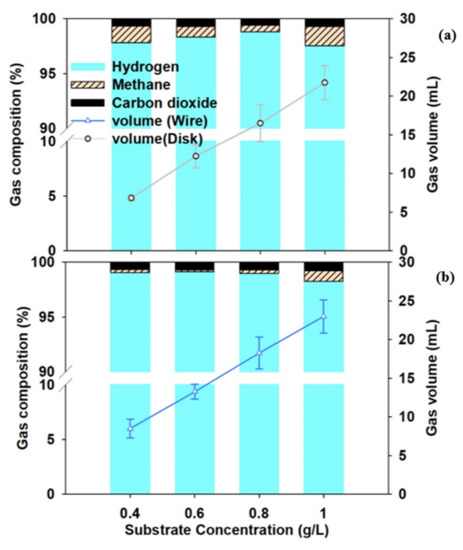

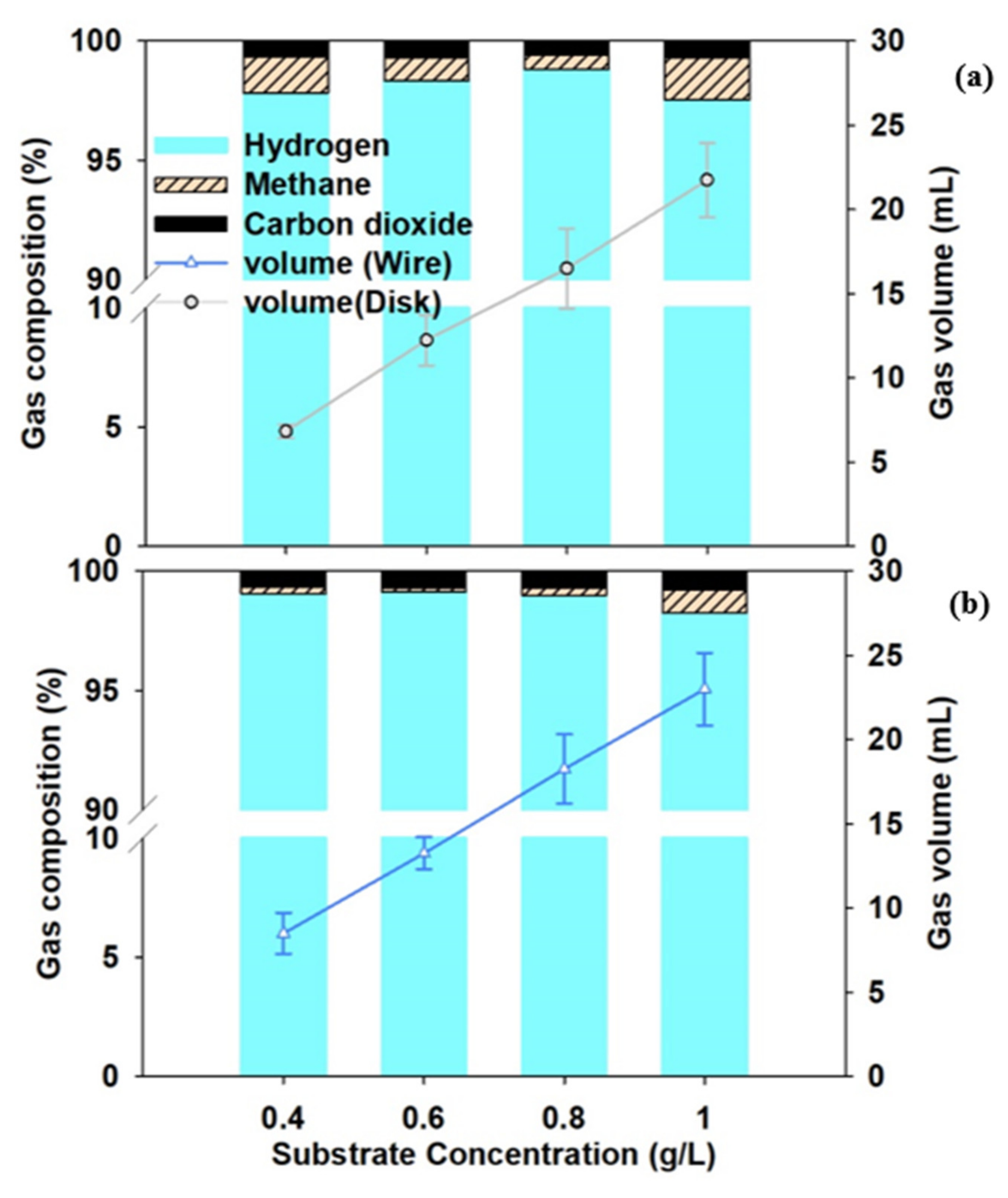

In general, the increase in the substrate concentration from 0.4 to 1.0 g/L resulted in enhanced hydrogen production. Additionally, the wire electrodes produced a higher volume of hydrogen gas (H₂ 98.2~99.1%) than did the disk electrodes (H₂ 97.5~98.8%) at all substrate concentration conditions (Figure 4). For example, the gas volumes generated at 0.4 g/L substrate concentration with the wire and disk electrodes were approximately 8.5 ± 1.2 mL and 6.8 ± 0.4 mL, respectively. Further, an increase in the substrate concentration from 0.4 to 1.0 g/L resulted in an increase in the hydrogen gas volumes from 8.5 ± 1.2 to 23.0 ± 2.2 mL and 6.8 ± 0.4 to 21.8 ± 2.2 mL for the wire and disk electrodes, respectively. Trace amounts of methane and carbon dioxide were also detected in the produced gas (Figure 4). In the cathode chambers equipped with the disk electrode, methane concentrations were measured to be 0.6–1.8%, whereas lower amounts of methane (0.2–1.0%) were detected in the cathode chambers with the wire electrode. On the other hand, similar amounts of carbon dioxide were detected with both the cathode types (0.6–0.8%).

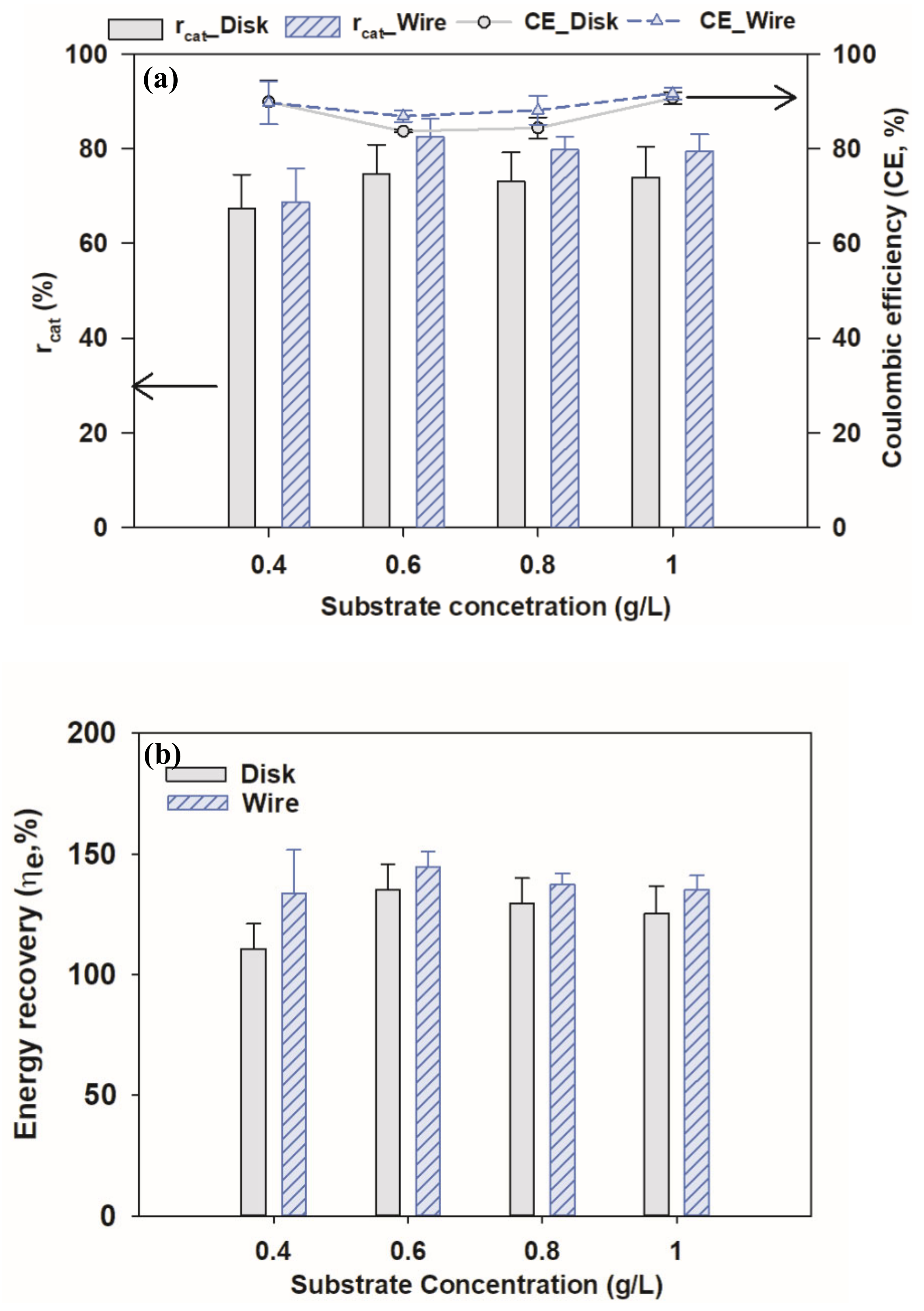

Similar to the gas volumes produced, the cathodic hydrogen gas recovery (r_cat) values were also higher with the wire electrodes compared to the disk electrodes. For example, r_cat values in MECs with wire electrodes were 68.7 ± 7.1%, 82.5 ± 3.9%, 79.8 ± 2.8%, and 79.4 ± 3.6% for substrate concentrations of 0.4, 0.6, 0.8, and 1.0 g/L, respectively. On the other hand, the disk electrodes exhibited up to 10% lower r_cat values (Figure 5a). Consequently, energy efficiencies, that is, hydrogen recovery from the externally supplied electrical energy, were higher for the wire electrodes. The highest energy efficiency (144.6 ± 6.4%) was obtained with the wire electrode at 0.6 g/L substrate concentration. The energy efficiency also increased over the course of the experiment from 133.8 ± 17.8% to 144.6 ± 6.4% (Figure 5b). These values were up to 20% higher than those obtained with the disk electrodes. On the other hand, coulombic efficiencies were almost similar with both the cathodes at various substrate concentrations (Figure 5a). Around 3–4% higher coulombic efficiencies were obtained with the wire electrodes at substrate concentrations of 0.6 g/L and 0.8 g/L.

In general, high current density is required for efficient large-scale production of hydrogen by the HER [18]. However, the low organic content in domestic wastewater hinders the generation of such high current densities in MECs. One way to overcome this would be to reduce the cathode size, by which more negative potentials can be achieved, which can lead to the effective production of hydrogen at low substrate concentrations. Additionally, the mass of Pt catalyst in the reduced size wire cathode was 175 times lower than that in the disk electrode (0.02 mg vs. 3.5 mg). From the results of this study, the former is demonstrated to be efficient in MECs compared to the latter, which greatly reduces the capital cost of the MECs, since cathodes account for the highest portion [19]. Further research should be conducted to assess long-term performance of the cathode in a continuous flow system.

4. Conclusions

At various substrate concentrations, wire electrodes with a small surface area (1 cm²) and ultralow Pt catalyst loading (20 µg Pt/cm²) produced higher volumes of hydrogen gas, in addition to showing better coulombic efficiency, cathodic hydrogen recovery, and energy efficiency compared to a disk electrode (0.5 mg Pt/cm², surface area 7 cm²). This difference was attributed to the reduced cathode size in the former compared to the latter, which resulted in higher current densities and hydrogen overpotentials, leading to high volumes of hydrogen production. Thus, a cathode with reduced size and low Pt loading is demonstrated to be suitable for use in MECs, which could greatly reduce the capital cost of MECs. This in turn would make MECs attractive for use with low strength wastewater such as domestic wastewater, because higher overpotentials obtained with small cathodes could result in the generation of more hydrogen compared to that obtained with large cathodes.
