Influence of Uneven Secondary Air Supply and Burner Tilt on Flow Pattern, Heat Transfer, and NOx Emissions in a 500 MWe Tangential-Firing Coal Boiler

Abstract

Tangential-firing boilers develop large swirling fireballs by using pulverized coal and air from the corners of the burner zone. During operation, however, the boiler may experience an uneven air supply between corners; this deforms the fireball, raising various issues concerning performance and structural safety. This study investigated the characteristic boiler performance and the role of burner tilting in a 500 MWe boiler with secondary air (SA) in two corners that are up to 1.9 times larger than those in the other corners. Computational fluid dynamics simulations with advanced coal combustion sub-models were employed with the following two sets of cases: (i) six cases of actual operation to validate the modeling and (ii) sixteen cases for the parametric study of SA flow ratio and burner tilt between −15° and +26°. The results showed that the uneven SA supply deteriorated the boiler performance in various aspects and the burner tilt can be used to alleviate its impact. With a larger SA supply from the left wind box, the mass flow, heat absorption, and O₂ concentration were larger in the right half of the heat exchanger sections owing to the rotating flow. The corresponding imbalance in the reaction stoichiometry increased the peak temperature entering the tube bundles by up to 60 °C and NO emissions by 6.7% as compared with normal operations. The wall heat absorption was up to 19% larger on the right and front walls. The high burner tilt of +26° helped alleviate the impact of uneven SA supply on the heat distribution and uniformity of the flow pattern and temperature, whereas a +15° burner tilt was the least favorable.

1. Introduction

Tangential-firing (TF), also known as corner firing, is a boiler configuration commonly adopted for large coal-fired power plants [1]. Both fuel and air distributed in the multilevel burners of a TF boiler are injected from the four corners of a hexahedral furnace with a horizontal bias, forming an imaginary circle at the center. The actual jets of pulverized coal (particle size of ~60 µm) and air create a large rotating flame, often referred to as a fireball, across the burner zone. The TF boiler has the advantages of intensive mixing and long particle residence time for stable combustion and high carbon conversion. The burners can also be tilted for flexible control of the flame height.

Many studies have been reported on the characteristics of pulverized coal furnaces for various operating parameters and their influences on boiler performance, including combustion efficiency, heat absorption, and NOx emission. In particular, computational fluid dynamics (CFD) has been found to be a powerful tool to scrutinize such detailed phenomena. Recent progress in the radiative modeling for gas and particles provided improved accuracy on the prediction of heat transfer in large furnaces [2,3,4,5,6].

For pulverized coal boilers, many CFD studies have investigated the tilting and yawing of burners and combustion air [7,8,9,10,11,12,13], optimization of air staging [14,15,16], co-firing [17,18,19], boiler retrofitting [15,16,20,21]. As regards the burner tilt, Tan et al. [7] evaluated the impact of tilt angles ranging from 0–22° in a 700 MWe TF boiler. Upward tilting induced stronger turbulence to reduce CO concentration and increased heat absorption by the superheater (SH) and reheater (RH). However, it increased NOx emission by larger fuel NO formation and lower NO reduction, which were associated with the lower volatile matter concentration, shorter particle residence time, and less reducing atmosphere. Yu et al. [8] coupled CFD with a MATLAB-based thermal hydraulic model for the steam side to alleviate steam tube overheating. It was found that the upward burner tilt of the separated overfire air (SOFA) helped achieve higher boiler efficiency with lower CO and NOx emissions. However, a SOFA tilt angle above +20° increased the tube surfaces, exceeding the allowable metal temperature. When operating at a low load (300 MW) in a 630 MW TF boiler [9], an upward burner tilt (+15°) improved the combustion stability, although NOx emission increased. A particular arrangement of the operating burners helped reduce CO emissions.

The tilting and yawing of the burners and combustion air also influenced the thermal uniformity of the TF boiler. In a study by Tian et al. [10] involving a 700 MWe boiler, the residual swirling flow leaving the burner zone caused deviations in the temperature and velocity in the upper furnace, which led to uneven heat transfer at the final RH. Optimized upward tilting of the burners can effectively reduce deviations. From experiments and CFD simulations, Park et al. [11] identified the yawing of OFA as an effective measure to alleviate the temperature deviation and potential rupture of tubes in the heat exchanger section of 800 MW TF units caused by residual swirl flow. Adding an arch noze below the furnace exit was also helpful in alleviating the gas temperature deviation in a 1000 MW TF boiler [20]. Yao et al. [12] applied the orthogonal statistical method to quantify the influence weights of the tilting and yawing angles of the burners, secondary air (SA), and SOFA for a 660 MW ultra-supercritical boiler. The optimization of the angles reduced the temperature deviation at the furnace exit by as much as 86 K to 29 K.

The aforementioned studies aim to understand and improve the performance of TF boilers under normal operating conditions. However, actual systems may suffer from various problems while the operation needs to continue until scheduled maintenance. One of the abnormal operating conditions is the uneven air distribution between the four corners. The combustion air of the TF furnace was supplied through preheaters and split into left and right windboxes using a forced draft fan. During normal operation, the rotating flames of the fireball in the TF boiler can alleviate minor disturbances in the airflow distribution. However, when air preheaters are contaminated, the axisymmetry of the airflow between corners can be significantly broken and gradually worsen as the operation continues. The uneven air distribution deforms the fireball and causes large deviations in the local gas velocity, reaction atmosphere, temperature, and heat transfer, which deteriorates the boiler performance and may lead to severe damage to the boiler. An analysis of the combustion performance in such abnormal conditions can be helpful in understanding the capability of the TF boiler and improving the operation control; however, studies focusing on this issue have not been reported in the literature.

This study investigated the impact of uneven airflow distribution between corner burners occurring in a 500 MWe tangential-firing boiler caused by air preheater contamination. Six actual operation cases were selected in which the airflow ratio between corners ranged from 1.0 to 1.91 at different burner tilt angles. CFD simulations were performed for the six cases to validate the modeling approach using the measured data. Subsequently, a new set of cases was established for CFD simulations to isolate the influence of uneven air supply and burner tilt from other operational variables such as coal properties and boiler load. The results were discussed in terms of the boiler performance with a detailed analysis of the flow and temperature uniformity, furnace exit gas temperature (FEGT), coal combustion, heat transfer, and NOx emissions.

2. Numerical Methods

2.1. Target Boiler

Figure 1a shows the coal-fired boiler investigated in this study, which adopted the TF configuration at a capacity of 500 MWe. This is one of 20 identical units in Korea, and has been suffering from the problem of uneven SA supply described. The boiler consisted of a burner zone in the lower furnace incorporating six levels of coal burner and close-coupled overfire air (CCOFA) at four corners and a series of convective tube bundles in the upper furnace. The coal burners including various SA ports and CCOFA were horizontally biased from the furnace center such that the jets of coal and air created a fireball across the burner zone.

Figure 1b illustrates the SA supply system for the burner SA and CCOFA. While primary air (PA) was sent into six coal mills to transport pulverized coal, SA was supplied through two streams consisting of a forced draft fan, a steam coil air heater (SCAH), and a gas air heater. Each stream of the SA supply system covered two corners: the left windbox for #1 and #2 corners and the right windbox for #3 and #4 corners. The SA was preheated by the heaters and then split into various ports around the coal burners and CCOFA, as illustrated in Figure 1a. Ideally, the two SA streams should have identical flow rates. However, addition of a small volume of off-gas from the biomass drying process containing fine particles into the right SCAH gradually contaminated the air passage and reduced the SA flow rate to corners #3 and #4. This problem worsened as the operation continued; therefore, the load had to be reduced. The uneven SA distribution between corners broke the axisymmetry of the fireball and influenced the performance of the boiler, which was investigated in this study with actual and simulated operating cases.

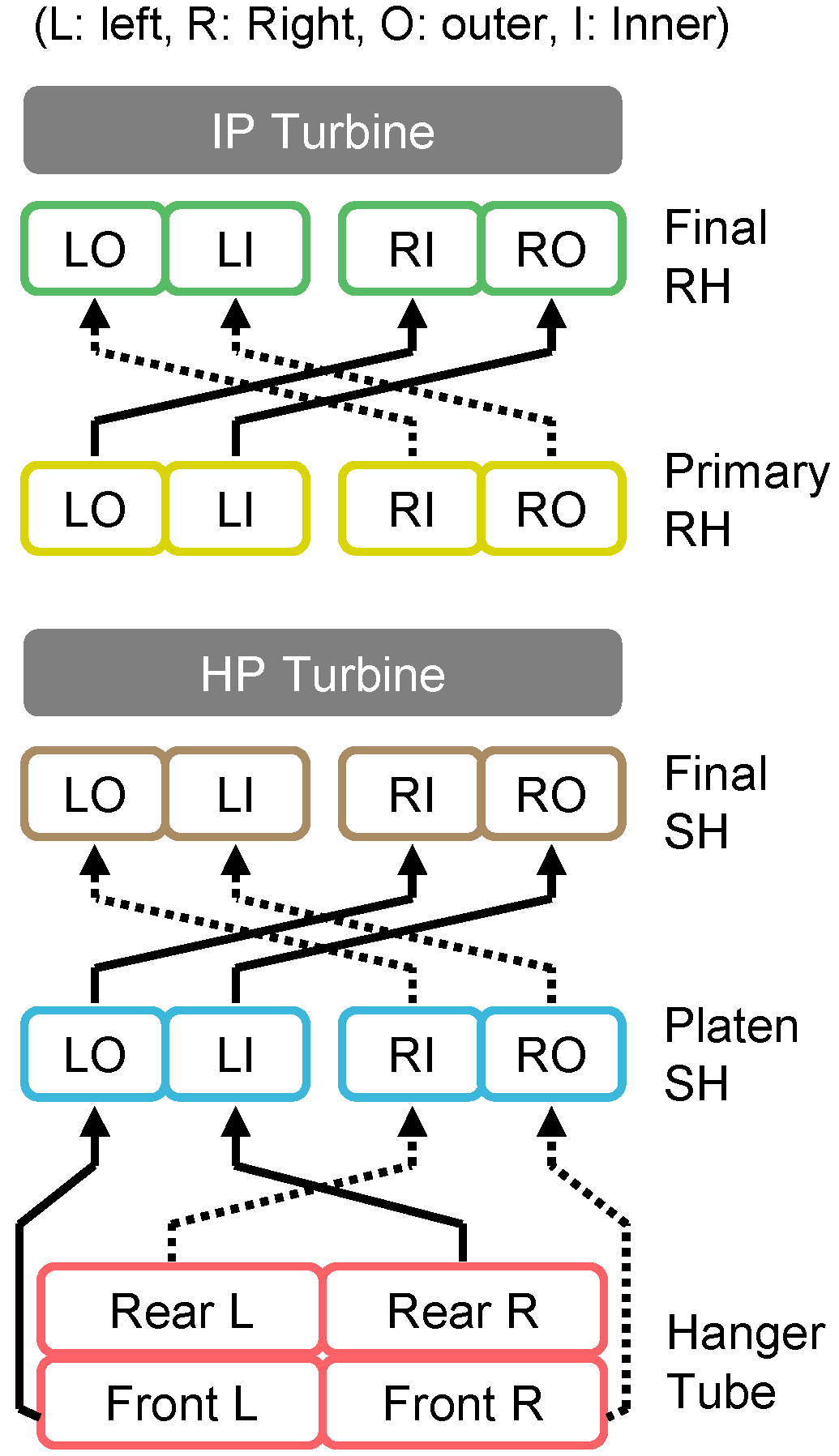

The arrangement of the heat exchangers is illustrated in Figure 2. The hanger tube has four sections, of which the steam is connected to a platen SH. The tube sections are switched between the left and right, and the inner and outer sections are switched to the final SH. The primary and final RHs also exhibited the same arrangement.

2.2. Actual Operation Cases

From the field survey, five cases with different degrees of uneven SA supply were selected from the operation records between January and May 2020, together with one normal operation before this issue in 2016. Then, the detailed operating conditions were retrieved and averaged for 1 h from the recorded data stored for every minute, which included the coal throughput, air flow rates and temperatures for PA and SA, burner tilt angle, measured O₂ and NOx concentrations at the economizer exit, and heat absorption (the steam flow rate, temperature, and pressure for each heat exchanger). The coal properties were also acquired from the data, which were analyzed on a daily basis. Detailed information on the operating conditions and coal properties are presented in Tables S1 and S2 of the Supplementary Information, respectively.

Table 1. Summary of actual operating conditions during uneven SA supply between corners.

Case		A1	A2	A3	A4	A5	A6
SA Ratio between Corners, (#1 + #2)/(#3 + #4)		1	1.39	1.36	1.33	1.71	1.93
Turbine Output [MWe]		487	460	459	460	357	365
Burner Tilt Angle [°]		−2	−15	1	26	26	26
Stoichiometric Ratio	Overall	1.14	1.15	1.15	1.15	1.21	1.21
	Burner Zone	0.97	0.97	0.97	0.97	0.97	0.97

presents the cases with different SA ratios, selected from the operation records of the boiler. The SA ratio was defined as the ratio of the SA flow rate (burner SA and CCOFA) for the left windbox (#1 and #2 corners) divided by that from the right windbox (#3 and #4 corners). Case A1 represented a normal operation with an almost equal distribution of SA supply between the corners. Cases A2 to A4 had an SA ratio of approximately 1.35 but with different burner tilts of downward (−15°), horizontal (1°), and upward (26°), respectively. The SA ratio increased to 1.71 in case A5 and further to 1.93 in case A6. Owing to the uneven SA distribution, the boiler load had to be reduced to a turbine output of approximately 360 MWe in these two cases together with a high tilt angle (26°) to meet the target steam temperature at the reheater exit. Because the cases were selected from the operation data, input parameters such as the thermal input, coal properties, and burner tilt angle were not identical. The total airflow rate corresponded to an overall stoichiometric ratio of 1.14–1.21 (i.e., excess air ratio of 14–21%). It was determined from the measured O₂ concentration at the boiler exit, coal properties, and coal throughput. Then, the total SA flow rate was calculated by difference from the measured PA flow rate. For the coal properties measured on a daily basis, direct use of the measured value for SA caused some discrepancy in the O₂ concentration. Because the combustion characteristics including NO emission are sensitive to the excess air ratio, the SA flow rate was adjusted to match the measured O₂ concentration while keeping the SA ratio identical to the measured data. Furthermore, the flow rate of the CCOFA was not measured separately in the plant. Therefore, the stoichiometric ratio in the burner zone was assumed to be 0.97, and the remainder was for CCOFA.

2.3. Simulated Cases for Parametric Study

Because the actual operation cases have different coal properties, excess air ratios, and boiler loads, it was difficult to analyze the simulation results of actual operating cases with respect to the magnitude of uneven SA distribution and burner tilt. Therefore, a new set of simulation cases was established for the parametric study, whereas actual operation cases were used to validate the CFD modeling. For 16 cases, as summarized in

Table 2. Simulation cases for parametric studies of uneven SA distribution and burner tilting.

Parameter		Values
SA Ratio Between Corners, (#1 + #2)/(#3 + #4)		1.0, 1.3, 1.7, 1.9
Burner Tilt Angle		−15°, 0°, +15°, +26°
Fixed (Based on Case A2)	Coal Properties	Total moisture 15.5, Ash 9.3 wt.%wet, C 74.5, H 4.3, O 8.9, N 1.8, S 0.4 wt.%daf, HHV 5932 kcal/kg
	Coal Throughput	50.4 kg/s
	Stoichiometric Ratio	Overall 1.15, Burner zone 0.97
	Air Supply	PA 98.0 kg/s (62.3 °C), SA 386.8 kg/s (294.2 °C)

, the SA ratio was varied from 1.0 to 1.9, and the burner tilt from −15° to +26°, based on the range of these parameters in the actual operation cases. Other operating conditions, such as the coal properties, excess air ratio, and boiler load, were fixed to those of case A2, in which the CFD results were in good agreement with the measured data. Each simulation case was named after the SA ratio and burner tilt angle. For example, case C1.7+15° refers to a case with an SA ratio of 1.7 and a tilt angle of +15°.

2.4. Numerical Methods

In the CFD simulations, a mesh was constructed for the boiler using 4,757,476 cells (4,445,838 hexahedral and 311,638 tetrahedral cells), as shown in Figure S1 of the Supplementary Information. The mesh sensitivity was evaluated in our previous study [22], which was shown to have minor deviations in key results (carbon conversion, 0.12%; exit NO concentration, 1.9%; wall heat absorption, 0.2%) as compared to a finer mesh. The mesh used in this study for the heat exchanger section was improved from the previous version to address more detailed shapes.

The modeling methods and solution strategy were also based on our previous study [22]. The conservation equations of mass, momentum, energy, and chemical species were solved using Ansys Fluent version 17.2 [23] with built-in and user-defined submodels for reactions, turbulence, and heat transfer. The pressure-velocity coupling was modeled using the PRESTO! algorithm with the quadratic upstream interpolation for convective kinematics (QUICK) scheme for spatial discretization of the governing equations [23]. The turbulence was solved using the realizable k-ε model, which was modified from the standard k-ε model to improve the accuracy of the swirling flow [24]. The discrete ordinates model [25] was employed for radiation, which solved the radiative transfer equation with an angular discretization of 5 in both the polar and azimuthal directions and 3 in their subpixels. Compared to P1 model, the discrete ordinate model is applicable to all optical thicknesses and can better account for particle radiation [6], providing better accuracy [26,27]. Gas absorption was considered using the weighted sum of the gray gases model proposed by Yin et al. [5] employed using a user-defined function. This model can better resolve the influence of the variations in CO₂ and H₂O concentrations for a wider range of temperature and mean beam length compared to Smith et al.’s model [28]. The pulverized coal particles were considered using the discrete phase method, which repeatedly calculates the trajectories of individual particles in the Lagrangian scheme, updating their heat and mass interactions with the gas phase. The coal was represented by 49,560 particles with 10 diameters ranging from 5.9 to 204 µm at an average of 50 µm.

Table 3. Summary of reaction submodels employed for computational fluid dynamics (CFD) simulation.

Category	Submodels
Coal Combustion	- Devolatilization: FLASHCHAIN [29] (See Table S3 for the details of individual coals) Dry coal → Volatiles + C(s)(Char)   Composition of volatiles: Tar, CO, CO2, H2O, H2, CH4, and CxHy   Devolatilization rate:                $\frac{dV}{dt}=Aexp\left(-\frac{E}{RT}\right)\left(V_0-V\right)$ - Char combustion: unreacted core shrinking model [30]         $R_{char,i}=\frac{1}{\frac{1}{k_{d,i}}+\frac{1}{k_{s,i}{Y}^2}+\frac{1}{k_{dash,i}}\left(\frac{1}{Y}-1\right)}\left(P_i-P_i^{*}\right)\left[{\mathrm{g}\mathrm{cm}}^{-2}{\mathrm{s}}^{-1}\right]$        $k_{dash}=k_d{\epsilon }^{2.5}$$,Y=d_{char}/d_p$ (R1) C(s) + 0.5 O2 → CO      $k_s=8710exp(-17967/T_s),k_d=1.383\times {10}^{-3}{\left(T/1800\right)}^{0.75}/\left(P_t{d}_p\right)$      $P_i-P_i^{*}=P_{O_2}$ (R2) C(s) + H2O → CO + H2      $k_s=247exp(-21060/T_s),k_d=1\times {10}^{-3}{\left(T/2000\right)}^{0.75}/\left(P_t{d}_p\right)$      $P_i-P_i^{*}=P_{H_{2}O}-\left(P_{H_2}\cdot P_{CO}\right)/K_{eq},K_{eq}=exp[17.644-30260/\left(1.8T_s\right)]$ (R3) C(s) + CO2 → 2 CO           $k_s=247exp(-21060/T_s),k_d=7.45\times {10}^{-4}{\left(T/2000\right)}^{0.75}/\left(P_t{d}_p\right)$                     $P_i-P_i^{*}=P_{C{O}_2}$
Species, Gas Reaction	- Species: Tar, CO, CO2, H2, CH4, CxHy, H2, SO2, O2, N2 - Reaction mechanism [31,32] (R4) CxHyOz (tar) + a O2 → x CO + 0.5y H2 (R5) CnHm + 0.5n O2 → n CO + 0.5m H2 (R6) CnHm + 0.5n H2O → n CO + 0.5(m + n) H2 (R7) CH4 + 0.5 O2 → CO + 2 H2 (R8) CH4 + 0.5 H2O → CO + 2.5 H2 (R9) CO + H2O → CO2 + H2 (R10) H2 + 0.5 O2 → H2O - Reaction rate: finite-rate/eddy-dissipation model [33]           $R=\underset{}{\min }\left\{R_{kinetic},\underset{}{\min }\left(A\rho \frac{\epsilon }{k}\underset{R}{\min }\left(\frac{Y_R}{{\nu }_R{M}_R}\right), AB\rho \frac{\epsilon }{k}\frac{\sum Y_P}{\sum {\nu }_P{M}_P}\right)\right\}$
Discrete Phase	- Lagrangian scheme with stochastic tracking for turbulence - Number of particles: 49,560 - Particle size: 5.88–204 μm
NOx	- Thermal NOx: Extended Zeldovich mechanism [34] - Fuel NOx: De Soete [35] - Volatile-N intermediates: HCN 83.33%, NH3 16.67%

summarizes the reaction submodels for coal combustion, gaseous reactions, and NOx emissions. The kinetics and yields of devolatilization for individual coals (Table S2) were determined using Flashchain of PCCoalLab, which is an advanced coal network model [29]. A user-defined function was used to enable multiple volatile products (tar, CO, CO₂, H₂O, H₂, CH₄, and C_xH_y) from the model because the built-in model allows only a single gas species. The details of the devolatilization kinetics and product yields are presented in Table S3 of the supplementary information, including those for the six actual operation cases. The char conversion by O₂, CO₂, and H₂O was predicted using the unreacted core shrinking model [30] based on another user-defined function. The unreacted core shrinking model considers the competing rates between the surface kinetic (k_s), boundary diffusion (k_diff), and the resistance of the ash layer (k_dash), which is appropriate for the high-temperature atmosphere in a large-scale furnace. The gaseous reactions were established using the global reaction scheme based on Jones and Lindstedt [31] for hydrocarbons and Smith and Smoot [32] for tar. The finite-rate/eddy-dissipation model of Magnussen and Hjertager [33] was used to consider the turbulence–chemistry interaction.

In the NO reactions, the thermal NO was solved for the extended Zeldovich mechanism with rate constants taken from Hanson and Salimian [34]. The fuel NOx mechanism [35] considered the partitioning of fuel-N into volatile-N released as HCN 5: NH₃ 1 and into char-N released as NO. The proportions of volatile and char-N were determined using Flashchain. The reduction of NO to N₂ by active carbons on the char surface was considered to have a Brunauer–Emmett–Teller surface area of 150 m²/g.

In the boundary conditions, the steam temperature of each heat exchanger was determined from the average of the inlet and outlet values, and detailed heat transfer conditions were tuned to match the operation data of case A1. The furnace wall (evaporator) had an overall heat transfer coefficient of 250 W/m²K [36] and a wall emissivity of 0.7. The hanger tube (primary SH) and platen SH were modeled as flat walls, whereas the tube bundles from the final SH to the economizer were simplified to have local source terms for directional flow resistances, convection, and radiation based on the detailed tube geometry [37]. The heat transfer coefficient of each heat exchanger was tuned for Case A1 and then applied to other cases with the respective average steam temperatures.

3. Results and Discussion

3.1. Validation of Computational Fluid Dynamics (CFD) Simulations for Actual Operation Cases

Table 4. Comparison of measured and predicted O₂ and NOx concentrations at the economizer exit.

Case			A1	A2	A3	A4	A5	A6
O2 (%dry)	Measured	Left	2.48	2.49	2.6	3.03	3.51	3.49
		Right	2.74	3.18	2.97	2.51	3.92	3.82
		Average	2.61	2.83	2.79	2.77	3.71	3.66
	Predicted	Left	2.68	2.49	1.98	2.28	2.89	2.93
		Right	2.67	3.21	3.64	3.29	4.58	4.39
		Average	2.67	2.85	2.81	2.79	3.73	3.66
NOx (ppm, 6% O2)	Measured		153	190	223	165	100	98
	Predicted		111	194	188	147	97	109

compares the measured and predicted O₂ concentrations on the left and right halves at the economizer exit for actual operation cases with an SA ratio of up to 1.91 with different burner tilts and loads. The measured values were averaged from the three sensors in each half. Case A1 had a 0.26% higher O₂ concentration in the measured data for the right half, whereas the CFD results had almost equal values. This implies some uncertainties in the operation conditions, such as the flow rate of coal between corners and slagging/fouling in tube bundles. In particular, unusually large deposits of ash partially blocking the gas passages were found in the tube bundles including the platen SH during maintenance. This could have significantly influenced the flow pattern in the upper furnace. With the cases of uneven SA distribution, the right half had 0.33% to 0.69% higher O₂ concentrations in the measured data, except for case A4. The CFD results were consistent; however, the difference was increased from 0.72 to 1.46%. The overestimation of the differences in the O₂ concentrations could result from the physical mixing enhanced by tube bundles, which were not considered in the CFD analysis.

Table 4 also compares the average NOx concentrations (corrected to 6% O₂) at the economizer exit. Generally, the trend in the predicted NOx concentrations was in good agreement with the measured data, despite the large variations in the operating conditions. Although the CFD modeling provided the detailed contribution of the thermal and fuel NOx mechanisms, the NOx emissions resulted from complicated interactions between fuel properties (fuel-N content, partitioning into volatile-N and char-N, char and ash contents) and operating parameters (thermal input, SA ratio, and burner tilt), which varied widely between cases. This made it difficult to isolate and conclude the influence of the SA ratio and burner tilt. Therefore, further analysis is presented in the next section for the new set of simulation cases (Table 2) based on case A2.

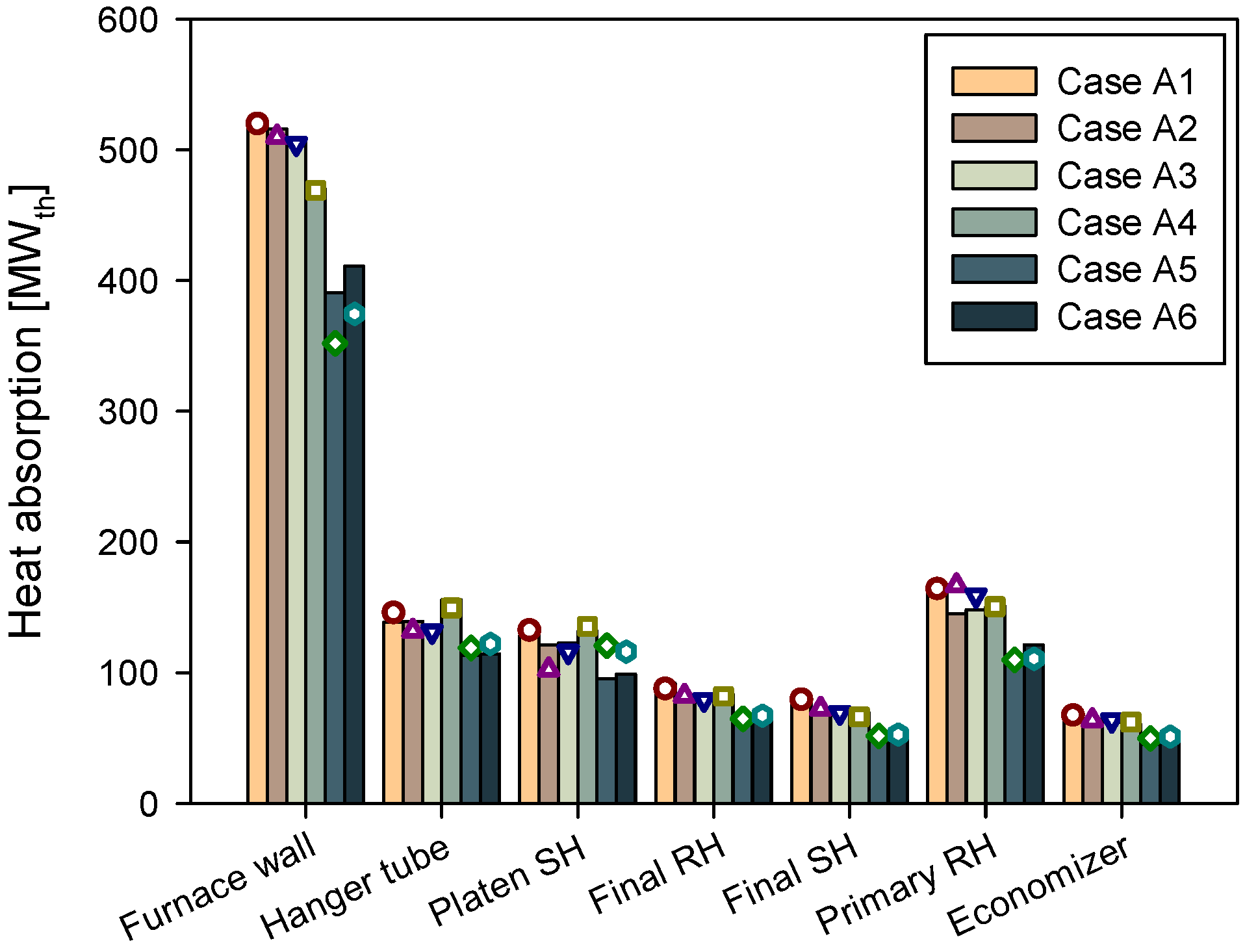

Figure 3 shows a comparison of the measured and predicted heat absorptions in the heat exchangers. Generally, the heat absorption trends were in fairly good agreement between the measured and predicted results, which implies that the gas temperature distribution would also be reasonable. In cases A5 and A6 with a low load of approximately 360 MWe, the heat absorption on the wall was slightly over-predicted. This could be because Case A1 was taken from an early date of operation after the maintenance clearing the wall, whereas the two cases were from later dates before a new maintenance that could have a significant accumulation of ash slagging. The trends in cases A2–A4 exhibited the influence of burner tilt well (−15°, +1°, and +26°, respectively), in which the upward tilting reduced the heat absorption on the wall while increasing that in the convective sections. This is further analyzed in the next section with new cases of the parametric study.

3.2. Parametric Study: Influence on Flow Pattern and Temperature Distribution

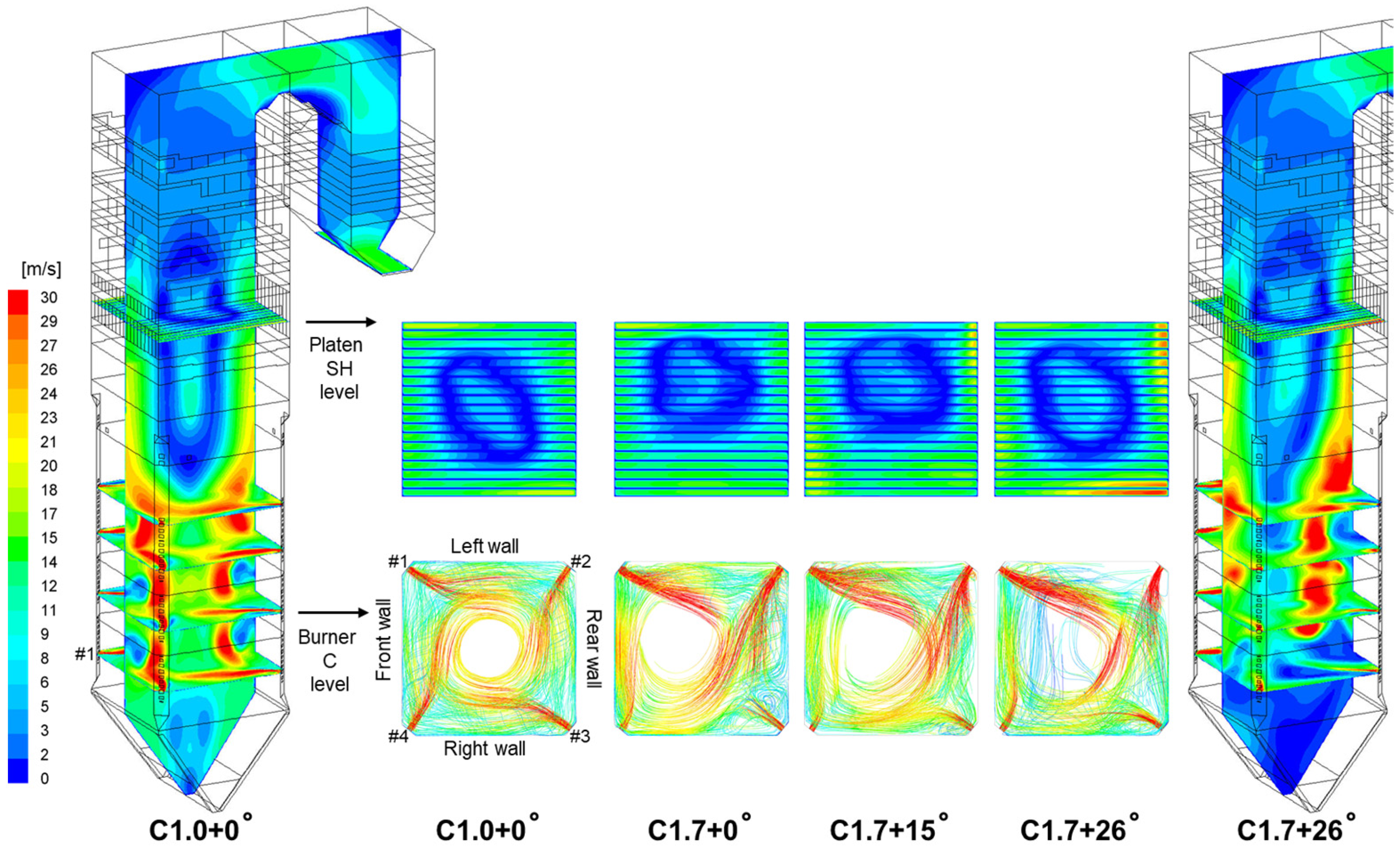

Figure 4 compares the flow pattern of selected cases among the cases in Table 2 for the parametric study, varying only the SA ratio and burner tilt. Case C1.0+0° is the reference case, which has an equal airflow distribution between the four corners, resulting in a clockwise swirling flow (fireball) at the center across the burner zone. The swirling flow then expanded toward the walls above the CCOFA by centrifugal force. This led to the formation of a large circulating flow at the center across the heat exchangers, which was identified as a blue oval shape on the platen SH level in Figure 4. When the SA supply from the left windbox to corners #1 and #2 was 1.7 times stronger, the center of the fireball was pushed toward the front wall, as shown in the subset of Figure 4 for case 1.7+0°, whereas the slow circulating flow appearing in the platen SH level was moved toward the left wall. The flow patterns remained similar for burner tilting of 0° and +15°. When the burner tilt increased to +26° (case C1.7+26°), the jets from corners #1 and #2 flowed sharply upward along the rear and right walls such that the fireball was severely deformed. It also led to two high-speed regions on the platen SH level close to the walls near corners #2 and #3, respectively, whereas a weak circulating flow appeared close to the center.

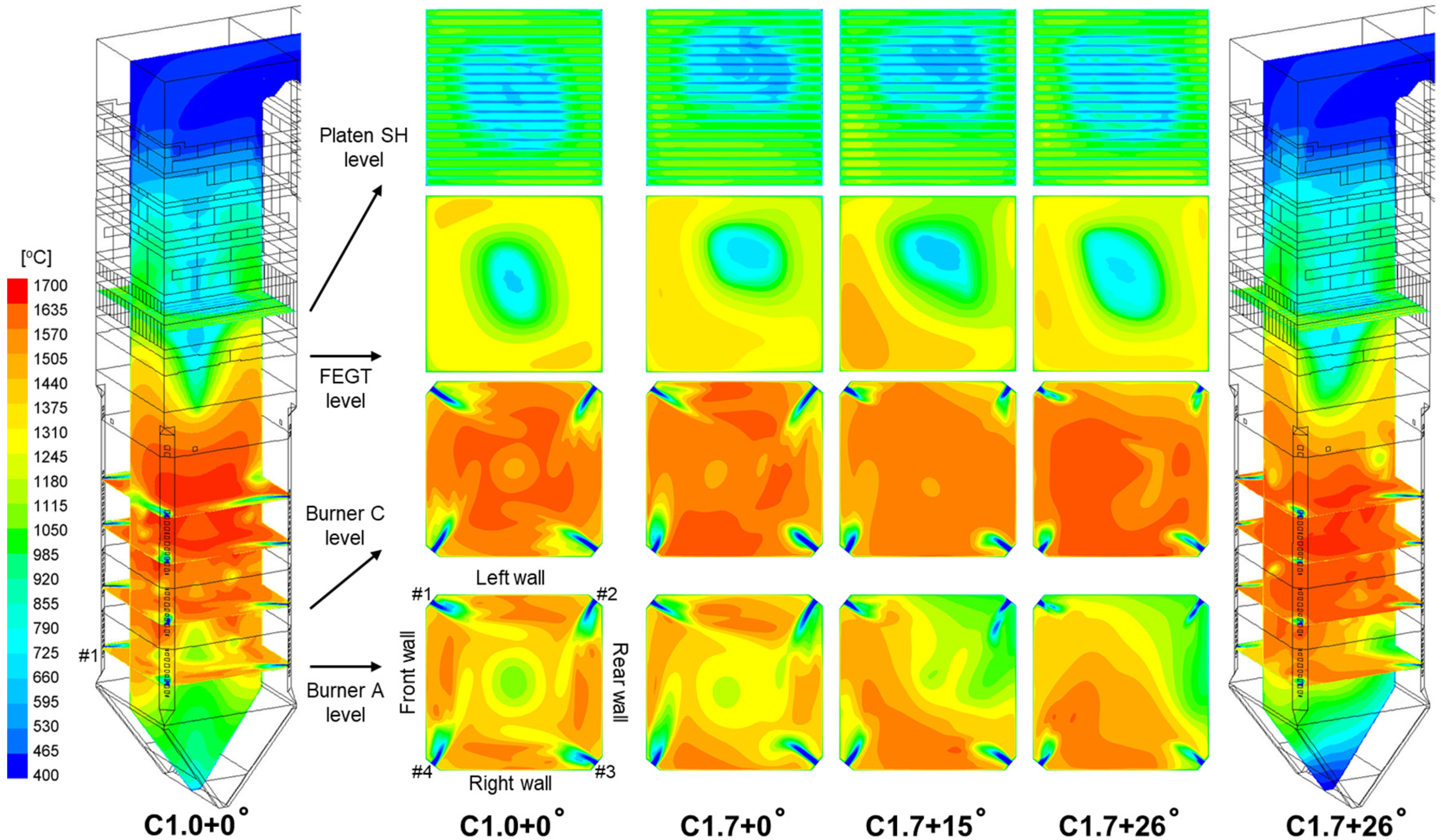

Figure 5 shows the predicted temperature distributions for the selected cases. A high-temperature region developed in the upper burner zone with a peak temperature of 1611 °C for case C1.0+0°. The temperature rapidly dropped in the convective sections, in which the value was relatively higher in the near-wall area with larger gas flow rates. The low-temperature region at the center of the FEGT and platen SH levels coincided with the weak circulating flow in Figure 3. With the uneven SA supply of cases C1.7, the axisymmetry of the temperature pattern collapsed in the burner zone, as shown in the two cross-sections of burner A and C levels. At the FEGT level (1.5 m below the hanger tube), a high-temperature region above 1310 °C was identified near the front and right walls. This was because the uneven SA supply with even coal supply between corners caused an imbalance in the reaction stoichiometry, which delayed the reactions of the more fuel-rich region to the upper furnace.

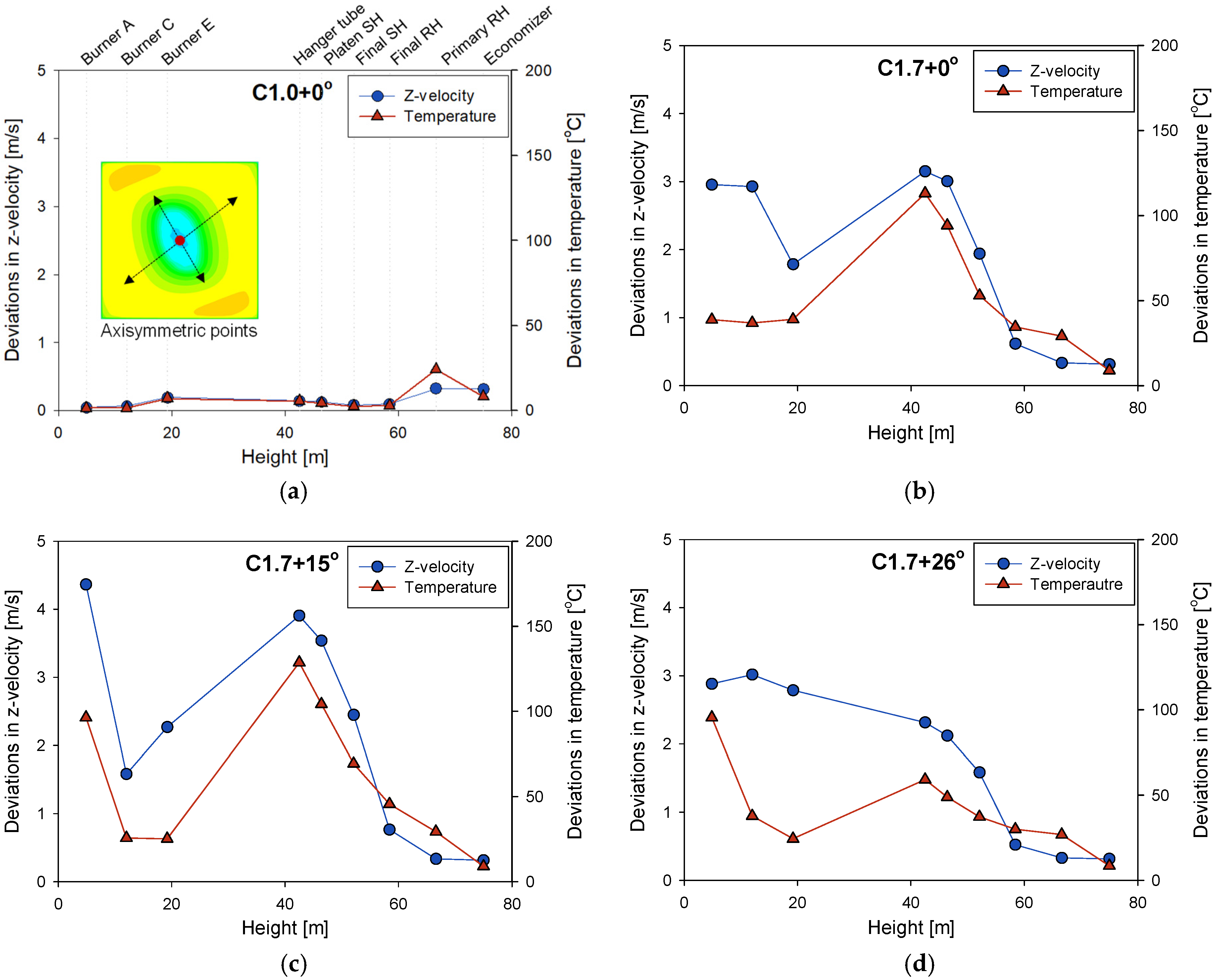

The magnitude of non-uniformity in the flow across the boiler was evaluated quantitatively, by calculating the deviations in the z-velocity and temperature between the pairs of axisymmetric points on key horizontal cross-sections, as shown in Figure 6. The subset contour in Figure 6a illustrates two pairs of axisymmetric points with respect to the furnace center. The difference between pairs was averaged using area-weighting. Case C1.0+0° (Figure 6a) exhibited tiny deviations, indicating that the flow maintained axisymmetry. The deviations slightly increased on the primary RH, in which the axisymmetry was forced to break by the shape of the tube bundles, especially for temperature. With an uneven SA supply, the deviations in the z-velocity and temperature increased drastically, as shown in Figure 6b–d. The differences were the largest on the hanger tube where all SAs were injected and then decreased gradually according to the resistance of the heat exchangers. The maximum deviation was observed in case C1.7+15° with 128.6 °C on the hanger tube level and 4.37 m/s on the burner A level. These represented 11.89% of the average temperature and 79.6% of the average z-velocity on the respective cross-sections. One interesting result was that the differences in both the z-velocity and temperature were significantly lowered at the highest burner tilt, especially in the heat exchanger sections, for case C1.7+26°, as shown in Figure 6d. This was consistent with the contours of Figure 4 and Figure 5, in which the cold circulation zone appeared at the center of the platen SH level and above, unlike in other burner tilt angles.

The deviations between the axisymmetric points were summarized into a single value for each case with respect to the average values of the key cross-sections. As shown in Figure 7a, the non-uniformity in the mass flow (i.e., z-velocity) was approximately 20% with an SA ratio of 1.3, and the increase slowed down with a larger SA ratio. Although the trend was similar between cases, the deviations in temperature (Figure 7b) were much smaller, with a maximum of 6.23% in case C1.9−15°. This is because the temperature was influenced by chemical reactions and was distributed through radiation. Generally, the non-uniformity was the largest at a tilt angle of +15° and decreased significantly at +26°.

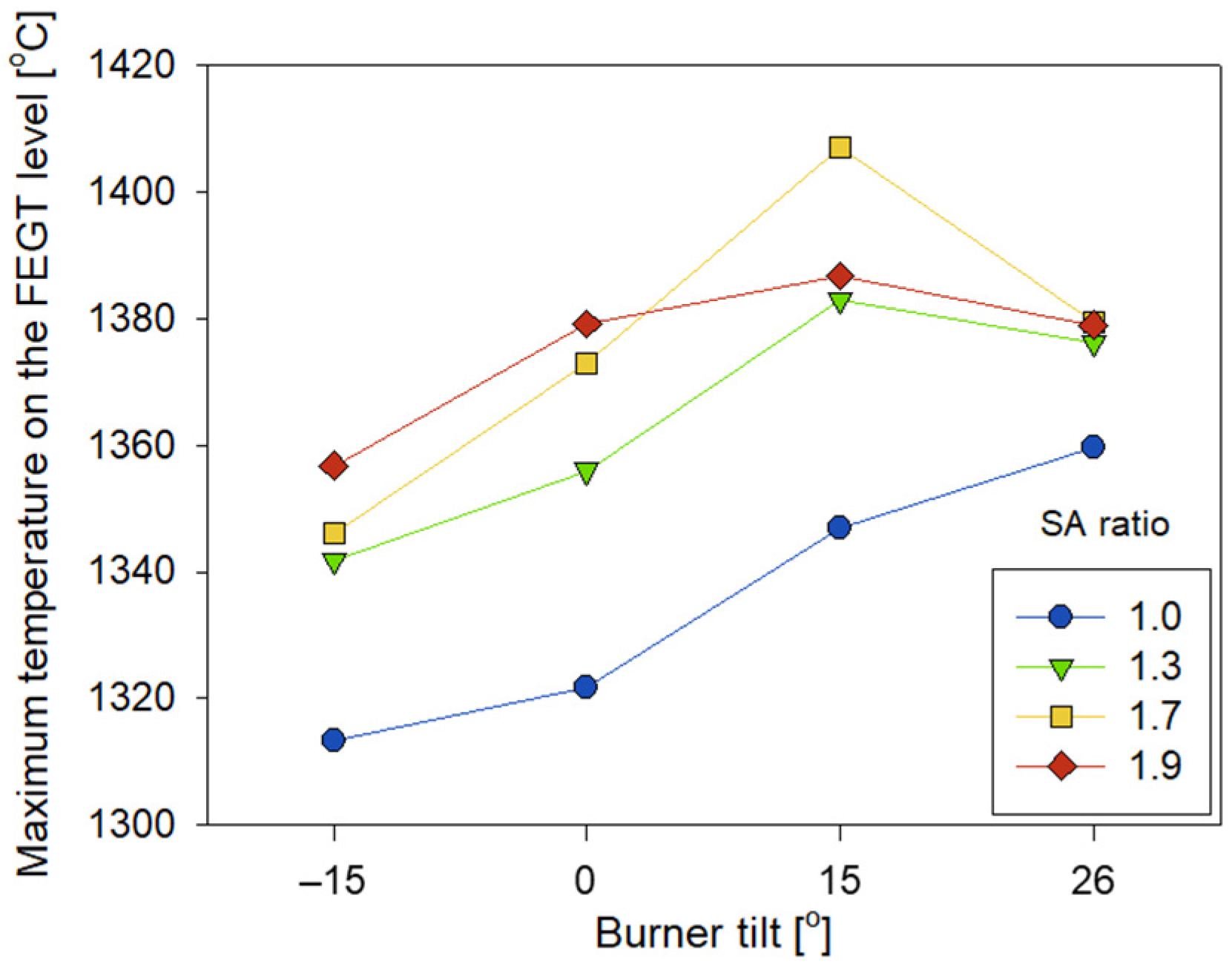

The aforementioned non-uniformity in the flow and temperature can lead to operational issues such as excessive surface temperature, slagging, and erosion. The peak temperature at the FEGT level (T_peak) is of particular interest with regard to the stickiness of ash leading to slagging on the heat exchanger surfaces. T_peak is shown in Figure 8 for all cases of the parametric study. During normal operations (C1 cases), T_peak increased by tilting the burners upward, which is consistent with previous studies [8,9,12,38]. With the uneven SA supply, T_peak increased by 16.4–60.0 °C as compared with the respective normal operation cases with identical burner tilt. In particular, a burner tilt of +15° was found to be the worst in terms of the slagging propensity. At a burner tilt of +26°, however, T_peak decreased for the cases of uneven SA supply. This was also identified in the subset of Figure 5 for case C1.7+26°. T_peak appearing on the front wall, in this case, was in a fuel-rich pocket with a lower gas velocity than that in case C1.7+15°. The gas stream through the peak temperature zone experienced a larger temperature drop owing to heat loss to the wall because the gas flowed closer to the wall by the highest burner tilt. The lower T_peak in case C1.7+26° was consistent with the temperature deviation results shown in Figure 7b.

Despite the non-uniformity in the flow and temperature caused by the uneven SA supply, the steam temperature sent to the turbine did not have a major disruption during the actual operation. This was because the four sections of each heat exchanger were connected to the next heat changer, alternating left/right and inner/outer, as illustrated in Figure 2. Such an arrangement was crucial in alleviating the differences in the heat transfer caused by the large deviations in the local flow and temperature distribution.

3.3. Parametric Study: Influence on Wall Heat Flux

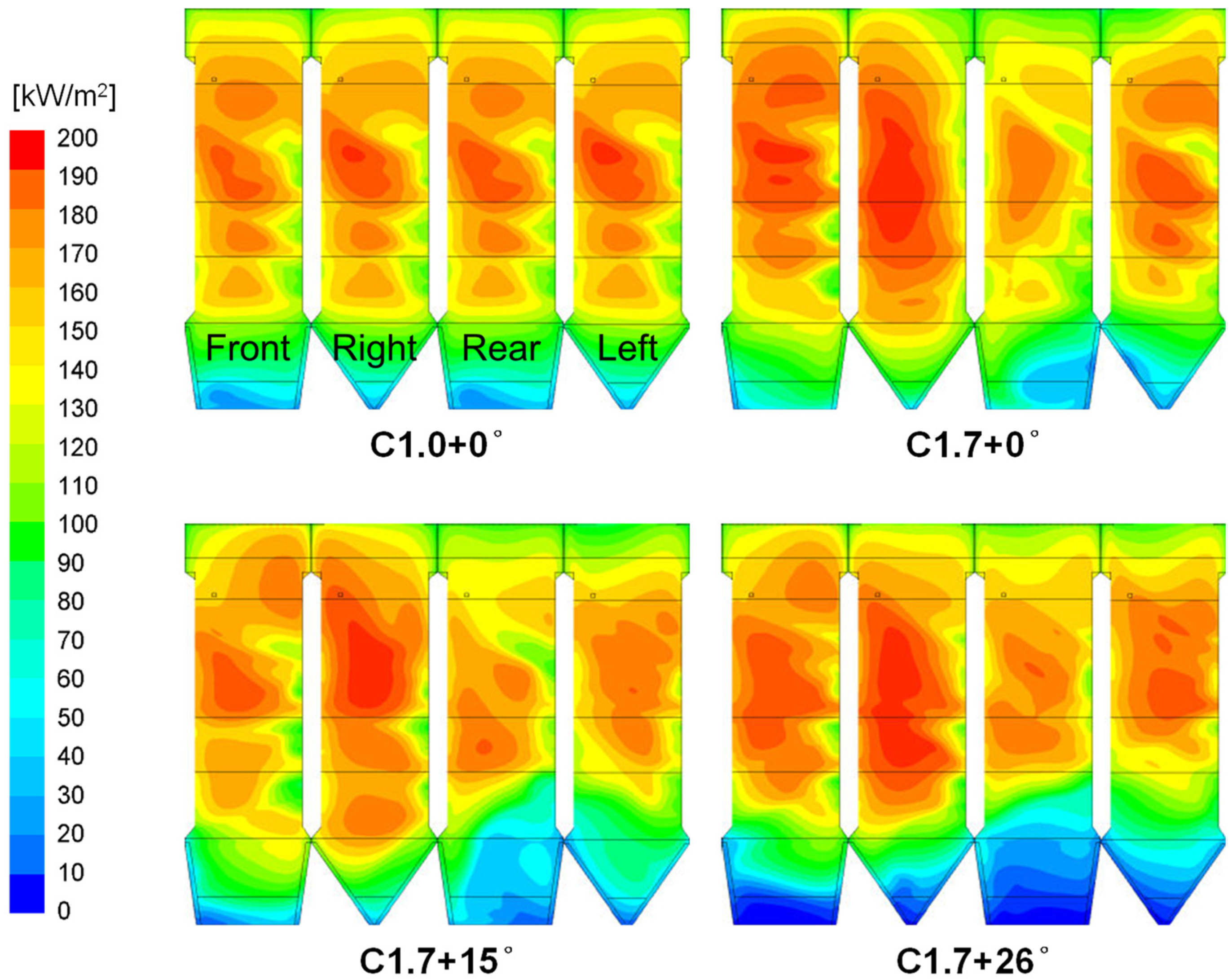

Figure 9 compares the contours of the heat flux on the four walls of the burner zone for the selected cases. Case C1.0+0° had a very similar pattern of heat flux between the four walls, with a peak value of 213.4 kW/m². In contrast, the cases with an SA ratio of 1.7 exhibited a larger heat flux on the front and right walls influenced by the clockwise rotation of the stronger jets from corners #1 and #2. In particular, the right wall exhibited the largest heat absorption, with a peak heat flux of over 230 kW/m². As the burners turned upward, the heat flux decreased in the lower part of the burner zone and at the bottom cone. This reduced the total heat absorption in the evaporator.

For quantitative analysis of the heat transfer characteristics, two representative parameters were evaluated: the heat absorption ratio and total wall heat absorption, as shown in Figure 10. The heat absorption ratio was defined as the sum of the heat absorption on the front and right walls divided by that on the rear and left walls. As the SA ratio increased, the heat absorption became more uneven between the walls with a peak heat absorption ratio of 1.19 for case C1.7+15°; however, the magnitude was much smaller than the SA ratio. The differences in heat absorption between the walls were alleviated by negative burner angles.

Figure 10 also shows the total wall heat absorption. The upward burner tilt is known to decrease the wall heat absorption [7,9,38], and the ability to control the wall heat absorption using the burner tilt is an advantage of the TF boiler. Under normal operation with an SA ratio of 1, the wall heat absorption decreased from 512 MW_th to 481 MW_th as the burner turned upward from −15° to 26°. The same trend was observed for uneven SA ratios. Meanwhile, a larger SA ratio increased the total wall heat absorption because the stronger jets pushed the hot gas flow closer to the walls. On average, the wall heat absorption with an SA ratio of 1.3, 1.7, and 1.9 was 1.4 MW_th, 8.2 MW_th, and 11.8 MW_th larger, respectively, than that of normal operation. These values corresponded to 0.11%, 0.66%, and 0.94% of the thermal input, respectively. When the opposite influence of the SA ratio and burner tilt on the wall heat absorption is considered, the burner tilt was required to be higher during operations with an uneven SA supply to maintain the heat distribution between the evaporator and convective sections, similar to the normal operation. As regards the magnitude of non-uniformity and peak temperature on the FEGT level discussed in Section 3.3, a high burner tilt of +26° was preferred, whereas +15° was the least favorable.

3.4. Parametric Study: Influence on Chemical Reactions and NOx Emission

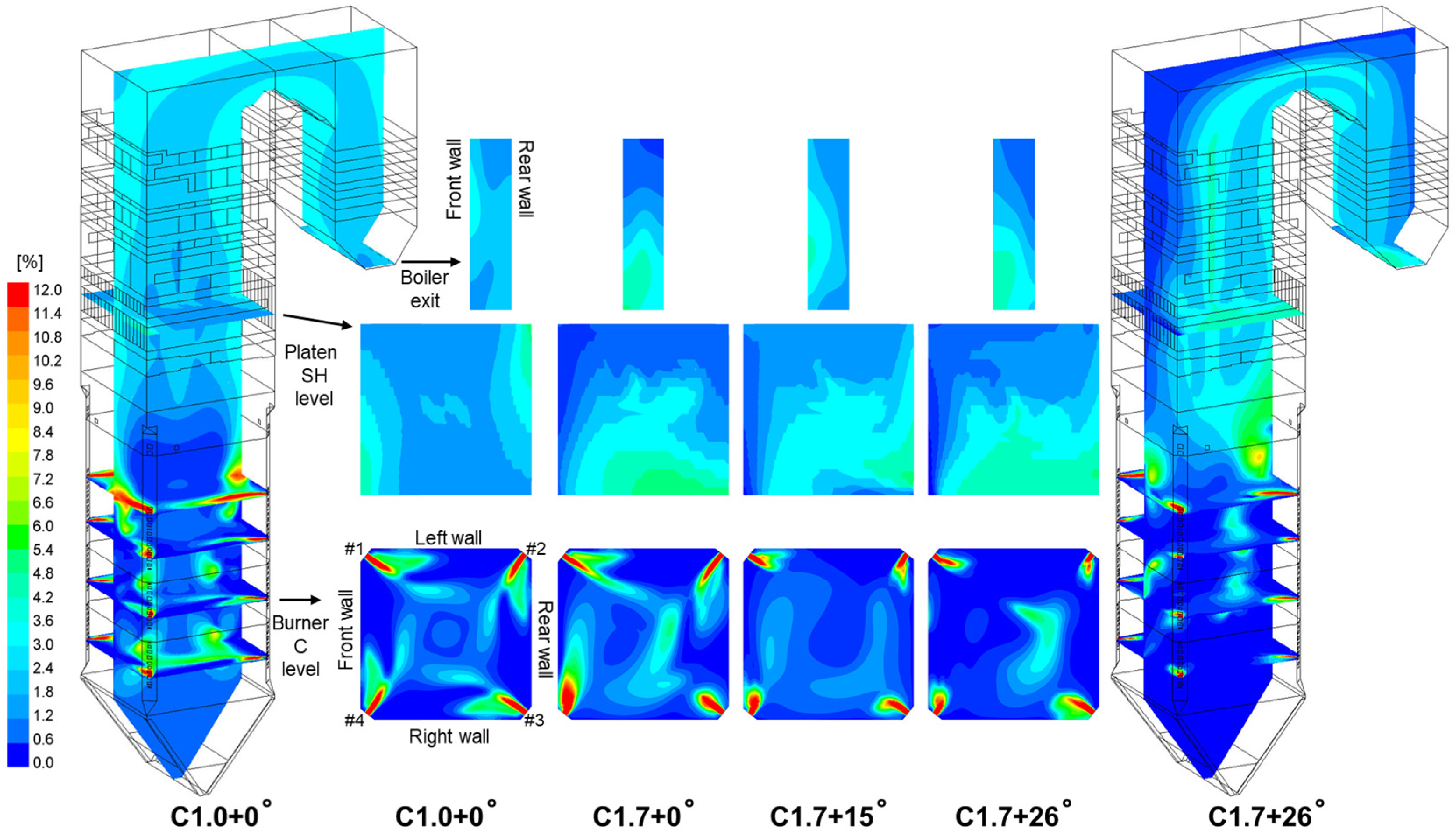

Figure 11 compares the predicted O₂ contours for the selected cases. Case C1.0+0° had an axisymmetric distribution with higher O₂ concentrations appearing along the trajectories of the air jets on the burner levels. Because the burner zone (excluding CCOFA) was fuel-rich with a stoichiometric ratio of 0.97, O₂ outside the air jets was almost depleted. The CCOFA at the top of the burner zone supplied the excess air that proceeded along the walls through the rotating flow and gradually mixed with the combustion gas. When the SA supply was uneven in the C1.7 cases, the non-uniformity of the O₂ concentration was significant at the platen SH level after the supply of CCOFA, in which O₂ was rich mainly near the right wall. The location of the O₂-rich region was different from that of the high-temperature region on the platen SH level in Figure 5, which shows non-uniformity in the reaction stoichiometry. The O₂ pattern at the boiler exit in the subsets of Figure 11 was reversed front to rear from that of the platen SH level because the flow turned downward in the second pass. The larger SA flow rate on the left windbox resulted in a higher O₂ concentration on the right half at the boiler exit. This is consistent with the trend of the actual operation cases.

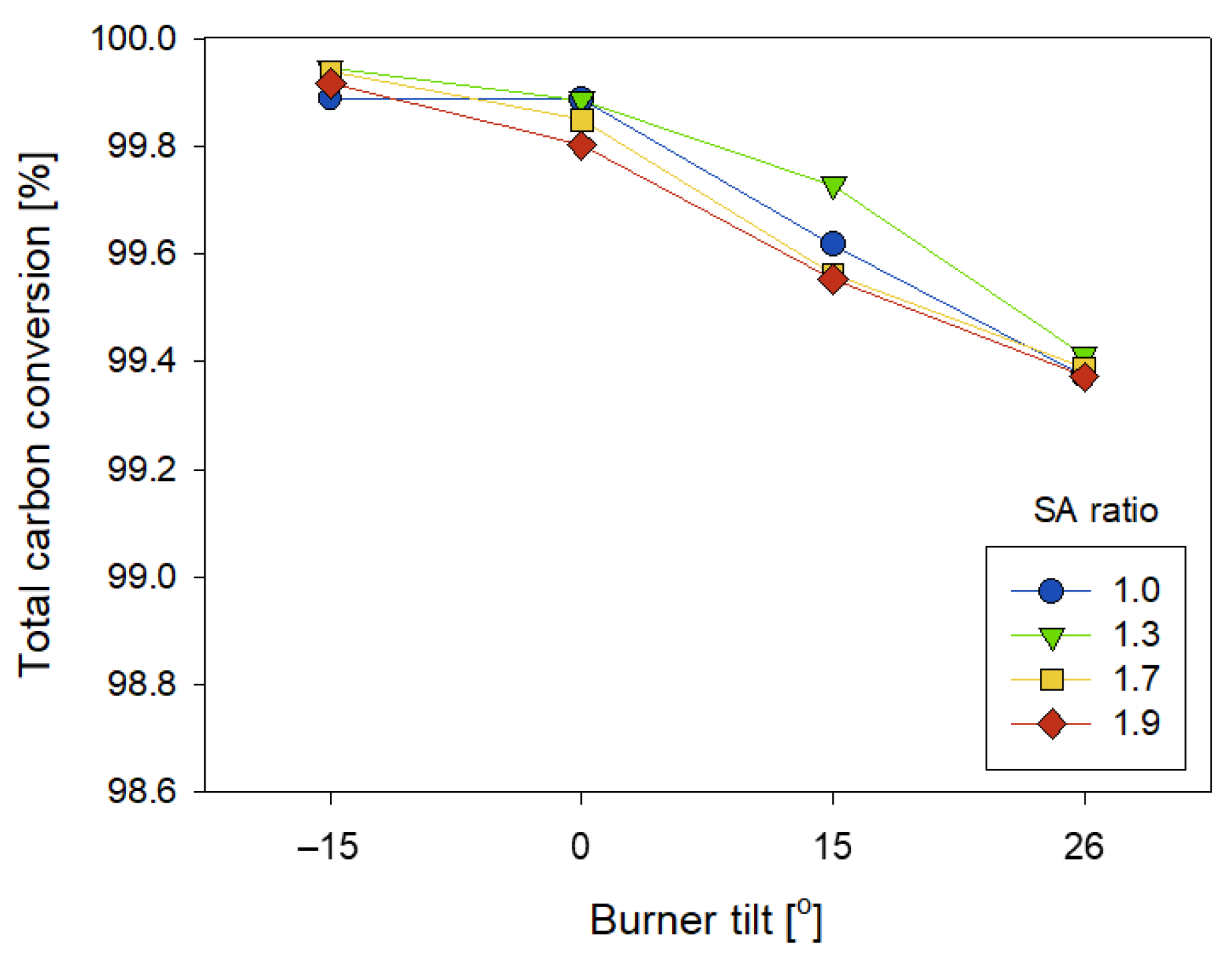

Figure 12 shows the predicted total carbon conversion calculated from the difference between the carbon input from coal and residual carbon concentration at the boiler exit. Despite the non-uniformity in the reaction stoichiometry, the influence of uneven SA supply was small and mixed. In contrast, the influence of burner tilt was significant regardless of the SA ratio. The upward burner tilt decreased the carbon conversion both in the bottom and fly ashes. It pushed the coal and air upward, shortening the retention time before the gas was quenched by the heat exchanger. Meanwhile, the coal particles entrained to a down flow into the bottom hopper experienced a lower O₂ concentration and a weaker momentum to drag the particles back into the burner zone above. Generally, the total carbon conversion was over 99.4% which was satisfactorily high despite small (<0.1%) differences between cases. This was consistent with the actual operation in cases A1–A6 where unburned carbon was not an issue.

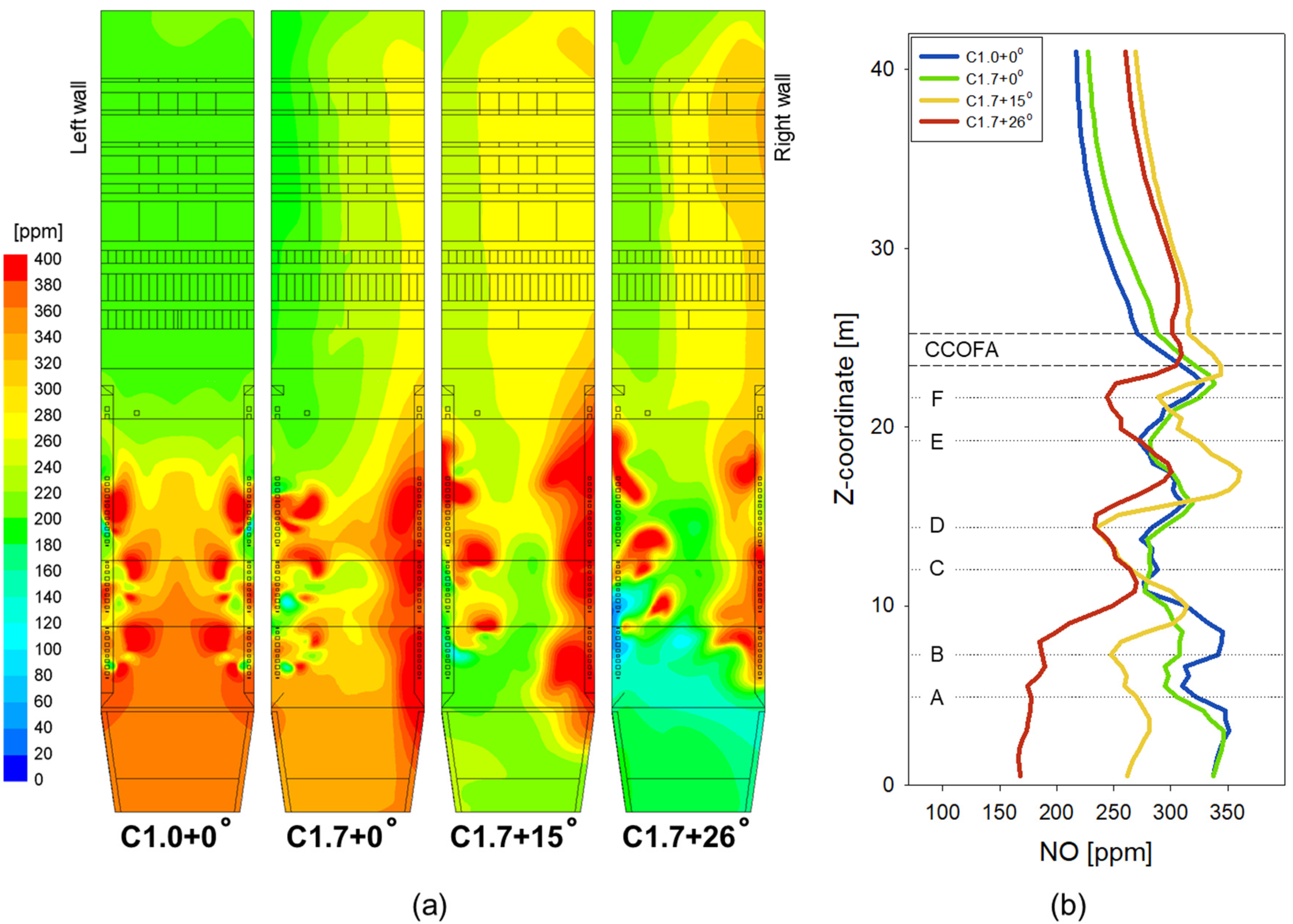

Figure 13 shows the contours of the NOx concentration on the center plane of the furnace and the profiles of mass-weighted average values on horizontal cross-sections for selected cases. In Figure 13a, the regions with NO concentrations higher than 400 ppm were caused by fuel NO formation. Outside these regions, the NO concentration decreased owing to reduction reactions (mainly by char and partially by thermal NOx mechanism) and dilution owing to fresh air supply, such as CCOFA. The contours of the three C1.7 cases showed the impact of an imbalance in the reaction stoichiometry. The NO formation was concentrated close to the right wall, where more air and coal particles were present to release fuel NO, whereas the NO concentration decreased in the central region. Compared to case C1.7+0°, the burner tilt in case C1.7+15° shifted the high-NO regions upward while decreasing the NO concentration in the bottom cone. The NO concentration near the right wall of the upper furnace was the highest at a tilt angle of +26°. Such trends can also be observed in Figure 13b for the average NO concentrations. Once all the coal was supplied in the burner zone, a sharp peak of NO concentration appeared between the burner F level and CCOFA (z = 22.4 m) for cases C1.0+0° and C1.7+0°. From there and above, the NO concentration decreased rapidly owing to reduction reactions and dilution by CCOFA. The peak was delayed by 1.0 m in case C1.7+15° by the burner tilt and the decrease in the NO concentration became mild. In case C1.7+26°, no peak was observed between burner F level and CCOFA, whereas the NO concentration was the lowest. This was because the carbon conversion and corresponding fuel NO release were significantly delayed by the highest burner tilt. The NO concentration even increased above the CCOFA and became close to the level of case C1.7+15°.

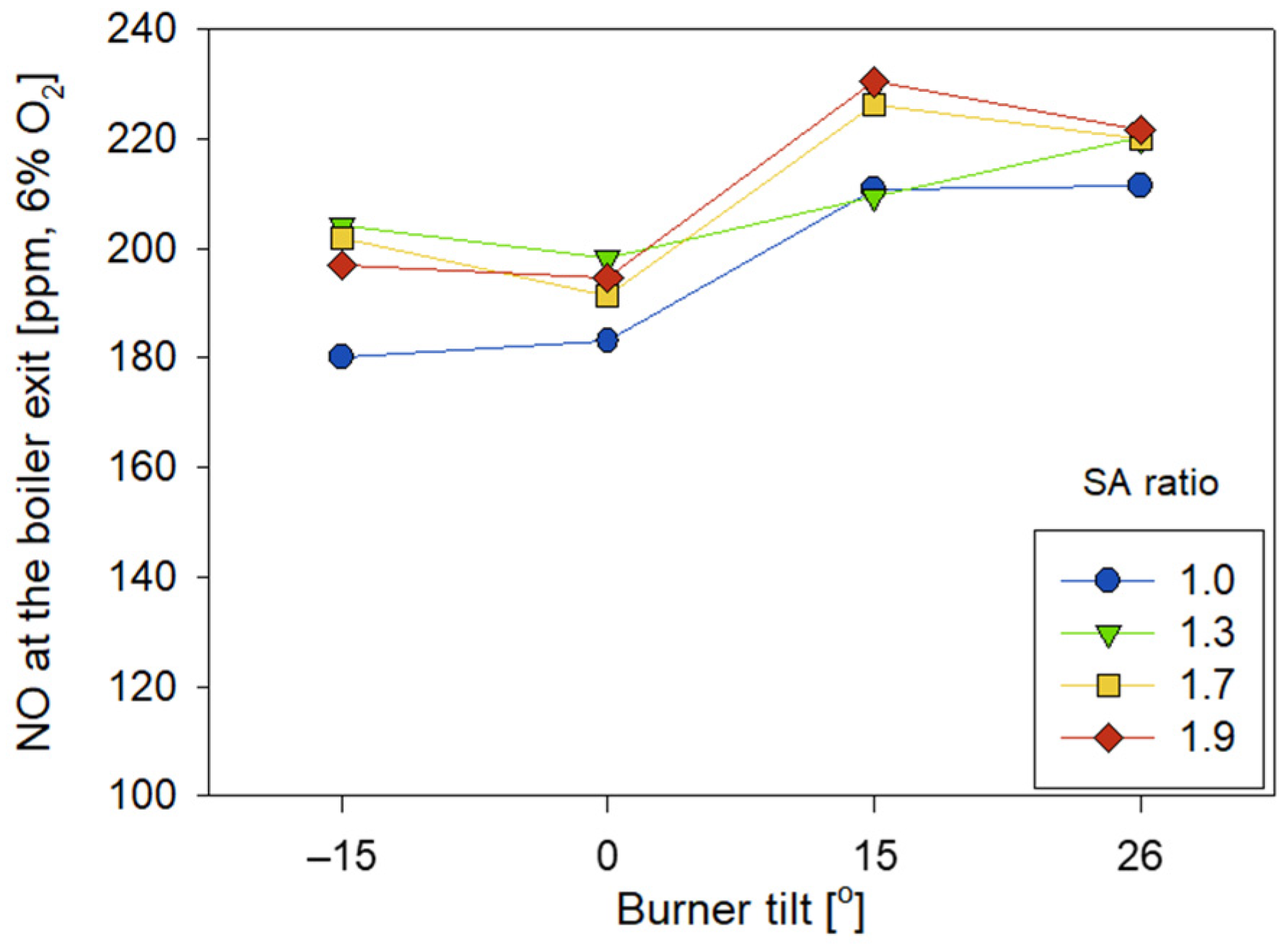

Figure 14 shows the NO emission (corrected to 6% O₂) at the economizer exit for all cases. The uneven SA flow distribution increased the NO emission by 8–21 ppm, which was on average 6.7% larger than the respective normal operation cases. However, the differences between the cases of uneven SA supply were not large. Conversely, the NO emission increased at positive burner angles, as compared with 0° or negative angles. This was consistent with the findings in the literature [7,9,38]. The relatively slight influences of the SA ratio and burner tilt suggest that the very low NOx emissions observed for cases A5 and A6 in Table 4 were mainly because of the low thermal input (approximately 70% load, as shown in Table 1).

4. Conclusions

This study investigated the flow and reaction characteristics of a 500 MWe tangential-firing coal boiler during uneven SA supply between two windboxes and the influence of burner tilt. Using the CFD model validated for six cases of actual operation, a parametric study was performed for 16 cases with varying SA ratios up to 1.9, and burner tilt between −15° and 26°. The uneven SA supply deformed the fireball and caused severe disruptions in the uniformity of local flow pattern, temperature, and reaction stoichiometry, which was unfavorable for various aspects of boiler performance. The main findings are as follows.

• The characteristic axisymmetric flow pattern of the TF boiler formed by the jets from the corners was distorted by the uneven SA supply. The SA ratio of 1.3 induced approximately 20% and 4% deviations from axisymmetry in the flow and temperature, respectively. The deviations increased to approximately 30% and 6%, respectively, for an SA ratio of 1.7.
• With stronger SA jets from the left windbox pushing the fireball closer to the front and right walls, the heat flux on the two walls was concentrated by up to 19% more than that on the other walls. This also increased the heat absorption on the wall (evaporator) by up to 20.9 MW_th (0.94% of the thermal input), lowering the heat absorption in the convective heat exchangers correspondingly.
• Despite the larger heat transfer to the walls, the peak gas temperature on the FEGT level also increased by as much as 60 °C because of the large temperature deviations which may lead to severe ash slagging.
• The disruption in the local reaction stoichiometry increased the NOx emissions by 6.7% on average. The air-rich pockets had increased fuel NO formation, whereas the fuel-rich pockets had delayed char conversion, leading to a late release of NO.
• In alleviating the impact of the uneven SA supply on the uniformity of flow pattern, temperature, and heat transfer, the high burner tilt of +26° was helpful whereas +15° was found to be the least favorable.
• Even with the uneven SA supply, the burner tilt provided a consistent influence on the boiler performance including the heat distribution between heat exchangers, the carbon conversion, and NOx emission. This implies that the burner tilt can be controlled to 0° or lower if the NOx emission needs to be reduced.

Further studies are required on the control strategy during the uneven SA supply including the degree of air staging and yawing which are other main parameters for boiler operation.
