Quadrotor Model for Energy Consumption Analysis

Abstract

In this paper, a quadrotor dynamic model’s energy efficiency was investigated. A method for the design of the dynamic model which assures energy consumption estimation was presented. This model was developed to analyze the energy efficiency of the quadrotor during each maneuver. A medium-class quadrotor (4.689 kg) was used as a test platform. Thrust force correction factors obtained with FLIGHTLAB software were used to predict object behavior in forward flight. Model validation and long-duration flight tests in outdoor windy conditions are also presented. Monte-Carlo simulation was used to study the influence of uncertainties in model parameters on the simulation reliability. The developed model might be used for practical purposes (for example, energy-efficient coverage path planning).

1. Introduction

In the last few decades, the number of unmanned aircraft operations has increased significantly. At the beginning, the Unmanned Aerial Vehicles (UAVs) were used mainly for military purposes. Today, plenty of different types of UAVs are performing missions which are too dull, dirty, dangerous, or just not cost-effective for manned aircrafts, as well as missions in the civil airspace. Rotorcrafts are a significant group of unmanned aerial vehicles used for civil purposes. Their vertical take-off, landing, and hover capabilities give them an advantage over the fixed-wing UAVs, but their energy efficiency is significantly smaller. One of the most popular types of UAV rotorcraft in the civil market is the quadrotor. There are several reasons for this fact. Firstly, the quadrotor is configuration-easy to design and build. Additionally, the control of quadrotors is simpler compared with other rotorcraft configuration control systems, the cross-couplings between the degrees of freedom are not as strong as for a single-rotor helicopter, and the problem is easy to cope with using simple classical control algorithms [1,2,3,4]. Quadrotors have very good handling qualities and are easy to fly. Their main advantages are stable behavior, low vibrations, quiet flight, and simple maintenance. These features make them perfect for use in observation system [5].

Small, unmanned quadrotors are powered by electric motors driving fixed-pitch propellers. This multi-rotor propulsion system provides the lift, thrust, and control of the quadrotor, which results in a significant demand for electric power. Electric power is also consumed by the onboard systems (navigation system, communication system, control system, and others). The only power source aboard the quadrotor is the battery, and the amount of energy stored is limited by its weight. That is why the most significant disadvantage of a quadrotor is limited available energy restricting its flight duration and range [6,7,8]. A typical flight time of such drones on a single battery (charge) is in the order of several minutes.

Quadrotor energy effectiveness might be improved by appropriate design, flying qualities, and mission planning. The structural design aims toward weight reduction and aerodynamic efficiency improvement, as well as propulsion system [3,9] and onboard equipment optimization with respect to the energy consumption. The following actions can be used to improve quadrotor energy effectiveness: designing a structure optimized for weight reduction, increasing aerodynamic efficiency, and optimizing the propulsion system [1,2] and onboard equipment for energy consumption. Another way to increase the flight duration and range is to minimize energy expenditure during the flight by optimizing the mission plan and flight trajectory [10,11]. To achieve the mission goals the drone has to realize a set of maneuvers (e.g., take-off, hover, turn, cruise, approach, and landing). Each maneuver costs a certain amount of energy. The mission scenario and flight profile might be designed in such a manner as to minimize energy consumption [4,12,13,14,15]. To realize this approach, a reliable, mathematical quadrotor simulation model is required [16,17].

The subject of energy consumption by multirotor UAVs has been addressed by several researchers. Zhang et al. [18] discussed the comparison of such models and concluded that there exists a need to validate such models through field tests. A detailed review of existing models was also presented by Beigi et al. [19]. The existing models might be categorized into three main groups.

First, the most common approach is to use models based on physics principles. Lu et al. [2] developed a dynamic model of quadrotors and electric motors. Morbidi et al. [20] presented an energy consumption model and demonstrated how it can be used to optimize a drone’s trajectory. Yage et al. [21,22] proposed an energy consumption model and realized trajectory optimization. Jee and Cho [23] studied the energy consumption of electric motors. The polynomial expression on the consumed energy was derived by Li et al. [24]. This approach allows a detailed understanding of quadrotor dynamics. However, the main disadvantage of these models lies in the fact that they require a set of parameters that are often difficult to obtain. Often, only the energy spent on propulsion is considered [25].

Second, up to this time, a number of black box models have been proposed [26,27,28]. Alyassi et al. [29] presented extensive experiments for three different drones and proposed a model that uses nine coefficients. Abeywickrama et al. [30,31] proposed a model that is a function of on-ground power consumption, communication activities, hovering, vertical and horizontal movements, speed, payload, and wind. Recently, machine learning techniques were also used by Steup et al. to create a generic energy model [32]. These methods do not require detailed knowledge about quadrotor parameters [29]. The main limitation of such methods is that they will not allow deep insight into the drone dynamics.

Third, aeromechanics are also used to predict the energy consumption [33,34,35,36]. Momentum Theory [37,38,39,40] and Blade Element Theory [41] are used to calculate aerodynamic power. These models allow taking into account the forward speed regarding the consumed energy [42]. The disadvantage of these models is the necessity of iteratively calculating the induced velocity that degrades the computational efficiency [43].

Simple models of the loads produced by a quadrotor propulsion system were used in most of the abovementioned works. Only thrust force and torque were modeled as functions of rotor angular rate, and do not provide a full picture of energy consumption. This method is only valid in hover conditions, but during the cruise flight, where the free stream through the rotor is more horizontal and the blade tip vortices are sparse, the energy required for rotor driving is reduced. That is why the influence of the forward velocity on the rotor loads and energy consumption must be considered. Moreover, in the literature, frequently, only the energy consumed by electric motors is considered and the study of energy consumption is limited mainly to indoor tests. This simplification might lead to the overestimation of energy consumption, especially in long-duration flights. To render the simulation more realistic, the battery performance should be taken into account, as omitting battery dynamics might lead to significant errors. It is common that only the simulation results of energy consumption are presented without comparing the proposed models with real data. Eventually, the validation is performed using only data from a few flight tests [44]. Due to these facts, it is difficult to determine the reliability of existing energy consumption models. Even the common dataset various models could provide very significant differences in the amount of predicted energy. The dynamic model of quadrotor, which utilizes a detailed model of energy consumption, is needed in order to plan missions and analyze and synthesize their energy costs.

The aim of the present work was to develop and validate a quadrotor dynamics model for the analysis of energy consumption during long-duration outdoor flight. A six degrees-of-freedom nonlinear dynamic model with a reliable model of energy consumption was derived. The model was developed in the MATLAB/Simulink environment, which facilitates easy design and simulation of additional features such as atmospheric disturbance, control system, and experimental data processing. A detailed model of the rotor, which was designed with use of an advance modeling tool for rotorcraft dynamic simulation FLIGHTLAB, was used to estimate the velocity correction factors of propulsion system loads simulated in the main model. The model was validated using the experimental data that were acquired during laboratory and in-flight tests. The capability of the model to simulate energy consumption was analyzed as well.

The organization of the remaining portion of the paper is as follows. In Section 2, the quadrotor dynamics, energy consumption model, and battery model are described. In Section 3, the results of the flight tests for two example trajectories are presented. Then, flight data are compared with simulation results. Monte-Carlo simulation is used to investigate the model robustness on parameter uncertainties. The manuscript ends with a summary of the main findings and suggestions for possible further research directions.

2. Materials and Methods

2.1. Quadrotor Used as a Test Platform

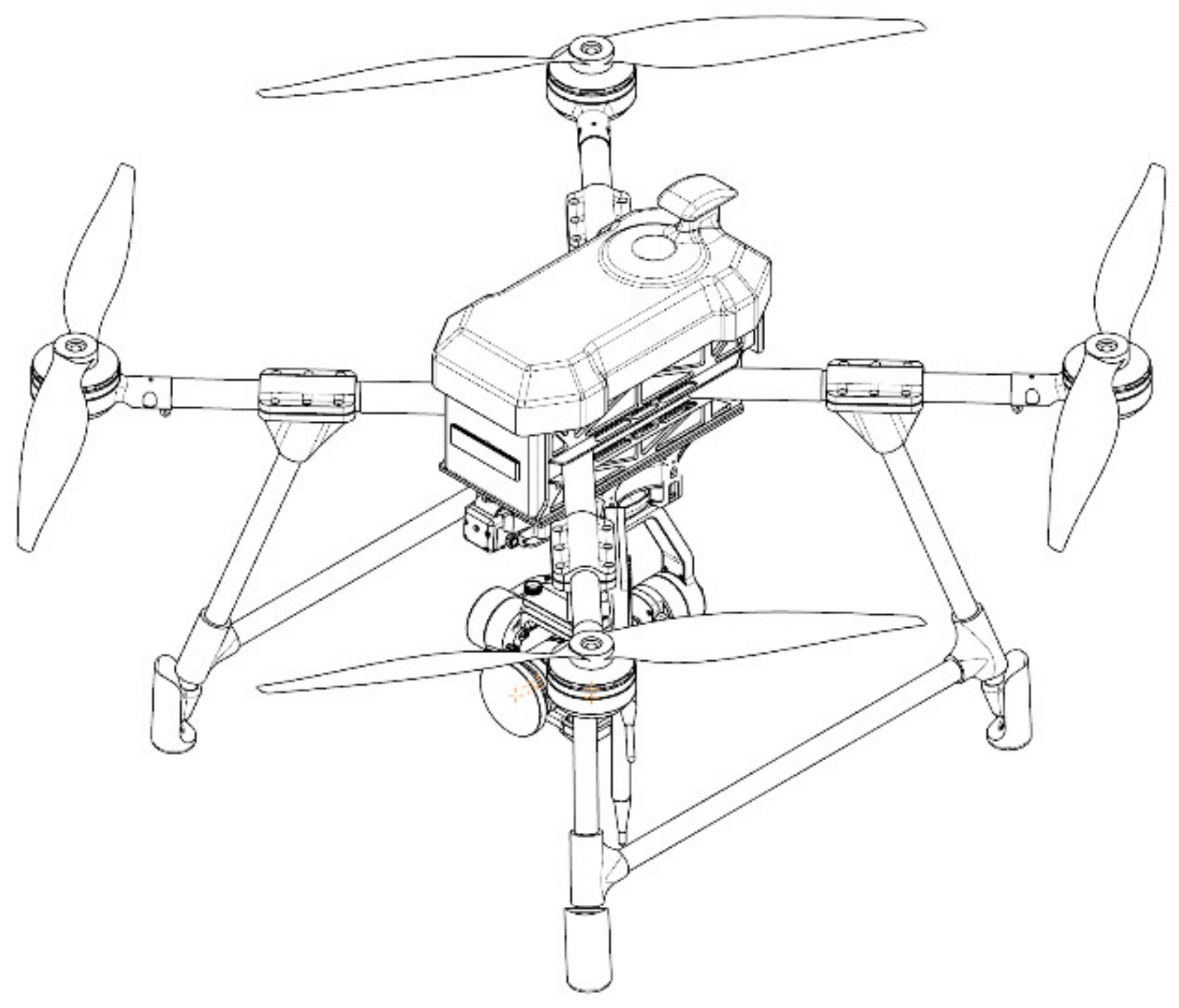

The modeled UAV was a medium class, off-the-shelf M690A quadrotor (Figure 1).

The parameters of the quadrotor model were obtained by measurements and from the producer’s manual. The laboratory tests were initially aimed at estimation of the mass and geometry parameters of the quadrotor. Moments of inertia were measured experimentally using a trifilar pendulum (Figure 2). The above-mentioned mass parameters were confirmed using a quadrotor 3D CAD model.

The resulting parameters are presented in

Table 1. Quadrotor parameters.

Parameter [Unit]	Symbol	Value
Drone take-off mass (kg)	$m$	4.689
Moments of inertia (kg·m2)	$I_{xx}$	0.075716
	$I_{yy}$	0.084124
	$I_{zz}$	0.126437
Products of inertia (kg·m2)	$I_{xy},I_{yz},I_{xz}$	0
First propeller position vector (m)	$r_{R1}={\left[\begin{array}{ccc}{x}_{R1},& y_{R1},& z_{R1}\end{array}\right]}^T$	[0.2475, 0.2475, −0.074]
Second propeller position vector (m)	$r_{R2}={\left[\begin{array}{ccc}{x}_{R2},& y_{R2},& z_{R2}\end{array}\right]}^T$	[−0.2475, 0.2475, −0.074]
Third propeller position vector (m)	$r_{R3}={\left[\begin{array}{ccc}{x}_{R3},& y_{R3},& z_{R3}\end{array}\right]}^T$	[−0.2475, −0.2475, −0.074]
Fourth propeller position vector (m)	$r_{R4}={\left[\begin{array}{ccc}{x}_{R4},& y_{R4},& z_{R4}\end{array}\right]}^T$	[0.2475, −0.2475, −0.074]
Propeller diameter (m)	$D_p$	0.4572
Propeller pitch (m)	–	0.1549
Propeller mass (kg)	–	0.017
Propeller moment of inertia (kg)	$I_{zp}$	0.0002964
Battery mass (kg)	–	2.013
Max. propeller angular rate (RPM)	–	6000
Propeller angular rate at hover (119 m above sea level) (RPM)	–	3203.82
Maximum flight altitude (m)	–	6500
Flight endurance (500 g payload) (min)	–	≥71
Flight endurance (1000 g payload) (min)	–	≥60

.

Four brushless direct current electric motors (BLDC) directly drive carbon fiber propellers. The drone structure is highly integrated and optimized to achieve the maximum flight duration. It should be mentioned that the drone is able to fly continuously for more than one hour (please see Table 1), which makes it suitable for inspecting large areas. The fuselage is composed of aluminum alloys to reduce its mass. The disadvantage of this design approach is that the replacement of individual components (e.g., motors) is quite difficult. The drone is equipped with an Orange Cube Flight Controller [45] containing several redundant measurement devices: ICM20948 (9 axis IMU: 3× accelerometers, 3× gyroscopes, 3× magnetometers), ICM20649 (6 axis IMU), ICM20602 (6 axis IMU), and two MS5611 barometric pressure sensors. The drone instrumentation also includes a Here 3 GPS GNSS module, RFD868x telemetry modem, and Raspberry Pi. The onboard equipment facilitates obtaining a set of data pertaining to the quadrotor state (e.g., drone velocity, position, angular rates, accelerations, Euler angles, battery parameters, etc.). The quadrotor is additionally equipped with a gimbaled digital camera.

2.2. Quadrotor Nonlinear Dynamic Model

The quadrotor is modeled as a rigid body with six degrees of freedom and constant mass. The lift, thrust, and control forces and moments are produced by four rotors driven by the electric motors. The Earth’s rotation effects were omitted due to the short flight range.

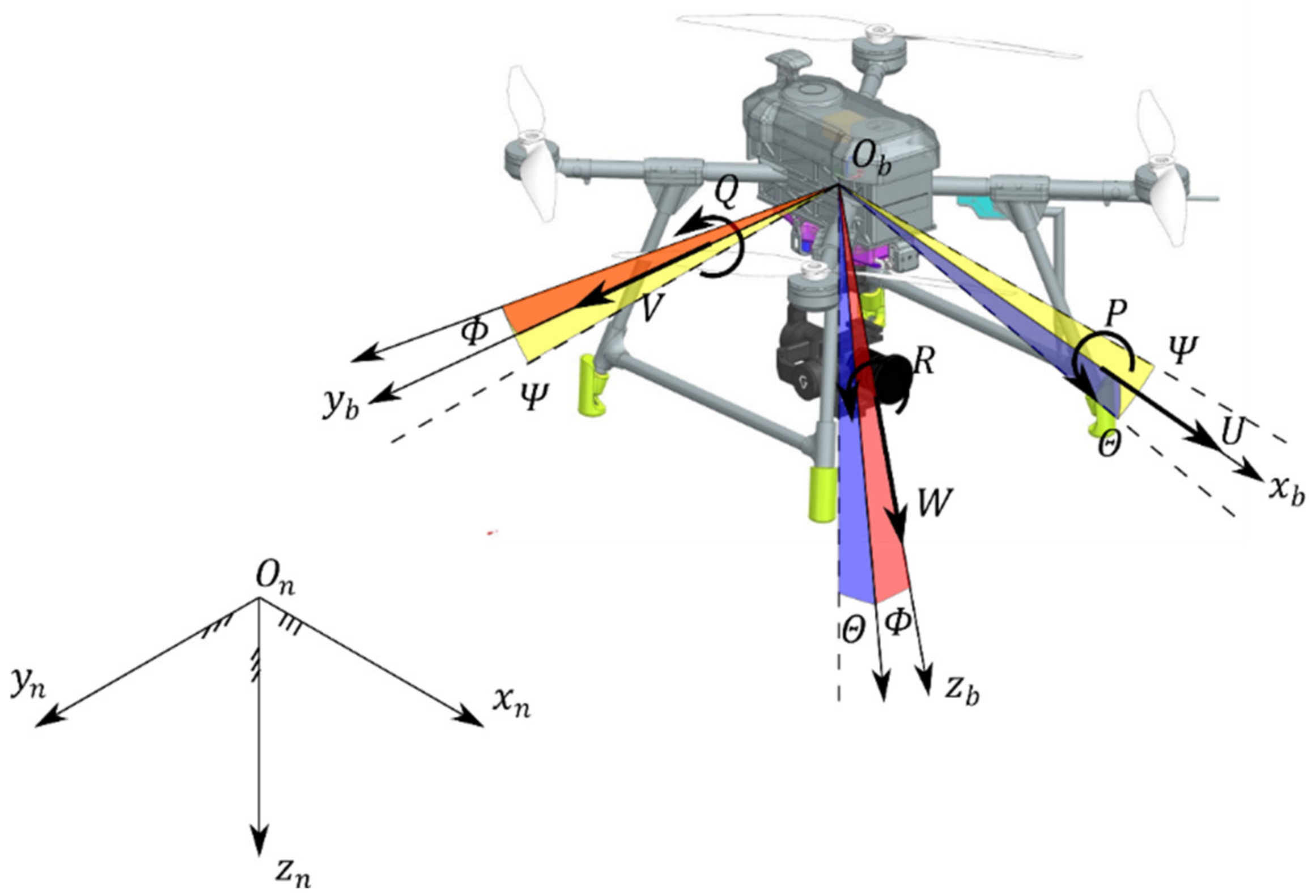

The quadrotor equations of motion are derived in the body coordinate system $O_b{x}_b{y}_b{z}_b$ (Figure 3) fixed to the airplane’s fuselage. The center $O_b$ of the system was placed at the UAV gravity center. The $O_b{x}_b$ axis lays in the plane of quadrotor symmetry and was directed forward. The $O_b{y}_b$ axis was perpendicular to the plane of symmetry and pointed right, while the $O_b{z}_b$ axis pointed “down”.

The translations and attitude angles were calculated in the inertial coordinate system $O_n{x}_n{y}_n{z}_n$; the center of this system $O_n$ was placed at an arbitrary point on the earth surface. The $O_n{z}_n$ axis was along the vector of gravity acceleration, and it pointed down. The $O_n{x}_n{z}_n$ plane was horizontal, tangent to the Earth’s surface, and the $O_n{x}_n$ axis pointed to the north and $O_n{y}_n$ the axis to the east.

The vector $\mathit{y}={\left[\begin{array}{cccccc}{x}_n& y_n& z_n& \mathsf{\Phi }& \mathsf{\Theta }& \mathsf{\Psi }\end{array}\right]}^T$ defines the position and attitude of the quadrotor (Figure 3). It is composed of the vector of the position ${\mathit{r}}_{\mathit{n}}={\left[\begin{array}{ccc}{x}_n& y_n& z_n\end{array}\right]}^T$ in the ground system of coordinates $O_n{x}_n{y}_n{z}_n$ and roll $\mathsf{\Phi }$, pitch $\mathsf{\Theta }$, and yaw $\mathsf{\Psi }$ angles describe its attitude. The quadrotor state vector $\mathit{x}={\left[\begin{array}{cc}\mathit{v}& \mathit{\omega }\end{array}\right]}^T$ is composed of linear velocity $\mathit{v}={\left[\begin{array}{ccc}U& V& W\end{array}\right]}^T$ and angular rate $\mathit{\omega }={\left[\begin{array}{ccc}P& Q& R\end{array}\right]}^T$ components.

The vectors of quadrotor states, position, and attitude are related by the following kinematic equation:

$$\dot{\mathit{y}}=\mathit{T}\mathit{x}.$$

(1)

The matrix $\mathit{T}$ is composed of two matrices: ${\mathit{T}}_{\mathit{V}}$ relating to velocities and ${\mathit{T}}_{\mathit{\Omega }}$ relating to angular rates:

$$\mathit{T}=\left[\begin{array}{cc}{\mathit{T}}_{\mathit{V}}& \mathbf{0}\\ \mathbf{0}& {\mathit{T}}_{\mathit{\Omega }}\end{array}\right],$$

(2)

where [46,47]:

$${\mathit{T}}_{\mathit{V}}=\left[\begin{array}{ccc}\cos \mathsf{\Theta }\cos \mathsf{\Psi }& \sin \mathsf{\Phi }\sin \mathsf{\Theta }\cos \mathsf{\Psi }-\cos \mathsf{\Phi }\sin \mathsf{\Psi }& \cos \mathsf{\Phi }\sin \mathsf{\Theta }\cos \mathsf{\Psi }+\sin \mathsf{\Phi }\sin \mathsf{\Psi }\\ \cos \mathsf{\Theta }\sin \mathsf{\Psi }& \sin \mathsf{\Phi }\sin \mathsf{\Theta }\sin \mathsf{\Psi }+\cos \mathsf{\Phi }\cos \mathsf{\Psi }& \cos \mathsf{\Phi }\sin \mathsf{\Theta }\sin \mathsf{\Psi }-\sin \mathsf{\Phi }\cos \mathsf{\Psi }\\ -\sin \mathsf{\Theta }& \sin \mathsf{\Phi }\cos \mathsf{\Theta }& \cos \mathsf{\Phi }\cos \mathsf{\Theta }\end{array}\right],$$

(3)

and [46,47]:

$${\mathit{T}}_{\mathit{\Omega }}=\left[\begin{array}{ccc}1& \sin \mathsf{\Phi }\tan \mathsf{\Theta }& \cos \mathsf{\Phi }\tan \mathsf{\Theta }\\ 0& \cos \mathsf{\Phi }& -\sin \mathsf{\Phi }\\ 0& \sin \mathsf{\Phi }\sec \mathsf{\Theta }& \cos \mathsf{\Phi }\sec \mathsf{\Theta }\end{array}\right].$$

(4)

The quadrotor equations of motion were obtained by summing up the forces and moments from inertia, gravity ${\mathit{f}}_G$, aerodynamic ${\mathit{f}}_A$, and rotor ${\mathit{f}}_R$ loads [47]:

$$\mathit{A}\dot{\mathit{x}}+\mathit{B}\left(\mathit{x}\right)\mathit{x}={\mathit{f}}_{\mathit{G}}\left(\mathit{y}\right)+{\mathit{f}}_{\mathit{A}}\left(\mathit{x},\mathit{y}\right)+{\mathit{f}}_{\mathit{R}}\left(\mathit{x},\mathit{y},{\mathit{\Omega }}_{\mathit{R}}\right),$$

(5)

where ${\mathit{\Omega }}_{\mathit{R}}$ is the vector of the angular velocity of the rotors.

Matrix $\mathit{A}$ describes the inertia properties of the quadrotor, and matrix $\mathit{B}\left(\mathit{x}\right)=\mathit{\Omega }\left(\mathit{x}\right)\mathit{A}$ results from the inertia loads not depending on accelerations [47]:

$$\begin{array}{c}\mathit{A}=\left[\begin{array}{cccccc}m& 0& 0& 0& 0& 0\\ 0& m& 0& 0& 0& 0\\ 0& 0& m& 0& 0& 0\\ 0& 0& 0& I_x& -I_{xy}& -I_{xz}\\ 0& 0& 0& -I_{xy}& I_y& -I_{yz}\\ 0& 0& 0& -I_{xz}& -I_{yz}& I_z\end{array}\right],\\ \mathit{\Omega }\left(\mathit{x}\right)=\left[\begin{array}{cccccc}0& -R& Q& 0& 0& 0\\ R& 0& -P& 0& 0& 0\\ -Q& P& 0& 0& 0& 0\\ 0& -W& V& 0& -R& Q\\ W& 0& -U& R& 0& -P\\ -V& U& 0& -Q& P& 0\end{array}\right],\end{array}$$

(6)

where $m$ is the quadrotor mass, $I_x, I_y, I_z$ are the moments of inertia, and $I_{xy}, I_{yz}, I_{xz}$ are the products of inertia.

The gravity loads ${\mathit{f}}_{\mathit{G}}$ vector is composed of a gravity force vector which results from an assumption that the origin of the body frame is located in the quadrotor center of gravity:

$${\mathit{f}}_{\mathit{G}}\left(\mathit{y}\right)={\left[\begin{array}{cc}{\mathit{F}}_{\mathit{G}}& \begin{array}{ccc}0& 0& 0\end{array}\end{array}\right]}^T,$$

(7)

where:

$${\mathit{F}}_{\mathit{G}}=mg{\left[\begin{array}{ccc}-\sin \mathsf{\Theta }& \sin \mathsf{\Phi }\cos \mathsf{\Theta }& \cos \mathsf{\Phi }\cos \mathsf{\Theta }\end{array}\right]}^T.$$

(8)

and $g$ is gravity acceleration.

The vector of aerodynamic loads ${\mathit{f}}_{\mathit{A}}$ consists of the fuselage’s aerodynamic force and moment vectors:

$${\mathit{f}}_{\mathit{A}}\left(\mathit{x},\mathit{y}\right)={\left[\begin{array}{cc}{\mathit{F}}_{\mathit{A}}& {\mathit{M}}_{\mathit{A}}\end{array}\right]}^T,$$

(9)

where

$${\mathit{F}}_{\mathit{A}}=\overline{q}S{\left[\begin{array}{ccc}{C}_X\cos \alpha \cos \beta & C_X\sin \beta & C_X\sin \alpha \cos \beta \end{array}\right]}^T,$$

(10)

and

$${\mathit{M}}_{\mathit{A}}=\overline{q}Sd{\left[\begin{array}{ccc}{C}_L& C_M& C_N\end{array}\right]}^T,$$

(11)

where $\bar{q}$ is the dynamic pressure of the free stream, $S$ and $d$ are the reference area and length respectively, $C_X$ is the fuselage drag force coefficient, and $C_L,C_M,C_N$ are aerodynamic rolling, pitching, and yawing moment coefficients respectively.

The drone airspeed $V_{tot}$ is:

$$V_{tot}=\sqrt{\left(U-U_W\right){ }^2+{\left(V-V_W\right)}^2+{\left(W-W_W\right)}^2}.$$

(12)

where $U_W,V_W,W_W$ are wind velocity components in $O_b{x}_b{y}_b{z}_b$ frame. The angle of attack $\alpha$ is defined as [48]:

$$\alpha =\mathrm{atan}\frac{W-W_W}{U-U_W},$$

(13)

In the numerical simulation, the function $\mathrm{atan}2\left(W-W_W, U-U_W\right)$ was used to ensure the values of $\alpha$ from −180° up to 180°. The angle of sideslip $\beta$ is [48]:

$$\beta =\mathrm{asin}\frac{V-V_W}{V_{tot}}.$$

(14)

The four independent rotors produce the load vector ${\mathit{f}}_{\mathit{R}}$ that consists of rotor force and moment vectors:

$${\mathit{f}}_{\mathit{R}}\left(\mathit{x},\mathit{y},{\mathit{\Omega }}_{\mathit{R}}\right)={\left[\begin{array}{cc}{\mathit{F}}_{\mathit{R}}& {\mathit{M}}_{\mathit{R}}\end{array}\right]}^T,$$

(15)

The rotors were arranged in the X (Figure 4) configuration where rotors 2 and 4 rotate clockwise and rotors 1 and 3 counterclockwise.

The total force and moment produced by the rotors are a sum of the forces and moments produced by those of the individual rotors:

$${\mathit{F}}_{\mathit{R}}={\displaystyle \sum _{i=1}^4}{\mathit{F}}_{\mathit{R}\mathit{i}}={\displaystyle \sum _{i=1}^4}{\left[\begin{array}{ccc}\Delta X_{Ri}& 0& -T_i+\Delta T_i\end{array}\right]}^T,$$

(16)

and

$${\mathit{M}}_{\mathit{R}}={\displaystyle \sum _{i=1}^4}{\mathit{M}}_{\mathit{R}\mathit{i}}={\displaystyle \sum _{i=1}^4}{\mathit{r}}_{\mathit{R}\mathit{i}}\times {\mathit{F}}_{\mathit{R}\mathit{i}}+{\left(-1\right)}^i{\left[\begin{array}{ccc}0& 0& -M_i+\Delta M_i\end{array}\right]}^T,$$

(17)

where ${\mathit{r}}_{\mathit{R}\mathit{i}}$ is a position vector of the rotor in the $O_b{x}_b{y}_b{z}_b$ frame, $T_i$ and $M_i$ are the thrust and torque produced by the $i$-th rotor ($i\in \left\{1,2,3,4\right\}$), $\Delta T_i$ and $\Delta M_i$ are the velocity correction function of the thrust and torque, and $\Delta X_{Ri}$ is the drag force produced by the $i$-th rotor during forward flight. The horizontal force and banking and pitching moments produced by the rotors were neglected due to their low values and the symmetry of the rotor pairs.

The rotors’ thrust and torque are described by the following equations [2,49,50]:

$$T_i=\rho S_p{R}_p{}^2{k}_f{\Omega }_i{}^2,$$

(18)

and [2,49]:

$$M_i=\rho S_p{R}_p{}^3{k}_m{\Omega }_i{}^2,$$

(19)

where $\rho$ is the air density, $R_p$ is the radius of the rotor, $S_p=\pi R_p^2$ is the rotor’s disc area, $k_f$ and $k_m$ are the rotor’s thrust and torque coefficients respectively, and ${\Omega }_i$ is the rotor’s angular rate.

The rotor-induced velocity and interaction between rotors has a significant impact on the produced aerodynamic loads, which affect the energy consumption. That is why the rotor thrust and torque correction factors and drag force were obtained using the FLIGHTLAB software for the rotor model, which included the aerodynamic effects from the quadrotor’s configuration. FLIGHTLAB is a world-class software used by leading rotorcraft manufacturers and R&D institutions to model, analyze, and simulate rotors and propellers. In the modeling of the quadrotor propeller, the T-Motor 18” ×6 twin-blade propeller geometric data were used. Due to the lack of manufacturer information on the blade twist distribution and airfoils, the data from a similar propeller were used. The aerodynamic characteristics were taken for the DAE51 airfoil and modeled as linear quasi-steady. The induced velocity was modeled with the Peters-He 3-state model [51]. During the validation, the blades’ root pitch angles were modified to match the modeled and manufacturer characteristics of thrust and torque for the hover. The resulting geometric parameters of the propeller blades are shown in

Table 2. Rotor chord, chord center shift, and blade twist distribution along the rotor span.

$\mathit{r}$ (mm)	$\mathit{c}$ (mm)	${\mathbf{\Delta }}_{\mathit{c}}$ (mm)	$\mathit{\gamma }$ (°)
25	19.75	−0.12	1.16
37.5	25.13	0.64	23.50
50	32.8	3.23	23.09
62.5	40.33	5.96	20.83
75	44.15	7.37	17.00
87.5	43.5	7.04	14.84
100	41.69	6.21	13.49
125	37.26	4.46	12.17
150	32.87	2.8	11.30
175	28.62	1.37	9.92
200	23.92	0.1	8.69
210	21.99	−0.19	8.42
220	16.72	0.99	7.15
225	11.19	3.46	7.83

. Results of the simulation compared with the manufacturer data are presented in Figure 5. The developed model was used to analyze the loads in flight states other than hover.

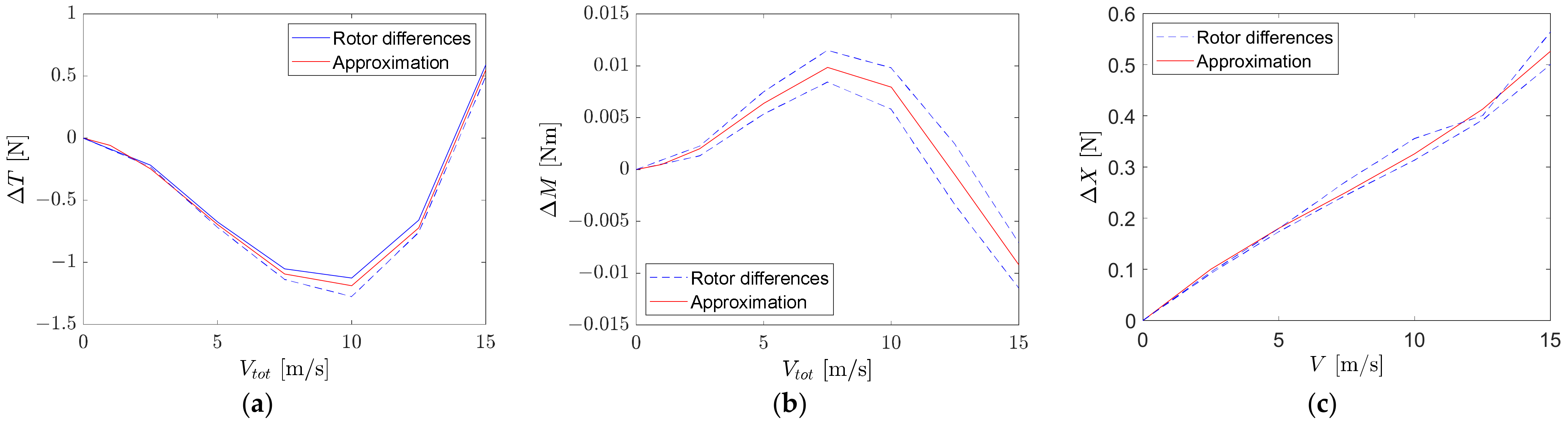

The analysis showed some differences between the characteristics of the front and rear rotors but the means were taken into account in this study. The approximated models of the corrections factors can be formed as polynomial functions (Figure 6):

$$\Delta T=2.698\cdot {10}^{-3}{V}_{tot}^3-3.636\cdot {10}^{-2}{V}_{tot}^2-2.499\cdot {10}^{-2}{V}_{tot},$$

(20)

and

$$\Delta M=3.702\cdot {10}^{-7}{V}_{tot}^5-1.043\cdot {10}^{-5}{V}_{tot}^4+6.307\cdot {10}^{-5}{V}_{tot}^3+8.792\cdot {10}^{-5}{V}_{tot}^2+3.363\cdot {10}^{-4}{V}_{tot},$$

(21)

and

$$\Delta X=1.207\cdot {10}^{-4}{V}_{tot}^3-2.507\cdot {10}^{-3}{V}_{tot}^2+4.553\cdot {10}^{-2}{V}_{tot},$$

(22)

where $V_{tot}$ is the drone airspeed given by (12).

2.3. Wind Model

The wind field model that was used in the presented study was composed of two submodels: uniform inflow and Dryden wind turbulence model [52]. The presence of wind gusts was neglected. Total wind velocities $U_{Wn},V_{Wn},W_{Wn}$ in the $O_n{x}_n{y}_n{z}_n$ coordinate system are:

$$\left[\begin{array}{c}{U}_{Wn}\\ V_{Wn}\\ W_{Wn}\end{array}\right]=\left[\begin{array}{c}{U}_{Wn}^u\\ V_{Wn}^u\\ W_{Wn}^u\end{array}\right]+\left[\begin{array}{c}{U}_{Wn}^t\\ V_{Wn}^t\\ W_{Wn}^t\end{array}\right],$$

(23)

where $U_{Wn}^u,V_{Wn}^u,W_{Wn}^u$ are the uniform wind velocities and $U_{Wn}^t,V_{Wn}^t,W_{Wn}^t$ are turbulence velocities.

The uniform wind speed expressed in the $O_n{x}_n{y}_n{z}_n$ coordinate frame is $V_{Wtot}$. This means wind speed describes the low frequency variations and is averaged over a specific time interval (for simplicity it was assumed that $V_{Wtot}$ is constant). The direction of the oncoming wind was defined by the angle ${\mathsf{\Psi }}_W$ (clockwise when looking from above, for example 0°, wind from the north, 90°, from the east). The wind velocities of the uniform wind field in the $O_n{x}_n{y}_n{z}_n$ frame are:

$$\left[\begin{array}{c}{U}_{Wn}^u\\ V_{Wn}^u\\ W_{Wn}^u\end{array}\right]=\left[\begin{array}{c}-V_{Wtot}\cos {\mathsf{\Psi }}_{\mathrm{W}}\\ -V_{Wtot}\sin {\mathsf{\Psi }}_{\mathrm{W}}\\ 0\end{array}\right],$$

(24)

Turbulence is a stochastic process that is difficult to model. The continuous representation of Dryden velocity spectra with positive vertical and lateral angular rates spectra (q+ r+) were used (details could be found in [53], though herein only a brief description is presented for brevity). This model is based on the pseudorandom white noise that is passed through band-limited filters. This approach is standard in modeling wind in the case of large aircrafts but Watkins and Vino [54] showed that such kind of model could be applied to small UAVs. The transfer functions that were used to calculate turbulence velocities $U_{Wn}^t,V_{Wn}^t,W_{Wn}^t$ are as follows [53]:

$$H_u\left(s\right)={\sigma }_u\sqrt{\frac{2L_u}{\pi V_{tot}}}\frac{1}{1+\frac{L_u}{V_{tot}}s}$$

(25)

$$H_v\left(s\right)={\sigma }_u\sqrt{\frac{L_v}{\pi V_{tot}}}\frac{1+\frac{\sqrt{3}{L}_v}{V}s}{{\left(1+\frac{L_u}{V_{tot}}s\right)}^2}$$

(26)

$$H_w\left(s\right)={\sigma }_u\sqrt{\frac{2L_w}{\pi V_{tot}}}\frac{1+\frac{\sqrt{3}{L}_w}{V}s}{{\left(1+\frac{L_u}{V_{tot}}s\right)}^2}$$

(27)

where $L_u,L_v,L_w$ are turbulence scale lengths and ${\sigma }_u,{\sigma }_v,{\sigma }_w$ are the turbulence intensities. For altitudes under 1000 feet, the scale lengths of the turbulence are calculated as follows:

$$L_w=h$$

(28)

$$L_u=L_v=\frac{h}{{\left(0.177+0.000823h\right)}^{1.2}}$$

(29)

where $h$ is flight altitude (must be expressed in feets). The turbulence intensities (for low altitude only) are as follows:

$${\sigma }_w=0.1W_{20}$$

(30)

$$\frac{{\sigma }_u}{{\sigma }_w}=\frac{{\sigma }_v}{{\sigma }_w}=\frac{1}{{\left(0.177+0.000823h\right)}^{0.4}}$$

(31)

where $W_{20}$ is wind speed at altitude 6 m (expressed in knots; this parameter was set according to results from the flight trials, please see section “Results”). The probability of exceeding the high-altitude intensity was 0.01. The random noise seeds used to generate three turbulence velocities were 23,341, 23,342, and 23,343, respectively.

Next, the total wind velocities $U_{Wn},V_{Wn},W_{Wn}$ given by (23) were transformed from $O_n{x}_n{y}_n{z}_n$ to the body-fixed coordinate system $O_b{x}_b{y}_b{z}_b$:

$$\left[\begin{array}{c}{U}_W\\ V_W\\ {\mathrm{W}}_{\mathrm{W}}\end{array}\right]=\left[\begin{array}{ccc}\cos \mathsf{\Theta } \cos \mathsf{\Psi }& \cos \mathsf{\Theta }\sin \mathsf{\Psi }& -\sin \mathsf{\Theta }\\ \sin \mathsf{\Phi }\sin \mathsf{\Theta }\cos \mathsf{\Psi }-\cos \mathsf{\Phi }\sin \mathsf{\Psi }& \sin \mathsf{\Phi }\sin \mathsf{\Theta }\sin \mathsf{\Psi }+\cos \mathsf{\Phi }\cos \mathsf{\Psi }& \sin \mathsf{\Phi }\cos \mathsf{\Theta }\\ \cos \mathsf{\Phi }\sin \mathsf{\Theta }\cos \mathsf{\Psi }+\sin \mathsf{\Phi }\sin \mathsf{\Psi }& \cos \mathsf{\Phi }\sin \mathsf{\Theta }\sin \mathsf{\Psi }-\sin \mathsf{\Phi }\cos \mathsf{\Psi }& \cos \mathsf{\Phi }\cos \mathsf{\Theta }\end{array}\right]\left[\begin{array}{c}{U}_{Wn}\\ V_{Wn}\\ W_{Wn}\end{array}\right].$$

(32)

Finally, these values could be inserted in (12)–(14).

2.4. Quadrotor Control System Model

2.4.1. Autopilot Structure

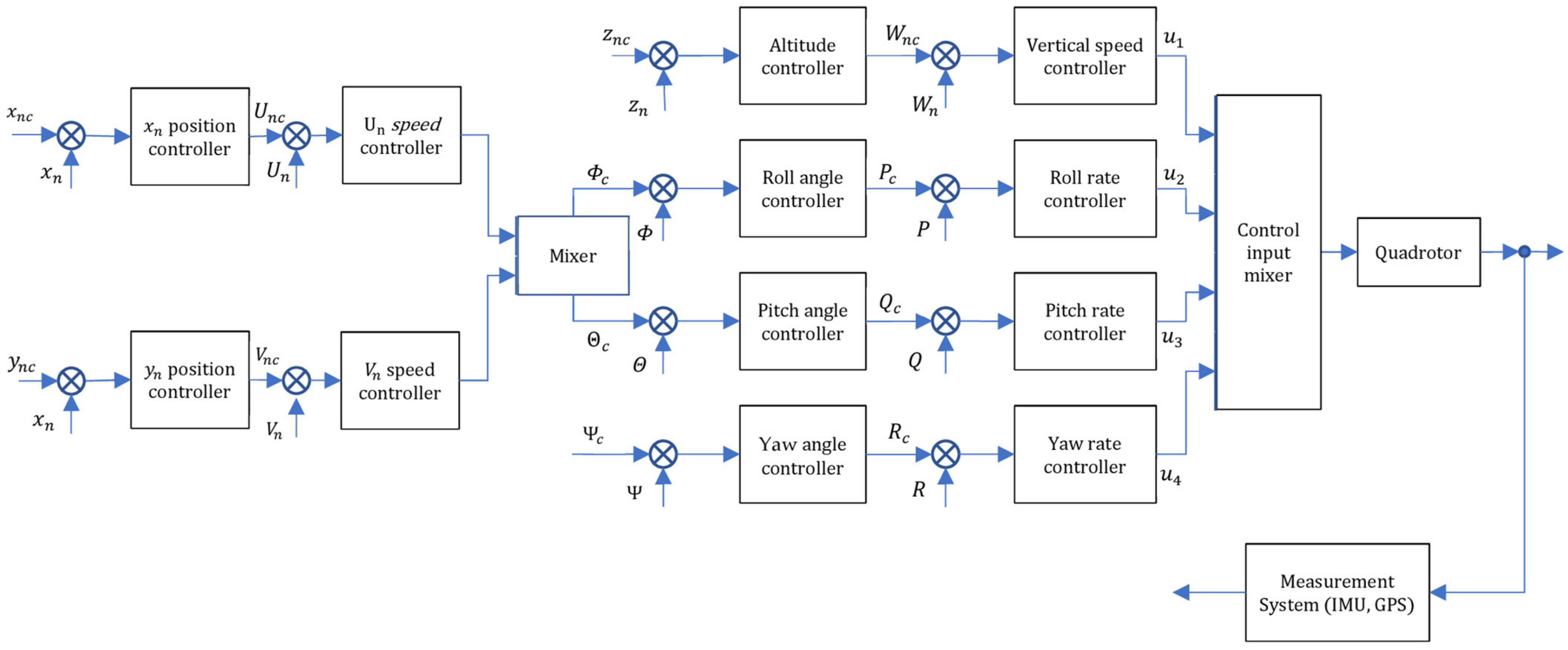

The quadrotor is an underactuated object (six degrees of freedom and four independent inputs). The quadrotor attitude, velocity and attitude are controlled by differentiating the rotors’ angular rates. The propagation of the control signals to individual rotors is described by the equation:

$$\left[\begin{array}{c}{\Omega }_{c1}\\ {\Omega }_{c2}\\ {\Omega }_{c3}\\ {\Omega }_{c4}\end{array}\right]=\left[\begin{array}{cccc}1& 1& 1& 1\\ 1& 1& -1& -1\\ 1& -1& -1& 1\\ 1& -1& 1& -1\end{array}\right]\left[\begin{array}{c}{u}_1\\ u_2\\ u_3\\ u_4\end{array}\right],$$

(33)

where ${\Omega }_{ci}$ is the $i$-th rotor-demanded value of angular rates, and $u_1,u_2,u_3,u_4$ are control signals for climb rate, roll rate, pitch rate, and yaw rate control respectively. The change in quadrotor altitude was obtained by increasing or decreasing the rotational speed of all four propellers simultaneously.

The rotor and electric engine dynamics were modeled as the linear first order system with $T_e$ time constant:

$$T_e\frac{d{\Omega }_i\left(t\right)}{dt}+{\Omega }_i\left(t\right)={\Omega }_{ci}\left(t\right),$$

(34)

Parameter $T_e$ was assumed to be 0.05 (s) (according to ref. [49]). A simple automatic flight control system was utilized to validate the quadrotor dynamic model. The control system consists of four independent control paths for each control signal [55]. Each control path (roll, pitch, yaw angles, and altitude) forms a double-cascade control system with PID (proportional-integral-derivative) control laws. The inputs to the system are position coordinates. Figure 7 shows the overall structure of the automatic flight control system.

The anti-windup clamping method was used to prevent the controllers from performance degradation. Simulink built-in tools were used to properly tune the PID settings.

2.4.2. Attitude Channel Autopilot

The control signal $U_1$ was obtained from the following equation:

$$U_1=K_P^{W_{ne}}{W}_{ne}+K_I^{W_{ne}}\underset{0}{\overset{t}{{\displaystyle \int }}}{W}_{ne}dt+K_D^{W_{ne}}\frac{\mathrm{d}{W}_{ne}}{\mathrm{d}t}$$

(35)

where $W_{ne}=W_{nc}-W_n$ (the difference between commanded and actual vertical velocity) and $K_P^{W_{ne}}$, $K_I^{W_{ne}}$, $K_D^{W_{ne}}$ are PID settings (−3556.149, −538.572, and −112.917, respectively). The commanded vertical velocity is calculated as:

$$W_{nc}=K_P^{z_{ne}}{z}_{ne}+K_I^{z_{ne}}\underset{0}{\overset{t}{{\displaystyle \int }}}{z}_{ne}dt+K_D^{z_{ne}}\frac{\mathrm{d}{z}_{ne}}{\mathrm{d}t}$$

(36)

where $z_{ne}=z_{nc}-z_n$ (difference between commanded and actual vertical position) $K_P^{z_{ne}}$, $K_I^{z_{ne}}$, $K_D^{z_{ne}}$ are PID controller constants (2.122, 0.035, and −0.387).

2.4.3. Roll Channel Autopilot

The output control signal $U_2$ from the roll channel was calculated as:

$$U_2=K_P^{P_e}{P}_e+K_I^{P_e}\underset{0}{\overset{t}{{\displaystyle \int }}}{P}_{e}dt+K_D^{P_e}\frac{\mathrm{d}{P}_e}{\mathrm{d}t}$$

(37)

where $P_e=P_c-P$ (commanded roll rate and actual roll rate) and $K_P^{P_e}$, $K_I^{P_e}$, $K_D^{P_e}$ are PID settings (−6.249, −0.904, and −0.219). The commanded roll rate $P_c$ was obtained from the following equation:

$$P_c=K_P^{{\mathsf{\Phi }}_e}{\mathsf{\Phi }}_e+K_I^{{\mathsf{\Phi }}_e}\underset{0}{\overset{t}{{\displaystyle \int }}}{\mathsf{\Phi }}_{e}dt+K_D^{{\mathsf{\Phi }}_e}\frac{{\mathrm{d}\mathsf{\Phi }}_e}{\mathrm{d}t}$$

(38)

where ${\mathsf{\Phi }}_e={\mathsf{\Phi }}_c-\mathsf{\Phi }$ and $K_P^{{\mathsf{\Phi }}_e}$, $K_I^{{\mathsf{\Phi }}_e}$, $K_D^{{\mathsf{\Phi }}_e}$ are the PID settings (9.584, 0.798, and 0.192 respectively).

2.4.4. Pitch Channel Autopilot

Control signal $U_3$ was obtained as follows:

$$U_3=K_P^{Q_e}{Q}_e+K_I^{Q_e}\underset{0}{\overset{t}{{\displaystyle \int }}}{Q}_{e}dt+K_D^{Q_e}\frac{\mathrm{d}{Q}_e}{\mathrm{d}t}$$

(39)

where $Q_e=Q_c-Q$ and $K_P^{Q_e}$, $K_I^{Q_e}$, $K_D^{Q_e}$ are PID settings (6.304, 1.174, and 0.433 respectively). Commanded pitch rate $P_c$ is calculated as follows:

$$Q_c=K_P^{{\mathsf{\Theta }}_e}{\mathsf{\Theta }}_e+K_I^{{\mathsf{\Theta }}_e}\underset{0}{\overset{t}{{\displaystyle \int }}}{\mathsf{\Theta }}_{e}dt+K_D^{{\mathsf{\Theta }}_e}\frac{{\mathrm{d}\mathsf{\Theta }}_e}{\mathrm{d}t}$$

(40)

where ${\mathsf{\Theta }}_e={\mathsf{\Theta }}_c-\mathsf{\Theta }$ and $K_P^{{\mathsf{\Theta }}_e}$, $K_I^{{\mathsf{\Theta }}_e}$, $K_D^{{\mathsf{\Theta }}_e}$ are PID settings (5.191, 0.228, and 0.127).

2.4.5. Yaw Channel Autopilot

The control signal $U_4$ for yaw autopilot is as follows:

$$U_4=K_P^{R_e}{R}_e+K_I^{R_e}\underset{0}{\overset{t}{{\displaystyle \int }}}{R}_{e}dt+K_D^{R_e}\frac{\mathrm{d}{R}_e}{\mathrm{d}t}$$

(41)

where $R_e=R_c-R$ (error between the commanded yaw rate and actual yaw rate) and $K_P^{R_e}$, $K_I^{R_e}$, $K_D^{R_e}$ are PID coefficients (112.662, 22.778, and 3.419). Commanded yaw angular rate $R_c$ was obtained as follows:

$$R_c=K_P^{{\mathsf{\Psi }}_e}{\mathsf{\Psi }}_e+K_I^{{\mathsf{\Psi }}_e}\underset{0}{\overset{t}{{\displaystyle \int }}}{\mathsf{\Psi }}_{e}dt+K_D^{{\mathsf{\Psi }}_e}\frac{{\mathrm{d}\mathsf{\Psi }}_e}{\mathrm{d}t}$$

(42)

where ${\mathsf{\Psi }}_e={\mathsf{\Psi }}_c-\mathsf{\Psi }$ and $K_P^{{\mathsf{\Psi }}_e}$, $K_I^{{\mathsf{\Psi }}_e}$, $K_D^{{\mathsf{\Psi }}_e}$ are PID settings (5.288, 0.230, and −0.151 respectively).

2.4.6. Position Controller

The roll and pitch angles in the $O_n{x}_n{y}_n{z}_n$ frame are calculated as follows:

$${\mathsf{\Phi }}_c^{*}=K_P^{U_{ne}}{U}_{ne}+K_I^{U_{ne}}\underset{0}{\overset{t}{{\displaystyle \int }}}{U}_{ne}dt+K_D^{U_{ne}}\frac{\mathrm{d}{U}_{ne}}{\mathrm{d}t}$$

(43)

$${\mathsf{\Theta }}_c^{*}=K_P^{V_{ne}}{V}_{ne}+K_I^{V_{ne}}\underset{0}{\overset{t}{{\displaystyle \int }}}{V}_{ne}dt+K_D^{V_{ne}}\frac{\mathrm{d}{V}_{ne}}{\mathrm{d}t}$$

(44)

where $K_P^{U_{ne}}$, $K_I^{U_{ne}}$, $K_D^{U_{ne}}$, $K_P^{V_{ne}}$, $K_I^{V_{ne}}$, $K_D^{V_{ne}}$ (−118.004, −189.289, −17.433, 44.373, 2.774, and 2.398) are as follows:

$$U_{ne}=U_{nc}-U_n$$

(45)

$$V_{ne}=V_{nc}-V_n$$

(46)

where $U_{nc}$ and $V_{nc}$ commanded velocities in the $O_n{x}_n{y}_n{z}_n$ frame (in $O_n{x}_n$ and $O_n{y}_n$ directions, respectively) are as follows:

$$U_{nc}=K_P^{x_{ne}}{x}_{ne}+K_I^{x_{ne}}\underset{0}{\overset{t}{{\displaystyle \int }}}{x}_{ne}dt+K_D^{x_{ne}}\frac{\mathrm{d}{x}_{ne}}{\mathrm{d}t}$$

(47)

$$V_{nc}=K_P^{y_{ne}}{y}_{ne}+K_I^{y_{ne}}\underset{0}{\overset{t}{{\displaystyle \int }}}{y}_{ne}dt+K_D^{y_{ne}}\frac{\mathrm{d}{y}_{ne}}{\mathrm{d}t}$$

(48)

where: $K_P^{x_{ne}}$, $K_I^{x_{ne}}$, $K_D^{x_{ne}}$, $K_P^{y_{ne}}$, $K_I^{y_{ne}}$, $K_D^{y_{ne}}$ are controller settings (0.762, 0.005, 0.014, 0.664, 0.003, and 0.001). The position errors were defined as follows:

$$x_{ne}=x_{nc}-x_n$$

(49)

$$y_{ne}=y_{nc}-y_n$$

(50)

where $x_{nc}$ and $y_{nc}$ are demanded position coordinates in the $O_n{x}_n{y}_n{z}_n$ frame. The roll ${\mathsf{\Phi }}_c^{*}$ and pitch ${\mathsf{\Theta }}_c^{*}$ angles were transformed from the $O_n{x}_n{y}_n{z}_n$ coordinate system to $O_b{x}_b{y}_b{z}_b$:

$$\left[\begin{array}{c}{\mathsf{\Theta }}_c\\ {\mathsf{\Phi }}_c\\ 0\end{array}\right]=\left[\begin{array}{ccc}\cos \mathsf{\Psi }& -\sin \mathsf{\Psi }& 0\\ \sin \mathsf{\Psi }& \cos \mathsf{\Psi }& 0\\ 0& 0& 1\end{array}\right]\left[\begin{array}{c}{\mathsf{\Theta }}_c^{*}\\ {\mathsf{\Phi }}_c^{*}\\ 0\end{array}\right].$$

(51)

The “Waypoint Follower” block from the SIMULINK UAV Toolbox library was used to follow the quadrotor path. It requires a set of predefined waypoints, current drone position, and lookahead distance as inputs. This block calculates the coordinates of lookahead point in the $O_n{x}_n{y}_n{z}_n$ coordinate frame and desired yaw angle. To increase the simulation speed significantly, the path follower was executed using generated C code.

2.5. Coverage Path Planning Method

The goal of the mission is to scan a given single region and take a series of photos. The drone is equipped with a stabilized, gimbaled camera so it is reasonable to assume that the camera principal axis is pointed vertically down during the flight. The search should be realized at a constant altitude. The path should totally cover the predefined zone. It was assumed that the region of interest is approximately rectangular and could be defined by the four vertices. Moreover, the environment is known, and there are no obstacles or no-fly zones inside the area of interest (this assumption is suggested, for example, in refs. [56,57]).

Many methods have been reported to calculate the most appropriate path [58,59]. Several search patterns might be used to inspect the predefined area: parallel track, creeping line search, expanding square, sector search, etc. [60,61,62]. The trajectory was defined by a set of waypoints. After visiting all waypoints the drone should return to its initial point.

At first, the quadrotor realized creeping line search and then the parallel track. In the creeping line search the search legs are perpendicular to the major axis of the search area. This method is preferred when location of the target is more probable at one end of the region of interest. In the parallel track, the search legs were parallel to the longer axis of the area. In this way, the area was scanned two times. Algorithms presented by Andersen [63] were used to calculate the waypoint locations. The obtained waypoints were implemented manually in the Mission Planner software. The example of the trajectory generator (MATLAB code) is included in “Supplementary Materials”.

2.6. Quadrotor Energy Consumption Model

The total amount of the energy $E_T$ consumed by the quadrotor might be divided into two parts: the energy spent on propulsion $E_R$ and the energy consumed by the onboard electronics (e.g., sensors, autopilot, and other circuits) $E_E$ [14,64]:

$$E_T=E_R+E_E,$$

(52)

The total energy consumed by the four electric motors could be estimated as follows [4,20,22,65]:

$$E_R=\underset{t_0}{\overset{t_f}{{\displaystyle \int }}}{\displaystyle \sum }_{i=1}^4{U}_i\left(t\right)I_i\left(t\right)dt,$$

(53)

where $U_i$ and $I_i$ are the voltage and current of the $i$-th motor, and $t_f$ is the time of flight. This model can also be rewritten in the form of mechanical parameters of the motor as follows [8,66]:

$$E_R=\underset{t_0}{\overset{t_f}{{\displaystyle \int }}}{\displaystyle \sum }_{i=1}^4{\tau }_i\left(t\right){\Omega }_i\left(t\right)dt,$$

(54)

where ${\tau }_i$ is the torque and ${\Omega }_i$ is the angular rate of the $i$-th motor. The dynamics of the electric motor were modeled as follows:

$$I_{zp}{\dot{\Omega }}_i\left(t\right)={\tau }_i\left(t\right)-k_m{\Omega }_i^2\left(t\right)-D_v{\Omega }_i\left(t\right),$$

(55)

where $I_{zp}$ is the moment of inertia of the rotating parts (propeller + motor shaft) and $D_v$ is the viscous damping coefficient of the motor.

The efficiency $f_{r,i}\left({\tau }_i\left(t\right),{\Omega }_i\left(t\right)\right)$ of the $i$-th motor is included in the model to make it more reliable [8,66]:

$$E_R=\underset{t_0}{\overset{t_f}{{\displaystyle \int }}}{\displaystyle \sum }_{i=1}^4\frac{I_{pe}{\dot{\Omega }}_i\left(t\right)+k_m{\Omega }_i^2\left(t\right)+D_v{\Omega }_i\left(t\right)}{f_{r,i}\left({\tau }_i\left(t\right),{\Omega }_i\left(t\right)\right)}{\Omega }_i\left(t\right)dt.$$

(56)

The efficiency function was obtained using polynomial fitting and is described by the following formula:

$$f_{r,i}\left({\tau }_i\left(t\right),{\Omega }_i\left(t\right)\right)=a_5{\Omega }_i^5\left(t\right)+a_4{\Omega }_i^4\left(t\right)+a_3{\Omega }_i^3\left(t\right)+a_2{\Omega }_i^2\left(t\right)+a_1{\Omega }_i\left(t\right)+a_0,$$

(57)

where $a_5$= −7.349·10^–19, $a_4$= 1.173·10^–14, $a_3$= −5.824·10^–11, $a_2$= 3.328·10^–8, $a_1$= 0.0004759, $a_1$= −0.006304, and $0\le {\Omega }_i\left(t\right)\le 6000$ [RPM].

The torque generated by the electric motor is proportional to the electric current that flows though the motor [22]:

$${\tau }_i\left(t\right)=K_T{I}_i\left(t\right),$$

(58)

where $K_T$ is the torque constant of the electric motor. The electric current consumed by the $i$-th motor was calculated as follows [2,67,68]:

$$I_i\left(t\right)=\frac{{\tau }_i\left(t\right)}{K_T}=\frac{1}{K_T}\left[I_{pe}{\dot{\Omega }}_i\left(t\right)+k_m{\Omega }_i^2\left(t\right)+D_v{\Omega }_i\left(t\right)\right],$$

(59)

Assuming that the electric power required to operate the onboard systems $E_{sub}$ is constant during the flight, the energy consumed by the electronics (other than motors) is calculated using the following formula:

$$E_E=\underset{t_0}{\overset{t_f}{{\displaystyle \int }}}{E}_{sub}dt,$$

(60)

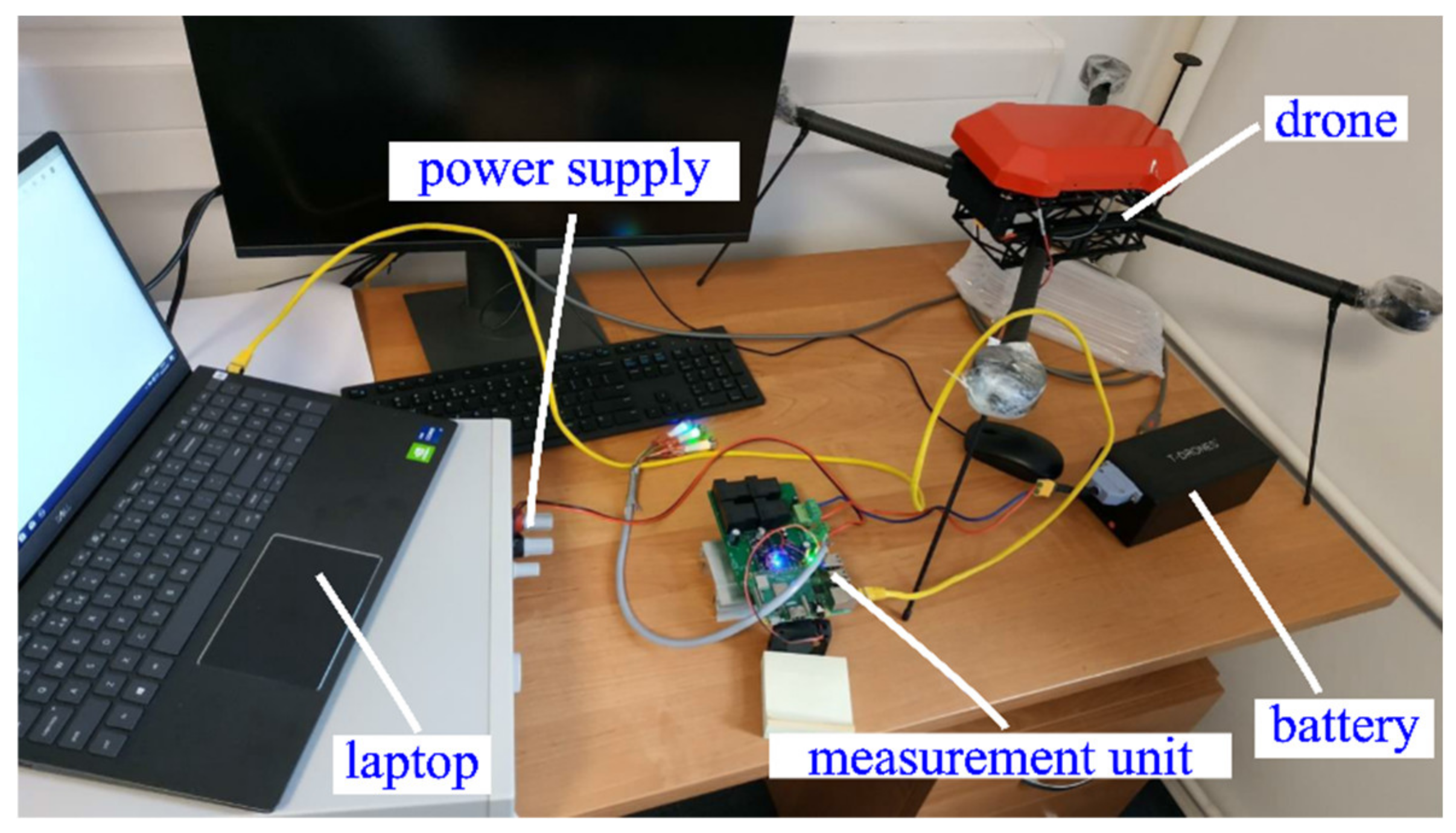

The value of $E_{sub}$ was obtained in stationary laboratory experiments. The experimental setup is presented in Figure 8.

Initially, the battery was fully charged. During the test, the electric motors were switched off. Only the onboard electronic subsystems were powered and consumed energy from the battery. The energy meter was connected between the quadrotor and the battery. Data (time, voltage, current) were analyzed online on a laptop computer and logged on a memory card.

The model parameters are listed in

Table 3. Motor model parameters used in the numerical simulation.

Parameter (Unit)	Symbol	Value
torque constant of the electric motor (Nm/A)	$K_T$	0.9 × 10–2
power required by the onboard subsystems (J/s)	$E_{sub}$	11
rotor thrust coefficient (N/RPM2)	$k_f$	9.32 × 10–5
rotor torque coefficient (Nm/RPM2)	$k_m$	9.37 × 10–6
viscous damping coefficient of the motor (Nm·s/rad)	$D_v$	0.17 × 10–3
reference linear dimension (m)	$d$	1

.

2.7. Battery Model

The battery voltage during a flight was predicted using the modified Shepherd model [69,70,71,72,73]. This model requires only a few parameters that could be obtained from laboratory tests and the datasheet.

It was assumed that the battery’s internal resistance is constant during the discharge process. The Peukert effect was not present (meaning that the capacity of the battery did not change with the amplitude of the electric current). Battery ageing, temperature effects, and self-discharge phenomena were not included in the presented model. The battery memory effect was omitted.

The battery voltage during discharge changed with time and was calculated as follows [70,72]:

$$U_{bat}=E_0-K\frac{Q}{Q-{\displaystyle {\int }_{t_0}^{t_k}}Idt}{I}^{*}-K\frac{Q}{Q-{\displaystyle {\int }_{t_0}^{t_k}}Idt}I+A{e}^{-B{\displaystyle {\int }_{t_0}^{t_k}}Idt}-RI,$$

(61)

where $E_0$ is the open-circuit battery voltage [V] (when no external load is connected), $K$ is the polarization constant (V/Ah), $Q$ is the battery capacity (Ah), $I^{*}$ represents the low-frequency current dynamics (A), $I$ is the current (A), $A$ is the exponential voltage (V), $B$ is the exponential capacity (Ah)⁻¹, and $R$ is internal battery resistance [Ω].

The internal resistance during discharge was obtained from the flight logs. To obtain the $I^{*}$, the first-order transfer function was used for filtration. The time constant that is required for calculating the filtered current was difficult to estimate from the manufacturer data. Due to this reason, it was assumed to be 30 s. The detailed tests of the battery were also used to fit the model parameters to the existing data. The values of the abovementioned battery model parameters are presented in

Table 4. Battery model parameters used in the numerical experiment.

Parameter (Unit) *	Symbol	Value
constant voltage (V)	$E_0$	16.8
polarization constant (V/Ah)	$K$	0.038603
battery capacity (Ah)/(Wh)	$Q$	29.7/439.6
exponential voltage (V)	$A$	0.2468
exponential capacity (Ah)−1	$B$	30
internal battery resistance (Ω)	$R$	0.025

* Maximum Continuous discharge current: 45 (A), Working and storage temperature from −10 °C up to +65 °C. 14.8 (V), maximum charge current: 15 (A).

.

The state of the battery charge was estimated using formula [22,71]:

$$SOC\left(t\right)=100\left(SO{C}_0-\underset{0}{\overset{t}{{\displaystyle \int }}}\frac{I}{Q}dt\right),$$

(62)

where $SO{C}_0$ is the initial state of charge, and $Q$ is the battery capacity (Ah). $SOC$ = 100% for a fully charged and 0% for a discharged battery. Simscape Electrical library that is available in Simulink was used to model the battery behavior [74].

3. Results

3.1. Model Implementation

The developed mathematical model of the quadrotor was implemented in MATLAB/Simulink R2020b. Simulations were evaluated on a laptop computer with an Intel(R) Core(TM) i7-8750H CPU @ 2.20 GHz, 16 GB RAM, and Windows 10 operating system. The equations of motion were integrated numerically using the fourth-order Runge–Kutta (RK4) fixed-step solver. The time step size of the simulation was set to 0.001 s. Simulink Accelerator mode option was used to speed up the model execution. The inertial measurement model was also included (the details are beyond the scope of the current study).

3.2. Flight Test Methodology

Next, flight tests in the outdoor environment were performed to acquire appropriate data (Figure 9).

The test plans consisted of plenty of visual line-of-sight flights in various flight conditions, including forward flight, climbing and descending, and turns. Each flight scenario was realized at least twice to achieve data repeatability. The test results were used to fit the simulation model of the quadrotor. Finally, a study was conducted to investigate the suitability of the simulation model for energy consumption analysis. The tests of the flight along predefined trajectories were performed, and the results were compared with the simulation cases.

Autopilot settings limited the drone’s maneuverability. Roll and pitch angle saturations were set to ±15°. The maximum allowed yaw rate was ±90°/s. Ascent speed was limited to 2 m/s and descent speed to 2.4 m/s.

Before each flight, it was ensured that the drone was airworthy, and the measurement system was properly calibrated. The onboard batteries were new to intentionally remove the influence of battery ageing effects on the results. After each flight, two kinds of data logs were available: onboard logs and telemetry data (the structures of these logs are explained in refs. [75,76], respectively). The trajectory waypoints and the information about control system configuration were logged on the memory card. The data logging frequency was 10 Hz. After the experiments, the collected data were analyzed offline using UAV Log Viewer [77] and Mission Planner software [78]. The data were divided into two sets: the first one was used to fit the model parameters and the second one was used to validate the model. Next, the data were imported using a custom developed library to MATLAB and then compared with the results of the numerical simulation.

3.3. Case 1 (Short Duration Trajectory)

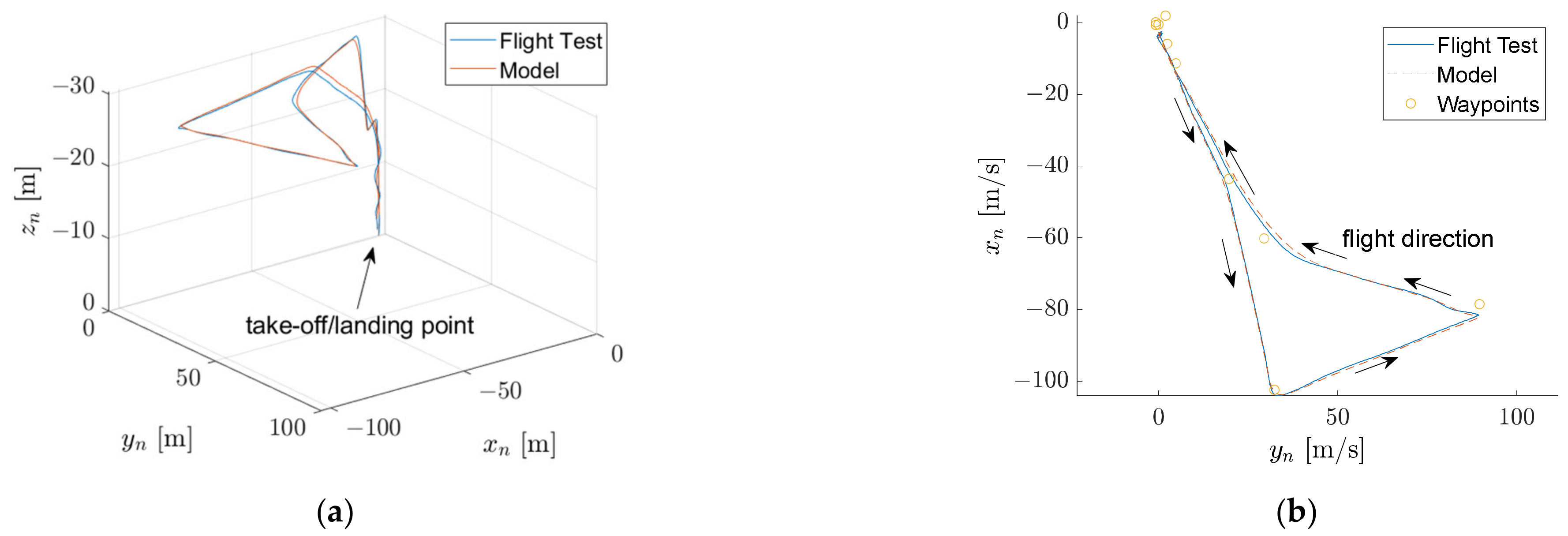

At first, the quadrotor model was validated for relatively simple short-duration trajectories. An example of such a triangular trajectory is presented in Figure 10. The route was defined manually by 10 waypoints. The waypoint radius was set to 2 m. The drone started vertically, moved between the waypoints, and returned to the initial location. The initial conditions for the simulation (linear velocity, angular rates, position, and attitude) were taken from the flight logs of the drone. The mean wind velocity estimated during the flight test with use of a ground-based, digital anemometer was 4.5 m/s and azimuth 220° (the direction the wind is coming from). These values were also used in the numerical flight simulation.

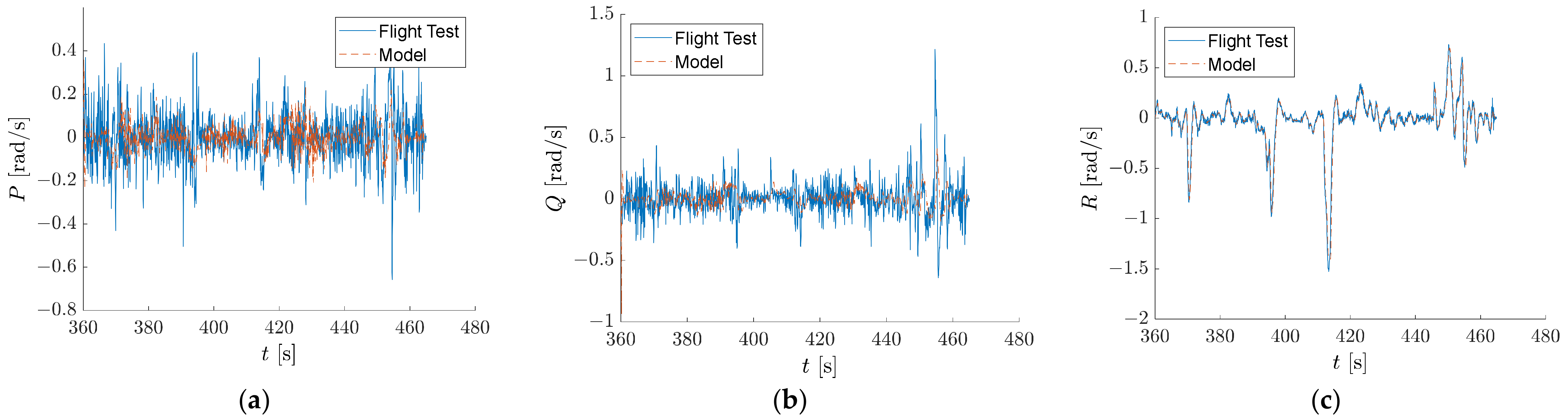

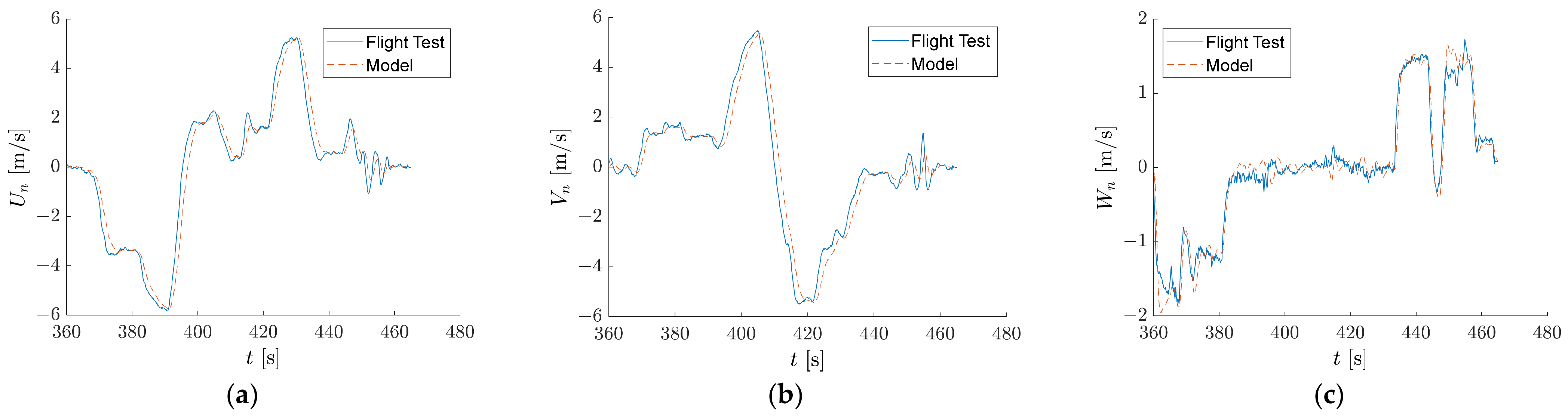

The linear velocities (expressed in the $O_n{x}_n{y}_n{z}_n$ frame) are presented in Figure 11, the angular rates (measured in the body-fixed $O_b{x}_b{y}_b{z}_b$ frame) in Figure 12, the quadrotor position in Figure 13, and the Euler angles in Figure 14.

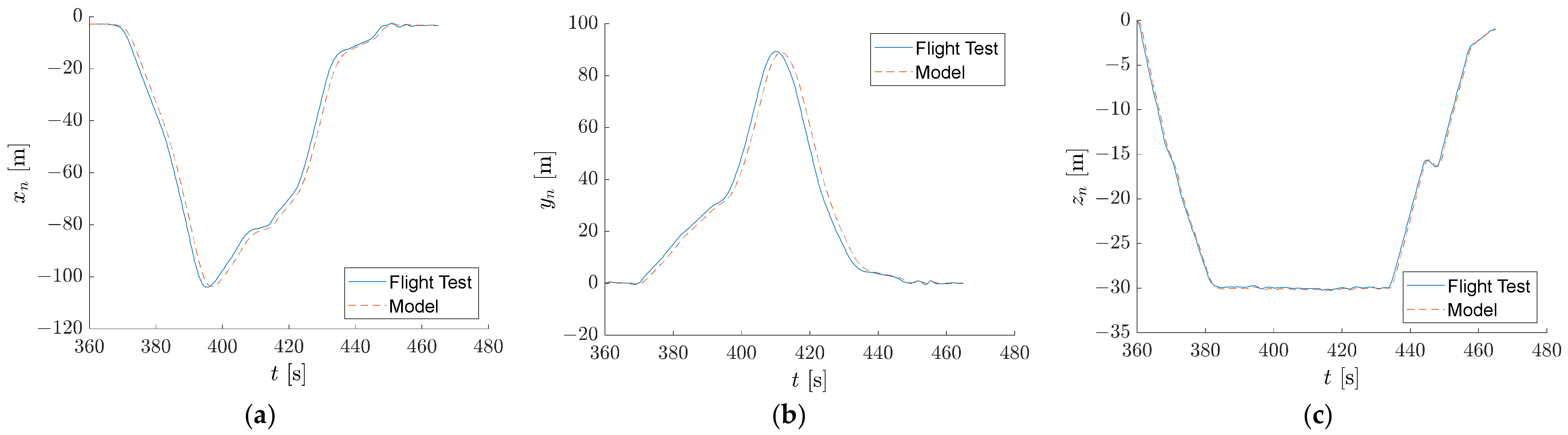

The maximum flight attitude was 30 m (Figure 13c).

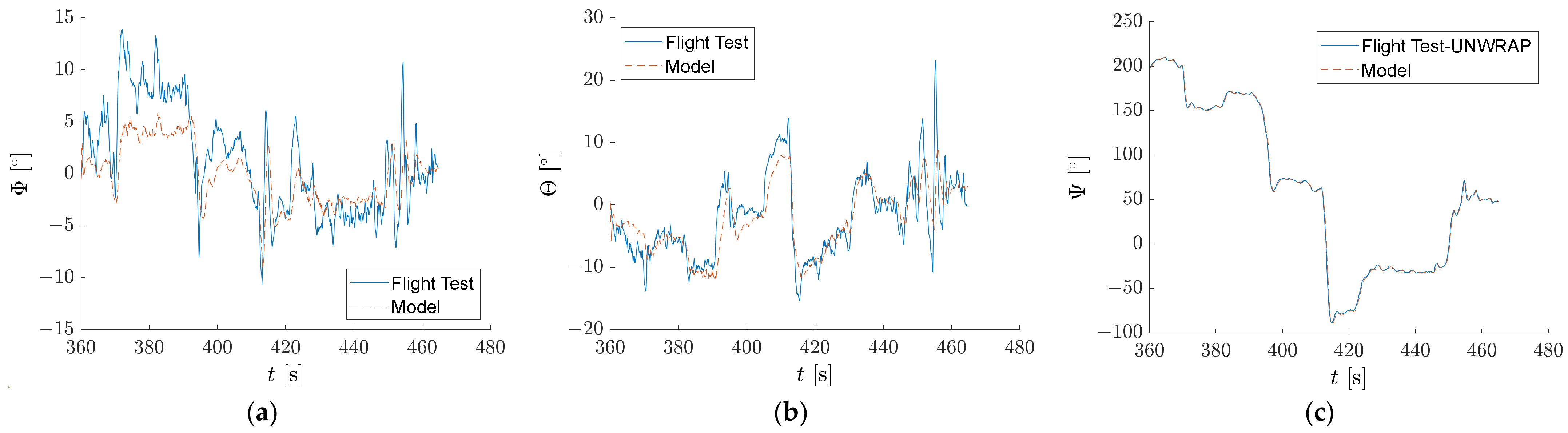

Small inconsistencies between the roll and pitch angles (Figure 14a,b) resulted from model simplifications (e.g., uniform wind was assumed). In Figure 14c the line that represents the model output was nearly indistinguishable from the line representing the real data.

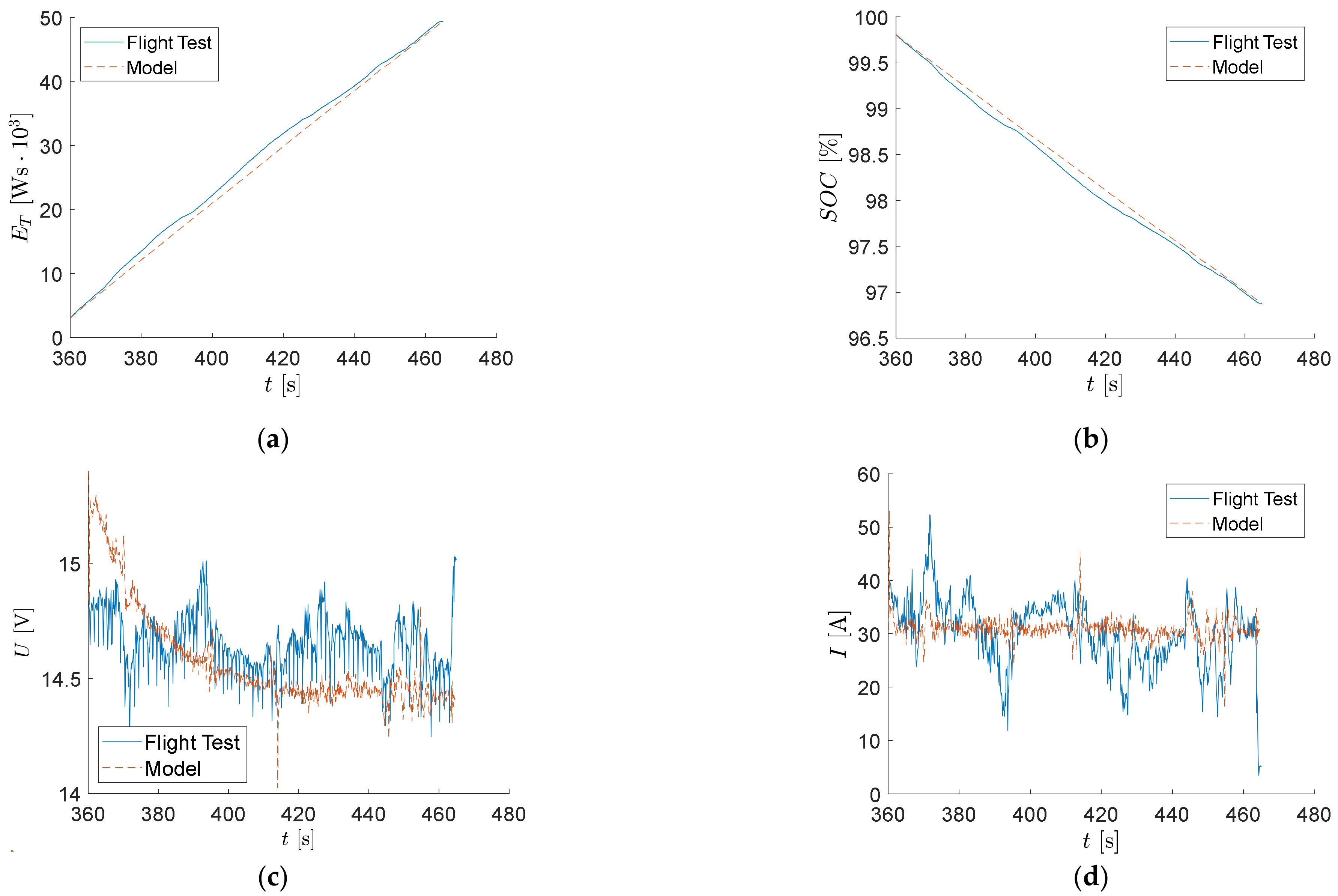

The comparison of energetic parameters is presented in Figure 15.

The consumed energy increased linearly. The initial battery state of charge was 99.8% and during the flight it decreased to approximately 97%. In Figure 15c,d some disparities were observed. In reality, the internal battery resistance also changes with time. This effect could also be included in the presented model. Load generated a voltage drop of the battery. This voltage drop was predicted correctly.

3.4. Case 2 (Long Duration Trajectory)

Next, the robustness of the model against different input data was checked. In this way, one might ensure that the model parameters are tuned properly not only for a single trajectory, but the model is also able to produce reliable results for a wide range of flight scenarios. A more complicated example of the validation result is presented in Figure 16, Figure 17 and Figure 18. The quadrotor flew along the trajectory that was defined by the 47 waypoints (Figure 16) and it performed flight along a mixed parallel track and a creeping line search pattern. The mission was realized autonomously. The flight started on the ground. Next, the drone took off, climbed to the altitude of 30 m, and carried out the planed mission. Finally, it returned to the initial point.

The mean wind speed and direction measured during the flight test were 7 m/s and 225° and these values were adopted for the simulation test. The map of the flight trajectory used in both real flight and simulation is shown in Figure 16.

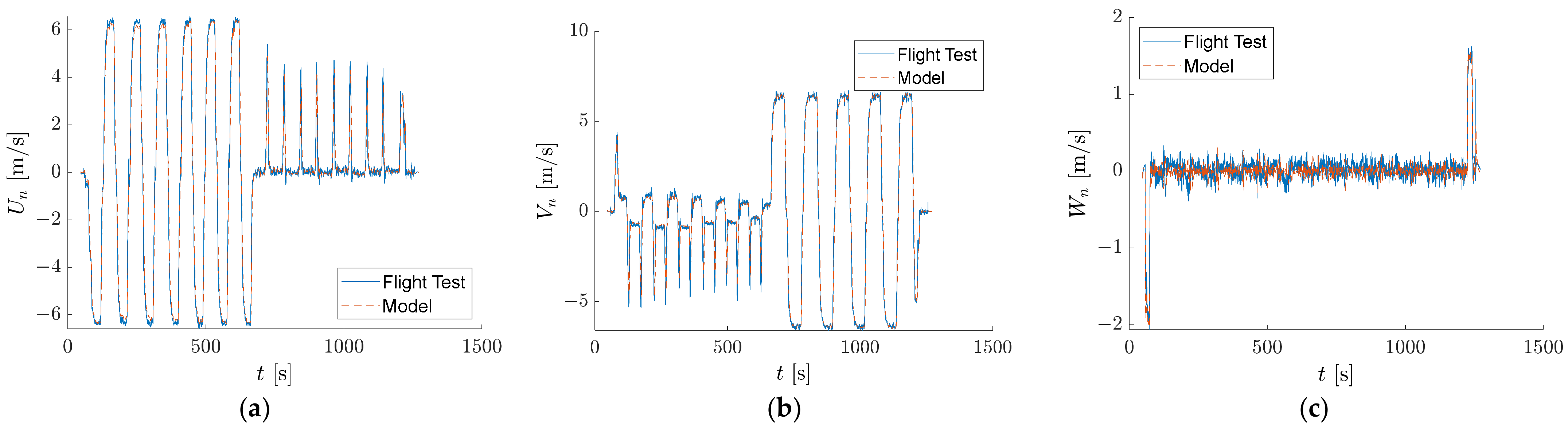

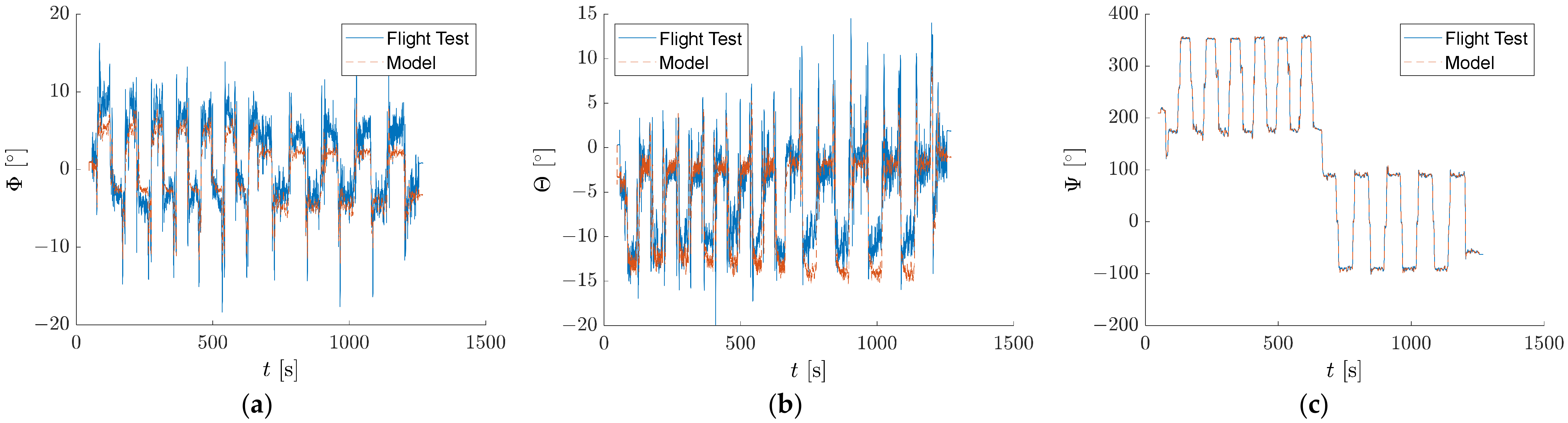

The comparison of the quadrotor velocity (with respect to the ground), angular rates, position, and attitude for the test flight and simulation are presented in Figure 17, Figure 18, Figure 19 and Figure 20.

The total flight time was 1271.55 [s]. Autopilot settings limited the maximum speed in the horizontal and vertical directions.

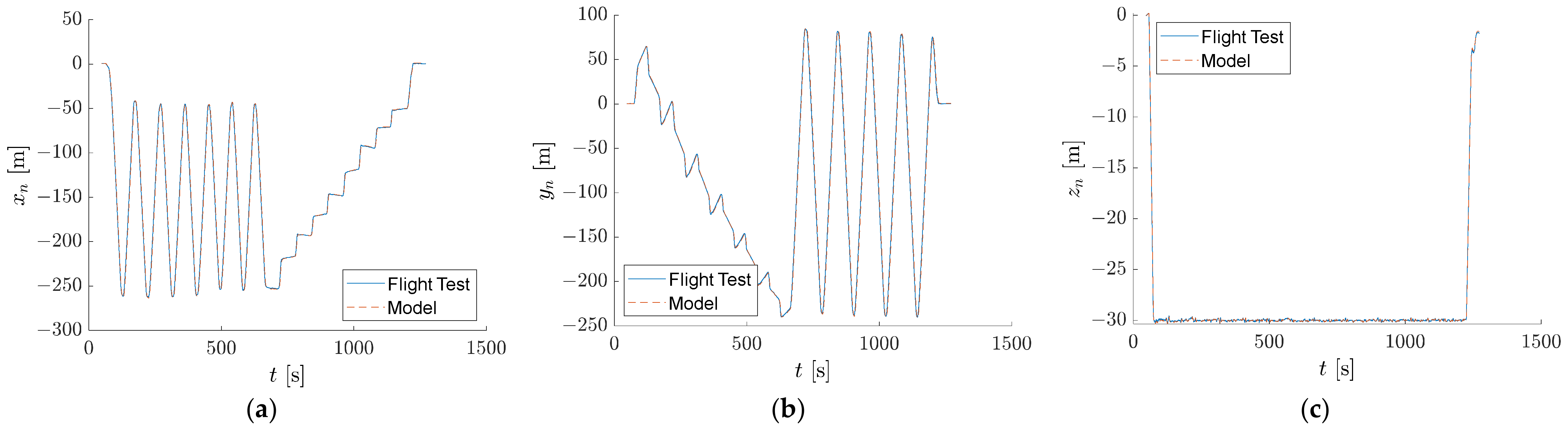

The drone started from the ground and the vertical coordinate changed to −30 m (Figure 19c). Most of the mission was realized at a constant altitude of 30 m.

The results showed the good fit of the quadrotor dynamic model. The small differences resulted from the quality of the onboard sensors used in the test flight, simulation model of the autopilot, and estimated constant wind conditions in the simulation [79].

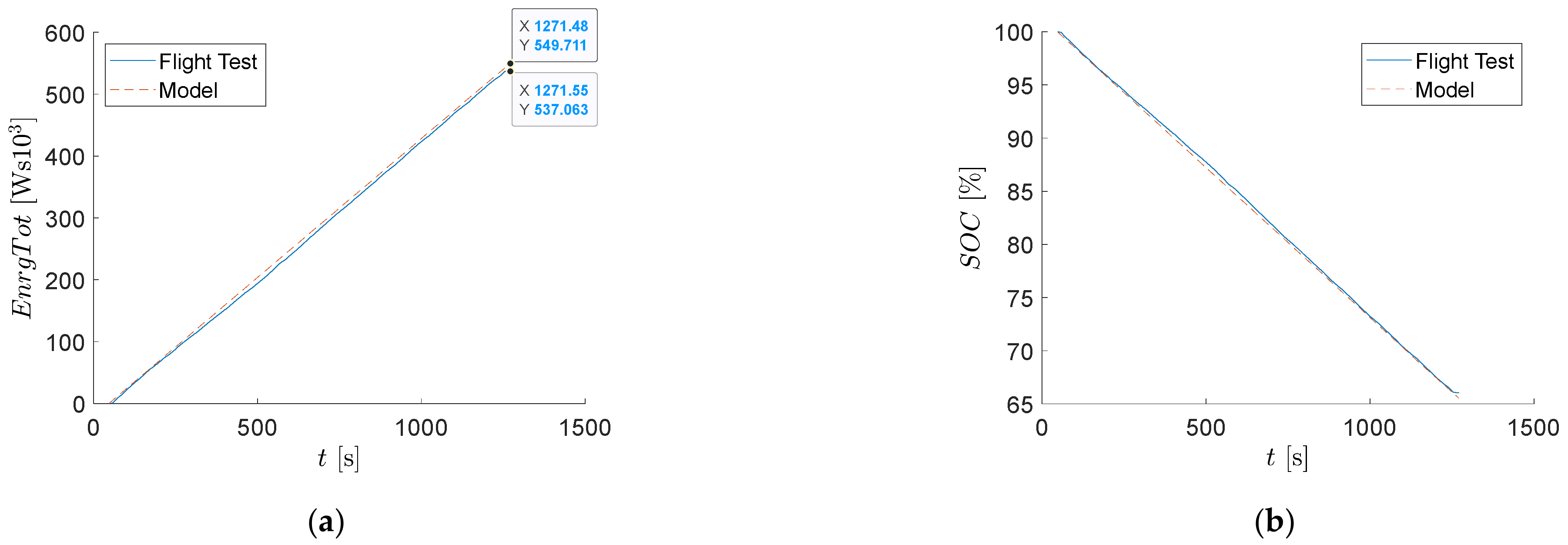

The results of the comparison of the energy consumption, battery state of charge, voltage, and current are presented in Figure 21.

The energy consumption is nearly a linear function of flight time. At the end of the flight the SOC was 65%. The total amount of energy consumed in the real test was 537.063 × 10³ Ws and in the simulation was 549.711 × 10³ Ws, which proves the good fit of the simulation model. The battery state was not measured during the test flight, but its time plot seems to be correct according to the authors’ knowledge. The maximum current did not exceed 50 A. The battery voltage decreased slowly with time. The results of the simulation are close enough to the results from the flight tests.

The trajectory pattern consists of 22 legs (13 in E–W and 9 in N–S directions) and 20 turns. The statistical analysis of real energy consumption for each pattern portion was evaluated. The histograms and fitted probability distribution plots are shown in Figure 22. It was assumed that the distribution for the N–S leg and turn is normal, since for the E–W leg the Weibull distribution was used.

The two-sided 95% confidence intervals are presented in

Table 5. Energy consumed by the drone in various maneuvers (real data).

Pattern Part	Mean (kWs)	Up. CI Limit (kWs)	Low. CI Limit (kWs)
N–S leg	14.709	13.975	15.442
E–W leg	22.457	21.696	23.218
Turn	5.137	5.439	4.835

. The values of the consumed energy in each pattern type obtained in the simulation were 15.123 kWs for the N–S leg, 22.033 kWs for the E–W leg, and 4.843 kWs for turn. All results are included in corresponding confidence intervals; therefore, it can be assumed that the model of energy consumption works properly.

The root mean square errors (RMSE) were used as a measure of similarity between the model and the real flight (

Table 6. Root mean square errors.

Parameter	RMSE (Case 1)	RMSE (Case 2)	TIC (Case 1)	TIC (Case 2)
$U_n$	0.548276	0.579551	0.104042	0.057415
$V_n$	0.593253	0.522913	0.121544	0.212000
$W_n$	0.176107	0.113729	0.101274	0.746461
$P$	0.122986	0.145171	0.729782	0.701991
$Q$	0.158896	0.164072	0.749323	0.723037
$R$	0.069834	0.075242	0.145792	0.143996
$x_n$	3.400182	6.449190	0.031059	0.020022
$y_n$	3.673267	1.658888	0.049805	0.006499
$z_n$	0.394301	0.038004	0.008108	0.000633
$\mathsf{\Phi }$	3.252205	3.070044	0.376330	0.279653
$\mathsf{\Theta }$	3.398018	3.590691	0.264716	0.223927
$\mathsf{\Psi }$	2.593932	2.742482	0.011790	0.005076

).

Additionally, Theil’s Inequality Coefficient (TIC) was applied to check the model reliability [80]. TIC is a measure of degree of conformance between two time series [81]:

$$TI{C}_i=\frac{\sqrt{\frac{1}{N}{{\displaystyle \sum }}_{k=1}^N{\left[z_i\left(t_k\right)-y_i\left(t_k\right)\right]}^2}}{\sqrt{\frac{1}{N}{{\displaystyle \sum }}_{k=1}^N{\left[z_i\left(t_k\right)\right]}^2}+\sqrt{\frac{1}{N}{{\displaystyle \sum }}_{k=1}^N{\left[y_i\left(t_k\right)\right]}^2}}, i=1\dots n_y$$

(63)

where $y$ is a time history of data obtained from simulation, $z$ is a vector of samples from the experiment, $N$ is the number of data points, $n_y$ is the number of outputs, and $t_k$ is the $k$-th discrete data point. In this way, Equation (63) provides $n_y$ separate TIC coefficients. Values of TIC remained between 0 and 1. TIC = 0 means that a strong correlation between data and model existed. On the other hand, TIC = 1 when the model did not represent the reality. For practical purposes, TIC < 0.25 is preferred [80]. As mentioned before, TIC was calculated for several (12) flight parameters separately (Table 6).

The largest disparities were obtained for quadrotor roll and pitch angular rates (TIC > 0.7). The model predictions for vertical position $z_n$ were very close to the experimental results.

3.5. Monte-Carlo Validation of the Energy Consumption

The model parameters were obtained with some uncertainty. Next, to investigate the model sensitivity on the abovementioned parameter’s uncertainties, the Monte-Carlo simulation was evaluated. Quadrotor mass, moments of inertia, initial conditions, wind speed, and azimuth were taken into consideration. Each parameter was calculated as a sum of two components: nominal value $\mu$ and normally distributed pseudorandom disturbance with zero mean and standard deviation $\sigma$ [82,83,84]. The input data to the simulation are presented in

Table 7. Input parameters for the Monte-Carlo simulation.

Parameter	Unit	$\mathbf{Nominal} \mathbf{Value} \mathit{\mu }$ (Case 1)	$\mathbf{Nominal} \mathbf{Value} \mathit{\mu }$ (Case 2)	$\mathbf{Standard} \mathbf{Deviation} \mathit{\sigma }$
$m$	kg	4.689	4.689	0.05
$I_{xx}$	kg·m2	0.075716	0.075716	0.005
$I_{yy}$	kg·m2	0.084124	0.084124	0.005
$I_{zz}$	kg·m2	0.126437	0.126437	0.005
$U_{n0}$	m/s	−0.119418	4.453111	0.5
$V_{n0}$	m/s	−0.136043	0.305209	0.5
$W_{n0}$	m/s	−0.377093	−0.011963	0.5
$P_0$	°/s	4.846231	−7.667591	3
$Q_0$	°/s	0.217045	3.023915	3
$R_0$	°/s	1.886309	7.652848	3
$x_{n0}$	m	−2.904065	−48.228010	3
$y_{n0}$	m	0.151600	−117.651900	3
$z_{n0}$	m	−0.095660	−30.040323	3
${\mathsf{\Phi }}_0$	°	−0.570000	−2.610000	1
${\mathsf{\Theta }}_0$	°	0.390000	0.280000	1
${\mathsf{\Psi }}_0$	°	198.020000	289.050000	5
$V_{Wtot}$	m/s	4.5	7	1
${\Psi }_W$	°	220	225	10

.

The values of standard deviations were obtained by laboratory experiments. To generate pseudorandom input data, the Marsenne–Twister algorithm [85] was used (initial seed was set to 0). For each case, 100 runs were evaluated. The average time of a single simulation run for case 1 was 14.9 s and for case 2 was approximately 179.8 s.

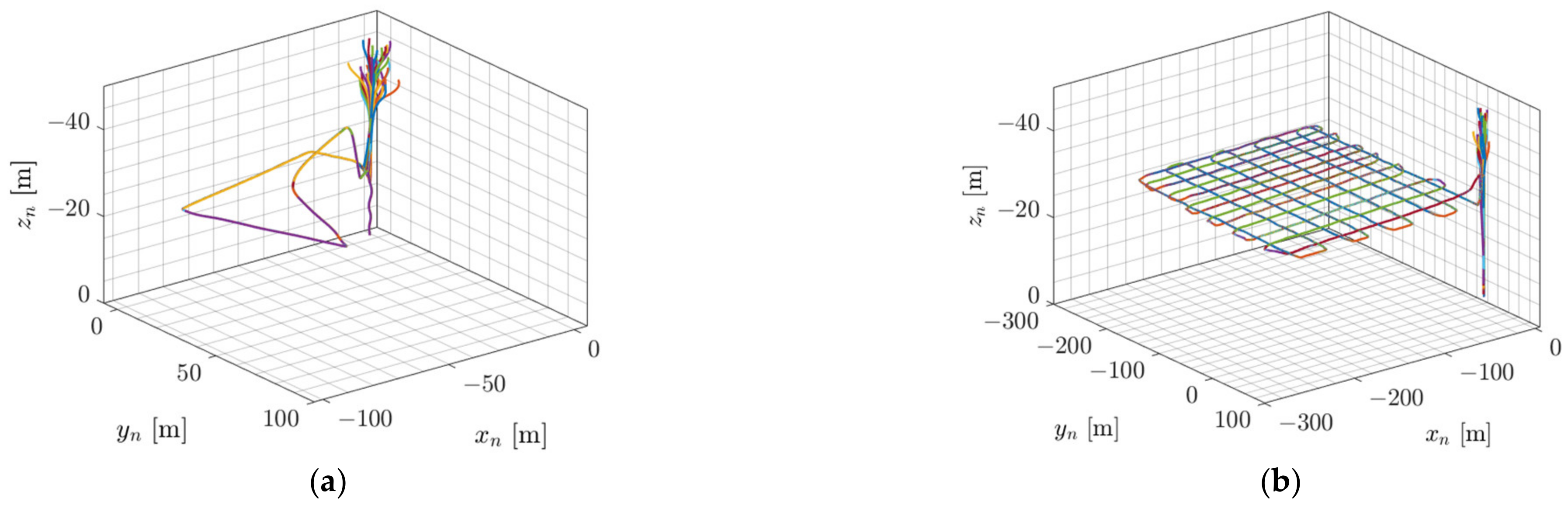

The obtained trajectories are presented in Figure 23.

The mean, minimum, and maximum values of consumed energy are presented in

Table 8. Statistics for the obtained data.

Case	Mean (kWs)	Minimum (kWs)	Maximum (kWs)
1 (all disturbances)	48.6747	47.2688	49.9513
1 (wind only)	48.6949	48.6335	48.9322
1 (mass, moments of inertia)	48.6563	47.2500	49.8289
2 (all disturbances)	542.9812	528.1782	558.7417
2 (wind only)	543.3368	539.3126	548.5094
2 (mass, moments of inertia)	543.2884	527.8764	556.1354

.

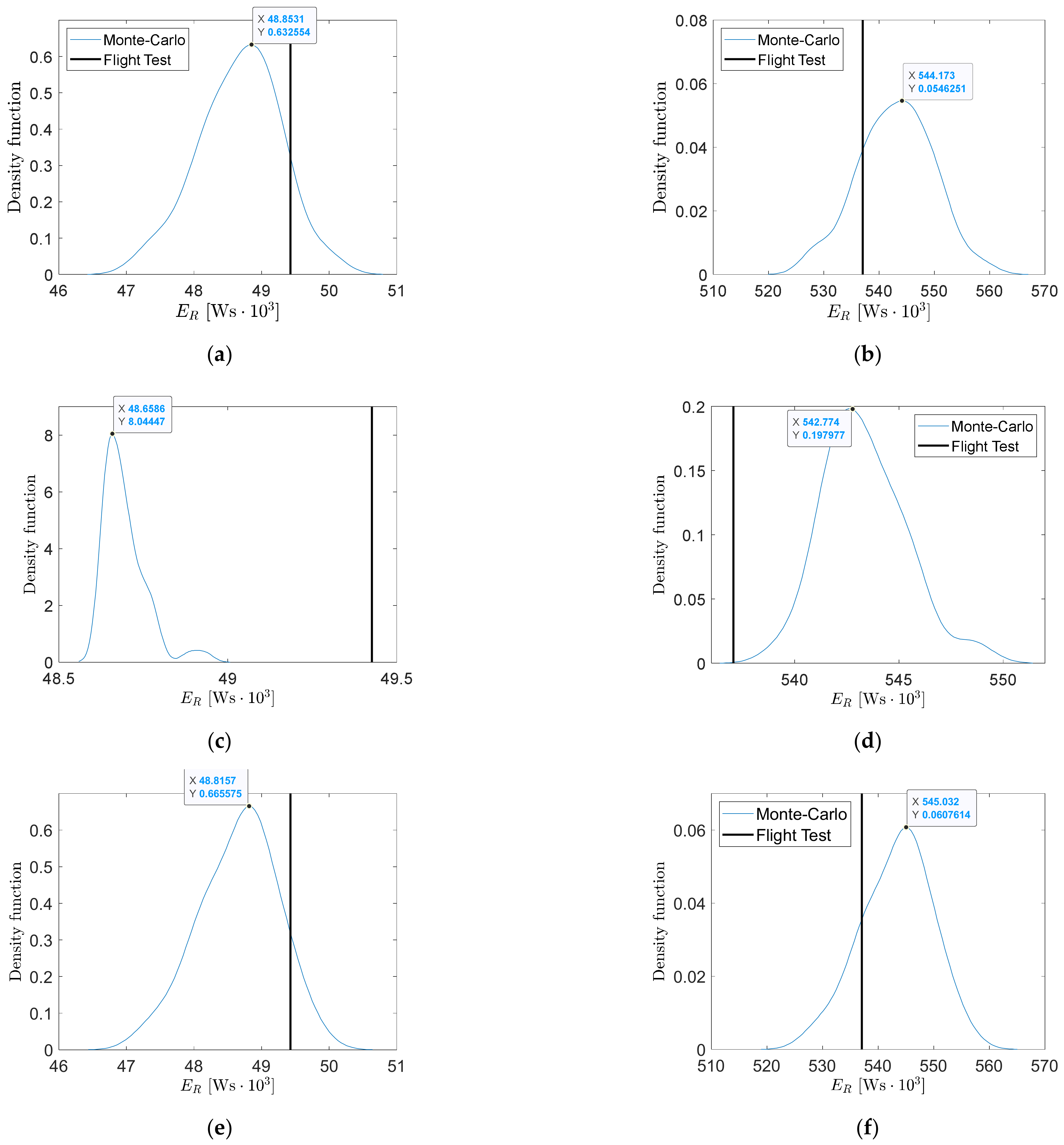

At first, the influence of all disturbances was tested. In Figure 24a,b the kernel density estimators of the total consumed energy are presented.

Next, the same scenarios were repeated but only with disturbances in wind conditions $V_{Wtot}$ and ${\Psi }_W$ (Figure 24c,d). Later, only the disturbances in mass $m$ and moments of inertia $I_{xx},I_{yy},I_{zz}$ were tested (Figure 24e,f). Wind speed and direction are some of the major factors that could affect the drone dynamics and energy consumption. Additionally, the energy consumed in the real flight was marked by a vertical line as a reference.

The uncertainty of parameters could influence the prediction of total consumed energy. For case 1 (Figure 24a) the minimum consumed energy was between 46 × 10³ Ws and 51 × 10³ Ws. The model underestimated the total energy consumption. The opposite situation was obtained in case 2 (Figure 24b). The consumed energy fell into the range from 520 × 10³ Ws to 570 × 10³ Ws and the model overestimated the results.

Considering only wind disturbances resulted in quantitatively different results. The curve presented in Figure 24c is tall and narrow. The predicted amount of energy was smaller than in reality. The curves presented in Figure 24e,f are very similar for all disturbances (Figure 24a,b). The obtained results qualitatively agree well with the analysis presented in ref. [86].

3.6. Wind Influence on the Energy Consumption: Practical Example

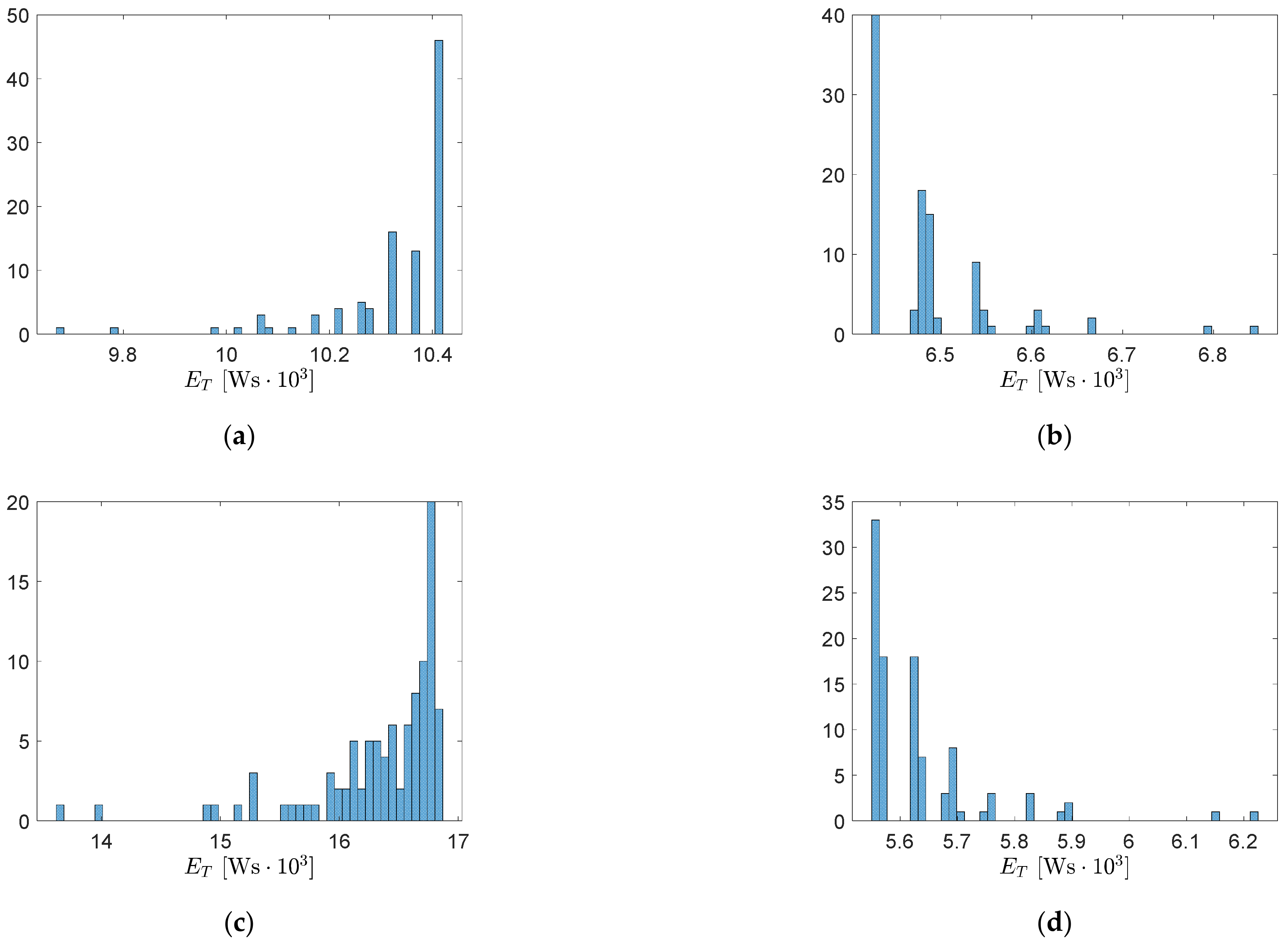

Finally, a practical example of the model use is presented. To investigate the effect of wind on the amount of consumed energy, four simulation scenarios were considered: headwind and tailwind combined with two different wind velocities. Initially, the quadrotor was at hover at altitude 40 m above the ground. Next, the quadrotor moved from point (0, 0, −40) to (200, 0, −40) along a straight line at a constant altitude. In the first and second scenarios (headwind), the mean wind azimuth was 0°, but in the third and fourth scenarios (tailwind) this angle was set to 180°. The standard deviation of wind azimuth was the same for both analyzed cases and equal to 15°. Wind speed was set to 4.5 m/s and 9 m/s, respectively. All other disturbances were omitted (standard deviations for them were set to 0). For each scenario 100 Monte-Carlo runs were evaluated (total number of runs was 400). The obtained results are presented in Figure 25.

For headwind, the right-skewed histograms were obtained. When the wind azimuth was disturbed then the drone had to roll to eliminate the lateral drift effect and keep a proper, straight flight direction. The consumed energy in the first scenario was higher than in the second case. On the other hand, for tailwind the left-skewed plots were generated. For headwind and wind speed 4.5 m/s (Figure 25a) the consumed energy was lower than for 9 m/s (Figure 25c). For tailwind and wind speed 4.5 m/s (Figure 25b) the total amount of energy was higher than for 9 m/s (Figure 25d). This simple example illustrates how the model might be used in energy analysis.

4. Conclusions

The methodology of the quadrotor dynamics model design was presented. The nonlinear quadrotor dynamic model was validated using real flight data and laboratory tests. Several contributions of this paper might be mentioned.

First, the rotor thrust, torque, and drag force correction factors were used to model the quadrotor dynamics correctly in forward flight. FLIGHTLAB software was used to calculate abovementioned coefficients. In this way, the model might predict the drone behavior for a wide range of flight conditions.

Second, an analysis of energy consumption estimation during a long duration outdoor flight was performed as well. This partially fills the gap in the literature, because such validation results for several minutes of flight are not commonly available.

Third, the simulation model was tuned using the data of real quadrotor obtained in laboratory experiments and flight tests.

Fourth, the energy consumed by the onboard electronics was taken into account. In this way, the presented study also extends the energy consumption models presented by Yacef et al. [14,21,22,55] and Morbidi [4,20]. The obtained results confirm conclusions presented by Cabreira et al. [87].

Fifth, the results of Monte-Carlo simulation indicated that model parameter uncertainties might influence the predicted amount of consumed energy. This method is not commonly used in the existing literature for validation quadrotor energy models. However, it allows understanding the impact of parameters on the model output. The uncertainty in the predicted amount of energy increases with the flight duration.

Sixth, the raw data from the flight trials are included as an Appendix A to the presented study. This dataset might be useful for other researchers.

The time domain analysis of the simulation and flight tests results indicated its good capability for estimating quadrotor energy consumption and usefulness for mission plan optimization. Scientific significance of this work is that this model might be adopted for other quadrotors and used for energy estimating purposes.

Further research might concentrate on flight tests in various flight conditions to gather more data and increase model reliability. Wind tunnel tests of the fuselage and isolated propellers could be performed to obtain aerodynamic coefficients that are used in the simulation model. A detailed model of rotors might be also used. Battery ageing effects might be included into the simulation to make it even more realistic. The developed model could be used for optimal coverage path planning, taking consumed energy as a performance metric.
