Hydrogen Technology Development and Policy Status by Value Chain in South Korea

by
Jae-Eun Shin
Future Geo-Strategy Research Center, Korea Institute of Geoscience and Mineral Resources (KIGAM), Daejeon 34132, Republic of Korea
Energies 2022, 15(23), 8983; https://doi.org/10.3390/en15238983
Submission received: 1 November 2022 / Revised: 22 November 2022 / Accepted: 23 November 2022 / Published: 28 November 2022
(This article belongs to the Section A5: Hydrogen Energy)
Browse Figures
Versions Notes

Abstract

:
Global transitions from carbon- to hydrogen-based economies are an essential component of curbing greenhouse gas emissions and climate change. This study provides an investigative review of the technological development trends within the overall hydrogen value chain in terms of production, storage, transportation, and application, with the aim of identifying patterns in the announcement and execution of hydrogen-based policies, both domestically within Korea, as well as internationally. The current status of technological trends was analyzed across the three areas of natural hydrogen, carbon dioxide capture, utilization, and storage technology linked to blue hydrogen, and green hydrogen production linked to renewable energy (e.g., water electrolysis). In Korea, the establishment of underground hydrogen storage facilities is potentially highly advantageous for the storage of domestically produced and imported hydrogen, providing the foundations for large-scale application, as economic feasibility is the most important national factor for the provision of fuel cells. To realize a hydrogen economy, pacing policy and technological development is essential, in addition to establishing a roadmap for efficient policy support. In terms of technological development, it is important to prioritize that which can connect the value chain, all of which will ultimately play a major role in the transformation of human energy consumption.

1. Introduction

A global transformation from a carbon to hydrogen economy is underway to help alleviate the effects of climate change. Such an economy consumes hydrogen as its main energy source, where hydrogen brings about fundamental changes in the national economy, society, and lifestyle of citizens through an environmentally friendly energy source [1]. Hydrogen produced from coal, natural gas, nuclear energy, and renewable energy sources is utilized as a primary energy source through its storage and application. Recently, there has been increasing interest in hydrogen technology to realize carbon neutrality, as no greenhouse gas emissions are produced by green hydrogen production technologies, or their application to transportation and power generation [2]. Currently, 50 million tons of hydrogen is consumed annually worldwide, and is used not only as an energy source, but also an industrial raw material across various areas, such as semiconductor and display manufacturing, ammonia production, chemical raw materials, and petroleum refinement [3]. Hydrogen generates electricity and heat through a simple chemical reaction with atmospheric oxygen, and water is the only byproduct. Although hydrogen is an abundant resource that accounts for 75% of all materials in outer space, it exists solely in the forms of water or organic compounds; thus, the direct application of hydrogen requires advanced technical expertise. Regardless, hydrogen production has the advantage of enabling long-term and large-capacity storage for supply or utilization, there is a significant expectation of commercialization; accordingly, various policies regarding the development of hydrogen-related core technologies are being established in participatory countries to promote a hydrogen economy [1]. Hydrogen production technology is thus being developed to minimize the associated greenhouse gas emissions, thereby reducing the impacts on climate change in large-volume hydrogen manufacturing methods based on natural gas and coal. The importation of hydrogen is also being considered [4]. To use hydrogen as the main energy source, the domestic supply and charging infrastructure require expansion, as should receiving terminals and storage facilities when importing from abroad; thus, technologies for the production, storage, transportation, and application of hydrogen are being developed simultaneously. In this study, the technological development trends within the overall hydrogen value chain were investigated in terms of hydrogen production, storage, transportation, and application, with the aim of identifying patterns in the announcement and execution of hydrogen-based policies both domestically in Korea and internationally.

2. Country-Specific Policies

In connection with the New Deal and carbon neutrality policies, the technological development of the renewable energy sector is progressing rapidly, and policy proposals are being continuously announced accordingly [5]. In particular, the global demand for hydrogen has increased, while the hydrogen industry is expected to create 30 million new jobs and generate USD 2.5 trillion annually by 2050 [6]. Accordingly, individual countries have announced various policies, visions, and technological roadmaps for promoting the hydrogen economy (Table 1).

2.1. Europe

The European Union (EU) announced “A Hydrogen Strategy for a Climate-Neutral Europe” in July 2020 [7]. With almost no pollutant emissions, including carbon dioxide, hydrogen was considered an effective and suitable technology for carbon reduction, and was presented as an essential technology for achieving carbon neutrality by 2050 [8]. The EU officially established the European Clean Hydrogen Alliance, which provides a strategic roadmap for the hydrogen field, and promotes cooperation between public institutions, industry, and civil society.
The “2050 Hydrogen Roadmap” of the EU focuses on renewable hydrogen derived from solar energy, but presents the need for low-carbon hydrogen as a medium-term transitional stage [9]. Notably, the utilization of low-carbon hydrogen requires price competitiveness in carbon dioxide capture.
The plan for 2050 was divided into three stages for the completion of the European hydrogen ecosystem. The first stage, 2020–2024, targeted the decarbonization of industrial plants and large-scale commercialization by installing renewable hydrogen electrolytic cells with a minimum of 6 GW, and a maximum renewable hydrogen production of 1 million tons. Regarding policies, measures to introduce a hydrogen market regulatory framework and revitalize the hydrogen market were included, as well as methods to support the establishment of a robust investment plan. In the second stage (2025–2030), the goal was to install a minimum of 40 GW electrolytic cells and produce a minimum of 10 million tons of renewable hydrogen, while measures for the establishment of hydrogen are to play a key role in the integrated energy system. For policies, measures were presented to promote investments in the strengthening of EU resources, and the establishment of a full-fledged hydrogen ecosystem within 5 years. The final goals in the third stage (2030–2050) surround the decarbonization of all fields, where additionally carbon reduction is difficult through renewable hydrogen technology that has entered maturity. Additionally, a plan for the amendment of related legislation was presented for sequential progression, in accordance with the infrastructure establishment for each stage [10].

2.2. United States

The United States (US) has announced the “Road Map to a US Hydrogen Economy” through the Fuel Cell and Hydrogen Energy Association in March 2020 [11]. This plan revealed the long-term vision for the future hydrogen and fuel cell industry, as well as policy proposals to achieve it considering the technological development stages and market maturity, with respect to 2030 and 2050 policy timelines. Notably, the US is pursuing a hydrogen policy led by the state of California, where the state and federal government have formed a “public–private partnership” to promote hydrogen energy policies.
The US Department of Energy (DOE) has also shown a significant interest in hydrogen development to reduce the costs of various energy sources, while improving the production and application of domestic energy resources [12]. In particular, hydrogen produced from fossil fuels will be an important element in transitioning to a low-carbon economy; corresponding technological developments are underway [13]. Relevant departments within the DOE, including the Office of Fossil Energy, Office of Renewable Energy, and Office of Nuclear Energy, are involved in various technologies, such as gas reforming, blue hydrogen connected with carbon dioxide capture, utilization, and storage (CCUS), and green hydrogen (using water electrolysis) [11].
The proportion of blue hydrogen production in the US is relatively high, as the maturity of national CCUS technologies are relatively advanced with a price competitiveness of approximately USD 2 per kg, even when compared with fossil fuels. Within the US, the majority of the demand is accounted for by petroleum refinement and ammonia production, and it is expected that hydrogen demand will increase over a large scale, even across the fields of power generation, buildings, and transportation until 2050 [14]. To increase hydrogen production, related technology projects and programs, such as the Hydrogen Program Plan, are being implemented [12].

2.3. Japan

Japan issued its Basic Hydrogen Strategy in December 2017, and presented a roadmap for 2050 [15]. Nationally, the hydrogen economy was intensively cultivated to support a self-sufficient energy supply following the 2011 Fukushima accident; Japan has since played a leading role in the development of natural gas reforming hydrogen production and liquefaction technology. The main components of the roadmap include the establishment of an international hydrogen supply chain utilizing unused energy sources from overseas, such as Australian lignite, as well as the presentation of a hydrogen production method that actively employs renewable energy and unused regional resources [16]. In terms of application, goals have focused on stable and large-scale consumption through hydrogen power generation, including the expanded use of hydrogen in transportation (hydrogen-based automobiles, ships, trains, and forklifts), and energy reduction through the application of fuel cells for home use [17]. Furthermore, Japan is focused on the development of a hydrogen supply chain, including low-cost hydrogen consumption, liquid hydrogen, P2G, and overseas production.

2.4. China

In March 2021, China had announced the “3060 Target” that aims to achieve carbon neutrality by 2060, after reaching peak national carbon emissions before 2030 [18]. China is in the process of transitioning its national energy system into a clean and low-carbon system. Accordingly, hydrogen was selected as the main energy source for decarbonization and realizing carbon neutrality; thus, major advancements in the hydrogen energy industry are being carried out by major companies [19]. The hydrogen market size and growth rate in China have been rapidly increasing since 2020. Through the “Eco-friendly Automobile Industry Advancement Plan (2020–2025)”, China announced its intention to have 20% of all automobiles sold in 2025 be environmentally friendly [20]. Moreover, plans for large-scale investment facilities, including public charging stations and smart cities have been presented. Notably, China has the third highest number of hydrogen refueling stations in the world (69 stations by the end of 2020), following Japan (154) and Germany (91). As such, China is conducting large-scale research and development investments to become a leader in hydrogen energy-related technologies, and is expanding its corresponding market shares in fuel cells and transportation [21].

2.5. South Korea

In January 2019, Korea had announced its vision to become a world-class leading nation in the hydrogen economy by adopting the “Hydrogen Economy Activation Roadmap” (Table 2) [22]. In particular, the establishment of an economical, stable hydrogen production and supply system was presented based on the creation of an industrial ecosystem that could lead to hydrogen economies across the transportation and power generation sectors [23]. Strategies for systemic establishment included the production of a cross-ministerial hydrogen technology development roadmap, ecosystem cultivation, safety management standards, and the enactment of related legislative policies to serve as the foundations for the hydrogen economy [24]. In October 2019, a cross-ministerial hydrogen technology development roadmap was established to support the implementation of the hydrogen economy by improving the domestic technological competitiveness in hydrogen energy.
On 7 October 2020, the “Vision for Becoming a Leading Hydrogen Economy Nation” was announced, representing the selection of the hydrogen industry to achieve carbon neutrality by 2050 [25]. Through this announcement, the government presented its plans to establish a domestic 1-million-ton clean hydrogen production system; cultivate 30 global hydrogen companies; create 500,000 hydrogen-related jobs by 2030; and invest USD 36 billion by 2030.
On 26 November 2021, the first hydrogen economy blueprint was announced, representing the first plan after the enactment of the Hydrogen Economy Promotion and Hydrogen Safety Management Act. This plan contained 15 implementation tasks based on four major strategies of leading domestic and overseas clean hydrogen production, building a tight-knit infrastructure, utilizing hydrogen in everyday life, and strengthening ecosystem foundations. The government announced plans to transition domestic and overseas hydrogen production into clean hydrogen supply systems, and among the green, blue, and gray hydrogen supplies, only the former two will account for the 27.9 million annual tons of hydrogen by 2050 [26]. In addition to production, the commercialization of hydrogen power generation will be initiated to expand the supply of fuel cell power generation facilities, and apply them to coal–ammonia co-firing power generation (mixed combustion) and liquefied natural gas (LNG) hydrogen co-firing techniques. For the transport sector, the production of hydrogen cars is to be expanded to 5.26 million vehicles annually by 2050 through the improvement of hydrogen car performance to levels on par with that of internal combustion engine vehicles by 2030, and the expansion of hydrogen application to various transportation modes, including ships, drones, and trams [23]. Moreover, industrial processes that produce high amounts of greenhouse gases, such as steel, petrochemical, and cement production, will be transitioned to hydrogen-based processes; whereas fuels and raw materials will be replaced with hydrogen. Cross-ministerial hydrogen R&D, and professional manpower cultivation are also planned, where its corresponding implementation will lead to hydrogen accounting for 33% of the total national energy consumption, and 23.8% of power generation by 2050 [26], making hydrogen the largest single energy source. Hydrogen thus has the most powerful means of achieving carbon neutrality by 2050, and various hydrogen economy supporting policies to be are expected to be proposed continuously.
Table
Table 1. Hydrogen policy strategies and plans for key countries.
Table 1. Hydrogen policy strategies and plans for key countries.
ClassEuropeUnited StatesJapanChinaSouth Korea
StrategyA hydrogen strategy for a climate-neutral EuropeRoad Map to US Hydrogen EconomyBasic Hydrogen Strategy3060 TargetRoadmap for revitalizing the hydrogen economy
OrganizationEuropean Clean Hydrogen AllianceDepartment of Energy
(Federal government)		GovernmentGovernmentGovernment
Plan
  • 2050 Hydrogen Roadmap
  • Three-step plan by 2050 to transform Europe into a hydrogen ecosystem:
    • (1)
    One million tons of recycled hydrogen to decarbonize industrial plants and large-scale commercialization
    (2)
    Ten million tons of recycled hydrogen production, and hydrogen forming the core of an integrated energy system
    (3)
    De-carbonization of all fields with regenerated hydrogen technology
    • Public–private partnership
    • Road map is organized into four key phases:
    (1)
    Immediate steps (2020–2022)
    (2)
    Early scale-up (2023–2025)
    (3)
    Diversification (2026–2030)
    (4)
    Broad rollout (post-2030)
    • Each phase also describes the key enablers required, categorized as: (1) policy enablers and (2) hydrogen supply and end-use equipment enablers
    • (1) Dramatic expansion of hydrogen use from present
    • (2) Full-fledged introduction of hydrogen power generation and establishment of a large-scale hydrogen supply system (by the latter half of the 2020s)
    • (3) Establishment of a CO2-free hydrogen supply system across a total basis (by ~2040)
    • Medium-to-long-term development plan for hydrogen energy
    • Use of hydrogen as an energy source for decarbonization and carbon neutrality
    • Investments in hydrogen energy technology as a national research development project
    • Introduction of green hydrogen as a direction of hydrogen energy development
    • (establish the world’s first green hydrogen standard)
    • Roadmap for hydrogen technology development
    • Establish the world’s first legislation on hydrogen economy development and hydrogen safety management
    • Created a basic plan for the transition to the hydrogen economy
    • 2050 carbon neutrality achievement plan
    Table
    Table 2. Korea’s hydrogen economy roadmap [21].
    Table 2. Korea’s hydrogen economy roadmap [21].
    Korea Hydrogen Economy Roadmap (2019) [27]
    Vision: Leaping as a World-Class Hydrogen Economy Leader
    StepStep 1 (2018)
    (Preparation)    		Step 2 (2022)
    (Diffusion)    		Step 3 (2040)
    (Leading)
    Vehicle (×1000)
    (export/domestic)    		1.8 (0.9/0.9)81 (14/67)6200 (3300/2900)
    Fuel cell (MW)Generation (domestic)307 (307)1500 (1000)15,000 (8000)
    House and building7502100
    Gas turbineGas turbine technology will be developed by 2030 and adopted by the industry around 2035
    Supply (1000 ton/year)130470>5260
    Method① Byproduct H2 (1%)
    ② Gas reforming (99%)    		① Byproduct H2
    ② Gas reforming
    ③ Green H2 (water electrolysis)    		① Byproduct H2
    ② Gas reforming
    ③ Green H2 (water electrolysis)
    ④ Import
    * ① + ③ + ④: 70%
    ②: 30%
    Price (USD/kgH2)
    (USD 1 is equivalent to about KRW 1200)    		-52.5

    3. Technology Development Status for Each Hydrogen Value Chain

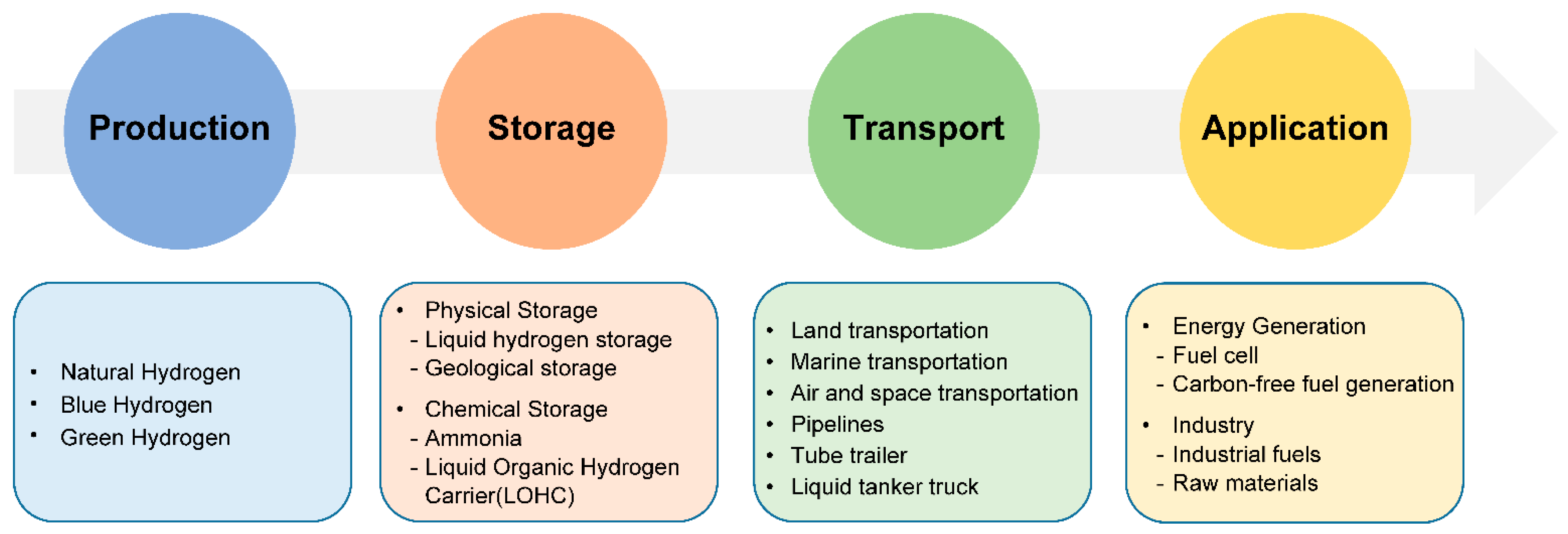

    The hydrogen technology value chain can be divided into four parts, namely production, storage, transportation, and application [28], whereas the basic materials for hydrogen production can be further divided into fossil fuels, renewable energy, and overseas imports, and the actual hydrogen produced can be divided into byproducts and hydrogen. Hydrogen storage itself can be split into physical storage methods including tanks and trailers, as well as compound storage methods. For transportation, tube trailers and long-term supply using natural-gas pipelines are available options. In the early stages of hydrogen adoption, the tube trailer is expected to be widely used in the mobility field, which generally has a smaller capacity, while future expansions of applications to homes and industry are planned [29] (Table 3).

    3.1. Hydrogen Production

    Hydrogen production technologies start with hydrogen-containing compounds and are categorized according to the raw materials and manufacturing methods employed [30]. Global energy infrastructure (GEI) attempted to set the “color debate” and reported clear definitions of various hydrogen production technologies. In total, hydrogen is designated by nine colors according to the production method (Figure 1) [31].

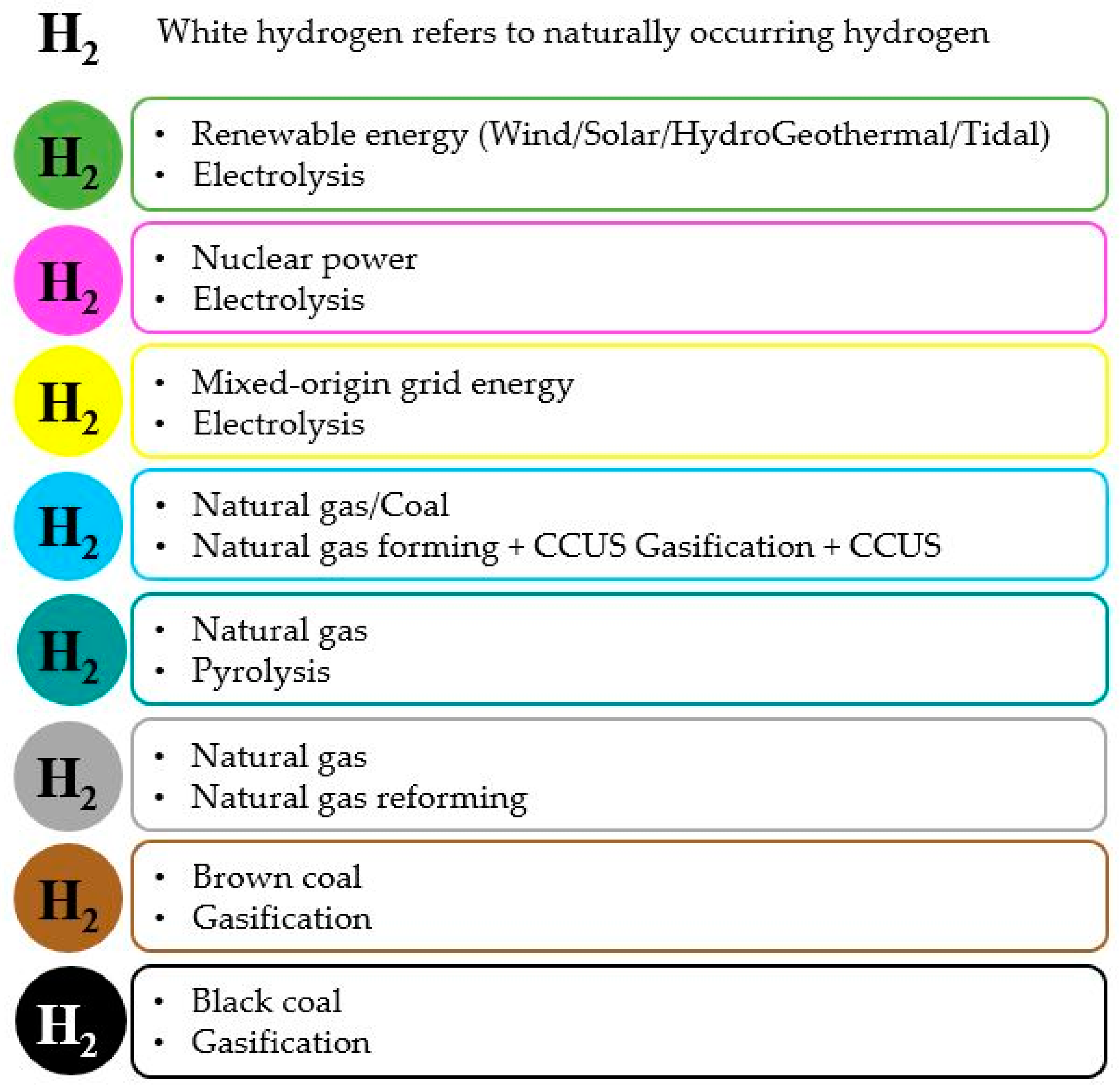

    In this study, the current status of technology trends was analyzed across the three areas of natural hydrogen, CCUS technology linked to blue hydrogen, and green hydrogen production powered via renewable energy (e.g., water electrolysis).

    3.1.1. Natural Hydrogen

    Natural hydrogen refers to hydrogen in its natural form from within the Earth’s system. Hydrogen is virtually nonexistent in the crust or mantle, as it geochemically reacts with oxygen during the formation of the primitive crust to release energy, and form water or hydrated minerals [32]. Furthermore, despite the argument that crustal hydrogen will not readily exist due to its extremely light weight, hydrogen can be generated through geological processes within the crust, such as hydrothermal alteration [33]. Accordingly, natural hydrogen is defined as “hydrogen produced inorganically through solid–solid, solid–liquid, or liquid–liquid reactions that occur due to the internal energy within the crust or mantle”, and its primary sources are as follows [32]:
    • Hydrogen ejected from magma on continents and oceans.
    • Produced in large-scale fragmentation processes of rocks.
    • Decomposition of water from natural radiation.
    • Produced by the reduction of water during the reaction process of hydrothermal water and minerals containing Fe2+.
    Most natural hydrogen found on land exists in the gaseous form within pure gas or fluid inclusions near volcanic rock, metamorphic rock, and iron ore. It has been estimated that the amount of natural hydrogen released is 23 million tons per year [32].
    Natural hydrogen is extremely likely to exist in the terrestrial continental crust because of the oxidation–reduction reactions of Fe and S formed during the Paleozoic era. Notably, such hydrogen will be a critical component of the future global energy industry, considering its environmentally sustainable development conditions, and low economical production cost (<1 USD per kg).

    3.1.2. Production via Fossil Fuels

    (1) Grey Hydrogen; natural Gas Reforming
    Decomposing the natural gas methane using steam methane reforming (SMR) at high temperatures and pressures results in the extraction of gray hydrogen [34]. Hydrogen production via SMR has already been commercialized, and is advantageous for its large-scale production potential at low production costs; however, carbon dioxide (a notable greenhouse gas) is produced during the hydrogen manufacturing process [35].
    CH4 + H2O → CO + 3H2
    CO + H2O → CO2 + H2
    (2) Blue Hydrogen with CCUS
    Since any produced CO2 must be processed to use hydrogen as the main carbon neutral energy source, the application of CCUS technology is being explored to produce blue hydrogen [36]. Although the unit cost of gray hydrogen is competitive (USD 1.3 per kg), the application of CCUS technology to produce blue hydrogen doubles the cost [37]; thus, to commercialize blue hydrogen and supply it on a large scale, attaining competitiveness through the advancement of CCUS technology is critical. Specifically, CCUS technology can be categorized into carbon dioxide capture and utilization (CCU), as well as and carbon dioxide capture and storage (CCS) technologies. Currently, the application of CCS technology is more economically viable for the supply of blue hydrogen due to its relatively higher technological maturity, and the capacity to store large amounts of CO2 in underground spaces (e.g., gas reservoirs) [38].
    Recently, the first blue hydrogen product project in Korea was carried out in connection with the CCS integrated demonstration project using the East Sea gas reservoir [39]. This project is the first domestic commercial scale R&D project and blue hydrogen production project, and is an outstanding demonstration project that is stable and economical. Additionally, the world’s first blue hydrogen plant has been planned for construction in Boryung, Chungnam, to supply hydrogen power plants and refueling stations by producing 250,000 tons of hydrogen starting in 2025 [39,40].
    To fulfill the carbon neutrality policy, active research on blue hydrogen is being conducted to supply commercial supplies that are economically feasible, safe, and business viable.

    3.1.3. Green Hydrogen

    Water electrolysis produces green hydrogen with zero carbon emissions. Here, hydrogen is produced by electrolyzing water using electricity generated via renewable energy sources (e.g., solar and wind) [38]; thus, the two most important aspects of green hydrogen production are: (1) securing renewable energy power, and (2) water electrolysis technology. Hence, power-to-gas (P2G) technology must be developed in conjunction with hydrogen production technology by utilizing renewable energy power [41].
    Accordingly, renewable energy facilities are a prerequisite for the production of green hydrogen; however, some countries, such as Korea, cannot create large-scale renewable energy facilities owing to geographical or environmental limitations. In such cases, it is necessary to install facilities overseas, or import green hydrogen produced overseas.
    Notably, approximately 80% of the cost of producing green hydrogen is related to electricity generation from renewable energy; the lack of competitiveness in the price of electricity generation will consequently make domestic green hydrogen commercialization difficult. To overcome this limitation, imported hydrogen can be produced overseas as part of the supply. The greatest advantage of overseas hydrogen production is that it contributes to the stable supply of hydrogen and cost stability and reduces the costs of domestic hydrogen production and greenhouse gas emissions. To import hydrogen, hydrogen transport ships with storage containers and other related technologies must also be developed; thus, there is a positive effect of fostering other related industries. For the stable import of overseas hydrogen, the infrastructure of hydrogen-receiving terminals and storage facilities, such as LNG storage, must be expanded and related technologies developed.
    In Korea, green hydrogen commercialization is being developed on Jeju Island by carrying out the demonstration of large-scale green hydrogen production, storage, and application in connection with renewable energy for the first time in Korea [42]. In addition, through the hydrogen economy activation roadmap of the government, the goal is to move toward becoming a green hydrogen-producing nation using water electrolysis and hydrogen produced overseas. In connection with this, the plan is to expand hydrogen production from 130,000 tons in 2018 to 5.26 million tons in 2040 and reduce the cost of hydrogen cost through stable mass production [27]. Therefore, the production technology of green hydrogen is important in terms of hydrogen supply and cost stability [27].

    3.1.4. Hydrogen Production from Biomass

    The hydrogen production method using biomass is a technology that produces hydrogen through anaerobic fermentation of microorganism from biomass and biomass-derived organic compounds. This method is also one of the technologies that is attracting attention as an extension of waste resource utilization technology. There are three methods for producing hydrogen using biomass, namely thermochemical, biological, and electrochemical [43].
    (1)
    Aqueous phase reforming (APR)

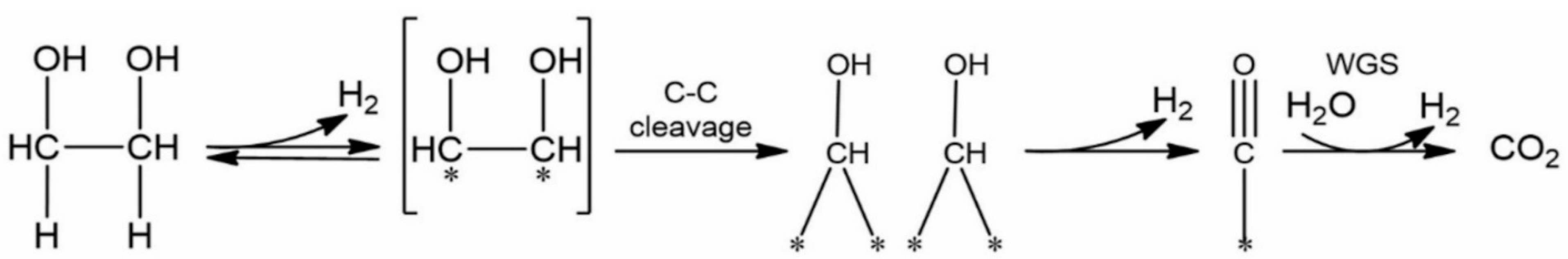

    APR method is one of the thermochemical approaches that converts an oxygenated compound into hydrogen [44]. The APR process must have a catalyst, with a temperature range of 220–270 °C and pressure of 30–60 bars [44]. The solution maintains a liquid state to prevent vaporization, which has an advantage in terms of energy [45]. An important factor in maximizing the efficiency of hydrogen production in the APR process is the design of catalysts, which is as follows: (1) dehydrogenation, C-C bond breaking, H2O activation, and water gas shift reaction should be favored; (2) C-O bond breaking, methanation/Fischer–Tropsch and dehydration should be avoided [44]. The APR mechanism is shown in Figure 2.
    (2)
    Microbial systems
    Hydrogen can be produced through electrolysis using microorganisms as catalysts. The simplest carbon source is acetate as a method of activating the fermentation of soluble organic substances found in wastewater. The system consists of an anode and a cathode, a cation exchange membrane between the electrodes, and external electricity [46]. In this system, bacteria are located on the anode surface, and through redox reactions, they oxidize the carbon source of wastewater to carbon dioxide, electrons [47], protons, and on the anode surface, they react. Electrons are transferred to the positive electrode via an external power source, which is a system in which hydrogen is generated by combining with free protons in the electrolyte [47,48]. External power can be of a different source including solar power, microbial fuel cells, and wind energy.
    The energy required during this process is 0.11 V lower than water electrolysis, hence the low energy loss [49]. This technology is more efficient when combined with a dark fermentation process, and therefore promising [50].
    The cost values and properties of each hydrogen production technology were compared in Table 4. Natural hydrogen is an unfamiliar field compared to other technologies, but it can be produced 23 million tons per year and reproduced. Although it is an attractive technology because of its low production cost, it is very difficult to capture hydrogen from underground. Grey hydrogen from the SMR process has a low production cost and it is a mature technology for commercialization. However, there is a disadvantage in that it emits a large amount of CO2. Blue hydrogen technology, which removes CO2 from the SMR process, complements these shortcomings and has the advantage of only adding the CO2 utilization/storage processes and costs in the existing system. Green hydrogen produced by wind power has a high production cost, even if it is a clean and sustainable technology. Hydrogen production systems using renewable energy have limitations in geological characteristics, and for example, it is difficult to adopt large renewable energy systems in Korea due to the small land area. The common characteristic of biomass-derived hydrogen production technology is a high hydrogen production rate. A relatively simple system is also an advantage, but there is a disadvantage in that catalysts are required and a separation process is required for hydrogen capture. In terms of the economy, it is between blue and green hydrogen.

    3.2. Hydrogen Storage

    Hydrogen storage has both physical and chemical components [58]. The volume of hydrogen is large at room temperature; thus, a reduction in transportation costs requires large-scale storage and transport technologies; however, methods other than compressing hydrogen gas for storage and transporting remain in the technological development stages. Therefore, increasing the transportation capacity of hydrogen through the advancement of gas storage and transport technology, as well as liquid hydrogen and liquid hydride storage technologies are being pursued.

    3.2.1. Physical Storage

    (1) Liquid Hydrogen Storage [59]
    Liquid hydrogen can be stored by applying pressure after cooling. When the temperature is lowered, the volume of hydrogen decreases to approximately 1/800th; hence, it is advantageous in that the volume decreases with less pressure than at room temperature. Unlike the high-pressure storage hydrogen tanks currently used, this method allows storage at atmospheric pressure, enabling a safer and lower-cost transport. Notably, the US, Japan, and Europe sell and operate commercial hydrogen liquefaction plants.
    Research on large-capacity liquefied hydrogen storage facilities is underway in Europe, though it will take time to store and use large-capacity hydrogen depending on the demand for hydrogen. In addition, the cost for technology for storing large amounts of liquefied hydrogen should also be considered. The storage and transportation of liquefied hydrogen relays on the LNG field. The LNG acquisition and the system of the large-scale storage tanks can help facilitate research on liquefied terminals and the diversification of the size of storage tanks [60].
    (2) Geological Storage [61]
    When the hydrogen supply infrastructure is established and demand increases, the tube trailers may not then be sufficient, hence medium-to-large scale storage facilities will be necessary. Currently, leading nations such as the US and European countries are developing underground storage technologies to meet hydrogen energy needs. Furthermore, underground storage technologies must be considered for countries with high population densities and a low land area, as it is advantageous in terms of safety, site selection, and the alleviation of storage capacity limitations.
    When storing liquid hydrogen aboveground at extremely low temperatures (−235 °C), the vaporization loss rate is significant, owing to the temperature variation from seasonal changes and climate change, while the overall stability decreases due to exposure to natural disasters and accidents, such as earthquakes, typhoons, heat waves, and acts of terror; thus, aboveground hydrogen energy storage facilities are not only accompanied by safety risks, but also difficulties related to site selection and costs for large-scale storage as well. Such facilities are mostly located in remote locations, thereby reducing the economic feasibility owing to the required transportation along with issues related to the residents’ opposition [62].
    Currently, all domestic and international underground hydrogen energy storage cases employ gaseous hydrogen storage technology using existing natural and manmade environments, such as salt domes or unused oil and gas fields. When cryogenic temperature conditions have to be maintained, the bedrock can act as insulation from aboveground temperature changes, thereby minimizing loss from vaporization. Underground communal storage technology is optimal for cryogenic liquid hydrogen storage, offering high site utilization, and is advantageous for the establishment of power generation and production facilities, as well as common infrastructure as there is little exposure to aboveground [63].
    In particular, the Global Technology Network Program Hydrogen Technology Collaboration Programme (TCP) under the International Energy Agency (IEA) reported that large-scale underground storage facilities, and consequently transportation technology will be necessary by 2030, when the global supply of hydrogen is expected to significantly increase. In Korea, the establishment of hydrogen underground storage facilities is expected to be highly advantageous for the storage of domestically produced and imported hydrogen, providing the foundations for the application of large-scale hydrogen, as well as mobility along related with power generation and industry.

    3.2.2. Chemical Storage

    Chemical storage of hydrogen relays on compounds, such as ammonia or a liquid organic hydrogen carrier (LOHC), to transform hydrogen into different substances for liquid storage. Transformation using a material containing a carbon compound results in an organic hydride, whereas using carbon-free materials results in inorganic hydrides, the most representative of which is ammonia.
    (1) Ammonia [64]
    Ammonia storage of hydrogen works by conversion to ammonia, and subsequent transformation back to hydrogen for use [65]. Ammonia can be transported and stored in liquid form at room temperature and pressure, and has doubled the storage density of liquefied hydrogen at the same volume [66]. Furthermore, ammonia maintains a liquid form even at −33 °C, and requires less energy for liquefaction than liquid hydrogen [67]. When returning to hydrogen, less voltage is required in the extraction of ammonia compared to that via water electrolysis, and the reaction rate is also faster; however, there is risk of toxicity and explosion, and a conversion facility is required to extract hydrogen from ammonia [65].
    (2) Liquid Organic Hydrogen Carrier (LOHC) [68,69]
    LOHC is a hydrogen storage method in which hydrogenated and dehydrogenated materials exchange hydrogen via a catalytic reaction. The safe storage and transportation of large quantities of hydrogen in liquid form at room temperature and pressure are possible with LOHC, which reduces the costs associated with hydrogen infrastructure establishment, storage, and transportation. In addition, LOHC technology has a great advantage that it can be applied directly to the current industrial site. This can be used as an opportunity to promote active R&D in terms of accelerating the hydrogen economy the fastest [70].
    (3) Metal Hydride [71,72,73]
    Compound storage uses the chemical bond between hydrogen and chemical substances; specifically, metal hydrides can be used to trap hydrogen within a chemical substance to be stored in a solid form. This method stores hydrogen in an alloy between inorganic materials containing light metals, such as palladium, magnesium, lanthanum, and aluminum, or metalloids such as boron. Such solid storage methods remain in their early stages of development; thus, the storage capacity is small, and the problem of long-term technology development demands further attention.

    3.3. Hydrogen Application

    3.3.1. Transportation

    The hydrogen transport method is almost similar to LNG. Most countries require hydrogen to be supplied to pipelines of small capacity transported via tube trailers. Since it is very important to understand the basic properties of hydrogen in hydrogen transportation, basic information related to hydrogen power density and ignition are summarized in Table 5. The most important thing in hydrogen transport is to move it safely, since the power density of hydrogen is approximately 33.3 kWh/kg, 2.5 times larger than that of LNG (12.5–14.0 kWh/kg) [66]. In addition, if more than a certain percentage of oxygen is encountered in an enclosed space, it is likely to explode [69].
    Hydrogen cars, taxis, buses, and trucks were included in the roadmap of transportation hydrogen economy activation [74]. Specifically, the plan is to expand hydrogen refueling stations and clean transportation infrastructure, along with the construction of production lines for all types of hydrogen vehicles. In total, 12.4 million hydrogen vehicles of all types (5.8 million for Korea domestic consumption) will be manufactured with 1200 hydrogen refueling stations by 2040. The costs for a hydrogen taxi pilot study are to be supported, and 10 vehicles will be operated on real road environments until reaching their endurance limits (200,000 km) to verify, analyze, and improve the core component performance. Moreover, there are plans to establish infrastructure for hydrogen buses, increase their provision, and verify the phased replacement of police buses with hydrogen buses. The establishment of the infrastructure mentioned above is thus important for the supply of hydrogen cars, taxis, and buses. In addition, the economic and institutional support for taxi and bus companies should be strengthened for the phased increase in supply. Regarding public transport, there needs to be significant improvements in fuel efficiency and durability, as many consumers use these services, in addition to the unified establishment of safety standards [75].
    In response to recent environmental regulations, technology development and verification are underway, regarding fuel cell-powered transportation modes such as hydrogen ships, trains, and drones. For the latter, long endurance flights are possible in comparison to lithium battery drones; thus, hydrogen drones might be able to enter the commercial drone market for those requiring longer flight times, such as during agricultural use, in the fields of logistics and delivery, and in particular, drones used for initial response, including searching for survivors following a disaster [76].
    Table
    Table 5. Hydrogen properties for safe and secure handling (reprinted with permission from ref. [66,69,77,78] Copyright 2022 Elsevier).
    Table 5. Hydrogen properties for safe and secure handling (reprinted with permission from ref. [66,69,77,78] Copyright 2022 Elsevier).
    PropertyValue
    Power density (kWh/kg)33.3
    Ignition limits in air (%)4–75
    Ignition energy in air (mJ)0.02
    Flame temperature (°C)2045
    Boiling point (K)20
    Diffusion coefficient in air (cm2/s)0.610

    3.3.2. Power Generation

    The goal of power generation is to use hydrogen as an energy source for eco-friendly distributed power. The supply target of 2.1 GW in 2040 was derived from the current 7 MW for fuel cells in homes and buildings, whereas fuel cells for power generation are to be greatly expanded from the current 307.6 MW to 15 GW by 2040 [42]. Through increased fuel cell installations, correlated installation and power generation unit costs will be substantially reduced to the levels of small- and medium-sized gas turbines. Through a connection with installation expansion, an industrial ecosystem will be created through 100% localization of parts [25]. The removal of investment uncertainty and securement of economic feasibility are to be supported through the introduction of a fuel cell-exclusive gas rate system according to the supply of fuel cells and the preferential treatment of green hydrogen renewable energy certificates (RECs). Furthermore, there are mid- to long-term plans for commercialization after 2030 through the development of hydrogen gas turbine power generation technology [23].
    Specifically, in the case of fuel cells for power generation, unit cost reduction is possible through scaled economies when supplying 1 GW cumulatively in 2022; whereas there are plans to attain 35% of the installation cost, and 50% of the power generation cost by 2040 compared to present day.
    Economic feasibility is the most important factor for the provision of fuel cells. The Korean government has presented a target of introducing a fuel-cell-exclusive LNG rate system and maintaining fuel-cell RECs for a specified period to remove investment uncertainty, and secure economic feasibility. Moreover, in the mid-to-long terms, RECs are planned to receive preferential treatment when green hydrogen is used. Considering the current status of domestic technology, research on cell electrodes and catalysts, along with fuel converter catalysts, remains lacking. The localization of all fuel cell core components, except for imported materials (e.g., catalysts) is to be completed by 2022, and competitiveness will be strengthened through the long-term technology development for imported materials (catalysts, electrodes, and separator, among others) [79].
    Hydrogen gas turbines, an important technology for power generation, are necessary to overcome the disadvantages of renewable energy (e.g., high price for system construction and environmental pollution) [80], and corresponding technological development will be promoted by categorization into hydrogen co-firing (large scale), and hydrogen single-firing (small scale), simultaneously establishing demonstration infrastructure.
    In the case of hydrogen co-firing, the goal of expanding the application of large-scale gas turbines by 2026 in addition to commercial applications after 2030 was presented based on technological development and empirical research. In addition, in the case of hydrogen single firing, commercialization in 2028 is planned through the joint development and demonstration of 1 MW hydrogen gas turbines in 2026. When developed, hydrogen gas turbine technology can be applied to power plants and expanded to apply hydrogen co-firing technology through demonstration.
    The Hydrogen value chain and specific technologies of each technology were summarized in Figure 3.

    4. South Korea’s Status and Strategy

    In this chapter, we discussed the trends and standards in Korea in terms of technology through the value chain mentioned above. The roadmap for hydrogen technology development recently announced in 2019 is being reorganized in accordance with the current situation and global trends. We will organize new goals and key indicators together (Table 6).
    In the field of hydrogen production, South Korea is currently developing technologies to produce large-capacity blue hydrogen in cooperation with natural gas modified hydrogen production technologies. In South Korea, demand for hydrogen is increasing, but due to geographical requirements, there remain limitations that hinder the construction of a large-scale renewable energy system, and hence blue hydrogen plays an important role in the transition to green hydrogen. In the case of green hydrogen, some domestic renewable energy systems are being used for production, but most of the products are imported from overseas. We are also conducting pilot-scale research on technologies that utilize waste resources/biomass to produce hydrogen. In the case of hydrogen production, a strategy has been announced to increase price competitiveness and efficiency by receiving electricity. The goal is to reduce hydrogen prices to approximately USD 2 per kg in 2050, with water electrolysis efficiency set at 43 kWh/kgH2.
    For hydrogen storage, South Korea is developing the domestic production of small-capacity hydrogen liquefaction plants, LOHC, as well as ammonia storage and extraction systems. To limit dependency on overseas technology, we aimed to develop our own technology and have a strategy to build a large-scale hydrogen supply infrastructure to meet domestic hydrogen demand. We are considering storage materials such as green hydrogen that can transport large volumes of overseas hydrogen stably, underwriting bases and hydrogen/methane mixed combustion technology to use existing LNG pipelines. In the case of hydrogen liquefaction plants, the goal is to build plants and core equipment domestically by 2030 at 5 tons per day, which will increase to 300 tons per day by 2050.
    For hydrogen utilization, we are developing hydrogen reduction steel technology along with research to reduce the price and increase efficiency of fuel cell materials/parts/systems. Currently, the city’s gas-based fuel cell power generation system is the main focus; the core materials and components of the fuel cell are imported. Therefore, the main goal in the field of fuel cells is to develop domestic production technology with the strategy to develop a power generation system utilizing carbon-free fuels (hydrogen and ammonia). Securing hydrogen-reducing steelmaking technology is an important strategy as greenhouse gases are emitted via the use of fossil fuels in coal power generation and steel/cement industries. By 2030, the power generation sector has established a core indicator of over 90% efficiency of fuel cell systems, 50% hydrogen-mixed combustion gas turbine power generation, and 20% ammonia mixed combustion boiler power generation.
    Due to the rapid increase in demand for hydrogen, South Korea aims to realize the hydrogen economy through technology development for all value chains. Therefore, the low price and high efficiency performance of hydrogen production are important. Securing storage and transportation infrastructure and establishing a technology system that utilizes domestic production will be significantly beneficial strategies.
    Table
    Table 6. Korea’s hydrogen technology and economy strategies by value chain from Korea’s hydrogen technology development roadmap 2.0 [81].
    Table 6. Korea’s hydrogen technology and economy strategies by value chain from Korea’s hydrogen technology development roadmap 2.0 [81].
    ProductionSecuring key technologies for establishing a mass production system for clean hydrogen
    Hydrogen production from fossil fuels, waste resources/biomass, and water
    20302050
    CostUSD 3 per kgUSD 2 per kg
    Water electrolysis efficiency48 kWh/kgH243 kWh/kgH2
    StorageEstablish a system (infrastructure) for stable and economical storage and supply
    Physical and chemical hydrogen storage
    20302050
    Hydrogen liquefaction plant capacity5 ton/day (with Korea’s own technology of plant and core equipment)300 ton/day
    ApplicationTransition of clean fuel-based carbon-free power plants and 100% conversion of hydrogen-reduced steel facilities
    Fuel cell and gas turbine
    2030
    GenerationDemonstration of fuel cell system comprehensive efficiency of 90% or more, hydrogen 50% mixed gas turbine power generation and ammonia 20% mixed boiler power generation
    IndustryConstruction and process verification of 1 million tons of hydrogen-reduced steel facilities per year

    5. Discussion

    There is increasing interest in hydrogen technology in relation to the New Deal and carbon-neutral policies. In each country, hydrogen economy implementation guidelines and a hydrogen technological development roadmap at the government level were announced, including research, development, policy, and institutional support. In R&D, a roadmap including the entire value chain from hydrogen production to storage, transportation, and application was presented with the goal of expanding support for the entire process, from basic fundamental technologies to demonstration and commercialization, in conjunction with R&D in the fields of production, storage, and transportation. Regarding applications, support has been planned for the localization of core technologies to maintain global competitiveness in hydrogen vehicles and fuel cells, and the establishment of large-scale demonstration platforms has been announced for the commercialization and establishment of infrastructure, including hydrogen refueling stations. Moreover, the plan is to stably implement a hydrogen economy by establishing the safety of all hydrogen technology fields across the value chain. For this, professional manpower in safety management must be cultivated, as well as significant support for fostering human resources regarding the development of core technologies. The establishment of standard cooperation systems is promoted through leadership in international standardization activities, along with the localization of technological development in an effort to become a leader in the hydrogen economy. A hydrogen industry cluster and hydrogen city are planned, and institutional foundations will be prepared through the enactment of legislation for hydrogen economic support.
    To realize a hydrogen economy, it is important to keep pace with policy and technological development, in addition to establishing a roadmap for policy support so that development can proceed efficiently and effectively. Such efforts also require support for customized technological development and policies within each country, which are notably not in accordance with the global roadmap.
    In terms of technological development, it is important to prioritize those that can connect the value chain, as opposed to a single area of chain. If the pace of technological development in all fields is aligned, the hydrogen economy can be implemented more efficiently and successfully, which will ultimately play a major role in the transformation of human energy.

    Funding

    This research was supported by the Basic Research Project (Basic Researches in Application and Development of Geological Samples and Geo-Technology R&D Policy/dissemination, 22-3120-1) of the Korea Institute of Geoscience and Mineral Resources (KIGAM) funded by the Ministry of Science and ICT (NTIS number: 1711173242).

    Data Availability Statement

    Not applicable.

    Conflicts of Interest

    The author declares no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

    References

    1. United Nations Environment Programme. Climate action and support trends. In Proceedings of the United Nations Climate Change, Madrid, Spain, 2–13 December 2019. [Google Scholar]
    2. Capros, P.; Zazias, G.; Evangekopoulou, S.; Kannavou, M.; Fotiou, T.; Siskos, P.; De Vita, A.; Sakellaris, K. Energy-system modelling of the EU strategy towards climate-neutrality. Energy Pol. 2019, 134, 110960. [Google Scholar] [CrossRef]
    3. Osman, A.I.; Mehta, N.; Elgarahy, A.M.; Hefny, M.; Al-Hinai, A.; Al-Muhtaseb, A.H.; Rooney, D.W. Hydrogen production, storage, utilisation and environmental impacts: A review. Environ. Chem. Lett. 2022, 20, 153–188. [Google Scholar] [CrossRef]
    4. Kochanek, E. The role of hydrogen in the visegrad group approach to energy transition. Energies 2022, 15, 7235. [Google Scholar] [CrossRef]
    5. Haskett, J.D. Intergovernmental panel on climate change’s sixth assessment report. Congr. Res. Serv. 2022. Available online: https://crsreports.congress.gov/product/pdf/R/R470821–16 (accessed on 22 November 2022).
    6. IEA. Global Hydrogen Review; IEA: Paris, France, 2022; Available online: https://www.iea.org/reports/global-hydrogen-review-2022 (accessed on 22 November 2022).
    7. European Commission. A Hydrogen Strategy for a Climate Neutral Europe: European Commission 2020. Available online: https://ec.europa.eu/commission/presscorner/api/files/attachment/865942/EU_Hydrogen_Strategy.pdf.pdf (accessed on 22 November 2022).
    8. European Climate Foundation. ROADMAP 2050: A Practical Guide to a Prosperous, Low-Carbon Europe. European Climate Foundation 2010. Available online: https://www.raponline.org/wp-content/uploads/2016/05/ecf-roadmap2050-pppresentation-2010-05.pdf (accessed on 22 November 2022).
    9. Fuel Cells and Hydrogen 2 Joint Undertaking. Hydrogen roadmap Europe. Fuel Cells Hydrogen 2019. [CrossRef]
    10. European Climate Foundation. Roadmap 2050. Available online: https://www.roadmap2050.eu/ (accessed on 31 October 2022).
    11. Fuel Cell & Hydrogen Energy Association. Road Map to a US Hydrogen Economy. US Government 2020. Available online: https://h2fcp.org/sites/default/files/Road+Map+to+a+US+Hydrogen+Economy+Full+Report.pdf (accessed on 22 November 2022).
    12. U.S. Department of Energy. Department of Energy Hydrogen Program 2020. Available online: https://www.hydrogen.energy.gov/ (accessed on 22 November 2022).
    13. Krupnick, J.B.; Alan. Decarbonized hydrogen in the US power and industrial sectors: Identifying and incentivizing opportunities to lower emissions. Res. Futur. 2020. Available online: https://media.rff.org/documents/RFF_Report_20-25_Decarbonized_Hydrogen.pdf (accessed on 22 November 2022).
    14. Miller, E.L.; Thompson, S.T.; Randolph, K.; Hulvey, Z.; Rustagi, N.; Satyapal, S. US Department of Energy. Hydrogen and Fuel Cell Technology Perspectives. MRS Bullet. 2020, 45, 57–64. Available online: https://ui.adsabs.harvard.edu/link_gateway/2020MRSBu..45...57M/doi:10.1557/mrs.2019.312 (accessed on 22 November 2022).
    15. Ministerial Council on Renewable Energy. Basic hydrogen strategy. Minist. Counc. Renew. Energy 2017. Available online: https://policy.asiapacificenergy.org/node/3698 (accessed on 22 November 2022).
    16. Dasha, H. Toward a hydrogen society-introduction of representative projects in Japan. ECS Trans. 2019, 91, 3. [Google Scholar] [CrossRef]
    17. Iida, S.; Sakata, K. Hydrogen technologies and developments in Japan. Clean Energy 2019, 3, 105–113. [Google Scholar] [CrossRef] [Green Version]
    18. Wang, X.; Lio, Y.; Bi, J.; Liu, M. New challenges of the belt and road initiative under China’s 3060 carbon target. J. Clean Prod. 2022, 376, 134180. [Google Scholar] [CrossRef]
    19. Su, C.; Urban, F. Carbon neutral China by 2060: The role of clean heating systems. Energies 2021, 14, 7461. [Google Scholar] [CrossRef]
    20. Zhao, F.; Mu, Z.; Hao, H.; Liu, Z.; He, X.; Przesmitzki, S.V.; Amer, A.A. Hydrogen fuel cell vehicle development in China: An industry chain perspective. Energy Technol. 2020, 8, 2000179. [Google Scholar] [CrossRef]
    21. Yunzhe, J.; Bowei, Z.; Fefei, W.; Mengmeng, L. Research on hydrogen energy and fuel cell vehicle roadmap in various countries. Earth Environ. Sci. 2020, 512, 012136. [Google Scholar] [CrossRef]
    22. Chu, K.H.; Lim, J.; Mang, J.S.; Hwang, M.-H. Evaluation of strategic directions for supply and demand of green hydrogen in South Korea. Int. J. Hydrogen Energy 2022, 47, 1409–1424. [Google Scholar] [CrossRef]
    23. Stangarone, T. South Korean efforts to transition to a hydrogen economy. Clean Technol. Environ. Pol. 2021, 23, 509–516. [Google Scholar] [CrossRef]
    24. Lee, D.; Kim, K. Research and development investment and collaboration framework for the hydrogen economy in South Korea. Sustainability 2021, 13, 10686. [Google Scholar] [CrossRef]
    25. Hyungna, O.; Inkee, H.; Ilyoung, O. South Korea’s 2050 carbon neutrality policy. East Asian Pol. 2021, 13, 33–46. [Google Scholar] [CrossRef]
    26. Welch, M.; Choi, Y.C. The hydrogen economy South Korea. Innov. Great. 2021. Available online: https://www.intralinkgroup.com/Syndication/media/Syndication/Reports/Korean-hydrogen-economy-market-intelligence-report-January-2021.pdf (accessed on 22 November 2022).
    27. The Government of the Republic Korea. Hydrogen Economy Roadmap of Korea 2019. Available online: https://www.korea.kr/news/pressReleaseView.do?newsId=156313631 (accessed on 22 November 2022).
    28. Tashie-Lewis, B.C.; Nnabuife, S.G. Hydrogen production, distribution, storage and Power conversion in a hydrogen economy-a technology review. Chem. Engin. J. Adv. 2021, 8, 100172. [Google Scholar] [CrossRef]
    29. IEA. The Future of Hydrogen; IEA: Paris, France, 2019; Available online: https://www.iea.org/reports/the-future-of-hydrogen (accessed on 22 November 2022).
    30. Yu, M.; Wang, K.; Vredenburg, H. Insights into low-carbon hydrogen production methods: Green, blue and aqua hydrogen. Int. J. Hydrogen Energy 2021, 46, 21261–21273. [Google Scholar] [CrossRef]
    31. World Energy Council. Working Paper National Hydrogen Strategies; World Energy Council: London, UK, 2021; Available online: https://www.worldenergy.org/assets/downloads/Working_Paper_-_National_Hydrogen_Strategies_-_September_2021.pdf (accessed on 22 November 2022).
    32. Zgonnik, V. The occurrence and geoscience of natural hydrogen: A comprehensive review. Earth Sci. Rev. 2020, 203, 103140. [Google Scholar] [CrossRef]
    33. Heinemann, N.; Alcalde, J.; Miocic, J.M.; Hangx, S.J.T.; Kallmeyer, J.; Ostertag-Henning, C.; Hassanpouryouz, A.; Thaysen, E.M.; Strobel, G.J.; Schmidt-Hattenberger, C.; et al. Enabling large-scale hydrogen storage in porous media– the scientific challenges. Energy Environ. Sci. 2021, 14, 853–864. [Google Scholar] [CrossRef]
    34. Boyano, A.; Blanco-Marigorta, A.M.; Morosuk, T.; Tsatsaronis, G. Exergoenvironmental analysis of a steam methane reforming process for hydrogen production. Energy 2011, 36, 2202–2214. [Google Scholar] [CrossRef]
    35. Jakobsen, D.; Atland, V. Concepts for Large Scale Hydrogen Production; Norwegian University of Science and Technology: Trondheim, Norway, 2016. [Google Scholar]
    36. The Government of the Republic Korea. Carbon capture-Utilization Technology Innovation Roadmap 2021. Available online: https://www.msit.go.kr/bbs/view.do?sCode=user&mId=113&mPid=112&bbsSeqNo=94&nttSeqNo=3180364 (accessed on 21 November 2022).
    37. Kirk, K.; Neele, F.; Grimstad, A.-A.; Bentham, M.; Bergmo, P. Storage readiness levels: Communicating the maturity of site technical understanding, permitting and planning needed for storage operations using CO2. Int. J. Greenh. Gas. Control. 2021, 110, 103402. [Google Scholar] [CrossRef]
    38. Faziolo, R.; Pantaleone, F. Macroeconomic factors influencing public policy strategies for blue and green hydrogen. Energies 2021, 14, 7938. [Google Scholar] [CrossRef]
    39. AssociationK-CCUS. “K-CCUS Association. ”K-CCUS Association.” K-CCUS Association. Available online: https://www.kccus.kr/ (accessed on 22 November 2022).
    40. Ministry of Trade and Energy Industry. The Present and Future of Renewable Energy, 1st Investment Briefing for the Korean Newdeal Policy. Republic of Korea: Ministry of Trade 2020. Available online: https://english.moef.go.kr/ (accessed on 22 November 2022).
    41. Jovan, D.J.; Dolanc, G. Can green hydrogen production be economically viable under current market conditions. Energies 2020, 13, 6599. [Google Scholar] [CrossRef]
    42. The Korea Government. The Implementation Plan for Renewable Energy 3020. Republic of Korea. Ministry 2017. Available online: http://www.motie.go.kr/motiee/presse/press2/bbs/bbsView.do?bbs_seq_n=159996&bbs_cd_n=81 (accessed on 22 November 2022).
    43. Lepage, T.; Kammoun, M.; Schmetz, Q.; Richel, A. Biomass-to-hydrogen: A review of main routes production, processes evaluation and techno-economical assessment. Biomass Bioenerg. 2021, 144, 105920. [Google Scholar] [CrossRef]
    44. Giuseppe, G.; Zoppi, P.; Pirone, R.; Bensaid, S. A critical review on catalyst design for aqueous phase reforming. Int. J. Hydrogen Energy 2022, 47, 151–180. [Google Scholar] [CrossRef]
    45. Zoppi, G.; Pipitone, G.; Pirone, R.; Bensaid, S. Aqueous phase reforming process for the valorization of wastewater streams: Application to different industrial scenarios. Catal. Today 2022, 387, 224–236. [Google Scholar] [CrossRef]
    46. Kanwal, F.; Torriero, A.A.J. Biohydrogen—A Green Fuel for Sustainable Energy Solutions. Energies 2022, 15, 7783. [Google Scholar] [CrossRef]
    47. Kumar, G.; Sivagurunathan, P.; Pugazhendhi, A.; Thi, N.B.D.; Zhen, G.; Chandrasekhar, K.; Kadier, A. A comprehensive overview on light independent fermentative hydrogen production from wastewater feedstock and possible integrative options. Energy Convers. Manag. 2017, 141, 390–402. [Google Scholar] [CrossRef]
    48. Rivera, I.; Buitrón, G.; Bakonyi, P.; Nemestóthy, N.; Bélafi-Bakó, K. Hydrogen production in a microbial electrolysis cell fed with a dark fermentation effluent. J. Appl. Electrochem. 2015, 45, 1223–1229. [Google Scholar] [CrossRef]
    49. Kadier, A.; Singh, R.; Song, D.; Ghanbari, F.; Zaidi, N.S.; Aryanti, P.T.P.; Jadhav, D.A.; Islam, M.A.; Kalil, M.S.; Nabgan, W.; et al. A novel pico-hydro power (PHP)-Microbial electrolysis cell (MEC) coupled system for sustainable hydrogen production during palm oil mill effluent (POME) wastewater treatment. Int. J. Hydrogen Energy 2022. [Google Scholar] [CrossRef]
    50. Lee, H.-S.; Xin, W.; Katakojwala, R.; Mohan, S.V.; Tabishg, N.M.D. Microbial electrolysis cells for the production of biohydrogen in dark fermentation-A review. Bioresour. Technol. 2022, 363, 127934. [Google Scholar] [CrossRef]
    51. Ji, M.; Jianlong, W. Review and comparison of various hydrogen production methods based on costs and life cycle impact assessment indicators. Int. J. Hydrogen Energy 2021, 40, 38612–38635. [Google Scholar] [CrossRef]
    52. Klein, F.; Tarnas, D.J.; Bach, W. Abiotic sources of molecular hydrogen on earth. Elements 2020, 16, 19–24. [Google Scholar] [CrossRef]
    53. Prinzhofer, A.; Cisse, S.T.; Bouvacar, A.; Cheick, D. Discovery of a large accumulation of natural hydrogen in Bourakebougou (Mali). Int. J. Hydrogen Energy 2018, 43, 19315–19326. [Google Scholar] [CrossRef]
    54. Nikolaidis, P.; Andreas, P. A comparative overview of hydrogen production processes. Renew. Sust. Energy Rev. 2017, 67, 597–611. [Google Scholar] [CrossRef]
    55. Sinigaglia, T.; Lewiski, F.; Martins, M.E.S.; Siluk, J.C.M. Production, storage, fuel stations of hydrogen and its utilization in automotive applications-a review. Int. J. Hydrogen Energy 2017, 42, 24597–24611. [Google Scholar] [CrossRef]
    56. El-Emam, R.S.; Hasan, O. Comprehensive review on the techno-economics of sustainable large-scale clean hydrogen production. J. Clean. Prod. 2019, 2020, 593–609. [Google Scholar] [CrossRef]
    57. Sladkovskiy, D.A.; Godina, L.I.; Semikin, K.V.; Sladkovskaya, E.V.; Smirnova, D.A.; Murzin, D.Y. Process design and techno-economical analysis of hydrogen production by aqueous phase reforming of sorbitol. Chem. Eng. Res. Des. 2018, 134, 104–116. [Google Scholar] [CrossRef]
    58. Kovač, A.; Paranos, M.; Marciuš, D. Hydrogen in energy transition: A review. Int. J. Hydrogen Energy 2021, 46, 10016–10035. [Google Scholar] [CrossRef]
    59. Wijayanta, A.T.; Oda, T.; Purnomo, C.W.; Kashiwagi, T.; Aziz, M. Liquid hydrogen, methylcyclohexane, and ammonia as potential hydrogen storage: Comparison review. Int. J. Hydrogen Energy 2019, 44, 15026–15044. [Google Scholar] [CrossRef]
    60. Tarkowski, R. Underground hydrogen storage: Characteristics and prospects. Renew. Sustain. Energy Rev. 2019, 105, 86–94. [Google Scholar] [CrossRef]
    61. Vidmar, M.G.; Pio, G.; Peter, E.S. A comparison of dispersion models for the LNG dispersion at port of Koper, Slovenia. Safe. Sci. 2021, 144, 105467. [Google Scholar] [CrossRef]
    62. Muhammed, N.S.; Haq, B.; Shehri, D.A.; Al-Ahmed, A.; Rahman, M.M.; Zaman, E. A review on underground hydrogen storage: Insight into geological sites, influencing factors and future outlook. Energy Rep. 2022, 8, 461–499. [Google Scholar] [CrossRef]
    63. Aftab, A.; Hassanpouryouzband, A.; Xie, Q.; Machuca, L.L.; Sarmadivaleh, M. Toward a fundamental understanding of geological hydrogen storage. Indust. Engin. Chem. Res. 2022, 61, 3233–3253. [Google Scholar] [CrossRef]
    64. Lan, R.; Irvine, J.T.S.; Tao, S. Ammonia and related chemicals as potential indirect hydrogen storage materials. Int. J. Hydrogen Energy 2012, 37. [Google Scholar] [CrossRef]
    65. Klerke, A.; Christensen, H.; Nørskov, J.K.; Claus, T.V. Ammonia for hydrogen storage: Challenges and opportunities. J. Mat. Chem. 2008, 18, 2304–2310. [Google Scholar] [CrossRef]
    66. Lamb, K.E.; Dolan, M.D.; Kennedy, D.F. Ammonia for hydrogen storage; A review of catalytic ammonia decomposition and hydrogen separation and purification. Int. J. Hydrogen Energy 2019, 44, 3508–3595. [Google Scholar] [CrossRef]
    67. Aziz, M.; Wijayanta, T.; Dani, A.B.; Agung, N. Ammonia as Effective Hydrogen Storage: A Review on Production, Storage and Utilization. Energies 2020, 13, 3062. [Google Scholar] [CrossRef]
    68. He, T.; Pei, Q.; Chen, P. Liquid organic hydrogen carriers. J. Energy Chem. 2015, 24, 587–594. [Google Scholar] [CrossRef] [Green Version]
    69. Preuster, P.; Christian, P.; Wasserscheid, P. Liquid organic hydrogen carriers (LOHCs): Toward a hydrogen-free hydrogen economy. Acc. Chem. Res. 2017, 50, 74–85. [Google Scholar] [CrossRef] [PubMed]
    70. Modisha, P.M.; Ouma, N.M.; Garidzirai, R.; Wasserscheid, P.; Cecil, D.B. The Prospect of Hydrogen Storage Using Liquid Organic Hydrogen Carriers. Energy Fuels 2019, 33, 2778–2796. [Google Scholar] [CrossRef]
    71. Sakintuna, B.; Lamari-Darkrim, F.; Hirscher, M. Metal hydride materials for solid hydrogen storage: A review. Int. J. Hydrogen Energy 2007, 32, 1121–1140. [Google Scholar] [CrossRef]
    72. Tarasov, B.P.; Fursikov, P.V.; Volodin, A.A.; Bocharnikov, M.S.; YaShimkus, Y.; Kashin, A.M.; Yartys, V.A.; Chidziva, S.; Pasupathi, S.; Lototskyy, M.V. Metal hydride hydrogen storage and compression systems for energy storage technologies. Int. J. Hydrogen Energy 2021, 46, 13647–13657. [Google Scholar] [CrossRef]
    73. Mane, M.A.; Rohit, P.S. Heat transfer techniques in metal hydride hydrogen storage: A review. Int. J. Hydrogen Energy 2017, 42, 30661–30682. [Google Scholar] [CrossRef]
    74. Sharma, S.; Ghoshal, S.K. Hydrogen the future transportation fuel: From production to applications. Renew. Sustain. Energy Rev. 2015, 43, 1151–1158. [Google Scholar] [CrossRef]
    75. Abdalla, A.M.; Hossain, S.; Nisfindy, O.B.; Azad, A.T.; Dawood, M.; Azad, A.K. Hydrogen production, storage, transportation and key challenges with applications: A review. Energy Conv. Manag. 2018, 165, 602–627. [Google Scholar] [CrossRef]
    76. Arat, H.T.; Surer, M.G. Experimental investigation of fuel cell usage on an air vehicle’s hybrid propulsion system. Int. J. Hydrogen Energy 2020, 45, 26370–26378. [Google Scholar] [CrossRef]
    77. Häussinger, P.; Lohmüller, R.; Watson, M.A. Hydrogen. Ullmann’s Encyclopedia of Industrial Chemistry; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2000. [Google Scholar]
    78. Veziroǧlu, N.T.; Şahi’n, S. 21st Century’s energy: Hydrogen energy system. Energy Convers. Manag. 2008, 49, 1820–1831. [Google Scholar] [CrossRef]
    79. Yang, W.-J.; Aydin, O. Wind energy-hydrogen storage hybrid power generation. Int. J. Energy Res. 2001, 25, 449–463. [Google Scholar] [CrossRef]
    80. Chutichai, B.; Authayanun, S.; Assabumrungrat, S.; Arpornwichanop, A. Performance analysis of an integrated biomass gasification and PEMFC (proton exchange membrane fuel cell) system: Hydrogen and power generation. Energy 2013, 21, 85. [Google Scholar] [CrossRef]
    81. The Government of the Republic Korea. Hydrogen Technology and Development Roadmap 2.0; The Government of the Republic Korea: Seoul, Republic of Korea, 2022.
    Energies 15 08983 g001 550
    Figure 1. Hydrogen color spectrum [31].
    Figure 1. Hydrogen color spectrum [31].
    Energies 15 08983 g001
    Energies 15 08983 g002 550
    Figure 2. Mechanism underlying APR conversion of a diol component into hydrogen (reprinted with permission from ref. [43] Copyright 2022 Elsevier).
    Figure 2. Mechanism underlying APR conversion of a diol component into hydrogen (reprinted with permission from ref. [43] Copyright 2022 Elsevier).
    Energies 15 08983 g002
    Energies 15 08983 g003 550
    Figure 3. Specific technologies by hydrogen vale chain.
    Figure 3. Specific technologies by hydrogen vale chain.
    Energies 15 08983 g003
    Table
    Table 3. Definition and future technologies according to hydrogen value chain.
    Table 3. Definition and future technologies according to hydrogen value chain.
    Value ChainDefinitionCurrent StatusFuture Technology
    ProductionA technology for producing hydrogen from a hydrogen-containing compoundLarge amounts of CO2 emissions during hydrogen productionSecuring blue hydrogen production system to meet initial hydrogen demand;
    securing green hydrogen technology using water electrolysis systems
    StorageStorage of hydrogen for transportation and useLack of physical and chemical technology for hydrogen storageLarge-capacity hydrogen storage system;
    development of hydrogen storage materials and containers
    TransportationTechnology for transporting, distributing, and supplyingHydrogen import/export base requiredMobility for bulk transportation
    ApplicationPower generation and industrial systems that utilize hydrogen to produce electricity and heatGreenhouse gas emissions from coal power generation, steel industry, and cement manufacturing, among othersDevelopment of fuel cell materials, components, and power generation systems;
    securing a power generation system using carbon-free fuel
    Table
    Table 4. Costs of various hydrogen production technologies (reprinted with permission from ref. [51] Copyright 2022 Elsevier).
    Table 4. Costs of various hydrogen production technologies (reprinted with permission from ref. [51] Copyright 2022 Elsevier).
    OriginMethodCost (USD/kgH2)AdvantagesDisadvantagesRefs.
    RocksNatural H21
    • Low cost
    • Reproducibility
    • Low maturity
    • Difficult capture system
    		[52,53]
    Natural gasSMR
    (grey hydrogen)    		2.08
    • Low cost
    • High maturity
    • Large CO2 emissions
    		[54,55]
    SMR with CCS
    (blue hydrogen)    		2.27
    • High maturity
    • Difficult CO2 utilization/storage technology
    		[51]
    WaterElectrolysis
    (green hydrogen)    		5.27–9.37
    (wind)
    • Clean and sustainable
    • Combination with other technologies
    • High cost
    • Geological limitation
    		[54,56]
    BiomassAPR4
    • High energy efficiency
    • Variable results depend on the catalysts
    		[43,57]
    Dark fermentation2.57–6.98
    • High H2 production rate
    • Simple system
    • Need H2 separation process from mixture gas
    		[54,55]
    Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

    Share and Cite

    MDPI and ACS Style

    Shin, J.-E. Hydrogen Technology Development and Policy Status by Value Chain in South Korea. Energies 2022, 15, 8983. https://doi.org/10.3390/en15238983

    AMA Style

    Shin J-E. Hydrogen Technology Development and Policy Status by Value Chain in South Korea. Energies. 2022; 15(23):8983. https://doi.org/10.3390/en15238983

    Chicago/Turabian Style

    Shin, Jae-Eun. 2022. "Hydrogen Technology Development and Policy Status by Value Chain in South Korea" Energies 15, no. 23: 8983. https://doi.org/10.3390/en15238983

    APA Style

    Shin, J. -E. (2022). Hydrogen Technology Development and Policy Status by Value Chain in South Korea. Energies, 15(23), 8983. https://doi.org/10.3390/en15238983

    Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

    Article Metrics

    Back to TopTop
