Review

Summarizing the Effect of Acidity and Water Content of Deep Eutectic Solvent-like Mixtures—A Review

by
Veronika Jančíková
,
Michal Jablonský
,
Katarína Voleková
and
Igor Šurina
*
Department of Wood, Pulp and Paper, Institute of Natural and Synthetic Polymers, Faculty of Chemical and Food Technology, Slovak University of Technology in Bratislava, Radlinského 9, 812 37 Bratislava, Slovakia
*
Author to whom correspondence should be addressed.
Energies 2022, 15(24), 9333; https://doi.org/10.3390/en15249333
Submission received: 19 October 2022 / Revised: 28 November 2022 / Accepted: 5 December 2022 / Published: 9 December 2022
(This article belongs to the Special Issue Plant Biomass for Chemicals and Biofuels Applications)

Abstract

:
Deep eutectic solvent-like (DES-like) mixtures re-emerged in green chemistry nineteen years ago and yet have led to a large number of publications covering different research areas and different application industries. DES-like mixtures are considered a special class of green solvents because of their unique properties, such as high solubilization ability, remarkable biocompatibility, low production cost, low volatility, relatively simple synthesis methods, and considerable stability. Several studies have been published that analyze the effect of acidity/alkalinity and water content in DES-like mixtures on their physicochemical properties and behavior. This work summarizes the characterization of green solvents and, subsequently, the influence of various factors on the resulting pH values of green solvent systems. Part of this work describes the influence of water content in DES-like mixtures on their physical and chemical properties. The acidity/alkalinity effect is very important for green solvent applications, and it has the main impact on chemical reactions. As the temperature increases, the pH of DES-like mixtures decreases linearly. The type of hydrogen bond donors has been shown to have an important effect on the acidity of DES-like mixtures. The water content also affects their properties (polarity, solubilization capacity of DES-like mixtures).

1. Green Solvent—Deep Eutectic Solvent-like Mixtures

A decisive part of the environmental efficiency of processes in the chemical industry is determined by solvents. These have an impact on process costs, safety, and the health of people. The idea of green solvents expresses the intention to limit the impact on the environment resulting from the use of harmful organic solvents in chemical production. Green solvents must have several different health and safety properties than conventional solvents [1]. In this area of research, ionic liquids (ILs), deep eutectic solvents (DESs), natural deep eutectic solvents (NADESs), and low-transition-temperature solvents or mixtures (LTTMs) are the most used candidates. ILs have been considered green solvents for some time, but they are highly toxic, their preparation is not green, and they are unsatisfactory from the point of view of biological degradability, and therefore they are not in agreement with the basic properties of green solvents [2]. Other disadvantages of ILs include high viscosity, relatively high price, and great effort in their synthesis. Subsequently, due to doubts about the greenness of ILs, a new type of green solvent was discovered—deep eutectic solvents (DESs) [2]. The concept of eutectic mixtures (material which has been a subject in chemistry for literally decades) was applied in 2003 to substances (HBDs and HBAs) that can afford substances whose viscosity is low enough for them to be used as solvents [3].
The application of DESs is a major breakthrough in the field of green chemistry. For conventional organic solvents, DESs appear to be promising substitutes due to their high tunability and preparation using readily available natural compounds. DESs have properties similar to those of ILs, with the advantage of direct and cheap synthesis, which requires available raw materials from renewable sources [4]. The first definition of DESs was proposed by Abbot et al. [3]. DESs are systems formed from a eutectic mixture of Lewis or Brønsted acids and bases that can contain a variety of anionic and/or cationic species [5] and are ready to combine a suitable hydrogen bond acceptor (HBA) and a hydrogen bond donor (HBD). Since the definition of DESs requires a melting point close to room temperature, not every combination of HBAs and HBDs will produce DESs [6].
Crystallization of the input compound is prevented by van der Waals interactions and hydrogen bonds, causing the synthesis of mixtures in the liquid state [7,8,9,10]. The nature and magnitude of the forces between molecules lead to a wide range of structures [7].
DESs are commonly defined as binary or ternary mixtures of compounds that are joined together through hydrogen bonds. Combining certain compounds in a given molar ratio results in a eutectic mixture. The word “eutectic” means easily “dissolved”, and the eutectic point represents the chemical composition and temperature at which a mixture of two solids completely melts at a lower melting point compared to the melting point of either compound [9].
DESs are classified into five categories, where type I consists of a quaternary ammonium salt and a metal halide, and type II mainly includes a quaternary ammonium salt and a hydrated metal halide. Type III represents a mixture composed of a quaternary ammonium salt and various HBDs (carboxylic acids, amides) [10]. Type IV DESs include inorganic transition metals and HBDs, and type V, which is a relatively new class, consists of exclusively non-ionic molecular substances and is normally hydrophobic (Figure 1) [11].
DESs represent eutectic mixtures in the liquid state, which are composed of a hydrogen bond acceptor (HBA) and a hydrogen bond donor (HBD). They are synthesized easily and undemandingly by mixing two or three solid components in a certain molar ratio under tolerable conditions (ambient pressure and low temperature). To achieve a liquid state, the mixture of HBA and HBD usually needs to be heated. Hydrogen bonding is responsible for charge delocalization and a melting point that is much lower than that of the individual components. The availability of raw materials, the tunable properties, the direct and easy synthesis, the biological degradability, and the low toxicity are among the positive properties of DESs [12].
Some living things are capable of producing metabolites (sugars, urea, and organic acids), which when mixed in a certain proportion, form a liquid phase called a natural deep eutectic solvent (NADES). NADESs are considered future solvents and fully recognize the principles of green chemistry [13]. NADESs deserve special attention because of their properties, which make them very promising for future applications. Recently, NADESs have been considered environmentally friendly and green solvents that have attracted much attention from the scientific community. NADESs have various favorable physicochemical properties, such as the liquid state at a wide temperature range, insignificant volatility, chemical and thermal stability, nonflammability, and nontoxicity of the components. In addition, NADES solvents are abundant in nature, easily accessible, and renewable [14]. NADESs are a class of multimolecular solvents formed from a network of hydrogen bonds. They are generally liquids at room temperature that are not very volatile because of their low vapor pressure. Due to their natural origin, they are nontoxic and biocompatible [15]. Most mixtures of these solvents (DESs, NADESs, ILs) show glass transitions instead of melting points, so some solvents have been named low-transition-temperature (LTTM) mixtures. The only common property of these solvents is the mixture of molecules, which leads to a low transition temperature (liquid–solid). Therefore, the term LTTMs appears to be the most representative for the characterization of this large group of solvents [16]. The last period was due to the countless publications on new green solvents (deep eutectic solvents (DESs), natural deep eutectic solvents (NADESs), low melting point mixtures, and low transition temperature mixtures (LTTMs), which basically represent the same group of solvents. In the next sections of this review, we will use the term DES-like mixtures [17] to denote this large group of green solvents. Already in the work of Antenucii et al. [18], DES-like systems were described based on polyols such as HBD and halide salts such as HBA. This term was also used in another work by Ghigo et al. [19], where deep eutectic solvent-like mixtures were created on the basis of glycerol and various organic and inorganic salt halides, which are successfully used as new media in copper-free halodediazonation of arenediazonium salts.
Recently, researchers have revealed potential DES-like mixtures that are suitable for biomass pretreatment; extraction of substances; the pretreatment of cellulose; cellulose modification; and the creation of nanocellulose fibers, nanocrystals, and microcrystalline nanocellulose. The breakdown, fractionation, or/and extraction of lignocellulose biomass (Figure 2) or the modification and treatment of cellulose have been extensively studied in recent decades. The main target is effective pretreatment, which can be achieved via extraction, dissolution of added value substance, and cleavage of lignin structures, the goal of which is to obtain the fibers or substrate without lignin for enzymatic treatment and production of biofuels, or for the production of nanocellulose fibrils, crystals, or modified cellulose. The acidobasic properties of DES-like mixtures have been widely explored because of the need to accurately exploit the data in various industrial and laboratory applications.

2. The Influence of Various Factors on the Resulting Acidity/Alkalinity of DES-like Mixtures

Hydrogen ions (H+) play an important role in all material-related processes, and the pH of solutions is probably the most prominent and widely used chemical concept. The term pH refers to the concentration of hydrogen ions in an aqueous solution, where the term “aqueous solution” means pure water or water with small (in terms of molar amounts) quantities of substances dissolved in it [20]. The concept of pH is very well-defined and is routinely used in dilute aqueous solutions. The values of pH in different media are related through the Gibbs free energy of the proton exchange between solvents. However, even at the theoretical level, a valid comparability of pH values in different media has been impossible. Since the pH of an aqueous solution is numerically equal to the negative log of the hydrogen ion concentration (in moles per liter), it can be readily calculated using the following equation:
pH = log ( 1 H + )
It is therefore indicative of the acidic or basic condition of water. However, pH is not equivalent to acidity or alkalinity. Likewise, water having a pH of 9.0 may or may not have more alkalinity than water having a pH of 10.6. Alkalinity and acidity are defined as the ability of an aqueous solution to resist a change in pH. Alkalinity and acidity are measured by determining the amount of a solution of acid or base, as appropriate, of known concentration that is required to completely neutralize the acidity or alkalinity of the aqueous solution [21].
Due to the increased interest in understanding the mechanism of action of eutectic solvents and the demand for natural nontoxic solvents, many articles have been published, and several applications of green solvents have been developed recently. The structural unit of green solvents depends mainly on the interactions between the molecules (between their components). Due to this, basic matrices are affected by temperature, water content, or the proportion of components [15].
Teng et al. [22] prepared binary and ternary DES-like mixtures, which were used for the pretreatment of wheat straw, i.e., to improve the solubility of lignocellulosic material. Choline chloride was chosen as an HBA, and ethanediol and lactic acid were chosen as HBDs (Table 1). The mixture was stirred with a magnetic stirrer and heated to 60 °C (constant temperature) until a clear liquid formed. The prepared DES-like mixtures were placed in a beaker at room temperature. The pH of the prepared DES-like mixtures was analyzed using a pH meter, and the corresponding pH electrode was washed with distilled water and dried. Subsequently, it was placed in a beaker with a DES-like mixture until the indicator was stable. The basicity or acidity of HBD in DES-like mixtures is an important tool in biomass delignification. The pH value of the binary system (choline chloride/urea) was 8.55, which shows weak alkalinity. DES-like mixtures synthesized from choline chloride/lactic acid showed strong acidity because of the presence of lactic acid as an HBD. The ternary DES-like mixtures choline chloride/urea + 10% by weight H2O and choline chloride/urea + 10% by weight H2O + 1% by weight NaOH were alkaline, and choline chloride/ethanediol/lactic acid was presented as acidic. Research has revealed that the acidity/alkalinity of DES-like mixtures has a significant effect on the composition of the residue, and that it is necessary to increase the acidity or alkalinity of DES-like mixtures to improve the delignification effect. In contrast, the acidity of DES-like mixtures causes the loss of xylans and part of the cellulose [23].
Arrora et al. [24] evaluated the valorization of hemicelluloses from lignocellulosic materials (bagasse, rice husk, and wheat straw) to furfural by pH-controlled acid catalysis using choline-containing DES-like mixtures (Brønsted acid and natural acid DES-like mixtures). In this study, the effect of pH on the catalytic activity of various DES-like mixtures synthesized in a molar ratio of 1:1 was monitored (Table 2). The results showed that choline chloride/p-toluenesulfonic acid (ChCl/p-TSA) is the best at pH 1.0. As the pH increased from 1.0 to 3.0, the furfural yield decreased from 85% to 51%. The molar ratios between HBAs and HBDs were varied from 1:1 to 1:9 to obtain the highest furfural yield with the lowest pH value of DES-like mixtures. The most effective and best results were achieved with choline chloride/p-toluene sulfonic acid and choline chloride/oxalic acid among DES-like Brønsted acid mixtures, and choline chloride/levulinic acid among DES-like mixtures with approximately 85% furfural yield.
DES-like mixtures have attracted the attention of researchers because of their environmentally friendly properties and applicability in various applications. Lomba et al. [25] contains information on the toxicity of DES-like mixtures to the environment and the human community. The data obtained were characterized with respect to different factors such as interactions with natural components, pH, organic acid content, or the nature of HBA and HBD. Increased acidity can degrade proteins in membranes and thus cause cell death.
Kareem et al. [26] prepared and analyzed DES-like mixtures composed of phosphonium salts with different HBDs (Table 3 and Table 4). The pH of the prepared DES-like mixtures was measured at different temperatures, the change of which was performed using a water bath with temperature control. Physical and chemical properties such as viscosity, pH, density, and conductivity were measured as a function of temperature. The pH behavior was fitted linearly to the general equation:
Y = a   ( t / ° C ) + b
where Y is pH, t is the temperature in °C, and a and b are constants (unitless parameters) that vary depending on the type of DES-like mixtures.
The results showed that the nature of the salt, HBD, and the ratio of both compounds have a significant influence on the properties that were analyzed. Furthermore, the type of HBD has been shown to have an important effect on the acidity of DES-like mixtures. The compounds that make up DES-like mixtures, especially HBDs, significantly affect the pH of the final mixture [26]. Furthermore, the authors in [27] presented the idea that a mixture with higher toxicity (higher organic acid content) modifies cell neoplasia and the metabolic pathway. The length of the carbon chain and the presence of certain functional groups (benzene seems to be less toxic than carboxyl or alcohol groups) have an effect on the pH change.
DES-like mixtures can be synthesized by a simple and quick mixing of two or more substances in the solid state (one of the two acts as an HBA and the other is an HBD) at a given molar ratio, where the components turn into a liquid by self-association under mild conditions. Natural DES-like mixtures represent a specific class that contains metabolites of vegetable origin in their structure, such as alcohols, sugars, or organic acids. In [28], hydrophobic DES-like mixtures were prepared together with camphor, menthol, and thymol (Table 5). Turmeric (specifically curcumin) was used as biomass to monitor solubility in DES-like mixtures. The solubility of curcumin in different DES-like mixtures was evaluated at room temperature and with mild heating. A pH meter was used to determine the acidity and alkalinity of the DES-like mixture solutions, and these analyses were performed multiple times, and the average values were calculated after the values stabilized. The pH value of the compound/substance is linearly related to the ratio of the hydrogen ion [H+] and hydroxyl ion [OH−] concentrations. The results showed that at a constant concentration of thymol and at an increased concentration of menthol, the pH of DES-like mixtures increased, but no difference in pH was shown when DES-like mixtures were synthesized at room temperature and under mild heating. Similarly, the pH of the DES-like mixtures increased as the camphor concentration was increased. The results of the pH of the DES-like mixtures composed of camphor and menthol showed that when the concentration of menthol increased, the pH also increased, followed by a decrease in the pH of the DES-like mixtures.
Because of their acceptable properties, the use of DES-like mixtures positively affects the environment because of the usability of available renewable resources. Hayyan et al. [29] in their work analyzed different types of DES-like mixtures containing fructose and choline chloride in different molar ratios (Table 6). Physical properties including pH were measured as a function of temperature over a certain range (25–85 °C). The results showed that decreasing the HBD content resulted in a decrease in pH, but the acidity increased when a higher D-fructose content was used. The pH values decreased with increasing temperature, and all combinations of DES-like mixtures showed a negative effect in reducing pH with increasing temperature in the temperature range of 25 to 85 °C from 6.1 to 4.4 (D-fructose/choline chloride; 1:1), and from 6.8 to 6.3 (D-fructose/choline chloride; 1.5:1). For DES-like mixtures composed of D-fructose and choline chloride in molar ratios of 2:1 and 2.5:1, the pH values ranged from 6.6 to 4.9 and from 7.1 to 6.5, respectively. The pH of all synthesized DES-like mixtures in this publication were more acidic as the temperature increased. As in [19], the relationship between pH and temperature in this study was fitted according to the relationship:
pH = a   ( t / ° C ) + b
where t is the temperature in °C, and a and b are unitless parameters that vary according to the type of DES-like mixtures, and the values of these parameters are listed in Table 6.
Hayyan et al. [30] prepared DES-like mixtures composed of 2-hydroxyethylmethylammonium chloride with D-glucose in different molar ratios of the compounds (1:1; 1.5:1; 2:1; 2.5:1; 1:1.5; 1:2 and 1:2.5). In practice, pH as a physical property of the given systems was measured as a function of temperature (298.15–358.15 K). The pH values of the glucose-based DES-like mixtures ranged from 6.03 to 7.11. When the pH was measured at room temperature, all DESs mixtures showed a neutral pH of around 7. The molar ratio between the salt (HBA) and the HBD was found to influence the physical properties of the various DES-like mixtures.
When DES-like mixtures are applied, their nature (acidity and basicity) is important, because these physical properties are among the most important properties that determine their use in various areas of industry. Brønsted acids and bases form the basis of DES-like mixtures. The acidity and basicity of HBD and HBA control the pH of the DES-like mixtures system. Abbott et al. found that the addition of chloride ions to the chloride/glycerol system decreases the acidity of DES-like mixtures and shifts the pH to basic [31]. In addition to the nature of donors and acceptors of hydrogen bonds, pH is also affected by temperature. As the temperature rises, the pH of DES-like mixtures decreases linearly [30].
The subsequent progress in the use of green solvents for additional and untested procedures and processes requires a precise understanding of their properties. The authors in [32] proposed the preparation of three DES-like mixtures based on amines (choline chloride/monoethanolamine, choline chloride/diethanolamine, and choline chloride/methyldiethanolamine) (Table 7). The pH values of the DES-like mixtures were measured at a temperature of 293.15–353.15 K and at three different molar ratios between HBA and HBD (1:6; 1:8, and 1:10). Of the studied DES-like mixtures, DES-like mixtures based on choline chloride/monoethanolamine had the highest pH, and, on the contrary, DES-like mixtures composed of choline chloride/methyldiethanolamine had the lowest pH due to the different chemical structure. The results showed that the pH of the amine-based DES-like mixtures decreased with increasing temperature.
Saputra et al. [33] prepared and characterized the thermophysical properties of stable and unknown DES-like mixtures based on ammonium together with HBD and HBA at different molar ratios (Table 8). A correlation (linear regression) was presented between temperature and measured physical properties. The acidity of the ternary DES-like mixtures was measured by immersing the pH meter in the prepared ternary DES-like mixtures (30–80 °C ± 2 °C). The relationship between temperature and measured pH was correlated using the following equation:
pH = a + b · T
where a and b are constants, while T is an arbitrary temperature in °C.
The conclusion is that increasing the temperature achieved a decrease in pH, density, and viscosity and an increase in the electrical conductivity of the synthesized ternary DES-like mixtures. Pure glycerol had the highest pH, which showed that it is a weak acid. When combined with ZnCl2 or ethyl ammonium chloride, the pH value decreased due to the acidic behavior of these compounds. Increasing the molar ratio of HBD (ZnCl2) caused a decreasing trend in the pH of ternary DES-like mixtures (constant molar ratio of glycerol). The formation of hydrogen bonds was inhibited, while molecular vibrations promoted the formation of the [H+] ion, resulting in a decrease in pH [33]. The pH value of DES-like mixtures at different temperatures is shown in Table 9 [34,35,36]. Generally, it is crucial to estimate the pH of new solvents to understand their dissolution, catalytic and other properties useful for applications [35].

3. Effect of the Water Content of DES-like Mixtures on Their Physicochemical Properties

Most of the synthesized DESs belong to hydrophilic systems, but some of them have a hydrophobic character, that is, they are immiscible with water. Hydrophobic DESs play an essential role in extracting the dissolved substance in the system and creating a two-phase system. As a result of the polarity of hydrophilic DESs, their applications are limited in terms of nonpolar applications. The chemical structure (nature) of hydrogen bond donors and acceptors has an effect on the hydrophobicity of DESs. Because of the steric hindrance that hinders the charging of the salt with water, the long alkyl chain of the hydrogen bond acceptor leads to the hydrophobicity of DESs, which have low density and moderate viscosity. An increase in the size of the anion leads to an increase in viscosity and a lengthening of the hydrogen bond acceptor chain; in contrast, an increase in temperature decreases the density and viscosity of hydrophobic DES-like mixtures [37].
Most of the DESs appear to be a hygroscopic mixture, so it is difficult to dry this mixture. The addition of water to DESs can cause water to interact with the hydrogen bond donor or acceptor of DESs and subsequently distribute hydrogen bond interactions between the organic salt and the hydrogen bond donor by forming a multi-hydrogen bond, thus reducing the strength of the hydrogen bond [38]. Chen et al. [39] reported that the methyl group had a lower water absorption capacity, and a hydrogen bond donor with a high content of hydroxyl groups had a higher water absorption capacity. Furthermore, the strong interaction between the hydrogen bond acceptor and donor became weaker after the addition of water to the DES system. Furthermore, Kivelä et al. [40] observed that a small amount of water content in DESs affected the physical and chemical properties of the DES by changing the DES from a binary to a ternary system. In addition to the physicochemical properties, the water content in DESs also affects biocompatibility and lowers the melting point, density, and viscosity, because when water is added to the DES system, the hydrogen bonds between the components that make up the DESs are broken. The water content also affects the polarity and solubilization capacity of DESs [41].
The mixing of water and hydrophobic DESs is induced by atmospheric absorption, which causes important effects in this type of solvent. In practice, hydrophobic DESs are ternary mixtures, and this water content causes deviations in the measured values. In [40], the results showed that the density, viscosity, and melting point of DES/water vary linearly with the water content. The conclusion of this work is that a very small addition of water to the hydrophobic DES has an effect mainly on the transport properties. In contrast, the chemical properties of solvents can be disturbed by the presence of water.
Gabriele et al. [42] evaluated the influence of water content in DESs on their properties. DESs were synthesized using choline chloride and glycols. The study of the structure as well as the physicochemical analyses confirmed that without the addition of water to the DES, there are very strong interactions between the acceptor (choline chloride) and hydrogen bond donors (glycols). The addition of water resulted in the weakening of hydrogen bonds, and some properties of DESs were changed; e.g., there was a decrease in viscosity, and an increase in conductivity and polarity. FTIR and NMR spectroscopies showed that upon the addition of water, the H-bonding interactions are weakened by 50% and the DES components are completely dissociated and hydrated at the end.
The authors of [43] developed a green DES-like mixture solvent for the extraction of cannabidiol from industrial hemp leaves. Factors affecting yields were analyzed and investigated in experiments (a factor), namely, the type and concentration of DES-like mixtures, the solid/liquid ratios (hemp/DES-like mixtures), the extraction temperatures and times, and the pH of the DES-like mixture systems (Table 10). Some of these factors were optimized by the response surface method. The Kamlet–Taft polarity parameters were characterized to study the influence of the ability of hydrogen bonds and their polarity on the extractability of DES-like mixtures. Cannabidiol contains two phenolic hydroxyl groups, which means that cannabidiol is a weakly acidic compound. The results showed that the extraction yield increased in the range of pH 1–4 and subsequently decreased with increasing pH. Under optimized conditions, the highest extraction yield of cannabidiol was 12.22 mg/g. This extraction experiment using DES-like mixtures has advantages in terms of high yields, low costs, easy preparation and handling, and last but not least, environmental friendliness.
Skulcova et al. [44] evaluated the temperature-dependent behavior of 17 DES-like mixtures diluted at pH values of organic acids, amino acids, alcohols, or ammonium salts (Table 11). They studied different types of DES-like mixtures in different molar ratios, which were prepared by mixing at 60–80 °C until homogeneous liquids were formed. The results showed that the pH values continuously decreased with increasing temperature for all DES-like mixtures prepared. DES-like mixtures synthesized from choline chloride/glycerol (1:2) and choline chloride/ethylene glycol (1:2) had the highest pH values of approximately between 4.00 and 4.40. Due to the presence of alcohol and acidic hydrogens in the glycerol and ethylene glycol structures, the pH was lower than 7. In addition, the pH values of the alcohol-based DESs decreased slightly with increasing temperature. Furthermore, it was demonstrated that the presence of acids (HBDs) in DES-like mixtures had a strong influence on the resulting pH, because the pH values of DES-like mixtures containing oxalic and malonic acids decreased sharply with increasing temperature, and thus the nature of the HBD indicated the acidity of the prepared mixture. The conclusion of this study is that the aqueous solutions of the DES-like mixtures showed a pH of 2.74 and below, and except for the two DESs mentioned above, all of the DES-like mixtures prepared and analyzed were acidic, with slightly increasing acidity as the temperature increased. The effect of water was investigated by the NMR technique by comparing the NMR spectra of pure DESs and their mixtures with water in [45,46]. The measured NMR spectra were nearly identical, and it was documented that the presence of water does not break hydrogen bonds in DESs nor violate the eutectic nature of DESs [45,46].
The behavior of a glass electrode was determined in DESs of different water contents, and it was shown that while the potential–pH plot was Nernstian with high water content, the slope decreased as the amount of water decreased [31]. Mitar et al. [47] noticed that the addition of water to extremely acidic DES increases their pH values, and the addition of water to highly basic DES decreases their pH values. On the other hand, in subsequent work, these authors showed that this conclusion does not hold anymore, as there are difficult-to-predict exemptions to the rule [48].
Knowledge of pH values and pH measurements is very important in various applications (chemical engineering, chemistry). In [49], the authors prepared DES-like mixtures in molar ratios (1:4; 1:10, and 1:16) by mixing allyltriphenylphosphonium bromide salt (HBA) with diethylene glycol and triethylene glycol (HBD) (Table 12). The pH values of the prepared DES-like mixtures were measured in the temperature range of 293.15 to 343.15 K. The conclusions showed that all synthesized DES-like mixtures showed pH values in the acidic range (0.15 to 4.21). As the temperature increased, the pH values of the DES-like mixtures decreased. Furthermore, the results indicated that the molar ratio between salt and HBD had an interesting effect on pH. The pH values increased as more HBD was added to the mixtures. This study shows that not only the temperature and nature of HBD but also the molar ratios between HBA and HBD have an important role in the analysis of pH values.
Jablonský et al. [50] focused on the synthesis and characterization of the physical and chemical properties of DES-like mixtures containing water. DES-like mixtures were composed of choline chloride along with lactic acid and dihydric alcohols. The pH was analyzed using a digital pH meter at 25 °C, while the concentration of DES-like mixtures was 1 mol/L. The results of the analyzes are shown in Table 13, where it can be seen that the pH values of the prepared DES-like mixtures were in the acidic range.
Panić et al. [48] focused on the development of an easy model to estimate the pH values of DES-like mixtures in a wider range. In this study, the pH of 38 different DES-like mixtures (pH from 0.36 to 9.31) was analyzed, which were subsequently mathematically evaluated using COSMOTherm software and then evaluated using models based on multiple linear regression, linear regression by parts, and artificial neural networks. Analysis of the pH values of DES-like mixtures based on the same HBA and HBD with a change in the water content showed that water had a direct effect on the pH (Table 14) [48]. The estimation of the pH values of DES-like mixtures was based on the quantities R2, R2adj, and RMSE-root mean square deviation. Le Mann et al. [51] stated that the model can be considered satisfactory if the coefficient of determination (R2) is higher than 0.75. The models developed in [48] are applicable to describe the pH values of DES-like mixtures, since the R2 values for multiple linear regression and piecewise linear regression were 0.7758 and 0.9654, respectively. The results of the RMSE errors show that the multiple linear regression model provides smaller dispersion data (RMSE = 0.6658) compared to the second model (RMSE = 1.865). Based on the results, it can be concluded that the collected findings prove the reliability of the models created in the entire spectrum of the evaluated variables.
In [52], the physicochemical properties of binary and ternary DES-like mixtures based on choline chloride and lactic acid (binary mixtures) and a combination of choline chloride, lactic acid, and dihydric alcohols (ternary mixtures) were synthesized and characterized. An important feature of DES-like mixtures in terms of their usability in various applications is their acidity, which is indicated by the pH value. The basicity or acidity of DES-like mixtures is mainly influenced by the nature of HBD and temperature. In this work, the pH of diluted solutions of DES-like mixtures was measured using a pH meter at room temperature (approximately 25 °C). The results showed that the pH of the prepared DES-like mixtures was in the acidic range. The pH values for binary mixtures (choline chloride/lactic acid, from 1:1 to 1:5) ranged from 1.71 to 1.63. The pH values for ternary mixtures containing 1,3-butanediol, 1,4-butanediol, or 1,5-pentanediol were always greater than 2.
The water absorption of DES-like mixtures is essential because of their hygroscopic nature and the presence of water at every step. Water is considered an impurity in DES-like mixtures, but some authors in their works deliberately added water to DES-like mixtures in order to improve their performance or fine-tune their properties so that they were usable in desired applications [53,54,55]. However, on the other hand, the water content in DES-like mixtures has a direct effect on their physicochemical properties and threatens their integrity [56].

4. Pretreatment of Lignocelluloses with DES-like Mixtures

Lignocellulosic biomass is the basic starting material of biorefineries, which leads to the synthesis of biofuels, chemicals, and value-added products. In recent years, a number of articles were published in which the authors focused on the processing of selected types of lignocellulosic biomass using DES-like mixtures. Recent publications have focused on the fractionation of lignocellulosic residues from acacia wood (Acacia dealbata Link) [57], pretreatment of corncob [58], and delignification of grass (Hyparrhenia lipendula) [59]. Recently, research has also focused on the description of the mechanism of application of DES-like mixtures in the removal of lignin from biomass, while the acidic nature of DES-like mixtures was shown to significantly affect the breaking of mainly labile β–O–4 bonds, and thus the splitting of lignin from biomass. Among the various DES-like mixtures analyzed, acidic DES-like mixtures are popular due to their favorable performance in biomass valorization [60,61,62,63]. Another very important area of application of DES-like mixtures is the area focused on the preparation of cellulose nanomaterials (nanofibers, nanocrystals) from biomass and on the modification of cellulose functional groups [64,65,66,67]. A notable part of the biomass is also hemicelluloses, which are the first to degrade from the lignin–saccharide complex as a result of the effect of DES-like mixtures. In the latest published review, Chen et al. [68] summarized the effect of pretreatment with lignocellulosic biomass on the degradation of hemicellulose, while the objective of this review was to point out the need to minimize hemicellulose losses. Among the various DES-like mixtures analyzed, acidic DES-like mixtures showed high efficiency and led to the advancement of their use in biomass pretreatment [69,70]. Acidic DES-like mixtures can be divided into two categories, namely, acidic Brønsted DES-like mixtures and acidic Lewis DES-like mixtures. Both types of acidic DES-like mixtures can facilitate biomass fractionation and support the deconstruction of lignocellulosic materials. Pretreatment with acidic DES-like mixtures selectively solubilizes lignin and hemicellulose while preserving a larger part of cellulose [71]. Considerable efforts are also devoted to the extraction of substances with added value from different types of biomass or waste from biomass processing or animal waste, and more than 1700 articles have been published in recent years, and part of these results have been summarized in an overview of the current state (2020–2022) on the application of various types of DES-like mixtures in the pretreatment of biomass and the separation of these extraction fractions [72,73,74].

5. Conclusions

Green chemistry and related technologies represent ways of creating and applying products and processes that exclude the synthesis and use of substances that are dangerous to the health of society and the environment. As a result of the increasing demand for green technologies and research concerning them, the development of new, ecological, and green solvents that would meet the requirements and properties of the processes is also progressing. The requirements for green solvents include a reasonable price, low toxicity (nontoxicity for humans and the environment), biodegradability, and the possibility of regeneration. Recently, DES-like mixtures have gained extremely high interest and attention in the scientific and academic community, and publications focused on their characterization and applications have grown exponentially. DES-like mixtures have promising potential for industrial applications as a result of their versatility, simple synthesis, physicochemical properties, and relatively reasonable costs. DES-like mixtures can be mixtures with a large number of structural combinations and physicochemical properties that can be designed and tuned for a real, specific purpose. From the choice of HBD, HBA, and their molar ratio and composition with respect to temperature and water content, DES-like mixtures can be designed and synthesized to meet the requirements of a given process and their application. Among the important properties of DES-like mixtures from the point of view of industrial use (materials of devices and equipment, mass pumping, filtration) are the viscosity, density, and pH values of these solvents. The pH value as such is a very important parameter for all solvents, and in this case, it is one of the critical parameters for the design of DES-like mixtures.
Regarding the efficiency of delignification, the pH of the DES-like mixtures has a significant effect on the final composition of the residue after delignification, whereas the increase in alkalinity and acidity improves the removal of lignin from the biomass, but a low pH value causes the loss of a smaller part of the cellulose and xylan. Changes in the amount of acidity or pH occur depending on the combination of the molar ratio of the mixture and the relative acidity of the cationic and anionic components; that is, the compounds (mainly HBD) and their nature that form DES-like mixtures significantly affect the pH of the final mixture. Changes in pH are also related to the length of the carbon chain and to the presence of some functional groups.
A summary of the results and conclusions of the studies and publications described in this article shows that the type of HBD and salt has a significant effect on the physical behavior of DES-like mixtures. Furthermore, the molar ratio between HBA and HBD was shown to have a decisive influence on the analysis of the physicochemical properties (pH, density, viscosity, and conductivity). In most of the publications in this review, the physical properties were analyzed as a function of temperature in a certain temperature range. The results show an increase in electrical conductivity and a decrease in pH, density, and dynamic and kinematic viscosity of DES-like mixtures with increasing temperature, and thus the pH of DES-like mixtures tends to become more acidic with increasing temperature.
In addition, the presence of water in DES-like mixtures and its influence on the properties of DES-like mixtures were monitored in this review. It was found that even if the water content is limited to low values, its effects are significant in hydrophobic DES-like mixtures. Furthermore, the existence of water, even in small amounts in DES-like mixtures, affects the physical properties of DES-like mixtures by changing their mixture from binary to ternary. From the point of view of use in various processes and applications, the very low water content in hydrophobic DES-like mixtures has a favorable effect on transport properties. However, on the other hand, water can disrupt the chemical properties of the given solvent.
Several important industrial applications require accurate and clear knowledge of the acidity or alkalinity of a liquid (solvents) defined by the pH value. The physical properties of the studied DES-like mixtures showed that this type of solvent has practical potential use in industry (extraction processes, reactions, and pharmacy). The properties of new and green DES-like mixtures can be predicted at different temperatures for potential applications. The potential of tunable properties makes it possible to use DES-like mixtures as a reaction medium, electrochemical process medium, solvent, or absorbent.

Author Contributions

Conceptualization, V.J. and M.J.; investigation, V.J.; resources, V.J. and M.J.; data curation, V.J.; writing—original draft preparation, V.J.; writing—review and editing, V.J. and M.J.; visualization, V.J., K.V. and M.J.; supervision, M.J.; project administration, I.Š. and M.J.; funding acquisition, I.Š. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Operational Program Integrated Infrastructure for the project: “Strategic research in the field of SMART monitoring, treatment, and preventive protection against coronavirus (SARS-CoV-2)”, Project No. 313011ASS8, co-financed by the European Regional Development Fund (ERDF).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

This publication was supported by the Slovak Research and Development Agency under the contract APVV-18-0155, and by the generous support under the Operational Program Integrated Infrastructure for the project: “Strategic research in the field of SMART monitoring, treatment, and preventive protection against coronavirus (SARS-CoV-2)”, Project no. 313011ASS8, co-financed by the European Regional Development Fund and by Slovak Scientific Grant Agency VEGA based on contract no. VEGA 1/0651/23.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Capello, C.; Fischer, U.; Hungerbühler, K. What is a green solvent? A comprehensive framework for the environmental assessment of solvents. Green Chem. 2007, 9, 927–934. [Google Scholar] [CrossRef]
  2. Häckl, K.; Kunz, W. Some aspects of green solvents. Comptes Rendus Chim. 2018, 21, 572–580. [Google Scholar] [CrossRef]
  3. Abbott, A.P.; Capper, G.; Davies, D.L.; Rasheed, R.K.; Tambyrajah, V. Novel solvent properties of choline chloride/urea mixtures. Chem Comm. 2003, 70–71. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. El Achkar, T.; Fourmentin, S.; Greige-Gerges, H. Basic and properties of deep eutectic solvents: A review. Environ. Chem. Lett. 2021, 19, 3397–3408. [Google Scholar] [CrossRef]
  5. Smith, E.L.; Abbott, A.P.; Ryder, K.S. Deep eutectic solvents (DESs) and their applications. Chem. Rev. 2014, 114, 11060–11082. [Google Scholar] [CrossRef] [Green Version]
  6. Florindo, C.; Oliveira, F.S.; Rebelo, L.P.N.; Fernandes, A.M.; Marrucho, I.M. Insights into the synthesis and properties of deep eutectic solvents based on cholinium chloride and carboxylic acids. ACS Sustain. Chem. Eng. 2014, 2, 2416–2425. [Google Scholar] [CrossRef]
  7. Tang, B.; Row, K. Recent developments in deep eutectic solvents in chemical sciences. Mon. Chem. 2013, 144, 1427–1454. [Google Scholar] [CrossRef]
  8. Baranipour, S.; Sardroodi, J.J.; Avestan, M.S.; Ebrahimzadeh, A.R. Structural and dynamic properties of eutectic mixtures based on menthol and fatty acids derived from coconut oil: A MD simulation study. Sci. Rep. 2022, 12, 5153. [Google Scholar] [CrossRef]
  9. Zhang, Q.H.; Vigier, K.D.; Royer, S.; Jerome, F. Deep eutectic solvents:Syntheses, properties and applications. Chem. Soc. Rev. 2012, 41, 7108–7146. [Google Scholar] [CrossRef]
  10. Hansen, B.B.; Spittle, S.; Chen, B.; Poe, D.; Zhang, Y.; Klein, J.M.; Horton, A.; Adhikari, L.; Zelovich, T.; Doherty, B.W.; et al. Deep eutectic solvents:A review of fundamentals and applications. Chem. Rev. 2021, 121, 1232–1285. [Google Scholar] [CrossRef]
  11. Abranches, D.O.; Martins, M.A.R.; Silva, L.P.; Schaeffer, N.; Pinho, S.P.; Coutinho, J.A.P. Phenolic hydrogen bond donors in the formation of non-ionic deep eutectic solvents: The quest fot type V DES. Chem. Commun. 2019, 55, 10253–10256. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Zhou, M.; Fakayode, O.A.; Yagoub, A.E.A.; Ji, Q.; Zhou, C. Lignin fractionation from lignocellulosic biomas using deep eutectic solvents and its valorization. Renew. Sustain. Energy Rev. 2022, 156, 111986. [Google Scholar] [CrossRef]
  13. Bonacci, S.; Di Gioia, M.L.; Costanzo, P.; Maiuolo, L.; Tallarico, S.; Nardi, M. Natural deep eutectic solvent as extraction media fot the main phenolic compounds from olive oil processsing wastes. Antioxidants 2020, 9, 513. [Google Scholar] [CrossRef] [PubMed]
  14. Dai, Y.; van Spronsen, J.; Witkamp, G.J.; Verpoorte, R.; Choi, Y.H. Natural deep eutectic solvents as new potential media for green technology. Anal. Chim. Acta. 2013, 766, 61–68. [Google Scholar] [CrossRef]
  15. Liu, Y.; Friesen, J.B.; McAlpine, J.B.; Lankin, D.C.; Chen, S.N.; Pauli, G.F. Natural Deep Eutectic Solvents: Properties, Applications, and Perspectives. J. Nat. Prod. 2018, 81, 679–690. [Google Scholar] [CrossRef]
  16. Durand, E.; Lecomte, J.; Villeneuve, P. From green chemistry to nature: The versatile role of low transition temperature mixtures. Biochimie 2016, 120, 119–123. [Google Scholar] [CrossRef]
  17. Jablonský, M.; Šima, J. Is it correct to name DESs deep eutectic solvents? Bioresources 2022, 17, 3880–3882. [Google Scholar] [CrossRef]
  18. Antenucci, A.; Bonomo, M.; Ghigo, G.; Gontrani, L.; Barolo, C.; Dughera, S. How do arenediazonium salts behave in deep eutectic solvents? A combined experimental and computational approach. J. Mol. Liq. 2021, 339, 116743. [Google Scholar] [CrossRef]
  19. Ghigo, G.; Bonomo, M.; Antenucci, A.; Reviglio, C.; Dughera, S. Copper-Free Halodediazoniation of Arenediazonium Tetrafluoroborates in Deep Eutectic Solvents-like Mixtures. Molecules 2022, 27, 1909. [Google Scholar] [CrossRef]
  20. Camões, M.F. Realisation of a Unified pH Scale. Chem. Intern. 2018, 40. Available online: https://www.degruyter.com/document/doi/10.1515/ci-2018-0416/html (accessed on 25 November 2022).
  21. Woodard & Curran, Inc. 5—Waste Characterization, Industrial Waste Treatment Handbook, 2nd ed.; Butterworth-Heinemann: Oxford, UK, 2006; pp. 83–126. ISBN 9780750679633. [Google Scholar] [CrossRef]
  22. Teng, Z.; Wang, L.; Huang, B.; Yu, Y.; Liu, J.; Li, T. Synthesis of Green Deep Eutectic Solvents for Pretreatment Wheat Straw: Enhance the Solubility of Typical Lignocellulose. Sustainability 2022, 14, 657. [Google Scholar] [CrossRef]
  23. Sing, M.B.; Kumar, S.V.; Chaudhary, M.; Singh, P. A mini review on synthesis, properties and applications of deep eutectic solvents. J. Indian Chem. Soc. 2021, 98, 100210. [Google Scholar] [CrossRef]
  24. Arrora, S.; Gupta, N.; Singh, V. pH-Controlled Efficient Conversion of Hemicellulose to Furfural Using Choline-Based Deep Eutectic Solvents as Catalysts. ChemSusChem 2021, 14, 3953–3958. [Google Scholar] [CrossRef] [PubMed]
  25. Lomba, L.; Ribate, P.; Sangüesa, E.; Concha, J.; Garralaga, P.; Errazquim, D.; García, C.B.; Giner, B. Deep eutectic solvents: Are they safe? Appl. Sci. 2021, 11, 10061. [Google Scholar] [CrossRef]
  26. Kareem, M.A.; Mjalli, F.S.; Hashim, M.A.; AlNashed, I.M. Phosphonium-Based Ionic Liquids Analogues and Their Physical Properties. J. Chem. Eng. Data 2010, 55, 4632–4637. [Google Scholar] [CrossRef]
  27. Zhao, B.Y.; Xu, P.; Yang, F.X.; Wu, H.; Zong, M.H.; Lou, W.Y. Biocompatible Deep Eutectic Solvents Based on Choline Chloride: Characterization and Application to the Extraction of Rutin from Sophora japonica. ACS Sustain. Chem. Eng. 2015, 3, 2746–2755. [Google Scholar] [CrossRef]
  28. Sekharan, T.R.; Chandira, R.M.; Rajesh, S.; Tamilvanan, S.; Vijayakumar, C.; Venkateswarlu, B. pH, viscosity of hydrophobic based natural deep eutectic solvents and the effect of curcumin solubility in it. Bio. Res. App. Chem. 2021, 11, 14620–14633. [Google Scholar] [CrossRef]
  29. Hayyan, A.; Mjalli, F.S.; Alnashef, I.M.; Al-Wahaibi, T.; Al-Wahaibi, Y.M.; Hashim, M.A. Fruit Sugar-Based Deep Eutectic Solvents and Their Physical Properties. Thermochim. Acta 2012, 541, 70–75. [Google Scholar] [CrossRef]
  30. Hayyan, A.; Mjalli, F.S.; Alnashef, I.M.; Al-Wahaibi, Y.M.; Al-Wahaibi, T.; Hashim, A. Glucose-based Deep Eutectic Solvents: Physical Properties. J. Mol. Liq. 2013, 178, 137–141. [Google Scholar] [CrossRef]
  31. Abbott, A.P.; Alabdullah, S.S.M.; Al-Murshedi, A.Y.M.; Ryder, K.S. Brønsted acidity in deep eutectic solvents and ionic liquids. Faraday Discuss 2018, 206, 365–377. [Google Scholar] [CrossRef]
  32. Adeyemi, I.; Abu-Zahra, M.R.; AlNashef, I.M. Physicochemical Properties of Alkanolamine-choline Chloride Deep Eutectic Solvents: Measurements, Group Contribution and Artificial Intelligence Prediction Techniques. J. Mol. Liq. 2018, 256, 581–590. [Google Scholar] [CrossRef]
  33. Saputra, R.; Walvekar, R.; Khalid, M.; Mubarak, N.M. Synthesis and Thermophysical Properties of Ethylammonium Chloride-Glycerol-ZnCl2 Ternary Deep Eutectic Solvent. J. Mol. Liq. 2020, 310, 113232. [Google Scholar] [CrossRef]
  34. Bahadori, L.; Chakrabarti, M.H.; Mjalli, F.S.; AlNashef, I.M.; Abdul-Naman, N.S.; Ali-Hashim, M.A. Physichochemical properties of ammonium-based deep eutectic solvents and their electrochemical evaluation using organometallic reference redox systems. Electrochim. Acta 2013, 113, 205–211. [Google Scholar] [CrossRef]
  35. Jibril, B.; Mjalli, F.; Naser, J.; Gano, Z. New tetrapropylammonium bromide-based deep eutectic solvents: Synthesis and characterizations. J. Mol. Liq. 2014, 199, 462–469. [Google Scholar] [CrossRef]
  36. Mjalli, F.S.; Naser, J.; Jibril, B.; Alizadeh, V.; Gano, Z. Tetrabutylammonium chloride based ionic liquid analogues and their physical properties. J. Chem. Eng. Data 2014, 59, 2242–2251. [Google Scholar] [CrossRef]
  37. Omar, K.A.; Sadeghi, R. Physicochemical properties of deep eutectic solvents: A review. J. Mol. Liq. 2022, 360, 119524. [Google Scholar] [CrossRef]
  38. Passos, H.; Tavares, D.J.P.; Ferreira, A.M.; Freire, M.G.; Coutinho, J.A.P. Are Aqueous Biphasic Systems Composed of Deep Eutectic Solvents Ternary or Quaternary Systems? ACS Sustain. Chem. Eng. 2016, 4, 2881–2886. [Google Scholar] [CrossRef]
  39. Chen, Y.; Yu, D.; Chen, W.; Fu, L.; Mu, T. Water absorption by deep eutectic solvents. Phys. Chem. Chem. Phys. 2019, 21, 2601–2610. [Google Scholar] [CrossRef]
  40. Kivelä, H.; Salomäki, M.; Vainikka, P.; Mäkilä, E.; Poletti, F.; Ruggeri, S.; Terzi, F.; Lukkari, J. Effect of water on a hydrophobic deep eutectic solvent. J. Phys. Chem. B 2022, 126, 513–527. [Google Scholar] [CrossRef]
  41. Shah, D.; Mjalli, F.S. Effect of water on the thermo-physical properties of Reline: An experimental and molecular simulation based approach. Phys. Chem. Chem. Phys. 2014, 16, 23900–23907. [Google Scholar] [CrossRef]
  42. Gabriele, F.; Chiarini, M.; Germani, R.; Tiecco, M.; Spreti, N. Effect of water addition on choline chloride/glycol deep eutectic solvents: Characterization of their structural and physicochemical properties. J. Mol. Liq. 2019, 291, 111301. [Google Scholar] [CrossRef]
  43. Cai, C.; Yu, W.; Wang, C.; Liu, L.; Li, F.; Tan, Z. Green extraction of cannabidiol from industrial hemp (Cannabis sativa L.) using deep eutectic solvents coupled with further enrichment and recovery by macroporous resin. J. Mol. Liq. 2019, 287, 110957. [Google Scholar] [CrossRef]
  44. Skulcova, A.; Russ, A.; Jablonsky, M.; Sima, J. The pH behavior of seventeen deep eutectic solvents. BioResources 2018, 13, 5042–5051. [Google Scholar] [CrossRef]
  45. Sheldon, R.A. Biocatalysis and Biomass Conversion in Alternative Reaction Media. Chem. Eur. J. 2016, 22, 12984–12999. [Google Scholar] [CrossRef] [PubMed]
  46. Zhekenov, T.; Toksanbayev, N.; Kazakbayeva, Z.; Shah, D.; Mjalli, F.S. Formation of type III deep eutectic solvents and effect of water on their intermolecular interactions. Fluid Phase Equilib. 2017, 441, 43–48. [Google Scholar] [CrossRef]
  47. Mitar, A.; Panić, M.; Prlić Kardum, J.; Halambek, J.; Sander, A.; Zagajski Kučan, K.; Radojčić Redovniković, I.; Radoševiić, K. Physicochemical Properties, Cytotoxicity, and Antioxidative Activity of Natural Deep Eutectic Solvents Containing Organic Acid. Chem. Biochem. Eng. Q 2019, 33, 1–18. [Google Scholar] [CrossRef]
  48. Panić, M.; Radović, M.; Bubalo, M.C.; Radošević, K.; Coutinho, J.A.P.; Redovniković, I.R.; Jurinjak Tušek, A. Prediction of pH Value of Aqueous Acidic and Basic Deep Eutectic Solvent Using COSMO-RS σ Profiles’ Molecular Descriptors. Molecules 2022, 27, 4489. [Google Scholar] [CrossRef]
  49. Ghaedi, H.; Ayoub, M.; Sufian, S.; Hailegiorgis, S.M.; Murshid, G.; Khan, S.N. Thermal stability analysis, experimental conductivity and pH of phosphonium-based deep eutectic solvents and their prediction by a new empirical equation. J. Chem. Therm. 2018, 116, 50–60. [Google Scholar] [CrossRef]
  50. Jablonsky, M.; Jancikova, V.; Sima, J.; Jablonsky, J. Physical and Chemical Characterization of Water Containing Choline Chloride-based Solvents with Lactic Acid and Dihydric Alcohol. Bio. Res. App. Chem. 2022, 13, 167. [Google Scholar] [CrossRef]
  51. Le Man, H.; Behera, S.K.; Park, H.S. Optimization of operational parameters for ethanol production from Korean food waste leachate. Int. J. Environ. Sci. Technol. 2010, 7, 157–164. [Google Scholar] [CrossRef]
  52. Bohunická, A. The Combination of Deep Eutectic Solvents with Dihydric Alcohols and Their Effect on Pulp Delignification. Diploma Thesis, Slovak Technical University in Bratislava, Bratislava, Slovakia, 2019. [Google Scholar]
  53. Jablonsky, M.; Sima, J. Deep Eutectic Solvents in Biomass Valorization; Spektrum STU: Bratislava, Slovakia, 2019; p. 176. [Google Scholar]
  54. Jablonsky, M.; Sima, J.; Skulcova, A. Use of deep eutectic solvents in polymer chemistry—A review. Molecules 2019, 24, 3978. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Jablonsky, M.; Skulcova, A.; Malvis, A.; Sima, J. Extraction of value-added components from food industry based and agro-forest biowastes by deep eutectic solvents. J. Biotechnol. 2018, 282, 46–66. [Google Scholar] [CrossRef] [PubMed]
  56. El Achkar, T.; Fourmentin, S.; Gergges, H.G. Deep eutectic solvents: An overview on their interactions with water and biochemical compounds. J. Mol. Liq. 2019, 288, 111028. [Google Scholar] [CrossRef]
  57. Magalhães, S.; Moreira, A.; Almeida, R.; Cruz, P.F.; Alves, L.; Costa, C.; Mendes, C.; Medronho, B.; Romano, A.; Carvalho, M.G.; et al. Acacia Wood Fractionation Using Deep Eutectic Solvents: Extraction, Recovery, and Characterization of the Different Fractions. ACS Omega 2022, 7, 26005–26014. [Google Scholar] [CrossRef]
  58. Phromphithak, S.; Tippayawong, N.; Onsree, T.; Lauterbach, J. Pretreatment of corncob with green deep eutectic solvent to enhance cellulose accessibility for energy and fuel applications. Energy Rep. 2022, 8, 579–585. [Google Scholar] [CrossRef]
  59. Masuku, F.; Ayaa, F.; Onyelucheya, C.; Iwarere, S.A.; Daramola, M.O.; Kirabira, J. Fractionation of yellow thatching grass (Hyparrhenia filipendula) for sugar production using combined Alkaline and Deep eutectic solvent pretreatment. Res. Square 2022. [Google Scholar] [CrossRef]
  60. Wang, L.; Li, X.; Jiang, J.; Zhang, Y.; Bi, S.; Wang, H.M. Revealing structural and functional specificity of lignin from tobacco stalk during deep eutectic solvents deconstruction aiming to targeted valorization. Ind. Crops Prod. 2022, 180, 114696. [Google Scholar] [CrossRef]
  61. Wang, Z.; Liu, Y.; Barta, K.; Deuss, P.J. The Effect of Acidic Ternary Deep Eutectic Solvent Treatment on Native Lignin. ACS Sustain. Chem. Eng. 2022, 10, 12569–12579. [Google Scholar] [CrossRef]
  62. Yang, J.; Zhang, W.; Tang, Y.; Li, M.; Peng, F.; Bian, J. Mild pretreatment with Brønsted acidic deep eutectic solvents for fractionating β–O–4 linkage-rich lignin with high sunscreen performance and evaluation of enzymatic saccharification synergism. Bioresour. Technol. 2022, 368, 128258. [Google Scholar] [CrossRef] [PubMed]
  63. Provost, V.; Dumarcay, S.; Ziegler-Devin, I.; Boltoeva, M.; Trébouet, D.; Villain-Gambier, M. Deep eutectic solvent pretreatment of biomass: Influence of hydrogen bond donor and temperature on lignin extraction with high β-O-4 content. Bioresour. Technol. 2022, 349, 126837. [Google Scholar] [CrossRef]
  64. Jančíková, V.; Jablonský, M. The role of deep eutectic solvents in the production of cellulose nanomaterials from biomass. Acta Chimica Slovaca 2022, 15, 61–71. [Google Scholar] [CrossRef]
  65. Nie, K.; Liu, S.; Zhao, T.; Tan, Z.; Zhang, Y.; Song, Y.; Li, B.; Li, L.; Lv, W.; Han, G.; et al. Efficient fractionation of biomass by acid deep eutectic solvent (DES) and rapid preparation of lignin nanoparticles. Biomass Convers. Biorefin. 2022, 1–11. [Google Scholar] [CrossRef]
  66. Xie, J.; Xu, J.; Zhang, Z.; Wang, B.; Zhu, S.; Li, J.; Chen, K. New ternary deep eutectic solvents with cycle performance for efficient pretreated radiata pine forming to lignin containing cellulose nanofibrils. Chem. Eng. J. 2023, 451, 138591. [Google Scholar] [CrossRef]
  67. Wu, W.; He, H.; Dong, Q.; Wang, Y.; An, F.; Song, H. Structural and rheological properties of nanocellulose with different polymorphs, nanocelluloses I and II, prepared by natural deep eutectic solvents from sugarcane bagasse. Int. J. Biol. Macromol. 2022, 220, 892–900. [Google Scholar] [CrossRef] [PubMed]
  68. Chen, Z.; Wang, Y.; Cheng, H.; Zhou, H. Hemicellulose degradation: An overlooked issue in acidic deep eutectic solvents pretreatment of lignocellulosic biomass. Ind. Crops Prod. 2022, 187, 115335. [Google Scholar] [CrossRef]
  69. Bai, Y.; Zhanf, X.F.; Wang, Z.; Zheng, T.; Yao, J. Deep eutectic solvent with bifunctional Brønsted-Lewis acids for highly efficient lignocellulose fractionation. Bioresour. Technol. 2022, 347, 126723. [Google Scholar] [CrossRef]
  70. Yang, J.; Zhang, W.; Wang, Y.; Li, M.; Peng, F.; Bian, J. Novel recycable Brønsted acidic deep eutectic solvent for mild fractionation of hemicelluloses. Carbohyd. Polym. 2022, 278, 118992. [Google Scholar] [CrossRef] [PubMed]
  71. Qin, H.; Hu, X.; Wang, J.; Cheng, H.; Chen, L.; Qi, Z. Overview of acidic deep eutectic solvents on synthesis, properties and applications. Green Energy Environ. 2020, 5, 8–21. [Google Scholar] [CrossRef]
  72. Yu, Q.; Wang, F.; Jian, Y.; Chernyshev, V.M.; Zhang, Y.; Wang, Z.; Yuan, Z.; Chen, X. Extraction of flavonodis from Glycyrrhiza residues using deep eutectic solvents and its molecular mechanism. J. Mol. Liq. 2022, 363, 119848. [Google Scholar] [CrossRef]
  73. Guo, Z.; Mao, J.; Zhang, Q.; Xu, F. Integrated biorefinery of bamboo for fermentable sugars, native-like lignin, and furfural production by novel deep eutectic solvents treatment. Ind. Crops Prod. 2022, 188, 115453. [Google Scholar] [CrossRef]
  74. Singh, K.; Paidi, M.K.; Kulshrestha, A.; Bharmoria, P.; Mandal, S.K.; Kumar, A. Deep eutectic solvents based biorefining of Value-added chemicals from diatom Thalossiosira andamanica at room temperature. Separ. Purific. Technol. 2022, 298, 121636. [Google Scholar] [CrossRef]

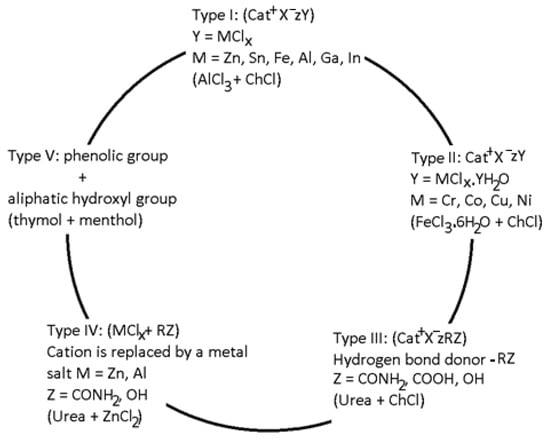

Figure 1. Types of green solvents on the basis of the general formula.
Figure 1. Types of green solvents on the basis of the general formula.
Energies 15 09333 g001

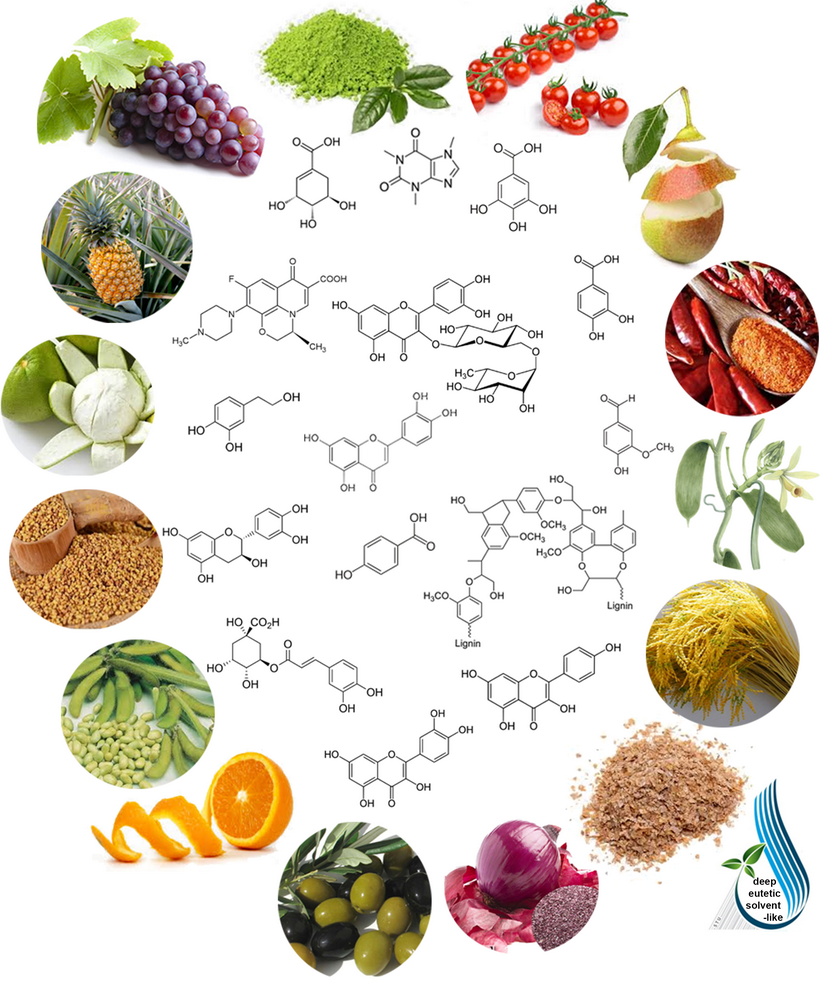

Figure 2. Extraction of lignocelluloses biomass using DES-like mixtures.
Figure 2. Extraction of lignocelluloses biomass using DES-like mixtures.
Energies 15 09333 g002
Table 1. Composition of DES-like mixtures and their pH values (adapted according to Teng et al.) [22].
Table 1. Composition of DES-like mixtures and their pH values (adapted according to Teng et al.) [22].
DES-like MixturesMolar RatiopH
Choline chloride/Urea1:28.55
Choline chloride/Ethanediol1:23.42
Choline chloride/Lactic acid1:20.25
Choline chloride/Urea + 10 wt% H2O1:2alkaline
Choline chloride/Urea + 10 wt% H2O + 1 wt% NaOH1:213.41
Choline chloride/Ethanediol/Lactic acid1:1:1acidic
Table 2. Valorization of hemicelluloses and furfural yield using different DES-like mixtures * (adapted according to Arrora et al.) [24].
Table 2. Valorization of hemicelluloses and furfural yield using different DES-like mixtures * (adapted according to Arrora et al.) [24].
DES-like MixturesMolar RatiopH Yield
(%)
Choline chloride/p-Toluene sulfonic acid1:11.085.4
Choline chloride/Oxalic acid1:11.2581.6
Choline chloride/Levulinic acid1:11.2582.0
Choline chloride/Citric acid1:11.3478.2
Choline chloride/Tartaric acid1:12.277.6
Choline chloride/Succinic acid1:12.768.0
Choline chloride/Lactic acid1:13.051.4
* Conditions of experiments: 100 mg hemicellulose, 5 mmol deep eutectic solvents, 120 °C, 1.5 h.
Table 3. Values of constants a and b for Equation (1) (adapted according to Kareem et al.) [26].
Table 3. Values of constants a and b for Equation (1) (adapted according to Kareem et al.) [26].
DES-like MixturespH
a × 104b
Methyltriphenylphosphonium bromide/Glycerine−497.0887
Methyltriphenylphosphonium bromide/Ethylene glycol−896.571
Methyltriphenylphosphonium bromide/2,2,2-Triflouracetamide1142.4267
Benzyltriphenylphosphonium chloride/Glycerine226.847
Benzyltriphenylphosphonium chloride/Ethylene glycol−225.763
Table 4. Molar ratios, temperature, and pH values of prepared DES-like mixtures (adapted according to Kareem et al.) [26].
Table 4. Molar ratios, temperature, and pH values of prepared DES-like mixtures (adapted according to Kareem et al.) [26].
DES-like MixturesMolar RatioTemperature
(K)
pH
Methyltriphenylphosphonium
bromide/Glycerine
1:1.75298.15–353.15~7
Methyltriphenylphosphonium
bromide/Ethylene glycol
1:4298.15–353.15~6
Methyltriphenylphosphonium
bromide/2,2,2-Triflouracetamide
1:8298.15–353.15very low, acidic
Benzyltriphenylphosphonium
chloride/Glycerine
1:5298.15–353.156.90–7.02
Benzyltriphenylphosphonium
chloride/Ethylene glycol
1:3298.15–353.155.71–5.59
Table 5. The pH of hydrophobic DES-like mixtures with and without heat (adapted according to Sekharan et al.) [28].
Table 5. The pH of hydrophobic DES-like mixtures with and without heat (adapted according to Sekharan et al.) [28].
DES-like MixturesMolar RatioConditionspH
Menthol/Thymol1:110 min, 500 rpm, without heat6.667 ± 0.037
Menthol/Thymol1:110 min, 30–45 °C, 500 rpm,
with slight heat
6.677 ± 0.051
Menthol/Thymol1:548 h, 500 rpm, without heat6.557 ± 0.037
Menthol/Thymol1:51 h, 30–45 °C, 500 rpm, with slight heat6.540 ± 0.044
Thymol/Menthol1:110 min, 500 rpm, without heat6.667 ± 0.037
Thymol/Menthol1:110 min, 30–45 °C, 500 rpm,
with slight heat
6.667 ± 0.051
Thymol/Menthol1:548 h, 500 rpm, without heat6.990 ± 0.037
Thymol/Menthol1:51 h, 30–45 °C, 500 rpm, with slight heat6.983 ± 0.040
Thymol/Camphor1:110 min, 30–45 °C, 500 rpm, with heat5.943 ± 0.035
Thymol/Camphor1:51 h, 30–45 °C, 500 rpm, with heat6.393 ± 0.047
Camphor/Thymol1:110 min, 30–45 °C, 500 rpm, with heat5.943 ± 0.035
Camphor/Thymol1:51 h, 30–45 °C, 500 rpm, with heat5.893 ± 0.065
Camphor/Menthol1:110 min, 30–45 °C, 500 rpm, with heat5.607 ± 0.061
Camphor/Menthol1:51 h, 30–45 °C, 500 rpm, with heat5.637 ± 0.067
Menthol/Camphor1:110 min, 30–45 °C, 500 rpm, with heat5.693 ± 0.095
Menthol/Camphor1:230 min, 30–45 °C, 500 rpm, with heat6.380 ± 0.066
Table 6. Values of constants a and b for Equation (2) (adapted according to Hayyan et al.) [29].
Table 6. Values of constants a and b for Equation (2) (adapted according to Hayyan et al.) [29].
DES-like MixturesMolar RatiopHRef.
ab/b × 105 *
Choline chloride/D-fructose1:1−0.03096.9568[21]
Choline chloride/D-fructose1.5:1−0.01007.1757[21]
Choline chloride/D-fructose2:1−0.03067.5120[21]
Choline chloride/D-fructose2.5:1−0.01167.3893[21]
Choline chloride/D-glucose1:11.671−1.596 *[22]
Choline chloride/D-glucose1.5:11.678−4.554 *[22]
Choline chloride/D-glucose2:11.692−8.411 *[22]
Choline chloride/D-glucose2.5:11.704−1.309 *[22]
* parameter b in Equation (2) has the value b × 105.
Table 7. pH values of DES-like mixtures depending on the temperature (adapted according to Adeyemi et al.) [32].
Table 7. pH values of DES-like mixtures depending on the temperature (adapted according to Adeyemi et al.) [32].
DES-like MixturesMolar RatioTemperature
(K)
pH
Choline chloride/Diethanolamine1:6295.15–353.1511.47–9.98
Choline chloride/Methyldiethanolamine1:6295.15–353.1511.04–9.87
Choline chloride/Monoethanolamine1:6295.15–353.1512.81–11.12
Table 8. Values of constants a and b for Equation (3) (adapted according to Saputra et al.) [33].
Table 8. Values of constants a and b for Equation (3) (adapted according to Saputra et al.) [33].
DES-like MixturesMolar RatiopH
abR2
Ethyl ammonium chloride/Glycerol/ZnCl21:3:02.0816−0.13360.9506
Ethyl ammonium chloride/Glycerol/ZnCl21:3:0.253.1922−0.14140.9905
Ethyl ammonium chloride/Glycerol/ZnCl21:3:0.53.5460−0.18550.9749
Ethyl ammonium chloride/Glycerol/ZnCl21:4:02.4767−0.18620.9411
Ethyl ammonium chloride/Glycerol/ZnCl21:4:0.253.2751−0.13500.9880
Ethyl ammonium chloride/Glycerol/ZnCl21:4:0.53.5278−0.16670.9795
Ethyl ammonium chloride/Glycerol/ZnCl21:5:02.6410−0.24780.9212
Ethyl ammonium chloride/Glycerol/ZnCl21:5:0.253.1387−0.11060.9854
Ethyl ammonium chloride/Glycerol/ZnCl21:5:0.53.4876−0.14910.9925
Table 9. pH data of DES-like mixtures at different temperatures (adapted according to Bahadori et al. [34]., Jibril et al. [35], Mjalli et al. [36]).
Table 9. pH data of DES-like mixtures at different temperatures (adapted according to Bahadori et al. [34]., Jibril et al. [35], Mjalli et al. [36]).
DES-like MixturesMolar RatioTemperature
(K)
pHRef.
Choline chloride/Malonic acid1:1298.151.67[34]
Choline chloride/Oxalic acid1:1298.15-[34]
Choline chloride/Triethanolamine1:2298.1510.66[34]
Choline chloride/Zinc nitrate
hexahydrate
1:1298.151.00[34]
Choline chloride/
2,2,2-Trifluoroacetamide
1:2298.152.36[34]
N,N-diethylethanol ammonium chloride/Malonic acid1:1298.150.98[34]
N,N-diethylethanol ammonium chloride/Zinc nitrate hexahydrate1:1298.150.52[34]
Tetrapropylammonium
bromide/Ethylene glycol
1:3293.15–353.156.41–5.97[35]
Tetrapropylammonium
bromide/Ethylene glycol
1:4293.15–353.156.53–6.14[35]
Tetrapropylammonium
bromide/Ethylene glycol
1:5293.15–353.157.23–6.57[35]
Tetrapropylammonium bromide/
Triethylene glycol
1:2.5293.15–353.156.40–6.03[35]
Tetrapropylammonium bromide/
Triethylene glycol
1:3293.15–353.155.96–5.85[35]
Tetrapropylammonium bromide/
Triethylene glycol
1:4293.15–353.155.85–5.64[35]
Tetrapropylammonium bromide/
Glycerol
1:2293.15–353.155.09–4.80[35]
Tetrapropylammonium bromide/
Glycerol
1:3293.15–353.155.22–4.94[35]
Tetrapropylammonium bromide/
Glycerol
1:4293.15–353.155.15–4.87[35]
Tetrabutylammonium chloride/
Glycerol
1:3293.15–353.156.51–6.11[36]
Tetrabutylammonium chloride/
Glycerol
1:4293.15–353.158.95–7.50[36]
Tetrabutylammonium chloride/
Glycerol
1:5293.15–353.156.81–6.42[36]
Tetrabutylammonium chloride/
Ethylene glycol
1:2293.15–353.159.10–7.51[36]
Tetrabutylammonium chloride/
Ethylene glycol
1:3293.15–353.159.20–7.76[36]
Tetrabutylammonium chloride/
Ethylene glycol
1:4293.15–353.159.35–8.19[36]
Tetrabutylammonium chloride/
Triethylene glycol
1:1293.15–353.156.40–5.92[36]
Tetrabutylammonium chloride/
Triethylene glycol
2:1293.15–353.156.97–6.21[36]
Tetrabutylammonium chloride/
Triethylene glycol
3:1293.15–353.157.70–6.73[36]
Tetrabutylammonium chloride/
Triethylene glycol
4:1293.15–353.158.06–7.03[36]
Table 10. The pH of the prepared DES-like mixtures was determined at 298 K for all 70 wt% of the aqueous solutions of the DES-like mixtures (adapted according to Cai et al.) [43].
Table 10. The pH of the prepared DES-like mixtures was determined at 298 K for all 70 wt% of the aqueous solutions of the DES-like mixtures (adapted according to Cai et al.) [43].
DES-like MixturesMolar RatiopH
Choline chloride/D-sorbitol1:13.86
Choline chloride/Urea1:28.81
Choline chloride/Oxalic acid1:10.29
Choline chloride/Benzoic acid1:1-
Choline chloride/Citric acid1:11.41
Choline chloride/L(+)-Diethyl L-tartrate1:13.38
Choline chloride/Zinc chloride1:14.41
Choline chloride/L(+)-lactic acid1:11.18
Choline chloride/Glycerol1:26.24
Choline chloride/Salicylic acid1:1-
Choline chloride/Succinic acid1:11.74
Choline chloride/Mannitol1:2-
Choline chloride/Acetamide1:26.38
Betaine/Glycerol1:26.29
Betaine/Citric acid1:12.69
Betaine/Urea1:28.47
Table 11. Molar ratios, water contents, and pH values of DES-like mixtures used in (adapted according to Skulcova et al.) [44].
Table 11. Molar ratios, water contents, and pH values of DES-like mixtures used in (adapted according to Skulcova et al.) [44].
DES-like MixturesMolar RatioTemperature
(K)
pH
Choline chloride/Citric acid/H2O1:1:1.33298.15–333.151.72–0.92
Choline chloride/Citric acid/H2O2:1:1.44298.15–333.151.33–0.98
Choline chloride/Ethylene glycol/H2O1:2:0.33298.15–333.154.38–4.00
Choline chloride/Glycerol/H2O1:2:0.33298.15–333.154.47–4.12
Choline chloride/Glycolic acid/H2O1:3:0.44298.15–333.151.24–0.99
Choline chloride/Lactic acid/H2O1:5:0.67298.15–333.151.73–0.99
Choline chloride/Lactic acid/H2O1:9:1.11298.15–333.151.61–0.80
Choline chloride/Lactic acid/H2O1:10:1.22298.15–333.151.77–1.04
Choline chloride/Malic acid/H2O1:1:0.22298.15–333.151.61–0.94
Choline chloride/Malic acid/H2O2:1:0.33298.15–333.151.93–1.19
Choline chloride/Malonic acid/H2O1:1:0.22298.15–333.151.28–0.41
Choline chloride/Oxalic acid/H2O1:1:2.44298.15–333.151.21–0.06
Lactic acid/Alanine/H2O9:1:1.11298.15–333.152.15–1.42
Lactic acid/Betaine/H2O2:1:0.33298.15–333.152.45–1.85
Lactic acid/Glycine/H2O2:1:0.33298.15–333.152.74–2.18
Lactic acid/Glycine/H2O9:1:1.11298.15–333.152.27–1.54
Malic acid/Sucrose/H2O1:1:0.22298.15–333.152.05–1.35
Table 12. Molar ratios, water contents, and pH values of DES-like mixtures in (adapted according to Ghaedi et al.) [49].
Table 12. Molar ratios, water contents, and pH values of DES-like mixtures in (adapted according to Ghaedi et al.) [49].
DES-like MixturesMolar RatioTemperature
(K)
pH
Allyltriphenylphosphonium
bromide/Diethylene glykol/H2O
1:4:0.17293.15–343.151.49–0.50
Allyltriphenylphosphonium
bromide/Diethylene glycol/H2O
1:10:0.31293.15–343.154.05–3.23
Allyltriphenylphosphonium
bromide/Diethylene glycol/H2O
1:16:0.39293.15–343.154.21–3.34
Allyltriphenylphosphonium
bromide/Triethylene glycol/H2O
1:4:0.18293.15–343.151.40–0.15
Allyltriphenylphosphonium
bromide/Triethylene glycol/H2O
1:10:0.35293.15–343.153.15–1.90
Allyltriphenylphosphonium
bromide/Triethylene glycol/H2O
1:16:0.56293.15–343.153.42–2.47
Table 13. Prepared DES-like mixtures, molar ratios and their pH values at 298.15 K, and the concentration of DES-like mixtures at 1 mol/L (adapted according to Jablonský et al.) [50].
Table 13. Prepared DES-like mixtures, molar ratios and their pH values at 298.15 K, and the concentration of DES-like mixtures at 1 mol/L (adapted according to Jablonský et al.) [50].
DES-like MixturesMolar RatioWater Content
(%)
pH
Choline chloride/Lactic acid/H2O1:2:0.965.41.71
Choline chloride/Lactic acid/H2O1:3:0.976.41.66
Choline chloride/Lactic acid/H2O1:4:0.997.11.64
Choline chloride/Lactic acid/H2O1:5:0.987.51.63
Choline chloride/Lactic acid/1,3-Propanediol/H2O1:1:1:0.923.41.86
Choline chloride/Lactic acid/1,3-Propanediol/H2O1:2:1:0.954.81.85
Choline chloride/Lactic acid/1,3-Propanediol/H2O1:3:1:0.955.61.80
Choline chloride/Lactic acid/1,3-Propanediol/H2O1:4:1:0.926.41.83
Choline chloride/Lactic acid/1,3-Propanediol/H2O1:5:1:0.916.81.80
Choline chloride/Lactic acid/1,3-Butanediol/H2O1:1:1:0.932.92.05
Choline chloride/Lactic acid/1,3-Butanediol/H2O1:2:1:0.924.52.00
Choline chloride/Lactic acid/1,3-Butanediol/H2O1:3:1:15.42.01
Choline chloride/Lactic acid/1,3-Butanediol/H2O1:4:1:16.12.05
Choline chloride/Lactic acid/1,3-Butanediol/H2O1:5:1:16.42.07
Choline chloride/Lactic acid/1,4-Butanediol/H2O1:1:1:0.963.02.31
Choline chloride/Lactic acid/1,4-Butanediol/H2O1:2:1:0.924.52.20
Choline chloride/Lactic acid/1,4-Butanediol/H2O1:3:1:0.925.52.10
Choline chloride/Lactic acid/1,4-Butanediol/H2O1:4:1:0.916.22.10
Choline chloride/Lactic acid/1,4-Butanediol/H2O1:5:1:0.916.72.10
Choline chloride/Lactic acid/1,5-Butanediol/H2O1:1:1:0.873.92.22
Choline chloride/Lactic acid/1,5-Butanediol/H2O1:2:1:0.985.22.18
Choline chloride/Lactic acid/1,5-Butanediol/H2O1:3:1:0.905.92.23
Choline chloride/Lactic acid/1,5-Butanediol/H2O1:4:1:0.906.72.15
Choline chloride/Lactic acid/1,5-Butanediol/H2O1:5:1:0.966.92.13
Table 14. The pH values of DES-like mixtures measured experimentally (adapted according to Panić et al.) [48].
Table 14. The pH values of DES-like mixtures measured experimentally (adapted according to Panić et al.) [48].
DES-like MixturesMolar RatioWater Content
(wt%)
pH
Betaine/Citric acid1:130/502.46 ± 0.04/2.46 ± 0.02
Betaine/Ethylene glycol1:2306.86 ± 0.00
Betaine/Glucose1:1106.64 ± 0.35
Betaine/Glycerol1:230/506.77 ± 0.04/6.38 ± 0.07
Betaine/Oxalic acid/
Glycerol
1:2:1302.91 ± 0.05
Betaine/Malic acid1:130/502.98 ± 0.01/2.92 ± 0.01
Betaine/Sucrose4:1307.85 ± 0.11
Choline chloride/Citric acid2:130/500.34 ± 0.04/0.71 ± 0.00
Choline chloride/Ethylene glycol1:210/306.19 ± 0.01/6.60 ± 0.57
Choline chloride/Ethylene glycol1:250/804.58 ± 0.14/4.41 ± 0.00
Choline chloride/Fructose1:130/503.51 ± 0.05/3.35 ± 0.03
Choline chloride/Glucose1:130/504.83 ± 0.06/3.56 ± 0.01
Choline chloride/Glycerol1:230/503.71 ± 0.06/2.67 ± 0.11
Choline chloride/Glycerol1:2803.06 ± 0.01
Choline chloride/Malic acid1:130/500.63 ± 0.01/1.03 ± 0.00
Choline chloride/
Proline/Malic acid
1:1:110/303.23 ± 0.00/2.82 ± 0.01
Choline chloride/
Proline/Malic acid
1:1:1502.63 ± 0.03
Choline chloride/Sorbitol1:150/804.92 ± 0.04/3.80 ± 0.08
Choline chloride/Urea1:210/309.26 ± 0.08/8.85 ± 0.06
Choline chloride/Urea1:2508.23 ± 0.04
Choline chloride/
Urea/Ethylene glycol
1:2:2108.29 ± 0.07
Choline chloride/Glycerol1:2:2108.72 ± 0.05
Choline chloride/Xylose2:130/502.86 ± 0.04/3.32 ± 0.03
Choline chloride/Xylose2:1803.93 ± 0.01
Choline chloride/Xylitol5:230/506.90 ± 0.06/6.50 ± 0.01
Choline chloride/Xylitol5:2806.03 ± 0.06
Choline chloride/Fructose1:130/503.51 ± 0.05/3.35 ± 0.03
Citric acid/Glucose1:1300.53 ± 0.04
Citric acid/Sucrose1:1300.83 ± 0.00
Fructose/Ethylene glycol1:2305.31 ± 0.09
Fructose/Glucose/Ethylene glycol1:1:2503.67 ± 0.06
Fructose/Glucose/Sucrose1:1:150/802.63 ± 0.03/2.99 ± 0.01
Fructose/Glucose/Urea1:1308.22 ± 0.06
Glucose/Ethylene glycol1:2504.03 ± 0.02
Glucose/Glycerol1:2504.33 ± 0.04
Malic acid/Fructose1:1300.77 ± 0.01
Malic acid/
Fructose/Glycerol
1:1:1302.77 ± 0.01
Malic acid/Glucose1:1300.83 ± 0.01
Malic acid/
Glucose/Glycerol
1:1:1100.92 ± 0.00
Malic acid/Sucrose2:1300.66 ± 0.01
Proline/Malic acid1:110/302.63 ± 0.01/2.78 ± 0.02
Proline/Malic acid1:1502.73 ± 0.03
Sucrose/Ethylene glycol1:2306.05 ± 0.06
Sucrose/Glucose/Urea1:1308.14 ± 0.25
Xylose/Ethylene glycol1:2304.57 ± 0.06
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Jančíková, V.; Jablonský, M.; Voleková, K.; Šurina, I. Summarizing the Effect of Acidity and Water Content of Deep Eutectic Solvent-like Mixtures—A Review. Energies 2022, 15, 9333. https://doi.org/10.3390/en15249333

AMA Style

Jančíková V, Jablonský M, Voleková K, Šurina I. Summarizing the Effect of Acidity and Water Content of Deep Eutectic Solvent-like Mixtures—A Review. Energies. 2022; 15(24):9333. https://doi.org/10.3390/en15249333

Chicago/Turabian Style

Jančíková, Veronika, Michal Jablonský, Katarína Voleková, and Igor Šurina. 2022. "Summarizing the Effect of Acidity and Water Content of Deep Eutectic Solvent-like Mixtures—A Review" Energies 15, no. 24: 9333. https://doi.org/10.3390/en15249333

APA Style

Jančíková, V., Jablonský, M., Voleková, K., & Šurina, I. (2022). Summarizing the Effect of Acidity and Water Content of Deep Eutectic Solvent-like Mixtures—A Review. Energies, 15(24), 9333. https://doi.org/10.3390/en15249333

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
