Research into Cryolithozone Spatial Pattern Changes Based on the Mathematical Morphology of Landscapes

Abstract

Lacustrine thermokarst is receiving great interest as a landscape-forming process. Despite this, research dealing with the quantitative analysis of the changes in the morphological patterns of thermokarst plains under ongoing climate change is lacking. This study aims to analyze changes in the morphological patterns of cryolithozone landscapes based on models provided by the mathematical morphology of landscapes. Our research involves eight key sites within lacustrine thermokarst plains and nine key sites within thermokarst plains with fluvial erosion. These sites differ in geomorphological, geocryological, and physiographical terms, and are situated in different regions such as Yamal, Taimyr, Kolyma lowland, river Lena delta, Baffin’s Land, and Alaska. Archival Corona images (date 1) and high-resolution satellite imagery from June to August 2008–2014 (date 2) were used to obtain the model’s morphometric data. According to quantitative analysis of the models, the morphological pattern of the lacustrine thermokarst plains did not undergo significant changes during the observation period, while 20% of the key sites within the thermokarst plains with fluvial erosion underwent essential changes in lake area distributions. This difference may come from the higher reactivity of the fluvial erosion process on climate change than that of the thermokarst.

1. Introduction

The Arctic Cryolithozone is characterized by a significant predominance of lowlands and low-lying outskirts of plains. There is a lot of lacustrine thermokarst in these areas. At the same time, major oil and gas fields are located there. These territories are being actively developed, including via exploration, production, transportation of petroleum products, and construction of engineering structures.

There are several main modern trends in studying changes in landscapes in the permafrost zone.

Firstly, there is the analysis of cryolithozone landscape changes, including global generalizations ([1], for example). Some works deal with ground-condition changes. For one, Ref. [2] showed that 25% of the East-Siberian submeridional transect would experience permafrost degradation until 2009, Ref. [3] except Alaska, which would lose up to 22% of its permafrost soil. Another set of studies observes temperature changes, such as [4]. These demonstrate contrasting trends of permafrost temperatures with prevailing warming at 1.2 °C. Ref. [5], and also matched contrasting permafrost temperature trends by analyzing bores in the Chara depression during 1986–2020. Many researchers have studied climatic changes and consequent processes in the cryolithozone ([6] and many others). Some of them are devoted to changes concerning exogenous processes in the cryolithozone [7], and some works deal with vegetation–soil cover changes [8]. The authors in [9] revealed that wood fires are an important factor for permafrost degradation, along with air temperature, but wood fires are almost absent in the tundra zone. They also found that permafrost degrades very intensively but within relatively small patches; the authors in [10] comes to a similar conclusion.

Many pieces of research deal with lacustrine thermokarst as one of the landscape-forming processes. For this, we can point to works that focus on assessing the spatial position of lacustrine thermokarst in Alaska [11] and Eastern Siberia, which are very important [12]. The authors in [13] showed that thermokarst lakes have expanded over the last 8000 years. Furthermore, 5000 years ago, the distribution of thermokarst lakes was about the same as today. Until 2000 years ago, the levels of thermokarst lakes were higher than modern ones, and then the lakes began to decrease. For the territory of Alaska, Ref. [14] found that the studied lakes appeared about 11,000–12,000 years ago, as is typical with thermokarst lakes. The coastlines of these lakes have been practically stable for the past 9000 years, up to now. The authors in [15] found that the area of thermokarst lakes in northwestern Alaska is decreasing, and is associated with the intensification of thermal erosion due to an increase in the average annual temperature. At the same time, the average annual precipitation has remained practically unchanged since 1984. The research in [16] established the growth of thermokarst lakes as 4.5% from 1999 to 2018 in the Kolyma lowland. Furthermore, Ref. [17] showed that the development of thermocirques is the main factor affecting the concentration of organic matter in the lakes, which provide its lateral inflow. The authors in [18] found that the total lake area within Yukon plains decreased, with the main decrease occurring in the 1970s and 1990s, but their number, on the contrary, has increased. The catastrophic descent of the lakes has been responsible for half of the lake area reduction. The descents of lakes occurred more frequently in the past few decades due to the activation of the thermokarst process under climate warming. At the same time, Ref. [19] showed that the number of thermokarst lakes in the study area increased by 10% over 60 years, while the total lake area decreased. The reason for this is the formation of rudimentary lakes after the descent of large thermokarst lakes. On the contrary, the number of large lakes has decreased. At the same time, the dried lakes have been expanding because of permafrost melting. The authors in [20] found that 12% of landscapes near Eight Mile Lake (Canada) are characterized by the emergence of new, initial thermokarst forms. The study in [21] revealed a multidirectional trend in the lake size changes from remote sensing data: a 14% increase by 1994 and a 10% decrease in 1999–2002, compared with 1984.

Lacustrine thermokarst forms a special spatial pattern on a landscape surface, which can be studied both in itself and as an indicator of ongoing processes.

However, only a few works have examined changes in the morphological patterns of cryolithozone landscapes. As a rule, these works only examine the change in the lake share within landscapes, the number, and area of the lakes, and sometimes their dynamics [22,23,24,25]. The authors in [26] tried to find a distribution function for lake areas, without much success. Furthermore, Ref. [27] estimated spatial parameters of lakes in the Lena Delta. Modern techniques for space imagery processing allow us to involve large areas, to which many studies are devoted [25,28,29].

Mathematical modeling is a promising way to study such images (morphological patterns). Traditionally, such modeling of the development and changes in the spatial pattern is widely used to study fluvial erosion. For example, Ref. [30] used the landscape evolution model and dimensional analysis to study the similarity of the erosion network at different scales and in different landscapes. Furthermore, Ref. [31] use fractal dimensions and flow order to compare erosion networks of different origins (rivers, glaciers, underground rivers, etc.). The authors in [32] showed the possibility of modeling evenly spaced ridges and valley patterning processes. As for erosion patterns, modeling is used by many researchers.

However, at the same time, the modeling of the formation processes of plains with a wide development of thermokarst processes is insufficiently developed. The quantitative regularities of changes in their pattern are poorly studied. Researchers rarely propose models that describe the behavior of the quantitative characteristics of morphological patterns.

The aim of this research is the quantitative analysis of changes in the morphological patterns of cryolithozone landscapes based on the approach of the mathematical morphology of landscapes, which involves two widespread cryolithozone landscapes:

• Lacustrine thermokarst plains;
• (Lacustrine) thermokarst plains with fluvial erosion.

2. Materials and Methods

Research Area. This research involves eight key sites within the landscapes of lacustrine thermokarst plains and nine key sites within thermokarst plains with fluvial erosion, all in the circumarctic region.

Lacustrine thermokarst plains represent an undulating, subhorizontal surface, dominated by different tundra or forest–tundra vegetation and embedded thermokarst lakes. The lakes have an isometric and often round shape, and are randomly scattered on the plains (Figure 1). Sometimes, due to confluence, there are lakes with scalloped shapes.

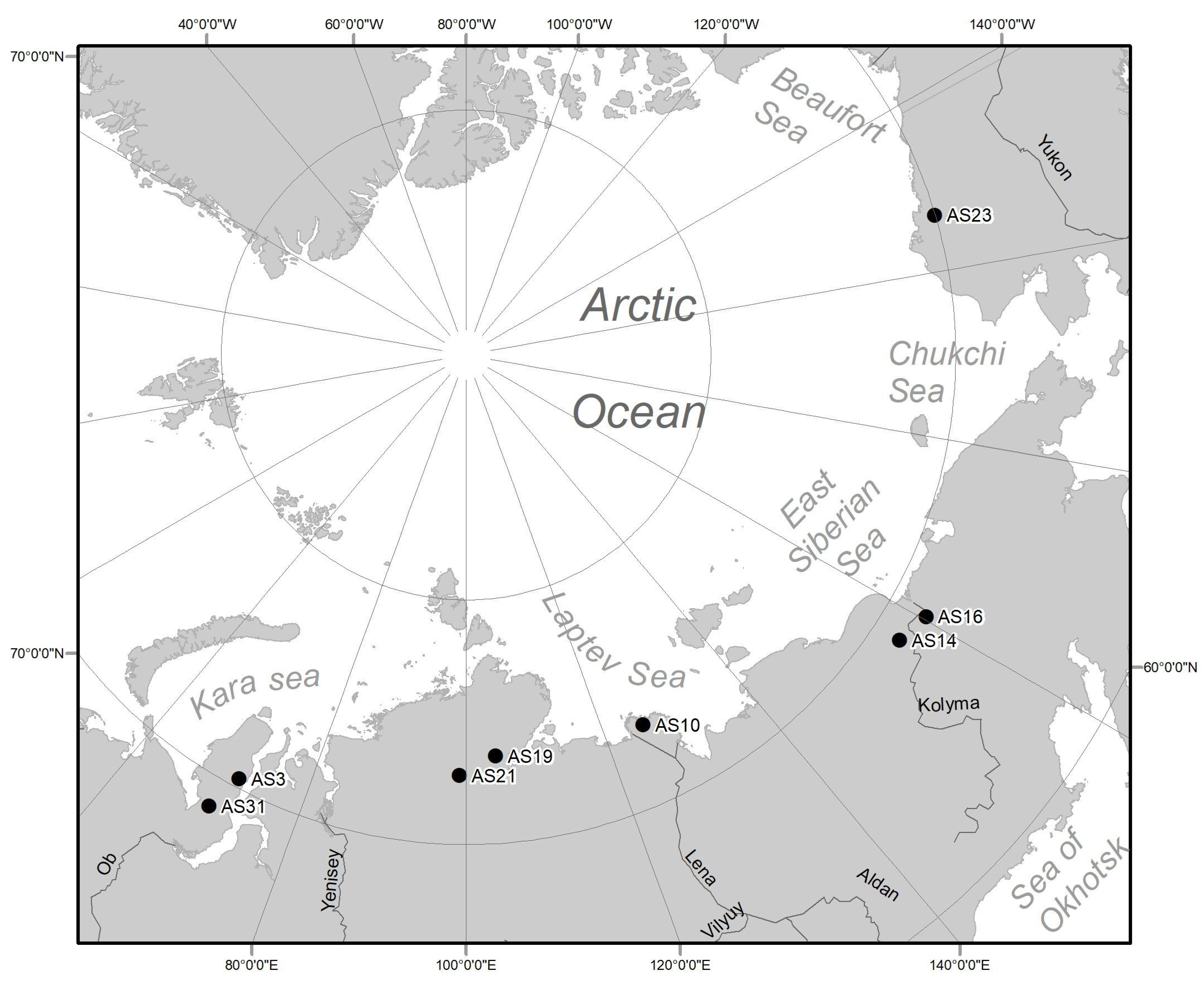

We chose eight key sites for our research, differing in geomorphological, geocryological, and physiographical terms, all situated in different regions such as Yamal, Taimyr, Kolyma lowland, river Lena delta, and Alaska (Figure 2). The description of the key sites is presented in

Table 1. Natural characteristics of the key sites within the lacustrine thermokarst plains.

Key Site (and Its Area km2)	Region	Annual Rock Temperature °C	Permafrost Thickness (m)	Description
AS31 (78)	Yamal peninsula, Baydaratsko-Yuribeysky region	−5	150–250	The flat and swampy third marine terrace, composed of sandy, sandy loam and loamy deposits. The rocks are medium-icy (0.2–0.4). Continuous permafrost. Ref. [33] Vegetation: southern hypoarctic tundra—shrub and tussock tundra (Betula nana, Salix lapponum, S. phylicifolia, S. dasyclados, S. glauca, S. lanata, Empetrum hermaph-roditum; Vaccinium myrtillus, V. uliginosum ssp. microphyllum, V. vitis-idaea ssp. minus и s. str., Deschampsia flexuosa, Festuca ovina, Aconitum septen-trionale, Cirsium helenioides, Trolius europaeus, T. asiaticus) [34].
AS3 (58)	East Yamal, Mudriyakha	−7	200–280	The densely dissected first and second lagoon-marine terraces, composed of fine and silty sands, with frequent replacement by sandy loams and rare interlayers of loams with occasional lenses of gravel and pebbles. The rocks are highly icy (>0.4). Continuous permafrost. Ref. [33] Vegetation: northern hypoarctic (typical) tundra (Cassiope tetragona, Empetrum subholarcticum, Arctous alpina, Dryas octopetala, Vaccinium uliginosum ssp. microphyllum, V. vitisidaea ssp. minus, Ledum decumbens, Eriophorum angustifolium, Carex arctisibirica, Arctagrostis latifolia, Dupontia fisheri, D. psilosantha, Deschampsia borealis, D. brevifolia, Betula nana, Salix arctica, S. glauca, S. lanata) [34].
AS21 (343)	Central Taimyr	−9	900–1100	Hilly-ridged Upper Quaternary fluvioglacial plain, composed of boulder loams, boulders, blocks with loamy rubble, layered sands and pebbles. Continuous permafrost. Ref. [33] Vegetation: southern hypoarctic tundra—shrub and tussock tundra (Betula nana, Salix lapponum, S. phylicifolia, S. dasyclados, S. glauca, S. lanata, Empetrum hermaphroditum; Vaccinium myrtillus, V. uliginosum ssp. microphyllum, V. vitisidaea ssp. minus и s. str., Deschampsia flexuosa, Festuca ovina, Aconitum septentrionale, Cirsium helenioides, Trolius europaeus, T. asiaticus) [34].
AS19 (303)	Central Taimyr	−8	900–1100	Hilly-ridged Upper Quaternary fluvioglacial plain, composed of boulder loams, boulders, blocks with loamy rubble, layered sands and pebbles. Continuous permafrost. Ref. [33] Vegetation: southern hypoarctic tundra—shrub and tussock tundra (Betula nana, Salix lapponum, S. phylicifolia, S. dasyclados, S. glauca, S. lanata, Empetrum hermaphroditum; Vaccinium myrtillus, V. uliginosum ssp. microphyllum, V. vitisidaea ssp. minus и s. str., Deschampsia flexuosa, Festuca ovina, Aconitum septentrionale, Cirsium helenioides, Trolius europaeus, T. asiaticus) [34].
AS10 (378)	Delta of the Lena River	−11–13	400–600	The second sandy Middle-Late Quaternary terrace of the deltaic plain, composed of sands and specific organogenic sediments. Highly icy rocks. Ref. [33] Vegetation: arctic tundra (Salix polaris, S. reptans, Dryas punctata, D. octopetala, Cassiope tetragona; Saxifraga hieracifolia, S. hirculus, S. serpyllifolia ssp. glutinosa, Alopecurus alpinus, Deschampsia borealis, D. brevifolia, Dupontia fisheri, Luzula confusa, L. nivalis, Eriophorum angustifolium, E. scheuchzeri, Carex arctisibirica) [34].
AS14 (185)	Kolyma lowland	−6.7–9	400–500	Lacustrine-alluvial Pleistocene accumulative plain, composed mainly of horizontally layered silts interbedded with sands and peat. Continuous permafrost. Ref. [33] Vegetation: pre-tundra light forests with southern hypoarctic tundras and swamps (Larix gmelinii, L. Cajanderi, Salix udensis, S. schwerin, Chosenia arbutifolia, Populus suaveolens) [34].
AS16 (318)	Right bank of the lower Kolyma	−7.8–10	400–500	Heavily peaty lacustrine-alluvial Pleistocene-Holocene plain, composed of loams, sandy loams, with a high content of silts. Continuous permafrost. Ref. [33] Vegetation: pre-tundra light forests with southern hypoarctic tundras and swamps (Larix gmelinii, L. Cajanderi, Salix udensis, S. schwerin, Chosenia arbutifolia, Populus suaveolens) [34].
AS23 (333)	Alaska	−8	200–300	Structural-accumulative plain, composed of eolian sands. Ice content is less than 0.1. Continuous permafrost.The dominant vegetation is a wet sedge meadow of Eriophorum angustifolium and Carex aquafilis. Eriophorum vaginatum, while tussock tundra occurs on the dryer sites [35].

.

The thermokarst plains with fluvial erosion are slightly wavy, subhorizontal or hilly, deserted areas covered by tundra and forest–tundra vegetation, interspersed with lakes and khasyreis (drained lakes). The lakes have isometric, often roundish shapes, while the khasyreis are former lake depressions containing meadow or bog vegetation and residual, not fully drained lakes. The khasyreis are also of a roundish shape. Both of them are randomly distributed across the plain (Figure 3). Sometimes, because of confluence, there are lakes with scalloped shapes.

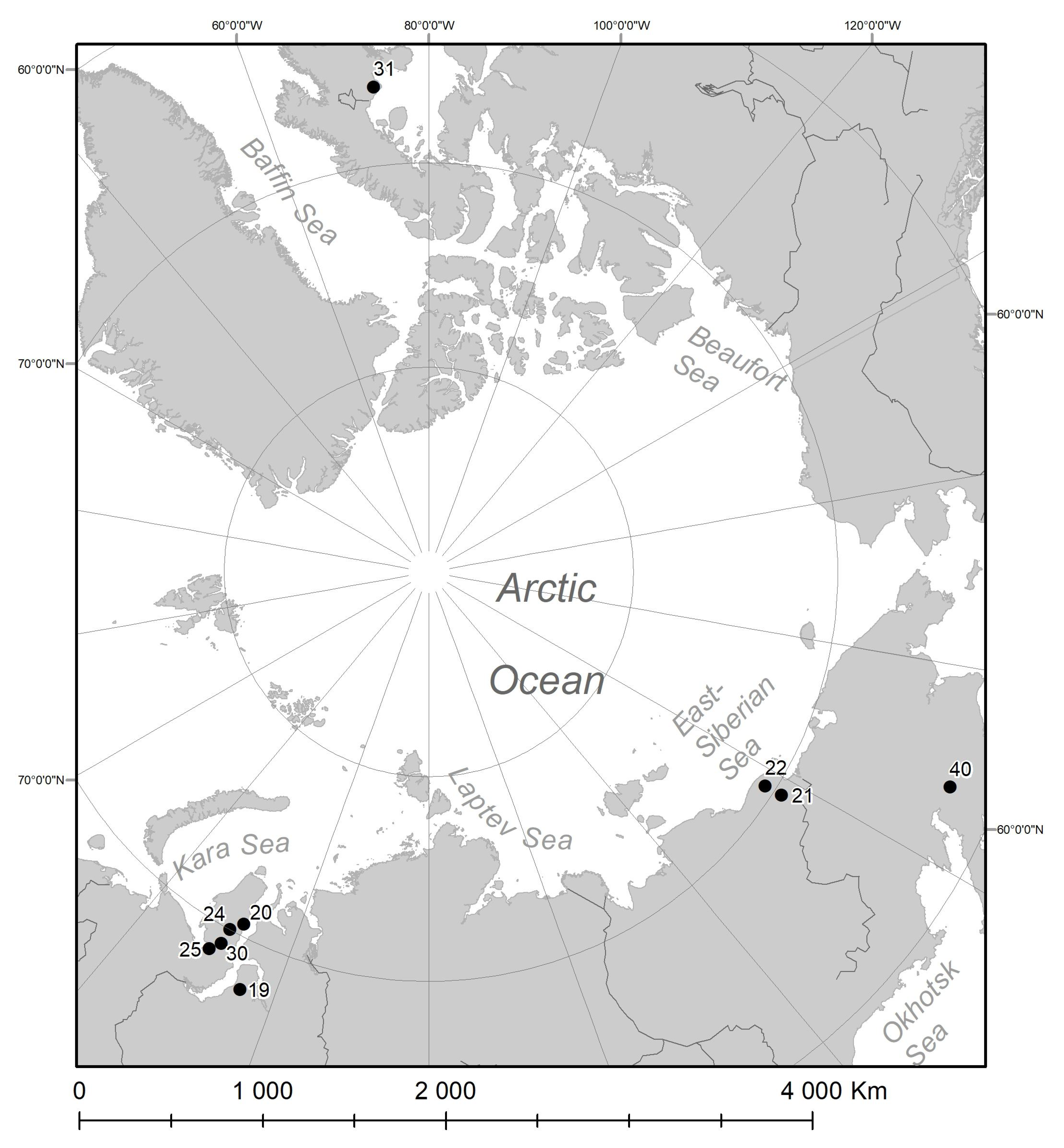

We chose nine key sites for our research, differing in geomorphological, geocryological, and physiographical terms and situated in different regions. They are located north of the West Siberian Lowland, at the mouth of the river Lena, in Baffin’s Land, Eastern Siberia (Figure 4). The description of the key sites is presented in

Table 2. Natural characteristics of the key sites within the thermokarst plains with fluvial erosion.

Key site (and Its Area km2)	Region	Annual Rock Temperature °C	Permafrost Thickness (m)	Description
19 (207)	Taz Peninsula	−3–−5	200–300	The third and fourth alluvial-marine terraces, composed of sandy loams, partly replaced by loams. Continuous permafrost. Ref. [33] Vegetation: southern hypoarctic tundra—shrub and tussock tundra (Betula nana, Salix lapponum, S. phylicifolia, S. dasyclados, S. glauca, S. lanata, Empetrum hermaphroditum; Vaccinium myrtillus, V. uliginosum ssp. microphyllum, V. vitisidaea ssp. minus и s. str., Deschampsia flexuosa, Festuca ovina, Aconitum septentrionale, Cirsium helenioides, Trolius europaeus, T. asiaticus) [34].
20 (450)	Yamal Peninsula	−7–−9	200–300	The first alluvial-marine terrace of the Gulf of Ob, composed of fine and fine-grained sands; there are lenses of peat and interlayers of sandy loams, less often loans. Continuous permafrost. Ref. [33] Vegetation: northern hypoarctic (typical) tundra (Cassiope tetragona, Empetrum subholarcticum, Arctous alpina, Dryas octopetala, Vaccinium uliginosum ssp. microphyllum, V. vitis-idaea ssp. minus, Ledum decumbens, Eriophorum angustifolium, Carex arctisibirica, Arctagrostis latifolia, Dupontia fisheri, D. psilosantha, Deschampsia borealis, D. brevifolia, Betula nana, Salix arctica, S. glauca, S. lanata) [34]..
21 (1157)	Indigirka-Kolyma interfluve	−7–−9	200–400	A lacustrine-marsh plain composed of lacustrine icy sandy loams with interbeds of clayey silts, often compacted by lenses and interbeds of peat, less often by clayey sands with massive cryotextures and large ice veins. Continuous permafrost. Ref. [33] Vegetation: southern hypoarctic tundra (Betula exilis, Salix alaxensis, S. boganidensis, S. pulchra, S. glauca, S. reptans, S. richardsonii, Alnus fruticosa, Eriophorum vaginatum, Ledum decumbens, Vaccinium vitis-idaea ssp. minus) [34].
22 (2867)	Indigirka-Kolyma interfluve	−9–−11	400–500	A lacustrine-marsh plain composed of lacustrine icy sandy loams with interbeds of clayey silts, often compacted by lenses and interbeds of peat, less often by clayey sands with massive cryotextures and large ice veins. Continuous permafrost. Ref. [33] Vegetation: northern hypoarctic (typical) tundra—(Salix fuscescens, Arctous alpina, Dryas punctata, Vaccinium uliginosum ssp. microphyllum, V. vitis-idaea ssp. minus, Ledum decumbens, Empetrum subholarcticum, Eriophorum vaginatum, E. angustifolium, Carex arctisibirica, Arctagrostis latifolia, Dupontia psilosantha, D. fisheri, Deschampsia borealis, D. Brevifolia, Betula exilis, Salix richardsonii, S. glauca, S. pulchra) [34].
24 (154)	Yamal Peninsula	−7–−9	200–300	The second alluvial-marine terrace of the Gulf of Ob, composed of sands with thin interlayers of sandy loams and loams up to 10 m thick. Continuous permafrost. Ref. [33] Vegetation: northern hypoarctic (typical) tundra (Cassiope tetragona, Empetrum subholarcticum, Arctous alpina, Dryas octopetala, Vaccinium uliginosum ssp. microphyllum, V. vitisidaea ssp. minus, Ledum decumbens, Eriophorum angustifolium, Carex arctisibirica, Arctagrostis latifolia, Dupontia fisheri, D.psilosantha, Deschampsia borealis, D. brevifolia, Betula nana, Salix arctica, S. glauca, S. lanata) [34].
25 (202)	Yamal Peninsula	−5–−7	200–300	The first and second marine terraces, composed of several units of sandy, sandy-argillaceous sediments with lenses and interlayers of sandy loam and clay. Continuous permafrost. Ref. [33] Vegetation: southern hypoarctic tundra—shrub and tussock tundra (Betula nana, Salix lapponum, S. phylicifolia, S. dasyclados, S. glauca, S. lanata, Empetrum hermaphroditum; Vaccinium myrtillus, V. uliginosum ssp. microphyllum, V. vitisidaea ssp. minus и s. str., Deschampsia flexuosa, Festuca ovina, Aconitum septentrionale, Cirsium helenioides, Trolius europaeus, T. asiaticus) [34].
30 (441)	Yamal Peninsula	−7–−9	300–400	The fourth marine terrace, composed of sandy, sandy loamy and loamy deposits. Continuous permafrost. Ref. [33] Vegetation: southern hypoarctic tundra—shrub and tussock tundra (Betula nana, Salix lapponum, S. phylicifolia, S. dasyclados, S. glauca, S. lanata, Empetrum hermaphroditum; Vaccinium myrtillus, V. uliginosum ssp. microphyllum, V. vitisidaea ssp. minus и s. str., Deschampsia flexuosa, Festuca ovina, Aconitum septentrionale, Cirsium helenioides, Trolius europaeus, T. asiaticus) [34].
31 (846)	Baffin Land	−5–−6	>500	A flat, vast post-glacial plain, composed mainly of limestone and shales overlain by glacial and fine-grained lacustrine and marine sediments. Clay soils and peat deposits predominate in lake basins. High density segregated ice. Continuous permafrost.Vegetation: Wet sedge-meadows (Carex spp. and Eriophorum spp.); Low shrub heath with (Salix arctica, Cassiope tetragona, Betula glandulosa, Vaccinium vitisideae, Ledum palustre) and other heath plants, and numerous herbs, grasses, and mosses; Semivegetated granite-gneiss terrain (Salix herbacea, Saxifraga tricuspidata, Luzula confusa, Silene acaulis), and abundant lichens; and Polar semidesert limestone barrens (Salix lanata, Saxifraga oppositifolia, Leucanthemum integrifolium) [36].
40 (670)	Koryak Highlands, near Palmatkina River	−1–−3	50–150	Glacio-fluvial valley, composed of alluvium and proluvium of “dry deltas”, which are pebbles with inclusions of gravel, sand, and boulders. Mainly continuous permafrost. Ref. [33] Vegetation: southern hypoarctic tundra (Betula exilis, Salix pulchra, S. glauca, S. krylovii, S. alaxensis, S. boganidensis, S. richardsonii, Alnus fruticosa, Eriophorum vaginatum, Carex lugens) [34].

.

Remote Sensing Data. We used the following remote sensing data:

-

Archival Corona images with a resolution of 3–12 m/pix, June–August 1965–1976;

-

New (June–August 2008–2014) images from satellites IKONOS, QuickBird, Worldview 2, Geoeye-1, Pleiades, SPOT-5, SPOT-6 with high resolution 0.5–2.5 m/pix, obtained both from open sources (Google earth, Yandex maps, Bing) and specially purchased (ScanEx R&D Center). The description of space imagery is in

Table 3. Parameters of the remote sensing data.

	Date 2			Date 1			Time between Surveys
Key Site	Source of Imagery	Survey Date	Resolution, m/pix	Source of Imagery	Survey Date	Resolution, m/pix
Lacustrine thermokarst plains
AS10	SPOT 5	17.07.2011	2.5	Corona	13.07.1964	2.7	47
AS14	WorldView2	09.07.2014	0.5	Corona	19.08.1976	1.2	38
AS16	QuickBird	23.06.2011	0.64	Corona	21.07.1965	2.7	46
AS19	SPOT 5	11.08.2008	2.5	Corona	22.07.1965	2.7	43
AS21	SPOT 5	10.08.2008	2.5	Corona	14.08.1966	2.7	42
AS23	QuickBird	05.07.2011	0.64	Corona	01.08.1976 18.07.1976	1.2	35
AS3	SPOT 5	14.09.2011	2.5	Corona	22.07.1976	1.2	35
AS31	Worldview2	24.06.2011	0.5	Corona	21.08.1968	1.8	43
Thermokarst plains with fluvial erosion
19	WorldView2	28.07.2013	0.5	Corona	14.08.1967	1.2	46
20	WorldView2	24.08.2018	0.5	Corona	26.07.1972	1.2	46
21	WorldView2	10.07.2013	0.5	Corona	21.07.1965	4	48
22	Sentinel	11.08.2018	10	Corona	21.07.1965	3.4	53
24	SPOT 7	15.09.2015	1.5	Corona	31.08.1978	3	37
25	SPOT 6	03.08.2019	1.5	Corona	21.08.1968	2.1	51
30	SPOT 7	17.09.2017	1.5	Corona	07.07.1961	2	56
31	WorldView2	01.07.2017	0.5	Corona	04.07.1979	10	38
40	SPOT 7	07.08.2015	1.5	Corona	29.07.1969	2.2	46

.

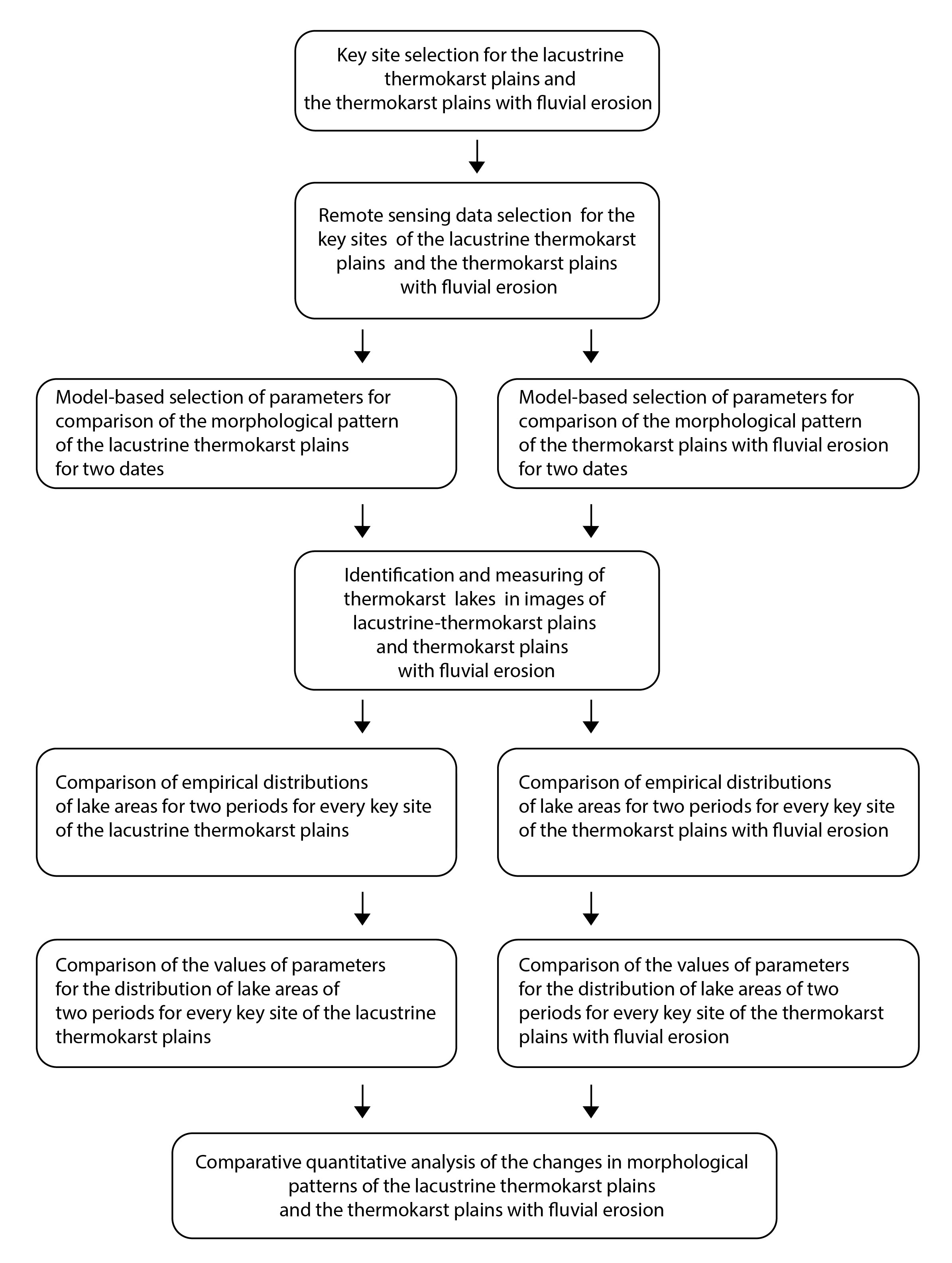

Research technique. The research is based on the mathematical morphology of landscapes, particularly modeling the morphological pattern development using the random process theory [37,38]. The modeling gave us informative, quantitative parameters of morphological patterns, and then we analyzed their temporal changes. The general technique is shown in Figure 5.

Key site selection. We selected the key sites by analyzing space imagery, published sources, and maps. The main requirements involved genetic, landscape, and morphological homogeneity, which were achieved by analyzing images and additional sources of information. Thus, territories with lakes of a different origin, usually expressed in their morphology, such as alluvial plains and ice-wedge polygonal plains, were excluded from the sites. The description of the key sites is presented in Table 1 and Table 2.

We selected remote sensing data for the key sites of the lacustrine thermokarst plains and the thermokarst plains with fluvial erosion results based on the following requirements:

-

Ensuring two shooting dates for each site;

-

Maximizing the time between two shooting dates for each site;

-

The maximum spatial resolution of space imagery.

Thus, we formed the set of space images for our research. The main parameters of the remote sensing data are presented in Table 3.

The selection of the parameters for the morphological patterns of the lacustrine thermokarst plains is based on the developed mathematical model [37,38].

The problem is that there are too many characteristics within the morphological pattern of the studied landscapes (lacustrine thermokarst plains in particular). However, they are in mutual dependence due to the formation laws of the morphological pattern. Therefore, we can detect a certain limited number of quantitative characteristics of the morphological pattern (the parameters), on which any other quantitative characteristics depend. Thus, such parameters reflect all quantitative changes in the morphological pattern. The mathematical models of the morphological patterns allow us to choose such parameters [37,38].

The morphological pattern model for homogeneous lacustrine thermokarst plains under the assumption of the approximately simultaneous appearance of primary thermokarst depressions (“synchronous start”) is based on the following basic assumptions [38]:

• The emergence of the initial depressions took a short time; it was a random process and developed independently within nonintersecting sites. The emergence probability of depressions at a test site depends only on its area.
• The growth of individual lakes due to the thermoabrasion impact (a low intensity of thermal abrasion is also possible, while the process approaches “purely thermokarst”) occurs independently in each lake. It was directly proportional to the heat reserves in the lake and inversely proportional to the area of the side surface of the water body.

Our previous research empirically proved this model of lacustrine thermokarst plain morphological pattern development. However, we examined three more variants of the models, differing in asynchronous start and quasiuniform growth in the size of lakes (for example, Ref. [38]).

The mathematical analysis of the model gives us the following main laws of development for the analyzed morphological pattern:

• The distribution of the number of thermokarst depressions (centers) on a randomly chosen plot fits the Poisson law [37,38], that is:

$$P(k,s)=\frac{{(\gamma s)}^k}{k!}{e}^{-\gamma s},$$

where γ is the mean number of depressions per unit area, and s is the area of the test site;

• Radius and area distributions of the thermokarst lakes after long development fit the lognormal distribution:

$$f_r^0(x,t)=\frac{1}{\sqrt{2\pi }{\sigma }_{0}x\sqrt{t}}{e}^{-\frac{{(\ln x-a_{0}t)}^2}{2{\sigma }_0^{2}t}}$$

where $a_0$, ${\sigma }_0$ are distribution parameters, $t$ is the time since the process began.

We can show that the obtained results are valid in the case of climatic changes in the cryolithozone [38]

Thus, the main changing parameters that characterize the state of the morphological pattern at each moment of its development are:

-

A mean logarithm of the lake area:

$$a(t)=a_{0}t$$

-

Variance in the lake area logarithm

$${\sigma }^2(t)={\sigma }_0^{2}t.$$

The mean lake area and the lake’s area percentage change in connection with these parameters.

For the full use of the information, in addition to the parameters selected for comparison, we made a comparison of the empirical distributions of lake areas on two dates at each key site of the lacustrine thermokarst plains.

The selection of parameters for comparing the morphological pattern of the thermokarst plains with fluvial erosion is based on the developed mathematical model of the morphological pattern of the thermokarst plains with fluvial erosion [37,38]. The formulation of the problem is the same as given above for the lacustrine thermokarst plains.

Our previous analysis [39,40] showed that the empirical data are most consistent with the morphological pattern model for the thermokarst plains with fluvial erosion, corresponding to the asynchronous start. This can be explained by the ongoing formation of new thermokarst lakes within the emerging khasyreis. The model of the morphological pattern of the thermokarst plains with fluvial erosion under the assumption of the asynchronous start is based on the following basic assumptions:

• Emergences of initial thermokarst depressions (foci) are independent random events during nonintersecting periods and at nonintersecting sites; the emergence probability depends only on the period and the site values (For small sites, the probability of occurrence of more than one depression is infinitely small, to a higher order than the probability of the occurrence of one depression).
• The change in a thermokarst depression radius is a random variable; it does not depend on other lakes. Its growth rate under random factors is directly proportional to heat losses through the side (water-covered) surface of the lake depression.
• While growing, a lake can turn into a khasyrei after draining by a stream; the probability of this does not depend on the development of other lakes. If it happens, the depression stops growing.
• The origins of new sources of fluvial erosion within disjointed sites are independent random events; the probability of a source of a fluvial stream within a given site depends only on its area and is much higher than the probability of having more than one source (For small sites, the probability of occurrence of more than one source is infinitely small, to a higher order than the probability of the occurrence of one source).
• The initial thermokarst depressions cannot appear within already existing thermokarst lakes.

The mathematical analysis of the model (see [37]) gives us the following main laws for developing the morphological pattern under consideration:

-

The radii distribution for the freely growing thermokarst lakes after time t since the occurrence of a particular lake fits the lognormal distribution.

$$f_0^{}(x,t)=\frac{1}{\sqrt{2\pi }\sigma x\sqrt{t}}{e}^{-\frac{{(\ln x-at)}^2}{2{\sigma }^{2}t}},$$

where $a,\sigma$ are distribution parameters;

-

A distance distribution from the center of the growing focus to the nearest source of fluvial erosion, stopping the growth of the lake by turning it into khasyrei, fits the Rayleigh distribution:

$$F_{}(x)=1-e^{-\pi \gamma x^2},$$

where γ is the mean density of spatial arrangement of the sources;

-

The number of initial thermokarst depressions that occurred at the start of the thermokarst process within a test site fits the Poisson law:

$$P(k,t,s)=\frac{{(\mu ts)}^k}{k!}{e}^{-\mu ts},$$

where µ is the mean number of depressions per unit area, s is the area of the test site, and t is the time since the process started.

This model was examined along with three other variants of the morphological pattern development model for the thermokarst plains with fluvial erosion (synchronous start, quasiuniform growth of lakes), and was confirmed as the most common [41] within the cryolithozone.

This model’s analysis reveals the dynamic balance between the origin of new lakes and their transformation into khasyreis, which appear after a long period of development within a wide range of natural conditions [38,41,42]. This state demonstrates, in particular, the following established regularities:

-

The lake area distribution (density distribution) for the area of the initial depression ε (the integral exponential distribution) is:

$$f_{sl}(x,\infty )=-\frac{2}{xEi(-\gamma \epsilon )}{e}^{-\gamma x},x\ge \epsilon ,$$

-

The mean lake area is

$$\overline{s_l}=-\frac{1}{\gamma Ei(-\gamma \epsilon )}{e}^{-\gamma \epsilon }$$

-

The mean thermokarst lake location density is

$${\tau }_l=-\frac{\mu }{2a}Ei(-\epsilon \gamma )[1-P_{}^{*}]$$

-

The percentage of the lake area fits the expression:

$$\ln [1-P_{}^{*}]=-\frac{\mu }{2a\gamma }{e}^{-\epsilon \gamma }[1-P_{}^{*}],$$

where a is the growth rate of size logarithm, P*- is percentage of the lake area, and $Ei(x)={\displaystyle \underset{-\infty }{\overset{x}{\int }}\frac{e^u}{u}}du,x<0$ is the exponential integral.

Thus, the main formal changing parameters describing the state of the developing morphological pattern include:

-

The mean steam-source location density γ;

-

The ratio of the new thermokarst foci generation density to the growth rate of the logarithm of the size $\frac{\mu }{a}$;

-

The area of a primary thermokarst lake (pond) ε.

Instead, we can use another set of formal parameters. It is easy to show that they correspond one-to-one, and thus they also describe the existing changes:

-

Mean area of thermokarst lakes;

-

Mean thermokarst lake location density;

The size of primary thermokarst foci (this last parameter was not used due to its little changing).

For the full use of the information, in addition to the parameters selected for comparison, we made a comparison of the empirical distributions of lake areas on two dates at each key site of the thermokarst plains with fluvial erosion.

Identification and measuring of thermokarst lakes in images of lacustrine-thermokarst plains and thermokarst plains with fluvial erosion. We used automatic ARCGIS modules and manual data interpretation for thermokarst lake mapping, including special analysis to avoid interpretation errors. The research involves most lakes, including secondary lakes in the khasyreis. Only a few lakes were excluded from consideration, particularly small residual water bodies with indefinite boundaries in incompletely drained lake depressions. Additional detailed data on the site location and the images used for each study period, which show all the lakes under statistical processing, are provided in the resource https://disk.yandex.ru/d/fwGqmLWzXpb8-g (acessed on 7 December 2021). The area of the lakes was determined using the corresponding ARCGIS module. The error estimate for the lake area is an average of 2.9% for the first survey period (aerial survey) and 1.9% for the second survey period (high-resolution space imagery).

The comparison of empirical distributions of lake areas on two dates at every key site of the lacustrine thermokarst plains was based on the Smirnov Criterion (two-sample Kolmogorov–Smirnov test in STATISTICA). The hypothesis of no change was rejected at a significance level of 0.95 with a p-value less than 0.05. The same procedure was carried out for the key sites of the thermokarst plains with fluvial erosion.

The comparison of the values of parameters for the distribution of lake areas of two dates for every key site of the lacustrine thermokarst plains was based on the previously proven log normality of the lake area distribution [37,38]. This allowed us to use the Fisher criterion to compare the logarithm variances of the lake areas and Student’s criterion to compare the average logarithms of the lake areas.

A comparison of the values of parameters for the distribution of lake areas on two dates at every key site of the thermokarst plains with fluvial erosion was carried out by estimating the difference between the selected parameters—the average lake area and the average density of lakes—for the first and second dates, respectively. Since the averages were the sum of a large number of random variables, according to the central limit theorem, their distribution was close to normal; this allowed us to use Student’s t-test to assess the significance of the differences.

A comparative quantitative analysis of the changes in the morphological patterns of the lacustrine thermokarst plains and the thermokarst plains with fluvial erosion was conducted by comparing the proportion of key sites within each landscape that have changed. The changes identified by comparing the distributions of the areas of thermokarst lakes for two dates were considered separately from those identified by comparing the parameters.

3. Results

Our research provides results concerning changes in the morphological patterns of the lacustrine thermokarst plains, including:

-

A comparison of the lake area distributions on two dates using the Smirnov criterion (

Table 4. Comparison of lake area distributions of lacustrine thermokarst plains for two dates using the Smirnov criterion *.

Key Site	Sample Volume (Date 1)	Sample Volume (Date 2)	Max Neg Differnc	Max Pos Differnc	p-Value
AS3	180	176	−0.016414	0.151641	p < 0.05
AS10	167	167	−0.017964	0.035928	p > 0.10
AS14	153	154	−0.008021	0.048256	p >0.10
AS16	584	576	−0.031369	0.024353	p > 0.10
AS19	209	209	−0.038278	0.014354	p > 0.10
AS21	351	345	−0.017292	0.023981	p > 0.10
AS23	109	108	−0.013931	0.047995	p > 0.10
AS31	207	210	−0.026363	0.027743	p > 0.10

* The Smirnov criterion should be p < 0.05 for a significant difference between the two samples (in bold).

);

-

A comparison of the lake area distribution parameters on two dates (

Table 5. Comparison of the parameters of lake area distributions of lacustrine thermokarst plains for two dates.

Key Site	Mean Area Logarithm (Date 1)	Mean Area Logarithm (Date 2)	Student’s Criterion	Critical Value at the Level of 0.95	Logarithm Variance (Date 1)	Logarithm Variance (Date 2)	Fisher’s Criterion	Critical Value at the Level of 0.95
AS 23	12.21	12.17	0.21	1.96	1.88	1.95	1.04	1.26
AS 21	10.83	10.82	0.10	1.96	1.53	1.61	1.05	1.1
AS 19	10.90	10.92	0.16	1.96	1.51	1.54	1.02	1.14
AS 14	11.63	11.55	0.53	1.96	1.64	1.81	1.10	1.18
AS 16	10.14	10.17	0.29	1.96	2.97	3.12	1.05	1.06
AS 10	11.94	11.92	0.13	1.96	2.04	2.07	1.02	1.18
AS 31	9.11	8.99	0.22	1.96	5.64	5.48	1.01	1.14
AS 3	9.64	9.42	1.05	1.96	3.50	4.30	1.23	1.14

).

The Smirnov criterion, assessing the statistical differences between the two samples of the thermokarst lake areas for each key site from 1965 to 1976 and 2008 to 2014, revealed a statistically significant difference only for one site (AS3). Comparing the model parameters, such as the mean logarithms and variances of the logarithms of the thermokarst lake areas, shows changes in the values of the parameters. However, Fisher and Student’s statistical tests do not reveal significant differences (at a significance level of 0.95) in the studied parameters for the two survey dates. We only found differences in the variance at the 0.95 significance level at the AS3 site. The AS3 site, where statistically significant differences were found both in the variance of the lake areas and in the distributions in general, is located on the Yamal Peninsula. Thus, a change in the morphological pattern of the lacustrine thermokarst plains was found in one key site out of eight, which is equal to 12%.

We analyzed changes in the morphological pattern of the thermokarst plains with fluvial erosion using various key sites and two dates of observation:

-

Date 1: 1964–1980;

-

Date 2: 2011–2019.

The minimum period between two dates for a key site is 38 years, and the maximum period between two dates for a key site is 56 years. For all these key sites, we obtained the changes in the lake area distribution (

Table 6. Comparison of the lake area distributions of the thermokarst plains with fluvial erosion for two dates using the Smirnov criterion *.

Key Site	Sample Volume (Date 1)	Sample Volume (Date 2)	Max Neg Diff	Max Pos Diff	p-Value
19	205	205	−0.078	0.014	>0.10
20	359	372	−0.150	0.002	<0.001
21	430	433	−0.007	0.04	>0.10
22	291	298	−0.004	0.056	>0.10
24	381	362	−0.100	0.011	<0.05
25	314	309	−0.073	0.009	>0.10
22	291	298	−0.004	0.056	>0.10
30	524	522	−0.043	0.007	>0.10
31	100	95	−0.040	0.037	>0.10
40	553	549	−0.031	0.043	>0.10

* The Smirnov criterion should be p < 0.05 for a significant difference between the two samples (in bold).

), mean area (

Table 7. Parameters of changes of morphological patterns for key sites of thermokarst plains with fluvial erosion: mean lake area.

Key Site	Mean Lake Area (km2) (Date 1)	Mean Lake Area (km2) (Date 2)	Student’s Criterion	Critical Value at the Level of 0.95
19	0.049	0.043	0.53	1.96
20	0.126	0.134	0.11	1.96
21	0.225	0.233	0.20	1.96
22	0.314	0.333	0.23	1.96
24	0.073	0.072	0.03	1.96
25	0.083	0.075	0.72	1.96
30	0.058	0.054	0.61	1.96
31	0.908	0.761	0.83	1.98
40	0.032	0.028	1.04	1.96

), and mean location density of the thermokarst lakes (

Table 8. Parameters of changes of morphological patterns for key sites of thermokarst plains with fluvial erosion: mean lake location density.

	Mean Lake Location Density (km−2) (Date 1)	Mean Lake Location Density (km−2) (Date 2)	Student’s Criterion	Critical Value at the Level of 0.95
19	0.99	0.99	0	1.96
20	0.80	0.83	0.50	1.96
21	0.37	0.37	0	1.96
22	0.10	0.10	0	1.96
24	2.47	2.35	0.68	1.96
25	1.55	1.53	0.16	1.96
30	1.19	1.18	0.14	1.96
31	0.12	0.11	0.61	1.96
40	0.83	0.82	0.20	1.96

).

Checking the statistical differences between the two samples of the thermokarst lake areas for each key site from 1964 to 1980 and 2011 to 2019 with the Smirnov criterion revealed a statistically significant difference between two key sites (20 and 24). Comparing the model parameters shows some change in the average area of the thermokarst lakes. However, Student’s t-test proves that none of these changes are statistically significant. A comparison of the values of the average location density of thermokarst lakes also shows the absence of statistically significant changes. Thus, it can be stated that changes in the morphological pattern of the thermokarst plains with fluvial erosion were found in two out of nine key sites, which is equal to 22%. Both key sites with identified changes are located on the Yamal Peninsula.

4. Discussion

The analysis of the obtained results shows that the morphological patterns of the lacustrine thermokarst plains and the thermokarst plains with fluvial erosion do not demonstrate significant signs of their evolution despite essential climatic changes. This is evidenced by the practical absence of statistically significant changes in the studied parameters, selected based on mathematical models of the corresponding landscapes. Thus, they cover all the free parameters of the models, and accordingly, reflect changes in all of the quantitative characteristics of the morphological patterns. In this case, we are talking about a time interval of 40–60 years.

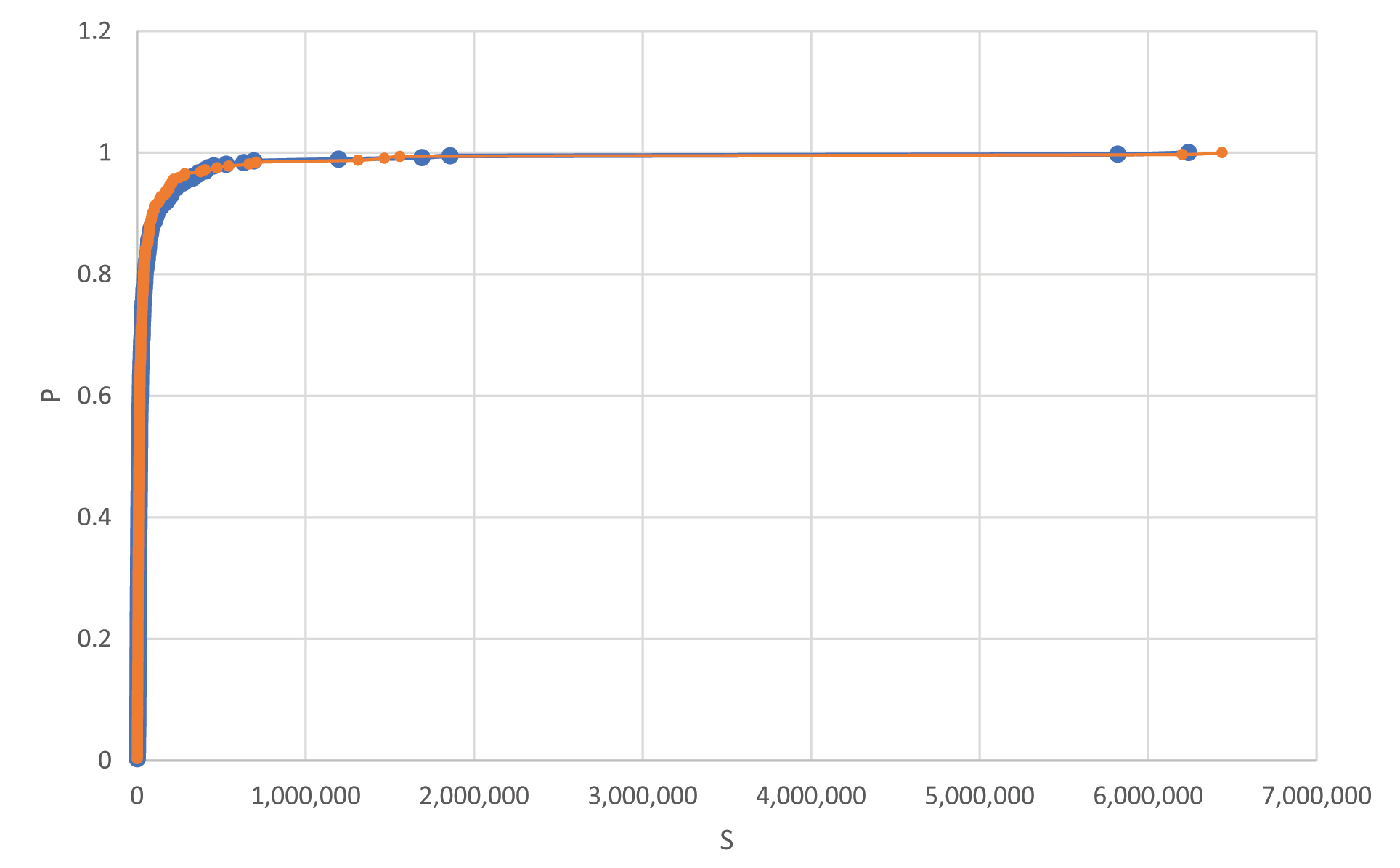

At the same time, a more detailed analysis shows a trend towards some changes. First of all, this is revealed by statistically significant changes in the thermokarst lake area distributions fixed by the Smirnov criterion in some key sites for both the lacustrine thermokarst plains and thermokarst plains with fluvial erosion (Figure 6).

The results of a more detailed analysis of the selected parameters also demonstrate the presence of this trend. However, the Fisher’s and Student’s statistical tests did not reveal significant differences (at a significance level of 0.95) in the studied parameters for the two survey dates, except the AS3 site. Nevertheless, the comparison of the model parameters—the average logarithms of the thermokarst lake areas on two dates at each key site and, similarly, the variances of the logarithms of the thermokarst lake areas—shows a slight decrease in the average logarithm in all key sites except one and some increase in the variance in all key sites except one. Thus, it is interesting that the observed differences for the first and second dates for different sites almost always have the same negative sign, which can hardly be accidental.

The analysis of the location density of the thermokarst lakes within the thermokarst plains also shows that the parameter decreased in five key sites and only increased in one. The change in the average lake area has more diverse trends, with a predominant decrease.

A comparison of the data obtained with the results of other researchers shows that many studies have concluded that the average areas of thermokarst lakes have changed. Thus, an overall increase in the average area of thermokarst lakes has been observed in various areas, particularly in Eastern Siberia [43,44]. Some studies have noted a reduction in thermokarst lake areas in Western Siberia and Alaska, which is more pronounced in low latitudes [45,46].

We think that the discrepancy between the conclusions can be explained by the fact that the authors of these studies investigated all the lakes in their key areas without considering their morphological and physiographic homogeneity. Accordingly, lakes of differing geneses, in different physical and geographical environments, and possibly with different tendencies of change, were analyzed. In addition, the mentioned studies did not separate the landscapes of lacustrine thermokarst plains and thermokarst plains with fluvial erosion. Meanwhile, the set of processes of the morphological patterns of these landscapes is significantly different, as we discussed above.

A comparison of the obtained data on the lacustrine thermokarst plains and thermokarst plains with fluvial erosion shows that for the thermokarst plains with fluvial erosion the degree of change in the morphological pattern is higher than that of lacustrine thermokarst plains—22% versus 12%. We can explain the different changeability of the morphological patterns of the analyzed landscapes because fluvial erosion reacts to climatic changes first and leads to a change in the thermokarst lake area distributions of the thermokarst plains with fluvial erosion by the intensification of their drainage and transformation into khasyreis. The change in the thermokarst process itself is perhaps more inertial, and has a more gradual reaction to ongoing climatic changes.

The geographical analysis shows that all sites with statistically significant changes are located in the Yamal Peninsula.

5. Conclusions

According to our quantitative analysis:

-

The morphological patterns of lacustrine thermokarst plains and thermokarst plains with fluvial erosion do not demonstrate significant evolution despite climatic changes during the observation period;

-

Changes in the morphological pattern of thermokarst plains with fluvial erosion are somewhat greater than those of lacustrine thermokarst plains and, accordingly, the risk for engineering structures is also higher;

-

The different variability of the morphological patterns of the analyzed landscapes can be explained by fluvial erosion, which first reacts to climatic changes, leading to a change in the area distributions of thermokarst lakes in thermokarst plains with fluvial erosion and the acceleration of their drainage and transformation into khasyreis.
