Estimation of Total Solar Transmittance for Twin-Wall Polycarbonate Sheet with Rectangular Structure on the Basis of Experimental Research

Abstract

The consumption of heat energy as well as electric power in an exploitation process of a building construction depends among others on properties of materials applied to construct its partitions. Increasingly, glass is being replaced by plastics in transparent partitions, including multi-wall polycarbonate sheets. Light transmission and solar radiation transferred to the object’s inside through transparent partitions are decisive factors for its lighting and energy balance. The present paper presents an analysis, on an experimental basis, of the changes of total solar transmittance (TST) for a clear twin-wall polycarbonate sheet with a rectangular structure applied as a swimming pool enclosure. Research shows that values of the above parameter do not depend meaningfully on cloudiness but on time of day. Values of TST can change in the daytime depending on incidence angles and on shares of direct and diffusive solar radiation in global solar radiation. TST values are in the range 0.6–0.7, and they are lower than the value of 0.8, which is given by the producer in the product card.

1. Introduction

Efficient energy consumption is one of the strategic targets for the economic development of the modern world [1]. One of the more important economic branches is the constructing industry. The exploitation of objects requires that both power and heat energy are supplied [2]. Both kinds of energy are consumed most of all for heating and/or air conditioning (ventilation) buildings. The consumption ratio for these two kinds of energy changes depending on the climate zone, on applied heating installation, and/or applied air conditioning. On the other hand, thermal gains and losses in constructions are essential for energy consumption by the mentioned installations. Thus, the properties of building materials used for partitions can decisively affect the heat fluxes exchanged between the environment and a building’s inside.

For the reason of a building’s energy balance, the construction of transparent building partitions is essentially important. Light and energy transmission through transparent partitions was and remains the investigation target for a great number of researchers. Control over the access of solar light and energy to the object is a strong motivation for such investigations. They most often concern the transmission of solar radiation through glass or transparent constructions made up from several sheets of glass with spaces between them filled in with air or noble gas with low total pressure. In glass constructions, layers of individual transparent materials are parallel to each other, and solar beams are refracted only in boundary areas of respective media. Then, the inclination angle of solar radiation on the glass surface and its inclination and orientation to the sun are significant parameters. The transmission of solar radiation through such partitions was analysed, among others, by Karlsson and Ross [3], Karlsson et al. [4], Song and Haberl [5], and Kralj et al. [6].

Another meaningful problem of the modern construction industry is the excess of energy transmitted to the building’s interior when solar radiation is too intensive. For this reason, transparent partitions are implemented with shading systems. Processes of solar transmission through such partitions were analysed, among others, by Manz [7], Simmler, and Bidner [8]. In the newest constructions of building partitions, granular aerogel can be placed between the glass sheets. It reduces the temperatures gradient between the object’s interior and environment on a sunny day. Research on heat and energy transmission for windows made with this technology was carried on by Moretti et al. [9]. Transmittance control of glass partitions is possible in case of glass partitions built with the application of polymer dispersed liquid crystal (PDLC). When voltage is applied to such a material, its transmittance can change. The effect of sky clearness index on the transmittance of a glass partition with PDLC was investigated, among others, by Ghosh et al. [10].

In turn, research on heat loss and the weakening of light transmission for a transparent partition made of a double-walled polycarbonate plate filled with granulated aerogel was carried out by Dawson et al. [11]. Their study shows that this technical solution of the building partition reduces the heat loss of the building by about 80%, without changing the light transmission.

However, increasingly, more building partitions are made of plastic (e.g., polycarbonate sheets, polyethylene sheets). Plastic is applied to build transparent partitions, among others, enclosures for swimming pools, partitions for sports stadiums, greenhouses, etc. [12,13,14,15,16,17,18].

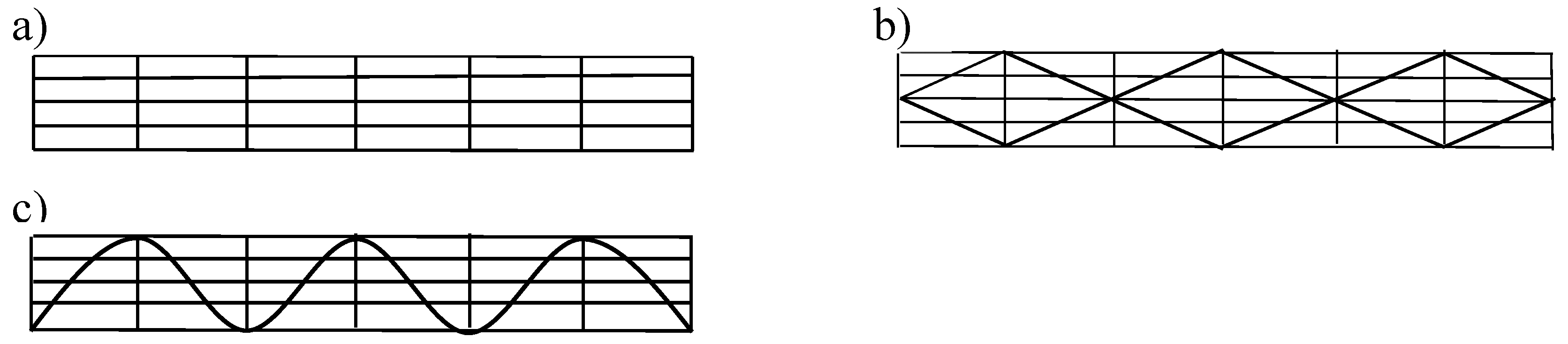

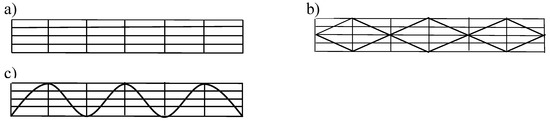

Polycarbonate sheets belong to popular materials [19] that can substitute glass sheets. Polycarbonate is a polymer belonging to the group of carboxylic acid polyesters [12,20]. Producers offer a wide variety of ready-made sheets made of polycarbonate, which are applied in the construction industry [12,13,14,15,16,17]. The sheets may be of solid or multi-wall structure (Figure 1).

In case of transparent building partitions made of polycarbonate sheets, the process of solar transmission can be quite complicated, particularly when their structure is not homogenous. Additionally, such polycarbonate sheets are connected with each other by ribs being their integral parts which, in turn, causes processes of solar refraction and reflection of complex character [21].

For practical purposes, the optical properties of polycarbonate sheets are meaningful as they are decisive for the amount of transmitted light and for energy transferred to the object. Optical properties of sheets offered for sale are estimated in lab conditions, according to European standard EU [22]. The data are given by the producer on the product card. A question arises as to whether the values of optical parameters given in catalogues are kept in exploitation conditions for polycarbonate sheets. The question is most important by modelling of heat exchange processes through such partitions (e.g., through the encloser of swimming pools [23,24]). One of the more important parameters for the process of solar transmission through transparent partition is total solar transmittance (TST) [21].

Research on TST for several polycarbonate sheets that differed in structures was carried on by Čekon et al. [25,26,27]. On the basis of yearly research, Čekon gave in the paper [25] relations between TST and global solar radiation as well as between TST and irradiance incidence angle. He stated that TST increased with the growth of global solar radiation and diminished with angle of incidence.

The aim of the present paper was the determination of TST for a chosen clear twin-wall polycarbonate sheet with a rectangular structure in real conditions. It should be investigated whether the values of experimental results are related to values obtained in lab conditions. The important questions address the relation between values of TST obtained in lab conditions and values obtained in experimental research, whether they are the same, and if the clearness index has an effect on TST.

2. Materials and Methods

2.1. Parameters Solar Energy Transmission

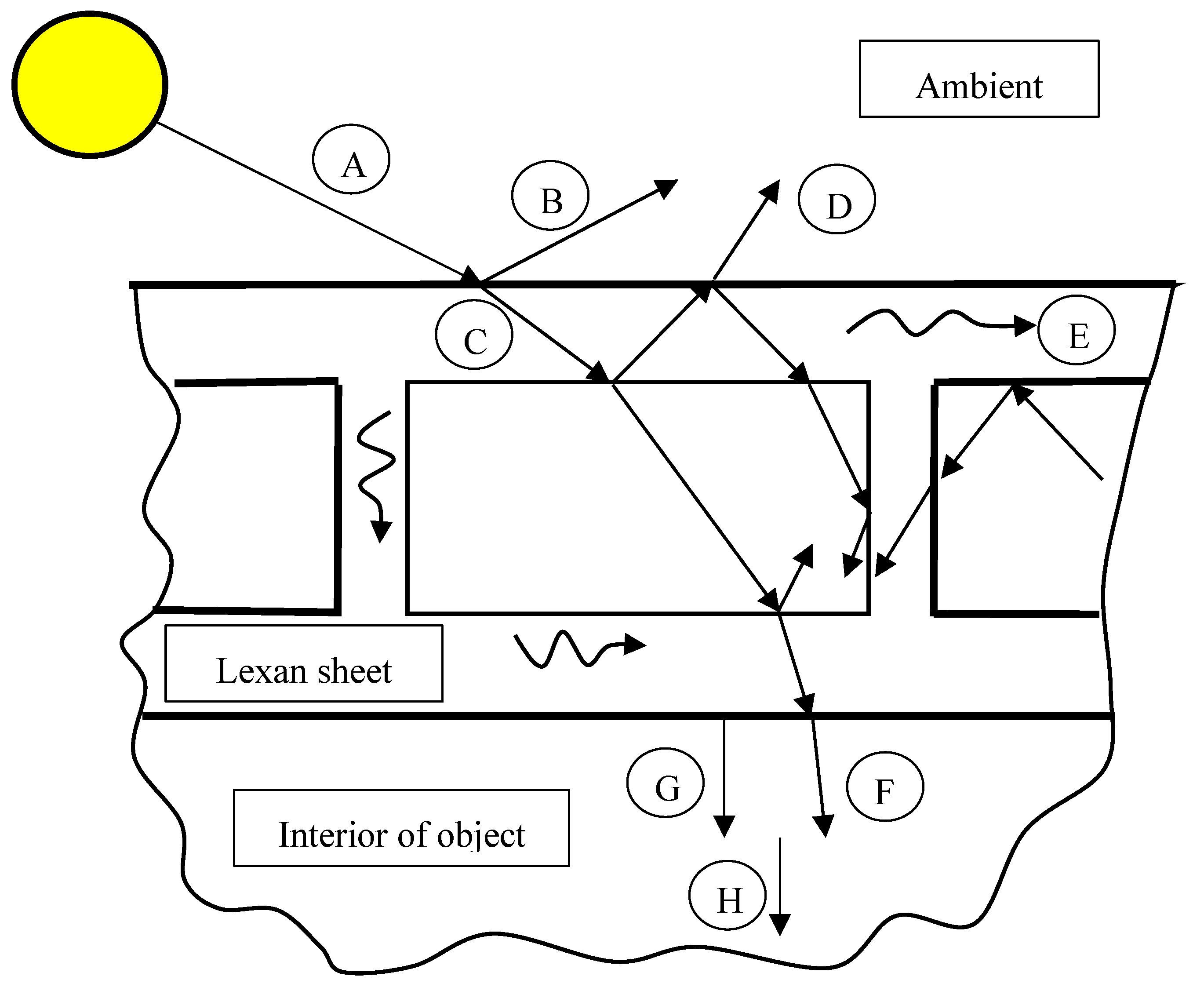

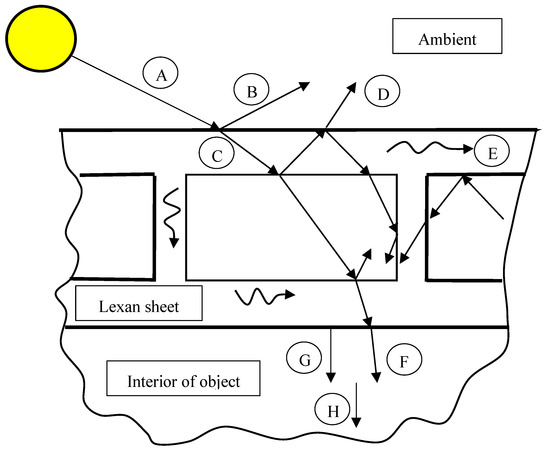

Figure 2 shows schematically the phenomenon of solar energy transmission through a multi-wall polycarbonate sheet, which can be treated as a transparent solid body. Incident solar radiation (A) on the front wall of a polycarbonate sheet is partially reflected (B) and transmitted through the sheet’s material (C). In turn, part of the solar radiation in the sheet’s material is refracted, and then, it is transmitted to the inside of the object as direct solar transmission (F). A small amount of transmitted solar radiation is absorbed E by polycarbonate. If the sheet’s structure is more complex, further solar radiation reflections and refractions may occur, as it is shown in Figure 1. Furthermore, the front and back walls of the sheet emit energy accumulated in polycarbonate to the environment (D) and to the object’s inside (F). Parameter TST (H) is the sum of direct solar transmission (F) and energy emitted from the back wall of the polycarbonate sheet (G).

As it has already been mentioned, from a practical point of view, amounts of light and energy released to the object’s inside are relevant information. That is why producers of polycarbonate sheets give generally three parameters that characterize the optical properties of enclosures in their catalogues [12,13,14,15,16,17]:

• Light transmission (LT);
• Direct solar transmission (DT);
• Total solar transmittance (TST).

The above parameters are determined in laboratory conditions [22].

2.2. Test Stand

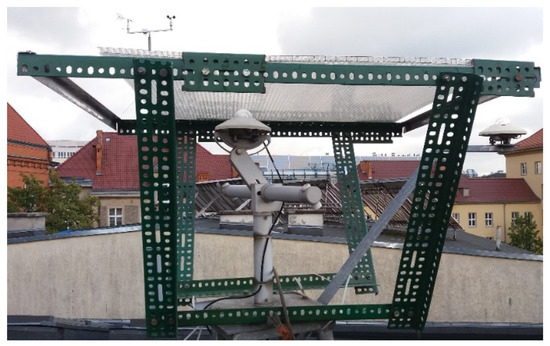

Experimental research was carried out on the test stand built on the roof of the Department of Energy Technologies, West Pomeranian University of Technology, Szczecin. Figure 3 shows the view of the test stand.

A clear twin-wall polycarbonate sheet with a rectangular structure produced by Sabic, catalogue-signed as LT2UV102RS17 [28,29], was chosen for the research. The sheet is commonly applied as a swimming pool enclosure. The sheet was made of resin with trademark Lexan. Its TST was 0.8 and LT was 0.81, whereas its DT was 0.76. The height and width of the single sheet’s cell was 0.010 m, respectively. The sheet was attached to a metal frame, which was then placed on a stand. The axes of the channels of the polycarbonate sheet are perpendicular to the N–S direction.

In order to measure total irradiance, two Kipp & Zonen pyranometers [30] with sensors of type CMP-11 were applied. They were connected with a data acquisition unit. One of them was placed under the sheet, and the latter one was placed near the sheet. The sensors measured irradiance above ($G_1$) and beneath the polycarbonate sheet ($G_2$).

2.3. Methodology of Research

Irradiances ($G_1$, $G_2$) measured by means of pyranometers were registered every 20 min. The TST for the polycarbonate sheet under research was calculated from the relation:

$$\mathrm{TST}=G_2/G_1.$$

(1)

The same methodology of TST measurements was applied, among others, by Tantau et al. [18], Song and Haberl [5], and Čekon et al. [25,26,27]. However, they applied test stands that differed by construction and by implementation from the stand applied in the present paper.

The location of the test stand and lack of side protection for pyranometers caused that irradiance reflected from neighbouring objects could affect both sensors. That is why it was assumed that the measured values of irradiance above and beneath the sheet included the component of reflected irradiance.

Incident radiation on the surface of the polycarbonate sheet depends on the weather conditions and atmospheric condition in the location of the test stand. In order to estimate how cloudiness affects TST through the polycarbonate enclosure, a temporal sky clearness index (K) [31] was introduced in the analysis. In the present paper, this index is defined as a ratio of respective irradiances above the polycarbonate sheet ($G_1$) and on the surface of the outer atmospheric layer ($G_0$):

$$K=G_1/G_0.$$

(2)

Extra-terrestrial solar radiation ($G_0$) was calculated from the relation:

$$G_0=G_s\left(1+0,033cos\frac{360n}{365}\right)\left(cos\Phi cos\delta cos\omega +sin\Phi sin\delta \right)K.$$

(3)

Parameter $G_s=1367$ W/m² in Equation (3) denotes the solar constant, n is the subsequent day of the year, and angle $\Phi$ is latitude ($\Phi \mathrm{for}\mathrm{Szczecin}=53.403° \mathrm{N}$). Solar declination $\delta$ depends on the season of the year and can be calculated from the following equation:

$$\delta =23,34sin\left(360\frac{284+n}{365}\right).$$

(4)

Then, the hour angle depends on the true solar time, and its value is calculated from the relation:

$$\omega =15\cdot \left(\tau -12,00\right).$$

(5)

Measurements were made for local time ${\tau }_{zone}$, so time correction is necessary, according to equation:

$$\tau ={\tau }_{zone}+4\left(L_{zone}-L_{loc}\right)+E.$$

(6)

where $L_{zone}$, $L_{loc}$—are lengths of standard meridian ($L_{zone}=15° \mathrm{E}$) and local meridian (for Szczecin $L_{loc}=14.529° \mathrm{E}$), respectively, and $E$ is the equation of time.

In addition, a systematic error between the time registered by the data acquisition system and local time was considered in the calculations.

It should be pointed out that the calculated value of the temporal atmosphere clearness index is of approximate character because irradiance above the polycarbonate sheet considers also reflected irradiance.

3. Results

Research was carried out in summer 2020. The present paper presents only research results obtained in August. Detailed elaboration of the research results for this month is given in paper [32]. Measurement results for irradiance values higher than 1000 W/m² were neglected in research analysis, as they were considered to be gross errors.

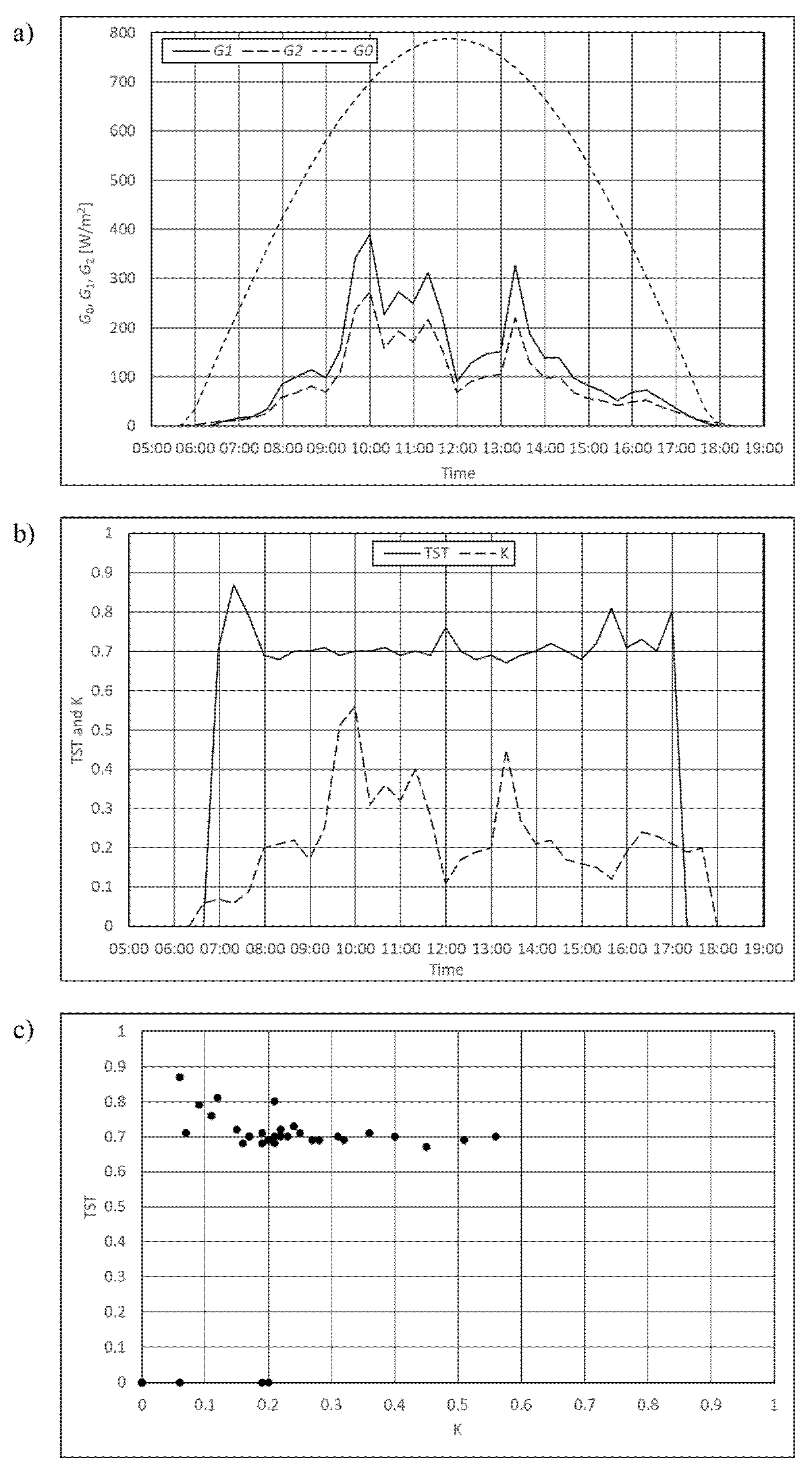

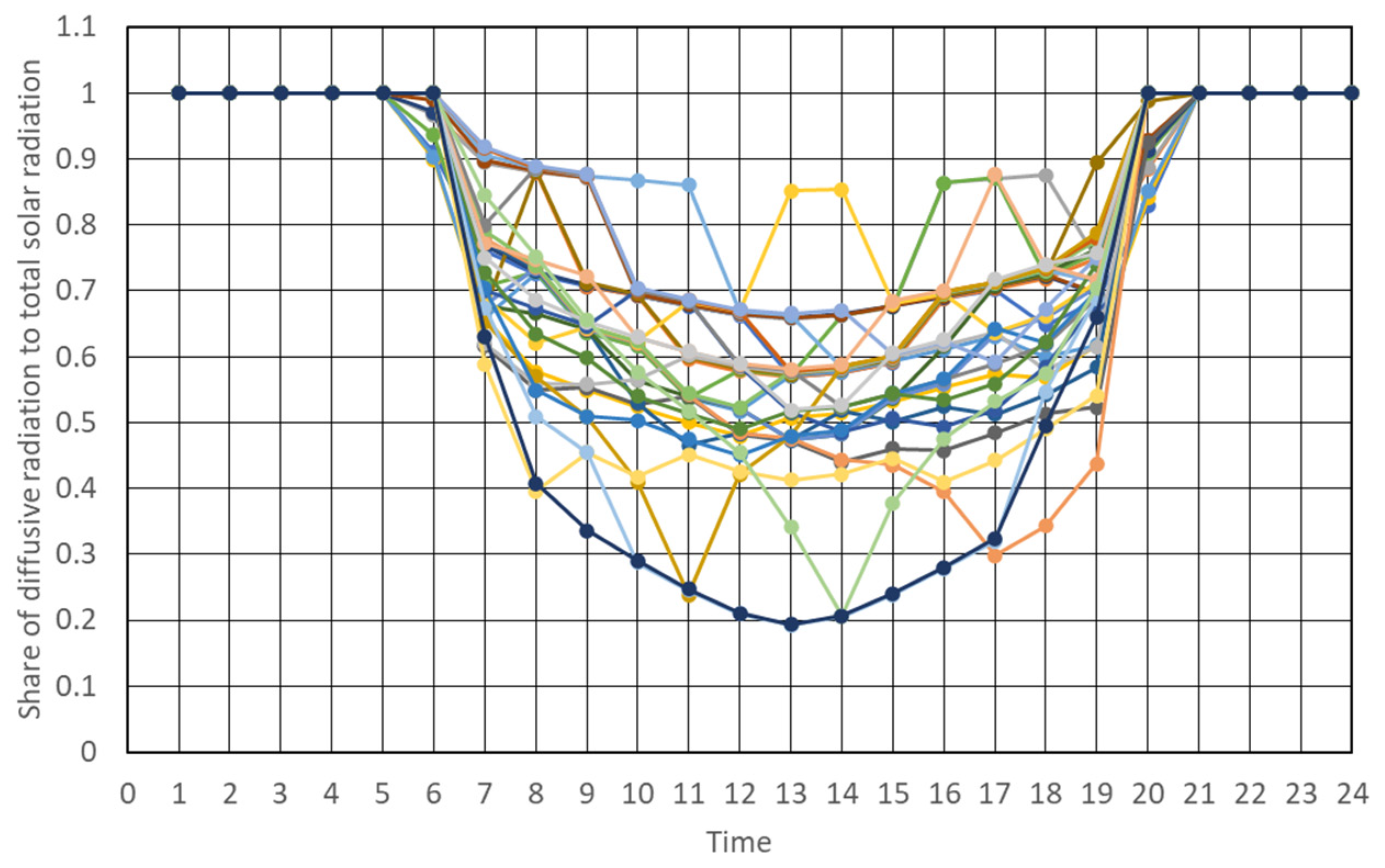

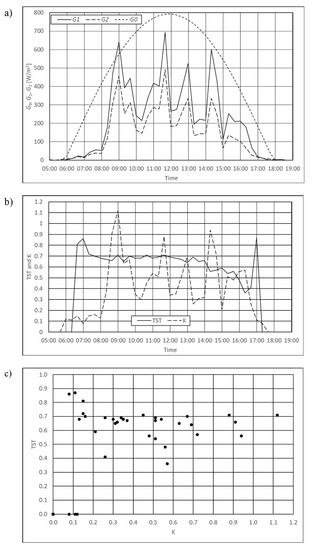

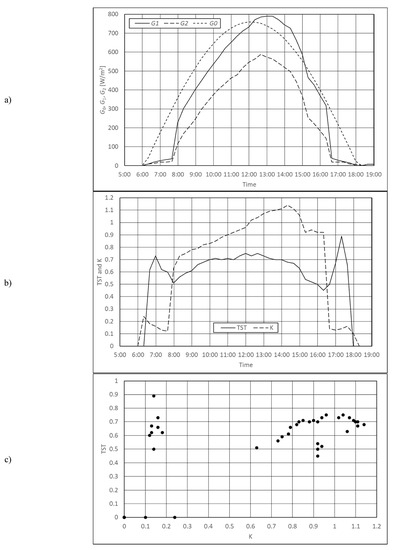

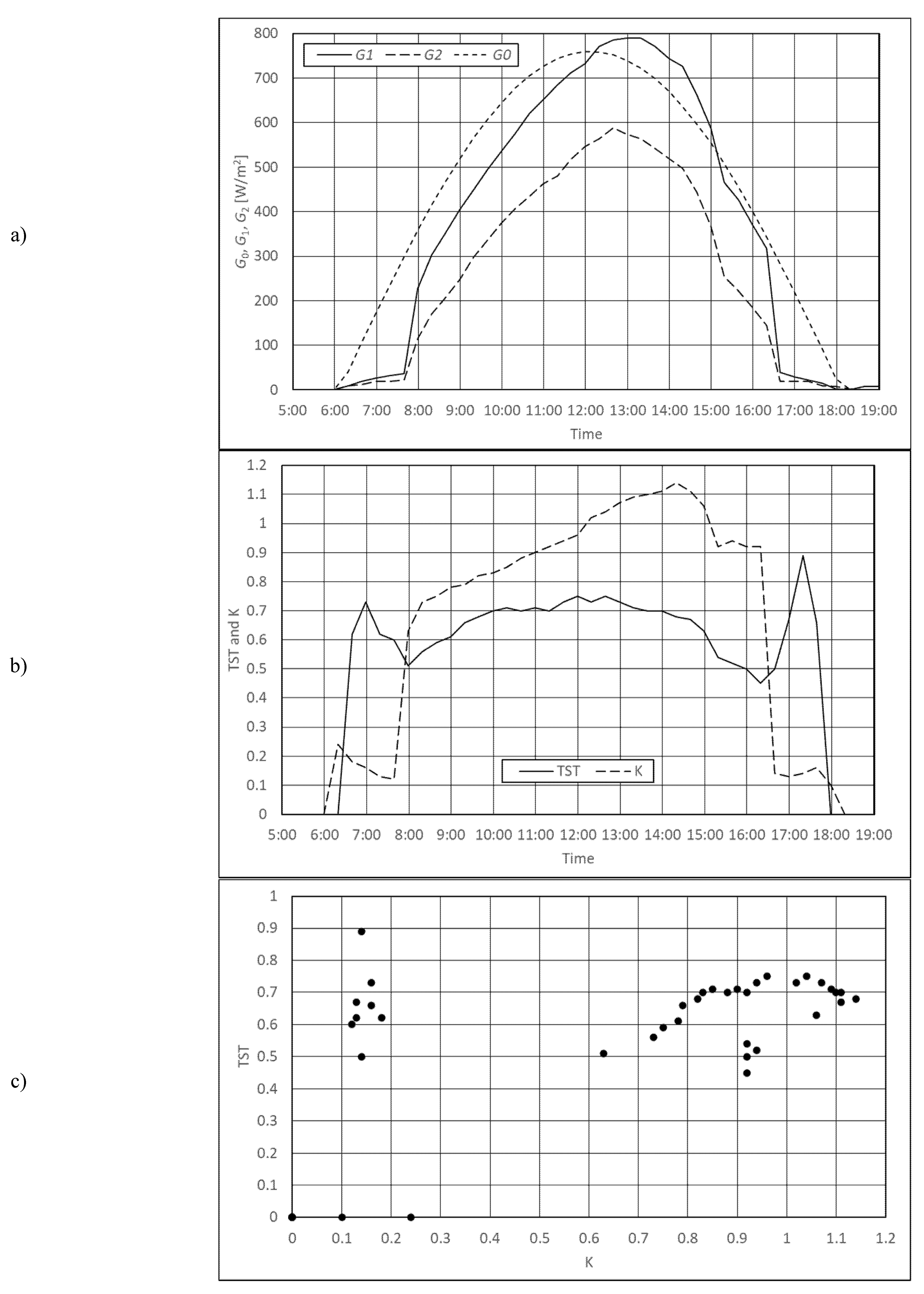

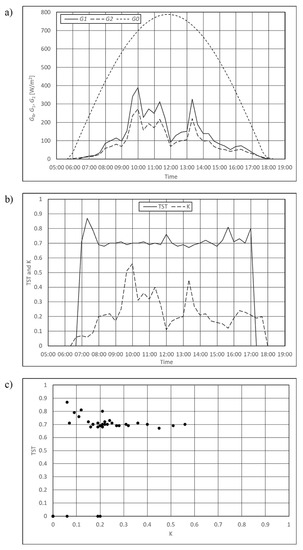

For each day under research, diagrams of irradiance changes out of the earth’s atmosphere, as well as above and beneath the polycarbonate sheet, as a function of time were drawn. In addition, for each day under research, diagrams of parameters TST and K as a function of time, as well as relation between TST and K were drawn. For example, the figures in in Appendix A show runs of changes for analysed parameters only for the chosen examples of days of August that are characterised by different cloudiness.

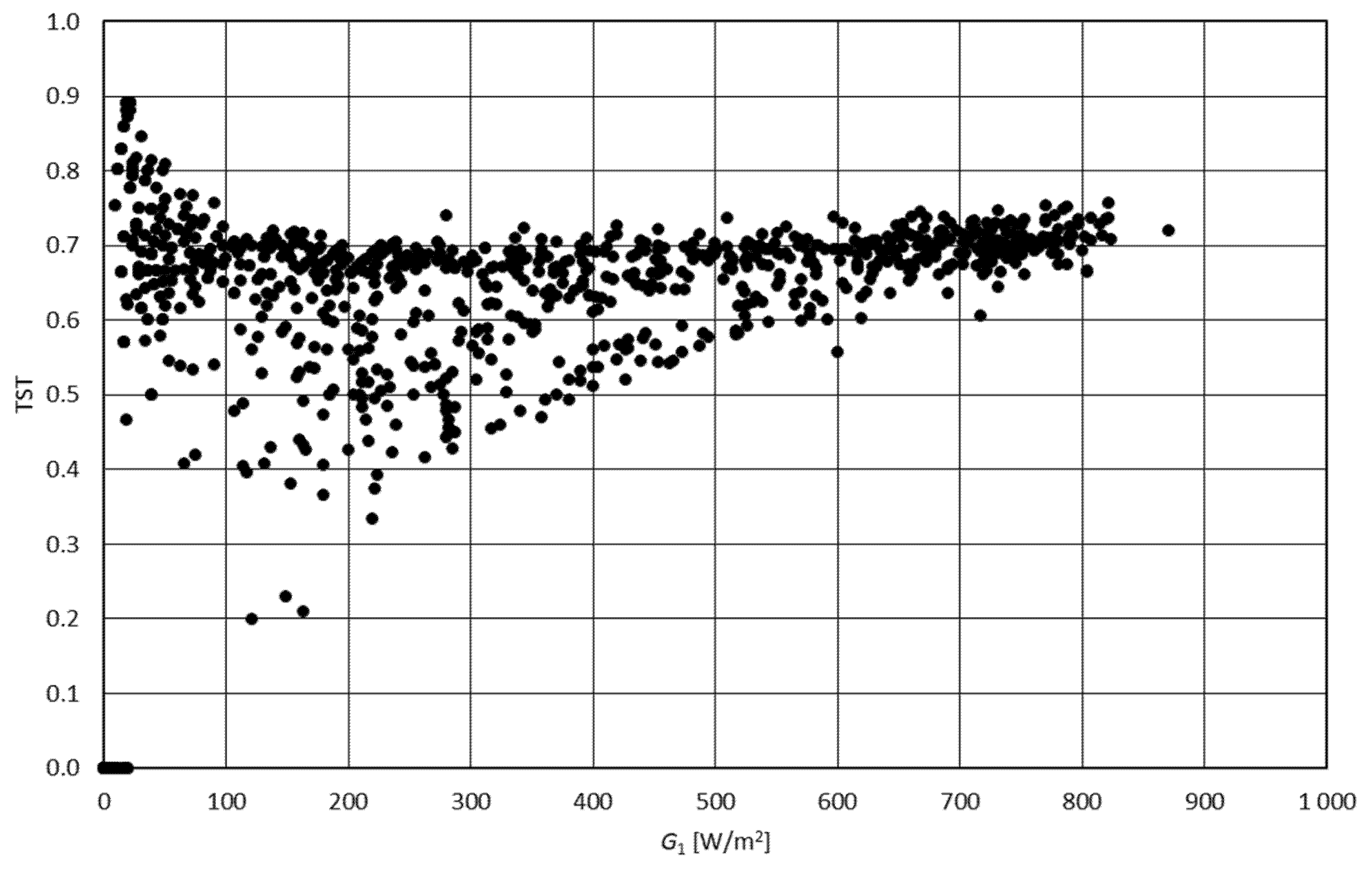

Figure 4, Figure 5, Figure 6 and Figure 7 present collective research results for the month under analysis. Figure 4 shows TST parameter values as a function of irradiance G₁ reaching a polycarbonate sheet. For low values of irradiance (up to 100 W/m²), parameter TST diminishes with the increase in G₁. For irradiance G₁ in the range of about 100 to 700 W/m², parameter TST shows significant changeability. It can only be stated that with the growth of irradiance G₁ for this range, values of parameter TST aim at the value of 0.7. For values of irradiance higher than 700 W/m², parameter TST has values close to 0.7. In addition, it can be stated that if irradiance G₁ aims at zero, then parameter TST approaches the value 0.9. An increase in the transmissivity of the sheet can be caused by the fact that solar beams directly reach the pyranometer’s sensor beneath the sheet with no contact to the sheet. This situation can occur by very small values of altitude angles.

Thus, the present research confirms conclusions made by Čekon and Slávik in paper [25]. They stated that for similar clear twin-wall polycarbonate sheets with rectangular structures that are vertical southeast (SE) oriented, measured values of TST equalled 0.74 and 0.63. The first value received by Čekon and Slávik was measured by means of procedures ASTM G 173 [26], and the second one was obtained according to procedures ASTM E1084-86 [25]. In their research, the declared TST for the investigated polycarbonate sheet is 0.82.

Čekon and Slávik developed a linear approximation equation for a vertically positioned polycarbonate sheet 0.010 m thick but connected to a prismatic glass layer, which has the form TST = 0.55 + 7 × 10⁻⁵ G_1p. This equation is valid for data of August when vertical solar irradiance G_1p is greater than 60 W/m². For such a sheet, in the paper [25], there are also given approximation equations making the parameter TST dependent on the radiation intensity G_1p and on the incidence angle of sun–α (incidence angle of sun): TST = 0.5377 + 6.5 × 10⁻⁵ G_1p and TST = 0.6146−1.5 × 10⁻³ α, which are valid for the second half year after 1st June. Čekon and Slávik emphasise that the developed equations are only approximate, and they approximate the research results as a point cloud. However, these equations cannot be applied to compare the research results in this article due to different research conditions.

In turn, Tantau et al. [18] give a TST value of 0.6 after 5 years of operation of the clear twin-wall polycarbonate sheets with rectangular structures installed in the greenhouse roof. This value is slightly lower than the TNT value of 0.62 measured under laboratory conditions for a new, vertically oriented polycarbonate sheet.

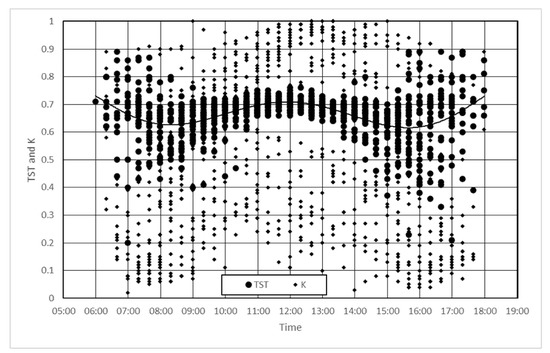

Figure 5 presents all non-zero values of parameter TST as a function of parameter K for all measurements performed. It should be noted that for reasons given previously, parameter K defines only qualitatively the degree of cloudiness of the sky. In spite of significant changes in cloudiness, values of TST show some regular shape. If the run of trend is drawn, which is a polynomial of the 6th degree, it can be stated that the values of TST equal approximately 0.7 in early morning hours, in noon hours, and in late evening hours. On the other hand, values of TST are lower by noon and in the afternoon, and they equal approximately 0.6.

Two reasons for such changeability of TST parameter can be defined. Firstly, shares of direct and diffusive solar radiation in global solar radiation change. Secondly, inclination angles of direct radiation change in time. In early day hours and late afternoon hours, the share of direct solar radiation in the total solar radiation is negligible (see Appendix A—Figure A4). Then, diffusive radiation is dominant. Direct solar radiation, incident at small angles, transmits through structures of the polycarbonate sheet and is refracted from the outside and inside walls of the sheet and from the ribs. When diffusive radiation begins to occur, its incident angles differ from each other, which causes their travel paths through the material to be more diversified and longer, which in turn causes bigger energy losses and a value decrease in parameter TST.

In consecutive morning hours, on clear or slightly cloudy days, the share of direct radiation in the global radiation grows, but the global radiation intensity is increasingly high. This phenomenon can cause that, in spite of the growing effect of diffusive radiation, a higher amount of energy is transmitted by direct radiation. In addition, direct radiation begins to incline at bigger angles, and it does not reflect from the ribs, but it only refracts in the bottom and top planes of the polycarbonate sheet. Thus, the increase in parameter TST is to be observed in the morning hours. A maximal value of parameter TST is achieved at the noon hours. In afternoon time, the changes tendency of parameter TST is similar to the changes of TST in the morning.

The studies of Tantau et al. [18] and Song and Haberl [5] confirm that the diffusion and direct solar radiation penetration through a plastic transparent partition is determined by the incidence angle of direct rays. This angle depends on the season, time of day, orientation of the object, and slope of the partition.

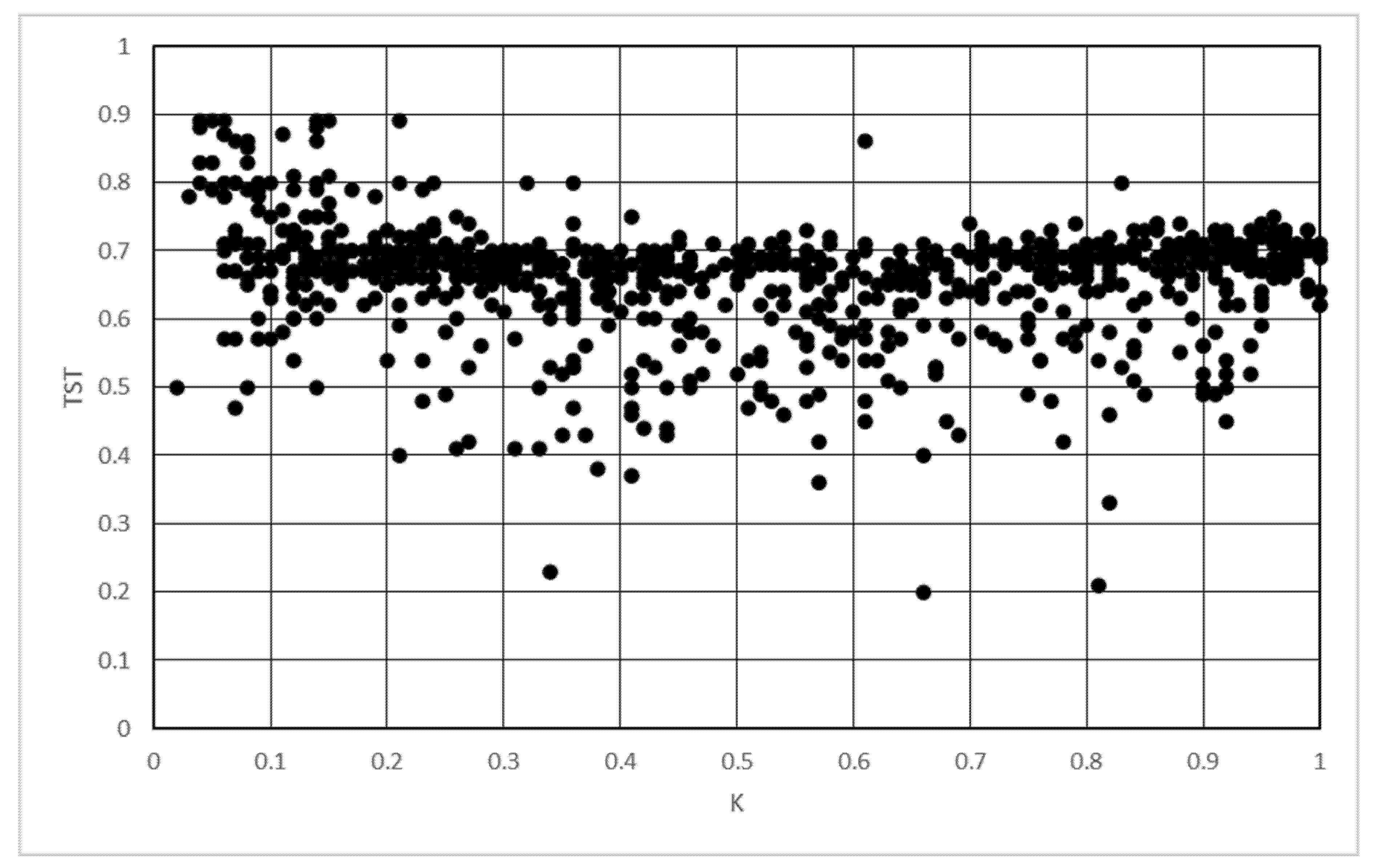

Analysis of the distribution of points in the run in Figure 6 allows us to make similar observations as above. For the whole range of changes of parameter K, TST remains most of all in the range of 0.6–0.7. Thus, the research results show that sky cloudiness affects meaningfully the transmissivity of a polycarbonate enclosure. It is advised to check if differences of values of TST can be caused by share proportions between direct and diffusive solar radiation in the global solar radiation.

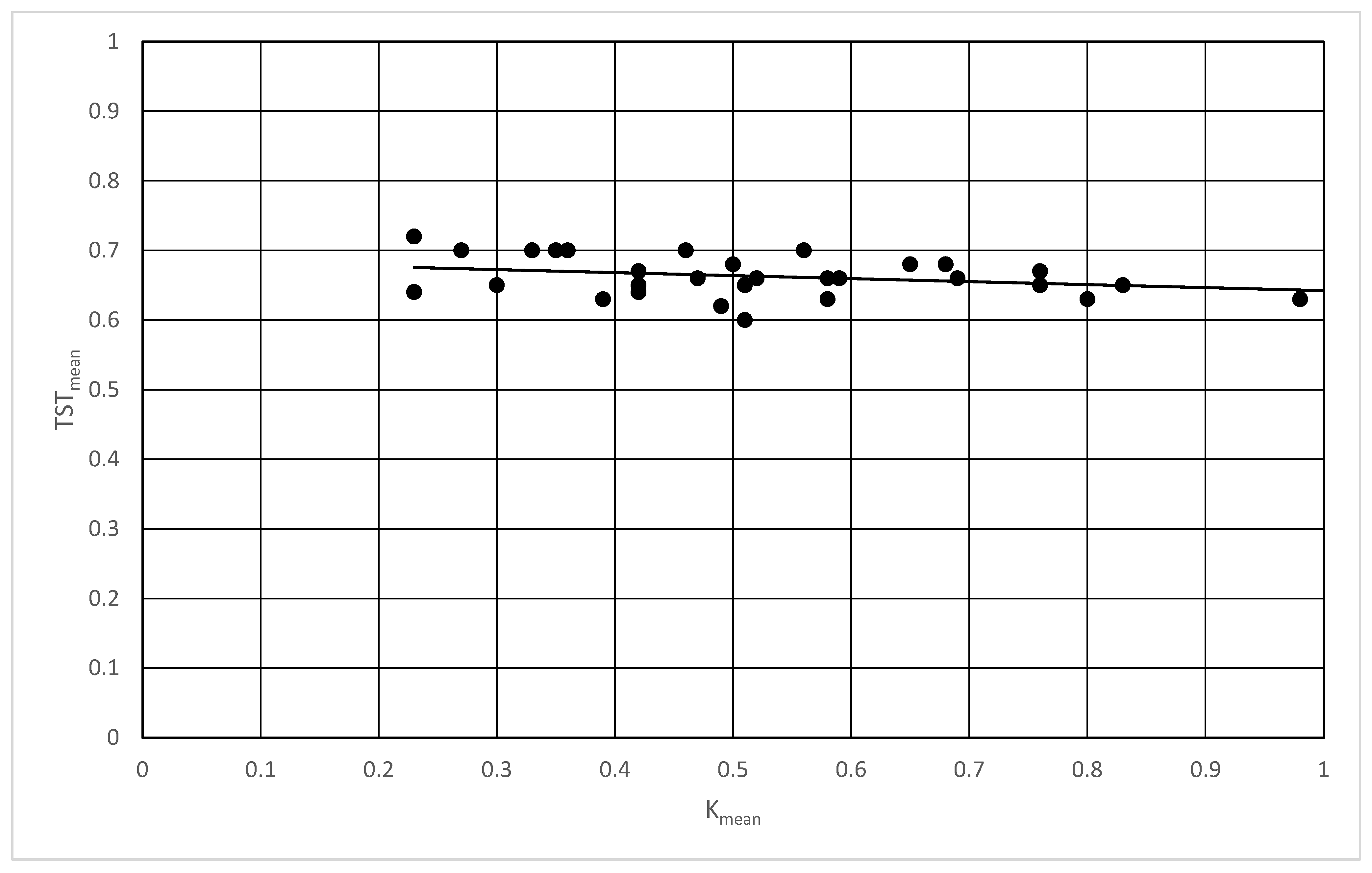

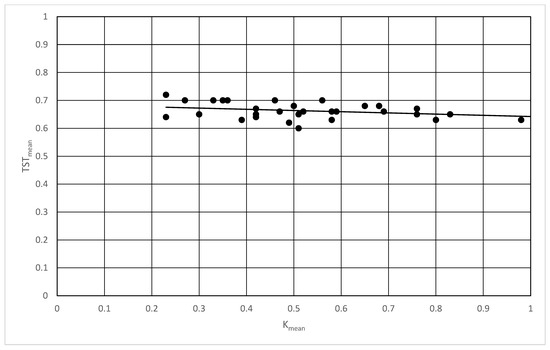

Figure 7 shows changes of the mean twenty-four hours total solar transmittance as a function of the direct twenty-four hours atmosphere clearness index for each day. If research results are interpolated by a straight line, it can be observed that the value of parameter TST_mean diminishes with the growth of cloudiness. However, the observed correlation between parameters TST and K is advised to be confirmed.

Values of TST, determined by research, are lower than the value of the parameter given in the catalogue, and they equal about 0.8 [12,13,14,15,16,17].

4. Conclusions

The paper presents the results of an experimental study on the process of solar radiation transmission through a horizontally laid polycarbonate sheet with a rectangular structure. On the basis of analysis of obtained results for TST, it is stated that the values of the parameter TST obtained in the experimental research are mostly in the range 0.6–0.7, and they are lower than the value of 0.8 given by the producer in the product card. The results indicate that sky cloudiness has no relevant effect on the parameter TST. Values of the parameter TST obtained in early morning hours and in late evening hours, as well as at noon, are higher than the ones obtained for the remaining times of day. The changes of TST are caused by changes of solar radiation incidence in time and by changing values of direct and diffused radiation. It should be further investigated if shares of direct and diffusive solar radiation in global solar radiation can affect values of the parameter TST. The parameter TST increases with the growth of irradiance, if irradiance in the range lower than 100 W/m² is neglected.
