Bubble Dynamics during Laser Irradiated Thermo-Mechanical Response of Pigmented Skin Phantom

Abstract

During the laser treatment of pigmented dermatosis such as Nevus of Ota, vapor bubbles will be generated by the laser with short pulse width and high energy density. Laser irradiation is efficacious for the clinical treatment of Ota’s Nevus caused by hyperplasia of melanosomes in dermis. Since the mechanism of the laser–melanosome interaction is not yet clear, the clearance rate is generally low and bleeding of irradiated skin frequently occurs. This work conducted a flow visualization experiment to investigate the laser–melanosome interaction mechanism by using high-speed imaging. Pigmented phantom was prepared to simulate the diseased dermis tissue, where agar acted as substrate and synthetic melanin particles was infused as hyperplastic melanosomes. Putting the phantom into water, its thermo-mechanical responses to single-pulse 1064-nm Nd:YAG laser irradiation with energy density of 4–7 J/cm² and pulse duration of 6 ns were recorded. The results indicated that laser-induced bubble formation caused by the gasification of tissue moisture is the key mechanism of laser–melanosome interaction, and an optimal energy density of 6 J/cm² is recommended.

1. Introduction

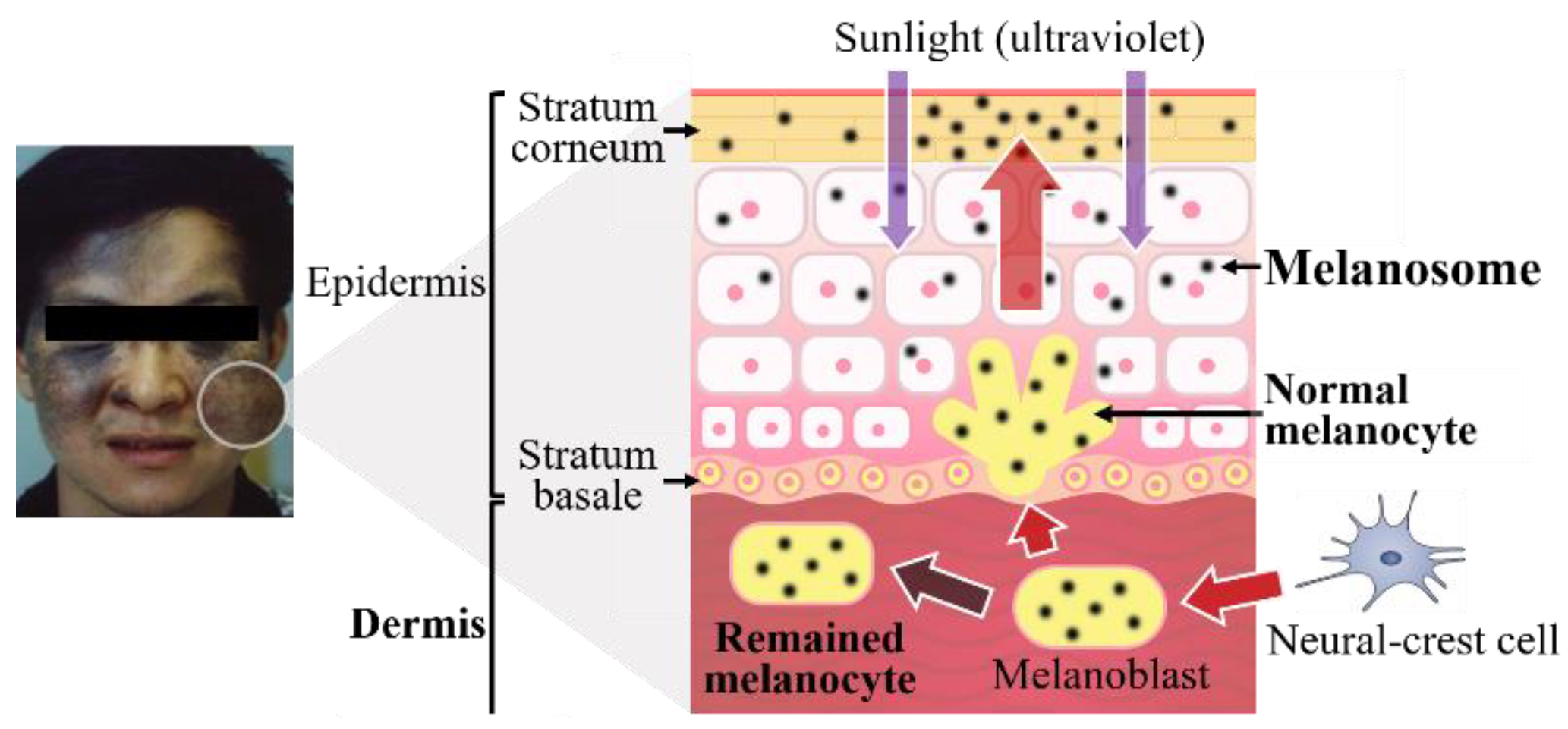

As a congenital skin lesion of blue-black or gray patches on the face, Nevus of Ota (NO) is a typical pigmented dermatosis caused by abnormality in melanocytes. The NO incidence in Asians is about 0.02–0.8%, with a 5:1 female-to-male ratio [1]. Normally, melanocytes will enter the dermis, immigrate to the stratum basale of the epidermis, move to the cuticle stratum corneum and fall out from the skin surface with a cycle of 28 days, as shown in Figure 1. However, in the case of NO, melanocytes will unnaturally retain in the dermis at the ophthalmic and maxillary branches of the trigeminal nerve and produce a large number of melanosomes, yielding nevus on the face [2,3]. This congenital pigmentation will accompany the patient for life and deepen with age, which will bring about considerable psychological problems and distress to patients.

Based on the theory of selective photothermolysis [4], laser irradiation has become a widely acknowledged strategy for the treatments of NO. The basic principle to bleach the skin is that melanosomes will be shattered and engulfed by macrophages via absorbing laser energy with appropriate wavelength and pulse duration. However, the clearance rates of NO lesions are unsatisfactorily low in general owing to experience-dependent therapy [5,6,7].

As shown in Figure 2, laser–tissue interaction can be divided into photo-chemical, thermal and thermo-mechanical processes [8]. At present, a Q-switched Nd:YAG laser with a wavelength of 1064 nm is commonly utilized in NO treatment [9,10]. According to the short pulse duration (ns to ps, even fs) and high-power density, the damage mechanism of melanosomes is not pure heat transfer but photoablation. Thermo-mechanical response occurs resulting in a heterogeneous energy distribution within the skin tissue. Rapid heating yields explosively expansion and breakup of melanosomes, which is a primarily mechanical damage. They are ablated in a short pulse duration before any heat is transferred to the surrounding tissue, while unexpected thermal damage can be avoided.

However, the mechanism of laser–melanosome interaction is much more complicated. Biopsy specimens of NO immediately after laser irradiation show that the destruction of melanosomes differ in degree within large and tense round vacuoles [11]. In photoablation, micro-explosion of the melanosome makes surrounding moisture begin to flow instantaneously. The resulting partial depressurization causes the gasification of intracellular moisture to form in the cavitation bubble [12], which is different from the bubble formed around an undamaged melanosome, which is caused by the gasification of the intracellular moisture through heat conduction [13,14]. Whether the irradiated melanosomes are ablated, it can be speculated that the expansion and coalescence of bubbles produce tense round vacuoles larger than the original melanocytes. Although these vacuoles will disappear eventually, the refraction or scattering of the laser may have a serious influence on the absorption of laser energy by residual melanosomes during pulsed laser irradiation. In addition, for nanosecond pulse duration, the laser-induced expansion of the melanosomes is restricted by the surrounding tissue, leading to the generation of thermoelastic stresses and shock waves [15]. When shock waves propagate into the surrounding tissue, blood vessels or cells in the dermis tissue may be mechanically damaged. Accompanied by the side effects, such as bleeding, are often unavoidable [16]. The occurrence of bleeding will inhibit the increase in laser energy and even interrupt the laser irradiation. Therefore, the mechanism of laser–melanosomes interaction is necessary to be revealed to improve the efficiency and safety of laser irradiation.

Due to the difficulty of in vivo experiment, it is hard to visualize the transient interaction between laser and melanosomes during laser irradiation directly. Tissue phantoms have been widely used for the studies of optical, mechanical, and thermal properties of human skin. In this work, pigmented agar-based skin phantoms were prepared to simulate the diseased dermis tissue. Hydrogel substance that are made from agar and water solution can simulate the layers of dermis tissue. Synthetic melanin is employed as the absorber in phantom because of the similar optical properties of human melanin [17]. The absorption and scattering of the agar hydrogel are usually neglected [18], so the laser energy is only absorbed by synthetic melanin particles. Most current laser–melanosome experiments focus on the thermal response of melanosomes but themselves. For example, Neumann and Brinkmann [13] irradiated melanosomes by ns-pulse laser irradiation. In this work, laser heating of the melanosomes results in vaporization of the surrounding liquid to form microbubbles around. In order to visually investigate the laser–melanosome interaction mechanism, the responses of pigmented phantom to single-pulse 1064-nm Nd:YAG laser irradiation were recorded by using high-speed imaging. The effects of energy density of laser irradiation on the responses were also explored.

2. Materials and Methods

Pigmented phantoms were produced using agar hydrogel and synthetic melanin particles. Agar hydrogel was made by mixing agar powder (A-7002, Sigma-Aldrich, St. Louis, MO, USA) with deionized water (Milli-RO60, Millipore, Burlington, MA, USA) and heating of the solution at temperature of 80 °C to simulate the ground substance of dermis. Two grams of synthetic melanin particles (diameter of 100–200 nm) were added to the solutions for simulating melanosomes. According to histological classification of NO [19], deionized water, agar powder, and synthetic melanin were thoroughly mixed in a mass ratio of 10:4:1. The density of particle in phantom is 0.09 g/cm³. The solutions were filled in cuboid plastic mould with an edge length of 3 cm and placed at room temperature to solidify. Under laser irradiation, synthetic melanin particles will be rapidly ablated, resulting in the gasification of moisture within the phantom to form cavitation bubbles.

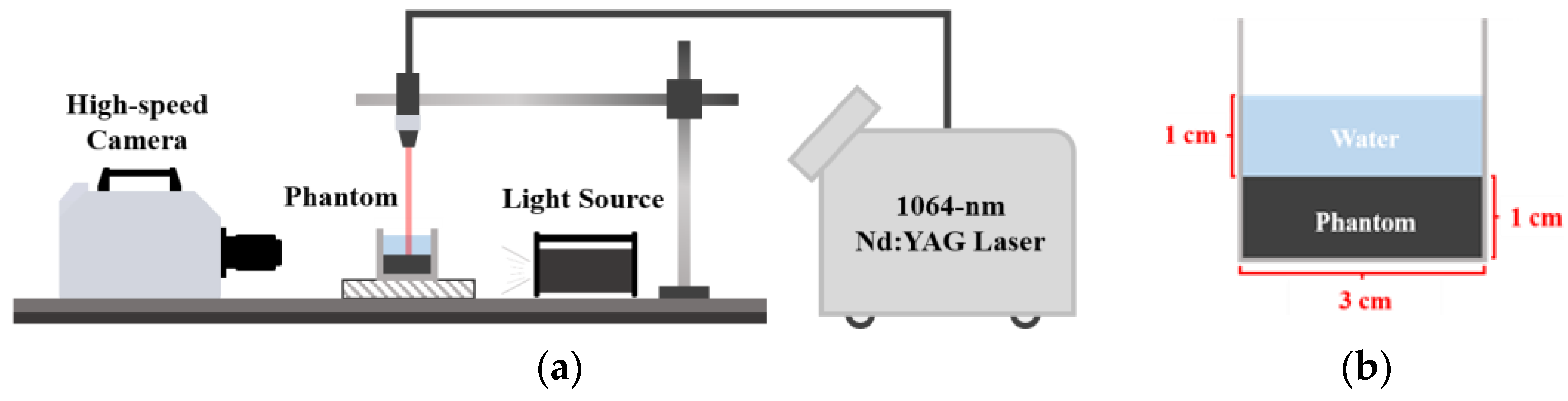

An experimental system to visualize the underwater pigmented phantom during single-pulse 1064-nm Nd:YAG laser irradiation is shown in Figure 3. Backlight illumination method was implemented to record the responses of the phantom. A high-speed camera (Fastcam SA-Z, Photron, Tokyo, Japan) with a Macro lens (AF Micro-Nikkor 105 mm f/2.8 D, Nikon, Tokyo, Japan) was used to take the gray-scale photos at 100,000 fps with 150 × 400 pixels and exposure time of 1/800,000 s. A 120 W LED lamp was employed as the light source and a diffusing glass was employed in order to improve the uniformity of background illumination. A pulsed 1064-nm Q-switched Nd:YAG laser with energy density of 4–7 J/cm² and pulse duration of 6 ns was applied to irradiate the pigmented skin phantom vertically. An articulated arm was used to direct the laser beam.

In order to visualize the transient gasification of moisture within pigmented phantom, deionized water was filled into the mould to cover the surface of phantom and mimic the ground substance of dermis. The height of the phantom and the water are both 1 cm. A gray-scale image can be taken by the high-speed camera, as shown in Figure 4a. After binarization (Figure 4b), the bubble periphery can be extracted, as shown in Figure 4c.

3. Results and Discussion

3.1. Thermo-Mechanicl Response

The irradiation of the underwater pigmented phantom by single-pulse laser with a pulse duration of 6 ns at radiant exposures of 5 J/cm² is presented in Figure 5. The dashed area in the first snapshot represents the laser irradiated surface of phantom, where the spot radius is 1 mm. The thermo-mechanical response is characterized by the ejection of very fine bubbles, as well as the generation, constriction, and collapse of a large bubble. During laser irradiation, synthetic melanin particles within the irradiated phantom are transiently shattered, and the surrounding moisture is rapidly gasified by laser energy absorption. These fine bubbles eject from the upper surface of the phantom into the water, forming a dense bubble flow at 20 μs. This gasification induced by partial depressurization is so fast that almost no heat conduction occurs. High-pressure and high-temperature small bubbles are produced at a deep layer, thereafter coalescing to form a large bubble at the irradiated surface. With the attenuation of laser energy, synthetic melanin particles at deep layer may not be ablated, where the gasification induced by heat conduction may also occur. The threshold of energy density to gasify moisture by heat conduction is at the millijoule level, which is much lower than this work [12]. Owing to the high internal pressure, the large bubble gradually expands and rises. Instead of expanding to burst, the large bubble begins to shrink since the internal pressure is lower than the ambient pressure of free water. With the decrease in the internal pressure and temperature, the bubble collapses and detaches from the phantom surface at about 310 μs. In the end, the pigmented phantom is bleached and a notch can be viewed at the center of the laser irradiation surface, as shown in Figure 5.

In this work, the laser–phantom interaction can be considered as photoablation according to the laser–tissue interaction pattern, as shown in Figure 2. Compared to the thermal process, photoablation causes far less thermal damage to the adjacent tissue. The absorption of the laser energy by melanin can mainly lead to a micro-explosion of synthetic melanin particles and the mechanical separation of the phantom. Histological features are in agreement with this photoablation process. The large bubble collapses, but the vacuoles remain in dermis because the ground substance of dermis has lower surface tension than water [15].

3.2. Bubble Dynamic Measurement

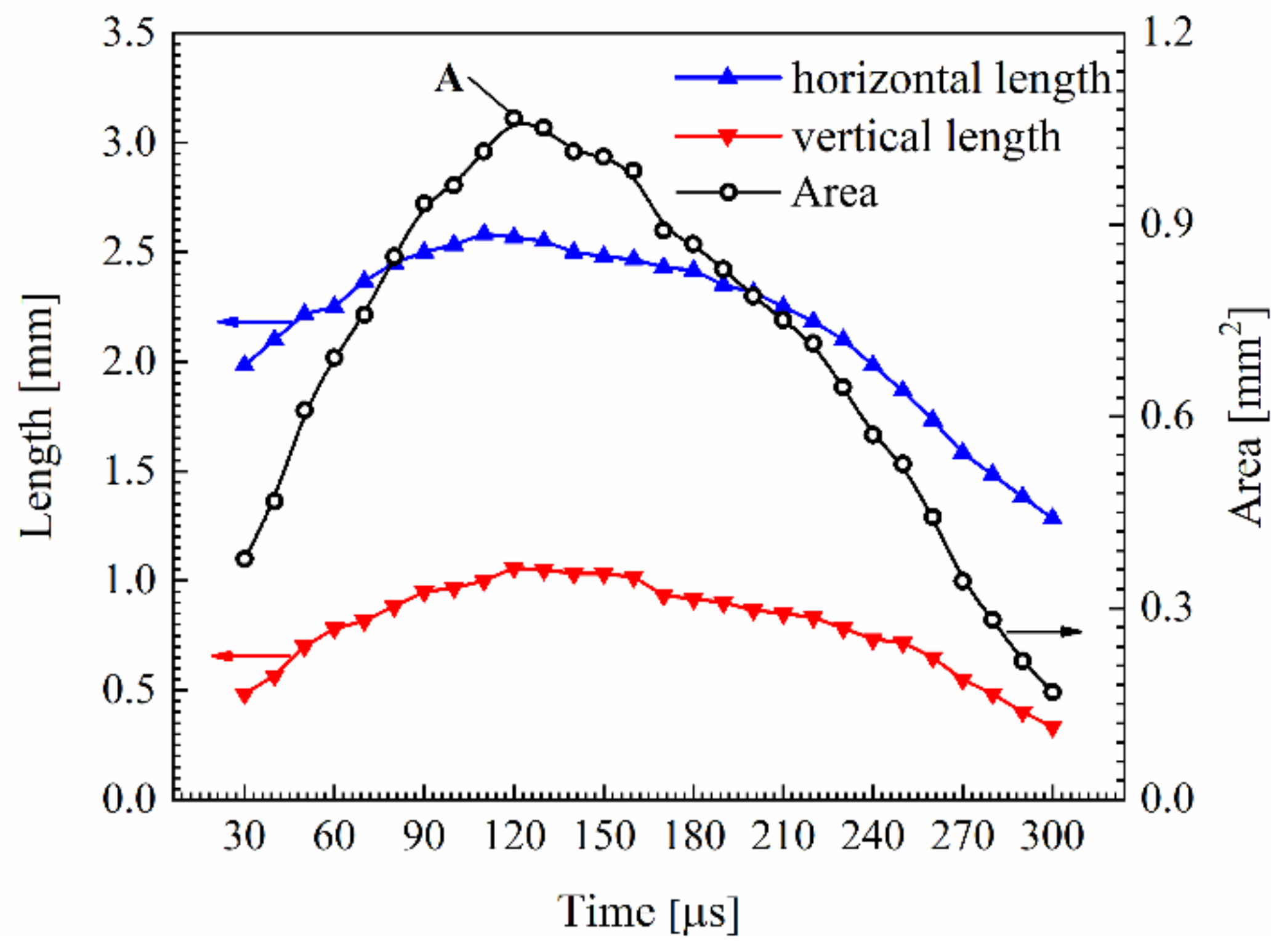

The thermo-mechanical responses of the pigmented phantom to single-pulse 1064-nm laser irradiation suggest that the dynamics of the bubble formation is critical in the theoretical modelling of the laser–melanosome interaction. As shown in Figure 5, a large bubble begins to generate at about 30 μs and collapses after 300 μs. During this period, the dynamic variations in the horizontal length, vertical length, and area of the large bubble are calculated and displayed in Figure 6. In the early stage, the bubble expands with the time evolution. The largest area of 1.06 mm² with a horizontal length of 2.57 mm and a vertical length of 1.80 mm occurs at the time of 120 μs (point A). The expansion of the large bubble becomes slower because the internal pressure gradually decreases. When internal pressure is lower than the ambient pressure, the bubble continues to expand due to inertia. Afterwards, the bubble begins to shrink when the velocity of bubble surface becomes zero. In terms of area variation, the average shrink rate of 0.005 mm²/μs is lower than the average growth rate of 0.007 mm²/μs.

In order to investigate the dynamic mechanism of the bubble formation at different laser irradiation conditions, single-pulse laser energy density is set from 4 J/cm² to 7 J/cm². The existence durations (t) of the large bubble at different laser energy density are counted and shown in Figure 7. It can be seen that the existence, growth, and shrinking duration of the large bubble all increase when the energy density increases. However, the three durations begin to decrease when the energy density is higher than 6 J/cm². The reason for this is that less bubbles remain in deeper layer forming a less persistent large bubble. To illustrate this, the effect of energy density (E) on the largest area (A_max) of dense bubble flow is demonstrated in Figure 8. The formations of dense bubbles followed by the generations of large bubbles are observed in all cases. When energy density increases, the area of the dense bubble flow increases, which means more more synthetic melanin particles are ablated and more moisture gasifies to eject from the phantom surface. The A_max of the large bubble at different energy densities is also calculated in Figure 8. When E is lower than 5.5 J/cm², the increase in energy density results in greater quantity of the ejecting bubbles and broader expansion of the large bubble. At 6 J/cm², A_max of large bubble becomes smaller than at 5.5 J/cm² because the effect of energy density on the dense bubble flow begin to take a leading role. When the energy density is higher than 6 J/cm², not only the three durations but also the A_max of the large bubble decreases.

The effect of energy density on the average area variation rate of the large bubble is shown in Figure 9. In accordance with Figure 8, the growth of the large bubble becomes faster and wider when energy density increases from 4 J/cm² to 5.5 J/cm². The growth rate (s_g) begins to decrease when the energy is higher than 6-J/cm², owing to the lower internal pressure. The shrink rate (s_s) has the same variation trend as shown in Figure 9. As can be seen in the figure, more synthetic melanin particles at superficial layer are ablated to form the dense bubble flow with the increase in the energy density. However, the penetration depth of laser irradiation is only related to wavelength in this work. When E is lower than 5.5 J/cm², some melanin particles at deeper layer are ablated but maintain in the phantom. More bubbles caused by depressurization form the large bubble with the increase of energy density. On the contrary, less bubbles are formed attributing to heat conduction at deeper layer. By comparison, the former behaviour of the bubble formation is more intense. So, both s_g and s_s of the large bubble are higher with the increase in the energy density. When E is higher than 6 J/cm², less ablated melanin particles are maintained with the increase in energy density, where s of the large bubble begins to decrease.

In the laser treatment of NO, the photoablation of hyperplastic melanosomes is desirable, but the accompanying damage of normal tissue should be avoided. With the increase in the laser’s energy density, more intense shock waves are going to propagate, resulting in more mechanical damage to the skin tissue. In addition, the refraction or scattering of the laser caused by the bubbles should also be avoided. When laser energy is insufficient, the residual melanosomes cannot be effectively ablated during pulsed laser irradiation because of the overformation of bubbles. Taking into account both efficiency and safety, 6 J/cm² is recommended as the optimal energy density to ablate melanosomes for the pulsed 1064-nm Q-switched Nd:YAG laser with a pulse duration of 6 ns.

4. Conclusions

Laser-induced thermo-mechanical responses of pigmented phantom was investigated, which simulates the laser irradiation treatment of diseased dermis tissue of Ota’s Nevus well. Owing to the absorption of the laser energy by melanin, synthetic melanin particles are transiently shattered at the phantom–water interface, yielding the gasification of moisture to form a dense bubble flow. Afterwards, bubbles within the phantom coalesce, followed by the generation, constriction, and collapse of a large bubble. The mechanism of the laser–melanosome interaction mainly reflects in the behavior of the bubble formation. When energy density increases, the photoablation of hyperplastic melanosomes becomes more effective, but the mechanical damage of the skin tissue may also increase. For the pulsed 1064-nm Q-switched Nd:YAG laser with pulse duration of 6 ns, the optimal energy density is 6 J/cm² in terms of efficiency and safety.
