Research on Intelligent Comprehensive Evaluation of Coal Seam Impact Risk Based on BP Neural Network Model
Abstract
:1. Introduction
2. Influence Factor Analysis of Coal Seam Underground Impact Pressure
2.1. Mining Depth
2.2. Impact Propensity
2.3. Geological Structure
2.4. Mining Technology

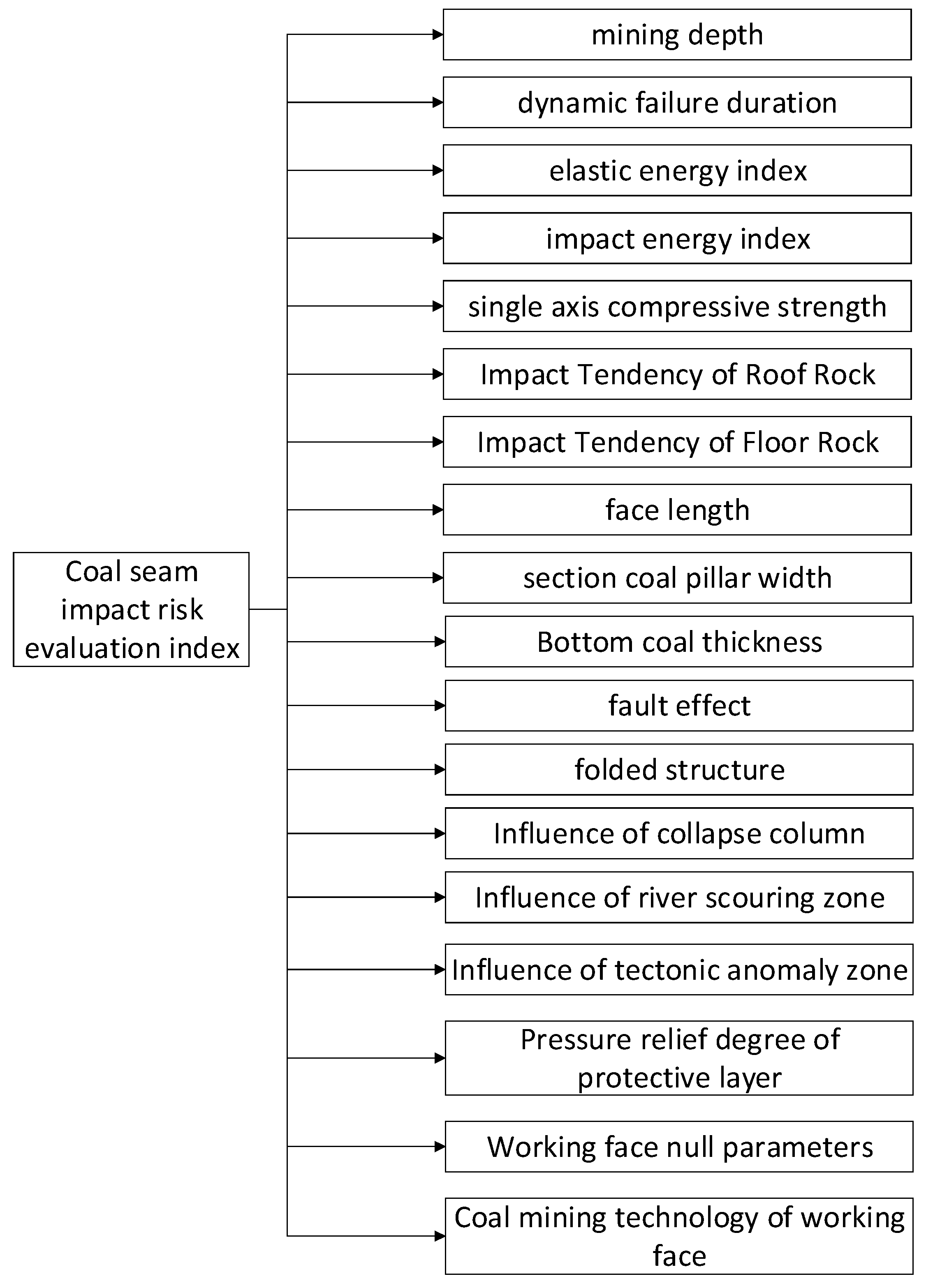

3. Establishment of BP Neural Network Model for Coal Seam Impact Risk
3.1. Determination of Input Layer and Output Layer Neurons
- (1)
- Mining depth (h): 0 is h ≤ 400 m, 1 is 400 m < h ≤ 600 m, 2 is 600 m < h ≤ 800 m, 3 is mining depth > 800 m;
- (2)
- Dynamic destruction time (DT): 1 is DT > 500 ms, 2 is 50 ms < DT ≤ 500 ms, 3 is DT ≤ 50 ms;
- (3)
- Elastic energy index (WET): 0 is WET < 2, 1 is 2 ≤ WET < 3.5, 2 is 3.5 ≤ WET < 5, 3 is WET ≥ 5;
- (4)
- Impact energy index (KE): 1 is KE < 1.5, 2 is 1.5 ≤ KE < 5, 3 is KE ≥ 5;
- (5)
- Uniaxial compressive strength (Rc): 0 is Rc ≤ 10 MPa, 1 is 10 MPa < Rc ≤ 14 MPa, 2 is 14 MPa <Rc ≤ 20 MPa, 3 is Rc ≥ 20 MPa;
- (6)
- Impact tendency (UWQS) of roof rock stratum: 1 means no impact tendency UWQS ≤ 15 kJ, 2 means weak impact tendency 15 kJ < UWQS ≤ 120 kJ, 3 means strong impact tendency UWQS > 500 kJ;
- (7)
- Impact tendency (UWQS) of floor rock formation: 1 means no impact tendency UWQS ≤ 15 kJ, 2 means weak impact tendency 15 kJ < UWQS ≤ 120 kJ, 3 means strong impact tendency UWQS > 500 kJ;
- (8)
- Fault influence: 0 means no fault influence, 1 means the fault influence is small, 2 means the fault influence is large, and 3 means the fault influence is big;
- (9)
- Fold structure: 0 means the fold structure is simple, 1 means the fold structure is general, 2 means the fold structure is more complicated, and 3 means the fold structure is complex;
- (10)
- Influence of collapsed column: 0 means no impact of collapsed column, 1 means less impact of collapsed column, 2 means greater impact of collapsed column, 3 means greater impact of collapsed column;
- (11)
- Impact of river scour zone: 0 means no river scour zone impact, 1 means river scour zone has less impact, 2 means river scour zone has greater impact, 3 means river scour zone has great influence;
- (12)
- Working face length (L): 0 is L > 300 m, 1 is 150 m≤ L < 300 m, 2 is 100 m ≤L < 150 m, 3 is L < 100 m;
- (13)
- Section coal pillar width (d): 0 is d ≤ 3 m or d ≥ 50 m, 1 is 3 m < d ≤ 6 m, 2 is 6 m < d ≤ 10 m, 3 is 10 m < d < 50 m;
- (14)
- Bottom coal thickness (td): 0 is td = 0 m, 1 is 0 m < td ≤ 1 m, 2 is 1 m < td ≤ 2 m, 3 is td > 2 m;
- (15)
- The degree of pressure relief of the protective layer: 0 is good, 1 is good, 2 is medium, and 3 is very poor;
- (16)
- Working face empty parameters: 0 is solid coal working face, 1 is empty on one side, 2 is empty on both sides, and 3 is empty on three sides;
- (17)
- Coal mining process of working face: 0 is intelligent mining, 1 is fully mechanized mining, 2 is general mining, and 3 is blast mining;
- (18)
- Influence of structural anomaly zone: 0 means no structural anomaly zone influence, 1 means that the structural anomaly zone has little influence, 2 means that the structural anomaly zone has a great influence, and 3 means that the structural anomaly zone has a great influence.

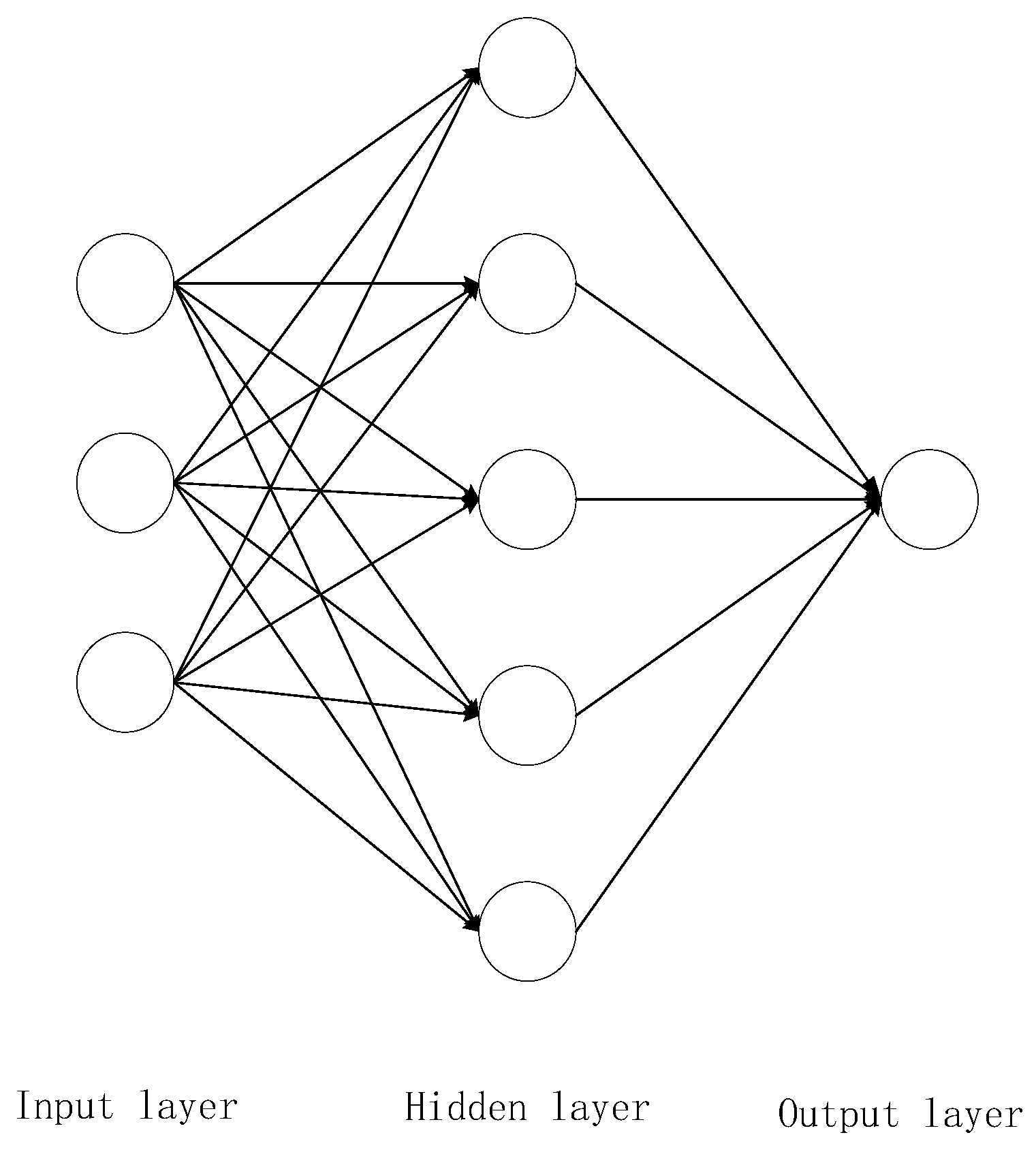

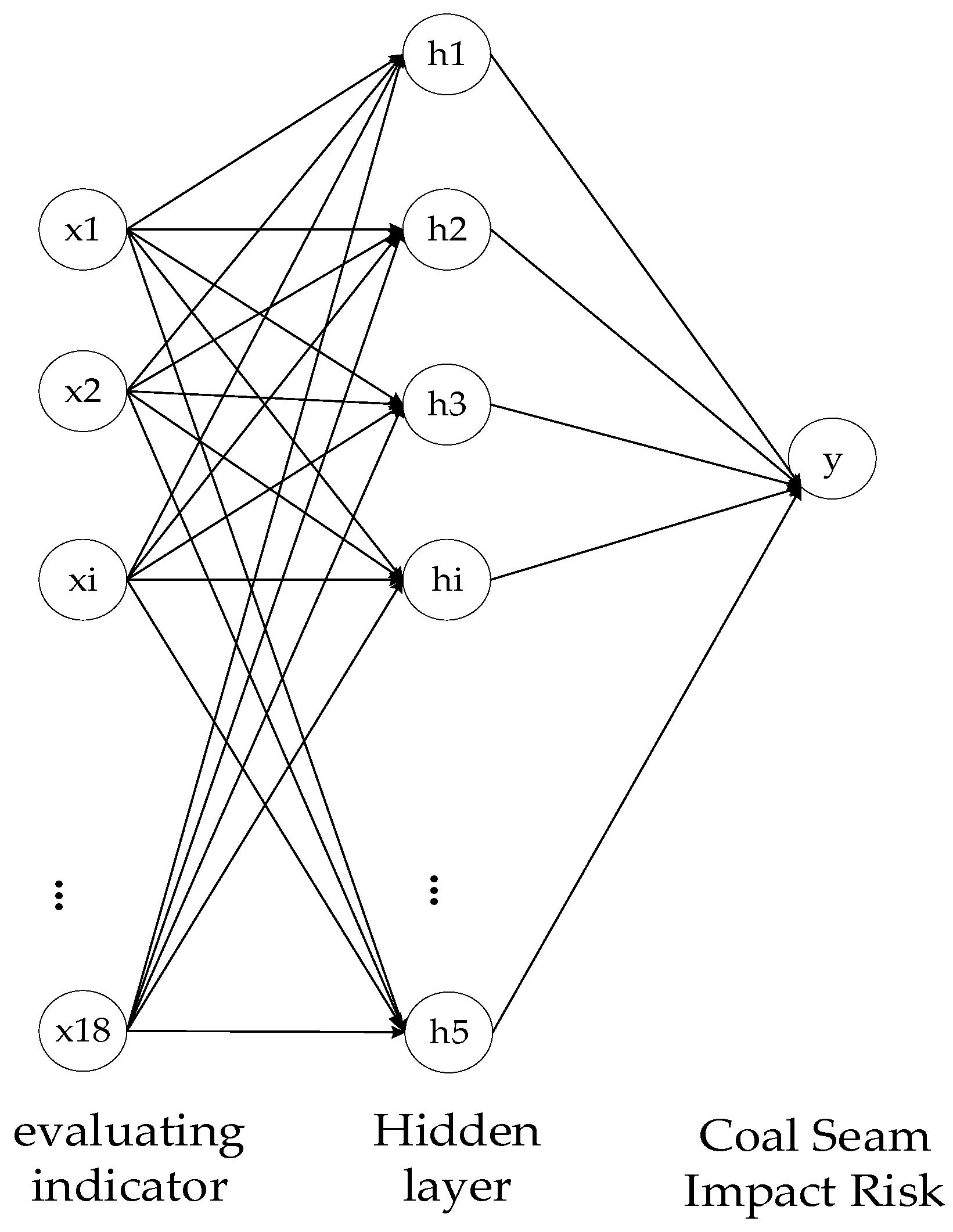

3.2. The Number of Neurons in the Hidden Layer Is Determined
4. Model Training Process
4.1. Training Samples

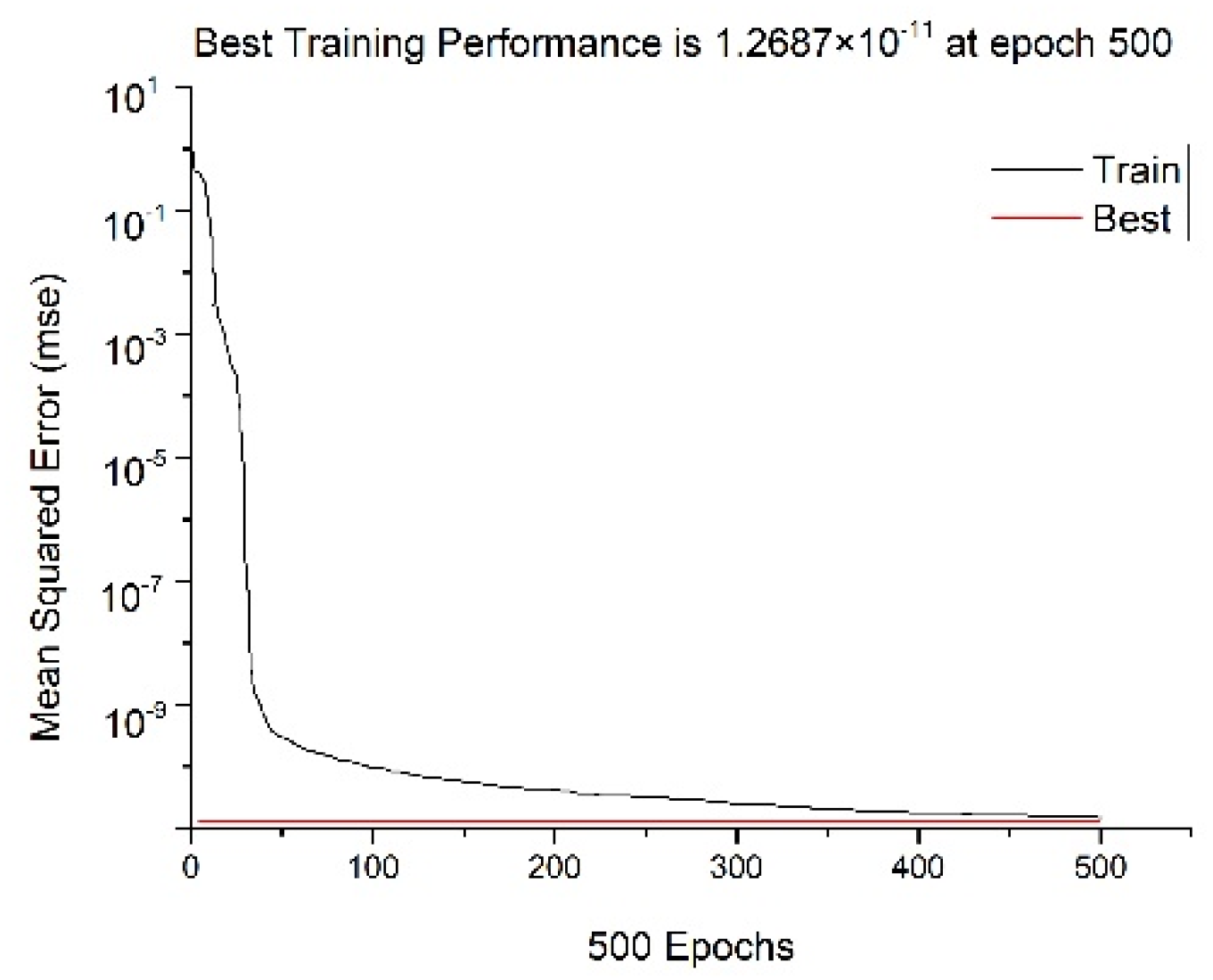

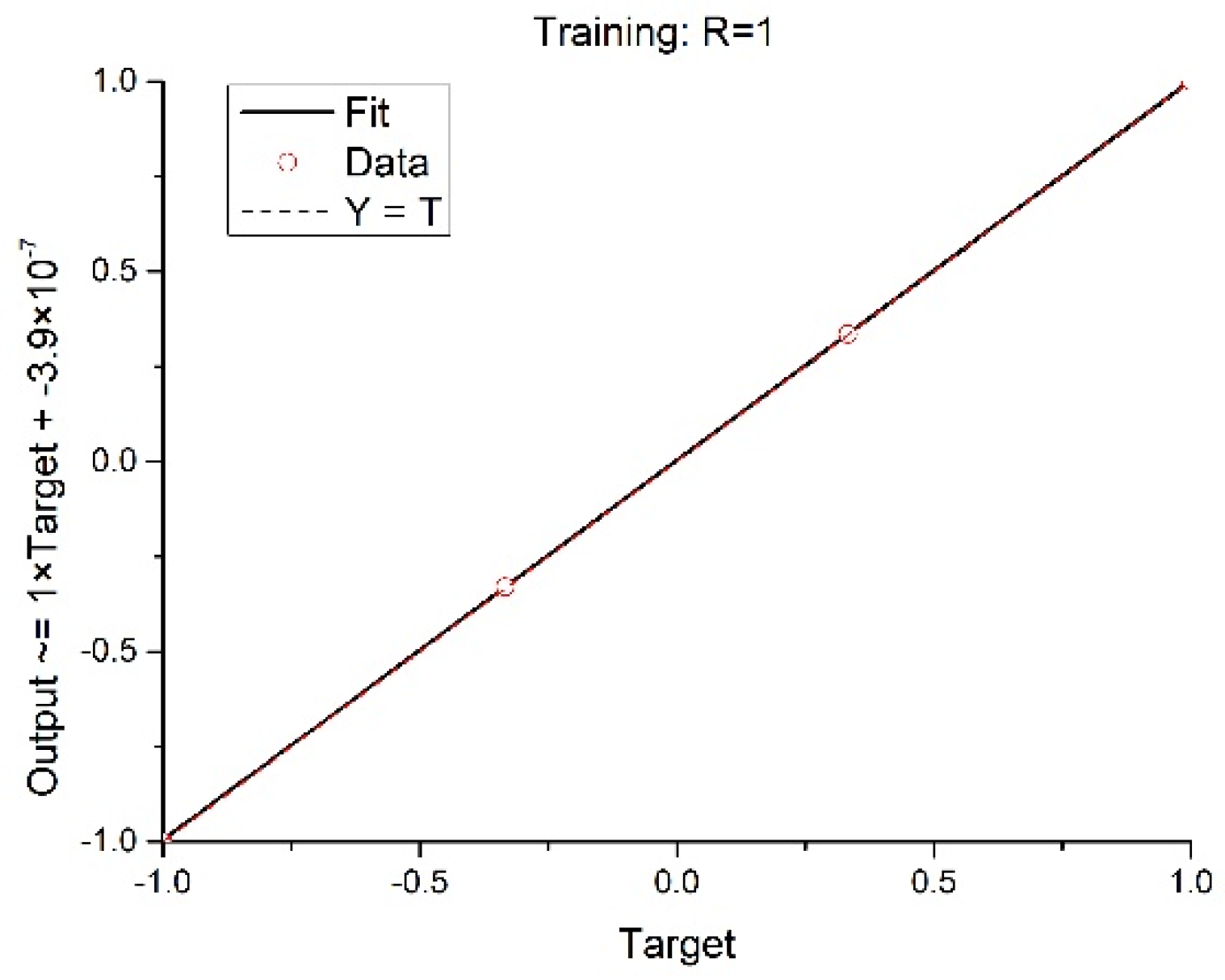

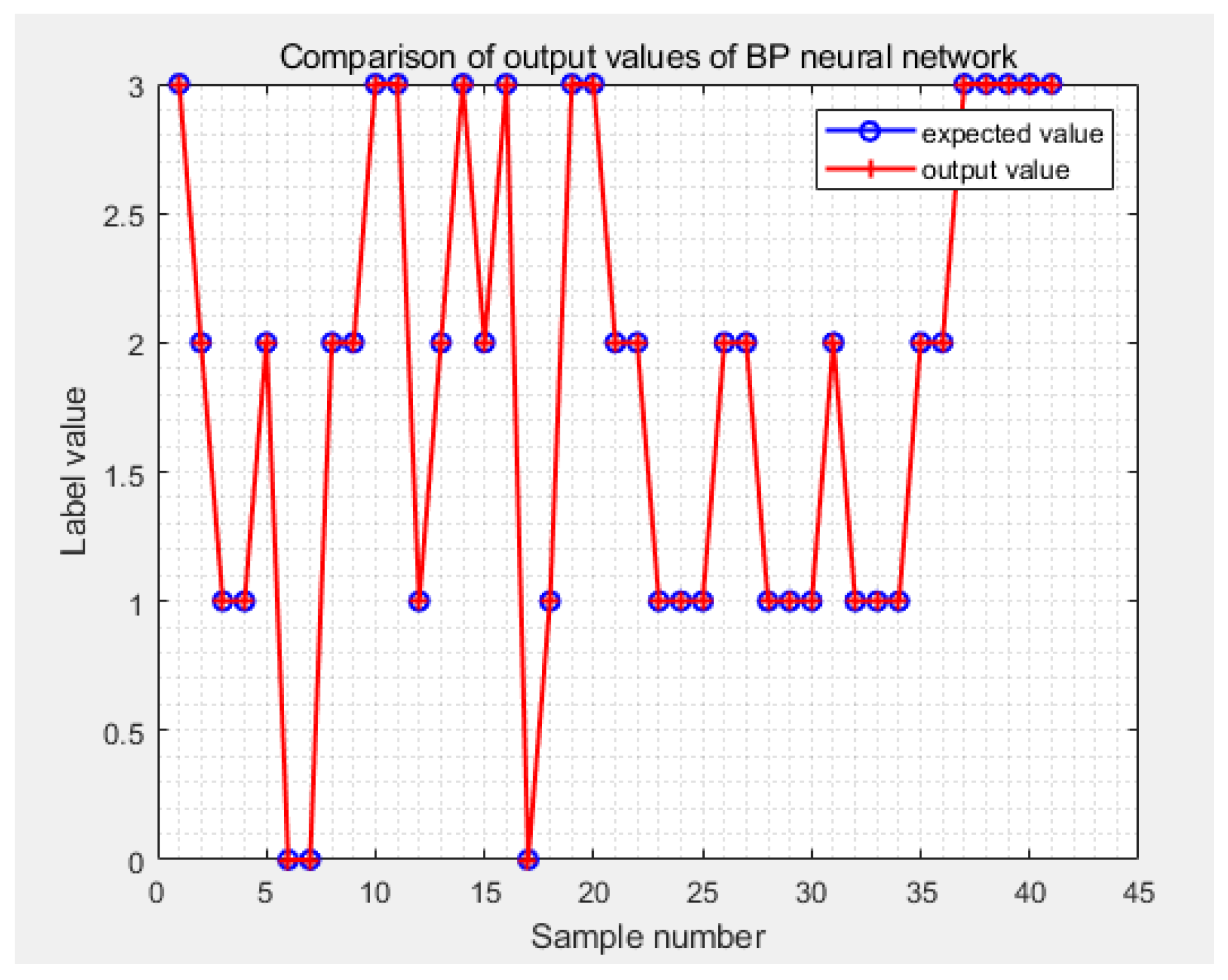

4.2. Training Process

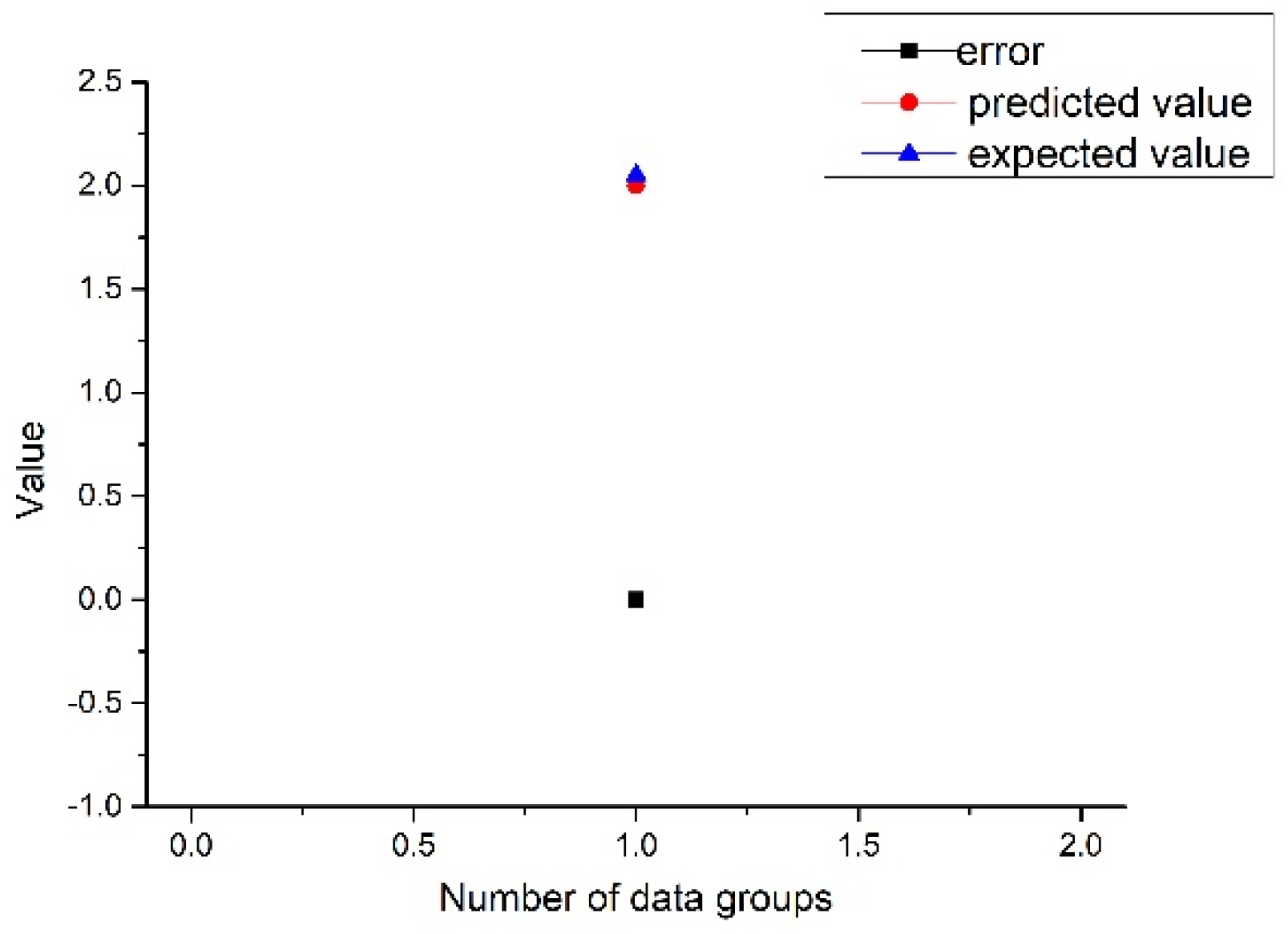

5. Project Example Application
6. Conclusions
- (1)
- It is determined that the influencing factors of coal seam shock risk are mining depth, shock tendency, geological structure and mining technology, and 18 indicators among the 4 major influencing factors were selected to establish a comprehensive evaluation model of coal seam shock risk BP neural network.
- (2)
- It has been proved, by engineering examples, that the trained network model can evaluate the risk level of coal seam impact well, and the use of the BP neural network model can greatly reduce the amount of human calculation, and propose a new method for the study of coal seam impact risk evaluation in mines.
- (3)
- It was found that the BP neural network method has good adaptability and accuracy in solving nonlinear problems, such as coal seam impact risk.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Qi, Q.X.; Zhao, S.K.; Li, H.T.; Qing, K. Several key problems of coal bump prevention and control in China’s coal mines. Saf. Coal Mines 2020, 51, 135–143+151. [Google Scholar]
- Jiang, Y.D.; Pan, Y.S.; Jiang, F.X.; Dou, L.M.; Ju, Y. Coal bump mechanism and prevention in coal mining in China. J. China Coal Soc. 2014, 39, 205–213. [Google Scholar]
- Qi, Q.X.; Li, Y.Z.; Zhao, S.K.; Zhang, N.B.; Zheng, W.J.; Li, H.T.; Li, H.Y. Seventy years development of coal mine coal bump in China: Establishment and consideration of theory and technology system. Coal Sci. Technol. 2014, 39, 205–213. [Google Scholar]
- Zhang, K.X.; Kang, L.; Chen, X.X.; He, M.C.; Zhu, C.; Li, D. A Review of Intelligent Unmanned Mining Current Situation and Development Trend. Energies 2022, 15, 513. [Google Scholar] [CrossRef]
- Zhang, X.F.; Qun, X.C.; Wei, Q.D. Development and application of multi-dimension multi-parameter monitoring and early warning platform of coal bump. J. Min. Strat. Control. Eng. 2021, 3, 69–78. [Google Scholar]
- Sun, L.T.; Kong, H.; Zhang, L.M.; Tian, G.Q.; Li, D.Y. Analysis of stress increment in multi-factor stress superposition underground impact pressure risk assessment. Coal Eng. 2020, 52, 94–98. [Google Scholar]
- Zhang, K.X.; Kang, L.; He, M.C.; Liu, J.H.; Chen, Z.H.; Sun, J.D.; Li, D.; Zhao, Q.F.; Yin, S.F.; Shang, G.F.; et al. Research on multi-level comprehensive evaluation of coal seam coal bump risk in underground mine. Coal Sci. Technol. 2020, 48, 82–89. [Google Scholar]
- Jia, B.X.; Chen, H.; Pan, Y.S.; Cheng, Y. Underground impact pressure prediction technology of multi-parameters synthetic index. J. Disaster Prev. Mitig. Eng. 2019, 39, 330–337. [Google Scholar]
- Xie, J.H. Prediction of hidden faults in working face based on time-frequency-energy characteristic analysis of microseismical events. Coal Eng. 2020, 52, 114–119. [Google Scholar]
- Wang, J.X.; Zhou, Z.H.; Li, K.G.; Wang, H.Q.; Fu, Z.G. Evaluation model for the risk grade of underground impact pressure based on the R-type factor analysis and a probabilistic neural network. J. Vib. Shock. 2019, 38, 192–203. [Google Scholar]
- Rong, H.; Zhang, H.W.; Chen, J.Q.; Zhao, X.Z.; Sun, B.C. Coal bump-risk prediction in steep-inclined and extremely thick coal seams based on the multi-factor pattern recognition method. J. Min. Saf. Eng. 2018, 35, 125–132. [Google Scholar]
- Liu, X.Y.; Li, P.Y. Prediction of coal bump based on improved FOA-BP neural network. Min. Saf. Environ. Prot. 2018, 45, 55–60. [Google Scholar]
- Ying, Z.D.; Wang, L.H.; Liu, Y.N. Prediction of coal bump based on chaos particle swarm optimization BP neural network. Coal Technol. 2016, 35, 89–91. [Google Scholar]
- Yang, K.; Chen, J.H. Research of underground impact pressure prediction based on combination of principal component analysis and neural network. J. Guangxi Univ. 2012, 37, 997–1003. [Google Scholar]
- Lu, M.N.; Wang, C.; Sheng, W.Q.; Zhang, Y. Prediction of coal bump based on grey theory and neural network. Coal Technol. 2011, 30, 117–118. [Google Scholar]
- Qu, K.D.; Ma, W.Q.; Liu, F.; Wang, T.X.; He, Y. The correction index of the mined-out area width in the comprehensive index method of rock pressure. Coal Technol. 2016, 35, 93–95. [Google Scholar]
- Zou, L.Y. Underground impact pressure risk prediction in island working face based on multi-factor analysis. Coal Eng. 2019, 51, 96–100. [Google Scholar]
- Song, J.; Wang, J.; Liu, S.; Bi, Y.F.; Wang, C. Prediction of underground impact pressure by electromagnetic radiation method based on improved PSO-BP model. Saf. Coal Mines 2019, 50, 205–208. [Google Scholar]
- Wen, T.; Li, Y.Z. Risk prediction model of underground impact pressure based on reprocessing for AFOA-ELM. China Saf. Sci. J. 2019, 29, 29–34. [Google Scholar]
- Zhang, Q.H.; Yao, Y.H.; Zhao, E.B. Underground impact pressure hazard prediction based on a new TOPSIS model. Saf. Coal Mines 2018, 49, 173–176. [Google Scholar]
- Wang, Y.H.; Liu, L.L.; Fu, H.; Xu, Y.S. Study on predicted method of mine pressure bump based on improved BP neural network. Coal Sci. Technol. 2017, 45, 36–40. [Google Scholar]
- Zhang, K.X. Mechanism Study of Coal Bump under Tectonic and Ultra-Thick Conglomerate Coupling Conditions in Mining Roadway; China University of Mining & Technology: Beijing, China, 2015. [Google Scholar]
- Wang, Q.; He, M.C.; Li, S.C.; Jiang, Z.H.; Wang, Y.; Qin, Q.; Jiang, B. Comparative study of model tests on automatically formed roadway and gob-side entry driving in deep coal mines. Int. J. Min. Sci. Technol. 2021, 31, 591–601. [Google Scholar] [CrossRef]
- Du, W.S.; Zhang, K.X.; Sun, H. Mechanical properties and energy development characteristics of impact-prone coal specimens under uniaxial cyclic loading. AIP Adv. 2019, 9, 115114. [Google Scholar] [CrossRef]
- Wang, Q.; Xu, S.; He, M.C.; Jiang, B.; Wei, H.Y.; Wang, Y. Dynamic mechanical characteristics and application of constant resistance energy-absorbing supporting material. Int. J. Min. Sci. Technol. 2022. [Google Scholar] [CrossRef]
- Wu, Z.J.; Wang, Z.Y.; Fan, L.F.; Weng, L.; Liu, Q.S. Micro-failure process and failure mechanism of brittle rock under uniaxial compression using continuous real-time wave velocity measurement. J. Cent. South Univ. 2021, 28, 556–571. [Google Scholar] [CrossRef]
- Su, Y.Q.; Gong, F.Q.; Luo, S.; Liu, Z.X. Experimental study on energy storage and dissipation characteristics of granite under two-dimensional compression with constant confining pressure. J. Cent. South Univ. 2021, 28, 848–865. [Google Scholar] [CrossRef]
- Wang, Y.; Yang, H.N.; Han, J.Q.; Zhu, C. Effect of rock bridge length on fracture and damage modelling in granite containing hole and fissures under cyclic uniaxial increasing-amplitude decreasing-frequency (CUIADF) loads. Int. J. Fatigue 2022, 158, 106741. [Google Scholar] [CrossRef]
- Zhu, C.; Karakus, M.; He, M.C.; Meng, Q.X.; Shang, J.L.; Wang, Y.; Yin, Q. Volumetric deformation and damage evolution of Tibet interbedded skarn under multistage constant-amplitude-cyclic loading. Int. J. Rock Mech. Min. Sci. 2022, 152, 105066. [Google Scholar] [CrossRef]
- Yu, D.M.; Sun, B.Z. Analysis of geological structural stress and the cause mechanism of underground impact pressure in Taozhuang Mine. J. China Coal Soc. 1993, 3, 77–84. [Google Scholar]
- Roshani, M.; Phan, G.; Faraj, R.H.; Phan, N.H.; Roshani, G.H.; Nazemi, B.; Corniani, E.; Nazemi, E. Proposing a gamma radiation based intelligent system for simultaneous analyzing and detecting type and amount of petroleum by-products. Nucl. Eng. Technol. 2021, 53, 1277–1283. [Google Scholar] [CrossRef]
- Sattari, M.A.; Gholam, H.R.; Robert, H.; Ehsan, N. Applicability of time-domain feature extraction methods and artificial intelligence in two-phase flow meters based on gamma-ray absorption technique. Measurement 2021, 168, 108474. [Google Scholar] [CrossRef]
- Zhu, F.; Zhang, H.W. “AHP +entropy weight method” based CW-TOPSIS model for predicting coal bump. China Saf. Sci. J. 2017, 27, 128–133. [Google Scholar]
- Yan, H. Research on Underground Impact Pressure Prediction Based on the Combination of Genetic Algorithm and Artificial Neural Network; Chongqing University: Chongqing, China, 2002. [Google Scholar]
- Shao, J.S. Prediction Method of Dangerous Degree of Coal Resources Mining in Dynamic Disasters; Shandong University of Science and Technology: Qingdao, China, 2011. [Google Scholar]
- Zhou, X.W.; Yang, Y.W.; Yang, Y.K. Strata pressure behaviour degree based on comprehensive index method and BP neural network model. Shanxi Coal 2020, 40, 5–9. [Google Scholar]
- Cheng, H.; Xia, C.P.; Duan, Y.Z.; Lin, C.H.; Rui, H.B.; Gao, Q. Research on Performance Evaluation of Scientific and Technological Achievements Transformation in High-level Science and Engineering Universities Based on Overall Correlation Coefficient Method and Comprehensive Index Method. Sci. Technol. Manag. Res. 2021, 41, 65–71. [Google Scholar]
Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Index | ||||||||||||||||||
Mining depth | 0 | 3 | 1 | 2 | 3 | 2 | 2 | 1 | 1 | 1 | 0 | 2 | 1 | 1 | 1 | 2 | 2 | |
Dynamic damage time | 0 | 1 | 2 | 3 | 3 | 3 | 3 | 1 | 3 | 3 | 3 | 3 | 2 | 2 | 2 | 3 | 1 | |
Elasticity index | 3 | 0 | 1 | 3 | 3 | 3 | 3 | 0 | 2 | 3 | 3 | 3 | 2 | 2 | 3 | 3 | 1 | |
Impact energy index | 1 | 1 | 3 | 3 | 3 | 3 | 3 | 1 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 1 | |
Uniaxial compressive strength | 3 | 2 | 2 | 2 | 3 | 2 | 3 | 1 | 2 | 3 | 3 | 2 | 3 | 2 | 3 | 3 | 1 | |
Impact Tendency of Roof Rock | 1 | 1 | 3 | 2 | 2 | 1 | 3 | 1 | 1 | 3 | 3 | 2 | 2 | 1 | 1 | 1 | 1 | |
Impact Tendency of Floor Rock | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | |
Working face length | 1 | 1 | 2 | 2 | 1 | 0 | 1 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | 0 | 0 | 1 | |
Section coal pillar width | 2 | 3 | 3 | 3 | 1 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 1 | 1 | 3 | 2 | |
Bottom coal thickness | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
fault effect | 1 | 2 | 0 | 1 | 3 | 1 | 2 | 0 | 0 | 1 | 3 | 1 | 1 | 0 | 0 | 0 | 1 | |
Fold structure | 0 | 0 | 2 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 0 | 2 | 1 | 1 | 0 | 1 | 1 | |
Influence of collapse column | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
Influence of river scouring zone | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
Influence of tectonic anomaly zone | 0 | 0 | 1 | 2 | 3 | 0 | 3 | 0 | 0 | 3 | 3 | 0 | 2 | 1 | 1 | 1 | 0 | |
Pressure relief degree of protective layer | 3 | 0 | 1 | 2 | 3 | 1 | 3 | 0 | 3 | 3 | 3 | 0 | 1 | 0 | 0 | 0 | 0 | |
Working face null parameters | 3 | 2 | 0 | 0 | 2 | 0 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | |
Coal mining technology of working face | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 1 | |
Impact risk grade | 3 | 2 | 1 | 2 | 3 | 2 | 3 | 0 | 1 | 3 | 3 | 2 | 2 | 1 | 1 | 2 | 0 | |
Number | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | |
Index | ||||||||||||||||||
Mining depth | 1 | 2 | 2 | 2 | 2 | 0 | 1 | 2 | 3 | 3 | 0 | 1 | 2 | 3 | 0 | 1 | 2 | |
Dynamic damage time | 1 | 3 | 2 | 3 | 3 | 2 | 2 | 2 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Elasticity index | 1 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 0 | 3 | 3 | 3 | 3 | 1 | 1 | 1 | |
Impact energy index | 1 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | |
Uniaxial compressive strength | 1 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | |
Impact Tendency of Roof Rock | 1 | 2 | 2 | 1 | 1 | 1 | 2 | 2 | 2 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
Impact Tendency of Floor Rock | 1 | 2 | 2 | 1 | 1 | 1 | 2 | 2 | 2 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
Working face length | 1 | 1 | 0 | 2 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Section coal pillar width | 2 | 3 | 3 | 1 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
Bottom coal thickness | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 1 | 1 | 2 | 0 | 0 | 0 | |
fault effect | 1 | 1 | 1 | 2 | 2 | 3 | 3 | 3 | 3 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Fold structure | 2 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Influence of collapse column | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
Influence of river scouring zone | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
Influence of tectonic anomaly zone | 2 | 0 | 0 | 3 | 3 | 1 | 1 | 1 | 1 | 0 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Pressure relief degree of protective layer | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
Working face null parameters | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Coal mining technology of working face | 1 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Impact risk grade | 0 | 2 | 2 | 3 | 3 | 1 | 1 | 1 | 2 | 2 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | |
Number | 35 | 36 | 37 | 38 | 39 | 40 | 41 | |||||||||||
Index | ||||||||||||||||||
Mining depth | 3 | 2 | 3 | 3 | 3 | 3 | 3 | |||||||||||
Dynamic damage time | 1 | 3 | 1 | 3 | 1 | 1 | 1 | |||||||||||
Elasticity index | 1 | 3 | 1 | 3 | 1 | 1 | 2 | |||||||||||
Impact energy index | 3 | 3 | 1 | 3 | 1 | 1 | 2 | |||||||||||
Uniaxial compressive strength | 3 | 3 | 3 | 3 | 1 | 2 | 1 | |||||||||||
Impact Tendency of Roof Rock | 2 | 2 | 3 | 3 | 2 | 2 | 2 | |||||||||||
Impact Tendency of Floor Rock | 2 | 2 | 2 | 3 | 1 | 2 | 2 | |||||||||||
Working face length | 1 | 0 | 1 | 0 | 0 | 0 | 0 | |||||||||||
Section coal pillar width | 3 | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||||
Bottom coal thickness | 0 | 0 | 0 | 1 | 0 | 0 | 0 | |||||||||||
fault effect | 1 | 1 | 3 | 3 | 2 | 2 | 3 | |||||||||||
Fold structure | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||||
Influence of collapse column | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||||
Influence of river scouring zone | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||||
Influence of tectonic anomaly zone | 1 | 1 | 2 | 3 | 3 | 3 | 2 | |||||||||||
Pressure relief degree of protective layer | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||||
Working face null parameters | 1 | 0 | 3 | 3 | 3 | 3 | 3 | |||||||||||
Coal mining technology of working face | 1 | 1 | 1 | 1 | 1 | 1 | 0 | |||||||||||
Impact risk grade | 2 | 2 | 3 | 3 | 3 | 3 | 3 |
Mining Depth | 2 |
Dynamic damage time | 3 |
Elasticity index | 3 |
Impact energy index | 3 |
Uniaxial compressive strength | 3 |
Impact Tendency of Roof Rock | 2 |
Impact Tendency of Floor Rock | 2 |
Working face length | 0 |
Section coal pillar width | 3 |
Bottom coal thickness | 0 |
fault effect | 1 |
Fold structure | 1 |
Influence of collapse column | 0 |
Influence of river scouring zone | 0 |
Influence of tectonic anomaly zone | 0 |
Pressure relief degree of protective layer | 0 |
Working face null parameters | 0 |
Coal mining technology of working face | 1 |
Impact risk grade | 2 |
