Abstract

This paper presents an overview of various sensorless control methods, with a focus on dual three-phase permanent magnet synchronous machines (DTP-PMSM). Owing to the important role that DTP-PMSMs play in motion-control applications in industry, most academic researchers and industry activists seek to reduce costs and size while increasing the capability and efficiency of motion applications. This has led to an increase in the number of publications about multiphase machines in recent years. The purpose of this article is to review the most important sensorless control techniques, which are divided into two main categories, namely saliency-based control method for low-speed range and model-based control method for high-speed range. Both methods are subdivided into other categories, with a focus on DTP-PMSMs. The methods are compared with each other for the purpose of selecting the most suitable control technique for implementation in applications such as ship propulsion, wind turbines, and aerospace.

1. Introduction

In recent years, multiphase motor drives have attracted much attention in both academic institutions and industry due to their numerous advantages over typical three-phase drives, such as reduced torque ripple, lower stator current per phase, and enhanced reliability. As a result of these advantages, multiphase drives are especially suitable for high power density and safety-critical applications such as electric cars, electric aircrafts, and ship propulsion.

Different forms of multiphase PMSM drives, such as five-phase, six-phase, and nine-phase, have been addressed in the literature [1,2,3,4,5,6,7,8]. Owing to the absence of the sixth-order pulsating torque, the six-phase system, also known as dual three-phase (DTP), is widely adopted. However, DTP-PMSMs are also known for high current harmonics due to the voltage harmonics caused by inverter nonlinearity and back-EMF harmonics from non-sinusoidal permanent magnet (PM) flux-coupling [9].

DTP-PMSM drives are categorised as symmetrical and asymmetrical based on their winding configuration [10], where asymmetrical six-phase windings are DTP-PMSM drives with two sets of windings that are spatially displaced by 30 degrees electrically, as shown in Figure 1a, while the symmetrical counterpart is displaced by 60 degrees electrically, as shown in Figure 1b. Furthermore, the winding of DTP-PMSMs can be configured with a single neutral or two isolated neutrals, as shown in Figure 2.

Both direct torque control (DTC) and vector control are commonly implemented for permanent magnet motors [11,12,13]. In direct torque control, the goal is the precise control of the torque, while speed control and transient state control require less consideration. In the vector control strategy, the responses of the steady state and the transient state are controlled primarily.

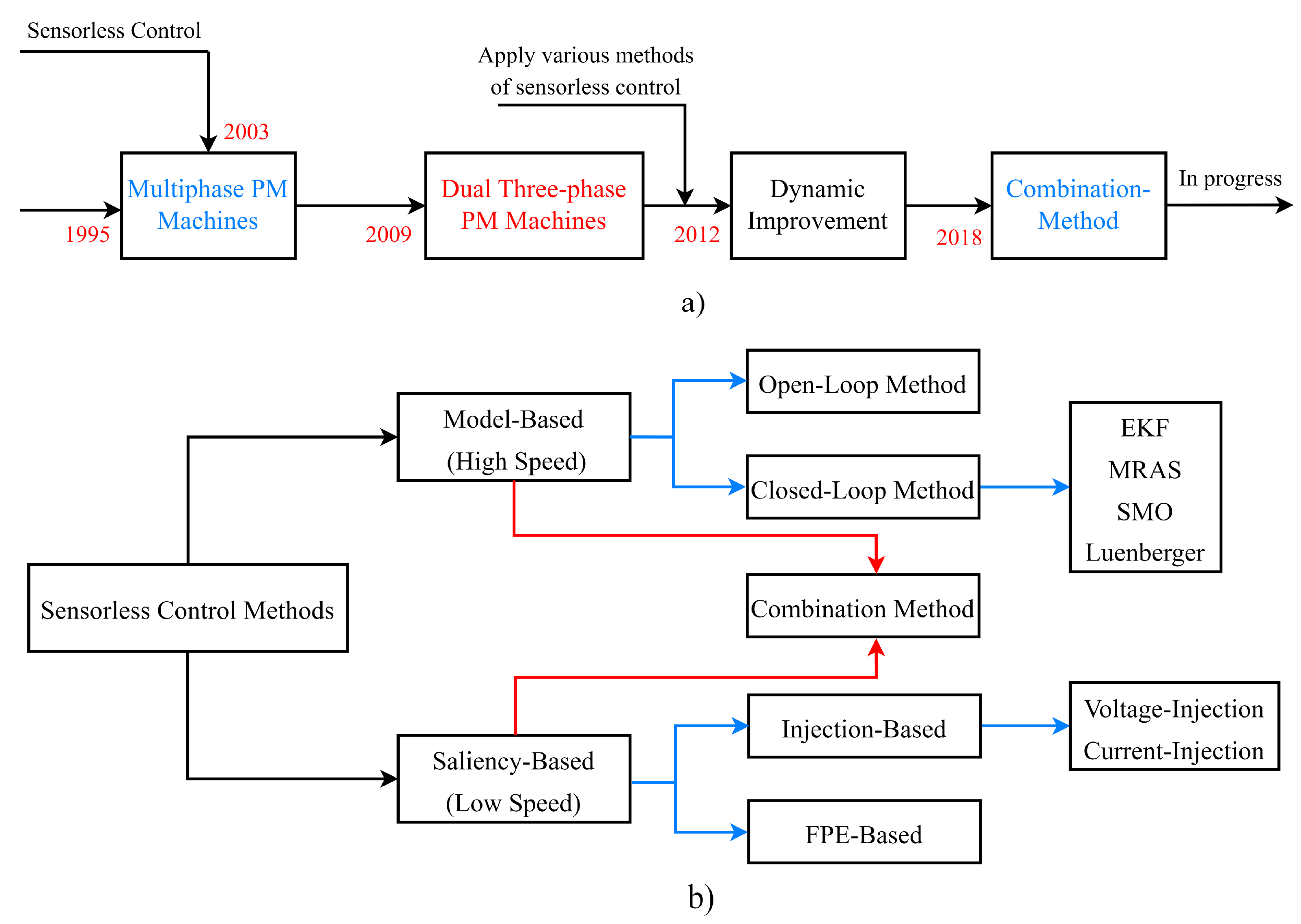

In Figure 3a, the historical development of sensorless control for PMSMs is illustrated and in Figure 3b the classification of the methods that are used for DTP-PMSMs is described, which is also discussed in Section 3 and Section 4. Designing and implementing these control methods require accurate mathematical modelling of the systems, which is usually challenging.

The absence of mechanical sensors from PMSM control increases the overall system reliability, while decreasing system cost. This makes sensorless control preferable to sensor-based control. In recent years, the development of a wide range of sensorless control systems has gained momentum, the most common of which are model-based approaches and saliency tracking. Based on back-EMF or excitation flux, model-based approaches may be classified into open- and closed-loop techniques. In the open-loop case, the back-EMF of the machine is integrated without any correction term, whereas in the closed-loop case, the difference in estimated and measured quantities is taken into account. The latter approach was initially suggested and implemented in [14]. However, it suffers from a low signal-to-noise ratio due to modelling error, inverter non-linearity, etc. The open-loop approach also often gives poor position estimates at frequencies of less than 1 Hz.

Two methods are used to determine a machine’s rotor position via saliency tracking. The first is called signal injection-based sensorless control, which uses a continuous high-frequency signal, while the second method is based on fundamental PWM excitation (also known as FPE-based), and uses the transient effect of phase currents that are built into the basic PWM cycles. A popular FPE method is called the “INFORM method” [15].

Multiphase electrical machines have been around since the late 1960s as an expansion of variable-speed AC drives [16]. Owing to the increased number of phases in DTP-PMSMs, similar control techniques for three-phase PMSMs are not applicable [14,17,18]. However, given the extra degrees of freedom in DTP-PMSMs, several unique methods for rotor position estimation have been developed, showing some distinct advantages of DTP-PMSMs in the sensorless control domain [19]. Although there are a few recent review studies on the sensorless control of PMSMs, they either focus exclusively on three-phase PMSMs [14,17] or only briefly discuss the sensorless control of DTP-PMSMs [18]. A comprehensive review of the sensorless control of DTP-PMSMs is clearly needed.

This paper aims to provide a comprehensive review of past and current research on the sensorless control of DTP-PMSMs. The remainder of the paper is organised as follows: in Section 2, the mathematical models of DTP-PMSM are provided. The evolution of model-based sensorless control in DTP-PMSM is presented in Section 3, while the work on saliency-based sensorless control techniques for DTP-PMSM is discussed in Section 4. The combination of different sensorless control methods for the entire range of speeds for the operation of DTP-PMSMs is described in Section 5. Controlling fault-tolerant DTP-PMSMs is explained in Section 6, followed in Section 7 by a survey of typical power levels and application areas of DTP-PMSMs using sensorless control techniques. Relevant conclusions and recommendations for future research are given in Section 8.

2. Multiple Three-Phase Machine Modelling Methods

It is possible to represent DTP-PMSMs using two methods, viz., vector space decomposition (VSD) and multiple individual three-phase models (MITP). The latter is based on the three-phase machines’ synchronous $dq$-axis model, which uses multiple three-phase sub-machines as its basis. In the VSD model, variables of various orders are separated into numerous orthogonal subspaces using a mathematical transformation. Most papers on DTP-PMSM simulation employ separate subspaces due to their advantages, such as relative simplicity in modelling, controller design, and harmonics control. However, as summarised in

Table 1. Advantages and disadvantages of VSD and MITP models.

Method	Advantages	Disadvantages
VSD	- Separated and simpler models in several subspaces. - Improved simplicity in the controller design. - A simpler approach for controlling harmonics.	- Less equipped to cope with imbalance due to the asymmetry of the sets. - Requires more effort to establish active power and torque sharing.
MITP	- Forthright. - Three-phase set design as well as control modularisation.	- Increased interconnectivity between sets. - As the number of sets rises, so does the level of model and control sophistication.

, both VSD and MITP models have their share of merits and demerits [20,21].

2.1. Vsd Model

The vector space decomposition technique in the modelling of multiphase machines makes it simpler to establish independent current regulation in decoupled subspaces. This is because the complicated high-order electromagnetic system can be clearly reduced to two-order subsystems in numerous decomposed subspaces. The DTP machine’s VSD transformation is as follows [22,23]:

$$\left[\begin{array}{c}{F}_{\alpha }\\ F_{\beta }\\ F_z{}_1\\ F_z{}_2\end{array}\right]=\frac{1}{3}\left[\begin{array}{cccccc}1& -\frac{1}{2}& -\frac{1}{2}& \frac{\sqrt{3}}{2}& -\frac{\sqrt{3}}{2}& 0\\ 0& -\frac{\sqrt{3}}{2}& \frac{\sqrt{3}}{2}& \frac{1}{2}& \frac{1}{2}& -1\\ 1& -\frac{1}{2}& -\frac{1}{2}& -1& \frac{1}{2}& \frac{1}{2}\\ 0& -\frac{\sqrt{3}}{2}& \frac{\sqrt{3}}{2}& 0& \frac{\sqrt{3}}{2}& -\frac{\sqrt{3}}{2}\end{array}\right]\left[\begin{array}{c}{F}_{A1}\\ F_{B1}\\ F_{C1}\\ F_{A2}\\ F_{B2}\\ F_{C2}\end{array}\right]$$

(1)

where F is either the current, flux linkagem or the voltage. Using (1), the current and voltage can be decomposed into $\alpha \beta$ and $z_1{z}_2$ components. The fundamental component and the harmonics of order m = 12n ± 1 (n = 1, 2, 3, …), i.e., m = 11, 13, 23, 25, etc., are mapped in the $\alpha \beta$ subspace, while the harmonics of order $m=6n\pm 1(n=1,\hspace{0.17em}3,\hspace{0.17em}5,\dots )$, i.e., $m=5,\hspace{0.17em}7,\hspace{0.17em}17,\hspace{0.17em}19$, etc. are mapped in the $z_1{z}_2$ subspace.

The DTP-PMSM may be defined by the following models after the VSD conversion:

$${\mathbf{u}}_{\alpha \beta }={\mathbf{R}}_s{\mathbf{i}}_{\alpha \beta }+\mathbf{s}{\mathit{\psi }}_{\alpha \beta }$$

(2)

$${\mathit{\psi }}_{\alpha \beta }={\mathbf{L}}_{\mathbf{s}\alpha \beta }{\mathbf{i}}_{\alpha \beta }+{\mathit{\psi }}_f{\mathbf{e}}^{j{\theta }_e}$$

(3)

$${\mathbf{u}}_{z_1{z}_2}={\mathbf{R}}_s{\mathbf{i}}_{z_1{z}_2}+\mathbf{s}{\mathit{\psi }}_{z_1{z}_2}$$

(4)

$${\mathit{\psi }}_{z_1{z}_2}={\mathbf{L}}_{\sigma }{\mathbf{i}}_{z_1{z}_2}$$

(5)

$${\mathbf{T}}_e=3\mathbf{P}({\mathit{\psi }}_{\alpha }{\mathbf{i}}_{\beta }-{\mathit{\psi }}_{\beta }{\mathbf{i}}_{\alpha })$$

(6)

2.2. Multiple Individual Three-Phase PMSM Model

The models of multiphase PMSMs (MP-PMSM) may be considered as the sum of individual three-phase machine sets with additional coupling voltage terms between them. For each three-phase set, the machine model is executed in a synchronous $dq$ frame [20]. For a DTP-PMSM, the voltage equations of the two $dq$ sets are given by

$$\begin{array}{c}\hfill \left[\begin{array}{c}{u}_{d_1}\\ u_{q_1}\end{array}\right]=\left[\begin{array}{cc}{R}_s+L_{d}s& -{\omega }_e{L}_q\\ {\omega }_e{L}_d& R_s+L_{q}s\end{array}\right]\left[\begin{array}{c}{i}_{d_1}\\ i_{q_1}\end{array}\right]+\left[\begin{array}{cc}{M}_{d}s& -{\omega }_e{M}_q\\ {\omega }_e{M}_d& M_{q}s\end{array}\right]\left[\begin{array}{c}{i}_{d_2}\\ i_{q_2}\end{array}\right]+\left[\begin{array}{c}0\\ {\omega }_e{\psi }_{f_d}\end{array}\right]\end{array}$$

(7)

$$\begin{array}{c}\hfill \left[\begin{array}{c}{u}_{d_2}\\ u_{q_2}\end{array}\right]=\left[\begin{array}{cc}{R}_s+L_{d}s& -{\omega }_e{L}_q\\ {\omega }_e{L}_d& R_s+L_{q}s\end{array}\right]\left[\begin{array}{c}{i}_{d_2}\\ i_{q_2}\end{array}\right]+\left[\begin{array}{cc}{M}_{d}s& -{\omega }_e{M}_q\\ {\omega }_e{M}_d& M_{q}s\end{array}\right]\left[\begin{array}{c}{i}_{d_1}\\ i_{q_1}\end{array}\right]+\left[\begin{array}{c}0\\ {\omega }_e{\psi }_{f_d}\end{array}\right]\end{array}$$

(8)

The electromagnetic torque can be stated as

$$\begin{array}{c}\hfill T_e=\frac{1}{3}P[{\psi }_{f_d}(i_{q_1}+i_{q_2})+(L_d-L_q)(i_{d_1}{i}_{q_1}+i_{d_2}{i}_{q_2})+(M_d-M_q)(i_{d_1}{i}_{q_2}+i_{d_2}{i}_{q_2})]\end{array}$$

(9)

where the inductances are given by

$$\begin{array}{c}\hfill L_d=M_d+L_{\sigma }\\ \hfill L_q=M_q+L_{\sigma }\end{array}$$

(10)

In (10), $L_{\sigma }$ represents leakage inductance. As DTP-PMSM has only two three-phase sets, the sophistication of the level of control is not high.

3. Model-Based Sensorless Control Methods

In low- to zero-speed range, sensorless control based on saliency is shown to be effective. However, a number of undesired effects, such as increased noise, torque ripple, and losses, may be caused by the injected signal. Furthermore, the required additional voltage signal injected could be limited by the maximum output voltage of the inverter when it is working in a higher speed range. Thus, in sensorless control, saliency-based approaches with signal injection should be used exclusively for low- to zero-speed ranges, while alternative methods such as model-based methods should be used once the speed surpasses a certain threshold.

Industrial applications often employ model-based methodologies. It is possible to get better results in medium- and high-speed fields by using various techniques, such as different kinds of observers, to estimate the EMF or flux linkage of the PMSM, as shown in Figure 4. Model-based sensorless control could be used in either the stationary $\alpha \beta$ frame or the synchronous $dq$ frame. The information for this form of control is obtained from measured voltages and current signals, after which it estimates EMF or flux and position/speed. Notably, the misaligned or estimated $dq$ frame needs to be set up, and the EMF, or flux, can be estimated by making the difference between the actual and estimated $dq$ frames equal to zero for the implementation in the $dq$ frame. There will always be a position-estimate error due to parameter fluctuations, independent of the observer format and application reference frames. Researchers are still working to find a solution to the problem of parameter variation, which has a large effect on the accuracy of position estimates. Both online and offline methods can be used for parameter identifications, after which the position error can be corrected.

3.1. Flux or EMF Estimation

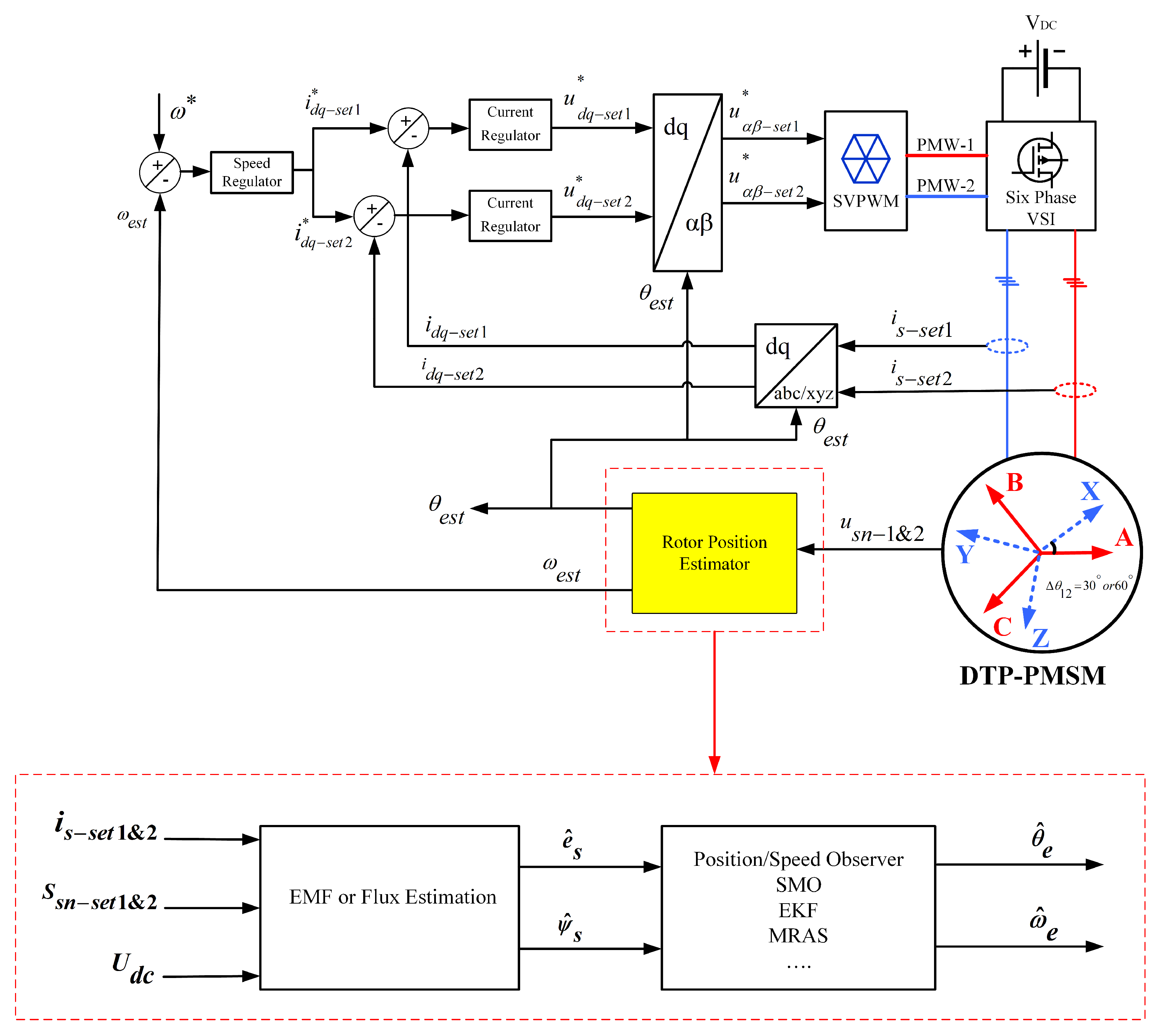

The closed-loop and open-loop approaches may both be used to directly compute flux or EMF information in the model-based sensorless control. For reasons of robustness and precision, closed-loop estimation is better. To precisely estimate position and speed, the EMF or flux estimation has a substantial impact on the reference frame, mathematical model, and error convergence technique [14].

While this method has frequently been used for conventional (three-phase) machines, the first application of the method in DTP electrical machines was only reported in 2018 [24], where a new position sensorless approach based on extended EMF was applied to a DTP wound-field synchronous motor. Closed-loop estimating approaches often need a mathematical formula to ensure that the estimated measured output error is zero. Various methods may be used for this purpose. To aid in the estimating process, linear state and sliding mode observers may be utilised, among others. The estimate of EMF or flux is rather mature, which has a lot to do with how well you handle flux spatial harmonics and the inverter non-linearities. EMF and flux measurements also face key hurdles in terms of stability and reproducibility at low frequencies. Estimated flux may be determined by integrating the flux model as a function of stator current and voltage to give the estimated rotor position [25]. In [26], an online compensation strategy for errors in relation to rotor position estimation has been proposed for model-based sensorless control methods. This strategy conducts direct back-EMF measurement on one set of temporarily isolated three-phase winding while generating rated motor torque using the other set of winding for a short duration of time.

3.2. Position/Speed Observer

To determine position and speed, the EMF or flux must be determined and the observer error must be zero. In order to compute the rotor position, the Arctan function may be utilised directly. Traditionally, the position/speed observer has been favoured to increase estimate accuracy. The observer’s input is the position error signal, which may be derived by vector cross-product or other straightforward mathematics approaches. It is therefore possible to employ a Luenberger observer of the PI or PID type to force the position error signal to zero and retrieve the position/speed information. The PID-type Luenberger observer, although requiring a moment of inertia, has higher dynamic performance than the phase-locked loop (PLL)-type estimators. Estimated position and speed are often computed using a time-derivative approximation, such as a first-order Euler approximate, in the above-mentioned scenarios. This results in a sequential estimator. Using this approach, noise is amplified in the high-frequency range. A different solution is conceivable, since it is possible to estimate both speed and position simultaneously. The identity observer is a popular estimator for this purpose. The information that is offered by EMFs in $\alpha \beta$-axes is utilised by these estimators. The majority of them include a high-gain observer structure in their designs. Given that the system is assumed to be

$$px=f\left(x\right)+g\left(x\right)u;y=h\left(x\right),$$

(11)

then the following is a form of the equation that describes the dynamics of high-gain observers:

$$p\widehat{x}=\underset{1}{\underbrace{f\left(\widehat{x}\right)+g\left(\widehat{x}\right)u}}+\underset{2}{\underbrace{G\left(\widehat{x}\right)(y-h\left(\widehat{x}\right))}}$$

(12)

where term 1 in (12) is the prediction that duplicates the dynamics of the variables to be estimated, while term 2 is the correction that is multiplied by a high-gain observer. A variety of high-gain observers are discussed in [17]. To achieve accurate estimations, a structure is required to ensure that the estimation error is zero. It is important to note the nonlinearity of the dynamics of EMFs that relate EMFs to rotor position and speed.

3.2.1. Extended Kalman Filter (EKF)

The Kalman Filter and its nonlinear variant, the EKF, may both be called high-gain observers. Many researchers obtain an approximate speed estimate using a rough approximation of the position-time derivative, as the time-derivative operator is not causal. The class of high-gain observers includes estimators of this kind. In this case, the prediction term is set to zero. Flux linkages generated from the observed triple harmonic back-EMF are orthogonal to each other and constant in amplitude due to a phase shift of $\pi /6$ between the two sets of winding in some DTP-PMSMs. It is also possible to directly use the triple harmonic EMF for determination of the rotor position using an estimator with speed-variable parameters without any filtering. The rotor position can be determined based on triple harmonic back-EMFs or flux linkages using an EKF-based rotor position estimator, even in the presence of many high-order harmonic components [27]. Figure 5 depicts a simple EKF for DTP machines, showing the closed-loop transfer function that can be stated as a relationship between the estimated and real rotor locations. A simple formula can be used to determine the high-resolution estimated rotor position, ${\theta }_r^e$

$${\theta }_r^e={\theta }_0+{\int }_0^t{\omega }_{r}dt={\theta }_0+{\int }_0^t\frac{\pi }{3t_d}dt$$

(13)

$$\frac{{\theta }_r^e}{{\theta }_r}=\frac{3{\psi }_3{k}_d·s^2+3{\psi }_3{k}_p·s+3{\psi }_3{k}_i}{s^3+3{\psi }_3{k}_d·s^2+3{\psi }_3{k}_p·s+3{\psi }_3{k}_i}$$

(14)

It was possible to show that since ${\psi }_3$ is constant, the $k_p$, $k_i$, and $k_d$ values of the PID controller used in the rotor position estimator could likewise be constant in order to keep the bandwidth constant.

As discussed in [28], the inherent harmonic currents in traditional switching table-based DTC (ST-DTC) for DTP-PMSM may negatively affect the performance of sensorless control, but this effect may be mitigated by using a modified switching-table method. The effect of non-sinusoidal stator currents on the accuracy of position and speed estimates has been investigated for both the standard flux-linkage observer (FO) and the simplified EKF [28]. In [29], a novel approach to estimating the rotor position based on the third harmonic back-EMF for conventional and DTP-PMSMs is proposed to cope with unbalanced situations. It shows that the enhanced technique to estimate rotor position may considerably compensate for unbalanced parameters. As a result, increased resilience allows for significant improvements in the steady-state and dynamic performance of single and DTP-PMSMs. In [30], the impact of back-EMF and current harmonics on the performance of sensorless control for single and dual three-phase PMSMs is discussed. Extensive experimental findings indicate that, in comparison to FO, the simplified EKF model has a larger capacity for noise rejection, which contributes to the model’s superior performance in terms of rotor position and accuracy of speed estimation.

3.2.2. Model Reference Adaptive System (MRAS)

MRAS typically picks the equation with no parameters as the reference model and the one with parameters as the adjustable equation. Adjustable parameters are estimated by comparing two models’ outputs in an adaptation process. Because of this, the control object’s real output reflects that of the reference model. Great progress is achieved in applying MRAS to the servo motion system using a variety of methods. Effective and physically clear, the MRAS algorithm has been used extensively for sensorless control of an induction motor. Two models are required by the MRAS method: a reference model and an adaptive model. The motor itself may serve as both an adaptive model and a reference model in the mathematical model of the DTP-PMSM. Rotor speed is used as a corrective factor in the adaption process in order to determine the present inaccuracies between two models. This approach can be used by the MRAS control method of three-phase PMSM to control a DTP-PMSM, since it is identical in $(d,q)$ subspace to three-phase PMSM [27].

It is critical to accurately determine the rotor position in sensorless control of DTP-PMSMs. In the literature, different starting processes may be categorised into three categories: a predefined rotor position established by correct feeding; open-loop startup; and a specialised algorithm for determining the rotor position at standstill. Because the stator current can be regulated precisely, this approach has the potential to provide the highest level of rotor positioning precision, while also requiring the least amount of additional complexity in the system. This method’s dependability is affected by the existence of the load torque, whose magnitude might induce a shift between the imposed alignment position and the real one [31,32], as seen in Figure 6. When calculating the stator current of the machine, the MRAS estimator in this scenario utilises two different models. The first model is known as a reference model, whereas the second model is known as an adaptive model. The difference in outputs between these two models is employed to drive an appropriate adaptation mechanism, which in turn yields an estimated rotor speed. A comprehensive MRAS sensorless control system design technique in discrete-time domain for high-speed drives is proposed and discussed in [33,34].

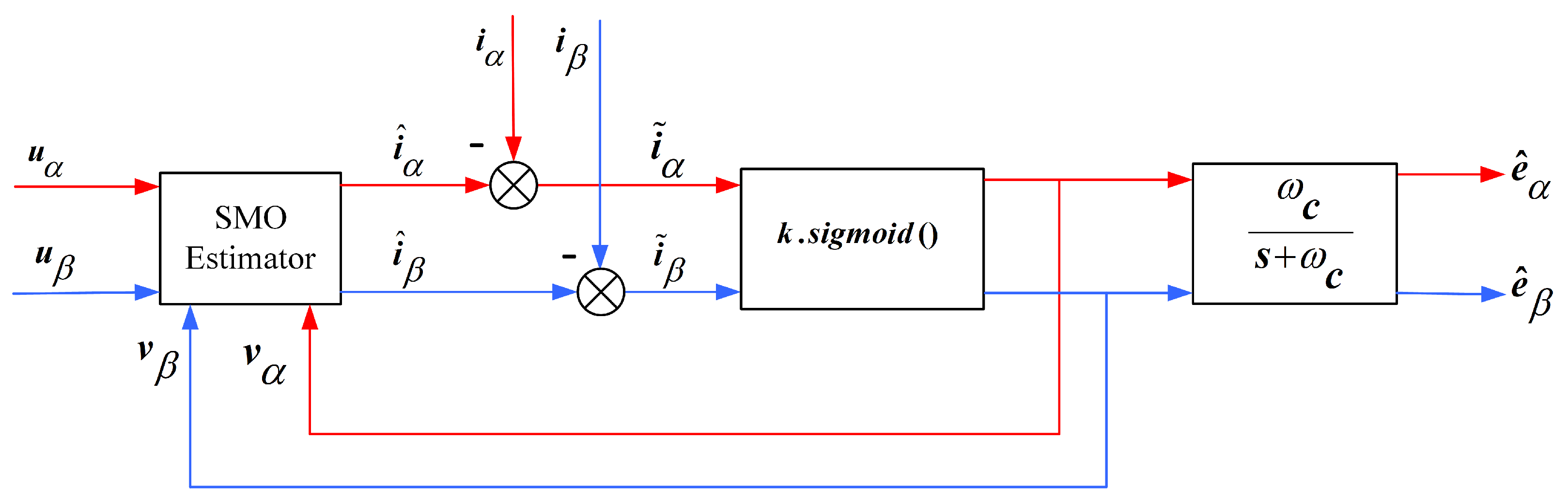

3.2.3. Sliding-Mode Observer

For practical rotor speed/position estimates, the sliding-mode control (SMO) approach is commonly utilised due to its simple methodology and reliability. Although sensorless control of multiphase machines is not a new issue and has been researched for decades, some researchers have attempted to fill in the study gaps for DTP-PMSM. A sign function is often employed to adjust for discontinuous gains. The estimation error reaches a specified surface and then glides along this surface, eventually reaching zero. Chattering is an undesired side effect of discontinuous functions like the sign function. As a result, modifications to reduce the chattering effect have been suggested. A sigmoid function, as shown in Figure 7, for example, may alter the sign function. In some situations, a low-pass filter (LPF) can be used to get rid of the signal’s high frequencies. The LC filter, on the other hand, will introduce a new kind of resonance issue [35].

As a result of using an LC filter, the resonance in the capacitor circuit must be suppressed using an extra resistor. Since the motor resistance is relatively high, adding resistance will cause insignificant losses. It is necessary to incorporate an extra current feedback loop in order to effectively suppress the resonance without causing more damage. Hence, the LPF is removed and replaced with two synchronous frequency-tracking filters (SFTFs), which can extract the fundamental wave component from the back-EMF. This enhances conventional sensorless control.

It is possible to use SMO in order to estimate the rotor position and speed of the DTP-PMSM. Rotor position information can be found in the extended EMF. To obtain the estimated rotor position, the extended EMF must be estimated first. The DTP-PMSM is subjected to a variety of SMO techniques, such as the conventional SMO method and the adoptive SMO method, which are shown in Figure 7 and Figure 8, respectively. The Arctan function and PLL-based estimators are used to estimate the rotor’s speed and position after obtaining an estimated extended EMF [36,37].

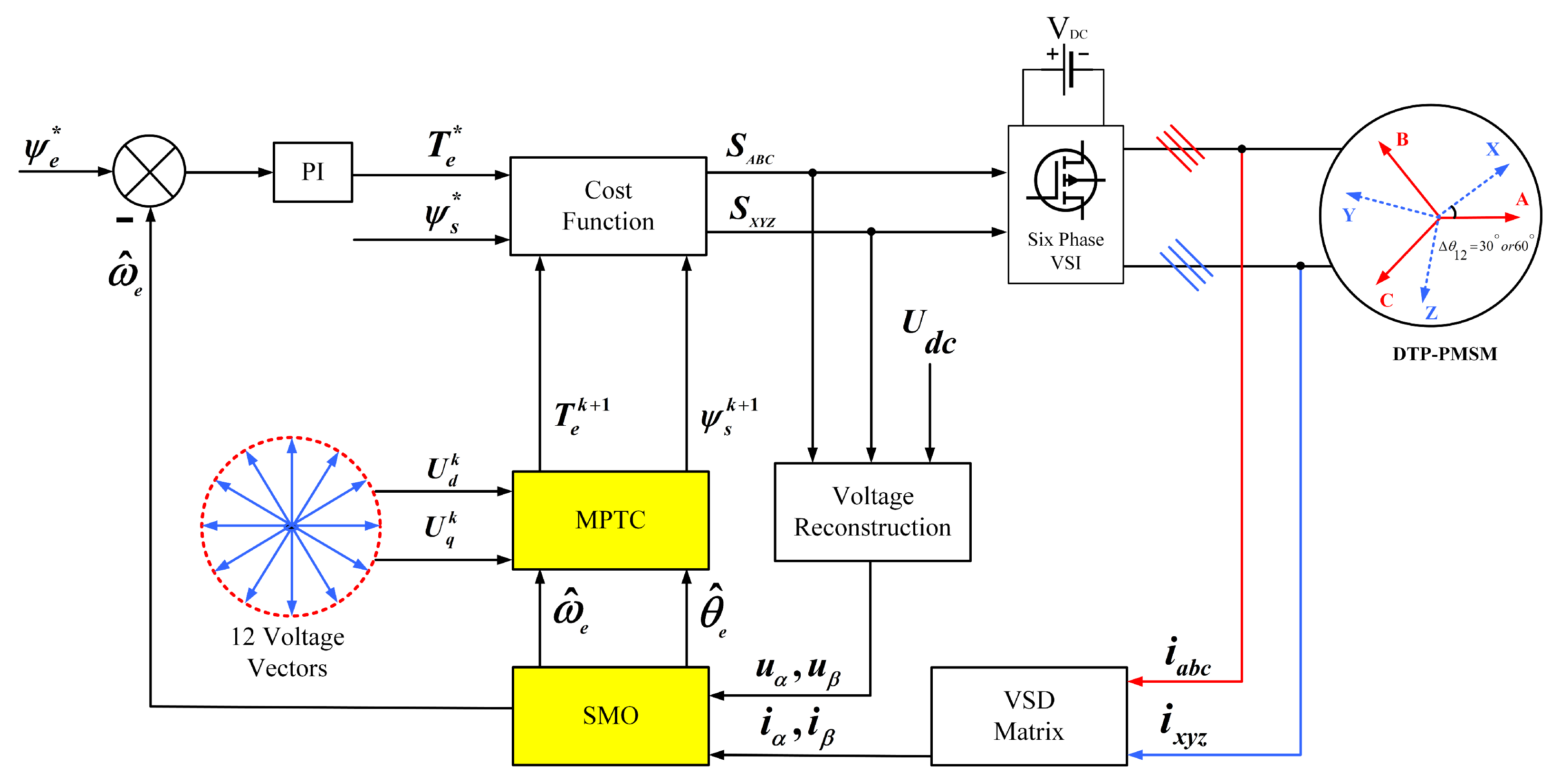

A model predictive torque control system is described in [35], and it is constructed using the mathematical model of DTP-PMSM with vector space decoupling (VSD). For the purpose of obtaining the speed, a model predictive torque control approach has been suggested, as shown in Figure 9. In order to reduce the design cost and enhance the anti-interference ability of the system, an SMO strategy is suggested in [35] to estimate the motor speed. This method would include extended rotor resistance compensation, which would increase the system’s resilience. The findings of the simulation indicate that the suggested control system has a rapid dynamic reaction and a high degree of resilience.

3.2.4. Luenberger Observer

A nonlinear gain-correction term is included in this kind of observer, which uses the prediction term to copy the EMF’s dynamic equations. The estimated error converges to zero when the nonlinear observer gain is constructed as recommended in those works, assuming an accurate model, i.e., the parameters in the prediction terms match the parameters in the motor and there is no uncertainty in the measured variable. The key benefit is that convergence is ensured across a large area of state space. Furthermore, the rate of convergence can also be adjusted.

In [38], there is a comparison between two back-EMF based sensorless control techniques, one of them using a phase-locked loop (PLL) speed and rotor position estimator, and the other a Luenberger observer estimator. In the mentioned article, improved dynamic performance is provided by a Luenberger-type estimator. It is stated that the predicted speed error suffers from high-frequency noise and the usage of machine characteristics is required. The PLL-type estimators, on the other hand, have a lower but still adequate level of performance. Low-pass filtering eliminates high-frequency interference. In addition, the PLL type does not involve the usage of any kind of mechanical data.

As a result of the PLL’s simple construction and mechanical independence, it is favoured for future investigation and prospective applications. The rotor speed and position can alternatively be estimated using a Luenberger observer-type speed and position estimator, as illustrated in Figure 10. An observer-type position estimator’s transfer function can then be described in this way, as by [38]:

$$\frac{{\widehat{\theta }}_e}{{\theta }_e}=\frac{J{K}_a{s}^2+(B{K}_a+K_b)s+K_c}{J{s}^3+(J{K}_a+B)s^2+(B{K}_a+K_b)s+K_c}$$

(15)

where J is rotational inertia and B is viscous friction.

By adjusting the gains of the estimator shown in Figure 10, roots of the characteristic equation in (15) can be forced to coincide with those in the following expressions [38]:

$$K_a=-\alpha ,K_b=j{\alpha }^2,K_c=-J{\alpha }^3$$

(16)

where $\alpha$ is the root of the characteristic equation.

Table 2. Comparison of position observers.

Types	EKF	MRAS	SMO	Luenberger
Advantages	Less influence of noise; low computational time	A fail-safe machine model; high-velocity adaptation	Guaranteeing no mistakes; very reliable; independent of motor parameters	Convergence is certain all across a large chunk of the possible states; convergence times are completely arbitrary
Disadvantages	Weak low-speed performance	Struggle with a wide range of motor characteristics	Ineffective at rest and at slow speeds	Can make the sensor noise issue much worse

provides an explanation of the benefits and drawbacks of the observers that are used in DTP-PMSM.

4. Saliency-Based Sensorless Control Methods

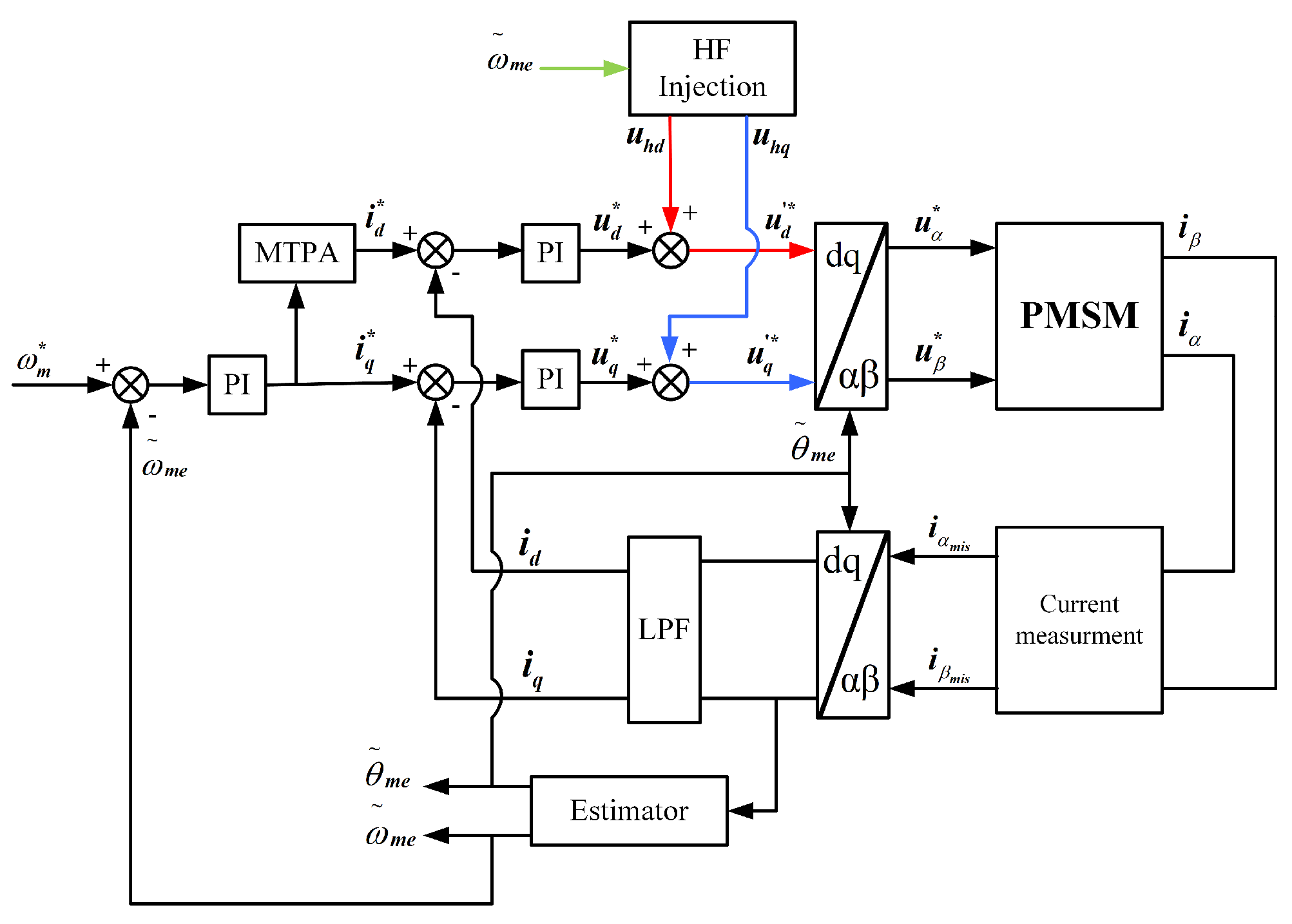

For zero- and low-speed operating condition, model-based techniques cannot be employed due to the lack of back-EMF. In contrast, saliency-based techniques are able to overcome this limitation and can accurately estimate the rotor position in the zero- and low-speed operating range. These strategies are used as a result of either geometric rotor saliency or magnetic saturation. Saliency-based approaches include PWM signal injection (SI), transient voltage vector injection, and other techniques. Rotating–pulsating sinusoidal SI in the estimated reference frame, and sinusoidal SI in a stationary reference frame are the most common ways of persistent carrier SI.

4.1. SI-Based Systems

Carrier SI-based sensorless control systems typically inject either high-frequency current or voltage signals into the basic excitation windings of the machine. Then the rotor position information is extracted from the position-dependent carrier signal, viz., carrier current or zero-sequence voltage. For the rotating carrier signal-injection method, it has been proven that both negative-sequence carrier current signal and zero-sequence carrier voltage signal can be used to estimate the rotor position. For DTP-PMSM drives, SI-based sensorless control is the most common method used to obtain the position by monitoring the saliency in the low-speed area. The voltage drop on the stator resistance can be omitted, as can the terms associated with ${\omega }_e$, since the injection frequency is much greater than the operating speed [39,40]. Figure 11 presents a sensorless control scheme with high-frequency (HF) SI. The zero-sequence carrier voltage exhibits low total harmonic distortion and shows less sensitivity to the distortion of the injected carrier signal compared to the carrier’s current response. Furthermore, it has been found that the estimation accuracy of the the system bandwidth and rotor position can be enhanced significantly when utilising a zero-sequence carrier voltage.

4.1.1. Voltage Injection

Voltage injection combines the large bandwidth of the zero-sequence voltage method with the high precision of the pulsating injection strategy for estimating position, as shown in Figure 12 and Figure 13. Due to undesired harmonic components in the zero-sequence carrier voltage, the position-estimation error of a single three-phase PMSM is considerable, and the current compensating solutions often require complicated designs or extensive offline measurements. With two separate high-frequency injections into each stator winding set, DTP-PMSM with separated neutral points offers more degrees of freedom. It is possible to alter the phase angle between the two injected high-frequency signals, allowing for the resolution of this problem. When the pulsating carrier signal is injected into the estimated $dq$ synchronous reference frame as two superimposed rotating carrier voltages with opposing directions, the injected voltages for the three phases are as follows:

$$\begin{array}{cc}\hfill & v_a=V_{c}cos\left({\omega }_{c}t\right)cos(\widehat{{\theta }_e})\hfill \\ \hfill & v_b=V_{c}cos\left({\omega }_{c}t\right)cos(\widehat{{\theta }_e}-2\pi /3)\hfill \\ \hfill & v_c=V_{c}cos\left({\omega }_{c}t\right)cos(\widehat{{\theta }_e}+2\pi /3)\hfill \end{array}$$

(17)

$\widehat{{\theta }_e}$ = estimated rotor position

$V_c$ = carrier voltage

${\omega }_c$ = carrier frequency

Figure 12. HF d-axis pulsating voltage for the signal injection [41].

Figure 12. HF d-axis pulsating voltage for the signal injection [41].

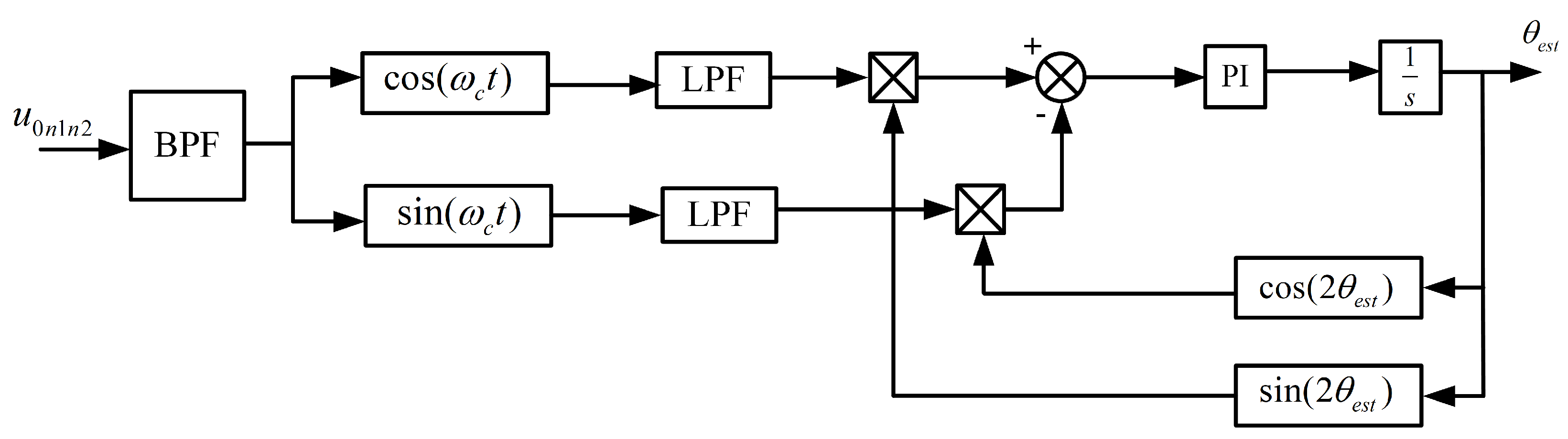

Figure 13. Block diagram of zero-sequence carrier signal process with rotating injection [42].

Figure 13. Block diagram of zero-sequence carrier signal process with rotating injection [42].

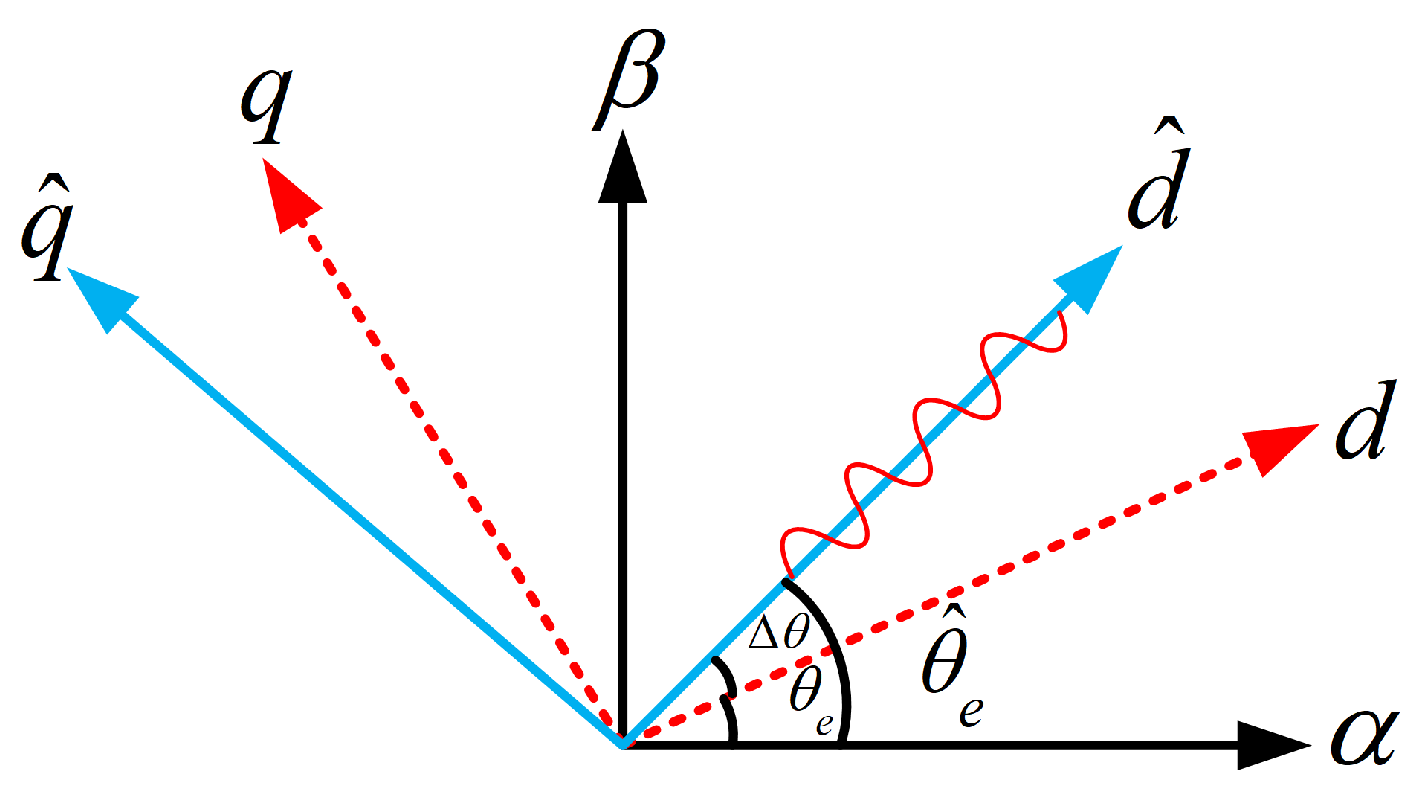

Figure 12 illustrates the pulsating injection that may be seen in the estimated reference frame.

In DTP-PMSM drives, the harmonic components may be reduced by using a modified pulsating injection approach with zero-sequence voltage, which applies an optimal phase shift between the two injected HF carrier signals. According to [41,42,43], these strategies work well for DTP-PMSM. It has also been stated that a novel technique of measuring zero-sequence voltage utilising just one voltage sensor has been developed. Injecting HF voltage into dual three-phase may be accomplished in other ways as well. For instance, HF voltages with the same amplitude and frequency are injected into both three-phase sets in the same spatial direction (parallel injection method), or HF voltages with the same amplitude and frequency are injected into both three-phase sets in opposing directions (opposing injection method).

An HF voltage injection method for determining position is described in [44]. One of the known disadvantages of high-frequency voltage injection is the acoustic noise that is generated. However, the acoustic noise can be minimised by utilising this injection technique only at specific frequencies. The resultant zero-sequence carrier voltage is typically measured by utilising one of the two most used measurement methods, namely (1) measurement utilising phase-to-neutral-voltages, as shown in Figure 14a, or (2) measurement utilising the auxiliary resistor network, as shown in Figure 14b.

4.1.2. Current Injection

It is possible to obtain information about the position and degree of saliency of a salient machine by injecting a carrier signal current into the machine and then measuring the resulting voltages. A comparison for the use of voltage and current injection techniques for the estimation of flux angle or rotor position are included in [45]. In [45], two problems of carrier signal current injection are offered to a basis for fair comparison: the first is the extraction of the spatial information contained in the induced voltages, and the second is the regulation of high-frequency currents with current regulators of limited bandwidth. Based on this comparison, choosing which method to use depends on the application, the desired performance, and the bandwidth of fundamental current regulator. Predominantly, higher performance (higher bandwidth) is possible with carrier signal voltage injection, since the current regulator does not directly limit its bandwidth.

As a parameter identification and position sensorless control approach for motor drives, VSI nonlinearity compensation is critical. For DTP-PMSM drives, an online estimate and compensation approach for VSI nonlinearity has been suggested in [46]. To determine the magnitude of error voltages due to VSI nonlinearity, this approach utilizes voltage differences with $z_1{z}_2$-axis current injection as its input. An improved recursive least-square (RLS) algorithm and a current injection-based parameter estimation method for DTP-PMSM, considering inverter nonlinearity and magnetic saturation, are proposed in [47].

4.2. Pulsating Signal Injection

Using pulsating signal injection as a sensorless control method is another viable option. In order for pulsating signal injection to work, the rotor reference frame must be known from the beginning. Pulsating signal injection can be split into two groups, based on the types of signals that are injected: pulsating square-wave injection and pulsating sinusoidal injection [48].

Square-Wave Sensorless Injection

Half-switching frequency signal-injection sensorless control (SISC) and switching-frequency SISC are the two types of SISCs with fast dynamic characteristics. Ideally, their dynamic properties should resemble one another. If the frequency of the injected voltage signal would increase to pulse-width modulation (PWM) switching frequency and if the switching frequency is near or above an audible range, the dynamics of the sensorless control can be improved, and the acoustic noise can be remarkably reduced or totally eliminated [49]. Switching-frequency SISC, on the other hand, is more susceptible to inverter nonlinearity effects than half-switching-frequency SISC. Switching-frequency injection adds first- and third-order harmonic distortion to position estimation [50]. When it comes to SISC, this means that the greatest possible frequency is half the switching frequency. The block diagram of the conventional SISC is represented in Figure 15. For DTP-PMSM, SISC could be applied in the two three-phase windings individually [51].

4.3. Fundamental PWM Excitation

The fundamental PWM excitation technique has been refined by various researchers in order to make it easier to analyse the results. For instance, using the transient response of the line current to basic PWM vectors, a sensorless algorithm is created in a two-dimensional orthogonal frame, as shown as Figure 16. For multiphase machines, this strategy is ideal [19,52].

Table 3. Comparison of saliency-based methods.

Types	Voltage Injection	Current Injection	Pulsating Signal Injection	Fumdamental PWM Excitiation
Advantages	No acoustic noise; independent of motor parameter	High performance; independent of motor parameter	Small effect on inverter nonlinierities; magnetude modulated	Insensetive to parameter variation
Disadvatage	Do not support high speed operation	High computational requirement, which needs powerful hardware devices	Requiring initial position information	High current ripple; flux distortion causes estimation error

provides an explanation of the benefits and drawbacks of the saliency-based methods that are used in DTP-PMSM.

5. Combination of Low-Speed and High-Speed Methods

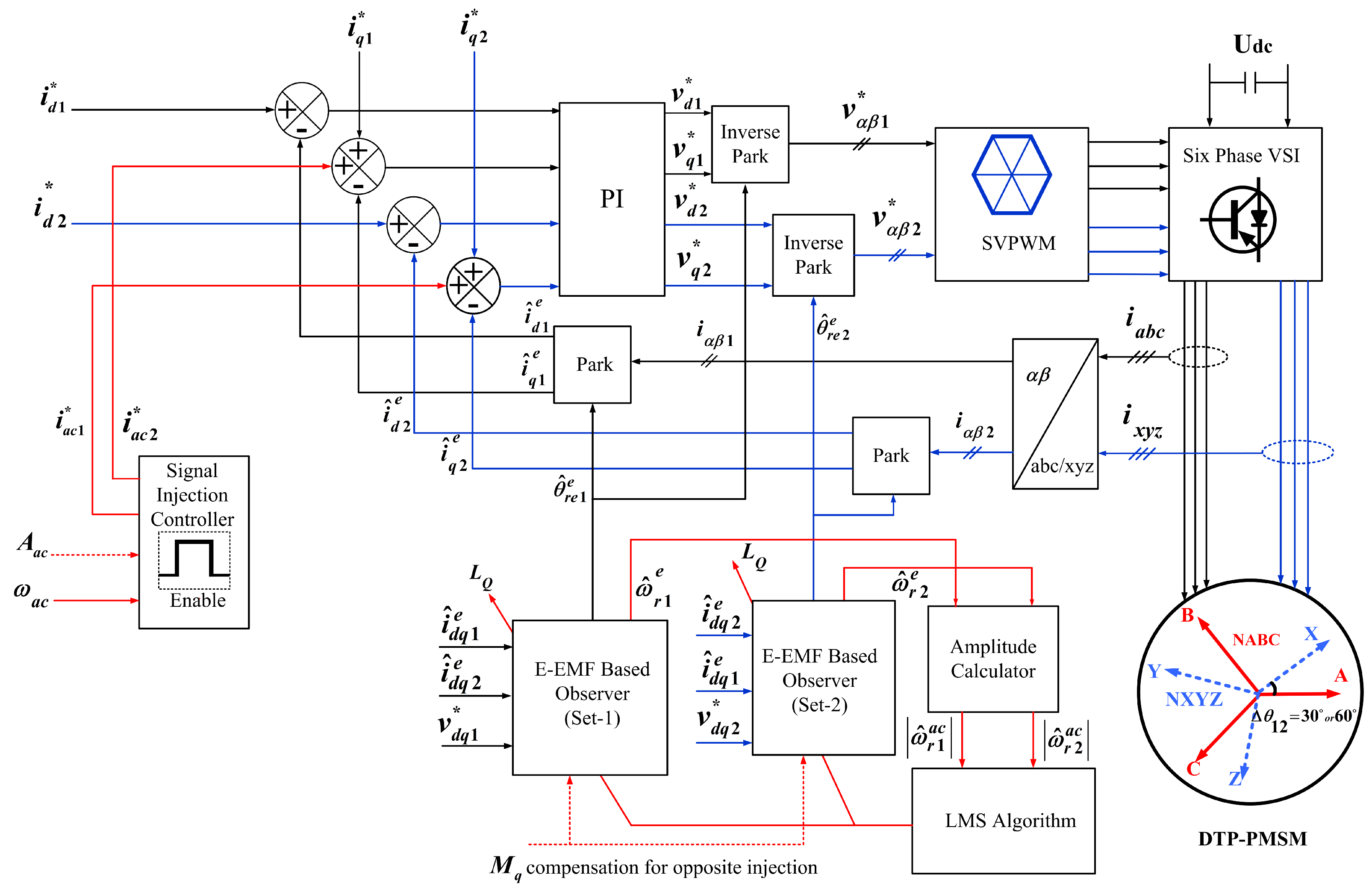

As mentioned previously, an EMF-based observer operates well at medium and high speeds, but a saliency-based observer excels only at low speeds. Therefore, it would appear logical to combine the two approaches in order to obtain an estimator that performs well over the whole speed range. As a result of this, several researchers have developed observers that combine two distinct methods from those described in the previous paragraphs, namely model-based and saliency-based. For instance, for DTP-PMSM, the integration of high-frequency SI and extended EMF-based techniques for sensorless control, or injecting current signal and an EMF estimator, have been proposed [25,53,54]. In Figure 17, an overall block diagram of the DTP-PMSMs control system with a combination of methods is illustrated. Very few studies have been conducted in this area for DTP-PMSM drives, which might be a promising area for future study.

6. Fault-Tolerant Sensorless Control for DTP-PMSMs

DTP-PMSMs have intrinsic fault-tolerant capability due to the physical separation between the phase windings. In this regard, controlling a fault-tolerant DTP-PMSM system without sensors at high and low speeds has been the subject of recent studies [39]. In [55], a fault-tolerant sensorless speed control strategy is discussed for the case of an open-phase fault. The speed control strategy of [55] is realised through a redundant extended back-EMF observer structure for an asymmetrical DTP-PMSM. In [56,57], a new sensorless control is proposed without requiring coordinate transformation by injecting the HF signal into two non-fault phase windings for a six-phase fault-tolerant PMSM. This control method can guarantee the low-speed sensorless control performance under both fault-free and fault-tolerant operation conditions.

7. Applications and Applied Sensorless Control Techniques of DTP-PMSMs

In

Table 4. Application and power levels of sensorless control of DTP-PMSM.

Power level	Techniques	Application	Reference
50 W	Saliency-based (Signal Injection)	Aerospaces	[57]
170 W	Model-based (EKF)	High power and high current	[28]
170 W	Model-based (EKF)	Industrial applications	[28]
170 W	Saliency-based (Signal Injection)	High power and high current	[41]
170 W	Saliency-based (Voltage injection)	High power and high current	[42]
230 W	Model-based (EKF)	Power applications, high speed	[27,29]
230 W	Saliency-based (Signal Injection)	Power applications	[45]
500 W	Saliency-based (Signal Injection)	Low speed applications	[48]
1 kW	Model-based (Luenberger)	Electric vehicles	[55]
2.3 kW	Back EMF	Industrial applications	[9]
3 kW	Model-based (MRAS)	Industrial applications	[32]
3.7 kW	Combination method	Power applications	[25]
4.2 kW	Model-based (Luenberger)	Small and medium machines	[26]
4.5 kW	Saliency-based (Current Injection)	Special applications in aircraft drives, Automotive tractions, and electric ship propulsions	[47]
5 kW	Saliency-based (FPE)	Low- and zero-speeds applications	[19]
5.5 kW	Model-based (SMO)	Military applications	[35]
6.7 kW	Model-based (Back EMF)	High-speed applications	[58]
20 kW	Model-based (MRAS)	Aircraft and high-speed applications	[33]
240 W	Current control	High-power industrial applications	[23]
200 W	Model-based	Electric vehicles	[24]
Undefined	Signal injection	Industrial applications	[39]
Undefined	Saliency-based (FPE)	Low speed applications	[52]
Undefined	Combination method	High-power applications	[53,54]

, the details of the applications, power levels, and applied sensorless control techniques of DTP-PMSMs from the literature are listed. The table shows that DTP-PMSMs with sensorless control have many industrial applications. Although some of the research focuses on high-power applications, the experimental implementation and evaluation have been limited to low-power levels. Additionally, some researchers are attempting to employ combination methods.

8. Conclusions

This paper has conducted a review of sensorless control of dual three-phase PMSMs (DTP-PMSMs). Sensor-free control is a major area of interest in DTP-PMSM. Sensorless control is superior to sensor-based control when it comes to overall system reliability and cost. Multiphase drives have also attracted the interest of academics and industry over the last three decades. A variety of rotor-position and speed-estimate algorithms have been discussed in the literature, with the aim of determining the most appropriate control approach for use in applications such as ship propulsion, wind turbines, and aerospace, to mention just a few. Based on the research reviewed in this article, there are areas for potential research and development:

• Some applications, such as aircraft, need an ultra-fast, sensorless DTP-PMSM drive; however, researchers are now faced with the difficulty of figuring out how to acquire the position information under low carrier ratios.
• Improving the dynamic performance of position sensorless drives for DTP-PMSM is difficult in comparison to motor drives that include a position sensor. It is envisaged that there will be a greater focus on optimising dynamic sensorless performance for use in high-performance applications in the future.
• PMSM characteristics are known to fluctuate significantly with load changes. It therefore is necessary to improve the robustness of the sensorless PMSM drives to machine parameter fluctuation in order to acquire the rotor position accurately across a broad range of loads.
• For preferable performance, a combination of two or more techniques is beneficial for estimating the rotor position. Very few studies have been conducted on this for DTP-PMSMs, which might be a promising area for future study.
• In order to further strengthen the power density and the reliability of the electric actuating system, a sensorless control strategy for fault-tolerant operation (e.g., losing one set of three-phase windings) of DTP-PMSM is important. From the literature reviewed in this article, there are few publications that explain how to control the fault-tolerant operation of DTP-PMSM without sensors at both high and low speeds, which could be an interesting topic for research in the future.
