Experimental and DFT Studies of Influence of Flue Gas Components on the Interaction between CaO and As during Sludge Combustion

College of Electrical and Power Engineering, Taiyuan University of Technology, Taiyuan 030024, China
*
Author to whom correspondence should be addressed.
Energies 2024, 17(11), 2522; https://doi.org/10.3390/en17112522
Submission received: 20 April 2024 / Revised: 9 May 2024 / Accepted: 20 May 2024 / Published: 23 May 2024
(This article belongs to the Special Issue Zero Carbon Emissions, Green Environment and Sustainable Energy)

Abstract

:
The problem of As pollution emission from sludge during combustion has received widespread attention. The impact of flue gas components on the interaction with CaO and As during sludge combustion was analyzed using a series of experimental characterization methods. The strength of the activity of As2O3 on the CaO(001) surface as well as on the CO2/SO2/H2O+CaO(001) surface with different O adsorption sites was revealed by combining with Density Functional Theory (DFT). According to the results, CO2 in the flue gas reacted with CaO in a reversible carbonation reaction, which optimized the pore structure of the solid phase products and promoted the capture of As by CaO. SO2 in the flue gas reacted with CaO in a sulfation reaction reaction to block the pores, which was not conducive to the capture of As by CaO. The presence of moisture led to poor pore structure collapse of the solid phase products as well as the formation of gehlenite, which reduced the enrichment of As by CaO. DFT calculations showed that the adsorption of As2O3 molecules on the CO2+CaO(001) surface was affected by the position of the O active site, and the adsorption energy at the OC1 top site was higher than that on the clean surface, which was favorable for the stable adsorption of As2O3 molecules. The existence of SO2 decreased As2O3 molecules’ adsorption energy on the CaO(001) surface, which was unfavorable for the adsorption of As2O3 molecules. There were two main effects of H2O molecules on the adsorption of As2O3 on the CaO(001) surface. One was the H2O molecules weakened the interaction between the As atoms and Osurf atoms, which was unfavorable to the adsorption of As2O3 molecules; the other was the existence of stronger adsorption of O atoms in H2O molecules on As atoms in As2O3 molecules, which made As2O3 molecules adsorbed at the top of OH0 adsorbed with adsorption energies much larger than that of clean surface, and the adsorption was more stable.

Graphical Abstract

1. Introduction

With accelerated cityization and industrialization, the amount of wastewater generated is on the rise year by year. According to statistics, China treated 86.21 billion tons of sewage in 2021. As a by-product of wastewater treatment, sludge contains a large amount of harmful heavy metal elements, which have a serious impact on the ecological environment and human health. The combustion method is widely used because it can achieve the reduction, stabilization, and harmlessness of sludge [1,2]. During combustion, heavy metals are not produced and destroyed; they are only migrated and transformed. As, a semi-volatile element, it is highly toxic and carcinogenic and has a non-negligible impact on humans and the environment [3,4,5,6]. Studies have shown that there exists As in flue gas of sludge after combustion, mainly in the form of As2O3(g) [7,8,9].
The sludge is complex in composition and contains various mineral components. During combustion, these minerals can react with heavy metals and affect their migration [10,11,12,13]. Studies have shown that As was converted to arsenate in the presence of reactive metal minerals (Ca, Fe, and Al), enhancing the enrichment of As [14,15]. Zhang et al. [16] performed As vapor adsorption tests on metallic minerals using a fixed bed reactor. The results indicated that CaO and Fe2O3 had better potential in terms of As removal capacity compared to Al2O3. Mahuli et al. [17] found after experiments using a differential bed reactor that the calcined Ca(OH)2 had a more developed pore structure and could better immobilize As into the ash compared to kaolinite, Al2O3, and SiO2. Batroňová [18] concluded from industrial and laboratory scales that limestone contributed to As capture during combustion. Chen et al. [19] found that As adsorption by CaO at low temperatures was mainly physical and chemical oxidation at high temperatures. Han et al. [20] showed that CaO could react chemically with As2O3 to form less volatile calcium-arsenic compounds, such as Ca(AsO2)2.
The components of the combustion flue gas also impact the transport and transformation of heavy metals. Li et al. [21] conducted an experimental study using a drop tube furnace and concluded that the release of As in the flue gas was facilitated by the introduction of a certain amount of SO2 into the combustion atmosphere. Jiao et al. [22] concluded that the heavy metals collected in the cooling zone were not present in large amounts as chlorides but were converted to heavy metal sulfates deposited by introducing SO2 or steam into a laboratory-scale electrically heated rotary kiln reactor. Miller et al. [23] investigated the effect of sulfur content on As migration by injecting SO2 into a suspension-firing reactor; the experimental results proved that SO2 could inhibit As precipitation and reduce As emissions. Zou et al. [24] explored the As release pattern by passing different concentrations of H2O into the constant temperature coal combustion process. They found that the effect of H2O on As release varied with temperature, and H2O had a significant effect on As release in the low-temperature range, while H2O hardly affected As release in the high-temperature range.
In addition, flue gas components interact with minerals, which affects the interaction of minerals and heavy metals. Zhao et al. [25] found that both SO2 and NO were detrimental to the immobilization of As2O3 by Fe2O3, CaO, and γ-Al2O3 through simulated flue gas experiments. Among them, the inhibition effect of SO2 was highly dependent on their concentrations. High concentrations of SO2 weakened the inhibition effect of the three minerals. When the NO concentration was changed, the immobilization of As2O3 by the three minerals was largely unaffected. Yu et al. [26] found that CO2 and SO2 inhibited As adsorption by CaO and that SO2 inhibition was stronger than CO2 at 700 °C. As could be stably adsorbed to the Ca-O bond active site, and the captured As was present as AsO21− and AsO43−. Chen et al. [19] found that SO2 would sulphate with CaO and occupy the reaction site of As, thus inhibiting As capture. However, at higher temperatures, the generated CaSO4 had a certain adsorption effect on As, which was beneficial to As capture. Li et al. [21] found that SO2 caused CaO clogging sulphation and therefore had a greater inhibitory effect on As adsorption. Therefore there was a strong competition between the flue gas components of fuel combustion and heavy metals, which was manifested by the chemical reaction of the flue gas components with minerals and thus affected the capture of heavy metals.
At present, studies on the interaction of flue gas components with minerals and heavy metals were not uniformly understood and most of them were focused on the coal combustion process, which needed to be supplemented by the study of the sludge combustion process; secondly, the microscopic mechanisms at the molecular level were not yet clear. Sludge that has been mechanically dewatered produced a certain concentration of water vapor, SO2 and CO2 during the actual combustion process. These three flue gas components were of interest because of their strong impact on the removal of trace heavy elements from sludge intrinsic minerals. Based on this, this paper investigated the effects of CO2/SO2/H2O on the interaction of CaO with As during sludge combustion from both macro and micro aspects by combining experimental and simulation calculations, which was significant for the control of As pollution emission.

2. Materials

Sewage Sludge (SS) used in this paper was taken at a wastewater treatment plant in Taiyuan, Shanxi. Prior to the combustion test, a certain mass of SS containing about 80% moisture was placed on a tray and put into a blow-dryer and dried at a temperature of 105 °C for 48 h until there was no further change in the sludge mass. The dried sludge was then ground into a powder in a coal mill and sieved to obtain a sample of sludge with a particle size of less than 100 μm. CaO was analytically purity and no further purification was required. The proximate and ultimate analyses of the sludge samples were carried out with reference to GB/T 212-2008 and GB/T 31391-2015 [27], and their analytical results are shown in Table 1. As content and intrinsic mineral content of the sludge are shown in Table 2.

3. Experimental Setup

3.1. Combustion Experiments

Figure 1 showed the test system diagram, and the system was mainly divided into three parts, namely the gas distribution system, combustion system and exhaust gas absorption system. Before the test, open the gas distribution system, adjust the flowmeter to make each gas reach the required combustion atmosphere, and keep the total gas flow rate at 2 L/min. The horizontal tube furnace was purged with a period to ensure that the atmosphere in the tube meets the test conditions. The furnace was raised until the desired combustion temperature, where a quartz boat with 2 g of material was slowly pushed into its center in order to perform the combustion test. The tail flue gas was absorbed with 5% NaOH, 5% HNO3 solution and water, respectively, to prevent pollution of the environment. After 1 h, the temperature control system was switched off and the quartz boat was removed, and the sludge solid phase products mass was weighed after the furnace had cooled. Each test was repeated three times to reduce test errors.
Generally, the water content of sludge after mechanical dewatering is about 80% [28], so there is still a certain concentration of water vapor in the flue gas produced during the actual combustion of sludge, while the combustion flue gas usually contains 10~30% of CO2 and 0.1~0.2% of SO2. The experimental combustion conditions for this design are shown in Table 3.

3.2. Methods

The devices used and the related parameters are shown in Table 4. After microwave digestion of the sludge samples and solid phase products, an inductively coupled plasma mass spectrometer (ICP-MS) was used to measure the content of heavy metal As in them, and each measurement was repeated three times. To characterize the migration of heavy metals, the residual rate R and volatilization rate V presented the mass of heavy metals remaining in the solid phase products after sludge combustion and the mass of heavy metals volatilized into the gas phase as a percentage of the total mass of heavy metals in the original sample, respectively, i.e., R + V = 1. The residual rate was explained in Equation (1):
R   = ( C ash   ×   r ash C s )   ×   100 %
where Cs was the number of heavy metals in the original sample, mg/kg; Cash was the number of heavy metals in the solid phase products, mg/kg; rash was the solid phase products yield after combustion, which was the ratio of the weight of solid phase products after reaction to the weight of the original sample.
The sludge samples and solid phase products were analyzed for pore structure applying a specific surface and porosity analyzer (BET). An X-ray diffractometer (XRD) was adopted to analyze the physical composition of solid phase products with a scanning speed of 2°/min and a scanning range of 5° to 85°. The microstructure and elemental distribution of sludge samples and solid phase products were observed and analyzed using a scanning electron microscope energy spectrum analyzer (SEM-EDS).

4. Theoretical Calculations

4.1. Calculation Parameters

Based on DFT, the Cambridge Serial Total Energy Package (CASTEP) module in Materials Studio 2019 software was used for the study [29]. The exchange-correlation generalized function used the PBE (Perdew-Burke-Ernzerhof) [30] method in GGA (Generalized Gradient Approximation) [31], the electron wave function was expanded with a plane wave basis group to describe the electron-ion interaction with the help of a super-soft pseudopotential, and the optimization algorithm BFGS (Broyden-Flechter-Goldfarb-Shanno) was chosen to optimize the geometrical structure of the model. After conducting the cut-off energy test and energy convergence test, the cut-off energy was set to 450 eV with a k-point Brillouin zone of 3 × 3 × 1, taking into account the calculated efficiency and accuracy. The structural and energy convergence criteria were 1.0 × 10−6 eV/atom for the self-consistent field accuracy convergence, 1.0 × 10−5 eV/atom for the energy accuracy convergence, maximum displacement of 0.001 Å, maximum stress convergence criterion of 0.03 eV/Å, and maximum strain convergence accuracy of 0.05 GPa.

4.2. Model Parameters

The geometry of CaO cell and each molecule was optimized using the above optimization parameters and the optimized bond parameters were presented in Table 5.
The relative error of each optimization value compared to the reference value [32] was less than 3%, indicating that the geometric optimization results were reliable. CaO crystal space group was FM-3M, and (001) crystal plane [33,34] was chosen as the adsorption substrate as the crystal plane was the most exposed and more common in its natural state and had the best stability. Considering the need to reduce calculation volume and improve calculation efficiency, the atomic level of CaO was chosen to be 4 layers, with 2 atomic slack on the surface and 2 layers fixed. To facilitate the adsorption of adsorbed molecules and to eliminate the impact of adjacent periodic structures on the calculation results, a (3 × 3) supercell plane was created with a 12 Å vacuum layer above the crystal plane so that there was no real interaction between the different atomic layers. Four adsorption sites on the CaO(001) surface were considered in the computational optimization process, namely the surface hollows, O top sites, Ca-O bridge sites, and Ca top sites, as shown in Figure 2 for CaO(001) periodic plate model.

4.3. Calculation of Adsorption Energy

For the purpose of characterizing how strongly the interaction between the adsorbed substance and CaO(001) surface, the adsorption energy was introduced and defined as Equation (2):
Eads = EfinalsystemEslabEadsorbate
where Eads energy of adsorption, kJ/mol; Efinalsystem was the total energy of the system after adsorption, kJ/mol; Eslab was the energy of the surface substrate before adsorption, kJ/mol; Eadsorbate was the energy of the adsorbed material, kJ/mol. When Eads was positive, the reaction could not proceed spontaneously. When Eads was negative, the reaction could proceed spontaneously, and larger values indicate stronger adsorption. In general, physical adsorption was considered to occur when the absolute value of adsorption energy was lower than 30 kJ/mol, and chemisorption was considered to occur when the absolute value was greater than 50 kJ/mol [35].

5. Results and Discussion

5.1. Migration Behaviour of As from Sludge Combustion Process

5.1.1. Impact of CaO on As Migration Pattern

Figure 3 shows the impact of CaO on the As migration pattern under different temperature conditions in the sludge combustion process. The results showed an overall decreasing trend in the residual rate of As with temperature (except 900 °C). With the combustion temperature increasing from 700 °C to 1000 °C, the residual rate of As decreased from 62.62% to 51.91%, a reduction of 10.71%. These were mainly heavy metals’ melting and boiling points in relation to volatilization characteristics. The higher the temperature, the higher the saturation vapor pressure of the heavy metals and their compounds, which made the heavy metals more easily released into the gas phase, detrimental to the immobilization of As. The residual rate of As showed an inflection point at 900 °C with a sudden increase to 67.62%. After the addition of 4% CaO, the trend of As residual rate with temperature was consistent with that of the unadded one, and it was suddenly increased to 77.61% at 900 °C. The residual rates of As increased significantly at any temperature, indicating that the presence of CaO favored the enrichment of As in the solid phase products. CaO reacted with gaseous arsenic-containing substances in the flue gas in the chemical reaction shown in Equation (3) to produce a more stable calcium-arsenic compound [13,36]. The immobilization of As by CaO was most significant at a temperature of 1000 °C, with the residual rate increasing from 51.91% to 67.08%, an increase of 15.17%.
3 CaO + O2 + As2O3 → Ca3(AsO4)2

5.1.2. Impact of CO2/SO2/H2O on the Interaction of CaO and As

The impact of CO2, SO2, and H2O on As migration pattern in the process of sludge combustion in the presence or absence of 4% CaO was presented in Figure 4.
A comparison of working conditions T3, C1, C2, and C3 showed that the residual rate of As increased when the sludge was burned in the atmosphere with CO2. At the same time, with the increase of CO2 concentration in the atmosphere (10% increased to 30%), the residual rate of As increased from 68.79% to 73.95% with an increase of 5.16%, and more As was enriched in the solid phase products. This outcome was determined by a combination of three factors: (a) In the case of the same air intake, the N2 concentration in the combustion atmosphere would reduce when the CO2 concentration increased. The specific heat capacity of CO2 was greater than that of N2, which lowered the combustion temperature, resulting in a decrease in the vapor pressure of the heavy metals, a decrease in the volatilization rate, and an increase in the residual rate [37]. (b) The density of CO2 was greater than that of N2, and compared with the 20O2/80N2 atmosphere, the passage of a large amount of CO2 increased the O2 diffusion resistance, slowed down the sludge combustion rate, and inhibited the volatilization of heavy metals. (c) When a high concentration of CO2 was present in the combustion atmosphere, it reversed Equation (4) and converted the secondary oxides of volatile arsenic into more thermally stable arsenic oxide compounds, thus inhibiting the volatilization of As [38]. (d) At 900 °C, the high concentration of CO2 would react with the sludge to a certain degree of gasification, which might lead to decomposition of the organic matter in the sludge and an increase in the sludge porosity, allowing As to be released more into the flue gas along with the volatile substances. Compared to TC3, the residual rate of As after sludge combustion with the addition of 4% CaO increased by 1.09% when 20% CO2 was introduced, indicating that the presence of CO2 facilitated As capture by CaO and inhibited As volatilization into the flue gas.
AsmOn + CO ↔ AsmOn−1 + CO2
Compared to the original sludge combustion (T3), the proportion of As released into the flue gas increased with the introduction of SO2 (working conditions S1, S2, and S3). With the increase of SO2 concentration (0.1% to 0.2%), the residual rate of As decreased from 64.65% to 50.86%, a decrease of 13.79%, indicating that SO2 was detrimental to the enrichment of As in the solid phase products. The large amount of SO2 could combine with calcium-based minerals in the sludge and occupy the active sites of As in the original minerals, thus accelerating the release of As. Compared with TC3, after combustion of sludge loaded with 4% CaO in a 0.15SO2/20O2/79.85N2 atmosphere, the residual rate of As decreased from 77.61% in the former to 68.65% in the latter, which was a reduction of 8.96%, suggesting that the presence of SO2 was also detrimental to the capture of As by CaO. In addition, the As residual rate of sludge loaded with 4% CaO increased by 13.15% from 55.50% to 68.65% after combustion in 0.15SO2/20O2/79.85N2 atmosphere compared to S2. There might be two reasons for this: (a) The addition of excess CaO compensated for the inhibitory impact of SO2 presence in fixing As by CaO. (b) CaSO4, produced by the chemical reaction between SO2 and CaO, had a certain trapping capacity for As.
In order to investigate the strength of CaSO4’s ability to capture As, sludge loaded with 4% CaSO4 was combusted at different temperatures, as shown in Figure 3. As can be seen in Figure 3, the residual rate of As increased compared with the original sludge combustion after adding 4% CaO and 4% CaSO4 to the sludge at different temperatures, and the residual rate of As increased to a greater extent after combustion of the sludge with 4% CaO, which indicated that the immobilization of As by CaO was better than that by CaSO4. With the increase of temperature, the residual rate of As after the addition of 4% CaSO4 first decreased and then increased, and reached a minimum value of 64.34% at 900 °C, indicating that CaSO4 enriched As through physical adsorption in the range of 700 °C to 900 °C. With the increase in temperature, the kinetic energy of molecules increased, the physical effect weakened, the volatilization rate of As increased, and the residual rate decreased. Chen et al. [19] showed that CaSO4 reacted with As2O3 to produce more stable compounds at temperatures higher than 1000 °C, which could be well explained by the fact that at 1000 °C, the immobilization of As by CaSO4 changed from physical adsorption to chemical adsorption, resulting in an increase of As residual rate to 66.66%.
The test results of T3, H1, H2, and H3 indicated that the residual rate of As after the combustion of sludge with different water content was significantly reduced. When the moisture content was 10%, the residual rate of As was reduced by 22.29%. During the combustion process, the moisture in the sludge absorbed heat and changed into water vapor to be released from the sludge particles. At the same time, the water vapor and sludge ash coke underwent a gasification reaction in the anoxic part Equation (5), and a significant amount of gas was released from the ash particles, both of which optimized the pore structure of the sludge ash particles [39]. The developed pore structure could provide more reaction sites for heavy metals; however, it would also increase the contact area of carbon and oxygen reaction, accelerate the combustion reaction, and accelerate the volatilization of As; it would also reduce the diffusion resistance of As vapor, which was not conducive to the immobilization of As in the solid phase products. The test results also showed that the degree of reduction in the residual rate of As gradually diminished with increasing the moisture content. When the moisture content changed from 10% to 30%, the residual rate of As only reduced by 7.09% because when the moisture content increased, the high concentration of water vapor caused the collapse and closure of various micropores, forming macropores and mesopores, thus reducing the porosity of the particles. Secondly, the large amount of water vapor reacted with the sludge coke by cavitation reduced the temperature of the particle surface and was not conducive to the combustion reaction, both of which were favorable for the immobilization of As [40,41]. Compared to TC3, the residual rate of As was reduced by 8.89% in the presence of 4% CaO with a moisture content of 20% in the sludge, indicating that moisture was not conducive to As fixation by CaO. In the absence of CaO, the residual rate of As reduced by 28.00% after the combustion of sludge with 20% moisture content, which was much greater than that of 8.89%, and this indirectly suggested that the presence of CaO had a certain ability to capture As.
C + H2O → CO + H2

5.2. Characterization Analysis

5.2.1. Porosity Structure Analysis

The impact of CO2/SO2/H2O on the pore structure of the 4% CaO added sludge solid phase products could be further investigated by N2 adsorption/desorption method and the date were displayed in Table 6.
From Table 6, it can be seen that the specific surface area of the raw sludge decreased by about 40% after combustion compared with that without combustion, indicating that sludge melting occurred at 900 °C. After adding 4% CaO, there was a certain degree of improvement in the pore structure of sludge solid phase products, suggesting that adding CaO would inhibit the sintering of the sludge during combustion. With the addition of 4% CaO, the specific surface area and pore volume of the sludge solid phase products increased to a certain extent after the passage of CO2 compared to working condition T3, which might be due to the decomposition reaction of CaCO3 as shown in Equation (6) at 900 °C to produce more pore-like structures [42,43,44]. This reduced the diffusion resistance of heavy metal vapors but provided more reactive active sites for heavy metals, which facilitated their immobilization. Sludge solid phase products with 4% CaO were significantly worse in pore structure after the introduction of SO2 due to the sulphation reaction of SO2 with CaO through Equation (7), which blocked the pore structure of sludge ash particles, which was not conducive to As capture by CaO and allowed more As volatilization into the gas phase [45,46,47]. When the sludge with 4% CaO (20% moisture content) was burned, a small amount of Ca(OH)2 underwent Equation (8) decomposition reaction, and sludge moisture evaporated to water vapor. When the water vapor underwent a gasification reaction, a large amount of gas escaped from the surface of the particles, all of which were conducive to the optimization of the pore structure [48,49,50]. On the contrary, compared to TC3, BET results showed that the specific surface area and pore volume at H4 reduced by 17.48% and 2.61% due to large amounts of gas released from the surface of the particles. The pore walls between the pores decreased until they broke and collapsed, which closed the pore volume and reduced the specific surface area, detrimental to the immobilization of heavy metals in the solid phase product.
CaCO3 → CaO + CO2
CaO + SO2 + 1/2 O2 → CaSO4
Ca(OH)2 → CaO + H2O

5.2.2. Microscopic Morphological Analysis

For a more visual analyzed the impact of CO2/SO2/H2O on the combustion of sludge added with 4% CaO, SEM-EDS was used to analyze the microscopic morphological structure and elemental distribution changes of the sludge solid phase products, as presented in Figure 5.
Figure 5 clearly showed that the raw sludge mainly exhibited an irregular granular distribution in terms of morphology. After combustion at 900 °C, the sludge solid phase products as a whole showed a molten surface morphology. After the addition of CaO, the surface of the sludge ash particles became more porous, and the pore channels increased significantly compared to T3, indicating that CaO enhanced the anti-sintering properties of the sludge and increased the porosity of solid phase products. The larger cavities formed on the surface at C3 were the result of CaCO3 decomposition, where a large amount of CO2 gas escaped from the surface of the particles, forming a more developed pore structure, which was agreed with BET test results. Ash particles surface at S4 appeared as a cubic pile of granular bodies, for which energy spectral analysis showed that the main elements in this region were Ca, S, and O, indicating that the newly generated lamellar structure was CaSO4. A larger volume of pores appeared on the surface at H4, while the surface became smooth, which corresponded to the analysis in Section 5.2.1. After the energy spectral point sweep, in the red circled region shown in Figure 5 were significant elements of Ca, Si, Al, and O. The presence of moisture might have promoted the formation of gehlenite.

5.2.3. Phase Composition Analysis

Section 5.2.2 showed that there were some differences in the microstructure of the sludge solid phase products under different atmospheres, and XRD of the sludge ash particles under different working conditions was shown in Figure 6.
It was observed from Figure 6 that no diffraction peaks were detected in the ash particles after the combustion of the original sludge for CaO, while CaO diffraction peaks could be detected in the ash residues at TC3, C4, S4, and H4. No diffraction peak of CaCO3 was detected in C4 since CaCO3 could not exist stably at 900 °C and would completely decompose into CaO and CO2, both of which could inhibit As volatilization through Equation (3) and facilitated the immobilization of As. CaSO4 diffraction peaks were clearly detected in S4, while the intensity of the CaO diffraction peak decreased slightly compared to TC3, indicating that part of CaO reacted with SO2 to convert into CaSO4 and that CaSO4 existed stably at 900 °C and did not decompose. In addition, the excess CaO had some ability to trap As, which agreed with the results in Section 5.1.2. For H4, there was a significant enhancement of the diffraction peaks of gehlenite and the intensity of the diffraction peaks of CaO was reduced because the presence of moisture promoted the conversion of the calcium-based minerals in the sludge to the more thermally stable gehlenite, as shown in Equation (9), which was consistent with EDS results.
2 CaO + Al2O3 + SiO2 → Ca2Al2SiO7

5.3. Calculation Results and Discussion

In order to better investigate the microscopic mechanism of CO2, SO2, and H2O on the interaction of CaO with As2O3, the active sites of a single As2O3 molecule adsorbed on the CaO(001) surface in three ways, As-terminus, O-terminus and As-O bond, respectively, were firstly investigated as shown in Figure A1, and the parameters of the optimized adsorption structure are shown in Table A1. Secondly, the stable adsorption structures of the CO2 molecule, SO2 molecule and H2O molecule on the CaO(001) surface were used as substrates to adsorb As2O3 molecules, respectively, to investigate the effects of the presence of CO2, SO2 and H2O on the adsorption of As2O3 molecules on the CaO(001) surface. In order to ensure the completeness of the analysis, the active sites of a single CO2/SO2/H2O molecule adsorbed on the CaO(001) surface in a parallel or perpendicular manner were considered, as shown in Figure A2, Figure A3 and Figure A4. The parameters of the optimized adsorption structures are shown in Table A2, Table A3 and Table A4. For the CO2/SO2/H2O+CaO(001) surface, the stabilized structures 3-a, 1-b, and 1-a (H2O molecules intact) with the largest adsorption energies were selected as adsorption substrates, respectively. Considering the obvious periodicity and symmetry of each stabilized structure, as well as the fact that the Osurf top site on the CaO(001) surface was the active site for the adsorption of As2O3 molecules, the adsorption reactions at the surface vacancies, the Ca-O bridging site, and the Ca top site were not taken into account. The O top sites on the CO2/SO2/H2O+CaO(001) surface that were considered to have adsorption potentials are shown in Figure 7.
As shown in Figure A1 and Table A1, the adsorption energy of As2O3 molecules reached a maximum after placing them vertically with As terminus at the Osurf top site on the CaO(001) surface, so a single As2O3 molecule was considered to adsorb in the same initial manner on the potential O-active site on CO2/SO2/H2O+CaO(001) surface. The structure of As2O3 before and after adsorption on the CO2/SO2/H2O+CaO(001) surface is shown in Figure 8, and the relevant parameters after adsorption are shown in Table 7. Figure 8 and Table 7 indicate:
For the CO2+CaO(001) surface, when As2O3 molecules were adsorbed at the OC0 top site, the As2O3 molecules would move away from the surface with an adsorption energy of −26.737 kJ/mol, which was physisorption. This might be due to the fact that the presence of CO2 occupied the Osurf active site, and repulsion between itself and the As2O3 molecules would occur, making the As2O3 molecules unable to be stably adsorbed on the OC0 top site. Upon adsorption at the top sites of OC1 and OC2, the distance between the As2O3 molecules and the CO2 molecules increased, the CO2 was deflected at an angle, and the As2O3 molecules formed the same stable adsorption configuration as on the clean surface. However, compared with the clean surface, the As-Osurf bond length increased, the number of bond layouts decreased, and the number of electrons transferred by As2O3 molecules decreased, whereas the C-Osurf bond decreased, the number of bond layouts increased, and the number of electrons transferred by CO2 molecules increased compared with the pre-adsorption period, which suggested that the interactions between the As2O3 molecules and CaO(001) surface were weakened, whereas the interactions between CO2 molecules and CaO(001) surface were enhanced. Meanwhile, the absolute magnitude of adsorption energy after stabilized adsorption: top site of the OC1 (209.972 kJ/mol) > top site of Osurf (202.774 kJ/mol) > top site of OC2 (190.502 kJ/mol). This might be due to the fact that, for the OC1 top site, the strengthened interaction between CO2 and CaO(001) surface was greater than the weakened interaction between As2O3 and CaO(001) surface, which overall showed a strengthened degree of interaction and increased adsorption energy. For the OC2 top site, the weakened interactions between As2O3 and CaO(001) surface were greater than the strengthened interactions between CO2 and CaO(001) surface, which overall showed a weakened degree of interactions and reduced adsorption energy. When As2O3 molecules were adsorbed at the top site of OC3, the As2O3 molecules were transformed from a hexahedral structure to a chain structure, and the As atoms closer to the CO2 molecules formed a 2.074 Å As-OC bond with the OC atoms, with an adsorption energy of −51.997 kJ/mol, which was a weak chemical adsorption. In summary, the effect of CO2 on the adsorption of As2O3 molecules on the CaO(001) surface was related to the position of the O active site, and the presence of CO2 favored the adsorption of As2O3 molecules at the OC1 top site, and was detrimental to their adsorption at the OC0, OC2 and OC3 top site.
For SO2+CaO(001) surface, when As2O3 molecules were adsorbed on OS0 top site and OS2 top site, they did not react with CaO(001) surface, and the adsorption energies were −7.430 kJ/mol and −2.239 kJ/mol, which belonged to the physical adsorption. This indicated that the presence of SO2 prevented the As2O3 molecules from adsorbing stably on the OS0 top site and OS2 top site. Upon adsorption at the OS1 top site and the OS3 top site, the As2O3 molecules formed the same stable adsorption configuration as on the clean surface. Compared with the clean surface, the As-Osurf bond lengths increased to 1.873 Å and 1.877 Å, and the As-Osurf bond layout numbers both decreased to 0.30, and the number of electrons transferred from CaO(001) surface to the As2O3 molecules decreased by 0.01e and 0.02e, indicating that the presence of SO2 made the As2O3 molecules and CaO(001) surface interaction becomes weaker, which was unfavorable to the adsorption of As2O3 molecules on the CaO(001) surface. For SO2 molecules, the number of bond layouts of As2O3 molecules after adsorption at the OS1 top site remained the same as before adsorption, but the number of charges transferred by SO2 molecules was reduced by the increase in the S-Osurf bond length. In contrast, the S-Osurf bond of the As2O3 molecule after adsorption at the OS3 top site increased in bond length, the number of bond layouts remained unchanged, and the number of transferred charges decreased more compared to that before adsorption. Therefore, the absolute magnitude of adsorption energy after adsorption: top site of Osurf (202.774 kJ/mol) > top site of OS1 (192.094 kJ/mol) > top site of OS3 (177.109 kJ/mol). When the As2O3 molecule adsorbed at the OS4 top site, one of the As-O bonds in the As2O3 molecule was broken, the corresponding As atom was bonded to both the S and OS atoms in the SO2 molecule, and this S-OS bond was broken, and the calculated adsorption energy of the structure was 80.323 kJ/mol > 0, indicating that the reaction could not take place. In summary, SO2’s were unfavorable for the adsorption of As2O3 molecules at the top sites of OS0~OS4.
For H2O+CaO(001) surface, when As2O3 molecules were adsorbed at the OH0 top site and OH2 top site, both H-OH bonds in H2O molecules were broken, and the free H atoms formed a new chemical bond, H-Osurf bond, with Osurf atoms on the CaO(001) surface, respectively. The As2O3 molecule would not react with CaO(001) surface, but would interact with the free OH atoms in the H2O molecule, and the absolute values of adsorption energies were 241.446 kJ/mol and 236.457 kJ/mol, respectively (much larger than that of the clean surface, 202.774 kJ/mol), which were strong chemisorption. The As-OH bond lengths were 1.788 Å and 1.768 Å, and the number of electrons transferred to the As2O3 molecule were 0.40e and 0.39e, respectively, suggesting that the presence of H2O facilitated the As2O3 molecule to adsorb more stably on the surface. Upon adsorption at the OH1 top site, the As2O3 molecule formed the same stable adsorption configuration as on the clean surface. The H2O molecule did not decompose, and the absolute value of adsorption energy after adsorption was 199.484 kJ/mol, which was slightly reduced compared with the clean surface. The As-Osurf bond length increased by 0.018 Å, the number of As-Osurf bond layouts both decreased to 0.01, and the number of electrons transferred from the CaO(001) surface to the As2O3 molecule decreased by 0.04e. This indicated that H2O had an inhibitory effect on the interactions between the As2O3 molecule and CaO(001) surface, which was not conducive to the adsorption of As2O3 molecules at the OH1 top site on the CaO(001) surface for the adsorption of OH1 top site.
In order to further probe the changes in the electronic structure of As2O3 molecules reacting on the CO2/SO2/H2O+CaO(001) surface, the stable structures with the largest adsorption energies (Osurf, OC1, OS1, and OH0 top sites) were subjected to partial density of state analysis, as shown in Figure 9.
As seen in Figure 9a, when As2O3 molecules were adsorbed on the CaO(001) surface, the s orbitals of the As atoms and the S orbitals of the Osurf atoms produced a significant overlap of the density of states peaks at −19.95 eV, −18.83 eV, −17.56 eV, −9.33 eV, −7.81 eV, and −4.84 eV, respectively. The s orbitals of the As atoms and the p orbitals of the Osurf atoms had overlapping orbitals at −17.56 eV, −9.33 eV, −7.81 eV, −5.52~0.42 eV and 2.48~14.30 eV. More orbitals of the P orbitals of the As atoms and the p orbitals of the Osurf atoms overlap at −5.52~0.42 eV and 2.48~14.30 eV, indicating that strong orbital hybridization had occurred between the As atoms and the Osurf atoms to form a new chemical bond. As shown in Figure 9b, after the adsorption of As2O3 molecules at the OC1 top site, the degree of overlap of partial density of state orbitals of the reacted As atoms and Osurf atoms remained basically the same as that on a clean surface, but the overall orbitals were shifted to higher energy levels, indicating the weakening of the interactions between the As atoms and the Osurf atoms. This corresponds to the increase in As-Osurf bond length and the decrease in the number of transferred charges in Table 7. For C and Osurf atoms, the degree of overlap of partial density of state orbitals of the two atoms after adsorption remained basically the same as that before adsorption, but the overall orbitals were shifted to the lower energy level direction, indicating that the interaction between C and Osurf atoms was enhanced, which resulted in the increase of adsorption energy of As2O3 molecules after adsorption at the top site of OC1. As shown in Figure 9c, When As2O3 molecules were adsorbed at the top site of OS1, the partial density of state orbitals of As and Osurf atoms overlapped to a degree essentially identical to the clean surface, and their overall orbitals were similarly shifted to higher energies and were higher than the energy levels after adsorption at the top site of OC1. It indicated that the interaction between As and Osurf atoms was weakened, which was not conducive to the stable adsorption of As2O3 molecules. As shown in Figure 9d, When the As2O3 molecule adsorbed at the OH0 top site, the s orbitals of the As atoms and the s orbitals of the OH atoms in the H2O molecule underwent orbital hybridization at the density of states peaks at −19.08 eV, −17.49 eV, −9.33 eV, and −7.73 eV, and the s orbitals of the As atoms and p orbitals of the OH atoms at −5.32~0.49 eV underwent a large area of density of states overlap, indicating that a strong interaction between As and OH atoms occurs, forming an As-OH bond of 1.788 Å, which was favorable for the stable adsorption of As2O3 molecules.

6. Discussion

In this paper, the effects of CaO and flue gas components (CO2, SO2, and H2O) on As migration and transformation during sludge combustion were investigated separately using a horizontal tube furnace; moreover, the effects of flue gas components on the interaction between CaO and As were explored. The activity strength of As2O3 molecules adsorbed on different surfaces was revealed in combination with DFT. The results showed that:
(1)
CaO chemically reacted with gaseous arsenic-containing compounds to produce more stable calcium-arsenic compounds, and CaO immobilized As better than CaSO4. CO2 contributed significantly to the immobilization of As. When CO2 concentration increased from 0% to 30%, the residual rates of As increased by 6.33%. SO2 was detrimental to the immobilization of As. As SO2 concentration increased from 0% to 0.2%, the residual rate of As showed a decreasing trend, decreasing by 16.76%. H2O had a significant inhibitory effect on the immobilization of As. The moisture content in sludge increased from 0% to 30%, and the residual rate of As was decreased by 29.38%.
(2)
The residual rate of As after combustion of sludge loaded with 4% CaO in 20CO2/20O2/60N2 atmosphere increased by 1.09%, and CO2 favored the capture of As by CaO. The residual rate of As was reduced by 8.96% after combustion of sludge loaded with 4% CaO in 0.15SO2/20O2/79.85N2 atmosphere, and SO2 inhibited CaO to fix As. The residual rate of As was reduced by 8.89% at 20% water content in sludge loaded with 4% CaO, and the presence of water was unfavorable for the capture of As by CaO.
(3)
DFT calculations showed that the CaO(001) surface O top site was the active site for the adsorption of As2O3, CO2, SO2, and H2O molecules. The adsorption energy of As2O3 molecules at the OC1 top site (−209.972 kJ/mol) was higher than at the Osurf top site (−202.774 kJ/mol). CO2 favored the stable adsorption of As2O3 molecules at the OC1 top site to the detriment of their adsorption at the top sites of OC0, OC2, and OC3. The adsorption energies of As2O3 molecules at potential active sites on SO2+CaO(001) surface were all lower than those on clean CaO(001) surface, and SO2 was unfavorable for the adsorption of As2O3 molecules at the top sites of OS0~OS4. For the OH0 and OH2 top sites, the H-OH bonds in the H2O molecule were broken, and the resulting OH atoms underwent more intense orbital hybridization with the As atoms in the As2O3 molecule. The adsorption energies (−241.446 kJ/mol and −236.457 kJ/mol) of the stabilized structure after adsorption were higher than those of the Osurf top site, which greatly facilitated the stabilized adsorption of the As2O3 molecule, whereas the OH1 top site was not conducive to the stabilized adsorption of the As2O3 molecule. In addition, in the theoretical calculation section only considered As2O3 (g), a major form of As present in combustion flue gas. In the actual combustion process, there were also singlet, chlorinated states, etc., which needed to be further investigated in the follow-up work.
(4)
Migration was a complex physicochemical reaction during the actual combustion of sludge. When exploring the migration law, not only shall we analyze the influence of physical properties such as pore structure and changes in chemical forms such as compounds on the migration of As from a macroscopic point of view by means of experimental characterization, but we shall also explain the changes in the electronic structure of atoms and molecules as well as the changes in the adsorption energy from a microchemical point of view by means of theoretical calculations. Probing the migration pattern of As was instructive for the efficient removal of heavy metals from sludge and the realization of stable and clean combustion of sludge.

Author Contributions

Conceptualization, Y.S.; methodology, J.Y.; software, Y.S.; validation, H.Z.; formal analysis, Y.S.; investigation, Y.F.; resources, Y.J.; data curation, Y.S.; writing—original draft preparation, Y.S.; writing—review and editing, Y.S. and Y.J.; visualization, Y.S.; supervision, H.Z.; project administration, Y.J.; funding acquisition, Y.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by State Key Laboratory of Power System and Generation Equipment (SKLD21KM16), the Fundamental Research Program of Shanxi Province (20210302124449; 202303021212043), and the Research and Innovation Program for Postgraduate in Shanxi Province (2023KY210).

Data Availability Statement

The original contributions presented in the study are included in the article; further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

Appendix A

Figure A1. Adsorption structure of As2O3 on the CaO(001) surface before and after optimization. (a) As-terminus; (b) O-terminus; (c) As-O bond.
Figure A1. Adsorption structure of As2O3 on the CaO(001) surface before and after optimization. (a) As-terminus; (b) O-terminus; (c) As-O bond.
Energies 17 02522 g0a1
Table A1. Structural parameters of As2O3 optimized on the CaO(001) surface.
Table A1. Structural parameters of As2O3 optimized on the CaO(001) surface.
Adsorption StructuresEads (kJ/mol)As-Osurf Key Length (Å)As-Osurf Populationq(As2O3) (e)
As-terminus1-a−202.5331.8360.32−0.39
2-a−202.7741.8360.32−0.38
3-a6.946--−0.10
4-a11.992--−0.07
O-terminus1-b−202.2731.8360.32−0.38
2-b21.120--0.01
3-b−202.7551.8360.32−0.32
4-b−6.909--−0.01
As-O bond1-c−31.735--−0.17
2-c−202.2341.8350.32−0.38
3-c−202.4271.8370.32−0.38
4-c−202.3891.8350.32−0.38
Notes: O atoms on CaO(001) are denoted by Osurf.

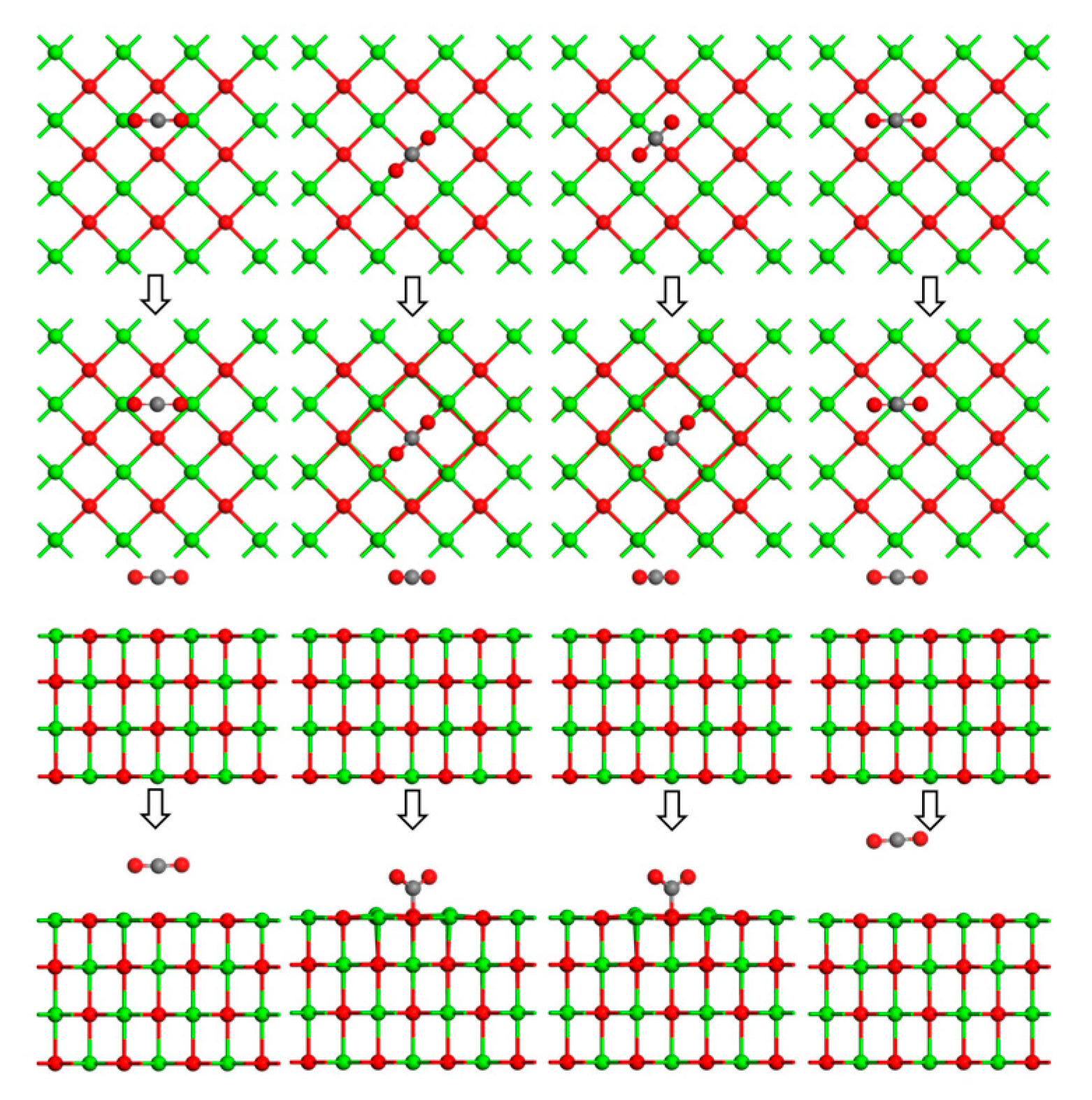

Figure A2. Adsorption structure of CO2 on the CaO(001) surface before and after optimization (C-terminus parallel).
Figure A2. Adsorption structure of CO2 on the CaO(001) surface before and after optimization (C-terminus parallel).
Energies 17 02522 g0a2

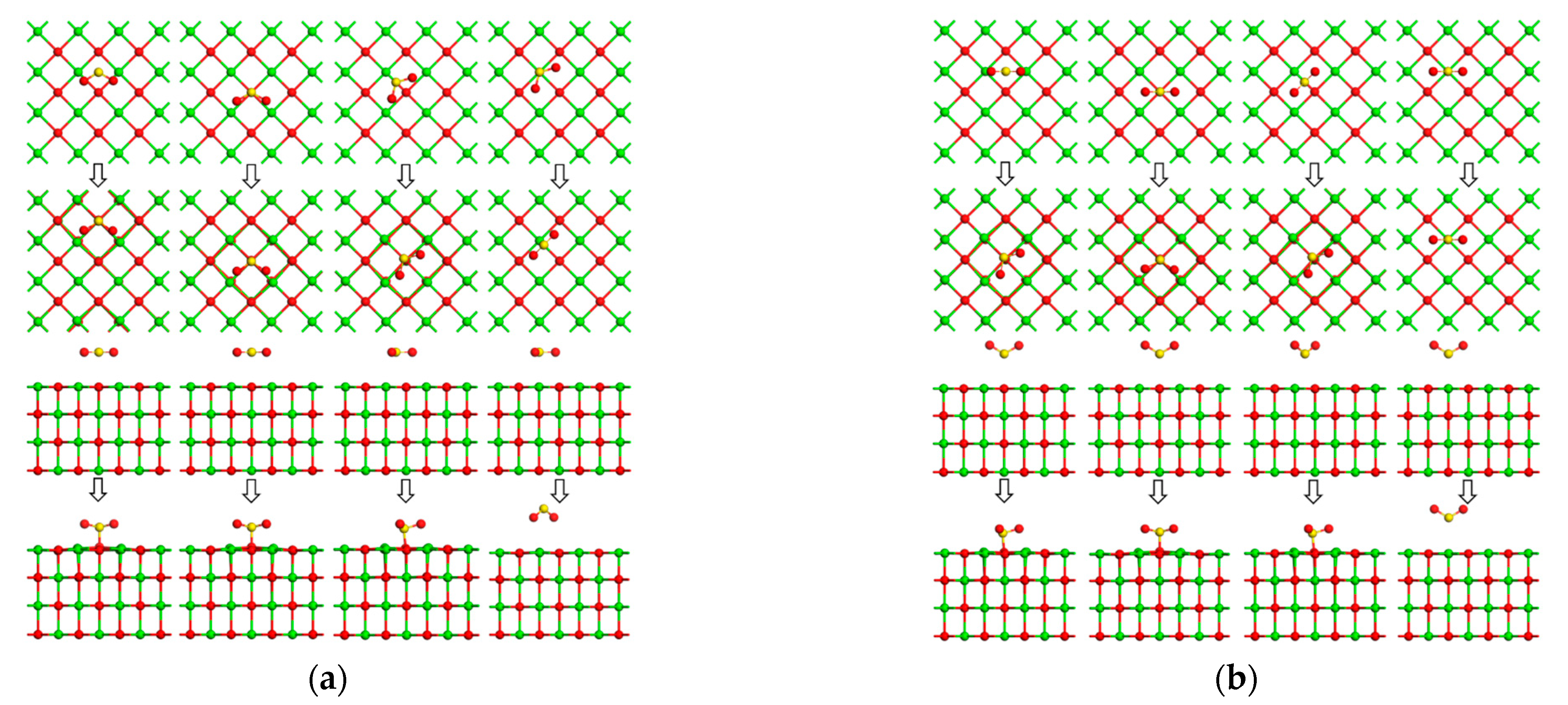

Figure A3. Adsorption structure of SO2 on the CaO(001) surface before and after optimization. (a) S-terminus parallel; (b) S-terminus vertical.
Figure A3. Adsorption structure of SO2 on the CaO(001) surface before and after optimization. (a) S-terminus parallel; (b) S-terminus vertical.
Energies 17 02522 g0a3

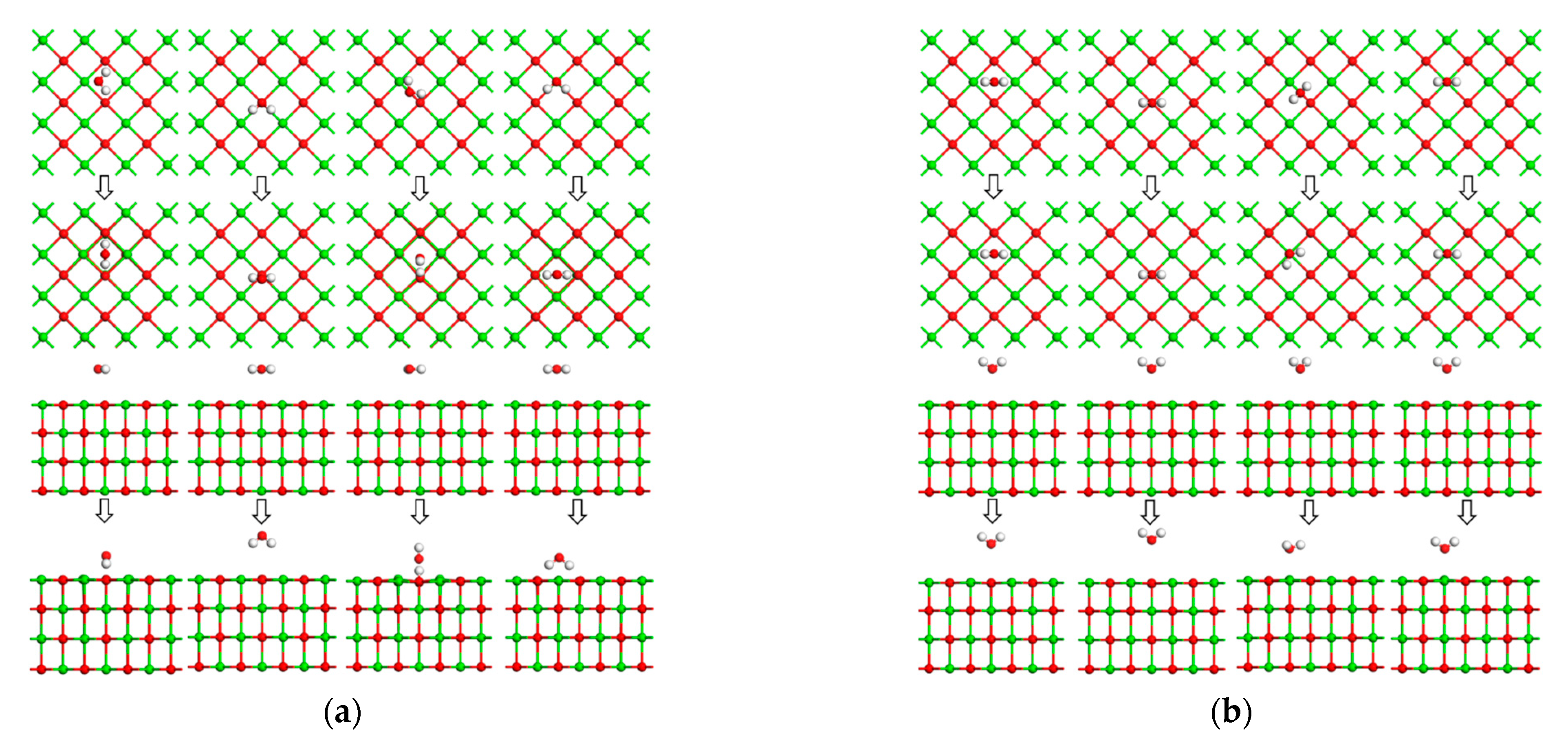

Figure A4. Adsorption structure of H2O on the CaO(001) surface before and after optimization. (a) O-terminus parallel; (b) O-terminus vertical.
Figure A4. Adsorption structure of H2O on the CaO(001) surface before and after optimization. (a) O-terminus parallel; (b) O-terminus vertical.
Energies 17 02522 g0a4
Table A2. Structural parameters of CO2 optimized on the CaO(001) surface.
Table A2. Structural parameters of CO2 optimized on the CaO(001) surface.
Adsorption StructureEads (kJ/mol)C-Osurf Bond Length (Å)C-Osurf Populationq(CO2) (e)
C-terminus parallel1-a−0.341--−0.05
2-a−123.3211.3930.63−0.64
3-a−123.3791.3920.63−0.64
4-a16.863--−0.01
Table A3. Structural parameters of SO2 optimized on the CaO(001) surface.
Table A3. Structural parameters of SO2 optimized on the CaO(001) surface.
Adsorption StructureEads (kJ/mol)S-Osurf Bond Length (Å)S-Osurf Populationq(SO2) (e)
S-terminus parallel1-a−169.4441.6990.21−0.31
2-a−169.4151.7000.21−0.31
3-a−177.0371.6720.22−0.30
4-a8.205--−0.15
S-terminus vertical1-b−177.0561.6710.22−0.30
2-b−169.5021.6980.21−0.31
3-b−176.6611.6720.23−0.3
4-b8.195--−0.1
Table A4. Structural parameters of H2O optimized on the CaO(001) surface.
Table A4. Structural parameters of H2O optimized on the CaO(001) surface.
Adsorption StructureEads (kJ/mol)H-Osurf Bond Length (Å)H-Osurf Populationq(H2O) (e)
O-terminus parallel1-a−58.875--−0.25
2-a11.772--−0.03
3-a−77.6991.0360.48−0.26
4-a−58.537--−0.25
O-terminus vertical1-b18.005--0.01
2-b19.182--0
3-b−8.606--0.03
4-b−4.766--0.03

References

  1. Stasta, P.; Boran, J.; Bebar, L.; Stehlik, P.; Oral, J. Thermal processing of sewage sludge. Appl. Therm. Eng. 2006, 26, 1420–1426. [Google Scholar] [CrossRef]
  2. Jang, H.N.; Kim, J.H.; Back, S.K.; Sung, J.H.; Yoo, H.M.; Choi, H.S.; Seo, Y.C. Combustion characteristics of waste sludge at air and oxy-fuel combustion conditions in a circulating fluidized bed reactor. Fuel 2016, 170, 92–99. [Google Scholar] [CrossRef]
  3. Xie, R.K.; Seip, H.M.; Wibetoe, G.; Nori, S.; McLeod, C.W. Heavy coal combustion as the dominant source of particulate pollution in Taiyuan, China, corroborated by high concentrations of arsenic and selenium in PM10. Sci. Total Environ. 2006, 370, 409–415. [Google Scholar] [CrossRef] [PubMed]
  4. Zhou, C.C.; Liu, G.J.; Yan, Z.C.; Fang, T.; Wang, R.W. Transformation behavior of mineral composition and trace elements during coal gangue combustion. Fuel 2012, 97, 644–650. [Google Scholar] [CrossRef]
  5. Tang, Q.; Liu, G.J.; Yan, Z.C.; Sun, R.Y. Distribution and fate of environmentally sensitive elements (arsenic, mercury, stibium and selenium) in coal-fired power plants at Huainan, Anhui, China. Fuel 2012, 95, 334–339. [Google Scholar] [CrossRef]
  6. Nriagu, J.O.; Pacyna, J.M. Quantitative assessment of worldwide contamination of air, water and soils by trace metals. Nature 1988, 333, 134–139. [Google Scholar] [CrossRef] [PubMed]
  7. Winter, R.M.; Mallepalli, R.R.; Hellem, K.P.; Szydlo, S.W. Determination of As, Cd, Cr, and Pb species formed in a combustion environment. Combust. Sci. Technol. 1994, 101, 45–58. [Google Scholar] [CrossRef]
  8. Contreras, M.L.; Arostegui, J.M.; Armesto, L. Arsenic interactions during co-combustion processes based on thermodynamic equilibrium calculations. Fuel 2009, 88, 539–546. [Google Scholar] [CrossRef]
  9. Liu, X.S.; Gao, Z.Y.; Wang, C.; Zhao, M.L.; Ding, X.L.; Yang, W.J.; Ding, Z. Hg0 oxidation and SO3, Pb0, PbO, PbCl2 and As2O3 adsorption by graphene-based bimetallic catalyst ((Fe,Co)@N-GN): A DFT study. Appl. Surf. Sci. 2019, 496, 143686. [Google Scholar] [CrossRef]
  10. Hong, J.D.; Zhao, Y.F.; Wu, J.; Xie, X.L.; Zhao, P.C.; Li, S.; Yao, H.; Luo, G.Q.; Liu, Z.H.; Yang, X. Fabrication of Al2O3/CaO with anti-sintering for efficient removal of As2O3 in simulated flue gas: Experimental and DFT study. Fuel 2022, 307, 121812. [Google Scholar] [CrossRef]
  11. Yao, H.; Naruse, I. Using sorbents to control heavy metals and particulate matter emission during solid fuel combustion. Particuology 2009, 7, 477–482. [Google Scholar] [CrossRef]
  12. Jadhav, R.A.; Fan, L.S. Capture of gas-phase arsenic oxide by lime: Kinetic and mechanistic studies. Environ. Sci. Technol. 2001, 35, 794–799. [Google Scholar] [CrossRef]
  13. Yu, S.H.; Zhang, C.; Ma, L.; Fang, Q.Y.; Chen, G. Insight into As2O3 adsorption characteristics by mineral oxide sorbents: Experimental and DFT study. Chem. Eng. J. 2021, 420, 127593. [Google Scholar] [CrossRef]
  14. Wang, J.W.; Zhang, Y.S.; Liu, Z.; Norris, P.; Romero, C.E.; Xu, H.; Pan, W.P. Effect of coordinated air pollution control devices in coal-fired power plants on arsenic emissions. Energy Fuels 2017, 31, 7309–7316. [Google Scholar] [CrossRef]
  15. Yang, Y.H.; Hu, H.Y.; Xie, K.; Huang, Y.D.; Liu, H.; Li, X.; Yao, H.; Naruse, I. Insight of arsenic transformation behavior during high-arsenic coal combustion. Proc. Combust. Inst. 2019, 37, 4443–4450. [Google Scholar] [CrossRef]
  16. Zhang, Y.; Wang, C.B.; Li, W.H.; Liu, H.; Zhang, Y.; Hack, P.; Pan, W.P. Removal of gas-phase As2O3 by metal oxide adsorbents: Effects of experimental conditions and evaluation of adsorption mechanism. Energy Fuels 2015, 29, 6578–6585. [Google Scholar] [CrossRef]
  17. Mahuli, S.; Agnihotri, R.; Chauk, S.; Ghosh-Dastidar, A.; Fan, L.S. Mechanism of arsenic sorption by hydrated lime. Environ. Sci. Technol. 1997, 31, 3226–3231. [Google Scholar] [CrossRef]
  18. Batroňová, L. Effect of CaO, Al2O3 and Fe2O3 in coal ash on the retention of acid- forming elements during coal combustion. WSEAS Trans. Power Syst. 2014, 9, 486–494. [Google Scholar]
  19. Chen, D.K.; Hu, H.Y.; Xu, Z.; Liu, H.; Cao, J.X.; Shen, J.H.; Yao, H. Findings of proper temperatures for arsenic capture by CaO in the simulated flue gas with and without SO2. Chem. Eng. J. 2015, 267, 201–206. [Google Scholar] [CrossRef]
  20. Han, H.D.; Hu, S.; Lu, C.F.; Wang, Y.; Jiang, L.; Xiang, J.; Su, S. Inhibitory effects of CaO/Fe2O3 on arsenic emission during sewage sludge pyrolysis. Bioresour. Technol. 2016, 218, 134–139. [Google Scholar] [CrossRef]
  21. Li, X.Y.; Chen, J.; Zhao, R.H.; Xiong, Z.P.; Lu, C.M. Determination on the activity of formed CaSO4 for arsenic adsorption during arsenic capture by CaO with the presence of SO2: Experimental and density functional theory study. Chem. Eng. J. 2022, 427, 132015. [Google Scholar] [CrossRef]
  22. Jiao, F.C.; Cheng, Y.; Zhang, L.; Yamada, N.; Sato, A.; Ninomiya, Y. Effects of HCl, SO2 and H2O in flue gas on the condensation behavior of Pb and Cd vapors in the cooling section of municipal solid waste incineration. Proc. Combust. Inst. 2011, 33, 2787–2793. [Google Scholar] [CrossRef]
  23. Miller, B.; Dugwell, D.R.; Kandiyoti, R. The influence of injected HCl and SO2 on the behavior of trace elements during wood-bark combustion. Energy Fuels 2003, 17, 1382–1391. [Google Scholar] [CrossRef]
  24. Zou, C.; Wang, C.B.; Chen, J.; Zhang, Y.; Xing, J.Y.; Anthony, E.J. The effect of H2O on formation mechanism of arsenic oxide during arsenopyrite oxidation: Experimental and theoretical analysis. Chem. Eng. J. 2020, 392, 123648. [Google Scholar] [CrossRef]
  25. Zhao, S.L.; Xie, X.Y.; Liao, Y.R.; Wang, Y.C.; Sun, Z.Q. Removal of As2O3 in coal-fired flue gas by metal oxides: Effects of adsorption temperature and flue gas components. J. Clean. Prod. 2022, 376, 134239. [Google Scholar] [CrossRef]
  26. Yu, S.H.; Zhang, C.; Ma, L.; Tan, P.; Fang, Q.; Chen, G. Deep insight into the effect of NaCl/HCl/SO2/CO2 in simulated flue gas on gas-phase arsenic adsorption over mineral oxide sorbents. J. Hazard. Mater. 2021, 403, 123617. [Google Scholar] [CrossRef] [PubMed]
  27. Zhou, S.Q.; Zhao, Q.L.; Yu, T.; Yao, X.Z. Co-pyrolysis of Sewage Sludge with Paint Sludge: Kinetics and Thermodynamic Analysis via Iso-conversional Methods. J. Wuhan Univ. Technol. Mater. 2024, 39, 716–727. [Google Scholar]
  28. Dai, X.H. Atoms, molecules, solids, and surfaces: Current Situation and Thoughts on Treatment and Disposal of Sludge in China’s Cities and Towns. Water Wastewater Eng. 2012, 38, 1–5. [Google Scholar] [CrossRef]
  29. Segall, M.D.; Lindan, P.J.D.; Probert, M.J.; Pickard, C.J.; Hasnip, P.J.; Clark, S.J.; Payne, M.C. First-principles simulation: Ideas, illustrations and the CASTEP code. J. Phys. Condens. Matter 2002, 14, 2717–2744. [Google Scholar] [CrossRef]
  30. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef]
  31. Perdew, J.P.; Chevary, J.A.; Vosko, S.H.; Jackson, K.A.; Pederson, M.R.; Singh, D.J.; Fiolhais, C. Atoms, molecules, solids, and surfaces: Applications of the generalized gradient approximation for exchange and correlation. Phys. Rev. B 1992, 46, 6671–6687. [Google Scholar] [CrossRef] [PubMed]
  32. Kim, S.; Thiessen, P.A.; Bolton, E.E.; Chen, J.; Fu, G.; Gindulyte, A.; Han, L.Y.; He, J.; He, S.; Shoemaker, B.A.; et al. PubChem Substance and Compound databases. Nucleic Acids Res. 2016, 44, D1202–D1213. [Google Scholar] [CrossRef] [PubMed]
  33. Fan, Y.M.; Zhuo, Y.Q.; Lou, Y.; Zhu, Z.W.; Li, L.L. SeO2 adsorption on CaO surface: DFT study on the adsorption of a single SeO2 molecule. Appl. Surf. Sci. 2017, 413, 366–371. [Google Scholar] [CrossRef]
  34. Fan, Y.M.; Zhuo, Y.Q.; Li, L.L. SeO2 adsorption on CaO surface: DFT and experimental study on the adsorption of multiple SeO2 molecules. Appl. Surf. Sci. 2017, 420, 465–471. [Google Scholar] [CrossRef]
  35. Wang, K.S.; Chiang, K.Y.; Lin, S.M.; Tsai, C.C.; Sun, C.J. Effects of chlorides on emissions of toxic compounds in waste incineration: Study on partitioning characteristics of heavy metal. Chemosphere 1999, 38, 1833–1849. [Google Scholar] [CrossRef] [PubMed]
  36. Liu, J.Y.; Xie, C.; Xie, W.M.; Zhang, X.C.; Chang, K.L.; Sun, J.; Kuo, J.H.; Xie, W.H.; Liu, C.; Sun, S.Y.; et al. Arsenic partitioning behavior during sludge co-combustion: Thermodynamic equilibrium simulation. Waste Biomass Valorization 2019, 10, 2297–2307. [Google Scholar] [CrossRef]
  37. Lei, K.; Zhang, R.; Ye, B.Q.; Cao, J.; Liu, D. Study of sewage sludge/coal co-combustion by thermogravimetric analysis and single particle co-combustion method. Energy Fuels 2018, 32, 6300–6308. [Google Scholar] [CrossRef]
  38. Quann, R.J.; Sarofim, A.F. Vaporization of refractory oxides during pulverized coal combustion. Symp. Int. Combust. 1982, 19, 1429–1440. [Google Scholar] [CrossRef]
  39. Lei, K.; Ye, B.Q.; Cao, J.; Zhang, R.; Liu, D. Combustion characteristics of single particles from bituminous coal and pine sawdust in O2/N2, O2/CO2, and O2/H2O atmospheres. Energies 2017, 10, 1695. [Google Scholar] [CrossRef]
  40. Solano, A.L.; Gullon, I.M.; Martínez de Lecea, C.S.; Talavera, B.S. Activated carbons from bituminous coal: Effect of mineral matter content. Fuel 2000, 79, 635–643. [Google Scholar] [CrossRef]
  41. Tseng, R.L. Physical and chemical properties and adsorption type of activated carbon prepared from plum kernels by NaOH activation. J. Hazard. Mater. 2007, 147, 1020–1027. [Google Scholar] [CrossRef]
  42. Yue, W.F.; Song, W.L.; Fan, C.G.; Li, S.G. Kinetics of CaCO3 decomposition at low CO2 partial pressure in a vacuum fixed bed. Chem. Eng. Sci. 2023, 273, 118646. [Google Scholar] [CrossRef]
  43. Maes, I.I.; Gryglewicz, G.; Yperman, J.; Franco, D.V.; Mullens, J.; Van Poucke, L.C. Effect of calcium and calcium minerals in coal on its thermal analysis. Fuel 1997, 76, 143–147. [Google Scholar] [CrossRef]
  44. Zhang, W.Q.; He, Y.H.; Xing, X.X.; Wang, Y.F.; Li, Q.Y.; Wang, L.; Zhu, Y.Z. In-depth insight into the effects of intrinsic calcium compounds on the pyrolysis of hazardous petrochemical sludge. J. Hazard. Mater. 2023, 455, 131593. [Google Scholar] [CrossRef] [PubMed]
  45. Liu, J.Y.; Zeng, J.J.; Sun, S.Y.; Huang, S.S.; Kuo, J.H.; Chen, N.W. Combined effects of FeCl3 and CaO conditioning on SO2, HCl and heavy metals emissions during the DDSS incineration. Chem. Eng. J. 2016, 299, 449–458. [Google Scholar] [CrossRef]
  46. Wang, C.B.; Zhang, Y.; Jia, L.F.; Tan, Y.W. Effect of water vapor on the pore structure and sulfation of CaO. Fuel 2014, 130, 60–65. [Google Scholar] [CrossRef]
  47. Cao, Y.; Song, B.; Song, M.; Meng, F.Y.; Wei, Y.X.; Cao, Q. Capture of arsenic in coal combustion flue gas at high temperature in the presence of CaSiO3 with good anti-sintering. Fuel Process. Technol. 2020, 205, 106428. [Google Scholar] [CrossRef]
  48. Morgenstern, L.; Talebi, E.; Kerscher, F.; Spliethoff, H. Experimental investigation of CaO/Ca(OH)2 for thermochemical energy storage–commissioning of a 0.5 kWh experimental setup. Fuel 2023, 345, 128220. [Google Scholar] [CrossRef]
  49. Wang, Y.L.; Zhu, S.H.; Gao, M.Q.; Yang, Z.R.; Yan, L.J.; Bai, Y.H.; Li, F. A study of char gasification in H2O and CO2 mixtures: Role of inherent minerals in the coal. Fuel Process. Technol. 2016, 141, 9–15. [Google Scholar] [CrossRef]
  50. Korus, A.; Gutierrez, J.P.; Szlęk, A.; Jagiello, J.; Hornung, A. Pore development during CO2 and H2O activation associated with the catalytic role of inherent inorganics in sewage sludge char and its performance during the reforming of volatiles. Chem. Eng. J. 2022, 446, 137298. [Google Scholar] [CrossRef]
Figure 1. Sludge combustion test system diagram.
Figure 1. Sludge combustion test system diagram.
Energies 17 02522 g001

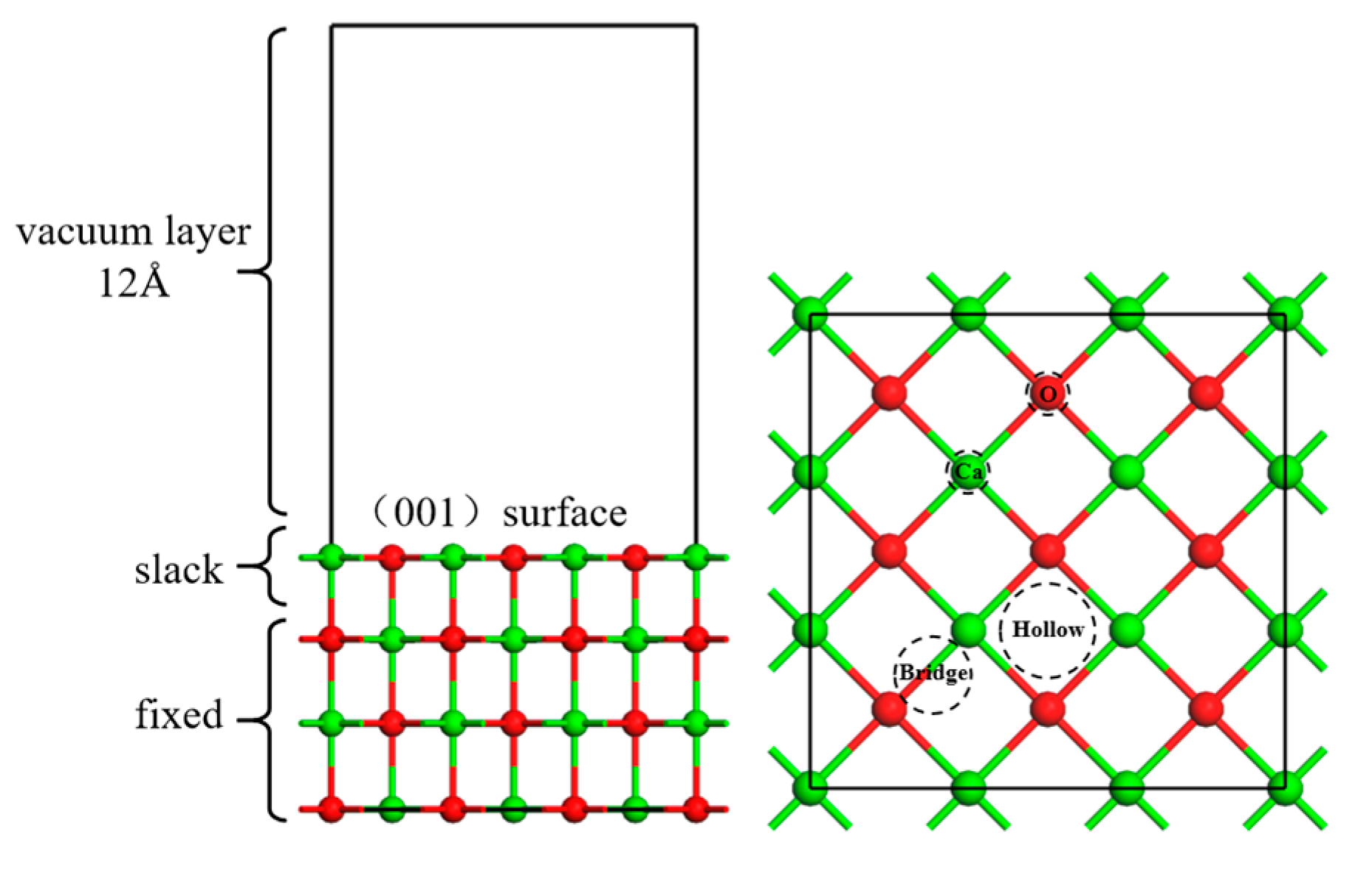

Figure 2. CaO(001) cyclic plate modeling.
Figure 2. CaO(001) cyclic plate modeling.
Energies 17 02522 g002

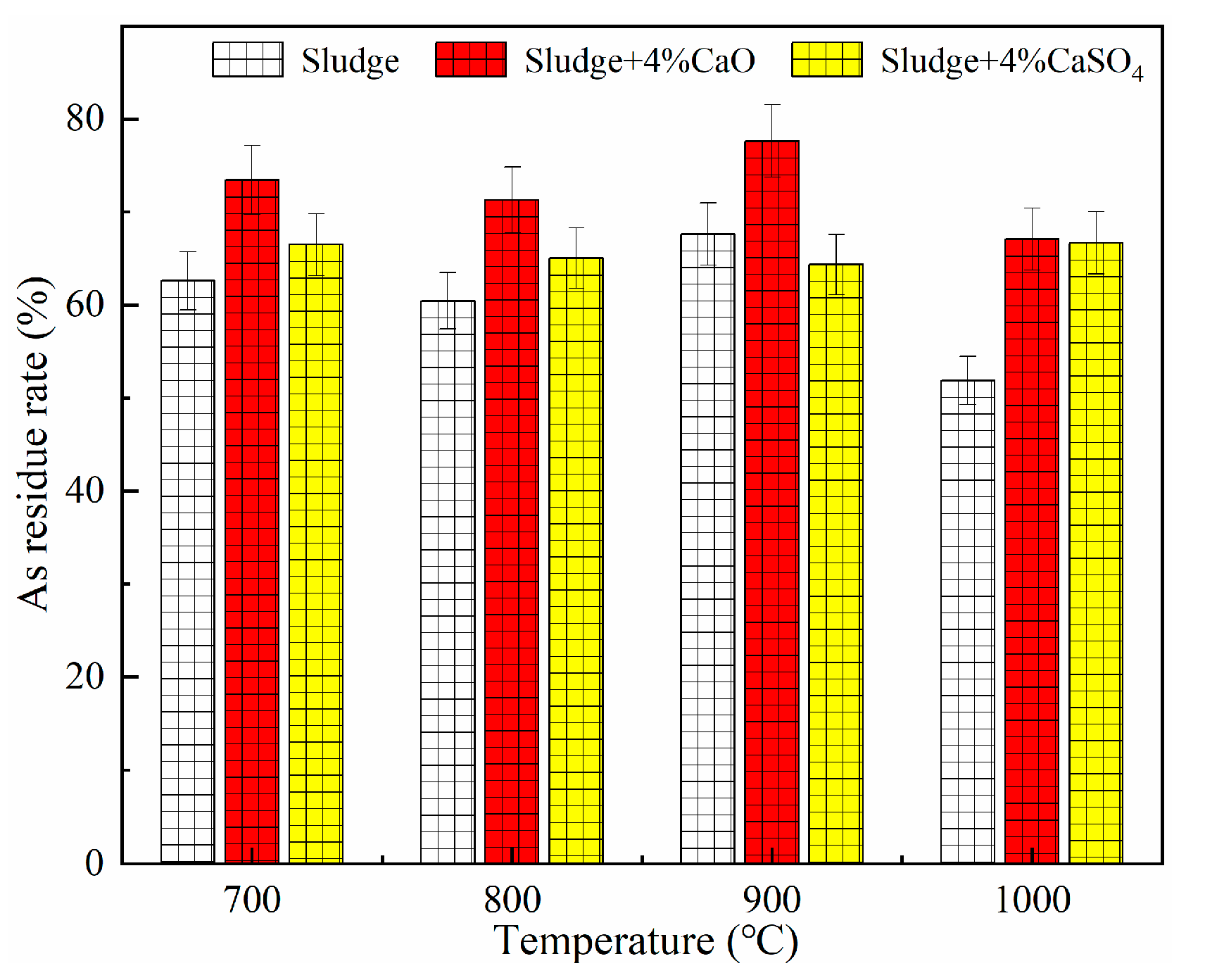

Figure 3. Migration patterns of As during sludge combustion at different temperatures.
Figure 3. Migration patterns of As during sludge combustion at different temperatures.
Energies 17 02522 g003
Figure 4. Impact of CO2, SO2, and H2O on the interaction of CaO and As during sludge combustion.
Figure 4. Impact of CO2, SO2, and H2O on the interaction of CaO and As during sludge combustion.
Energies 17 02522 g004

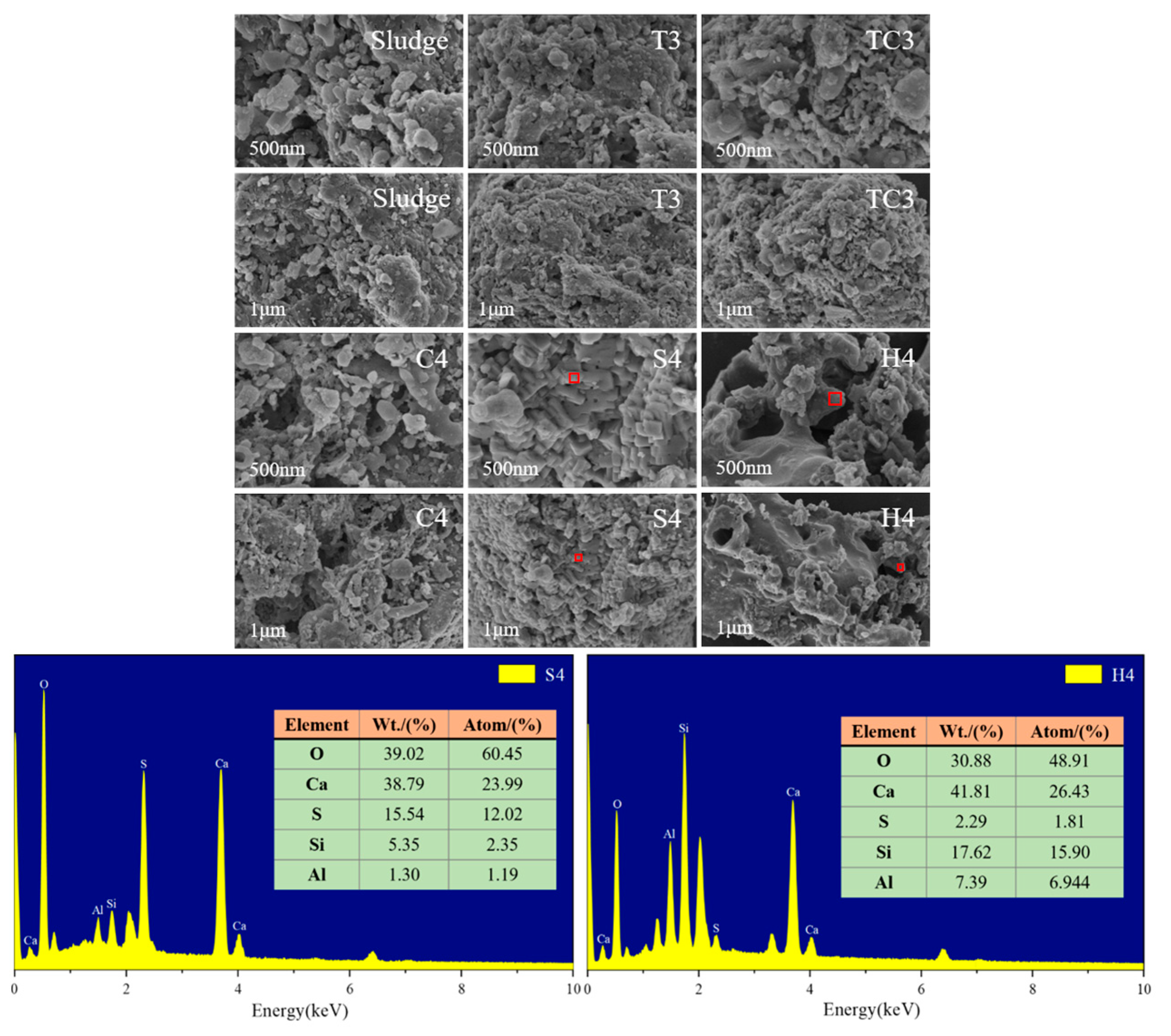

Figure 5. SEM-EDS of sludge solid phase products under different working conditions.
Figure 5. SEM-EDS of sludge solid phase products under different working conditions.
Energies 17 02522 g005

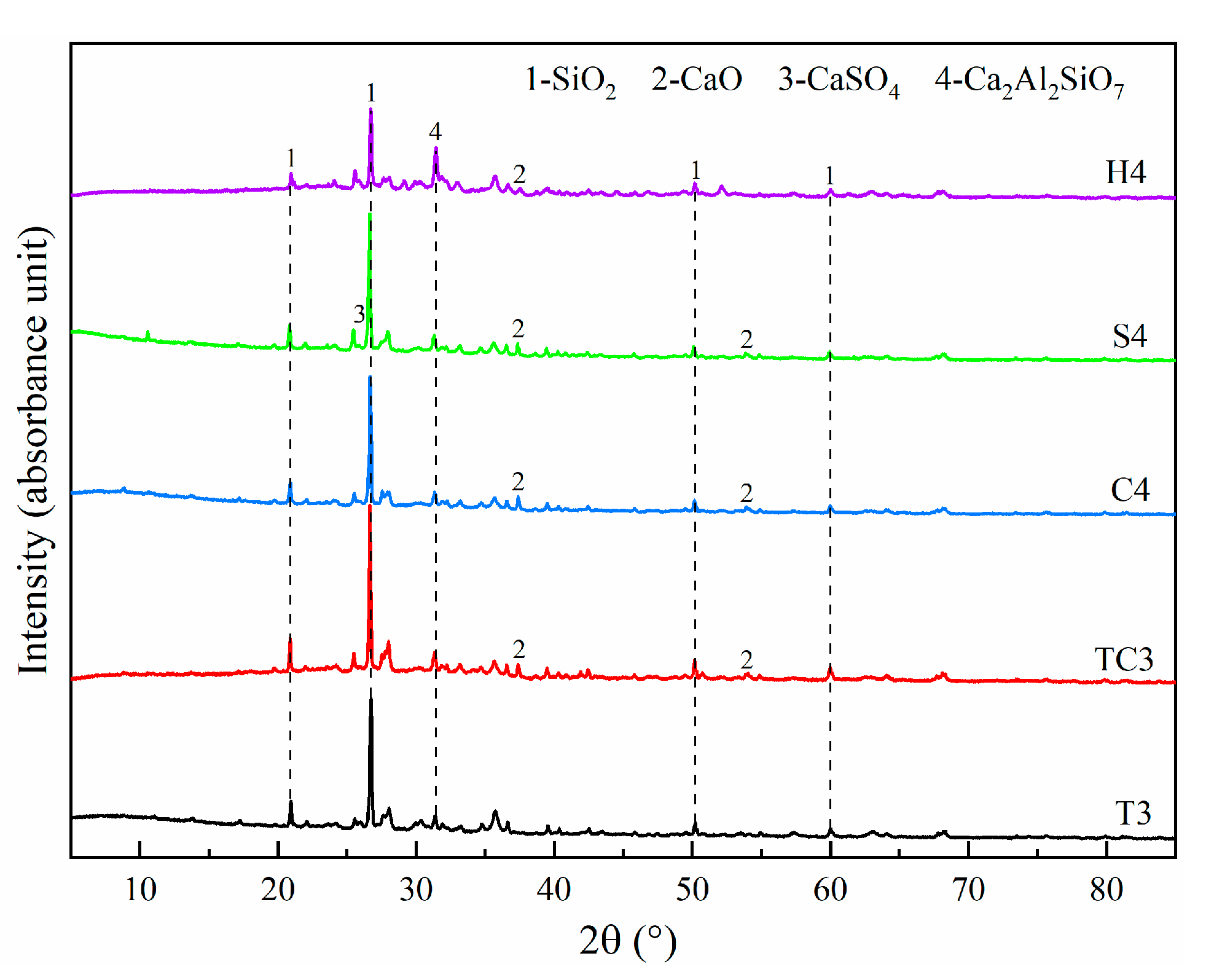

Figure 6. XRD diagram of sludge ash particles under different working conditions.
Figure 6. XRD diagram of sludge ash particles under different working conditions.
Energies 17 02522 g006
Figure 7. O active sites with adsorption potential on CO2/SO2/H2O+CaO(001) surface.
Figure 7. O active sites with adsorption potential on CO2/SO2/H2O+CaO(001) surface.
Energies 17 02522 g007

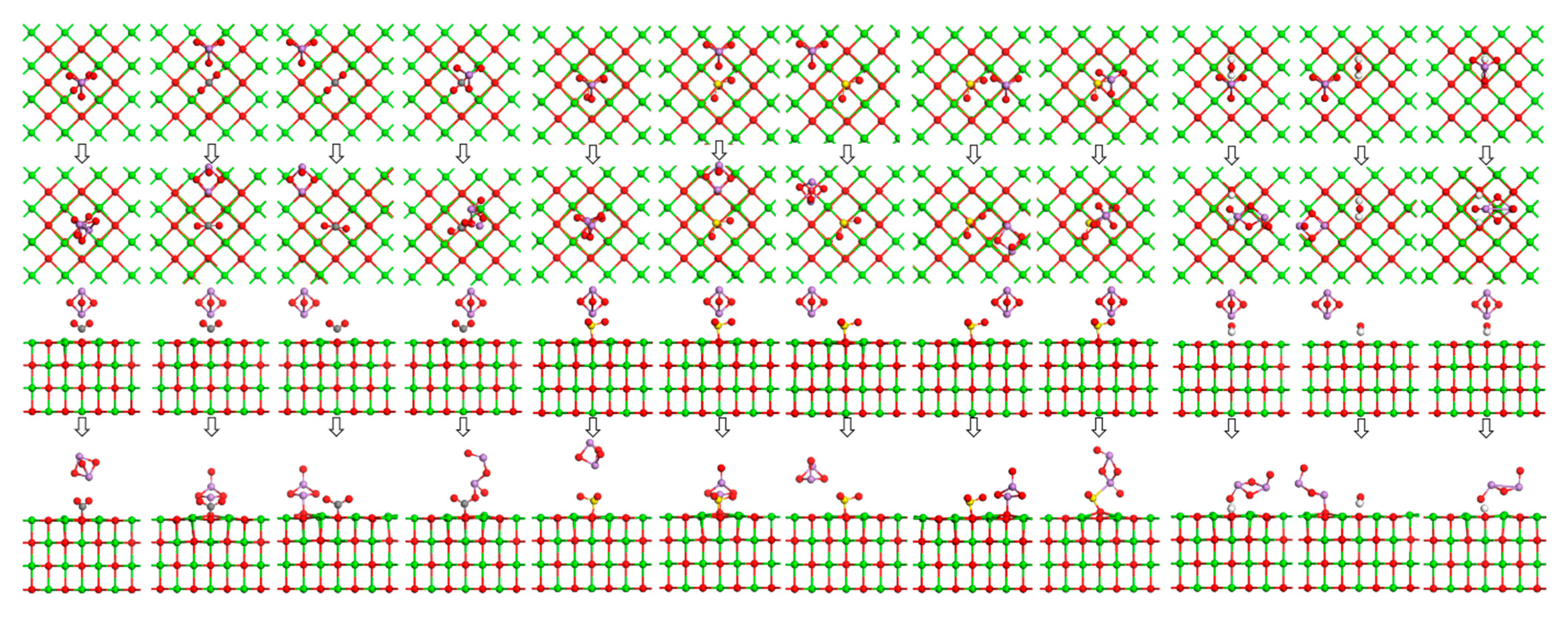

Figure 8. Structure of As2O3 before and after optimization on CO2/SO2/H2O+CaO(001) surface.
Figure 8. Structure of As2O3 before and after optimization on CO2/SO2/H2O+CaO(001) surface.
Energies 17 02522 g008
Figure 9. Partial density of state of As2O3 on clean/CO2/SO2/H2O + CaO(001) surface.
Figure 9. Partial density of state of As2O3 on clean/CO2/SO2/H2O + CaO(001) surface.
Energies 17 02522 g009
Table 1. Characteristics of sludge.
Table 1. Characteristics of sludge.
Proximate Analysis (%)Ultimate Analysis (%)
MadAadVadFCadCdHdOdNdSd
2.5349.6743.034.7723.453.5117.144.350.58
Note: M, A, V, FC denote moisture, ash, volatile matter, and fixed carbon, respectively, and the subscript ad denotes an air-dry basis, based on a coal in which the air humidity has reached equilibrium. C, H, O, N, and S denote carbon, hydrogen, oxygen, nitrogen, and sulfur, respectively, and the subscript d denotes a dry basis, based on a coal in a hypothetical anhydrous state.
Table 2. Intrinsic mineral content in sludge.
Table 2. Intrinsic mineral content in sludge.
Heavy Metals (mg/kg)Minerals (%)
AsSiO2CaOAl2O3P2O5MgO
15.02532.73216.99217.147.6807.639
Table 3. Test conditions for sludge combustion.
Table 3. Test conditions for sludge combustion.
Combustion ConditionsTemperature (°C)Combustion Atmosphere (vol.%)Samples (2 g)
T1700 °C20O2/80N2100% Sludge
T2800 °C
T3900 °C
T41000 °C
TC1700 °C96% Sludge + 4% CaO
TC2800 °C
TC3900 °C
TC41000 °C
TCS1700 °C96% Sludge + 4% CaSO4
TCS2800 °C
TCS3900 °C
TCS41000 °C
C1900 °C10CO2/20O2/70N2100% Sludge
C220CO2/20O2/60N2
C330CO2/20O2/50N2
C420CO2/20O2/60N296% Sludge + 4% CaO
S10.1SO2/20O2/79.9N2100% Sludge
S20.15SO2/20O2/79.85N2
S30.2SO2/20O2/79.8N2
S40.15SO2/20O2/79.85N296% Sludge + 4% CaO
H120O2/80N210% H2O + 90% Sludge
H220% H2O + 80% Sludge
H330% H2O + 70% Sludge
H420% H2O + 76% Sludge + 4% CaO
Table 4. Device Parameters.
Table 4. Device Parameters.
DeviceMakeTypeMeasuringAccuracy
ICP-MSAgilent (Beijing, China)Agilent 7800ppb~ppm1–5%
BETMicromeritics
(Beijing, China)
ASAP-24600.01 m2/g~1000 m2/g1–5%
XRDMalvern Panalytical
(Beijing, China)
Panalytical Empyrean5°~85°1–5%
SEM-EDSZEISS (Beijing, China)ZEISS Sigma 300μm~nm1–5%
Table 5. The relevant data of the optimized CaO cell and each molecule.
Table 5. The relevant data of the optimized CaO cell and each molecule.
ModelKey Length/Key AngleOptimize Value (Å/°)Reference Value (Å/°)Relative Error (%)
CaOa = b = c4.914.812.16
α = β = γ90.0090.000.00
CO2C-O1.171.160.86
O-C-O179.99180.000.01
SO2S-O1.461.431.89
O-S-O119.48119.500.02
H2OH-O0.980.961.88
H-O-H103.74104.500.73
As2O3As-O1.871.860.43
As-O-As75.4173.502.60
Table 6. Pore structure under different working conditions.
Table 6. Pore structure under different working conditions.
SamplesSpecific Surface Area (m2/g)Pore Volume (×10−2 cm3/g)
Sludge8.032.05
CaO7.131.33
T34.820.84
TC36.321.11
C45.861.02
S42.260.42
H43.520.51
Table 7. Parameters of As2O3 after optimization on CO2/SO2/H2O+CaO(001).
Table 7. Parameters of As2O3 after optimization on CO2/SO2/H2O+CaO(001).
Adsorption StructureEadS (kJ·mol−1)As-OX Bond
Length (Å)
As-OX
Population
q(As2O3) (e)X-Osurf Key Length (Å)X-Osurf
Population
q(X)
(e)
OC0−26.737--−0.11.3660.68−0.64
OC1−209.9721.8570.31−0.331.3700.67−0.65
OC2−190.5021.8600.30−0.341.3840.65−0.65
OC3−51.9972.074-−0.181.3330.75−0.58
OS0−7.430--−0.041.6590.23−0.31
OS1−192.0941.8730.3−0.371.6720.22−0.27
OS2−2.239--−0.011.6710.23−0.30
OS3−177.1091.8770.3−0.361.6750.22−0.24
OS480.323--0.231.6080.24−0.73
OH0−241.4461.7880.34−0.401.0050.37−0.26
OH1−199.4841.8540.31−0.34--−0.20
OH2−236.4571.7680.35−0.391.0030.54−0.24
Note: O atoms in H2O, CO2, and SO2 were denoted by OH, OC, and OS, respectively, and Osurf, OH, OC, and OS were denoted uniformly by OX.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Shi, Y.; Zhang, H.; Yu, J.; Feng, Y.; Jin, Y. Experimental and DFT Studies of Influence of Flue Gas Components on the Interaction between CaO and As during Sludge Combustion. Energies 2024, 17, 2522. https://doi.org/10.3390/en17112522

AMA Style

Shi Y, Zhang H, Yu J, Feng Y, Jin Y. Experimental and DFT Studies of Influence of Flue Gas Components on the Interaction between CaO and As during Sludge Combustion. Energies. 2024; 17(11):2522. https://doi.org/10.3390/en17112522

Chicago/Turabian Style

Shi, Yilin, Huan Zhang, Jingxiang Yu, Youxiang Feng, and Yan Jin. 2024. "Experimental and DFT Studies of Influence of Flue Gas Components on the Interaction between CaO and As during Sludge Combustion" Energies 17, no. 11: 2522. https://doi.org/10.3390/en17112522

APA Style

Shi, Y., Zhang, H., Yu, J., Feng, Y., & Jin, Y. (2024). Experimental and DFT Studies of Influence of Flue Gas Components on the Interaction between CaO and As during Sludge Combustion. Energies, 17(11), 2522. https://doi.org/10.3390/en17112522

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
