Examination of Operational Methods for a Low-Temperature Aquifer Thermal Storage Air Conditioning System Based on Operational Performance and Considerations of Thermal Storage and Pumping Volume Balance

Abstract

Aquifer Thermal Energy Storage (ATES) systems are garnering attention as high-efficiency air conditioning technologies that contribute to the realization of a carbon-neutral society. This study focuses on an ATES system constructed in Japan, characterized by its complex geological conditions and thin aquifer layers. Detailed actual performance data measured over four years are presented, and performance analysis results show that a COP of 5 was achieved for the overall building cooling and heating system. In addition, the study provides a detailed analysis of the imbalance in heat quantity, remaining heat storage, and other factors based on actual data, identifying operational issues and summarizing specific improvement measures. Finally, as a proposal for a sustainable operational method to balance the cumulative heat storage and pumping volume of cold and hot water, specific operational procedures are summarized, including setting the return water temperature for the next season based on the dimensionless average pumping temperature of the previous season, and a flowchart is presented. There is no prior research that shows such specific operational procedures, and this can be considered an important achievement of this study.

1. Introduction

The Japanese government has outlined a strategy to establish 100 decarbonized pioneering regions by 2025, leveraging renewable thermal energy and unused heat as part of its commitment to achieving carbon neutrality by 2050. The energy policy shift, prompted by the electricity supply shortages following the 2011 Great East Japan Earthquake, emphasizes energy conservation, renewable energy use, and the utilization of unused energy. Most of Japan’s high-demand urban areas are located on alluvial plains, where underground aquifers hold significant thermal utility value. The authors conducted large-scale heat storage experiments in Takasago City, Hyogo Prefecture, in 2016 and in the Umekita district of Osaka City in 2017, assuming practical use, and clarified that a heat recovery rate of more than 70% could be achieved across summer and winter [1]. By using aquifers as gigantic thermal storage tanks, this technology enables the effective use of seasonal heat, contributing to energy conservation, thermal recycling, water resource preservation, and environmental protection.

The initiation of Aquifer Thermal Energy Storage (ATES) systems dates back to the 1960s in Shanghai, China [2,3]. Subsequently, the Netherlands has capitalized on its quality aquifer resources, advanced heat source well construction technology, and favorable climate conditions to lead to ATES implementation, accounting for approximately 85% of the global share with around 2500 projects [4]. Although China saw widespread ATES application across ten cities including Beijing, Hangzhou, and Xi’an by the mid-1960s, the projects stalled from the late 1980s through the early 1990s due to industrial policy shifts, water resource scarcity, and a lack of foundational research on groundwater utilization [5,6]. In Japan, extensive groundwater usage during the economic growth period of the 1950s led to land subsidence issues, prompting many regions to implement pumping regulations. Thus, ATES usage in Japan remains limited, with only seven reported cases [7]. However, if risk assessment is carried out and appropriate use of groundwater is made depending on the mechanical properties of the ground, the risk of land subsidence can be avoided. For example, Takeno et al. pumped groundwater and found that if the groundwater level fluctuation is within 2 m (based on ground conditions in the Umekita area of Osaka City), the effect of subsidence is extremely small and there are no problems in using ATES [8].

This study reports on the experience of installing and operating ATES for air conditioning in a centrifugal chiller manufacturing plant. In the target factory, the manufacturing process is concentrated in the winter for summer shipment, so the operation time during winter heating is long and the heating load tends to be larger than the cooling load. In ATES, if this is not taken into account, the imbalance in the heat storage volume will increase, and sustainable ATES utilization is not possible.

To prevent such scenarios, regulations in the Netherlands require accumulated thermal storage to be balanced within 0–15% within 5–10 years. While no specific regulations exist in Japan, balancing annual accumulated thermal storage and pumping volume is crucial for the stable, long-term operation of ATES systems [9]. Failure to maintain balance can lead to problems such as the items detailed below.

(1)

Problems with Imbalance in Annual Pumped Water Volume

If the annual pumped water volume is not balanced, an imbalance in the pumping volume will gradually occur, leading to one of the thermal storage masses expanding significantly. Eventually, this can reach the other heat source well, resulting in a reduced heat recovery rate due to thermal interference. Therefore, it is essential to maintain a balance in the annual pumped water volume.

(2)

Problems with an Imbalance in Annual Accumulated Thermal Storage

If the annual accumulated thermal storage is not balanced, the annual average temperature of the aquifer in the thermal storage area will rise or fall. This imbalance can lead to a decrease in the efficiency of thermal source equipment utilizing ATES and thermal pollution of the surrounding aquifers, potentially impacting local ecosystems. If the balance of annual accumulated thermal storage and pumped water volume is maintained, the service life of ATES is generally estimated to be between 30 and 50 years.

Hecht-Mendez et al. have conducted simulations in the Netherlands showing that if the balance of thermal storage and pumped water volume is not maintained, the thermal storage and water volume in the ground will diffuse through natural thermal conduction and groundwater flow rates, taking hundreds of thousands of years to return to their original state. The impact of a decommissioned ATES can last longer underground than the lifespan of a building, necessitating the management of underground thermal impacts if the land is to be used for extended periods. Therefore, ATES should be operated in a way that all heat is recovered during use [10].

Martin Bloemendal et al. have pointed out that even if the location of heat wells is determined with full consideration of thermal equilibrium in the preliminary simulation, thermal interference between hot and cold wells could occur 75 years later. The first step in devising a strategy for thermal balance involves understanding the temperature distribution around the heat wells, although specific methods have not been mentioned [11].

Bloemendal et al. have proposed installing two heat wells (in the direction of environmental flow) instead of one when the groundwater flow rate exceeds 25 m/Y, to prevent heat loss due to the movement of surrounding groundwater and to enhance the heat recovery rate. Specific operational methods, including the distance between heat wells and the sequence of pumping from both wells, have been described, but detailed operational methods have not been provided [12].

Martin Bloemendal et al. analyzed factors affecting the heat recovery rate, such as the maximum heat storage capacity and the extent of heat diffusion due to environmental flow, based on data from 331 low-temperature (below 25 °C) ATES operations actually installed in the Netherlands, and analyzed the building load-side heat storage required to achieve the maximum heat storage recovery rate [12]. The conditions for aquifer depth and heat source well distance were analyzed. In the Netherlands, it is possible to install screens according to the load because of the large aquifer thickness, whereas in Japan ATES must be installed even where the aquifer thickness is small. Therefore, it is necessary to install finely divided screens according to the structure of the clay and aquifer so that the aquifer can be utilized without waste and the heat recovery rate can be increased as much as possible.

Mariene Gutierrez-Neri et al. conducted a sensitivity analysis on the heat recovery rate of high-temperature (60 °C to 100 °C) heat well High-temperature Aquifer Thermal Storage Systems (HTES) [13]. The thermal storage efficiency correlates with the Rayleigh Number, so it is possible to combine parameters such as screen position and length, as well as temperature differences, according to equipment load during basic design, but the authors do not mention the heat recovery rate of low-temperature heat wells.

This study reports on the heating and cooling performance results of operating ATES near a fault in the complicated geological area of Wadamisaki, Kobe City, Japan, for four years. First, in Section 2, we will discuss the operational method for balancing the annual accumulated thermal storage volume and pumped water volume between the low-temperature and high-temperature wells, which are the premises for operating ATES. Next, using operational performance data, we will evaluate the results from two perspectives: the building side and the heat source well side (underground), which will be analyzed in Section 3 and Section 4, respectively. Finally, in Section 5, the operation method for the following years is discussed, taking into account the equilibrium of the annual accumulated heat storage and pumping volume in the future.

2. Overview of the Demonstration Equipment and Design

2.1. Basic Design Conditions

The air conditioning system discussed in this research was newly installed in the target factory. The basic design conditions, design procedures, and ATES operational methods are summarized below.

• Peak load setting

The design conditions are based on the Building Equipment Design Standards of the Ministry of Land, Infrastructure, Transport, and Tourism (MLIT) of Japan, specifically for the Kobe area, and cover the following aspects:

(1)

Heat load due to internal heat generation;

(2)

Heat load from windows;

(3)

Heat load from external walls;

(4)

Heat load from internal walls;

(5)

Heat load due to the introduction of outside air.

As a result, the peak loads for cooling and heating were determined to be 297RT.

2.

Setting of Cooling and Heating Load Patterns

The cooling and heating load patterns were adjusted referring to the manual for district heating and cooling of commercial facilities in Japan, ensuring the peak load matched the calculated 297RT, and the operational conditions were planned accordingly.

3.

ATES Operational Plan

As shown in

Table 1. Planned operational conditions.

Item	Operational Time (h)	Date of Operation (Day)	Total Load (GJ)
Cooling	11	184	3342
Heating	10	151	2750

, considering Kobe City is in western Japan, the cooling load is greater than the heating load. To ensure the long-term and stable operation of ATES, it is crucial to maintain equilibrium in the annual accumulated heat storage throughout the year. Therefore, the factory planned to cover the entire heating load with ATES during the winter, and to use conventional cooling towers for auxiliary operation in June and July when the external air temperature is lower to address the insufficient cooling load. The operational plan for ATES was set to maintain an injection temperature difference of ±5 °C relative to the initial groundwater temperature of 19.8 °C, planning for an injection temperature of 15 °C during heating operation and 25 °C during cooling operation.

2.2. Geological Conditions around Wadamisaki, Kobe City

Cape Wadamisaki, Kobe, is a coastal area, but is close to a mountainous area, and the strata were formed in an alluvial fan-like deltaic depositional environment. As a result, gravelly, sandy, and muddy parts with poor lateral continuity are repeatedly deposited, forming alternating layers up to 1 to 2 m thick, sandwiched between marine clay layers, forming relatively low permeability and unstable aquifers [14]. Additionally, the area around Wadamisaki is affected by faults branching from the Osaka Bay Fault running northeast from Awaji Island in the western part of Osaka Bay, leading to deformed strata with larger inclinations compared to other regions, making aquifer layers not horizontally consistent. As illustrated in Figure 1, the complexity of the ground at the factory site, with clay layers interbedded among aquifers, necessitated careful determination of the screen positions to maximize the use of the available aquifer thickness. In contrast, in the Netherlands [11], as mentioned earlier, ATES systems have been operated for 30 years, utilizing groundwater from depths of 25 m to 250 m, with aquifer thickness ranging from about 20 m to 150 m, differing significantly from the geological conditions at the factory.

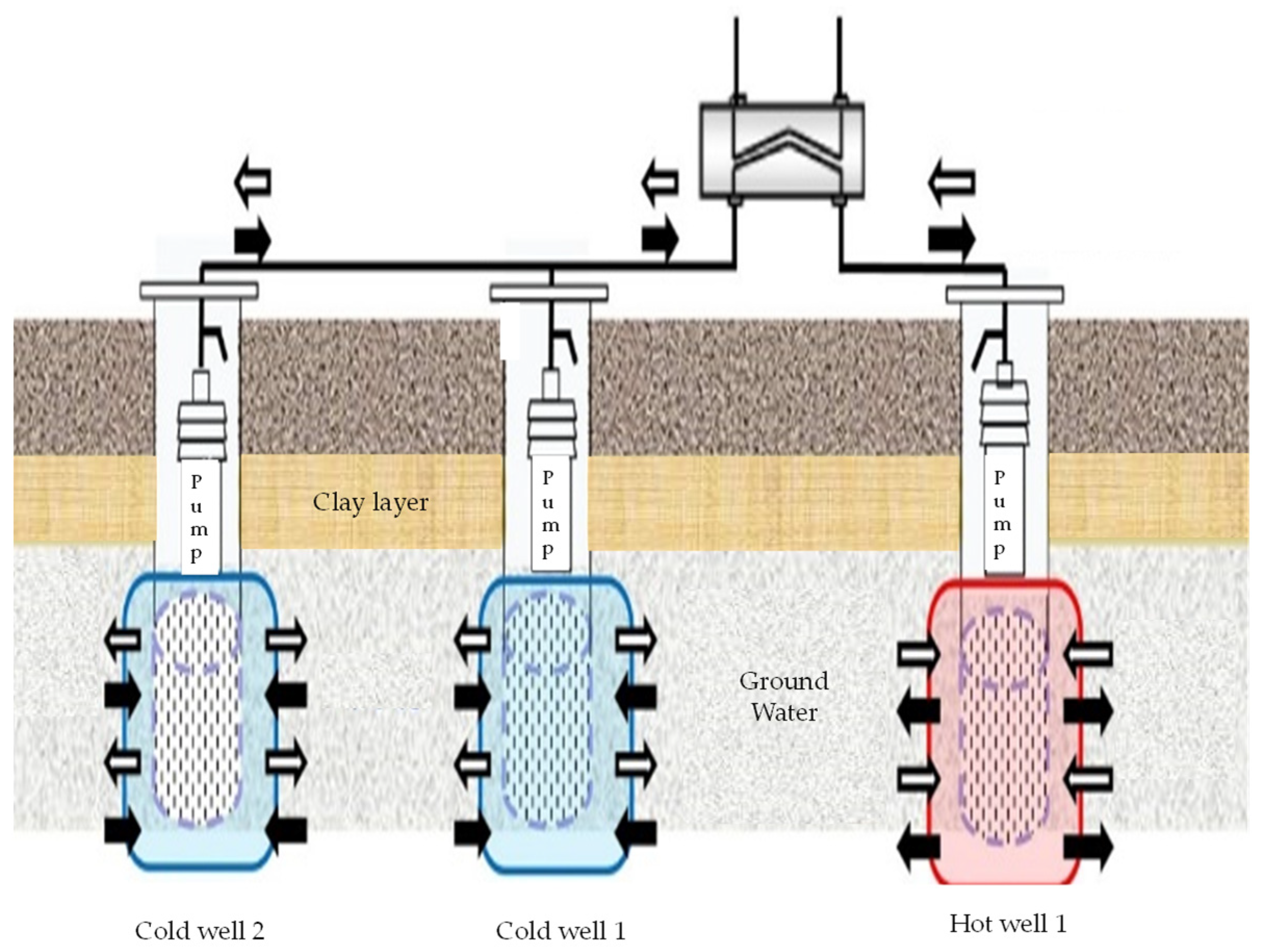

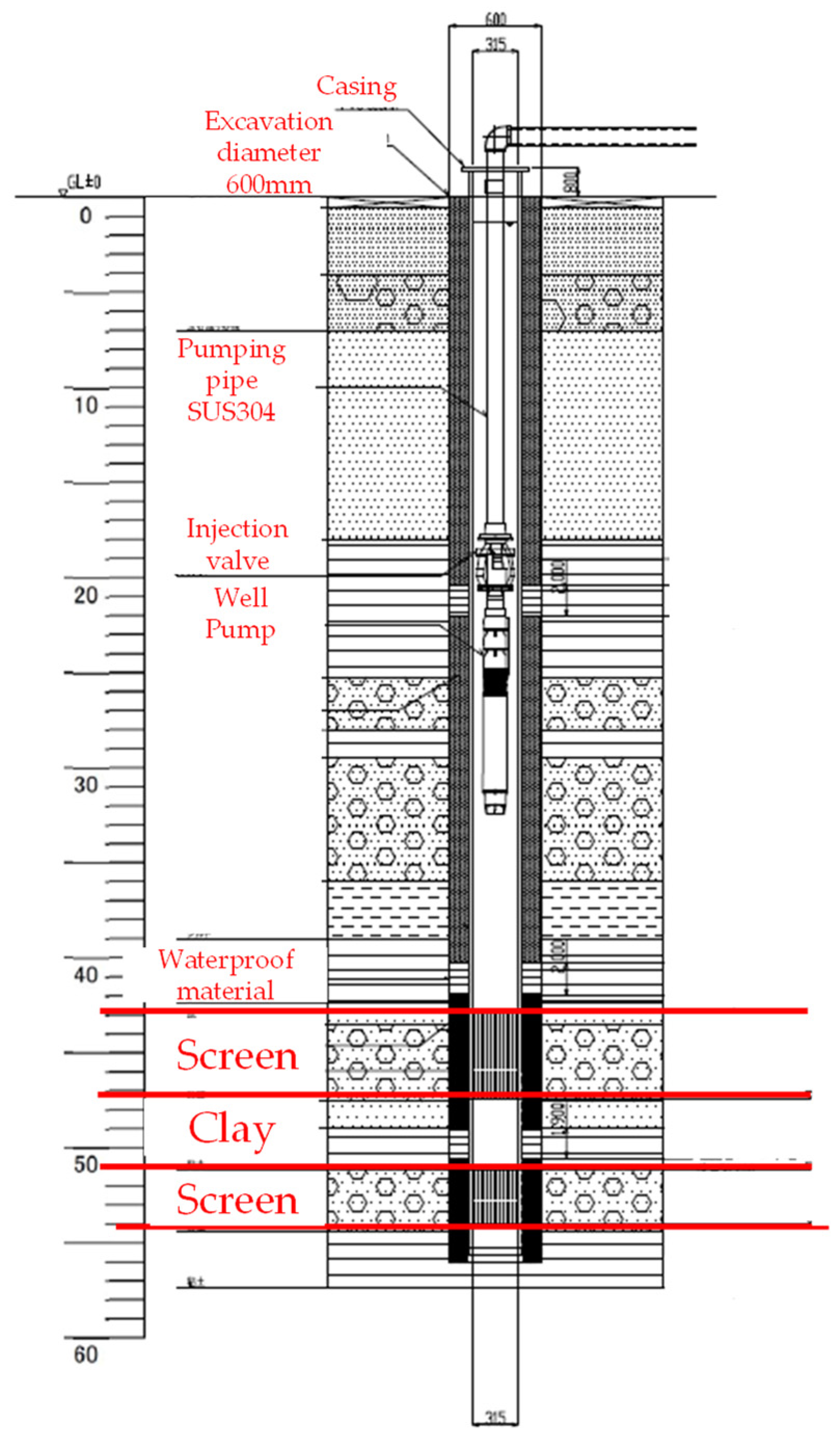

During the construction of the wells at the factory, differences in groundwater conditions between the high-temperature and low-temperature wells became apparent. After the construction of the heat source wells and conducting pumping tests, it was found that while 60 m³/h could be pumped from the high-temperature heat source well (Heat Source Well 2), only 30 m³/h could be pumped from the low-temperature heat source well (Heat Source Well 1). Given the current pumping volumes, it was impossible to meet the heating load, leading to a revision of the initial basic design plan by increasing the temperature difference, adjusting the injection temperature from 15 °C to 10 °C.

One year after the start of operations, to ensure stable long-term ATES operation and to secure sufficient water volume for factory air conditioning at a level of 700 kW, Heat Source Well 3 was constructed at the low-temperature heat source well, changing the operation to three wells in total, as shown in Figure 2. This experience highlighted the necessity of conducting multiple geological surveys (i.e., the process of understanding the geological overview, structure, sampling analysis through boring surveys, estimating permeability coefficients from particle size distribution, analyzing the impact of land subsidence, evaluating pumping volumes, and creating geological structural diagrams to assess the applicability of ATES) at potential ATES sites and, if necessary, additional construction work to address areas with poor lateral continuity. After the construction of the three heat source wells, there were no issues with land subsidence or clogging leading to a decrease in pumping volume.

2.3. Overview of Demonstration Equipment

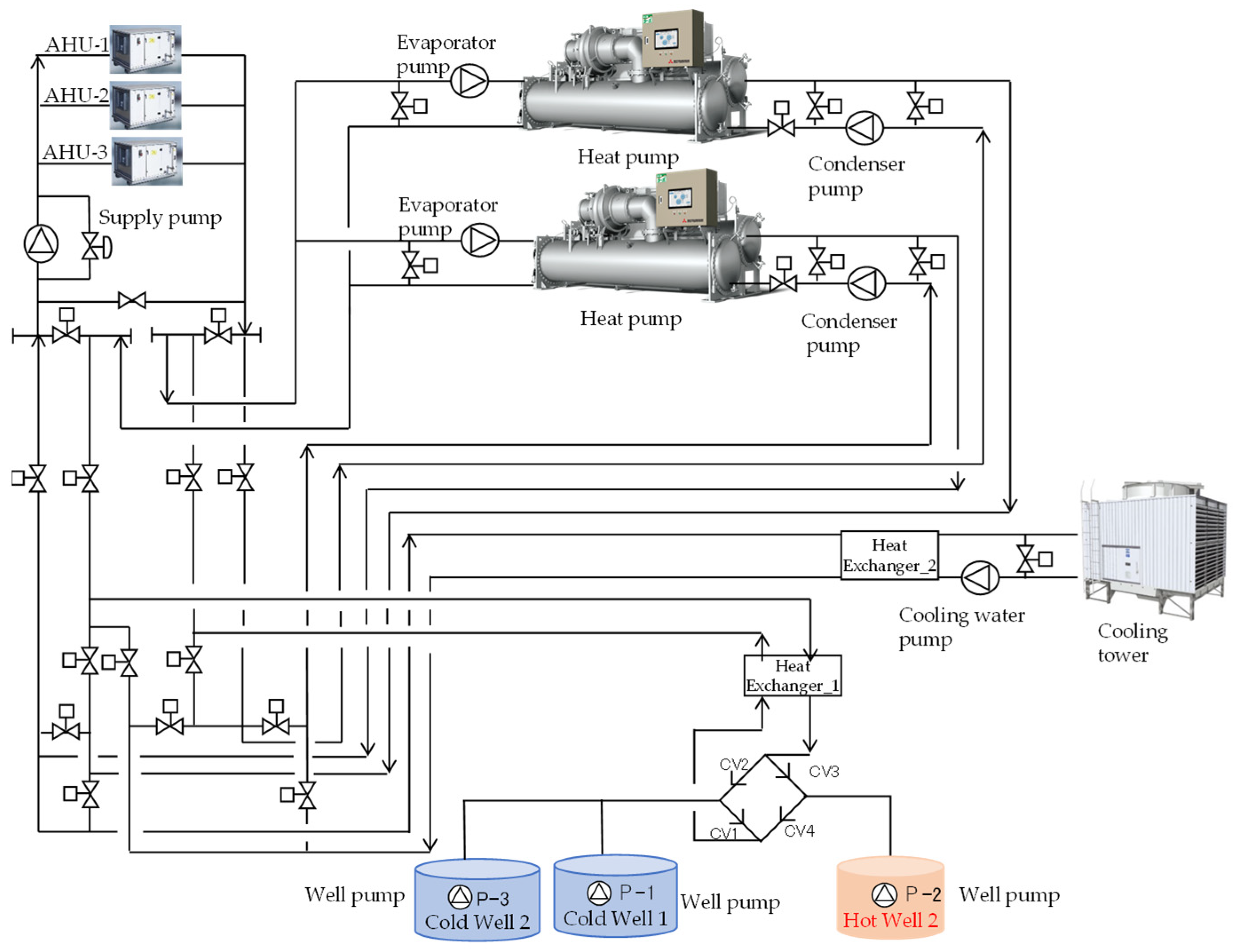

The equipment operates with two centrifugal turbo heat pumps (one serving as a backup), supplying cooling and heating for the entire factory. The overall system diagram is shown in Figure 3, the building overview in

Table 2. Overview of the building.

Building Name	Mitsubishi Heavy Industries Kobe Shipyard OJ Building
Address	1-1-1, Wadasaki-cho, Hyogo-ku, Kobe, Hyogo, Japan
Primary use	Centrifugal turbo chiller production plan
Total floor area	4200 m2
Operational time	Summer: 08:00–20:00 (Weekdays and Saturdays)
	Winter: 08:00–05:00 (Weekdays and Saturdays)
	Closed on Sundays and national holidays

, and the ATES thermal equipment specifications in

Table 3. List of heat source equipment.

Item	Unit	ATES
Heat source machine	-	Centrifugal turbo heat pump
Refrigerant	-	HFO-1233zd
Specification	-	Cooling	Heating
Capacity	kW	703	866
Unit	Unit	2
Evaporator conditions	°C, m3/h	12/7, 121	12/7, 121
Condenser conditions	°C, m3/h	33/38, 141	40/45, 150
Power consumption	kW	115	128
COP	-	6.1	6.8
Evaporator pump	kW	11.0	11.0
Condenser pump	kW	18.5	18.5
Secondary pump	kW	37.0	37.0
Cooling water pump	kW	22.0	-
Well pump	kW	18.5	18.5
Cooling tower fan	kW	5.5	5.5

[15].

3. Performance Evaluation from the Perspective of the Building Side

The performance evaluation from the building’s perspective, including building cumulative load, Coefficient of Performance (COP) (i.e., the ratio of building load to power consumption, where a higher value represents greater energy efficiency), Seasonal Coefficient of Performance (SCOP) (i.e., the building load divided by the total power of the equipment, where the total power of the equipment is the sum of the power of the centrifugal chiller compressors, various pumps, and cooling tower fans, as shown in Table 3), accumulated thermal storage, and imbalance of heat quantity, was conducted using data collected at one-minute intervals from the demonstration equipment from December 2019 to October 2023. It should be noted that from 23 August to 9 September 2020, despite the factory’s heating and cooling supply being operational, there were missing data due to a malfunction in the energy management control system. Therefore, linear interpolation using the data before and after this period was employed. The definitions of various quantities used in the evaluation of operational performance values are shown in Equations (1) and (2).

The thermal storage on the building load side is defined by Equation (1). During the summer cooling period, when the thermal storage of warm water occurs, $T_{i,t}>T_{p,t}$, and $G_{S,k}$ becomes positive. Conversely, during the winter heating period, when the thermal storage of cold water occurs, $T_{i,t}<T_{p,t}$, and $G_{S,k}$ become negative. k represents the season number assigned to winter and summer each year. Within the same season, the seasonal cumulative value of the pumping volume $Q_{p,k}(={\sum }_t^{ }{Q}_{p,t})$ and the seasonal cumulative value of the injection volume $Q_{i,k}(={\sum }_t^{ }{Q}_{i,t})$ are equal.

$$G_{S,k}=C_w{\sum }_t^{ }{Q}_{p,t}(T_{i,t}-T_{p,t})$$

(1)

$$G_{RC,k}=G_{S,k}+G_{S,k-1}+G_{RC,k-2}$$

(2)

A summary of the performance results from four years of operational data is presented in

Table 4. Summary of operational data performance results over four years.

Cycle Number	Year	Season	Season Number	Operating Period	Days of Operation	Quiesce Days	Building Side							Heat Source Well Side
							Total Seasonal Building Load	Building Daily Maximum Load by Heating Season	Building Daily Maximum Load by Cooling Season	Total Power Consumption by Season	SCOP by Heating Season	SCOP by Cooling Season	Cooling and Heating SCOP by Cycle	Accumulated Thermal Storage of Cold Water by Heating Season Gs,k	Accumulated Thermal Storage of Warm Water by Cooling Season Gs,k	Imbalance of Thermal Energy GRC,k
-	-	-	-	-	Day	Day	GJ/season	kWh	kWh	GJ/season	-	-	-	GJ/season	GJ/season	GJ
1	2019~2020	Winter	1W	12/2~3/18	108	138	1543	11,418	-	338	4.6	-	4.7	−1247	-	−1247
	2020	Summer	1S	8/6~10/22	79	44	1332	-	5939	274	-	4.9		-	716	−531
2	2020~2021	Winter	2W	12/7~3/31	117	61	1911	10,528	-	445	4.3	-	4.9	−1540	-	−2072
	2021	Summer	2S	6/1~10/16	138	31	1518	-	6769	247	-	6.1		-	1721	−351
3	2021~2022	Winter	3W	11/16~3/31	107	59	2661	10,645	-	603	4.4	-	5.0	−2421	-	−2771
	2022	Summer	3S	6/1~10/7	115	53	1919	-	9719	308	-	6.2		-	2015	−756
4	2022~2023	Winter	4W	11/30~4/3	112	58	2174	11,438	-	466	4.7	-	5.1	−1810	-	−2566
	2023	Summer	4S	6/1~9/28	97	-	1493	-	6610	250	-	6.0		-	1828	−739
4 Cycle Maximum							2661	11,438	9719	603	4.7	6.2	5.1	−1247	2015	−351
4 cycle minimum							1332	10,528	5939	247	4.3	4.9	4.7	−2421	716	−2771
4 Cycle Average							1819	11,007	7259	366	4.5	5.8	5.0	−1755	1570	−1379

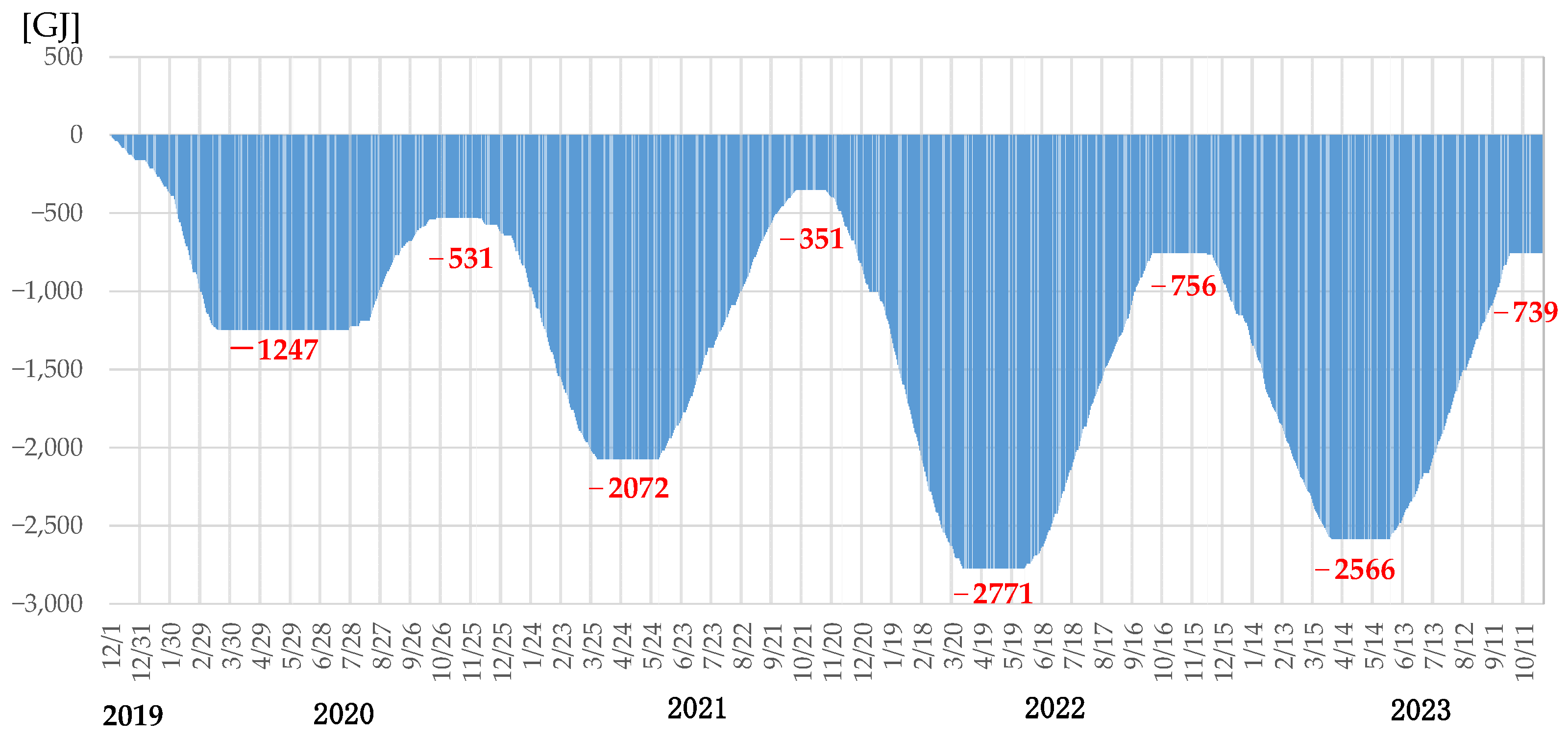

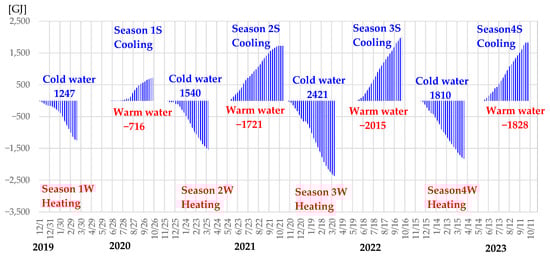

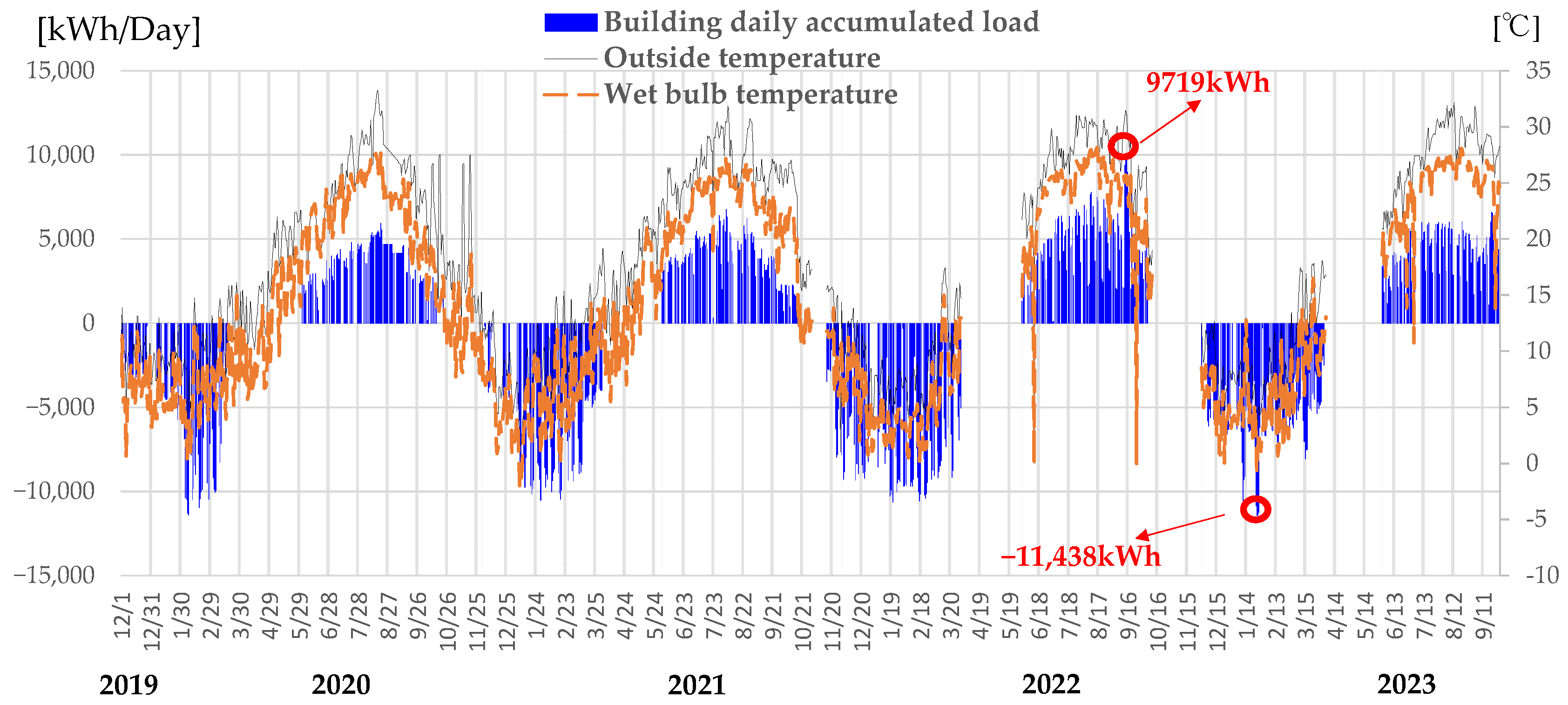

. Additionally, for a detailed temporal analysis, the transition of daily accumulated loads is shown in Figure 4, the transition of power consumption, COP, and SCOP of the thermal source equipment are shown in Figure 5, the transition of accumulated thermal storage is shown in Figure 6, and the transition of the imbalance of heat quantity over the years is shown in Figure 7.

From Table 4, the maximum daily accumulated load during cooling is 9719 kWh, and during heating, it is 11,438 kWh, indicating that the heating load is higher than the cooling load. This is because, during summer, the system operated for continuous 12 h cooling operations, whereas, in winter, it underwent 21 h continuous heating operations. The average SCOP for both cooling and heating over the four years is 5.0. It is observed that the average SCOP for heating gradually increased over the four years. Except for the first year, the average SCOP for cooling was maintained at nearly the same value. The SCOP for the first cycle was 4.9 for cooling, which significantly improved to 6.1 from the second cycle onwards, a substantial increase on the first cycle. This improvement is attributed to not using ATES during June and July in the first cycle and operating with conventional cooling towers instead, which resulted in a higher inlet temperature of cooling water into the centrifugal chillers than when ATES was used, along with the operation of cooling water pumps and cooling tower fans, thereby increasing power consumption.

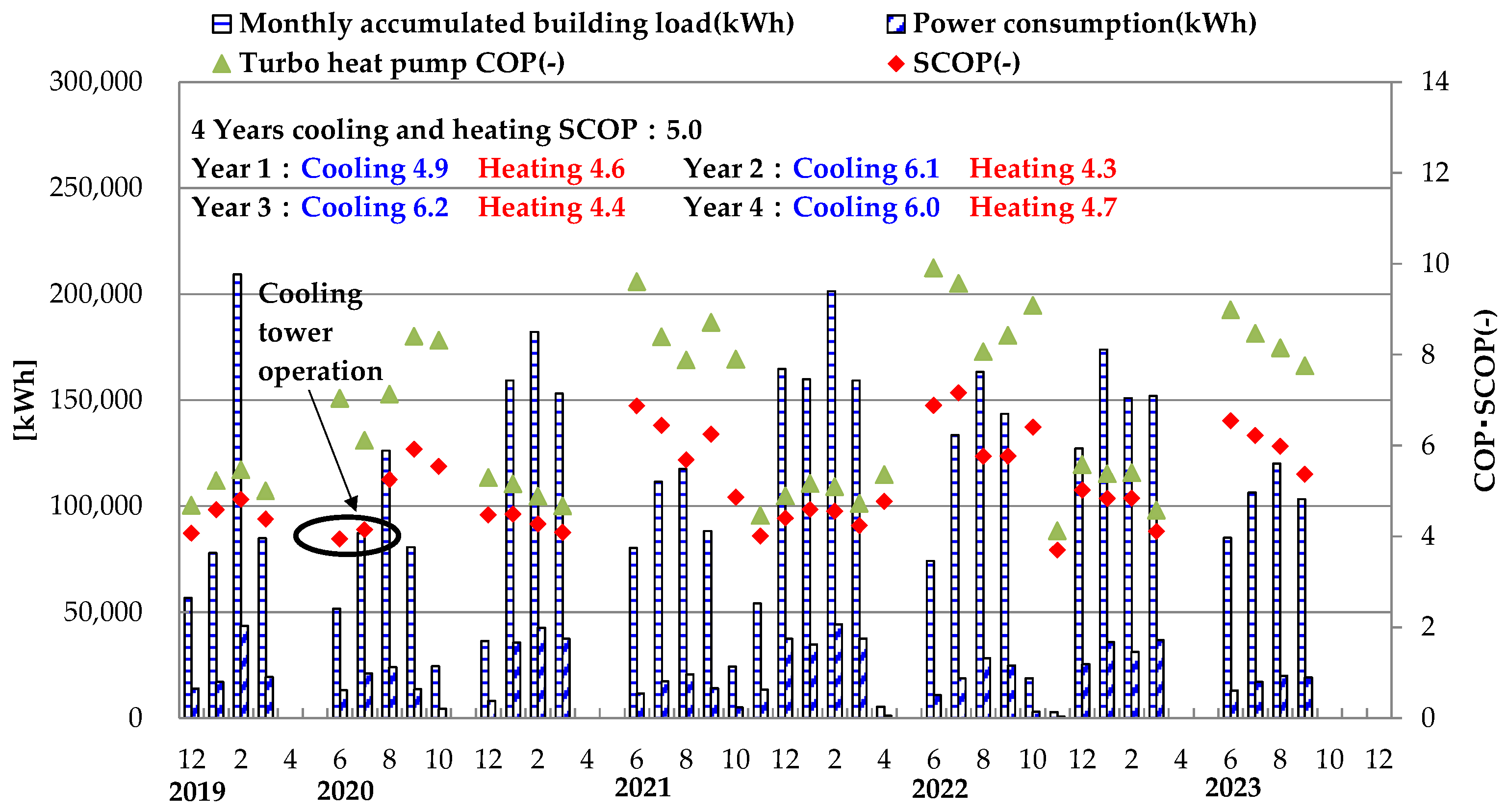

Furthermore, as shown in Figure 5, the SCOP for both cooling and heating gradually decreases over time within the same season. The reason for the decrease in SCOP is attributed to the reduction in stored thermal energy over the operational time, leading to an increase (or decrease) in production temperature. Consequently, this resulted in a decrease in the COP of the centrifugal chillers, and, thus, SCOP decreased as well. In November, due to the small heating load, the centrifugal turbo heat pump operated at a low load rate, which is believed to have led to a decrease in performance due to the characteristics of the centrifugal turbo heat pump equipment.

As can be seen from Table 4, during the first cycle, the accumulated thermal storage of cold water during heating significantly exceeded the thermal storage of warm water during cooling, disrupting the balance of thermal storage.

In Season 1W, thermal storage (cold water) of −1247 GJ was conducted in the low-temperature heat source well, and in Season 1S, this cold water was pumped out and 716 GJ of thermal storage (warm water) was conducted in the high-temperature heat source well. Since the thermal storage in summer is less than that in winter, it is assumed that the cold water remains in the low-temperature heat source well, not being used as the source water for cooling by the centrifugal chiller during the cooling period. In this study, this is regarded as cold water that can be used in the future, referred to as the imbalance of thermal energy, and quantified as −531 GJ. The reason for the reduced thermal storage of warm water in Season 1S is due to not utilizing ATES during the June and July period, instead operating with conventional cooling towers, which resulted in an inability to store heat in the aquifer.

In Season 1S, thermal storage of warm water was carried out in the high-temperature heat source well, totaling 716 GJ. However, in Season 2W, cold water thermal storage amounted to −1540 GJ, with the volume of cold water storage exceeding that of warm water. Consequently, it is inferred that all the warm water stored in the high-temperature heat source well during Season 1S was entirely consumed in Season 2W. Additionally, the deficit was supplemented by pumping groundwater at its original ambient temperature. Thus, under conditions where the difference in thermal energy becomes negative, the imbalance of thermal energy is considered to be zero, and the residual thermal energy in the high-temperature heat source well for Season 2W is also considered to be zero. The imbalance of cold water thermal energy is evaluated independently for the low-temperature and high-temperature heat source wells.

Season 2S improved the operational methods based on the actual performance data from Season 1S. From the beginning of the cooling period, the imbalance of cold water thermal energy stored in the low-temperature heat source well during Season 2W was utilized to perform warm water thermal storage in ATES, amounting to 1721 GJ. As a result, the warm water thermal storage in Season 2S exceeded the cold water thermal storage of −1540 GJ from Season 2W, significantly improving the imbalance of cold water thermal energy in the low-temperature well to −351 GJ by the end of Season 2S.

However, in Season 3W, cold water thermal storage of −2421 GJ was conducted, and when combined with the imbalance of cold water thermal energy of 351 GJ from Season 2S, the total became −2771 GJ, making it the season with the highest imbalance of cold water thermal energy to date. The reason for the increased imbalance of cold water thermal energy during Season 3W, despite the factory not operating, was due to an operator’s mistake in March 2022, which led to a 24 h heating operation, resulting in unnecessary accumulation of cold water thermal storage.

After repeating the process of thermal storage and discharge of cold and warm water in Seasons 3S, 4W, and 4S, finally in Season 4S an imbalance of −739 GJ of cold water thermal energy was left, indicating a need in Season 5W to consider the previous load patterns, adjust heating operation time, and maintain thermal storage balance.

4. Performance Evaluation from the Perspective of the Heat Source Well

For the long-term and stable operation of ATES, it is essential to calculate the heat recovery rate based on actual values for each cycle and analyze the parameters that affect the heat recovery rate. Among these parameters, the increase in production temperature significantly impacts the performance of the heat source well. Therefore, this chapter analyzes the heat source well production temperature, heat recovery rate, and thermal storage balance in relation to the original ambient temperature of the heat source well side (underground).

Thermal storage is evaluated based on the original ambient temperature $T_0$, with the pumped thermal storage, by Equations (3)–(6). To evaluate this against the original ambient temperature of the heat source well side (underground), the explanation includes the positive and negative flows of mass and heat in the formulation and is explained using Figure 8.

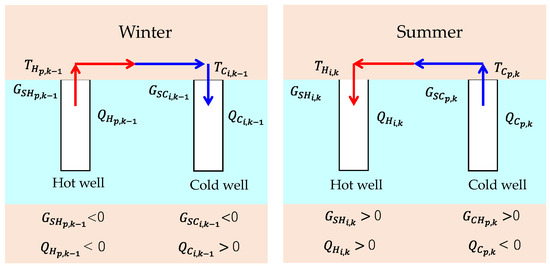

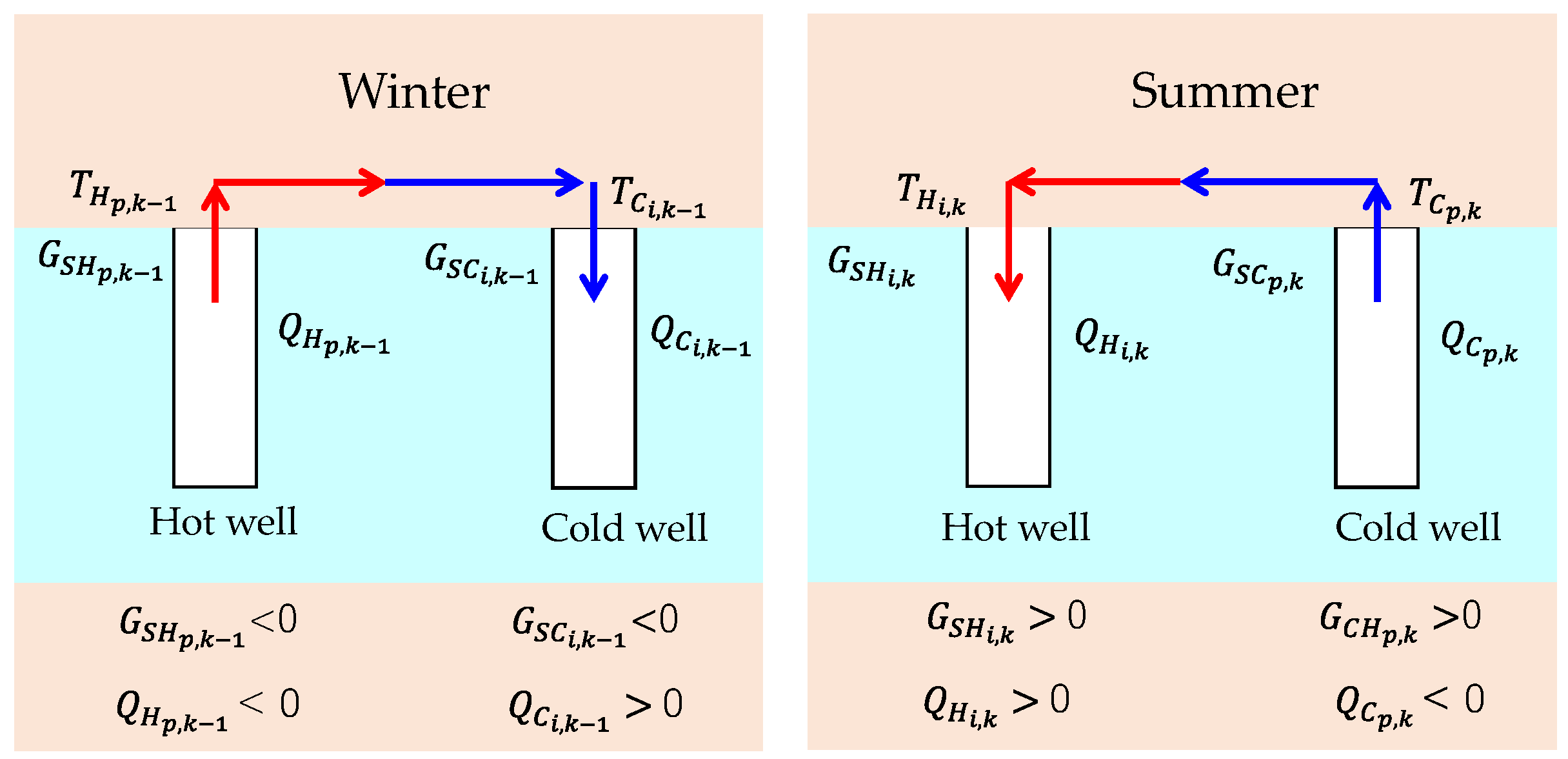

The definition of positive and negative thermal storage is based on the original ambient temperature $T_0$ as the reference temperature, where temperature differences greater than $T_0$ are positive, and those less than $T_0$ are negative. The volume of returned water is set to positive for both the hot water and cold water wells, while the volume of pumped water is negative. Thus, based on the flow rate and temperature positivity or negativity, the heat positivity or negativity is determined. The heat inflow to the high-temperature heat source well associated with warm water return becomes positive. The outflow from the high-temperature heat source well associated with warm water pumping is negative, the heat inflow to the low-temperature heat source well associated with cold water return is negative, and the heat outflow from the low-temperature heat source well associated with cold water pumping is positive. In this study, the impact of heat loss due to piping and pumping is not considered in the simulation with respect to the amount of heat storage.

$$G_{SH\_P,k}=C_w{Q}_{H_P,k}(T_{H_P,k}-T_0)$$

(3)

$$G_{SC\_i,k}=C_w{Q}_{C\_i,k}(T_{C\_i,k}-T_0)$$

(4)

$$G_{SH\_i,k}=C_w{Q}_{H_i,k}(T_{H\_i,k}-T_0)$$

(5)

$$G_{SC\_P,k}=C_w{Q}_{C\_P,k}(T_{C\_P,k}-T_0)$$

(6)

4.1. Production Temperature Prediction Model

Equations (7)–(10) denote either summer or winter as season $k$. A year is divided into a heating season and a cooling season. In the process of determining the equations for accumulated thermal storage and pumping volume balance, season $k$ can be assumed to be either summer or winter.

Doughty et al. [16] defines the heat recovery rate ${\epsilon }_k$ for each season as the ratio of the produced (extracted) energy to the input energy when an equal amount of water is returned to and then pumped from the aquifer. The amount of water energy is defined based on the original initial temperature $T_0$ of the aquifer. The heat recovery rate ${\epsilon }_k$ for season $k$ is shown in Equation (7). However, this equation can also be expressed as Equation (8) when the accumulated return flow volume $Q_{i,k-1}$ for season $k-1$ is equal to the pumping volume $Q_{p,k}$ for season $k$, and the average return temperature $T_{i,k-1}$ is constant during the period of season $k-1$. Here, the ambient water temperature $T_{p,k}$ is considered constant throughout the season, and $T_{p,k}$ represents the average production temperature during the pumping period (season $k$). Under these conditions, the dimensionless production temperature $T_{p,k}$ is defined in Equation (9).

Therefore, the heat recovery rate ${\epsilon }_k$ becomes equal to the average value of the average dimensionless production temperature ${T^{*}}_{p,k}$, resulting in Equation (10).

$${\epsilon }_k=\frac{G_{SE,k}}{G_{SS,k-1}}=\frac{C_w{Q}_{p,k}(T_{p,k}-T_0)}{C_w{Q}_{i,k-1}(T_{i,k-1}-T_0)}$$

(7)

$${\epsilon }_k=\frac{{T^{*}}_{p,k}-T_0}{T_{i,k-1}-T_0}$$

(8)

$${T^{*}}_{p,t}=\frac{T_{p,k}-T_0}{T_{i,t-1}-T_0}$$

(9)

$${\epsilon }_k={T^{*}}_{p,k}$$

(10)

Doughty et al. conducted a parameter study through simulation of the pumping response after water return, targeting a model of a single heat source well, and presented the dimensionless production temperature. In this study, using the dimensionless production temperature formula (Equation (9)) presented by Doughty et al., the evaluation of production temperatures and heat recovery rates is conducted when pumping and returning water using two heat source wells.

Nakao et al. conducted simulations on the production temperature for doublet wells without thermal interference between heat source wells, in line with Doughty et al.’s previous research [17]. They presented the relationship between the dimensionless production temperature and the heat recovery rate, considering the air conditioning operation period in Japan, and outlined a simplified procedure for determining the production temperature. Furthermore, Nakao et al. considered the thermal interference between two heat source wells to obtain the relationship between dimensionless numbers and changes in production temperature [18]. They derived a formula for estimating the heat recovery rate based on the ratio of heat relation to the spacing of the heat source wells, especially in areas with limited land like Japan. While Nakao et al. were able to determine the dimensionless production temperature through simulations, they did not describe how to apply these data to practical operations in the future [17,18]. Therefore, this study extends their work by calculating the dimensionless production temperature and proposing operational methods for the next fiscal year to achieve thermal balance.

4.2. Evaluation of Actual Production Temperature Data

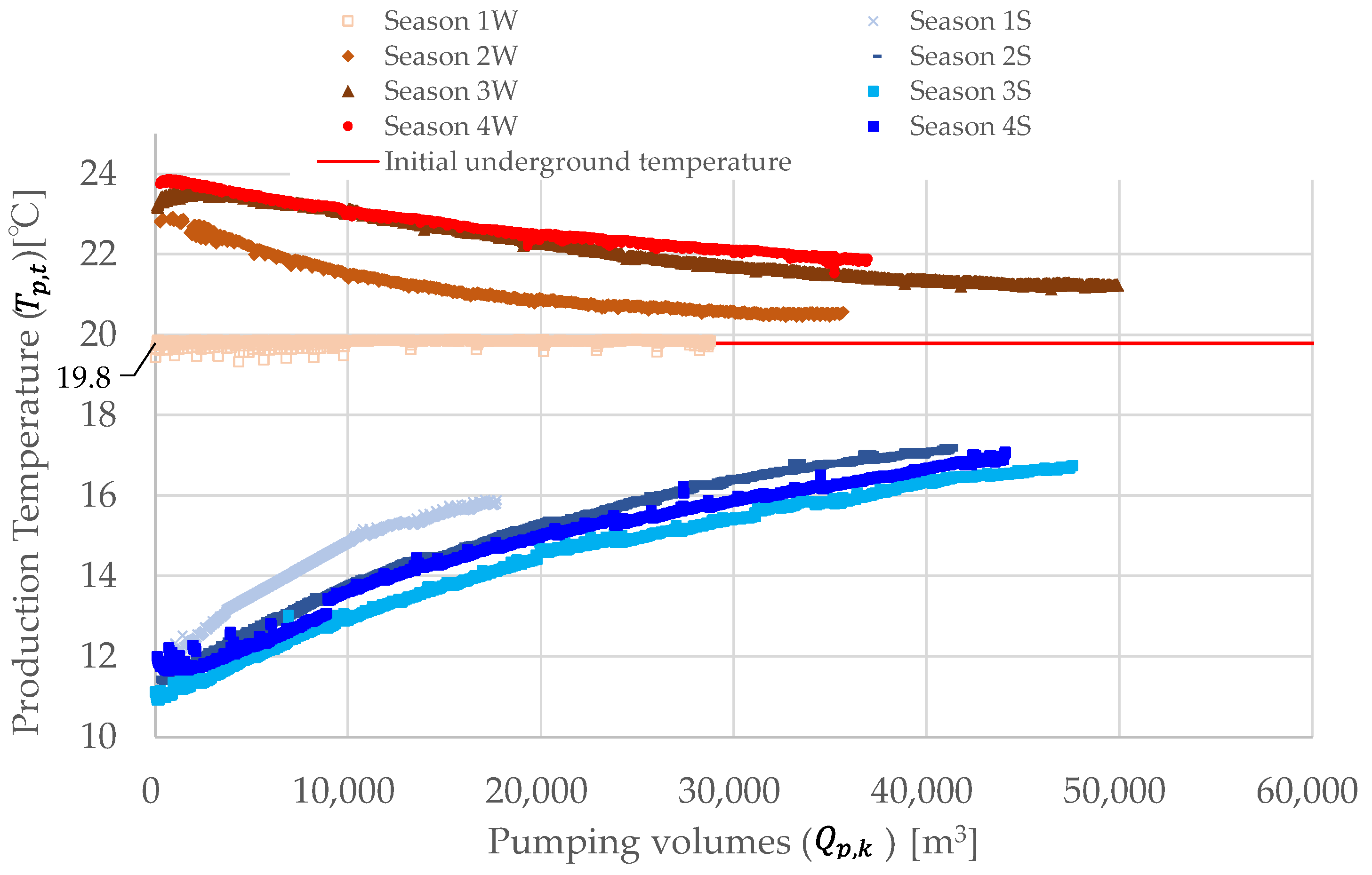

Figure 9 shows the production temperature $T_{p,t}$ from December 2019 to October 2023 for this installation, with the horizontal axis representing the cumulative pumping volume from the start of injection in each season. The operation of ATES began in the winter of 2019, with the initial production temperature set at the original ambient temperature of 19.8 °C. From Season 2S onwards, the cold and warm water stored during Season 1W was utilized. The average return temperature of warm water during cooling is set at 25 °C, and the return temperature of cold water during heating is set at 10 °C. This setting is due to the larger pumping volume from the warm water well compared to the cold water well, as explained in Section 2.1, which allowed meeting the cooling load sufficiently even with a smaller difference between the original ambient temperature and the return temperature. Conversely, due to the smaller pumping volume from the cold water well, a larger difference between the initial temperature and the return temperature was necessary to meet the heating load. The average starting temperature of pumping in seasons other than Season 1S and 2W is almost the same. The reason for the lower starting temperature in Season 1S, as shown in Table 4, is due to the late start of the ATES operation and a longer rest period. The reason for the lower starting temperature in Season 2W is due to the shorter cooling operation time with ATES in Season 1S and the smaller cumulative pumping volume.

4.3. Dimensionless Production Temperature

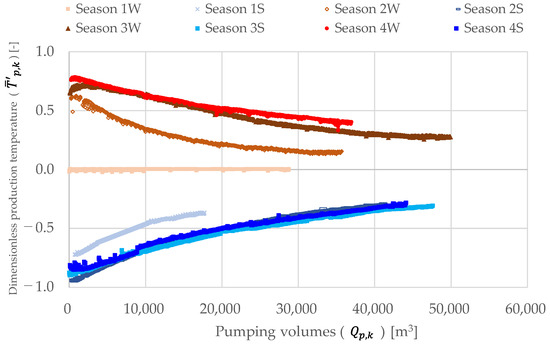

Using the dimensionless production temperature formula (Equation (7)) defined in Section 4.1, the dimensionless production temperature data are shown in Figure 10.

Season 1W, being the first year of operation using ATES, has a dimensionless production temperature of 0. The trend of temperature increases or decreases due to the cooling and heating operations in each season (excluding Season 1S and 2W) is largely identical.

From Season 2W to 4W, during the winter heating operation, the initial values of the dimensionless production temperature at the start of pumping are 0.55, 0.69, and 0.74, respectively. These values tend to rise with each cycle, and the response shape is almost the same across these seasons. Notably, the change in response in Season 2W is faster compared to the other seasons. This is believed to be primarily due to the smaller volume of injection in the previous Season 1S. Despite the different pumping volumes due to the winter heating operations, it is observed that the dimensionless production temperature increases over the seasons. Comparing Seasons 2W and 4W, which have almost the same pumping volumes, the speed of initial production temperature decrease is faster in Season 2W, but from 10,000 m³ onwards, it is almost the same. The reason for the faster initial production temperature decrease in Season 2W is likely due to the smaller volume of warm water pumping in Season 1S compared to Season 3S. Although the slope of the initial production temperature decrease is slightly different in the first stages of all three cycles, it becomes almost the same from the midpoint onwards.

For the summer cooling operations from Season 1S to 4S, the initial values of the dimensionless production temperature at the start of pumping are 0.72, 0.94, 0.88, and 0.81, respectively, showing variation but with similar response shapes across the seasons. It is observed that for all four seasons during summer cooling operations, the slope of the dimensionless production temperature exhibits a consistent trend. Although the initial values of the dimensionless production temperature in Seasons 2S and 3S are lower compared to Season 4S, after 5000 m³, the values become almost the same across all four seasons.

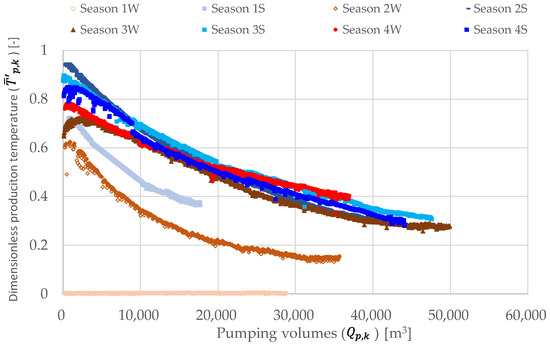

To compare the response shapes of production temperatures between summer and winter using the same indicators, the signs of production temperatures for summer and winter are reversed, and the response shapes of dimensionless production temperatures are compared in Figure 10. However, based on the above analysis, since the tendencies of Season 1W, 1S, and 2W were found to be different from the other seasons, they are excluded from Figure 11.

From Figure 11, it is observed that the response shapes of the production temperatures for each cycle are almost the same for both summer and winter. Additionally, it is noted that the starting dimensionless production temperatures for summer are higher than for winter. This difference could be influenced by the variations in the ground properties of the warm and cold water wells, as explained in Section 2, which might affect the performance of the heat source wells. This assumption is speculated to also reflect differences in the heat recovery rates of the heat source wells, which will be discussed later.

4.4. Thermal Energy Imbalance on the Heat Source Well Side

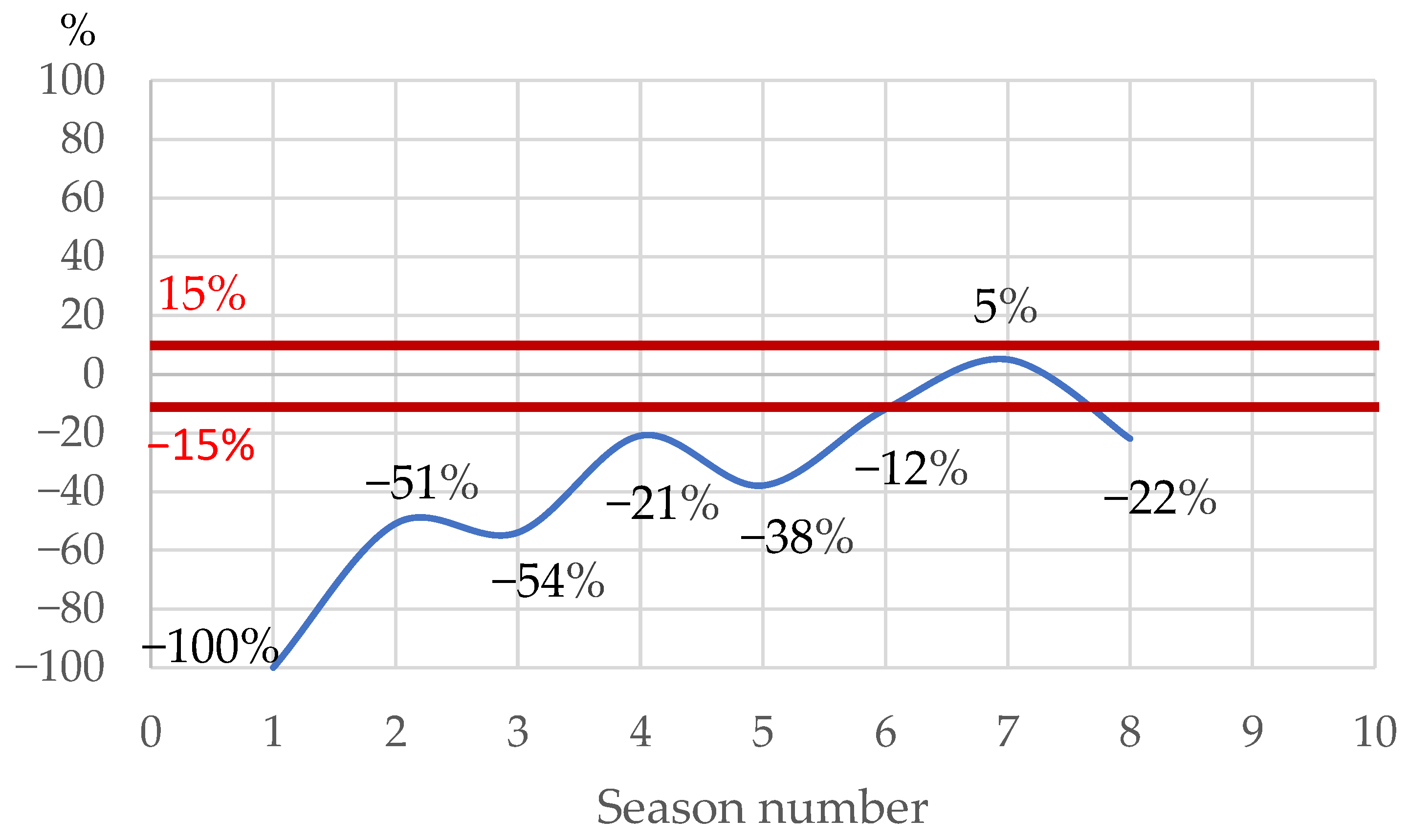

Figure 12 shows the annual thermal storage imbalance ratio on the heat source well side. The thermal energy imbalance for the heat source well is calculated using Equation (11). When the thermal energy imbalance is 0%, it indicates that the pumped thermal energy storage $G_{SE,k-1}$  from season $k-1$ and the environmental thermal energy storage ${-G}_{SS,k}$ from season $k$ are equal. The positive or negative value of the thermal energy imbalance indicates an excess of heat or cold, respectively.

$$\in =\frac{G_{SE,k-1}{-G}_{SS,k} }{G_{SE,k-1+}{G}_{SS,k}}$$

(11)

As shown in Figure 12, all the seasons except for Season 7 resulted in a negative balance, indicating the occurrence of an excess of cold thermal energy. In the Netherlands, regulations require that the thermal storage balance be kept within ±15% within 5 cycles and within ±10% within 10 cycles. While Japan does not yet have precise regulations in this regard, continuing to operate in such a manner could render the ATES system unusable over the long term. Therefore, a change in operation methods and improvement in thermal storage balance is necessary by the fifth cycle. The approach to this method will be explained in Section 5.

4.5. Evaluation of Heat and Mass Balance

Table 5. Summary of operational data performance results over four years.

Cycle Number	Year	Season	Season Number	Hot Well Side					Cold Well Side					Geothermal Unbalanced Heat $\Delta {\mathit{G}}_{\mathit{R},\mathit{k}}$
				Accumulated Cumulative Pumping and Return Volumes by Season ${\mathit{Q}}_{\mathit{p},\mathit{k}}$${\mathit{Q}}_{\mathit{i},\mathit{k}}$	Imbalanced Pumping Volume	Pumped/ Returned Thermal Storage ${\mathit{G}}_{\mathit{S}\mathit{E},\mathit{k}}{\mathit{G}}_{\mathit{S}\mathit{S},\mathit{k}}$	Excess of Thermal Energy ${\mathit{G}}_{\mathit{S}\mathit{H}\_\mathit{i},\mathit{k}}+{\mathit{G}}_{\mathit{S}\mathit{H}\_\mathit{p},\mathit{k}+1}$	Heat Recovery Rate ${\mathit{ϵ}}_{\mathit{k}}$	Accumulated Cumulative Pumping and Return Volumes by Season ${\mathit{Q}}_{\mathit{p},\mathit{k}}$${\mathit{Q}}_{\mathit{i},\mathit{k}}$	Imbalanced Pumping Volume	Pumped/ Returned Thermal Storage ${\mathit{G}}_{\mathit{S}\mathit{E},\mathit{k}}{\mathit{G}}_{\mathit{S}\mathit{S},\mathit{k}}$	Excess of Thermal Energy ${\mathit{G}}_{\mathit{S}\mathit{H}\_\mathit{i},\mathit{k}}+{\mathit{G}}_{\mathit{S}\mathit{H}\_\mathit{p},\mathit{k}+1}$	Heat Recovery Rate ${\mathit{ϵ}}_{\mathit{k}}$
				m3/Season	m3	GJ/Season	GJ	%	m3/Season	m3	GJ/Season	GJ	%	GJ
1	2019~2020	Winter	1W	−28,790	−28,790	0	0	-	28,790	28,790	−1288	−1288	-	−1288
	2020	Summer	1S	17,706	−11,084	415	415	-	−17,706	11,084	483	−805	38%	−390
2	2020~2021	Winter	2W	−35,675	−46,759	−205	210	49%	35,675	46,759	−1402	−2206	-	−1996
	2021	Summer	2S	40,732	−6027	922	1132	-	−40,732	6027	803	−1403	57%	−271
3	2021~2022	Winter	3W	−49,916	−55,943	−488	644	53%	49,916	55,942	−2048	−3452	-	−2807
	2022	Summer	3S	47,607	−8336	978	1622	-	−47,607	8335	1045	−2406	51%	−784
4	2022~2023	Winter	4W	−36,426	−44,762	−432	1190	44%	36,426	44,761	−1476	−3883	-	−2693
	2023	Summer	4S	44,107	−655	943	2132	-	−44,107	654	897	−2985	61%	−853

shows the heat and mass balance status of the low-temperature and high-temperature heat source wells. The underground heat imbalance is calculated using Equation (12). The term “underground heat imbalance” refers to the balance of heat input/recovery from the surface facilities to the underground.

$$\Delta G_{R,k}\equiv G_{SL\_i,k}+G_{SL\_p,k}+G_{SH\_i,k}+G_{SH\_p,k}$$

(12)

During the winter heating operation, Season 1W had the smallest pumping volume of 28,790 m³ among the four cycles. Seasons 2W and 4W were almost the same, and Season 3W had the largest volume due to operator error, which led to a month and a half of nighttime operation, as mentioned in Section 3. Even if the nighttime operation had been stopped during Season 3W, the pumping volume would have been about 43,388 m³, which is larger than the other seasons. This was due to the larger factory production load during Season 3W, resulting in longer operating hours. It is estimated that the pumping volume for season 3W would have reached around 36,000 m³, similar to Seasons 2W and 4W, if the factory had been operating normally and there was no operator error.

In the summer cooling and heating operations, Season 1S had the smallest pumping volume of 17,706 m³ among the four cycles. Seasons 2S, 3S, and 4S varied slightly due to operation time but all exceeded 40,000 m³, averaging about 44,000 m³ over three years.

By the end of the fourth cycle of summer operation (4S) of the low-temperature heat source well, the pumping volume was in an imbalanced state, with an imbalance of 655 m³. The heat recovery rate for the low-temperature heat source well improved from 38% in the first cycle to 61% in the fourth cycle. As a result of operational improvements aimed at balancing the thermal storage and pumped water volumes, an improvement in heat recovery rate was observed.

At the end of (4S) for the high-temperature heat source well, the imbalance in pumping volume was reduced to 474 m³, but the state of excess pumping volume from the high-temperature well compared to the low-temperature well was not resolved. The heat recovery rate improved from Season 2W to 3W for the high-temperature heat source well but decreased in Season 4W. This decrease was because, as described in Section 3, a significant amount of thermal storage was accumulated during Season 3W due to unnecessary operation in winter, and the thermal storage from 3W was not fully utilized in the following Season 3S.

By the end of the fourth cycle of summer operation (4S), the underground heat imbalance amounted to −853 GJ, indicating that the released (or cooled) heat exceeded the input heat. To address the imbalance in thermal storage, a review of operational methods beyond the fifth cycle is necessary to return to an equilibrium state.

5. Improvement Methods for Thermal Storage and Pumping Volume

The operational data analysis conducted previously has revealed an imbalance in accumulated thermal storage and pumping volume. By the end of Season 4S, as demonstrated in Section 3, there was an excess cold thermal storage of 739 GJ on the building side and an excess pumping volume of 656 m³. Continuing operations in this condition could increase the thermal storage and pumping volume on the low-temperature side, potentially preventing the long-term sustainable operation of the ATES system. Therefore, it is necessary to review and improve future operational methods. Olaf Van Pruissen et al. have stated that to operate an ATES system efficiently over a long period, it should be used for the smaller of the cooling or heating loads, with the remainder being managed by an air-cooled heat pump [19]. This approach maintains the thermal storage balance and improves the overall efficiency of the system, although specific operational methods are not detailed. In Japan, Cui et al. have proposed the use of free cooling or a centrifugal turbo heat pump for thermal storage in cases where cooling loads exceed heating loads, but they have not mentioned imbalance measures for cases where heating loads are larger, as occurred in this study [20]. Therefore, this chapter proposes operational improvement methods using actual data.

Based on the operational data from the past four cycles,

Table 6. Summary of operational data performance results over four years.

Season	Operating Period	Operating Time t		Accumulated Pumping Volume ${\mathit{Q}}_{\mathit{p},\mathit{k}}$	Pumping Volume ${\mathit{Q}}_{\mathit{p},\mathit{t}}$	Actual Average Injection Water Temperature ${\overline{\mathit{T}}}_{\mathit{i},\mathit{k}}$	Initial Underground Temperature ${\mathit{T}}_0$	Average Dimensionless Production Temperature ${\overline{\mathit{T}}\mathit{\prime }}_{\mathit{p},\mathit{k}}$	Average Production Temperature ${\overline{\mathit{T}}}_{\mathit{p},\mathit{k}}$	Excess of Thermal Energy ${\mathit{G}}_{\mathit{R}\mathit{C},\mathit{k}}$	Building-Side Thermal Energy ${\mathit{G}}_{\mathit{s},\mathit{k}}$
		day	h	m3/Season	m3/h	°C	°C	-	°C	GJ	GJ
Winter	12/1~3/18	110	1519	36,000	23.7	10.0	19.8	0.494	15.0	739	1865
Summer	6/1~10/22	115	1276	44,000	34.5	24.6	19.8	0.536	22.4	-	1776

summarizes an average operational situation that eliminates the variability in performance across the four cycles. From Table 6, based on the annual factory operational performance (excluding data such as operator errors), it is understood that, on average, the operational duration is 1519 h in winter and 1276 h in summer. Correspondingly, the pumping volumes are 36,000 m³ in winter and 44,000 m³ in summer. The average dimensionless production temperature was used based on the average values from the four cycles of operational data. Regarding the set conditions, with the current factory load conditions, the injection temperatures are set to 10 °C in winter and 24.6 °C in summer, leading to accumulated thermal storage of 1865 GJ in winter and 1776 GJ in summer, indicating a larger accumulated thermal storage during the heating period in winter.

To improve this imbalanced operational reality and maintain a balance between both pumping volume and accumulated thermal storage moving forward, an improvement proposal for the operational method is presented in the following steps.

• Determination of pumping volume

To maintain a balance in pumping volume between summer and winter, it is necessary to align the pumping volumes for these seasons, meaning they should be matched to the lesser volume of the two. In this study, the smaller winter pumping volume is set at 36,000 m³, and it is decided that this volume will not change annually and will be operated at a constant value going forward. This requires reducing the summer pumping volume compared to past performance. However, in this case, since the ATES system cannot cover the cooling load with reduced pumping volume, it is necessary to adjust the injection temperature settings.

2.

Determination of injection temperature

Once the pumping volume is established, the next step is to determine the accumulated thermal storage for summer and winter. In this study, since the total accumulated thermal storage is smaller in summer, the injection temperature for summer is set. When deciding the average injection temperature, the average injection temperature is calculated from Equation (13) using the dimensionless production temperature of the previous year. Subsequently, the average injection temperature in winter is set using Equation (14) so that the accumulated thermal storage in winter becomes almost the same as in summer.

$$\Delta G_{R,k}\equiv G_{SL\_i,k}+G_{SL\_p,k}+G_{SH\_i,k}+G_{SH\_p,k}$$

(13)

$$T_{i,k}=T_{p,k}-\frac{ G_{S{S}_k} }{C_w\times Q_{p,k}} \mathit{Or} T_{i,k}=T_{p,k}-\frac{G_{S{E}_k}}{C_w\times Q_{p,k}}$$

(14)

As a result of adjusting the two parameters of pumping volume and injection temperature, the operational settings for the following years will be set as follows, according to

Table 7. Proposal for future operational methods (without revising heating operation time).

Season	Operating Period	Operating Time t		Accumulated Pumping Volume ${\mathit{Q}}_{\mathit{p},\mathit{k}}$	Pumping Volume ${\mathit{Q}}_{\mathit{p},\mathit{t}}$	Actual Average Injection Water Temperature ${\overline{\mathit{T}}}_{\mathit{i},\mathit{k}}$	Initial Underground Temperature ${\mathit{T}}_0$	Average Dimensionless Production Temperature ${\overline{\mathit{T}}\mathit{\prime }}_{\mathit{p},\mathit{k}}$	Average Production Temperature ${\overline{\mathit{T}}}_{\mathit{p},\mathit{k}}$	Excess of Thermal Energy ${\mathit{G}}_{\mathit{R}\mathit{C},\mathit{k}}$	Building-Side Thermal Energy ${\mathit{G}}_{\mathit{s},\mathit{k}}$
		day	h	m3/Season	m3/h	°C	°C	-	°C	GJ	GJ
Winter	12/1~3/18	110	1519	36,000	23.7	12.0	19.8	0.545	15.5	739	1782
Summer	6/1~10/22	115	1276	36,000	28.2	27.3	19.8	0.535	23.8	-	1776

: the winter injection temperature will be adjusted to 12.0 °C, the summer injection temperature will be adjusted to 27.3 °C, and the pumping volume will be standardized to 36,000 m³ to match the winter volume.

This adjustment leads to the realization that the accumulated thermal storage during winter heating operation will be less than the assumed values of 1865 GJ in Table 6, indicating that ATES alone cannot cover all the heating load. Ideally, the shortfall would be supplemented by an auxiliary heat source (such as an air-cooled heat pump); however, the equipment does not possess an auxiliary heat source capable of heating, necessitating a reduction in heating operation time. Reducing heating operation time would also decrease the pumping volume.

Table 8. Proposal for future operational methods (with revised heating operation time).

Season	Operating Period	Operating Time $\mathit{t}$		Accumulated Pumping Volume ${\mathit{Q}}_{\mathit{p},\mathit{k}}$	Pumping Volume ${\mathit{Q}}_{\mathit{p},\mathit{t}}$	Actual Average Injection Water Temperature ${\overline{\mathit{T}}}_{\mathit{i},\mathit{k}}$	Initial Underground Temperature ${\mathit{T}}_0$	Average Dimensionless Production Temperature ${\overline{\mathit{T}}\mathit{\prime }}_{\mathit{p},\mathit{k}}$	Average Production Temperature ${\overline{\mathit{T}}}_{\mathit{p},\mathit{k}}$	Excess of Thermal Energy ${\mathit{G}}_{\mathit{R}\mathit{C},\mathit{k}}$	Building-Side Thermal Energy ${\mathit{G}}_{\mathit{s},\mathit{k}}$
		day	h	m3/Season	m3/h	°C	°C	-	°C	GJ	GJ
Winter	12/1~3/18	110	1400	34,415	24.6	11.7	19.8	0.545	15.4	739	1776
Summer	6/1~10/22	115	1276	34,415	27.0	27.7	19.8	0.535	24.0	-	1776

summarizes a proposal for the operational method for the next fiscal year if the heating operation time is reduced.

The proposal for the operational methods mentioned above does not consider the thermal energy imbalance left from the past four cycles, so it is necessary to explore ways to eliminate the previous thermal energy imbalance. By the end of Season 4S, the total cold thermal energy imbalance was 739 GJ, making it challenging to completely neutralize the thermal energy imbalance within the next fiscal year and achieve a balanced accumulated thermal storage. Therefore, this study sets a timeframe of an additional four cycles to balance the accumulated thermal storage, mirroring the duration over which the imbalance initially occurred. Since adjusting the injection temperature is the only method to balance the accumulated thermal storage, the settings are based on the premise that all cooling operations with smaller loads are covered by ATES. Because the thermal energy imbalance will be added to the accumulated thermal storage during heating operations, this necessitates increasing the injection temperature settings accordingly. As a result, an operational method as outlined in

Table 9. Proposal for future operational methods (considering remaining cold thermal storage).

Season	Operating Period	Operating Time $\mathit{t}$		Accumulated Pumping Volume ${\mathit{Q}}_{\mathit{p},\mathit{k}}$	Pumping Volume ${\mathit{Q}}_{\mathit{p},\mathit{t}}$	Actual Average Injection Water Temperature ${\overline{\mathit{T}}}_{\mathit{i},\mathit{k}}$	Initial Underground Temperature ${\mathit{T}}_0$	Average Dimensionless Production Temperature ${\overline{\mathit{T}}\mathit{\prime }}_{\mathit{p},\mathit{k}}$	Average Production Temperature ${\overline{\mathit{T}}}_{\mathit{p},\mathit{k}}$	Excess of Thermal Energy ${\mathit{G}}_{\mathit{R}\mathit{C},\mathit{k}}$	Building-Side Thermal Energy ${\mathit{G}}_{\mathit{s},\mathit{k}}$
		day	h	m3/Season	m3/h	°C	°C	-	°C	GJ	GJ
Winter	12/1~3/18	110	1400	34,415	24.6	13.5	19.8	0.545	16.4	554	1777
Summer	6/1~10/22	115	1276	34,415	27.0	28.7	19.8	0.535	24.6	-	1776

will be established, prompting a review for the following years.

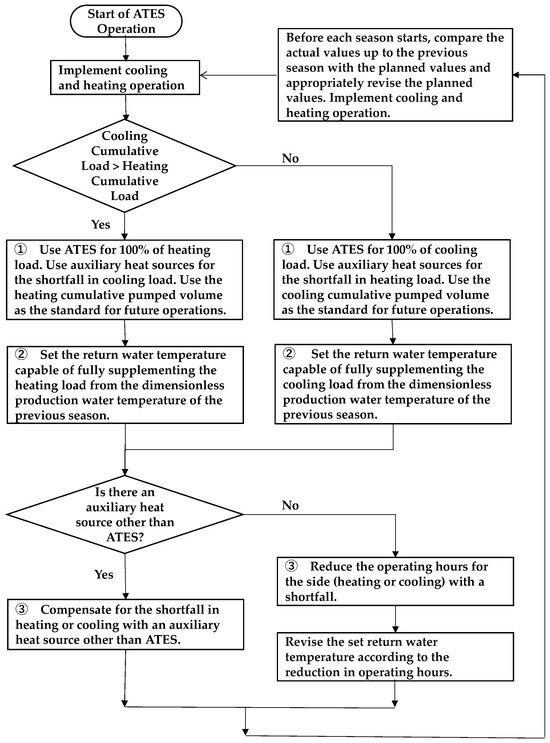

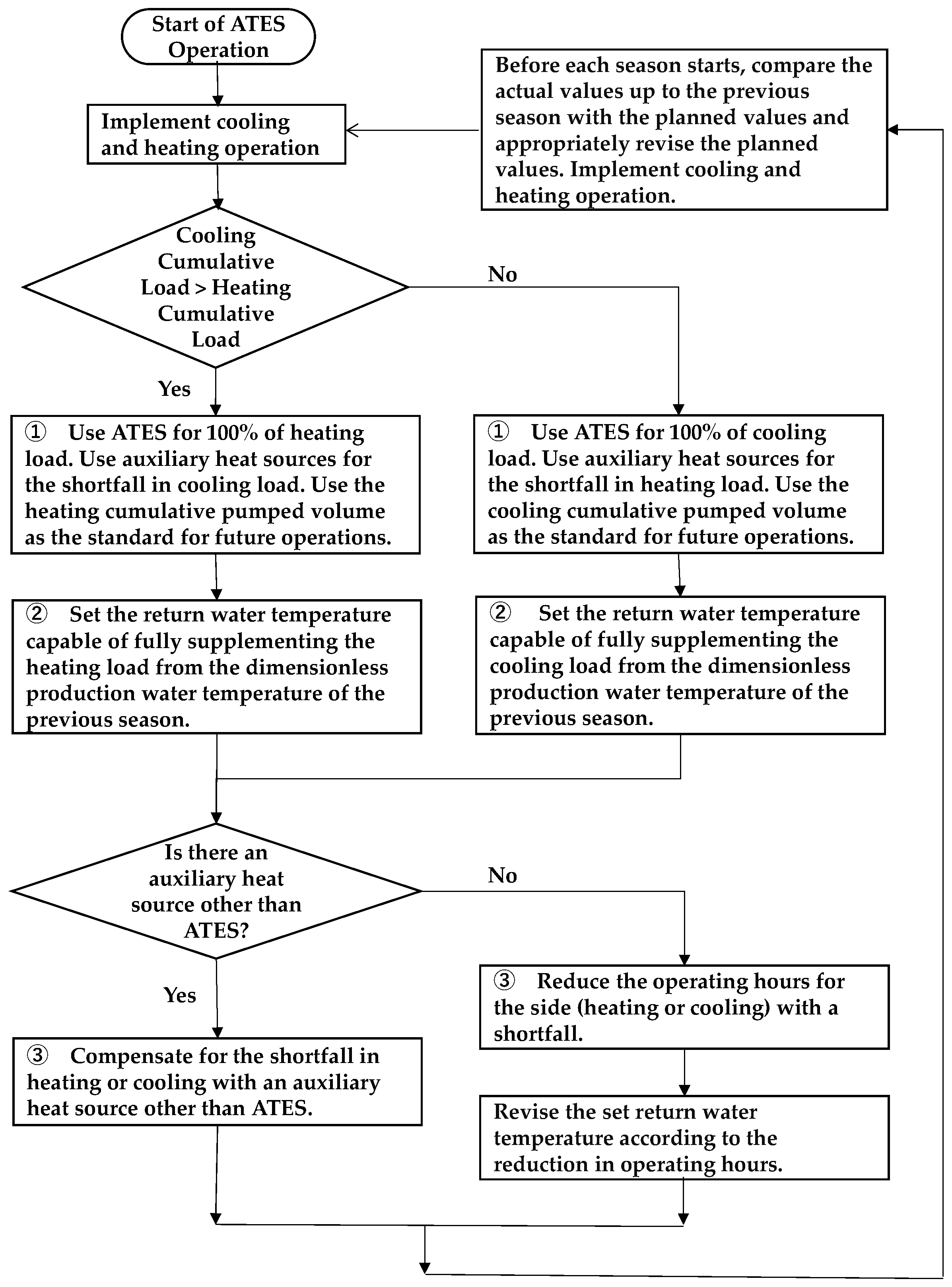

From the results of this research, it is clear that in order to operate ATES over a long period, adherence to the following four items and the ATES Long-term Stable Operation Flowchart shown in Figure 13 is necessary. At the start of the operation, since there are no performance data from the previous season, estimated values must be used to set the planned injection temperature. However, from the second cycle onwards, it is possible to determine the planned injection temperatures using the average dimensionless temperature obtained from the previous cycle’s performance data. In this way, from the second cycle onwards, while revising the planned injection temperatures and other parameters as appropriate for each season, both the pumping volume and the cumulative thermal storage will be maintained in balance. The following rules will be observed:

(1)

The operation of ATES will be based on the lower pumping volume, and planned pumping volumes for each season will be calculated. The smaller of the past pumped volumes will be used for comparison.

(2)

From the average dimensionless pumped water temperature of the previous season, the injection temperature for the next season will be set. The injection temperature will be calculated based on the previous season’s average dimensionless pumped water temperature and the cumulative thermal storage and volume of returned water.

(3)

For smaller cooling and heating loads, ATES will be utilized without auxiliary heat sources. If auxiliary heat sources are available, they will be used to compensate for the shortfall in the larger load. Without auxiliary heat sources, for larger loads, the entire cooling and heating period will not be operated with ATES; instead, the operation will be based on the available thermal storage for a proportionate operating time.

For the long-term stable operation of ATES, the initial ground temperature and the temperature difference between the cold and hot injection temperatures need to be set the same. However, this condition will naturally be met if rules (1)–(3) above are followed. The thermal energy imbalance observed in the case study factory was due to reducing the pumping volumes from the initially planned source well flow rate, thereby increasing the temperature difference. To avoid such failures, the temperature difference must be kept the same. Moreover, to avoid operating cooling and heating only for a part of the period as in rule (2), installing auxiliary heat sources is essential.

6. Conclusions

(1)

An ATES system was established in Wadamisaki, Kobe City, Japan, an area known for its complex geology and thin aquifer layers. Over four cycles (equating to eight seasons), an analysis was conducted on the performance, thermal storage, and heat recovery rates in relation to the load side and original ambient temperatures. This analysis revealed that the average system COP across the four cycles reached 5.0. Additionally, heat recovery rates for both the low- and high-temperature wells (based on initial median temperatures) were studied, indicating that the balance between the accumulated thermal storage and pumping volume significantly impacts well performance, highlighting the importance of maintaining this balance.

(2)

Using Doughty’s concept of dimensionless production temperature, changes in the dimensionless production temperature for each season were analyzed using actual operational data. Excluding the initial year, the trends were found to be almost the same. It was also discovered that the magnitude of the initial production temperature is influenced by the operational and rest periods of the previous year.

(3)

Using the operational data of the four cycles, an average operational scenario for the factory was summarized. This led to the proposal of operational improvements for balancing the thermal storage volume and flow in the following years. It was suggested to determine the cumulative pumping and return volumes based on the previous year’s operational data, aligning ATES operation with the lesser of these volumes, and supplementing any shortfall with auxiliary heat sources. It was discovered that adjusting the injection temperature is the only method for maintaining the balance of the accumulated thermal storage. A method was proposed to calculate the dimensionless production temperature (indicative of heat recovery efficiency) from the previous year’s data and use this to set the injection temperature for the next year in advance, thereby maintaining the thermal storage balance.

(4)

This study establishes a method to maintain the balance between cumulative heat storage and cumulative pumping volume, demonstrating the benefits of using aquifers while avoiding thermal pollution. This method is based on the premise of having both cooling and heating, and is used in the field of ATES utilization. Moreover, this method is applicable not only in Japan but also in other cold regions.
