Optimal Coordination of Directional Overcurrent Relays in Microgrids Considering European and North American Curves

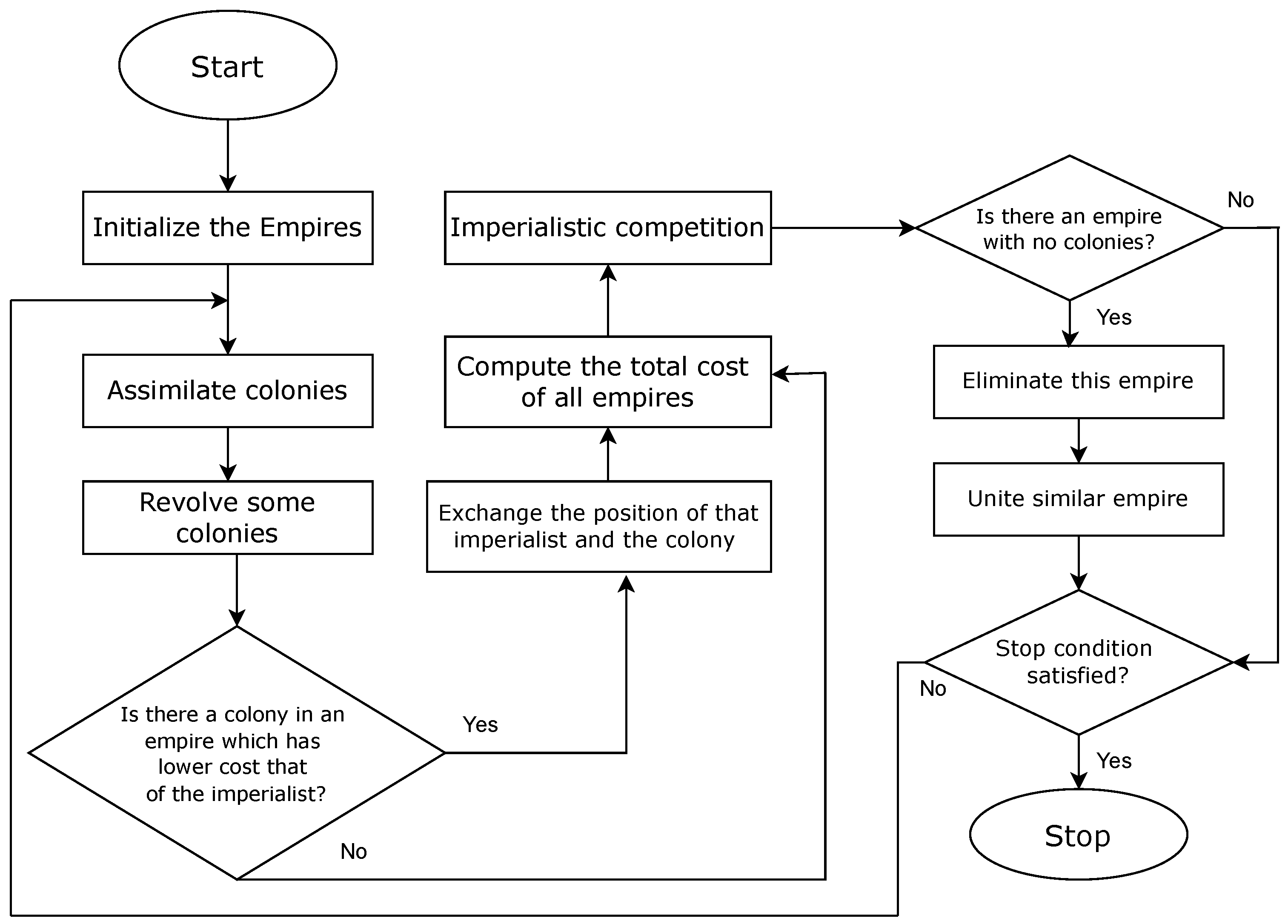

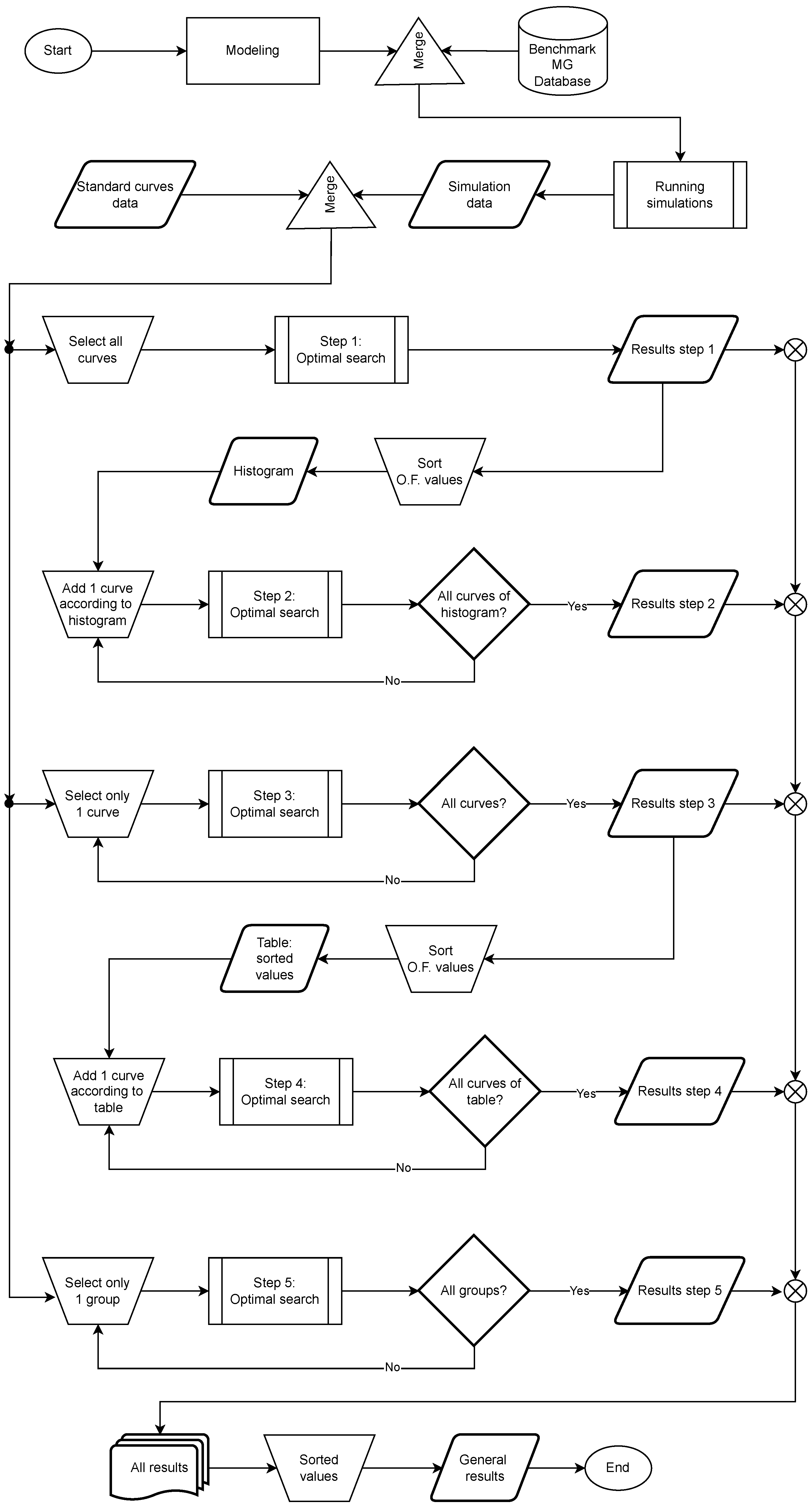

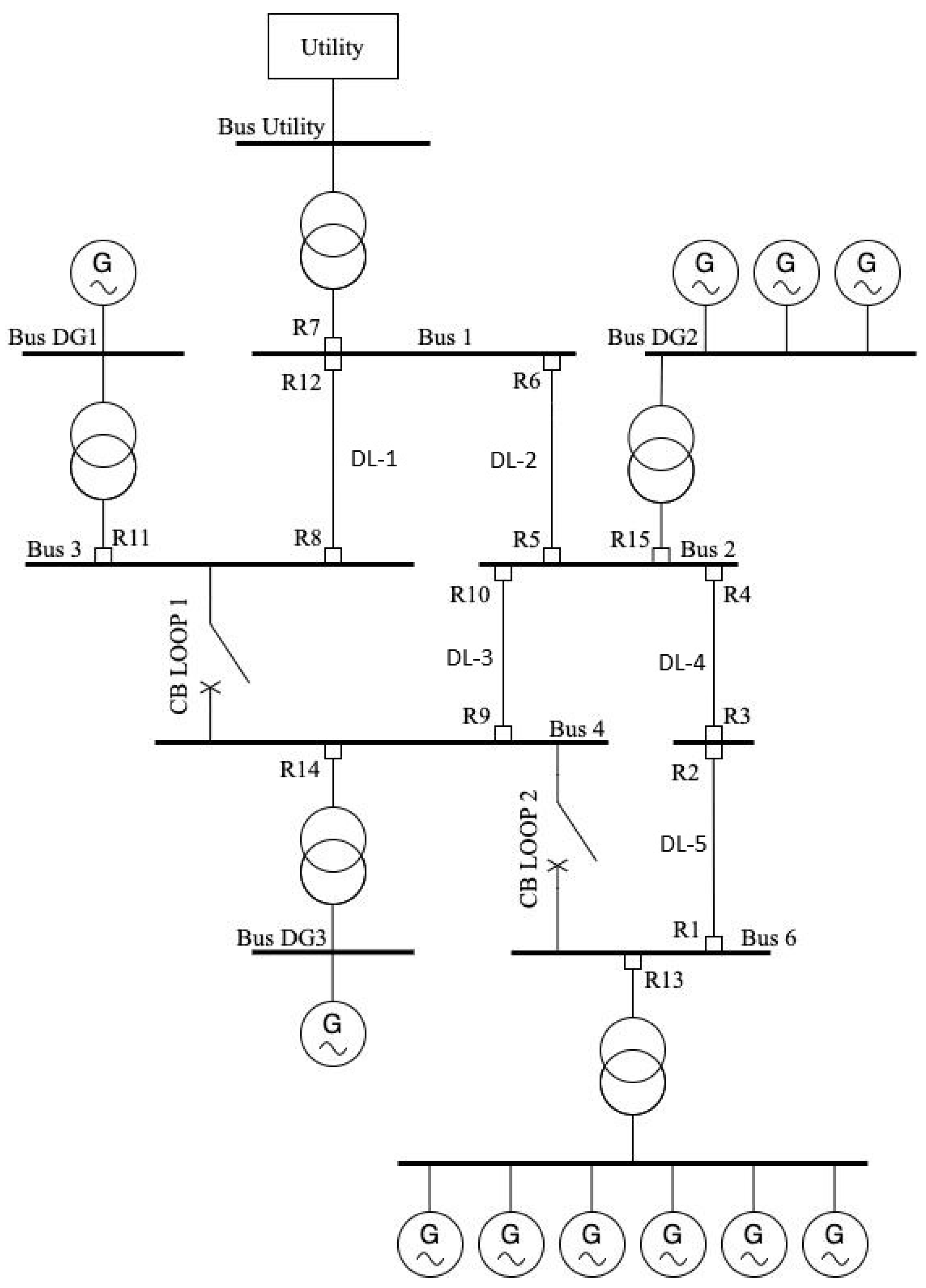

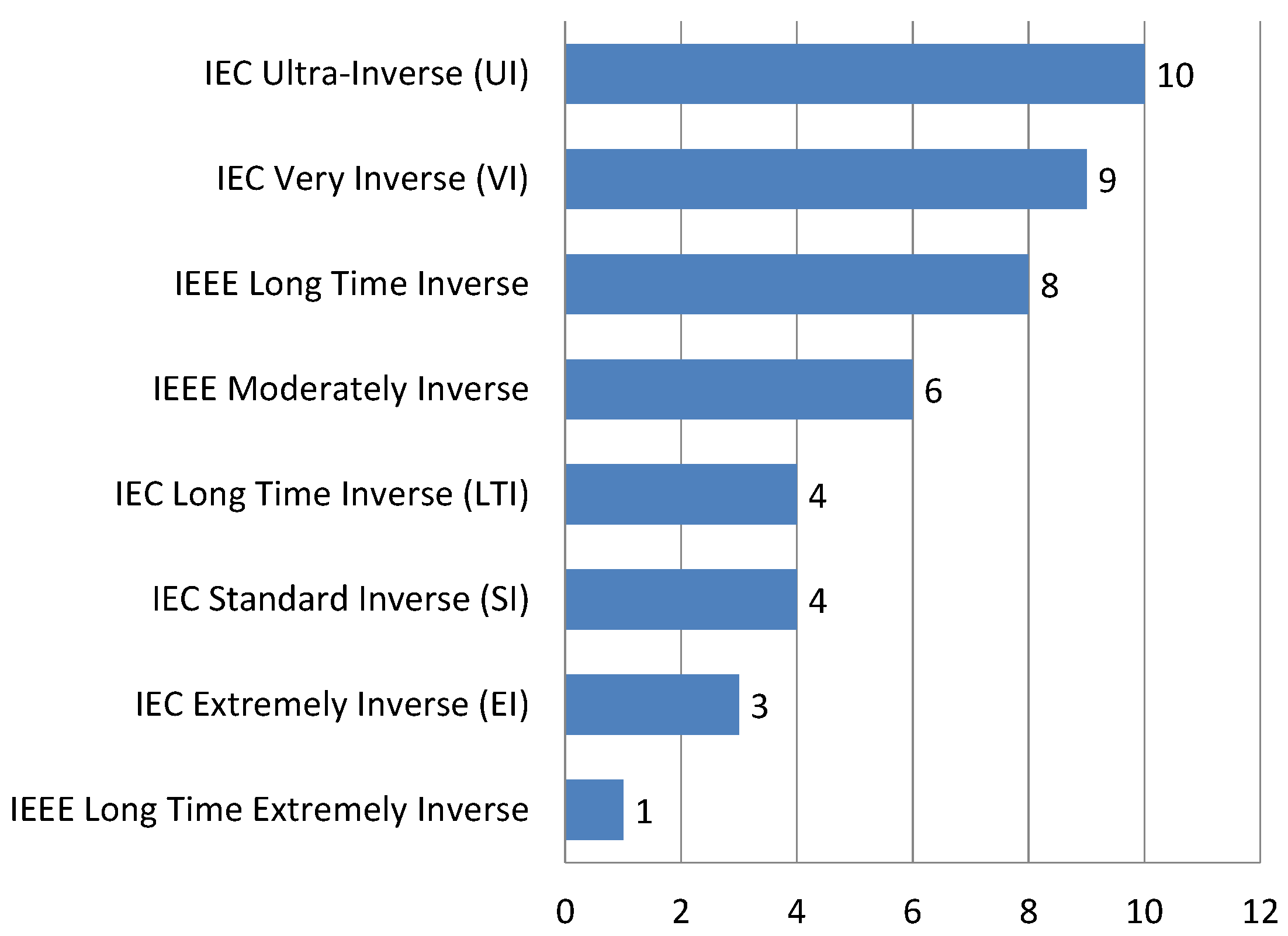

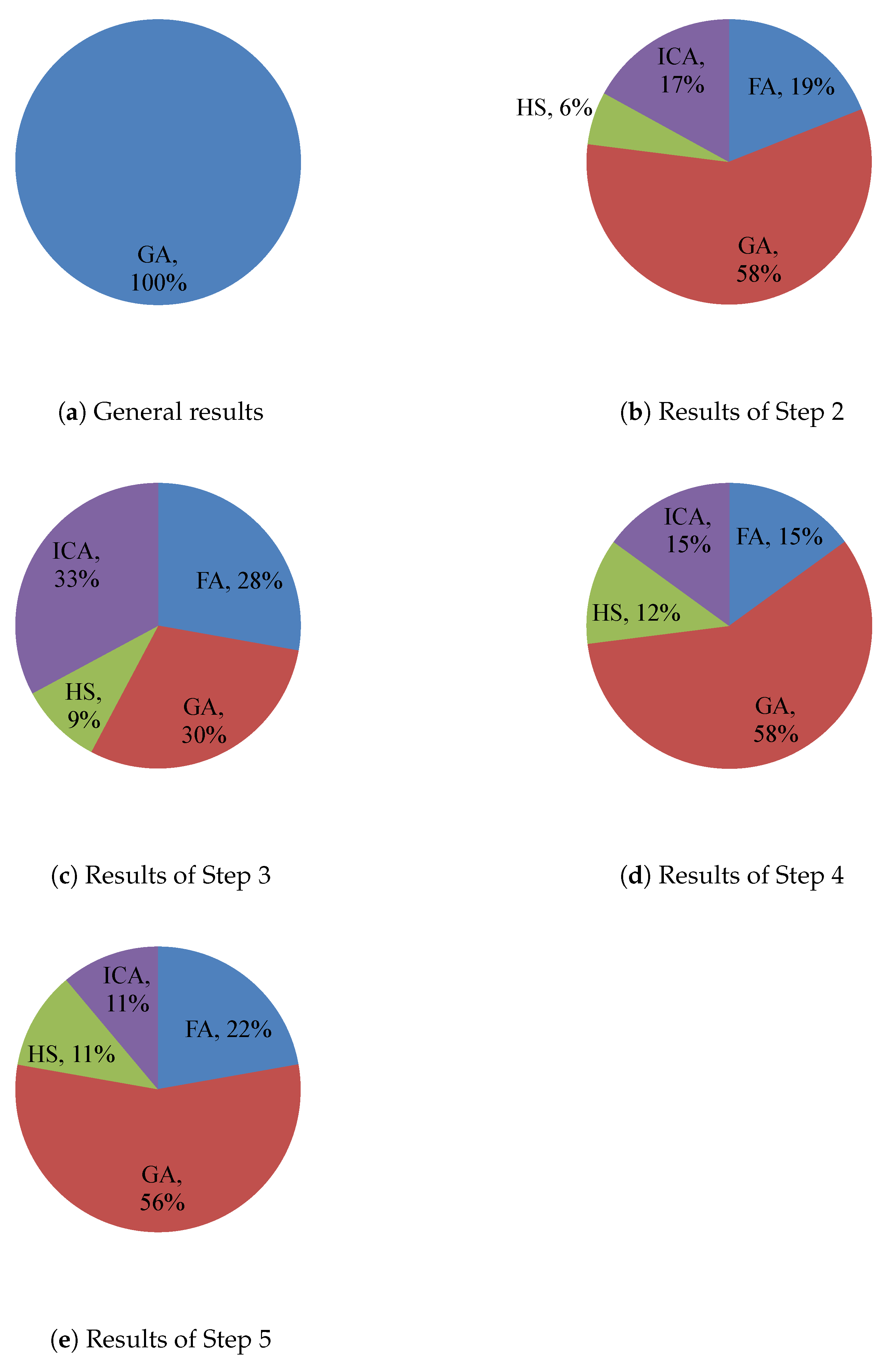

Protecting AC microgrids (MGs) is a challenging task due to their dual operating modes—grid-connected and islanded—which cause sudden variations in fault currents. Traditional protection methods may no longer ensure network security. This paper presents a novel approach to protection coordination in AC MGs using non-standard features of directional over-current relays (DOCRs). Three key optimization variables are considered: Time Multiplier Setting (TMS), the plug setting multiplier’s (PSM) maximum limit, and the standard characteristic curve (SCC). The proposed model is formulated as a mixed-integer nonlinear programming problem and solved using four metaheuristic techniques: the genetic algorithm (GA), Imperialist Competitive Algorithm (ICA), Harmonic Search (HS), and Firefly Algorithm (FA). Tests on a benchmark IEC MG with distributed generation and various operating modes demonstrate that this approach reduces coordination times compared to existing methods. This paper’s main contributions are threefold: (1) introducing a methodology for assessing the optimal performance of different standard curves in MG protection; (2) utilizing non-standard characteristics for optimal coordination of DOCRs; and (3) enabling the selection of curves from both North American and European standards. This approach improves trip time performance across multiple operating modes and topologies, enhancing the reliability and efficiency of MG protection systems.
