Generating Electricity with Hydraulically Amplified Self-Healing Electrostatic (HASEL) Transducers

Abstract

This study identifies hydraulically amplified self-healing electrostatic (HASEL) transducers as electricity generators, contrary to their conventional role as actuators. HASELs are soft, variable-capacitance transducers inspired by biological muscles which were developed to mimic the flexibility and functionality of natural muscle tissues. This research characterizes HASELs as generators by reversing their energy conversion mechanism—generating electricity through mechanical deformation. The study assesses the practical laboratory performance of HASELs by analytic modeling and experimental evaluation. Outcomes of the study include the following: (i) up to 2.5 mJ per cycle per 50 mm wide HASEL pouch of positive net energy generation in experimental testing—corresponding to an energy density of 2.0 mJ cm⁻³; (ii) a maximum theoretical energy density of 4.2 mJ cm⁻³; (iii) the electromechanical characteristics governing efficient conversion; and (iv) design considerations to enhance HASEL generator performance in future applications. This study broadens HASEL’s applicability and utility as a multi-functional transducer for renewable energy and general adaptive electricity generation.

1. Introduction

Variable-capacitance electrostatic transducers convert mechanical energy to electrical energy, or vice versa, and can be used as actuators, sensors, or energy generators. In particular, electrostatic transducers generate electricity when external mechanical work changes the transducer’s capacitance and boosts either its charge or voltage [1,2,3]. This electrostatic energy harvesting process requires an active priming voltage to be amplified, unlike electromagnetic generators which work by induction. However, electrostatic transducers are particularly promising as an energy conversion method because they can be directly embedded into flexible structures, enabling energy conversion for applications such as flexible wave energy converters [3,4,5,6,7], where rigid and bulky electromagnetic transducers are not possible.

1.1. Dielectric Elastomer Actuators and Generators

Flexible electrostatic transducers consist of electrodes on a compliant substrate. External mechanical work changes the transducer’s capacitance by deforming the substrate, which changes the distance between electrodes and/or the area of electrodes. Dielectric elastomer generators (DEGs) are a type of electrostatic generator that has been widely explored and consist of a thin elastomer membrane with electrodes coated on either surface [1,2,8]. They generate electricity by amplifying the energy of a small priming voltage. First, in-plane tensile forces stretch the membrane and reduce a DEG’s elastomer thickness via the Poisson effect, leading to an increase in capacitance. After the priming voltage is applied, the elastomer is allowed to relax, capacitance decreases, and the mechanical energy of relaxation is converted to an electric current, which leaves the generator with greater energy than the initial priming electricity. In actuator mode, DEGs are known as dielectric elastomer actuators (DEAs), and when subjected to a high voltage, they mechanically deform [9,10,11].

As energy generators, DEGs have been built in a wide range of deformation configurations, including uniaxial, equibiaxial, prestretched circular, and cone-shaped membranes [2], and have been used to harvest mechanical energy from waves [5,12,13,14], flows [15], and human motion [16]. In addition to DEGs, other types of electrostatic energy generators have been developed to improve the conversion between mechanical work and electrical energy. For example, dielectric fluid transducers have been developed to increase conversion efficiency and use mechanically driven fluid pressure to deform a membrane and separate the flexible electrode [17]. Hexagonal distributed embedded energy converters (HexDEECs) [3] have been developed as individual unit cells to create an energy converter meta-material, where each HexDEEC consists of a hyperelastic force amplification frame with an air gap between flexible electrodes. One challenge which limits electrostatic energy generators is failure by dielectric breakdown, which occurs when high electric fields overcome the breakdown voltage of the insulator separating the electrodes. DEGs are particularly susceptible to dielectric breakdown due to their thin elastomer membrane, and breakdown at a single location causes failure of the entire DEG by creating a short circuit between the electrodes [1,18].

1.2. Hydraulically Amplified Self-Healing Electrostatic Actuators and Generators

Hydraulically amplified self-healing electrostatic (HASEL) transducers were developed to overcome the limitations of DEAs. HASEL transducers consist of two layers of inextensible, flexible polymers that are heat-sealed to form a pouch filled with dielectric oil. Flexible electrodes are applied to the exterior of the two pouches, creating a compliant parallel plate pouch capacitor [19]. In their conventional role as an actuator, a high voltage is applied to the HASEL’s electrodes and they “zip together” due to Maxwell stress yielding a bulk contraction of the HASEL pouch. Because HASELs have an internal fluid that moves during actuation, they can achieve larger mechanical actuation forces than a DEA with the same displacement because of hydraulic amplification.

The HASEL acronym refers to the benefits of using a dielectric fluid instead of a dielectric elastomer: hydraulic amplification and self-healing from dielectric breakdown [19,20]. HASELs can self-heal after dielectric breakdown because their dielectric fluid diffuses the local breakdown into the bulk volume of that same dielectric fluid. As actuators, HASELs are well suited for soft robotic applications, as they have similar mechanical efficiency to biological muscle, high force output, low stiffness, and high-frequency bandwidth [20]. To that end, HASELs have been used for a range of bio-inspired robotic actuation, including undulatory swimmers [21,22], jellyfish [23], grippers [24,25], and prostheses [26]. As variable capacitors, HASELs can also be used for sensing and energy generation. Indeed, a HASEL’s sensing capability has been implemented for haptic feedback [27] and self-sensing of position during actuation [25,28]. Nonetheless, while HASELs have been analytically identified for electricity generation [29], their energy generation capabilities have not been experimentally determined.

This study presents the energy generation capability of contracting Peano-HASEL electrostatic transducers. The study experimentally generates electrical energy from commercially purchased HASEL transducers using a constant-voltage process and compares the results against an established analytic model of a HASEL’s behavior (e.g., force, stroke, voltage) [20,30]. Thus, this study reveals the net energy recovered from HASELs as a function of their priming voltage and their associated mechanical work input, quantifying their energy generation performance and efficiency. In addition, the study quantifies the accuracy of an existing HASEL analytic model to predict HASEL’s energy harvesting conversion performance. These results provide the first analysis of HASEL energy generation performance—results that will enable further research into the applied use of HASELs as electrical generators.

1.3. Paper Outline

Section 2 (Materials and Methods) presents the HASEL analytic model, the proposed energy generation method, the experimental energy harvesting platform, and high-voltage energy harvesting circuitry. Section 3 presents the results, including the energy generated by the HASELs characterized in this study, their mechanical efficiency, and their comparison with the analytic model. Concluding remarks are given in Section 4.

2. Materials and Methods

This study quantifies the HASEL transducer’s effectiveness and efficiency in generating electricity through analytic modeling and experimental characterization. In this section, an analytic model is adapted from its original purpose to predict its electricity generation capability. Then, a constant-voltage (CV) energy harvesting method is proposed and implemented in an experimental test bed. To complete their characterization, the constitutive relationships governing a HASEL’s force, stroke, and voltage were measured for the HASEL used in this study.

2.1. Analytic Model of HASEL Electrostatics

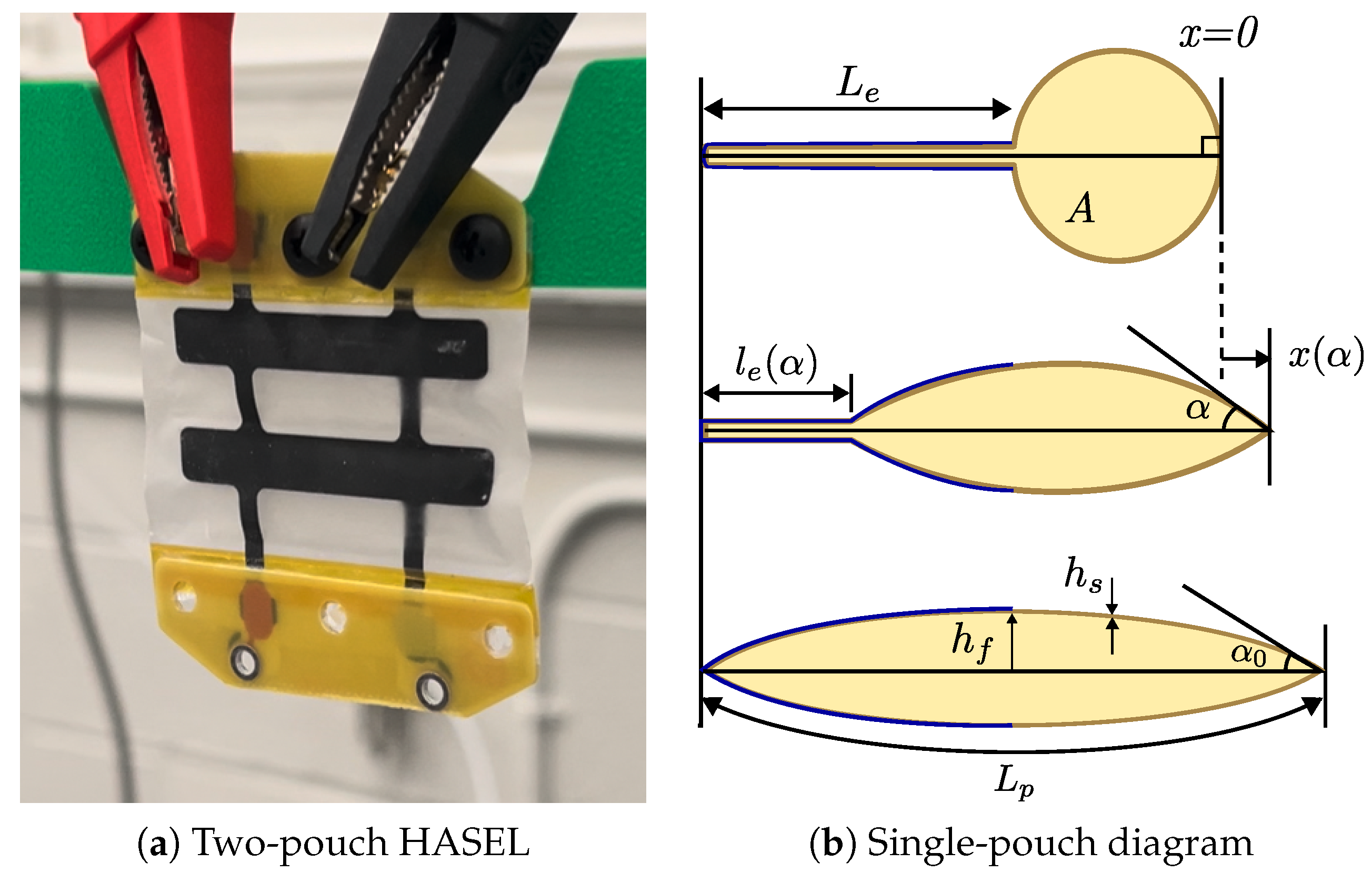

HASELs are compliant variable capacitors made from pouches of dielectric fluid with opposing flexible electrodes painted outside the pouch. A photo of a two-pouch HASEL and the schematic for a single HASEL pouch are shown in Figure 1. A HASEL’s capacitance changes when the distance between its two electrodes changes via fluid movement in and out of the electrode-covered region of the pouch. A HASEL’s electrodes zip together when a high voltage is applied, starting from the sealed edge of the pouch and moving toward the center, as shown in Figure 1b. In this section, the quasi-static analytic model of HASEL actuators derived by Kellaris et al. [30] is recontextualized to predict HASELs’ electricity generation performance. The model relates a HASEL’s capacitance—derived from the theory of parallel plate capacitors—to the maximum amount of electrical energy a HASEL transducer can produce. The analytic model is quasi-static, assuming that zipping and unzipping of the HASEL pouch occurs slowly enough that viscous and inertial effects within the dielectric oil can be neglected.

The electrical energy that a variable capacitor can generate is governed by Equation (1), which depends on the change in capacitance, $\Delta C$, and the priming voltage, V. The capacitance of a rigid parallel plate capacitor is $C=ϵA{h}^{-1}$, where $ϵ$ is the permittivity of the dielectric material that separates the electrodes, A is the area covered by electrodes, and h is the distance between the electrodes. Capacitance is inversely related to the distance h, where C is greatest when the electrodes are close together, i.e., when h is small, and lowest when the electrodes are separated. A parallel plate capacitor could generate electricity according to Equation (1) if a mechanical input separated the electrodes to change the capacitance with a priming voltage applied. This method is employed for HASELs in this study where the capacitance is changed by zipping and unzipping the compliant electrodes on the outside of the pouch.

$${\mathbb{E}}_e={\displaystyle \frac{1}{2}}\Delta C{V}^2$$

(1)

There is an analytic relationship between a HASEL’s capacitance and how much of its pouch is zipped, which was derived from parallel plate theory [30]. The pouch’s fluid-filled region is assumed to be made from cylindrical segments, which is valid when (i) the pouch zips homogeneously along its width and (ii) the fluid pressure inside the pouch is much greater than the Maxwell stress induced by the electric field. When the fluid makes cylindrical sections, the HASEL’s contraction can be parameterized by a single degree of freedom, $\alpha$—the pouch’s “zip angle”—which is shown in Figure 1b. Then, the HASEL’s capacitance is determined by Equation (2), an integral over the surface projection of the electrodes onto the mid-line, S, of the capacitance of each material in the capacitor stack: the solid dielectric film with thickness $h_s$ and absolute permittivity ${ϵ}_s$ and the liquid dielectric with its corresponding parameters $h_f$ and ${ϵ}_f$. The thickness of the fluid is a function of the internal pouch zipping angle, $\alpha$.

$$C={\int }_s{({\displaystyle \frac{h_s}{{ϵ}_s}}+{\displaystyle \frac{h_f\left(\alpha \right)}{{ϵ}_f}})}^{-1}\mathrm{d}S$$

(2)

The maximum capacitance is reached when the HASEL is fully zipped and there is no fluid dielectric between the electrodes in the capacitor stack, Equation (3), where $L_e$ is the length of the electrode region and w is the pouch width into the page in Figure 1b.

$$C_{max}=w{\displaystyle \frac{{ϵ}_s}{2h_s}}{L}_e$$

(3)

The energy generated is maximized with the largest change in capacitance for a constant priming voltage. If the capacitance change between zipped and unzipped configurations is large, such that $C_{max}\gg C_{min}$, then $\Delta C$ approximates $C_{max}$, and the maximum theoretical energy can be defined by Equation (4).

$${\mathbb{E}}_{e,T}={\displaystyle \frac{1}{2}}{C}_{max}{V}^2={\displaystyle \frac{w{ϵ}_s}{4h_s}}{L}_e{V}_C^2$$

(4)

The capacitance at an arbitrary zip state is needed to predict the energy harvesting performance between two partially zipped states. It was assumed that only the zipped portion of the electrodes contributes to the HASEL’s capacitance, $C\left(\alpha \right)$, because the electric field between the electrodes in the unzipped region rapidly decays due to the fluid volume [29,30]. Therefore, the capacitance as a function of the zip angle is Equation (5), where $l_e$ is the length of the zipped portion of the electrode defined by Equation (6), in which A is the volume of the fluid pouch and $L_p$ is the arc length of the undeformed pouch [30]. Then, the theoretical electrical energy that the HASEL can produce between any two zip angles ${\alpha }_0$ and ${\alpha }_1$ is given by Equation (7).

$$\begin{array}{cc}\hfill C\left(\alpha \right)& =w{\displaystyle \frac{{ϵ}_s}{2t}}{l}_e\left(\alpha \right)\hfill \end{array}$$

(5)

$$\begin{array}{cc}\hfill l_e\left(\alpha \right)& =L_p-\sqrt{{\displaystyle \frac{2A{\alpha }^2}{\alpha -sin\alpha cos\alpha }}}\hfill \end{array}$$

(6)

$$\begin{array}{cc}\hfill {\mathbb{E}}_{e,T}({\alpha }_0,{\alpha }_1)& ={\displaystyle \frac{1}{2}}(C\left({\alpha }_1\right)-C\left({\alpha }_0\right))V^2\hfill \end{array}$$

(7)

2.2. Energy Generation Method

This study characterizes the HASEL’s energy generation capability using a CV generation method. Also known as a charge pump, this method forces current to flow from the HASEL when its capacitance decreases under constant voltage. The CV method is a triangular energy harvesting method, so-called because the cycle creates a triangle in the charge–voltage (QV) plane, Figure 2a, bounded by the maximum and minimum capacitance and dielectric breakdown limit [2,32]. The capacitance extrema form diagonal lines where the slope of the lines is the inverse of capacitance, $1/C$. The dielectric breakdown limit informs the maximum voltage that can be applied. The area enclosed by these limits in the QV plane is the maximum energy that the HASEL electrical generator can produce, i.e., the shaded region in Figure 2a. The CV method was chosen for this study due to its high energy density and simplicity of implementation.

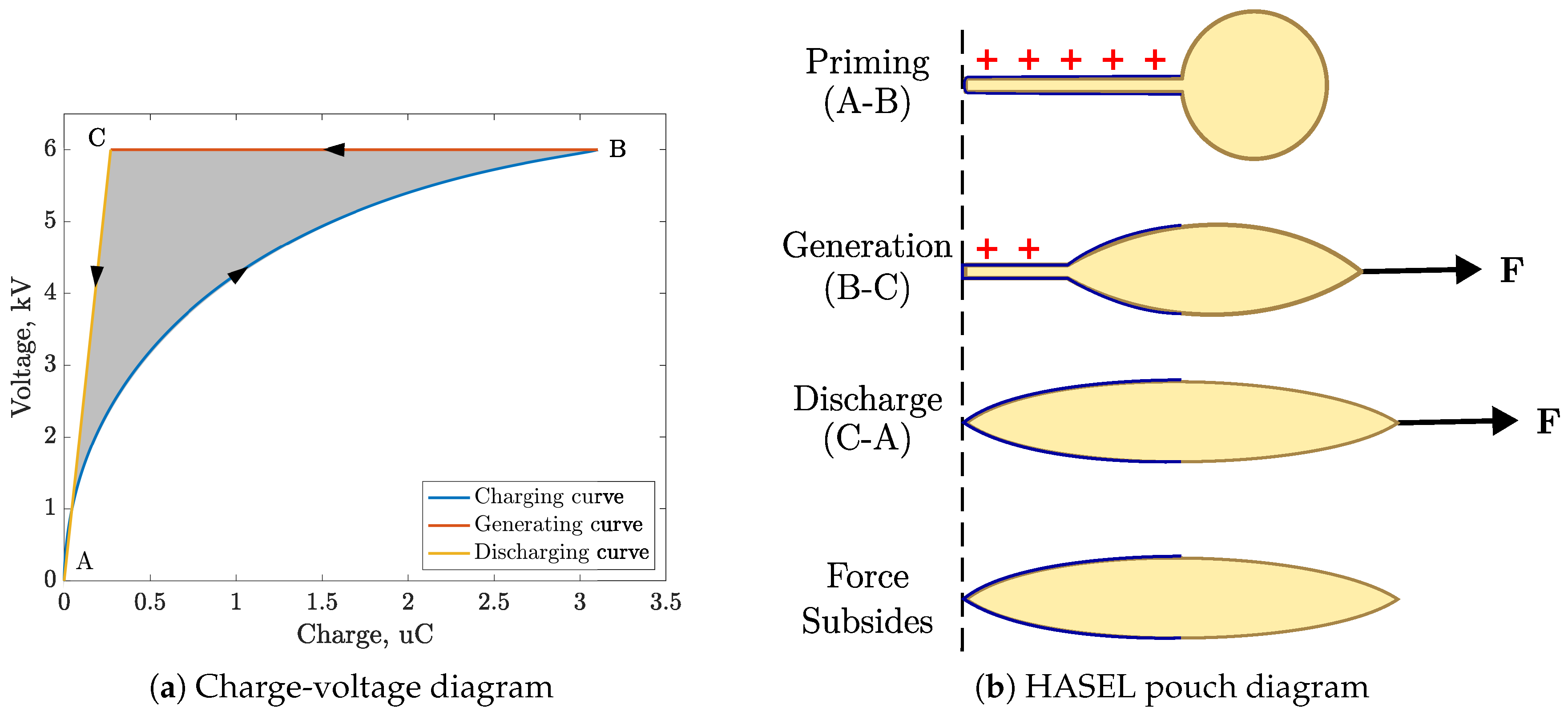

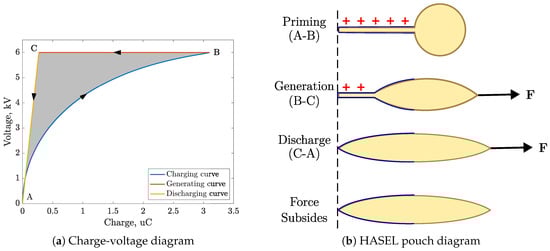

The proposed energy harvesting method has three steps, visualized in Figure 2:

(1)

Priming Phase (A-B): Apply priming voltage to the HASEL using a precharged in-parallel capacitor. Applying the priming voltage causes the HASEL electrodes to zip together and increase the capacitance.

(2)

Generation Phase (B-C): While held at constant voltage, stretch the HASEL to decrease the capacitance and generate charge that flows onto the in-parallel capacitor.

(3)

Discharge Phase (C-A): Disconnect the HASEL from the in-parallel capacitor and discharge the HASEL to ground at the lowest capacitance state.

HASEL transducers are unique among dielectric fluid transducers because the dielectric fluid is contained in a constant-volume pouch rather than pumped between a reservoir and the device [29]. HASEL’s constant-volume pouch is beneficial for actuator mode because it eliminates viscous losses from pumping fluid through valves. However, it introduces a challenge for generation because the capacitance cannot be increased without an applied voltage. In a typical CV cycle, the capacitance is increased at null voltage and then the priming voltage is applied, creating a straight-sided triangle in the QV plane. A HASEL’s electrodes cannot be physically brought together to increase capacitance without an applied voltage because the fluid cannot be removed from between the electrodes independently. The proposed CV process for HASELs involves zipping and priming simultaneously to produce the curved side of the triangle in the QV diagram shown in Figure 2a. As a result, the curved triangle has less area than that of the typical process (straight-edged triangle), in which priming occurs at a constant, maximum capacitance.

2.3. Energy Generation Experimental Platform

The energy generated with the proposed CV method was calculated by measuring the voltage throughout the energy harvesting cycle for varying priming voltages and applied forces. The experimental platform used to characterize HASEL energy harvesting performance is shown in Figure 3. The HASEL was suspended in a rigid frame and connected to the high-voltage electronics which apply the priming voltage and control the CV cycle. The HASEL is unzipped in the Generation Phase (B-C in Figure 2) with an applied force generated by dropping a known weight. The contraction throughout the cycle was monitored using a laser Doppler vibrometer to calculate the mechanical work applied by the weight. The electricity generated by one cycle was calculated from the voltage measured throughout the cycle.

This study used a two-pouch Peano-HASEL contracting actuator purchased from Artimus Robotics. The manufacturer’s rated unrestricted stroke is 1.6 mm, and the maximum force (at zero stroke) is 15 N [31]. The pouches were approximately 50 mm wide and 18 mm long. The material properties of the dielectric film and internal oil are proprietary to Artimus Robotics. The maximum and minimum capacitance of the HASEL used in this study were measured as $C_{max}=536$ pF and $C_{min}=45$ pF using a Keysight E4990A Impedance Analyzer (Colorado Springs, CO, USA). The exact capacitance range of every HASEL varies due to minor differences caused during manufacturing processes.

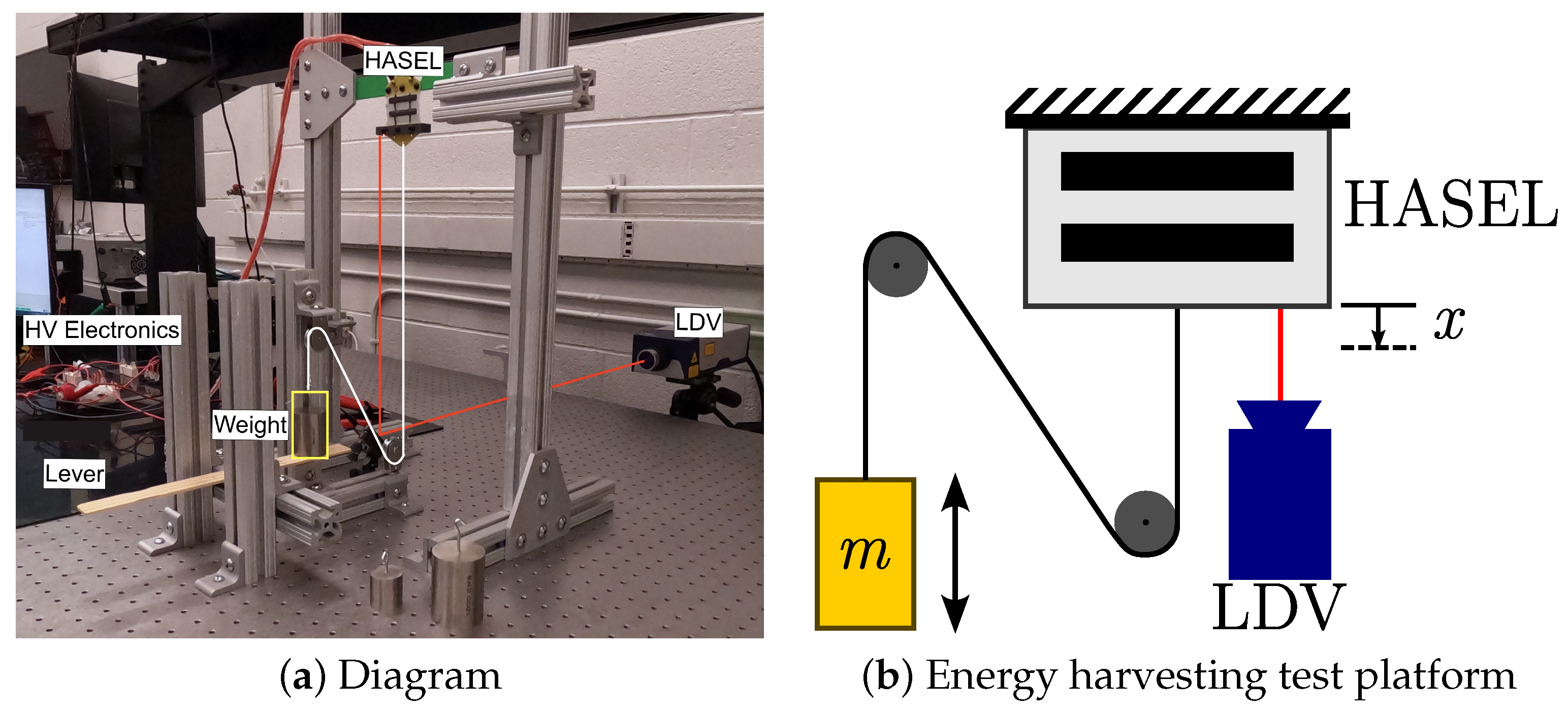

Test masses (0.2, 0.5, 1.0, 1.5, and 2 kg) were applied to unzip the HASEL during the Generation Phase. The weights were applied through several pulleys to prevent out-of-plane forces and movement interference. Displacement was measured with a Polytec VibroFlex Neo VFX-I-110 (Irvine, CA, USA) single-point laser Doppler vibrometer (LDV) with a ${45}^{°}$ mirror, which deflects the beam to measure the vertical displacement. The HASEL and mirror were fixed to a floating-top optical table to prevent external vibration from interfering with the LDV measurement. Each generation cycle was repeated $N=10$ times, and the mean voltages and displacements were used to calculate the electrical energy generated and the mechanical work that was expended.

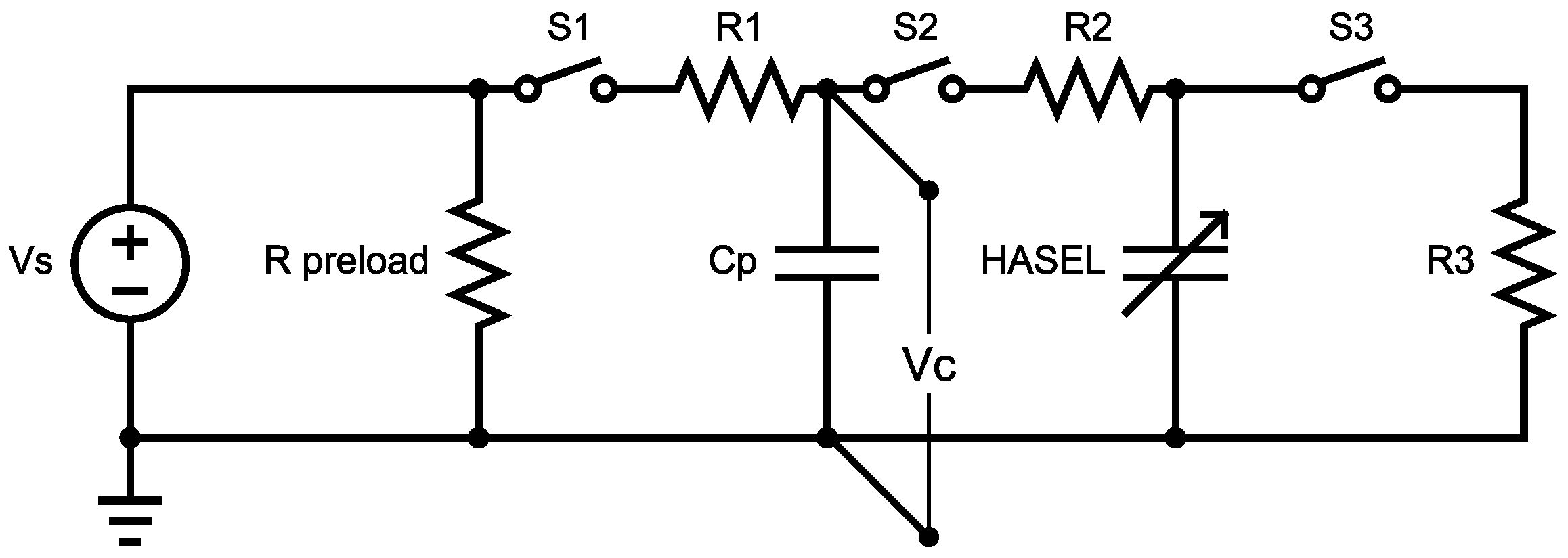

The energy harvesting circuit used in this study, shown in Figure 4, was adapted from a CV circuit used to characterize a pumping dielectric fluid transducer [17]. High voltage $V_s$ was supplied by a Pico 5VV10-P amplifier, which required a preload resistor in parallel with the supply ($R_{preload}=250\mathrm{M}\mathsf{\Omega }$), and a load resistor ($R_1=15\mathrm{M}\mathsf{\Omega }$), to stabilize the output. Control between the energy harvesting phases was achieved through high-voltage reed relays S1, S2, and S3 (Sensata-Cynergy3 DAT72415P), switched using a dSpace MicroLabBox (Wixom, MI, USA) real-time machine. To implement the CV method, an in-parallel capacitor, $C_p$, both applies the priming voltage to the HASEL and stores the generated electricity which leaves the HASEL. The in-parallel capacitor ($C_p=4.7$ nF) was chosen to be at least ten times larger than the HASEL’s $C_{max}$ to approximate a CV cycle [2]. Resistors $R_1$, $R_2$, and $R_3$ (where $R_2=R_3=2\mathrm{M}\mathsf{\Omega }$) limit the transient peak current to the instrumentation limits when switching occurs.

To monitor the voltage on the in-parallel capacitor, $V_c$, throughout the energy harvesting cycle, a 6000:1 voltage divider was created with a Fluke 80K-40 high-voltage probe (Everett, WA, USA). The in-parallel capacitor voltage was measured instead of the HASEL directly to mitigate the capacitor discharging through the probe and interfering with the measurement. Because $C_p$ has much higher capacitance than the HASEL, the RC time constant, $\tau =RC$, was large enough relative to the cycling period to have a negligible effect. Measurements were taken in a controlled laboratory environment at a temperature of approximately 75°F and approximately 50% humidity.

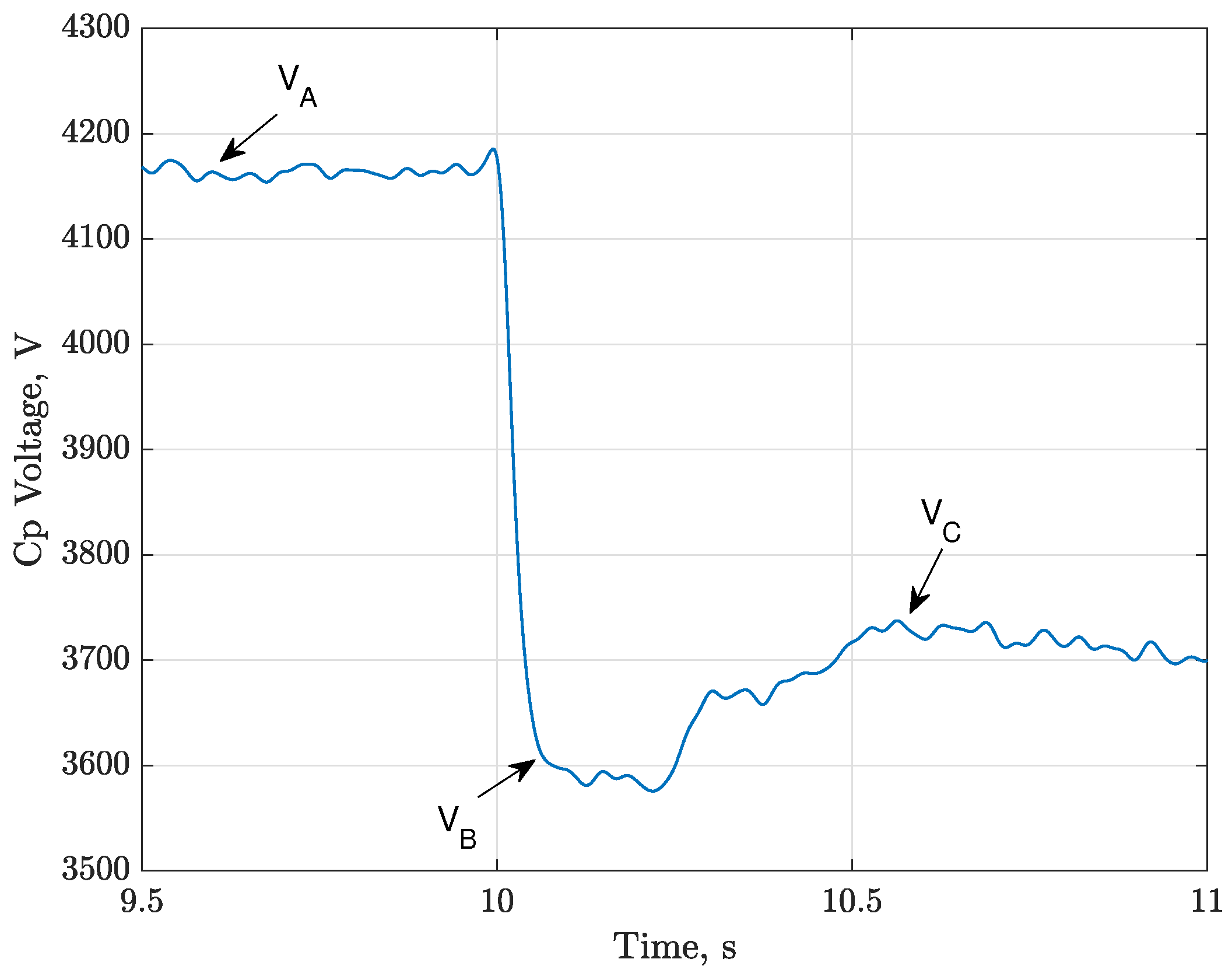

The voltages at states A, B, and C—between the phases in the energy harvesting cycle described in Section 2.2—were used to calculate the generated energy. The generation cycles were approximately 0.5 s long, and the HASEL was allowed to rest in the discharged state between cycles to control for the effect of cycling frequency. A representative plot of the voltage on the in-parallel capacitor, $C_p$, is shown in Figure 5. Before the cycle, $C_p$ was charged to the nominal priming voltage, $V_A=V_s\approx 4$ kV, with the high-voltage power supply. Then, $C_p$ was connected to the HASEL to apply the priming voltage, and the in-parallel capacitor and HASEL reached the same voltage, $V_B$. During the Generation Phase (B-C), the HASEL and $C_p$ have the same voltage, which rises to $V_C$ when the HASEL is stretched by the weight. The voltage has negative drift after state B because charges were lost to the measurement circuit; these errors were corrected in the data analysis by adding the voltage discharged through the probe, $V_{add}=V_B{e}^{-t/\left(R_{probe}{C}_p\right)}$.

The average voltage at each state was used to generate an experimental QV plot and to calculate the electrical energy, ${\mathbb{E}}_e$. The charge held on the HASEL at each state was calculated using the relationship between a capacitor’s voltage, charge, and capacitance: $Q=CV$. However, because the instantaneous capacitance of the HASEL is unknown during the cycle, the charge was computed relative to $C_p$. The charge on the HASEL after priming, $Q_B$, equals the number of charges lost by the in-parallel capacitor during the Priming Phase (A-B); see Equation (8). Likewise, the charge pumped from the HASEL onto $C_p$ during the Generation Phase (B-C), $\Delta Q$, equals the charge that was accumulated on $C_p$; see Equation (9). Then, the charge on the HASEL at state C is the difference between the charge held after priming and the charges moved by generation; see Equation (10).

$$\begin{array}{cc}\hfill Q_B& =C_p(V_A-V_B)\hfill \end{array}$$

(8)

$$\begin{array}{cc}\hfill \Delta Q& =C_p(V_C-V_B)\hfill \end{array}$$

(9)

$$\begin{array}{cc}\hfill Q_C& =Q_B-\Delta Q\hfill \end{array}$$

(10)

An experimental QV diagram was created for each applied weight using the measured voltages $V_B$ and $V_C$ and the charge on the HASEL was calculated with Equations (8)–(10). Then, the net energy generated by the HASEL was calculated by summing the energy consumed or generated in each phase according to (11). The electrical energies were found by numerical integration in the QV plane using the measured values, e.g., the energy used to prime the HASEL is ${\mathbb{E}}_{e,(A-B)}=\int V_B{Q}_B\mathrm{d}Q$. The analytic expression for converted electricity, Equation (7), cannot be used with the experimental data because the instantaneous capacitance of the HASEL is unknown during the energy harvesting cycle; the maximum capacitance depends on the priming voltage, and the minimum depends on the applied weight. Note that in this study, the output electrical energy was returned to the in-parallel priming capacitor, measured, and discharged via a grounding electrode. In an energy harvesting device made from HASELs, the current from the Generation Phase could be diverted to power an electric load or stored in an energy storage device.

$${\mathbb{E}}_e=-{\mathbb{E}}_{e,(A-B)}+{\mathbb{E}}_{e,(B-C)}+{\mathbb{E}}_{e,(C-A)}$$

(11)

2.4. HASEL Constitutive Relation Experimental Platform

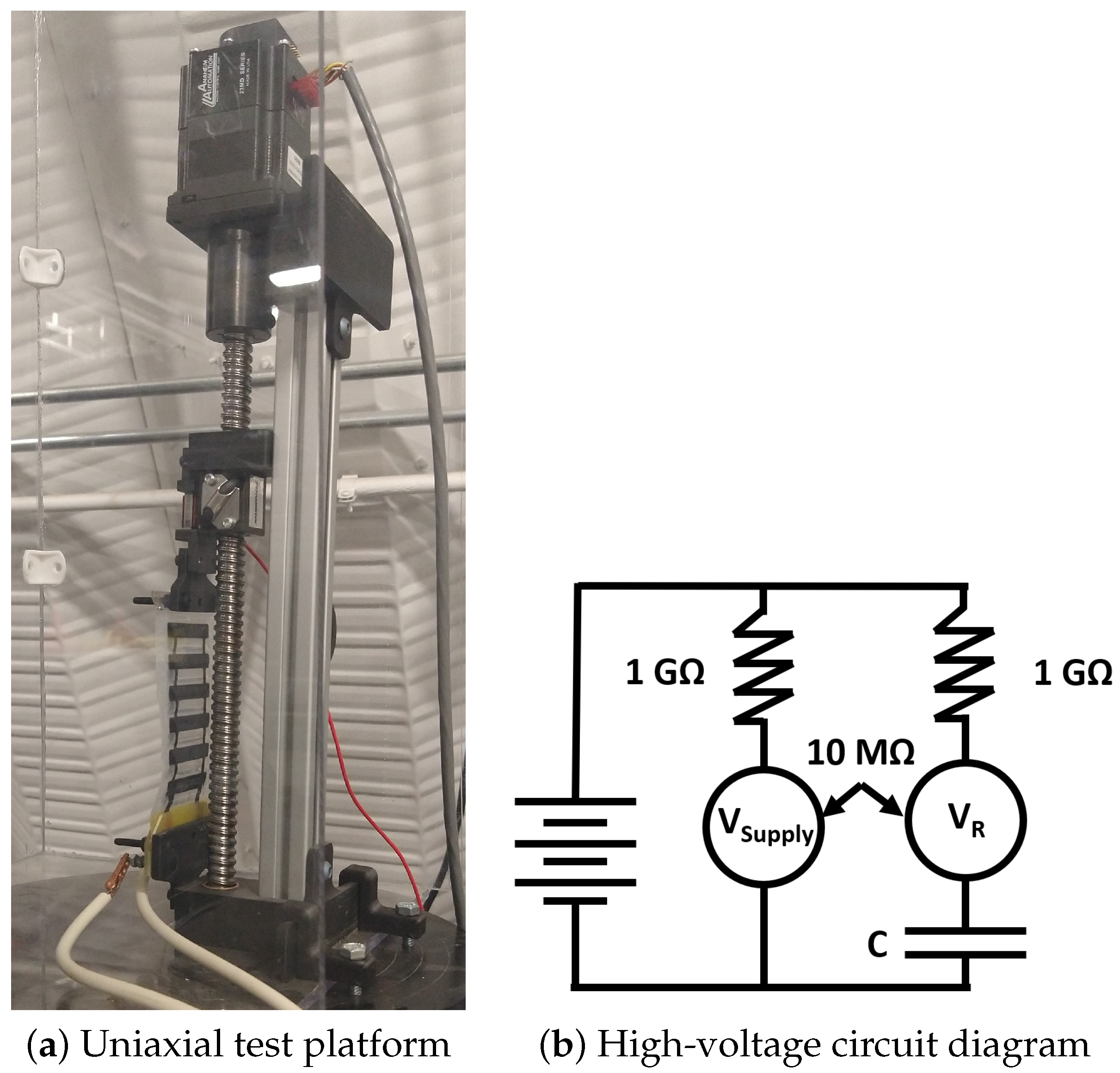

The constitutive relations between voltage, stroke (displacement), and force of the particular HASEL used in these experiments were experimentally determined to more fully characterize the energy harvesting performance. An experimental platform was created to provide force measurements of the HASEL at different points along the stroke for different priming voltages. The setup consists of a uniaxial tensile actuator with a load cell and a high-voltage power supply. Figure 6a shows the experimental platform used to analyze the HASEL constitutive relations. The force data were collected through a LabVIEW cRIO with LabVIEW 2019 SP1. The HASEL’s voltage was monitored through an oscilloscope and a custom high-voltage circuit that was designed to measure components with low capacitance values (pF range) at high voltage (1–10 kV), as shown in Figure 6b.

3. Results

3.1. Charge–Voltage Relationship During Energy Harvesting Cycle

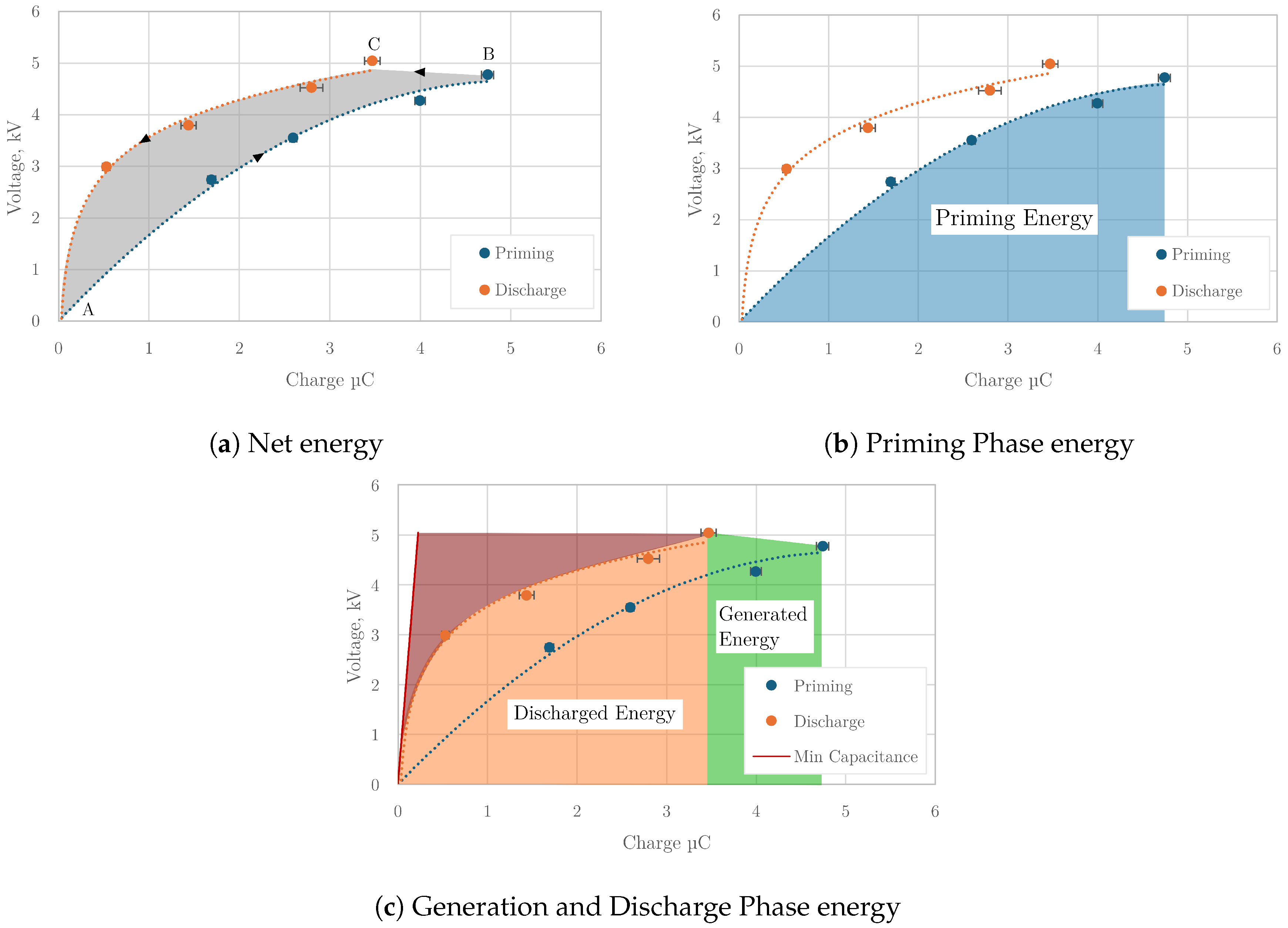

The QV diagram compiled for the experiments using the largest weight, 2 kg, is shown in Figure 7. The voltages $V_B$ and $V_C$ are plotted with the corresponding charge held on the HASEL, $Q_B$ and $Q_C$, calculated with Equations (8)–(10). The net energy, i.e., the shaded area in Figure 7a, is bounded by two least-squares fits through the $(Q_B,V_B)$ and $(Q_C,V_C)$ points for the different applied voltages (3, 4, 5, 6 kV). A quadratic trendline, $V_B=-0.184Q_B^2+1.85Q_B$ $({\mathrm{R}}^2=0.98)$, shows the priming $Q_B-V_B$ relationship and highlights the curve induced by the HASEL priming and zipping simultaneously. The $Q_C-V_C$ relationship was best fit by a logarithmic trendline, $V_C=1.04ln\left(Q_C\right)+3.56$ $({\mathrm{R}}^2=0.97)$, chosen because capacitors discharge according to the exponential law $Q=CV{e}^{-t/RC}$.

The net energy is the difference between the energy spent in the Priming Phase and the energy that leaves the HASEL during the Generation and Discharge Phases. The energy spent during the Priming Phase, $-{\mathbb{E}}_{e,(A-B)}$ in Equation (11), is the area under the priming curve shown in Figure 7a. The positive contributions to net energy are the areas under the Generation and Discharge curves, ${\mathbb{E}}_{e,(B-C)}+{\mathbb{E}}_{e,(C-A)}$, shown in Figure 7b. The area shaded in red is the difference between the observed charge at the end of the Generation Phase (B-C) and the expected charge at the HASEL’s minimum capacitance, $Q=C_{min}V$, where $C_{min}=45$ pF.

The difference between the ideal low-capacitance discharge and the observed discharge means fewer charges were moved during the Generation Phase than were expected, indicating charge leakage loss in the experimental platform. The charge held on the HASEL before the Discharge Phase, $Q_C$, was calculated from the charge moved to $C_p$ during the Generation Phase. Because the HASEL was not measured directly due to challenges described in Section 2.3, the true discharge is likely less than that reported in this study, $Q_{C,true}<Q_C$. The reported value assumes that there is a significant charge left on the HASEL after the Generation Phase, which is recovered in the Discharge Phase, and that the charge leakage losses highlighted in red do not affect $Q_C$. If the charge leaked during the Generation Phase, then $Q_{C,true}$ would be further to the left (without contributing to a larger green area), and the orange area would be reduced. However, these losses are not quantifiable with this study’s experimental platform.

3.2. Net Energy Generation Performance

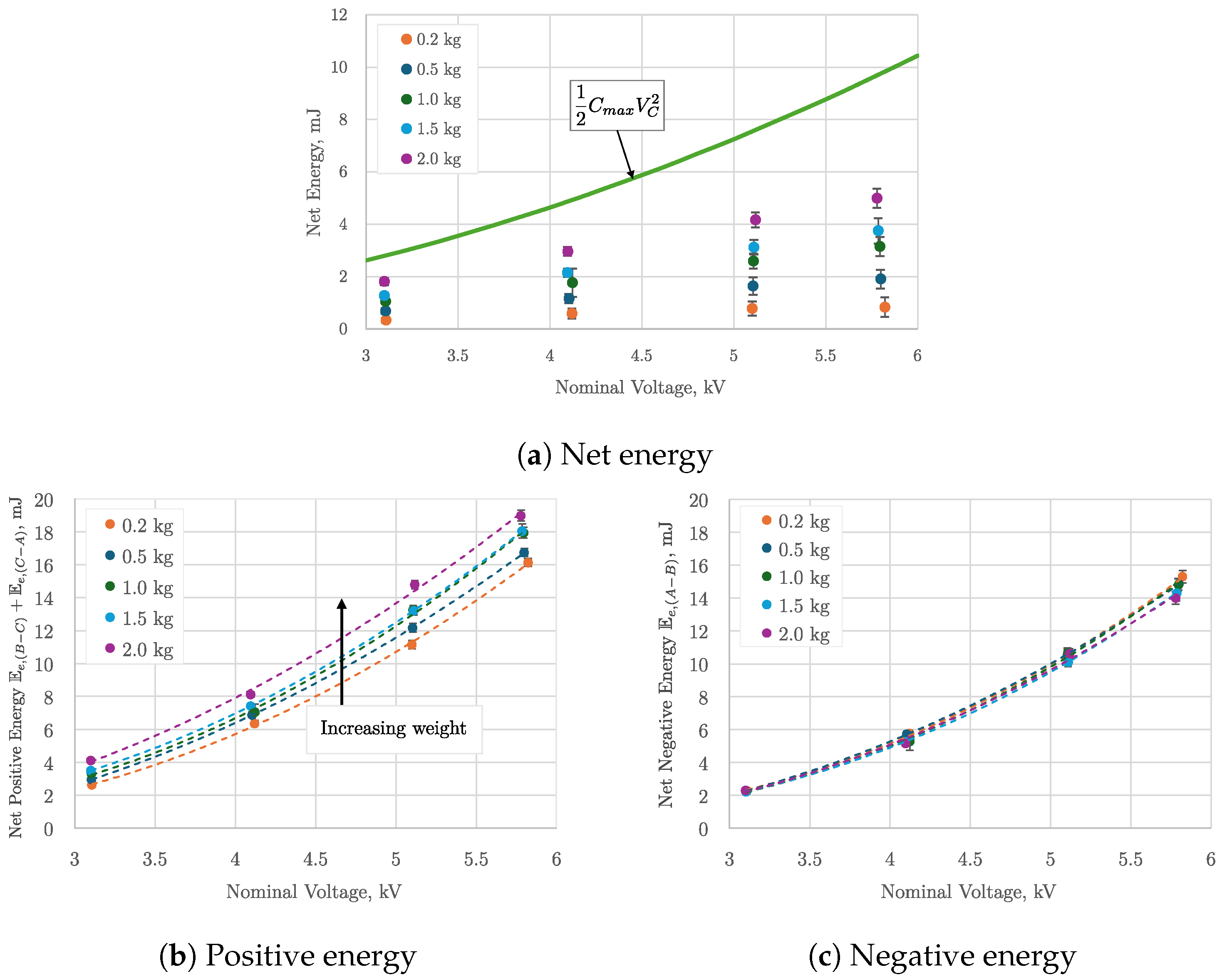

The mean electrical energy generated by the CV energy harvesting cycle for priming voltages and applied weights is presented in Figure 8 and

Table 1. Net energy generated for each priming voltage and applied weight combination in mJ.

${\mathit{V}}_{\mathit{B}}$	0.2 kg Energy	0.5 kg Energy	1.0 kg Energy	1.50 kg Energy	2.0 kg Energy
3 kV	$0.33\pm 0.10$ mJ	$0.68\pm 0.09$ mJ	$1.04\pm 0.08$ mJ	$1.28\pm 0.10$ mJ	$1.80\pm 0.14$ mJ
4 kV	$0.58\pm 0.19$ mJ	$1.16\pm 0.19$ mJ	$1.76\pm 0.54$ mJ	$2.14\pm 0.16$ mJ	$2.96\pm 0.17$ mJ
5 kV	$0.77\pm 0.27$ mJ	$1.63\pm 0.30$ mJ	$2.58\pm 0.29$ mJ	$3.11\pm 0.28$ mJ	$4.17\pm 0.28$ mJ
6 kV	$0.83\pm 0.38$ mJ	$1.90\pm 0.27$ mJ	$3.15\pm 0.37$ mJ	$3.74\pm 0.48$ mJ	$4.98\pm 0.37$ mJ

. The net energy produced, shown in Figure 8a, increased quadratically with increasing applied voltage following the quadratric trend predicted by the analytic model (Equation (4)). The net energy increased linearly with applied weight. The net energy generated is up to 69% of the theoretical maximum calculated using Equation (4) (3 kV priming voltage, 2 kg applied mass). The maximum energy generated was 5.0 ± 0.36 mJ per cycle (6 kV priming voltage, 2 kg applied mass), which corresponds with an energy density of 2 mJ mL⁻¹ per volume of the HASEL pouches. The volume of the HASEL’s mounting plates was not included in the volume for generality because HASELs with other pouch configurations may be used in an application.

The energy generated during the Generation Phase, ${\mathbb{E}}_{e,(B-C)}$, and Discharge Phase, ${\mathbb{E}}_{e,(C-A)}$, increase quadratically with voltage for all weights, as shown in Figure 8b (R² = 0.99). Greater applied force linearly increases the amount of electricity during the Generation Phase (R² = 0.98). Energy consumed during the Priming Phase, ${\mathbb{E}}_{e,(A-B)}$, also increases quadratically with voltage, as shown in Figure 8c (R² = 0.99). Unlike the other two phases, the energy used during priming is independent of weight because the HASEL was allowed to contract under free conditions.

HASEL’s observed energy density is comparable to dielectric fluid transducers (DFGs) which pump their working fluid between reservoirs but have room for improvement compared to DEGs. This study identifies HASEL pouches have a theoretical energy density up to 160 mJ cm⁻³ by solid film volume, assuming the pouch is 50 mm wide, 18 mm long, and made from 18 $\mathsf{\mu }$m thick film. A pumping DFG prototype had a theoretical maximum of 295 mJ cm⁻³ by solid film volume [17] and dielectric elastomers are reported with theoretical maximum of 3000 mJ cm⁻³ [29]. The HASEL in this study achieved up to 77 mJ cm⁻³ in experimental testing, compared to 180 mJ cm⁻³ for the pumping DFG and up to 780 mJ cm⁻³ for DEGs [17,29]. This comparison suggests that HASELs have half the energy density of a pumping DFG, however, only half the HASEL pouch is covered by electrodes while the DFG’s entire surface was covered. Normalized by the electrode-covered region, the HASEL has nearly identical energy density as the DFG prototype with 154 mJ cm⁻³. This comparison is fair since volume of the storage reservoir is not considered for the other DFG, and practical considerations of dielectric fluid storage would need to be taken into account in an energy harvesting device. Dielectric elastomers have reached great technological maturity in the past ten years and benefit from very high energy densities. However, the practical energy density of DEGs is reduced to extend the transducer’s lifetime as it becomes more susceptible to failure by dielectric breakdown with many cycles [29]. HASELs, as well as other DFGs, can recover from dielectric breakdown and therefore may have longer service life in a device than DEGs. The trade-off between energy density and service life must be made on an individual basis for practical energy harvesting devices.

3.3. Efficiency Is Nonlinear with Mechanical Input

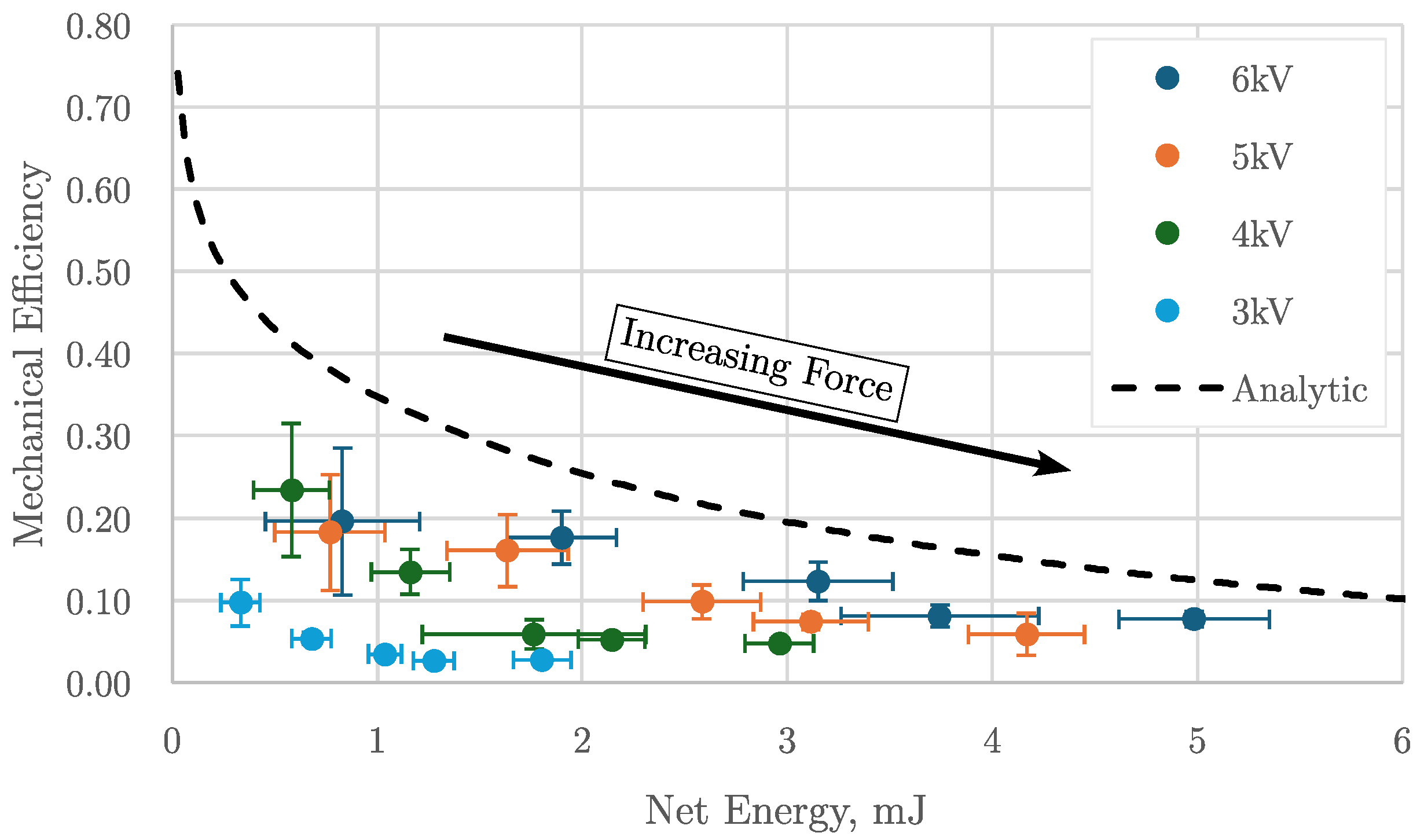

The mechanical efficiency was calculated as the ratio of the output electrical energy to the input mechanical work, Equation (12). The net electrical energy, ${\mathbb{E}}_e$, was calculated with Equation (11). The mechanical work, ${\mathbb{E}}_m$, was calculated with Equation (13), where $mg$ is the applied weight and $\Delta x$ is the distance traveled during the Generation Phase as the HASEL is unzipped, measured with the LDV. A Pareto frontier plot of mechanical efficiency versus net electrical energy, Figure 9, visualizes the trade-offs between those competing objectives. This plot shows all tested weight and voltage combinations to form the space of realized efficiency and energy density performance. Mechanical efficiency was greatest at high voltage with low applied weight, but larger weights produced more net energy generation. The analytic model presented in Section 2 defines the boundary of the Pareto frontier shown in Figure 9 and captures the trade-off between mechanical efficiency and net energy generation.

$$\begin{array}{cc}\hfill \nu & ={\displaystyle \frac{{\mathbb{E}}_e}{{\mathbb{E}}_m}}\hfill \end{array}$$

(12)

$$\begin{array}{cc}\hfill {\mathbb{E}}_m& =mg\Delta x\hfill \end{array}$$

(13)

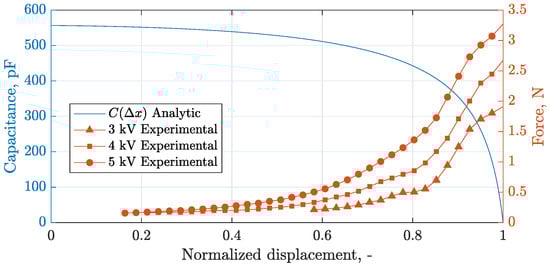

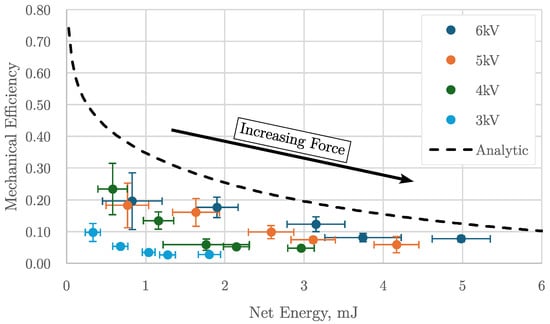

The Pareto frontier is curved because the HASEL’s capacitance and force are nonlinear with stroke. The capacitance–stroke relationship derived from the analytic model and the force–stroke curves measured using the experimental platform in Section 2.4 for the HASEL used in this study are shown in Figure 10. The nonlinear relationship between capacitance and stroke is defined analytically in Equations (5) and (6). The electrical energy produced is linearly dependent on the change in capacitance—see Equation (7)—leading to a nonlinear relationship between energy generated and stroke. In the experiments, the change in capacitance for an energy harvesting cycle is driven by both the priming voltage, which sets the initial zipped displacement—closer to $x=0$, as shown in Figure 1b—and the applied weight, which stretches the HASEL to its final position.

The force required to unzip the HASEL increases nonlinearly with stroke, leading to a nonlinear relationship between mechanical work and stroke. Each priming voltage creates its respective constitutive curve in the force–stroke plane, where higher voltage also requires more pulling force to unzip.

Note that the analytic model in Equation (7) also reveals the intuitive result that a larger force creates a larger net energy up to a critical value. After the force meets the requirement to fully unzip the HASEL, no greater force will produce more energy. The critical force was not exceeded in this study because the maximum applied mechanical work (71 mJ) was less than the critical force predicted by the analytic model (141 mJ).

The Pareto frontier can inform the operating condition for a particular application depending on what is more desirable: energy density or mechanical efficiency. These results describing the mechanistic relationships governing mechanical efficiency highlight the importance of HASEL’s electromechanical characteristics in maximizing generation performance. Indeed, these characteristics may be combined with HASEL’s self-sensing capability to enable greater energy conversion effectiveness in an overall generator device made from HASELs via active control schemes.

4. Conclusions

This study quantifies the ability of HASEL transducers to convert mechanical energy into electrical energy. While HASELs were initially developed to mimic the flexibility and functionality of biological muscles for soft robotics actuation, this research shifts the focus of HASEL usage into the realm of electricity generation, exploring the “reverse power flow” that converts mechanically induced HASEL deformation into electricity generation. Through a combination of analytic modeling and experimental evaluation, the study provides a foundational understanding of the characteristics of commercially available HASEL actuators to be used as electrical generators. This study adapted an analytic model to describe a HASEL’s actuator performance to instead predict its electricity generation capability. Then, a HASEL generator’s performance was experimentally determined using a high-voltage CV energy harvesting platform created for this study. The energy generated and mechanical energy input for a single energy harvesting cycle were calculated for various applied forces and priming voltages. This study’s results demonstrate that a commercially available two-pouch Peano-HASEL generates up to 5.2 mJ per cycle, corresponding to an energy density of approximately 2.0 mJ cm⁻³ per cycle with the proposed CV generation method. The HASEL captured up to 70% of the maximum electrical energy predicted by the analytic model and exhibited up to 23% mechanical efficiency. The findings confirm that HASELs, even in their commercial actuator form, can effectively generate electricity when their energy conversion mechanism is reversed.

The purpose of this study was to identify the capability of HASEL transducers for energy harvesting for future studies which integrate them into a larger energy harvester device with distributed embedded energy conversion. Herein, HASELs are identified as a DEEC-Tec converter since they are small transducers that can be connected into a larger structure which converts electricity along its entire body. For example, a conventional bottom-fixed surging wave energy converter, such as The Oyster [33], is made from rigid components where the energy conversion occurs at the location of concentrated loads, which requires over-engineered systems to prevent a single failure from disabling the device. The DEEC-Tec analog to a surging wave energy converter is one where the surging body has HASEL transducers embedded throughout and the structure bends and twists under the wave action, converting electricity from the elastic deformation. The distributed, flexible approach provides robustness to single transducer failure, since it would be one among many, and its flexibility can adapt to harsh changes in sea states. Other applications for HASELs as soft, distributed energy converters are wearable technologies and onboard energy harvesting from vibrations in drones, airplanes, robots, and vehicles.

With the transducer’s capability identified, the next step to creating a DEEC-Tec generator with HASELs is to identify a meta-material architecture made from multiple HASELs, which will coordinate with the loads expected in a particular application. A meta-material large enough for grid-scale generators made from HASELs will require large-scale manufacturing of the transducers. HASEL are made from inextensible polymer films and dielectric oils, which are relatively inexpensive and they are commercially available, though manufacturing HASELs at scale remains an open opportunity for future research and development. Previous materials examined for HASELs include BOPP and TPU polyester, and common dielectric oils including silicone oil and FR3. FR3 is a plant-derived oil, which is environmentally preferable to mineral oils. The exact materials used in the HASEL transducer are proprietary to Artimus Robotics, so their environmental impact cannot be analyzed in detail in this study. Changes in material will affect the electrical characteristics, but a real-world application using HASELs will need to consider the environmental impact of materials as well as their performance.

Future studies may investigate whether other energy harvesting cycles, such as constant current or constant electric field, may generate more energy. This study experimentally demonstrates HASELs as energy generators for the first time, with further research needed to analyze their performance more comprehensively. In particular, HASEL’s energy harvesting performance was characterized under controlled laboratory conditions, and practical factors such as environmental changes on performance and durability testing have yet to be determined. The experimental platform used to measure the generated energy was subject to charge leakage losses that affected the measurement. Charge leakage losses can be minimized in a practical device with fast cycling frequency compared to the time constant of the circuit or measuring the generated energy that has been transferred to a load or battery rather than measuring the capacitors directly. The HASEL transducer used in this study achieved up to 23% mechanical efficiency, similar to another dielectric fluid transducer reported at 30% [17], leaving room for improvement. Note that the relationship between the priming voltage, applied force, and total change in capacitance dictates the HASEL’s energy harvesting efficiency. Therefore, there is significant potential to improve HASELs’ electricity generation if HASELs were specifically designed and manufactured for this purpose. Although this study investigated rectangular Peano-HASELs, other pouch shapes and electrode coverage may lead to greater performance. More detailed comparisons of HASELs to other variable-capacitance-based electrical generators can reveal whether the energy losses incurred by simultaneous zipping and priming are comparable to the viscous losses of pumping dielectric fluidic generators. The results of this study enable broader application and utility for HASELs in the field of “smart and adaptable energy generation” beyond their initial scope in soft robotics.
