Experimental Study on Flow Boiling Heat Transfer Characteristics in Top-Connected Microchannels with a Ni/Ag Micro/Nano Composite Structure

Abstract

Microchannel heat exchangers, with their large specific surface area, exhibit high heat/mass transfer efficiency and have a wide range of applications in chemical engineering and energy. To enhance microchannel flow boiling heat transfer, a top-connected microchannel heat exchanger with a Ni/Ag micro/nano composite surface was designed. Using anhydrous ethanol as the working fluid, comparative flow boiling heat transfer experiments were conducted on regular parallel microchannels (RMC), top-connected microchannels (TCMC), and TCMC with a Ni/Ag micro/nano composite surface (TCMC-Ni/Ag). Results show that the TCMC-Ni/Ag’s maximum local heat transfer coefficient reaches 179.84 kW/m²·K, which is 4.1 times that of RMC. Visualization reveals that its strongly hydrophilic micro/nano composite surface increases bubble nucleation density and nucleation frequency. Under medium-low heat flux, the vapor phase converges in the top-connected region while bubbles form on the microchannel surface; under high heat flux, its capillary liquid absorption triggers a thin-liquid-film convective evaporation mode, which is the key mechanism for improved heat transfer performance.

1. Introduction

Microchannels (μm–sub-mm scale) feature large specific surface areas and low thermal inertia, enabling efficient heat/mass transfer via extensive fluid–wall interfaces and rapid thermal responses. The concept of microchannel heat exchangers was initially introduced by Pease and Tuckerman [1]. Since then, an extensive body of research has comprehensively explored various aspects of heat transfer in microchannels, including single-phase [2] and phase change heat transfer mechanisms [3], heat transfer enhancement techniques [4,5], and the development of microchannel heat exchange equipment [6]. Specifically, studies on single-phase convective heat transfer in microchannels have been primarily focused on optimizing geometric channel configurations and surface microtopographies, as well as leveraging work (pumping power) to achieve augmented heat transfer coefficients while mitigating the concomitant hydrodynamic penalties. The underlying heat transfer enhancement mechanisms involve both the induction of hydrodynamic perturbations in the core flow region and the manipulation of thermal boundary layer development in the near-wall vicinity [7].

In contrast to single-phase convective heat transfer within microchannels, the phase change heat transfer process in microchannels is distinguished by a latent heat exchange that occurs during the gas–liquid phase transition. This phenomenon is pivotal, as it engenders a substantial increase in the heat transfer coefficient, which can rise by more than an order of magnitude compared to its single-phase counterpart. The significance of this enhancement cannot be overstated, as it endows high-efficiency cooling technologies founded on microchannel phase change heat transfer with great promise in diverse applications. Prominent among these are battery thermal management [8,9] and high-heat-flux chip cooling [10,11]. In battery thermal management, maintaining an optimal temperature is crucial for the performance, lifespan, and safety of batteries. Microchannel phase change heat transfer systems can effectively dissipate the heat generated during battery operation, ensuring stable performance. Similarly, in high-heat-flux chip cooling, where the escalating power density of modern chips demands advanced cooling solutions, the high-efficiency heat transfer capabilities of microchannel phase change mechanisms offer a viable approach to preventing overheating.

Notwithstanding these potential advantages, the practical realization of flow boiling heat transfer in microchannels is encumbered by several challenges. Foremost among these are flow instability [12] and critical heat flux (CHF) [13]. Flow instability in microchannel flow boiling is a complex hydrodynamic issue that emerges from the intricate interactions between the liquid and vapor phases within the microscale confines. These interactions can disrupt the flow patterns, leading to pressure fluctuations and non-uniform distribution of the two-phase mixture, thereby deteriorating the heat transfer efficiency and potentially causing long-term damage to the microchannel heat exchanger.

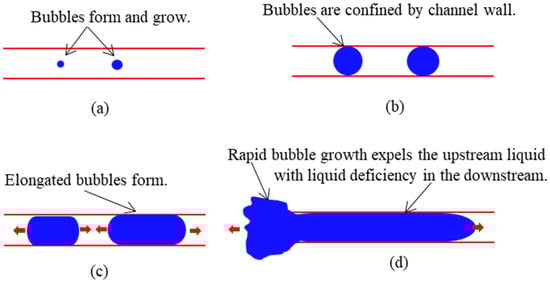

The critical heat flux represents another formidable challenge [14]. As illustrated in Figure 1, a plausible mechanism for CHF occurrence in microchannels is as follows: Once nucleated bubbles form within the microchannel (Figure 1a), they rapidly expand due to the applied heat. Constrained by the narrow dimensions of the microchannel, these bubbles quickly fill the entire cross section (Figure 1b). With the channel walls restricting further cross-sectional expansion, the bubbles are compelled to grow longitudinally, forming an elongated, narrow extended-bubble flow (Figure 1c). During this rapid expansion, the flow within the channel becomes unstable. In certain circumstances, the force exerted by the expanding bubbles can expel the upstream flowing liquid from the channel, resulting in a local liquid deficiency in the downstream section (Figure 1d). This deficiency, in turn, leads to a degradation in heat transfer efficiency, often accompanied by a significant increase in the microchannel surface temperature.

In the case of regular parallel microchannels, the situation is exacerbated. The rapid expansion of bubbles within the confined space along the channel direction can give rise to additional complications. Non-uniform flow distribution among the parallel channels is one such issue. Slight variations in local conditions, such as surface characteristics, heat flux distribution, and initial fluid properties, can cause differences in bubble growth and expansion rates. Channels with more conducive conditions for bubble formation may experience more rapid bubble expansion, which can impede liquid flow through these channels. This leads to an uneven distribution of the liquid–vapor mixture, with some channels receiving insufficient liquid for effective heat transfer, while others may be over-utilized, potentially creating local hotspots.

Furthermore, the non-uniform bubble expansion and flow distribution can generate local thermal stress among parallel channels. The differential heat transfer rates and fluid flow patterns induce temperature gradients between the channels. These temperature differences cause differential thermal expansion and contraction, which, over time, can lead to mechanical damage to the microchannel structure, such as crack formation or deformation. This not only compromises the long-term performance and reliability of the microchannel heat transfer system but also poses a significant obstacle to its practical implementation [15].

In the pursuit of enhancing heat transfer efficiency and suppressing flow instability within microchannel systems, Kalani and Kandlikar [16] put forward an innovative concept of a top-connected microchannel heat exchanger structure. This proposal stemmed from a comprehensive understanding of the complex hydrodynamics and heat transfer mechanisms in microchannels. They meticulously pointed out that this novel structure incorporates additional spaces specifically designed for vapor flow and pressure equilibrium located above the microchannels. These additional spaces play a pivotal role in the overall functionality of the system. By providing an extra pathway for vapor to escape and equilibrate the pressure, they can effectively mitigate the flow resistance that often plagues traditional microchannel designs. This reduction in flow resistance not only eases the passage of fluid through the microchannels but also serves to suppress the onset of flow instability, which is a common and detrimental issue in microchannel heat transfer processes.

Yin et al. [17,18] further delved into the practical implementation of this top-connected microchannel concept. They successfully fabricated a top-connected microchannel structure on the surface of a copper block, a material renowned for its excellent thermal conductivity. Through their experiments, they discovered an interesting phenomenon. Despite the fact that surface tension typically exerts a dominant influence inside the microchannels, a stratified gas–liquid flow pattern still emerged in the top-connected microchannels. This stratified flow pattern, distinct from the chaotic flow often associated with microchannel systems, was found to significantly improve the flow stability. This finding not only validated the theoretical advantages of the top-connected microchannel structure but also provided valuable insights into the complex fluid dynamics at play within these micro-scale systems.

Zhao et al. [19] focused their research on flow boiling heat transfer characteristics within top-connected microchannels. Their in-depth study revealed that the heat transfer coefficient in these top-connected microchannels is significantly higher than that in ordinary parallel microchannels. This finding underscores the potential of the top-connected microchannel design in enhancing heat transfer performance. Moreover, their research identified three typical trends in the heat transfer coefficient as it varies with changes in vapor quality. These trends were closely associated with three distinct heat transfer modes: nucleate boiling, two-phase forced convection, and film boiling. They further determined that these heat transfer modes are dominated by the dimensionless boiling number, a crucial parameter that encapsulates the complex interplay between heat flux, mass flux, and fluid properties.

Notwithstanding the significant progress made in the research of top-connected microchannel heat exchangers, enhancing their phase change heat transfer performance remains a formidable and critical challenge. As the demand for more efficient heat transfer solutions continues to grow in various industries, such as electronics, energy, and automotive, further research is essential. This includes exploring novel materials, optimizing the geometric parameters of the microchannels, and developing advanced control strategies to better manage the complex phase change processes occurring within these micro-scale systems.

2. Concept

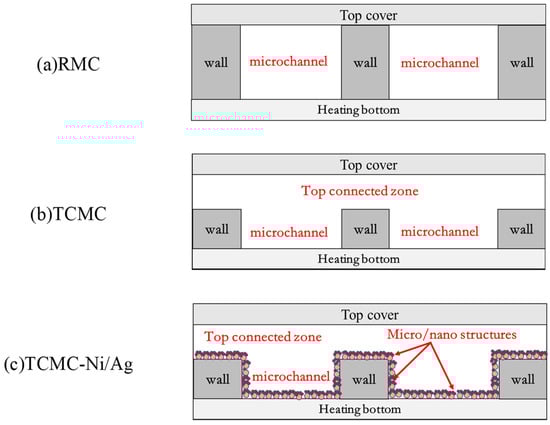

In the pursuit of augmenting the phase change heat transfer performance of top-connected microchannel heat exchangers, this paper introduces an innovative concept of a top-connected microchannel heat transfer structure integrated with a micro/nano composite surface structure. The underlying principle of this novel structure is elucidated in Figure 2. The top-connected microchannels (TCMC, shown in Figure 2b) are constructed by creating a transverse connection region between the top cover plate and the microchannels of regular parallel microchannels (RMC, as presented in Figure 2a). This design feature enables the interconnection of different microchannels at their upper ends. During the bubble growth process within the microchannels, this interconnection allows the gas–liquid interface to expand both along and perpendicular to the flow direction. Consequently, issues such as pressure imbalance and flow rate pulsation, which typically arise in regular channels due to the non-synchronous nucleation and growth of bubbles, are effectively mitigated.

In this study, an additional innovation lies in the fabrication of a micro/nano composite structure on the entire surface of the microchannels in TCMC. This results in the formation of a top-connected microchannel with a multi-scale micro/nano composite surface (denoted as TCMC-Ni/Ag in Figure 2c). When compared to the regular parallel microchannels in Figure 2a and the improved top-connected open microchannels in Figure 2b, the novel TCMC-Ni/Ag structure brings about two significant changes. Firstly, it modifies the distribution of nucleation sites on the heating surface. Secondly, through the capillary driving effect generated by the multi-scale pores, it can regulate the hydrodynamic characteristics in the near-wall region. These combined effects lead to a substantial improvement in the phase change heat transfer performance.

The implications of this research are far-reaching. For the design and operation of high-efficiency microchannel phase change heat exchangers, it provides crucial insights. By enhancing the heat transfer performance, it enables better heat dissipation, which is essential in various applications where heat management is critical. Moreover, improved heat transfer efficiency also contributes to more effective energy utilization, thereby promoting the development of sustainable and energy-efficient technologies.

3. Experiments

3.1. Fabrication of the Test Section

The experimental components were manufactured using copper as the base material. In the initial preparation stage, the copper substrate underwent surface treatment through polishing with 5000-grit sandpaper to achieve uniform smoothness. Subsequently, advanced laser etching technology was employed to create 11 parallel rectangular microchannels (RMC) with precise dimensional specifications: 18 mm in length, 0.4 mm in width, and 0.8 mm in depth. These microchannels were arranged with consistent 0.4 mm-thick rib walls separating adjacent channels, ensuring structural regularity across the patterned surface.

For the top-connected microchannel configuration (TCMC), the fabrication process involved two-stage laser etching. Initially, a continuous shallow trench measuring 18 mm × 8.4 mm × 0.4 mm (length × width × depth) was etched across the polished copper surface to form an integrated top connection region. Following this primary etching phase, secondary processing was conducted to generate 11 parallel sub-channels within the base of the connected trench. These secondary microchannels maintained identical length (18 mm) and width (0.4 mm) parameters to the RMC configuration but with reduced height (0.4 mm), while preserving the 0.4 mm inter-channel spacing through precisely controlled laser parameters.

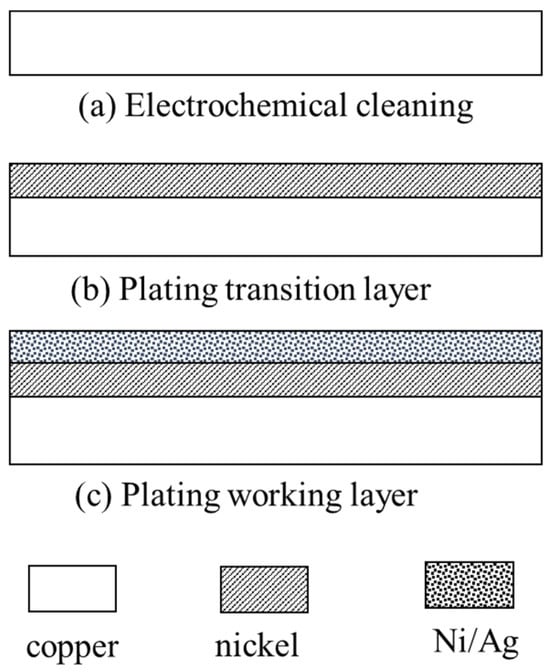

The Ni/Ag-TCMC variant was developed through surface modification using brush-plating technology [20], which involved three critical phases. As depicted in Figure 3, the process commenced with electrochemical cleaning to ensure optimal surface activation, followed by deposition of an intermediate transition layer to enhance coating adhesion. The final stage implemented controlled current density plating to establish a hierarchical Ni/Ag micro-nano composite structure across the TCMC surface. This multi-step approach enabled the creation of a functionally graded surface architecture while keeping the underlying microchannel geometry intact.

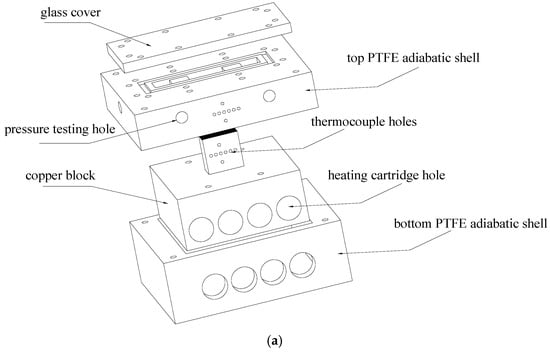

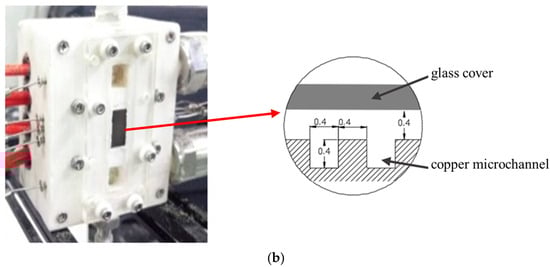

In Figure 4, the assembly drawing, physical diagram of the test section, and the cross-sectional view of the TCMC-type microchannel are comprehensively presented. To enable detailed visualization studies of the flow-pattern structures during flow boiling within the experimental section, the top cover plates of the microchannels are fabricated from high-purity, heat-resistant quartz glass. This material selection ensures both optical clarity for visualization and thermal stability under elevated operating conditions. The thermal energy required for the experiments is supplied by four precision electric heating cartridges, which are strategically embedded at the base of the copper block. These heating cartridges, with a diameter of 12 mm, a length of 64 mm, and a rated power of 220 W each, are designed to deliver uniform and controllable heat input to the test section. To optimize thermal management and minimize heat dissipation losses, the entire test section is encased in a polytetrafluoroethylene (PTFE) insulation layer. This PTFE casing not only reduces convective and radiative heat losses to the ambient environment but also ensures one-dimensional heat conduction along the vertical axis of the test section, thereby maintaining experimental consistency and accuracy.

Furthermore, the upper portion of the PTFE casing is equipped with eight temperature-measurement holes and two pressure-measurement holes, which are precisely aligned along the flow direction. High-precision K-type thermocouples, with a diameter of 1 mm and a temperature measurement accuracy of ±0.5 °C, are inserted into the temperature-measurement holes. These thermocouples facilitate the acquisition of real-time thermal data, enabling the calculation of heat flux and the characterization of temperature distribution along the flow path. The integration of these measurement systems ensures robust experimental control and reliable data collection for analyzing the thermal and hydrodynamic behavior within the microchannels.

3.2. The Experimental Setup

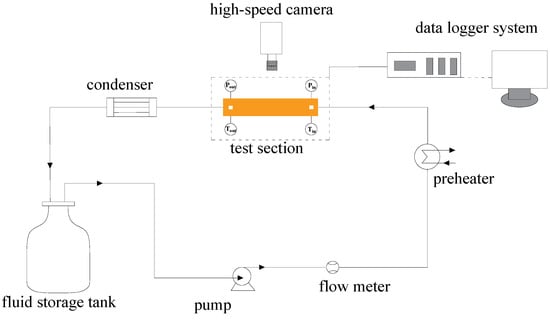

The experimental setup employed in this study is depicted in Figure 5. The working fluid housed within the liquid storage tank is expelled by a peristaltic pump. Subsequently, it traverses a flowmeter to quantify the flow rate, after which it is heated to a specific degree of sub-cooling by a pre-heater. The fluid then enters the experimental section, where heating induces a phase change heat transfer process. At the outlet of the experimental section, the generated steam is condensed by a condenser and subsequently returns to the liquid storage tank, thus completing a full cycle.

During the experimental procedure, the bubble dynamics and flow pattern transition characteristics within the microchannels are captured by a high-speed camera positioned above the experimental section. The temperatures at the inlet and outlet of the experimental section, along with the temperature distribution along the flow path, are measured using a K-type thermocouple. The inlet and outlet pressures are determined by a pressure transmitter. The acquired data are collected via a data acquisition instrument and subsequently stored in a computer for subsequent postprocessing.

3.3. Data Processing and Uncertainty Analysis

As the working fluid at the inlet of the microchannel is sub-cooled liquid, there are a single-phase heat transfer region and a phase change heat transfer region after the working fluid enters the microchannel. Therefore, the entire effective heating area can be divided into two regions along the flow direction, namely the single-phase convective heat transfer region and the two-phase phase change heat transfer region. Assuming that the heating quantity is uniformly distributed along the flow direction, the length of the single-phase flow region can be calculated through the energy conservation equation.

$$L_{\mathrm{s}}={\displaystyle \frac{m\left(h_{\mathrm{s}}-h_{\mathrm{in}}\right)L_{\mathrm{h}}}{\eta Q}}$$

(1)

where m is the mass flow rate, with the unit of kg/s; L_h is the length of the microchannel, with the unit of m; h_s is the enthalpy of the saturated working fluid and h_in is the enthalpy of the working fluid at the inlet, both with the unit of kJ/kg; Q is the heating power, with the unit of kW; and η is the thermal efficiency.

In the single-phase convection region, assuming that the temperature of the liquid is linearly distributed along the flow direction, the liquid temperature can be obtained through the following formula, with the unit of °C.

$$T_{fx}=T_{\mathrm{in}}+{\displaystyle \frac{L_x\left(T_{\mathrm{s}}-T_{\mathrm{in}}\right)}{L_{\mathrm{s}}}}$$

(2)

Here, T_in is the inlet temperature of the working fluid, and T_s is the saturation temperature of the working fluid, both measured in °C. L_x denotes the length from the point where the temperature is to be determined to the inlet, while L_s represents the length of the single-phase convective heat-transfer zone, with the unit being m. In the two-phase flow region, the liquid temperature equals the saturation temperature of the working fluid. This saturation temperature is determined by using the average pressure at the inlet and outlet of the experimental section as the saturation pressure.

The local heat transfer coefficient along the experimental section h_x is calculated by Newton’s law of cooling, with the unit of kW/m²·K.

$$h_x={\displaystyle \frac{q}{T_{\mathrm{wx}}-T_{\mathrm{fx}}}}$$

(3)

Here, q is the heat flux density with the unit of kW/m², T_wx is the wall temperature at this point, and T_fx is the liquid temperature corresponding to this point.

The uncertainty of experimental parameters consists of the uncertainty of directly measured parameters and the uncertainty of indirectly measured parameters. Directly measured parameters include temperature and pressure directly measured by thermocouples and pressure sensors, which are mainly determined by the errors of the measuring sensors. That is, for a directly measured parameter, we have Y_i:

$$Y_i=y_i+dy$$

(4)

where Y_i is the true value of the measured quantity; y_i is the actual measured value; and dy is the uncertainty of the measured quantity. For indirectly measured parameters such as heat transfer coefficient and heat flux density, their uncertainties are calculated through the error transfer function of directly measured parameters. Denote the indirectly measured value as N, N = f(x₁, x₂, x₃, …, x_n), where x₁, x₂, x₃, …, x_n are independent directly measured values. Then, the error of the indirectly measured value can be calculated by the following transfer function:

$$S_N=\sqrt{\sum _1^n{\left({\displaystyle \frac{\partial f\left(x_i\right)}{\partial x_i}}\right)}^2{\left(\delta x_i\right)}^2}$$

(5)

Here, S_N represents the standard error, and x_i denotes the relative error of the variable.

In the experiment, the maximum error of the K-type thermocouple used is approximately ±0.5 °C, the uncertainty of the heating power is ±2.0 W, and the machining dimensional accuracy is about ±0.02 mm. Through calculation, when the microchannel surface reaches the critical heat flux density, the maximum relative error of the heat flux density is 2.6%, the maximum relative error of the wall temperature is 3.3%, and the maximum relative error of the heat transfer coefficient is 6.2%.

4. Results and Discussion

4.1. Characterization of Ni/Ag Micro/Nano Composite Structure

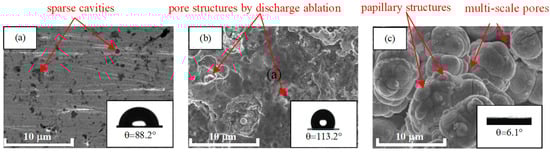

Scanning electron microscopy (SEM, SU - 8010, JEOL, Japan) was used to conduct a comparative analysis of the surface morphologies of the polished copper surface, the laser-etched surface, and the copper surface with the fabricated Ni/Ag micro/nano composite structure. The results are shown in Figure 6. It can be observed that on the polished copper surface, there are irregularly and sparsely distributed local cavities. The laser-etched surface has an ablated and uneven structure, with pores of various sizes on the ablated surface. The Ni/Ag micro/nano composite surface consists of densely arranged micro-sphere structures. The size of the micro-spheres is approximately 10~20 μm. There are papilla-like structures and cracks on the micro-spheres, and there are numerous pores of different scales between the microspheres.

An optical contact angle measuring instrument (Dataphysics OCA15 plus, Dongguan, China) was employed to measure the contact angles of 3.5 µL de-ionized water droplets on the smooth copper surface, the laser-etched surface, and the Ni/Ag micro/nano composite structure surface. The measured contact angles were 88.2°, 113.2°, and 6.1° (with an error of ±1.5°), respectively. That is, the laser-etched surface is hydrophobic, while the Ni/Ag micro/nano composite structure surface exhibits good hydrophilic properties.

4.2. Heat Transfer Characteristic

During the entire experimental process, the mass flow rate was kept constant at 0.95 g/s, and the heat flux density ranged from 326 kW/m² to 760 kW/m². Figure 7 shows the relationship between the heat transfer coefficient and the vapor quality of the three types of microchannels under different working conditions. As can be seen from Figure 7a, in the ordinary parallel microchannel (RMC), the heat transfer coefficient changes with the vapor quality in two trends: when the heat flux density is relatively small (q = 326 kW/m²), the heat transfer coefficient increases with the increase in the vapor quality; as the heating power increases (q = 543 kW/m² and 760 kW/m²), the heat transfer coefficient first increases and then decreases with the increase in the vapor quality. When q = 760 kW/m², the local maximum heat transfer coefficient reaches 35 kW/m²·K. Figure 7b shows the relationship between the heat transfer coefficient and the vapor quality in the top-connected microchannel (TCMC). For the working conditions with lower heating power (326 kW/m² and 543 kW/m²), the heat transfer coefficient increases monotonically with the increase in the vapor quality. For the high-heat-flux working condition (760 kW/m²), the change in the heat transfer coefficient with the vapor quality shows a three-stage trend, that is, the heat transfer coefficient first increases, then slightly decreases, and then continues to increase. When q = 760 kW/m², the local maximum heat transfer coefficient reaches 44 kW/m²·K.

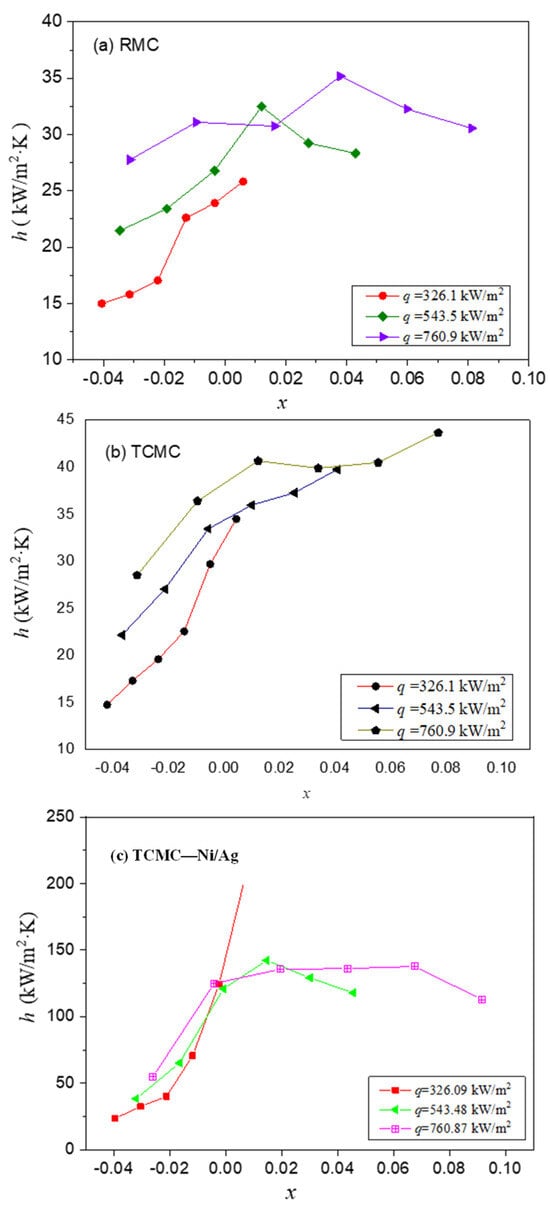

Figure 7c shows the variation of the heat transfer coefficient with the vapor quality in the top-connected microchannel with Ni/Ag composite micro/nano structure (TCMC-Ni/Ag). When the heat flux density is low (326 kW/m²), the heat transfer coefficient increases monotonically with the increase in the vapor quality; when the heat flux density is high, the heat transfer coefficient first increases and then remains basically unchanged with the increase in the vapor quality.

By comparing Figure 7a–c, it can be found that for RMC, the heat transfer coefficient generally shows an increasing trend when the heat flux density increases; for TCMC, when the vapor quality is small, the heat flux density has a significant impact on the heat transfer coefficient, and as the vapor quality increases, the impact of the heat flux density on heat transfer weakens; for TCMC-Ni/Ag, in the low-vapor-quality region where the vapor quality is less than zero, that is, corresponding to the subcooled boiling region, the heat flux density has a significant impact on the heat transfer coefficient, and as the vapor quality increases, the impact of the heat flux density on the heat transfer coefficient gradually weakens.

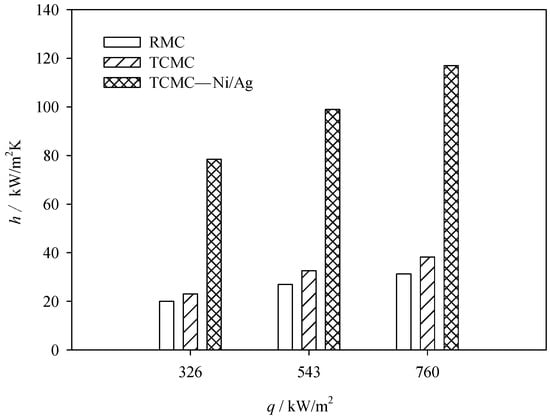

The average heat transfer coefficients h_avg of three types of microchannels, namely RMC, TCMC, and TCMC-Ni/Ag, were calculated and compared, and the results are shown in Figure 8. Within the selected typical operating conditions, the average heat transfer coefficients of the three types of microchannels all increase with the increase in heat flux density. When q = 760 kW/m², the average heat transfer coefficients of RMC, TCMC, and TCMC-Ni/Ag reach their maximum values, which are 31.27 kW/m²·K, 38.28 kW/m²·K, and 116.98 kW/m²·K, respectively. Under the same operating conditions, the average heat transfer coefficient of TCMC is increased by a maximum of 22% compared with that of RMC, while the average heat transfer coefficient of TCMC-Ni/Ag is increased by a maximum of 2.9 times compared with that of RMC.

4.3. Flow Pattern and Heat Transfer Enhancement Mechanisms

In order to disclose the mechanism underlying the enhanced flow boiling heat transfer within top-connected microchannels in detail, a visualization study of the flow patterns in these microchannels was carried out using a CMOS camera (XIMEA, XIQ, Münster, Germany). Figure 9a presents an image of the typical flow pattern structure within the TCMC. In the upstream microchannels and on the rib walls, relatively large nucleated bubbles are present, while in the downstream channels, elongated and narrow bubbles exist. Through observation, it was found that both isolated, elongated, and narrow bubbles and coalesced large bubbles co-exist between adjacent channels. However, the coalescence of bubbles is more prone to occur along the flow direction, thereby forming an elongated and narrow bubble flow (or long slug) within the channel. In contrast, the phenomenon of bubble coalescence between adjacent channels in the direction perpendicular to the flow is relatively infrequent.

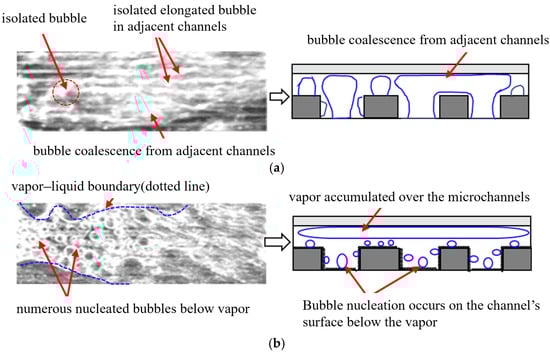

In the TCMC-Ni/Ag as depicted in Figure 9b, a substantial top-vapor and bottom-liquid film coverage area is observed in the top-connected region of the channel. On the surface of the Ni/Ag composite structure in the upstream area of the channel, numerous nucleated bubbles of varying sizes are present. In this particular type of top-connected microchannel, within the top-connected region featuring a top-vapor and bottom-liquid film coverage configuration, the bubble nucleation phenomenon on the heating surface exhibits a notable congruence with the findings reported by Kalani and Kandlikar [16]. This correspondence implies that, under the specific conditions established by the co-presence of the top-vapor and bottom-liquid films in the top-connected area of the microchannel, the underlying mechanism governing bubble nucleation on the heating surface adheres to the patterns elucidated in the research of Kalani and Kandlikar [16]. Compared with the TCMC, the nucleated bubbles generated on the surface of the TCMC-Ni/Ag are smaller in size and greater in number. In the downstream area of the TCMC-Ni/Ag channel, bubble nucleation is inhibited, and the flow pattern transitions to a regime dominated by thin-liquid-film convective evaporation.

The heat transfer enhancement mechanism of top-connected microchannels can be analyzed from the perspective of the channel geometric configuration and the resulting flow pattern distribution. For TCMC, on the one hand, bubble nucleation occurs not only on the inner walls of the channels but also on the top surfaces of their rib walls. This leads to a higher density of nucleation sites compared to RMC, thus increasing the latent heat transfer between the two gas–liquid phases. On the other hand, the existence of the top-connected region in TCMC enables the gas–liquid interface to expand both along the flow direction and in the direction perpendicular to the flow during the bubble nucleation and expansion process in the microchannel. This can significantly suppress problems such as heat transfer instability and local liquid deficiency drying out in RMC channels. In RMC, due to wall constraints, bubbles can only expand rapidly along the flow direction, causing these issues. As a result, the heat transfer performance is improved. Research by Kalani and Kandlikar [16] also shows that in top-connected microchannels, bubbles nucleated on the heating surface can detach in a timely manner and gather in the top-connected region of the microchannel. The heating surface remains continuously wetted by the liquid and continues to generate bubble nucleation, thus significantly enhancing the heat transfer coefficient. In addition, the increase in heat transfer coefficients in RMC, TCMC, and TCMC-Ni/Ag with the increase in heating power is related to the number of activated nucleation sites on the heated surface. Under a certain degree of superheat, the size range of effectively activatable nucleation sites can be expressed as [21]:

$$\begin{array}{c}{r}_{\max }\\ r_{\min }\end{array}={\displaystyle \frac{{\delta }_{\mathrm{t}}{K}_1}{2K_2}}\left[\left.1\pm \sqrt{1-{\displaystyle \frac{8K_2\sigma T_{\mathrm{sat}}}{{\rho }_v{h}_{\mathrm{fg}}{\delta }_{\mathrm{t}}\Delta T_{\mathrm{w}}}}}\right]\right.$$

(6)

That is, as the heating power increases, the wall superheat increases, causing the size interval [r_min, r_max] of nucleation sites that can be activated to expand. This leads to an increase in the nucleation density on the heating surface, thereby achieving enhanced phase change heat transfer.

Based on the surface micro-structures of TCMC and TCMC-Ni/Ag shown in Figure 6, the surface of TCMC-Ni/Ag has a multi-scale pore structure. These multi-scale pores are fully activated by the increase in wall superheat, generating a large number of nucleated bubbles. Besides the nucleation density, the bubble nucleation frequency is also one of the important factors determining the heat transfer coefficient. Fritz et al. [22] provided the relationship between the bubble departure diameter and surface wettability:

$$D=0.0208\theta {\left[{\displaystyle \frac{\sigma }{g({\rho }_l-{\rho }_v)}}\right]}^{{\displaystyle \frac{1}{2}}}$$

(7)

where $\sigma$, $g$, ${\rho }_l$, and ${\rho }_v$ represent the surface contact angle, the gas–liquid interfacial tension, the acceleration due to gravity, the liquid-phase density, and the vapor-phase density, respectively.

Jacob et al. [23] found that the relationship between the bubble departure diameter and frequency can be expressed as:

$$f{D}^n=\mathrm{C}$$

(8)

where f is the bubble departure frequency, D is the bubble departure diameter, n is an exponent related to the boiling process, and C is a constant. From Equations (7) and (8), it can be seen that due to the relatively small surface contact angle of TCMC-Ni/Ag, the departure diameter of the bubbles generated on its surface is small, and the departure frequency is high, which is consistent with the visualization research results shown in Figure 9b. When the surface heat flux is high, the multi-scale porous surface of TCMC-Ni/Ag has strong hydrophilicity, which facilitates the formation of an efficient heat transfer mode of thin-liquid-film convective evaporation [24]. That is, the hydrophilic multi-scale porous surface of TCMC-Ni/Ag has a large nucleation density and nucleation frequency under medium and low heat flux conditions, and forms a thin-liquid-film evaporation heat transfer mode under high heat flux conditions. This is the main mechanism for the significant increase in its heat transfer coefficient compared with RMC and TCMC.

5. Conclusions

Regular parallel microchannels (RMC), top-connected microchannels (TCMC), and top-connected microchannels featuring a Ni/Ag micro/nano composite surface structure (TCMC-Ni/Ag) were fabricated on a polished copper substrate via laser etching and brush-plating techniques. Utilizing anhydrous ethanol as the working fluid, a comparative investigation of flow boiling heat transfer within these three types of microchannels was conducted. The key findings are summarized as follows:

(1)

Through the application of the brush-plating technique, the Ni/Ag composite microstructure was successfully prepared on the laser-etched copper surface. This process yielded a hydrophilic multi-scale porous microstructure surface with a surface contact angle of 6.1°.

(2)

The maximum local heat transfer coefficients of TCMC and TCMC-Ni/Ag reached 43.66 kW/m²·K and 179.84 kW/m²·K, respectively. These values represent an increase of 24.14% and 4.1-fold compared to the maximum local heat transfer coefficient of RMC. Moreover, the maximum average heat transfer coefficients of TCMC and TCMC-Ni/Ag reached 38.28 kW/m²·K and 116.98 kW/m²·K, respectively, signifying an elevation of 22% and 2.9-fold relative to the average heat transfer coefficient of RMC.

(3)

Visualization analysis indicated that subsequent to the detachment of bubbles formed on the TCMC-Ni/Ag surface, they accumulated in the top-connected region of the microchannel. Meanwhile, a substantial amount of bubble nucleation continued to occur on the microchannel surface.

(4)

The multi-scale pore structure on the TCMC-Ni/Ag surface furnished an abundance of vaporization nuclei, thereby augmenting the bubble nucleation density. Additionally, the pronounced surface hydrophilicity not only enhanced the bubble nucleation frequency under medium heat flux conditions but also facilitated the formation of a thin-liquid-film convective evaporation heat transfer regime under high heat flux scenarios. This constitutes the primary mechanism underlying the significant enhancement of heat transfer.

In summary, the unique Ni/Ag composite micro/ nano structure on the surface of the microchannel heat exchanger has demonstrated its remarkable efficacy in promoting bubble nucleation, enhancing liquid–vapor phase change, and ultimately improving the overall heat transfer efficiency. Moreover, this study paves the way for the development of high-efficiency compact microchannel heat exchangers and could potentially inspire further investigations for future advancements in the field of heat transfer and thermal management.
