High Mechanical Performance Based on Physically Linked Double Network (DN) Hydrogels

1
Institute of Chemical Industry of Forestry Products, CAF, Nanjing 210042, China
2
Key Laboratory for Organic Electronics & Information Displays and Institute of Advanced Materials, Nanjing University of Post & Telecommunications, Nanjing 210021, China
3
School of Chemistry and Chemical Engineering, Nanjing University, Nanjing 210023, China
*
Authors to whom correspondence should be addressed.
Materials 2019, 12(20), 3333; https://doi.org/10.3390/ma12203333
Submission received: 18 September 2019 / Revised: 9 October 2019 / Accepted: 10 October 2019 / Published: 12 October 2019
(This article belongs to the Special Issue Research Advances in Natural Polymer-Based Hydrogels)

Abstract

:
A new design strategy was proposed to improve the mechanical performance of double network (DN) hydrogels by introducing polyhydroxy compounds into the DN structure and form a physically linked double network through the interaction of hydrogen bonding. Herein, agar/poly(acrylic acid)/hydroxyethyl cellulose composite hydrogels could be prepared by a simple one-pot method. The resulting hydrogels exhibit highly mechanical properties and excellent recoverability, which have potential applications in biomedical fields.

1. Introduction

Unlike most solid materials, hydrogels consist of a hydrophilic polymer network and a large amount of water, the wet soft structure of which allows them to be used as biocompatible materials, such as biosensors [1,2], bio-separators [3,4], drug delivery carriers [5,6,7], tissue engineering scaffolds [8,9,10,11], super capacitor [12,13,14], and intelligent devices [15,16]. Nevertheless, the mechanical properties of conventional chemical cross-linked polymer hydrogels are too weak to be practically applied in some fields [17]. To overcome this shortcoming and expand the application fields of hydrogels, researchers have developed many types of hydrogels with new network structures, such as double-network (DN) hydrogels [18], topological hydrogels [19], nanocomposite hydrogels [20], tetra-arm polymer-based hydrogels [21], magnetic hydrogels [22], double cross-linked hydrogels [23], triblock copolymer hydrogels [24], and hydrogen bonding hydrogels [25]. Among these, the DN hydrogels have been regarded as one of the most excellent hydrogels materials, which can be prepared by combining two interpenetrating polymer networks: a short-chain network as the first network and a long-chain network as the second. The use of this type of interpenetrated structure of the two polymer networks improved and balanced mechanical properties by tuning the intramolecular interactions between two networks [26]. Upon extra-force loading, an amount of the short chains were sacrificed to dissipate energy, and the long chains kept elasticity to retain the whole structure [27], resulting in outstanding fracture stress, critical compression, elastic modulus, and elongation of the DN hydrogels. Recently, reports have focused on various DN hydrogels materials due to their excellent mechanical properties. For instance, the compressive fracture stress of the poly(2-acrylamido-2-methylpropanesulfonate)/polyacrylamide DN hydrogel could achieve 93.5 MPa greater than those of bovine cartilage [28]. The polyacrylamide-chitosan DN hydrogel displayed high tensile strength up to 2 MPa [29]. The poly(vinyl alcohol)-poly(ethylene glycol) DN hydrogel exhibited the shape memory with tensile strength of 0.63 MPa [30].
Hydrogen bonding can improve the mechanical properties of hydrogels. In contrast with covalent bonding, the strength of individual hydrogen bonding interaction was relatively weak, but the synergistic interactions among hydrogen bonds could produce strong interactions even over covalent bonding [31]. The composite hydrogels based on hydrogen bonding between polyacrylamide and bacterial cellulose were reported to exhibit good tensile with a breaking elongation of 2200% and a breaking stress of 1.35 MPa [32]. The mechanical properties of polyacrylamide hydrogels were enhanced by hydrogen bonding interaction using graphene oxide [33]. Moreover, hydrogen bonding not only ensures good mechanical properties of the hydrogels but also endow excellent recovery properties of the hydrogel [34]. In our previous work, the lignosulfonate-graft-poly(acrylic acid)/hydroxyethyl cellulose composite hydrogels with semi-interpenetrating networks (semi-IPNs) structure show excellent shape-recovery property owing to the hydrogen bonding interactions between proton-donating Polyacrylic acid (PAA) and proton-accepting hydroxyethyl cellulose (HEC) [35].
Normally, the DN hydrogels were prepared in a two-step process: firstly, a single-network hydrogel was prepared. Next, the dried sample was immersed in the second monomer solution until the second monomer completely filled the sample; it was then gelled to form a DN hydrogel. This synthetic method had a long preparation cycle and needed to use a large amount of the second monomer soaking liquid [36]. Chen’s group reported a simple and quick method for the preparation of the Agar/PAM double-network hydrogels in one step and the whole process of preparation only took a few hours [37]. Inspired by this work, we one-pot synthesized agar/poly (acrylic acid)/hydroxyethyl cellulose composite hydrogels (Agar/PAA/HEC DN hydrogels) by introducing polyhydroxy compounds HEC into the DN structure, which physically linked double network by hydrogen bonding. The resulting hydrogels exhibited highly mechanical properties and excellent recoverability.

2. Materials and Methods

2.1. Materials

Agar, N,N’-Methylenebisacrylamide (MBAAm) were purchased from Sino pharm Chemical Reagent Co., Ltd. (Shanghai, China); acrylic acid (AA) was purchased from Macklin Chemical Reagent Co., Ltd. (Shanghai, China); hydroxyethyl cellulose (HEC, 5000–6400 mpa.s), 2-hydroxy-4’-(2-hydroxyethoxy)-2-methylpropiophenone were purchased from Aladdin Chemical Reagent Co., Ltd. (Shanghai, China). All other agents were analytical grade and used without further purification.

2.2. Synthesis of Agar/PAA/HEC Double Network (DN) Hydrogels

The agar/PAA/HEC DN hydrogels were synthesized by a one-pot strategy in which 0.1 g of agar was added into 10 mL of H2O at 90 °C and stirred until the agar power was dissolved completely and a transparent agar water solution was obtained. Then, 2 g of AA, 5.4 mg of MBAAm, 65.4 mg of 2-hydroxy-4’-(2-hydroxyethoxy)-2-methylpropiophenone, and 0.15 g of HEC were added into the agar solution to dissolve. The obtained solution was cooled to room temperature and subsequently the agar was solidified into gel again. Then, polymerization of AA monomers was carried out under the radiation of UV light (INTELLI-RAY 400, Lamp Intensity 60%, 400 W, Shenzhen, China) for about 50 min. The final hydrogel was immersed into distilled water for 48 h to remove the unreacted monomer and other impurities.

2.3. Fourier-Transform Infrared Spectroscopy (FTIR) Test

ATR (attenuated total reflectance)-Fourier-transform infrared spectroscopy (FTIR) of the Agar/PAA/HEC hydrogels was performed on a Nicolet iS10 FT-IR spectrometer (Nicolet iS10, Nicolet, Waltham, MA, USA). The hydrogel was lyophilized to dry gel. The samples were scanned 16 times and the scanning range was 4000–500 cm−1.

2.4. Morphology Characterization

Morphology characterization was investigated by observing the cross-section of the Agar/PAA/HEC hydrogel using scanning electron microscopy (SEM) (S-3400N Hitachi, Chiyoda, Tokyo, Japan). The hydrogel sample was lyophilized to dry gel. Cryo-fracturing of the frozen specimens was done to obtain a cross-sectional interior of the hydrogels, revealing their interior structure. SEM pictures of the hydrogel were taken after coating with gold nanoparticles under vacuum.

2.5. Measurement of Mechanical Properties

The compressive stress–strain measurements were performed using an Instron 5565 electronic universal testing apparatus (Instron Co, Boston, MA, USA) with a 5 kN load cell, a compressive strain rate of 10 mm/min, and no preload at room temperature. The cylindrical hydrogel samples were ~14–16 mm in diameter and 12~15 mm in height. The compressive stress (σ) was estimated as σ = F/πr2, where F is the force applied on the hydrogel and r is the initial radius of the sample. The compressive strain (ε), was defined as the change in the height relative to the height of the original sample.
For tensile test, the measurements also were performed by using an Instron 5565 electronic universal testing apparatus (Instron Co, Boston, MA, USA); a 250 N load cell was used. The hydrogel samples were cut into a dumbbell shape, with a gauge length of 16 mm, a width of 4 mm, and a thickness of ~2–3 mm. Moreover, the stretching rate was 50 mm/min. The cyclic tensile tests were performed immediately following the initial loading. In both loading and unloading, the rate of stretch was kept constant at 100 mm/min. The tensile fracture stress was defined as the stress at the breaking point. Tensile modulus was calculated from the slope of the linear region (ε = ~5–10%) of the stress–strain curves. For the all mechanical testing, a water spray was applied to the sample with a kettle every 2 min to prevent the hydrogel from drying out.

2.6. Swelling Properties Test

Swelling studies were carried out by comparing the fully swollen weight and the dry weight of hydrogels. The dried hydrogels (W1) were immersed in an excess amount of deionized (DI) water at 25 °C or physiological solution (NaCl 0.9% w/w, NS) at 37 °C until swelling equilibrium was attained. The wet weight of the sample (Wc) was determined after removing the surface water with filter paper. Equilibrium swelling ratio (Qeq) was determined by the following equation: Qeq = (W2 − W1)/W1 × 100%.

3. Results and Discussion

3.1. Preparation of the Agar/PAA/HEC DN Hydrogels

The Agar/PAA/HEC hydrogels were prepared through a simple one-pot strategy. The preparation scheme is demonstrated in Figure 1. Firstly, all of the reactants: agar, AA monomer, HEC, UV initiator, and cross linker (MBAAm) were dissolved together in water at 90 °C. Agar is in sol state at 90–95 °C and in gel state at 30–35 °C, resulting from the coil-helix structural transition of the agar molecule between high and low temperatures. Upon cooling, the gelation of agar occurred and built a three-dimensional network, which was the first network of the hydrogel. After photo-initiation, the second network was formed by the free-radical polymerization of the AA monomer under ultraviolet irradiation and the Agar/PAA/HEC hydrogel was successfully synthesized. In this system, in addition to the double network structure, the long-chain polyhydroxy macromolecule HEC acted as a physical cross linker agent to form a special DN network structure based on the hydrogen bonding interaction among the carboxyl of PAA, the hydroxyl of agar, and the hydroxyl of HEC. As shown in Figure 2, in comparison with with pure PAA, the characteristic absorption peaks of C=O of PAA in the Agar/PAA/HEC hydrogels were shifted from 1670 to 1696 cm−1, confirming the existing of hydrogen bonding interaction between PAA and HEC. Figure 3 shows the interior morphology of the Agar/PAA/HEC hydrogels measured by SEM. Similar to the Agar/PAA and PAA/HEC hydrogel, the Agar/PAA/HEC hydrogels also have porous structures. However, the pore size of the Agar/PAA/HEC hydrogels was much smaller than that of the other two hydrogels. The hydrogen bonding interaction between the two networks reduced the distance between the polymer chains and made the structure of the hydrogel denser, showing the size of the pore decreasing at the macro. The hydrogen bonding that exists in the structure of the hydrogels gradually dissipates the stress and fracture energy when external forces act on the hydrogels, allowing the hydrogels to withstand high strength deformation. In combination with double network and hydrogen bonding interaction, the Agar/PAA/HEC hydrogels would be expected to have excellent mechanical properties.

3.2. The Mechanical Properties of the Agar/PAA/HEC DN Hydrogels

As seen in Figure 4, the Agar/PAA/HEC DN hydrogels could withstand the deformation of bending as seen in Figure 4a, knotting as seen in Figure 4b, compression as seen in Figure 4c, and elongation as seen in Figure 4d, without obvious damage, revealing that they possessed excellent compression, bending, and tensile properties. Firstly, the compression property was evaluated. Figure 5 was a typical compressive stress–strain (σ-ε) curve for the Agar/PAA/HEC DN hydrogels. When the strain reached approximately 80%, the stress increased sharply. One explanation for this occurrence is that, with the increase of strain, some chains were fully compressed, resulting in the rapid increase of stress. When the stress intensity was 15.7 MPa, the hydrogels still did not break and the strain achieved 96%. In contrast, the fracture compressive stress of the ordinary PAA/HEC hydrogels and PAA/Agar DN hydrogels were 0.024 Mpa and 7.1 Mpa, respectively, suggesting that HEC significantly improved the compressive property of the Agar/PAA/HEC DN hydrogels. The recovery performance of the Agar/PAA/HEC DN hydrogels was also studied through an loading-unloading compression experiment. As shown in Figure 6, the cylindrical Agar/PAA/HEC DN hydrogel sample was compressed to 90% of original height and remained intact; after the pressure was released, the original shape of the sample was almost restored. The compressive stress–strain curves of the process were further investigated, as seen in Figure 7. There was a hysteresis in the first loading-unloading cycle, implying that an irreversible fracture event may have occurred at strain. Next, the recovered sample was placed in a moist environment for 2 h and the load-unloading compression curve was measured again. No serious deformation and strength degradation occurred in the hydrogel at a highly set critical strain of 80%, revealing the robust DN structure of the agar and PAA network. This result showed the excellent anti-deformation abilities of the Agar /PAA/HEC DN hydrogels.
The Agar/PAA/HEC DN hydrogels exhibited much higher ductility and positive effect of HEC on the tensile properties of the Agar/PAA/HEC DN hydrogels was well reflected in Table 1 and Table 2. We systematically studied the effects of the contents of HEC on the tensile properties of the Agar/PAA/HEC DN hydrogels. In Table 1, we observed that the tensile strain of the hydrogels (Gel-1–Gel-3) from 15.1 to 19.9 and the tensile stress from 125.5 kPa to 160.2 kPa with the increasing HEC content. It was reasoned that, with the addition of HEC, hydrogen bonding was formed between the HEC and the PAA polymer chain, improving the interaction between two networks by physical crosslinking, effectively promoting the energy dissipation of the hydrogels. When the ratio of HEC/AA was 0.15/2 (g/g), the tensile properties of the hydrogel were optimal. Once the ratio of HEC/AA exceeded 0.15/2 (g/g), the performance of the hydrogel did not continue to improve, potentially because the hydrogen bonding interaction had reached saturation point. On the other hand, as shown in Table 2, the hydrogel prepared by high-viscosity HEC had better performance.
The loading-unloading tensile cycle experiment was an effective method to analyze the internal fracture process of the hydrogels. Figure 8 shows the successive loading-unloading cycles of the Agar/PAA/ HEC DN hydrogels at different strain values, in which a new stretching cycle was performed immediately after the end of the previous cycle. The large hysteresis loops of each cycle suggested that the hydrogels could dissipate energy effectively. It was observed that any two adjacent stress–strain curves shared an overlap region to some extent, which pointed to the self-recovery ability of the hydrogels. The recover ability of the hydrogels may be attributable to the hydrogen bonding between HEC and PAA polymer chains. The hydrogen bonding would rupture upon an action of external force, and reformed after the external force was removed.

3.3. Swelling Properties of the Agar/PAA/HEC DN Hydrogels

The swelling property of the hydrogels has many applications, which are mainly determined by various functional groups inside the hydrogels. The content of HEC in the Agar/PAA/HEC DN hydrogels plays an important role in the swelling behaviors of the hydrogels. Figure 9 shows that the swelling rate of the hydrogels reduced as the HEC content increased. In physiological saline, the sample was slightly more swollen due to the presence of salt. The carboxyl groups in the PAA determined the swelling rate of the hydrogels; however, with the addition of HEC, the formed hydrogen bonding inhibited the swelling of the hydrogels.

4. Conclusions

We have successfully fabricated a new physically linked double network Agar/PAA/HEC hydrogel using a one-pot method by the hydrogen bonding interaction between proton-donating PAA and proton-accepting HEC. The Agar/PAA/HEC hydrogel has very high compression and tensile strength as well as high recoverability, which may be due to the synergy of the network structure and the reversible energy dissipation mechanism of the hydrogen bonding. The optical mass ratio of HEC/AA for the hydrogel is 0.15/2 (g/g). In consideration of the advantages of good mechanical properties as well as one-pot synthetic methods, the agar/PAA/HEC hydrogel has many potentials in biomedical applications, such as tissue engineering scaffolds and artificial muscles.

Author Contributions

Methodology, L.N., Y.Z., L.S., Q.S., S.F. and S.C.; Writing Original Draft Preparation, Y.D., Y.C. and Y.L.

Funding

This research received no external funding.

Acknowledgments

This work was supported by the Fundamental Research Funds of CAF (CAFYBB 2017MA016), the Provincial Academy of Forestry Science and Technology cooperation project of Zhejiang Province (2016SY11) and the Research Start-Up Fund of NJUPT (NY218122).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, L.; Pan, L.; Ma, Z.; Yan, K.; Cheng, W.; Shi, Y.; Yu, G. All Inkjet-Printed Amperometric Multiplexed Biosensors based on Nanostructured Conductive Hydrogel Electrodes. Nano Lett. 2018, 18, 3322–3327. [Google Scholar] [CrossRef]
  2. Sun, L.; Zhong, Y.; Gui, J.; Wang, X.; Zhuang, X.; Weng, J. A hydrogel biosensor for high selective and sensitive detection of amyloid-beta oligomers. Int. J. Nanomed. 2018, 13, 843–856. [Google Scholar] [CrossRef]
  3. Peak, C.W.; Wilker, J.J.; Schmidt, G. A review on tough and sticky hydrogels. Colloid Polym. Sci. 2013, 291, 2031–2047. [Google Scholar] [CrossRef]
  4. Zhao, Z.G.; Xu, Y.C.; Fang, R.C.; Liu, M.J. Bioinspired Adaptive Gel Materials with Synergistic Heterostructures. Chin. J. Polym. Sci. 2018, 36, 683–696. [Google Scholar] [CrossRef]
  5. Qiu, Y.; Park, K. Environment-sensitive hydrogels for drug delivery. Adv. Drug Deliv. Rev. 2001, 53, 321–339. [Google Scholar] [CrossRef]
  6. Ng, L.T.; Jönsson, S.; Swami, S.; Lindgren, K. Synthesis of hydrogel for drug delivery studies utilizing photoinitiator-free photopolymerization based on the donor/acceptor pair, N-vinylpyrrolidinone and hydroxypentyl maleimide. Polym. Int. 2018, 51, 1398–1403. [Google Scholar] [CrossRef]
  7. Yu, Y.; Shu, Y.; Ye, L. In situ crosslinking of poly (vinyl alcohol)/graphene oxide-glutamic acid nano-composite hydrogel as microbial carrier: Intercalation structure and its wastewater treatment performance. Chem. Eng. J. 2018, 336, 306–314. [Google Scholar] [CrossRef]
  8. El-Sherbiny, I.M.; Yacoub, M.H. Hydrogel scaffolds for tissue engineering: Progress and challenges. Glob. Cardiol. Sci. Pr. 2013, 2013, 316–342. [Google Scholar] [CrossRef]
  9. Wang, S.; Zhang, Z.; Chen, B.; Shao, J.; Guo, Z. Self-healing hydrogel of poly(vinyl alcohol)/graphite oxide with pH-sensitive and enhanced thermal properties. J. Appl. Polym. Sci. 2018, 135, 46143. [Google Scholar] [CrossRef]
  10. Wang, L.; Xu, M.-E.; Luo, L.; Zhou, Y.; Si, P. Iterative feedback bio-printing-derived cell-laden hydrogel scaffolds with optimal geometrical fidelity and cellular controllability. Sci. Rep. 2018, 8, 2802. [Google Scholar] [CrossRef]
  11. Kuo, C.K.; Ma, P.X. Ionically crosslinked alginate hydrogels as scaffolds for tissue engineering: Part 1. Structure, gelation rate and mechanical properties. Biomaterials 2001, 22, 511–521. [Google Scholar] [CrossRef]
  12. Li, H.; Lv, T.; Sun, H.; Qian, G.; Li, N.; Yao, Y.; Chen, T. Ultrastretchable and superior healable supercapacitors based on a double cross-linked hydrogel electrolyte. Nat. Commun. 2019, 10, 536. [Google Scholar] [CrossRef]
  13. Gao, H.; Xiao, F.; Ching, C.B.; Duan, H. High-Performance Asymmetric Supercapacitor Based on Graphene Hydrogel and Nanostructured MnO2. ACS Appl. Mater. Interfaces 2012, 4, 2801–2810. [Google Scholar] [CrossRef]
  14. Guo, Y.; Zheng, K.; Wan, P. A Flexible Stretchable Hydrogel Electrolyte for Healable All-in-One Configured Supercapacitors. Small 2018, 14, 1704497. [Google Scholar] [CrossRef]
  15. Yang, Y.; Guan, L.; Gao, G. A low-cost, rapidly-responsive, controllable and reversible photochromic hydrogel for display and storage. ACS Appl. Mater. Interfaces 2018, 10, 13975–13984. [Google Scholar] [CrossRef]
  16. Lopresti, C.; Vetri, V.; Ricca, M.; Foderà, V.; Tripodo, G.; Spadaro, G.; Dispenza, C. Pulsatile protein release and protection using radiation-crosslinked polypeptide hydrogel delivery devices. React. Funct. Polym. 2010, 71, 155–167. [Google Scholar] [CrossRef]
  17. Hennink, W.; Van Nostrum, C. Novel crosslinking methods to design hydrogels. Adv. Drug Deliv. Rev. 2012, 64, 223–236. [Google Scholar] [CrossRef]
  18. Pacelli, S.; Paolicelli, P.; Avitabile, M.; Varani, G.; Di Muzio, L.; Cesa, S.; Tirillò, J.; Bartuli, C.; Nardoni, M.; Petralito, S.; et al. Design of a tunable nanocomposite double network hydrogel based on gellan gum for drug delivery applications. Eur. Polym. J. 2018, 104, 184–193. [Google Scholar] [CrossRef]
  19. Lowe, T.L.; Tenhu, H.; Tylli, H. Effect of hydrophobicity of a drug on its release from hydrogels with different topological structures. J. Appl. Polym. Sci. 2015, 73, 1031–1039. [Google Scholar] [CrossRef]
  20. Haraguchi, K. Nanocomposite hydrogels. Curr. Opin. Solid State Mater. Sci. 2007, 11, 47–54. [Google Scholar] [CrossRef]
  21. Matsunaga, T.; Sakai, T.; Akagi, Y.; Chung, U.I.; Shibayama, M. SANS and SLS Studies on Tetra-Arm PEG Gels in As-Prepared and Swollen States. Macromolecules 2009, 42, 6245–6252. [Google Scholar] [CrossRef]
  22. Wang, Y.; Zhang, J.; Qiu, C.; Li, J.; Cao, Z.; Ma, C.; Zheng, J.; Huang, G. Self-recovery magnetic hydrogel with high strength and toughness using nanofibrillated cellulose as a dispersing agent and filler. Carbohydr. Polym. 2018, 196, 82–91. [Google Scholar] [CrossRef] [PubMed]
  23. Li, S.; Wang, L.; Yu, X.; Wang, C.; Wang, Z. Synthesis and characterization of a novel double cross-linked hydrogel based on Diels-Alder click reaction and coordination bonding. Mater. Sci. Eng. c-Mater. Biol. Appl. 2018, 82, 299–309. [Google Scholar] [CrossRef]
  24. Chen, Y.; Shull, K.R. High-Toughness Polycation Cross-Linked Triblock Copolymer Hydrogels. Macromolecules 2017, 50, 3637–3646. [Google Scholar] [CrossRef]
  25. Wang, Y.; Tang, L.; Wang, L.; Yu, J. Hydrogen-bonded Supramolecular Hydrogels Derived from 3,3’,4,4’-Benzophenonetetracarboxylic Acid and Hydroxylpyridines. Chin. J. Chem. 2010, 27, 2279–2283. [Google Scholar] [CrossRef]
  26. Gong, J.P.; Katsuyama, Y.; Kurokawa, T.; Osada, Y. Double-Network Hydrogels with Extremely High Mechanical Strength. Adv. Mater. 2010, 15, 1155–1158. [Google Scholar] [CrossRef]
  27. Yan, X.; Chen, Q.; Zhu, L.; Chen, H.; Wei, D.; Chen, F.; Tang, Z.; Yang, J.; Zheng, J. High strength and self-healable gelatin/polyacrylamide double network hydrogels. J. Mater. Chem. B 2017, 5, 7683–7691. [Google Scholar] [CrossRef]
  28. Yang, F.; Tadepalli, V.; Wiley, B.J. 3D Printing of a Double Network Hydrogel with a Compression Strength and Elastic Modulus Greater than those of Cartilage. ACS Biomater. Sci. Eng. 2017, 3, 863–869. [Google Scholar] [CrossRef]
  29. Yang, Y.; Wang, X.; Yang, F.; Shen, H.; Wu, D. A Universal Soaking Strategy to Convert Composite Hydrogels into Extremely Tough and Rapidly Recoverable Double-Network Hydrogels. Adv. Mater. 2016, 28, 7178–7184. [Google Scholar] [CrossRef]
  30. Zhang, Y.; Ye, L. Improvement of Permeability of Poly (vinyl alcohol) Hydrogel by Using Poly(ethylene glycol) as Porogen. Polym. Technol. Eng. 2011, 50, 776–782. [Google Scholar] [CrossRef]
  31. Zhu, L.; Qiu, J.; Sakai, E. A high modulus hydrogel obtained from hydrogen bond reconstruction and its application in vibration damper. RSC Adv. 2017, 7, 43755–43763. [Google Scholar] [CrossRef] [Green Version]
  32. Yuan, N.; Xu, L.; Zhang, L.; Ye, H.; Zhao, J.; Liu, Z.; Rong, J. Superior hybrid hydrogels of polyacrylamide enhanced by bacterial cellulose nanofiber clusters. Mater. Sci. Eng. C 2016, 67, 221–230. [Google Scholar] [CrossRef]
  33. Liu, R.; Liang, S.; Tang, X.-Z.; Yan, D.; Li, X.; Yu, Z.-Z. Tough and highly stretchable graphene oxide/polyacrylamide nanocomposite hydrogels. J. Mater. Chem. 2012, 22, 14160–14167. [Google Scholar] [CrossRef]
  34. Ye, X.; Li, X.; Shen, Y.; Chang, G.; Yang, J.; Gu, Z. Self-healing pH-sensitive cytosine- and guanosine-modified hyaluronic acid hydrogels via hydrogen bonding. Polymer 2017, 108, 348–360. [Google Scholar] [CrossRef]
  35. Zhao, J.; Zheng, K.; Nan, J.; Tang, C.; Chen, Y.; Hu, Y. Synthesis and characterization of lignosulfonate- graft -poly (acrylic acid)/hydroxyethyl cellulose semi-interpenetrating hydrogels. React. Funct. Polym. 2017, 115, 28–35. [Google Scholar] [CrossRef]
  36. Li, X.; Yang, Q.; Zhao, Y.; Long, S.; Zheng, J. Dual Physically Crosslinked Double Network Hydrogels with High Toughness and Self-Healing Properties. Soft Matter 2017, 13, 911–920. [Google Scholar] [CrossRef]
  37. Chen, Q.; Zhu, L.; Zhao, C.; Wang, Q.; Zheng, J. A Robust, One-Pot Synthesis of Highly Mechanical and Recoverable Double Network Hydrogels Using Thermoreversible Sol-Gel Polysaccharide. Adv. Mater. 2013, 25, 4171–4176. [Google Scholar] [CrossRef]

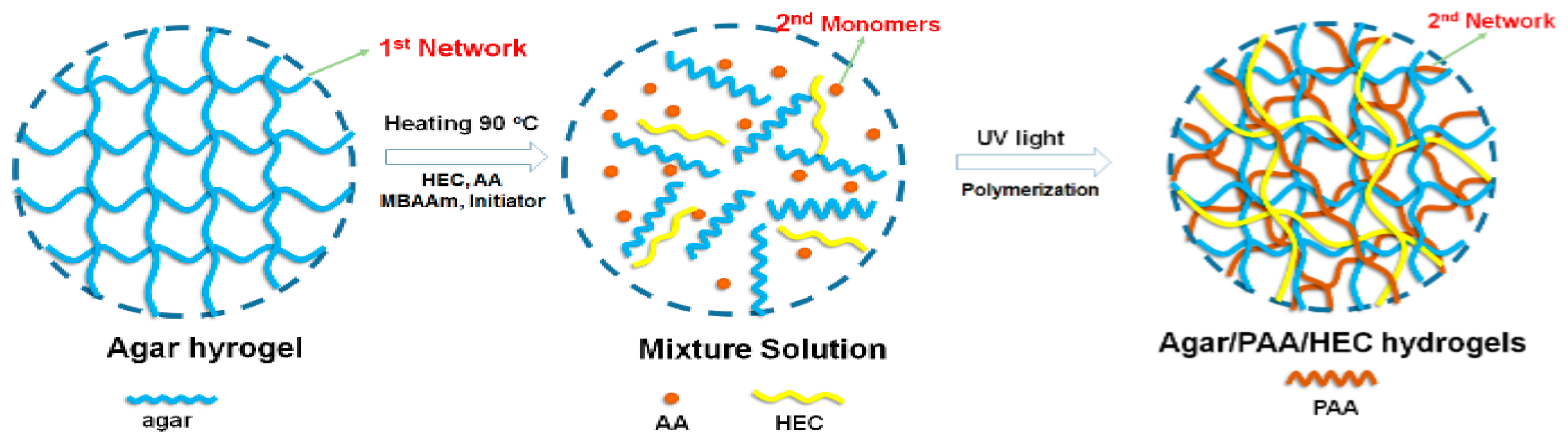

Figure 1. Scheme of the synthesis of the Agar/PAA/hydroxyethyl cellulose (HEC) hydrogels.
Figure 1. Scheme of the synthesis of the Agar/PAA/hydroxyethyl cellulose (HEC) hydrogels.
Materials 12 03333 g001

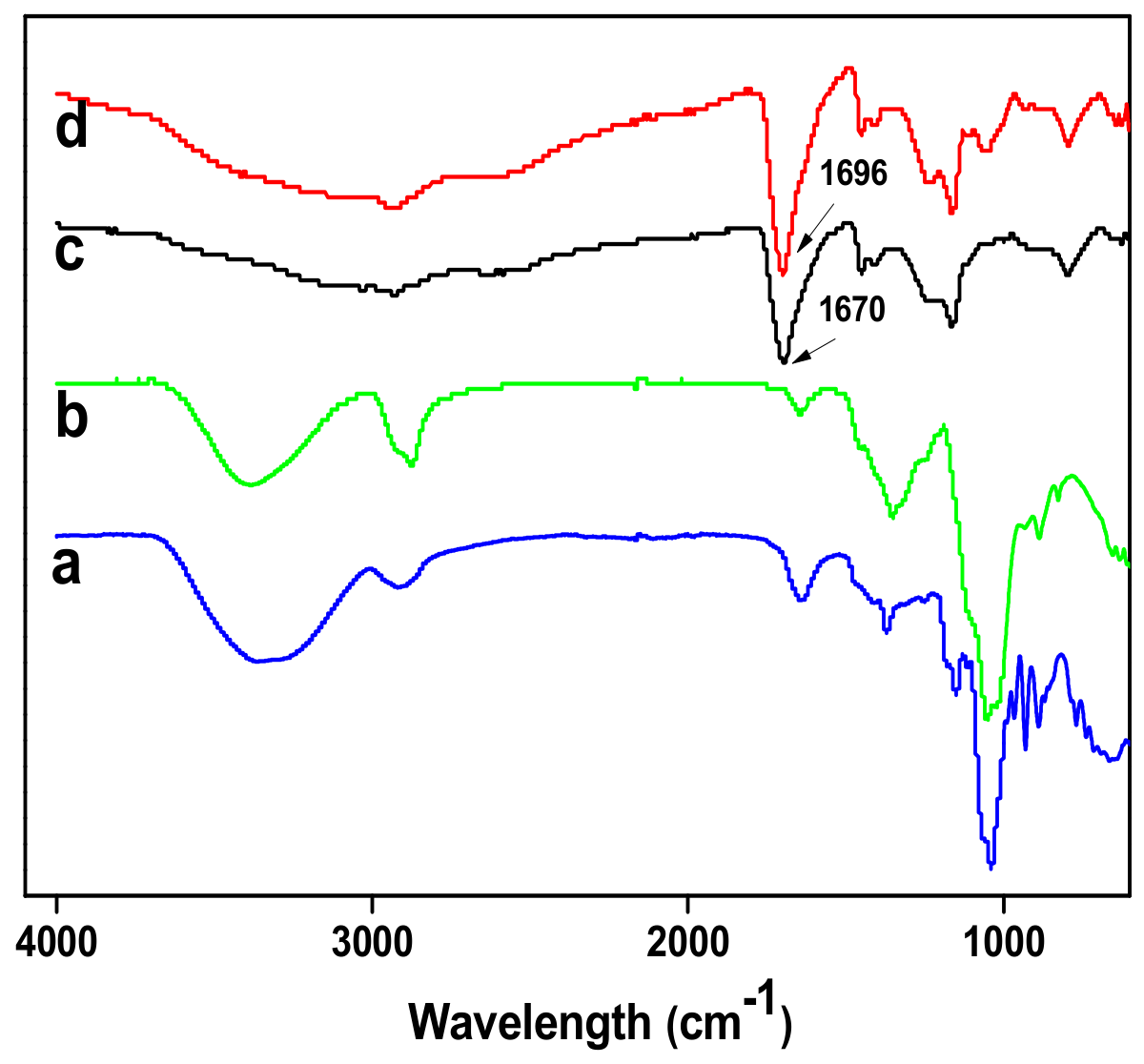

Figure 2. Attenuated total reflectance (ATR)-Fourier-transform infrared spectroscopy (FTIR) spectra of (a) Agar; (b) HEC; (c) PAA and (d) Agar/PAA/HEC hydrogel.
Figure 2. Attenuated total reflectance (ATR)-Fourier-transform infrared spectroscopy (FTIR) spectra of (a) Agar; (b) HEC; (c) PAA and (d) Agar/PAA/HEC hydrogel.
Materials 12 03333 g002
Figure 3. Scanning electron microscopy (SEM) images of hydrogels: (a,b) Agar/PAA hydrogel; (c,d) PAA/HEC hydrogel; (e,f) Agar/PAA/HEC hydrogel.
Figure 3. Scanning electron microscopy (SEM) images of hydrogels: (a,b) Agar/PAA hydrogel; (c,d) PAA/HEC hydrogel; (e,f) Agar/PAA/HEC hydrogel.
Materials 12 03333 g003

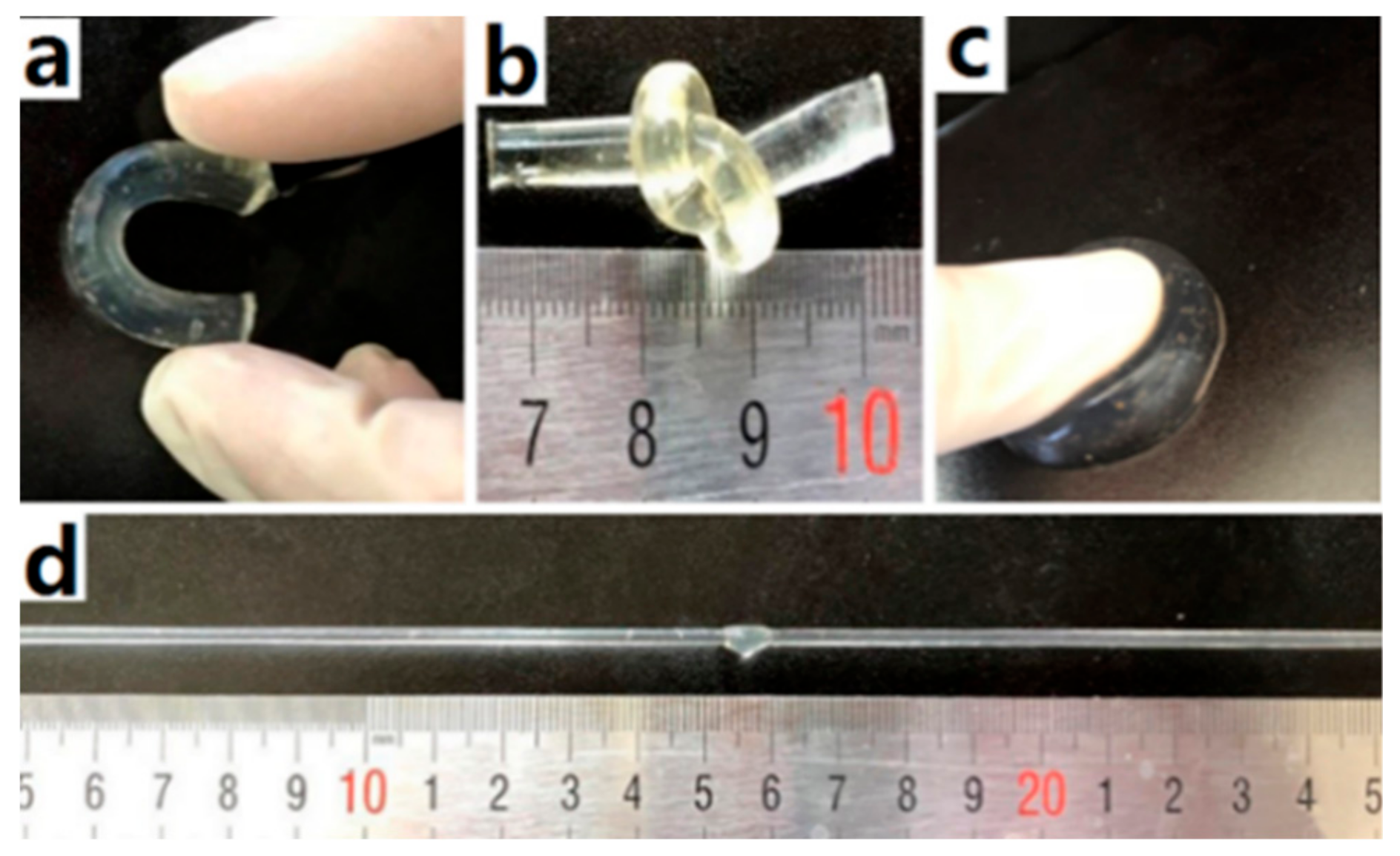

Figure 4. Agar/PAA/HEC hydrogels show extraordinary mechanical: (a) Bending; (b) Knotting; (c) Compression; (d) Elongation.
Figure 4. Agar/PAA/HEC hydrogels show extraordinary mechanical: (a) Bending; (b) Knotting; (c) Compression; (d) Elongation.
Materials 12 03333 g004

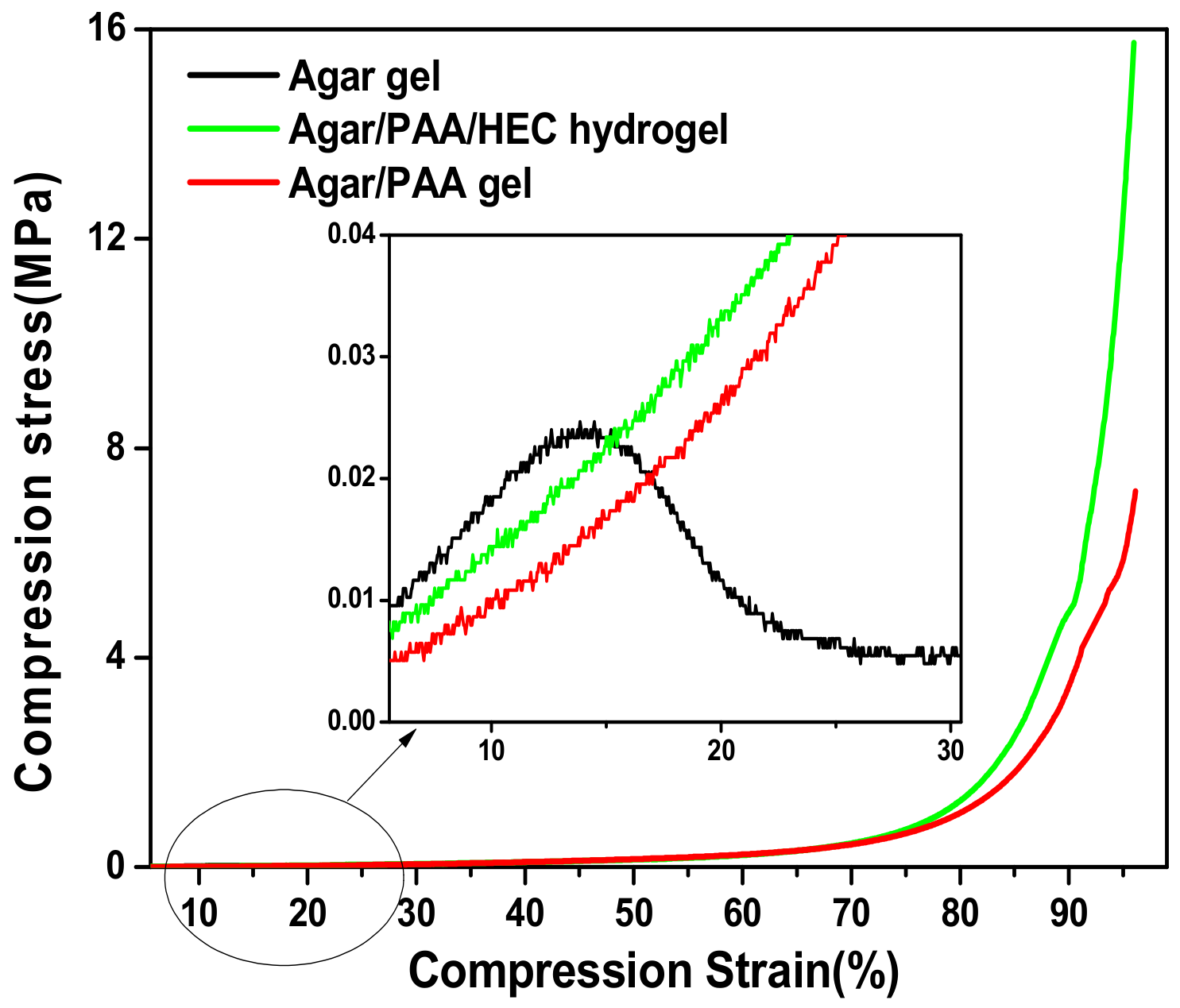

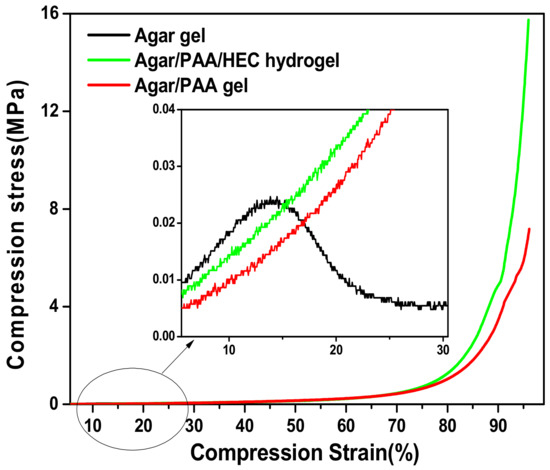

Figure 5. Compression stress–strain curves of different hydrogels.
Figure 5. Compression stress–strain curves of different hydrogels.
Materials 12 03333 g005

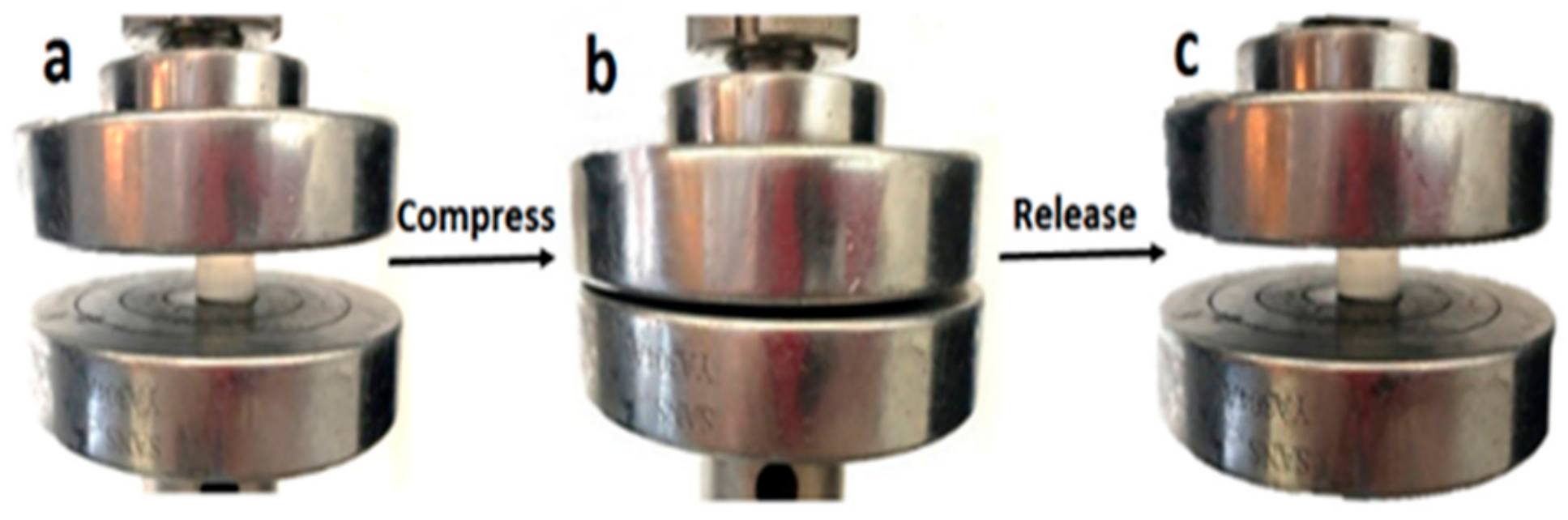

Figure 6. Photographs of the Agar/PAA/HEC DN hydrogel under compression.
Figure 6. Photographs of the Agar/PAA/HEC DN hydrogel under compression.
Materials 12 03333 g006

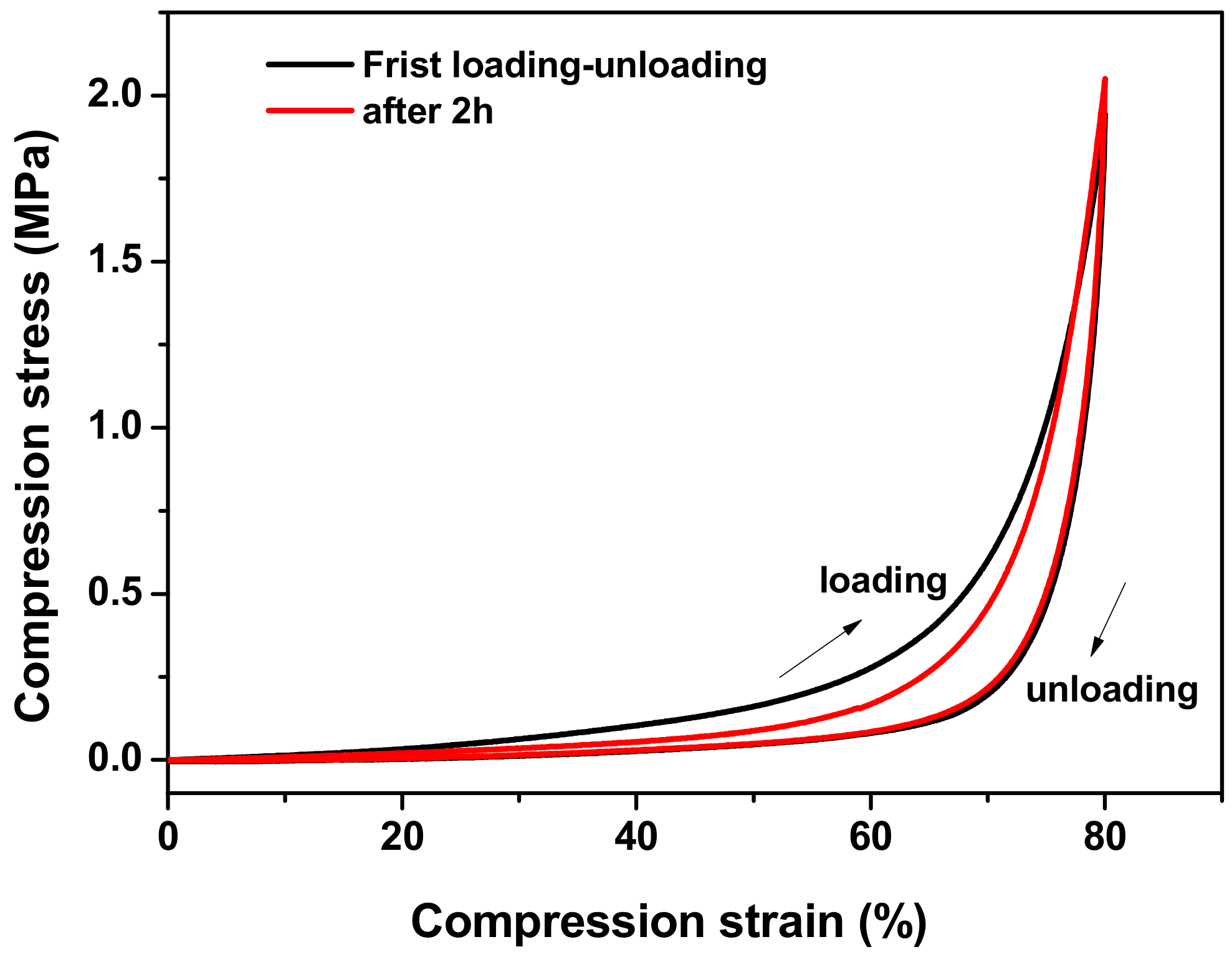

Figure 7. Stress–strain curves of loading-unloading cycles.
Figure 7. Stress–strain curves of loading-unloading cycles.
Materials 12 03333 g007

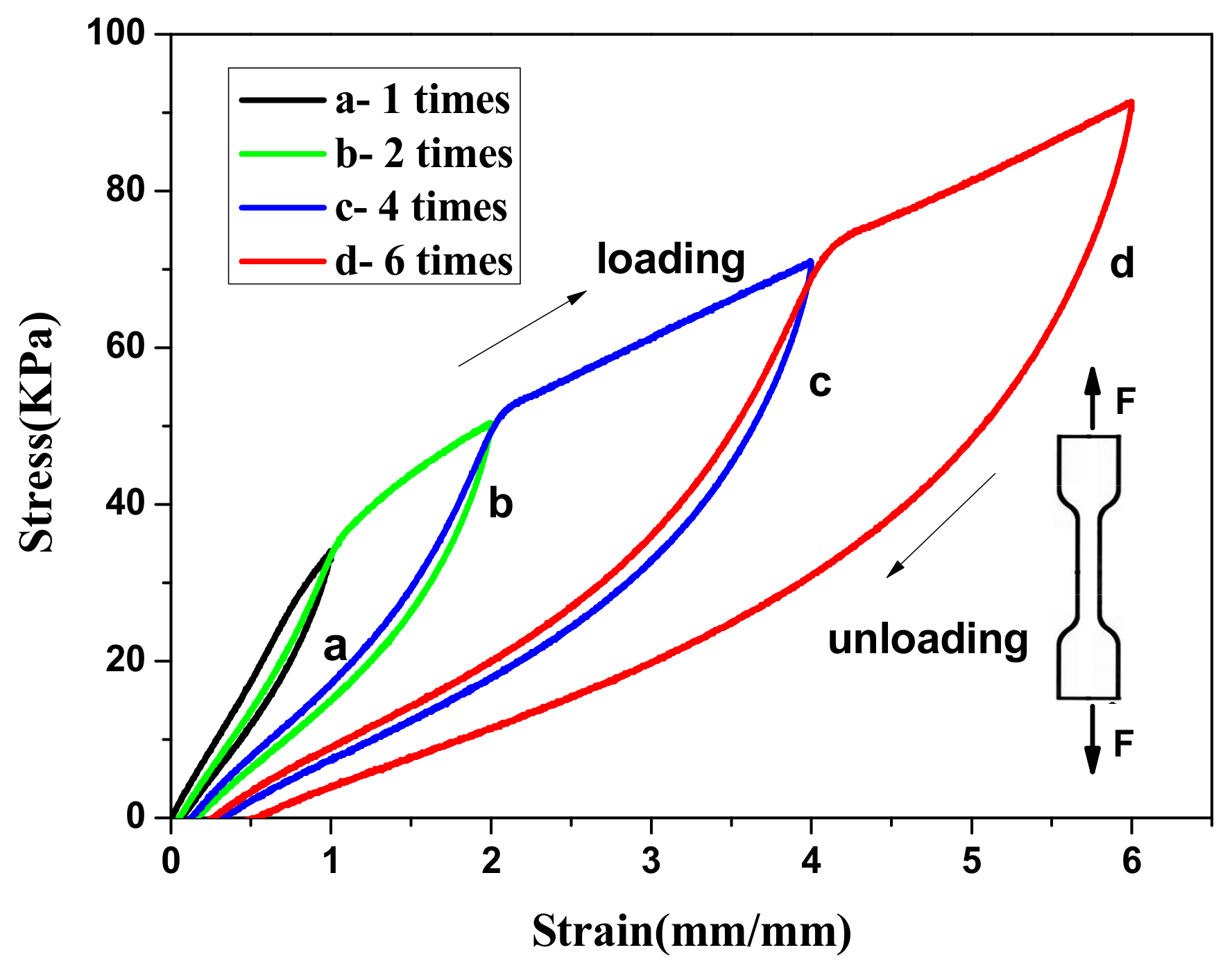

Figure 8. Stress–strain curves during loading-unloading cycles at different critical compression strains of the Agar/PAA/HEC hydrogel.
Figure 8. Stress–strain curves during loading-unloading cycles at different critical compression strains of the Agar/PAA/HEC hydrogel.
Materials 12 03333 g008

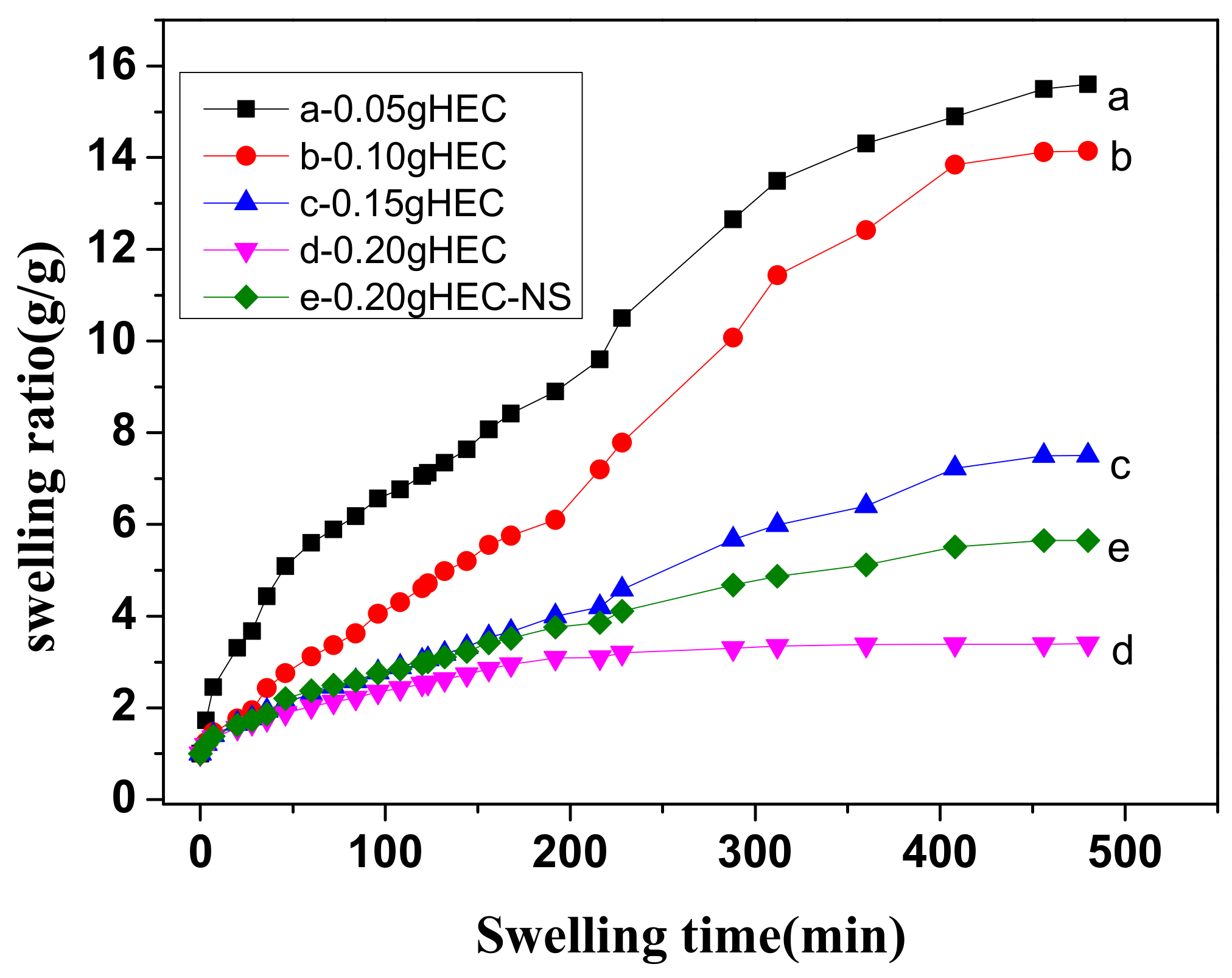

Figure 9. Swelling rate of the different hydrogels (a) Gel-1 in DI water; (b) Gel-2 in DI water; (c) Gel-3 in DI water; (d) Gel-4 in DI water and (e) Gel-4 in salt solution.
Figure 9. Swelling rate of the different hydrogels (a) Gel-1 in DI water; (b) Gel-2 in DI water; (c) Gel-3 in DI water; (d) Gel-4 in DI water and (e) Gel-4 in salt solution.
Materials 12 03333 g009
Table 1. Tensile properties of the Agar/PAA/HEC DN hydrogels with different HEC contents.
Table 1. Tensile properties of the Agar/PAA/HEC DN hydrogels with different HEC contents.
SampleSynthesisTensile Test
HEC/AA/H2O (g/g/g)HEC viscosity (mpa.s, 25 °C)Strain at fracture (mm/mm)Stress at fracture (kPa)Tensile modulus (kPa)
Gel-10.05/2/105000–640015.1125.54.5
Gel-20.10/2/105000–640016.7147.618.5
Gel-30.15/2/105000–640019.9160.221.9
Gel-40.2/2/105000–640014.699.39.3
Table 2. The tensile properties of the Agar/PAA/HEC DN hydrogels with different HEC viscosity.
Table 2. The tensile properties of the Agar/PAA/HEC DN hydrogels with different HEC viscosity.
SampleSynthesisTensile Test
HEC/AA/H2O
(g/g/g)
HEC viscosity (mpa.s, 25 °C)Strain at fracture (mm/mm)Stress at fracture
(kPa)
Tensile modulus
(kPa)
Gel-50.15/2/1080–1258.6138.027.4
Gel-60.15/2/101000–150012.0131.422.1
Gel-70.15/2/105000–640019.9160.221.9
