Experimental and Numerical Investigations on the Thermomechanical Behavior of 304 Stainless Steel/Q345R Composite Plate Weld Joint
Abstract
:1. Introduction
2. Experimental Procedure

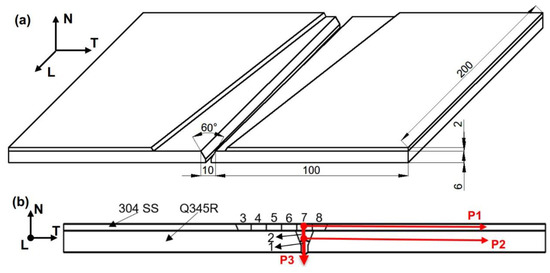

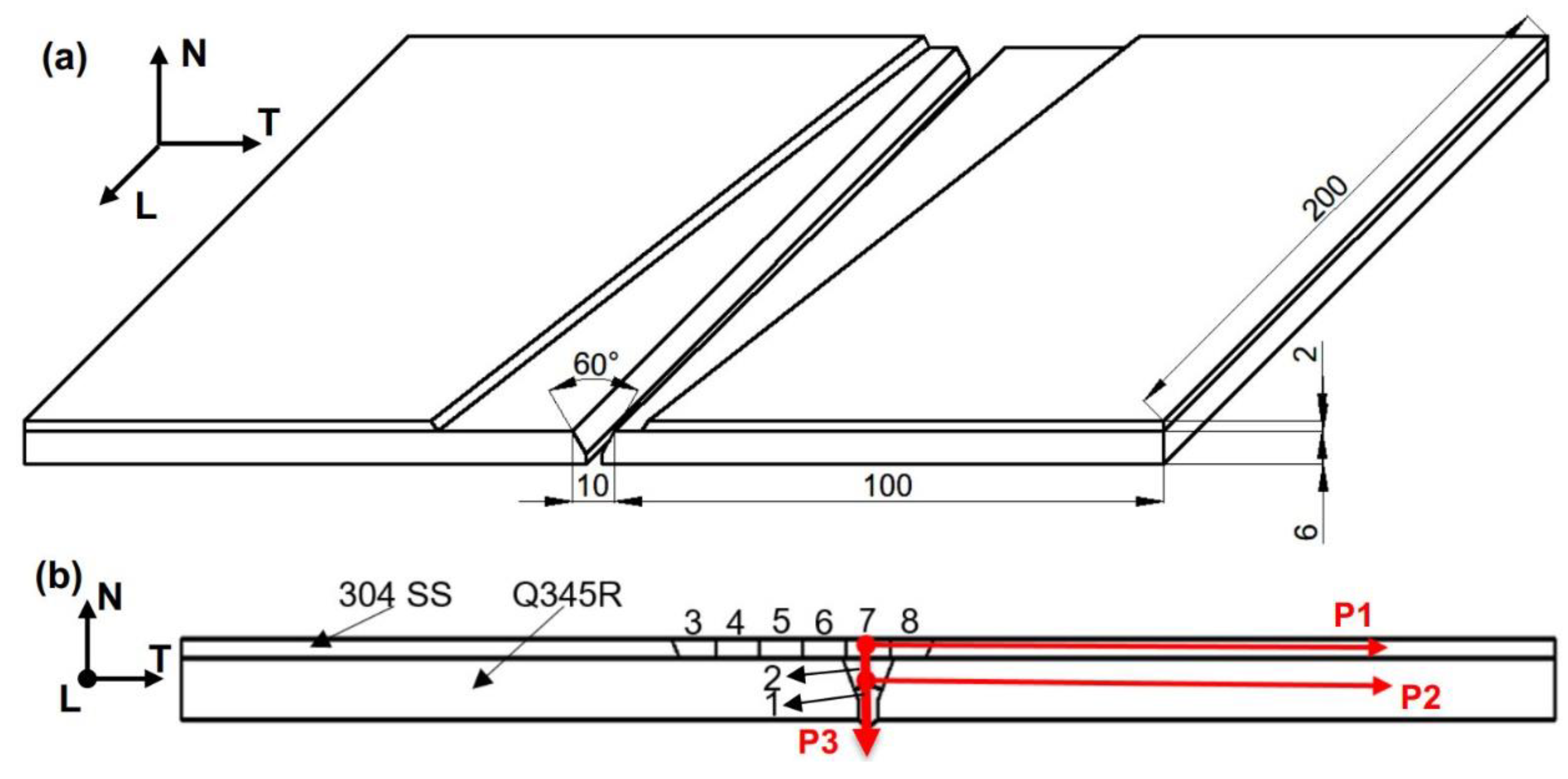

2.1. Materials and Welding Process

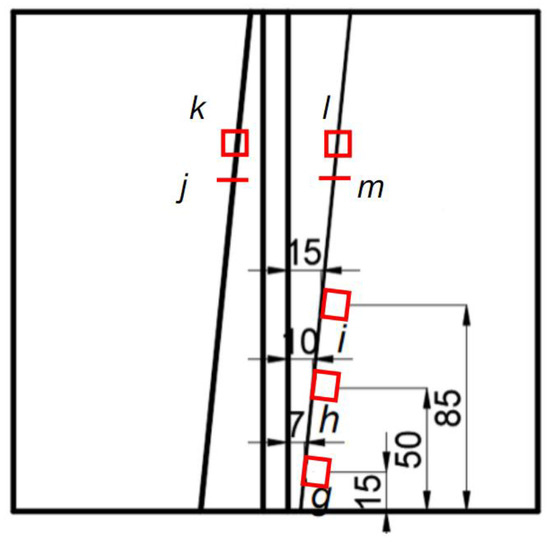

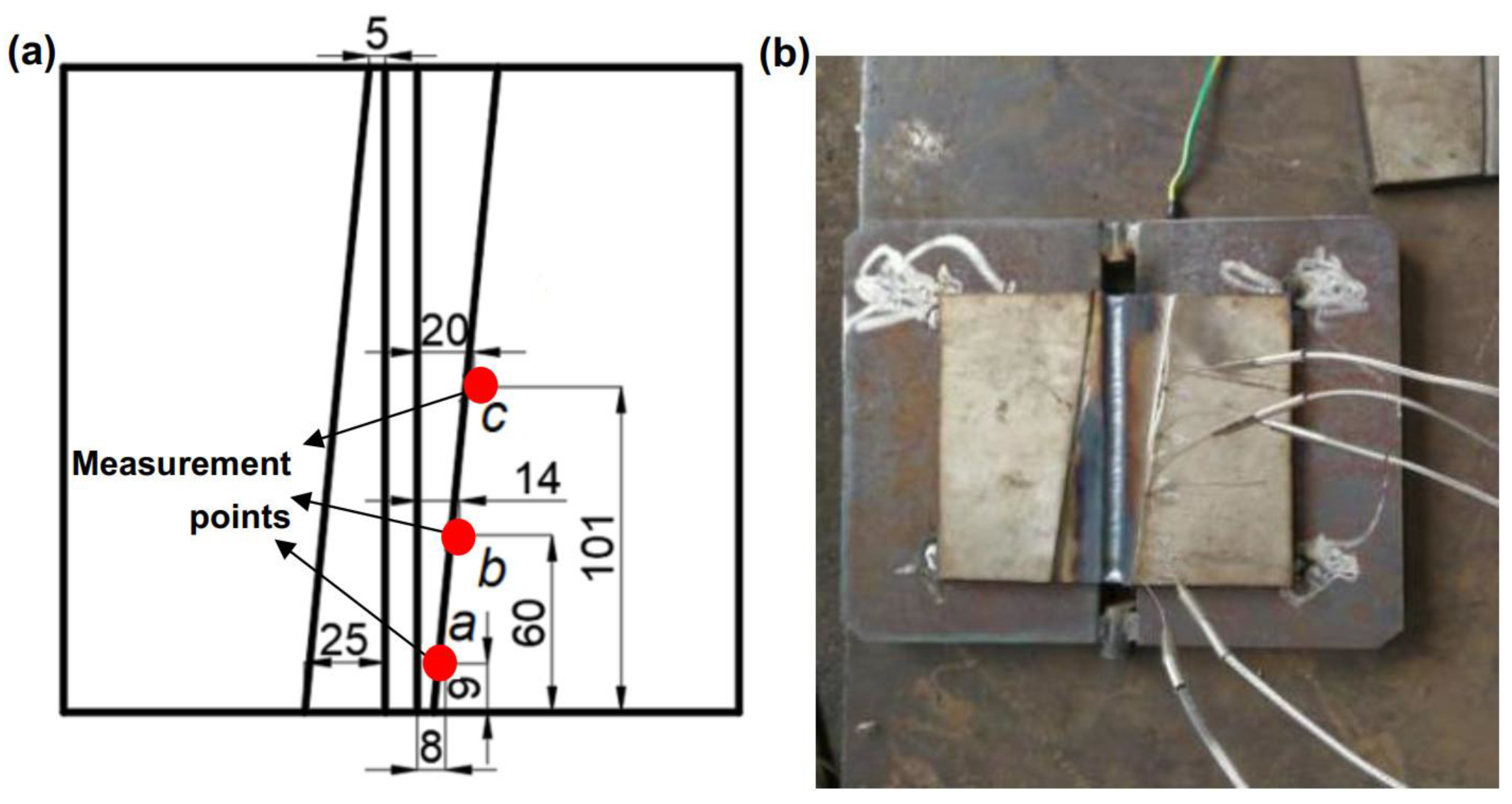

2.2. Measurement of Welding Heat Cycle Curve

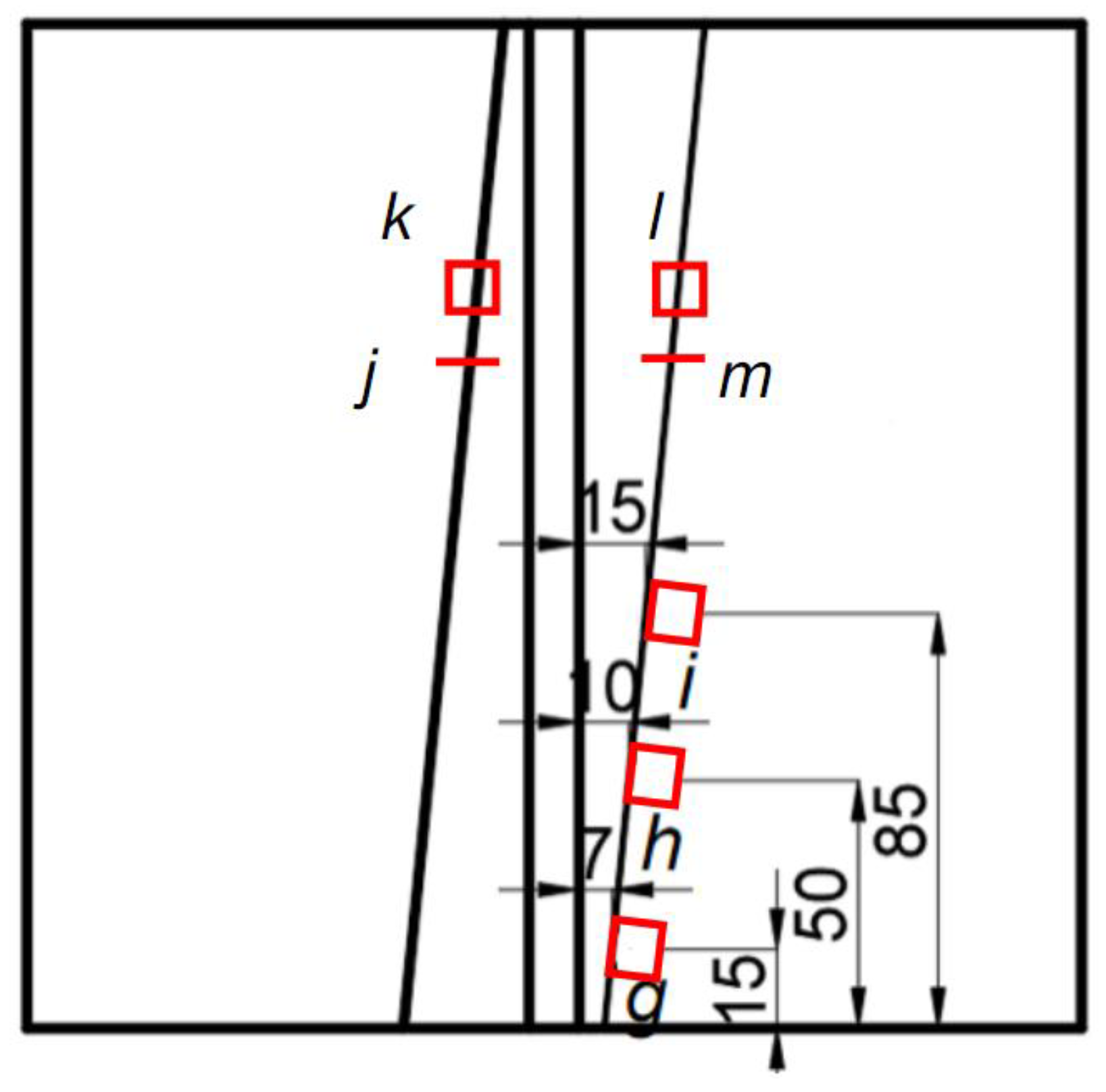

2.3. Residual Stress Measurement by Blind-Hole Method
2.4. Microstructure Characterization

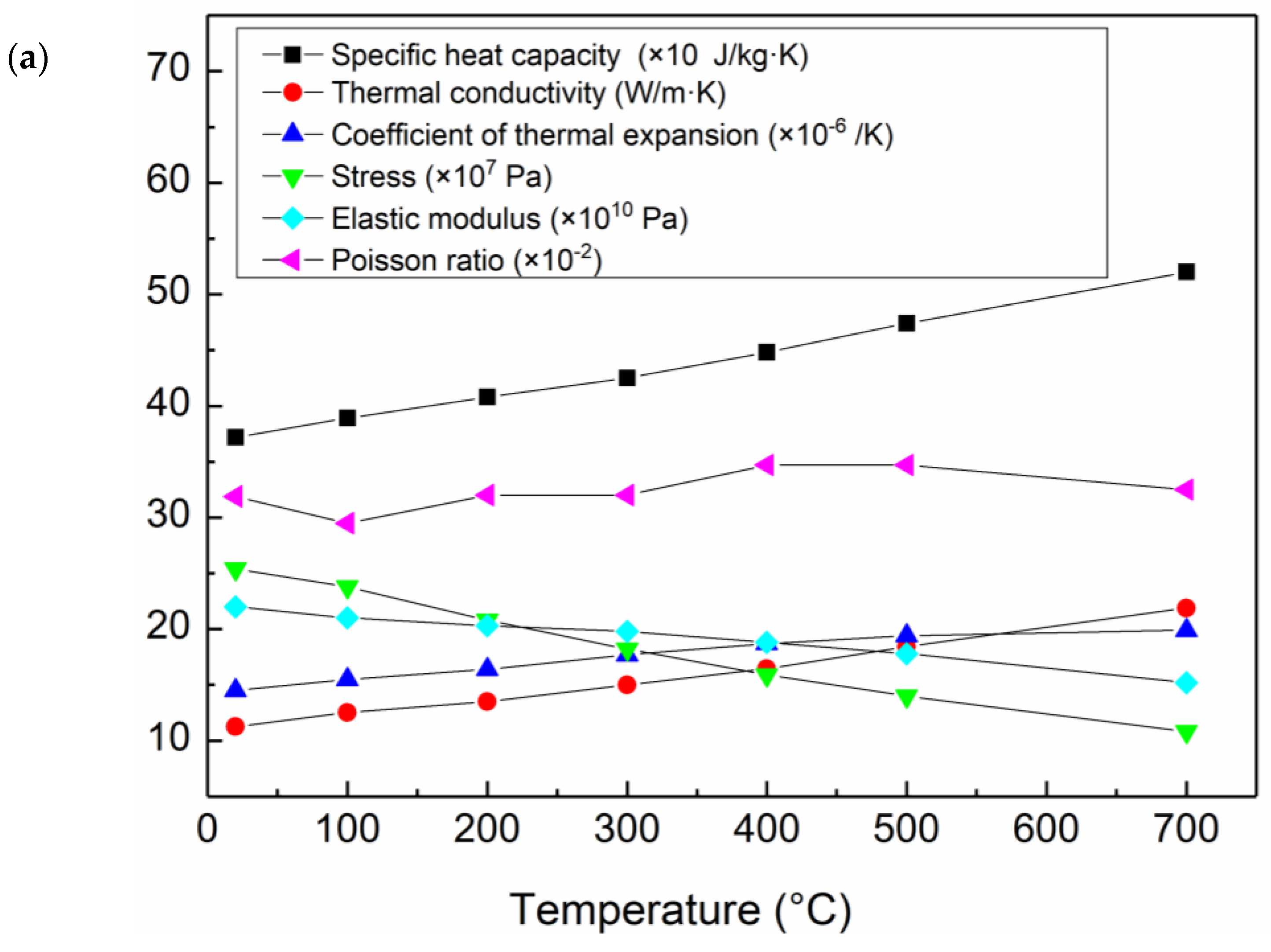

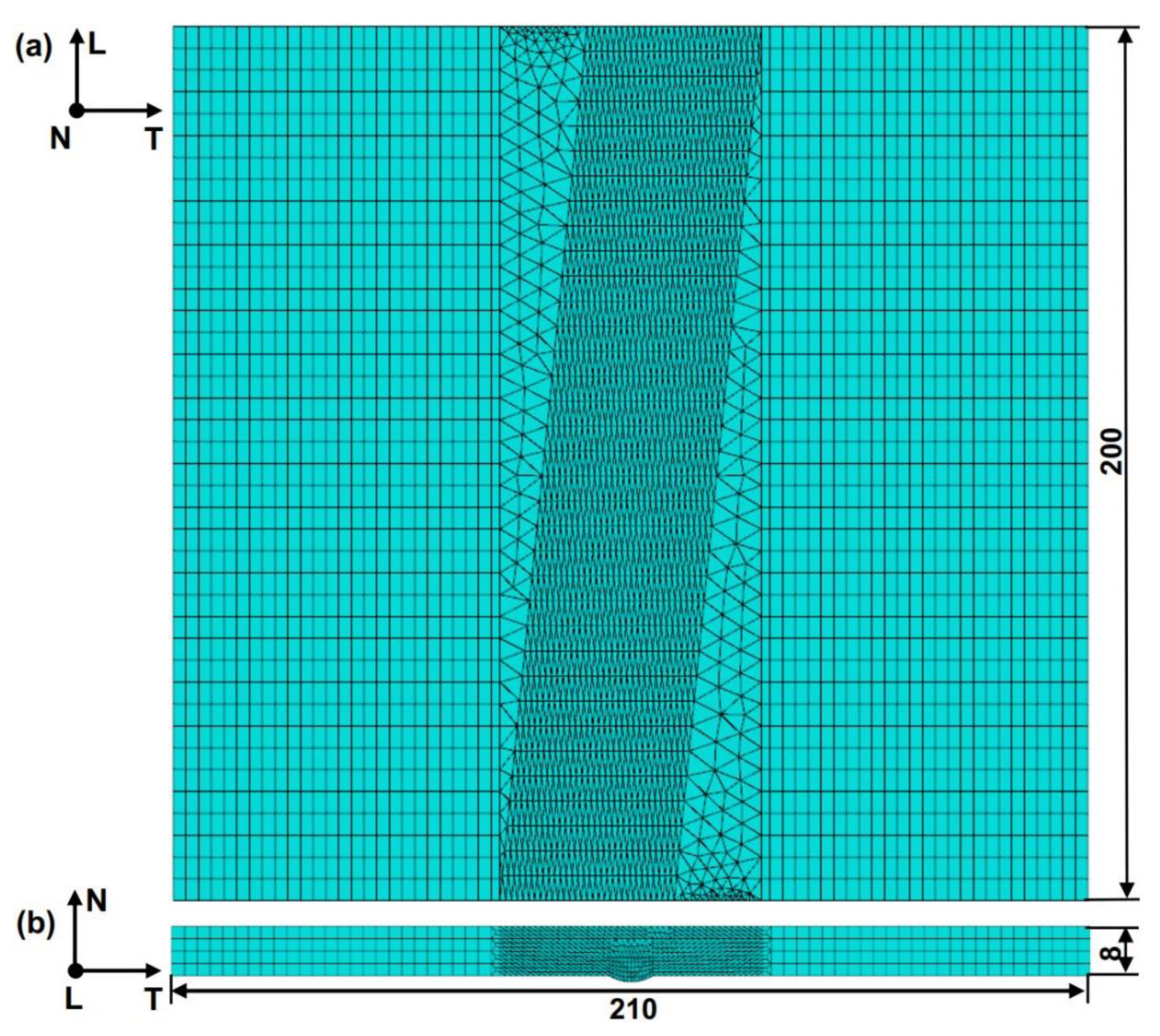

2.5. Finite Element Modeling

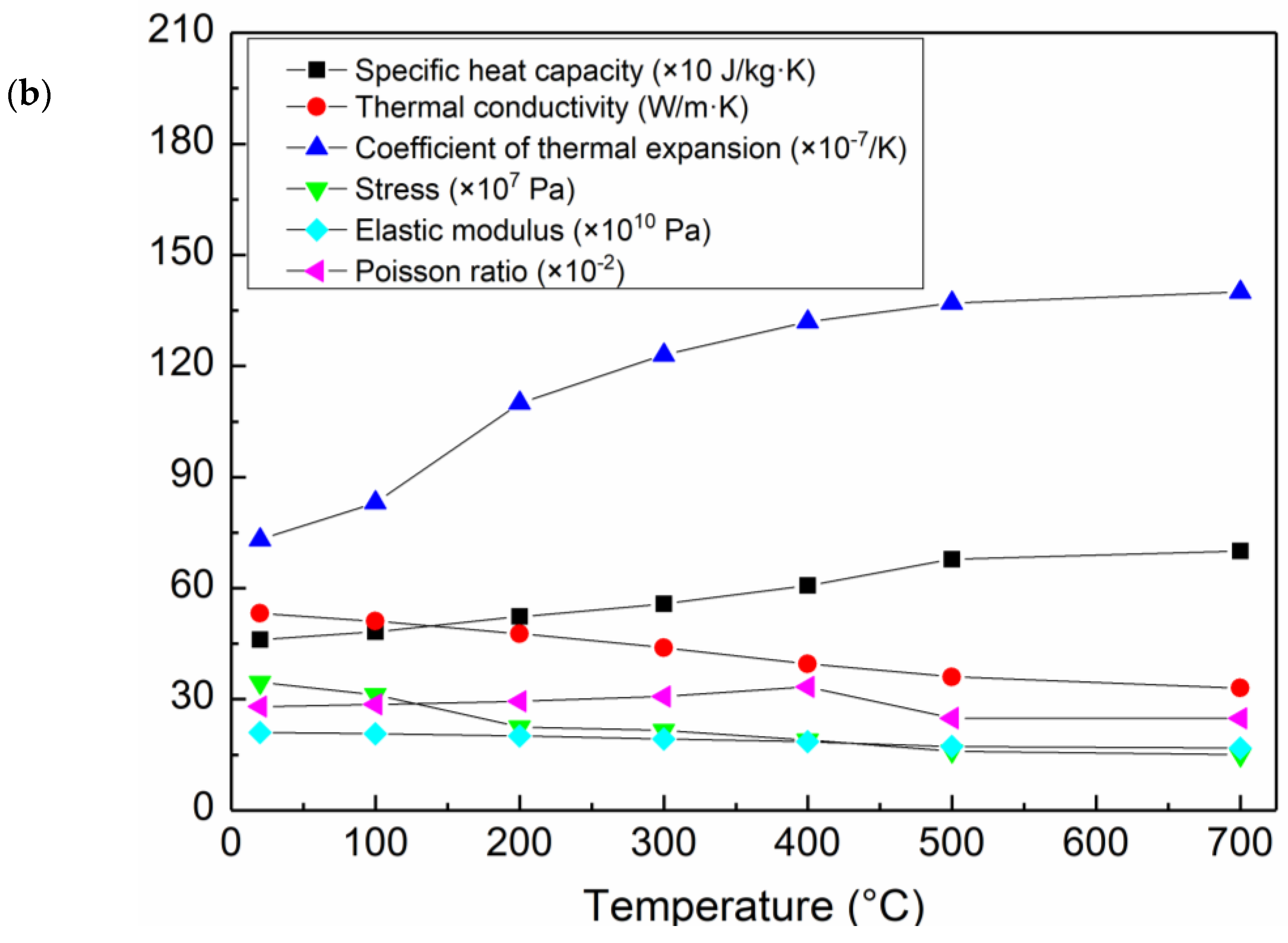

3. Results and Discussion
3.1. Effects of Temperature Distribution and Evolution

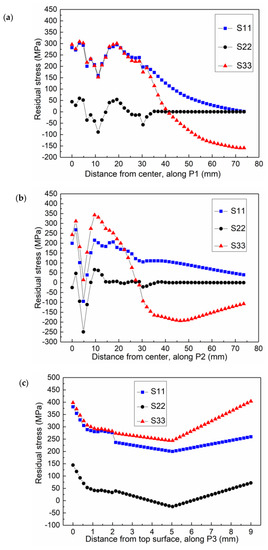

3.2. Residual Stress Distribution

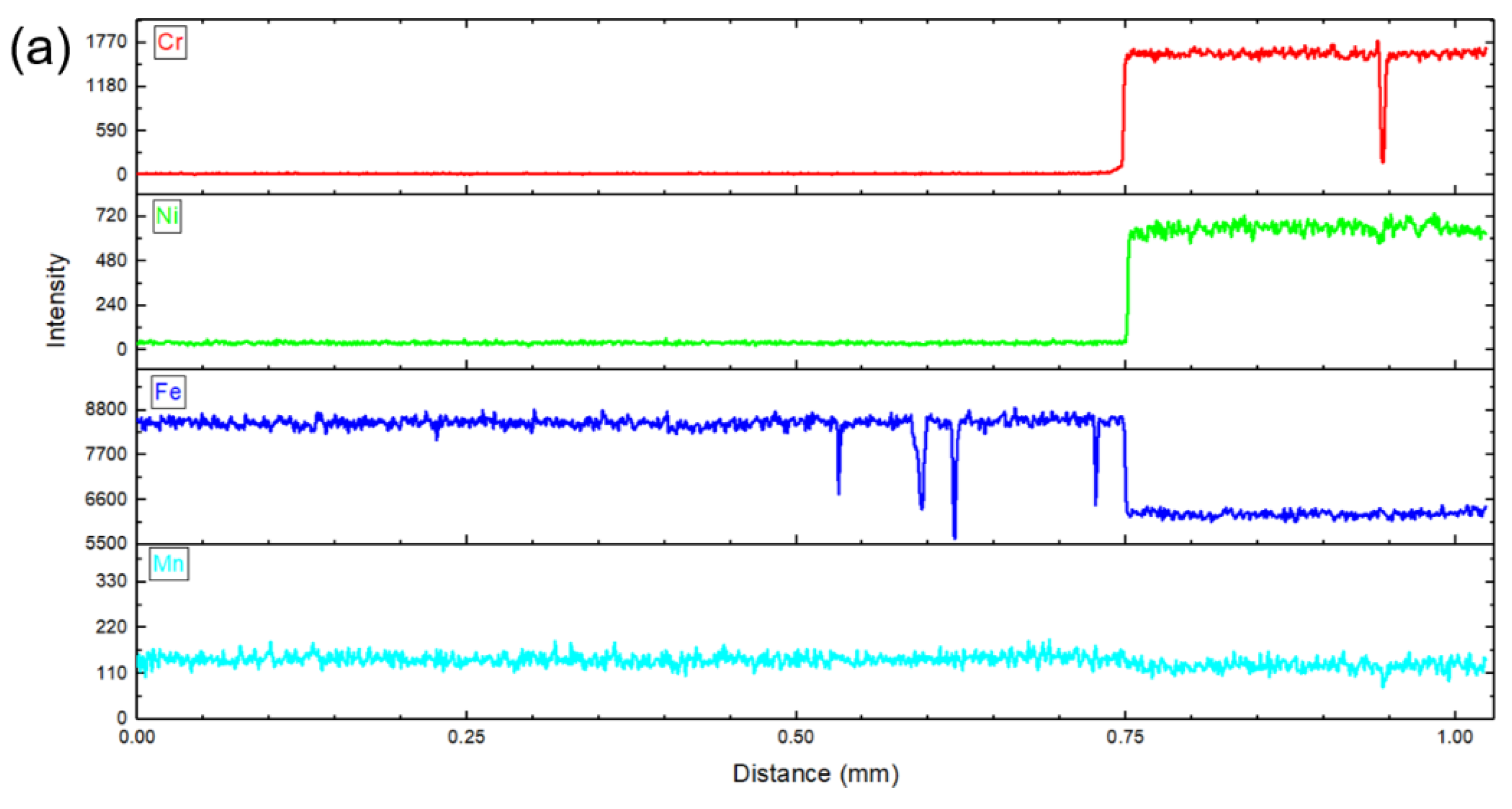

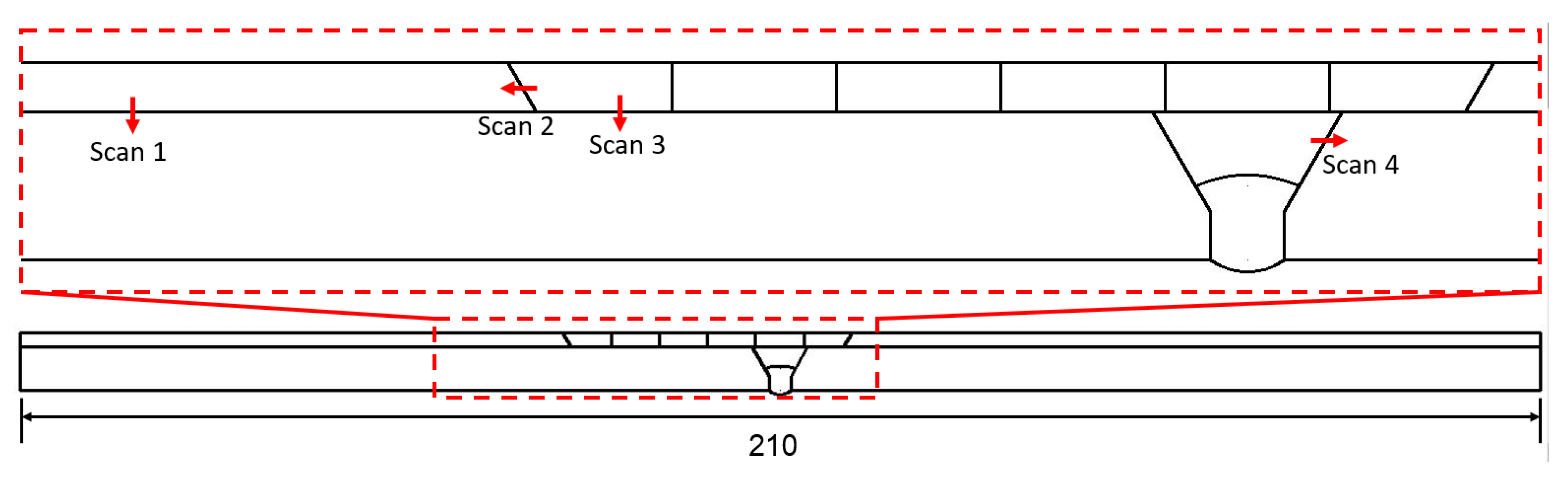

3.3. Microstructure Characterization and Evolution
4. Conclusions

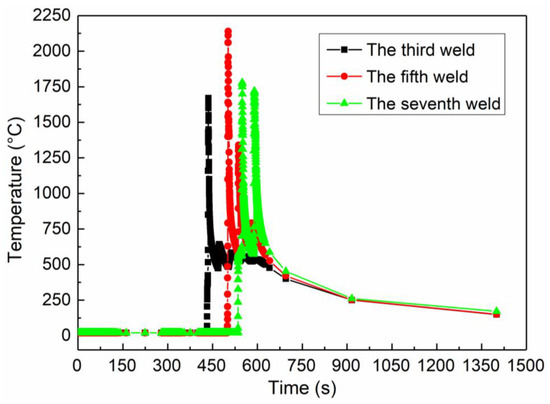

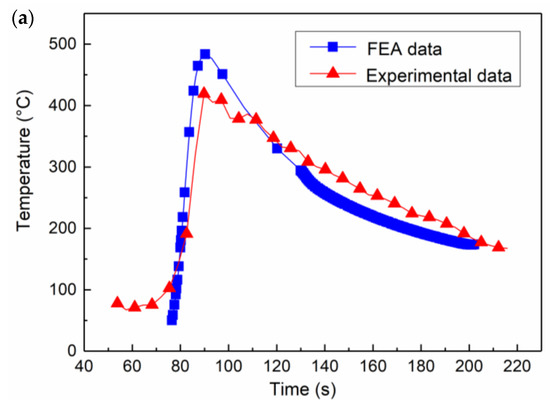

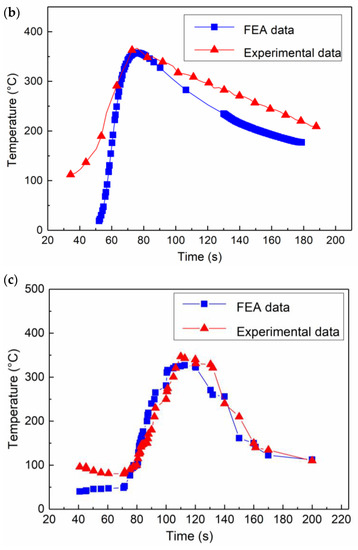

- During the welding process, the influence of the heat source on the measured point will gradually decrease with the increase in distance between the welding joint and the measured point, and the maximum temperature is 2140 °C in the third welding process. FEA results are in good agreement with the experimental ones, which verifies the validity and accuracy of the model developed and provides a practical method for evaluating the distributions of temperature and residual stress.

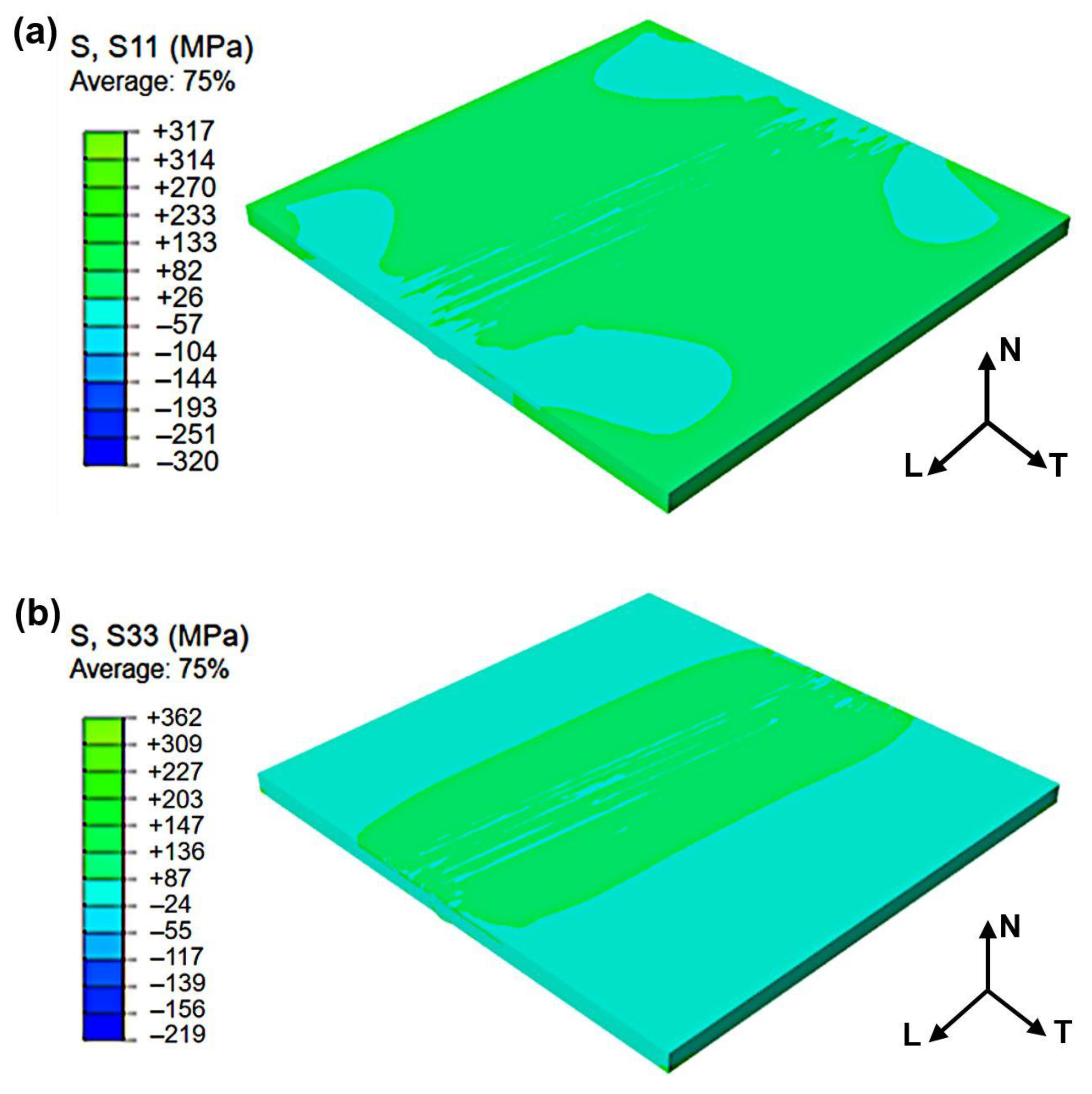

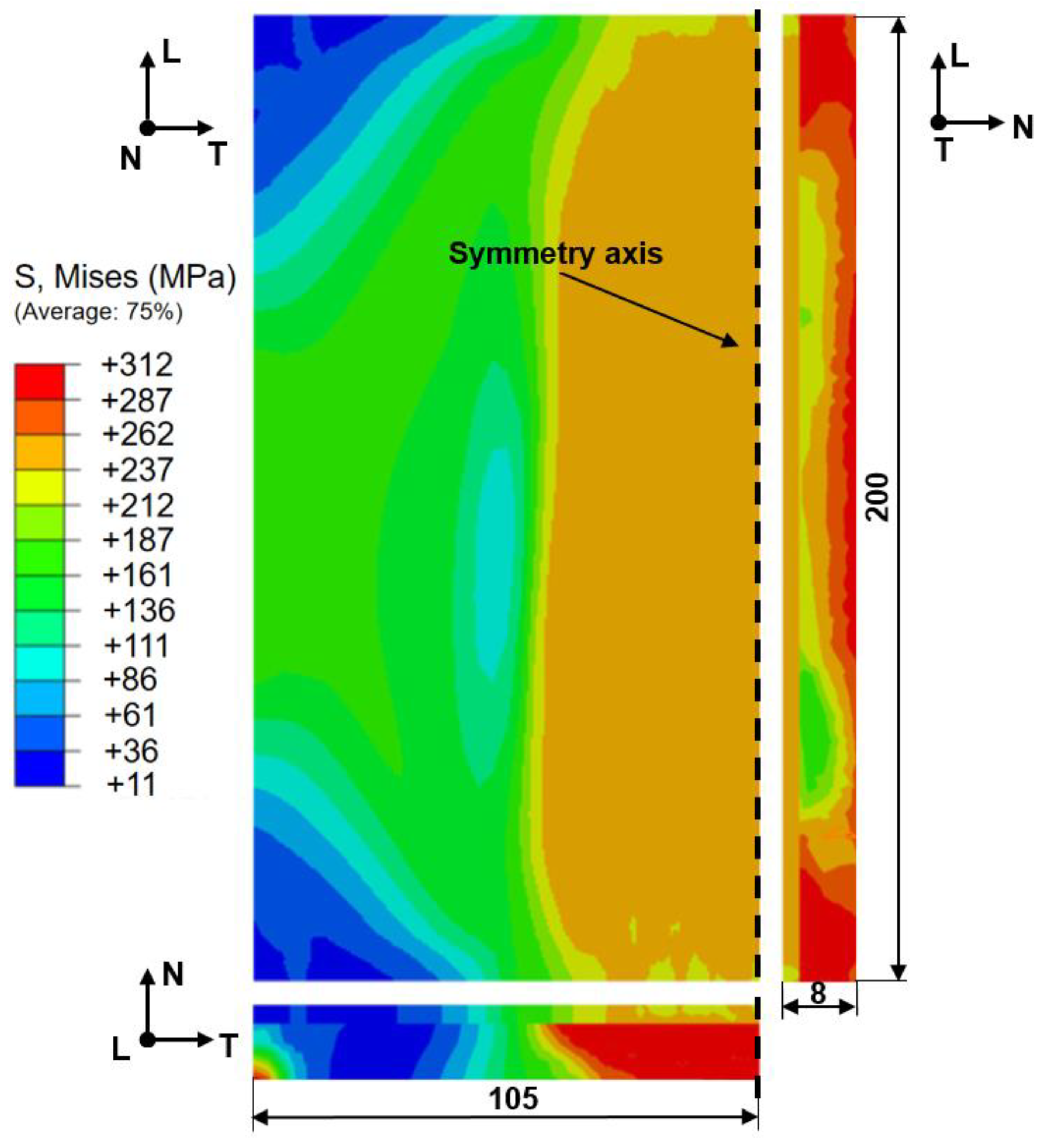

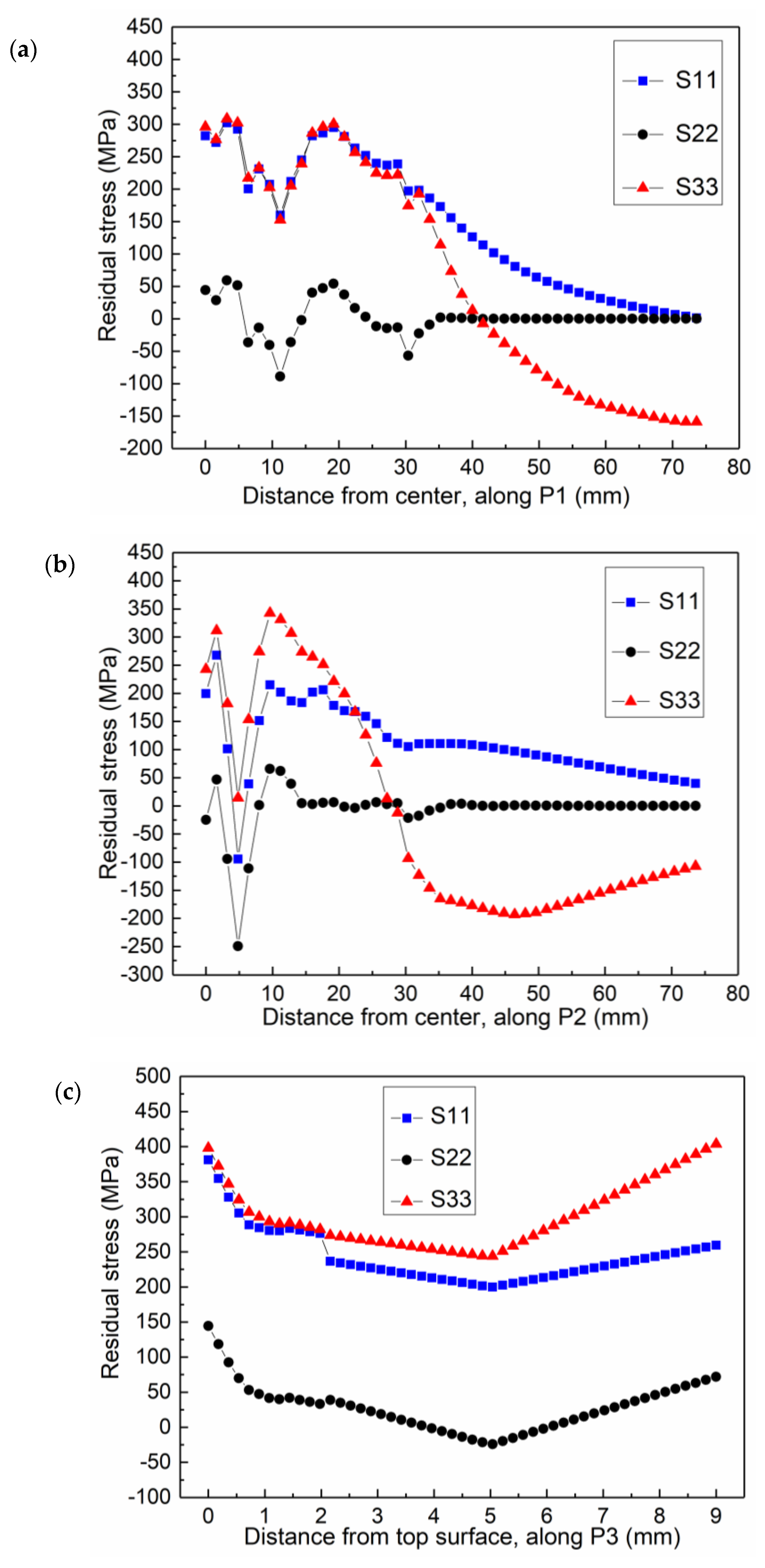

- The FEA results show that the maximum transverse tensile stress of the joint is mainly distributed near the fusion line. The maximum longitudinal tensile stress appears in the weld zone and the HAZ, and its value is 283 MPa. During the transition from weld and HAZ to base metal zone, the stress gradually decreases from the maximum 312 MPa to 0 and tends to be stable. During the welding process, the residual stress produces bending deformation to the base plate due to te repeated welding. The simulation results of transverse stress and longitudinal stress are in good agreement with the results obtained by the blind-hole method, which proves that the finite element model developed in this study can accurately predict the residual stress distribution of the weld joint of composite plates.

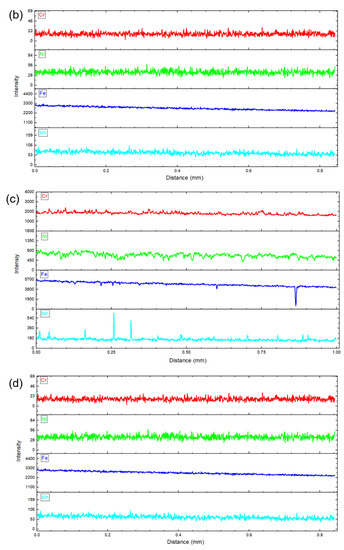

- The microstructure of the 304 SS/Q345R composite plate welded joint is mainly composed of austenite and ferrite. The ferrite near the fusion line forms a transition region in the shape of a strip, while the austenite near the weld line is mainly composed of columnar grains. The mean grain size is smaller than those in the base metal.
- A phenomenon of residual stress discontinuities is observed at the weld interface, which is worth further study.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Gülenç, B.; Kaya, Y.; Durgutlu, A.; Gülenç, İ.T.; Yıldırım, M.S.; Kahraman, N. Production of wire reinforced composite materials through explosive welding. Arch. Civ. Mech. Eng. 2016, 1616, 1–8. [Google Scholar] [CrossRef]
- Zhang, J.; Wang, W.; Huan, Y. Electrochemical corrosion properties for weld metal of austenitic stainless steel. Trans. China Weld. Inst. 2007, 2828, 103–108. [Google Scholar]
- Deng, D.; Cai, J.; Jang, X. Influence of groove type on residual stress and distortion in SUS304 austenitic stainless steel butt. Trans. China Weld. Inst. 2016, 3737, 63–67. [Google Scholar]
- Jiang, W.; Luo, Y.; Li, J.H.; Woo, W. Residual Stress Distribution in a Dissimilar Weld Joint by Experimental and Simulation Study. J. Press. Vessel Technol. 2017, 139, 011402. [Google Scholar] [CrossRef]
- Jiang, W.; Liu, Z.; Gong, J.M.; Tu, S.T. Numerical simulation to study the effect of repair width on residual stresses of a stainless steel clad plate. Int. J. Press. Vessel. Pip. 2010, 8787, 457–463. [Google Scholar] [CrossRef]
- Ding, X.; Li, X. Study on Microstructure and Mechanical Properties of Q345R/304 Composite Plate Welded Joints. Hot Work. Technol. 2015, 44, 234–236. [Google Scholar]
- Ou, P.; Sun, J.; Zhang, M. Microstructure of SA508/316L dissimilar steel welding joints. Trans. Mater. Heat Treat. 2013, 34, 112–118. [Google Scholar]
- Wu, Y.; Cai, Y.; Sun, D.; Wu, Y. Microstructure and properties of high-power laser welding of SUS304 to SA553 for cryogenic applications. J. Mater. Process. Technol. 2015, 225, 56–66. [Google Scholar] [CrossRef]
- Amina, S.; Jean-Bernard, V.; Sif-Eddine, A. Microstructure, Micro-hardness and Impact Toughness of Welded Austenitic Stainless Steel 316L. Trans. Indian Inst. Met. 2018, 71, 2303–2314. [Google Scholar]
- Cai, J.; Sun, J.; Xia, L. Prediction on welding residual stress and deformation in Q345 steel butt-welded joints. Trans. China Weld. Inst. 2015, 36, 61–64, 68, 116. (In Chinese) [Google Scholar]
- Yang, J.; Wang, B.; Wang, W. Microstructure and mechanical properties of welding joints of Q345/IN825 composite plates. Trans. Mater. Heat Treat. 2016, 37, 150–156. [Google Scholar]
- Yang, L. Preparation of Metallographic Specimens of Low Alloy Steel Welding Joints for Macroscopic Inspection. Phys. Test. Chem. Anal. Part A Phys. Test. 2016, 52, 790–792. [Google Scholar]
- Goldak, J.; Chakravarti, A.; Bibby, M. A Double Ellipsoid Finite Element Model for Welding Heat Sources. IIW Doc. No. 1985, 212. [Google Scholar]
- Karl, P. Notes on regression and inheritance in the case of two parents. In Proceedings of the Royal Society of London, London, UK, 20 June 1895; Volume 58, pp. 240–242. [Google Scholar]
- Hua, S. Evaluation method of uncertainty of grain size measurement. Res. Qual. Tech. Superv. 2015, 2, 9–11, 15. (In Chinese) [Google Scholar]
- Wang, J.; Wang, Y.; Zhang, Y. Progress in Numerical Simulation of Explosive Welding. Weld. Technol. 2010, 39, 1–4, 79. [Google Scholar]
- Liu, K.; Zhang, J.; Liu, Y. Numerical simulation of eliminating residual stress of welding joint by explosion method. Chin. J. Appl. Mech. 2004, 10–15, 159. (In Chinese) [Google Scholar]
- Dai, W.; Long, T.; Wang, F. Microstructure and mechanical properties of duplex stainless steel welded joint under different weld. Heat Treat. Met. 2018, 43, 175–180. [Google Scholar]
- Lv, S.; Wang, Y. Microstructure and mechanical properties of TIG welded 20G/316L clad pipe joint. Trans. China Weld. Inst. 2009, 30, 93–96, 117–118. (In Chinese) [Google Scholar]
- Gao, H. Effect of δ-ferrite on surface cracking of austenitic stainless steel. World Metal Guide, 19 June 2018. [Google Scholar]
- Yang, J.; Zhu, X.; Zhou, W. Effect of Solution Treatment on Ferrite Content and Properties of Austenitic Stainless Steel Casting. Hot Work. Technol. 2018, 47, 201–203, 208. (In Chinese) [Google Scholar]
Material | C | Si | Mn | P | S | Ni | Cr | Fe |
---|---|---|---|---|---|---|---|---|
304 SS | 0.07 | 0.345 | 1.091 | ≤0.045 | 0.036 | 8.215 | 18.09 | Balance |
Q345R | 0.2 | 0.247 | 0.604 | ≤0.025 | 0.04 | 0.061 | 0.052 | Balance |
Filler Rod | C | Mn | Si | S | P | Ni | Cr | Mo | Cu | Fe |
---|---|---|---|---|---|---|---|---|---|---|
Er50-6 | 0.105 | 0.163 | 0.975 | 0.013 | 0.015 | 0.016 | – | 0.06 | – | Balance |
J507 | 0.12 | 1.60 | 0.75 | 0.035 | 0.040 | 0.30 | 0.20 | 0.30 | – | Balance |
302 SS | 0.064 | 0.80 | 0.70 | 0.010 | 0.030 | 12.50 | 24.00 | 0.40 | 0.20 | Balance |
Welding Sequence | Current (A) | Voltage (V) | Welding Time (s) | Cooling Time (s) | Filler Rod Type | Filler Rod Diameter (mm) |
---|---|---|---|---|---|---|
1 | 122 | 20 | 125 | 154 | J507 | 3.2 |
2 | 122 | 20 | 64 | 57 | J507 | 3.2 |
3 | 122 | 20 | 32 | ~0 | 302 SS | 3.2 |
4 | 122 | 20 | 35 | ~0 | 302 SS | 3.2 |
5 | 122 | 20 | 33 | ~0 | 302 SS | 3.2 |
6 | 122 | 20 | 35 | ~0 | 302 SS | 3.2 |
7 | 122 | 20 | 35 | ~0 | 302 SS | 3.2 |
8 | 122 | 20 | 50 | Cool to room temperature | 302 SS | 3.2 |

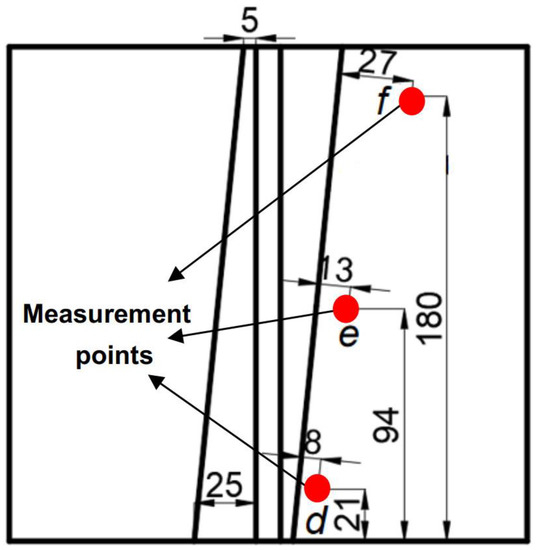

Measurement Points | Stress Component | Experimental (MPa) | FEA (MPa) | Relative Error (%) |
---|---|---|---|---|
Point d | Transverse stress | 193.90 | 180.41 | 7 |
Longitudinal stress | 147.77 | 121.17 | 18 | |
Point e | Transverse stress | −19.54 | −22.33 | 14 |
Longitudinal stress | −170.52 | −161.47 | 5 | |
Point f | Transverse stress | 44.89 | 48.06 | 7 |
Longitudinal stress | 3.43 | 4.05 | 18 |

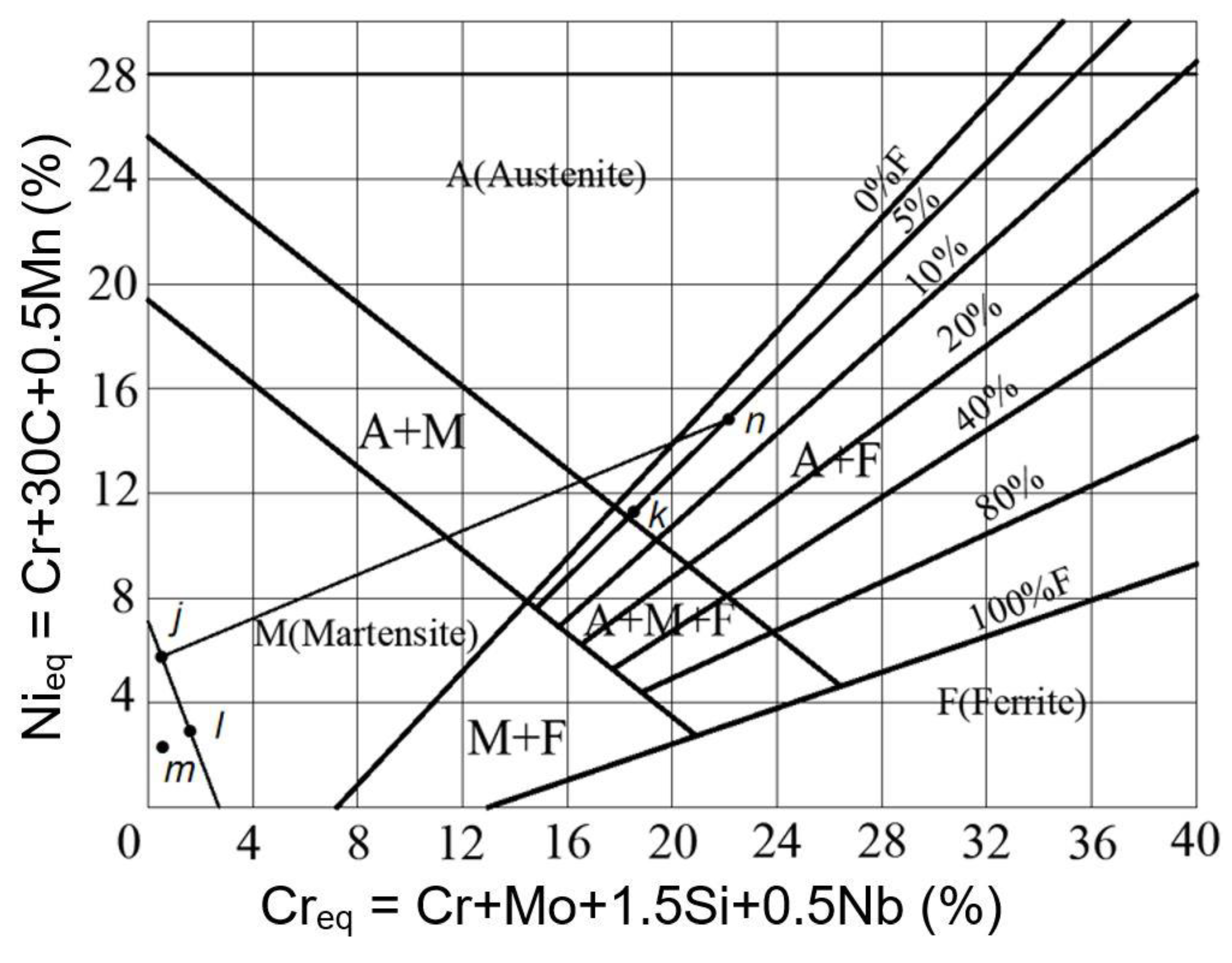

Element | 304 SS | Q345R | Er50-6 | J507 | 302 SS |
---|---|---|---|---|---|
Creq | 18.6 | 0.4 | 1.5 | 1.2 | 22.3 |
Nieq | 10.9 | 6.1 | 3.2 | 2.8 | 14.8 |
Creq/Nieq | 1.7 | 0.1 | 0.5 | 0.4 | 1.5 |
