Review

Research Progress on the Collaborative Drag Reduction Effect of Polymers and Surfactants

by
Yunqing Gu
1,*,
Songwei Yu
2,
Jiegang Mou
1,
Denghao Wu
1 and
Shuihua Zheng
2
1
School of Measurement and Testing Engineering, China Jiliang University, Hangzhou 310018, China
2
College of Mechanical Engineering, Zhejiang University of Technology, Hangzhou 310023, China
*
Author to whom correspondence should be addressed.
Materials 2020, 13(2), 444; https://doi.org/10.3390/ma13020444
Submission received: 27 December 2019 / Revised: 13 January 2020 / Accepted: 15 January 2020 / Published: 17 January 2020
(This article belongs to the Special Issue Rheology of Advanced Complex Fluids)
Browse Figures
Review Reports Versions Notes

Abstract

:
Polymer additives and surfactants as drag reduction agents have been widely used in the field of fluid drag reduction. Polymer additives can reduce drag effectively with only a small amount, but they degrade easily. Surfactants have an anti-degradation ability. This paper categorizes the mechanism of drag reducing agents and the influencing factors of drag reduction characteristics. The factors affecting the degradation of polymer additives and the anti-degradation properties of surfactants are discussed. A mixture of polymer additive and surfactant has the characteristics of high shear resistance, a lower critical micelle concentration (CMC), and a good drag reduction effect at higher Reynolds numbers. Therefore, this paper focuses more on a drag reducing agent mixed with a polymer and a surfactant, including the mechanism model, drag reduction characteristics, and anti-degradation ability.

1. Introduction

At present, many countries in the world have laid pipe network systems to transport petroleum, natural gas, and water. Friction resistance is the main form of fluid energy loss in pipeline transportation. Consequently, a large number of pumping stations must be built along the line to provide additional energy to overcome fluid resistance. One aspect of the important data on pipeline transportation is transportation capacity. However, factors used to estimate conveying capacity are still uncertain. Therefore, the selection of pipe diameter, pump station, and equipment is conservative, which may lead to construction investment costs that are higher than those of the actual operation.
To reduce resistance loss in the conveying flow, a drag reduction method is often used. Drag reduction methods can be generally divided into two categories, namely non-additive drag reduction method [1] and additive drag reduction method [2]. Non-additive drag reduction method includes the coating drag reduction method [3], the non-smooth surface drag reduction method [4], etc. The additive method injects a polymer or surfactant into the pipeline to achieve drag reduction. This method was first proposed by Toms in 1949. He found that adding polymers to low viscosity media can reduce the flow resistance of fluids. Since then, researchers have studied the drag reduction of additives [5]. Adding a drag reducing agent into the pipeline can reduce the pressure drop and the number of pump stations, thereby reducing construction costs. This drag reduction technology was applied to the Alaskan oil pipeline project as early as 1982, and has achieved remarkable results. When the drag reducer is injected into the pipe, the polymer molecules fully expand and interfere with the flow from the laminar region to the turbulent layer.
The additive drag reduction method can change the pipeline capacity from rigid to flexible, reduce the safety risk, save the investment costs of the pipeline and pump station, and reduce the operational and maintenance costs. Overall, the reasonable use of a drag reducer is more economical. With the development of research on drag reducers by researchers all over the world, the additive drag reduction method can achieve a maximum drag reduction rate of about 80% [6]. The drag reduction agent method has the advantages of a strong drag reduction effect and low investment costs. It is widely used in oil and gas transportation, fire protection engineering [7], irrigation water, regional heat transfer or cooling [8], cardiovascular disease [9], and other fields.
However, polymer drag reducers have inherent limitations. The polymer’s long chain undergoes irreversible mechanical degradation under shear. A surfactant has anti-degradation properties. However, to obtain the drag reduction effect, the surfactant concentration must reach the critical micelle concentration (CMC), and its chemical properties may have adverse effects on the wall and solvent. Therefore, some researchers have focused on a new type of drag reducer that is a mixture of the two. This paper presents the current drag reduction mechanism categories and the degradation characteristics of drag reduction agents. Then, the model mechanism, drag reduction and anti-degradation characteristics of the mixed drag reducer are reviewed, and the prospects for development are given at the end of the paper.

2. Development of the Drag Reduction Mechanism of a Drag Reducer

From the physical point of view of turbulence, the mechanism of turbulent drag reduction is applicable to both polymer-type drag reducers and surfactant-type drag reducers. Therefore, in the following description of this aspect, there is no distinction made between the types of chemical drag reducers, although some explanations for the mechanism of turbulent drag reduction are based on polymers. However, when explaining the drag reduction mechanism from the perspective of the internal microstructure of a drag reducer, the microstructure of the two is different. Therefore, special elaboration is required.

2.1. Pseudoplasticity Hypothesis

Research on the drag reduction mechanism of a drag reducer began in 1948. After Toms discovered the drag reduction phenomenon, he put forward the pseudoplasticity hypothesis and thought that the polymer drag reduction agent solution had pseudoplasticity [5]. Later, with the development of non-Newtonian fluid mechanics, it was revealed that the friction resistance of the drag reducer solution in the turbulent flow in the pipe is quite different from the calculated value of the pseudoplastic fluid, and the pseudoplasticity of the dilute solution is very weak, or even does not exist at all. This fundamentally negates the pseudoplasticity hypothesis.

2.2. Effective Slip Hypothesis

Virk proposed the effective slip hypothesis from the turbulence structure [10]. It is assumed that the flow field can be divided into three layers according to the velocity distribution. From the outside to the inside, they are the viscous sublayer, the elastic layer, and the turbulent core layer. By measuring the flow velocity of different solutions and drag reducers, the curve of drag reducers under different working conditions is obtained. Figure 1 is a schematic diagram of the stratification of turbulence in the pipe flow [11]. As shown in Figure 1, the injection of drag reducers weakens the pulsation and inhibits the formation and development of vortices.
According to his hypothesis, drag reducers act on the elastic layer. The elastic layer expands with the increase in drag reducer concentration, and the drag reduction rate reaches a maximum value when it extends to the center of the tube axis. This hypothesis can explain the diameter effects, but it does not conform to the basic principle of the continuity of the velocity, and cannot explain the resistance rising when the concentration continues to increase after the drag reduction rate reaches the maximum value [12], nor the phenomenon of the change of thermal conductivity coefficient [13,14]. Therefore, it was gradually replaced by other hypotheses.

2.3. Turbulence Suppression Hypothesis

With the emergence of advanced measuring instruments, researchers found that the laminar flow close to the pipe wall has not only axial velocity fluctuation, but also velocity fluctuation in the direction perpendicular to the pipe wall [15]. When the laminar flow changes to turbulence, it is often accompanied by the generation of the vortex, resulting in a huge energy loss. When the drag reducer is added, the fluctuation of the turbulent bottom layer near the wall is restrained by the long-chain structure of the polymer, which makes the fluctuation decrease. The downstream Reynolds shear stress and wall-normal velocity fluctuation decrease. Therefore, it is considered that drag reduction is achieved by reducing turbulence intensity. This may seem reasonable at first, but it is not consistent with the measured results of turbulence fluctuation intensity, because the effect of drag reducers is not only to reduce the intensity of turbulence, but also to change the vortex structure of turbulence. Downstream of the area where the drag reducer is added, the hairpin vortex along the shear layer is significantly reduced, and the energy loss caused by the corresponding vortex is reduced [16,17].
Later, some researchers explained the mechanism of drag reduction from the perspective of turbulence fluctuation decoupling, and further divided the fluid with a drag reducer into many layers on the micro-level, believing that the generation of the vortex between each layer of fluid was inhibited [18]. Hidema [19] added poly(ethylene) oxide (PEO) as a flexible polymer and hydroxypropyl cellulose (HPC) as a rigid polymer in the turbulent flow field. The vortex structure of the flow field shown in Figure 2 was obtained through the interferogram and particle image velocimeter. It is observed that the vortices in the flow shown in Figure 2b become long and thin. The polymer stabilizes the primary vortex from breaking. However, it is difficult to predict the effect of drag reduction by quantitative evaluation.

2.4. Viscoelasticity Hypothesis

The viscoelasticity hypothesis holds that the fluid with a drag reducer has viscoelasticity [20,21,22]. Polymer molecules form a long-chain molecular structure and a spiral structure [23], and the surfactant can form a micelle structure [24], as shown in Figure 3. These structures can absorb part of the kinetic energy of the vortex in the turbulent process. The kinetic energy is absorbed and stored in the form of elastic properties. This leads to a decrease in eddy current friction loss and explains the reason from the perspective of energy. Viscoelasticity is caused by the entanglement or association of molecular chains, so the solution of high molecular weight polymers shows an obvious drag reduction effect at a lower concentration, which is the advantage compared with the surfactant. The micelle structure of the surfactant recovers after degradation, but the degradation of the polymer is irreversible.
Surfactants gradually aggregate into spherical, rodlike, and wormlike micelles, and form a network structure under flow shear. The wormlike structure is easily affected by water flow and parallel to the water flow’s direction. This microstructure results in a large critical Reynolds number and drag reduction effect. Some wormlike structures also form bifurcations [25]. The bifurcation point is not fixed; it can move freely along the axial direction of the micelle structure, thus reducing the shear stress and the shear viscosity of the solution. Some surfactant solutions form vesicles when they are still. When the shear rate exceeds the critical value, the solution can be transformed into a wormlike structure. The surfactant’s microstructure is related to the drag reduction effect. When the internal microstructure of the solution is destroyed, the turbulence structure and turbulence velocity fluctuation cannot be changed, and the effect of turbulent drag reduction is lost.
As a special turbulent phenomenon, the drag reduction effect is a complex result of the drag reducer’s influence on the flow field’s microstructure. The molecular structure and turbulence structure of drag reducers have some limitations for the study of drag reduction mechanism. After adding the drag reducing agent, the vortex size and the fluctuation decrease on the macroscale. However, to explain the causes of turbulence structure changes, it is necessary to focus on the microscale and the movement of the drag reducer.

3. Mechanical Degradation of a Drag Reducer

At present, the main drag reducers are polymers and surfactants. A polymer drag reducer is sheared mechanically when it flows through the elbow, valve, pump, and other flow parts in the pipeline. Degradation also occurs when it is heated, and this mechanical degradation is irreversible.

3.1. Drag Reduction Is Related to Molecular Weight and Molecular Weight Distribution

Quan [26] studied the relationship between the drag reduction rate of a polymer drag reducer and the time when it was sheared in an organic solution. The results showed that with the increase in shear time, the drag reduction rate decreased linearly and finally approached zero. However, polymer drag reducers are still widely used because only a small amount of a polymer drag reducer can achieve significant pressure drop and drag reduction effect. Polymer drag reducers degrade, so it is necessary to supplement drag reducers regularly.
The mechanical degradation of polymer drag reducers in turbulent flow depends on many parameters. Brostow [27,28] studied the relationship between degradation and polymer molecular weight change in an organic solution and proposed an important formula, that is, drag reduction efficiency is directly proportional to the molecular weight of polymer, as shown in Equation (1). DR(t) and DR(0) are the drag reduction rate before and after degradation, and M(t) and M(0) are the molecular weight before and after degradation.
D R ( t ) D R ( 0 ) = M ( t ) M ( 0 )
However, Liberatore et al. [29] studied the drag reduction effect of a polyacrylamide (PAM) aqueous solution with different concentrations in the circulating flow. As shown in Figure 4, when the drag reduction rate dropped from 58% to 42% in the initial stage, the molecular weight and molecular weight distribution basically remained unchanged, and the drag reduction rate decreased with the circulation time, proving that the change of drag reduction rate was not in direct proportion to the change of molecular weight.
Zhang et al. [30] also verified Brostow’s hypothesis through experiments. They conducted drag reduction experiments on three different molecular weight PEO solutions. Based on the first-order chemical reaction of PEO degradation, the correlation of the Arrhenius equation was improved, and the correlation error of the drag reduction rate prediction was ±15%. The drag reduction effect is related to molecular weight, molecular weight distribution, and interactions between polymer chains. It is difficult to predict the impact of degradation on drag reduction, and most prediction equations apply to limited drag reducers.

3.2. Factors Affecting the Mechanical Degradation of Polymer Drag Reducers

Temperature, polymer concentration, Reynolds number, and other parameters are related to the degradation of a polymer drag reducer [31,32,33]. Hasan et al. [34] studied the effect of temperature on the degradation rate of critical micelle concentration (CMC). The concentration of CMC solution decreased by 17.7% at 37.8 °C when it was rotated for 1 h at the same shear rate of 100 revolutions per minute (RPM). The concentration of CMC solution at 104.4 °C decreased by 36.2%. It is proved that the degradation rate of the polymer synthesized at high temperature is faster. Habibpour and Clark [35] studied hydrolyzed polyacrylamide solutions of different concentrations. It was found that with the increase in hydrolyzed polyacrylamide concentration, the shear degradation resistance of the solution increased. Yang and Ding [36] used the concept of elastic shear stress or Reynolds shear stress deficit to derive the velocity distribution and friction coefficient equations in turbulent drag reduction flow. The initial Reynolds number of drag reduction depends on the type of polymer and its concentration. The optimum polymer concentration for the maximum drag reduction ratio depends only on the type of polymer.

3.3. Mechanical Degradation and Self-Assembly Characteristics of Surfactant Drag Reducer

Surfactant drag reducers can form micelle structures with self-recovery ability [37]. The results in [38] show that the micellar system has strong viscoelasticity, shear-thinning characteristics, and network structure. The shear viscosity of fluid changes with shear rate through three stages—shear thinning, shear thickening, and secondary shear thinning. When the drag reducing fluid is sheared, the micelles in the state of relaxation are close to each other, twined and even connected (forming a shear-induced structure) under the shear action, resulting in the viscosity of the solution increasing gradually. As the shear continues, the micelle structure is formed accompanied by destruction, so the micelle structure of the surfactant keeps a dynamic balance, which is called self-assembly characteristics [39]. In the process of self-assembly, the micelle morphology changes dynamically. Yan et al. [40] studied the self-assembly behavior of amino acid-based anionic N-hexadecanoylglutamic acid (HGA) and cationic benzyldimethyl hexadecylammonium chloride (HDBAC) surfactant in water, and found that the micelle morphology changed with the increase in HDBAC concentration. The formation and evolution of spherical micelles are shown in Figure 5a, while the gradual transformation of spherical micelles into wormlike micelles is shown in Figure 5b–d. The morphology changes from spherical micelle to wormlike micelle. A certain concentration of surfactant is needed to form the best micelle structure, called the critical aggregation concentration (CAC). Only when the concentration reaches CAC can the turbulent drag reduction effect appear.

4. Characteristics of Surfactant–Polymer Complexes

Through an in-depth study of the complex formed by the interaction between surfactant and polymer, it was found that adding a surfactant to a polymer solution can change the degradation characteristics of a drag reducer. Shear resistance is an important index for evaluating a drag reducer’s performance. Further optimization of a drag reducer’s drag reduction effect involves rheology, hydrodynamics, molecular dynamics, and other disciplines. At present, it is a breakthrough point to study the drag reduction characteristics of the common surfactant and polymer reactants to improve the limitations of traditional drag reduction agents.

4.1. Theoretical Models of Complexes

Shirahama et al. [41] first used the electrophoretic method to study the complex of the surfactant and polymer interaction, and proposed the bead model as shown in Figure 6. Surfactant molecules adsorb (bind) onto the polymer’s molecular chain in the form of micelle-like aggregates, resulting in a synergistic effect. Later researchers also proposed a “sphere” model [42] and a “three-stage” model [43] to explain the mechanism of the mixtures’ interaction.
The drag reduction characteristics of the surfactant–polymer mixture under different pH conditions were also studied. Kim et al. [44] added a surfactant, sodium dodecyl sulfate (SDS), to a polyacrylic acid (PAA) aqueous solution to study the surfactant–polymer complex at different pH levels. It was found that the molecular bond forces of the polymer molecules resulted in a chain expansion. The extended polymer conformation is shown in Figure 7. The results show that the highly extended structure is more beneficial to drag reduction than the compact spiral structure.
Liu et al. [45] studied the drag reduction effect of hexadecyltrimethylammonium chloride (CTAC) and a PAM mixed aqueous solution, and proposed the complex network model as shown in Figure 8. It was considered that polymer molecules act as reinforcement and surfactant micelles act as concrete. The micelle structure formed by the surfactant surrounds the polymer, thus protecting the polymer’s molecular chain from shear stress. The big net is the polymer frame, the small net is the surfactant, and the big net is filled by the small net. The frame improves its stability by winding large and small nets. The network structure model with an intensive internal cross-linking and stable structure is used to explain the synergistic effect.
These results show that most of the molecular chains of high-efficiency drag reducers have a flexible linear or spiral structure, and their molecular chains have some branches. Grafting a short branch on the main chain of a polymer molecule reduces the drag reduction performance, whereas grafting a small number of long branches enhances the drag reduction effect. The length, number, and distribution of branches are related to the drag reduction rate. There are two types of drag reducers—one is the surfactant grafted onto the long chain of the polymer, the other is the polymer surrounded by the micelle formed by the surfactant. Therefore, the drag reduction effect of the complexes formed by polymers and surfactants is quite different.

4.2. Drag Reduction Properties of Complexes

When a surfactant is added to a polymer solution, the critical aggregation concentration, or CAC, of the surfactant molecule is affected by the polymer, which is usually smaller than the critical micelle concentration, or CMC. Suksamranchit et al. [46] studied the drag reduction performance of a mixture aqueous solution containing a cationic surfactant, cetyltrimethylammonium chloride (HTAC), and a nonionic polymer, polyethylene oxide (PEO). It was found that the wall shear stress of the diluted HTAC solution that was lower than the CMC also significantly decreased with the concentration of HTAC. Compared with a single surfactant, the addition of polymers can improve the ability of the surfactant to form micellar structures that are lower than the CMC.
Matras and Kopiczak [47] added sodium salicylate to an aqueous solution of the HTAC and PEO complex as a counterion. The results showed that the complex still had a high drag reduction ratio in a wider range of Reynolds numbers. The counterion increased the critical shear stress, which proves that the addition of a counterion to a mixed solvent of surfactant and polymer can further enhance the drag reduction effect. Compared with the drag reduction effect of a pure polymer or surfactant, the effective drag reduction range of the complex is significantly expanded.
The complex reacts through the hydrophobic interaction of a surfactant and nonionic polymers. Its characteristic is that the CAC of the complex is close to that of the single surfactant. In addition, the mixed reaction must add a counterion such as sodium salicylate to achieve the effect of high drag reduction. This occurs because the counterion neutralizes the charge and make the micelle easier to form. Furthermore, the type of surfactant and the addition of long-chain alcohols, metal ions, and anti-ions affect the drag reduction properties of the complex. At a high Reynolds number, the polymer’s drag reduction effect is greatly weakened, whereas the complex has better structural stability and degradation reversibility similar to the micelle structure, giving the complex a larger effective drag reduction range.

4.3. Anti-Degradation Properties of Complexes

Guilherme et al. [48] combined xanthan gum, polyacrylamide, and poly(ethylene oxide) with guar gum, respectively, and found that the mixture aqueous solution of guar gum and polyacrylamide at a ratio of 1:4 had a greater resistance to shear degradation. The results showed a good complexing reaction between the rigid-chain polymer and the flexible-chain polymer. Salleh et al. [49] studied the anti-degradation ability of the polyisobutylene and sodium lauryl ether sulfate complex in an organic solution. The results showed that the maximum drag reduction rate observed in the laminar flow at 1000 rpm was 38.42%. Under the same conditions, the maximum drag reduction rates of polyisobutylene and sodium lauryl ether sulfate were 27% and 28.42%, respectively. Ferhat et al. [50] added a surfactant to a polymer aqueous solution and carried out degradation tests at 25 °C to 50 °C. It was found that the drag reduction effect of the pure polymer solution without surfactant was significantly reduced at high temperature, whereas that of the mixed solution with surfactant was not significantly reduced at high temperature.
These studies show that adding a surfactant to a polymer solution may be an effective way to reduce the mechanical degradation of the polymer, especially in a high-temperature flow system. The thermal degradation resistance of the polymer is significantly improved by adding the surfactant. In some cases, the drag reduction performance of the associated polymer is better than that of the pure polymer alone, which is more obvious in turbulence with a higher Reynolds number.

5. Conclusions

As an efficient drag reduction technology, additive drag reduction technology has great application prospects because of its economic and reliable advantages. However, this technology still has some shortcomings, such as the sensitivity of the drag reduction polymer to mechanical and thermal degradation, the concentration conditions needed for the surfactant to play a drag reduction role, and so on. These characteristics limit the application of drag reducers. However, the new drag reducer formed by a surfactant–polymer mixture has the advantages of strong shear resistance, low concentration, and high drag reduction rate at a higher Reynolds number, and the micelle structure’s critical concentration is reduced. The method of adding the surfactant to the polymer solution to improve the shear resistance and drag reduction effect of a mixed drag reducer is simple and easy to operate without further preparation.
Combining the advantages of a polymer and a surfactant, research on a new drag reducer is a development direction for the future. Modern testing methods must be used in future work to study the influence of complexes on a convection field’s structure from a macro perspective. The composition, structure, and interaction mechanism of complexes have been studied from a microscopic point of view, which can provide guidance for obtaining a mixture with high-efficiency drag reduction and reducing blind attempts. Future work must study how this complex structure can play a synergistic role in drag reduction under turbulent conditions and how to select reaction parameters to obtain a high-efficiency polymer–surfactant hybrid drag reducer.

Author Contributions

Writing—original draft preparation, Y.G.; writing—review and editing, S.Y., J.M., and D.W.; supervision, S.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Zhejiang Provincial Natural Science Foundation of China, grant number LY19E050003, and by the National Natural Science Foundation of China, grant numbers 51779226 and 51976193.

Acknowledgments

The authors gratefully acknowledge the Engineering Research Center for Intelligent Fluid Equipment and Digital Measurement and Control Technology of Zhejiang Province.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gu, Y.Q.; Liu, T.; Mu, J.G.; Shi, Z.Z.; Zhou, P.J. Analysis of Drag Reduction Methods and Mechanisms of Turbulent. Appl. Bionics Biomech. 2017, 6, 1–8. [Google Scholar] [CrossRef] [Green Version]
  2. Nesyn, G.V.; Sunagatullin, R.Z.; Shibaev, V.P.; Malkin, A.Y. Drag reduction in transportation of hydrocarbon liquids: From fundamentals to engineering applications. J. Pet. Sci. Eng. 2018, 161, 715–725. [Google Scholar] [CrossRef]
  3. Gu, Y.Q.; Yu, S.W.; Mou, J.G.; Fan, T.X.; Zheng, S.H.; Zhao, G. Experimental study of drag reduction characteristics related to the multifactor coupling of a bionic jet surface. J. Hydrodyn. 2019, 31, 186–194. [Google Scholar] [CrossRef]
  4. Gu, Y.Q.; Fan, T.X.; Mou, J.G.; Wu, D.H.; Zheng, S.H.; Wang, E. Characteristics and mechanism investigation on drag reduction of oblique riblets. J. Cent. South Univ. 2017, 24, 1379–1386. [Google Scholar] [CrossRef]
  5. Toms, B.A. Some observations on the flow of linear polymer solutions through straight tubes at large Reynolds numbers. First Int. Congr. Rheol. 1948, 135–141. [Google Scholar] [CrossRef] [Green Version]
  6. Abdulbari, H.A. Grafted natural polymer as new drag reducing agent: An experimental approach. Chem. Ind. Chem. Eng. Q. 2012, 18, 361–371. [Google Scholar] [CrossRef]
  7. Sheng, Y.; Jiang, N.; Sun, X.; Lu, S.; Li, C. Experimental Study on Effect of Foam Stabilizers on Aqueous Film-Forming Foam. Fire Tech. 2017, 54, 211–228. [Google Scholar] [CrossRef]
  8. Kotenko, M.; Oskarsson, H.; Bojesen, C.; Nielsen, M.P. An experimental study of the drag reducing surfactant for district heating and cooling. Energy. 2019, 178, 72–784. [Google Scholar] [CrossRef]
  9. Marina, V.K. Microrheological effects of drag-reducing polymers in vitro and in vivo. Int. J. Eng. Sci. 2012, 59, 168–1834. [Google Scholar] [CrossRef]
  10. Virk, P.S. Drag reduction fundamentals. Aiche J. 1975, 21, 625–6564. [Google Scholar] [CrossRef]
  11. Abubakar, A.; Al-Wahaibi, T.; Al-Wahaibi, Y.; Al-Hashmi, A.R.; Al-Ajmi, A. Roles of drag reducing polymers in single- and multi-phase flows. Chem. Eng. Res. Des. 2014, 92, 2153–2181. [Google Scholar] [CrossRef]
  12. Sokhal, K.S.; Gangacharyulu, D.; Bulasara, V.K. Effect of guar gum and salt concentrations on drag reduction and shear degradation properties of turbulent flow of water in a pipe. J. Fluids Eng. 2018, 140, 1–64. [Google Scholar] [CrossRef] [PubMed]
  13. Peyghambarzadeh, S.M.; Hashemabadi, S.H.; Saffarian, H.; Shekari, F. Experimental study of the effect of drag reducing agent on pressure drop and thermal efficiency of an air cooler. Heat Mass Transf. 2016, 52, 63–72. [Google Scholar] [CrossRef]
  14. Kazimir, G.; Klaus, H.; Matthys, E.H. Intentional mechanical degradation for heat transfer recovery in flow of drag-reducing surfactant solutions. Exp. Fluid Sci. 2017, 84, 251–2654. [Google Scholar] [CrossRef]
  15. Denison, E.B.; Stevenson, W.H.; Fox, R.W. Pulsating laminar flow measurements with a directionally sensitive laser velocimeter. Aiche J. 1971, 17, 781–7874. [Google Scholar] [CrossRef]
  16. Shao, X.M.; Lin, J.Z.; Wu, T. Experimental research on drag reduction by polymer additives in a turbulent pipe flow. Can. J. Chem. Eng. 2002, 80, 293–2984. [Google Scholar] [CrossRef]
  17. Armin, S.; Sagar, Z.; Mehdi, N.A.; Rob, J.P.; Fredrik, L.S.; Marco, E.R.; Luca, B. Turbulent duct flow with polymers. Fluid Dyn. 2019, 859, 1057–10834. [Google Scholar] [CrossRef] [Green Version]
  18. Lu, Z.; Xue, B.; Evan, K.; Li, X. Transient dynamics of turbulence growth and bursting: Effects of drag-reducing polymers. J. Non-Newton. Fluid Mech. 2019, 266, 127–1424. [Google Scholar] [CrossRef]
  19. Hidema, R.; Murao, I.; Komoda, Y.; Suzuki, H. Effects of the extensional rheological properties of polymer solutions on vortex shedding and turbulence characteristics in a two-dimensional turbulent flow. J. Non-Newton. Fluid Mech. 2018, 254, 1–114. [Google Scholar] [CrossRef]
  20. Xi, L.; Graham, M.D. Intermittent dynamics of turbulence hibernation in Newtonian and viscoelastic minimal channel flows. J. Fluid Mech. 2012, 693, 433–4724. [Google Scholar] [CrossRef]
  21. Wang, S.N.; Shekar, A.; Graham, M.D. Spatiotemporal dynamics of viscoelastic turbulence in transitional channel flow. J. Non-Newton. Fluid Mech 2017, 244, 104–1224. [Google Scholar] [CrossRef]
  22. Pereira, A.S.; Mompean, G.; Thais, L.; Thompson, R.L. Statistics and tensor analysis of polymer coil–stretch mechanism in turbulent drag reducing channel flow. J. Fluid Mech. 2017, 824, 135–1734. [Google Scholar] [CrossRef]
  23. Ralf, E.; Sukumaran, S.K.; Grest, G.S.; Carsten, S.; Arvind, S.; Kurt, K. Rheology and microscopic topology of entangled polymeric liquids. Science 2004, 303, 823–8264. [Google Scholar] [CrossRef] [Green Version]
  24. Ezrahi, S.; Tuval, E.; Aserin, A. Properties, main applications and perspectives of worm micelles. Adv. Colloid Interface Sci. 2006, 128–130, 77–102. [Google Scholar] [CrossRef] [PubMed]
  25. Choi, F.; Acosta, E.J. Oil-induced formation of branched wormlike micelles in an alcohol propoxysulfate extended surfactant system. Soft Matter. 2018, 14, 8378–8389. [Google Scholar] [CrossRef] [PubMed]
  26. Quan, Q.; Wang, S.X.; Wang, L.; Shi, Y.; Xie, J.; Wang, X.D.; Wang, S.W. Experimental study on the effect of high-molecular polymer as drag reducer on drag reduction rate of pipe flow. J. Pet. Sci. Eng. 2019, 178, 852–8564. [Google Scholar] [CrossRef]
  27. Brostow, W. Drag reduction and mechanical degradation in polymer solutions in flow. Polymer 1983, 24, 631–6384. [Google Scholar] [CrossRef]
  28. Brostow, W.; Ertepinar, H.; Singh, R.P. Flow of dilute polymer solutions: Chain conformations and degradation of drag reducers. Macromolecules 1990, 23, 5109–5118. [Google Scholar] [CrossRef]
  29. Liberatore, M.W.; Baik, S.; Mchugh, A.J.; Hanratty, T.J. Turbulent drag reduction of polyacrylamide solutions: Effect of degradation on molecular weight distribution. J. Non-Newton. Fluid Mech. 2004, 123, 175–183. [Google Scholar] [CrossRef]
  30. Zhang, X.; Duan, X.; Muzychka, Y. Analytical Upper Limit of Drag Reduction with Polymer Additives in Turbulent Pipe Flow. J. Fluids Eng. 2018, 140, 1–64. [Google Scholar] [CrossRef]
  31. Edomwonyi-Otu, L.C.; Angeli, P. Separated Oil-Water Flows With Drag Reducing Polymers. Exp. Therm. Fluid Sci. 2019, 102, 467–4784. [Google Scholar] [CrossRef]
  32. Pereira, A.S.; Mompean, G.; Soares, E.J. Modeling and numerical simulations of polymer degradation in a drag reducing plane Couette flow. J. Non-Newton. Fluid Mech. 2018, 256, 1–74. [Google Scholar] [CrossRef]
  33. Cheng, H.; Chun, J.; Hyoung, C. Turbulent Drag Reduction with Polymers in Rotating Disk Flow. Polymers 2015, 7, 1279–12984. [Google Scholar] [CrossRef] [Green Version]
  34. Hasan, M.L.; Jantararas, J.; Zaki, R.M.; Azmi, A. Effects of temperature and injection rates on the performance of bio-polymer drag reducing agent. Mater. Today Proc. 2018, 5, 21802–218094. [Google Scholar] [CrossRef]
  35. Habibpour, M.; Clark, P.E. Drag reduction behavior of hydrolyzed polyacrylamide/xanthan gum mixed polymer solutions. Pet. Sci. 2017, 14, 412–423. [Google Scholar] [CrossRef] [Green Version]
  36. Yang, S.Q.; Ding, D. Drag reduction induced by polymer in turbulent pipe flows. Chem. Eng. Sci. 2013, 102, 200–208. [Google Scholar] [CrossRef]
  37. Samiul, A.; Steven, B.; Rachel, K.; Lewis, E.N. Revealing New Structural Insights from Surfactant Micelles through DLS, Microrheology and Raman Spectroscopy. Materials 2015, 8, 3754–37664. [Google Scholar] [CrossRef] [Green Version]
  38. Kwiatkowski, A.L.; Molchanov, V.S.; Sharma, H.; Kuklin, A.I.; Dormidontova, E.E.; Philippova, O.E. Growth of wormlike micelles of surfactant induced by embedded polymer: Role of polymer chain length. Soft Matter 2018, 14, 4792–48044. [Google Scholar] [CrossRef]
  39. Sun, X.; Gao, Z.B.; Zhao, M.W.; Gao, M.W.; Du, M.Y.; Dai, C.L. Development and evaluation of a novel seawater-based viscoelastic fracturing fluid system. J. Pet. Sci. Eng. 2019, 183, 106408. [Google Scholar] [CrossRef]
  40. Yan, Z.; Dai, C.; Zhao, M.; Sun, Y. Rheological characterizations and molecular dynamics simulations of self-assemblies in anionic/cationic surfactant mixture. Soft Matter 2016, 12, 6058–6066. [Google Scholar] [CrossRef]
  41. Shirahama, K.; Tsujii, K.; Takagi, T. Free-boundary electrophoresis of sodium dodecyl sulfate-protein polypeptide complexes with special reference to SDS-polyacrylamide gel electrophoresis. J. Biochem. 1974, 75, 309–319. [Google Scholar] [CrossRef] [PubMed]
  42. Nagarajan, R. Thermodynamics of nonionic polymer-micelle association. Colloids Surf. 1985, 13, 1–174. [Google Scholar] [CrossRef]
  43. Biggs, S.; Selb, J.; Candau, F. Effect of surfactant on the solution properties of hydrophobically modified polyacrylamide. Langmuir 1992, 8, 838–847. [Google Scholar] [CrossRef]
  44. Kim, J.T.; Kim, C.A.; Zhang, K.; Jang, C.H.; Choi, H.G. Effect of polymer–surfactant interaction on its turbulent drag reduction. Colloids Surf. A Physicochem. Eng. Asp. 2011, 391, 125–129. [Google Scholar] [CrossRef]
  45. Liu, D.J.; Wang, Q.H.; Wei, J.J. Experimental study on drag reduction performance of mixed polymer and surfactant solutions. Chem. Eng. Res. Des. 2018, 132, 460–469. [Google Scholar] [CrossRef]
  46. Suksamranchit, S.; Sirivat, A.; Jamieson, A.M. Polymer–surfactant complex formation and its effect on turbulent wall shear stress. J. Colloid Interface Sci. 2006, 294, 212–221. [Google Scholar] [CrossRef]
  47. Matras, Z.; Kopiczak, B. Intensification of drag reduction effect by simultaneous addition of surfactant and high molecular polymer into the solven. Chem. Eng. Res. Des. 2015, 96, 35–42. [Google Scholar] [CrossRef]
  48. Guilherme, L.N.; Leticia, A.F.; Gabriel, G.V.; Bruno, V.L. A synergistic analysis of drag reduction on binary polymer mixtures containing guar gum. Int. J. Biol. Macromol. 2019, 137, 1121–1129. [Google Scholar] [CrossRef]
  49. Salleh, M.A.M.; Rashed, M.K.; Abdulbari, H.A.; Ismail, M.H.S. A novel polymer-surfactant complex mixture to improve diesel fuel flow in a rotating disk apparatus. Adv. Appl. Fluid Mech. 2016, 19, 669. [Google Scholar] [CrossRef]
  50. Ferhat, H.; Anthony, B.; Sylvain, G.; Rachid, M. Temperature and concentration influence on drag reduction of ctac/nasal aqueous solution in turbulent pipe flow. J. Non-Newton. Fluid Mech. 2011, 166, 326–331. [Google Scholar] [CrossRef]
Materials 13 00444 g001 550

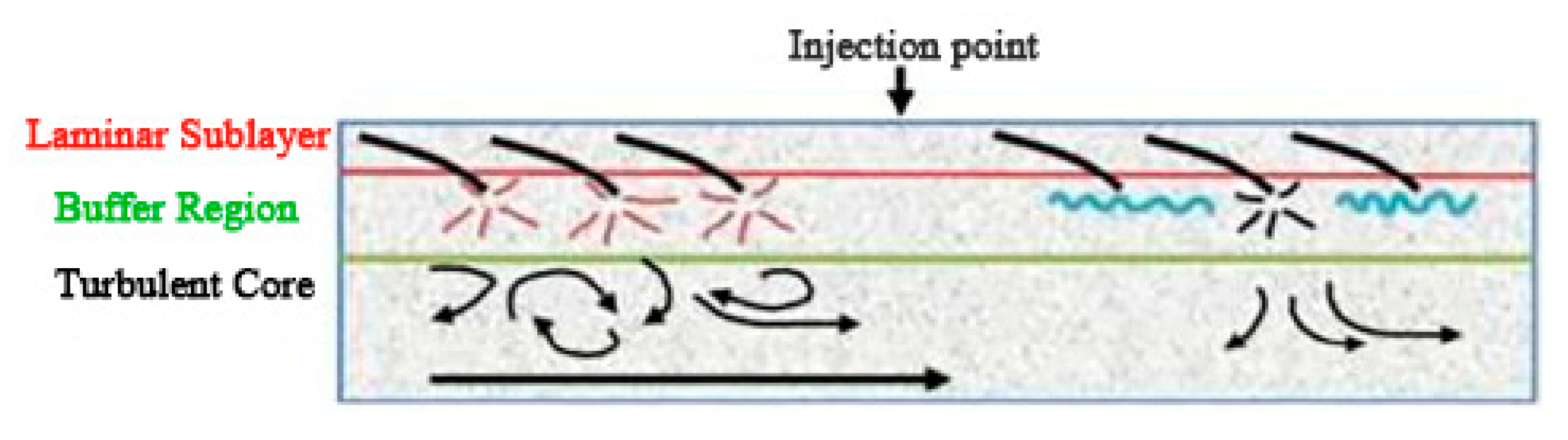

Figure 1. Schematic diagram of turbulent flow in the pipeline [11].
Figure 1. Schematic diagram of turbulent flow in the pipeline [11].
Materials 13 00444 g001
Materials 13 00444 g002 550

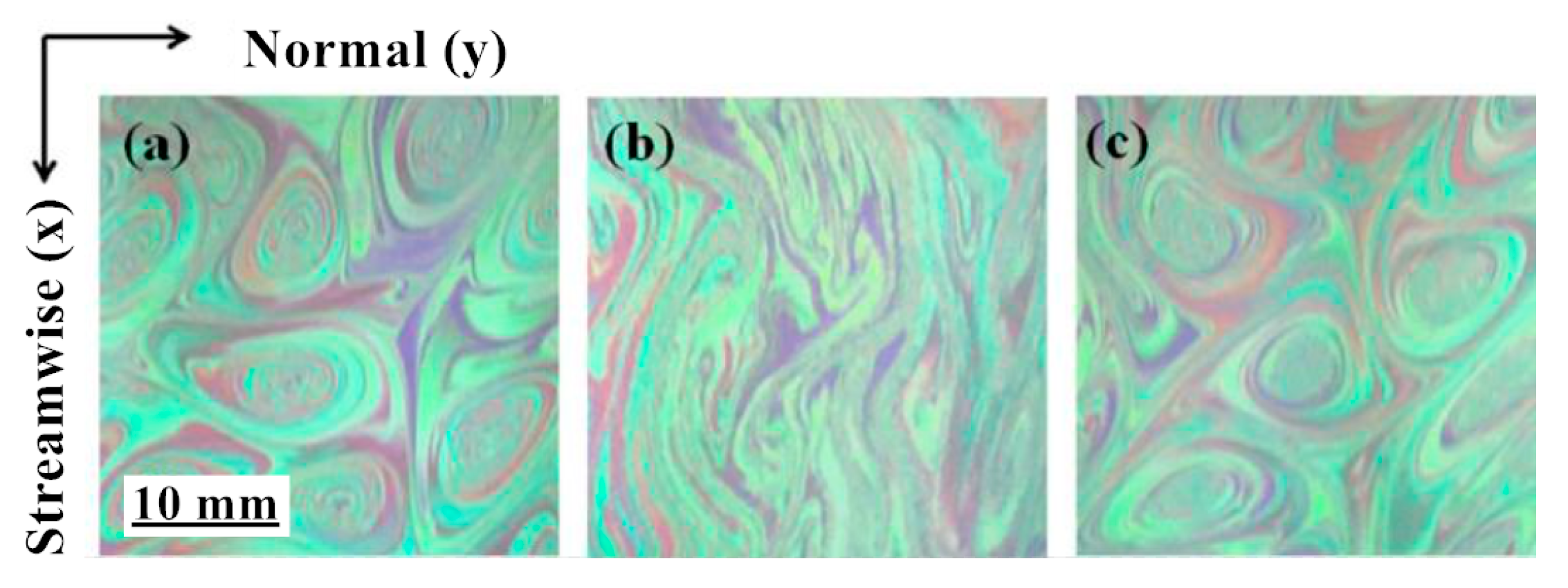

Figure 2. Two-dimensional turbulent stratification with polymer: (a) polymer-free solution; (b) poly(ethylene) oxide (PEO) 1.5 × 10−3 weight percentage solution; (c) hydroxypropyl cellulose (HPC) 0.08 weight percentage solution [19].
Figure 2. Two-dimensional turbulent stratification with polymer: (a) polymer-free solution; (b) poly(ethylene) oxide (PEO) 1.5 × 10−3 weight percentage solution; (c) hydroxypropyl cellulose (HPC) 0.08 weight percentage solution [19].
Materials 13 00444 g002
Materials 13 00444 g003 550

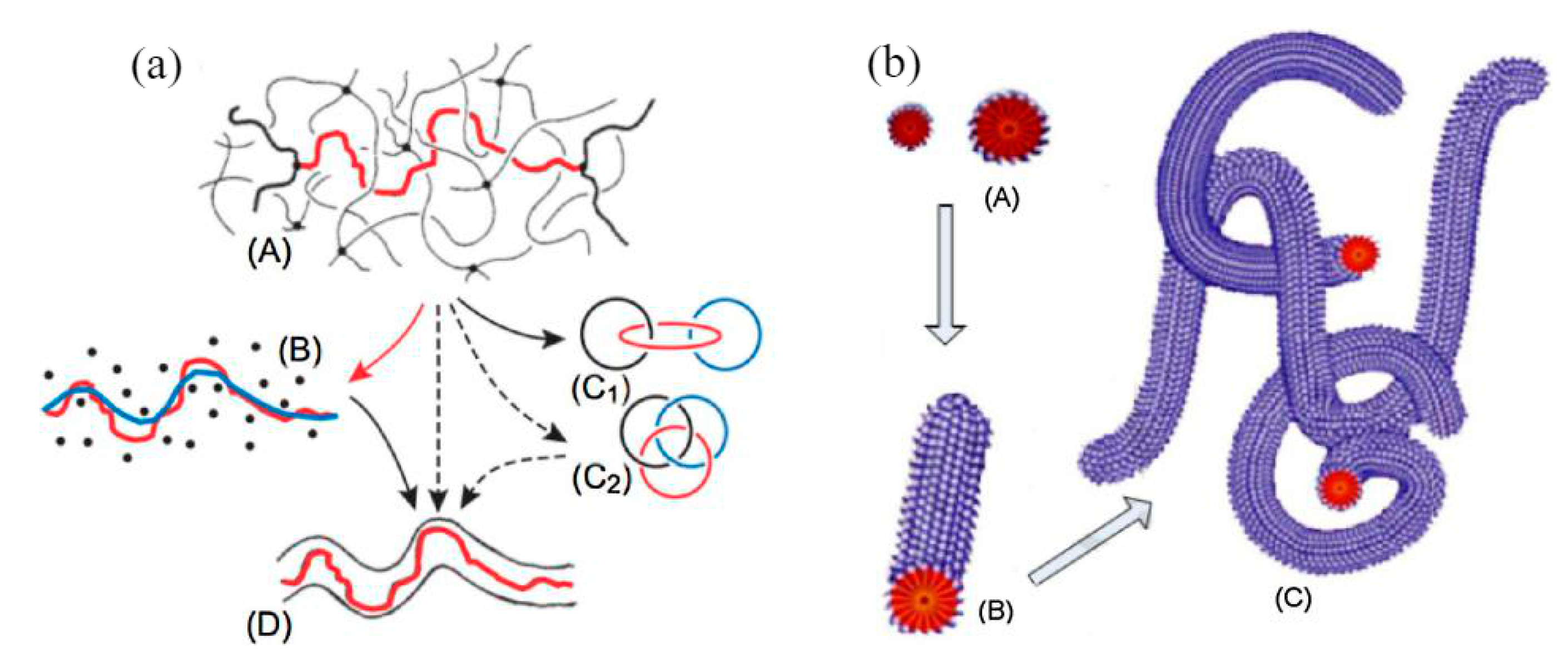

Figure 3. Microstructure of polymer drag reducer and surfactant in the fluid: (a) high-molecular polymer solution [23]; (b) surfactant solution [24].
Figure 3. Microstructure of polymer drag reducer and surfactant in the fluid: (a) high-molecular polymer solution [23]; (b) surfactant solution [24].
Materials 13 00444 g003
Materials 13 00444 g004 550

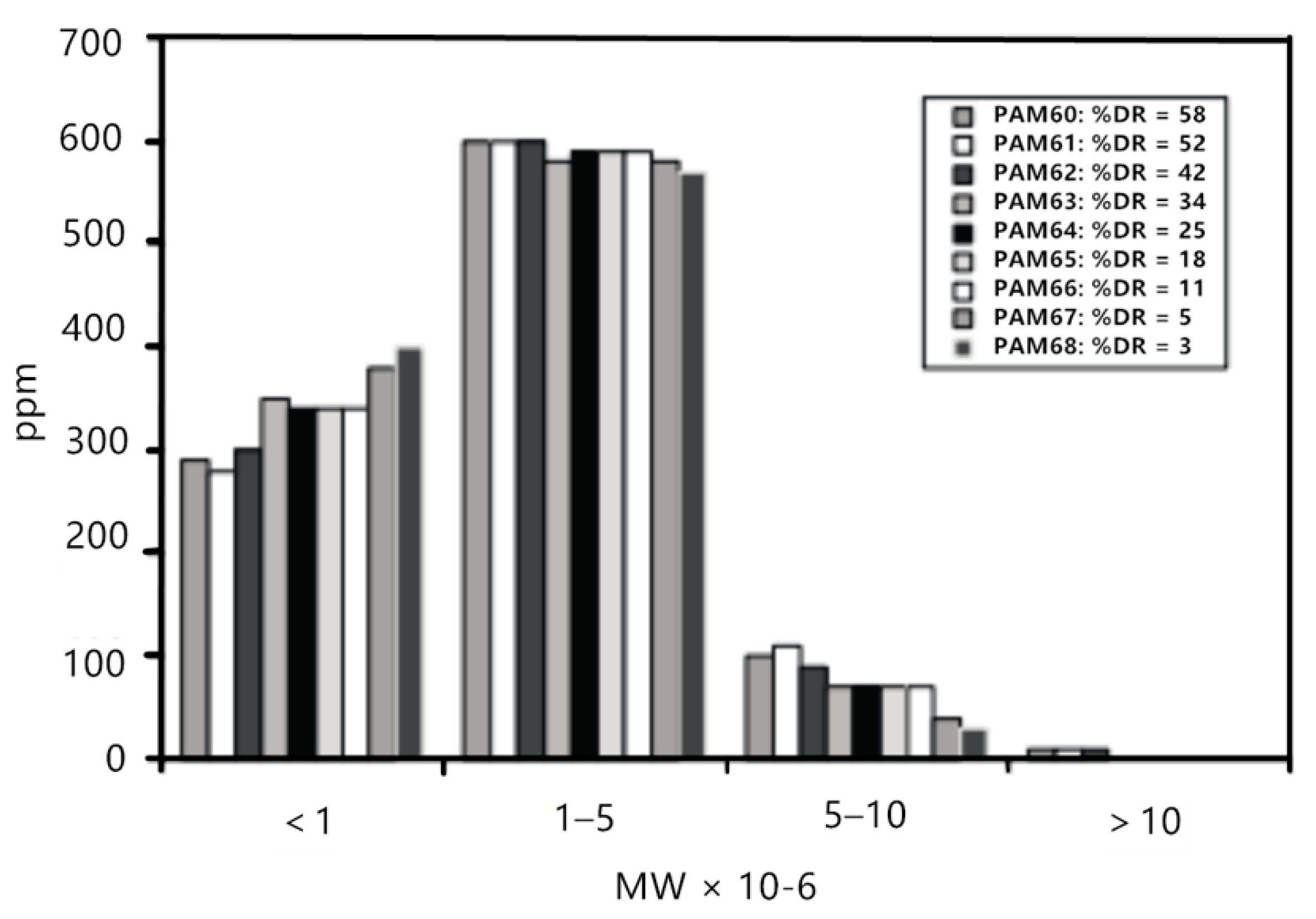

Figure 4. Molecular weight distribution for 1000 ppm polyacrylamide (PAM) solutions from channel flow experiments under drag reduction conditions [29].
Figure 4. Molecular weight distribution for 1000 ppm polyacrylamide (PAM) solutions from channel flow experiments under drag reduction conditions [29].
Materials 13 00444 g004
Materials 13 00444 g005 550

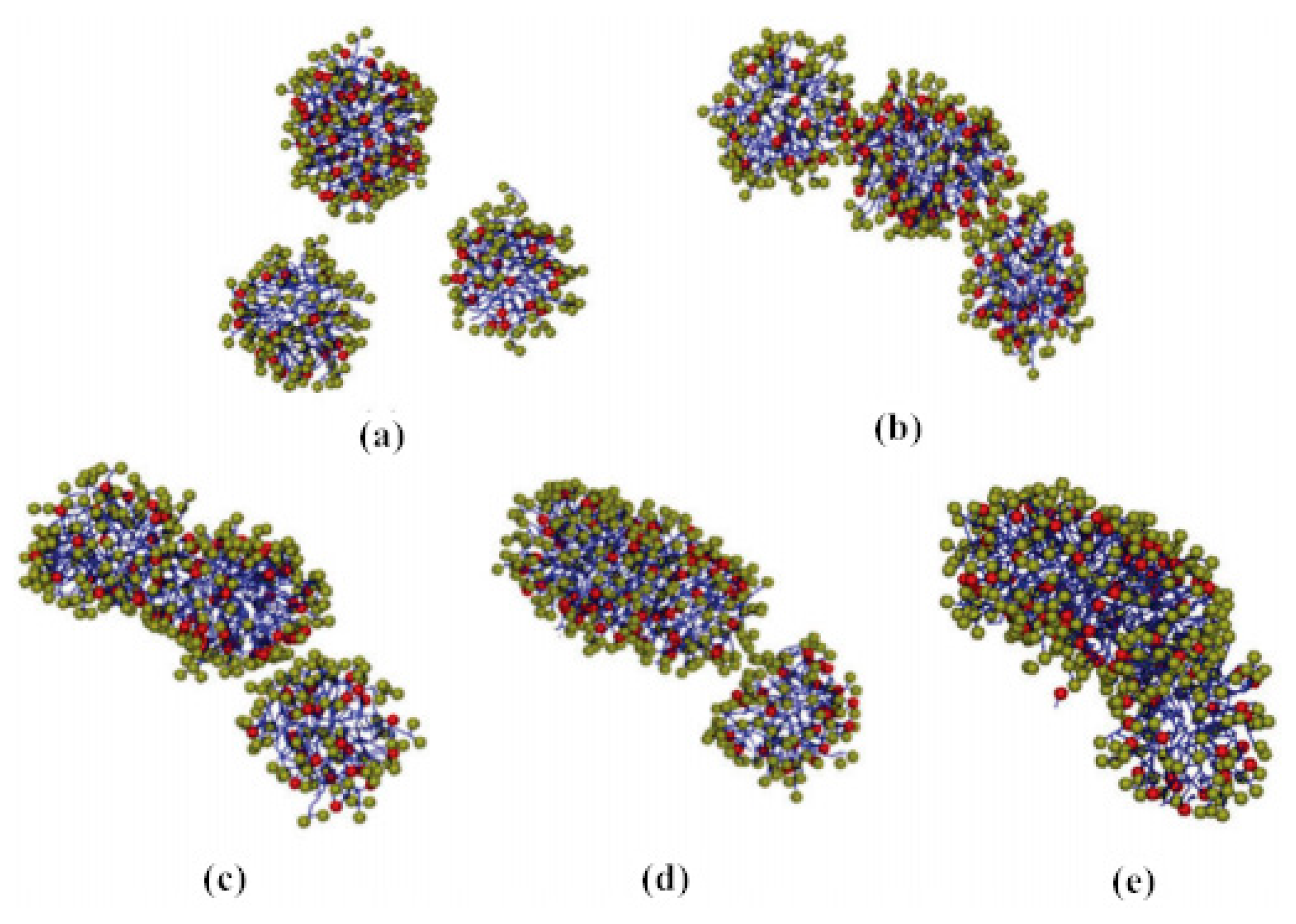

Figure 5. Transition process from globular micelle to wormlike micelle: (a) dispersed spherical micelles; (b) spherical micelles approach each others; (c) spherical micelles begin to merge; (d) two spherical micelles merge first; (e) three spherical micelles combine to form wormlike micelles [40].
Figure 5. Transition process from globular micelle to wormlike micelle: (a) dispersed spherical micelles; (b) spherical micelles approach each others; (c) spherical micelles begin to merge; (d) two spherical micelles merge first; (e) three spherical micelles combine to form wormlike micelles [40].
Materials 13 00444 g005
Materials 13 00444 g006 550

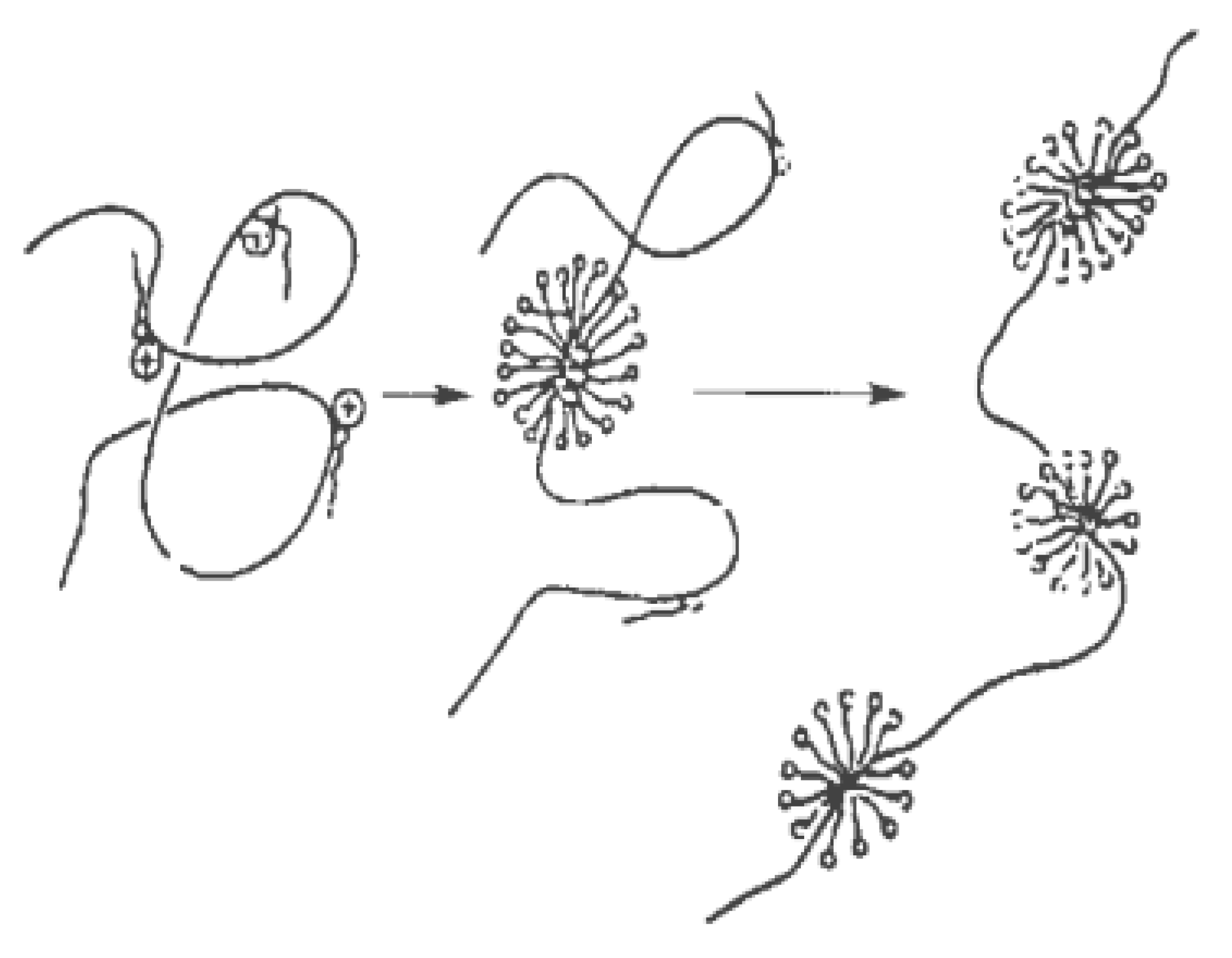

Figure 6. Bead model of the surfactant–polymer mixture [41].
Figure 6. Bead model of the surfactant–polymer mixture [41].
Materials 13 00444 g006
Materials 13 00444 g007 550

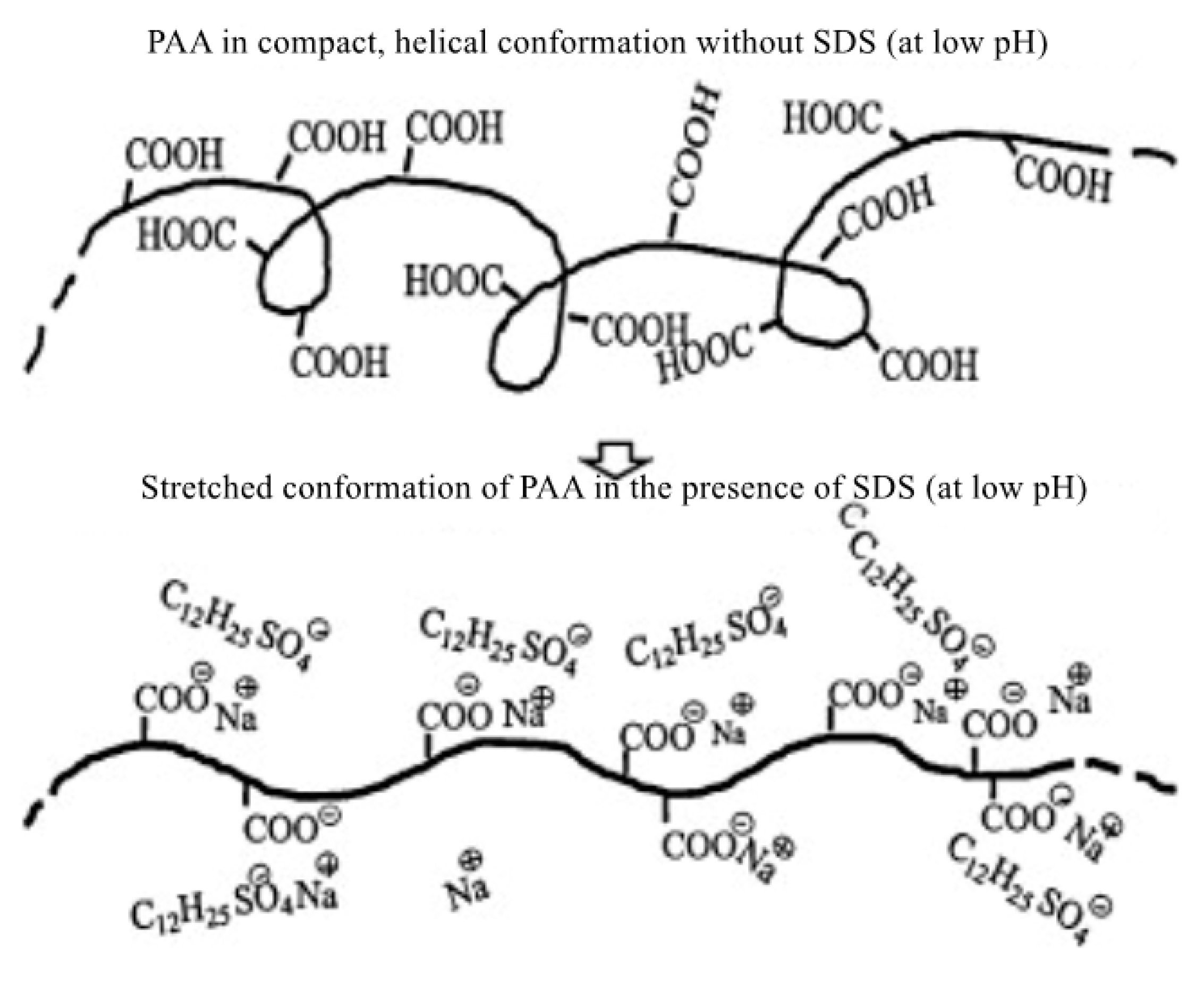

Figure 7. Schematic diagram of the conformational change of the PAA molecule at different pH levels [44].
Figure 7. Schematic diagram of the conformational change of the PAA molecule at different pH levels [44].
Materials 13 00444 g007
Materials 13 00444 g008 550

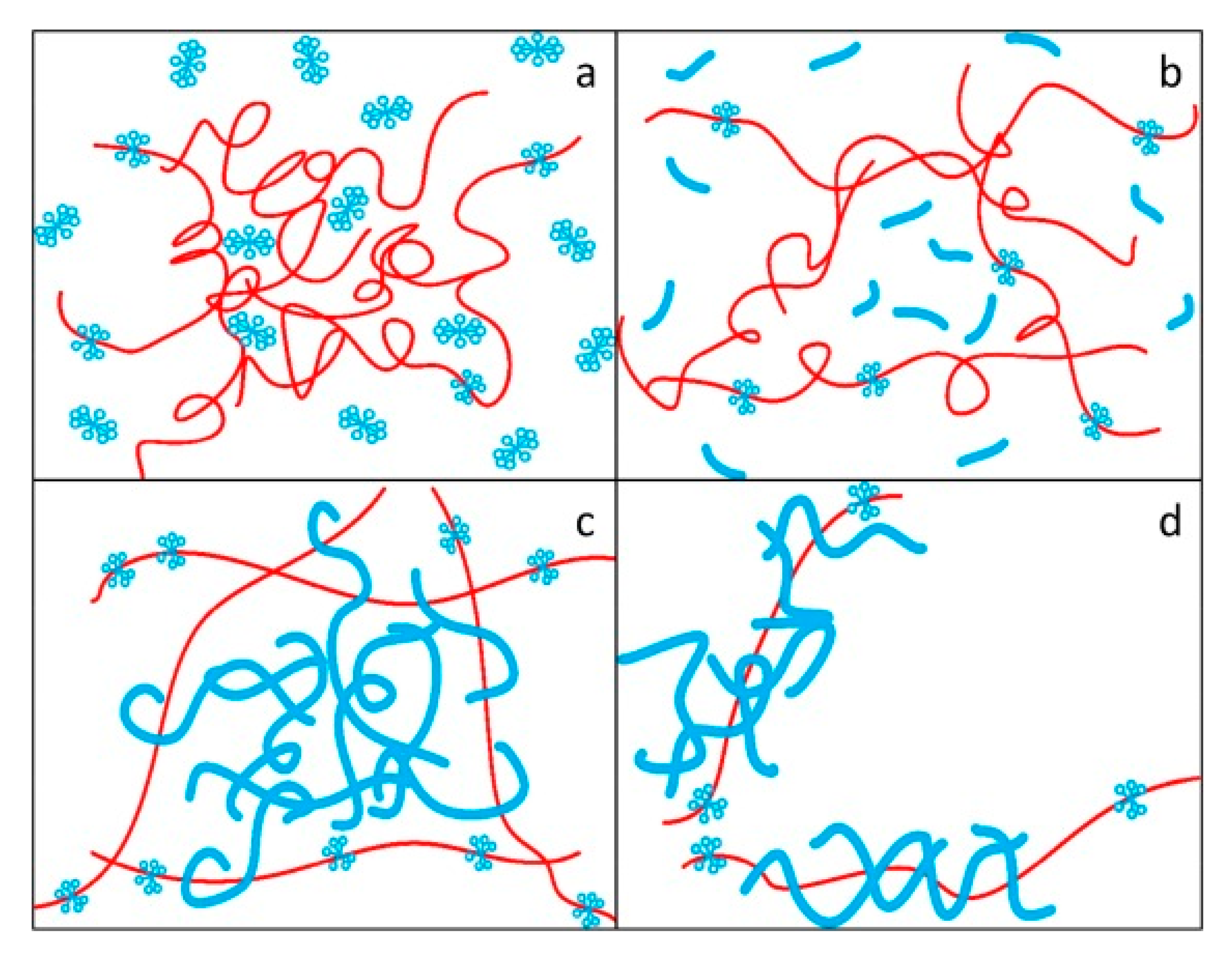

Figure 8. Formation and failure of a complex network structure model: (a)dispersed polymer molecules and surfactant molecules; (b) stretching polymer molecules and rodlike micelles; (c) the network structure model of polymer molecules and polymer molecules; (d) the broken network structure model [45].
Figure 8. Formation and failure of a complex network structure model: (a)dispersed polymer molecules and surfactant molecules; (b) stretching polymer molecules and rodlike micelles; (c) the network structure model of polymer molecules and polymer molecules; (d) the broken network structure model [45].
Materials 13 00444 g008
