Article

Effect of H2O Activity on Zeolite Formation

by
Claudia Belviso
* and
Francesco Cavalcante
Istituto di Metodologie per l’Analisi Ambientale–CNR, 85050 Tito Scalo, Italy
*
Author to whom correspondence should be addressed.
Materials 2020, 13(21), 4780; https://doi.org/10.3390/ma13214780
Submission received: 23 September 2020 / Revised: 20 October 2020 / Accepted: 22 October 2020 / Published: 26 October 2020
(This article belongs to the Collection Porous Materials and Nanozeolites)
Browse Figures
Versions Notes

Abstract

:
In an effort to understand the effects of H2O activity on zeolite formation, we have synthesized LTA zeolite using a combination of freezing processes and varying drying temperatures. Sodium aluminate and sodium silicate were used to form LTA zeolite, according to the IZA (International Zeolite Association) protocol. The synthesis steps were modified by adding the precursor frozen process by a rapid liquid nitrogen (−196 °C) treatment or slow conventional freezer treatment (−20 °C). The samples were subsequently sonicated and then dried at 80 °C or 40 °C. X-ray diffraction (XRD) and scanning electron microscopy (SEM) were performed on the samples immediately after the drying process as well as after 2 weeks and 1 month of aging the solid products. The results indicated that LTA zeolite does not form. The silica-alumina precursor after both freezing processes and after being dried at 80 °C showed the presence of sodalite displaying stable behavior over time. Both sets of samples dried at 40 °C and did not show the presence of zeolite immediately after the drying process. However, after 2 weeks, the liquid nitrogen–frozen precursor was characterized by the presence of EMT whereas zeolites never formed in the −20 °C samples. These results suggest that freezing processes differently control the H2O activity during the drying and aging processes in the solid state. Thus, although the precursor chemical composition is the same, the type of zeolite formed is different.

1. Introduction

Zeolite Linde Type A (Zeolite LTA or Zeolite A) [Na12[(AlO2)12(SiO2)12] · 27 H2O [1] can be synthesised using a variety of sources including different types of alumina and silica materials [2,3,4,5,6,7,8,9,10,11,12,13]. Many nucleation and crystal-growth mechanisms have been proposed for this type of zeolite [14,15,16,17,18], and many literature data have documented microcrystals zeolite A growth on various substrates to form highly oriented monolayers or multilayers composed of micro crystalline building blocks [19,20,21].
Numerous studies have also been performed to investigate the evolution of this type of zeolite into more thermodynamically stable hydroxisodalite [22,23,24]. In our previous papers, two processes for LTA synthesis were analysed concluding that rapid zeolite crystallization by sonication treatment ensures rapid transformation into more stable sodalite, whereas the slower double-step mechanism of geopolymer transformation into the crystalline phase by a conventional hydrothermal process is responsible for a very slow transformation of LTA into sodalite [25,26].
Zeolites are typically synthesized by a hydrothermal process [27] and, indisputably, the water plays a key role in this process. Water molecules have, in fact, an important structural directing action in zeolite formation [28]. The action of H2O molecules in precursor materials and metastable products can also be influenced by their position in restricted geometries (nanopores). Literature data have documented that H2O confined in mesopores and nanopores shows properties different from those of common bulk water [29,30,31].
Generally, it is assumed that, under ambient conditions, ice occurs in the stable hexagonal form (ice Ih) or in the metastable cubic form (ice Ic). However, in the last few years, ice crystallization in nanopores in the form of intercalated cubic and hexagonal layers has been documented [32,33,34]. Jażdżewska and co-workers [35] demonstrated that ice confined in nanopores having pore diameters of 5.9 nm has cubic sequences interlaced with hexagonal sequences, producing a stacking-disordered ice (ice Isd). According to the authors [35], the unique behavior in the nanoscale environment is due to a competition between the H2O–wall and H2O–H2O intermolecular interactions as well as an unspecified size effect.
Many other research data indicate that the properties of H2O in pores <2 nm are different from the properties of H2O in pores with a larger size, and it is common to consider that the freezing temperature of H2O in pores decreases with a decline in pore size [36]. For nanopores with a pore size of 2 nm, water can be supercooled to −90 °C [37,38], and Jannes et al. [39] showed that homogeneous nucleation of structural H2O molecules takes places at ~−40 °C inside the microporous structure of zeolites. Bordoninskii and Olov [36] described a multiphase transition of ice structures in natural zeolite (natural powder zeolite composed of 90% clinoptilolite) with pore sizes from 0.2 to 2 nm over a range of temperature from −150 to −100 °C. Some simulation studies carried out using zeolite A indicated that the H2O nanoclusters in this type of zeolite are too small to crystallize, thus displaying amorphous ice behavior [29]. The formation of low-density amorphous ice in nano-structural zeolite-template carbon was also documented by Kyakuno et al. [40]. Water (liquid water) “freezing” in zeolite (powder zeolite) is influenced by the type of freezing process used. The vitrification determined by liquid nitrogen is based on a rapid temperature lowering process that does not favor the nucleation of crystal water. Due to this, the technique is largely used to preserve biomaterials without ice or with a very limited amount of ice formation [41,42,43]. The slow cooling due to conventional freezer treatments, instead, determines the crystallization of larger water clusters [44]. In the last few years, the application of ultrasound to liquid freezing has also attracted great interest, and freezing by sonication has been used in many applications such as medical science or food engineering [45,46,47,48]. Literature data have shown that an ultrasound can accelerate mass transfer determining rapid droplet cooling [49]. Sonication causes cavitation with formation of bubbles inside the liquid. These bubbles can affect mass transfer and heat transfer mainly at the liquid surface, thereby facilitating liquid cooling and freezing. Some studies have analysed the variation of ultrasound propagation speed based on the physical properties of a medium that they go through (e.g., ice) [50,51]. This mechanism has also been investigated for crystal ice nucleation in water [52,53,54]. However, according to our knowledge, a study on the effects of an ultrasound on frozen hydrogel-colloidal precursors of zeolite has not been performed.
We performed a preliminary study on the effects of a rapid and a slow freezing treatment (by liquid-nitrogen and conventional freezer, respectively) of zeolite precursor combined with subsequent low (−40 °C) or high temperature (80 °C) drying. The potential effect of brief sonication on frozen samples before the drying processes was also investigated. The study aims to provide insights into the fundamental role of water and its form during zeolite crystallization with the hope of providing new insights into understanding formation mechanisms.

2. Experimental Section

2.1. Samples Preparation

An NaOH (Sigma Aldrich-Europe, Darmstadt, Germany, 98+% NaOH) solution was prepared by gently mixing 0.723 g of NaOH in 80 mL of distilled water until it is dissolved. Half of this alkaline solution was then used to dissolve 8.3 g of sodium aluminate (Sigma Aldrich-Europe, Darmstadt, Germany, Al (Al2O3):50–56% Na (Na2O):40–45%) (Solution A). In addition, 15.48 g of sodium silicate solution (Sigma Aldrich) were dissolved in the second half (Solution B). Finally, solution A was quickly added to solution B under vigorous stirring. Solutions A and B were prepared according to the IZA protocol and the method proposed by Thompson and Huber [1,55]. However, in this study, the next steps to form LTA zeolite were modified as follows: (i) the resulting suspension (combination of Solution A and B) was divided in two parts, (ii) one part was frozen by liquid nitrogen (~ −196 °C) (LN) for five minutes (rapid freezing treatment) and the other by conventional freezer treatment (~ −20 °C) (CF) for 2 h (slow freezing treatment), (iii) both frozen samples were sonicated using an ultrasonic water bath (240 W, 35 kHz) for 5 min. US temperature was 10 °C, thus melting the samples, iv) both sonicated LN and CF samples were split into two parts and then dried in open vessels at 40 °C and 80 °C for 24 h, respectively. The experiments were also performed by washing LN with ethanol before drying at 40 °C and 80 °C for 24 h (LNE). Finally, additional tests were carried out without any freezing treatment. In detail, the suspension resulting from mixing of Solution A and Solution B was divided into two portions. One was centrifuged and dried at 40 °C and 80 °C for 24 h (ZC), separately. The other portion was directly dried at 40 °C or 80 °C without being centrifuged (Z). The scheme of the experiments is illustrated in Figure 1.

2.2. Sample Characterization

The mineralogical composition of all the synthetic products was determined by X-ray powder diffraction (XRD) using a Rigaku Rint 2200 powder diffractometer (Tokyo, Japan) with Cu Kα graphite monochromatized radiation (30 kV–40 mA). XRD profiles were collected in θ–θ geometry over the angular range 3°–70° 2θ, step size 0.02°, and scan-step time of 3 s. The synthetic products were analysed immediately after the drying process (1 day) as well as 2 weeks and 1 month after. The samples were stored at room temperature (about 20 °C). Table 1 summarizes the codes for different samples, according to the processes used for their synthesis. Morphological observation of products was performed by scanning electron microscopy (SEM) using a Zeiss Supra 40 microscope (Oberkochen, Germany) equipped with energy dispersive X-ray analysis (EDX)

3. Results

Figure 2 shows X-ray diffraction patterns of the LN1d and CF1d samples immediately after drying at 40 and 80 °C. The samples dried at 40 °C (CF1d-40 and LN1d-40) are characterized by the presence of aluminium silicate and sodium silicate in addition to amorphous material (Figure 2a). The XRD peaks for the samples dried at higher temperatures (CF1d-80 and LN1d-80) were mainly indexed to sodalite with minor aluminium silicate and sodium silicate as well as amorphous material (Figure 2b).
The presence of spherical nanocrystal aggregates characterizes SEM images of CF1d-80 (Figure 3a) whereas the nanocrystals organized to form cubic forms in the LN1d-80 sample (Figure 3b). CF samples dried at 40 °C and analysed after 2 weeks (CF2w-40) and 1 month (CF1m-40) do not show the presence of any newly formed zeolite (Figure 4a). The peaks are indexed to aluminium silicate and sodium silicate. The XRD pattern of LN dried at 40 °C and analysed after 2 weeks of aging (LN2w-40) is, instead, characterized by the presence of EMT zeolite, which increased after 1 month (LN1m-40) (Figure 4b and Figure S1).
The typical morphology of this newly formed zeolite is displayed in Figure 5a,b. The presence of other zeolites (e.g., sodalite) was confirmed by SEM (Figure 5c).
Figure 6a,b displays the XRD results for the samples dried at 80 °C and analysed after 2 weeks and 1 month of aging in the solid state. The data indicate that sodalite is the primary newly formed mineral in both CF and LN samples. XRD patterns of the samples washed with ethanol (LNE) show the absence of zeolite in all samples treated at 40 °C (Figure 7a) and the presence of sodalite after drying at 80 °C (Figure 7b and Figure 8). Finally, Figure 9 shows XRD profiles of ZC and Z samples at low drying temperature. The results demonstrate the synthesis of EMT in Z samples after 2 weeks and 1 month of aging. EMT is not present immediately after drying Z samples at 40 °C (Figure 9a). LTA is the primary newly formed zeolite in centrifuged samples (ZC) (Figure 9b). At higher temperature (80 °C), sodalite and LTA with sharp XRD peaks characterize Z and ZC products, respectively (Figure 10a,b).
The right-most column in Table 1 summarizes the mineralogical composition of each synthetic product.

4. Discussion

These preliminary results reveal the complex behavior of aluminosilicate precursor of LTA zeolite when subjected to combined freezing and drying processes. The data show that LTA zeolite does not form when the aluminosilicate precursor is rapidly frozen by liquid nitrogen and dried at 40 or 80 °C nor when it is dried at the same temperatures after conventional freezer treatment. These results suggest that the type of freezing treatment affects the availability of water in the precursor during the drying process (also based on the drying temperature), thereby influencing the type of zeolite formed and its stability after aging in the solid state. In detail, XRD profiles for both CF and LN immediately after drying at 40 °C are characterized by the presence of peaks indexed to aluminium silicate and sodium silicate. This is due to rapid precipitation in the supersaturated solution. Short time and lower heating temperature (40 °C) do not facilitate the synthesis of LTA zeolite (Figure 2a). This is also confirmed by the large presence of amorphous material. The data for the process at 80 °C show sodalite formation in both CF and LN samples (CF1d-80 and LN1d-80) (Figure 2b), and LTA zeolite does not form. SEM images are displayed in Figure 3a,b. After 2 weeks of aging in the solid state at room temperature, LTA zeolite did not form in CF samples initially dried at 40 °C (Figure 4a) whereas LN2w-40 is characterized by the presence of newly formed EMT zeolite detectable after 1 month in LN1m-40 (Figure 4b). This is well detectable in Figure 5a,b showing the typical EMT morphology. Both CF and LN samples that initially dried at higher temperature (80 °C) are characterized by the presence of sodalite (Figure 6a,b) after 2 weeks and 1 month of aging in the solid state.
We do not assume that the nature and the aggregation state of the aluminosilicate phases precipitated during the freezing process condition the behavior of the different samples. Our speculative hypothesis to explain the different behavior between CF and LN samples dried at a low temperature (40 °C), which is based on the assumption that rapid freezing by liquid nitrogen (−196 °C for few minutes) does not favor the nucleation of crystalline ice in the aluminosilicate precursor matrix, but, instead, leads to the formation of amorphous ice [29,40]. The presence of amorphous ice leads to a higher H2O activity in the matrix, which controls the transformation of aluminosilicate and amorphous material into EMT zeolite in 2 weeks (LN2w-40). Single crystals of sodalite also formed (Figure 5c). We propose that the process can be explained by considering partial hydrolysis at room temperature in the presence of enhanced H2O availability [56]. Conversely, the conventional freezer treatment is a slow process (2 h) occurring at −20 °C. This allows the formation of crystalline clusters [57] into the large amorphous material, thus making water molecules unavailable for zeolite crystallization at 40 °C and after aging in the solid state (CF2w-40 and CF1m-40). The presence of sodalite in both CF and LN samples dried at 80 °C (Figure 2b and Figure 6b) indicates that different processes take place, making water molecules available to form this more stable mineral. The presence of this newly formed phase after 2 weeks and 1 month of solid-state aging are in accordance with literature data [58,59]. Our hypothesis on the role of the H2O form (crystalline cluster or amorphous ice) in type and stability of zeolite formed is indirectly confirmed by additional experiments performed by washing the LN precursor with ethanol (before drying) or by repeating the synthesis without freezing. In the first case, the results indicate that, at 40 °C, no zeolite formed immediately after drying as well as after 2 weeks and 1 month of solid-state aging (LNE1d-40, LNE2w-40, and LNE1m-40) (Figure 7a). This is due to the partial replacement of water molecules by ethanol [60], confirming the importance of water availability in zeolite formation. After drying at 80 °C, sodalite formed (Figure 7b) despite the morphology of this newly formed mineral not being well organized, and the crystals are a few hundred nm in size (Figure 8).
Likely, the higher drying temperature makes the water molecules available, which are still confined in colloidal precursor after ethanol treatment. The data for untreated samples (no freezing or centrifugation) confirm the absence of zeolite immediately after drying at 40 °C. The progressive transformation of aluminosilicate and amorphous material into EMT and LTA takes place after 2 weeks and 1 month (Figure 9a). The results after centrifugation indicate the crystallization of LTA zeolite takes place at 40 °C, and LTA is stable over time (2 weeks and 1 month) (Figure 9b).
At 80 °C, sodalite formed in Z and is unchanged after solid-state aging (Figure 10a). These data are in accord with the results obtained at the same temperature for the LN sample. The results after centrifugation (ZC) reveal the crystallization of LTA zeolite at 80 °C as well as its presence after 2 weeks and 1 month (Figure 10b). Our hypothesis is that centrifugation has an influence on water available for the zeolite synthesis, conditioning LTA zeolite synthesis. Finally, no conclusion can be drawn on the effect of sonication.

5. Conclusions

In this study, the effects of freezing on zeolite synthesis from an LTA precursor was analysed with the aim to evaluate the role of H2O and its form as amorphous or crystalline ice in determining zeolite type and long-term stability.
Based on the results, our speculative hypothesis is that the formation of amorphous ice rather than crystalline ice in the aluminosilicate precursor controls the synthesis of different zeolites both immediately and after solid-state. The presence of amorphous ice in the precursor by a rapid liquid nitrogen freezing process (−196 °C) raises the possibility of the hydrolysis mechanism in the samples dried at 40 °C and zeolite evolution to a more stable form at room temperature. The formation of ice crystalline clusters by slow conventional freezer treatment at −20 °C, instead, is responsible for low water molecules availability in the samples, making no zeolite crystallization over time. In all the samples, the drying process of the precursor at 80 °C makes available water molecules due to a melting process of ice, forming sodalite with a stable behavior up to 1 month.
The results also display that the action of short time sonication after the freezing treatment is negligible.
In our opinion, these types of experiments make an important contribution to understanding crystallization mechanisms of minerals forming in extreme environmental conditions. However, further investigation is needed.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/13/21/4780/s1. Figure S1: X-ray diffraction profiles of LN2w-40 and calculated EMT zeolite.

Author Contributions

C.B.: Conceptualization, Formal analysis, Writing original draft, Writing review & editing. F.C.: Formal analysis, Writing original draft. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The authors thank colleague Antonio Lettino for assistance with SEM analysis. We also wish to thank David L. Bish for his very constructive review of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Baerlocher, C.; McCusker, L.B. Database of Zeolite Structures. Available online: http://www.iza-structure.org/database/2008 (accessed on 3 October 2020).
  2. Belviso, C.; Cavalcante, F.; Lettino, A.; Fiore, S. A and X Type Zeolite Synthesized from Kaolinite at Low Temperature. Appl. Clay Sci. 2013, 80–81, 20162–20168. [Google Scholar]
  3. Rios, C.; Williams, C.; Fullen, M. Nucleation and Growth History of Zeolite LTA Synthesized from Kaolinite by Two Different Methods. Appl. Clay Sci. 2009, 42, 446–454. [Google Scholar] [CrossRef]
  4. Singh, P.; Aswal, V.K.; Chaudhri, S.G.; Schwieger, W. Structural Evolution During Nucleation of Si-Rich LTA Nanocrystals from Colloidal Solution. Microporous Mesoporous Mater. 2018, 259, 99–110. [Google Scholar] [CrossRef]
  5. Oleksiak, M.D.; Soltis, J.A.; Conato, M.T.; Penn, R.L.; Rimer, J.D. Nucleation of FAU and LTA Zeolites from Heterogeneous Aluminosilicate Precursors. Chem. Mater. 2016, 28, 4906–4916. [Google Scholar] [CrossRef]
  6. Belviso, C.; Agostinelli, E.; Belviso, S.; Cavalcante, F.; Pascucci, S.; Peddis, D.; Varvaro, G.; Fiore, S. Synthesis of Magnetic Zeolite at Low Temperature Using a Waste Material Mixture: Fly Ash and Red Mud. Microporous Mesoporous Mater. 2015, 202, 208–216. [Google Scholar] [CrossRef]
  7. Belviso, C.; Giannossa, L.C.; Huertas, F.J.; Lettino, A.; Mangone, A.; Fiore, S. Synthesis of Zeolites at Low Temperatures in Fly Ash-Kaolinite Mixtures. Microporous Mesoporous Mater. 2015, 212, 35–47. [Google Scholar] [CrossRef]
  8. Li, Y.; Peng, T.; Man, W.; Ju, L.; Zheng, F.; Zhang, M.; Guo, M. Hydrothermal Synthesis of Mixtures of Na-A Zeolite and Sodalite from Ti-Bearing Electric Arc Furnace Slag. RSC Adv. 2016, 6, 8358–8366. [Google Scholar] [CrossRef]
  9. Qian, T.; Li, J. Synthesis of Na-A Zeolite from Coal Gangue With the in-Situ Crystallization Technique. Adv. Powder Technol. 2015, 26, 98–104. [Google Scholar] [CrossRef]
  10. Fernandes-Machado, N.R.C.; Miotto, D.M.M. Synthesis of Na–A and –X Zeolites from Oil Shale Ash. Fuel 2005, 84, 2289–2294. [Google Scholar] [CrossRef]
  11. Belviso, S.; Cavalcante, F.; Lettino, A.; Ragone, P.; Belviso, C. Fly Ash as Raw Material for the Synthesis of Zeolite-Encapsulated Porphyrazine and Metallo Porphyrazine Tetrapyrrolic Macrocycles. Microporous Mesoporous Mater. 2016, 236, 228–234. [Google Scholar] [CrossRef]
  12. Collins, F.; Rozhkovskaya, A.; Outram, J.G.; Millar, G.J. A Critical Review of Waste Resources, Synthesis, and Applications for Zeolite LTA. Microporous Mesoporous Mater. 2020, 291, 109667. [Google Scholar] [CrossRef]
  13. Selim, M.M.; El-Mekkawi, D.M.; Aboelenin, R.M.M.; Sayed Ahmed, S.A.; Mohamed, G.M. Preparation and Characterization of Na-A Zeolite from Aluminium Scrub and Commercial Sodium Silicate for the Removal of Cd2+ from Water. J. Assoc. Arab Univ. Basic Appl. Sci. 2017, 24, 19–25. [Google Scholar]
  14. Mintova, S.; Olson, N.H.; Valtchev, V.; Bein, T. Nanocrystal Growth from Colloids at Room Temperature. Science 1999, 283, 958–960. [Google Scholar] [CrossRef] [PubMed]
  15. Ji, Y.; Zhang, B.; Zhao, B.; Li, H.; Wang, N. High-efficient synthesis of zeolite LTA via a wet-gel crystallization route. Chem. Res. Chin. Univ. 2017, 33, 520–524. [Google Scholar] [CrossRef]
  16. Smaïhi, M.; Barida, O.; Valtchev, V. Investigation of the Crystallization Stages of LTA-Type Zeolite by Complementary Characterization Techniques. Eur. J. Inorg. Chem. 2003, 2003, 4370–4377. [Google Scholar] [CrossRef]
  17. Valtchev, V.P.; Tosheva, L.; Bozhilov, K.N. Synthesis of Zeolite Nanocrystals at Room Temperature. Langmuir 2005, 21, 10724–10729. [Google Scholar] [CrossRef]
  18. Agger, J.R.; Pervaiz, N.; Cheetham, A.K.; Anderson, M.W. Crystallization in Zeolite A Studied by Atomic Force Microscopy. J. Am. Chem. Soc. 1998, 120, 10754–10759. [Google Scholar] [CrossRef]
  19. Yoon, K.B. Mono and Multilayer Assembly of Zeolite Microcrystals on Substrates. Bull. Korean Chem. Soc. 2006, 27, 17–26. [Google Scholar]
  20. Yoon, K.B. Organization of Zeolite Microcrystals for Production of Functional Materials. Acc. Chem. Res. 2007, 40, 29–40. [Google Scholar] [CrossRef]
  21. Leiggener, C.; Calzaferri, G. Monolayers of Zeolite A Containing Luminescent Silver Sulfide Clusters. Chem. Phys. Chem. 2004, 5, 1593–1596. [Google Scholar] [CrossRef]
  22. Walton, R.I.; Millange, F.; O’Hare, D.; Davies, A.T.; Sankar, G.; Catlow, C.R.A. An In Situ Energy-Dispersive X-ray Diffraction Study of the Hydrothermal Crystallization of Zeolite A. 1. Influence of Reaction Conditions and Transformation into Sodalite. J. Phys. Chem. B 2001, 105, 83–90. [Google Scholar] [CrossRef]
  23. Subotic, B.; Sekovanic, L. Transformation of Zeolite A into Hydroxysodalite. J. Cryst. Growth 1986, 75, 561–572. [Google Scholar] [CrossRef]
  24. Greer, H.; Wheatley, P.S.; Ashbrook, S.E.; Morris, R.E.; Zhou, W. Early Stage Reversed Crystal Growth of Zeolite A and Its Phase Transformation to Sodalite. J. Am. Chem. Soc. 2009, 131, 17986–17992. [Google Scholar] [CrossRef] [PubMed]
  25. Belviso, C. Ultrasonic vs Hydrothermal Method: Different Approaches to Convert Fly Ash into Zeolite. How They Affect the Stability of Synthetic Products Over Time? Ultrason. Sonochemistry 2018, 43, 9–14. [Google Scholar] [CrossRef] [PubMed]
  26. Belviso, C.; Lettino, A.; Cavalcante, F. Influence of Synthesis Method on LTA Time-Dependent Stability. Molecules 2018, 23, 2122. [Google Scholar] [CrossRef] [Green Version]
  27. Cundy, C.S.; Cox, P.A. The Hydrothermal Synthesis of Zeolites: History and Development from the Earliest Days to the Present Time. Chem. Rev. 2003, 103, 663–702. [Google Scholar] [CrossRef] [PubMed]
  28. Bushuev, Y.; Sastre, G.; De Julián-OrtizJ, V. The Structural Directing Role of Water and Hydroxyl Groups in the Synthesis of Beta Zeolite Polymorphs. J. Phys. Chem. C 2009, 114, 345–356. [Google Scholar] [CrossRef]
  29. Demontis, P.; Gulín-González, J.; Jobic, H.; Masia, M.; Sale, R.; Suffritti, G.B. Dynamical Properties of Confined Water Nanoclusters: Simulation Study of Hydrated Zeolite Na-A: Structural and Vibrational Properties. ACS Nano 2008, 2, 1603–1614. [Google Scholar] [CrossRef]
  30. Angell, C.A. Insights into Phases of Liquid Water from Study of Its Unusual Glass-Forming Properties. Science 2008, 319, 582–587. [Google Scholar] [CrossRef] [Green Version]
  31. Marcolli, C. Deposition Nucleation Viewed as Homogeneous or Immersion Freezing in Pores and Cavities. Atmos. Chem. Phys. Discuss. 2014, 14, 2071–2104. [Google Scholar] [CrossRef] [Green Version]
  32. Jelassi, J.; Castricum, H.; Bellissent-Funel, M.-C.; Dore, J.; Webber, J.B.W.; Sridi-Dorbez, R. Studies of Water and Ice in Hydrophilic and Hydrophobic Mesoporous Silicas: Pore Characterisation and Phase Transformations. Phys. Chem. Chem. Phys. 2010, 12, 2838. [Google Scholar] [CrossRef] [Green Version]
  33. Seyed-Yazdi, J.; Farman, H.; Dore, J.C.; Webber, J.B.W.; Findenegg, G.H. Structural Characterization of Water/Ice Formation in Sba-15 Silicas: III. the Triplet Profile for 86 Å Pore Diameter. J. Phys. Condens. Matter 2008, 20, 205108. [Google Scholar] [CrossRef] [PubMed]
  34. Liu, E.; Dore, J.C.; Webber, J.B.W.; Khushalani, D.; Jähnert, S.; Findenegg, G.H.; Hansen, T. Neutron Diffraction and NMR Relaxation Studies of Structural Variation and Phase Transformations for Water/Ice in SBA-15 Silica: I. the Over-Filled Case. J. Phys. Condens. Matter 2006, 18, 10009–10028. [Google Scholar] [CrossRef]
  35. Jażdżewska, M.; Sliwinska-Bartkowiak, M.; Domin, K.; Chudoba, D.M.; Beskrovnyi, A.I.; Neov, D.S.; Gubbins, K.E. Structure of Ice Confined in Carbon and Silica Nanopores. Bull. Mater. Sci. 2019, 42, 184. [Google Scholar] [CrossRef] [Green Version]
  36. Bordonskii, G.S.; Orlov, A.O. Phase Transitions of Water in Zeolite Pores. Tech. Phys. Lett. 2019, 45, 205–207. [Google Scholar] [CrossRef]
  37. Limmer, D.T.; Chandler, D. Phase Diagram of Supercooled Water Confined to Hydrophilic Nanopores. J. Chem. Phys. 2012, 137, 44509. [Google Scholar] [CrossRef] [Green Version]
  38. Menshikov, L.I.; Menshikov, P.L.; Fedichev, P.O. Phenomenological Model of Hydrophobic and Hydrophilic Interactions. J. Exp. Theor. Phys. 2017, 125, 1173–1188. [Google Scholar] [CrossRef]
  39. Janssen, A.H.; Talsma, H.; Van Steenbergen, M.J.; De Jong, K.P. Homogeneous Nucleation of Water in Mesoporous Zeolite Cavities. Langmuir 2004, 20, 41–45. [Google Scholar] [CrossRef] [Green Version]
  40. Kyakuno, H.; Matsuda, K.; Nakai, Y.; Fukuoka, T.; Maniwa, Y.; Nishihara, H.; Kyotani, T. Amorphous Water in Three-Dimensional Confinement of Zeolite-Templated Carbon. Chem. Phys. Lett. 2013, 571, 54–60. [Google Scholar] [CrossRef]
  41. Jiang, Z.; Zhao, G.; Hossain, S.M.C.; Gao, D. Coupled Experimental-Modeling Analyses of Heat Transfer in Ex-Vivo VS55-Perfused Porcine Hepatic Tissue Being Plunged in Liquid Nitrogen for Vitreous Cryopreservation. Int. J. Heat Mass Transf. 2017, 106, 970–979. [Google Scholar] [CrossRef]
  42. Fahy, G.; Macfarlane, D.; Angell, C.; Meryman, H. Vitrification as an Approach to Cryopreservation. Cryobiology 1984, 21, 407–426. [Google Scholar] [CrossRef]
  43. Faizullin, M.Z.; Koverda, V.P. Vitrification and Crystallization of Low-Temperature Amorphous Condensates of Water and Methane—Water Mixture. Russ. J. Phys. Chem. A 2012, 86, 229–234. [Google Scholar] [CrossRef]
  44. Poudyal, R.L.; Kobayashi, R.; Suzuki, T.; Watanabe, M. Effect of Different Freezing and Storage Condition on the Physical Properties of Protein Coagulum (Firm Tofu). Int. J. Refrig. 2019, 107, 11–19. [Google Scholar] [CrossRef]
  45. Olmo, A.; Baena, R.; Risco, R. Use of a Droplet Nucleation Analyzer in the Study of Water Freezing Kinetics Under the Influence of Ultrasound Waves. Int. J. Refrig. 2008, 31, 262–269. [Google Scholar] [CrossRef]
  46. Kiani, H.; Zhang, Z.; Sun, D.-W. Effect of Ultrasound Irradiation on Ice Crystal Size Distribution in Frozen Agar Gel Samples. Innov. Food Sci. Emerg. Technol. 2013, 18, 126–131. [Google Scholar] [CrossRef]
  47. Dalvi-Isfahan, M.; Hamdami, N.; Xanthakis, E.; Le-Bail, A. Review on the Control of Ice Nucleation by Ultrasound Waves, Electric and Magnetic Fields. J. Food Eng. 2017, 195, 222–234. [Google Scholar] [CrossRef]
  48. Cheng, X.; Zhang, M.; Xu, B.; Adhikari, B.; Sun, J. The Principles of Ultrasound and Its Application in Freezing Related Processes of Food Materials: A Review. Ultrason. Sonochemistry 2015, 27, 576–585. [Google Scholar] [CrossRef]
  49. Inaba, H.; Takeya, K.; Nozu, S. Fundamental Study on Continuous Ice Making Using Flowing Supercooled Water. JSME Int. J. Ser. B 1994, 37, 385–393. [Google Scholar] [CrossRef] [Green Version]
  50. Simonetti, F.; Fox, M. Experimental Methods for Ultrasonic Testing of Complex-Shaped Parts Encased in Ice. NDT E Int. 2019, 103, 1–11. [Google Scholar] [CrossRef]
  51. Mohd Khairi, M.T.; Ibrahim, S.; Md Yunus, M.A.; Faramarzi, M.; Abid, A. Experimental Methods for Ultrasonic Testing of Complex-Shaped Parts Encased in Ice. Measurement 2019, 146, 490–523. [Google Scholar]
  52. Saclier, M.; Peczalski, R.; Andrieu, J. Effect of Ultrasonically Induced Nucleation on Ice Crystals’ Size and Shape During Freezing in Vials. Chem. Eng. Sci. 2010, 65, 3064–3071. [Google Scholar] [CrossRef]
  53. Inada, T.; Zhang, X.; Yabe, A.; Kozawa, Y. Active Control of Phase Change from Supercooled Water to Ice by Ultrasonic Vibration 1. Control of Freezing Temperature. Int. J. Heat Mass Transf. 2001, 44, 4523–4531. [Google Scholar] [CrossRef]
  54. Gao, P.; Zhou, X.; Cheng, B.; Zhang, D.; Zhou, G. Study on Heat and Mass Transfer of Droplet Cooling in Ultrasound Wave. Int. J. Heat Mass Transf. 2017, 107, 916–924. [Google Scholar] [CrossRef]
  55. Thompson, R.W.; Huber, M.J. Analysis of the Growth of Molecular Sieve Zeolite NaA in a Batch Precipitation System. J. Cryst. Growth 1982, 56, 711–722. [Google Scholar] [CrossRef]
  56. Heard, C.J.; Grajciar, L.; Rice, C.M.; Pugh, S.M.; Nachtigall, P.; Ashbrook, S.E.; Morris, R.E. Fast Room Temperature Lability of Aluminosilicate Zeolites. Nat. Commun. 2019, 10, 1–7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Wang, R.; Gouseti, O.; Lopez-Quiroga, E.; Fryer, P.J.; Bakalis, S. Water Crystallization in Highly Concentrated Carbohydrate-Based Systems. Cryst. Growth Des. 2019, 19, 2081–2088. [Google Scholar] [CrossRef]
  58. Breuer, R.G.; Barsotti, L.R.; Kelly, A.C. Behaviour of Silica in Sodium Aluminate Solutions. In International Symposium on the Extract Metallurgy of Aluminium; Interscience: New York, NY, USA, 1963; pp. 133–157. [Google Scholar]
  59. Liu, Q.; Navrotsky, A. Synthesis of Nitrate Sodalite: An in Situ Scanning Calorimetric Study. Geochim. Cosmochim. Acta 2007, 71, 2072–2078. [Google Scholar] [CrossRef]
  60. Li, X.; Wang, X.; Passaro, M.D.; Spinelli, N.; Apicella, B. Insights on Clusters Formation Mechanism by Time of Flight Mass Spectrometry. 1. The Case of Ethanol–Water Clusters. J. Am. Soc. Mass Spectrom. 2015, 26, 1665–1675. [Google Scholar] [CrossRef] [Green Version]
Materials 13 04780 g001 550

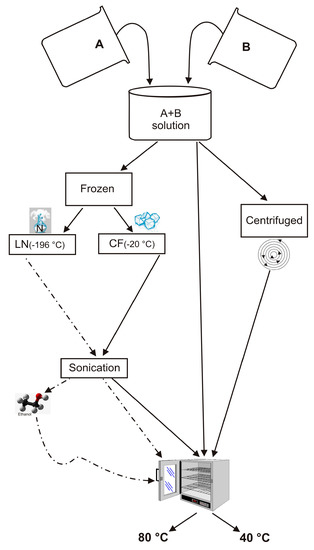

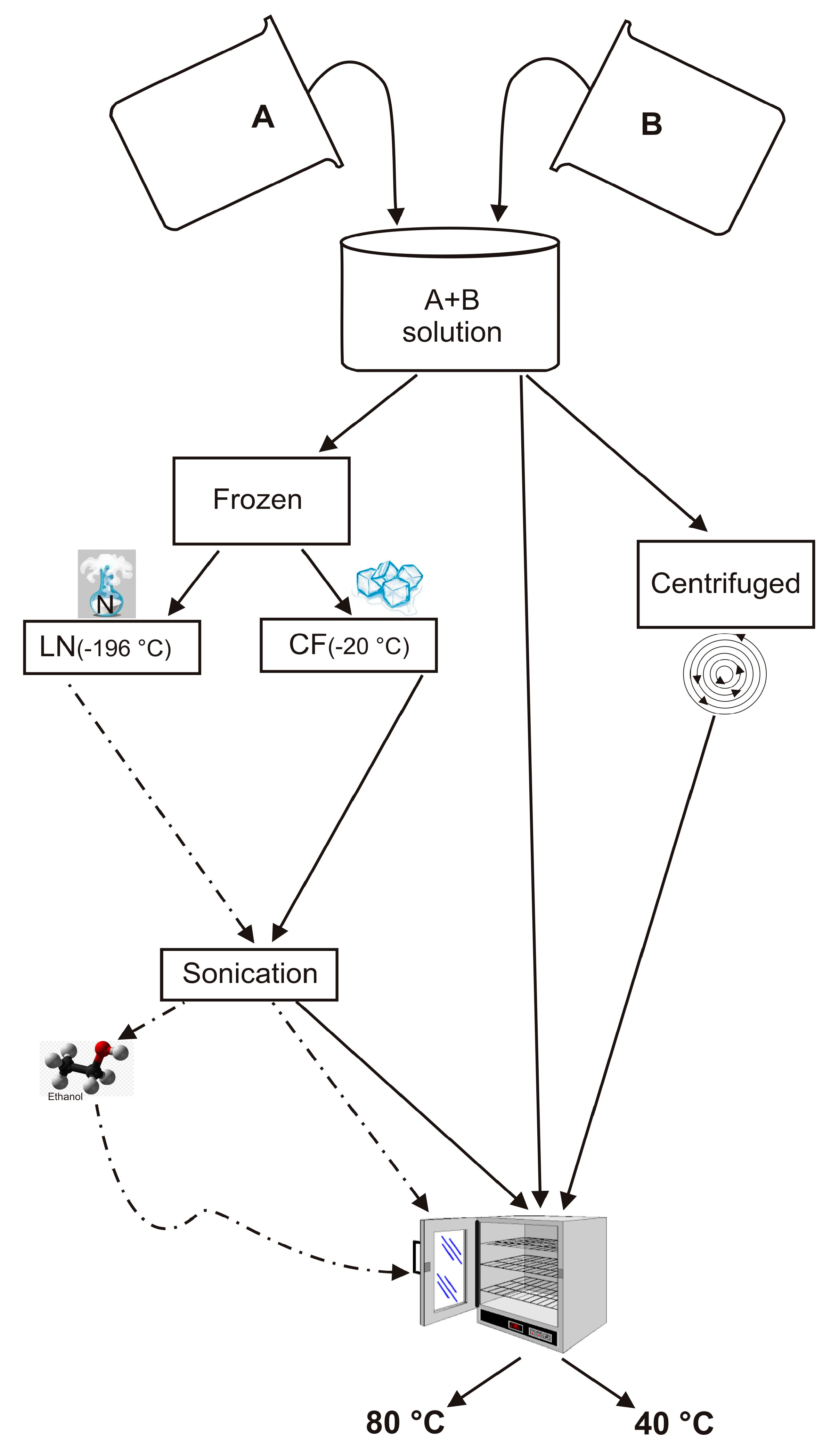

Figure 1. Schematic presentation of the experiments performed.
Figure 1. Schematic presentation of the experiments performed.
Materials 13 04780 g001
Materials 13 04780 g002 550

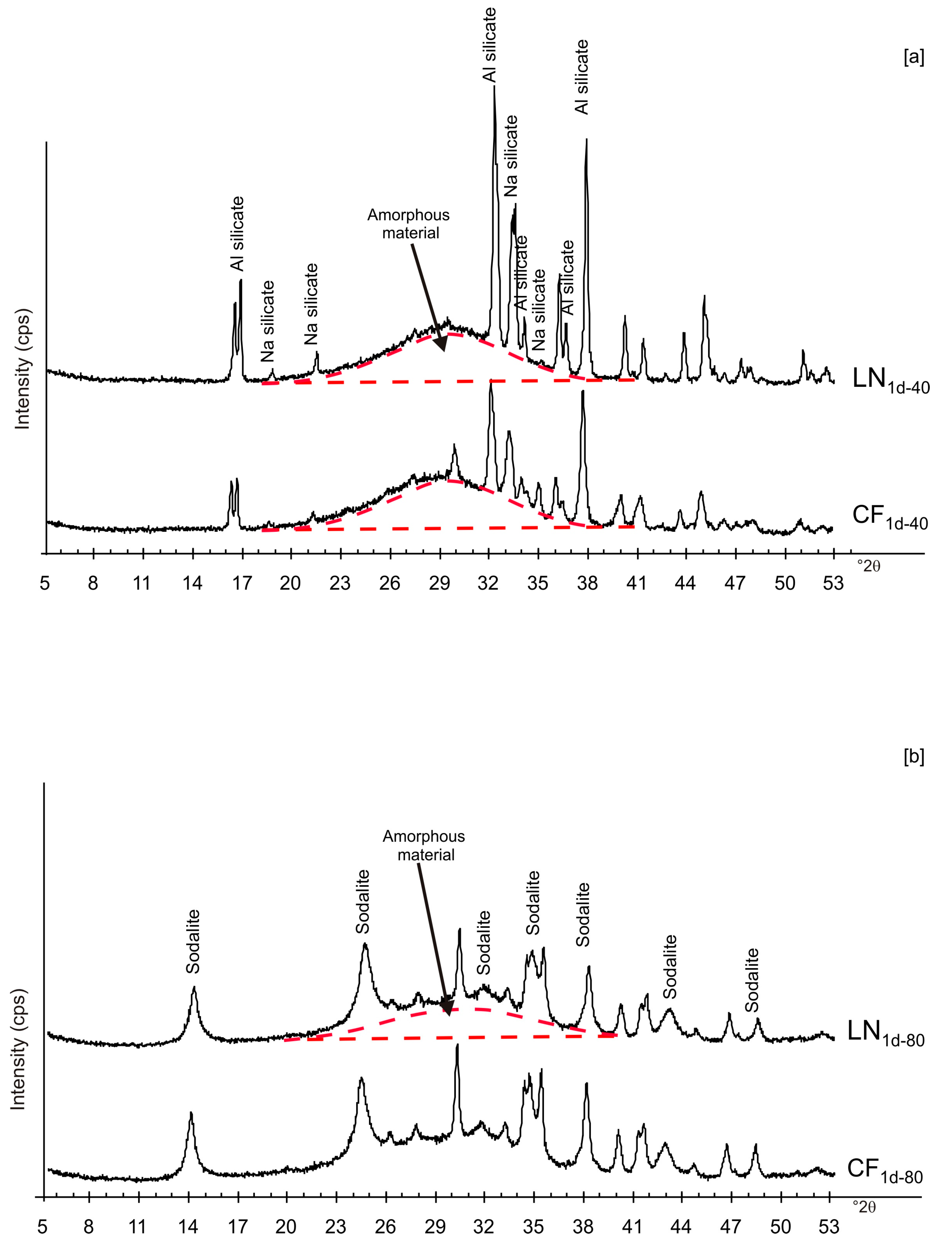

Figure 2. X-ray patterns of CF and LN samples immediately after drying at 40 (a) and 80 °C (b).
Figure 2. X-ray patterns of CF and LN samples immediately after drying at 40 (a) and 80 °C (b).
Materials 13 04780 g002
Materials 13 04780 g003 550
Figure 3. SEM images of: (a) CF and (b) LN samples after drying 80 °C.
Figure 3. SEM images of: (a) CF and (b) LN samples after drying 80 °C.
Materials 13 04780 g003
Materials 13 04780 g004 550

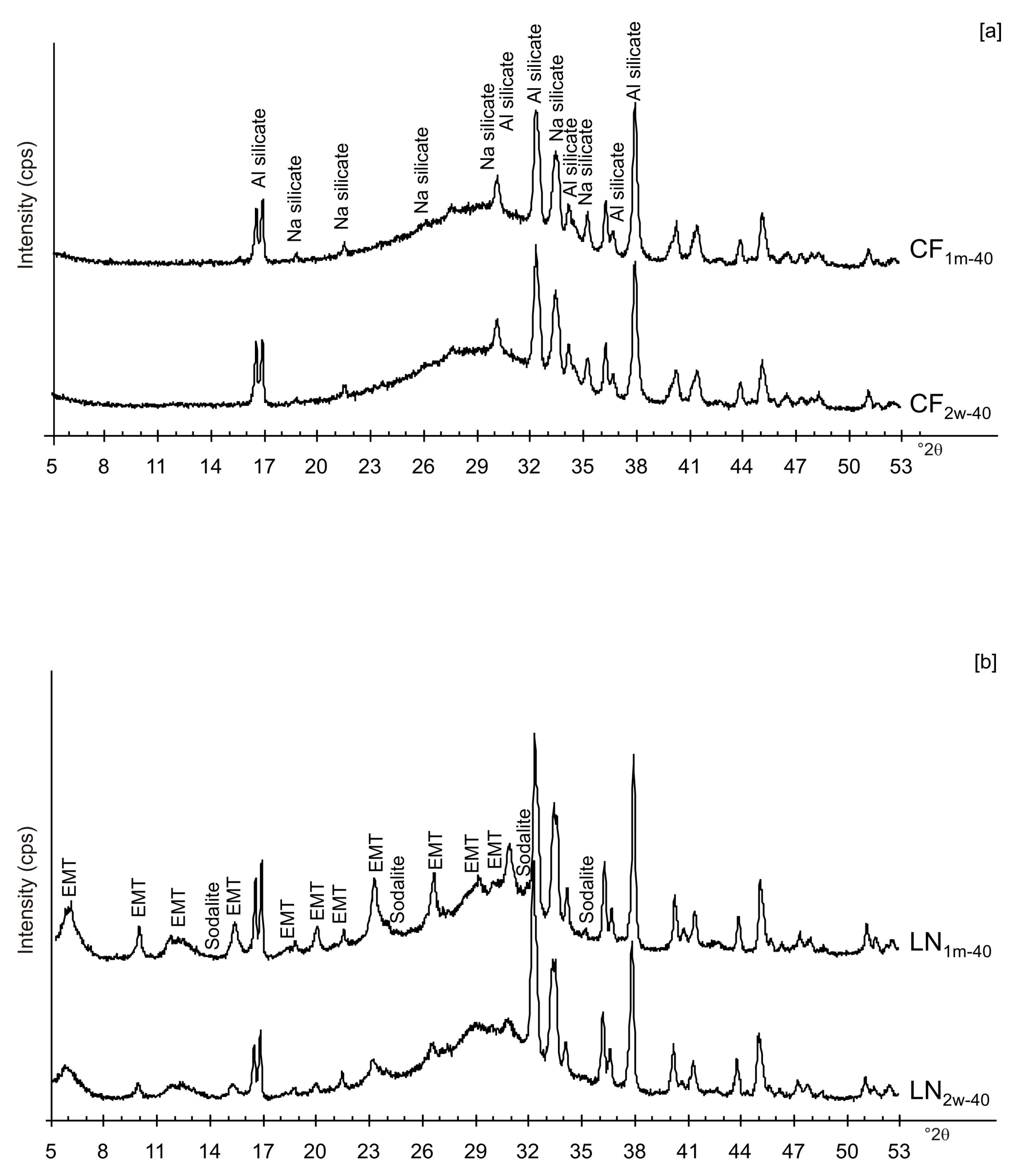

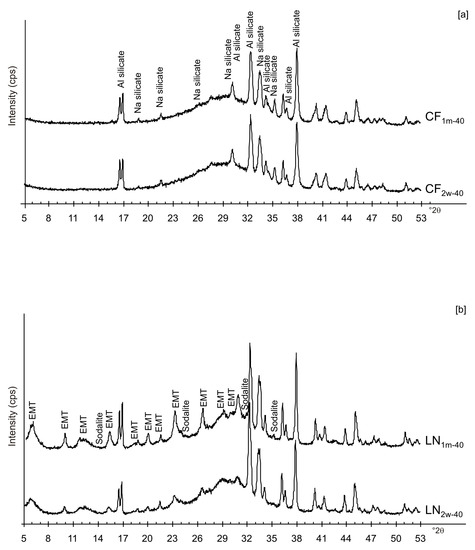

Figure 4. XRPD profiles of: (a) CF and (b) LN samples dried at 40 °C and analysed after 2 weeks and 1 month.
Figure 4. XRPD profiles of: (a) CF and (b) LN samples dried at 40 °C and analysed after 2 weeks and 1 month.
Materials 13 04780 g004
Materials 13 04780 g005 550
Figure 5. SEM images of EMT zeolite in (a) LN2w-40 and (b) LN1m-40. (c) Sodalite formed in both LN2w-40 and LN1m-40.
Figure 5. SEM images of EMT zeolite in (a) LN2w-40 and (b) LN1m-40. (c) Sodalite formed in both LN2w-40 and LN1m-40.
Materials 13 04780 g005
Materials 13 04780 g006 550

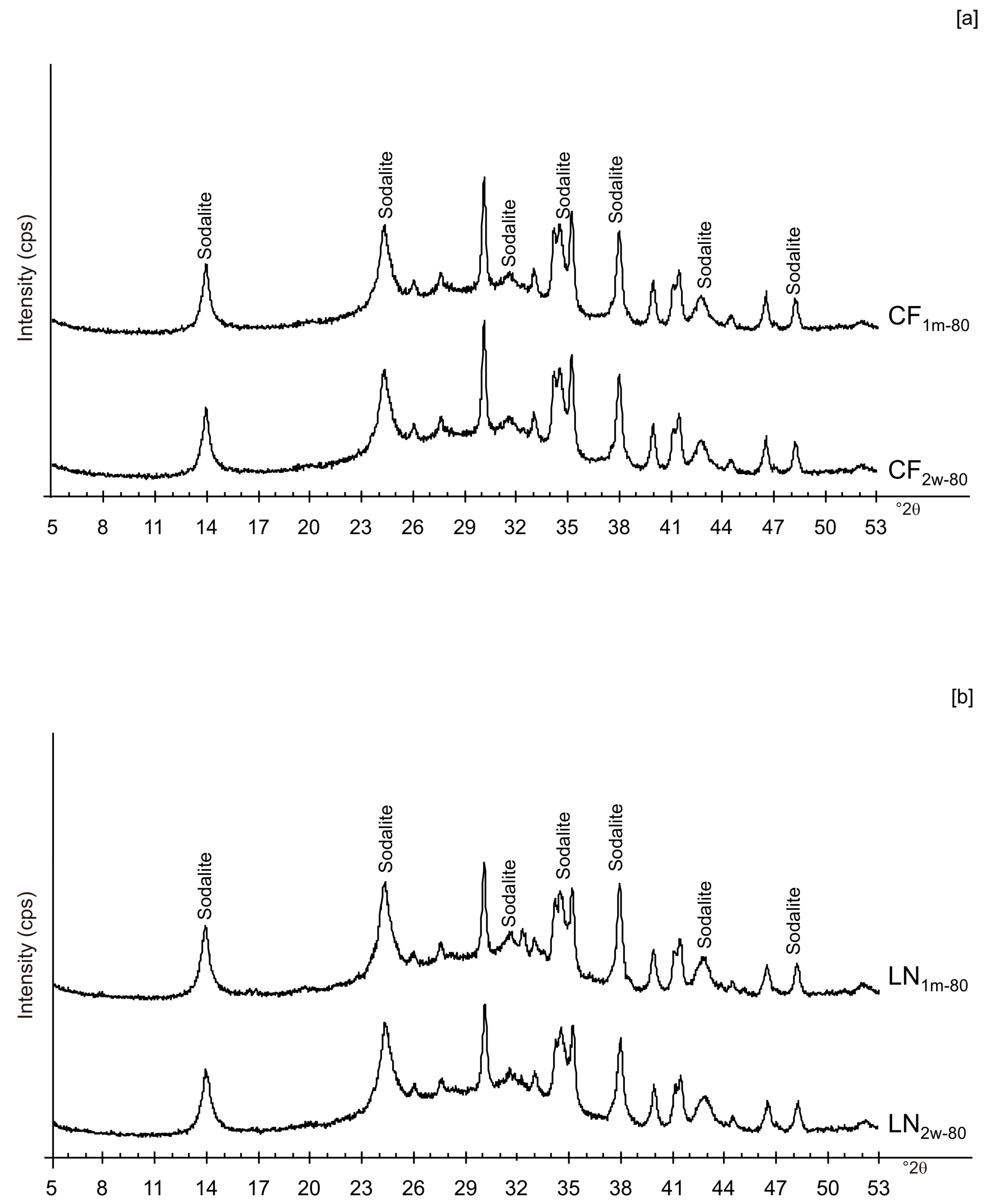

Figure 6. XRPD profiles of: (a) CF and (b) LN samples dried at 80 °C and analysed after 2 weeks and 1 month.
Figure 6. XRPD profiles of: (a) CF and (b) LN samples dried at 80 °C and analysed after 2 weeks and 1 month.
Materials 13 04780 g006
Materials 13 04780 g007 550

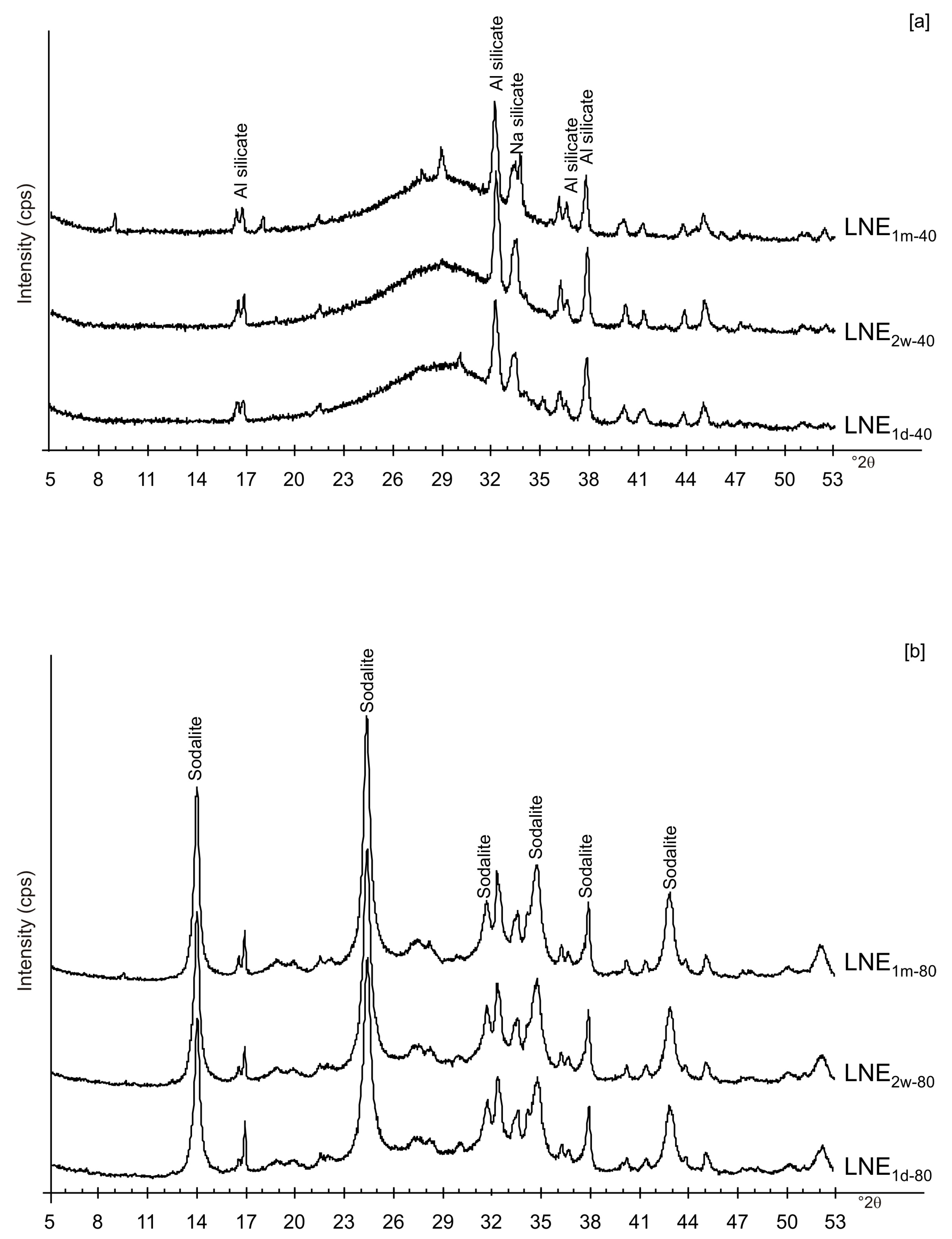

Figure 7. XRD pattern of LN samples after ethanol washing and drying at (a) 40 °C and (b) 80 °C.
Figure 7. XRD pattern of LN samples after ethanol washing and drying at (a) 40 °C and (b) 80 °C.
Materials 13 04780 g007
Materials 13 04780 g008 550
Figure 8. SEM images of sodalite formed in LNE samples.
Figure 8. SEM images of sodalite formed in LNE samples.
Materials 13 04780 g008
Materials 13 04780 g009 550

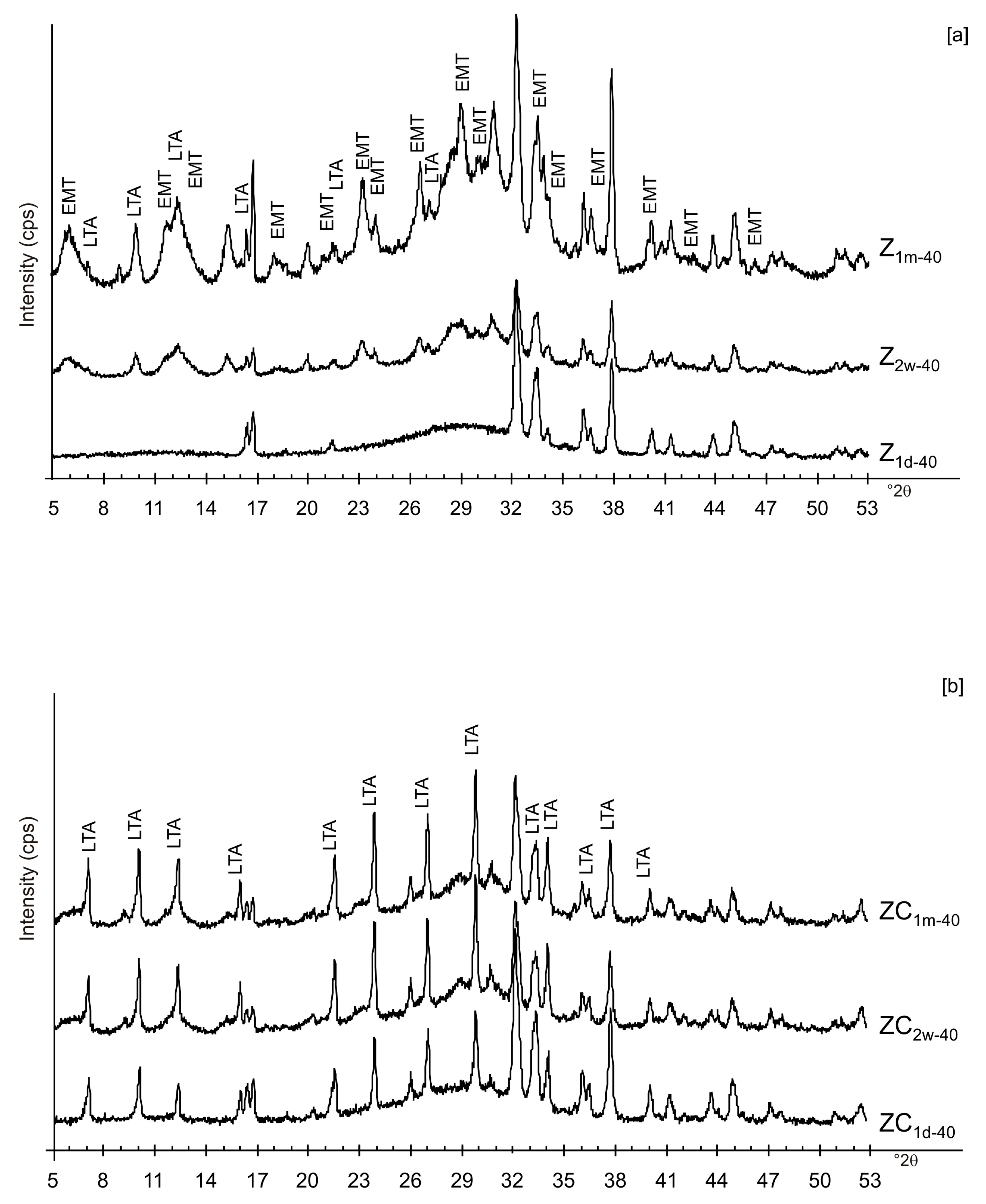

Figure 9. X-ray diffraction profiles of Z (a) and ZC (b) dried at 40 °C.
Figure 9. X-ray diffraction profiles of Z (a) and ZC (b) dried at 40 °C.
Materials 13 04780 g009
Materials 13 04780 g010 550

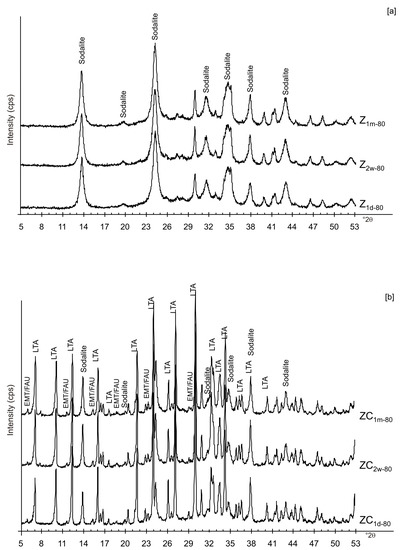

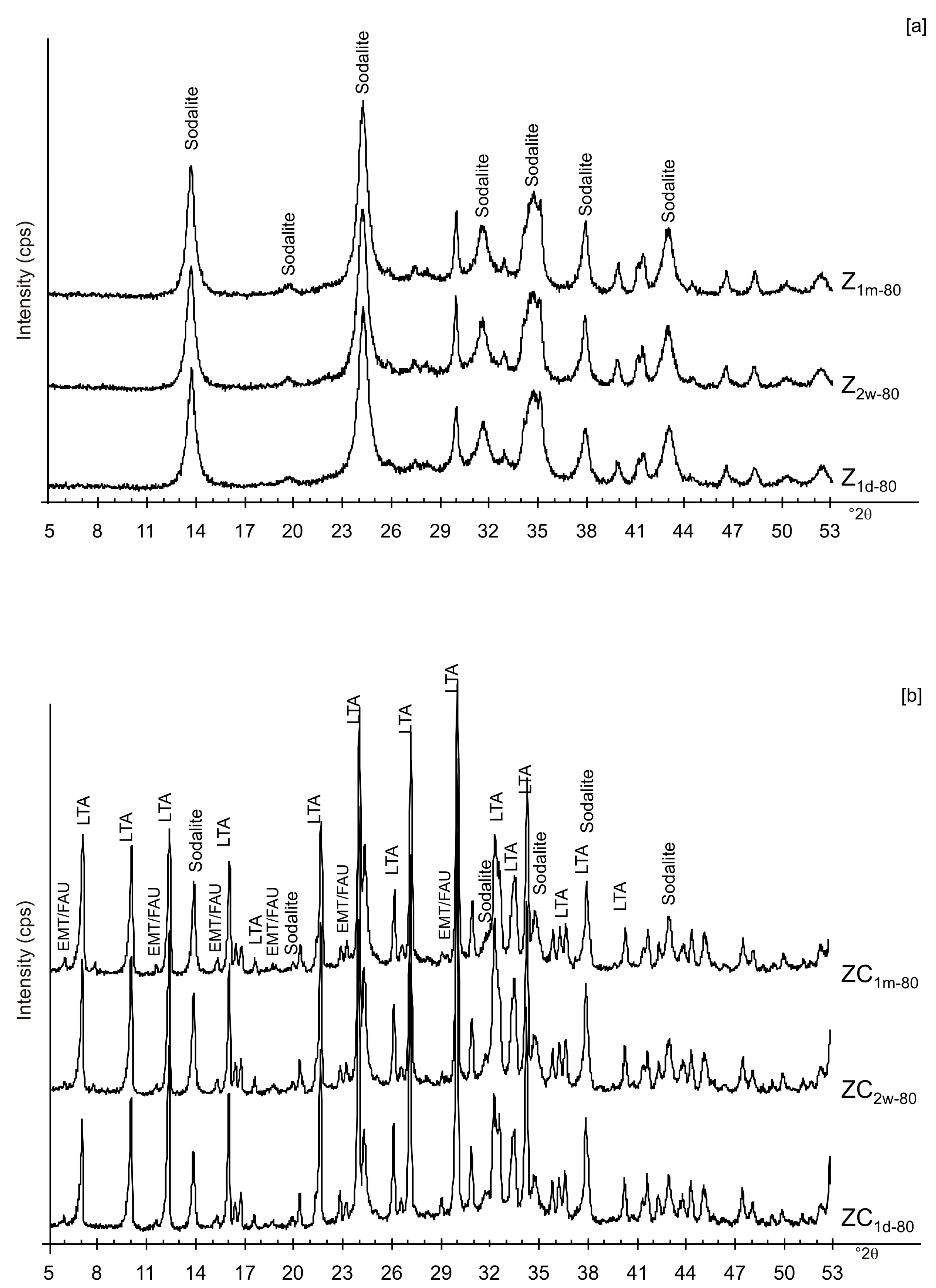

Figure 10. X-ray diffraction profiles of Z (a) and ZC (b) dried at 80 °C.
Figure 10. X-ray diffraction profiles of Z (a) and ZC (b) dried at 80 °C.
Materials 13 04780 g010
Table
Table 1. Scheme of Experiemnts and Relative Sample Codes.
Table 1. Scheme of Experiemnts and Relative Sample Codes.
Sample CodeFreezing Process Additional TreatmentsDrying TemperatureAging Time at Solid StateMain Mineralogical Composition
Liquid Nitrogen Conventional Freezer Ethanol WashingCentrifuge40 °C80 °C1 Day2 Weeks1 Month
LN1d-40x x x Amorphous, Al and Na silicate
LN1d-80x xx Amorphous, Sodalite
LN2w-40x x x Amorphous, EMT, Sodalite
LN2w-80x x x Amorphous, Sodalite
LN1m-40x x xAmorphous, EMT, Sodalite
LN1m-80x x xAmorphous, Sodalite
CF1d-40 x x x Amorphous, Al and Na silicate
CF1d-80 x xx Amorphous, Sodalite
CF2w-40 x x x Amorphous, Al and Na silicate
CF2w-80 x x x Amorphous, Sodalite
CF1m-40 x x xAmorphous, Al and Na silicate
CF1m-80 x x xAmorphous, Sodalite
LNE1d-40x x x x Amorphous, Al and Na silicate
LNE1d-80x x xx Amorphous, Sodalite
LNE2w-40x x x x Amorphous, Al and Na silicate
LNE2w-80x x x x Amorphous, Sodalite
LNE1m-40x x x xAmorphous, Al and Na silicate
LNE1m-80x x x xAmorphous, Sodalite
ZC1d-40 xx x Amorphous, LTA
ZC1d-80 x xx LTA, EMT, sodalite
ZC2w-40 xx x Amorphous, LTA
ZC2w-80 x x x LTA, EMT, sodalite
ZC1m-40 xx xAmorphous, LTA
ZC1m-80 x x xLTA, EMT, sodalite
Z1d-40 x x Amorphous, Al and Na silicate
Z1d-80 xx Sodalite
Z2w-40 x x Amorphous, EMT, LTA
Z2w-80 x x Sodalite
Z1m-40 x xAmorphous, EMT, LTA
Z1m-80 x xSodalite
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Belviso, C.; Cavalcante, F. Effect of H2O Activity on Zeolite Formation. Materials 2020, 13, 4780. https://doi.org/10.3390/ma13214780

AMA Style

Belviso C, Cavalcante F. Effect of H2O Activity on Zeolite Formation. Materials. 2020; 13(21):4780. https://doi.org/10.3390/ma13214780

Chicago/Turabian Style

Belviso, Claudia, and Francesco Cavalcante. 2020. "Effect of H2O Activity on Zeolite Formation" Materials 13, no. 21: 4780. https://doi.org/10.3390/ma13214780

APA Style

Belviso, C., & Cavalcante, F. (2020). Effect of H2O Activity on Zeolite Formation. Materials, 13(21), 4780. https://doi.org/10.3390/ma13214780

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
