Zirconia Reduced Graphene Oxide Nano-Hybrid Structure Fabricated by the Hydrothermal Reaction Method

by
Anton Smirnov
1,*,
Nestor Washington Solís Pinargote
1,
Nikita Peretyagin
1,
Yuri Pristinskiy
1,
Pavel Peretyagin
1 and
José F. Bartolomé
2,*
1
Spark Plasma Sintering Research Laboratory, Moscow State University of Technology “STANKIN”, Vadkovsky per. 1, Moscow 127055, Russia
2
Instituto de Ciencia de Materiales de Madrid (ICMM), Consejo Superior de Investigaciones Científicas (CSIC), C/ Sor Juana Inés de la Cruz 3, 28049 Madrid, Spain
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(3), 687; https://doi.org/10.3390/ma13030687
Submission received: 22 November 2019 / Revised: 15 January 2020 / Accepted: 28 January 2020 / Published: 4 February 2020
Browse Figures
Versions Notes

Abstract

:
In this work, we report an available technique for the effective reduction of graphene oxide (GO) and the fabrication of nanostructured zirconia reduced graphene oxide powder via a hydrothermal method. Characterization of the obtained nano-hybrid structure materials was carried out using a scanning electron microscopy (SEM), transmission electron microscopy (TEM), X-ray diffraction (XRD), Raman spectroscopy, X-ray photoelectron spectroscopy (XPS) and Fourier-transform infrared spectroscopy (FTIR). The confirmation that GO was reduced and the uniform distribution of zirconia nanoparticles on graphene oxide sheets during synthesis was obtained due to these techniques. This has presented new opportunities and prospects to use this uncomplicated and inexpensive technique for the development of zirconia/graphene nanocomposite powders.

1. Introduction

Over the past years carbon-based nanostructured materials such as carbon, CNTs (carbon nanotubes), graphene, CNFs (carbon nanofibers), fullerenes, etc. have accomplished swift evolution and extensive use because of their Van der Waals force and covalent bonding, chemical stability, and high stiffness and strength together with their low weight.
The formation of graphene [1] raised new perspectives with respect to design of new class of materials with improved characteristics with a large diversity of essential functionalities, including physical, mechanical, thermal, and optical properties as well as chemical and bioperformance [2,3,4,5,6,7,8,9].
The sp2 hybridisation that occurs during the formation of carbon atoms is in charge of its stand-out in-plane elastic and mechanical properties, namely Young modulus (0.5–1 TPa [10]) and tensile strength (130 GPa [9]). Meanwhile, a large surface area of 2D structure of graphene gives a more matrix-second phase interaction area regardless of the interaction accompanied by transfer of electrons, phonons or mechanical stresses compared to CNTs or graphite [3,11]. As a result of these remarkable properties, graphene is very attractive candidate as reinforcement phase for composites with all kinds of matrix, whether ceramic, polymer or metal.
Recently, zirconia ceramics (ZrO2) have received significant attention from the scientific circles as a potential material for various structural applications, because of their high mechanical characteristics, physical and chemical wear, and thermal stability coupled with corrosion resistance and zero toxicity [12,13,14,15,16,17,18,19,20,21,22]. Enhancing in mechanical performance and effective control on electrical and thermal properties is a need in order for the possible future large-scale application of ZrO2.
It was stated that the presence of graphene phase can contribute to important improvements in bulk ceramic properties, such as mechanical, tribological, electrical, thermal, etc. There has been significant growth in the number of works on graphene-reinforced composites with concrete references to the various graphene synthesis techniques and processing methods of ceramic/graphene composites, including available sintering options after the isolation of graphene in 2004 [23,24,25,26,27,28]. The good bonded interfaces in matrix/graphene composites along with outstanding mechanical and the amazing structural features of graphene has been considered as a strengthening mechanism of graphene reinforcement.
Lately, graphene/ZrO2 composites were prepared using various methods. Achieving the homogeneous distribution of graphene in the initial powder is essential to produce in order to have a uniform composite upon sintering.
For example, Liu et al. [29] and Walker et al. [30] showed that the nanostructured matrix, the GNPs (graphene nanoplatelets) generate three-dimensional cracks deflection, and the resulting in an improvement in fracture toughness. Shin and Hong fabricated reduced graphene oxide (rGO)-reinforced yttria-stabilized zirconia by spark plasma sintering, and reported a 34% increase in fracture toughness [31]. Kwon et al. demonstrated that the enhanced mechanical properties of ZrO2 composites can be achieved by addition of 3 wt.% graphene as a strengthening phase [32]. Chen et al. prepared graphene-reinforced zirconia ceramics using field-assisted sintering and fracture toughness values were higher in comparison to GNPs-free 3Y-TZP samples [33].
Rincón et al. produced multilaminates graphene oxide (GO)/ 8 mol% yttria stabilized zirconia by colloidal processing subsequent spark plasma sintering and reported that the addition of GO-enriched layer into zirconia laminates is slowing down the probabilities of crack generation and propagation [34].
In the work of Rao et al., the surface modified graphene zirconium oxide was synthesized and characterized as a nanocomposite material. It was utilized as an adsorbent for the removal of chlorophenols from aqueous solution. The removal efficiency was maximum towards 4-chlorophenol at pH 1.0 and decreased with increasing pH [35].
Teymourian et al. reported the synthesis of the high performance zirconium dioxide-reduced graphene oxide composite and its application as a novel architecture for electrochemical sensing and biosensing purposes [36].
Furthermore, Li et al. prepared zirconia/graphene nanosheets composite coatings using a plasma spraying technique. The obtained composite coating demonstrated low friction coefficient and improved wear resistance [37].
Additionally, in recent years the production of nanostructured crystalline particles has gained attention, as they possess enhanced performance abilities over conventional coarser grain materials. In order to prepare nanocrystalline zirconia-based nanocomposites, different methods such as the sol/gel method [38], vapor phase method [39], pyrolysis [40], spray pyrolysis [41], hydrolysis [42], and microwave plasma [43] have been proposed. However, these methods have many limitation factors such as complex arrangements, high temperature for the process, extended reaction time, poisonous constituents and by-products, and high costs of production, which made it difficult to prepare zirconia nanoparticles on a large-scale production.
Therefore, in order to produce effectively isolated nanoparticles with a narrower size distribution, the hydrothermal methods are mentioned as having great potential [44,45]. This technique is straightforward and low-cost.
All that is required for synthesis is to take a Teflon-lined stainless-steel autoclave and put the materials and precurcors in inside of it.
Uniform nucleation processes and very low grain size highlighted are highlighted as the main benefits of this method. Therefore, the purpose of this work was to produce graphene oxide (GO) with the subsequent production of reduced graphene oxide (rGO), which is used as a support to anchor zirconia nanoparticles and leading to their uniform distribution on the surface of rGO. This special nano-hybrid structure provides the opportunity to obtain a uniform composite ceramic/graphene nanopowder that can be used as a raw material to fabricate dense multi-purpose zirconia-based composites reinforced with nanostructure graphene, which combine the desired properties of each component. Thus, the aim of the present work is to obtain a nanocomposite material when there is phase uniformity and good interfacial bonding between the graphene and matrix after sintering.

2. Materials and Methods

2.1. Preparation of Graphene Oxide

Hummers’ method was used as synthesis technique of graphene oxide (GO) from graphite powder which was oxidized. Briefly, this approach involves Hummer’s reagents with low levels of NaNO3 and KMnO4 in concentrated H2SO4. Pure graphite powder was steadily added (along with NaNO3) into a hot concentration of H2SO4 solution that would be cooled in an ice bath. Afterward, KMnO4 was slowly added, in small doses, to keep the reaction temperature below 20 °C. Then the suspension was treated with a hydrogen peroxide (H2O2) solution and washed with HCl and H2O in order to complete the reaction with KMnO4. After filtration and drying, GO sheets were obtained. In the previous works, this process is decribed in further detail [28,46,47].

2.2. Synthesis of ZrO2/rGO Nanocomposite Powders

The as-prepared GO was exfoliated ultrasonically for 2 h in order to obtain a stable GO colloidal suspension with a concentration of 2.33 mg∙mL−1. The synthesis of reduced graphene oxide-nanozirconia (ZrO2/rGO) composites was carried out by means of a simple hydrothermal process, in which the GO suspension was used as the rGO precursor, N2H4·H2O and ZrOCl2·8H2O acted as the reducing agent and the nZrO2 precursor, respectively. Firstly, 40 mL of GO colloidal suspension was mixed with 20 mL of a ZrOCl2 solution (0.01 M) to obtain a mixed solution of GO and ZrOCl2 with a volume ratio of 2:1. After being sonicated for 30 min, 1 mL hydrazine hydrate was added to the mixture and was poured into a 200 mL stainless steel teflon-lined autoclave, which was sealed and maintained at 180 °C for 18 h, and then naturally cooled at room temperature. For the purpose of removing Cl-ions, the obtained material was washed, centrifuged, and re-dispersed five times in deionized water. Finally, the ZrO2/rGO nanocomposite powders were dried in a FreeZone2.5 freeze-drying system (LabConco, Kansas, MO, USA). The collector temperature is continuously set at −50 ± 2 °C.
Furthermore, the shell temperature and the chamber pressure were kept at 23 ± 2 °C and 0.02 ± 0.01 mbar, respectively, during the entire process [30]. For comparison purposes, non-reduced graphene oxide-nanozirconia (ZrO2/GO) composite powder was prepared following the same cycle without the addition of N2H4·H2O.

2.3. Microstructural Characterization of the As-Prepared Nanocomposite Powders

The microstructure, crystalline structure, and surface morphology characterizations of the as-synthesized samples were evaluated by transmission electron microscopy JEM 3010 (JEOL, Tokyo, Japan, accelerating voltage 200 kV). To this end, nanopowders were placed on a TEM grid (perforated carbon film on the copper mesh, Plano GmbH, Wetzlar, Germany) [22].
As was described previously, the particle diameter distribution of the nanocrystalline zirconia was determined from TEM micrographs by measuring the diameters of about 800 zirconia nanoparticles in both synthesized nanopowders. From these data, the density distribution of the particle diameters on number basis q0 and on surface area basis q2 were compiled. A Gaussian normal distribution was fitted to the measured distribution in order to obtain the corresponding geometric mean particle diameters μg(q0) and μg(q2). The cumulative distribution of the particle diameters q0 was fitted with a sigmoid function to obtain the characteristic particle diameter d50. The specific surface area STEM of the zirconia nanoparticles was calculated from μg(q2) using the density of 5.68 g/cm2 and assuming spherical particles [22]. Further, the field emission scanning electron microscopy (FE-SEM) observations were performed by LYRA3 (Tescan, Brno, Czech Republic).

2.4. X-ray Diffraction (XRD), Raman, X-ray Photoelectron Spectroscopy (XPS) and Fourier Transform Infrared (FTIR) Characterization

X-ray diffraction measurements were conducted using an Empyrean diffractometer (PANalytical, Almelo, Netherlands) ranging from 5° to 70°. The step size was 0.05 with a scan speed of 0.06 /min. The diffractometer used Cu Kα radiation (λ = 1.5405981) working at 40 kV and with an intensity of 30 mA [48].
Raman spectra of studied materials were collected to identify the phase composition. The Raman setup is composed of a laser (DXRTM2 Raman Microscope, Thermo FisherScientific, Waltham, MA, USA) with a wavelength of 532 nm and a laser power of 2.0 mW. The laser beam was focused through an optical microscope’s 50× objective lens to a spot size of 2 µm on the studied area (from different spots, at an interval of 10 µm). The accumulation time for each Raman spectrum was about 10 s [26].
All X-ray photoelectron spectroscopy (XPS) measurements were carried out on a K-Alpha (Thermo FisherScientific, Waltham, MA, USA) photoelectron spectrometer equipped with a micro-focused monochromator Al Kα X-ray source. Peak fitting of the C1s and Zr3d spectra for ZrO2/rGO and ZrO2/GO nanopowders were conducted separately using a Gaussian–Lorentzian function after performing a Shirley background correction.
Fourier transform infrared (FTIR) spectra of the synthesized nanocomposite powders were measured (Vertex 70 spectrometer, Bruker AXS Inc., Madison, WI, USA) in the wavenumber range 500 cm−1 to 4000 cm−1 (transmission mode, resolution 2 cm−1, 120 scans per sample). For this purpose, potassium bromide (KBr) pellets (diameter 1.0–1.3 cm) of each powder sample were prepared using a uniaxial press [49].

3. Results and Discussion

The nanozirconia crystals have a particularly spherical shape and they are uniformly dispersed. Almost no difference was found in particle size distribution and specific surface area. The geometric mean diameters μg(q0) and μg(q2) of the particle size distribution are 5.1 nm ± 0.8nm and 4.8 nm ± 1.2 nm, respectively, and the d50 diameter is 5.0 nm with an uncertainty of ± 0.8 nm for both ZrO2/GO and for ZrO2/rGO nanopowders. The specific surface area STEM of the nanopowders was calculated from the geometric mean diameter μg(q2) and reached a value of 110.0 m2/g.

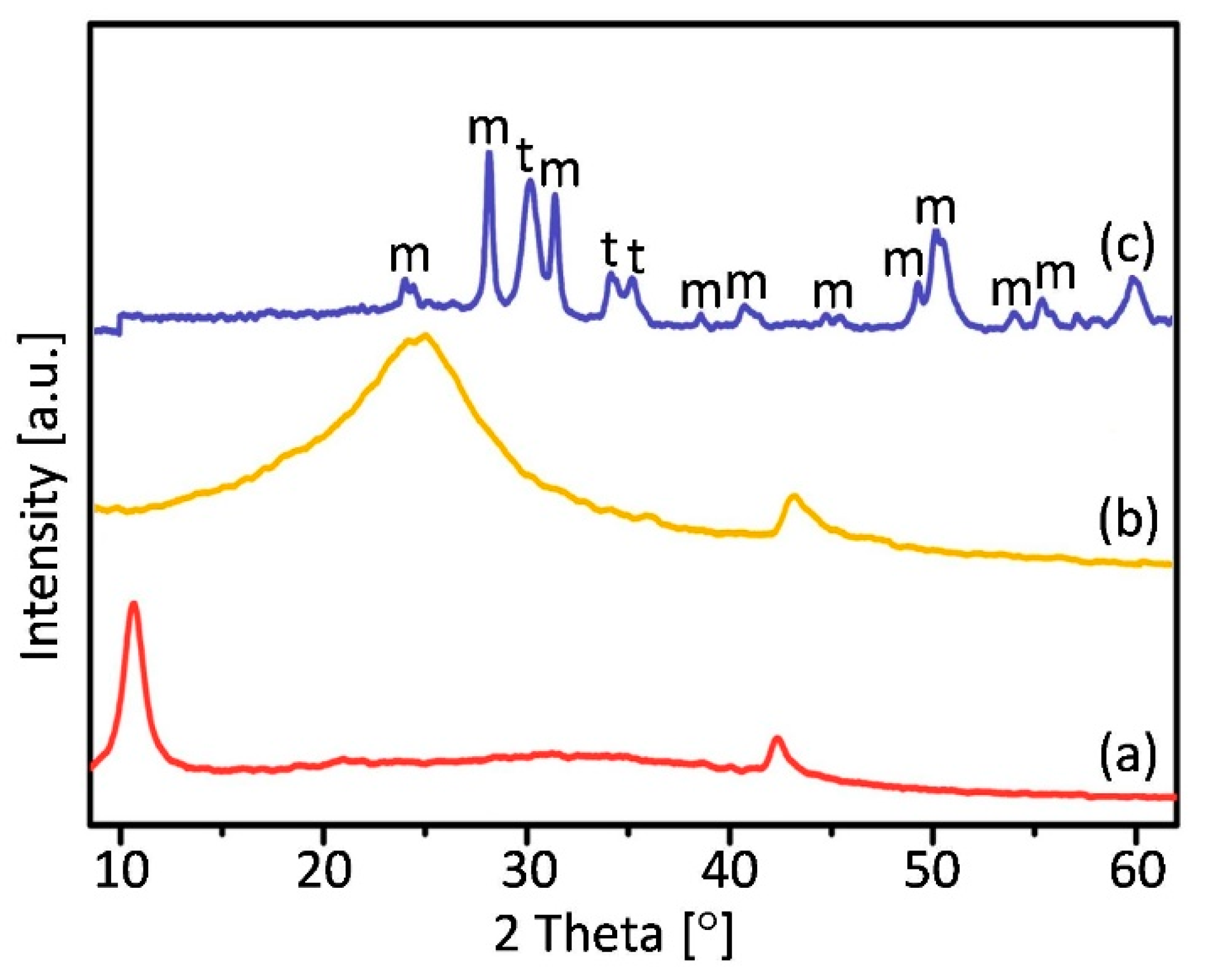

Figure 1 shows a representative diffraction pattern of a fabricated nanopowders.
The most intense apparent peak located at 2θ = 10.8° in the curve of GO, and corresponds to the (001) reflection of GO [50]. The result confirms the oxidation and the fact that raw graphite was converted into graphene oxide becouse of the appearance of oxygen-containing functional groups [51]. The rGO pattern accompanied with a major (002) peak centered at around 25° assigned to the reduction of GO sheets and restacking into an ordered crystalline structure [52]. On the X-Ray diffractogram of ZrO2/rGO nanocomposite powder diffraction peaks in the region up to 20° are not presented as indicated in the case of GO and enables to say that the GO was well reduced during the reaction. In addition, analys of intensities and peaks location appearing in XRD data were compared with the infromation from the International Centre for Diffraction Data (ICDD) for tetragonal (PDF file no.01-083-0113) and monoclinic (PDF file no. 00-024-1165) structures.

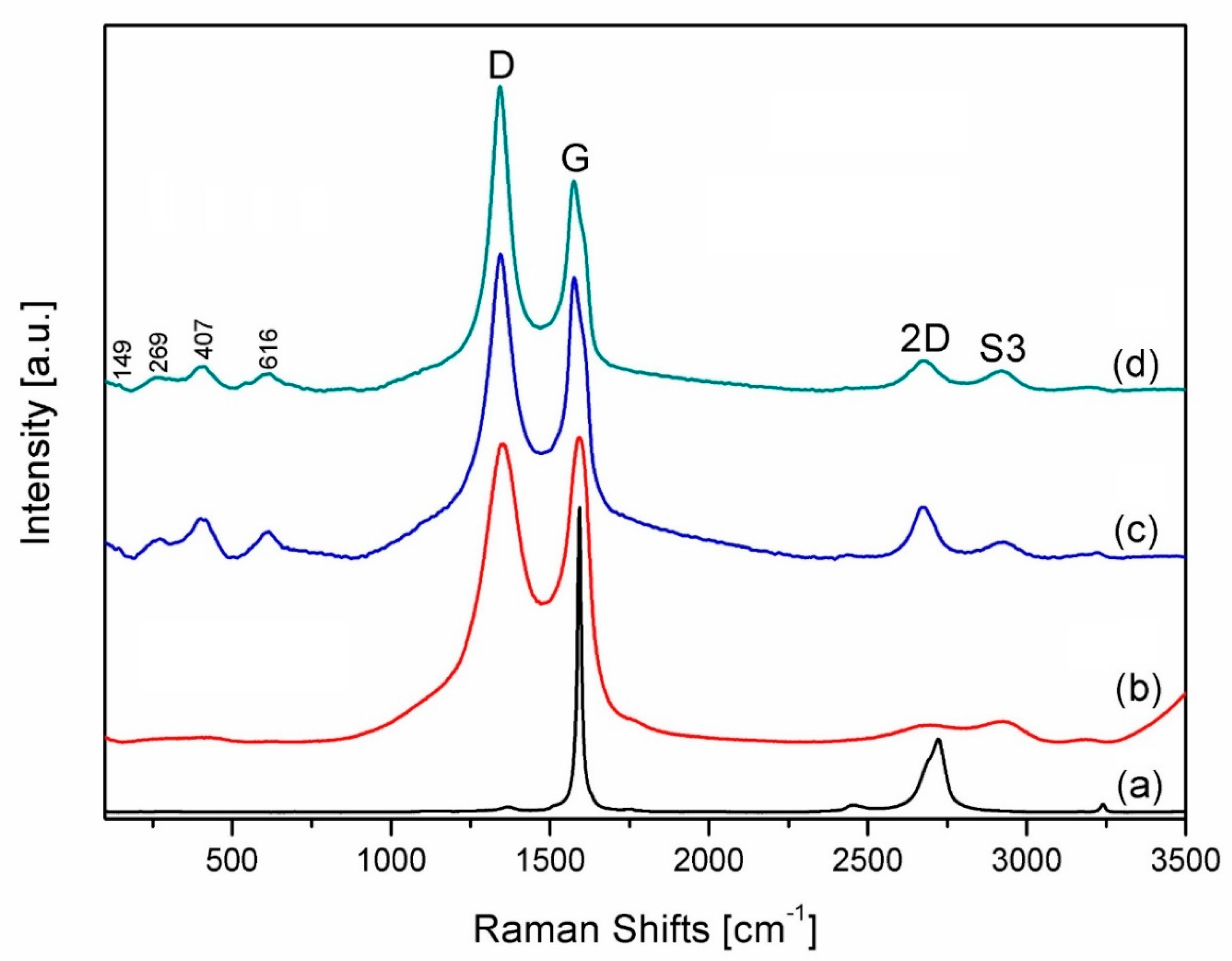

The Raman spectra of all the studied materials are shown in Figure 2.
Raman spectrum of the graphite sample shows the characteristic peaks for this material. For instance, the peak located at ~1584 cm−1 is the G band and it is the more intence than the 2D (2720 cm−1) and D (~1350 cm−1) bands (Figure 1a). In the case of graphene (Figure 1b–d), a imperceptible second-order zone and a broad G peak are peculiarity of hybridized carbon-carbon bonds (sp1, sp2 and sp3) [24]. The more intense D bands (Figure 2c,d) at ~1350 cm−1 means that sp2 bonds were broken and, consequently, it indicates that a intended transformation of sp2 hybridization to sp3 was occurred, which shows a rise of the disorder in the sp2-hybridized carbon system [26]. This difference in intensity between D and G bands is particularly marked in ZrO2/rGO (Figure 2d) powders, which illustrates the creation of new defects in the sp2 carbon lattice during the reduction process.
It was suggested that, besides some defects in reduced graphene oxide, the presence of ZrO2 nanoparticles onto the surface of the rGO causes additional changes in the characteristics of the vibrations in the material’s lattice. Therefore, the intensity of D bands after the reduction process is higher in comparison to the unreduced ZrO2/GO nanocomposite powders.
It should be noted that after the graphite’s chemical oxidation process, the presence of peaks attributed to 2D band were not observed in GO (Figure 2b). It can be assumed that diverse kind of oxygen-containing functional groups were embedded among the graphitic sheets in their basal plane or edges, and the presence of these groups causes the breaking of the sp2 carbon lattice and consequently its structural changes. However, the elimination of oxygen containing groups leads to the restoration of ordered graphitic stacking in rGO and causes the appearance of 2D peak [53,54,55].
Another band, known as conjunction between D and G intensities and appears near 2900 cm−1 is a second-order peak and denoted by S3.
S3/2D intesity ratio is related to the diminution in defects and involves a lower quantity of oxygen in graphene [56]. Raman shifts at 149 cm−1, 269 cm−1, 407 cm−1 and 616 cm−1 were interpreted as tetragonal zirconia phases [57,58].

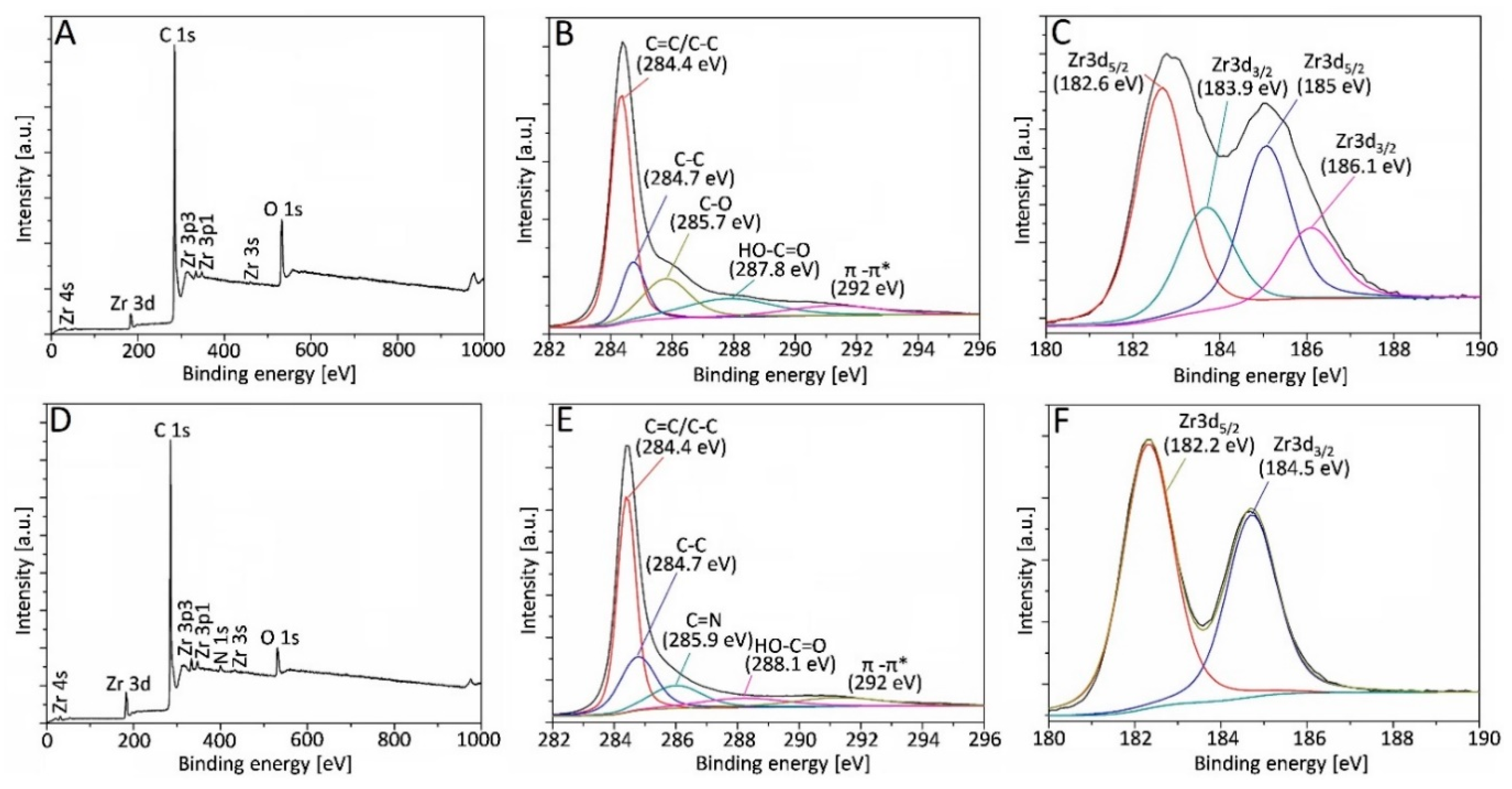

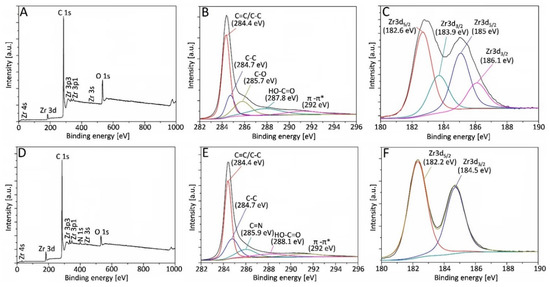

To investigate the chemical changes between reduced and not reduced graphene oxide powder XPS measurements have been carried out (Figure 3).
The appearance of oxygen, zirconia, and carbon structures in the sample was confirmed by Zr3d, O1s, and C1s characteristic peaks in the full-scan XPS spectrum of ZrO2/GO (Figure 3A). However, the presence of an additional peak at 399.5 eV that corresponds to the nitrogen bond was detected in the hydrazine-treated ZrO2/rGO sample (Figure 3D). The presence of other peaks, different to Zr, oxygen, carbon and, in the case of ZrO2/rGO powder-nitrogen, was not found. Therefore, the processing method would be considered appropriate.
For further interpretation and to better understand the mechanism of formation and the chemical states of elements, comprehensive analysis of C and Zr XPS spectra were carried out. The detailed C1s spectra of not-reduced and chemically reduced powders are shown in Figure 3B,E, respectively. Although these obtained spectra are practically identical and show the appearance of diffent functional groups, the peak intensities in the reduced powder are smaller and consequently confirm de-oxygenation by the reduction process. The peak-fitting spectra at the binding energies of 284.4 eV, 284.7 eV and ~288 eV were assigned to carbon atoms in different functional groups: C=C/C-C (sp2 C) peak, C-C (sp3 C) peak and C=O (the carbonyl groups), respectively [59,60]. Moreover, shake-up satellites (π-π*) with a binding energy of 292 eV were observed [61,62,63], which is a characteristic satellite peak for carbon structures or aromatic compounds [64].
The occurence of these peaks confirmed the hexagonal structure of the graphene [65,66,67,68]. Meanwhile, the high resolution of the C1s spectrum of ZrO2/rGO powder had an additional peak at 285.9 eV (Figure 3E) may be assigned to the C in the C=N bond formation due to the presence of hydrazine [69], that is also proven by XPS survey spectrum (Figure 3D). High-resolution XPS spectral analysis for the Zr3d shows the spin-orbit splitting the components, Zr3d3/2 and Zr3d5/2, in the ZrO2/GO and ZrO2/rGO materials (Figure 3C,F, respectively). Two different chemical states of zirconia were found in the ZrO2/GO sample (Figure 3C). The first of them at 182.6 eV can be assigned to the zirconia sub-oxide. Meanwhile, the second one relates to the binding energy and could be determined as stoichiometric ZrO2 and implies that valence of zirconium remained Zr4+ [70,71]. The intensity of binding energy peak at 183.9 eV corresponds to the formation of the zirconia. A chi-square approximation by using a doublet with spacing between lines of 2.4 eV was obtained for ZrO2/rGO (Figure 3F). The position of the lines is attributed to the zirconia sub-oxide. The width of the lines (1.4 eV) demonstrates the high uniformity of the stoichiometric state of the sample. It can be assumed, comparing the spectra of both samples, that the line within the binding energy interval between 182.2 eV and 182.6 eV correlates to zirconia thin films.

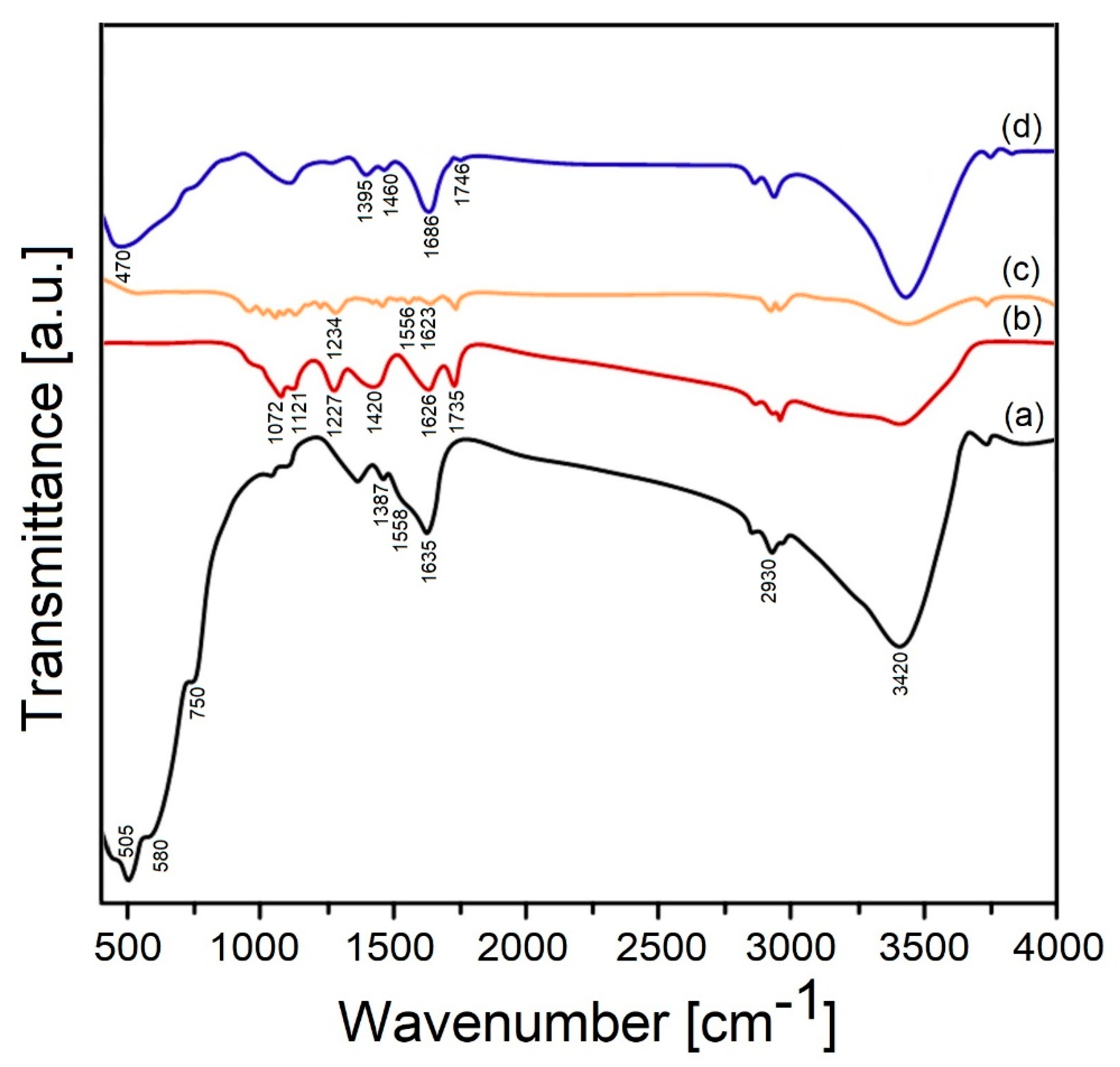

The existence of functional groups in both the raw and synthesized samples has been determined using a FTIR technique (Figure 4).
Obviously, the clear expresed absorption that appeared at peaks at 3420, 1635 and 1558 cm−1 correspond to the stretching (υ (−OH)) and bending (δ (−OH)) vibrations of coordinated or absorbed water molecules retained on the ZrO2 suface [72]. The peak appeared at 1387 cm−1 indicates the existence of OH deformations in the C–OH groups [60]. The Zr-O vibration of zirconia shows the intensities at 505, 580, and 750 cm−1 [73,74,75]. Meanwhile, the CH2 stretching mode demonstrates the broad absorption peaks around 2930 cm−1 [60].
The C=O stretching vibration of –COOH and C=O was observed at 1735 cm−1, while the O–H bending vibration of water molecules and the C=C skeleton stretching mode was assigned at 1626 cm-1 [76]. The O–H bending mode of –COOH and C–OH bonds show the intense peak at 1420 cm−1. The peak located at 1227 cm−1 belongs to the C–O–C stretching vibration. The absorption bands at 1121 and 1072 cm−1 corespond to the epoxy C-O and the alkoxy C-O stretching vibration, respectively [77,78,79,80,81,82,83]. Unlike the GO bands, the spectrum of rGO exhibits that the vibrational frequencies of peaks weakened and slightly vanished. The appearance of the absorption bands at 1623 and 1556 cm−1 was recognized to stretching of the aromatic C=C mode, while the band at 1234 cm−1 corresponds to the epoxy C−O and C=O, indicates that GO was reduced incompletely [72,84,85,86]. On the other hand, the characteristic band located at 1727 cm−1 was assigend to C=O stretching frequency belonging to the ZrO2/rGO nanocomposite was shifted to 1746 cm-1 because the relationship between the C=O group and Zr and its relative intensity was also decreased [87]. The hydrolysis of the ZrOCl2 solution provides the interaction between the oxygen-containing groups of GO and Zr(IV) and the appearance of two vibrational bands located at 1460 and 1395 cm−1, which were assigned to the creation of either a monodentate or bidentate complex [78,79,80,81]. The vibrational bands at 1686 and 470 cm−1 can be assigned to the C=C stretching mode and Zr–O vibration, respectively [60,72]. By this means, after the characterization of the resultant hybrid material, it can be argued that the synergies between ZrO2 nanoparticles and rGO nanosheets occured, i.e., ceramic nanoparticles were directly attached to the surface of the rGO nanosheets.
Moreover, there is even further evidence to support the findings after the various characterization techniques-the SEM and TEM images where the rGO sheets and ZrO2 nanoparticles were seen (Figure 5). The SEM image of the GO (inset of Figure 5A) exhibited the characteristic rippled, curved and crumpled sheet-like texture, whereas the SEM image of ZrO2/rGO (inset of Figure 5B) showed a uniform distribution of the ZrO2 nanoparticles, which are anchored onto flat and not curled rGO sheets. Furthermore, the EDX spectrum of GO (Figure 5A) provided peaks of C and O, whereas the presence of C, O, and Zr in the ZrO2/rGO sample (Figure 5B) suggested the bonding of ZrO2 nanoparticles on the grapnene oxide surface. The TEM images exhibited intimate interfacial contact between rGO and ZrO2 nanoparticles (Figure 5C,D). The high resolution TEM image (Figure 5D) shows the lattice of 0.29 nm spacing which is very close to the lattice spacing corresponding to the (111) plane of the tetragonal structure of ZrO2 [36,88]. According to the above observations, it can be said that the surface GO sheets were uniformly covered by zirconia nanoparticles synthesized via hydrothermal reaction.
The development of ZrO2/rGO nanocomposite powders by the hydrothermal reaction technique provides the opportunity to design new materials with a large panoply of precise properties to fulfill specific requirements. In particular, for achieving the synergistic toughening effect, load-bearing capacity and high wear resistance in bulk multiphase ceramic-matrix composites for their application as engineering components [28,89]. Therefore, it is planned to focus on the fabrication of the various bulk ceramic matrix composites and to evaluate of their multifunctional properties.

4. Summary

In the present work, a nanostructured ZrO2/rGO powder was fabricated using a low-cost and simple method, namely the hydrothermal synthesis technique. This process can be summarized in a few steps: As a result of the ZrOCl2 solution hydrolysis process, the positively charged zirconia ions were generated and collected at a surface of negatively charged GO sheets due to electrostatic attraction. After that, the ZrO2/rGO nanocomposite powder was formed because of generation of nuclei, continued growth, and redox reactions in a hydrothermal process. The as-prepared nanocomposite powder was characterized by XRD, Raman, FTIR, and XPS measurements. All characterizations clearly confirmed that zirconia nanoparticles were successfully bonded into the reduced graphene oxide sheets during hydrothermal reaction. The uniformity distribution of ZrO2 nanoparticles, which completely cover the graphene oxide sheets, was also clearly evidenced by the SEM and TEM observations. Moreover, the lattice spacing displayed in the TEM image belongs to the tetragonal structure of zirconia with the (111) plane surface. We believe that this synthesis route will allow for the effective production of uniform ceramic/graphene nanopowders that can be used as a building block to fabricate zirconia matrix composites reinforced with a homogenous nanostructure graphene after sintering.

Author Contributions

Conceptualization, A.S., J.F.B.; data curation, N.P., Y.P.; formal analysis, N.W.S.P., P.P.; funding acquisition, P.P.; investigation, P.P., N.P.; methodology, A.S., J.F.B.; project administration, A.S., J.F.B.; resources, N.W.S.P., N.P.; software, Y.P., N.W.S.P.; supervision, A.S., J.F.B.; validation, Y.P., N.P.; visualization, P.P., N.W.S.P.; writing—original draft, A.S., J.F.B. All authors read and approved the final version of the manuscript.

Funding

We would like to thank the Ministry of Science and High Education of the Russian Federation for supporting this work under contract 075-15-2019-692 (MK-2154.2019.8).

Acknowledgments

The contributions of the Material Properties Research Laboratory GIZ MSTU “STANKIN” in the sample’s characterization are greatly appreciated.

Conflicts of Interest

The authors declare no conflict of interest.
