Composite Fe3O4-MXene-Carbon Nanotube Electrodes for Supercapacitors Prepared Using the New Colloidal Method

by
Wenyu Liang
and
Igor Zhitomirsky
*
Department of Materials Science and Engineering, McMaster University, Hamilton, ON L8S 4L7, Canada
*
Author to whom correspondence should be addressed.
Materials 2021, 14(11), 2930; https://doi.org/10.3390/ma14112930
Submission received: 30 April 2021 / Revised: 25 May 2021 / Accepted: 26 May 2021 / Published: 29 May 2021
(This article belongs to the Special Issue Electrode Materials: Fabrication, Properties, and Applications)
Browse Figures
Versions Notes

Abstract

:
MXenes, such as Ti3C2Tx, are promising materials for electrodes of supercapacitors (SCs). Colloidal techniques have potential for the fabrication of advanced Ti3C2Tx composites with high areal capacitance (CS). This paper reports the fabrication of Ti3C2TX-Fe3O4-multiwalled carbon nanotube (CNT) electrodes, which show CS of 5.52 F cm−2 in the negative potential range in 0.5 M Na2SO4 electrolyte. Good capacitive performance is achieved at a mass loading of 35 mg cm−2 due to the use of Celestine blue (CB) as a co-dispersant for individual materials. The mechanisms of CB adsorption on Ti3C2TX, Fe3O4, and CNTs and their electrostatic co-dispersion are discussed. The comparison of the capacitive behavior of Ti3C2TX-Fe3O4-CNT electrodes with Ti3C2TX-CNT and Fe3O4-CNT electrodes for the same active mass, electrode thickness and CNT content reveals a synergistic effect of the individual capacitive materials, which is observed due to the use of CB. The high CS of Ti3C2TX-Fe3O4-CNT composites makes them promising materials for application in negative electrodes of asymmetric SC devices.

1. Introduction

Ti3C2Tx belongs to the family of MXene-type materials, which are of great technological interest for applications in electrodes of SCs [1,2,3]. The interest in Ti3C2Tx is attributed to the high capacitance and low electrical resistivity of this material. The promising capacitive properties of Ti3C2Tx result from its high surface area and the redox active nature of surface functional groups. Enhanced capacitive properties were obtained for Ti3C2Tx composites, containing different conductive additives, such as graphene [4], acetylene black [5], and carbon black [6] and for nitrogen-doped Ti3C2Tx [7,8,9]. Moreover, advanced Ti3C2Tx composites were developed, containing other components, such as ZnO [10], MnO2 [11], TiO2 [12], and Mn3O4 [13]. Investigations revealed the stable cycling behavior of Ti3C2Tx composites [14,15,16,17,18,19].
High specific capacitance (Cm) normalized by active mass (AM) was reported for composite electrodes [9,12,14,20,21,22,23,24,25,26,27,28] with relatively low AMs, typically below 8 mg∙cm−2. The CS of such electrodes was below 1 F∙cm−2. Capacitive properties of Ti3C2Tx composites were tested in various electrolytes, such as HCl [29], H2SO4 [27,30,31], KOH [12,32], KCl [33], K2SO4 [34], Na2SO4 [34], Li2SO4 [34], and other electrolytes [35,36]. Ti3C2Tx-based electrodes were utilized for the fabrication of symmetric SCs, containing two similar Ti3C2Tx-based electrodes, with maximum operation voltages in the range of 0.4–1.2 V [9,31,37,38].
The progress in applications of SC devices will depend on the ability to fabricate efficient electrodes and devices with high CS, which can be achieved at high AM loadings. Another important benefit of high AM electrodes is their low ratio of the mass of electrochemically inactive components to the AMs. With the goal to increase energy–power characteristics, there is a growing trend in devices that operate in enlarged voltage windows. Of particular importance are environmentally friendly neutral electrolytes, such as Na2SO4, which facilitate the design of asymmetric aqueous cells with voltage windows above 1.2 V.
Ti3C2Tx-based electrodes with AMs of 1–3 mg cm−2 were analyzed in Na2SO4 electrolyte [34,39,40] and relatively high Cm were obtained at such low AM loadings. Therefore, the development of electrodes with higher AMs can potentially result in high CS. However, it is challenging [41] to achieve high CS owing to the electrolyte diffusion limitations and high electrical resistance at high AMs. The increase in AM to the level of 20 mg∙cm−2 allowed the design of composites [42] with CS of 1.087 F∙cm−2 at the galvanostatic charging conditions of 1 mA∙cm−2 and 0.783 F∙cm−2 at potential sweep conditions of 1 mV∙s−1. Such electrodes [42] were utilized for symmetric Ti3C2Tx SC.
The objective of this study was to form Fe3O4-Ti3C2Tx-CNT electrodes for SCs. The use of CB as a co-dispersant allowed the fabrication of electrodes, which showed good electrochemical performance at AM of 35 mg∙cm−2. CB allowed adsorption on individual materials and their dispersion due its polyaromatic structure, containing a chelating catechol ligand and electric charge. The experimental data of this investigation showed that CS of 5.52 F∙cm−2 can be achieved in the negative potential range in 0.5 M Na2SO4 electrolyte due to the use of advanced co-dispersant and a synergistic effect of the individual components.

2. Materials and Methods

Celestine blue (CB), FeCl3·6H2O, FeCl2·4H2O, NH4OH, Na2SO4, co-polymer of vinyl butyral, vinyl acetate and vinyl alcohol (PVBAA, 65 kDa) were purchased from Millipore Sigma, Burlington, MA, USA. The diameter and length of CNT (multiwalled, Bayer Corp. Whippany, NJ, USA) were 13 nm and 1–2 μm, respectively. Ti3C2Tx was purchased from Laizhou Kai Kai Ceramic Materials Co., Ltd., Laizhou, China. Fe3O4 was prepared as described in by a chemical precipitation method [43] from solutions of FeCl2 and FeCl3, containing dispersed CNT or co-dispersed CNT and Ti3C2Tx. In contrast to the previous investigation [43], pristine CNT were used. In this approach, CNT and Ti3C2Tx were dispersed or co-dispersed using CB as a surfactant. For the fabrication of Fe3O4-CNT electrodes, the synthesis of Fe3O4 was performed in the presence of CNT, dispersed using CB. For the fabrication of Ti3C2Tx-CNT electrodes, Ti3C2Tx was co-dispersed with CNT in water using CB as a co-dispersant. Active materials (AM) for Ti3C2Tx-Fe3O4-CNT electrodes were prepared by precipitating Fe3O4 in the presence of co-dispersed Ti3C2Tx and CNT. The amount of the CB dispersant in the suspension was 15% of the total mass of Ti3C2Tx, Fe3O4 and CNT. After filtration, obtained AM were washed with water and ethanol in order to remove non-adsorbed dispersant and dried in air. In order to analyze the effect of CB, AM for Ti3C2Tx-(Fe3O4-CNT) electrodes were prepared by fabrication of Fe3O4-CNT powder, as described above, and its mixing with Ti3C2Tx. The Ti3C2Tx/Fe3O4 mass ratio was 5:3 in the Ti3C2Tx-(Fe3O4-CNT) and Ti3C2Tx-Fe3O4-CNT electrodes. The mass ratio of CNT to the mass of active materials, such as Fe3O4 in Fe3O4-CNT, Ti3C2Tx in Ti3C2Tx-CNT, Fe3O4 and Ti3C2Tx (total) in Ti3C2Tx-(Fe3O4-CNT) and Ti3C2Tx-Fe3O4-CNT was 1:4.
Obtained powders were used for the fabrication of slurries in ethanol for the impregnation of commercial Ni foam current collectors (95% porosity, Vale, Rio de Janeiro, Brazil). The slurries contained dissolved PVBAA binder. The mass of the binder was 3% of the total mass of the active material (AM). The total AM of impregnated material after drying was 35 mg cm−2, which included 3% PVBAA binder. All of the impregnated Ni foams were pressed using a calendering machine in order to obtain a final electrode thickness of 0.38 mm.
Electrochemical impedance spectroscopy (EIS) and cyclic voltammetry (CV) studies were performed using a potentiostat (PARSTAT 2273, AMETEK, Berwyn, PA, USA). Galvanostatic charge discharge (GCD) was conducted using a Biologic AMP 300 potentiostat. The capacitive behavior of the electrodes was tested in an aqueous 0.5 M Na2SO4 solution. Pt gauze was utilized as a counter electrode, and a saturated calomel electrode (SCE) was used as a reference. The area of the working electrode was 1 cm2. Capacitances CS and Cm, normalized by the electrode area or mass of the active material, respectively, were obtained from the CV or GCD data, and complex CS* components (CS’ and CS”) were calculated from the EIS testing results obtained at a signal of 5 mV, as described in [41]. JSM-7000F microscope (JEOL, Peabody, MA, USA) was used for SEM investigations.

3. Results and Discussion

Figure 1A,B shows SEM images of Ti3C2Tx particles used in this investigation. The particles exhibit an accordion-like structure, which is beneficial for electrolyte access to the material. However, some small pores may not be accessible by the electrolyte. It is in this regard that the investigations of other pseudocapacitive materials did not show correlation between BET surface area and capacitance [44,45,46,47]. The SEM images of Ti3C2TX-Fe3O4-CNT composites (Figure 1C,D) show that Ti3C2TX particles were covered with Fe3O4 and CNT.
Ti3C2Tx particles were used for the fabrication of composite Ti3C2Tx-Fe3O4-CNT electrodes. Pure Ti3C2Tx-CNT and Fe3O4-CNT electrodes were also fabricated and tested for comparison. The X-ray diffraction patterns of the composite Ti3C2Tx-CNT, Fe3O4-CNT, and Ti3C2Tx-Fe3O4-CNT materials presented in the Supplementary Information (Figure S1) show diffraction peaks of the individual components. All the electrodes contained 20% CNTs as conductive additives. In this investigation, CNTs were used as conductive additives for capacitive Fe3O4 [48,49,50] and Ti3C2Tx [1,2,3] materials. Previous investigations highlighted the need for the fabrication of electrodes with high AMs and enhanced ratio of the AM to the mass of current collector and other passive components [41]. Commonly used so far are activated carbon (AC) commercial supercapacitors with high AM [41,51] of about 10 mg∙cm−2. Another important parameter is electrode thickness [52]. It has been demonstrated that significant uncertainty in supercapacitor metrics stems from reporting gravimetric capacitance of thick electrodes with low packing density [51]. In such electrodes, empty space is filled by an electrolyte, thereby increasing the weight of the device without adding capacitance. However, such electrodes show enhanced AM normalized capacitance due to enhanced access of the electrolyte to the active materials [51]. Investigations showed that electrodes must be of comparable thickness for the comparison of their performance [53]. It is important to note that AC has a relatively low density and typical thickness of AC electrodes with active mass of 10 mg∙cm−2 is about 0.6 mm [54]. In our investigation, the thickness of all the investigated electrodes was 0.38 mm and AM loading was 35 mg∙cm−2. The higher AM of the fabricated electrodes, compared to that of AC electrodes, resulted from higher density of Ti3C2Tx and Fe3O4 materials used in this investigation. The high AM loading was beneficial for increasing the ratio of AM - to the total mass, which includes not only AM, but also mass of current collectors, electrolyte and other components.The ability to achieve high capacitance using electrodes with high AM and low impedance is critical for the development of advanced electrodes.
In this investigation, CB was used as a dispersant for Ti3C2Tx, Fe3O4 and CNTs. CB has generated significant interest as an advanced dispersant for the fabrication of composites for supercapacitors and other applications [55,56,57]. Sedimentation tests showed good colloidal stability of the Ti3C2Tx, Fe3O4 and CNT suspensions, prepared using CB. It is important to note that the chemical structure of CB contains a catechol ligand, which facilitates CB adsorption on inorganic materials by complexation of metal atoms on the material surface [58]. Such interactions of CB with Ti atoms on the Ti3C2Tx surface or Fe atoms on the Fe3O4 surface facilitated CB adsorption. The polyaromatic structure of CB allowed for its adsorption on CNTs and the adsorption mechanism of CB involved π-π interactions with side walls of CNTs [59]. The adsorbed cationic CB allowed for electrostatic dispersion of Ti3C2Tx, Fe3O4 and CNT and facilitated their enhanced mixing. Co-dispersion of Ti3C2Tx with CNTs and Fe3O4 with CNTs allowed for good performance of Ti3C2Tx-CNT and Fe3O4-CNT electrodes at high AM loadings.
Figure 2 shows capacitive performances of Ti3C2Tx-CNT and Fe3O4-CNT electrodes. Cyclic voltammetry (CV) studies showed nearly rectangular shape CVs for Ti3C2Tx-CNT electrodes and CS = 1.96 F∙cm−2 at 2 mV s−1. The obtained CS was significantly higher than literature data for Ti3C2Tx based electrodes, discussed in the Introduction. The capacitance retention at 100 mV∙s−1 was 23.5%. Relatively high capacitances were also achieved using Fe3O4-CNT electrodes. The highest CS = 4.42 F∙cm−2 was attained at 2 mV∙s−1. The use of CB as a co-dispersant allowed for higher capacitance of the Fe3O4-CNT electrodes compared to the previous results [43] for the Fe3O4-CNT electrodes, containing functionalized CNTs. The capacitance retention at 100 mV s−1 was 14.9%. The capacitive properties of Fe3O4-CNT composites resulted from the double layer charging mechanism of Fe3O4 and CNTs and pseudocapacitive mechanism of Fe3O4, attributed to Fe2+/Fe3+ redox couple [48,49,50].
Figure 3 shows EIS data for the Ti3C2Tx-CNT and Fe3O4-CNT electrodes. The Nyquist plot of complex impedance revealed lower resistance, R = Z’, compared to the literature data [42]. The low electrical resistance is an important factor controlling capacitive performance of electrodes. The differential capacitance CS’ derived from the EIS data at 5 mV signal amplitude was inferior to the integral CS calculated for potential span of 0.8 V. The discrepancy can be attributed to different parameters, such as charge–discharge time, electrode potential and limited accessibility of some redox sites at low voltages. The electrodes showed relatively high relaxation frequencies [60,61], corresponding to CS” maxima.
Figure 4A,B shows charge-discharge behavior of the Ti3C2TX-CNT and Fe3O4-CNT electrodes. The electrodes showed nearly triangular symmetric GCD profile. The capacitances were calculated from the GCD data and are presented in Figure 4C. CS reduced from 2.05 to 1.40 F∙cm−2 and from 3.41 to 2.5 F∙cm−2, for Ti3C2TX-CNT and Fe3O4-CNT electrodes, respectively, in the current range 3–35 mA∙cm−2. The GCD data showed good capacitance retention with increasing current density.
This investigation revealed a synergistic effect of Ti3C2TX, CNT and Fe3O4, which allowed for enhanced capacitance of the composite Ti3C2TX-Fe3O4-CNT electrodes, compared to the capacitances of Ti3C2TX-CNT and Fe3O4-CNT electrodes at the same AM, electrode thickness and CNT content. The use of CB as a dispersant was critical to achieve enhanced capacitance. The effect of CB is evident from the comparison of testing results for two composites, prepared at different experimental conditions, as was described in the Materials and Methods section. Ti3C2TX-(Fe3O4-CNT) electrodes were prepared by precipitation of Fe3O4 in the presence of CNTs dispersed with CB, followed by washing drying and mixing with Ti3C2TX. In contrast Ti3C2TX-Fe3O4-CNT electrodes were prepared by precipitation of Fe3O4 in the presence of co-dispersed Ti3C2TX and CNTs.
CV testing results showed significantly larger CV areas for Ti3C2TX-Fe3O4-CNT, compared to Ti3C2TX-(Fe3O4-CNT) electrodes (Figure 5A,B). This resulted in higher capacitance of the Ti3C2TX-Fe3O4-CNT and indicated the influence of CB dispersant used for the preparation of the composites on the properties of the electrodes. The highest capacitances of 5.52 and 3.90 F∙cm−2 were obtained for Ti3C2TX-Fe3O4-CNT and Ti3C2TX-(Fe3O4-CNT) electrodes, respectively, at 2 mV∙s−1. In order to analyze the charge storage properties of the electrodes, a parameter b was calculated from the following equation [62,63].
i = aνb
where i is a current, ν—scan rate and a is a parameter. Parameter b was found to be 0.68 for the Ti3C2TX-Fe3O4-CNT electrodes (Supplementary Information, Figure S2). It is known that b = 1 for purely double-layer capacitive mechanism and b = 0.5 for battery-type materials. The electrodes with 0.5 < b < 1 combine capacitive and battery properties. According to [62], the battery-type charge storage mechanism is dominant for electrodes with 0.5 < b < 0.8. Therefore, the Ti3C2TX-Fe3O4-CNT electrodes show mixed double-layer capacitive and battery-type properties with a dominant battery-type charge storage mechanism.
EIS studies (Figure 6) revealed lower resistance, higher capacitance and higher relaxation frequency of Ti3C2TX-Fe3O4-CNT electrodes, compared to Ti3C2TX-(Fe3O4-CNT) electrodes. GCD data showed nearly triangular symmetric charge–discharge curves, with longer charge and discharge times for Ti3C2TX-Fe3O4-CNT electrodes, compared to Ti3C2TX-(Fe3O4-CNT) at the same current densities (Figure 7A,B). The longer charge/discharge times indicated higher capacitances. The capacitances were calculated from the GCD data and presented in Figure 7C at different current densities. CS reduced from 4.35 to 3.33 F∙cm−2 and from 3.46 to 2.58 F∙cm−2 for Ti3C2TX-Fe3O4-CNT and Ti3C2TX-(Fe3O4-CNT) composites, respectively, with current increase from 3 to 35 mA∙cm−2.
The analysis of capacitances, measured using CV, EIS and GCD techniques showed that the capacitances of the Ti3C2TX-Fe3O4-CNT electrodes are higher than the capacitances of the Ti3C2Tx-CNT and Fe3O4-CNT electrodes. Therefore, the experimental results of this work showed a synergistic effect of the individual capacitive materials. The comparison of the data for Ti3C2TX-Fe3O4-CNT and Ti3C2TX-(Fe3O4-CNT) electrodes and literature data of the previous investigations for Ti3C2TX [42] and Fe3O4 electrodes [43] showed the beneficial effect of co-dispersion of the individual components, which was achieved using CB as a dispersant. The ability to achieve high CS of 5.52 F∙cm−2 in the negative potential range in Na2SO4 is beneficial for the preparation of asymmetric SC. Ti3C2TX-Fe3O4-CNT electrodes showed relatively high CS, compared to other anode materials [41]. The comparison with CS for other Ti3C2TX-based electrodes in Na2SO4 electrolyte (Supplementary Information, Table S1) showed significant improvement in CS. The capacitance of the negative electrodes is usually lower than that of positive electrodes. Advanced positive electrodes, based on MnO2, Mn3O4, and BiMn2O5 have been developed with capacitance of about 5–8 F cm−2 in the positive potential range [41]. Therefore, the capacitance of Ti3C2TX-Fe3O4-CNTs is comparable with capacitances of advanced positive electrodes. The Ti3C2TX-Fe3O4-CNT electrodes showed a slight CS increase for the first 400 cycles and remained nearly constant after this initial increase (Figure 8). A similar increase was observed in the literature for other materials and was attributed to microstructure changes during initial cycling [64,65]. In contrast, the capacitance of the Ti3C2TX- CNT and Fe3O4-CNT electrodes decreased after cycling (Figure 8).

4. Conclusions

Ti3C2TX-Fe3O4-CNT electrodes have been developed, which showed CS of 5.52 F∙cm−2 in the negative potential range in 0.5 M Na2SO4 electrolyte. Such electrodes are promising for applications in asymmetric supercapacitor devices due to the high capacitance, which is comparable with the capacitance of advanced positive electrodes. The use of CB as an advanced co-dispersant allowed for the fabrication of Ti3C2TX-Fe3O4-CNT electrodes, which showed good capacitive performance at high AM loadings. The comparison of capacitive behavior of Ti3C2TX-Fe3O4-CNT electrodes with Ti3C2TX-CNT and Fe3O4-CNT electrodes with the same AM, thickness and CNT content revealed a synergistic effect of the individual capacitive materials.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ma14112930/s1. Figure S1: X-ray diffraction patterns of (a) Ti3C2TX-CNT and (b) Fe3O4-CNT and (c) Ti3C2TX-Fe3O4-CNT composites, Figure S2: Current (i) versus scan rate (ν) dependence in a logarithmic scale used for the calculation of parameter b for Ti3C2TX-Fe3O4-CNT electrodes from the equation [1] i = aνb, Table S1: Characteristics of Ti3C2Tx-based electrodes with high active mass in Na2SO4 electrolyte.

Author Contributions

Conceptualization, W.L. and I.Z.; methodology, W.L.; validation, W.L.; formal analysis, W.L.; investigation, W.L.; resources, I.Z.; data curation, W.L.; writing—original draft preparation, W.L. and I.Z.; writing—review and editing, W.L. and I.Z.; supervision, I.Z.; project administration, I.Z.; funding acquisition, I.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Sciences and Engineering Research Council of Canada, grant number RGPIN-2018-04014.

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not Applicable.

Data Availability Statement

The data presented in this study are available in: “Composite Fe3O4-MXene-carbon nanotube electrodes for supercapacitors prepared by new colloidal method”.

Acknowledgments

SEM investigations were performed at the Canadian Centre for Electron Microscopy.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Anasori, B.; Lukatskaya, M.R.; Gogotsi, Y. 2D metal carbides and nitrides (MXenes) for energy storage. Nat. Rev. Mater. 2017, 2, 16098. [Google Scholar] [CrossRef]
  2. Xu, S.; Wei, G.; Li, J.; Han, W.; Gogotsi, Y. Flexible MXene–graphene electrodes with high volumetric capacitance for integrated co-cathode energy conversion/storage devices. J. Mater. Chem. A 2017, 5, 17442–17451. [Google Scholar] [CrossRef]
  3. Gogotsi, Y.; Anasori, B. The Rise of MXenes. ACS Nano 2019, 13, 8491–8494. [Google Scholar] [CrossRef] [Green Version]
  4. Wang, K.; Zheng, B.; Mackinder, M.; Baule, N.; Qiao, H.; Jin, H.; Schuelke, T.; Fan, Q.H. Graphene wrapped MXene via plasma exfoliation for all-solid-state flexible supercapacitors. Energy Storage Mater. 2019, 20, 299–306. [Google Scholar] [CrossRef]
  5. Guo, J.; Zhao, Y.; Jiang, N.; Liu, A.; Gao, L.; Li, Y.; Wang, H.; Ma, T. One-pot synthesis of 2D Ti3C2/Ni2CO3(OH)2 composite as electrode material with superior capacity and high stability for hybrid supercapacitor. Electrochim. Acta 2018, 292, 168–179. [Google Scholar] [CrossRef]
  6. Gao, Y.; Wang, L.; Li, Z.; Zhang, Y.; Xing, B.; Zhang, C.; Zhou, A. Electrochemical performance of Ti3C2 supercapacitors in KOH electrolyte. J. Adv. Ceram. 2015, 4, 130–134. [Google Scholar] [CrossRef]
  7. Tang, Y.; Zhu, J.; Wu, W.; Yang, C.; Lv, W.; Wang, F. Synthesis of Nitrogen-Doped Two-Dimensional Ti3C2 with Enhanced Electrochemical Performance. J. Electrochem. Soc. 2017, 164, A923–A929. [Google Scholar] [CrossRef]
  8. Tian, Y.; Que, W.; Luo, Y.; Yang, C.; Yin, X.; Kong, L.B. Surface nitrogen-modified 2D titanium carbide (MXene) with high energy density for aqueous supercapacitor applications. J. Mater. Chem. A 2019, 7, 5416–5425. [Google Scholar] [CrossRef]
  9. Wen, Y.; Rufford, T.E.; Chen, X.; Li, N.; Lyu, M.; Dai, L.; Wang, L. Nitrogen-doped Ti3C2Tx MXene electrodes for high-performance supercapacitors. Nano Energy 2017, 38, 368–376. [Google Scholar] [CrossRef]
  10. Wang, F.; Cao, M.; Qin, Y.; Zhu, J.; Wang, L.; Tang, Y. ZnO nanoparticle-decorated two-dimensional titanium carbide with enhanced supercapacitive performance. RSC Adv. 2016, 6, 88934–88942. [Google Scholar] [CrossRef]
  11. Rakhi, R.B.; Ahmed, B.; Anjum, D.H.; Alshareef, H.N. Direct Chemical Synthesis of MnO2 Nanowhiskers on Transition-Metal Carbide Surfaces for Supercapacitor Applications. ACS Appl. Mater. Interfaces 2016, 8, 18806–18814. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Cao, M.; Wang, F.; Wang, L.; Wu, W.; Lv, W.; Zhu, J. Room Temperature Oxidation of Ti3C2MXene for Supercapacitor Electrodes. J. Electrochem. Soc. 2017, 164, A3933–A3942. [Google Scholar] [CrossRef]
  13. Oyedotun, K.O.; Momodu, D.Y.; Naguib, M.; Mirghni, A.A.; Masikhwa, T.M.; Khaleed, A.A.; Kebede, M.; Manyala, N. Electrochemical performance of two-dimensional Ti3C2-Mn3O4 nanocomposites and carbonized iron cations for hybrid supercapacitor electrodes. Electrochim. Acta 2019, 301, 487–499. [Google Scholar] [CrossRef]
  14. Wang, H.; Zhang, J.; Wu, Y.; Huang, H.; Jiang, Q. Achieving high-rate capacitance of multi-layer titanium carbide (MXene) by liquid-phase exfoliation through Li-intercalation. Electrochem. Commun. 2017, 81, 48–51. [Google Scholar] [CrossRef]
  15. Wu, W.; Niu, D.; Zhu, J.; Gao, Y.; Wei, D.; Zhao, C.; Wang, C.; Wang, F.; Wang, L.; Yang, L. Hierarchical architecture of Ti3C2@PDA/NiCo2S4 composite electrode as high-performance supercapacitors. Ceram. Int. 2019, 45, 16261–16269. [Google Scholar] [CrossRef]
  16. Yang, C.; Que, W.; Tang, Y.; Tian, Y.; Yin, X. Nitrogen and Sulfur Co-Doped 2D Titanium Carbides for Enhanced Electrochemical Performance. J. Electrochem. Soc. 2017, 164, A1939–A1945. [Google Scholar] [CrossRef]
  17. Yuan, W.; Cheng, L.; Zhang, B.; Wu, H. 2D-Ti3C2 as hard, conductive substrates to enhance the electrochemical performance of MnO2 for supercapacitor applications. Ceram. Int. 2018, 44, 17539–17543. [Google Scholar] [CrossRef]
  18. Zhang, C.; Wang, L.; Lei, W.; Wu, Y.; Li, C.; Khan, M.A.; Ouyang, Y.; Jiao, X.; Ye, H.; Mutahir, S.; et al. Achieving quick charge/discharge rate of 3.0 V s−1 by 2D titanium carbide (MXene) via N-doped carbon intercalation. Mater. Lett. 2019, 234, 21–25. [Google Scholar] [CrossRef]
  19. Zhang, Y.; Yang, Z.; Zhang, B.; Li, J.; Lu, C.; Kong, L.; Liu, M. Self-assembly of secondary-formed multilayer La/e-Ti3C2 as high performance supercapacitive material with excellent cycle stability and high rate capability. J. Alloys Compd. 2020, 835, 155343. [Google Scholar] [CrossRef]
  20. He, X.; Bi, T.; Zheng, X.; Zhu, W.; Jiang, J. Nickel cobalt sulfide nanoparticles grown on titanium carbide MXenes for high-performance supercapacitor. Electrochim. Acta 2020, 332, 135514. [Google Scholar] [CrossRef]
  21. Hu, M.; Hu, T.; Li, Z.; Yang, Y.; Cheng, R.; Yang, J.; Cui, C.; Wang, X. Surface functional groups and interlayer water determine the electrochemical capacitance of Ti3C2 T x MXene. ACS Nano 2018, 12, 3578–3586. [Google Scholar] [CrossRef] [PubMed]
  22. Le, T.A.; Tran, N.Q.; Hong, Y.; Lee, H. Intertwined Titanium Carbide MXene within a 3D Tangled Polypyrrole Nanowires Matrix for Enhanced Supercapacitor Performances. Chem. A Eur. J. 2018, 25, 1037–1043. [Google Scholar] [CrossRef]
  23. Li, Z.; Ma, C.; Wen, Y.; Wei, Z.; Xing, X.; Chu, J.; Yu, C.; Wang, K.; Wang, Z.-K. Highly conductive dodecaborate/MXene composites for high performance supercapacitors. Nano Res. 2019, 13, 196–202. [Google Scholar] [CrossRef]
  24. Li, Y.; Deng, Y.; Zhang, J.; Han, Y.; Zhang, W.; Yang, X.; Zhang, X.; Jiang, W. Tunable energy storage capacity of two-dimensional Ti3C2Tx modified by a facile two-step pillaring strategy for high performance supercapacitor electrodes. Nanoscale 2019, 11, 21981–21989. [Google Scholar] [CrossRef]
  25. Lin, S.-Y.; Zhang, X. Two-dimensional titanium carbide electrode with large mass loading for supercapacitor. J. Power Sources 2015, 294, 354–359. [Google Scholar] [CrossRef]
  26. Ramachandran, R.; Rajavel, K.; Xuan, W.; Lin, D.; Wang, F. Influence of Ti3C2Tx (MXene) intercalation pseudocapacitance on electrochemical performance of Co-MOF binder-free electrode. Ceram. Int. 2018, 44, 14425–14431. [Google Scholar] [CrossRef]
  27. Shen, L.; Zhou, X.; Zhang, X.; Zhang, Y.; Liu, Y.; Wang, W.; Si, W.; Dong, X. Carbon-intercalated Ti3C2Tx MXene for high-performance electrochemical energy storage. J. Mater. Chem. A 2018, 6, 23513–23520. [Google Scholar] [CrossRef]
  28. Yang, C.; Que, W.; Yin, X.; Tian, Y.; Yang, Y.; Que, M. Improved capacitance of nitrogen-doped delaminated two-dimensional titanium carbide by urea-assisted synthesis. Electrochim. Acta 2017, 225, 416–424. [Google Scholar] [CrossRef]
  29. Lu, X.; Zhu, J.; Wu, W.; Zhang, B. Hierarchical architecture of PANI@ TiO2/Ti3C2Tx ternary composite electrode for enhanced electrochemical performance. Electrochim. Acta 2017, 228, 282–289. [Google Scholar] [CrossRef]
  30. Cao, J.; Han, Y.; Zheng, X.; Wang, Q. Preparation and electrochemical performance of modified Ti3C2Tx/polypyrrole composites. J. Appl. Polym. Sci. 2019, 136, 47003. [Google Scholar] [CrossRef]
  31. Jian, X.; He, M.; Chen, L.; Zhang, M.-M.; Li, R.; Gao, L.-J.; Fu, F.; Liang, Z.-H. Three-dimensional carambola-like MXene/polypyrrole composite produced by one-step co-electrodeposition method for electrochemical energy storage. Electrochim. Acta 2019, 318, 820–827. [Google Scholar] [CrossRef]
  32. Li, X.; Zhu, J.; Wang, L.; Wu, W.; Fang, Y. In–situ growth of carbon nanotubes on two–dimensional titanium carbide for enhanced electrochemical performance. Electrochim. Acta 2017, 258, 291–301. [Google Scholar] [CrossRef]
  33. Kim, K.; Okubo, M.; Yamada, A. Interfacial Dissociation of Contact-Ion-Pair on MXene Electrodes in Concentrated Aqueous Electrolytes. J. Electrochem. Soc. 2019, 166, A3739–A3744. [Google Scholar] [CrossRef]
  34. Li, J.; Yuan, X.; Lin, C.; Yang, Y.; Xu, L.; Du, X.; Xie, J.; Lin, J.; Sun, J. Achieving High Pseudocapacitance of 2D Titanium Carbide (MXene) by Cation Intercalation and Surface Modification. Adv. Energy Mater. 2017, 7, 1602725. [Google Scholar] [CrossRef]
  35. Luo, J.; Zhang, W.; Yuan, H.; Jin, C.; Zhang, L.; Huang, H.; Liang, C.; Xia, Y.; Zhang, J.; Gan, Y.; et al. Pillared Structure Design of MXene with Ultralarge Interlayer Spacing for High-Performance Lithium-Ion Capacitors. ACS Nano 2017, 11, 2459–2469. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Shi, M.; Narayanasamy, M.; Yang, C.; Zhao, L.; Jiang, J.; Angaiah, S.; Yan, C. 3D interpenetrating assembly of partially oxidized MXene confined Mn–Fe bimetallic oxide for superior energy storage in ionic liquid. Electrochim. Acta 2020, 334, 135546. [Google Scholar] [CrossRef]
  37. Li, H.; Chen, R.; Ali, M.; Lee, H.; Ko, M.J. In Situ Grown MWCNTs/MXenes Nanocomposites on Carbon Cloth for High-Performance Flexible Supercapacitors. Adv. Funct. Mater. 2020, 30, 2002739. [Google Scholar] [CrossRef]
  38. Pan, Z.; Ji, X. Facile synthesis of nitrogen and oxygen co-doped C@Ti3C2 MXene for high performance symmetric supercapacitors. J. Power Sources 2019, 439, 227068. [Google Scholar] [CrossRef]
  39. Wu, W.; Wei, D.; Zhu, J.; Niu, D.; Wang, F.; Wang, L.; Yang, L.; Yang, P.; Wang, C. Enhanced electrochemical performances of organ-like Ti3C2 MXenes/polypyrrole composites as supercapacitors electrode materials. Ceram. Int. 2019, 45, 7328–7337. [Google Scholar] [CrossRef]
  40. Yang, B.; She, Y.; Zhang, C.; Kang, S.; Zhou, J.; Hu, W. Nitrogen Doped Intercalation TiO2/TiN/Ti3C2Tx Nanocomposite Electrodes with Enhanced Pseudocapacitance. Nanomaterials 2020, 10, 345. [Google Scholar] [CrossRef] [Green Version]
  41. Chen, R.; Yu, M.; Sahu, R.P.; Puri, I.; Zhitomirsky, I. The Development of Pseudocapacitor Electrodes and Devices with High Active Mass Loading. Adv. Energy Mater. 2020, 10, 1903848. [Google Scholar] [CrossRef]
  42. Guo, M.; Liu, C.; Zhang, Z.; Zhou, J.; Tang, Y.; Luo, S. Flexible Ti3C2Tx@Al electrodes with Ultrahigh Areal Capacitance: In Situ Regulation of Interlayer Conductivity and Spacing. Adv. Funct. Mater. 2018, 28, 1803196. [Google Scholar] [CrossRef]
  43. Nawwar, M.; Poon, R.; Chen, R.; Sahu, R.P.; Puri, I.K.; Zhitomirsky, I. High areal capacitance of Fe3O4-decorated carbon nanotubes for supercapacitor electrodes. Carbon Energy 2019, 1, 124–133. [Google Scholar] [CrossRef] [Green Version]
  44. Reddy, R.N.; Reddy, R.G. Sol—Gel MnO2 as an electrode material for electrochemical capacitors. J. Power Sources 2003, 124, 330–337. [Google Scholar] [CrossRef]
  45. Jeong, Y.U.; Manthiram, A. Nanocrystalline Manganese Oxides for Electrochemical Capacitors with Neutral Electrolytes. J. Electrochem. Soc. 2002, 149, A1419–A1422. [Google Scholar] [CrossRef]
  46. Dong, W.; Rolison, D.R.; Dunna, B. Electrochemical Properties of High Surface Area Vanadium Oxide Aerogels. Electrochem. Solid State Lett. 1999, 3, 457–459. [Google Scholar] [CrossRef]
  47. Dong, W.; Sakamoto, J.S.; Dunn, B. Electrochemical properties of vanadium oxide aerogels. Sci. Technol. Adv. Mater. 2003, 4, 3–11. [Google Scholar] [CrossRef] [Green Version]
  48. Sinan, N.; Unur, E. Fe3O4/carbon nanocomposite: Investigation of capacitive & magnetic properties for supercapacitor applications. Mater. Chem. Phys. 2016, 183, 571–579. [Google Scholar] [CrossRef]
  49. Ghaly, H.A.; El-Deen, A.G.; Souaya, E.R.; Allam, N.K. Asymmetric supercapacitors based on 3D graphene-wrapped V2O5 nanospheres and Fe3O4@3D graphene electrodes with high power and energy densities. Electrochim. Acta 2019, 310, 58–69. [Google Scholar] [CrossRef]
  50. Nithya, V.D.; Arul, N.S. Progress and development of Fe3O4 electrodes for supercapacitors. J. Mater. Chem. A 2016, 4, 10767–10778. [Google Scholar] [CrossRef]
  51. Gogotsi, Y.; Simon, P. True Performance Metrics in Electrochemical Energy Storage. Science 2011, 334, 917–918. [Google Scholar] [CrossRef] [Green Version]
  52. Li, J.; Zhitomirsky, I. Cathodic electrophoretic deposition of manganese dioxide films. Colloids Surf. A Physicochem. Eng. Asp. 2009, 348, 248–253. [Google Scholar] [CrossRef]
  53. Stoller, M.D.; Ruoff, R.S. Best practice methods for determining an electrode material’s performance for ultracapacitors. Energy Environ. Sci. 2010, 3, 1294–1301. [Google Scholar] [CrossRef]
  54. Chen, J.; Fang, K.; Chen, Q.; Xu, J.; Wong, C.-P. Integrated paper electrodes derived from cotton stalks for high-performance flexible supercapacitors. Nano Energy 2018, 53, 337–344. [Google Scholar] [CrossRef]
  55. Liu, Y.; Zhitomirsky, I. Electrochemical supercapacitor based on multiferroic BiMn2O5. J. Power Sources 2015, 284, 377–382. [Google Scholar] [CrossRef]
  56. Liang, W.; Zhitomirsky, I. Zn-Fe Double Hydroxide-Carbon Nanotube Anodes for Asymmetric Supercapacitors. Front. Mater. 2020, 7, 137. [Google Scholar] [CrossRef]
  57. Liu, Y.; Ata, M.S.; Shi, K.; Zhu, G.-Z.; Botton, G.A.; Zhitomirsky, I. Surface modification and cathodic electrophoretic deposition of ceramic materials and composites using celestine blue dye. RSC Adv. 2014, 4, 29652–29659. [Google Scholar] [CrossRef]
  58. Ata, M.S.; Liu, Y.; Zhitomirsky, I. A review of new methods of surface chemical modification, dispersion and electrophoretic deposition of metal oxide particles. RSC Adv. 2014, 4, 22716–22732. [Google Scholar] [CrossRef]
  59. Ata, M.S.; Poon, R.; Syed, A.M.; Milne, J.; Zhitomirsky, I. New developments in non-covalent surface modification, dispersion and electrophoretic deposition of carbon nanotubes. Carbon 2018, 130, 584–598. [Google Scholar] [CrossRef]
  60. Zhu, Y.; Shi, K.; Zhitomirsky, I. Polypyrrole coated carbon nanotubes for supercapacitor devices with enhanced electrochemical performance. J. Power Sources 2014, 268, 233–239. [Google Scholar] [CrossRef]
  61. Shi, K.; Zhitomirsky, I. Fabrication of Polypyrrole-Coated Carbon Nanotubes Using Oxidant–Surfactant Nanocrystals for Supercapacitor Electrodes with High Mass Loading and Enhanced Performance. ACS Appl. Mater. Interfaces 2013, 5, 13161–13170. [Google Scholar] [CrossRef]
  62. Okhay, O.; Tkach, A. Graphene/Reduced Graphene Oxide-Carbon Nanotubes Composite Electrodes: From Capacitive to Battery-Type Behaviour. Nanomaterials 2021, 11, 1240. [Google Scholar] [CrossRef]
  63. Gogotsi, Y.; Penner, R.M. Energy Storage in Nanomaterials—Capacitive, Pseudocapacitive, or Battery-like? ACS Nano 2018, 12, 2081–2083. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Rorabeck, K.; Zhitomirsky, I. Application of Octanohydroxamic Acid for Salting out Liquid–Liquid Extraction of Materials for Energy Storage in Supercapacitors. Molecules 2021, 26, 296. [Google Scholar] [CrossRef] [PubMed]
  65. Rorabeck, K.; Zhitomirsky, I. Salting-out aided dispersive extraction of Mn3O4 nanoparticles and carbon nanotubes for application in supercapacitors. Colloids Surf. A Physicochem. Eng. Asp. 2021, 618, 126451. [Google Scholar] [CrossRef]
Materials 14 02930 g001 550
Figure 1. SEM images at different magnifications of (A,B) as-received Ti3C2Tx and (C,D) Ti3C2TX-Fe3O4-CNT.
Figure 1. SEM images at different magnifications of (A,B) as-received Ti3C2Tx and (C,D) Ti3C2TX-Fe3O4-CNT.
Materials 14 02930 g001
Materials 14 02930 g002 550

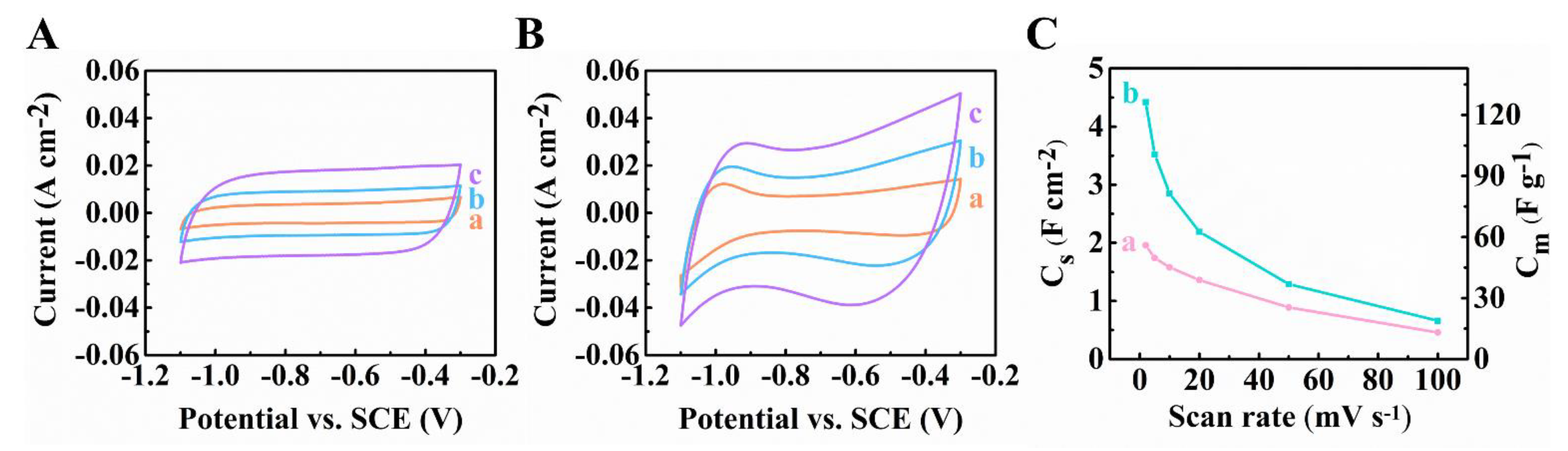

Figure 2. (A,B) Cyclic voltammetry data at (a) 2, (b) 5 and (c) 10 mV s−1, (C) capacitances for ((A,C) (a)) Ti3C2TX-CNT and ((B,C) (b)) Fe3O4-CNT electrodes.
Figure 2. (A,B) Cyclic voltammetry data at (a) 2, (b) 5 and (c) 10 mV s−1, (C) capacitances for ((A,C) (a)) Ti3C2TX-CNT and ((B,C) (b)) Fe3O4-CNT electrodes.
Materials 14 02930 g002
Materials 14 02930 g003 550

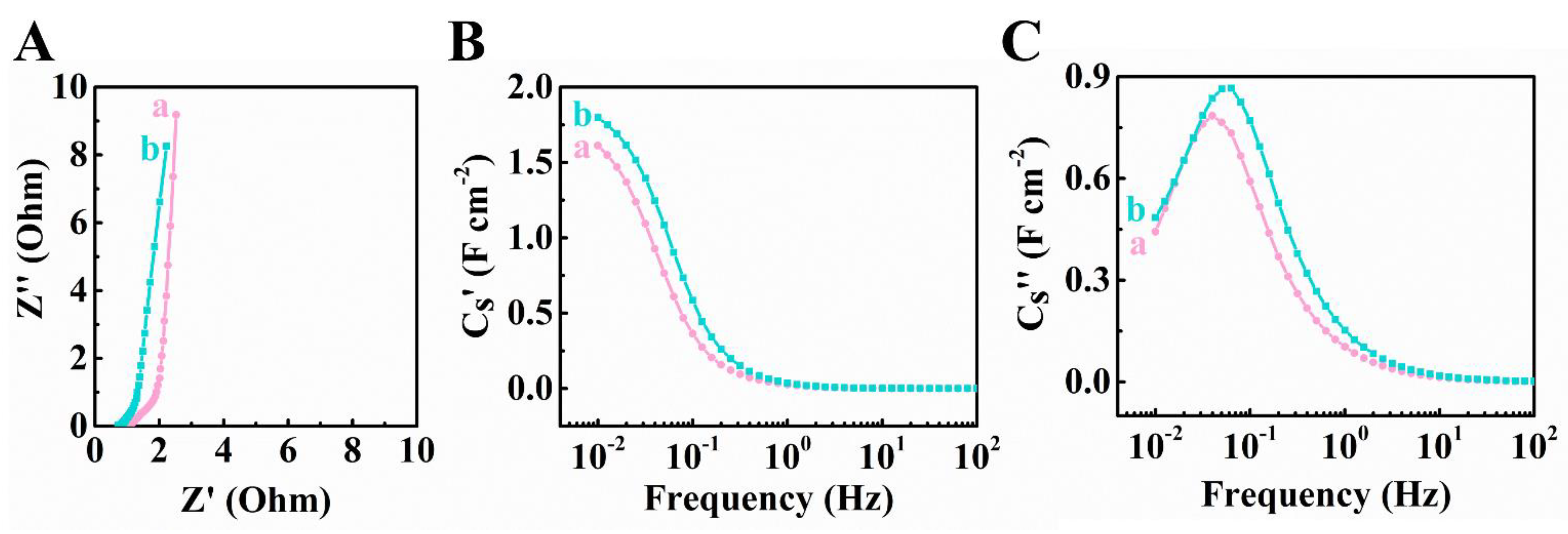

Figure 3. (A) Nyquist Z” vs. Z’ graph for EIS data, (B) CS’ and (C) CS”, derived from the EIS data for (a) Ti3C2TX-CNT and (b) Fe3O4-CNT electrodes.
Figure 3. (A) Nyquist Z” vs. Z’ graph for EIS data, (B) CS’ and (C) CS”, derived from the EIS data for (a) Ti3C2TX-CNT and (b) Fe3O4-CNT electrodes.
Materials 14 02930 g003
Materials 14 02930 g004 550

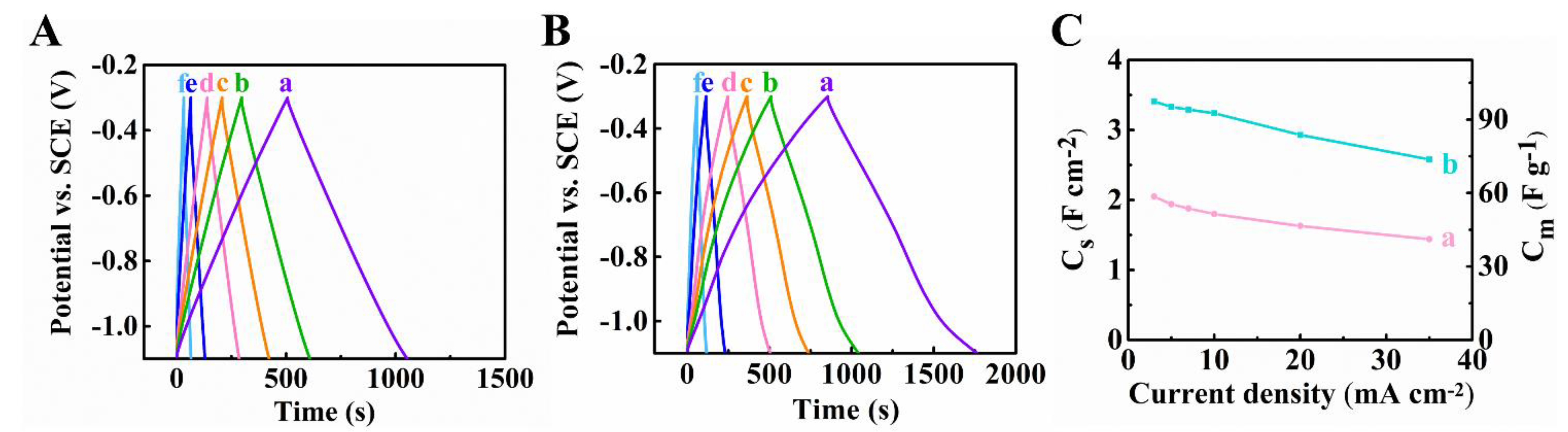

Figure 4. Galvanostatic charge–discharge curves of (A)Ti3C2TX-CNT, (B) Fe3O4-CNT at (a) 3, (b) 5 (c) 7, (d) 10 (e) 20 and (f) 35 mA∙cm−2, (C) capacitances derived from GCD tests for (a) Ti3C2TX-CNT and (b) Fe3O4-CNT electrodes.
Figure 4. Galvanostatic charge–discharge curves of (A)Ti3C2TX-CNT, (B) Fe3O4-CNT at (a) 3, (b) 5 (c) 7, (d) 10 (e) 20 and (f) 35 mA∙cm−2, (C) capacitances derived from GCD tests for (a) Ti3C2TX-CNT and (b) Fe3O4-CNT electrodes.
Materials 14 02930 g004
Materials 14 02930 g005 550

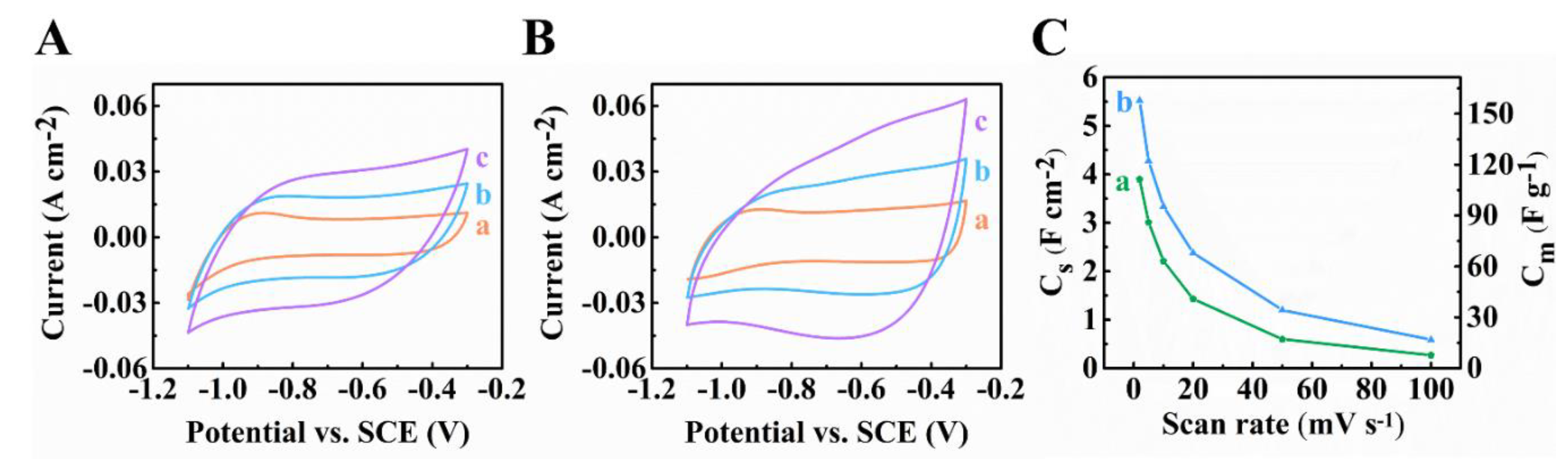

Figure 5. (A,B) Cyclic voltammetry data at (a) 2, (b) 5 and (c) 10 mV∙s−1, (C) capacitances for ((A,C) (a)) Ti3C2TX-(Fe3O4-CNT) and ((B,C) (b)) Ti3C2TX-Fe3O4-CNT electrodes.
Figure 5. (A,B) Cyclic voltammetry data at (a) 2, (b) 5 and (c) 10 mV∙s−1, (C) capacitances for ((A,C) (a)) Ti3C2TX-(Fe3O4-CNT) and ((B,C) (b)) Ti3C2TX-Fe3O4-CNT electrodes.
Materials 14 02930 g005
Materials 14 02930 g006 550
Figure 6. (A) Nyquist Z” vs. Z’ graph for EIS data, ((B,C)), (B) CS’ and (C) CS”, derived from the EIS data for (a) Ti3C2TX- (Fe3O4-CNT) and (b) Ti3C2TX-Fe3O4-CNT electrodes.
Figure 6. (A) Nyquist Z” vs. Z’ graph for EIS data, ((B,C)), (B) CS’ and (C) CS”, derived from the EIS data for (a) Ti3C2TX- (Fe3O4-CNT) and (b) Ti3C2TX-Fe3O4-CNT electrodes.
Materials 14 02930 g006
Materials 14 02930 g007 550
Figure 7. GCD curves for (A) Ti3C2TX-Fe3O4-CNT), (B) Ti3C2TX-Fe3O4-CNT at (a) 3, (b) 5 (c) 7, (d) 10 (e) 20 and (f) 35 mA∙cm−2, (C) capacitances versus current density, calculated from GCD data for (a) Ti3C2TX-(Fe3O4-CNT) and (b) Ti3C2TX-Fe3O4-CNT.
Figure 7. GCD curves for (A) Ti3C2TX-Fe3O4-CNT), (B) Ti3C2TX-Fe3O4-CNT at (a) 3, (b) 5 (c) 7, (d) 10 (e) 20 and (f) 35 mA∙cm−2, (C) capacitances versus current density, calculated from GCD data for (a) Ti3C2TX-(Fe3O4-CNT) and (b) Ti3C2TX-Fe3O4-CNT.
Materials 14 02930 g007
Materials 14 02930 g008 550
Figure 8. Capacitance retention for (a) Ti3C2TX-CNT, (b) Fe3O4-CNT and (c) Ti3C2TX-Fe3O4-CNT electrodes.
Figure 8. Capacitance retention for (a) Ti3C2TX-CNT, (b) Fe3O4-CNT and (c) Ti3C2TX-Fe3O4-CNT electrodes.
Materials 14 02930 g008
