The Influence of Mechanical Alloying and Plastic Consolidation on the Resistance to Arc Erosion of the Ag–Re Composite Contact Material
Abstract
:1. Introduction

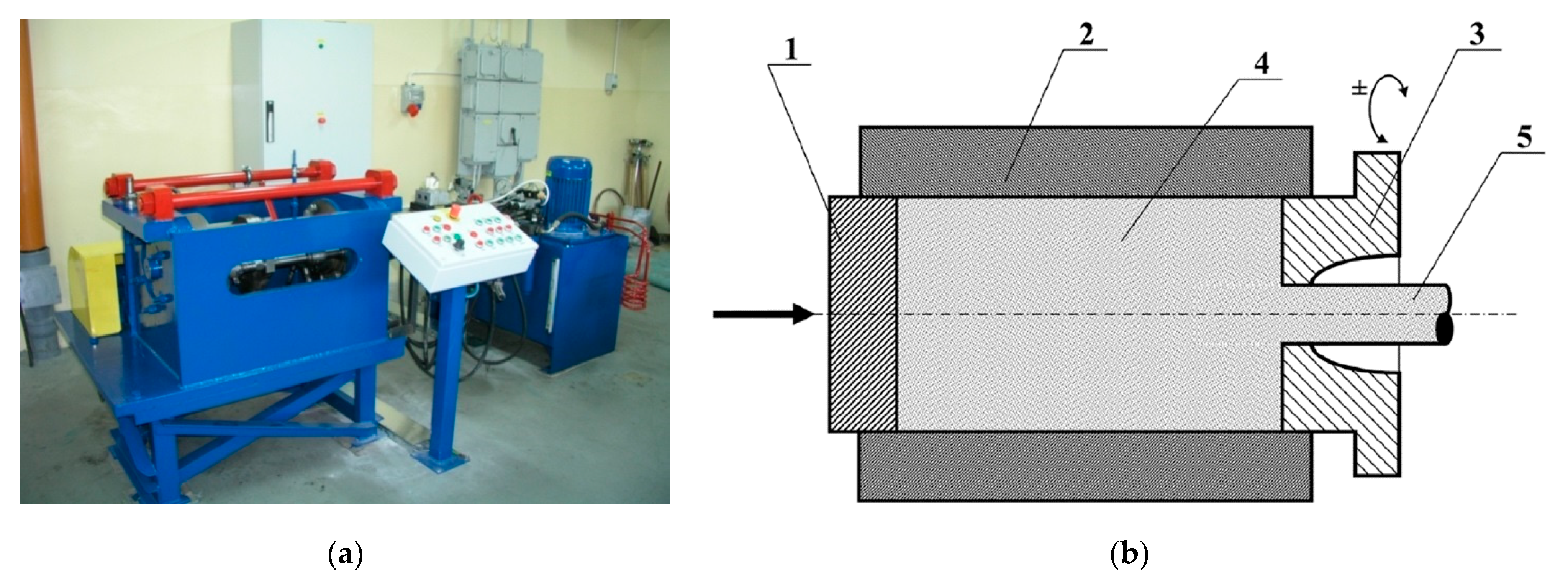

2. Materials and Methods
3. Results
4. Discussion
5. Conclusions
- The addition of rhenium in the amount of 1% by mass improves the Ag–Re composite resistance to electric arc.
- The introduction of a larger amount of rhenium to the Ag–Re composite (10% by mass) reduces the electric arc resistance.
- The use of the mechanical alloying process in the Ag–Re composite production process increases its resistance to electric arc.
- The obtained results in the field of electric arc resistance prove that AgRe1 composite is more resistant to electric arc than the commonly used contact materials Ag(SnO2)10 and AgNi10 (for DC current, 10 A) and the Ag(SnO2)10 composite (for AC 60 A).
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Księżarek, S.; Kołacz, D.; Czepelak, M.; Śmieszek, Z.; Marszowski, K. Aspekty technologiczne przeróbki plastycznej kompozytowego materiału stykowego Ag-Re (5, 8 i 10)% wag. Hutnik Wiadomości Hutnicze 2011, 78, 633–636. [Google Scholar]
- Li, H.; Wang, X.; Fei, Y.; Zhang, H.; Liu, J.; Li, Z.; Qiu, Y. Effect of electric load characteristics on the arc erosion behavior of Ag-8wt.%Ni electrical contact material prepared by spark plasma sintering. Sens. Actuators A Phys. 2021, 326, 112718. [Google Scholar] [CrossRef]
- Li, H.; Wang, X.; Hu, Z.; Guo, X. Investigation on arc behavior of AgNi electrical contact material with three-dimensional network structure. Vacuum 2020, 175, 109290. [Google Scholar] [CrossRef]
- Li, G.; Yang, T.; Ma, Y.; Feng, W.; Zhang, X.; Fang, X. The effects of oxide additives on the mechanical characteristics of Ag–SnO2 electrical contact materials. Ceram. Int. 2020, 46, 4897–4906. [Google Scholar] [CrossRef]
- Juszczyk, B.; Kulasa, J.; Gubernat, A.; Malec, W.; Ciura, L.; Malara, S.; Wierzbicki, Ł.; Gołębiewska-Kurzawska, J. Influence of chemical composition and production process parameters on the structure and properties of silver based composities with ZnO. Arch. Metall. Mater. 2012, 57, 1063–1073. [Google Scholar] [CrossRef] [Green Version]
- Leung, C.H.; Behrens, V. A review of Ag/SnO2 contact material and arc erosion. In Proceedings of the 24th IEEE Holm Conference on Electrical Contacts, St. Malo, France, 9–12 June 2008; pp. 82–87. [Google Scholar]
- Li, G.; Ma, Y.; Zhang, X.; Fang, X.; Feng, W. Interface strengthening and fracture characteristics of the Ag-based contact materials reinforced with nanoporous SnO2(Cu, CuO) phases. Appl. Surf. Sci. 2021, 543, 148812. [Google Scholar] [CrossRef]
- Wu, C.; Zhao, Q.; Li, N.; Wang, H.; Yi, D.; Weng, W. Influence of fabrication technology on arc erosion of Ag/10SnO2 electrical contact materials. J. Alloys Compd. 2018, 766, 161–177. [Google Scholar] [CrossRef]
- Li, H.; Wang, X.; Hu, Z.; Qiu, Y. Effect of Ni addition on the arc-erosion behavior of Ag-4 wt.%SnO2 electrical contact material. J. Alloys Compd. 2020, 829, 154487. [Google Scholar] [CrossRef]
- Ma, Y.; Yang, T.; Feng, W.; Li, G.; Zhang, X. Improved fracture resistance of the Ag/SnO2 contact materials using Cu nanoparticles as additive. J. Alloys Compd. 2020, 843, 156055. [Google Scholar] [CrossRef]
- Fanbin, M.; Weitao, W.; Ning, Z.; Xueguang, C. Study on Electrical Contact Properties of Ag-SnO2 Contact Materials. In Proceedings of the ICEC-ICREPEC, Beijng, China, 14–17 May 2012; pp. 382–385. [Google Scholar]
- Wang, J.; Fen, Y.; Li, S.; Lin, S. Influence of graphite content on sliding wear characteristics of CNTs-Ag-G electrical contact materials. Trans. Nonferr. Met. Soc. 2009, 19, 113–118. [Google Scholar] [CrossRef]
- Feng, Y.; Yuan, H.L.; Zhang, M. Fabrication and properties of silver–matrix composites reinforced by carbon nanotubes. Mater. Charact. 2005, 55, 211–218. [Google Scholar] [CrossRef]
- Kumar, D.; Nain, S.; Neena; Pal, H.; Kumar, R. CNT Reinforced Silver Nanocomposites: Mechanical and Electrical Studies. J. Mater. 2016, 2016, 8629206. [Google Scholar] [CrossRef] [Green Version]
- Varol, T.; Canakci, A. Effect of the CNT Content on Microstructure, Physical and Mechanical Properties of Cu-Based Electrical Contact Materials Produced by Flake Powder Metallurgy. Arab. J. Sci. Eng. 2015, 40, 2711–2720. [Google Scholar] [CrossRef]
- McBride, J.W.; Jiang, L.; Chianrabutra, C. Fine Transfer in Electrical Switching Contacts Using Gold Coated Carbon-Nanotubes. In Proceedings of the ICEC-ICREPEC, Beijing, China, 14–17 May 2012; pp. 353–358. [Google Scholar]
- Li, A.; Zhou, W.; Xie, M.; Wang, S.; Wang, S.; Yang, Y.; Chen, Y.; Liu, M. Preparation and arc erosion behavior of AgNi10 contact material with different allotropes of carbon addition. Diam. Relat. Mater. 2021, 111, 108141. [Google Scholar] [CrossRef]
- Liu, Y.; Wang, X.; Li, H.; Lu, J.; Wang, Z.; Zhou, C. Enhancing properties of AgTiB2 contact material by CuO semi-coated TiB2 composite particles. Mater. Lett. 2021, 293, 1–4. [Google Scholar] [CrossRef]
- Borkowski, P.; Walczuk, E.; Frydman, K.; Wójcik-Grzybek, D. Switching properties of contacts made of silver-tungsten and silver-tungsten-rhenium composite. In Proceedings of the 59th IEEE Holm Conference on Electrical Contacts, Newport, RI, USA, 22–25 September 2013; pp. 197–206. [Google Scholar]
- Wojtasik, K.; Stolarz, S. Badania możliwości zastosowania metod metalurgii proszków do wytwarzania półwyrobów z renu przeznaczonych dla nowoczesnych dziedzin techniki, Report no 2800/1981. (In Polish, Unpublished).
- Walczuk, W.; Borkowski, P.; Wójcik-Grzybek, D.; Frydman, K. Electrical properties of Ag-Fe and Ag-Fe2O3 composite contact materials for low voltage switchgear. In Proceedings of the IEEE Holm Conference on Electrical Contacts, St. Malo, France, 9–12 June 2008; pp. 48–54. [Google Scholar]
- Dobrzańska-Danikiewicz, A.D.; Wolany, W. A rhenium review–from discovery to novel applications. Arch. Mater. Sci. 2016, 82, 70–78. [Google Scholar] [CrossRef]
- Shabalin, I.L. Ultra-High Temperature Materials I–Carbon (Graphene/Graphite) and Refractory Metals; Springer: Berlin/Heidelberg, Germany, 2014; p. 338. [Google Scholar]
- Hauner, F.; Jeannot, D.; Pinard, J. AgFe and AgFe2O3 Contact Materials for Low Voltage Switchgear. In Proceedings of the IEEE Holm Conference on Electrical Contacts, Nuremberg, Germany, 14–17 September 1998; pp. 317–323. [Google Scholar]
- Księżarek, S.; Kołacz, D.; Woch, M.; Czepelak, M.; Osadnik, M.; Karpiński, M.; Marszowski, K.; Wierzbicki, L.; Kamińska, M. Opracowanie założeń procesowych nowego kompozytowego materiału Ag-Re(5, 8, 10)% wag. przeznaczonego do wytwarzania styków elektrycznych, Report no 6886/2010. (In Polish, Unpublished).
- Kołacz, D.; Księżarek, S.; Kamińska, M.; Staszewski, M.; Bilewska, K.; Karpiński, M. Wpływ mechanicznego stopowania i konsolidacji plastycznej na mikrostrukturę i właściwości kompozytowego materiału stykowego Ag-Re, Report no 7002/2011. (In Polish, Unpublished).
- Księżarek, S.; Woch, M.; Kołacz, D.; Kamińska, M.; Borkowski, P.; Walczuk, W. Progress in fabrication technology of silver-based contact materials with particular account the Ag-Re and Ag-SnO2Bi2O3 composites. Arch. Metall. Mater. 2014, 59, 501–508. [Google Scholar] [CrossRef] [Green Version]
- Kołacz, D.; Księżarek, S.; Woch, M.; Karwan-Baczewska, J.; Staszewski, M.; Rudnicki, K.; Borkowski, P.; Sienicki, A. Nanocrystalline Ag-Re composite as a potential material for electric contacts fabrication. Arch. Metall. Mater. 2016, 61, 1847–1852. [Google Scholar] [CrossRef]
- Choi, S.H.; Ali, B.; Kim, S.Y.; Hyun, S.K.; Seo, S.J.; Park, K.T.; Kim, B.S.; Kim, T.S.; Park, J.S. Fabrication of Ag-SnO2 Contact Materials from Gas-Atomized Ag-Sn Powder Using Combined Oxidation and Ball-Milling Process. J. Appl. Ceram. Technol. 2016, 13, 258–264. [Google Scholar] [CrossRef]
- Wójcik-Grzybek, D.; Frydman, K.; Borkowski, P. The influence of the microstructure on the switching properties of Ag-C, Ag-WC-C and Ag-W-C contact materials. Arch. Metall. Mater. 2013, 58, 1059–1065. [Google Scholar] [CrossRef] [Green Version]
- Bochniak, W.; Korbel, A.; Ostachowski, P.; Ziółkiewicz, S.; Borowski, J. Extrusion of metals and alloys by KOBO method. Obróbka Plastyczna Metali 2013, 47, 83–97. [Google Scholar]
- Borkowski, P. Modelowanie i badanie erozji styków. Zeszyty Naukowe Rozprawy Naukowe/Politechnika Łódzka 2008, 365, 3–210. (In Polish) [Google Scholar]

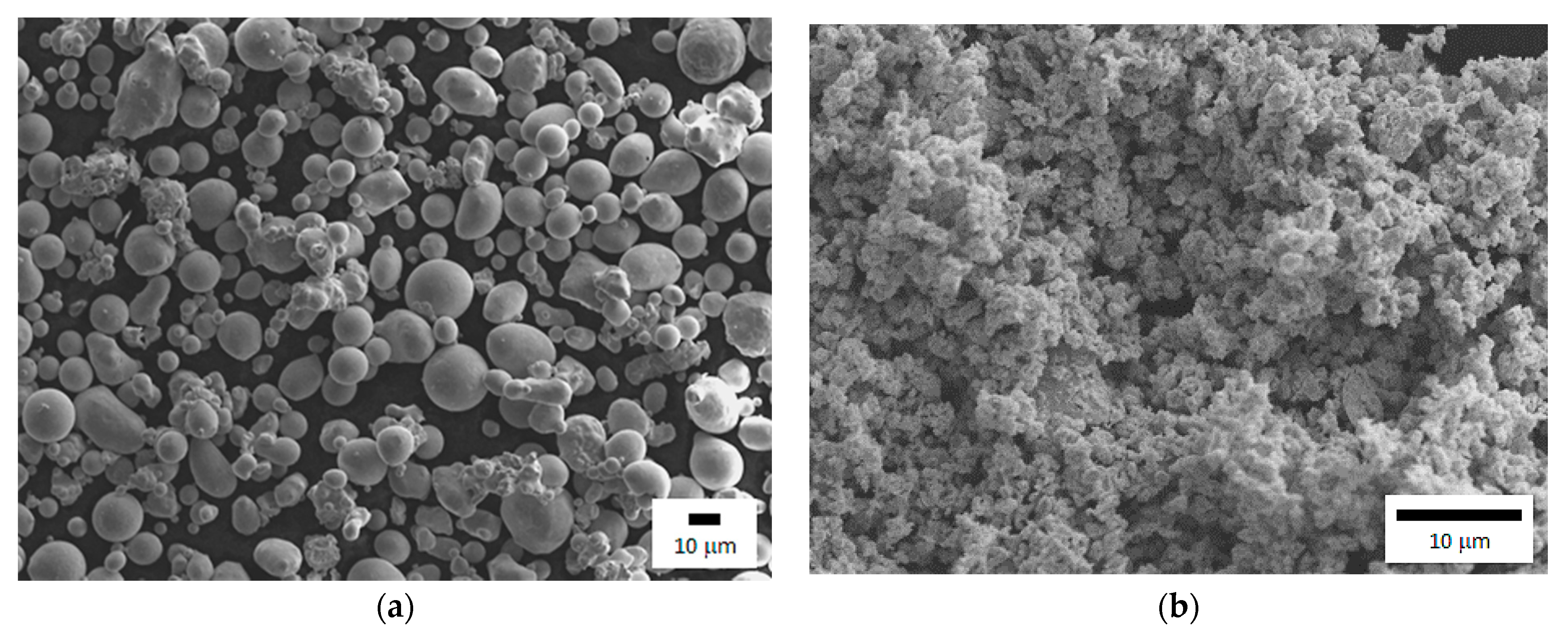

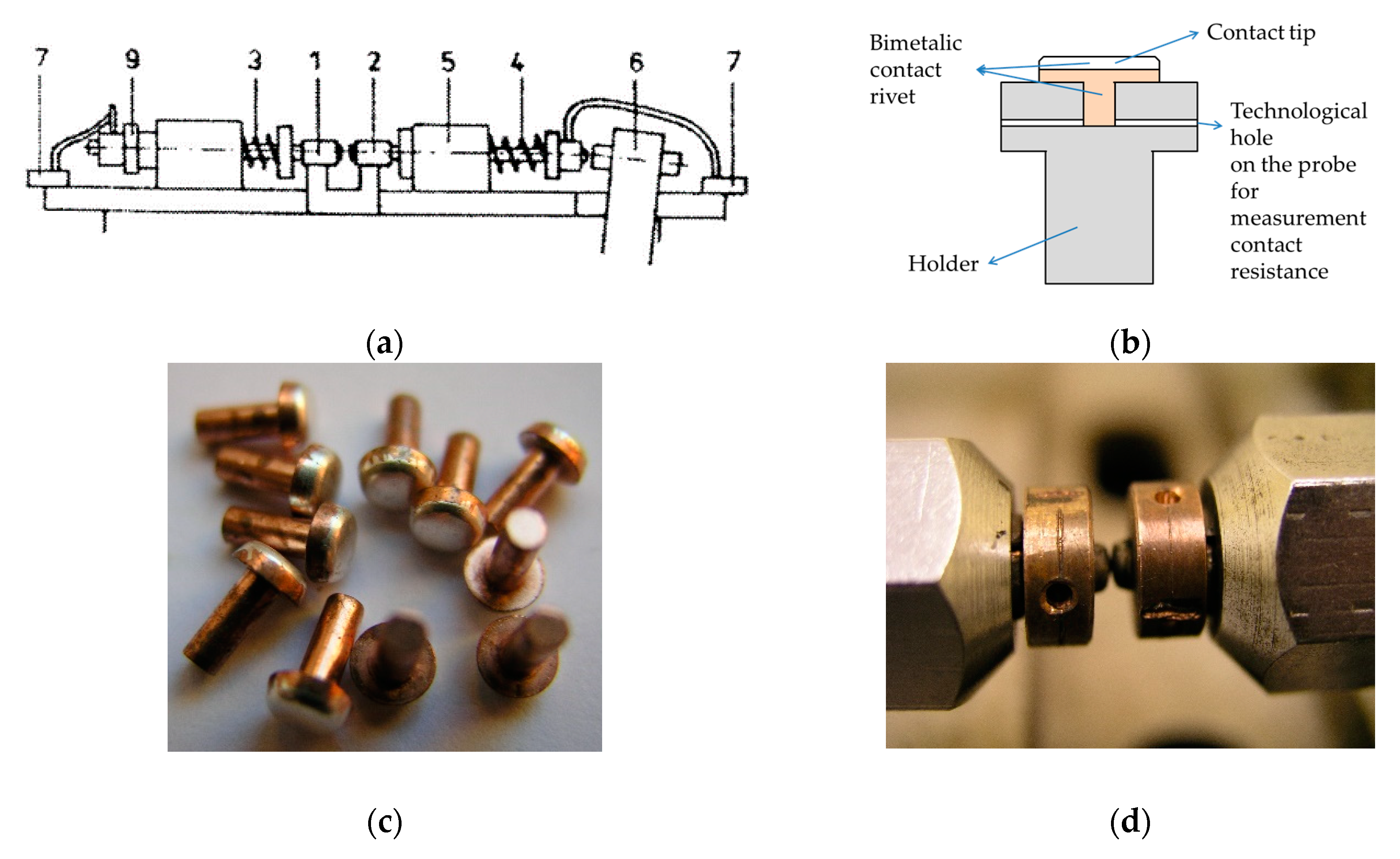

Metal | Specific Surface Area BET Multipoint, m2/g | Average Powder Size, µm |
---|---|---|
Ag | 0.056 ± 0.001 | 24.33 ± 0.49 |
Re | 1.448 ± 0.016 | 1.69 ± 0.04 |
Contact Material | Ag, % by Mass | Re, % by Mass |
---|---|---|
AgRe1 | 99 | 1 |
AgRe5 | 95 | 5 |
AgRe10 | 90 | 10 |
Parameter | Direct Current, DC | Alternating Current, AC |
---|---|---|
Current, A | 10 | 60 |
Voltage, V | 550 | 230 |
Distance between contacts, mm | 6 | 5 |
Force of pressure, N | 10 | 10 |
Number of switching cycles | 50,000 | 15,000 |

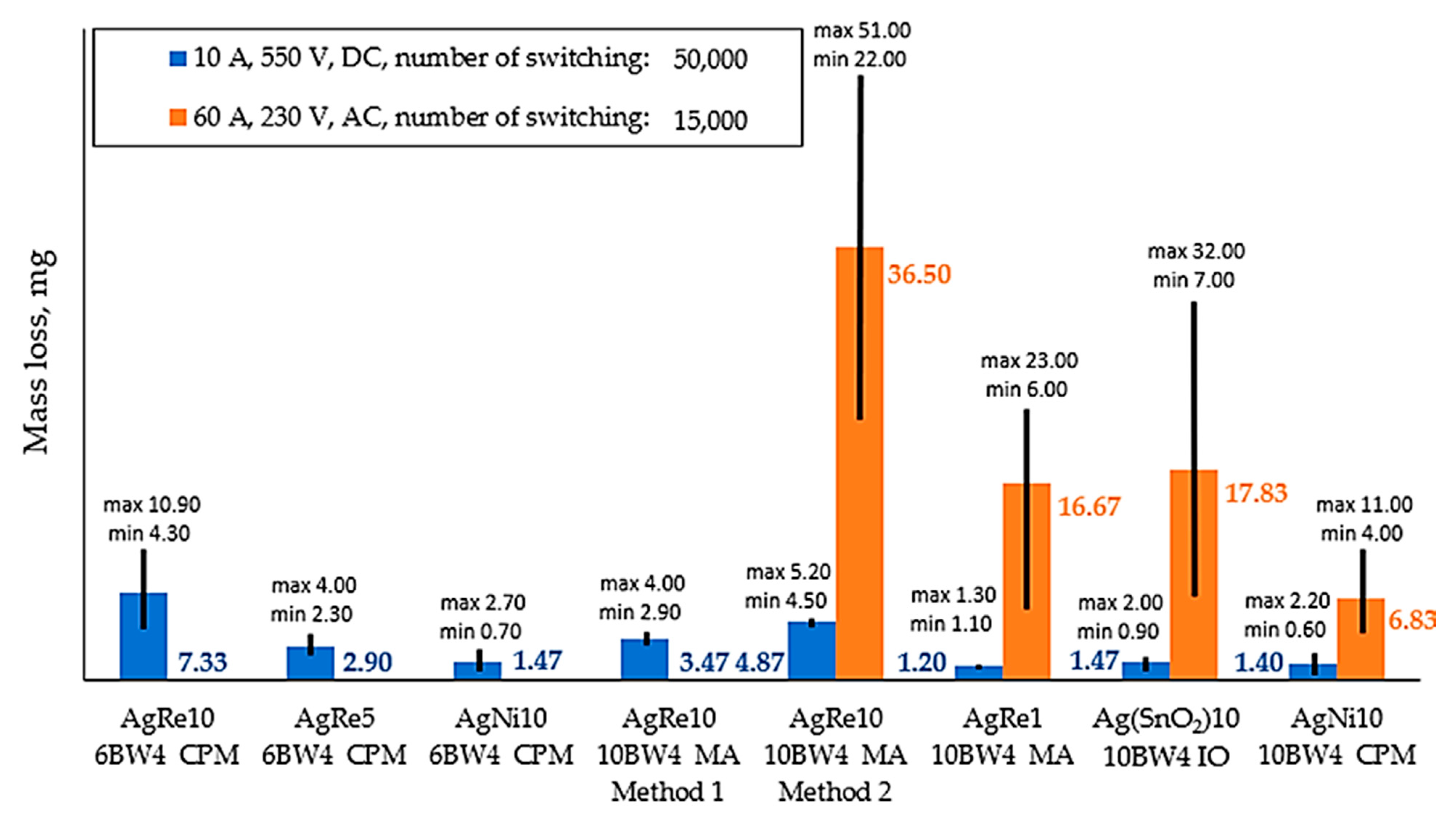

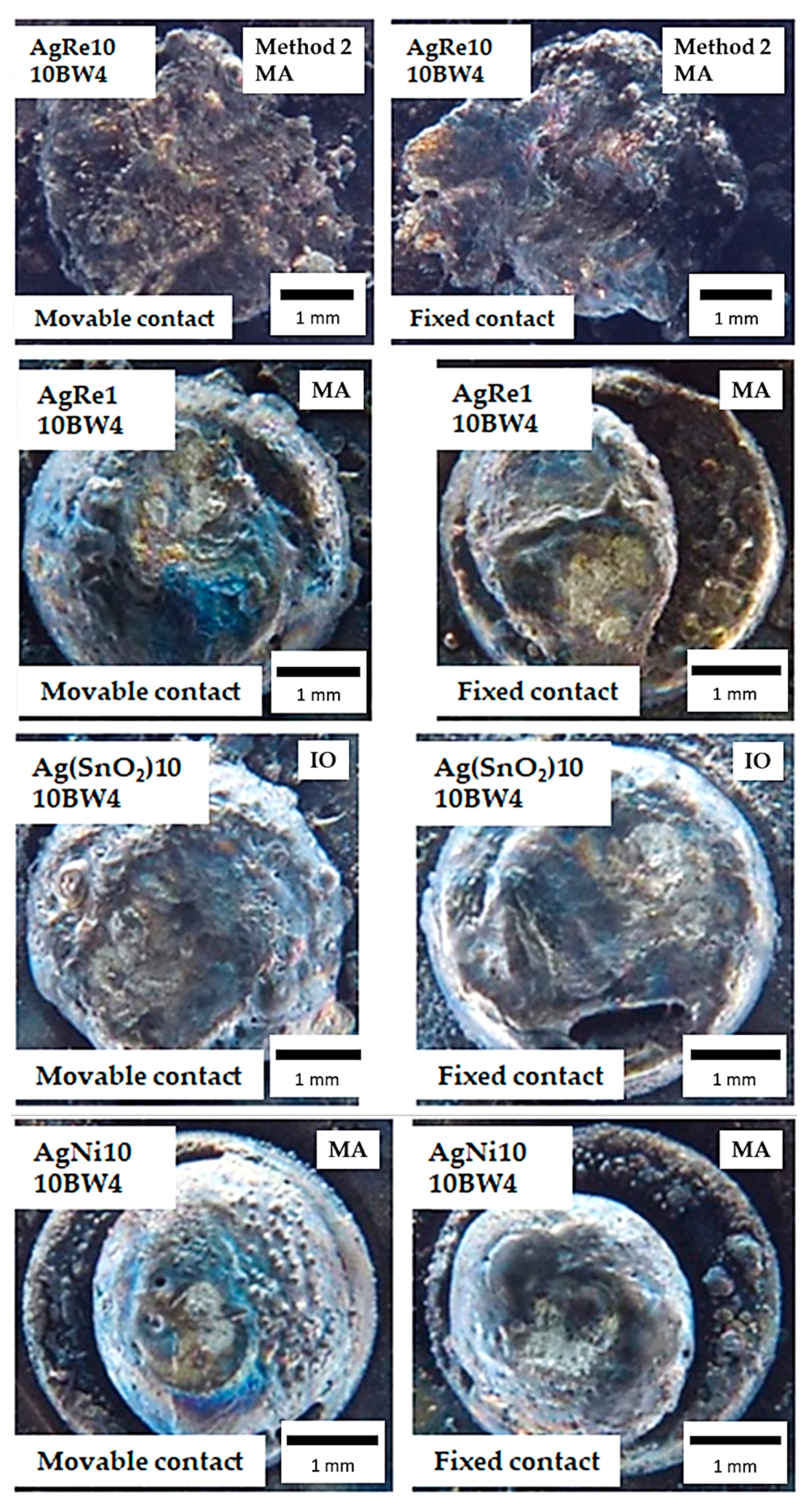

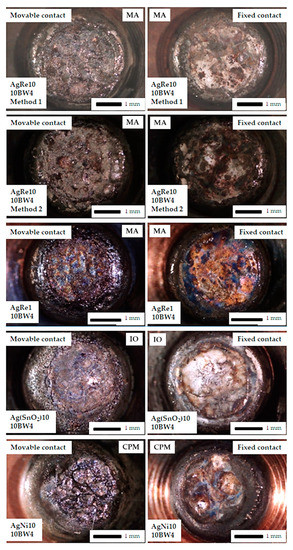

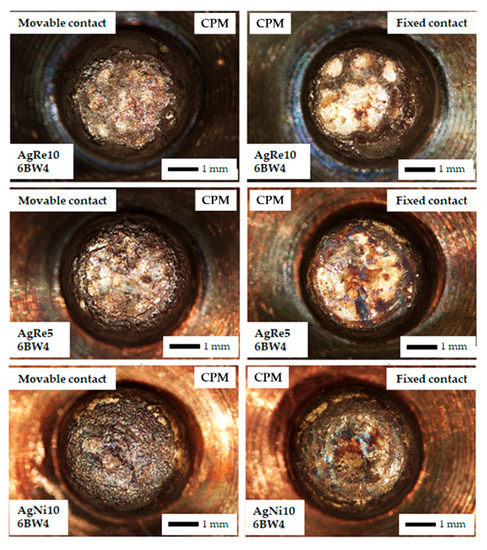

Material (A) | Reference Material (B) | Rivet Shape | Technology Type | Value and Type of Load | Mas Loss A, mg | Mas Loss B, mg | Mass Loss Ratio, (mas loss A)/ (mas loss B) |
---|---|---|---|---|---|---|---|
AgRe10 | AgNi10 | 6BW4/1.5 | CPM | 10 A, DC | 7.33 | 1.47 | 5.0 |
AgRe5 | 2.90 | 2.0 | |||||
AgRe10–method 1 | 10BW4/1.5 | MA | 3.47 | 1.40 | 2.5 | ||
AgRe10–method 2 | MA + SPS | 4.87 | 3.5 | ||||
AgRe1 | MA | 1.20 | 0.9 | ||||
AgRe10–method 2 | 60 A, AC | 36.50 | 6.83 | 5.3 | |||
AgRe1 | 16.67 | 2.4 | |||||
CPM = classical powder metallurgy; MA = mechanical alloying; SPS = spark plasma sintering |
Material | Rivet Shape | Technology Type | Value and Type of Load | Mass Loss, mg | Coefficient of Variation, % | |
---|---|---|---|---|---|---|
Average | Standard Deviation | |||||
AgRe10 | 6BW4/1.5 | CPM | 10 A, DC | 7.33 | 3.33 | 45.47 |
AgRe5 | 2.90 | 0.95 | 32.89 | |||
AgNi10 | 1.47 | 1.08 | 73.23 | |||
AgRe10–method 1 | 10BW4/1.5 | MA | 3.47 | 0.55 | 15.88 | |
AgRe10–method 2 | MA + SPS | 4.87 | 0.35 | 7.22 | ||
AgRe1 | MA | 1.20 | 0.10 | 8.33 | ||
Ag(SnO2)10 | IO | 1.47 | 0.55 | 37.49 | ||
AgNi10 | CPM | 1.40 | 0.80 | 57.14 | ||
AgRe10–method 2 | MA + SPS | 60 A, AC | 36.50 | 14.50 | 39.73 | |
AgRe1 | MA | 16.67 | 9.29 | 55.75 | ||
Ag(SnO2)10 | IO | 17.83 | 12.83 | 71.96 | ||
AgNi10 | CPM | 6.83 | 3.69 | 53.99 | ||
CPM = classical powder metallurgy; MA = mechanical alloying; SPS = spark plasma sintering |

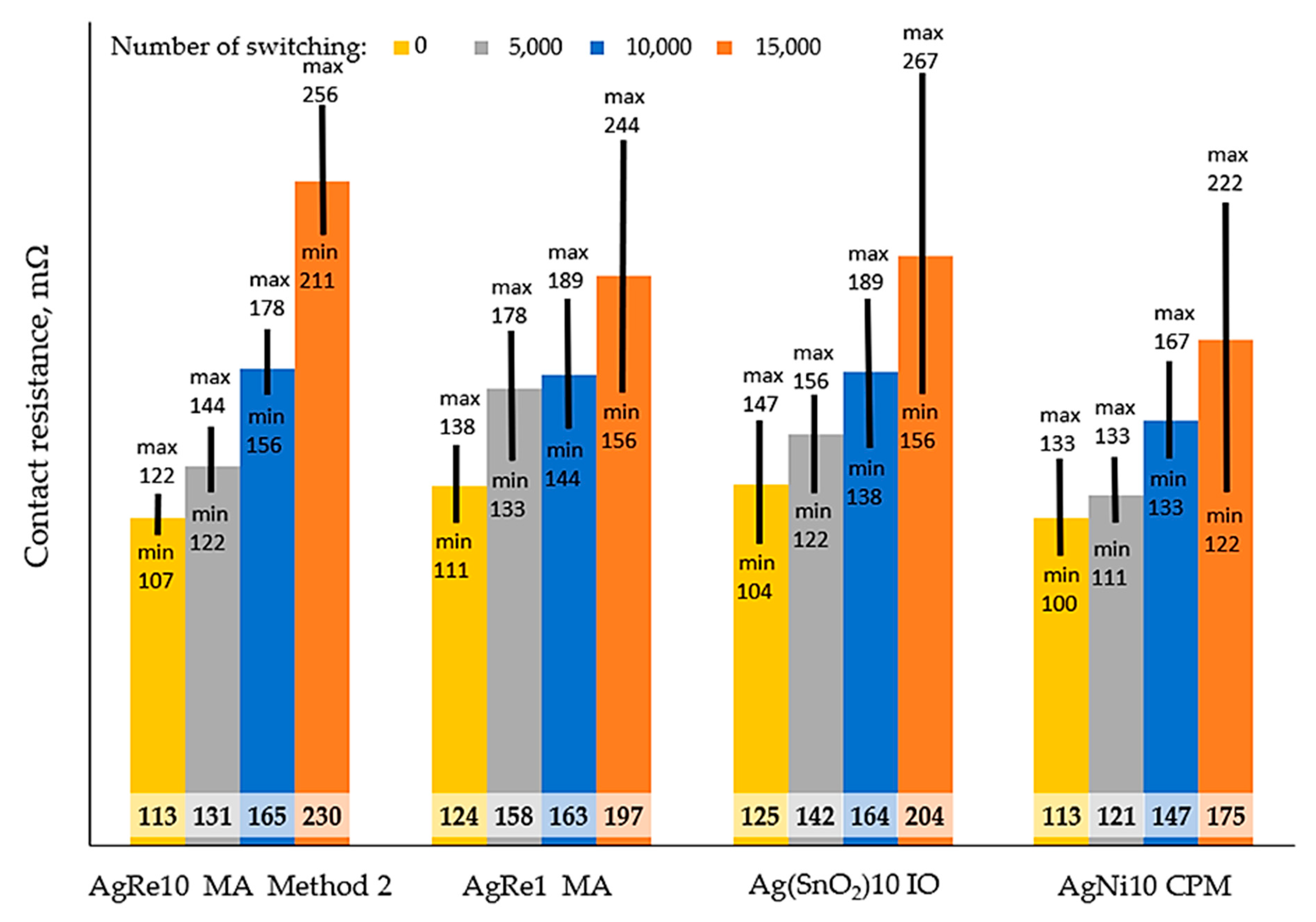

Number of Switching | Contact Resistance, mΩ | Coefficient of Variation, % | |
---|---|---|---|
Average | Standard Deviation | ||
AgRe10–method 2, 10BW4/1.5, MA + SPS | |||
0 | 113.00 | 7.94 | 7.02 |
5000 | 131.00 | 11.53 | 8.80 |
10,000 | 165.00 | 11.53 | 6.99 |
15,000 | 230.00 | 23.30 | 10.13 |
AgRe1, 10BW4/1.5, MA | |||
0 | 124.00 | 13.53 | 10.91 |
5000 | 158.00 | 22.91 | 14.50 |
10,000 | 163.00 | 23.30 | 14.30 |
15,000 | 197.00 | 44.31 | 22.49 |
Ag(SnO2)10, 10BW4/1.5, IO | |||
0 | 125.00 | 21.52 | 17.21 |
5000 | 142.00 | 17.78 | 12.52 |
10,000 | 164.00 | 25.51 | 15.56 |
15,000 | 204.00 | 57.00 | 27.94 |
AgNi10, 10BW4/1.5, CPM | |||
0 | 113.00 | 17.58 | 15.56 |
5000 | 121.00 | 11.14 | 9.20 |
10,000 | 147.00 | 17.78 | 12.09 |
15,000 | 175.00 | 50.27 | 28.73 |
CPM = classical powder metallurgy; MA = mechanical alloying; SPS = spark plasma sintering |
