Fabrication of the Zirconium Diboride-Reinforced Composites by a Combination of Planetary Ball Milling, Turbula Mixing and Spark Plasma Sintering

by
Iwona Sulima
1,*,
Paweł Hyjek
1 and
Marcin Podsiadło
2
1
Institute of Technology, Pedagogical University of Krakow, Podchorazych 2 Str., 30-084 Krakow, Poland
2
Łukasiewicz Research Network—Krakow Institute of Technology, Zakopiańska 73, 30-418 Krakow, Poland
*
Author to whom correspondence should be addressed.
Materials 2021, 14(14), 4056; https://doi.org/10.3390/ma14144056
Submission received: 31 May 2021 / Revised: 15 July 2021 / Accepted: 17 July 2021 / Published: 20 July 2021
(This article belongs to the Special Issue Novel High-Temperature Materials: Preparation, Characterization, and Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
The aim of this study was to carry out the consolidation of zirconium diboride-reinforced composites using the SPS technique. The effect of the adopted method of powder mixture preparation (mixing in Turbula or milling in a planetary mill) and of the reinforcing phase content and sintering temperature on the microstructure, physical properties, strength and tribological properties of sintered composites was investigated. Experimental data showed that the maximum relative density of 94–98% was obtained for the composites sintered at 1100 °C. Milling in a planetary mill was found to contribute to the homogeneous dispersion and reduced clustering of ZrB2 particles in the steel matrix, improving in this way the properties of sintered steel + ZrB2 composites. Morphological and microstructural changes caused by the milling process in a planetary mill increase the value of Young’s modulus and improve the hardness, strength and wear resistance of steel + ZrB2 composites. Higher content of ZrB2 in the steel matrix is also responsible for the improvement in Young’s modulus, hardness and abrasive wear resistance.

1. Introduction

The development of modern technology and the needs of industry require constant development of new materials with unique properties, the production of which, by conventional methods, is either impossible or very difficult. Such materials also include composites, whose properties depend, among others, on the method of fabrication and appropriate selection of materials used for the composite matrix and reinforcing phase. The composite material is a combination of at least two different materials which operating jointly provide better properties than when used individually [1,2]. Recent decades have faced an intensive development of research on metal matrix composites. The most commonly used materials for the composite matrix are aluminum, iron, titanium, copper, magnesium, and their alloys [3,4,5,6,7]. Typical reinforcements of composites are carbides (TiC, SiC, B4C), oxides (ZrO2, TiO2, Al2O3, SiO2), nitrides (Si3N4, BN) and borides (TiB2, ZrB2) [8,9,10,11]. Very vivid interest in the use of zirconium diboride (ZrB2) as a reinforcing phase for metal matrix composites results from a unique combination of physical and mechanical properties offered by this ceramic material [12,13,14,15]. The beneficial properties of zirconium diboride include high melting point (3245 °C), high hardness (>2200 HV), excellent thermal conductivity (57.9 W/mK) and electrical conductivity (1 × 107 S/m). Additionally, ZrB2 has good corrosion resistance [16,17,18]. Various experiments have shown that the use of ZrB2 ceramic particles can significantly improve the mechanical properties and wear behaviour of aluminum and aluminum matrix composites [19,20,21]. The beneficial effect of ZrB2 on hardness, strength and electrical conductivity was also observed in composites based on copper matrix [12,22]. For example, Kumar et al. [21] showed an improvement in the mechanical properties of aluminum matrix composites along with an increase in the content of zirconium diboride. In turn, Wang et al. [12] produced Cu–ZrB2 composites by the method of hot sintering with hardness higher than 100 HV and electrical conductivity higher than 85% IACS.
Using iron and its alloys for the composite matrix is of great importance for various industries. Iron alloys are characterized by good mechanical properties, high wear resistance and low production costs. The use of stainless steel is preferable to iron due to its higher corrosion resistance and better mechanical properties [23,24,25]. Studies devoted to the development of sintered composites with an austenitic steel matrix have mainly concerned the selection of sintering process parameters and characteristics of the physical, mechanical and functional properties of such materials [26,27,28,29,30,31]. Nahme et al. [30] investigated the microstructure and mechanical properties of sintered steel-based composites reinforced with 15 vol% TiB2. It has been indicated that the use of fine ceramic particles (TiB2) improves the mechanical properties of composites. Such materials usually show a notable increase in both compressive strength and tensile strength compared to the alloy without reinforcement. Studies of the composite microstructure showed homogeneous distribution of TiB2 in the steel matrix. Sulima et al. [15] investigated the effect of the content of ZrB2 on the density, microstructure and properties of composites based on 316 L austenitic stainless steel matrix. With the increasing content of ZrB2, an increase in Young’s modulus and hardness was obtained. The incorporation of ZrB2 into the matrix also had a beneficial effect on the wear resistance of the composites. Shamsuddin et al. [31] sintered Fe–Cr–Al2O3 composites with different proportional content of the reinforcing phase (5%–25 wt%) using a free sintering process. The addition of 5 wt% Al2O3 increased the relative density as compared to the samples without the reinforcing phase. On the other hand, the increase in Al2O3 content from 10 wt% to 25 wt% reduced the density. The results showed that both hardness and wear resistance of the sintered composites improved when increasing the content of the reinforcing phase by up to 20 wt%. Further increase in the Al2O3 content reduced the mechanical properties due to the alloy’s tendency to form agglomerates. Akhtar et al. [32] used MoSi2 as a reinforcing phase for 316 L austenitic steel. The addition of MoSi2 to the steel matrix increased the relative density, hardness and tensile strength of the composites. The best combination of the properties was obtained for the composite with the addition of 5 wt% MoSi2 sintered at 1300 °C. In [33], the properties of sintered composites based on a steel matrix (AstaloyCrL) reinforced with tungsten carbide (5 vol% and 20 vol%) were examined. It was shown that the volume fraction of carbides controls both abrasive wear resistance and corrosion resistance of composites. With the growth of the WC phase, the composites become more susceptible to pitting corrosion. Higher content of tungsten carbide in the composite increases the coefficient of friction and reduces the weight loss of the sample. Moreover, it has been found that the size of the particles of the reinforcing phase has no significant effect on the coefficient of friction and corrosion resistance.
The main purpose of this study was to determine the effect of the powder mixture preparation method on the properties and microstructure of composites based on the 316 L austenitic stainless steel matrix reinforced with different contents of the ZrB2 phase.

2. Test Materials and Methods

The starting materials were 316 L austenitic stainless steel (Hoganas, 25 μm average particle size) and zirconium diboride (H.C. Starck, 99.9 wt% purity, 2.5–3.5 μm average particle size). Table 1 shows the chemical composition of the 316 L steel powder, while Figure 1 shows the morphology of the 316 L steel and ZrB2 powders.
For the sintering process, two mixtures of composite powders with different content of the ZrB2 reinforcing phase were prepared:
  • 316 L steel + 5 wt% ZrB2
  • 316 L steel + 10 wt% ZrB2
Two methods were used for the preparation of powder mixture:
  • Dry mixing in a Turbula T-2C mixer (Willy A. Bachofen AG, Muttenz, Switzerland) for 8 h. Steel balls with a diameter of 5 mm were used to homogenize each mixture.
  • Milling in a Fritsch Pulverisette 6 planetary mill (Fritsch GmbH -Germany) using a 5 mm diameter milling beaker and balls made of tungsten carbide. The rotational speed of the grinder was 200 rpm and the milling time was 8 h. A solution of polyethylene glycol in ethanol was used as the wetting medium. The milling balls:ground powder weight ratio was 10:1.
Figure 2 shows the morphology of composite mixtures containing 5 wt% and 10 wt% ZrB2 prepared by two different methods.
The powders were consolidated by spark plasma sintering (SPS HP5 FCT System, Frankenblick, Germany) in a graphite die (Ø 20 mm) at temperatures of 1000 °C and 1100 °C. The temperature was controlled by a pyrometer. Sintering experiments were conducted in an argon atmosphere at 35 MPa pressure for 5 min. During SPS process, the heating rate was kept at a level of 200 °C/min. The cooling rate of the furnace was 100 °C/min. The sintered samples were of 20 mm diameter and 6 mm height.
The density and open porosity of the sintered composites were determined by the Archimedes’ immersion method in water [34]. In the study of the Young’s modulus of the sintered composites, a Panametrics Epoch III flaw detector (Billerica, MA, USA) equipped with special broadband ultrasound probes for longitudinal and transverse waves was used. Five measurements were made for each sample. The measurement error was 2%.
The microstructures were analyzed by Scanning Electron Microscopy (SEM, JEOL JSM 6610LV (JOEL, Peabody, MA, USA) and Hitachi SU-70 (Hitachi High-Technologies Corporation, Tokio, Japan), Energy Dispersive Spectroscopy (EDS, AZtec) and Wavelength Dispersive Spectroscopy (WDS). The phase identification was performed by X-ray diffraction method (XRD, Empyrean; PANalytical) using CuKα radiation. Additionally, phase analysis was coupled with SEM using electron backscatter diffraction (EBSD) analysis. The applied SEM microscope was a FEI Inspect F50 (FEI Company, Hillsboro, OR, USA) with an EDAX TSL EBSD detector. The obtained EBSD data was analyzed using TSL OIM software [35] using a grain tolerance angle of 5 degrees and a PDF ICCD 2011 database format.
Vickers hardness (HV1) was evaluated under a load of 9.81 N using a NEXUS 4000 tester (INNOVATEST EUROPE BV, Maastricht, The Netherlands). The hardness values were the average of ten readings taken at random locations in the sintered sample. Next, the mechanical properties were determined in tensile tests and compression tests. The tensile tests were carried out at room temperature on specimens with a base of 5 mm and cross-section base of 0.5 × 0.5 mm. The samples were deformed at a rate of 6 × 10−4 s−1. Three specimens were tested for each material. The compression tests were conducted using an INSTRON TT-DM testing machine (Norwood, MA, USA). Cylindrical specimens with a diameter of 3 mm and a height of 4.5 mm were used. Compression tests were carried out with the crosshead speed of 1 × 10−4 mm/s at room temperature and at temperatures of 400 °C and 800 °C. Studies at elevated temperatures were performed in a protective argon atmosphere to prevent oxidation of compression anvils and specimens. Three specimens were tested for each material.
Tribological tests were carried out using a ball-on-disc wear testing machine (ELBIT, Koszyce Małe, Poland). Tests were carried out without lubricant according to the ISO 20808:2004(E) [36]. Table 2 shows the conditions used during tribological tests. For each test a new ball was applied. All balls and samples were washed in high-purity acetone and dried.
During the test, the friction force was continuously measured with an extensometer. The friction coefficient (μ) was calculated as the ratio of the friction force (Fn) and the applied load (Ft). Next, the specific wear rate was calculated. The cross-sectional profile of the wear track was measured at four places at intervals of 90° using a contact stylus profilometer. The specific wear rate was calculated from the following equation:
W V d i s c = V d i s c F n · L
where:
Vdisc—wear volume of disc specimen [mm3],
Fn—applied load [N],
L—sliding distance [m].

3. Results and Discussion

It is the fact well known that the method of powder mixture homogenization significantly affects the quality of the sintered composite. In the preparation of composite powder mixtures, the choice of the mixing method is one of the main issues [37,38,39].
The differences in the morphology of composite powders after milling in a planetary mill or mixing in Turbula are shown in Figure 2. Milling processes change the morphology of powders as a result of the strong plastic deformation to which the particles are subjected during milling. The particles of the composite mixture have an elongated shape (Figure 2c,d).
Figure 3 shows the microstructure of the sintered 316 L steel and steel + ZrB2 composites. Microscopic observations have revealed qualitative differences in the morphology of the examined microstructures. A heterogeneous distribution of the ZrB2 reinforcing phase in the steel matrix (Figure 3b,c) was observed in the case of mixing in Turbula. Zirconium diboride tended to be unevenly located along the grain boundaries in the matrix (Figure 3b,c). The formation of agglomerates of the reinforcing phase was observed locally (Figure 3c). For these composites, the size of the ZrB2 reinforcing phase was in the range of 3–12 µm. In contrast, during mechanical milling in a ball mill, the size of the ZrB2 phase was reduced. The size of the reinforcing phase was comprised in the range of 1–3 µm. The reinforcing phase was evenly distributed in the matrix, especially in the case of composites containing 10%ZrB2 (Figure 3e). The formation of agglomerates of the reinforcing phase in the microstructure was not observed. In the steel-5%ZrB2 composites (Figure 3d), local occurrence of areas free from the presence of the reinforcing phase was noticed. The fragmentation of the ceramic phase was due to the operation of mechanisms inducing changes in the morphology of particles during mechanical milling process. These mechanisms included: (a) mechanism of plastic deformation, (b) mechanism of cold welding, and (c) fracture mechanism. In the first stage of the milling process, the powder particles were sliding on top of each other due to the effect of cracking and plastic deformation. Powders underwent plastic deformation which resulted in their hardening and then cracking. As a result of cracking, new surfaces were created, which in the second stage of the process allowed for cold welding of the powder particles. In the third stage, the powder particles were strongly deformed and crushed [38,40].
Figure 4 shows the X-ray diffraction patterns of materials sintered at 1100 °C. The phase composition analysis revealed the presence of the ZrB2 phase and 316 L austenitic stainless steel. It was observed that the intensity of the peaks of the reinforcing phase increased with the increased content of the ZrB2 particles in the steel matrix. A similar tendency was observed for composites sintered at 1000 °C.
Figure 5, Figure 6, Figure 7, Figure 8, Figure 9 and Figure 10 show the comparative microstructures of the sintered composites. WDS and EBSD techniques were used to verify the phase composition of the sintered steel + ZrB2 composites. The results of phase analysis confirmed the presence of the ZrB2 phase in all sintered composites. Microstructural studies in turn confirmed the differences in the size and morphology of the reinforcing phase depending on the method of preparation of powder blends. A significant fragmentation of the reinforcing phase was observed for composites which were processed in a planetary mill. The fine reinforcing phase was evenly distributed in the entire volume of the steel matrix (Figure 7 and Figure 8). This was characterized by an oval or spherical shape. Additionally, for all steel + ZrB2 composites, the EBSD analysis (Figure 9 and Figure 10) showed the presence of very fine precipitates containing chromium, which were not observed in the sintered austenitic steel. The WDS chemical composition analysis has indicated that the precipitates contained both chromium and boron (Figure 5, Figure 6, Figure 7 and Figure 8). Probably, the applied conditions of the SPS process promoted the formation of new borides in the microstructure of composites. During the SPS process, several mechanisms operate simultaneously (surface activation, diffusion, fusion, necking between the sintered powder particles, and plastic flow), and they may contribute to the formation of new phases in the microstructure of steel + ZrB2 composites. In composites processed by mixing in Turbula (Figure 5 and Figure 6), the chromium- and boron-containing phases were distributed along the grain boundaries in the matrix.
When milling was carried out in a planetary mill, the examined chromium and boron dispersion phases were evenly distributed in the grains of the steel matrix and along the grain boundaries, acting as an additional reinforcement of the steel matrix (Figure 8). Additionally, the formation of nickel- or molybdenum-containing precipitates was locally observed in the microstructure of all steel + ZrB2 composites.
This is consistent with the results of tests carried out on the TiB2-reinforced composites sintered by SPS [8,41]. In the microstructure of these materials, the presence of two complex borides of the BCr0.2Fe1.8 and (Cr,Fe,Mo,Ni,Ti)3B2 type was found. Studies of the microstructure [41] also showed that changes in the conditions of the SPS process have a significant impact on the microstructure of the tested materials. Longer time and higher temperature of the sintering process increase the number of new boride phases and their dimensions in the entire volume of the composite. Attention deserves the fact that, as indicated in [42,43], the addition of boron effectively activates the free sintering process of austenitic steel. The formation of complex borides of the (Cr,Mo,Fe)2B type during free sintering of austenitic steel was demonstrated. It was observed that during sintering of the boron-modified austenitic steel, a liquid phase was formed as a result of the eutectic reaction between matrix alloy and complex borides.
Figure 11 shows the effect of powder preparation method and reinforcing phase content on the density and Young’s modulus of the sintered composites. The results obtained indicate that milling in a planetary mill is the method more preferable, since all composites have higher density and Young’s modulus compared to the results obtained for the Turbula mixing method. The results also show that, regardless of the method of powder preparation, the sintering temperature of 1000 °C is not sufficient for the consolidation of composites with an austenitic steel matrix. The sinters obtained under such conditions are characterized by low density, i.e., at a level of 79–89%, and high porosity in the range of 8–20%. Low Young’s modulus values (Figure 11b) were also obtained for these materials because of the high porosity of sinters fabricated at this temperature.
Significant improvement in the density and Young’s modulus of the sintered materials was obtained when the sintering temperature was raised to a higher level. All composites sintered at 1100 °C were characterized by a very high degree of compaction. The density was in the range of 94–98% of the theoretical density. For these materials, the minimum porosity was in the range of 0.4–1.3%. The higher the sintering temperature, the easier and more intense the diffusion process, improving the composite density. The increase in sintering temperature also raised the value of Young’s modulus (Figure 11b). Additionally, it was observed that the density of the sintered composites decreased when increasing the content of ZrB2. This was due to the lower density of zirconium diboride (6.08 g/cm3) [44] compared to the density of 316 L steel (8.00 g/cm3) [45].
Figure 12 shows the results of hardness tests. Significant improvement in hardness was observed in all composites sintered at 1100 °C, additionally enhanced by milling the composite mixtures in a planetary mill. For comparison, the hardness of 316 L steel without reinforcement is 197 HV1 but for composites with 5% and 10% ZrB2, an almost two-fold increase in hardness was obtained, i.e., to 353 HV1 and 395 HV1, respectively. Salur at al. [46] showed that, compared to the starting alloy (composite matrix), the hardness of the TiC-reinforced composites increased three times when milling in a ball mill was applied. A homogeneous distribution of nanoparticles in the matrix was observed with the increasing time of milling. The analysis of the effect of the content of the reinforcing phase showed an obvious improvement in the hardness of composites. The hardness was increasing with the increasing content of the ZrB2 phase. This tendency was observed in composites sintered under various conditions, and it is consistent with the research done by other authors [47,48], who have demonstrated that hardness of the 304 austenitic steel matrix increases with the increasing volume fraction of ZrB2.
The results obtained so far for properties such as density, porosity, Young’s modulus and hardness clearly indicate that the sintering temperature of 1000 °C is insufficient. Therefore, in the further part of discussion, the results obtained for the mechanical and tribological properties will concern only materials sintered at a temperature of 1100 °C.

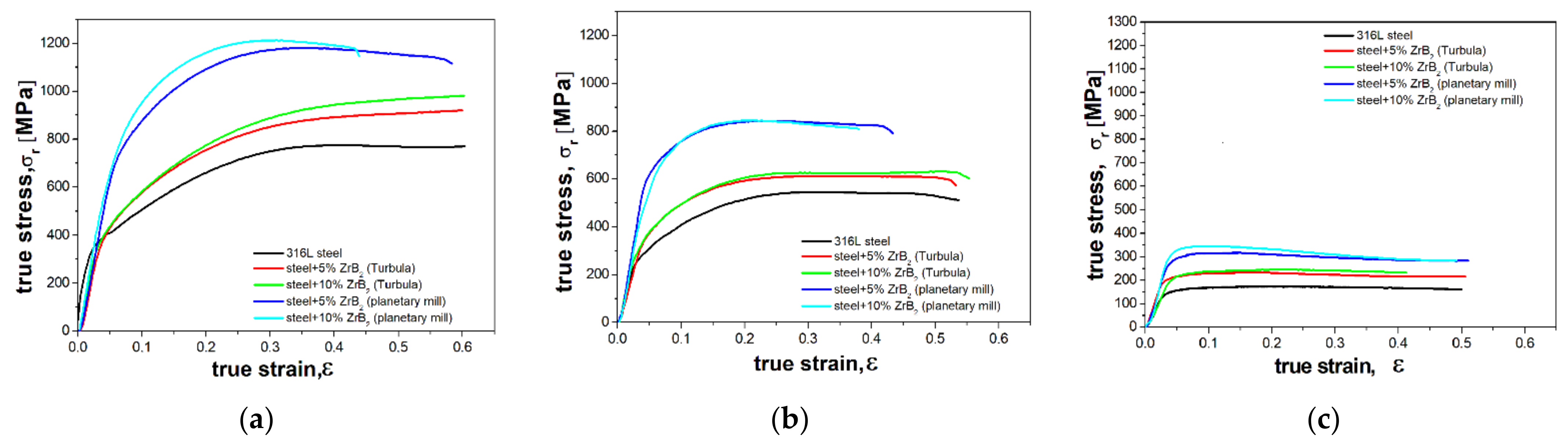

Figure 13 and Table 3 compare the results of compression tests carried out on the sintered materials at room temperature and also at elevated temperatures (400 °C and 800 °C). Figure 14 shows the compression samples before and after the test. The test results indicate that, after reaching the maximum true stress, the stress value gradually decreases for each tested material. Cracks and fractures were not observed in the samples that underwent plastic deformation during the test. The samples were deformed to the appropriate level of strain. Fractures appeared in samples compressed at 400 °C and 800 °C (Figure 14). The results showed that changes in the content of the reinforcing phase in the matrix had no important effect on the mechanical properties of the composites in the entire range of compression test temperatures. Only in the compression tests carried out at room temperature (Figure 13a) was the maximus true stress observed to assume higher values for the composites containing 10% ZrB2. A similar effect was observed in other studies, where the steel matrix was reinforced with oxides (Y2O3) and carbides (TiC) [49,50].
The results obtained (Figure 13, Table 3) show that, compared to steel without reinforcement, various methods used for the composite mixture preparation have a significant effect on the improvement in mechanical properties of the tested composites. This effect is clearly visible in the results obtained at room temperature and at 400 °C (Figure 13a,b). The results of the compression tests carried out at room temperature have demonstrated that, for milling in a planetary mill, the compressive strength measured as the maximum force F divided by the initial cross-sectional area is 1139 MPa and 1189 MPa for the steel-matrix composites containing 5%ZrB2 and 10%ZrB2, respectively. For comparison, the compressive strength of the austenitic steel is 753 MPa.
The effect of composite hardening can be obtained by introducing the ceramic phase into the matrix, and by either inhibiting the grain growth or refining the matrix grains [51]. Owing to the simultaneous application of the ZrB2 reinforcing phase and its fragmentation during milling, an effective reinforcement of the composites was obtained with further improvement in their strength properties determined during compression tests. Moreover, the compressive stresses formed in the material during the first stage of compression contribute to closing of pores in the sintered material and may delay the initiation of cracks at the matrix/reinforcement interface [52].

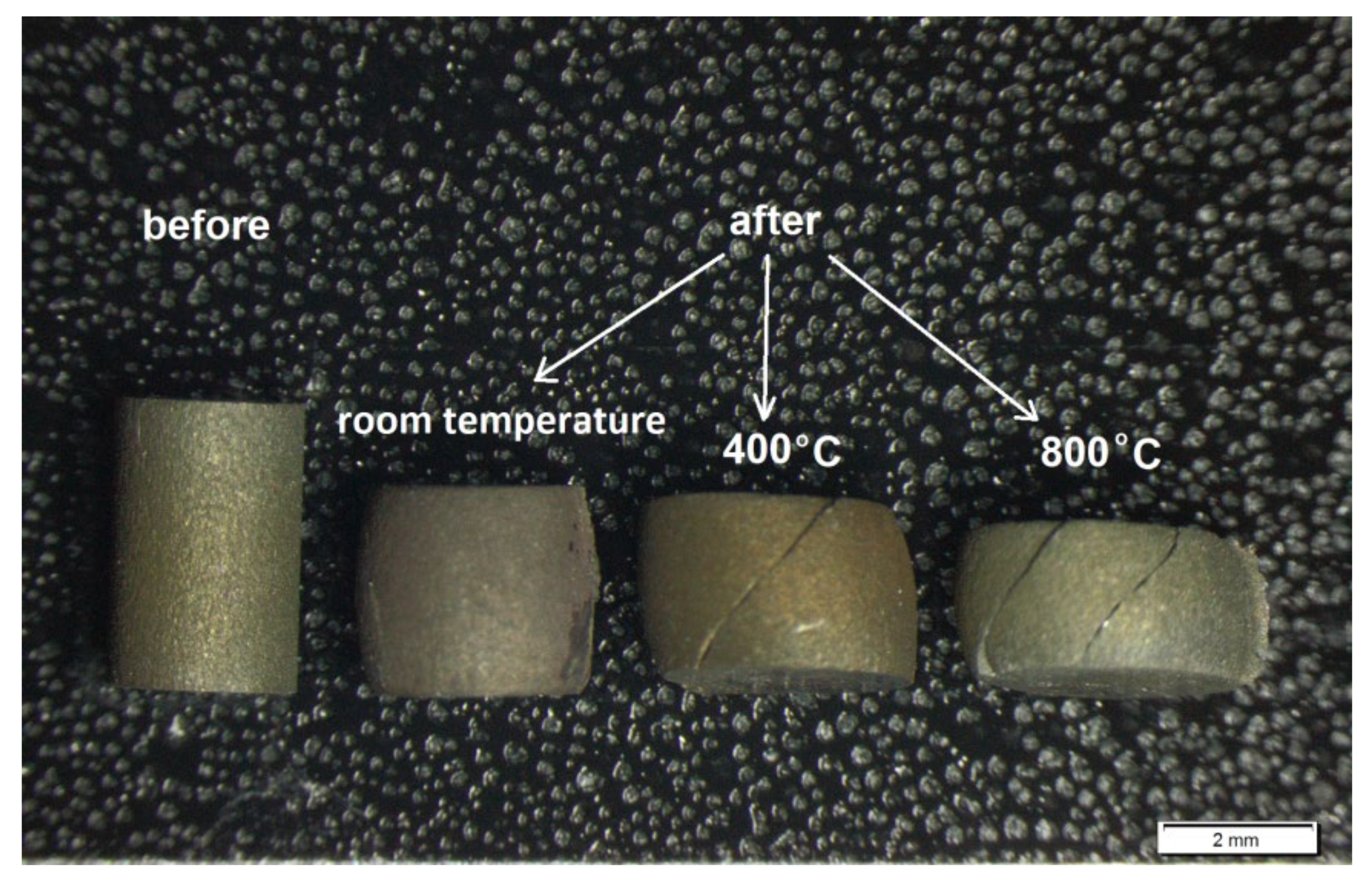

Compression tests at elevated temperatures (400 °C and 800 °C) deteriorated the strength of the sintered materials (Figure 13 b,c, Table 3). As a result of these tests, regardless of the temperature at which they were carried out, a nearly identical course of the deformation curves was obtained for each group of the tested materials. In the analysis of the results of compression tests, the content of the reinforcing phase was found to have no major effect on the compressive strength. The steel + ZrB2 composites tested at 400 °C were characterized by a compressive strength in the range of about 810–820 MPa and 594–603 MPa for milling in a planetary mill and mixing in Turbula, respectively. For comparison, the compressive strength of the 316 L austenitic steel was 529 MPa. In contrast, the application of higher temperature in compression tests, i.e., 800 °C, drastically reduced the strength of all materials tested (Figure 13c, Table 3).
Studies of the mechanical properties conducted by tensile tests also showed that the use of the milling method allows for the fabrication of composite materials with high plasticity and good strength properties at room temperature (Figure 15). The tensile strength Rm reached the values of 832 MPa and 730 MPa for the steel + 5%ZrB2 composite and steel + 10%ZrB2 composite, respectively. This demonstrates an increase in the tensile strength compared with the sintered 316 L steel for which the tensile strength Rm of 690 MPa was obtained. At the same time, along with the increasing content of ZrB2 in the steel matrix, the plasticity was decreasing. For comparison, the elongation of 316 L steel was 32%, while for the composites with 5%ZrB2 and 10%ZrB2 it decreased to 22% and 19%, respectively.
This is consistent with the research carried out by Tjong and Lau [48], who have demonstrated that the addition of titanium diboride improves the mechanical strength of the 304 austenitic steel-based composite at the expense of plasticity. Other research works [30] have also confirmed that introducing the TiB2 ceramic particles (15 vol%) with a size of less than 10 µm into the 316 L steel matrix is a good way to improve the mechanical properties. The tensile strength of the sintered steel was 520 MPa, while the tensile strength of the composites increased to 885 MPa. Studies also showed that the deformation decreased from 45% (for 316 L steel) to 6% (for steel + 15TiB2 composite).
Tests of the abrasive wear resistance were carried out at room temperature by the ball-on-disc method. Changes in the coefficient of friction and wear index as a function of the ZrB2 content are shown in Table 4. The test results obtained show that the addition of the ZrB2 ceramics to the steel matrix improves the tribological properties of composites. The coefficient of friction and the wear index decrease along with increasing volume fraction of ZrB2 in the steel matrix. The lowest values of the coefficient of friction (0.47 and 0.4) and specific wear rate (16.9 × 10−6 mm3/Nm and 13.1 × 10−6 mm3/Nm) were obtained for the composites with 10% ZrB2, taking into account various methods of the powder mixture preparation. For comparison, the coefficient of friction and wear rate of the 316 L steel were 0.64 and 32.5 × 10−6 mm3/Nm, respectively. The reinforcing phase protects the steel matrix from the effect of friction and reduces the wear rate. As the content of ZrB2 increases, the loss of composite material is reduced. These results are consistent with the literature [48], where it has been demonstrated that adding TiB2 to the matrix significantly improves the abrasive wear resistance of composites based on 304 steel. Srivastava et al. [53] showed that composites reinforced with TiC and (Ti,W)C exhibited better wear resistance than the austenitic steel without reinforcement. Composites containing (Ti,W)C were characterized by abrasive wear resistance superior to that obtained in the composites reinforced with TiC. The effect of the TiAl reinforcing phase content (3%–9 vol%) on the coefficient of friction and abrasive wear of sintered composites based on the 316 L austenitic steel matrix was investigated in [54]. It has been found that the wear rate of composites decreases with the increasing content of the TiAl intermetallic phase and sintering temperature.
The conclusion is that the tribological properties depend on the method of preparation of composite powders (Table 4). Milling in a planetary mill reduces the coefficient of friction, and thus the wear rate of the material, compared to the results obtained for composites mixed in Turbula. This is due to the microstructure of composites, which is characterized by a homogeneous distribution of the fine ZrB2 reinforcing phase in the entire volume of the matrix. The additional effect is the formation of very fine phases with chromium and boron, which are evenly distributed in the grains of the steel matrix and along the grain boundaries. They provide an additional reinforcement to the steel matrix (Figure 8), and this has a positive effect on the abrasive wear resistance of the tested composites.

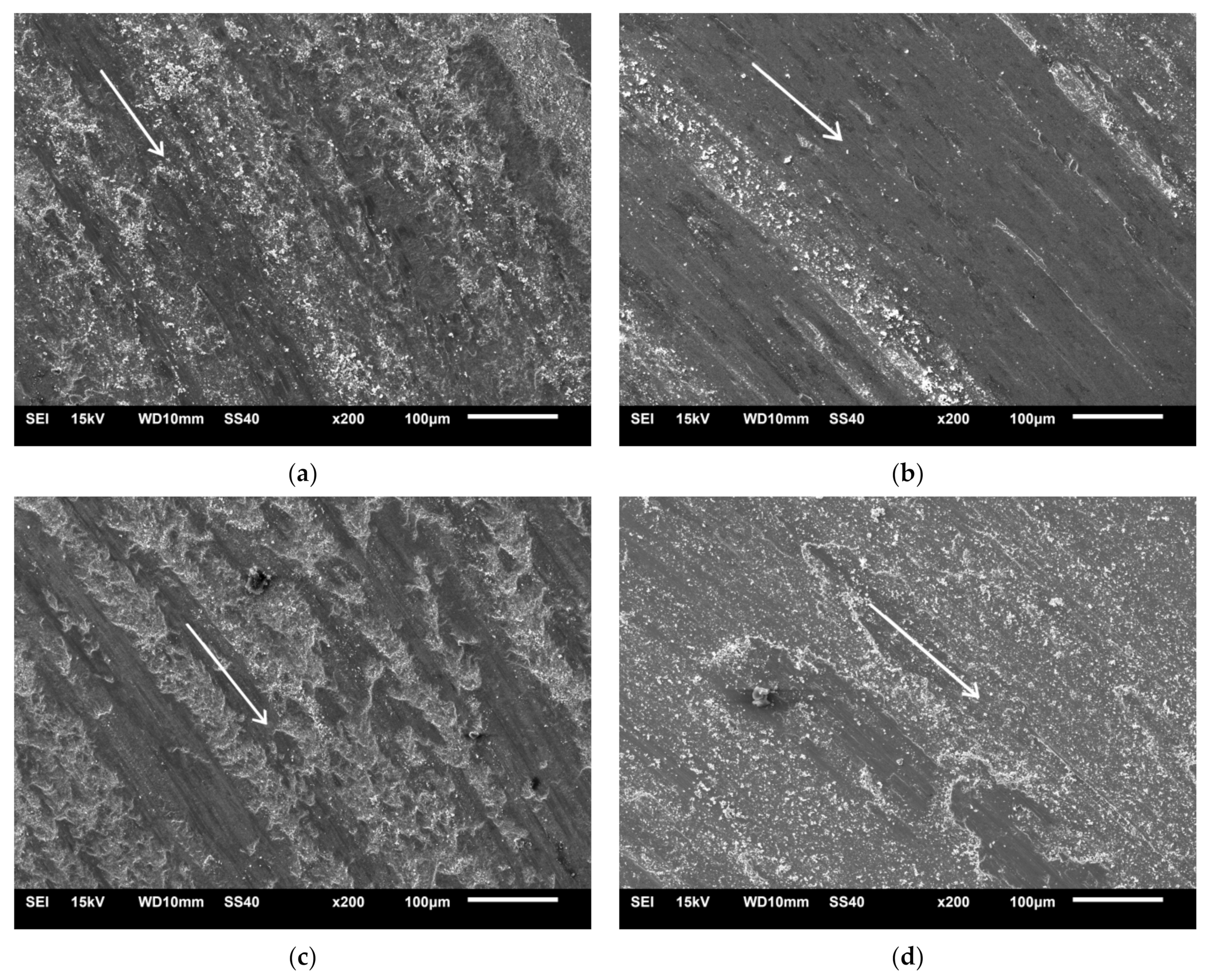

As a result of tribological tests, wear tracks were formed. Sample wear tracks are shown in Figure 16. In all sintered composites, the area of wear tracks showed signs characteristic of the abrasive and adhesive wear, such as scratches and grooves of orientation consistent with the direction of ball movement (bright arrow on the image of microstructure) and delamination. During tests, in the area of wear, permanent deformation of the composite material combined with abrasion occurred.

4. Conclusions

The aim of this study was to investigate the effect of milling in a planetary mill and mixing in Turbula on the microstructure and resultant physical and mechanical properties of the steel + ZrB2 composites. The important conclusions are as follows:
  • The test results showed that the sintering temperature of 1000 °C and the SPS method are not sufficient to produce a composite material with high properties.
  • The microstructure of the sintered composites depends on the method of powder preparation. A heterogeneous distribution of the ZrB2 reinforcing phase in the steel matrix was observed when Turbula mixing was used. Milling in a planetary mill contributed to the refinement and homogeneous dispersion (distribution) of the ZrB2 particles in the matrix. Microstructural examinations additionally revealed the presence of numerous fine precipitates containing chromium and boron.
  • The increase in the weight fraction of ZrB2 increased Young’s modulus, hardness and abrasion resistance.
  • The method of preparing powders significantly affects the properties of the steel + ZrB2 composites. Milling in a planetary mill is beneficial because all tested composites showed an improvement in density and an increase in Young’s modulus, hardness, strength and wear resistance.
  • The most advantageous combination of physical, mechanical and tribological properties was obtained for the steel + 10%ZrB2 composites processed by milling in a planetary mill and sintered by SPS at a temperature of 1100 °C for the time of 5 min.

Author Contributions

Conceptualization, I.S.; Formal analysis, P.H.; Investigation, I.S., P.H. and M.P.; Methodology, I.S., P.H. and M.P.; Visualization, I.S.; Writing–original draft, I.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Pedagogical University in Krakow, Poland, within the research project BN.610-195/PBU/2020.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data underlying this article will be shared on reasonable request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Sano, T.; Srivatsan, T.S.; Peretti, M. (Eds.) Advanced Composites for Aerospace, Marine, and Land Applications II; Wiley and Sons, Inc.: Hoboken, NJ, USA, 2015. [Google Scholar]
  2. Brautman, L.J.; Krock, R.H. Composite Materials; Academic Press: New York, NY, USA, 1975. [Google Scholar]
  3. Prosviryakov, A.S. SiC content effect on the properties of Cu–SiC composites produced by mechanical alloying. J. Alloy. Compd. 2015, 632, 707–710. [Google Scholar] [CrossRef]
  4. Pagounis, E.; Lindroos, V.K. Processing and properties of particulate reinforced steel matrix composites. Mater. Sci. Eng. 1998, A246, 221–234. [Google Scholar] [CrossRef]
  5. Wessley, J.G.J.; Srinivas, S.; Ali, M.D.A. Preparation and characterization of an aluminium 6061 alloy based metal matrix composite. Int. J. Eng. Adv. Technol. 2019, 8, 113–116. [Google Scholar]
  6. Cao, H.-C.; Liang, Y.-L. Dislocation hardening and phase transformation-induced high ductility in Ti-6Al-4V with a heterogeneous martensitic microstructure under tensile load. J. Alloy. Compd. 2020, 812, 152057. [Google Scholar] [CrossRef]
  7. Wang, X.; Wang, X.; Hu, X.; Wu, K. Effects of hot extrusion on microstructure and mechanical properties of Mg matrix composite reinforced with deformable TC4 particles. J. Magnes. Alloy. 2020, 8, 421–430. [Google Scholar] [CrossRef]
  8. Sulima, I.; Boczkal, S.; Jaworska, L. SEM and TEM characterization of microstructure of stainless steel composites reinforced with TiB2. Mater. Charact. 2016, 118, 560–569. [Google Scholar] [CrossRef]
  9. Cabeza, M.; Feijoo, I.; Merino, P.; Pena, G.; Pérez, M.C.; Cruz, S.; Rey, P. Effect of high energy ball milling on the morphology, microstructure and properties of nano-sized TiC particle-reinforced 6005A aluminium alloy matrix composite. Powder Technol. 2017, 321, 31–43. [Google Scholar] [CrossRef]
  10. Nourouzi, S.; Damavandi, E.; Rabiee, S.M. Microstructural and mechanical properties of Al-Al2O3 composites focus on experimental techniques. Int. J. Microstruct. Mater. Prop. 2016, 11, 383–398. [Google Scholar]
  11. Zhang, C.; Zeng, Y.P.; Yao, D.; Yin, J.; Zuo, K.; Xia, Y.; Liang, H. The improved mechanical properties of Al matrix composites reinforced with oriented-Si3N4 whisker. J. Mater. Sci. Technol. 2019, 35, 1345–1353. [Google Scholar] [CrossRef]
  12. Wang, C.; Lin, H.; Zhang, Z.; Li, W. Fabrication, interfacial characteristics and strengthening mechanisms of ZrB2 microparticles reinforced Cu composites prepared by hot-pressed sintering. J. Alloy. Compd. 2018, 748, 546–552. [Google Scholar] [CrossRef]
  13. Mondi, R.K.; Golla, B.R. Processing and characterization of super strong and wear resistant Al–5Cu-(0–20 vol%) ZrB2 composites. J. Alloy. Compd. 2020, 814, 152323. [Google Scholar] [CrossRef]
  14. Sivakumar, S.; Golla, B.R.; Rajulapati, K.V. Influence of ZrB2 hard ceramic reinforcement on mechanical and wear properties of aluminum. Ceram. Int. 2019, 45, 7055–7070. [Google Scholar] [CrossRef]
  15. Sulima, I.; Hyjek, P.; Jaworska, L.; Perek-Nowak, M. Influence of ZrB2 on Microstructure and Properties of Steel Matrix Composites Prepared by Spark Plasma Sintering. Materaials 2020, 13, 2459. [Google Scholar] [CrossRef] [PubMed]
  16. Fahrenholtz, W.G.; Hilmas, G.E.; Talmy, I.G.; Zaykoski, J.A. Refractory diborides of zirconium and hafnium. J. Eur. Ceram. Soc. 2007, 90, 1347–1364. [Google Scholar] [CrossRef]
  17. Chamberlain, A.L.; Fahrenholtz, W.G.; Hilmas, G.E.; Ellerby, D.T. High-strength zirconium diboride-based ceramics. J. Am. Ceram. Soc. 2010, 87, 1170–1172. [Google Scholar] [CrossRef]
  18. Morz, C. Annual mineral review. Zirconium diboride. Am. Ceram. Soc. Bull. 1995, 74, 165–166. [Google Scholar]
  19. Durga, V.N.; Bala, K.B.; Gopi, K.M. Impact of dry sliding wear parameters on the wear rate of A7075 based composites reinforced with ZrB2 particulates. J. Mater. Res. Technol. 2021, in press. [Google Scholar]
  20. Dinaharan, I.; Murugan, N.; Parameswaran, S. Influence of insitu formed ZrB2 particles on microstructure and mechanical properties of AA6061 metal matrix composites. Mater. Sci. Eng. A 2011, 528, 5733–5740. [Google Scholar] [CrossRef]
  21. Kumar, N.; Gautam, R.K.; Mohan, S. In-situ development of ZrB2 particles and their effect on microstructure and mechanical properties of AA5052 metal matrix composites. Mater. Des. 2015, 80, 129–136. [Google Scholar] [CrossRef]
  22. Fan, X.; Huang, X.; Liu, Q.; Ding, H.; Wang, H.; Hao, C. The microstructures and properties of in-situ ZrB2 reinforced Cu matrix composites. Results Phys. 2019, 14, 102494. [Google Scholar] [CrossRef]
  23. Akhtar, F.; Shiju, G. On the processing, microstructure, mechanical and wear properties of cermet/stainless steel layer composites. Acta Mater. 2007, 55, 1467–1477. [Google Scholar]
  24. Tavares, S.S.M.; Moura, V.; Costa, V.C.; Ferreira, M.L.R.; Pardal, J.M. Microstructural changes and corrosion resistance of AISI 310S steel exposed to 600–800 °C. Mater. Charact. 2009, 60, 573–578. [Google Scholar] [CrossRef]
  25. Patel, M.; Vaidyanathan, R.M.; Sivaraman, N. Corrosion behavior of sintered 316 L austenitic stainless steel composites. Int. J. Mech. Eng. Technol. 2014, 5, 121–128. [Google Scholar]
  26. Vardavoullus, M.; Jeandin, M.; Velasco, F.; Torralba, J.M. Dry sliding wear mechanism for P/M austenitic stainless steels and their composites containing Al2O3 and Y2O3 particles. Tribol. Int. 1996, 29, 499–506. [Google Scholar] [CrossRef]
  27. Feizabadi, J.; Vahdati, K.J.; Haddad, S.M.; Sharifitabar, M.; Sanni, S.A. Fabrication of in situ Al2O3 reinforced nanostructure 304 stainless steel matrix composite by self-propagating high temperature synthesis process. Mater. Des. 2015, 84, 325–330. [Google Scholar] [CrossRef]
  28. Li, B.; Liu, Y.; Li, J.; Cao, H.; He, L. Effect of sintering process on the microstructures and properties of in situ TiB2–TiC reinforced steel matrix composites produced by spark plasma sintering. J. Mater. Process. Technol. 2010, 210, 91–95. [Google Scholar] [CrossRef]
  29. Jain, J.; Kar, A.M.; Upadhyaya, A. Effect of YAG addition on sintering of P/M 316 L and 434L stainless steels. Mater. Lett. 2004, 8, 2037–2040. [Google Scholar] [CrossRef]
  30. Nahme, H. Mechanical property under high dynamic loading and microstructure evaluation of a TiB2 particle-reinforced stainless steel. J. Mater. Sci. 2009, 44, 463–468. [Google Scholar] [CrossRef]
  31. Shamsuddin, S.; Jamaludin, S.B.; Hussain, Z.; Ahmed, Z.A. The Effects of Al2O3 Amount on the Microstructure and Properties of Fe-Cr Matrix Composites. Metall. Mater. Trans. 2010, 41A, 3452–3457. [Google Scholar] [CrossRef]
  32. Akhtar, F.; Ali, L.; Peizhong, F.; Shah, J.A. Enhanced sintering, microstructure evolution and mechanical properties of 316 L stainless steel with MoSi2 addition. J. Alloy. Compd. 2011, 509, 8794–8797. [Google Scholar] [CrossRef]
  33. Ziejewska, C.; Marczyk, J.; Szewczyk-Nykiel, A.; Nykiel, M.; Hebda, M. Influence of size and volume share of WC particles on the properties of sintered metal matrix composites. Adv. Powder Technol. 2019, 30, 835–842. [Google Scholar] [CrossRef]
  34. Taylor, R.P.; McClain, S.T.; Berrt, J.T. Uncertainty analysis of metal-casting porosity measurements using Archimedes’ principle. Int. J. Cast Met. Res. 1999, 11, 247–257. [Google Scholar] [CrossRef]
  35. OIM Data Collection, Orientation Imaging Microscopy v7; edition 7.3, EDAX, 2015.
  36. International Standard. Fine Ceramics (Advanced Ceramics, Advanced Technical Ceramics)—Determination of Friction and Wear Characteristics of Monolithic Ceramics by Ball-On-Disc Method; ISO 20808:2016(E); International Organization for Standardization: Geneva, Switzerland, 2016. [Google Scholar]
  37. Kang, S.L. Sintering: Densification, Grain Growth and Microstructure; Elsevier Bitterworth-Heinemann: Burlington, MA, USA, 2005. [Google Scholar]
  38. Suryanarayana, C. Mechanical alloying and milling. Prog. Mater. Sci. 2001, 464, 1–184. [Google Scholar] [CrossRef]
  39. Kulecki, P.; Lichańska, E. The effect of poweder ball milling on themicrostructure and mechanical properties of sintered Fe-Cr-Mo-Mn-(Cu) steel. Powder Metall. Prog. 2017, 17, 82–92. [Google Scholar] [CrossRef] [Green Version]
  40. Suryanarayana, C.; Ivanov, E.; Boldyrev, V.V. The science and technology of mechanical alloying. Mater. Sci. Eng. 2001, A304–306, 151–158. [Google Scholar] [CrossRef]
  41. Sulima, I. Role of boron addition on the consolidation and properties of steel composites prepared by SPS. Bull. Mater. Sci. 2015, 38, 1831–1841. [Google Scholar] [CrossRef]
  42. Molinari, A.; Straffelini, G.; Pieczonka, T.; Kazior, J. Persistent liquid phase sintering of 316 L stainless steel. Int. J. Power Metall. 1998, 34, 21–28. [Google Scholar]
  43. Molinari, A.; Menapace, C.; Kazior, J.; Pieczonka, T. Liquid phase sintering of boron alloyed austenitic stainless steel. Mater. Sci. 2007, 534–536, 553–556. [Google Scholar]
  44. CRC. Materials Science and Engineering Handbook, 3rd ed.; James, F., Ed.; Shackelford and William Alexander CRC Press: Boca Raton, FL, USA, 2001; p. 509. [Google Scholar]
  45. McGuire, M.F. Stainless Steels for Design Engineers; ASM International: Materials Park, OH, USA, 2008; pp. 69–78. [Google Scholar]
  46. Salur, E.; Acarer, M.; Savkliyildiz, I. Improving mechanical properties of nano-sized TiC particle reinforced AA7075 Al alloy composites produced by ball milling and hot pressing. Mater. Today Commun. 2021, 27, 102202. [Google Scholar] [CrossRef]
  47. Zhang, B.; Bi, G.; Wang, P.; Bai, J.; Chew, Y.; Nai, M.S. Microstructure and mechanical properties of Inconel 625/nano-TiB2 composite fabricated by LAAM. Mater. Des. 2016, 111, 70–79. [Google Scholar] [CrossRef]
  48. Tjong, S.C.; Lau, K.C. Abrasion resistance of stainless-steel composites reinforced with hard TiB2 particles. Compos. Sci. Technol. 2000, 60, 1141–1146. [Google Scholar] [CrossRef]
  49. Ni, Z.F.; Sun, Y.S.; Xue, F.; Bai, J.; Lu, Y.J. Microstructure and properties of austenitic stainless steel reinforced with in situ TiC particulate. Mater. Des. 2011, 32, 1462–1467. [Google Scholar] [CrossRef]
  50. Unifantowicz, P.; Oksiuta, Z.; Olier, P.; Carlan, Y.; Baluc, N. Microstructure and mechanical properties of an ODS RAF steel fabricated by hot extrusion or hot isostatic pressing. Fusion Eng. Des. 2011, 86, 2413–2416. [Google Scholar] [CrossRef] [Green Version]
  51. Sulima, I.; Kowalik, R. Corrosion behaviors, mechanical properties and microstructure of the steel matrix composites fabricated b HP-HT method. Mater. Sci. Eng. A 2015, 639, 671–680. [Google Scholar] [CrossRef]
  52. Matin, A.; Saniee, F.F.; Abedi, H.R. Microstructure and mechanical properties of Mg/SiC and AZ80/SiC nano-composites fabricated through stir casting method. Mater. Sci. Eng. A 2015, 625, 81–88. [Google Scholar] [CrossRef]
  53. Srivastava, S.A.; Das, K. The abrasive wear resistance of TiC and (Ti,W)C-reinforced Fe–17Mn austenitic steel matrix composites. Tribol. Int. 2010, 43, 944–950. [Google Scholar] [CrossRef]
  54. Velasco, F.; Lima, W.M.; Anton, N.; Abenojar, J.; Torralba, J.M. Effect of intermetallic particles on wear behaviour of stainless steel matrix composites. Tribol. Int. 2003, 36, 547–551. [Google Scholar] [CrossRef]
Materials 14 04056 g001 550
Figure 1. SEM images of the starting powders of (a) ZrB2 and (b) 316 L austenitic stainless steel.
Figure 1. SEM images of the starting powders of (a) ZrB2 and (b) 316 L austenitic stainless steel.
Materials 14 04056 g001
Materials 14 04056 g002 550

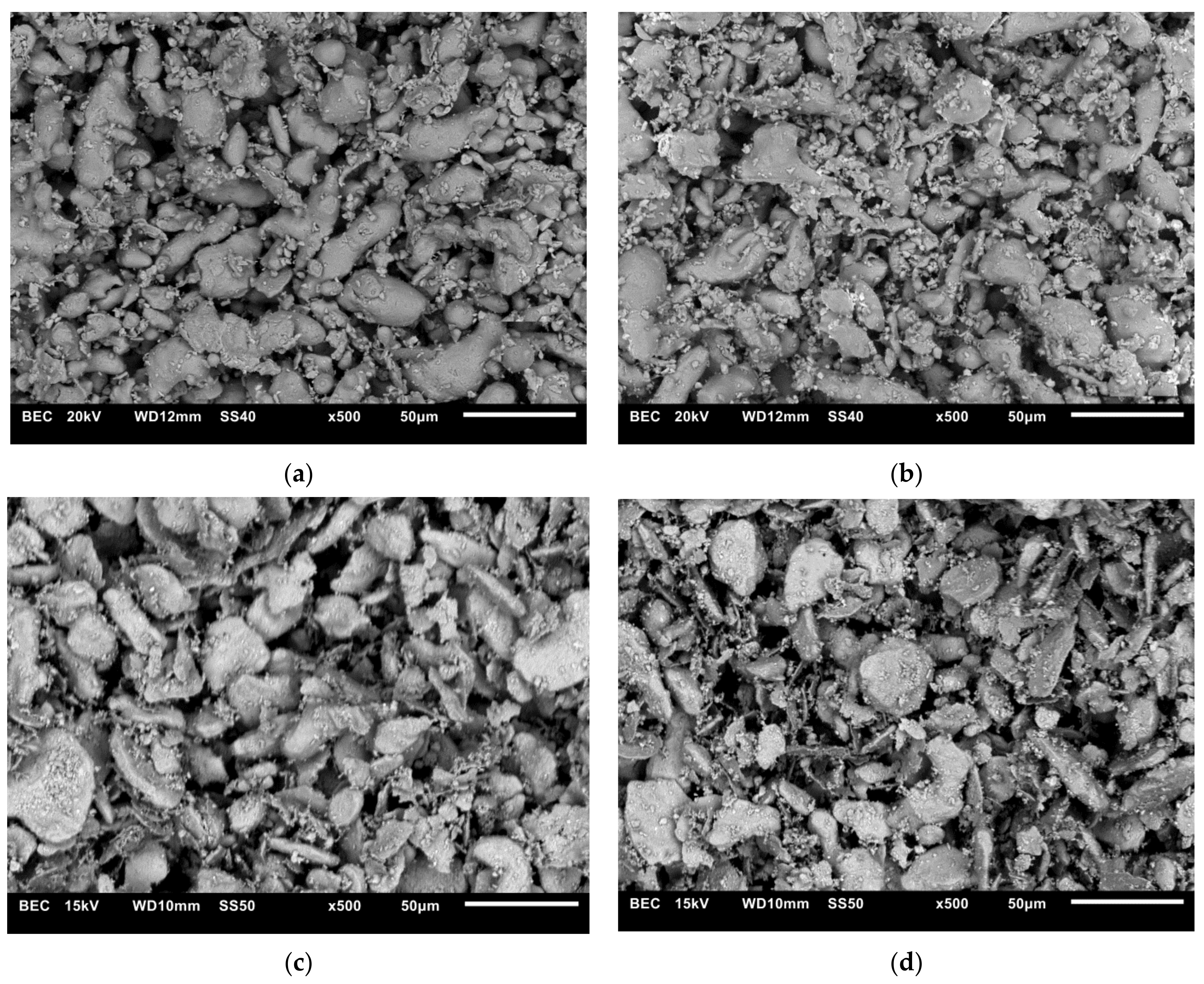

Figure 2. SEM images of powder mixtures of: (a) 316 L steel + 5 wt% ZrB2 (Turbula), (b) 316 L steel + 10 wt% ZrB2 (Turbula), (c) 316 L steel + 5 wt% ZrB2 (planetary mill), (d) 316 L steel + 10 wt% ZrB2 (planetary mill).
Figure 2. SEM images of powder mixtures of: (a) 316 L steel + 5 wt% ZrB2 (Turbula), (b) 316 L steel + 10 wt% ZrB2 (Turbula), (c) 316 L steel + 5 wt% ZrB2 (planetary mill), (d) 316 L steel + 10 wt% ZrB2 (planetary mill).
Materials 14 04056 g002
Materials 14 04056 g003 550

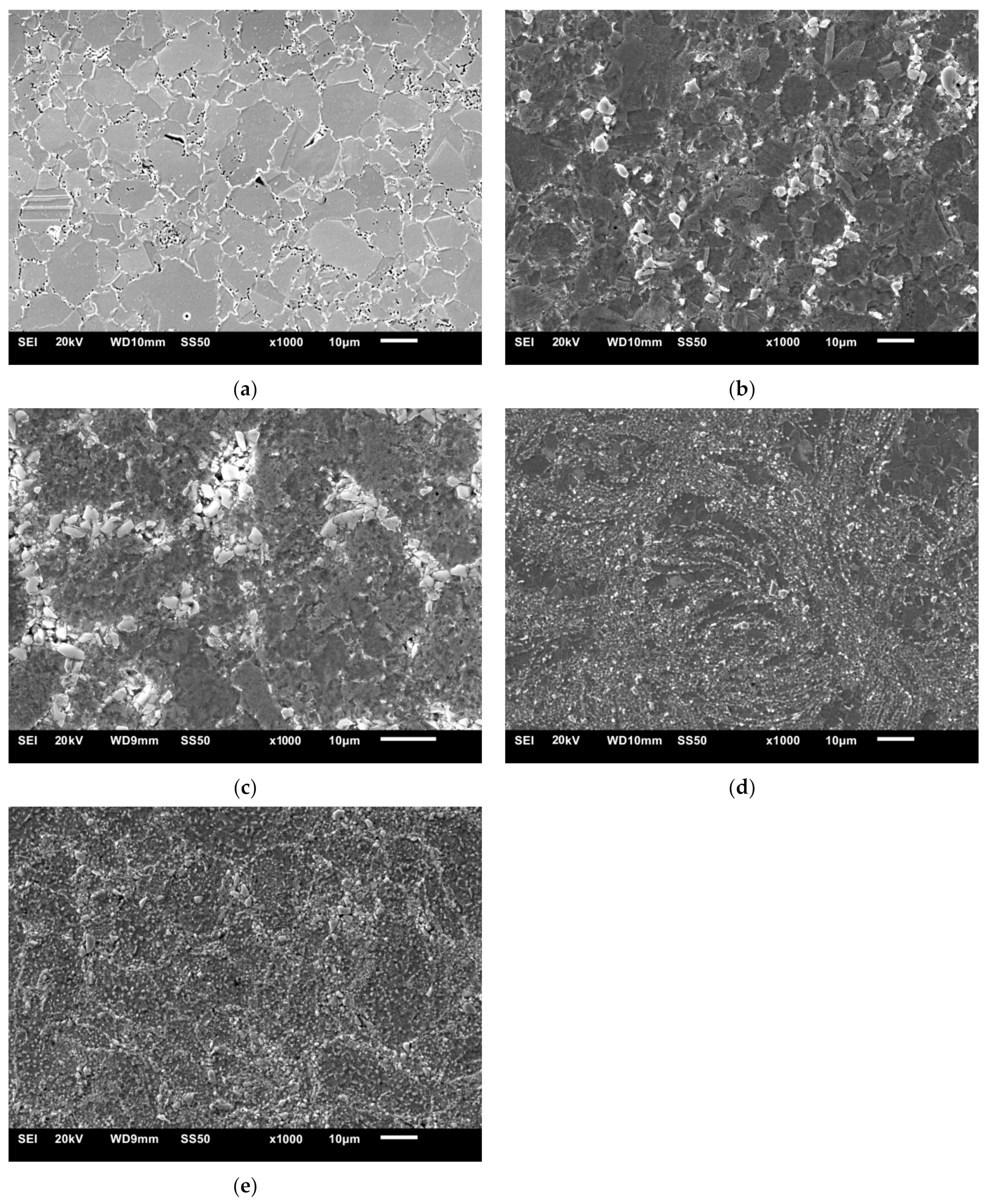

Figure 3. The SEM micrograph of: (a) 316 L austenitic stainless steel, (b) steel + 5%ZrB2 composite (Turbula), (c) steel + 10%ZrB2 composite (Turbula), (d) steel + 5%ZrB2 composite (planetary mill), and (e) steel + 10%ZrB2 composite (planetary mill).
Figure 3. The SEM micrograph of: (a) 316 L austenitic stainless steel, (b) steel + 5%ZrB2 composite (Turbula), (c) steel + 10%ZrB2 composite (Turbula), (d) steel + 5%ZrB2 composite (planetary mill), and (e) steel + 10%ZrB2 composite (planetary mill).
Materials 14 04056 g003
Materials 14 04056 g004 550

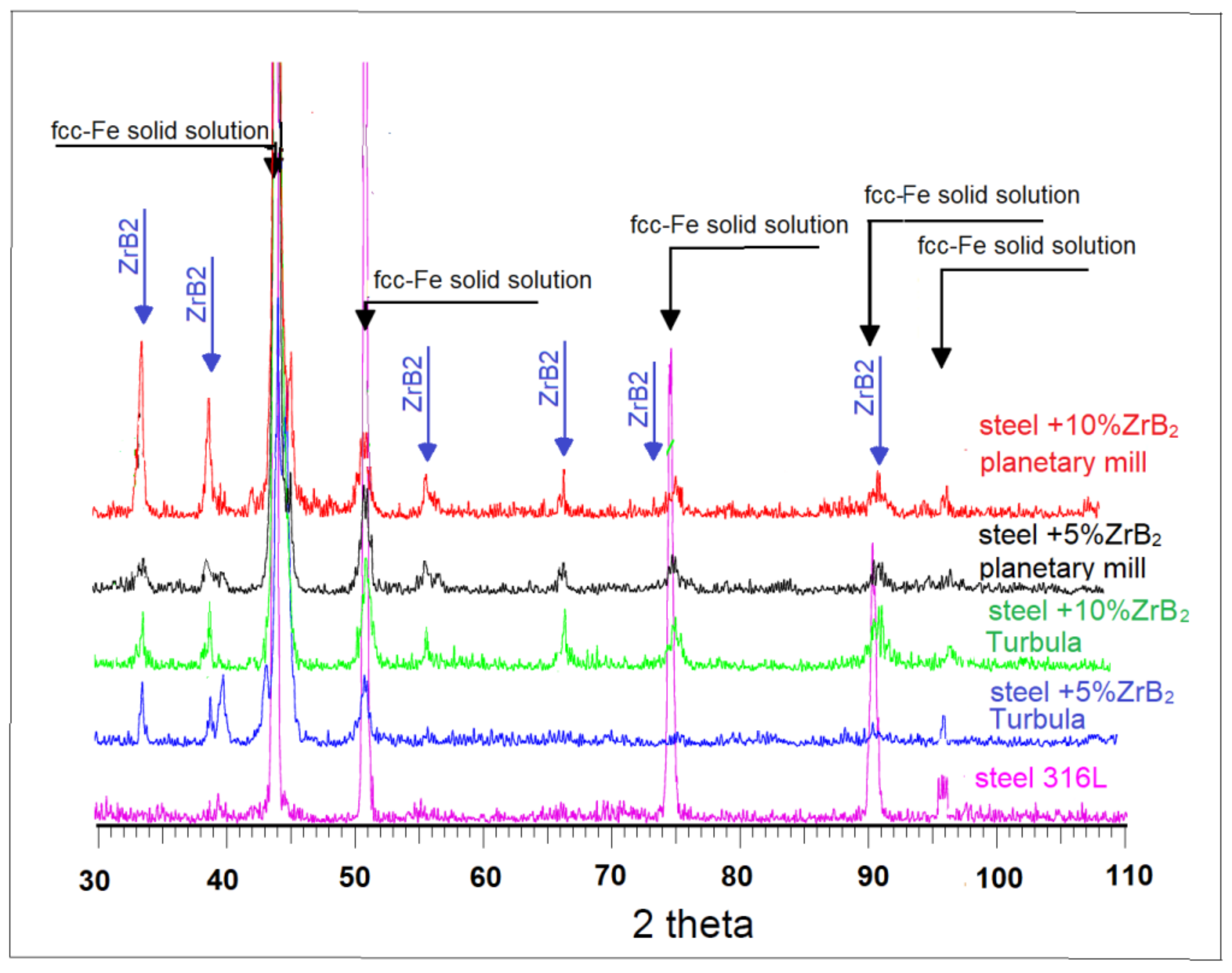

Figure 4. The XRD diffraction patterns of 316 L steel +ZrB2 composites sintered at 1100 °C.
Figure 4. The XRD diffraction patterns of 316 L steel +ZrB2 composites sintered at 1100 °C.
Materials 14 04056 g004
Materials 14 04056 g005 550
Figure 5. The microstructure (SEM) of steel + 5%ZrB2 composite (Turbula, SPS 1100 °C) with corresponding area analysis (WDS).
Figure 5. The microstructure (SEM) of steel + 5%ZrB2 composite (Turbula, SPS 1100 °C) with corresponding area analysis (WDS).
Materials 14 04056 g005
Materials 14 04056 g006 550
Figure 6. The microstructure (SEM) of steel + 10%ZrB2 composite (Turbula, SPS 1100 °C) with corresponding area analysis (WDS).
Figure 6. The microstructure (SEM) of steel + 10%ZrB2 composite (Turbula, SPS 1100 °C) with corresponding area analysis (WDS).
Materials 14 04056 g006
Materials 14 04056 g007 550

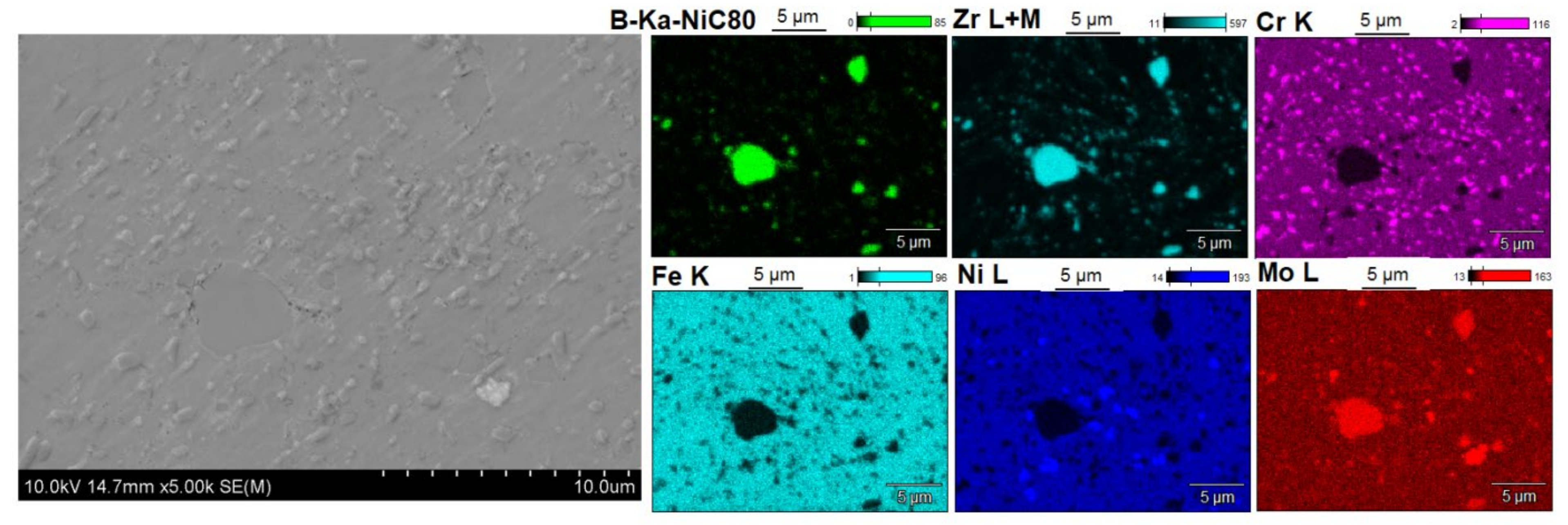

Figure 7. The microstructure (SEM) of steel + 5%ZrB2 composite (planetary mill, SPS 1100 °C) with corresponding area analysis (WDS).
Figure 7. The microstructure (SEM) of steel + 5%ZrB2 composite (planetary mill, SPS 1100 °C) with corresponding area analysis (WDS).
Materials 14 04056 g007
Materials 14 04056 g008 550

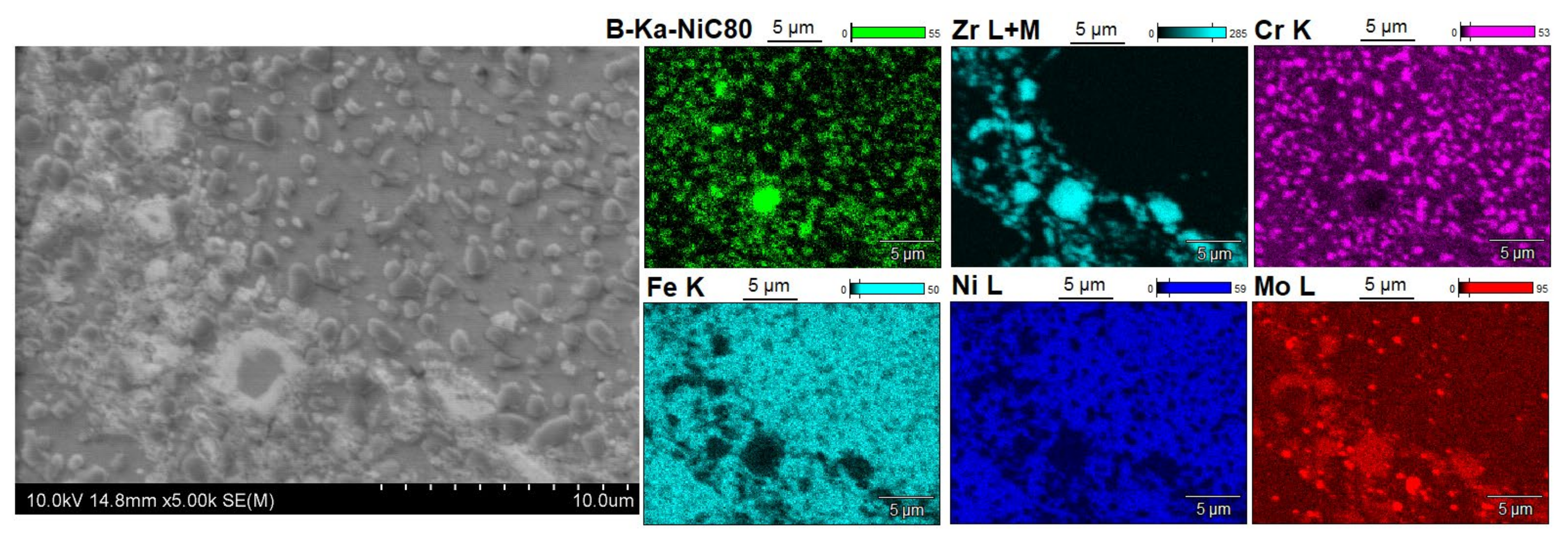

Figure 8. The microstructure (SEM) of steel + 10%ZrB2 composite (planetary millSPS 1100 °C) with corresponding area analysis (WDS).
Figure 8. The microstructure (SEM) of steel + 10%ZrB2 composite (planetary millSPS 1100 °C) with corresponding area analysis (WDS).
Materials 14 04056 g008
Materials 14 04056 g009 550

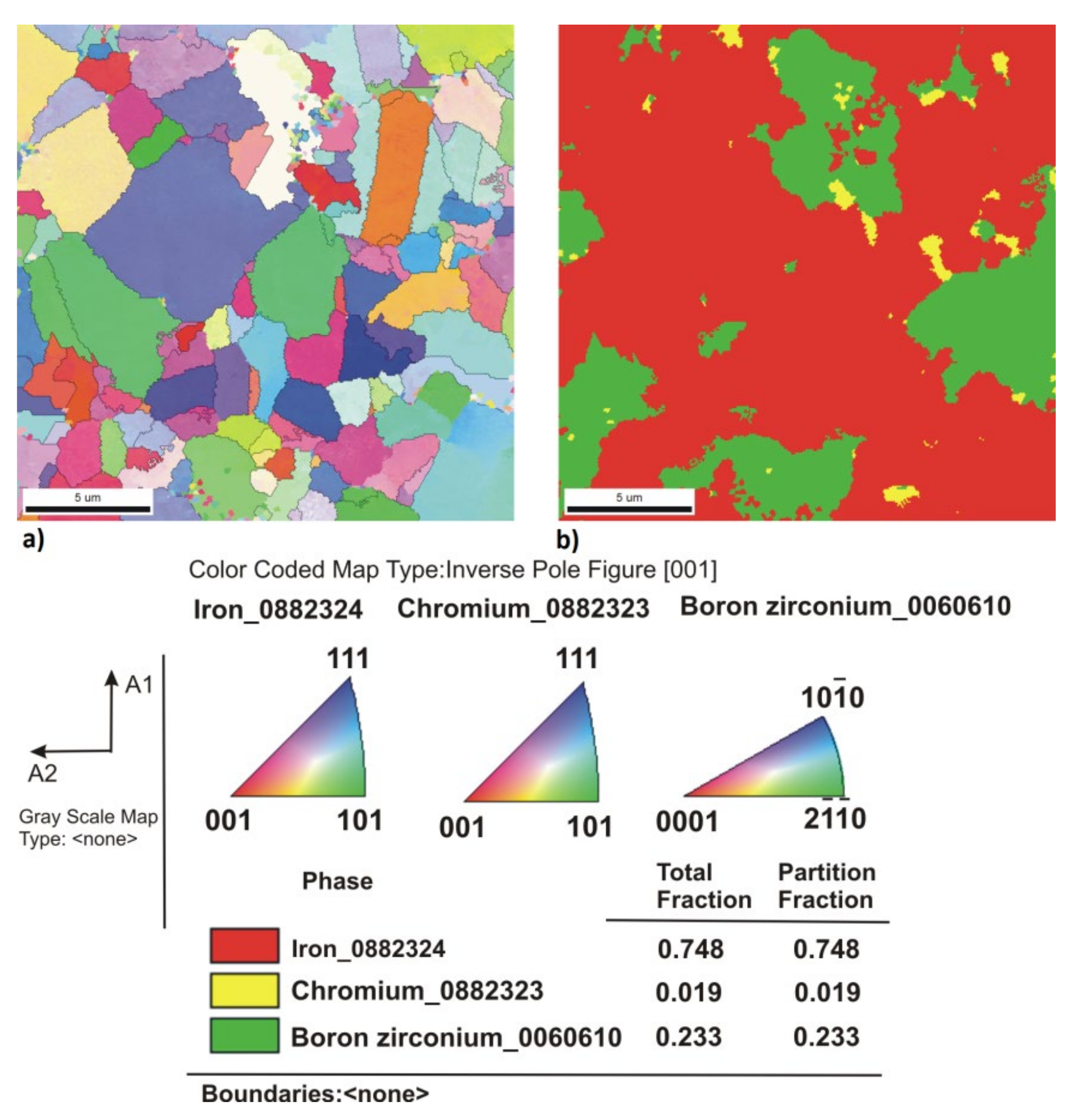

Figure 9. The results of EBSD analysis of the steel + 10%ZrB2 composite sintered at 1100 °C (Turbula): (a) the crystallographic orientation of grains, and (b) phase analysis (Chi-Scan).
Figure 9. The results of EBSD analysis of the steel + 10%ZrB2 composite sintered at 1100 °C (Turbula): (a) the crystallographic orientation of grains, and (b) phase analysis (Chi-Scan).
Materials 14 04056 g009
Materials 14 04056 g010 550
Figure 10. The results of EBSD analysis of the steel + 10%ZrB2 composite sintered at 1100 °C (planetary mill): (a) the crystallographic orientation of grains, and (b) phase analysis (Chi-Scan).
Figure 10. The results of EBSD analysis of the steel + 10%ZrB2 composite sintered at 1100 °C (planetary mill): (a) the crystallographic orientation of grains, and (b) phase analysis (Chi-Scan).
Materials 14 04056 g010
Materials 14 04056 g011 550

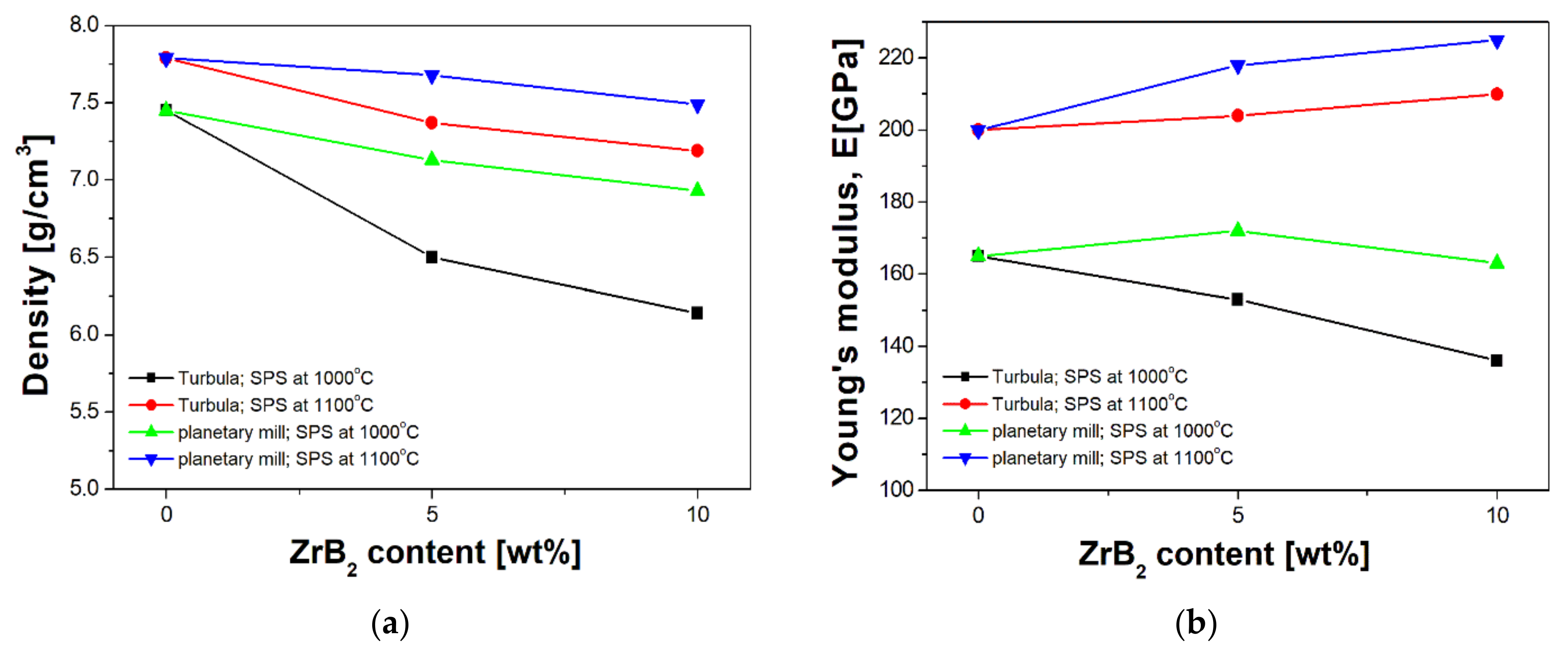

Figure 11. The density (a) and Young’s modulus (b) of consolidated materials as a function of ZrB2 content.
Figure 11. The density (a) and Young’s modulus (b) of consolidated materials as a function of ZrB2 content.
Materials 14 04056 g011
Materials 14 04056 g012 550
Figure 12. Hardness HV1 of consolidated materials as a function of ZrB2 content.
Figure 12. Hardness HV1 of consolidated materials as a function of ZrB2 content.
Materials 14 04056 g012
Materials 14 04056 g013 550
Figure 13. The results of compression tests carried out at (a) room temperature and at temperatures of: (b) 400 °C and (c) 800 °C for spark plasma sintered materials.
Figure 13. The results of compression tests carried out at (a) room temperature and at temperatures of: (b) 400 °C and (c) 800 °C for spark plasma sintered materials.
Materials 14 04056 g013
Materials 14 04056 g014 550
Figure 14. Image of sintered samples before and after the compression tests.
Figure 14. Image of sintered samples before and after the compression tests.
Materials 14 04056 g014
Materials 14 04056 g015 550
Figure 15. The mechanical properties: (a) tensile strength (Rm) and (b) elongation (A10) determined during the tensile test of 316 L steel and steel + ZrB2 composites.
Figure 15. The mechanical properties: (a) tensile strength (Rm) and (b) elongation (A10) determined during the tensile test of 316 L steel and steel + ZrB2 composites.
Materials 14 04056 g015
Materials 14 04056 g016 550
Figure 16. Surfaces worn by the wear test: (a) steel + 5% ZrB2 composite (Turbula), (b) steel + 10% ZrB2 composite (Turbula) (c) steel + 5% ZrB2 composite (planetary mill), and (d) steel + 10% ZrB2 composite (planetary mill).
Figure 16. Surfaces worn by the wear test: (a) steel + 5% ZrB2 composite (Turbula), (b) steel + 10% ZrB2 composite (Turbula) (c) steel + 5% ZrB2 composite (planetary mill), and (d) steel + 10% ZrB2 composite (planetary mill).
Materials 14 04056 g016
Table
Table 1. Chemical composition of 316 L austenitic stainless steel powder.
Table 1. Chemical composition of 316 L austenitic stainless steel powder.
Chemical Composition, wt%
CrNiMoMnSiSPCFr
17.2012.322.020.430.890.030.0280.027balance
Table
Table 2. The conditions used during tribological tests.
Table 2. The conditions used during tribological tests.
Wear Test Conditions
Temperature, T23 °C
ballAl2O3
ball diameter, d 3.175 mm
load applied, Fn5 N
friction track diameter, r5.0 mm
sliding speed, v0.1 m/s
total sliding distance, L1000 m
test duration, t10,000 s
Table
Table 3. The results of compression and tensile tests for sintered materials.
Table 3. The results of compression and tensile tests for sintered materials.
Sintered
Materials		Tensile Strength
Rm
[MPa]		Elongation
A10
[%]		Compressive Strength
σc
[MPa]
Room
Temperature		400 °C800 °C
316 L steel69032774545167
steel + 5%ZrB2
(Turbula)		56814.3919608234
steel + 10%ZrB2
(Turbula)		53021980639245
steel + 5%ZrB2
(planetary mill)		83221.71164837317
steel + 10%ZrB2
(planetary mill)		73015.71238848326
Table
Table 4. The results of abrasive wear resistance tests.
Table 4. The results of abrasive wear resistance tests.
Sintered
Materials		Coefficient of Friction
µ
[-]		Specific Wear Rate
Wv
[mm3/Nm]
316 L steel0.6432.5 × 10−6
steel + 5%ZrB2
(Turbula)		0.5524.6 × 10−6
steel + 10%ZrB2
(Turbula)		0.4716.9 × 10−6
steel + 5%ZrB2
(planetary mill)		0.5119.4 × 10−6
steel + 10%ZrB2
(planetary mill)		0.4013.1 × 10−6
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sulima, I.; Hyjek, P.; Podsiadło, M. Fabrication of the Zirconium Diboride-Reinforced Composites by a Combination of Planetary Ball Milling, Turbula Mixing and Spark Plasma Sintering. Materials 2021, 14, 4056. https://doi.org/10.3390/ma14144056

AMA Style

Sulima I, Hyjek P, Podsiadło M. Fabrication of the Zirconium Diboride-Reinforced Composites by a Combination of Planetary Ball Milling, Turbula Mixing and Spark Plasma Sintering. Materials. 2021; 14(14):4056. https://doi.org/10.3390/ma14144056

Chicago/Turabian Style

Sulima, Iwona, Paweł Hyjek, and Marcin Podsiadło. 2021. "Fabrication of the Zirconium Diboride-Reinforced Composites by a Combination of Planetary Ball Milling, Turbula Mixing and Spark Plasma Sintering" Materials 14, no. 14: 4056. https://doi.org/10.3390/ma14144056

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
