Low-Roughness-Surface Additive Manufacturing of Metal-Wire Feeding with Small Power
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials

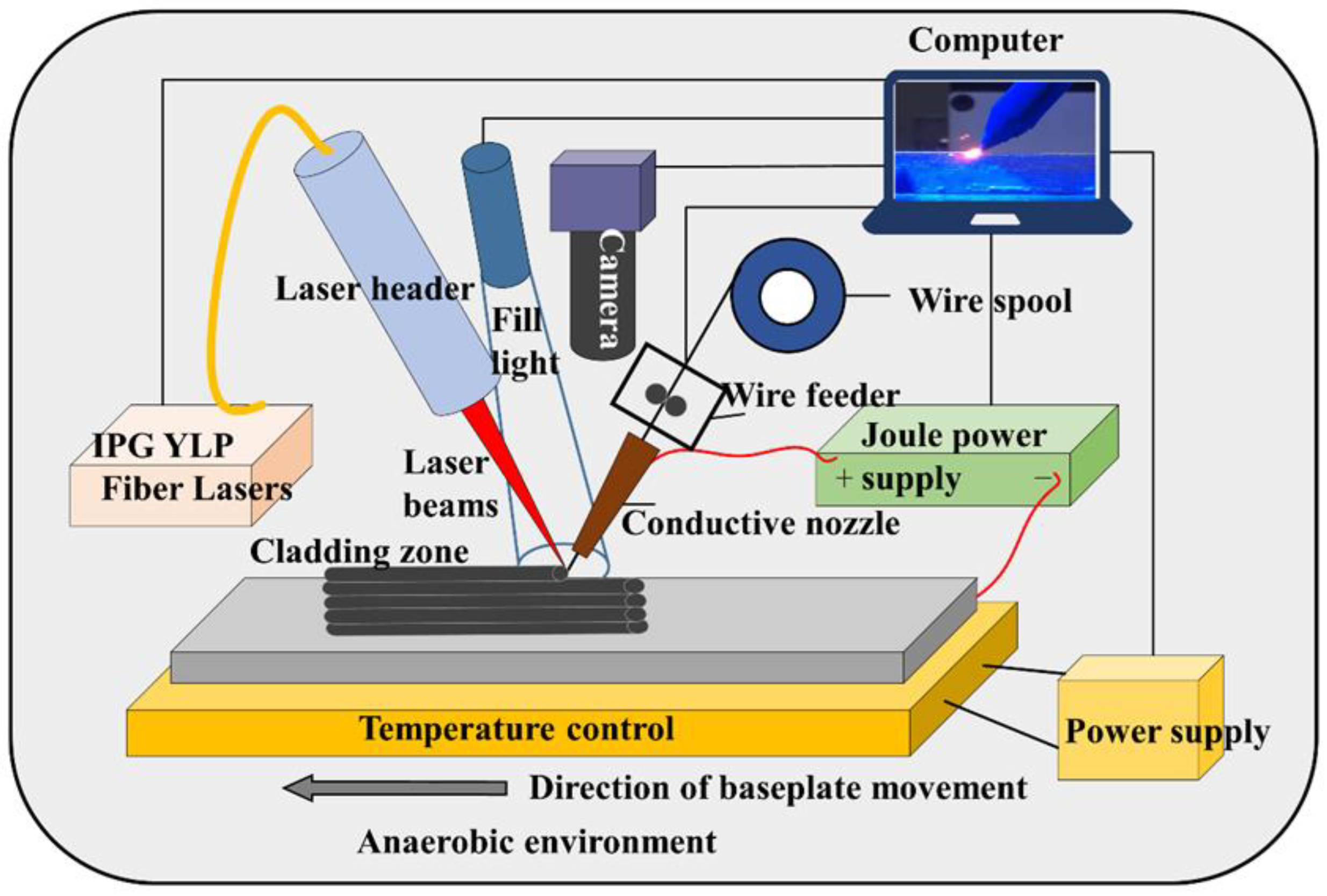

2.2. Experimental Design and Setup
Water content | ≤10 ppm |
Maximum Joule power | 50 W |
Baseplate temperatures | ≤600 ℃ |
2.3. Characterization
3. Results

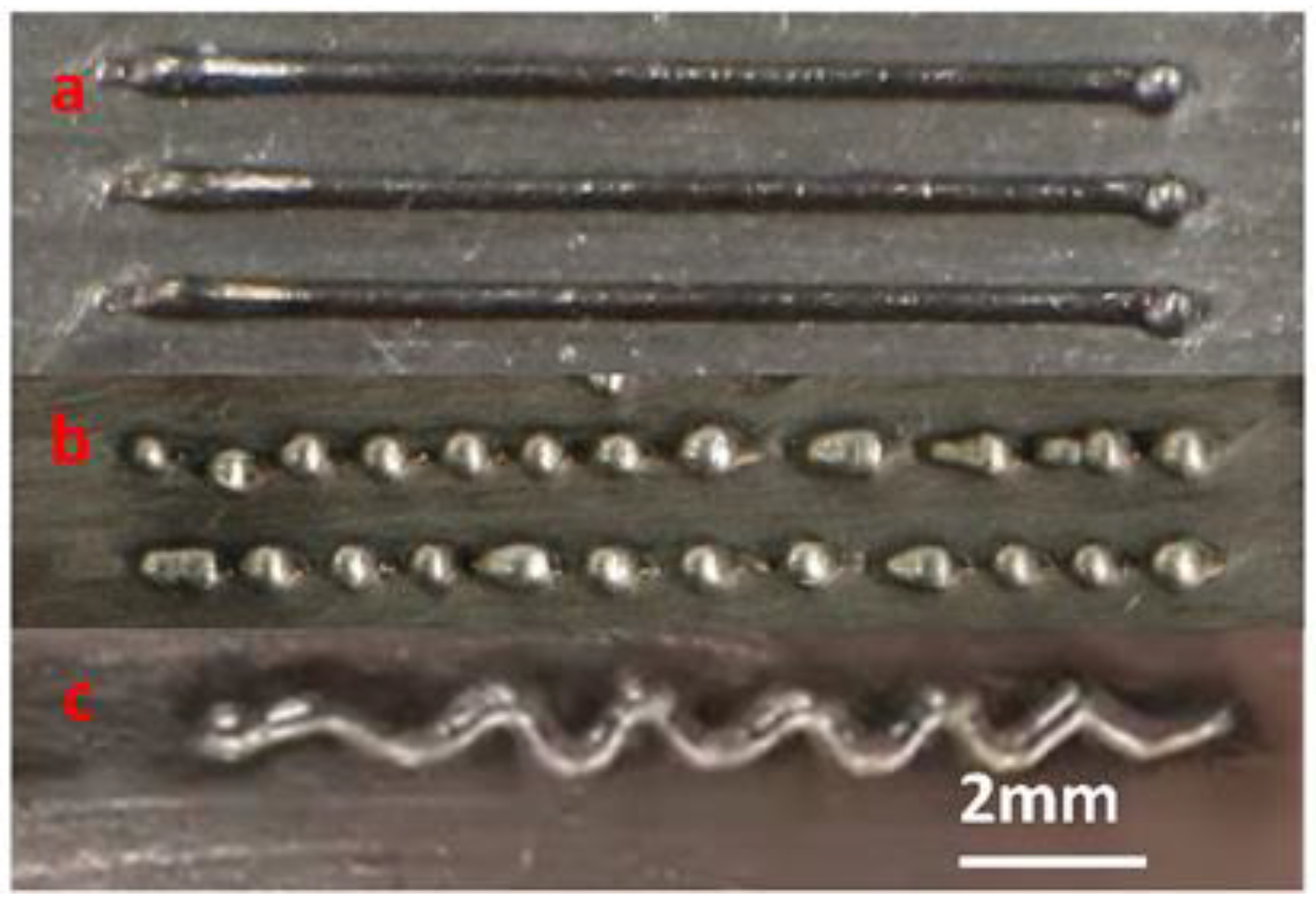

3.1. Single-Layer Deposition

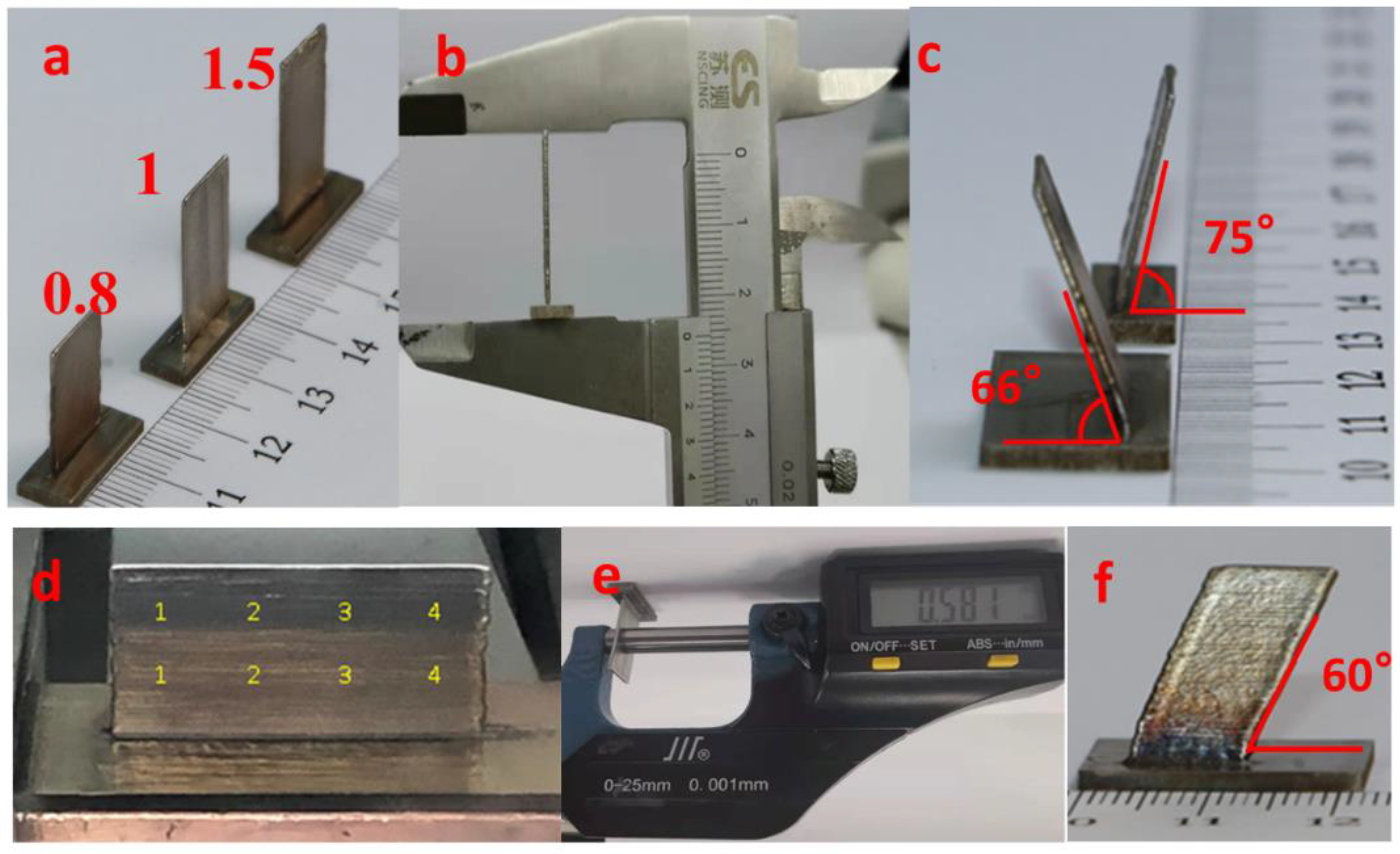

3.2. Thin-Wall Deposition

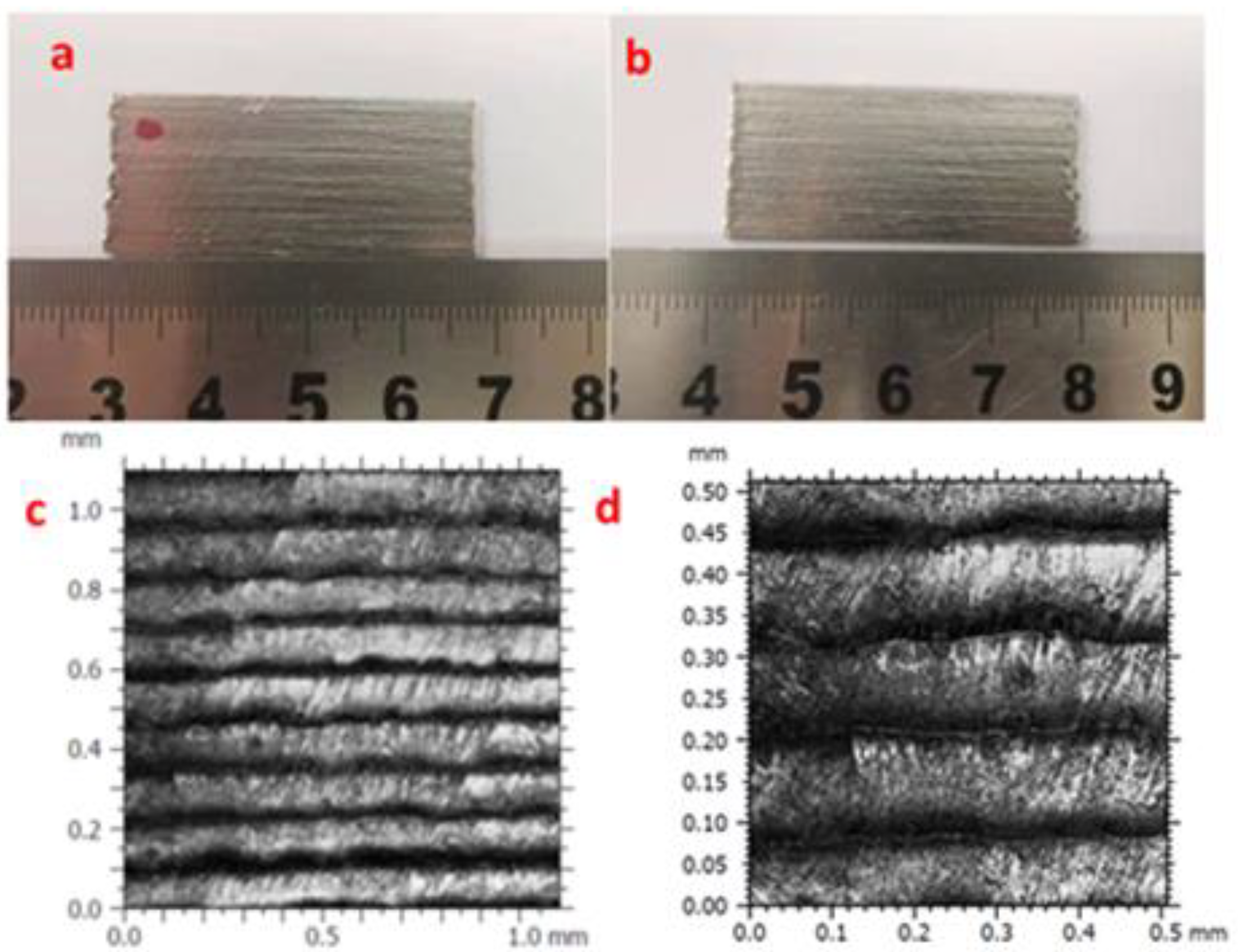

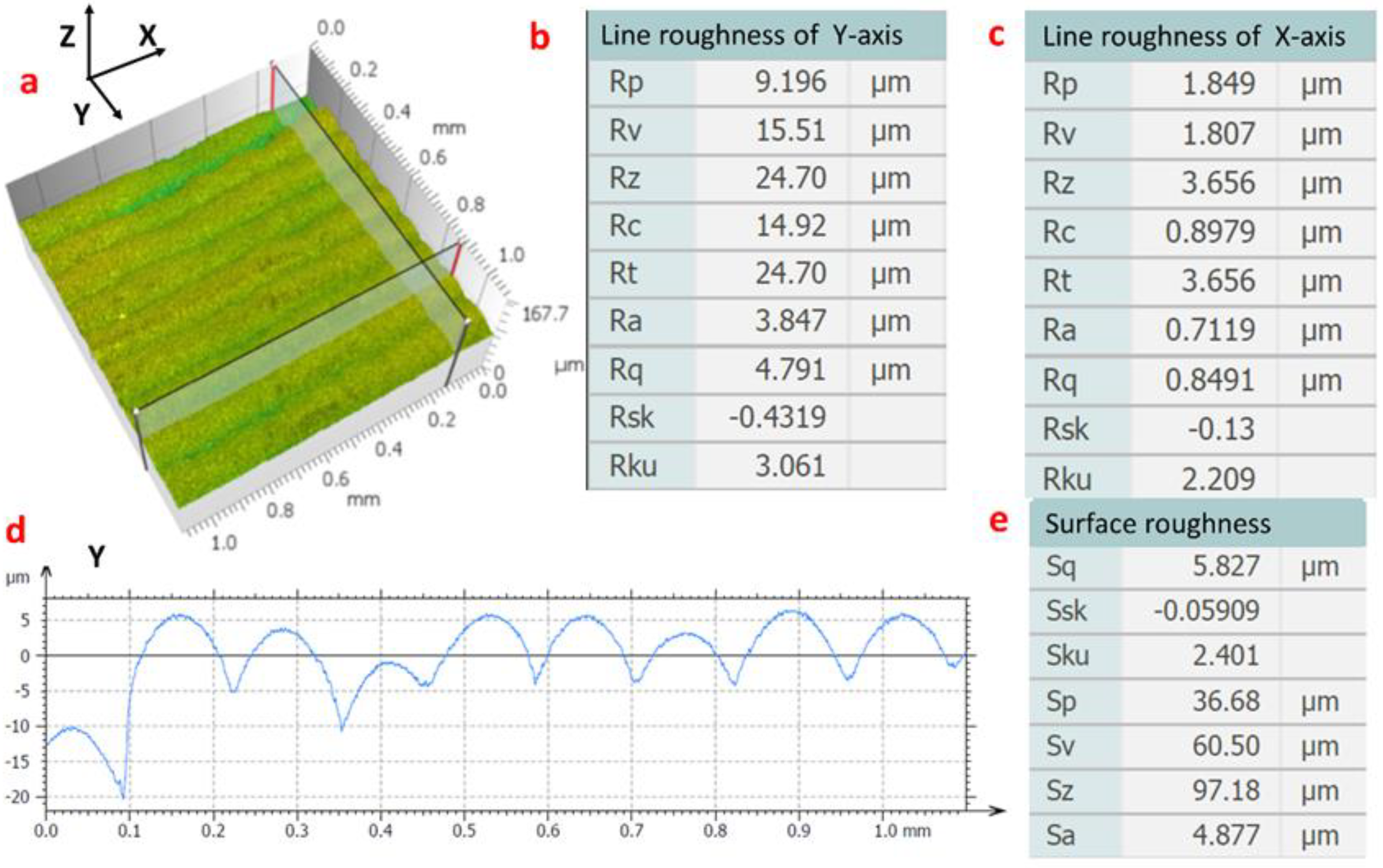

3.3. Surface Finish

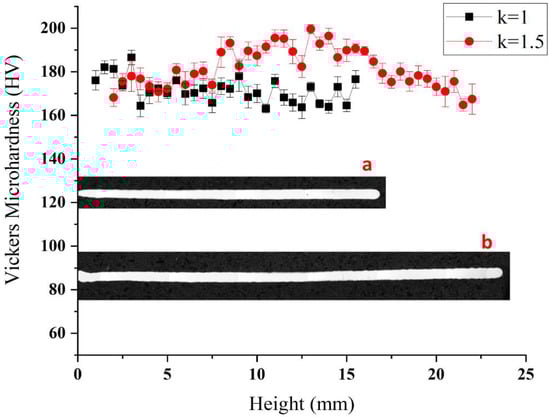

3.4. Hardness and Density

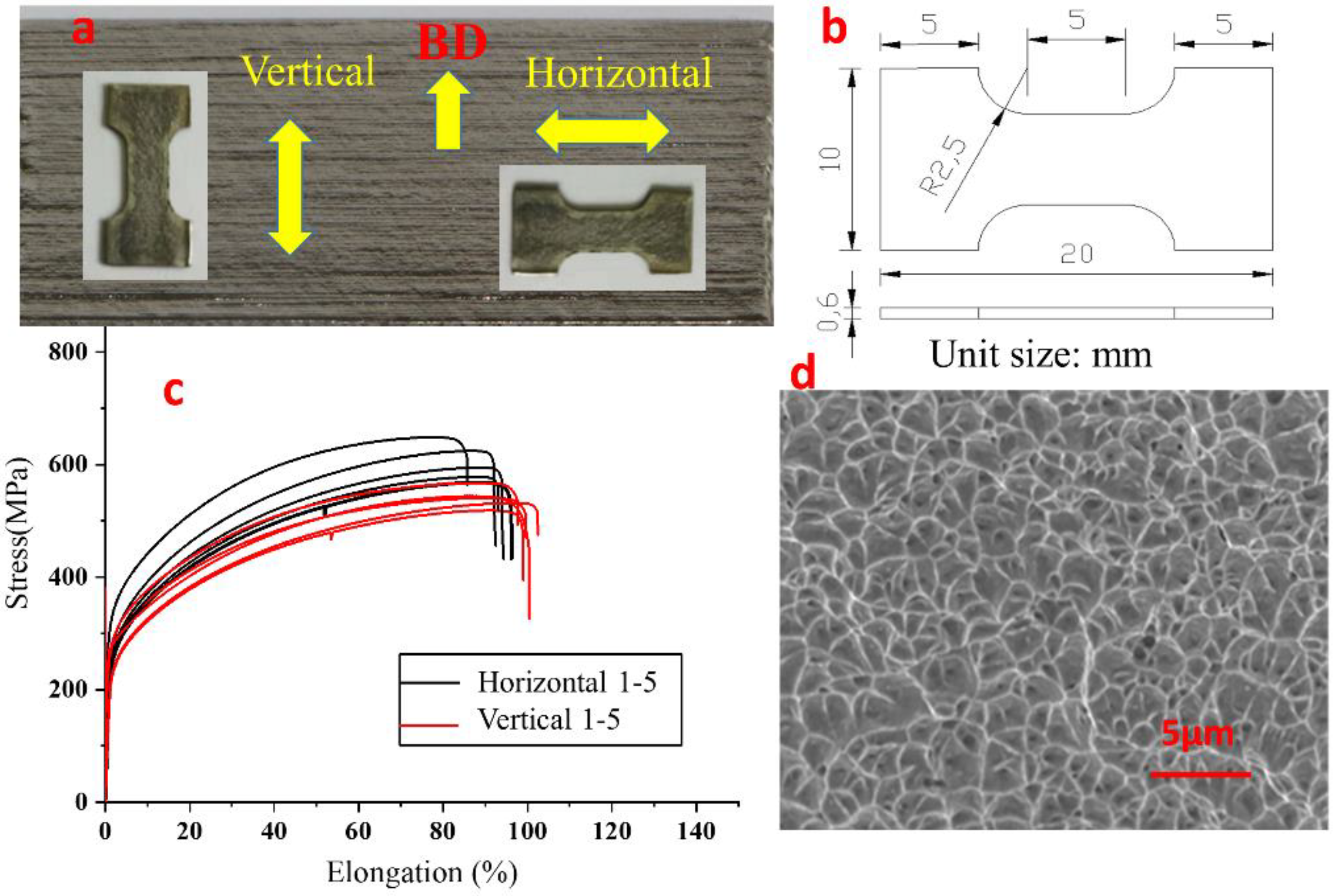

3.5. Tensile Test
3.6. Post-Processing
4. Discussion
4.1. Utilization of Joule Heating

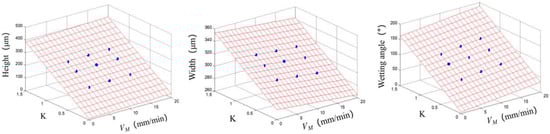

4.2. Major Influential Factors on the Morphology of the Single-Track Parts

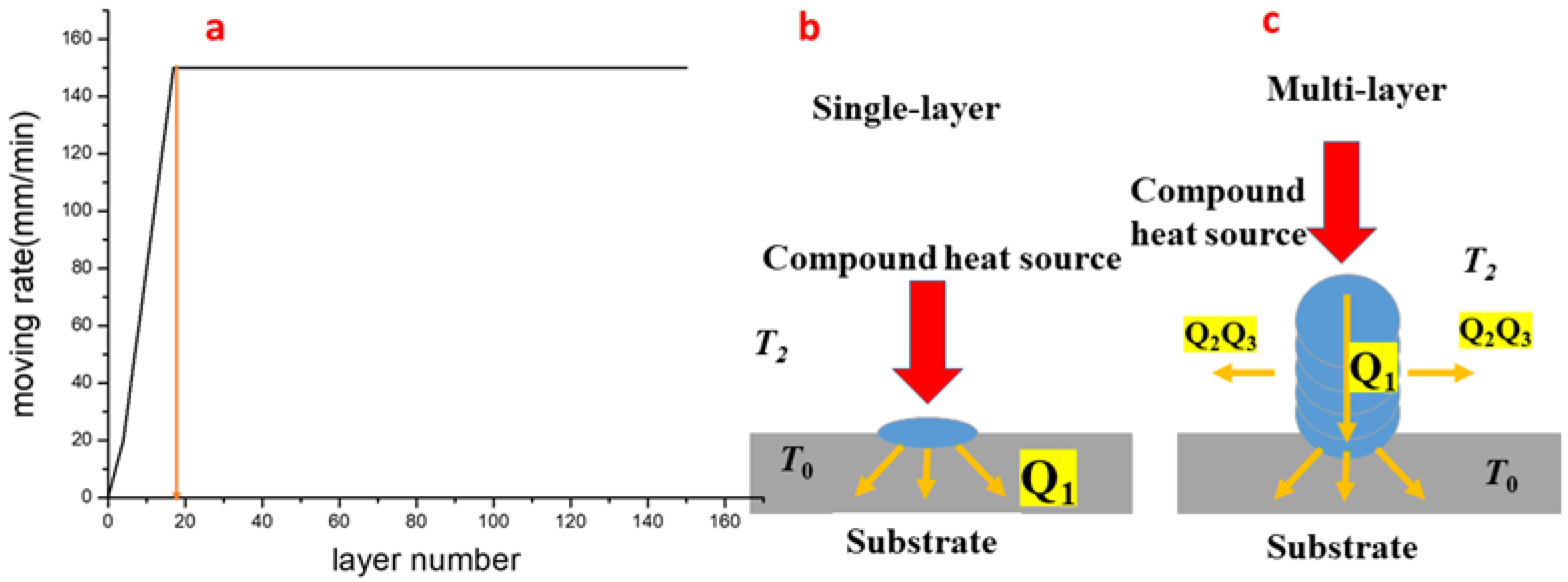

4.3. Optimization of Thin-Walled Part Printing Parameters
5. Conclusions
- (1)
- Introducing a Joule heating source decreases the demand for laser power, and thus reduces the total printing power and heat accumulation and increases the surface quality. The maximum optical power during actual printing measured 50 W.
- (2)
- Thin-walled parts formed by using the LJWF-DMD have aspect ratios as high as 40, uniform thickness and average deviation as low as approximately 0.017 mm. Thin-walled parts with 66° inclinations are built. No visible defects, such as pores and cracks, are observed on all the specimens.
- (3)
- Progressively adjusting the parameters can improve the surface quality of the thin-walled parts. The surface roughness (Ra) below 5 μm is far smaller than that obtained using WF-based metal AM techniques and on a par with that obtained using SLM. The horizontal tensile strength is approximately 500 MPa; the elongation at fracture is 90%; even and fine dimples are observed on the fracture surface; the hardness is approximately 170 HV and is uniformly distributed at different heights; and the density is 99.37%. The LJWF-DMD is competent with the conventional processing techniques in terms of physical properties.
- (4)
- Low surface roughness alleviates the burden of post-processing the formed parts. Using electrolyte-plasma processing can greatly reduce the specimen surface roughness, from 3.6 to 0.4 μm in ten minutes only.
- (5)
- The proposed printing technique, LJWF-DMD, is expected to be applied in cases where only low-power laser is available while the required surface quality is higher, e.g., AM in outer space.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Owens, A.C.; De Weck, O.L. Systems Analysis of In-Space Manufacturing Applications for the International Space Station and the Evolvable Mars Campaign. AIAA SPACE 2016. [Google Scholar] [CrossRef] [Green Version]
- Liao, C.; Liu, M.; Zhang, Q.; Dong, W.; Zhao, R.; Li, B.; Jiao, Z.; Song, J.; Yao, W.; Zhao, S.; et al. Low-temperature thermoplastic welding of metallic glass ribbons for in-space manufacturing. Sci. China Mater. 2021, 64, 979–986. [Google Scholar]
- National Research Council (U.S.); Committee on Space-Based Additive Manufacturing; National Research Council. 3D Printing in Space; National Academies Press: Washington, DC, USA, 2014. [Google Scholar]
- Yusuf, M.; Cutler, S.; Gao, N. Review: The Impact of Metal Additive Manufacturing on the Aerospace Industry. Met. Open Access Metall. J. 2019, 9, 1286. [Google Scholar]
- Gu, D.; Shi, X.; Poprawe, R.; Bourell, D.L.; Setchi, R.; Zhu, J. Material-structure-performance integrated laser-metal additive manufacturing. Science 2021, 372, eabg1487. [Google Scholar] [CrossRef] [PubMed]
- Wang, B.; Sun, M.; Li, B.; Zhang, L.; Lu, B. Anisotropic Response of CoCrFeMnNi High-Entropy Alloy Fabricated by Selective Laser Melting. Materials 2020, 13, 5687. [Google Scholar] [CrossRef] [PubMed]
- Martin, J.H.; Yahata, B.D.; Hundley, J.M.; Mayer, J.A.; Schaedler, T.A.; Pollock, T.M. 3D printing of high-strength aluminum alloys. Nature 2017, 549, 365–369. [Google Scholar] [CrossRef]
- Chahal, V.; Taylor, R.M. A review of geometric sensitivities in laser metal 3D printing. Virtual Phys. Prototyp. 2020, 15, 227–241. [Google Scholar] [CrossRef]
- Brueckner, F.; Riede, M.; Marquardt, F.; Willner, R.; Seidel, A.; Thieme, S.; Leyens, C.; Beyer, E. Process characteristics in high-precision laser metal deposition using wire and powder. J. Laser Appl. 2017, 29, 022301. [Google Scholar] [CrossRef]
- DebRoy, T.; Wei, H.L.; Zuback, J.S.; Mukherjee, T.; Elmer, J.W.; Milewski, J.O.; Beese, A.M.; Wilson-Heid, A.D.; De, A.; Zhang, W. Additive manufacturing of metallic components—Process, structure and properties. Prog. Mater. Sci. 2018, 92, 112–224. [Google Scholar] [CrossRef]
- Guessasma, S.; Zhang, W.; Zhu, J.; Belhabib, S.; Nouri, H. Challenges of additive manufacturing technologies from an optimization perspective. Int. J. Simul. Multidiscip. Des. Optim. 2015, 6, A9. [Google Scholar] [CrossRef] [Green Version]
- Sames, W.J.; List, F.A.; Pannala, S.; Dehoff, R.; Babu, S. The metallurgy and processing science of metal additive manufacturing. Int. Mater. Rev. 2016, 61, 315–360. [Google Scholar] [CrossRef]
- Gockel, J.; Beuth, J.; Taminger, K. Integrated control of solidification microstructure and melt pool dimensions in electron beam wire feed additive manufacturing of Ti-6Al-4V. Addit. Manuf. 2014, 1–4, 119–126. [Google Scholar] [CrossRef]
- Kim, J.D.; Kang, K.H.; Kim, J.N. Nd: YAG laser cladding of marine propeller with Hastelloy C-22. Appl. Phys. A 2004, 79, 1583–1585. [Google Scholar] [CrossRef]
- Fang, X.; Zhang, L.; Li, H.; Li, C.; Huang, K.; Lu, B. Microstructure Evolution and Mechanical Behavior of 2219 Aluminum Alloys Additively Fabricated by the Cold Metal Transfer Process. Materials 2018, 11, 812. [Google Scholar] [CrossRef] [Green Version]
- Galati, M.; Minetola, P.; Rizza, G. Surface Roughness Characterization and Analysis of the Electron Beam Melting (EBM) Process. Materials 2019, 12, 2211. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Borrelli, R.; Franchitti, S.; Pirozzi, C.; Carrino, L.; Nele, L.; Polini, W.; Sorrentino, L.; Corrado, A. Ti6Al4V Parts Produced by Electron Beam Melting: Analysis of Dimensional Accuracy and Surface Roughness. J. Adv. Manuf. Syst. 2019, 19, 107–130. [Google Scholar] [CrossRef]
- Hassanin, H.; ElShaer, A.; Benhadj-Djilali, R.; Modica, F.; Fassi, I. Surface Finish Improvement of Additive Manufactured Metal Parts. In Micro and Precision Manufacturing; Springer: Cham, Switzerland, 2018. [Google Scholar]
- Ding, D.; Pan, Z.; Cuiuri, D.; Li, H. Wire-feed additive manufacturing of metal components: Technologies, developments and future interests. Int. J. Adv. Manuf. Technol. 2015, 81, 465–481. [Google Scholar] [CrossRef]
- Tofail, S.A.; Koumoulos, E.P.; Bandyopadhyay, A.; Bose, S.; O’Donoghue, L.; Charitidis, C. Additive manufacturing: Scientific and technological challenges, market uptake and opportunities. Mater. Today 2018, 21, 22–37. [Google Scholar] [CrossRef]
- Demir, A.G. Micro laser metal wire deposition for additive manufacturing of thin-walled structures. Opt. Lasers Eng. 2018, 100, 9–17. [Google Scholar] [CrossRef]
- Shaikh, M.O.; Chen, C.-C.; Chiang, H.-C.; Chen, J.-R.; Chou, Y.-C.; Kuo, T.-Y.; Ameyama, K.; Chuang, C.-H. Additive manufacturing using fine wire-based laser metal deposition. Rapid Prototyp. J. 2019, 26, 473–483. [Google Scholar] [CrossRef]
- Kottman, M.; Zhang, S.; Mcguffin-Cawley, J.; Denney, P.; Narayanan, B.K. Laser Hot Wire Process: A Novel Process for Near-Net Shape Fabrication for High-Throughput Applications. JOM 2015, 67, 622–628. [Google Scholar] [CrossRef]
- Pangsrivinij, S. High Throughput Functional Material Deposition Using a Laser Hot Wire Process; Case Western Reserve University: Cleveland, OH, USA, 2016. [Google Scholar]
- Kim, J.-D.; Peng, Y. Plunging method for Nd: YAG laser cladding with wire feeding. Opt. Lasers Eng. 2000, 33, 299–309. [Google Scholar] [CrossRef]
- Syed, W.U.H.; Pinkerton, A.J.; Li, L. A comparative study of wire feeding and powder feeding in direct diode laser deposition for rapid prototyping. Appl. Surf. Sci. 2005, 247, 268–276. [Google Scholar] [CrossRef]
- Mok, S.H.; Bi, G.; Folkes, J.; Pashby, I. Deposition of Ti–6Al–4V using a high power diode laser and wire, Part I: Investigation on the process characteristics. Surf. Coat. Technol. 2008, 202, 3933–3939. [Google Scholar] [CrossRef]
- Sood, A.K.; Ohdar, R.K.; Mahapatra, S.S. Improving dimensional accuracy of Fused Deposition Modelling processed part using grey Taguchi method. Mater. Des. 2009, 30, 4243–4252. [Google Scholar] [CrossRef]
- Wieleba, W. The statistical correlation of the coefficient of friction and wear rate of PTFE composites with steel counterface roughness and hardness. Wear 2002, 252, 719–729. [Google Scholar] [CrossRef]
- Koutiri, I.; Pessard, E.; Peyre, P.; Amlou, O.; De Terris, T. Influence of SLM process parameters on the surface finish, porosity rate and fatigue behavior of as-built Inconel 625 parts. J. Mater. Process. Technol. 2018, 255, 536–546. [Google Scholar] [CrossRef]
- Matras, A. Research and Optimization of Surface Roughness in Milling of SLM Semi-Finished Parts Manufactured by Using the Different Laser Scanning Speed. Materials 2020, 13, 9. [Google Scholar] [CrossRef] [Green Version]
- Xiong, J.; Lei, Y.; Chen, H.; Zhang, G. Fabrication of inclined thin-walled parts in multi-layer single-pass GMAW-based additive manufacturing with flat position deposition. J. Mater. Process. Technol. 2017, 240, 397–403. [Google Scholar] [CrossRef]
- Chen, X.; Li, J.; Cheng, X.; He, B.; Wang, H.; Huang, Z. Microstructure and mechanical properties of the austenitic stainless steel 316L fabricated by gas metal arc additive manufacturing. Mater. Sci. Eng. A 2017, 703, 567–577. [Google Scholar] [CrossRef]
- Morgan, R.; Sutcliffe, C.J.; O’Neill, W. Density analysis of direct metal laser re-melted 316L stainless steel cubic primitives. J. Mater. Sci. 2004, 39, 1195–1205. [Google Scholar] [CrossRef]
- Yadollahi, A.; Shamsaei, N.; Thompson, S.M.; Seely, D.W. Effects of process time interval and heat treatment on the mechanical and microstructural properties of direct laser deposited 316L stainless steel. Mater. Sci. Eng. A 2015, 644, 171–183. [Google Scholar] [CrossRef]
- Röttger, A.; Geenen, K.; Windmann, M.; Binner, F.; Theisen, W. Comparison of microstructure and mechanical properties of 316 L austenitic steel processed by selective laser melting with hot-isostatic pressed and cast material. Mater. Sci. Eng. A 2016, 678, 365–376. [Google Scholar] [CrossRef]
- Röttger, A.; Boes, J.; Theisen, W.; Thiele, M.; Esen, C.; Edelmann, A.; Hellmann, R. Microstructure and mechanical properties of 316L austenitic stainless steel processed by different SLM devices. Int. J. Adv. Manuf. Technol. 2020, 108, 769–783. [Google Scholar] [CrossRef]
- Yang, L.; Laugel, N.; Housden, J.; Espitalier, L.; Matthews, A.; Yerokhin, A. Plasma additive layer manufacture smoothing (PALMS) technology–An industrial prototype machine development and a comparative study on both additive manufactured and conventional machined AISI 316 stainless steel. Addit. Manuf. 2020, 34, 101204. [Google Scholar] [CrossRef]
- Fosbury, A.; Wang, S.; Pin, Y.; Chung, D. The interlaminar interface of a carbon fiber polymer-matrix composite as a resistance heating element. Compos. Part A Manuf. 2003, 34, 933–940. [Google Scholar] [CrossRef]
- Alexander, F.H. Kaplan, Fresnel absorption of 1 μm- and 10 μm-laser beams at the keyhole wall during laser beam welding: Comparison between smooth and wavy surfaces. Appl. Surf. Sci. 2012, 258, 3354–3363. [Google Scholar]
- Nurminen, J.; Riihimäki, J.; Näkki, J.; Vuoristo, P. Comparison of laser cladding with powder and hot and cold wire techniqIn Proceedings of the ues. In Proceedings of the ICALEO 2006: 25th International Congress on Laser Materials Processing and Laser Microfabrication, Scottsdale, AZ, USA, 30 October–2 November 2006. [Google Scholar]
- Liu, S.; Liu, W.; Harooni, M.; Ma, J.; Kovacevic, R. Real-time monitoring of laser hot-wire cladding of Inconel 625. Opt. Laser Technol. 2014, 62, 124–134. [Google Scholar] [CrossRef]
- Nie, Z.; Wang, G.; McGuffin-Cawley, J.D.; Narayanan, B.; Zhang, S.; Schwam, D.; Kottman, M.; Rong, Y. Experimental study and modeling of H13 steel deposition using laser hot-wire additive manufacturing. J. Mater. Process. Technol. 2016, 235, 171–186. [Google Scholar] [CrossRef]
- Tolosa, I.; Garciandía, F.; Zubiri, F.; Zapirain, F.; Esnaola, A. Study of mechanical properties of AISI 316 stainless steel processed by “selective laser melting”, following different manufacturing strategies. Int. J. Adv. Manuf. Technol. 2010, 51, 639–647. [Google Scholar] [CrossRef]
Elements | Fe | Cr | Mn | Mo | Ni | Si | C |
---|---|---|---|---|---|---|---|
Wt% | 64.447 | 17.3 | 1.74 | 2.66 | 13.1 | 0.73 | 0.023 |

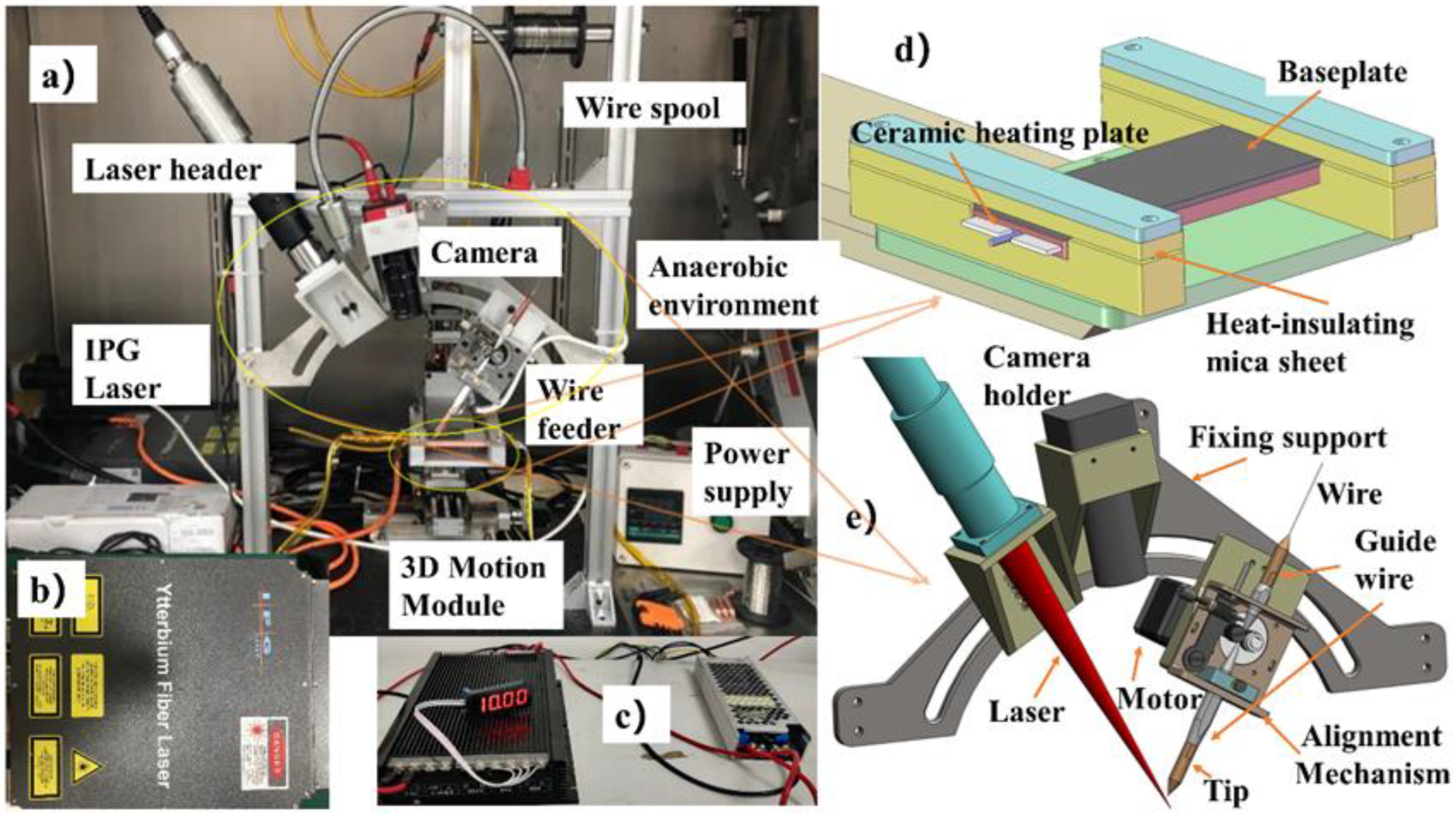

Parameter | Value |
---|---|
Laser system type | Model YLPN-WELD-DEM0-2 |
Laser type | Ytterbium fiber laser |
Laser mode | CW(continuous wave) |
Emission wave length | 1064 nm |
Laser Max power | 50 W |
Laser incidence angle | 50–80° |
Wire feeding angle | 30–60° |
Min. beam diameter | 80 μm |
Maximum moving rate | 300 mm/min |
Maximum wire feed rate | 600 mm/min |
Wire feeding direction | Front |
Wire diameter | 0.3 mm |
Shielding gas | Ar |
Oxygen content | ≤10 ppm |
(1) |

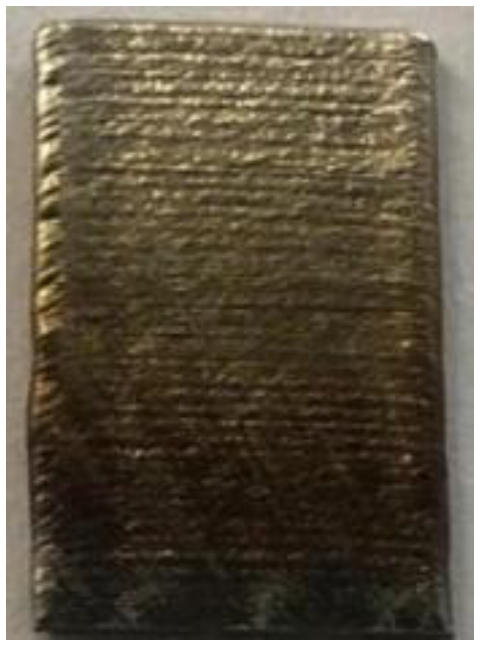

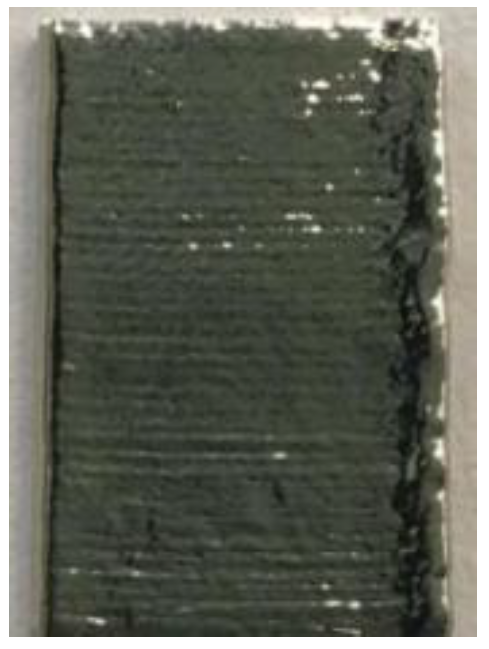

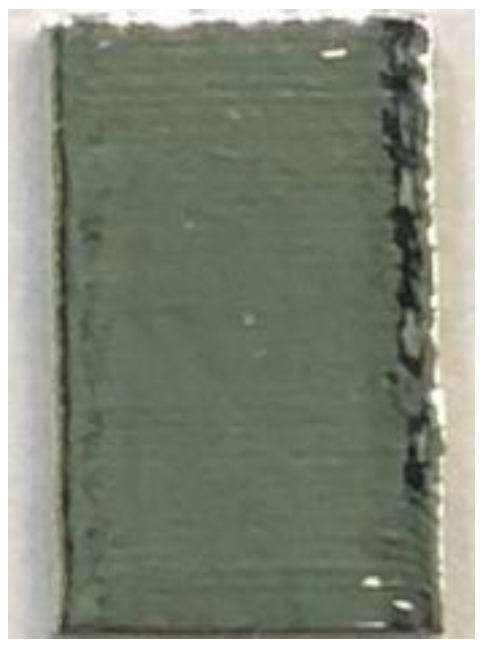

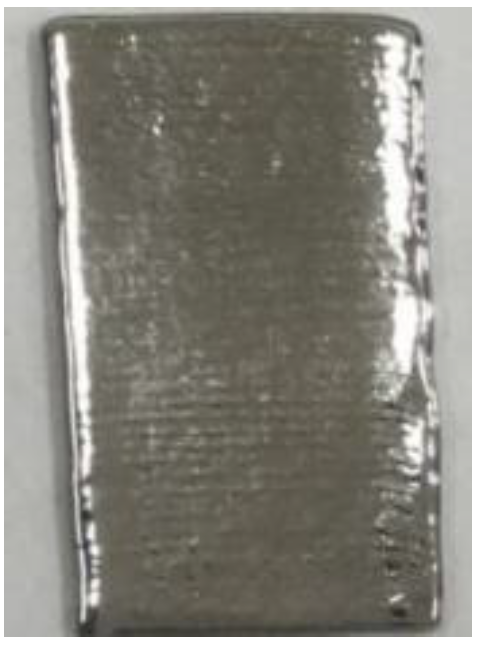

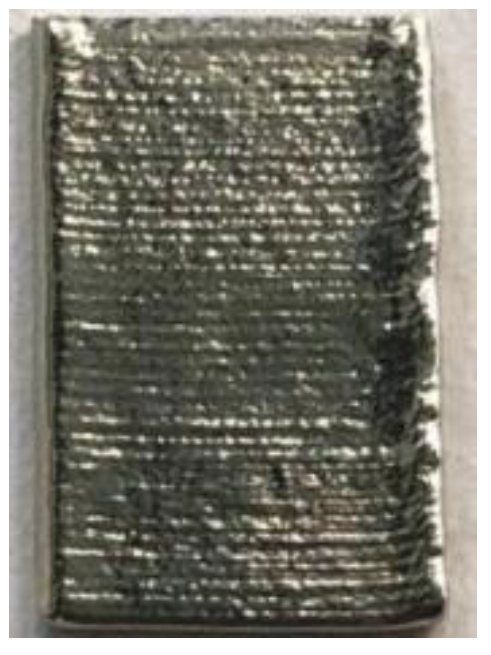

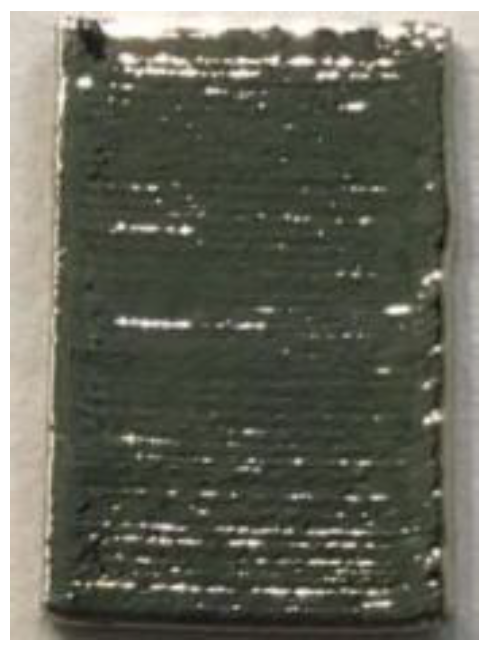

Number | 1 | 2 | 3 | 4 |
---|---|---|---|---|
upper | 0.595 | 0.589 | 0.602 | 0.604 |
lower | 0.568 | 0.573 | 0.563 | 0.557 |
K | Direction | Ra (μm) | Rz (μm) |
---|---|---|---|
1 | Horizontal | 0.7 | 4.2 |
1 | Horizontal | 0.8 | 3.9 |
1 | Horizontal | 0.7 | 3.4 |
1 | Vertical | 2.3 | 12.1 |
1 | Vertical | 2.2 | 10.8 |
1 | Vertical | 2.4 | 12.1 |
1.5 | Horizontal | 2.0 | 11.6 |
1.5 | Horizontal | 1.4 | 12.6 |
1.5 | Horizontal | 2.3 | 9.9 |
1.5 | Vertical | 3.8 | 17.9 |
1.5 | Vertical | 3.3 | 17.3 |
1.5 | Vertical | 3.8 | 18.4 |
Materials | Process | Surface Roughness | Reference |
---|---|---|---|
Powder | SLM | Sa (4–10 μm) | Imade, K. et al. (2018) [30] |
SLM | Ra (3–4 μm); Rz (16–20 μm) | Matras, A. (2020) [31] | |
EBM | Ra (18–22 μm) | Borrelli, R. et al. (2019) [17] | |
Wire | WAAM | Ra (200 μm) | Xiong, J. et al. (2017) [32] |
FW-LMD | Ra (8–16 μm) | Muhammad, O.S. et al. (2019) [22] | |
LJWF-DMD | Ra (3–5 μm); Rz (4–20 μm); Sa (4–8 μm) | This study |
Time | 0 min | 2 min | 4 min | 6 min | 8 min | 10 min |
---|---|---|---|---|---|---|
Specimens | | | | | | |
Ra (μm) | 3.6 | 2.5 | 1.3 | 0.7 | 0.5 | 0.4 |

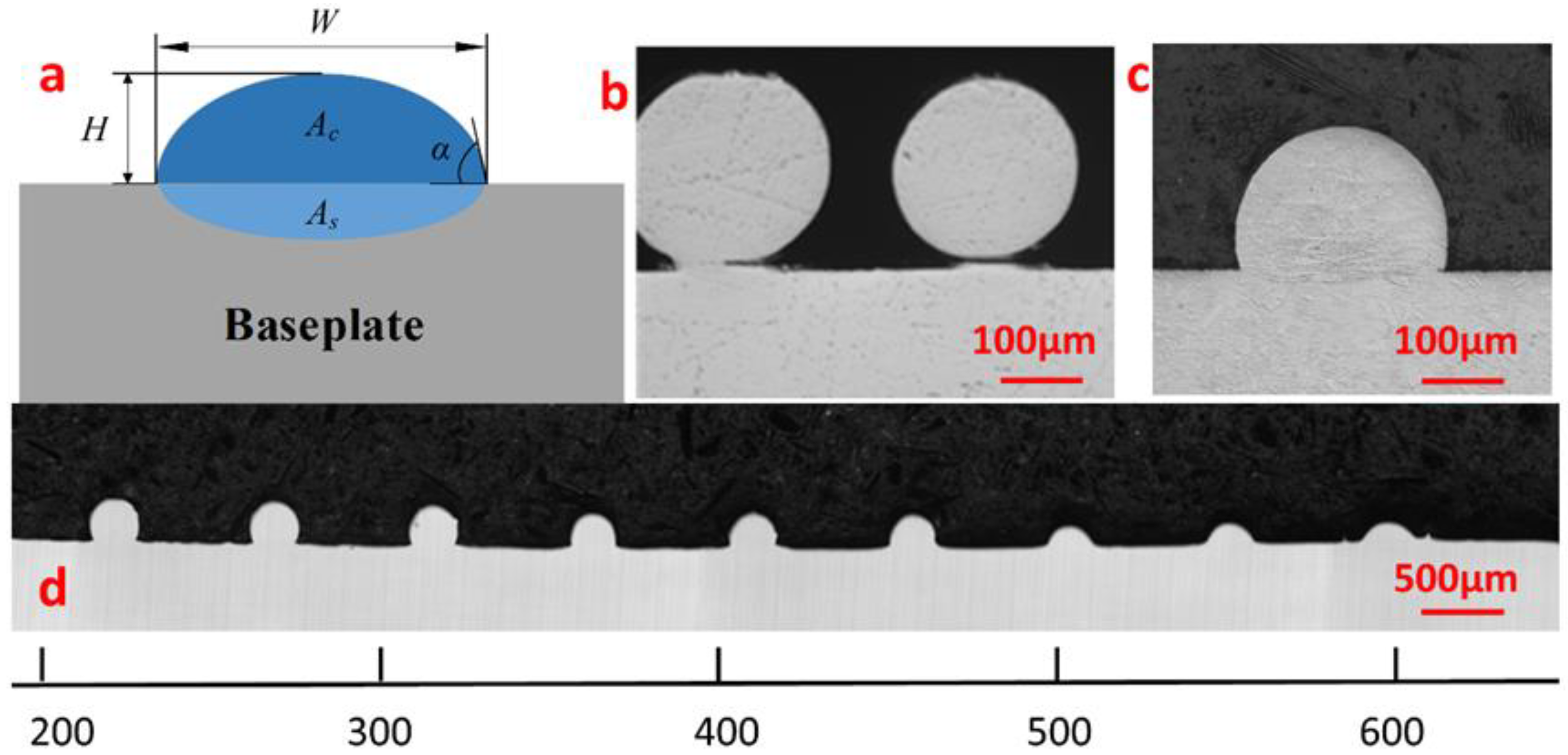

Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
---|---|---|---|---|---|---|---|---|---|
K | 1 | 1 | 1 | 0.8 | 0.8 | 0.8 | 0.5 | 0.5 | 0.5 |
VM (mm/min) | 5 | 10 | 15 | 5 | 10 | 15 | 5 | 10 | 15 |
H (μm) | 262 | 271 | 272 | 218 | 224 | 228 | 137 | 147 | 150 |
W (μm) | 325 | 323 | 321 | 314 | 312 | 309 | 300 | 297 | 294 |
α (°) | 116 | 124 | 132 | 96 | 100 | 106 | 64 | 72 | 79 |
