Next Article in Journal
Heat Transfer in Straw-Based Thermal Insulating Materials
Next Article in Special Issue
Self-Healing Products of Cement Pastes with Supplementary Cementitious Materials, Calcium Sulfoaluminate and Crystalline Admixtures
Previous Article in Journal
Bone Response to Conventional Titanium Implants and New Zirconia Implants Produced by Additive Manufacturing
Previous Article in Special Issue
Key Factors Determining the Self-Healing Ability of Cement-Based Composites with Mineral Additives


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Review

Effect of the Mechanical Load on the Carbonation of Concrete: A Review of the Underlying Mechanisms, Test Methods, and Results

Magnel-Vandepitte Laboratory for Structural Engineering and Building Materials, Ghent University, 9052 Ghent, Belgium
*
Author to whom correspondence should be addressed.
Materials 2021, 14(16), 4407; https://doi.org/10.3390/ma14164407
Submission received: 5 July 2021 / Revised: 27 July 2021 / Accepted: 3 August 2021 / Published: 6 August 2021

Abstract

:
As one of the major causes of concrete deterioration, the carbonation of concrete has been widely investigated over recent decades. In recent years, the effect of mechanical load on carbonation has started to attract more attention. The load-induced variations in crack pattern and pore structure have a significant influence on CO2 transport which determines the carbonation rate. With different types of load, the number, orientation, and position of the induced cracks can be different, which will lead to different carbonation patterns. In this review paper, the carbonation in cracked and stress-damaged concrete is discussed first. Then, literature about the effect of sustained load during carbonation is compared in terms of load type and load level. Finally, the advantages and disadvantages of possible test methods for investigating the effect of sustained load on carbonation are discussed with respect to loading devices, load compensation, and specimen size.

1. Introduction

Carbonation of concrete is one of the major causes of reinforced concrete deterioration. Concrete is inevitably porous. The pores and microcracks exist both at the inside and on the surface of concrete, which allows the penetration of CO2 when the surface of concrete is exposed to the atmosphere. In the presence of moisture, CO2 will dissolve in the pore solution and form HCO 3 and CO 3 2 ions, and consequently cause carbonation of hydration products of concrete such as portlandite (Ca(OH)2) [1], calcium silicate hydrates (C-S-H) [2,3,4], and ettringite [5,6], even of unhydrated cement particles [7,8] such as tricalcium silicate (C3S) and dicalcium silicate (C2S). In the carbonation process, different polymorphs of CaCO3 are formed, including calcite, vaterite, and aragonite. At high alkalinity, the Ca2+ mainly originates from the dissolution of portlandite. With the continuous consumption of Ca(OH)2, the alkalinity of concrete decreases gradually. When the carbonation front reaches the reinforcement, further carbonation will cause the depassivation of steel reinforcement. From then on, there is an onset of active corrosion, which shortens the service life of reinforced concrete structures. Therefore, as a critical issue, carbonation of concrete has been widely investigated [9,10,11,12].
The carbonation process is dominated by several factors including material composition, carbonation condition, and curing. These key factors determine the carbonation rate and carbonation products. Therefore, numerous efforts have been made to understand the CO2 transport and reaction mechanisms [13,14,15]. Whereas, only limited research exists about the carbonation of concrete under mechanical load. Reinforced concrete is designed to bear mechanical load which usually causes variation in porosity and crack patterns. According to Eurocode 2 [16], the design concrete strength is 67% of characteristic strength at most. In some cases, the limitation of stress in concrete is even lower. For example, considering creep, the stress limitation is 0.45 of the breaking load. Though reinforced concrete structures have been calculated to endure service loads without critical impacts on their mechanical properties over the service life, loads may make concrete more vulnerable to the ingress of water, CO2, chloride, and other agents. Therefore, when investigating the deterioration process of reinforced concrete under environmental effects, the effect of mechanical load should not be ignored. For decades, researchers have gained a preliminary understanding of the effect of precracking on the carbonation of concrete [17,18,19]. The issue of the carbonation under sustained load is more realistic and should therefore receive considerable critical attention. Service life prediction models can be optimized using the output (e.g., critical threshold load levels) of accelerated carbonation tests under sustained load.
In this paper, it is first discussed how cracks and stress damage induced by external mechanical load affect the carbonation resistance (Section 2). Next, the effects of sustained loads throughout the service life are discussed in view of the expected gas permeability and carbonation depth (Section 3). In addition, a literature survey was included on currently available dedicated experimental setups for investigating concrete under combined mechanical load and carbonation (Section 4). A critical comparison between the different test setups has been made. A lot of attention went into the evaluation of their feasibility, reliability, advantages, and disadvantages in relation to relevant modes and levels of loading.

2. Carbonation in Cracked and Load-Damaged Concrete

Essentially, when investigating the effect of load on carbonation, the most critical factor is the variation in crack and pore structure caused by the application of load. With different types and levels of mechanical load applied, the cracks vary in number, length, width, and pattern. Consequently, the process of CO2 transport is changed to some extent. Based on the mechanisms of concrete carbonation, the CO2 transport and carbonation affect each other mutually. On the one hand, better CO2 transport properties result in a faster carbonation. On the other hand, the formation of carbonation products of portlandite, including calcite, aragonite, and vaterite, results in a volume increase of 11.2%, 2.9%, and 18.7%, respectively [20]. The produced water and precipitated CaCO3 in Portland cement concrete will fill the pores and cracks and therefore lower the CO2 transport properties in turn.

2.1. Effect of Crack Pattern on Concrete Carbonation

Cracks are very common in concrete. Even without external load, the heat of hydration, autogenous and drying shrinkage, and improper curing may cause cracks in concrete surfaces. In reinforced concrete beams, concrete in the flexural tension zone will be cracked once in service. These cracks, as flow channel for CO2, may facilitate direct exposure of the rebars to CO2. Hence, the carbonation takes place at the interface between steel rebar and concrete even though only limited carbonation occurs at the concrete cover [17,21], which means the concrete cover no longer has an effect at the location of the crack. However, only wide enough cracks, acting as additional exposure surfaces to CO2, will have a great impact on carbonation. While microcracks would only accelerate the carbonation slightly. Small cracks may close again as a result of carbonation-induced autogenous healing [22]. To gain a better understanding of the latter aspect, some researchers investigated the carbonation behavior of concrete in which cracks with certain geometries were induced deliberately. In some cases, a lower crack width threshold was found, below which CO2 transport is not increased in comparison with uncracked material. On the other hand, an upper crack width threshold may occur, above which the carbonation rate remains stable independent of the crack width. The results obtained in the literature are summarized in Table 1.
In some studies, artificial cracks are induced by positioning a thin plate inside the specimens during casting and removing this plate after hardening of the specimens. Via this method, standardized cracks without tortuosity are created. The crack depth and crack width can be easily controlled that way. Though the crack width determines the amount of CO2 molecules entering into the crack per unit of time, the following CO2 transport along the crack path also depends on the carbonation at the crack walls which consumes CO2. If the CO2 transport into the crack is slow, there can be a concentration gradient of CO2 along the crack depth. Consequently, the carbonation rate is the highest at the outer surface, followed by the crack surface and the lowest at the crack tip [23]. Different authors observed an upper crack width threshold of 100 μm at CO2 levels of 1% [25], 3% [27], and 20% [23]. The carbonation rate remains stable as the crack width increases above this value. At a CO2 level of 50%, Alahmad found that the carbonation depth measured at an artificial crack surface with a crack width of 10 μm is already higher than the carbonation depth in an uncracked region of the concrete surface [26], indicating a lower crack width threshold below 10 µm. A possible explanation is that a much higher CO2 concentration causes adequate CO2 supply even in very fine cracks. Besides, an empirical formula was developed by De Schutter to quantify the effect of crack depth and width on the carbonation [24].
However, real cracks in concrete are much more complicated than artificial cracks. The differences between artificial cracks and realistic cracks should be carefully considered. For instance, the surfaces of artificial cracks are smoother and higher in cement content (the so-called “wall effect”) [24]. Moreover, the width of realistic cracks becomes gradually lower along the crack path. The interlocking and tortuosity of realistic cracks will hinder the transport of CO2. Generally, artificial cracks cause a higher carbonation depth. So, the effect of realistic cracks should also be investigated. In some studies, realistic cracks are induced through the application of flexural or splitting load while the crack width is being monitored. Contrary to artificial cracks, it is found that the carbonation rate still increases when the realistic crack width exceeds 100 μm (CO2 level: 1% and 5%) [25,28]. Under a much higher CO2 level of 50%, Alahmad [26] found that carbonation rate perpendicular to a realistic crack wall is similar to that at the concrete surface when the crack width is higher than 60 μm, and that CO2 transport appears to stop for crack width of 9 μm or less.
Much work has also been carried out on the gas permeability of cracked concrete. In view of the great impact of the crack pattern on gas transport, any factors which influence the load-induced crack pattern, such as aggregate type, aggregate size [31], and mix proportion [32], can more or less influence the gas permeability and also carbonation. For instance, under 3-point bending, the cracks may generate inside light-weight aggregates and can be even wider than in the matrix, which results in a higher carbonation rate than for normal-weight aggregate concrete [27]. Nevertheless, under a compressive load, the stiffness of light-weight aggregate is more closely matching the stiffness of the mortar matrix than in the case of normal-weight concrete. So, light-weight aggregate concrete appeared to be capable of enduring a higher level of compressive stress without forming continuous crack channels that could allow the gas flow through them [33]. Due to the divergent test regimes, the effect of these factors can be complicated. The difficulty of quantitatively and accurately characterizing the crack patterns complicates a well-founded discussion.
Furthermore, attention should be paid to the difference between gas permeability and carbonation. The sensitivity of a gas permeability test and a carbonation test to the connected macrocracks are different. It was found that the laminar-turbulent gas flow transition always occurs at a certain range of gas permeability and inlet gas pressure [34]. The cracks convey the larger part of the gas flow. The water saturation degree no longer affects the gas permeability measurement for cracked concrete [34,35], which is not the case for carbonation.

2.2. Effect of Load-Induced Damage on Concrete Carbonation

2.2.1. Static Load

Apparently, the carbonation rate increases as the degree of damage increases [36]. A higher degree of damage means more cracks, which then accelerate the CO2 transport. However, a higher external mechanical load not always results in a higher degree of damage. For example, the compaction effect under a relatively low compressive load causes the partial closure of cracks and pores. As shown in Figure 1, due to the contracting volumetric behavior, the permeability of concrete slightly decreases. As the load level increases, new cracks are generated and microcracks coalesce. The volumetric response becomes dilating, and the permeability increases, first slightly and then significantly from 80% of the peak stress onwards. Similar results are reported regarding the carbonation of concrete, uniaxial compressive load will decrease the carbonation rate when the stress level is below a threshold load level of 0.7 [37]. On the contrary, damage caused by tension leads to an increase in carbonation rate [38]. When the cement is replaced by different types of supplementary cementitious materials, tension will cause different extents of acceleration of the carbonation. Ground granulated blast-furnace slag makes the carbonation rate rise faster when concrete is in tension, compared with fly ash [39].

2.2.2. Fatigue Load

Apart from being exposed to static loads, reinforced concrete structures are also subject to fatigue load during the service life. Good examples of this are bridges and pavements. The applied cyclic loading will cause a progressive growth of internal microcracks which initiate from inherent flaws. When a microcrack initiates, it keeps on growing during each loading cycle until a critical size is reached. Eventually, this results in a significant increase in irrecoverable strain [41] and ultimately even in failure of the concrete structure. Certainly, these microscopic internal changes increase CO2 transport properties and are responsible for a detrimental effect on the durability of concrete. However, the way it influences carbonation is complicated. As the porosity of concrete linearly increases with the tensile fatigue damage, there is a plateau phase between two rapid growing phases at a low and high damage degree whereby the carbonation rate increases slightly with the damage degree [42].
Jiang [43] found that the carbonation rate of concrete was more sensitive to tensile fatigue damage than to compressive fatigue damage. Eccentric fatigue load which causes a load gradient and damage gradient in concrete does not significantly influence the way relative humidity, temperature, and CO2 concentration affect the carbonation process in concrete. Zhang [36] found that the carbonation rate increased after specimens were loaded several times longitudinally and transversely (compressive load level: 0.3–0.5 of breaking load), even though there were no visible cracks on the surface of the concrete. Dai [44] found that, though the carbonation rate increased after cyclic compressive load, the 28 days strength after 10,000 cycles was higher than the 28 days strength after 5000 cycles. Extra microcracks induced by more fatigue load cycles seem to boost the autogenous healing effect attributable to carbonation.

3. Carbonation of Concrete under Sustained Load

Indeed, load-induced damage of concrete is a problem that engineers and scientists may encounter. Attention should also be paid to sustained loads which will be present during the entire service life of a concrete structure. The effect of mechanical load on carbonation cannot be simply considered as stress damage because of the difference in microstructure before and after loading. In the studies about stress damage, specimens are loaded following a certain loading protocol for a short time and unloaded before being put in the CO2 chamber. Nevertheless, the crack patterns under load and after releasing the load are not the same. For example, if the designed loading level does not exceed the ultimate splitting stress, the crack opening displacement may reduce by 80% after unloading [45]. Wan [37] found that the specific crack area started to decrease significantly at the 0.25 stress level during the unloading process, which shows an obvious deformation recovery caused by cracks closure. Moreover, the permeability of concrete measured after being unloaded was higher than during compressive loading when at low and intermediate stress level, while it was inverse when a high compressive stress level (0.8 of breaking load at 20 ℃) was applied [40].
In view of the differences in crack pattern and pore structure between the loaded and unloaded situation, more researchers have started to investigate the effect of sustained load on the carbonation of concrete recently, not merely precracking and stress damage. Though the studies on carbonation under sustained load are more realistic, it should be noted that creep of concrete can have a great influence in case of accelerated carbonation in a laboratory environment. Creep of concrete is noticeably higher at early age. Therefore, if the specimens were put into a CO2 chamber right after the load application, the substantially higher creep at early stage can influence the CO2 transport. Further studies should pay attention to the early-stage creep in combination with accelerated carbonation in a CO2 chamber.
When different types and levels of external load are applied, the cracks vary in number, length, width, and pattern, and the pore structure is also changed. A denser concrete structure will slow down the diffusion of CO2 while less dense concrete structures contain more pores and cracks which act as flow channels of CO2 and accelerate the diffusion of CO2. A larger crack not only makes CO2 diffusion easier, but also provides more room for carbonation product formation. With different types of load, distinct results of carbonation depth can be obtained. Due to the difficulties encountered for maintaining a dynamic load inside a CO2 chamber, generally a static load is applied throughout the whole experiment, either compressive load, tensile load, flexural load, or splitting load. The effect of different types and levels of mechanical load is discussed with respect to gas permeability and carbonation depth. A summary of representative literature discussed in this paper is shown in Table 2.

3.1. Compressive and Tensile Load

The effect of applied compressive load on a concrete structure highly depends on the stress level. Lim [60] investigated the crack patterns under different stress levels through microscopy observation. According to his research on concrete crack length after compressive load, bond cracks occur at the aggregate–mortar interface when the stress level is above 0.3 times the failure stress and the total crack length increases significantly when the stress level exceeds 0.5. Notable isolated mortar cracks occur at a stress level of 0.7 and interconnect with bond cracks at the 0.9 stress level. Though the crack opening displacement reduces after the load is completely removed [45], it is helpful to understand the transport properties of concrete under sustained compressive load.
When the stress level reaches a certain threshold, crack growth goes to another stage and the crack pattern changes greatly. A threshold stress level for permeability tests on concrete is also identified by other researchers. According to the results of water permeability experiments, Banthia [61,62] found that the threshold of sustained compressive stress for both plain concrete and fiber-reinforced concrete appears to be approximately 0.3 times the failure stress. A slight decrease was also reported at 0.2 times the failure stress, as shown in Figure 2. In addition to mix proportion, the exact threshold also depends on the age and loading history [63]. Wimalasiri developed a numerical method based on the concrete damage plasticity model to determine the permeability under load. It was found that a higher grade of concrete, larger aggregate diameter, larger ITZ thickness, and sharper aggregate angle will result in a lower threshold [64]. The increase in temperature also leads to a lower threshold [65].
Tang found that the gas permeability of unloaded specimens is higher than for specimens at a 0.3 stress level and lower than for specimens at a 0.6 stress level [66], which shows that a threshold for gas permeability may also occur at the 0.3–0.6 stress level. Both the gas and water permeability of concrete decrease as the sustained compressive load increases when the load level is below the threshold, while the permeability increases significantly after exceeding the threshold. The densification of concrete under a relatively low compressive load is the main reason for this phenomenon. The intrinsic concrete cracks generated before the permeability test will be partially closed due to the external stress and the pore structure is compressed. Besides, the densification effect is influenced by the direction of the sustained compressive load. Cracks perpendicular to the compressive load close while the cracks parallel to the compressive load tend to open. Therefore, a confining pressure shows a stronger densification effect because the fluid flow is perpendicular to the compressive load. In this case, the whole side surface of the cylindrical specimen is under compression and the expansion of concrete is only along the axial direction. When the confining pressure is only 6% of ultimate uniaxial compressive strength, the water permeability of uniaxial compressive load damaged concrete can decrease by 69%. Through nuclear magnetic resonance, it is found that the 0.1–1000 μm mesopores are dominant before the application of confining pressure, while the micropores smaller than 0.1 μm become dominant after the application of confining pressure [67]. Nevertheless, the permeability is less sensitive to confining pressure for sound concrete specimens [68].
Figure 2. Water permeability versus compressive level for two concrete mix proportion (experimental and modeling results). Copied from reference [69] with copyright permission from Elsevier.
Figure 2. Water permeability versus compressive level for two concrete mix proportion (experimental and modeling results). Copied from reference [69] with copyright permission from Elsevier.
Materials 14 04407 g002
The typical effect of uniaxial compressive and tensile load on carbonation rate is shown in Figure 3. The threshold for carbonation under sustained compressive load seems to be higher than the threshold for gas and water permeability. When comparing with unloaded specimens, the carbonation rate under sustained compressive load is still lower when 0.4 [46], 0.5 [47,48], and even 0.75 [49] of the failure stress is reached. On the one hand, the pressure during a gas permeability test is much higher than the atmospheric pressure during the carbonation test, which will absolutely cause a discrepancy in the results. On the other hand, the densification effect of compressive load can be underestimated for gas permeability. With the increase in compressive load, the pores and matrix are compacted continuously, while cracks start developing. When only a small number of cracks are generated, gas can permeate through and the obtained gas permeability rises, but the CO2 still needs to penetrate into the greatly densified matrix and react with the hydration products for carbonation to occur. Moreover, carbonation itself may play an important role. The formation of carbonation products caused by the chemical reaction between CO2 and hydration products can block the path of CO2 transport, which has a great impact on CO2 transport properties in turn. Therefore, although the gas permeability test is less time-consuming, for evaluation of the effects of load on carbonation, an actual carbonation test will provide more reliable results.
However, some researchers also reported a threshold for carbonation under sustained compressive load at a stress level of around 0.2–0.3 [50,51,52,53], which is similar to the results for permeability. Interestingly, the size of the specimens in their study was much smaller than the size in the previously described research (usually 100 × 100 × 400 mm3). In the first two cases [50,51], the specimens were 100 mm high in the direction of compressive load. These sizes are similar to specimens used in permeability tests and are usually not large enough to provide a uniform distribution of compressive stress. With a lower specimen height, because of the effect of horizontal confinement, more cracks are generated and they only occur in a thin outer layer [70]. In the last two cases, the sizes of the specimens are large (100 × 100 × 300 mm3 in [52] and 100 × 100 × 400 mm3 in [53]), but they are hollow in the middle (hollow core of 25 and 40 mm in diameter, respectively) so that the rebar can pass through to provide a compressive load. Furthermore, this may cause a great difference in crack pattern. Therefore, the specimen size plays an important role in these cases and makes the threshold occur at a lower stress level.
On the contrary, a uniaxial tensile load only results in the generation and growth of microcracks perpendicular to the direction of the tensile load and makes concrete less dense. Hence, uniaxial tensile load always leads to an increase in gas permeability [66] and carbonation rate [53]. Recycled aggregate concrete is more sensitive to tensile load as opposed to compressive load because of larger microstructural changes under tensile load [71]. Besides, though different patterns of cracks are induced, a splitting tensile load has a similar effect on concrete carbonation.
One of the most significant purposes of studying carbonation under sustained load is to optimize service life prediction models for design of reinforced concrete structures. In the presence of tensile loads, service life prediction based on an experimental evaluation of sound concrete can lead to an overestimation. For compressive load, the existence of the threshold value can also cause errors in the service life prediction. Moreover, the compressive load threshold greatly varies depending on how the concrete microstructure responds to the mechanical load, in terms of crack propagation and pore structure changes. It is essential to determine the compressive load threshold for concrete structures that are more prone to intrinsic flaws such as light-weight aggregate concrete (weak ITZ and low aggregate strength), recycled aggregate concrete (with weak ITZ), and 3D printed concrete (with anisotropy caused by the weak interlayer bonding). Apart from avoiding the overestimation of the service life, the densification effect of the compressive load has the potential to improve the durability by hindering the ingress of the aggressive substances to some extent.

3.2. Flexural Load

Considering that few reinforced concrete structures are serving under uniaxial tensile stress in practice, three-point bending and four-point bending modes are used in many studies for a better understanding of concrete carbonation in practice. Besides, the loading frame for applying a bending load is usually smaller than a loading frame for applying uniaxial tensile loads, and can easily be put in a CO2 chamber.
However, it should be pointed out that the system is more complicated when bending load is applied. Firstly, for a specimen under bending load, there exists a bending tensile zone and a bending compressive zone at the same time which are divided by the neutral plane. For both bending compressive zone and bending tensile zone individually, the CO2 transport behavior is similar to that under uniaxial load. However, the transport properties under compressive and tensile load, determined by pore structure and crack pattern, are totally different and should be investigated separately. Even so, because the compressive strength of concrete is much higher than the tensile strength, when the load level is set according to the breaking bending load, the actual compressive load in the compressive zone is very low. Thus, the threshold of compressive load probably cannot be observed. Secondly, the flexural shear stress may also cause a change in crack pattern. Castel [72] found that the natural carbonation depth in the lateral surface (close to tensile surface and mainly under tensile stress) is always deeper than in the tensile surface. He ascribes this to surface moisture deposit and the effect of gravity which hinder the transport of CO2. Besides, there exists a gradient of stress in the direction perpendicular to the neutral plane. Thus, CO2 transport along this direction actually does not occur under the same stress level. This should be taken into consideration when proposing a new theoretical formula for carbonation depth prediction.
Similar to the results of carbonation depth when uniaxial tensile load is applied, the carbonation rate in the bending tensile zone always increases with the increase in stress level [73]. Obviously, when the stress level is increased, the tensile stress in the bending tensile zone becomes higher and leads to the generation of more microcracks. CO2 transport increases in the less dense concrete matrix and, therefore, the carbonation rate rises. However, for the bending compressive zone, as mentioned before, the threshold probably cannot be observed when the load level is set according to the breaking bending load. In some studies, the carbonation rate is still decreasing with stress levels up to 0.5 [54,55,56,57], which is caused by the compaction effect of the external compressive stress. Nevertheless, some researchers reported a threshold over which a significant increase in carbonation rate was observed. With smaller specimens (70.7 × 70.7 × 212 mm3) under four-point bending, Zheng [58] found a threshold at around a stress level of 0.2. Based on a CaCO3 profile obtained through titration, Wan [59] found that the threshold is around 0.3. Due to the great differences in mix proportion, specimen size, and test method, it is hard to conclude which is the main factor for the threshold through the comparison of literature, and further research regarding load-induced cracks and pore structure variation should be carried out. Based on the results of carbonation depths under mechanical load in existing literature, Wang [74] proposed empirical formulas to describe how compressive stress level and tensile stress level influence carbonation rate. Several studies have focused on service life prediction and carbonation modelling considering the effects of flexural load [75,76,77].

4. Test Methods for Carbonation of Concrete under Sustained Load

When investigating the effect of damage on carbonation, usually no special apparatus is required, and there is less restriction when designing and conducting the experiment. An expected degree of damage can be obtained through the control of hydraulics. However, the experiments in which sustained loads are involved are more complicated. A stable load should be maintained on specimens during long-term exposure to certain environmental factors. Due to the lack of a standard test method, several different test apparatus and test procedures have been designed to achieve different types of sustained load.

4.1. Specimen Size and Loading Devices

In view of the limitation of the CO2 chamber size, the size of the specimens should not be taken too large. Meanwhile, as discussed in Section 3.1, specimen size has a significant effect on the crack pattern which determines the carbonation rate. With a low specimen height, because of the effect of horizontal confinement, the cracks may only occur in a very thin outer layer whereas the remainder of the specimen remains uncracked [70]. Therefore, the specimens should be kept large enough to avoid uneven distribution of coarse aggregate and cracks which are generated during the loading. In most studies, prismatic specimens have been adopted, for example, 100 × 100 × 400 mm3 [53], 100 × 100 × 300 mm3 [78] and 40 × 40 × 160 mm3 [46,79].
The sustained loads are applied and maintained with loading frames which are similar to the post-tensioning system for prestressed concrete. Usually, threaded bar tendons which are put inside or outside of the specimens are used so that both tensile and compressive stress can be provided. When investigating the effect of load on concrete under different environmental conditions other than carbonation, the loading frame for applying external mechanical load is mostly the same. Thus, the loading frames for environmental action other than carbonation are also included in the following discussion. For applying different types of loads including uniaxial compressive load [46,51], uniaxial tensile load [80,81], three-point bending load [72], and four-point bending load [79,82] by use of external bar tendons, several loading frames have been designed. Typical loading frames are shown in Figure 4a–c. Such a loading frame with external threaded bar tendons can provide a more even and accurate load through adjusting four nuts. A loading frame which simulates a corbel and applies flexural loads was reported [83].
Based on the loading setups mentioned above, some researchers added springs on the bar tendons, as shown in Figure 4c. In this case, the load is transmitted through the springs and not merely through the bar tendons. So, when inevitable stress losses occur, the applied external load will not decrease too much because of the buffering effect of the spring. Nevertheless, to provide large enough load within a slight strain, very strong springs are required, which will greatly increase the total weight and size of the setup. If the springs are not strong enough, the applied stress cannot reach the designed stress level [46], especially for compressive stress. In order to keep the total weight as light as possible and allow for a compact design, disc springs (Belleville washer), which can support very large loads with a small installation space, are used [50], as shown in Figure 5a. Moreover, if the CO2 chamber is large enough, the creep setup is certainly an ideal option for applying uniaxial compressive load. For example, as shown in Figure 5b, the external load is provided by the gas pressure of the compressed air in a gas bottle. The load is more stable because the decrease in gas volume caused by the slight deformation of concrete has a smaller effect on the load level.
Still, the main shortcoming of external bar tendons is that the loading frame may be too large and heavy, which makes it difficult to manually transport it and install it into the CO2 chamber, especially for the loading frames in which springs are added. Therefore, an alternative can be to use internal unbonded bar tendons. As shown in Figure 6a,b, a circular duct is precast in the concrete for the bar tendon. Obviously, loading with internal bar tendons greatly reduces both the size and weight of the loading setup. However, the accuracy and stability of the load for these setups still need further investigation. In addition, since the size of specimens and load setups are limited by the dimensions of the CO2 chamber, the prescribed carbonation environment can only be maintained at part of the outer surface of the specimens [85], especially for very large concrete specimens. However, maintaining the exposure conditions is more difficult in terms of CO2 concentration, relative humidity, and temperature.

4.2. Load Application and Compensation

For loading frames with external bar tendons, hydraulics and torque wrenches [30] can be used to apply load. Applying load through hydraulics is more accurate but the operator should pay attention to the stress losses. If the load applied by the hydraulics is kept at a fixed value when tightening the nuts, the load carried by the concrete specimen can drop greatly after the hydraulics is removed because of the bolts loosening and the elastic deformation of the loading frame. If the hydraulics is kept stationary when tightening the nuts, the load applied by the hydraulic machine decreases gradually, and the load on the concrete specimens reaches the design value when the load applied by the hydraulics drops to zero. By this means, the stress loss occurring right after the removal of the hydraulics can be avoided because the loading frame, including the bolts and nuts, is already loaded. However, the nuts have to be tightened by wrench manually, which may be infeasible if a compressive load is to be applied. The load can also be applied by torque wrench but is less accurate. The reason is that the measured torque is derived from the friction between the nut and screw which highly depends on the nut and screw specifications and even whether they are free of rust and lubricated or not. Yet, it is still a simple way to apply a relatively low load. Moreover, the operator can apply the load with a wrench manually by checking the resulting strain when the strain gauges are glued on the specimens.
During carbonation, the load maintained by the loading frame always drops with time. This phenomenon of stress relaxation is inevitably caused by shrinkage and creep of concrete and bolt loosening. When the designed stress level is relatively low, regularly releasing the load followed by reloading would be a solution to the problem. However, it is reported that, when the load level is over 54% of the failure load, the apparent Poisson’s ratio starts to change clearly, which means that irreversible plastic deformation occurs [37]. In this case, reloading will result in unexpected changes in the crack pattern. Besides, some researchers applied excessive load on concrete specimens to counter the stress loss, which is similar to the procedure for prestressed concrete [86,87]. In the case of prestressed concrete, usually slightly excessive load (3–5% of designed load) is applied to ensure the structural safety. However, this can only keep the average stress near or above the design value but not mitigate the effect of shrinkage and creep. Since there is no requirement for structural safety in a loading setup for laboratory tests, more measures are needed to avoid too much stress loss during the carbonation. For instance, as mentioned before, the stress relaxation during the long-term carbonation experiment can be alleviated by the designed springs. In addition, the load can be compensated by regularly tightening the nuts when the load is monitored by a load cell. Since the load cell is costly and will make the design of the loading frame more complicated, tightening the nuts to keep the length of springs can be an alternative.

5. Conclusions

Carbonation of concrete is always one of the major focus points when investigating the durability of reinforced concrete. Many efforts have been made to understand the carbonation process in sound concrete. However, during the service life, it is nearly impossible for reinforced concrete to be under only one deteriorating action. Reinforced concrete is designed to bear mechanical load. So, the deterioration process of concrete under environmental effects is actually always coupled with mechanical load. Therefore, over the past decade, researchers have started to investigate the effect of mechanical load on the carbonation of concrete.
This paper gives an overview of how mechanical load influences the carbonation of concrete from different perspectives, depending on the type of load and the induced crack pattern. Moreover, it is discussed how a dedicated experimental setup is achieved for investigating the effect of different types of sustained load. The key observations can be summarized as follows.
Carbonation rate increases rapidly as the cracks width increases, while it remains stable after a certain crack width threshold is exceeded (around 100 μm for artificial cracks).
Compressive load can densify concrete and slow down the carbonation slightly at a low load level. The carbonation rate significantly increases once a certain threshold is reached because of the generation and connection of cracks. However, tensile loads always result in a higher porosity of concrete and increase in carbonation rate.
Future research should be carried out to gain a deeper understanding of the coupled effect of mechanical load and carbonation.
The key factors for the threshold of compressive load remain uncertain when looking at existing research. The values given in different papers show a large discrepancy. More efforts should be made to determine the threshold so that acceleration of carbonation can be possibly avoided or taken into account in service life design.
There is a great difference in crack pattern and pore structure when mechanical load is applied using different protocols. It is of a great importance to quantitatively characterize the cracks and then establish a relation with the carbonation rate.
Efforts should be made to gain a deeper understanding of the carbonation mechanism under mechanical load. Since carbonation can also change the microstructure and therefore affect the mechanical properties of concrete, the response of the carbonated and non-carbonated concrete to the mechanical load will normally not be the same. Furthermore, the carbonation process changes the load-damaged microstructure as well. The mutual microstructural effects of the mechanical load (especially sustained load) and carbonation should be addressed in more depth in future research.
In view of the difficulties in the test setups for the carbonation under sustained load, the gas permeability can be a good alternative. However, the reported threshold values for gas permeability are generally much lower than the threshold value for carbonation depth. The relation between the gas permeability and carbonation under sustained load needs to be further established.

Author Contributions

Conceptualization, Z.L., P.V.d.H. and N.D.B.; methodology, Z.L., P.V.d.H. and N.D.B.; formal analysis, Z.L.; investigation, Z.L..; resources, Z.L.; data curation, Z.L.; writing—original draft preparation, Z.L.; writing—review and editing, Z.L., P.V.d.H. and N.D.B.; visualization, Z.L.; supervision, P.V.d.H. and N.D.B.; project administration, P.V.d.H. and N.D.B.; funding acquisition, P.V.d.H. and N.D.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Research Foundation—Flanders (FWO), grant numbers G0F3619N, 3E013917 and G062720N.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing not applicable.

Acknowledgments

These results have been obtained in the framework of a Bilateral Scientific Research Cooperation Project between the Research Foundation—Flanders (FWO) and the National Natural Science Foundation of China (NSFC). The authors are grateful for their financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. García-González, C.A.; Hidalgo, A.; Andrade, C.; Alonso, M.C.; Fraile, J.; Lopez-Periago, A.M.; Domingo, C. Modification of composition and microstructure of portland cement pastes as a result of natural and supercritical carbonation procedures. Ind. Eng. Chem. Res. 2006, 45, 4985–4992. [Google Scholar] [CrossRef]
  2. Morandeau, A.E.; White, C.E. In situ X-ray pair distribution function analysis of accelerated carbonation of a synthetic calcium–silicate–hydrate gel. J. Mater. Chem. A 2015, 3, 8597–8605. [Google Scholar] [CrossRef]
  3. Morandeau, A.; Thiéry, M.; Dangla, P. Investigation of the carbonation mechanism of CH and C-S-H in terms of kinetics, microstructure changes and moisture properties. Cem. Concr. Res. 2014, 56, 153–170. [Google Scholar] [CrossRef] [Green Version]
  4. Black, L.; Breen, C.; Yarwood, J.; Garbev, K.; Stemmermann, P.; Gasharova, B. Structural features of C?S?H(I) and its carbonation in air?A raman spectroscopic study. Part II: Carbonated phases. J. Am. Ceram. Soc. 2007, 90, 908–917. [Google Scholar] [CrossRef]
  5. Fernández-Carrasco, L.; Torrens-Martin, D.; Martinez-Ramirez, S. Carbonation of ternary building cementing materials. Cem. Concr. Compos. 2012, 34, 1180–1186. [Google Scholar] [CrossRef]
  6. Xiantuo, C.; Ruizhen, Z.; Xiaorong, C. Kinetic study of ettringite carbonation reaction. Cem. Concr. Res. 1994, 24, 1383–1389. [Google Scholar] [CrossRef]
  7. De Han, J.; Pan, G.; Sun, W.; Wang, C.; Cui, D. Application of nanoindentation to investigate chemomechanical properties change of cement paste in the carbonation reaction. Sci. China Technol. Sci. 2011, 55, 616–622. [Google Scholar] [CrossRef]
  8. Peter, M.; Muntean, A.; Meier, S.; Böhm, M. Competition of several carbonation reactions in concrete: A parametric study. Cem. Concr. Res. 2008, 38, 1385–1393. [Google Scholar] [CrossRef] [Green Version]
  9. Šavija, B.; Luković, M. Carbonation of cement paste: Understanding, challenges, and opportunities. Constr. Build. Mater. 2016, 117, 285–301. [Google Scholar] [CrossRef] [Green Version]
  10. Ekolu, S.O. A review on effects of curing, sheltering, and CO2 concentration upon natural carbonation of concrete. Constr. Build. Mater. 2016, 127, 306–320. [Google Scholar] [CrossRef]
  11. Chang, C.-F.; Chen, J.-W. The experimental investigation of concrete carbonation depth. Cem. Concr. Res. 2006, 36, 1760–1767. [Google Scholar] [CrossRef]
  12. Marques, P.F.; Chastre, C.; Nunes, Â. Carbonation service life modelling of RC structures for concrete with Portland and blended cements. Cem. Concr. Compos. 2013, 37, 171–184. [Google Scholar] [CrossRef]
  13. Salvoldi, B.G.; Beushausen, H.; Alexander, M.G. Oxygen permeability of concrete and its relation to carbonation. Constr. Build. Mater. 2015, 85, 30–37. [Google Scholar] [CrossRef]
  14. Houst, Y.F.; Wittmann, F.H. Influence of porosity and water content on the diffusivity of CO2 and O2 through hydrated cement paste. Cem. Concr. Res. 1994, 24, 1165–1176. [Google Scholar] [CrossRef]
  15. Sanjuán, M.A.; Andrade, C.; Cheyrezy, M. Concrete carbonation tests in natural and accelerated conditions. Adv. Cem. Res. 2003, 15, 171–180. [Google Scholar] [CrossRef]
  16. Eurocode 2. Design of Concrete Structures; British Standards Institution: London, UK, 2008. [Google Scholar]
  17. François, R.; Maso, J. Effect of damage in reinforced concrete on carbonation or chloride penetration. Cem. Concr. Res. 1988, 18, 961–970. [Google Scholar] [CrossRef]
  18. Liang, M.-T.; Qu, W.-J.; Liao, Y.-S. A study on carbonation in concrete structures at existing cracks. J. Chin. Inst. Eng. 2000, 23, 143–153. [Google Scholar] [CrossRef]
  19. Song, H.-W.; Kwon, S.-J.; Byun, K.-J.; Park, C.-K. Predicting carbonation in early-aged cracked concrete. Cem. Concr. Res. 2006, 36, 979–989. [Google Scholar] [CrossRef]
  20. Arandigoyen, M.; Bicer-Simsir, B.; Alvarez, J.; Lange, D. Variation of microstructure with carbonation in lime and blended pastes. Appl. Surf. Sci. 2006, 252, 7562–7571. [Google Scholar] [CrossRef] [Green Version]
  21. Hiep Dang, V.; François, R.; L’Hostis, V. Effects of pre-cracks on both initiation and propagation of re-bar corrosion in pure carbon dioxide. EPJ Web Conf. 2013, 56, 6006. [Google Scholar] [CrossRef] [Green Version]
  22. Van Tittelboom, K.; de Belie, N. Self-healing in cementitious materials—A review. Materials 2013, 6, 2182–2217. [Google Scholar] [CrossRef] [Green Version]
  23. Zhang, S.P.; Zong, L.; Dong, L.F.; Zhang, W. Influence of cracking on carbonation of cement-based materials. Adv. Mater. Res. 2011, 261-263, 84–88. [Google Scholar] [CrossRef]
  24. De Schutter, G. Quantification of the influence of cracks in concrete structures on carbonation and chloride penetration. Mag. Concr. Res. 1999, 51, 427–435. [Google Scholar] [CrossRef]
  25. Van Mullem, T.; de Meyst, L.; Handoyo, J.P.; Caspeele, R.; de Belie, N.; Heede, P.V.D. Influence of crack geometry and crack width on carbonation of High-Volume Fly Ash (HVFA) mortar. In Proceedings of the International RILEM Conference on Ambitioning a Sustainable Future for Built Environment: Comprehensive Strategies for Unprecedented Challenges, Guimarães, Portugal, 10–14 March 2020. [Google Scholar]
  26. Alahmad, S.; Toumi, A.; Verdier, J.; Francois, R. Effect of crack opening on carbon dioxide penetration in cracked mortar samples. Mater. Struct. 2008, 42, 559–566. [Google Scholar] [CrossRef]
  27. Bogas, J.; Carriço, A.; Pontes, J. Influence of cracking on the capillary absorption and carbonation of structural lightweight aggregate concrete. Cem. Concr. Compos. 2019, 104. [Google Scholar] [CrossRef]
  28. Al-Ameeri, A.; Rafiq, M.I.; Tsioulou, O. Influence of cracks on the carbonation resistance of concrete structures. In Proceedings of the 6th International Conference on Durability of Concrete Structures (ICDCS 2018), Leeds, UK, 18–20 July 2020; pp. 1–8. [Google Scholar]
  29. Torres, J.; Andrade, C. Influence of crack width on long term degradation of concrete Structures. In Durability of Reinforced Concrete from Composition to Protection; Springer: Cham, Switzerland, 2015; pp. 87–98. [Google Scholar] [CrossRef]
  30. Carević, V.; Ignjatović, I. Influence of loading cracks on the carbonation resistance of RC elements. Constr. Build. Mater. 2019, 227, 116583. [Google Scholar] [CrossRef]
  31. Fabien, A.; Choinska, M.; Bonnet, S.; Khelidj, A. Experimental study of aggregates size effect on strain, damage and permeability of concrete. Key Eng. Mater. 2017, 729, 115–121. [Google Scholar] [CrossRef]
  32. Zhou, C.; Li, K.; Pang, X. Geometry of crack network and its impact on transport properties of concrete. Cem. Concr. Res. 2012, 42, 1261–1272. [Google Scholar] [CrossRef]
  33. Sugiyama, T.; Bremner, T.W.; Holm, T.A. Effect of stress on gas permeability in concrete. ACI Mater. J. 1996, 93. [Google Scholar] [CrossRef]
  34. Picandet, V.; Khelidj, A.; Bellegou, H. Crack effects on gas and water permeability of concretes. Cem. Concr. Res. 2009, 39, 537–547. [Google Scholar] [CrossRef] [Green Version]
  35. Picandet, V.; Khelidj, A.; Bastian, G. Effect of axial compressive damage on gas permeability of ordinary and high-performance concrete. Cem. Concr. Res. 2001, 31, 1525–1532. [Google Scholar] [CrossRef] [Green Version]
  36. Zhang, D.; Yang, Q.; Mao, M.; Li, J. Carbonation performance of concrete with fly ash as fine aggregate after stress damage and high temperature exposure. Constr. Build. Mater. 2020, 242, 118125. [Google Scholar] [CrossRef]
  37. Wan, X.; Zhao, T.; Jiang, F.; Su, Q. Experimental research on carbonation performance of mechanical loaded concrete. In Proceedings of the Fifth Syposium Strait Crossings, Trondheim, Norway, 21–24 June 2009; p. 525. [Google Scholar]
  38. Wang, X.-H.; Val, D.V.; Zheng, L.; Jones, M.R. Influence of loading and cracks on carbonation of RC elements made of different concrete types. Constr. Build. Mater. 2018, 164, 12–28. [Google Scholar] [CrossRef] [Green Version]
  39. Wang, X.-H.; Val, D.V.; Zheng, L.; Jones, R. Carbonation of loaded RC elements made of different concrete types: Accelerated testing and future predictions. Constr. Build. Mater. 2020, 243, 118259. [Google Scholar] [CrossRef]
  40. Choinska, M.; Khelidj, A.; Chatzigeorgiou, G.; Pijaudier-Cabot, G. Effects and interactions of temperature and stress-level related damage on permeability of concrete. Cem. Concr. Res. 2007, 37, 79–88. [Google Scholar] [CrossRef] [Green Version]
  41. Lee, M.; Barr, B. An overview of the fatigue behaviour of plain and fibre reinforced concrete. Cem. Concr. Compos. 2004, 26, 299–305. [Google Scholar] [CrossRef]
  42. Song, L.; Liu, J.-L.; Cui, C.-X.; Yu, Z.-W.; Fan, Z.-W.; Hou, J. Carbonation process of reinforced concrete beams under the combined effects of fatigue damage and environmental factors. Appl. Sci. 2020, 10, 3981. [Google Scholar] [CrossRef]
  43. Jiang, C.; Huang, Q.; Gu, X.; Zhang, W. Experimental investigation on carbonation in fatigue-damaged concrete. Cem. Concr. Res. 2017, 99, 38–52. [Google Scholar] [CrossRef]
  44. Dai, J.; Guo, L.; Liu, Y.; Zhu, K. Experimental study of the damage on concrete subjected to combined act ion of fatigue loading and carbonation. Concrete 2017, 63–66, 70. (In Chinese) [Google Scholar] [CrossRef]
  45. Wang, K.; Jansen, D.C.; Shah, S.P.; Karr, A.F. Permeability study of cracked concrete. Cem. Concr. Res. 1997, 27, 381–393. [Google Scholar] [CrossRef] [Green Version]
  46. Wang, Y.; Jiang, X.; Wang, S.; Yang, W.; Liu, W.; Xing, F.; Yang, K.; Basheer, P. Influence of axial loads on CO2 and Cl transport in concrete phases: Paste, mortar and ITZ. Constr. Build. Mater. 2019, 204, 875–883. [Google Scholar] [CrossRef] [Green Version]
  47. Min, W. Carbonization and Chlorine Ion Erosion Test and Theoretical Analysis of Steamed Prestressed Concrete; Central South University: Changsha, China, 2012; (In Chinese). [Google Scholar] [CrossRef]
  48. Tian, H.; Li, G.; Liu, J.; Wu, Y. Experimental research on carbonation of forced concrete specimens. J. Tongji Univ. Nat. Sci. 2008, 38, 200–204. (In Chinese) [Google Scholar] [CrossRef]
  49. Luo, X.; Zou, H.; Shi, Q. Experimental study on durability of concrete carbonation at different stress states. J. Nat. Disasters 2012, 21, 194–199. (In Chinese) [Google Scholar] [CrossRef]
  50. Tang, J.; Wu, J.; Zou, Z.; Yue, A.; Mueller, A. Influence of axial loading and carbonation age on the carbonation resistance of recycled aggregate concrete. Constr. Build. Mater. 2018, 173, 707–717. [Google Scholar] [CrossRef]
  51. Koh, T.-H.; Kim, M.-K.; Yang, K.-H.; Yoon, Y.-S.; Kwon, S.-J. Service life evaluation of RC T-girder under carbonation considering cold joint and loading effects. Constr. Build. Mater. 2019, 226, 106–116. [Google Scholar] [CrossRef]
  52. Wang, W.; Lu, C.; Li, Y.; Yuan, G.; Li, Q. Effects of stress and high temperature on the carbonation resistance of fly ash concrete. Constr. Build. Mater. 2017, 138, 486–495. [Google Scholar] [CrossRef]
  53. Liu, X. Study on Carbonization and Chlorine Ion Penetration Corrosion Regularity of Coastal Concrete Bridge under Load in Service; Qingdao Technological University: Qingdao, China, 2010; (In Chinese). [Google Scholar] [CrossRef]
  54. Han, J.; Liu, W.; Wang, S.; Geert, D.S.; Sun, W.; Liang, Y. Carbonation reaction and microstructural changes of metro-tunnel segment concrete coupled with static and fatigue load. J. Mater. Civ. Eng. 2017, 29, 04016216. [Google Scholar] [CrossRef]
  55. Liu, Y.; Ren, J.; Li, Z.; Gao, Q.; Zhao, S. Carbonization resistance of reinforced concrete under bending load. Frat. Integrita Strutt. 2019, 13, 714–724. [Google Scholar] [CrossRef]
  56. Zhang, P.; Wang, S.; Han, J.; Liu, W. Carbonation resistance and microstructure evolution of concrete under static load test. Concrete 2017, 45–51. (In Chinese) [Google Scholar] [CrossRef]
  57. Niu, J.; Niu, D.; Liu, W. Research on carbonation rule of fly ash concrete influenced by bending load. Bull. Chin. Ceram. Soc. 2011, 30, 140–146. (In Chinese) [Google Scholar] [CrossRef]
  58. Zheng, J.; Huang, L. Experimental study on carbonation of self-compacting concrete under tensile and compressive stresses. J. Build. Mater. 2013, 16, 115–120. (In Chinese) [Google Scholar] [CrossRef]
  59. Wan, X.; Wittmann, F.H.; Zhao, T. Influence of mechanical load on service life of reinforced concrete structures under dominant influence of carbonation. Restor. Build. Monum. 2011, 17, 103–110. [Google Scholar] [CrossRef]
  60. Lim, C.; Gowripalan, N.; Sirivivatnanon, V. Microcracking and chloride permeability of concrete under uniaxial compression. Cem. Concr. Compos. 2000, 22, 353–360. [Google Scholar] [CrossRef]
  61. Bhargava, A.; Banthia, N. Measurement of concrete permeability under stress. Exp. Tech. 2006, 30, 28–31. [Google Scholar] [CrossRef]
  62. Banthia, N.; Bhargava, A. Permeability of stressed concrete and role of fiber reinforcement. ACI Mater. J. 2007, 104, 70–76. [Google Scholar] [CrossRef]
  63. Banthia, N.; Biparva, A.; Mindess, S. Permeability of concrete under stress. Cem. Concr. Res. 2005, 35, 1651–1655. [Google Scholar] [CrossRef]
  64. Wimalasiri, M.; Robert, D.; Li, C.-Q. Permeability degradation of stressed concrete considering concrete plasticity. J. Mater. Civ. Eng. 2020, 32, 04020265. [Google Scholar] [CrossRef]
  65. Miah, J.; Kallel, H.; Carré, H.; Pimienta, P.; La Borderie, C. The effect of compressive loading on the residual gas permeability of concrete. Constr. Build. Mater. 2019, 217, 12–19. [Google Scholar] [CrossRef]
  66. Tang, G.; Yao, Y.; Wang, L.; Cui, S.; Cao, Y. Relation of Damage Variable and Gas Permeability Coefficient of Concrete under Stress. J. Wuhan Univ. Technol. Mater. Sci. Ed. 2018, 33, 1481–1485. [Google Scholar] [CrossRef]
  67. Xue, W.; Liu, X.; Jing, W.; Yao, Z.; Gao, C.; Li, H. Experimental study and mechanism analysis of permeability sensitivity of mechanically damaged concrete to confining pressure. Cem. Concr. Res. 2020, 134, 106073. [Google Scholar] [CrossRef]
  68. Lion, M.; Skoczylas, F.; Lafhaj, Z.; Sersar, M. Experimental study on a mortar. Temperature effects on porosity and permeability. Residual properties or direct measurements under temperature. Cem. Concr. Res. 2005, 35, 1937–1942. [Google Scholar] [CrossRef]
  69. Tran, T.; Pham, D.; Vu, M.; Truong, V.; Ho, X.; Tran, N.; Nguyen-Sy, T.; To, Q. Relation between water permeability and chloride diffusivity of concrete under compressive stress: Experimental investigation and mesoscale lattice modelling. Constr. Build. Mater. 2021, 267, 121164. [Google Scholar] [CrossRef]
  70. Van Vliet, M.R.A.; van Mier, J.G.M. Experimental investigation of concrete fracture under uniaxial compression. Mech. Cohesive-Frict. Mater. 1996, 1, 115–127. [Google Scholar] [CrossRef]
  71. Mi, R.; Liew, K.; Pan, G.; Kuang, T. Carbonation resistance study and inhomogeneity evolution of recycled aggregate concretes under loading effects. Cem. Concr. Compos. 2021, 118, 103916. [Google Scholar] [CrossRef]
  72. Castel, A.; Francois, R.; Arliguie, G. Effect of loading on carbonation penetration in reinforced concrete elements. Cem. Concr. Res. 1999, 29, 561–565. [Google Scholar] [CrossRef]
  73. Xiao, J.; Lei, B.; Zhang, C. On carbonation behavior of recycled aggregate concrete. Sci. China Technol. Sci. 2012, 55, 2609–2616. [Google Scholar] [CrossRef]
  74. Wang, J.; Ng, P.-L.; Su, H.; Chen, J.; Du, J. Effect of concrete stress states on carbonation depth of concrete. J. Civ. Eng. Manag. 2019, 25, 518–530. [Google Scholar] [CrossRef]
  75. Wang, J.; Su, H.; Du, J. Influence of coupled effects between flexural tensile stress and carbonation time on the carbonation depth of concrete. Constr. Build. Mater. 2018, 190, 439–451. [Google Scholar] [CrossRef]
  76. Mi, R.; Pan, G.; Shen, Q. Carbonation modelling for cement-based materials considering influences of aggregate and interfacial transition zone. Constr. Build. Mater. 2019, 229, 116925. [Google Scholar] [CrossRef]
  77. Mi, R.; Pan, G.; Liew, K. Predicting carbonation service life of reinforced concrete beams reflecting distribution of carbonation zones. Constr. Build. Mater. 2020, 255, 119367. [Google Scholar] [CrossRef]
  78. Chen, J.; Song, X.; Zhao, T.; Tian, L. Service life prediction of lining concrete of subsea tunnel under combined compressive load and carbonation. J. Wuhan Univ. Technol. Mater. Sci. Ed. 2010, 25, 1061–1064. [Google Scholar] [CrossRef]
  79. Jin, Z.Q.; Sun, W.; Zhang, Y.S.; Liu, Z.Y. Study on carbonation of concrete under loading. J. Build. Mater. 2005, 8, 179–183. (In Chinese) [Google Scholar] [CrossRef]
  80. Yao, Y.; Wang, L.; Wittmann, F.H.; de Belie, N.; Schlangen, E.; Gehlen, C.; Wang, Z.; Alava, H.E.; Cao, Y.; Yunus, B.M.; et al. Recommendation of RILEM TC 246-TDC: Test methods to determine durability of concrete under combined environmental actions and mechanical load. Mater. Struct. 2017, 50, 155. [Google Scholar] [CrossRef]
  81. Yao, Y.; Wang, L.; Wittmann, F.H.; de Belie, N.; Schlangen, E.; Eguez Alava, H.; Wang, Z.; Kessler, S.; Gehlen, C.; Yunus, B.M.; et al. Test methods to determine durability of concrete under combined environmental actions and mechanical load: Final report of RILEM TC 246-TDC. Mater. Struct. 2016, 50, 123. [Google Scholar] [CrossRef]
  82. Mu, R.; Miao, C.; Luo, X.; Sun, W. Interaction between loading, freeze–thaw cycles, and chloride salt attack of concrete with and without steel fiber reinforcement. Cem. Concr. Res. 2002, 32, 1061–1066. [Google Scholar] [CrossRef]
  83. de Yang, L.; Pan, H.K.; Zhu, Y.Z.; Wu, Z.Z. Experimental study of concrete’s carbonization resistance under combined action of factors. J. Build. Mater. 2008, 11, 345–348. (In Chinese) [Google Scholar] [CrossRef]
  84. Van Mullem, T. Development of Standard Testing Methods to Evaluate the Self-Healing Efficiency of Concrete; Ghent University: Ghent, Belgium, 2020; Available online: http://hdl.handle.net/1854/LU-8694912 (accessed on 22 February 2021).
  85. Lamparter, S.; Vogel, M.; Dehn, F. Innovative test method for the investigation of carbonation and chloride ingress on reinforced concrete components exposed to mechanical loads. In Life-Cycle Civil Engineering: Innovation, Theory and Practice; CRC Press: Boca Raton, FL, USA, 2021; pp. 188–194. [Google Scholar]
  86. Wang, H.; Lu, C.; Jin, W.; Bai, Y. Effect of external loads on chloride transport in concrete. J. Mater. Civ. Eng. 2011, 23, 1043–1049. [Google Scholar] [CrossRef]
  87. Zhang, Y.; Sun, W.; Chen, S.; Guo, F. Multi-dimensional carbonation and service life prediction model of fly ash concrete sub-jected to flexural stress and CO2 attack. J. Southeast Univ. Natural Sci. Ed. 2006, 36, 226–233. (In Chinese) [Google Scholar]
Figure 1. Effect of compressive stress damage on permeability. Copied from reference [40] with copyright permission from Elsevier.
Figure 1. Effect of compressive stress damage on permeability. Copied from reference [40] with copyright permission from Elsevier.
Materials 14 04407 g001

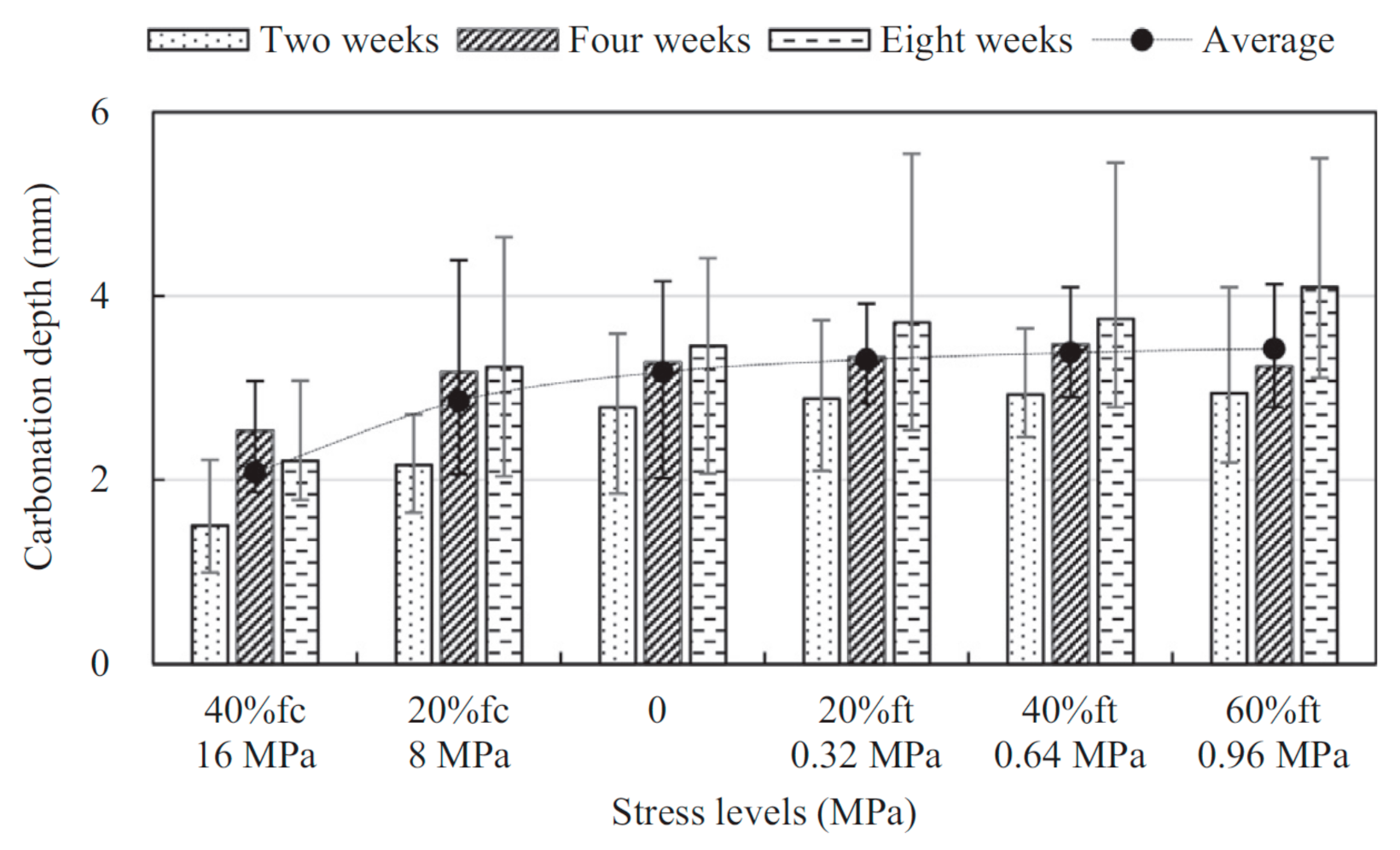

Figure 3. Typical effect of uniaxial compressive and tensile load on carbonation rate. Copied from reference [46] with copyright permission from Elsevier.
Figure 3. Typical effect of uniaxial compressive and tensile load on carbonation rate. Copied from reference [46] with copyright permission from Elsevier.
Materials 14 04407 g003
Figure 4. Loading frames developed for applying different types of load. (a) Loading frame for applying uniaxial compressive load; (b) Loading frame for applying uniaxial tensile load and (c) Loading frame for applying 4-point bending load. (a,b) are copied from reference [81] with copyright permission from Springer Nature. (c) is copied from reference [82] with copyright permission from Elsevier.
Figure 4. Loading frames developed for applying different types of load. (a) Loading frame for applying uniaxial compressive load; (b) Loading frame for applying uniaxial tensile load and (c) Loading frame for applying 4-point bending load. (a,b) are copied from reference [81] with copyright permission from Springer Nature. (c) is copied from reference [82] with copyright permission from Elsevier.
Materials 14 04407 g004

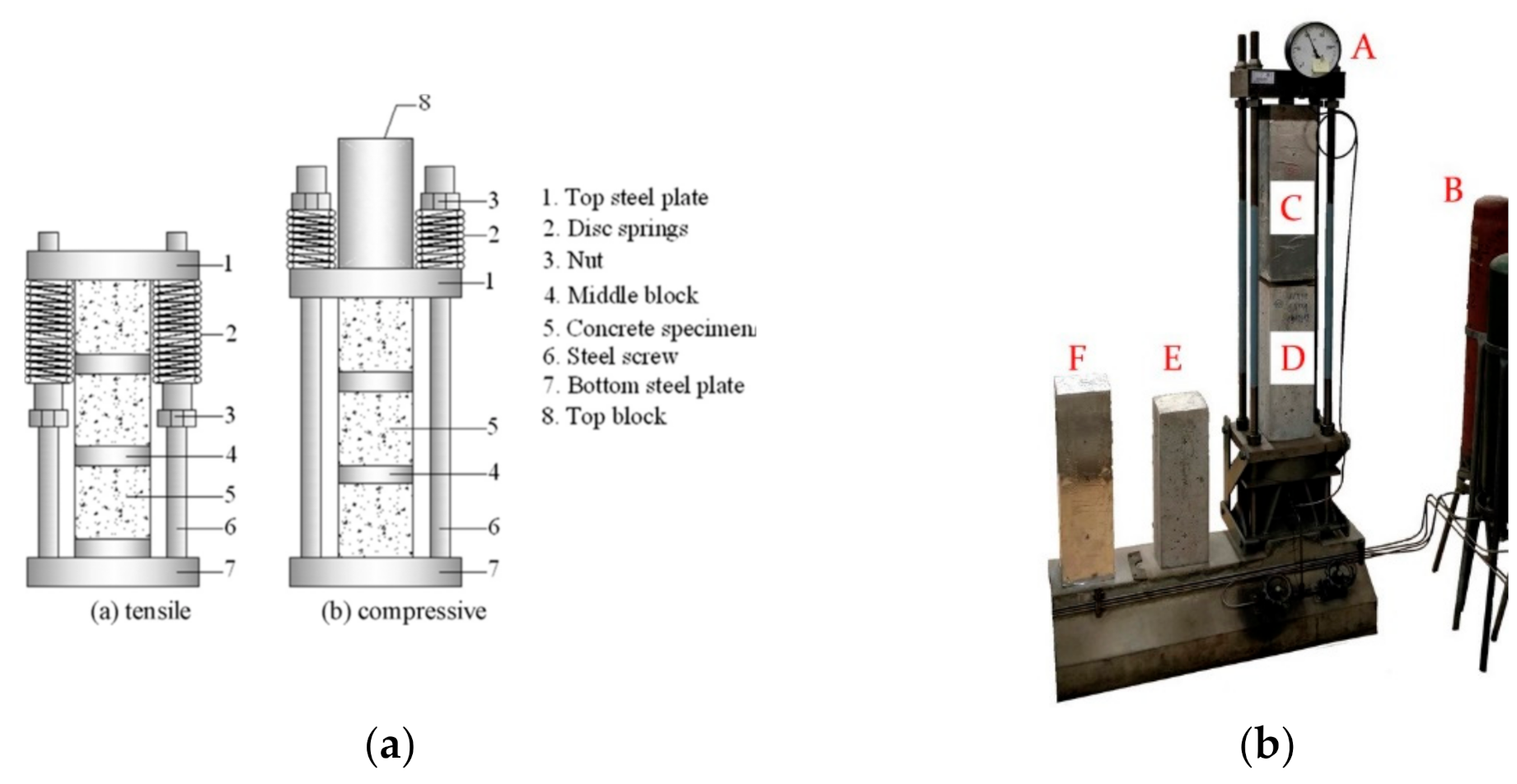

Figure 5. Loading frames which can compensate the relaxed stress. (a) Loading frame with disc spring and (b) Creep setup. (a) is copied from reference [50] with copyright permission from Elsevier. (b) is copied from reference [84] with copyright permission from the author.
Figure 5. Loading frames which can compensate the relaxed stress. (a) Loading frame with disc spring and (b) Creep setup. (a) is copied from reference [50] with copyright permission from Elsevier. (b) is copied from reference [84] with copyright permission from the author.
Materials 14 04407 g005

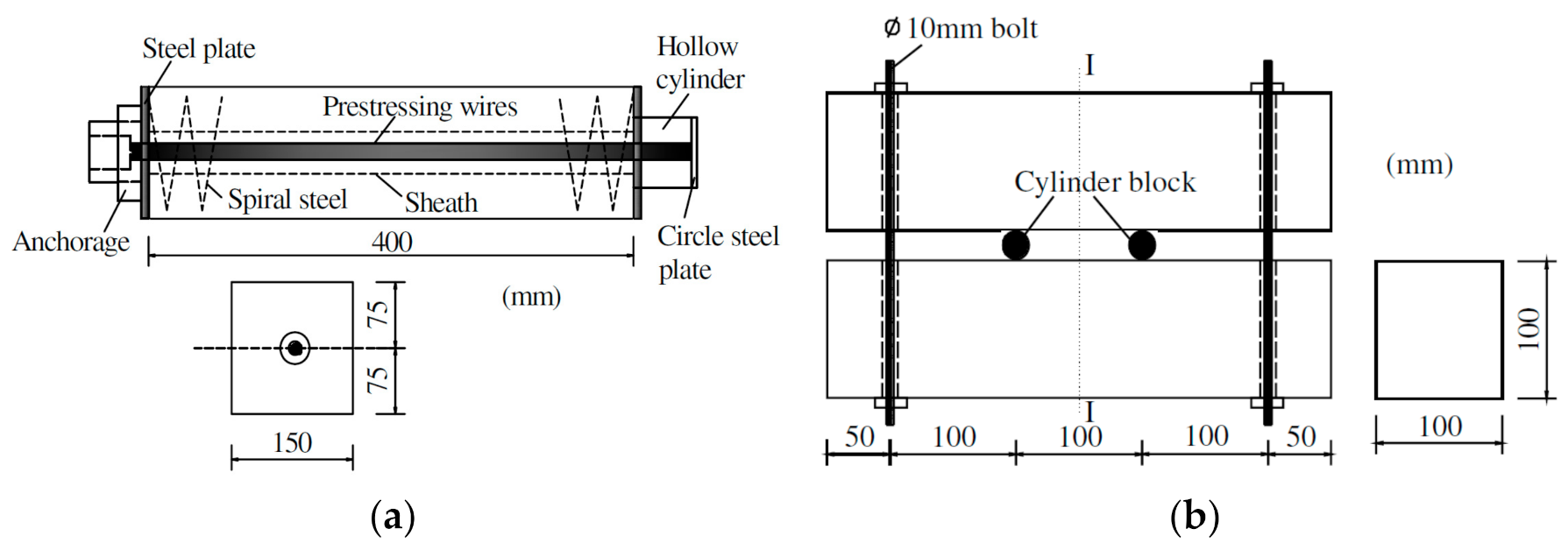

Figure 6. Loading frames with internal bar tendons. (a) Loading frame with internal bar tendon and (b) Loading frame with internal bar tendon. Copied from reference [86] with copyright permission from American Society of Civil Engineers.
Figure 6. Loading frames with internal bar tendons. (a) Loading frame with internal bar tendon and (b) Loading frame with internal bar tendon. Copied from reference [86] with copyright permission from American Society of Civil Engineers.
Materials 14 04407 g006
Table 1. Overview of literature evaluating effect of cracks on carbonation.
Table 1. Overview of literature evaluating effect of cracks on carbonation.
Crack TypeCrack Inducing MethodCO2 LevelCrack PatternLower/Upper Crack Width Threshold (μm)Reference
Artificial crackEmbedding of thin plates20%100, 200, 300, 500, 620 μm in width and 20 mm in depth−/100[23]
Artificial crackEmbedding of thin plates10%200, 300, 500 μm in width and 5, 10 mm in depth*[24]
Artificial crackEmbedding of thin plates1%100, 200, 300 μm in width and 30 mm in depth−/100[25]
Realistic crackSplitting1%100, 200, 300 μm in width*[25]
Artificial crackSawed and smoothed50%10–150 μm in width*[26]
Realistic crackExpansive core50%9–400 μm in width9/60[26]
Artificial crackEmbedding of thin plates3%100, 200, 300 μm in width and 10 mm in depth−/100[27]
Realistic crackBending3%100, 150 μm in width*[27]
Realistic crackBending5%50–350 μm in width*[28]
Realistic crackBendingNatural80, 500, 700 μm in width*[29]
Realistic crackBending2%50, 100, 150, 200, 300 μm in width*[30]
* the carbonation depth keeps increasing with the increase in crack width under the given condition.
Table 2. Overview of research about the effect of sustained load on carbonation.
Table 2. Overview of research about the effect of sustained load on carbonation.
Specimen Size
(mm3)
CO2 LevelLoad TypeLoad Level
(Compression/ Tension)
Carbonation Depth Variation (under Compression/Tension) 1Compressive Load Level ThresholdReference
40 × 40 × 1605%Uniaxial compression and tension0.2, 0.4/0.2, 0.4, 0.6 *[46]
100 × 100 × 40020%Compression and bending tension0.2, 0.35, 0.5/0.3, 0.5, 0.70.61/1.38*[47]
100 × 100 × 40020%Compression and bending tension0.05, 0.3, 0.5/0.3, 0.5, 0.70.21/1.27*[48]
100 × 100 × 40020%Compression and bending tension0.15, 0.3, 0.45, 0.6, 0.750.534/1.30*[49]
100 × 100 × 5020%Uniaxial compression and tension0.2, 0.4, 0.60.91–1.45/1.390.2[50]
100 × 100 × 40 for compression and φ100 × 40 for tension5%Compression and splitting tension0.3, 0.60.88–1.26/1.440.3[51]
100 × 100 × 300 for compression and 100 × 100 × 500 for bending20%Compression and bending tension0.3, 0.5, 0.7, 0.9 0.3[52]
100 × 100 × 400 for compression and 100 × 170 × 440 for tension20%Uniaxial compression and tension0.35, 0.65, 0.75/0.35, 0.65 0.35[53]
100 × 100 × 40020%4-point bending0.3, 0.4, 0.5 *[54]
100 × 100 × 30020%3-point bending0.2, 0.3, 0.40.61/1.51*[55]
100 × 100 × 40020%4-point bending0.3, 0.4, 0.5 *[56]
100 × 100 × 55020%4-point bending0.2, 0.4, 0.60.72/2.28*[57]
70.7 × 70.7 × 21220%4-point bending0.2, 0.4, 0.60.89–1.26/1.660.2[58]
100 × 100 × 40020%4-point bending0.3, 0.5, 0.6, 0.80.89–1.51/1.640.3[59]
Note: the load level is the ratio of the applied load to the breaking load; the compressive load level threshold means the threshold above which carbonation rate sharply increases with the load level; * means no threshold is observed; 1 means the range of the ratio of the carbonation depths under different compressive/tensile load levels to the carbonation depths without load.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Liu, Z.; Van den Heede, P.; De Belie, N. Effect of the Mechanical Load on the Carbonation of Concrete: A Review of the Underlying Mechanisms, Test Methods, and Results. Materials 2021, 14, 4407. https://doi.org/10.3390/ma14164407

AMA Style

Liu Z, Van den Heede P, De Belie N. Effect of the Mechanical Load on the Carbonation of Concrete: A Review of the Underlying Mechanisms, Test Methods, and Results. Materials. 2021; 14(16):4407. https://doi.org/10.3390/ma14164407

Chicago/Turabian Style

Liu, Zhiyuan, Philip Van den Heede, and Nele De Belie. 2021. "Effect of the Mechanical Load on the Carbonation of Concrete: A Review of the Underlying Mechanisms, Test Methods, and Results" Materials 14, no. 16: 4407. https://doi.org/10.3390/ma14164407

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
