Article

Comprehensive Study on the Mechanism of Sulfating Roasting of Zinc Plant Residue with Iron Sulfates

by
Pavel Grudinsky
1,*,
Denis Pankratov
2,
Dmitry Kovalev
3,
Darya Grigoreva
1 and
Valery Dyubanov
1
1
Laboratory of Physical Chemistry and Technology of Iron Ore Processing, A.A. Baikov Institute of Metallurgy and Materials Science, Russian Academy of Science, 49 Leninsky Prosp., 119334 Moscow, Russia
2
Department of Radiochemistry, Faculty of Chemistry, Lomonosov Moscow State University, 1-3 Leninskiye Gory, 119991 Moscow, Russia
3
Department of X-ray Investigation, Merzhanov Institute of Structural Macrokinetics and Materials Science (ISMAN), 8 Academician Osipyan Street, 142432 Chernogolovka, Moscow Region, Russia
*
Author to whom correspondence should be addressed.
Materials 2021, 14(17), 5020; https://doi.org/10.3390/ma14175020
Submission received: 8 July 2021 / Revised: 30 August 2021 / Accepted: 31 August 2021 / Published: 2 September 2021
(This article belongs to the Special Issue Metallurgy of Non-ferrous, Rare and Precious Metals)
Browse Figures
Versions Notes

Abstract

:
Zinc plant residue (ZPR) is a secondary material generated during hydrometallurgical zinc production that contains considerable contents of valuable elements such as Zn, Cu, Fe, Pb, Cd, Ag, In, Ga, Tl. Zinc, copper and accompanying elements in ZPR are in different minerals, mainly in the ferrites. A promising approach for recycling ZPR is the sulfating roasting using iron sulfates followed by water leaching. In this study, the composition of ZPR and the obtained products were thoroughly investigated by various methods including X-ray diffraction analysis (XRD), chemical phase analysis and Mössbauer spectroscopy. The effect of temperature, amount of iron sulfates and roasting time on the conversion of valuable metals into a water-soluble form was thermodynamically and experimentally studied both using pure ferrites and ZPR. Based on the results of time-resolved XRD analysis and synchronous thermal analysis (STA), a mechanism of the sulfation roasting was elucidated. The rate-controlling step of zinc and copper sulfation process during the ZPR roasting was estimated. The sulfating roasting at 600 °C during 180 min with the optimal Fe2(SO4)3∙9H2O addition followed by water leaching enables to recover 99% Zn and 80.3% Cu, while Fe, Pb, Ag, In, Ga retained almost fully in the residue.

Graphical Abstract

1. Introduction

Zinc complex sulfide ores are the main raw materials for zinc production that contain associated components such as lead, copper, cadmium, silver, gold, bismuth, indium, gallium and thallium [1]. Therefore, zinc production generates intermediate products and wastes with significant contents of non-ferrous metals that are considerably higher than the contents in the ore. Due to a depletion of deposits of non-ferrous metals ores and a decrease of ore grade [2], as well as the need to solve environmental problems associated with the storage of highly toxic metallurgical wastes in dumps [3,4], it is necessary to recycle the generated materials.
Currently, more than 90% of zinc is produced by the hydrometallurgical route [5] that includes oxidative roasting in fluidized-bed furnaces, sulfuric acid leaching and electrolysis. The process of the roasting of zinc sulfide concentrates is a substantially cost-effective technology due to its autogenicity, a satisfactory removal of harmful impurities for the subsequent electrolysis and the associated production of sulfuric acid [6] (pp. 38–54). However, during the roasting, besides highly soluble zinc oxide, a certain amount of zinc and other valuable non-ferrous metals reacts with iron to obtain ferrites of a low solubility. It necessitates the application of additional stages after the leaching of zinc oxide to extract the remaining ferritic zinc. Currently, the most widely used method is the leaching of the residue by strong hot sulfuric acid with following precipitation of iron in the form of jarosite [7]. Other industrial methods are the same leaching with the precipitation of iron as goethite or hematite [8], as well as the pyrometallurgical processing of the ferrite residue by the Waelz process [9,10].
Some authors have studied other leaching methods for the processing of zinc ferrite residue by sulfuric acid [11,12,13], di-2-ethylhexyl phosphoric acid [14], sodium hydroxide [15,16], chloride solutions [17,18,19], and even by ionic liquids [20] and deep-eutectic solvents [21]. The methods using pyrometallurgical processing of such materials by reduction roasting [22,23,24,25], sulfiding roasting [26,27], roasting with the addition of sodium compounds [28,29,30,31], chloride volatilization process [32] were also reported. However, these methods are still hardly applicable in the industrial practice.
Separately, methods should be noted to obtain water-soluble zinc sulfate by the roasting with elemental sulfur in air [33], sulfuric acid [34,35,36], ammonium sulfate [37,38], as well as using blowing of mixture of sulfur dioxide and air [39,40]. Sulfation method has several advantages compared with other methods. The main advantages are relatively low roasting temperature range, lack of fuel consumption due to exothermic sulfating reactions [41], the application of water leaching rather than acid leaching after the roasting to extract zinc and other valuable components. Some authors have studied iron sulfates as sulfating agents for roasting of zinc ferrite residues [42,43], copper slag [44,45], copper tailings [46,47] and electric arc furnace dust from steelmaking [48].
This paper focuses on the investigation of the mechanism of zinc and copper sulfation, as well as a behavior of iron, cadmium, lead, silver, indium, gallium and thallium during the roasting of zinc plant residue (ZPR) with iron sulfates. The study presents the results of multifactorial research of the effect of temperature, roasting time and amount of iron sulfates on the conversion of non-ferrous metals into water-soluble form both using pure zinc and copper ferrites, as well as ZPR.

2. Materials and Methods

2.1. Raw Materials

Chemically pure reagents FeSO4∙7H2O and Fe2(SO4)3∙9H2O were used in the experiments. Ferrites were prepared from compounds of analytical grade. A V-shell blender treatment with a duration time of 24 h was used to prepare powder mixtures of raw materials.
Pure zinc ferrite ZnFe2O4 was prepared by the following method. Pure Fe2O3 and ZnO were mixed in a 1.0:1.1 molar ratio with a 10% excess of zinc oxide and briquetted by hand hydraulic press. The briquettes from each 1 g of the mixtures were prepared using a mold of 17 mm in diameter; the used pressure was 200 MPa. The briquettes were calcined in a muffle furnace at 1000 °C for 6 h in air. The calcined sample was ground and sieved up to the fraction of 0.2 mm. Then the residual free zinc oxide was leached from the calcine by ammonium chloride solution containing 22 g NH4Cl in 200 g of 14% NH4OH at 50–60 °C for 2 h [49] (p. 111). The leached residue was calcined again in the muffle furnace at 1000 °C for 2 h. The obtained ferrite powder was grinded, sieved, and then it was tested for impurities by X-ray diffraction (XRD) analysis.
Pure copper and zinc-copper ferrites were prepared according to the method [50]. Pure reagents Fe2O3, CuO and ZnO were weighed in exact molar ratios to obtain the corresponding ferrites CuFe2O4 and Zn0.5Cu0.5Fe2O4. The mineralizer (1% KCl) was also added to oxide components. After mixing and briquetting, the samples were calcined at 925 °C for 28 h in the muffle furnace in air. The calcined samples were ground and sieved up to the fraction of 0.2 mm. The calcines were leached by water at 50–60 °C for 1 h, and then the residue was dried at 300 °C for 2 h. The obtained copper and zinc-copper ferrites were also tested for impurities by XRD analysis.
The ZPR sample was delivered from JSC Chelyabinsk Zinc Plant (Chelyabinsk, Russia, 55.210339° N, 61.376907° E), which currently utilizes ZPR by the Waelz process. The elemental composition of ZPR was analyzed by X-ray fluorescence spectrometer Axios Advanced (PANalytical, Almelo, The Netherlands). The carbon content was determined by CS–400 analyzer (LECO, St. Joseph, MI, USA). Gallium, indium and thallium contents were analyzed by the method of inductively coupled plasma mass spectrometry (ICP-MS) using Elan 6100 DRC (PerkinElmer Inc., Waltham, MA, USA) device. The XRD pattern of ZPR, as well as roasted and leached samples, were obtained by diffractometer ARL X’TRA (Thermo Fisher Scientific, Waltham, MA, USA) using Cu-Kɑ radiation. The qualitative phase analysis was performed by Match! 3.11 Software (Crystal Impact, Bonn, Germany) [51] using Crystallography Open Database. The quantitative phase analysis of zinc, copper and cadmium minerals was carried out using methods of chemical phase analysis [49]; Appendix A presents these methods. The analysis of iron-containing components of ZPR, as well as the roasted and leached samples, was carried out at both 77.5 ± 0.3 K and 296 ± 3 K by Mössbauer spectrometer MS1104EM (CJSC Cordon, Rostov-on-Don, Russia) using the 57Co source in rhodium matrix with 16 mCi activity. Mössbauer spectra was processed by SpectrRelax 2.8 software (Lomonosov MSU, Moscow, Russia). The values of chemical shift were presented relative to α-Fe.

2.2. Thermodynamic Calculation

To simulate equilibrium states at roasting conditions, HSC Chemistry 9.9 software (Outotec, Pori, Finland) [52] was used. Equilibrium compositions were calculated at 300–900 °C using 100 kg of ZPR at P = 0.1 MPa and model gaseous phase containing 79 at. % N2 and 21 at. % O2. The ZPR composition was calculated according to the results of elemental, XRD and chemical phase analysis. Components of insignificant contents, as well as missing or doubtful thermodynamic data, were neglected from the calculation. Table 1 lists the model composition for the thermodynamic simulation.

2.3. Experimental Procedure

The laboratory experiments were carried out using the mixtures of iron sulfates with either pure ferrites or ZPR. The mixtures in selected ratios were prepared in the V-shell blender and briquetted into tablets of 1 g in molds of 17 mm in diameter by hand hydraulic press at pressure of 40 MPa. Then 3 g of the samples as tablets in a corundum crucible 32 mm high and 25 mm in diameter were placed in a muffle furnace heated to a certain temperature in the range from 575 to 675 °C. The holding time was in the range from 5 to 240 min, then the samples were taken out; after cooling down they were ground and sieved up to the fraction of 0.054 mm.
The roasted ZPR samples were leached by distilled water using a magnetic stirrer at 70 °C with solid to liquid ratio of 1:160 for 30 min. The content of zinc, copper, iron, cadmium, indium, gallium and thallium in the leaching solutions were analyzed by ICP-MS method using Elan 6100 DRC (PerkinElmer Inc., Waltham, MA, USA) device and by atomic emission spectroscopy (AES) method using Varian Vista Pro (Varian Optical Spectroscopy Instr., Mulgrave, Australia) device.
Mechanism of the interactions of ferrites with sulfates was investigated by the methods of synchronous thermal analysis (STA) and time-resolved X-ray diffraction (TRXRD). STA was carried out using simultaneous thermogravimetric and differential scanning calorimetric methods by SDT Q–600 (TA Instruments, New Castle, DE, USA) device. The mixtures of 15–40 mg in weight were heated with a rate of 10 °C/min within the temperature range of 25–900 °C in corundum crucibles in air. TRXRD method can collect XRD data in-situ during roasting [53]. To obtain XRD patterns, the integrated device was used based on DRON (JSC Bourevestnik, Saint-Petersburg, Russia) diffractometer with iron anode and a resistance furnace. The samples were heated up to 625 °C with a rate of 10 °C/min and were held during 15 min. The experiments were carried out in air. Temperature was set by automatic controller using chromel-alumel K-type thermocouple. XRD patterns at 2-theta range 25°–57° were recorded continuously during the heating. The exposure time of an individual XRD pattern was 6 s.

3. Results

3.1. ZPR Characterization

Table 2 and Table 3 show the elemental composition and the phase distribution of zinc, copper and cadmium in ZPR, respectively. Table 4 demonstrates a water-soluble part of minor valuable elements of ZPR. Figure 1 illustrates the XRD pattern of ZPR.
The analyses have pointed out that ZPR is a multi-component complex material that contains not only minerals formed during the oxidizing roasting of zinc concentrates such as various ferrites and silicates, but different sulfates formed during the sulfuric acid leaching including water-soluble ones. Zinc, copper and cadmium in ZPR are mostly in complex ferrites, but there are also significant contents of sulfates, oxides, and sulfides unoxidized in fluidized-bed furnace. A water-soluble part of minor elements is proved to be insignificant.
Figure 2 and Table 5 show the results of Mössbauer analysis of iron-containing phases in ZPR.
As can be seen, there is an intense paramagnetic doublet and a very weak sextet on the spectra. The central doublet can be described as a combination of two paramagnetic subspectra with the same isomer shift value of Fe+3 atoms in an octahedral oxygen surrounding [54]. The values of isomer shift and quadrupole splitting point out that the doublet is zinc ferrite, which is ferrimagnetic [55] with Neel point about 9 K [56]. Particle size reduction of zinc ferrite can lead to the spectrum distortion already at 77 K [57] owing to increasing Neel point up to 30 K [58], but there is no the spectra distortion, so zinc ferrite, especially related to the inner doublet, is well crystallized. Apparently, the outer doublet corresponds to substituted zinc ferrites Zn1−xAxFe2−yByO4, where A and B are substituents with oxidation state +2 or +3, respectively, e.g., Cd+2 [59], Mn+2 [60], Al+3 [61,62], etc. Probably, the substitution of zinc or iron atoms in their crystal sublattices causes an increase in the quadrupole splitting and line width for the outer doublet due to the variation of elements A and B and the degree of substitution x and y.
Low-intensity sextet is hematite [63] due to a specific temperature dependence of the quadrupole shift of α-Fe2O3 caused by the Morrin transition [64]. Obviously, hematite in ZPR appears during oxidation of iron sulfides during the roasting in fluidized-bed furnace.

3.2. Sulfating of Pure Ferrites

3.2.1. STA Analysis

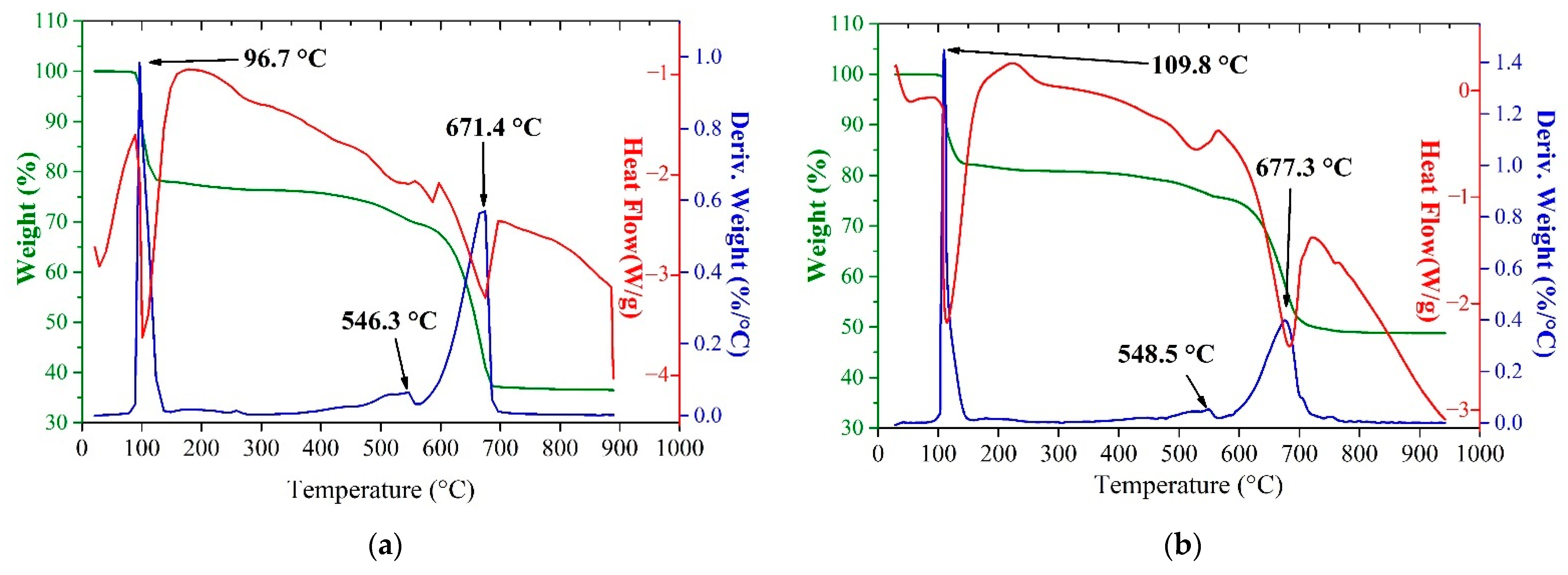

Figure 3 compares TG-DSC curves of pure iron sulfate (II) heptahydrate and ZnFe2O4 + FeSO4∙7H2O mixture.
As can be seen, the temperature ranges of all peaks obtained during the heating the mixture of ZnFe2O4 + FeSO4∙7H2O approximately match with the temperature ranges of peaks of thermal decomposition of pure FeSO4∙7H2O. All obtained thermograms for the ferrite–sulfate systems involving ZnFe2O4, CuFe2O4, Zn0.5Cu0.5Fe2O4, FeSO4∙7H2O, Fe2(SO4)3∙9H2O were similar in the temperature ranges of peaks to the thermal decomposition of iron sulfates (see dataset [65]). It indicates the identity of the interaction mechanism in all the studied ferrite–sulfate systems. Evidently, reactions of the ferrites with the sulfates occur in the range of 550–700 °C that coincide with sulfur oxides removal.

3.2.2. Roasting Experiments

Firstly, to verify the ferrite–sulfate reactions, roasting experiments with pure compounds followed by XRD analysis of the roasted samples were carried out at 550–700 °C. Table 6 shows the general results of the experiments for all the systems. As in the case of STA analysis similarity, the XRD patterns of the roasted samples at the same temperature were qualitatively identical for all the ferrite–sulfate systems.
It is clear that across the entire temperature range the ferrites decomposes to form zinc and copper sulfates. The sulfating degree was significant in the samples obtained at 600 and 650 °C, while it was less 5% in the samples obtained at 550 and 700 °C. However, it should be noted that besides Fe2O3, which is the main phase of all the obtained samples, the amount of undecomposed ferrites was also substantial at all the temperatures and ratios. Based on XRD analysis, quantitative dependences of the sulfating degree on temperature, roasting time and mixture ratios in the experiments with pure compounds is proved to be equivocal.

3.2.3. TRXRD Experiments

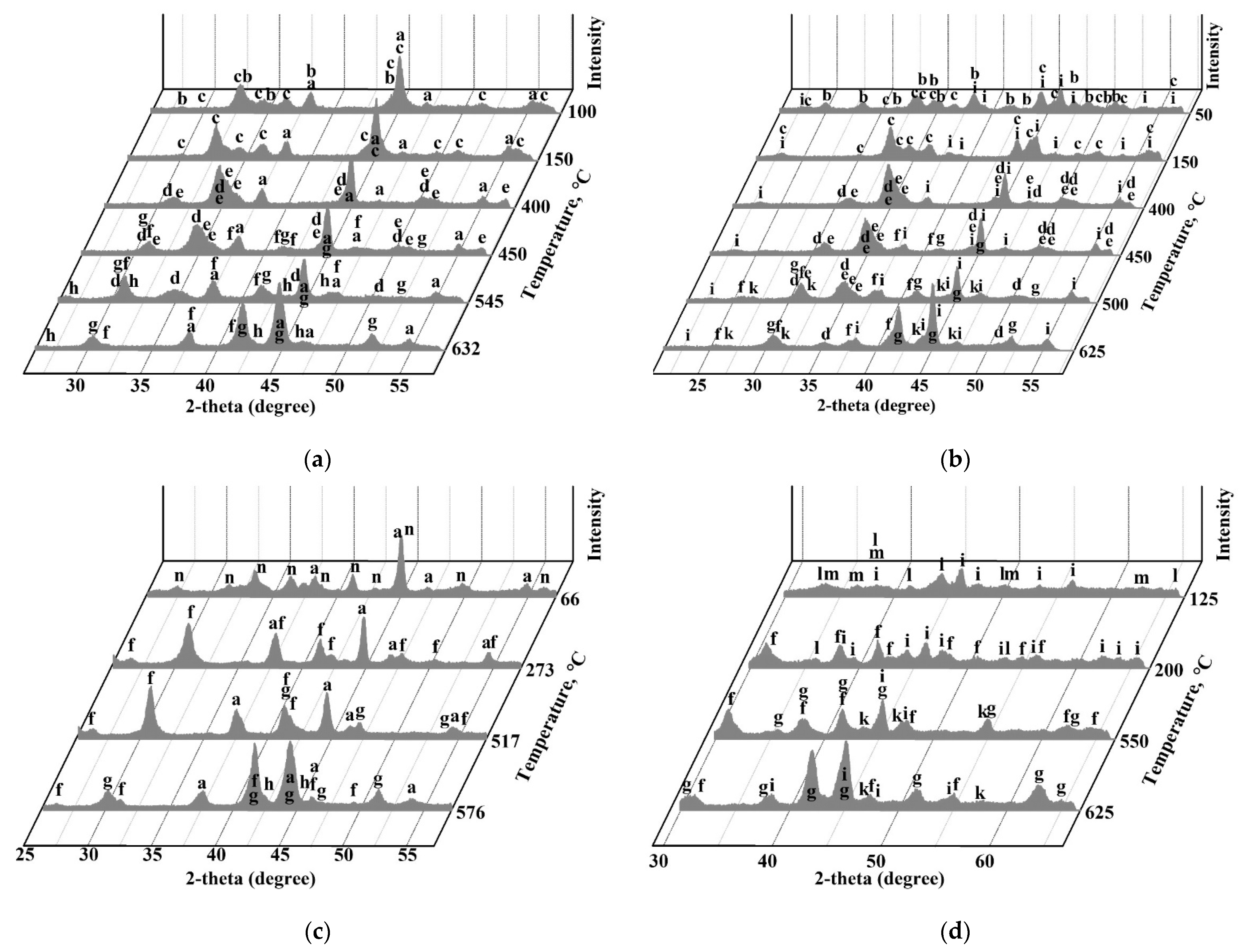

To find out the reactions in the systems, TRXRD experiments were carried out. Figure 4 shows the XRD patterns at different temperatures during heating of the mixtures of FeSO4∙7H2O and Fe2(SO4)3∙9H2O with zinc and copper ferrites.
It was revealed that FeSO4∙7H2O decomposes and transforms sequentially with temperature increasing to trivalent anhydrous sulfate according to the scheme:
FeSO4
FeSO4∙7H2O → FeSO4∙4H2O → FeSO4∙H2O → Fe(OH)SO4 → Fe2(SO4)3
Fe2O(SO4)2
These results are generally consistent with [66,67]. Fe2(SO4)3∙9H2O also dehydrates sequentially according to the scheme:
Fe2(SO4)3∙9H2O → Fe2(SO4)3∙7H2O → Fe2(SO4)3∙5H2O → Fe2(SO4)3
Then Fe2(SO4)3 transforms into hematite, and zinc or copper sulfates appear simultaneously. Thus, the performed investigation has found out the mechanism of the sulfating process. Above 500 °C decomposition of Fe2(SO4)3 and sulfating of ferrites by emitted sulfur trioxide occur according to the reactions:
Fe2(SO4)3(s) → Fe2O3(s) + 3SO3(g)
ZnFe2O4(s) + SO3(g) → ZnSO4(s) + Fe2O3(s)
CuFe2O4(s) + SO3(g) → CuSO4(s) + Fe2O3(s)
As a generalization, both FeSO4∙7H2O and Fe2(SO4)3∙9H2O affect similarly on the sulfation of ferrites that agrees well with another study [68].
Figure 5 demonstrates the temperature dependence of Gibbs free energy of the reactions (4) and (5).
As reflected by the plot, the reactions (4) and (5) are possible up to 920 °C and 860 °C, respectively. The interval of existence of SO3(g) in the ferrite–sulfate systems depends on the reaction (3), as well as following reaction in the gas phase:
SO2(g) + 0.5O2(g) ↔ SO3(g)

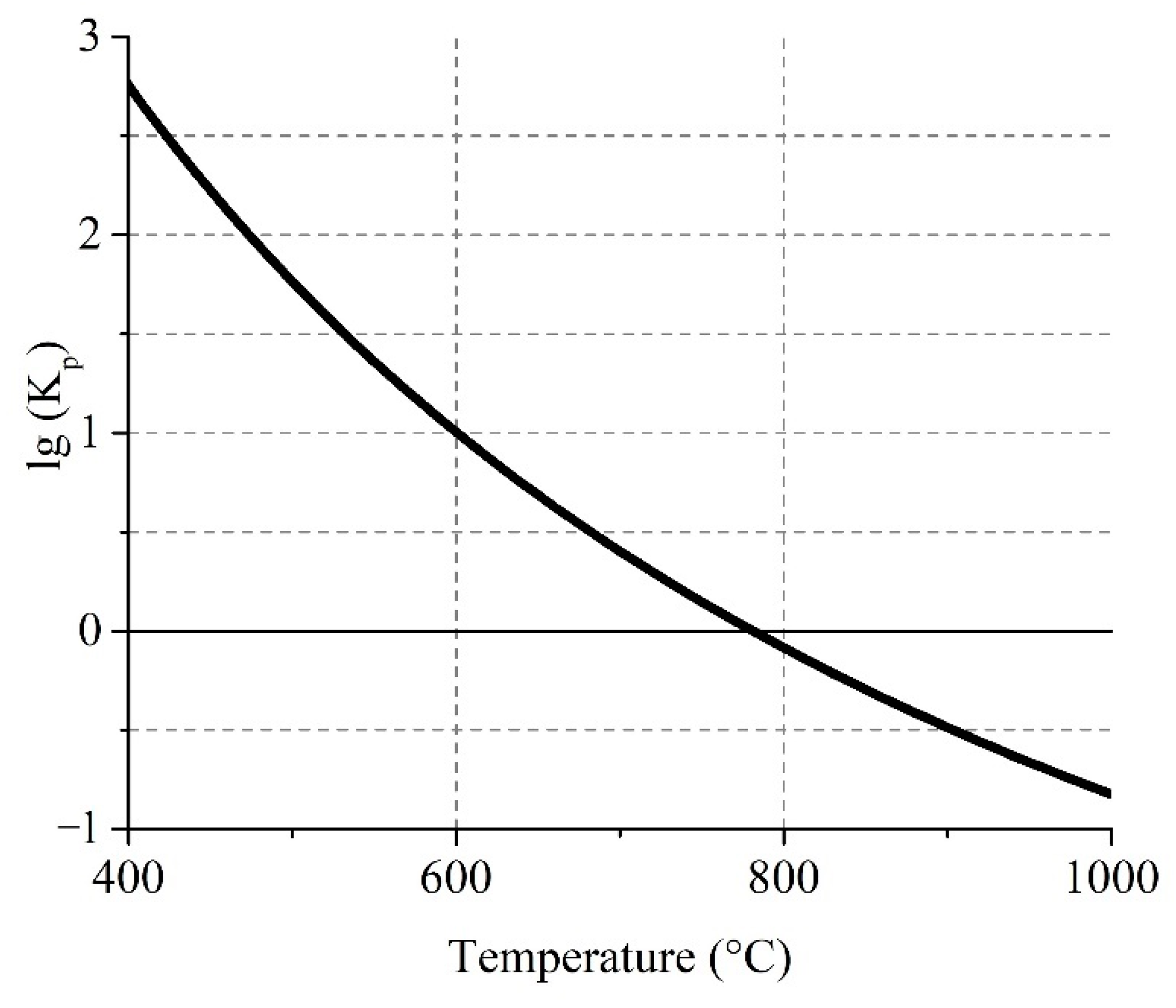

Figure 6 shows the temperature dependence of Gibbs free energy for the gas reaction (6) of sulfur trioxide generation.
The equilibrium curve evidences that forward reaction (6) of SO3(g) formation is possible at temperatures up to 780 °C. The logarithm of the equilibrium constant of the reaction at 680 °C and lower have a value above 0.5 with a significant proportion of SO3(g). This fact explains the obtaining of inconsiderable sulfation degrees of pure ferrites at 700 °C (Section 3.2.2). However, it should be noted that at 550 °C there was also an unessential sulfation degree that is probably due to an insignificant decomposition rate of iron sulfate at such conditions according to the reaction (3).

3.3. Sulfating of ZPR

3.3.1. Thermodynamic Calculation

Based on the results of the experiments with pure ferrites, the temperature ranges from 575 to 675 °C was chosen for the sulfating of ZPR. Due to the similarity of the effect of both iron sulfates during roasting, only Fe2(SO4)3∙9H2O was used in the experiments with ZPR.

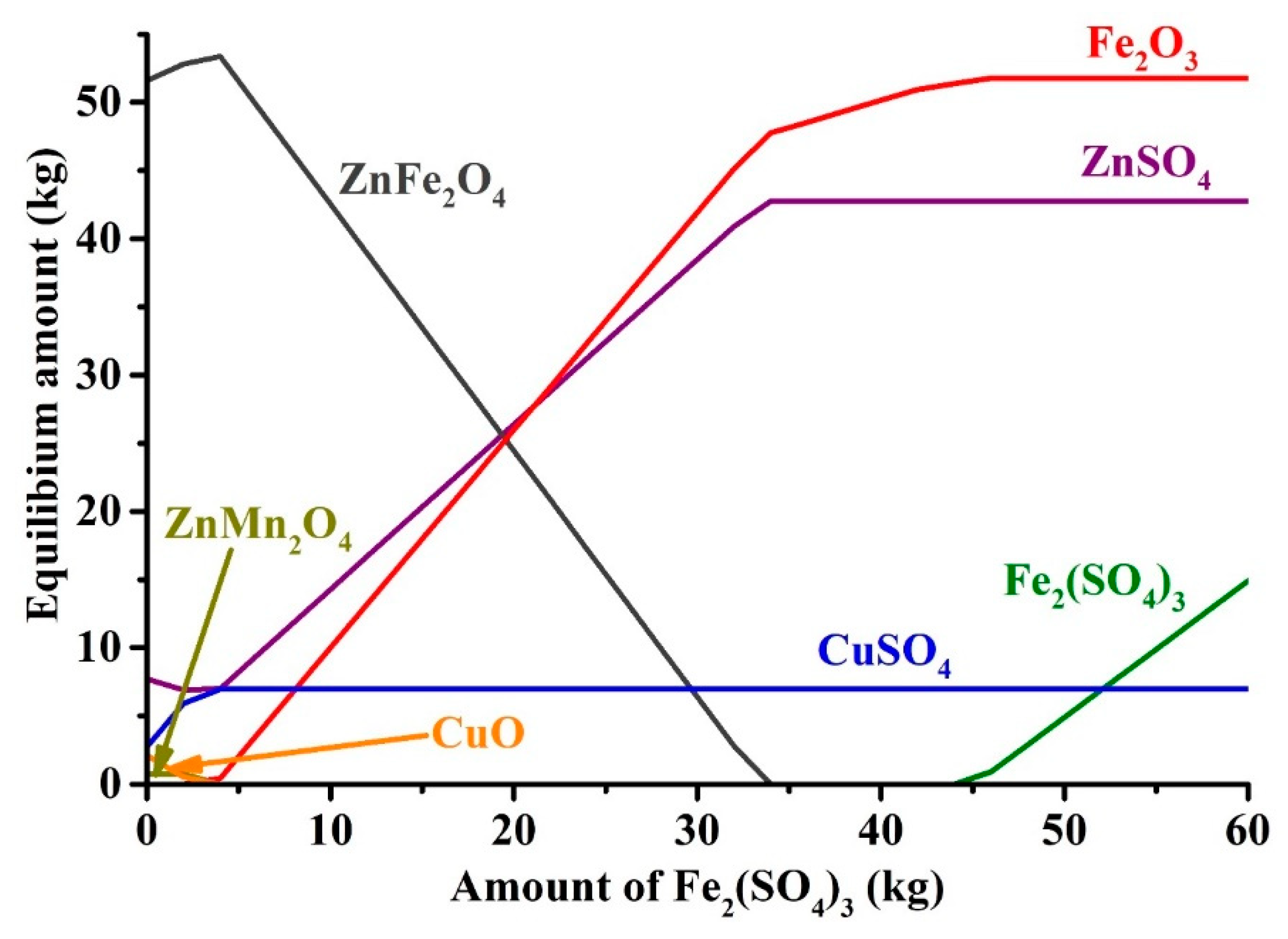

To determine the required amount of iron (III) sulfate for zinc and copper sulfation, the thermodynamic simulation was carried out. Figure 7 points out an influence of the addition of anhydrous iron (III) sulfate on equilibrium amounts of zinc, copper and iron compounds in ZPR at the roasting conditions.
As can be seen, to convert zinc and copper ferrites and other compounds into the sulfates, approximately 34 kg Fe2(SO4)3 should be added to 100 kg of ZPR that is equivalent to 48 kg Fe2(SO4)3∙9H2O. The calculated amount of the sulfating agent was used during subsequent experiments.

3.3.2. Influence of Roasting Temperature on the Behavior of Valuable Elements in ZPR

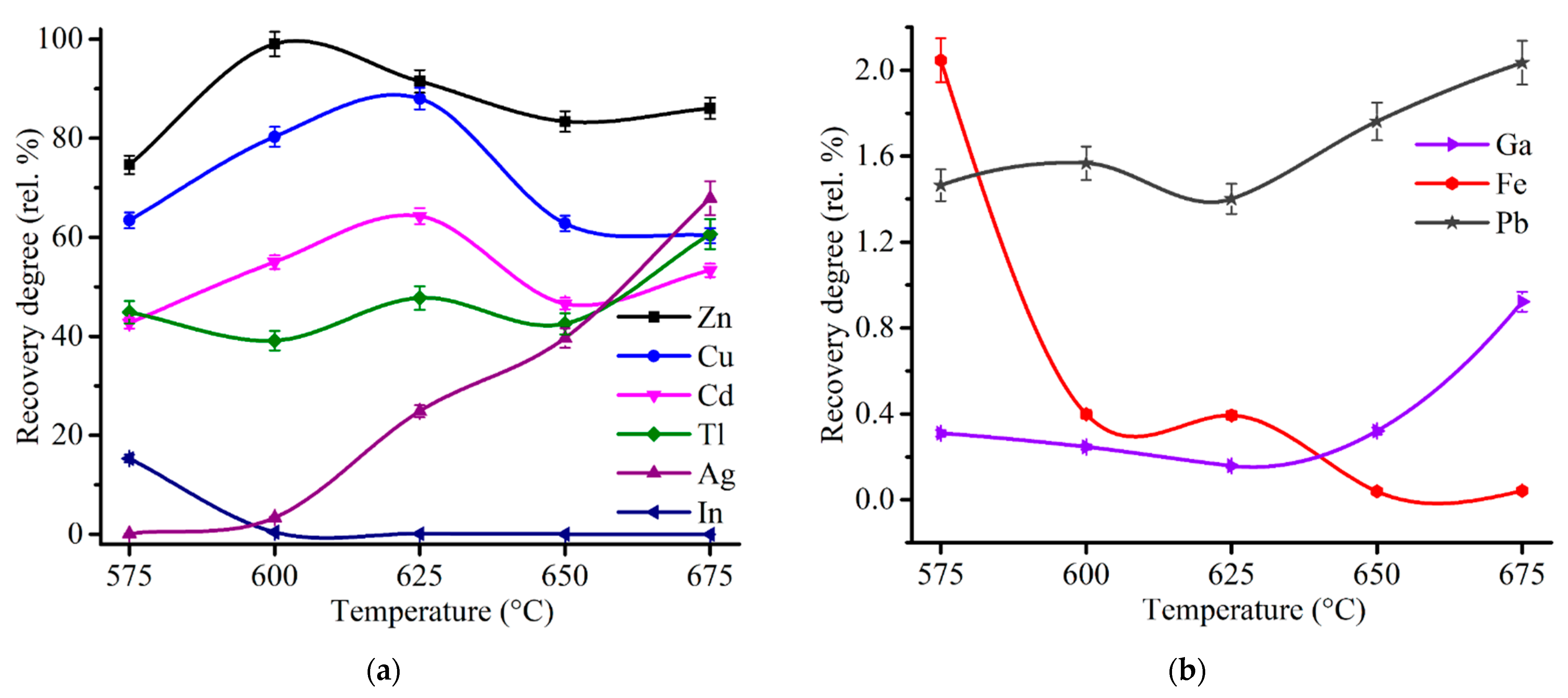

Firstly, an effect of the roasting temperature was investigated at 180 min of the duration. Figure 8 demonstrates an influence of the temperature on the recovery degree of the metals after the roasting and subsequent water leaching.
The recovery rate of zinc reaches 99% at 600 °C and then gradually decreases with the temperature increase. Therefore, it can be stated clearly that sulfating of zinc minerals in ZPR, namely, zinc ferrite, zinc oxide, zinc sulfide and zinc silicate, are possible almost completely according to the reaction (4), as well as the following reactions [42]:
ZnS(s) + 2O2(g) = ZnSO4(s)
ZnO(s) + SO3(g) = ZnSO4(s)
Zn2SiO4(s) + 2SO3(g) = 2ZnSO4(s) + SiO2(s)
The recovery degree of copper proved to be considerable but incomplete. At 600 and 625 °C copper recovery rate was 80.3% and 88.0%, respectively. To determine unambiguously the remaining phases that are present in the residue after the roasting at 600 °C, chemical phase analysis of copper phases in the roasted sample was carried out according to the scheme illustrated in Figure A4. Figure 9 compares copper phase distribution in ZPR and in the roasted ZPR sample.
As is clear from the pie chart, a significant part of Cu remains in the roasted sample as a ferrite. Probably, sulfating of copper phases is similar to zinc, but despite the thermodynamic possibility, reaction (5) has a hindrance during the roasting at these conditions. The experiments have shown (Figure 8) that although the roasting at 625 °C leads to increasing of copper recovery degree compared with 600 °C, the sulfating degree of copper ferrite are still less fully than the sulfating degree of zinc ferrite. However, the obtained copper recovery degrees of about 80% is quite satisfactory taking into account the extraction of 99% Zn.
Cadmium recovery rate is qualitatively similar the copper curve and ranges from 43 to 64%. As shown in Table 3, the main part of cadmium in ZPR is in the ferrite or other low-soluble forms. It leads to the assumption that as for copper ferrites, the sulfating of cadmium ferrites proceeds incompletely in the temperature range under study.
The solubility of lead in water is insignificant due to the presence of the main part of Pb in the sulfate form both before the roasting (Figure 1) and obviously after it.
Silver recovery degree increases with a temperature rise that is likely due to a promotion by the roasting temperature of the reaction of silver sulfating:
2Ag(s) + SO2(g) + O2(g) = Ag2SO4(s)
As silver sulfate solubility in water is substantial [69], it is expedient to suppress its formation to remain Ag almost completely in the residue. As can be seen from Figure 8a, the roasting temperature of 600 °C is quite suitable for this purpose.
As can be expected, the main part of iron is insoluble owing to decomposition of unreacted ferric sulfate according to the reaction (3). The dissolution degree of iron dramatically drops with an increase of the roasting temperature from 575 to 675 °C. High separation efficiency of zinc and iron should be noted.
The recovery degree of indium and gallium are less than 1% across the entire temperature range except for 575 °C with 15% In passed into solution. The remaining of In and Ga in the residue under the roasting conditions is likely due to the decomposition of the water-soluble sulfates to the corresponding oxides of low solubility [70] at lower temperatures according to the reactions [71,72]:
In2(SO4)3(s) = In2O3(s) + SO3(g)
Ga2(SO4)3(s) = Ga2O3(s) + SO3(g)
The recovery rate of thallium is in the range from 40 to 60%, which is considerably different compared with the indium and gallium recovery rate because water-soluble Tl2SO4 is stable within the temperature range of the roasting [73].
Thus, the sulfating roasting at 600 °C and following water leaching lead to the recovery degree of Zn and Cu of 99.0% and 80.3%, respectively, and almost full remaining of Fe, Pb, Ag, In, Ga in the residue.

3.3.3. Influence of Iron Sulfate Amount on the Behavior of Valuable Elements in ZPR

Effect of the sulfating agent amount was investigated at 600 °C of the roasting temperature and 180 min of the duration. Figure 10 illustrates an influence of Fe2(SO4)3∙9H2O addition to ZPR on the recovery rate of major and minor elements after following water leaching.
As shown in Figure 10a, the recovery rates of zinc, copper and cadmium achieve plateau in the ranges of 97–99% Zn, 80–83% Cu, 51–55% Cd with the addition over 48% Fe2(SO4)3∙9H2O that is consistent with the results of thermodynamic simulation (Figure 7). As anticipated, an increment of the sulfating agent addition causes an increase of iron dissolution degree due to a probably higher amount of undecomposed iron sulfate in the roasted samples. Moreover, an increased consumption of Fe2(SO4)3∙9H2O not only is cost-inefficient, but leads to a significant rise of dissolution degree of In and Ag (Figure 10b) that is unfavorable for their selective extraction.

3.3.4. Kinetics of ZPR Sulfating Roasting

Figure 11 shows an influence of the roasting time on the recovery degree of major and minor elements at 600 °C and 48% Fe2(SO4)3∙9H2O addition to ZPR. As can be seen from the plots, the sulfating of zinc, copper, cadmium and thallium is quite rapid process, which occurs almost fully in the range from 5 to 40 min. Furthermore, the same roasting duration ranges enable to suppress the dissolution of indium and gallium. In contrast with the other elements, the dissolution degree of iron achieves a plateau only after 150 min of the roasting at a minimum level of 0.4%.
To elucidate a behavior of zinc and copper during the sulfating process, the additional experiments were carried out at the roasting time up to 20 min. Figure 12 gives kinetic curves of zinc and copper sulfation. It should be noted from Figure 11a and Figure 12b that copper achieved a maximum recovery degree at 10.0–12.5 min, then a sloping decreasing occurs. Such copper behavior is likely due to a partial decomposition of copper sulfate to oxide and subsequent ferritization, so the elevated temperature and the prolonged roasting duration are unfavorable for copper recovery.
Experimental data were processed by reduced time method [74] using various well-known kinetic models. The zinc kinetic curve was divided into two sections of high and low rate, namely, from 0 to 12.5 min and from 12.5 to 90 min, respectively. The copper kinetic curve was processed only for the section of high rate from 0 to 12.5 min due to a peculiar behavior of copper at longer duration described above. Table 7 lists the results of the data processing and indicates adequacy of the models for the experimental data.
As follows from the kinetic calculation, the initial section of the zinc and copper curves fits Erofeev–Avrami equation with n = 2, which points out that generation and growth of nuclei is a rate-controlling step in the range from 0 to 12.5 min. However, it should be noted that the models of shrinking sphere and chemical reaction of first order are also quite suitable for the experimental data due to high values of adjusted R-squared. Therefore, one cannot exclude a mixed mode that can consist of two rate-controlling steps, namely, nuclei generation and growth, as well as chemical process, e.g., the reaction (3). The second section of the reaction for zinc corresponds well to Erofeev–Avrami equation with n = 3, while the reaction-controlled equations are unfit, so rate-controlling by nuclei generation and growth in the range from 12.5 to 90 min is a fair assumption.

3.3.5. Characterization of Roasted and Water-Leached ZPR

Figure 13 demonstrates the XRD patterns of roasted ZPR at 600 °C and 625 °C. Although the roasting conditions is almost similar with distinction of the temperature of only 25 °C, the XRD patterns has a substantial difference. The main iron-containing phase of the sample roasted at 600 °C is maghemite (γ-Fe2O3); moderate peaks of hematite (α-Fe2O3) and low-intensity peaks of the remaining ferrite are also present (Figure 13a). The sample roasted at 625 °C contains most of iron in hematite, the ferrite appears to have insignificant but higher intensive peaks than in the other sample that is consistent with the results of the experiments illustrated in Figure 8a. Maghemite in a substantial proportion is proved to be undetected in the sample roasted at 625 °C (Figure 13b). Other phases such as anhydrous and hydrated zinc and copper sulfates, as well as containing in the original ZPR grossular and sulfates of lead, calcium and barium are qualitatively similar in both the samples.
To elucidate iron distribution in the maghemite-containing sample, Mössbauer analysis of the sample roasted at 600 °C before and after water leaching was carried out. Figure 14 illustrates the Mössbauer spectra of the roasted and leached samples, Table 8 gives the parameters of the illustrated spectra. Appendix B includes the parameters of the supplementary samples, which provided to clarify and confirm our hypotheses regarding phase identification.
The obtained Mössbauer spectra has an appreciable temperature dependence. The temperature decrease of the spectra collecting causes a narrowing and significant intensity increasing of lines 1 and 5, as well as broadening of lines 2 and 6 that indicates the presence of a superposition of several sextets. Three sextets correspond to Fe+3 atoms in an octahedral oxygen environment, but belong to different phases. The parameters of sextet #1 is similar to the sextet detected in the sample of the original ZPR (Figure 14 and Table 8) and corresponds to α-Fe2O3 [75]. Evidently, two other sextets (##3–4, Table 8) are related to γ-Fe2O3 [76,77,78]. The reduced values of the magnetic splitting for the sextets at room temperature and the high value of the resonance line width with a strong temperature dependence suggest that this is a poorly ordered and very defective phase [79]. It could be assumed that the group of the sextets ##1–3 also includes the group of copper ferrite sextets with ultrafine parameters close to the indicated oxides—CuFe2O4 [80,81,82,83] or substituted analogs of copper ferrite Cu1-xAxFe2-yByO4, where A and B are a substituent element in the oxidation state +2 or +3, respectively, for example, Zn+2 [84,85,86], Cd+2 [85], Al+3 [87], Ga+3 [86]. However, this hypothesis was not confirmed because after calcination of these samples at 900 °C, no other iron-containing phases were found in the samples except for zinc ferrite and α-Fe2O3 (Appendix B).
The doublets ##4–5 (Figure 14 and Table 8), which is present in the roasted sample, but is absent in the water-leached sample, corresponds to Fe+2 and Fe+3 atoms in an octahedral oxygen environment [54], respectively. The hyperfine parameters of #4 for both the temperatures are in good agreement with the data for FeSO4∙H2O [88,89,90]. The presence of Fe+2 is inconsistent with the results of the Section 3.2, so it is an open question how FeSO4∙H2O was formed during the roasting. As shown in Figure 15, it is thermodynamically possible that divalent iron can be a product of interactions of Fe2(SO4)3 with sulfides containing in a substantial amount (Table 3) in ZPR according to the reactions:
4Fe2(SO4)3(s) + ZnS(s) = 8FeSO4(s) + ZnSO4(s) + 4SO3(g)
5Fe2(SO4)3(s) + Cu2S(s) = 10FeSO4(s) + 2CuSO4(s) + 4SO3(g)
However, this fact, as well as the fact of the presence of γ-Fe2O3, should be investigated further.
Doublet #5 obviously corresponds to the iron (III) sulfate dehydration products [91,92,93], e.g., Fe2O(SO4)2∙xH2O [66]. The very broadened singlet #7 in the water-leached sample can be related to Fe+3 atoms in an octahedral oxygen environment [52] and, apparently, corresponds to amorphous products of hydrolysis of soluble iron salts. After the additional calcination of the samples at 900 °C, all the indicated paramagnetic iron-containing compounds are not detected (Appendix B). The doublet #6, which has the same parameters with the one in the ZPR sample, is unsulfated zinc ferrite.
Thus, the characterization of the roasted and water-leached samples has pointed out that the sample treated under the optimal conditions to obtain the highest recovery degree of valuable elements contains the main part of iron in the form of γ-Fe2O3 rather than α-Fe2O3. Taking this result into account, it is possible to apply low-intensity magnetic separation to extract iron from the residue rather than high-intensity magnetic separation used in [40] to recover α-Fe2O3 that can improve the efficiency of iron separation.

4. Discussion

The investigation on the mechanism of sulfating roasting using pure zinc and copper ferrites has pointed out that the process occurs through an interaction of the ferrites with SO3(g), which are generated through decomposition of iron sulfates, to form appropriate sulfates. Therefore, it can be inferred that the reversible gas-phase reaction (6) is a crucial process to control efficiency of sulfation of the ferrites. These results are consistent with [68], where a similar conclusion was drawn, but inconsistent with [40], where authors claimed that zinc ferrite transforms into sulfate via interaction with SO2(g). However, it should be noted that authors of [40] used gas mixtures of sulfur dioxide and air. This leads to the assumption that, as previously stated, sulfur trioxide generated during the reversible reaction (6) play a key role during the gaseous sulfating of the ferrites.
It is deduced, based on the previous discussion, that sulfation process can be realized using both gaseous and solid sulfating agents. Although gaseous sulfation seems to be more promising due to a possible variation of the roasting temperature in a wider range than with the application of solid sulfating agents, authors [41] reported that industrial implementation of gaseous sulfation in a conventional fluidized bed reactor is impracticable because of sticking of formed sulfates to the reactor walls causing the maintenance problems. Moreover, gaseous sulfation requires a proper charge preparation and a binder addition for efficient operation in a selected metallurgical unit. Therefore, to avoid the problems, the gaseous sulfation requires suitable metallurgical units to prevent the undesirable effects that restricts an industrial application of the gaseous sulfation method.
The sulfation roasting using iron sulfates have some advantages over gaseous sulfation such as lack of binders due to the binding property of iron sulfates [94,95,96], the possibility of the application of conventional metallurgical furnaces for the roasting. Our study has shown that there is no difference in the mechanism of the both iron (II) and (III) sulfates influence; the distinction is only a different required amount of a sulfating agent based on the one or the other iron sulfate for the process. In addition, it is well-known that the reaction (6) is significantly catalyzed by iron oxides [97], which generated through the decomposition of the iron sulfates during the roasting, so the sulfation using iron sulfates is an autocatalytic process that seems to be important factor to obtain such a high zinc recovery degree. Furthermore, it is interesting to note that the best recovery degrees of valuable elements in the experiments using the mixture of ZPR and iron (III) sulfate under optimal conditions were obtained with a simultaneous generation of γ-Fe2O3 in the roasted sample, while the presence of only α-Fe2O3 led to lower recovery degrees. However, it was reported that the catalytical effect of γ-Fe2O3 on the reaction (6) is slightly less than α-Fe2O3 [98,99], therefore, not only the autocatalysis is the reason of high recovery degrees under optimal conditions.
The sulfating roasting at 600 °C during 180 min with addition of 48% Fe2(SO4)3∙9H2O to 100% ZPR and subsequent water leaching led to the recovery of 99.0% Zn, 80.3% Cu, 55.0% Cd, 39.0% Tl into the solution, as well as retaining of 99.6% Fe, 98.1% Pb, 99.6% In, 99.8% Ga, 96.6% Ag in the solid residue. Copper and cadmium can be conventionally extracted and separated from the leached solution by zinc dust cementation [6,100], then the zinc-containing solution after its appropriate purification can be used for zinc electrowinning. Lead, which is in the solid residue as PbSO4, can be recovered using leaching by NaOH solution [101,102]. Undoubtedly, whatever method was chosen for iron extraction from the remaining part, economic feasibility of the sequential process can be achieved providing iron regeneration into solid sulfate to recirculate it for the roasting. The same applies to off-gas for the roasting process, which needs to be recycled through a conventional contact method of sulfuric acid production. Economic assessment of the recovery of minor elements such as In, Ga, Tl and Ag from both leached solution and solid residue should be carried out depending on their contents in the original ZPR and difficulty to extract them from intermediate products.

5. Conclusions

The study has shown that sulfating of ZnFe2O4, CuFe2O4 and Zn0.5Cu0.5Fe2O4 by FeSO4∙7H2O and Fe2(SO4)3∙9H2O at the range from 550 to 700 °C is based on the interaction of the ferrites with sulfur trioxide generated through the sulfate decomposition, so the reversible reaction SO2(g) + 0.5O2(g) ↔ SO3(g) is a controlling stage of the sulfating.
ZPR has a complex composition and contains zinc and copper mainly as ferrites, as well as sulfides, sulfates, oxides and silicates. The sulfating roasting under optimal conditions, which are the roasting temperature of 600 °C, roasting duration of 180 min, the addition of 48% Fe2(SO4)3∙9H2O to 100% ZPR, and subsequent water leaching led to recovery of 99% Zn and 80.3% Cu, while Fe, Pb, Ag, In, Ga retained almost fully in the residue. Thus, the approach based on the sulfating roasting using iron sulfates has a high efficiency for the extraction of valuable elements from ZPR and can be used as a crucial stage for comprehensive processing of various secondary materials containing zinc in ferrite form.

Author Contributions

Conceptualization, P.G.; methodology, P.G., D.P. and D.K.; software, P.G., D.P.; validation, P.G.; formal analysis, P.G.; investigation, P.G. and D.G.; resources, V.D.; data curation, P.G.; writing—original draft preparation, P.G. and D.P.; writing—review and editing, P.G.; visualization, P.G., D.P. and D.G.; supervision, P.G.; project administration, V.D.; funding acquisition, V.D. All authors have read and agreed to the published version of the manuscript.

Funding

The work was carried out within Russian state assignment No. 075-00328-21-00. D.K. is grateful for the support under Russian state assignment No. AAA-A17-117011910011-9 for the Merzhanov Institute of Structural Macrokinetics and Materials Science (ISMAN).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are openly available in Mendeley Data at DOI: 10.17632/67g57bj4kv.1, reference number [65], as well as at DOI: 10.17632/tvc8rcrdvz.1, reference number [103].

Acknowledgments

The authors would like to appreciate the Chemical Analytical Laboratory of the JSC “Design & Survey and Research & Development Institute of Industrial Technology” for chemical analysis. The authors would like to express profound appreciation to Ekaterina Zhiltsova and Maria Panova for assistance in the experiments with ZPR.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Figure A1, Figure A2, Figure A3 and Figure A4 illustrate schematic diagrams of methods of chemical phase analysis developed for this paper based on the information from [49].
Materials 14 05020 g0a1 550

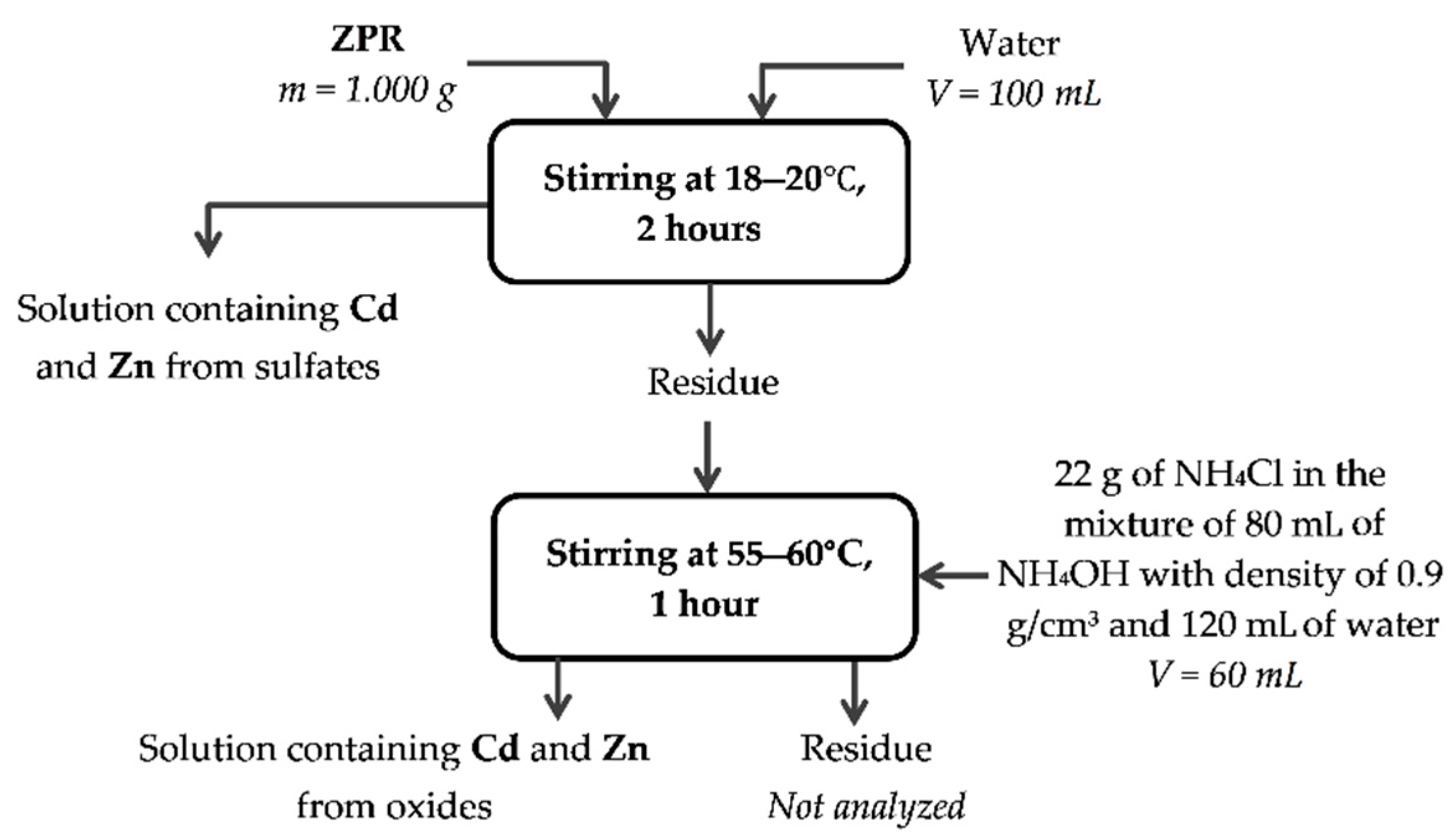

Figure A1. Method of chemical phase analysis of cadmium and zinc compounds.
Figure A1. Method of chemical phase analysis of cadmium and zinc compounds.
Materials 14 05020 g0a1
Materials 14 05020 g0a2 550

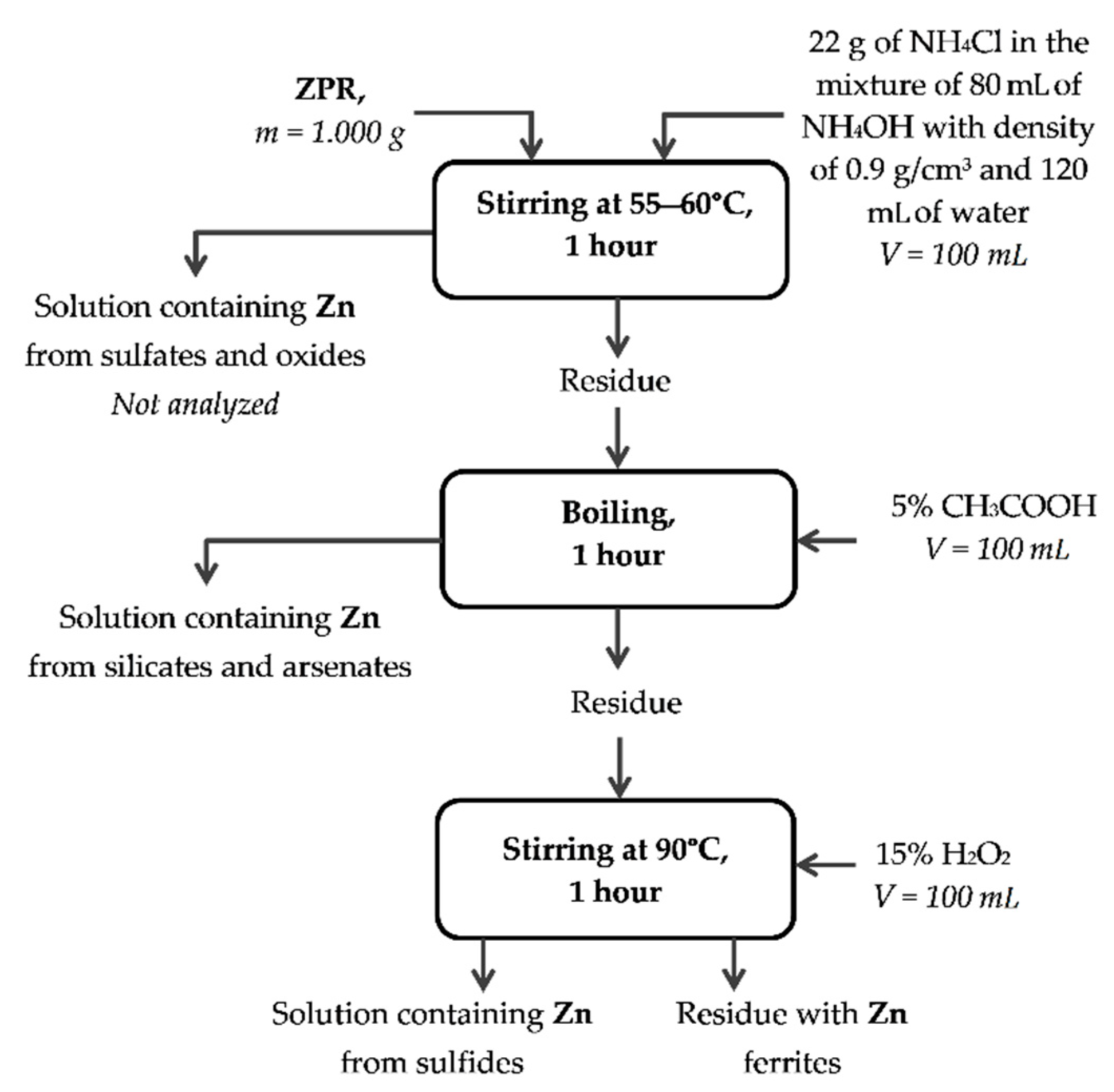

Figure A2. Method of chemical phase analysis of zinc compounds.
Figure A2. Method of chemical phase analysis of zinc compounds.
Materials 14 05020 g0a2
Materials 14 05020 g0a3 550
Figure A3. Method of chemical phase analysis of cadmium compounds.
Figure A3. Method of chemical phase analysis of cadmium compounds.
Materials 14 05020 g0a3
Materials 14 05020 g0a4 550
Figure A4. Method of chemical phase analysis of copper compounds.
Figure A4. Method of chemical phase analysis of copper compounds.
Materials 14 05020 g0a4

Appendix B

Figure A5 and Table A1 show the supplementary Mössbauer spectra and their parameters, respectively, which were obtained to clarify and confirm phase identification of the main spectra. All the raw data for the main and supplementary spectra can be found in dataset [103].
Table
Table A1. Parameters 1 of the Mössbauer spectra collected at 296 K of ZPR samples treated at different conditions; roasting and calcination durations were 180 min.
Table A1. Parameters 1 of the Mössbauer spectra collected at 296 K of ZPR samples treated at different conditions; roasting and calcination durations were 180 min.
SamplePhaseδΔ = 2εΓexpHeffS
mm/smm/smm/skOe%
ZPR roasted without additions at 600 °Cα-Fe2O30.36−0.200.22515.85.5
ZnFe2O40.330.420.36-94.5
ZPR roasted with addition of 48% Fe2(SO4)3 at 600 °C, then additionally calcined at 900 °CZnFe2O40.330.430.36-100
ZPR roasted with addition of 48% Fe2(SO4)3 at 600 °C, water-leached, then additionally calcined at 900 °Cα-Fe2O30.37−0.210.29514.575.2
ZnFe2O40.340.410.32-24.8
1 δ—isomer shift; Δ = 2ε—quadrupole splitting; Γexp—line width; Heff—hyperfine magnetic field; S—relative area of a subspectrum.
Materials 14 05020 g0a5 550
Figure A5. The Mössbauer spectra obtained at 296 K of ZPR roasted: (a) without additions at 600 °C; (b) with addition of 48% Fe2(SO4)3 at 600 °C, then additionally calcined at 900 °C; (c) with addition of 48% Fe2(SO4)3 at 600 °C, water-leached, then additionally calcined at 900 °C.
Figure A5. The Mössbauer spectra obtained at 296 K of ZPR roasted: (a) without additions at 600 °C; (b) with addition of 48% Fe2(SO4)3 at 600 °C, then additionally calcined at 900 °C; (c) with addition of 48% Fe2(SO4)3 at 600 °C, water-leached, then additionally calcined at 900 °C.
Materials 14 05020 g0a5

References

  1. Wills, B.A.; Finch, J.A. Appendix I—Metallic Ore Minerals. In Wills’ Mineral Processing Technology. An Introduction to the Practical Aspects of Ore Treatment and Mineral Recovery, 8th ed.; Elsevier: Amsterdam, The Netherlands; Boston, MA, USA, 2016; pp. 463–474. [Google Scholar] [CrossRef]
  2. Mitra, S. Depletion, technology, and productivity growth in the metallic minerals industry. Miner. Econ. 2018, 32, 19–37. [Google Scholar] [CrossRef] [Green Version]
  3. Agrawal, A.; Sahu, K.; Pandey, B.D. Solid waste management in non-ferrous industries in India. Resour. Conserv. Recycl. 2004, 42, 99–120. [Google Scholar] [CrossRef]
  4. Vodyanitskii, Y.N.; Minkina, T.M.; Kubrin, S.; Pankratov, D.A.; Fedorenko, A.G. Common and rare iron, sulfur, and zinc minerals in technogenically contaminated hydromorphic soil from Southern Russia. Environ. Geochem. Health 2019, 42, 95–108. [Google Scholar] [CrossRef] [PubMed]
  5. Sahu, S.K.; Razi, M.K.; Beuscher, M.; Chagnes, A. Recovery of Metal Values from Ni-Cd Cake Waste Residue of an Iranian Zinc Plant by Hydrometallurgical Route. Metals 2020, 10, 655. [Google Scholar] [CrossRef]
  6. Sinclair, R.J. The Extractive Metallurgy of Zinc, 1st ed.; Australasian Institute of Mining and Metallurgy: Carlton Victoria, Australia, 2005. [Google Scholar]
  7. Monhemius, A. The iron elephant: A brief history of hydrometallurgists’ struggles with element no.26. CIM J. 2017, 8. [Google Scholar] [CrossRef]
  8. Vignes, A. Extractive Metallurgy 2: Metallurgical Reaction Processes, 1st ed.; Wiley-ISTE: London, UK, 2011; pp. 69–70. [Google Scholar]
  9. Kozlov, P.A. The Waelz process; Ore and Metals Publishing House: Moscow, Russia, 2003; pp. 96–101. [Google Scholar]
  10. Stoychev, S.; Minchev, E.; Kyurkchiev, A.; Radonov, G. Technologies for Treatment of Zinc-Containing Waste from Metallurgy in KCM AD. In PbZn 2020: 9th International Symposium on Lead and Zinc Processing; Siegmund, A., Alam, S., Grogan, J., Kerney, U., Shibata, E., Eds.; Springer: Cham, Switzerland, 2020; pp. 799–809. [Google Scholar]
  11. Rüşen, A.; Topçu, M.A. Investigation of zinc extraction from different leach residues by acid leaching. Int. J. Environ. Sci. Technol. 2017, 15, 69–80. [Google Scholar] [CrossRef]
  12. Xing, P.; Ma, B.-Z.; Zeng, P.; Wang, C.-Y.; Wang, L.; Zhang, Y.-L.; Chen, Y.-Q.; Wang, S.; Wang, Q.-Y. Deep cleaning of a metallurgical zinc leaching residue and recovery of valuable metals. Int. J. Miner. Met. Mater. 2017, 24, 1217–1227. [Google Scholar] [CrossRef]
  13. Xie, T.F.; Sun, C.Y.; Li, G.J.; Luo, Y.G.; Zheng, X.M.; Ma, A.Y. Zinc Extraction from Industrial Waste Residue by Conventional Acid Leaching. In Characterization of Minerals, Metals, and Materials; Li, J., Zhang, M.M., Li, B.W., Monteiro, S.M., Ikhmayies, S., Kalay, Y.E., Hwang, J.-Y., Escobedo-Diaz, J.P., Carpenter, J.S., Brown, A.D., et al., Eds.; Springer: Cham, Switzerland, 2021; pp. 121–129. [Google Scholar]
  14. Vahidi, E.; Rashchi, F.; Moradkhani, D. Recovery of zinc from an industrial zinc leach residue by solvent extraction using D2EHPA. Miner. Eng. 2008, 22, 204–206. [Google Scholar] [CrossRef]
  15. Ashtari, P.; Pourghahramani, P. Selective mechanochemical alkaline leaching of zinc from zinc plant residue. Hydrometallurgy 2015, 156, 165–172. [Google Scholar] [CrossRef]
  16. Huang, Y.; Geng, Y.; Han, G.; Cao, Y.; Peng, W.; Zhu, X.; Zhang, T.-A.; Dou, Z. A perspective of stepwise utilization of hazardous zinc plant purification residue based on selective alkaline leaching of zinc. J. Hazard. Mater. 2020, 389, 122090. [Google Scholar] [CrossRef]
  17. Liu, W.; Sun, S.; Zhang, L.; Jahanshahi, S.; Yang, J. Experimental and simulative study on phase transformation in Bayer red mud soda-lime roasting system and recovery of Al, Na and Fe. Miner. Eng. 2012, 39, 213–218. [Google Scholar] [CrossRef]
  18. Guo, Z.-H.; Pan, F.-K.; Xiao, X.-Y.; Zhang, L.; Jiang, K.-Q. Optimization of brine leaching of metals from hydrometallurgical residue. Trans. Nonferrous Met. Soc. China 2010, 20, 2000–2005. [Google Scholar] [CrossRef]
  19. Fan, Y.; Liu, Y.; Niu, L.; Zhang, W.; Zhang, T.-A. High purity metal lead recovery from zinc direct leaching residue via chloride leaching and direct electrolysis. Sep. Purif. Technol. 2021, 263, 118329. [Google Scholar] [CrossRef]
  20. Palden, T.; Regadio, M.; Onghena, B.; Binnemans, K. Selective Metal Recovery from Jarosite Residue by Leaching with Acid-Equilibrated Ionic Liquids and Precipitation-Stripping. ACS Sustain. Chem. Eng. 2019, 7, 4239–4246. [Google Scholar] [CrossRef]
  21. Rodriguez, N.R.; Machiels, L.; Onghena, B.; Spooren, J.; Binnemans, K. Selective recovery of zinc from goethite residue in the zinc industry using deep-eutectic solvents. RSC Adv. 2020, 10, 7328–7335. [Google Scholar] [CrossRef] [Green Version]
  22. Yan, H.; Chai, L.-Y.; Peng, B.; Li, M.; Liu, W.; Peng, N.; Hou, D.-K. Reduction Roasting of High Iron-Bearing Zinc Calcine under a CO-CO2 Gas: An Investigation of the Chemical and Mineralogical Transformations. JOM 2013, 65, 1589–1596. [Google Scholar] [CrossRef]
  23. Han, J.; Liu, W.; Qin, W.; Peng, B.; Yang, K.; Zheng, Y. Recovery of zinc and iron from high iron-bearing zinc calcine by selective reduction roasting. J. Ind. Eng. Chem. 2014, 22, 272–279. [Google Scholar] [CrossRef]
  24. Wang, C.; Guo, Y.-F.; Wang, S.; Chen, F.; Tan, Y.-J.; Zheng, F.-Q.; Yang, L.-Z. Characteristics of the reduction behavior of zinc ferrite and ammonia leaching after roasting. Int. J. Miner. Met. Mater. 2020, 27, 26–36. [Google Scholar] [CrossRef]
  25. Kashyap, V.; Taylor, P. Selective Extraction of Zinc from Zinc Ferrite. Min. Met. Explor. 2020, 38, 27–36. [Google Scholar] [CrossRef]
  26. Zheng, Y.-X.; Lv, J.-F.; Liu, W.; Qin, W.-Q.; Wen, S.-M. An innovative technology for recovery of zinc, lead and silver from zinc leaching residue. Physicochem. Probl. Miner. Process. 2016, 52. [Google Scholar] [CrossRef]
  27. Min, X.-B.; Jiang, G.-H.; Wang, Y.-Y.; Zhou, B.-S.; Xue, K.; Ke, Y.; Xu, Q.-J.; Wang, J.-W.; Ren, H.-C. Sulfidation roasting of zinc leaching residue with pyrite for recovery of zinc and iron. J. Central South Univ. 2020, 27, 1186–1196. [Google Scholar] [CrossRef]
  28. Holloway, P.C.; Etsell, T.H.; Murland, A.L. Roasting of La Oroya Zinc Ferrite with Na2CO3. Met. Mater. Trans. A 2007, 38, 781–791. [Google Scholar] [CrossRef]
  29. Holloway, P.C.; Etsell, T.H.; Murland, A.L. Use of Secondary Additives to Control the Dissolution of Iron during Na2CO3 Roasting of La Oroya Zinc Ferrite. Met. Mater. Trans. A 2007, 38, 793–808. [Google Scholar] [CrossRef]
  30. Holloway, P.C.; Etsell, T.H. Recovery of zinc, gallium and indium from La Oroya zinc ferrite using Na2CO3 roasting. Miner. Process. Extr. Metall. 2012, 117, 137–146. [Google Scholar] [CrossRef]
  31. Youcai, Z.; Stanforth, R. Extraction of zinc from zinc ferrites by fusion with caustic soda. Miner. Eng. 2000, 13, 1417–1421. [Google Scholar] [CrossRef]
  32. Wang, H.B.; Zheng, C.Z.; Qin, S.C. Study of a Novel Chloride Volatilization Process for the Treatment of Jarosite Residue. In Proceedings of the PbZn 2020: 9th International Symposium on Lead and Zinc Processing; Siegmund, A., Alam, S., Grogan, J., Kerney, U., Shibata, E., Eds.; Springer: Cham, Switzerland, 2020; pp. 835–845. [Google Scholar] [CrossRef]
  33. Zhang, Y.; Yu, X.; Li, X. Zinc recovery from franklinite by sulphation roasting. Hydrometallurgy 2011, 109, 211–214. [Google Scholar] [CrossRef]
  34. Güler, E.; Seyrankaya, A.; Cöcen, İ. Effect of Sulfation Roasting on Metal Extraction from Çinkur Zinc Leach Residue. J. Ore Dress. 1999, 10, 1–10. [Google Scholar]
  35. Turan, M.D.; Altundoğan, H.S.; Tümen, F. Recovery of zinc and lead from zinc plant residue. Hydrometallurgy 2004, 75, 169–176. [Google Scholar] [CrossRef]
  36. Wang, R.-X.; Yang, Y.-D.; Liu, C.-X.; Zhou, J.; Fang, Z.; Yan, K.; Tian, L.; Xu, Z.-F. Recovery of lead and silver from zinc acid-leaching residue via a sulfation roasting and oxygen-rich chlorination leaching method. J. Central South Univ. 2020, 27, 3567–3580. [Google Scholar] [CrossRef]
  37. Li, Y.; Liu, H.; Peng, B.; Min, X.; Hu, M.; Peng, N.; Yuang, Y.; Lei, J. Study on separating of zinc and iron from zinc leaching residues by roasting with ammonium sulphate. Hydrometallurgy 2015, 158, 42–48. [Google Scholar] [CrossRef]
  38. Fekete, F.; Lázár, K.; Keszler, A.M.; Jánosity, A.; Zhibin, L.; Szilágyi, I.M.; Kótai, L. Recycling the industrial waste ZnFe2O4 from hot-dip galvanization sludge. J. Therm. Anal. Calorim. 2018, 134, 1863–1872. [Google Scholar] [CrossRef] [Green Version]
  39. De Oliveira, C.C.S.; Pereira, D.D.; Mendes, F.R.P.; Araujo, M.F.L. A New Route for Treating Neutral Leaching Residue. In Proceedings of the PbZn 2020: 9th International Symposium on Lead and Zinc Processing; Springer: Cham, Switzerland, 2020; pp. 827–833. [Google Scholar] [CrossRef]
  40. Li, Y.-C.; Zhuo, S.-N.; Peng, B.; Min, X.-B.; Liu, H.; Ke, Y. Comprehensive recycling of zinc and iron from smelting waste containing zinc ferrite by oriented transformation with SO2. J. Clean. Prod. 2020, 263, 121468. [Google Scholar] [CrossRef]
  41. De Oliveira, C.C.S.; Pereira, D.D. Simulation of an Alternative Direct Leaching Process for High Iron Content Zinc Concentrates. In Proceedings of the PbZn 2020: 9th International Symposium on Lead and Zinc Processing; Springer: Cham, Switzerland, 2020; pp. 405–415. [Google Scholar] [CrossRef]
  42. Hu, M.; Peng, B.; Chai, L.-Y.; Li, Y.-C.; Peng, N.; Yuan, Y.-Z.; Chen, N. High-Zinc Recovery from Residues by Sulfate Roasting and Water Leaching. JOM 2015, 67, 2005–2012. [Google Scholar] [CrossRef]
  43. Jiang, G.-M.; Peng, B.; Liang, Y.-J.; Chai, L.-Y.; Wang, Q.-W.; Li, Q.-Z.; Hu, M. Recovery of valuable metals from zinc leaching residue by sulfate roasting and water leaching. Trans. Nonferrous Met. Soc. China 2017, 27, 1180–1187. [Google Scholar] [CrossRef]
  44. Altundoǧan, H.; Tümen, F. Metal recovery from copper converter slag by roasting with ferric sulphate. Hydrometallurgy 1997, 44, 261–267. [Google Scholar] [CrossRef]
  45. Nadirov, R.K. Recovery of Valuable Metals from Copper Smelter Slag by Sulfation Roasting. Trans. Indian Inst. Met. 2018, 72, 603–607. [Google Scholar] [CrossRef]
  46. Grudinsky, I.P.; Podjelnikova, E.S.; Dyubanov, V.G. Research on the Process of Sulphatizing Roasting of Copper Slag Flotation Tailings Using Iron Sulphates. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2020; Volume 459. [Google Scholar] [CrossRef]
  47. Grudinsky, I.P.; Zhiltsova, E.E.; Grigorieva, D.D.; Dyubanov, V.G. Experimental Study of the Sulphatizing Roasting of Flotation Tailings from Copper Slag Processing Using Iron Sulfates. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2021; Volume 666, p. 022046. [Google Scholar] [CrossRef]
  48. Pickles, C.A.; Marzoughi, O. Thermodynamic Investigation of the Sulphation Roasting of Electric Arc Furnace Dust. Minerals 2018, 9, 18. [Google Scholar] [CrossRef] [Green Version]
  49. Filippova, N.A. The Phase Analysis of Ores and Their Processing Products, 2nd ed.; Himiya: Moscow, Russia, 1975. [Google Scholar]
  50. Talanov, V.; Shabelskaya, N.; Golovina, A. Method of copper ferrite preparation. Russia Patent RU 2451638 C2, 25 August 2010. [Google Scholar]
  51. Match! In Software for Phase Analysis Using Powder Diffraction; Version 3.11; Crystal Impact: Bonn, Germany, 2021.
  52. HSC Chemistry. Software for Chemical Reaction and Equilibrium Calculation; Version 9.9; Outotec: Pori, Finland, 2019. [Google Scholar]
  53. Kovalev, D.Y.; Ponomarev, V.I. Time-Resolved X-Ray Diffraction in SHS Research and Related Areas: An Overview. Int. J. Self-Propag. High-Temp. Synth. 2019, 28, 114–123. [Google Scholar] [CrossRef]
  54. Pankratov, D.A. Mössbauer study of oxo derivatives of iron in the Fe2O3-Na2O2 system. Inorg. Mater. 2013, 50, 82–89. [Google Scholar] [CrossRef]
  55. König, U.; Bertaut, E.; Gros, Y.; Mitrikov, M.; Chol, G. Models of the magnetic structure of zinc ferrite. Solid State Commun. 1970, 8, 759–764. [Google Scholar] [CrossRef]
  56. Li, F.; Wang, L.; Wang, J.; Zhou, Q.; Zhou, X.; Kunkel, H.; Williams, G. Site preference of Fe in nanoparticles of ZnFe2O4. J. Magn. Magn. Mater. 2004, 268, 332–339. [Google Scholar] [CrossRef]
  57. Chinnasamy, C.N.; Narayanasamy, A.; Ponpandian, N.; Chattopadhyay, K.K.; Guérault, H.; Greneche, J.-M. Magnetic properties of nanostructured ferrimagnetic zinc ferrite. J. Phys. Condens. Matter 2000, 12, 7795–7805. [Google Scholar] [CrossRef]
  58. Sato, T.; Haneda, K.; Seki, M.; Iijima, T. Morphology and magnetic properties of ultrafine ZnFe2O4 particles. Appl. Phys. A 1990, 50, 13–16. [Google Scholar] [CrossRef]
  59. Evans, B.J.; Hafner, S.S.; Weber, H.P. Electric Field Gradients at 57Fe in ZnFe2O4 and CdFe2O4. J. Chem. Phys. 1971, 55, 5282–5288. [Google Scholar] [CrossRef] [Green Version]
  60. Varshney, D.; Verma, K.; Kumar, A. Structural and vibrational properties of ZnxMn1−xFe2O4 (x = 0.0, 0.25, 0.50, 0.75, 1.0) mixed ferrites. Mater. Chem. Phys. 2011, 131, 413–419. [Google Scholar] [CrossRef]
  61. Waerenborgh, J.C.; Figueiredo, M.O.; Cabral, J.; Pereira, L. Temperature and Composition Dependence of the Cation Distribution in Synthetic ZnFeyAl2-yO4 (0 ≤ y ≤ 1) Spinels. J. Solid State Chem. 1994, 111, 300–309. [Google Scholar] [CrossRef]
  62. Toledo, J.; Valenzuela, M.; Bosch, P.; Armendáriz, H.; Montoya, A.; Nava, N.; Vázquez, A. Effect of AI3+ introduction into hydrothermally prepared ZnFe2O4. Appl. Catal. A Gen. 2000, 198, 235–245. [Google Scholar] [CrossRef]
  63. Valeev, D.; Zinoveev, D.; Kondratiev, A.; Lubyanoi, D.; Pankratov, D. Reductive Smelting of Neutralized Red Mud for Iron Recovery and Produced Pig Iron for Heat-Resistant Castings. Metals 2019, 10, 32. [Google Scholar] [CrossRef] [Green Version]
  64. Nininger, R.C.; Schroeer, D. Mössbauer studies of the morin transition in bulk and microcrystalline α-Fe2O3. J. Phys. Chem. Solids 1978, 39, 137–144. [Google Scholar] [CrossRef]
  65. Grudinsky, P. TG-DSC raw data and plots for the mixtures containing ferrites (MFe2O4, where M = Zn, Cu or Zn0.5Cu0.5) and iron sulfates (Fe2(SO4)3∙9H2O or FeSO4∙7H2O). Mendeley data; Version 1. 2021. [Google Scholar] [CrossRef]
  66. Pelovski, Y.; Petkova, V.; Nikolov, S. Study of the mechanism of the thermochemical decomposition of ferrous sulphate monohydrate. Thermochim. Acta 1996, 274, 273–280. [Google Scholar] [CrossRef]
  67. Swami, M.S.R.; Prasad, T.P. Thermal analysis of iron(II) sulphate heptahydrate in air. J. Therm. Anal. Calorim. 1980, 19, 297–304. [Google Scholar] [CrossRef]
  68. Saini, A.; Kótai, L.; Sajo, I.E.; Szilagyi, I.M.; Lázár, K.; May, Z.; Fazekas, P.; Gács, I.; Sharma, V.; Banerji, K.K. Solid phase sulphatizing of zinc ferrite spinel with iron sulphates as an environmental friendly way for recovering zinc. Eur. Chem. Bull. 2012, 1, 7–13. [Google Scholar] [CrossRef]
  69. Dutrizac, J.E.; Macdonald, R.J.C.; Lamarche, R.E. Solubility of silver sulfate in acidified ferric sulfate solutions. J. Chem. Eng. Data 1975, 20, 55–58. [Google Scholar] [CrossRef]
  70. Lide, D.R. (Ed.) Physical constants of inorganic compounds. In CRC Handbook of Chemistry and Physics; CRC Press: Boca Raton, FL, USA, 2005; pp. 58–61. [Google Scholar]
  71. Liu, Q.; Tan, J.; Liu, C.Q.; Yin, Z.L.; Chen, Q.Y.; Liao, Z.; Xie, F.C.; Zhang, P.M. Thermodynamic study of metal sulfate de-composition process in bath smelting. Chin. J. Nonferrous Met. 2014, 24, 1629–1636. [Google Scholar]
  72. Fedorov, P.P.; Proidakova, V.Y.; Kuznetsov, S.; Voronov, V. Phase equilibria in systems of gallium sulfate with lithium or sodium sulfate. Russ. J. Inorg. Chem. 2017, 62, 1508–1513. [Google Scholar] [CrossRef]
  73. Stern, K.H. Thermal Decomposition of Inorganic Salts with Oxyanions, 1st ed.; CRC Press: Boca Raton, FL, USA, 2001; p. 85. [Google Scholar]
  74. Guseva, A.F.; Neyman, A.Y.; Animitsa, I.E. Solid Phase Reactions during the Production and Exploitation of Inorganic Materials; Ural State University: Yekaterinburg, Russia, 2005; pp. 18–21. [Google Scholar]
  75. Rostovshchikova, T.; Smirnov, V.V.; Tsodikov, M.V.; Bukhtenko, O.V.; Maksimov, Y.V.; Kiseleva, O.I.; Pankratov, D. Catalytic conversions of chloroolefins over iron oxide nanoparticles 1. Isomerization of dichlorobutenes in the presence of iron oxide nanopaticles immobilized on silicas with different structures. Russ. Chem. Bull. 2005, 54, 1418–1424. [Google Scholar] [CrossRef]
  76. Rostovshchikova, T.N.; Korobov, M.S.; Pankratov, D.A.; Yurkov, G.; Gubin, S.P. Catalytic conversions of chloroolefins over iron oxide nanoparticles 2. Isomerization of dichlorobutenes over iron oxide nanoparticles stabilized on the surface of ultradispersed poly(tetrafluoroethylene). Russ. Chem. Bull. 2005, 54, 1425–1432. [Google Scholar] [CrossRef]
  77. Choi, H.; Seo, J.Y.; Kim, J.; Kim, C.S.; Uhm, Y.R.; Sun, G.M. Standard Iron Oxides and M$ddot{o}$ssbauer Spectroscopy. New Phys. Sae Mulli 2020, 70, 212–219. [Google Scholar] [CrossRef]
  78. Oh, S.J.; Cook, D.; Townsend, H. Characterization of Iron Oxides Commonly Formed as Corrosion Products on Steel. Hyperfine Interact. 1998, 112, 59–66. [Google Scholar] [CrossRef]
  79. Pankratov, D.A.; Anuchina, M.M.; Spiridonov, F.M.; Krivtsov, G.G. Fe3—δO4 Nanoparticles Synthesized in the Presence of Natural Polyelectrolytes. Crystallogr. Rep. 2020, 65, 393–397. [Google Scholar] [CrossRef]
  80. Goya, G.; Rechenberg, H. Superparamagnetic transition and local disorder in CuFe2O4 nanoparticles. Nanostruct. Mater. 1998, 10, 1001–1011. [Google Scholar] [CrossRef] [Green Version]
  81. Amir, M.; Gungunes, H.; Slimani, Y.; Tashkandi, N.; El Sayed, H.S.; Aldakheel, F.; Sertkol, M.; Sözeri, H.; Manikandan, A.; Ercan, I.; et al. Mössbauer Studies and Magnetic Properties of Cubic CuFe2O4 Nanoparticles. J. Supercond. Nov. Magn. 2018, 32, 557–564. [Google Scholar] [CrossRef]
  82. Chatterjee, B.K.; Bhattacharjee, K.; Dey, A.; Ghosh, C.K.; Chattopadhyay, K.K. Influence of spherical assembly of copper ferrite nanoparticles on magnetic properties: Orientation of magnetic easy axis. Dalton Trans. 2014, 43, 7930–7944. [Google Scholar] [CrossRef]
  83. Cross, W.B.; Affleck, L.; Kuznetsov, M.V.; Parkin, I.; Pankhurst, Q.A. Self-propagating high-temperature synthesis of ferrites MFe2O4 (M = Mg, Ba, Co, Ni, Cu, Zn); reactions in an external magnetic field. J. Mater. Chem. 1999, 9, 2545–2552. [Google Scholar] [CrossRef]
  84. Patil, V.; Kulkarni, R. Magnetic properties of Cu-Zn ferrite investigated by Mössbauer spectroscopy. Solid State Commun. 1979, 31, 551–555. [Google Scholar] [CrossRef]
  85. Siddique, M.; Khan, R.T.A.; Shafi, M. Fluctuation in occupancy of Cu2+ ions in Zn- and Cd-substituted Cu-ferrites. J. Radioanal. Nucl. Chem. 2008, 277, 531–537. [Google Scholar] [CrossRef]
  86. Ata-Allah, S.; Hashhash, A. Jahn–Teller effect and superparamagnetism in zn substituted copper-gallate ferrite. J. Magn. Magn. Mater. 2006, 307, 191–197. [Google Scholar] [CrossRef]
  87. Modi, K.B.; Shah, S.; Kathad, C.R.; Dulera, S.V.; Jethvani, B.B.; Popat, M.V.; Lakhani, V.K.; Chandra, U. Study on Mössbauer Signature, Hyperfine Interaction Parameters and Removal of Delafossite Phase of Al3+-Modified Copper Ferrite. J. Supercond. Nov. Magn. 2014, 28, 1583–1588. [Google Scholar] [CrossRef]
  88. Van Alboom, A.; De Resende, V.G.; De Grave, E.; Gómez, J.A.M. Hyperfine interactions in szomolnokite (FeSO4·H2O). J. Mol. Struct. 2009, 924-926, 448–456. [Google Scholar] [CrossRef]
  89. Dékány, I.; Turi, L.; Homonnay, Z.; Vértes, A.; Burger, K. Preparation of nanosize FeS particles on SiO2 and clay mineral supports: SAXS and Mössbauer spectroscopic measurements. Colloids Surf. A Physicochem. Eng. Asp. 1996, 119, 195–203. [Google Scholar] [CrossRef]
  90. Zboril, R.; Mashlan, M.; Petridis, D.; Krausova, D.; Pikal, P. The Role of Intermediates in the Process of Red Ferric Pigment Manufacture from FeSO4⋅7H2O. Hyperfine Interact. 2002, 139/140, 437–445. [Google Scholar] [CrossRef]
  91. Ristic, M.; Music, S.; Orehovec, Z. Thermal decomposition of synthetic ammonium jarosite. J. Mol. Struct. 2005, 744-747, 295–300. [Google Scholar] [CrossRef]
  92. Haven, Y.; Noftle, R.E. The Mössbauer isomer shift in iron (III) sulfate. J. Chem. Phys. 1977, 67, 2825. [Google Scholar] [CrossRef]
  93. Majzlan, J.; Alpers, C.N.; Koch, C.B.; McCleskey, R.B.; Myneni, S.C.; Neil, J.M. Vibrational, X-ray absorption, and Mössbauer spectra of sulfate minerals from the weathered massive sulfide deposit at Iron Mountain, California. Chem. Geol. 2011, 284, 296–305. [Google Scholar] [CrossRef]
  94. Portov, A.B.; Ozerov, S.S.; Tsymbulov, L.B.; Mashyanov, A.K. Usage of sulfuric acid and iron sulfate solutions, copper, and nickel as binders in briquetting of an ore copper-nickel concentrate. Tsvetnye Met. 2016, 35–40. [Google Scholar] [CrossRef]
  95. Olson, E.S. Binder Modification and Development for Briquetting Steel Mill Residues; Report; University of North Dakota: Grand Forks, ND, USA, 1998; Available online: https://core.ac.uk/download/pdf/195150854.pdf (accessed on 24 June 2021).
  96. Kawatra, S.K.; Eisele, T.C.; Lewandowski, K.A.; Gurtler, J.A. Novel Binders and Methods for Agglomeration of Ore; Report; Michigan Technological University: Houghton, MI, USA, 2006. Available online: https://www.osti.gov/servlets/purl/902899 (accessed on 24 June 2021). [CrossRef] [Green Version]
  97. Shi, Y.; Fan, M. Reaction Kinetics for the Catalytic Oxidation of Sulfur Dioxide with Microscale and Nanoscale Iron Oxides. Ind. Eng. Chem. Res. 2007, 46, 80–86. [Google Scholar] [CrossRef]
  98. Wu, Z.; Li, X.; Chen, J.; Hu, H.; Chen, D.; Yao, H. The effect of minerals in coal ash on the formation of SO3 in flue gas. In Proceedings of the International Conference on Power Engineering (ICOPE), Yokohama, Japan, 30 November–4 December 2015; pp. 1–9. [Google Scholar] [CrossRef]
  99. Fu, H.; Wang, X.; Wu, H.; Yin, Y.; Chen, J. Heterogeneous Uptake and Oxidation of SO2 on Iron Oxides. J. Phys. Chem. C 2007, 111, 6077–6085. [Google Scholar] [CrossRef]
  100. Kolmachikhina, E.B.; Sviridov, A.; Naumov, K.D. Investigation into the Influence of Sodium Lignosulfonate, Anionic Surfactants, and Their Mixtures on the Copper Cementation Rate by Zinc. Russ. J. Non-Ferrous Met. 2020, 61, 488–493. [Google Scholar] [CrossRef]
  101. Chen, C.-S.; Shih, Y.-J.; Huang, Y.-H. Recovery of lead from smelting fly ash of waste lead-acid battery by leaching and electrowinning. Waste Manag. 2016, 52, 212–220. [Google Scholar] [CrossRef]
  102. Badanoiu, G.; Buzatu, T.; Ghica, V.G.; Buzatu, M.; Iacob, G.; Petrescu, I.M. Study of PbSO4 solubilisation in NaOH solution, for the treatment of oxide-sulphate pastes obtained from dismembered lead-acid batteries. UPB Sci. Bull. Ser. B Chem. Mater. Sci. 2014, 76, 209–218. [Google Scholar]
  103. Pankratov, D.A.; Grudinsky, P.I. Mossbauer spectra raw data for article “Comprehensive Study on the Mechanism of Sulfating Roasting of Zinc Leaching Residue with Iron Sulfates; Mendeley data” Version 1. Materials 2021. [Google Scholar] [CrossRef]
Materials 14 05020 g001 550
Figure 1. The XRD pattern of the ZPR sample, where F—ZnFe2O4 (96–151–3088); K—Zn2(Cu4.8Zn3.2)(SO4)4(OH)12·12H2O (96–900–8271); G—CaSO4·2H2O (96–230–0259); A—PbSO4 (96–152–8838); I—ZnSO4·6H2O (96–901–4481); S—Zn0,9Fe0.11S0.99 (96–901–6494); R—Ca3Al2(SiO4)3 (96–900–0442); H—α–Fe2O3 (hematite) (96–901–5066); B—BaSO4 (96–900–4486); W—Zn2SiO4 (96–900–9628).
Figure 1. The XRD pattern of the ZPR sample, where F—ZnFe2O4 (96–151–3088); K—Zn2(Cu4.8Zn3.2)(SO4)4(OH)12·12H2O (96–900–8271); G—CaSO4·2H2O (96–230–0259); A—PbSO4 (96–152–8838); I—ZnSO4·6H2O (96–901–4481); S—Zn0,9Fe0.11S0.99 (96–901–6494); R—Ca3Al2(SiO4)3 (96–900–0442); H—α–Fe2O3 (hematite) (96–901–5066); B—BaSO4 (96–900–4486); W—Zn2SiO4 (96–900–9628).
Materials 14 05020 g001
Materials 14 05020 g002 550
Figure 2. The Mössbauer spectra of the ZPR sample obtained at 296 K (a) and 78 K (b).
Figure 2. The Mössbauer spectra of the ZPR sample obtained at 296 K (a) and 78 K (b).
Materials 14 05020 g002
Materials 14 05020 g003 550
Figure 3. TG-DSC thermogram of pure FeSO4∙7H2O (a) and ZnFe2O4 + FeSO4∙7H2O mixture in 1:4 molar ratio excluding hydrated moisture (b).
Figure 3. TG-DSC thermogram of pure FeSO4∙7H2O (a) and ZnFe2O4 + FeSO4∙7H2O mixture in 1:4 molar ratio excluding hydrated moisture (b).
Materials 14 05020 g003
Materials 14 05020 g004 550
Figure 4. The XRD patterns obtained at different temperatures during TRXRD experiments using mixtures of 18.2% ZnFe2O4 + 81.8% FeSO4∙7H2O (a), 18.1% CuFe2O4 + 81.9% FeSO4∙7H2O (b), 17.2% ZnFe2O4 + 82.8% FeSO4∙7H2O (c) and 17.1% CuFe2O4 + 82.9% FeSO4∙7H2O (d), where a—ZnFe2O4; b—FeSO4∙4H2O; c—FeSO4∙H2O; d—FeSO4; e—Fe(OH)SO4; f—Fe2(SO4)3; g—Fe2O3; h—ZnSO4; i—CuFe2O4; k—CuSO4; l—Fe2(SO4)3∙5H2O; m—Fe2(SO4)3∙7H2O; n—Fe2(SO4)3∙9H2O.
Figure 4. The XRD patterns obtained at different temperatures during TRXRD experiments using mixtures of 18.2% ZnFe2O4 + 81.8% FeSO4∙7H2O (a), 18.1% CuFe2O4 + 81.9% FeSO4∙7H2O (b), 17.2% ZnFe2O4 + 82.8% FeSO4∙7H2O (c) and 17.1% CuFe2O4 + 82.9% FeSO4∙7H2O (d), where a—ZnFe2O4; b—FeSO4∙4H2O; c—FeSO4∙H2O; d—FeSO4; e—Fe(OH)SO4; f—Fe2(SO4)3; g—Fe2O3; h—ZnSO4; i—CuFe2O4; k—CuSO4; l—Fe2(SO4)3∙5H2O; m—Fe2(SO4)3∙7H2O; n—Fe2(SO4)3∙9H2O.
Materials 14 05020 g004
Materials 14 05020 g005 550
Figure 5. Effect of temperature on Gibbs free energy of the interactions of sulfur trioxide with zinc (4) and copper (5) ferrites.
Figure 5. Effect of temperature on Gibbs free energy of the interactions of sulfur trioxide with zinc (4) and copper (5) ferrites.
Materials 14 05020 g005
Materials 14 05020 g006 550
Figure 6. Effect of temperature on the logarithm of the equilibrium constant of the reversible reaction (6).
Figure 6. Effect of temperature on the logarithm of the equilibrium constant of the reversible reaction (6).
Materials 14 05020 g006
Materials 14 05020 g007 550
Figure 7. Effect of Fe2(SO4)3 addition to 100 kg of ZPR on the equilibrium amounts of Zn, Cu and Fe compounds at 625 °C.
Figure 7. Effect of Fe2(SO4)3 addition to 100 kg of ZPR on the equilibrium amounts of Zn, Cu and Fe compounds at 625 °C.
Materials 14 05020 g007
Materials 14 05020 g008 550
Figure 8. Effect of the roasting temperature on the recovery degree of Zn, Cu, Cd, In, Tl, Ag (a), as well as Ga, Fe and Pb (b) after 180 min of the roasting and subsequent water leaching with the addition of 48% Fe2(SO4)3·9H2O to 100% ZPR.
Figure 8. Effect of the roasting temperature on the recovery degree of Zn, Cu, Cd, In, Tl, Ag (a), as well as Ga, Fe and Pb (b) after 180 min of the roasting and subsequent water leaching with the addition of 48% Fe2(SO4)3·9H2O to 100% ZPR.
Materials 14 05020 g008
Materials 14 05020 g009 550
Figure 9. Copper phase distribution in ZPR and in the roasted sample obtained at 600 °C after 180 min of the roasting with the addition of 48% Fe2(SO4)3·9H2O to 100% ZPR.
Figure 9. Copper phase distribution in ZPR and in the roasted sample obtained at 600 °C after 180 min of the roasting with the addition of 48% Fe2(SO4)3·9H2O to 100% ZPR.
Materials 14 05020 g009
Materials 14 05020 g010 550
Figure 10. Effect of Fe2(SO4)3∙9H2O addition to 100% ZPR on the recovery degree of Zn, Cu, Cd, Fe, Pb (a), as well as In, Tl, Ga, Ag (b) after 180 min of the roasting at 600 °C and subsequent water leaching.
Figure 10. Effect of Fe2(SO4)3∙9H2O addition to 100% ZPR on the recovery degree of Zn, Cu, Cd, Fe, Pb (a), as well as In, Tl, Ga, Ag (b) after 180 min of the roasting at 600 °C and subsequent water leaching.
Materials 14 05020 g010
Materials 14 05020 g011 550
Figure 11. Effect of roasting time on the recovery degree of Zn, Cu, Cd, In, Tl, Ag (a), as well as Ga, Fe and Pb (b) at 600 °C with the addition of 48% Fe2(SO4)3·9H2O to 100% ZPR and subsequent water leaching.
Figure 11. Effect of roasting time on the recovery degree of Zn, Cu, Cd, In, Tl, Ag (a), as well as Ga, Fe and Pb (b) at 600 °C with the addition of 48% Fe2(SO4)3·9H2O to 100% ZPR and subsequent water leaching.
Materials 14 05020 g011
Materials 14 05020 g012 550
Figure 12. Effect of roasting time on the recovery degree of zinc (a) and copper (b) at 600 and 650 °C with the addition of 48% Fe2(SO4)3·9H2O to 100% ZPR and subsequent water leaching.
Figure 12. Effect of roasting time on the recovery degree of zinc (a) and copper (b) at 600 and 650 °C with the addition of 48% Fe2(SO4)3·9H2O to 100% ZPR and subsequent water leaching.
Materials 14 05020 g012
Materials 14 05020 g013 550
Figure 13. The XRD pattern of the ZPR sample roasted with the addition of 48% Fe2(SO4)3∙9H2O during 180 min at 600 (a) and 625 °C (b), where H—α-Fe2O3 (hematite) (96–901–4881); M—γ-Fe2O3 (maghemite) (96–152–8613); F—ZnFe2O4 (96–151–3088); A—PbSO4 (96–900–0653); U—ZnSO4·H2O (96–900–9374); Z—ZnSO4 (96–900–7445); L—CuSO4∙5H2O (96–101–0528); C—CuSO4 (96–231–0621); R—Ca3Al2(SiO4)3 (96–900–2680); N—CaSO4 (96–500–0041); B—BaSO4 (96–100–0038).
Figure 13. The XRD pattern of the ZPR sample roasted with the addition of 48% Fe2(SO4)3∙9H2O during 180 min at 600 (a) and 625 °C (b), where H—α-Fe2O3 (hematite) (96–901–4881); M—γ-Fe2O3 (maghemite) (96–152–8613); F—ZnFe2O4 (96–151–3088); A—PbSO4 (96–900–0653); U—ZnSO4·H2O (96–900–9374); Z—ZnSO4 (96–900–7445); L—CuSO4∙5H2O (96–101–0528); C—CuSO4 (96–231–0621); R—Ca3Al2(SiO4)3 (96–900–2680); N—CaSO4 (96–500–0041); B—BaSO4 (96–100–0038).
Materials 14 05020 g013
Materials 14 05020 g014 550
Figure 14. The Mössbauer spectra obtained at 296 K (a,c) and 78 K (b,d) of ZPR roasted with the addition of 48% Fe2(SO4)3∙9H2O during 180 min at 600 °C (a,b), as well as of the same sample after its water leaching (c,d).
Figure 14. The Mössbauer spectra obtained at 296 K (a,c) and 78 K (b,d) of ZPR roasted with the addition of 48% Fe2(SO4)3∙9H2O during 180 min at 600 °C (a,b), as well as of the same sample after its water leaching (c,d).
Materials 14 05020 g014
Materials 14 05020 g015 550
Figure 15. Effect of temperature on Gibbs free energy of the interactions of ferric sulfate with zinc (4) and copper (5) sulfides.
Figure 15. Effect of temperature on Gibbs free energy of the interactions of ferric sulfate with zinc (4) and copper (5) sulfides.
Materials 14 05020 g015
Table
Table 1. Model composition of the ZPR sample for thermodynamic calculation, wt. %.
Table 1. Model composition of the ZPR sample for thermodynamic calculation, wt. %.
SpeciesContentSpeciesContentSpeciesContentSpeciesContentSpeciesContent
ZnFe2O440.56CuFe2O45.13PbSO47.99H2O2.94Ca3Al2Si3O124.84
ZnS1.34CuSO4∙5H2O4.68BaSO42.12CdO0.38SiO21.88
ZnSO4∙6H2O10.86Cu2S0.18FeS2.25CdSO40.14Fe2O31.84
ZnO2.67CuO0.08CaCO32CdS0.05As2O30.50
Zn2SiO41.09CaSO4∙2H2O4.32MnS1.19MgO0.95CuFeS20.02
Table
Table 2. Chemical composition of the ZPR sample 1.
Table 2. Chemical composition of the ZPR sample 1.
ElementZnCuCdFePbSCAlSiMnCaMgBaSbAsAgGaInTl
Unitwt.%mg/kg
content17.322.660.4423.365.465.720.240.581.920.753.100.571.250.070.3828319317020
1 the rest are other minor elements and oxygen.
Table
Table 3. Phase composition of zinc, copper and cadmium minerals in the ZPR sample.
Table 3. Phase composition of zinc, copper and cadmium minerals in the ZPR sample.
PhaseZn Distribution, Rel. % PhaseCu Distribution, Rel. %PhaseCd Distribution, Rel. %
Zn sulfates15.2Cu sulfates44.8Cd sulfates16.6
Zn oxide12.4Cu oxides2.3Cd oxide +
Cd silicates		13.7
Zn silicates + Zn arsenates3.7Cu2S + CuS + Cu5FeS45.5Cd sulfides0.8
Zn sulfides5.2CuFeS20.3Cd ferrites37.9
Zn ferrites63.5Cu ferrites47.1Cd low-soluble31
Table
Table 4. Percentage of water-soluble forms of silver, gallium, indium and thallium in ZPR.
Table 4. Percentage of water-soluble forms of silver, gallium, indium and thallium in ZPR.
ElementAgGaInTl
solubility in water, rel. %not detected0.1not detected5.3
Table
Table 5. Parameters 1 of the Mössbauer spectra of the ZPR sample.
Table 5. Parameters 1 of the Mössbauer spectra of the ZPR sample.
Temperature of Spectra Collecting, K29678
Subspectrum, #PhaseδΔ = 2εΓexpHeffSδΔ = 2εΓexpHeffS
mm/smm/smm/skOe%mm/smm/smm/skOe%
1α-Fe2O30.37-0.210.22516.14.50.460.400.27537.45.5
2Zn1−xAxFe2−yByO40.340.500.43-830.430.500.44-82
3ZnFe2O40.340.360.21-130.430.360.21-13
1 δ—isomer shift; Δ = 2ε—quadrupole splitting; Γexp—line width; Heff—hyperfine magnetic field; S—relative area of a subspectrum #.
Table
Table 6. General results of XRD analysis of the samples obtained in the experiments in the systems MFe2O4–FeSO4∙7H2O and MFe2O4–Fe2(SO4)3∙9H2O, where M is Zn, Cu or Zn0.5Cu0.5, at 550–700 °C for 60–240 min in molar ratios from 1:0.5 to 1:4 excluding hydrated moisture.
Table 6. General results of XRD analysis of the samples obtained in the experiments in the systems MFe2O4–FeSO4∙7H2O and MFe2O4–Fe2(SO4)3∙9H2O, where M is Zn, Cu or Zn0.5Cu0.5, at 550–700 °C for 60–240 min in molar ratios from 1:0.5 to 1:4 excluding hydrated moisture.
Temperature, °CPhase Composition of Roasted Samples
550α-Fe2O3
MFe2O4
Fe2(SO4)3
MSO4∙nH2O (<5%)
unidentified phases
600α-Fe2O3
MxFe2O4
MSO4∙nH2O
650α-Fe2O3
MxFe2O4
MSO4∙nH2O
700α-Fe2O3
MxFe2O4
MSO4∙nH2O (<5%)
Table
Table 7. Comparison of various kinetic models for the sulfating zinc and copper during the roasting at 600 and 650 °C with the addition of 48% Fe2(SO4)3·9H2O to 100% ZPR.
Table 7. Comparison of various kinetic models for the sulfating zinc and copper during the roasting at 600 and 650 °C with the addition of 48% Fe2(SO4)3·9H2O to 100% ZPR.
Model NameIntegral FormTime Range, minT, °CR2
(Adjusted R-Squared)		T, °CR2
(Adjusted R-Squared)
ZnCuZnCu
Jander[1 − (1 − x)1/3]20–12.56000.72470.57976500.82750.7160
12.5–906000.3372-6500.5000-
Hinstling-
Brounstein		1 − 2x/3 − (1 − x)2/30–12.56000.77160.64846500.85380.7563
12.5–906000.4211-6500.5693-
Shrinking sphere1 − (1 − x)1/30–12.56000.95620.85996500.98020.9569
12.5–906000.6074-6500.7959-
Erofeev-Avrami n = 2[−ln(1 − x)]1/20–12.56000.97380.99066500.96440.9741
12.5–906000.8030-6500.9691-
Erofeev-Avrami n = 3[−ln(1 − x)]1/30–12.56000.83330.91396500.83310.8361
12.5–906000.9837-6500.9653-
Erofeev-Avrami n = 4[−ln(1 − x)]1/40–12.56000.69680.50046500.71220.7138
12.5–906000.9571-6500.8578-
Chemical reaction of first order−ln(1 − x)0–12.56000.90770.74696500.95780.9125
12.5–906000.4351-6500.6597-
Chemical reaction of second order(1 − x)−1 − 10–12.56000.72780.47786500.86390.7578
12.5–906000.2317-6500.4316-
Table
Table 8. Parameters 1 of the illustrated in Figure 14 Mössbauer spectra of ZPR roasted with the addition of 48% Fe2(SO4)3∙9H2O during 180 min at 600 °C, as well as of the same sample after water leaching.
Table 8. Parameters 1 of the illustrated in Figure 14 Mössbauer spectra of ZPR roasted with the addition of 48% Fe2(SO4)3∙9H2O during 180 min at 600 °C, as well as of the same sample after water leaching.
Temperature of Spectra Collecting, K29678
SampleSubspectrum, #PhaseδΔ = 2εΓexpHeffSδΔ = 2εΓexpHeffS
mm/smm/smm/skOe%mm/smm/smm/skOe%
Roasted 1α-Fe2O30.37−0.180.32513.321.80.480.330.33539.618
2γ-Fe2O30.31−0.010.55488.2230.470.050.41526.517
30.32−0.081.17441170.41−0.030.67508.329
4FeSO4∙H2O1.262.720.47-3.61.373.120.71-5.3
5Fe2O(SO4)2∙xH2O0.400.600.63-210.500.610.57-21
6ZnFe2O40.350.410.29-140.460.370.30-10
Leached1α-Fe2O30.37−0.190.32513.931.40.480.380.30539.727
2γ-Fe2O30.33−0.030.72486.8260.470.020.53527.230
30.34−0.031.77438190.410.010.7450524
6ZnFe2O40.350.440.35-11.30.440.410.32-9
7Fe+3Oh0.33-1.77-11.90.44-2.0-11
1 δ—isomer shift; Δ = 2ε—quadrupole splitting; Γexp—line width; Heff—hyperfine magnetic field; S—relative area of a subspectrum #.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Grudinsky, P.; Pankratov, D.; Kovalev, D.; Grigoreva, D.; Dyubanov, V. Comprehensive Study on the Mechanism of Sulfating Roasting of Zinc Plant Residue with Iron Sulfates. Materials 2021, 14, 5020. https://doi.org/10.3390/ma14175020

AMA Style

Grudinsky P, Pankratov D, Kovalev D, Grigoreva D, Dyubanov V. Comprehensive Study on the Mechanism of Sulfating Roasting of Zinc Plant Residue with Iron Sulfates. Materials. 2021; 14(17):5020. https://doi.org/10.3390/ma14175020

Chicago/Turabian Style

Grudinsky, Pavel, Denis Pankratov, Dmitry Kovalev, Darya Grigoreva, and Valery Dyubanov. 2021. "Comprehensive Study on the Mechanism of Sulfating Roasting of Zinc Plant Residue with Iron Sulfates" Materials 14, no. 17: 5020. https://doi.org/10.3390/ma14175020

APA Style

Grudinsky, P., Pankratov, D., Kovalev, D., Grigoreva, D., & Dyubanov, V. (2021). Comprehensive Study on the Mechanism of Sulfating Roasting of Zinc Plant Residue with Iron Sulfates. Materials, 14(17), 5020. https://doi.org/10.3390/ma14175020

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
