Pilot Scale Production of Precast Concrete Elements with Wood Biomass Ash
Abstract
:1. Introduction
2. Materials and Methods
2.1. Wood Biomass Ash
2.2. Concrete Mix Design
2.3. Methods
3. Results and Discussion
3.1. WBA Assessment
3.2. Influence of WBA on Fresh Concrete Properties
3.3. Influence of WBA on Hardened Concrete Properties

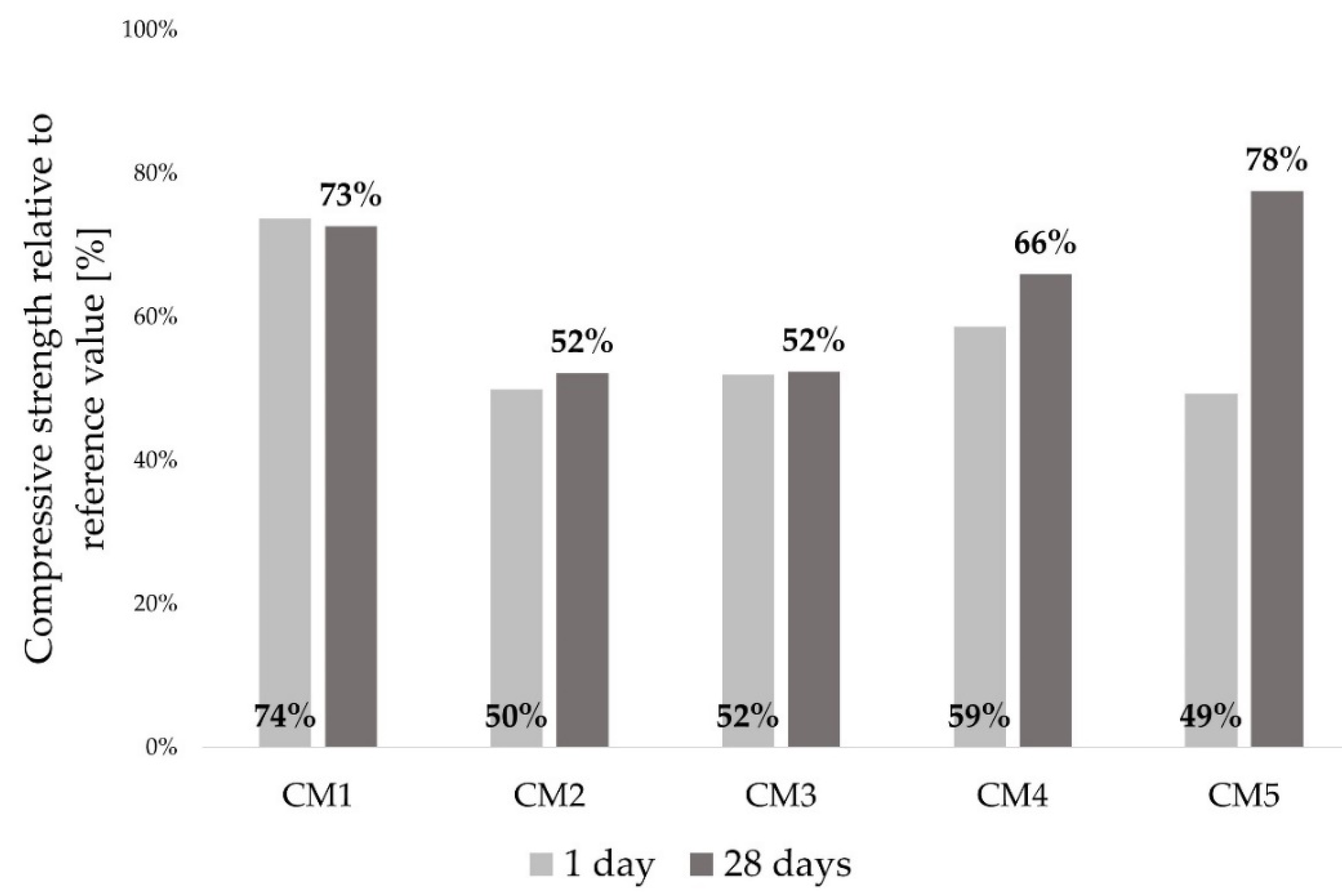

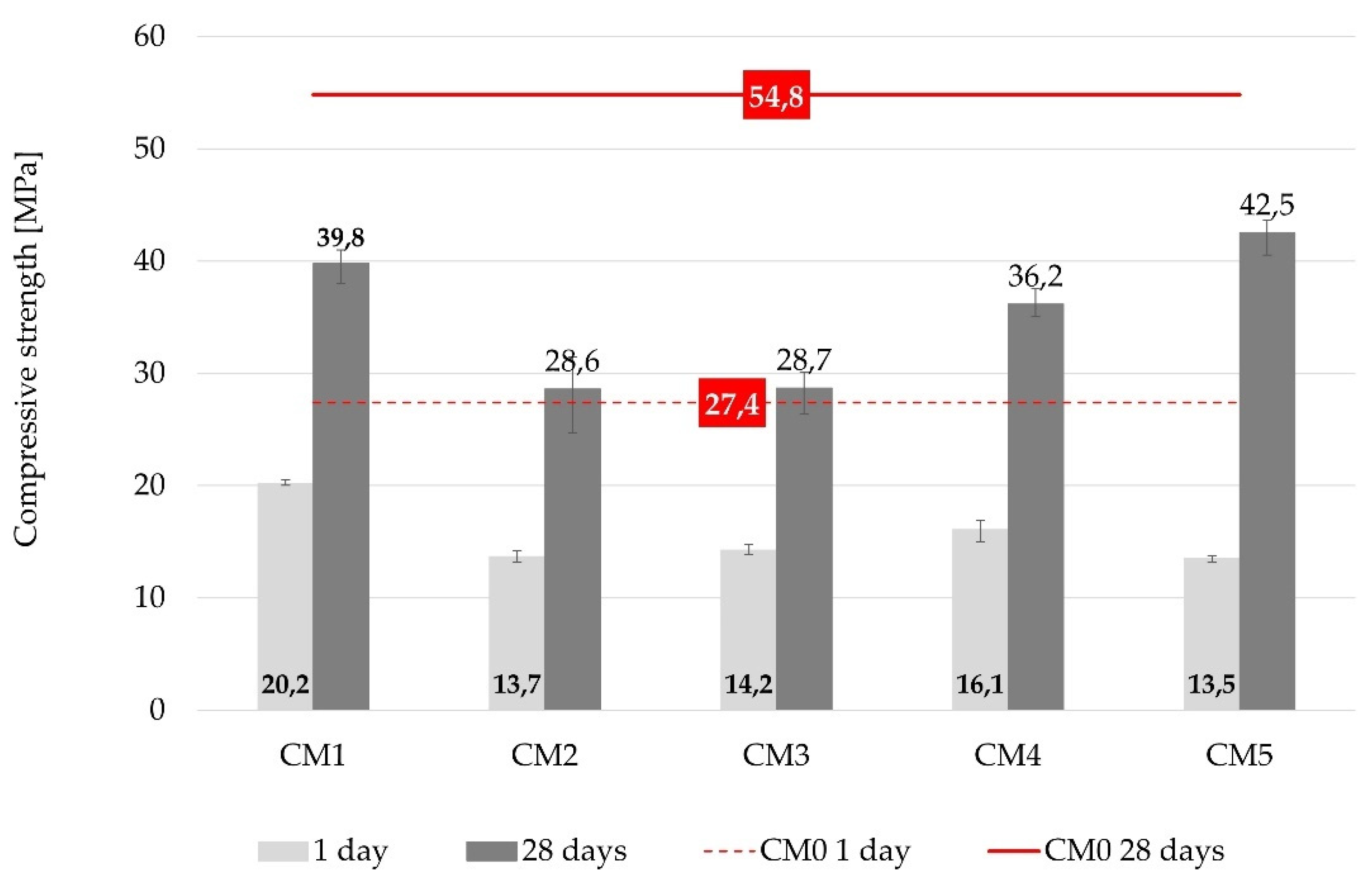

3.3.1. Compressive Strength

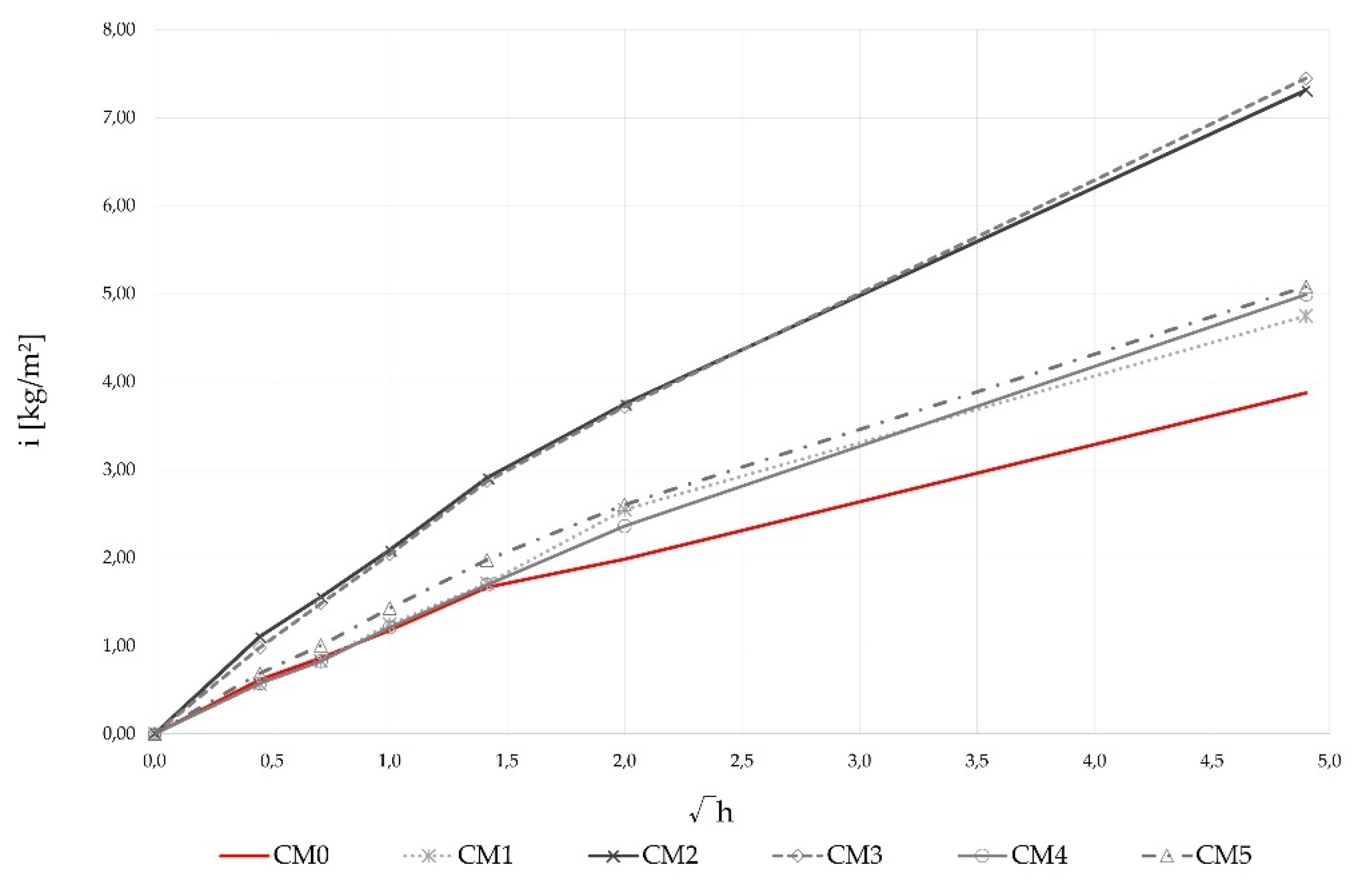

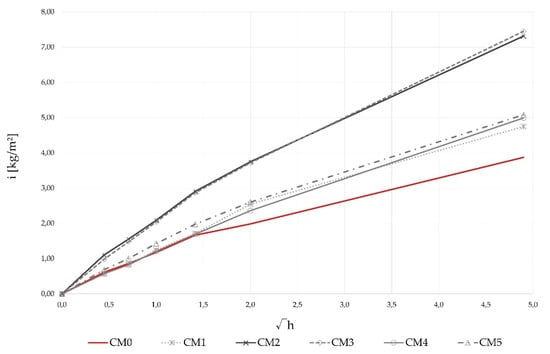

3.3.2. Capillary Absorption

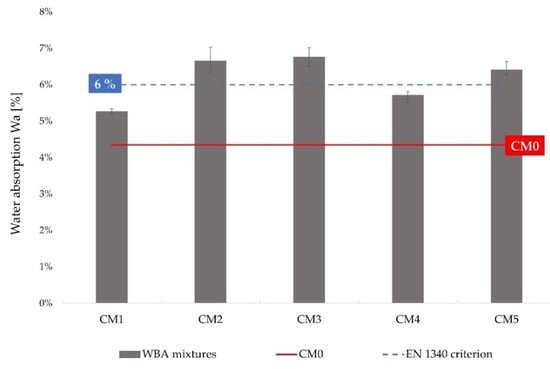

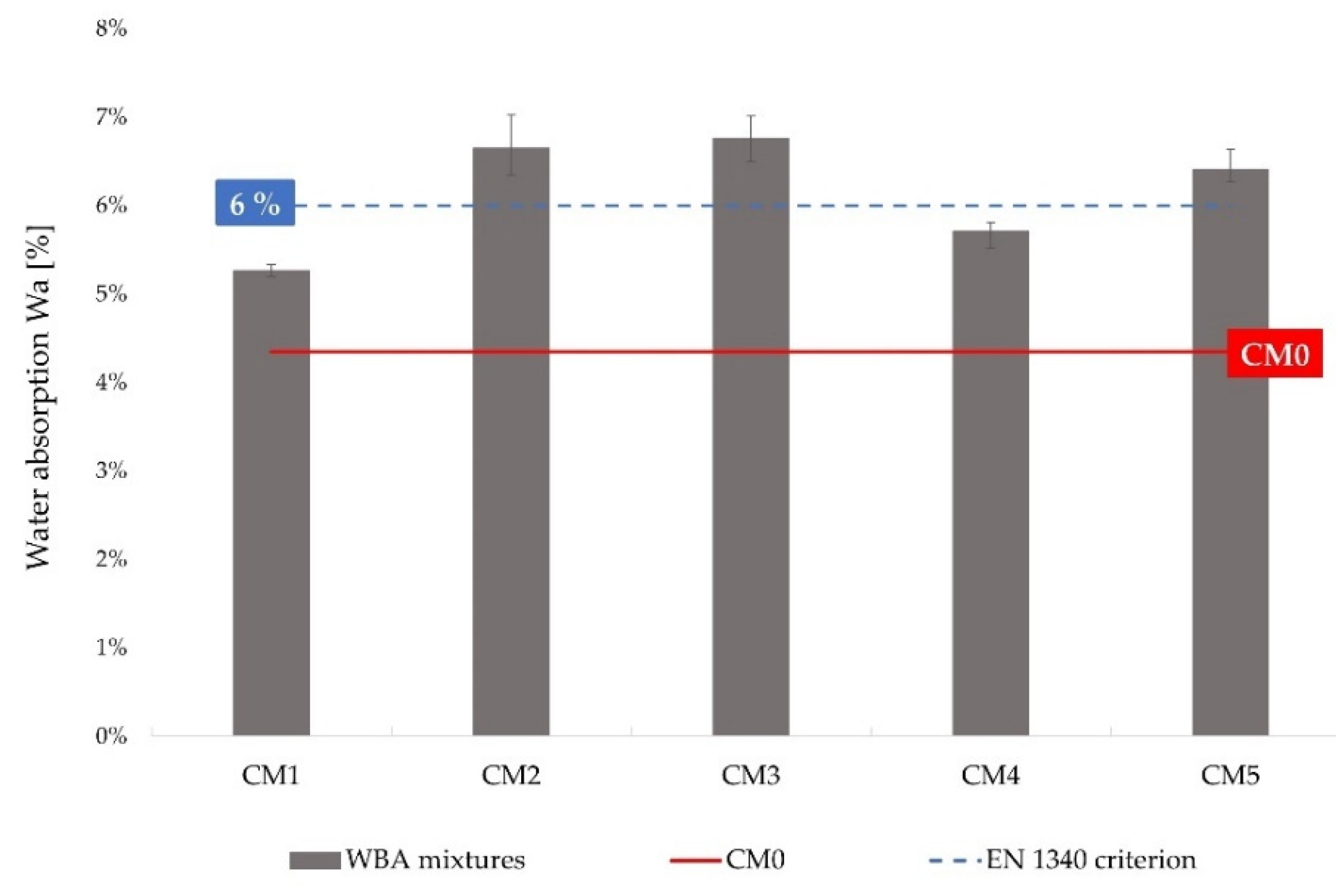

3.3.3. Total Water Absorption

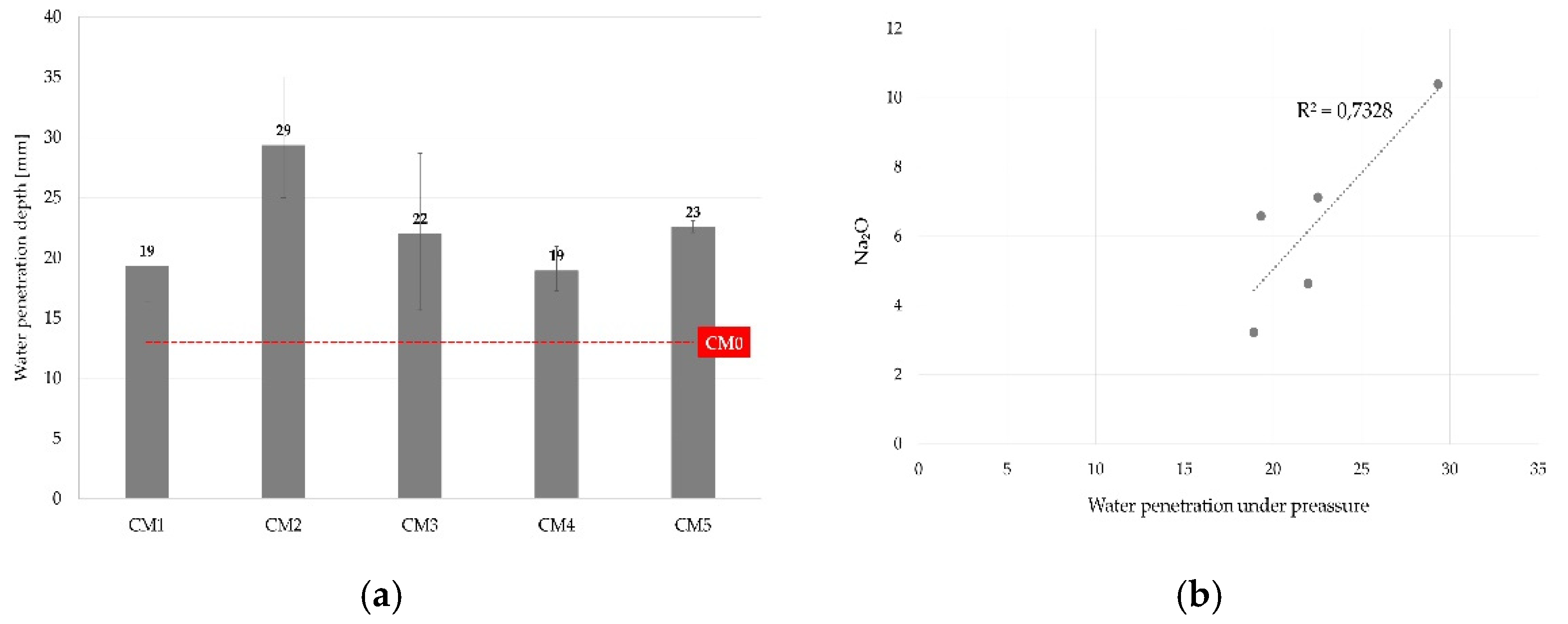

3.3.4. Depth of Penetration of Water under Pressure

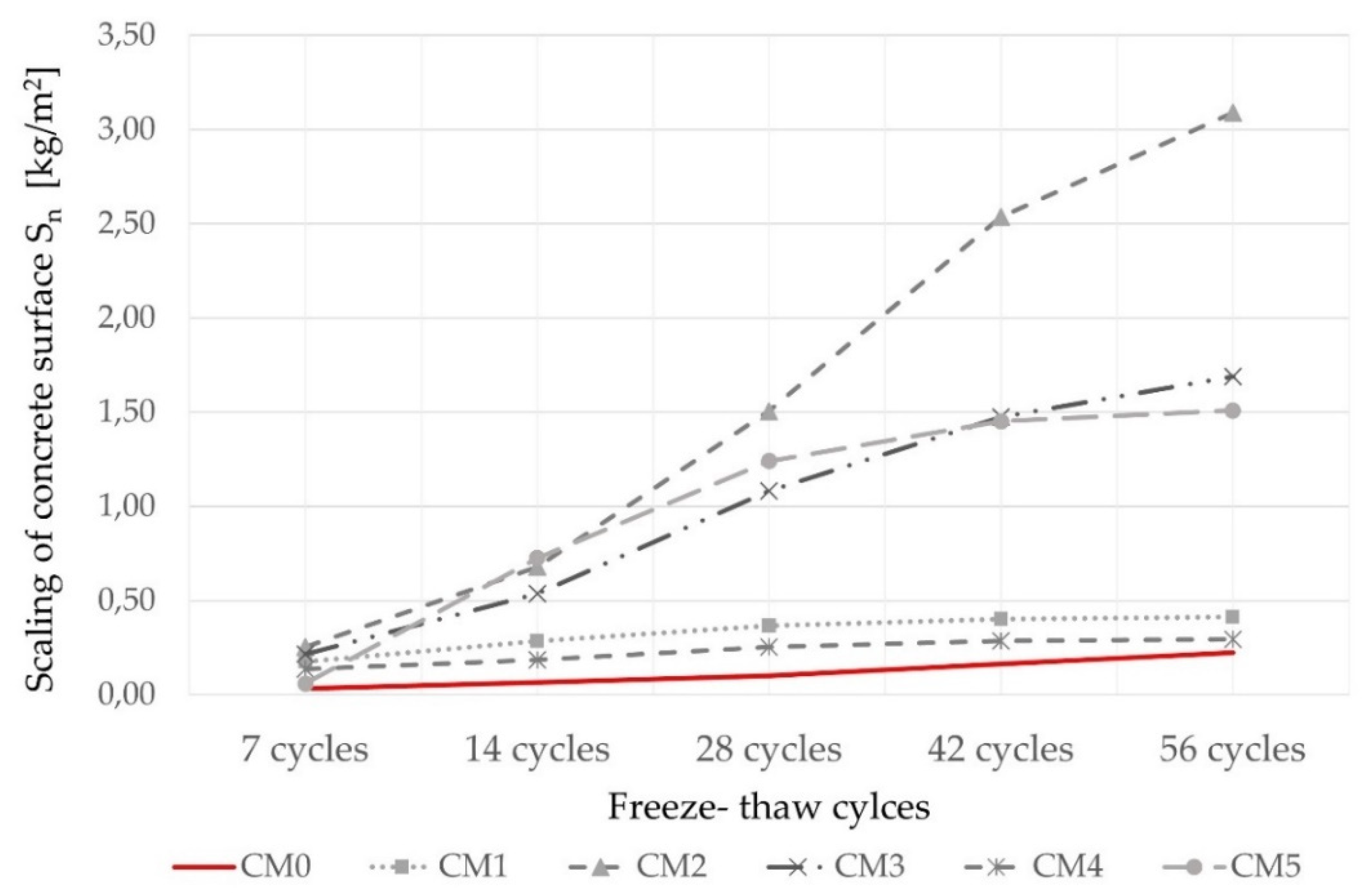

3.3.5. Freeze–Thaw Resistance with De-Icing Salts

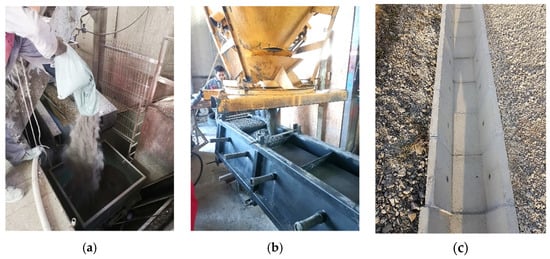

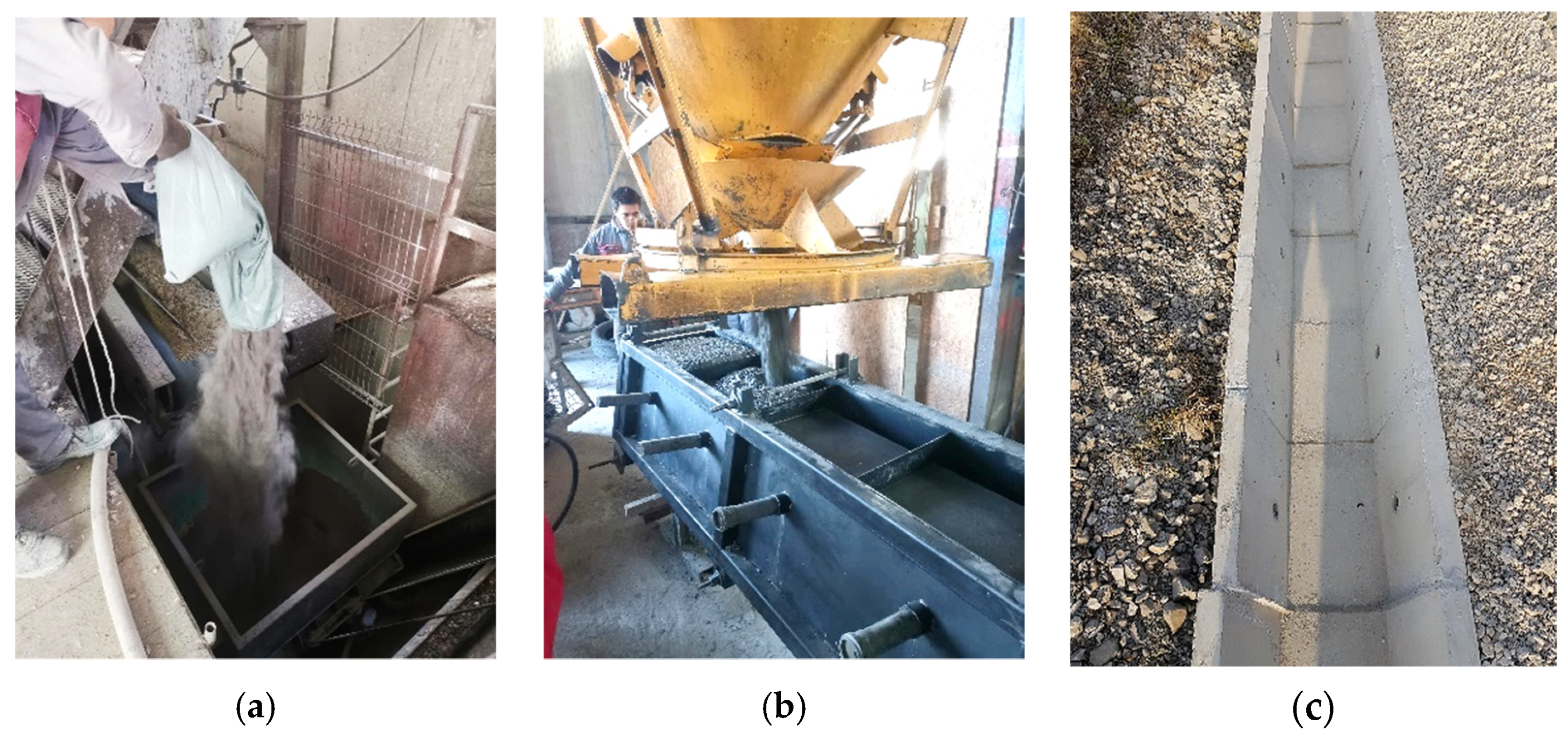

3.4. Assessing Feasibility of WBA Implementation as SCM in a Large-Scale Industrial Environment
4. Conclusions
- After chemical analysis of the WBAs, a predominance of CaO was found at lower density values. Higher LOI and Na2Oeq values were the main features of the fluctuating chemical compositions of the WBAs and were primarily reflected in the concrete properties in fresh and hardened states. All the WBA samples exhibited coarser particle size distribution compared to the cement sample, except for the WBA2 sample;
- SEM microscopic images showed a non-uniform structure, inhomogeneous particle surface, and particles of different shapes, with porous, non-spherical particles predominating. The WBA with the most spherical particles was WBA3;

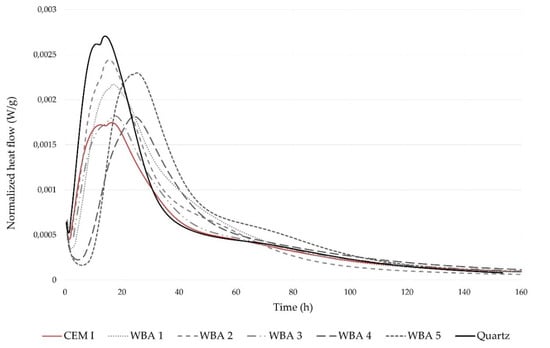

- Based on the results of hydration analysis, prolonged setting time and lower early compressive strength of composites with WBA are expected due to the prolonged induction time, regardless of the type and chemical properties of WBA;
- Partial cement replacement with WBA did not significantly affect, i.e., reduce, the density of fresh concrete. The inconsistency in the number of pores in fresh concrete is presumably caused by higher LOI share in WBAs, affecting the stability of air content;
- As a result of the consistency tests, all concrete mixes showed the same trend of increased water demand. Utilization of WBA as a partial substitute for cement unfavorably alters the slump of concrete. The reduced workability caused by the replacement of cement by WBA is strongly dependent on the WBA type;
- Using WBA as a partial cement replacement up to 15 wt% reduced the compressive strength of concrete. An indicator of achieving higher compressive strengths with partial cement replacement is a higher sum of pozzolanic oxides;
- By adding WBA to concrete as cement replacement, capillary absorption, water absorption, and the penetration depth of water under pressure increased. In addition to the influence of alkalis, WBA could lead to a change in microstructure and thus to certain properties;
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Masson-Delmotte, V.; Zhai, P.; Pörtner, H.-O.; Roberts, D.; Skea, J.; Shukla, P.R.; Pirani, A.; Moufouma-Okia, W.; Péan, C.; Pidcock, R.; et al. IPCC, 2018: Global Warming of 1.5 °C; Intergovernmental Panel on Climate Change: Geneva, Switzerland, 2018. [Google Scholar]
- Masson-Delmotte, V.; Zhai, P.; Pörtner, H.-O.; Roberts, D.; Skea, J.; Shukla, P.R.; Pirani, A.; Moufouma-Okia, W.; Péan, C.; Pidcock, R.; et al. Climate Change 2021: The Physical Science Basis. Contribution of Working Group I to the Sixth Assessment Report of the Intergovernmental Panel on Climate Change; Intergovernmental Panel on Climate Change: Geneva, Switzerland, 2021. [Google Scholar]
- EIT. Climate-Knowledge and Innovation Community. Available online: https://www.climate-kic.org/ (accessed on 25 August 2021).
- The Core Writing Team; Pachauri, R.K.; Meyer, L. (Eds.) IPCC, 2014: Climate Change 2014: Synthesis Report. Contribution of Working Groups I, II and III to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Intergovernmental Panel on Climate Change: Geneva, Switzerland, 2014. [Google Scholar]
- Le Quéré, C.; Jackson, R.B.; Jones, M.W.; Smith, A.J.P.; Abernethy, S.; Andrew, R.M.; De-Gol, A.J.; Willis, D.R.; Shan, Y.; Canadell, J.G.; et al. Temporary reduction in daily global CO2 emissions during the COVID-19 forced confinement. Nat. Clim. Change 2020, 10, 647–653. [Google Scholar] [CrossRef]
- Keeling, C.D.; Piper, S.C.; Bacastow, R.B.; Wahlen, M.; Whorf, T.P.; Heimann, M.; Meijer, H.A. Exchanges of Atmospheric CO2 and 13CO2 with the Terrestrial Biosphere and Oceans from 1978 to 2000; Scripps Digital Collection-UC San Diego Library: La Jolla, CA, USA, 2001; pp. 1–6. Available online: https://escholarship.org/uc/item/09v319r9 (accessed on 31 October 2021).
- European Commission European Green Deal: Commission Proposes Transformation of EU Economy and Society to Meet Climate Ambitions. EU Reporter, 16 July 2021.
- European Commission. Communication from the Commission to the European Parliament, the European Council, the Council, the European Economic and Social Committee and the Committee of the Regions The European Green Deal. 2019. Available online: https://op.europa.eu/en/publication-detail/-/publication/b828d165-1c22-11ea-8c1f-01aa75ed71a1 (accessed on 31 October 2021).
- Andrew, R.M. Global CO2 emissions from cement production, 1928–2018. Earth Syst. Sci. Data 2019, 11, 67. [Google Scholar] [CrossRef] [Green Version]
- Blessen Skariah, T. Green concrete partially comprised of rice husk ash as a supplementary cementitious material—A comprehensive review. Renew. Sustain. Energy Rev. 2018, 82, 3913–3923. [Google Scholar] [CrossRef]
- Miller, S.A.; Cunningham, P.R.; Harvey, J.T. Rice-based ash in concrete: A review of past work and potential environmental sustainability. Resour. Conserv. Recycl. 2019, 146, 416–430. [Google Scholar] [CrossRef]
- Fort, J.; Šál, J.; Ševcík, R.; Dolezelová, M.; Keppert, M.; Jerman, M.; Záleská, M.; Stehel, V.; Cerny, R. Biomass fly ash as an alternative to coal fly ash in blended cements: Functional aspects. Constr. Build. Mater. 2021, 271. [Google Scholar] [CrossRef]
- Aguiara, F.C.; Bentz, J.; Silva, J.M.N.; Fonseca, A.L.; Swart, R.; Santos, F.D.; Penha-Lopes, G. Adaptation to climate change at local level in Europe: An overview. Environ. Sci. Policy 2018, 86, 38–63. [Google Scholar] [CrossRef]
- International Energy Agency. Technology Roadmap—Low-Carbon Transition in the Cement Industry; IEA: Zurich, Switzerland, 2018; p. 66. [Google Scholar]
- Directive (EU) 2018/2001 of the European Parliament and of the Council of 11 December 2018 on the promotion of the use of energy from renewable sources (recast). Off. J. Eur. Union 2018, L 328, 82–209.
- European Commission. Proposal for a Directive of the European Parliament and of the Council amending Directive 2003/87/EC Establishing a System for Greenhouse Gas Emission Allowance Trading within the Union; European Commission: Brussels, Belgium, 2021. [Google Scholar]
- Carević, I.; Baričević, A.; Štirmer, N.; Šantek Bajto, J. Correlation between physical and chemical properties of wood biomass ash and cement composites performances. Constr. Build. Mater. 2020, 256, 14. [Google Scholar] [CrossRef]
- Scarlat, N.; Dallemand, J.-F.; Taylor, N.; Banja, M. Brief on Biomass for Energy in the European Union; Javier, S.L., Marios, A., Eds.; Publications Office of the European Union: Luxembourg, 2016. [Google Scholar]
- Adeleke, A.A.; Ikubanni, P.P.; Orhadahwe, T.A.; Christopher, C.T.; Akano, J.M.; Agboola, O.O.; Adegoke, S.O.; Balogun, A.O.; Ibikunle, R.A. Sustainability of multifaceted usage of biomass: A review. Heliyon 2021, 7, e08025. [Google Scholar] [CrossRef]
- IEA Bioenergy. Technology Roadmap Delivering Sustainable Bioenergy; IEA: Paris, France, 2017; p. 89. [Google Scholar]
- Independent Group of Scientists Appointed by the Secretary-General. Global Sustainable Development Report 2019: The Future is Now—Science for Achieving Sustainable Development; United Nations: New York, NY, USA, 2019. [Google Scholar]
- International Energy Agency. World Energy Model Documentation; IEA: Paris, France, 2021. [Google Scholar]
- Sulaiman, C.; Abdul-Rahim, A.S.; Ofozor, C.A. Does wood biomass energy use reduce CO2 emissions in European Union member countries? Evidence from 27 members. J. Clean. Prod. 2020, 253, 119996. [Google Scholar] [CrossRef]
- Milovanović, B.; Štirmer, N.; Carević, I.; Baričević, A. Wood biomass ash as a raw material in concrete industry. Građevinar 2019, 71, 505–514. [Google Scholar] [CrossRef]
- Ukrainczyk, N.; Vrbos, N.; Koenders, E.A.B. Reuse of Woody Biomass Ash Waste in Cementitious Materials. Chem. Biochem. Eng. Q. 2016, 30, 137–148. [Google Scholar] [CrossRef]
- Cheah, C.B.; Ramli, M. The implementation of wood waste ash as a partial cement replacement material in the production of structural grade concrete and mortar: An overview. Resour. Conserv. Recycl. 2011, 55, 669–685. [Google Scholar] [CrossRef]
- Maresca, A.; Hyks, J.; Astrup, T.F. Recirculation of biomass ashes onto forest soils: Ash composition, mineralogy and leaching properties. Waste Manag. 2017, 70, 127–138. [Google Scholar] [CrossRef] [Green Version]
- Freire, M.; Lopes, H.; Tarelho, L.A.C. Critical aspects of biomass ashes utilization in soils: Composition, leachability, PAH and PCDD/F. Waste Manag. 2015, 46, 304–315. [Google Scholar] [CrossRef] [Green Version]
- Pesonen, J.; Kuokkanen, T.; Rautio, P.; Lassi, U. Bioavailability of nutrients and harmful elements in ash fertilizers: Effect of granulation. Biomass Bioenergy 2017, 100, 92–97. [Google Scholar] [CrossRef] [Green Version]
- Agrela, F.; Cabrera, M.; Morales, M.M.; Zamorano, M.; Alshaaer, M. Biomass fly ash and biomass bottom ash. In New Trends in Eco-Efficient and Recycled Concrete; Woodhead Publishing: Sawston, UK, 2019; pp. 23–58. ISBN 9780081024805. [Google Scholar]
- IEA Bioenergy. IEA Bioenergy Task 32—Deliverable D7: Options for Increased Use of Ash from Biomass Combustion and Co-Firing; IEA: Paris, France, 2018. [Google Scholar]
- Directive (EU) 2018/851 of the European Parliament and of the Council of 30 May 2018 amending Directive 2008/98/EC on waste. Off. J. Eur. Union 2018, L 150, 109–140. [CrossRef]
- Directive of the European Parliament and of the Council of 30 May 2018 amending Directive 1999/31/EC on the landfill of waste. Off. J. Eur. Union 2018, L 150, 100–108.
- Van Eijk, R.J.; Obernberger, I.; Supancic, K. IEA Bioenergy Task 32—Deliverable D4: Options for Increased Utilization of Ash from Biomass Combustion and Co-Firing; IEA: Arnhem, The Netherlands, 2012. [Google Scholar]
- Aprianti, E.; Shafigh, P.; Bahri, S. Javad Nodeh Farahani Supplementary cementitious materials origin from agricultural wastes—A review. Constr. Build. Mater. 2015, 74, 176–187. [Google Scholar] [CrossRef]
- Udoeyo, F.F.; Inyang, H.; Young, D.T.; Oparadu, E.E. Potential of wood waste ash as an additive in concrete. J. Mater. Civ. Eng. 2006, 18, 605–611. [Google Scholar] [CrossRef]
- Carević, I.; Štirmer, N.; Trkmić, M.; Jurić, K.K. Leaching characteristics of wood biomass fly ash cement composites. Appl. Sci. 2020, 10, 8704. [Google Scholar] [CrossRef]
- Chowdhury, S.; Mishra, M.; Suganya, O. The incorporation of wood waste ash as a partial cement replacement material for making structural grade concrete: An overview. Ain Shams Eng. J. 2015, 6, 429–437. [Google Scholar] [CrossRef] [Green Version]
- Rajamma, R.; Ball, R.J.; Tarelho, L.A.C.; Allen, G.C.; Labrincha, J.A.; Ferreira, V.M. Characterisation and use of biomass fly ash in cement-based materials. J. Hazard. Mater. 2009, 172, 1049–1060. [Google Scholar] [CrossRef]
- Fava, G.; Naik, T.R.; Pierpaoli, M. Compressive strength and leaching behavior of mortars with biomass ash. Recycling 2018, 3, 46. [Google Scholar] [CrossRef] [Green Version]
- Wang, S.; Llamazos, E.; Baxter, L.; Fonseca, F. Durability of biomass fly ash concrete: Freezing and thawing and rapid chloride permeability tests. Fuel 2008, 87, 359–364. [Google Scholar] [CrossRef]
- Chowdhury, S.; Maniar, A.; Suganya, O.M. Strength development in concrete with wood ash blended cement and use of soft computing models to predict strength parameters. J. Adv. Res. 2014, 6, 907–913. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ramos, T.; Matos, A.M.; Sousa-Coutinho, J. Mortar with wood waste ash: Mechanical strength carbonation resistance and ASR expansion. Constr. Build. Mater. 2013, 49, 343–351. [Google Scholar] [CrossRef]
- Teixeira, E.R.; Camões, A.; Branco, F.G. Valorisation of wood fly ash on concrete. Resour. Conserv. Recycl. 2019, 145, 292–310. [Google Scholar] [CrossRef]
- Wang, S.; Miller, A.; Llamazos, E.; Fonseca, F.; Baxter, L. Biomass fly ash in concrete: Mixture proportioning and mechanical properties. Fuel 2008, 87, 365–371. [Google Scholar] [CrossRef]
- Ottosen, L.M.; Hansen, E.Ø.; Jensen, P.E.; Kirkelund, G.M.; Golterman, P. Wood ash used as partly sand and/or cement replacement in mortar. Int. J. Sustain. Dev. Plan. 2016, 11, 781–791. [Google Scholar] [CrossRef] [Green Version]
- Carević, I. Characterization of Cement Composites with Fly Ash from Wood Biomass. Doctoral thesis, University of Zagreb, Faculty of Civil Engineering, Zagreb, Croatia, 2020. [Google Scholar]
- Medina, J.M.; Sáez del Bosque, I.F.; Frías, M.; Sánchez de Rojas, M.I.; Medina, C. Durability of new blended cements additioned with recycled biomass bottom ASH from electric power plants. Constr. Build. Mater. 2019, 225, 429–440. [Google Scholar] [CrossRef]
- Kostanić Jurić, K.; Carević, I.; Serdar, M.; Štirmer, N. Feasibility of using pozzolanicity tests to assess reactivity of wood biomass fly ashes. Građevinarevinar 2021, 72, 1145–1153. [Google Scholar] [CrossRef]
- EN 206:2021 Concrete—Specification, Performance, Production and Conformity; CEN: Brussels, Belgium, 2021.
- Carevic, I.; Štirmer, N.; Serdar, M.; Ukrainczyk, N. Effect of wood biomass ash storage on the properties of cement composites. Materials 2021, 14, 1632. [Google Scholar] [CrossRef] [PubMed]
- Vassilev, S.V.; Baxter, D.; Andersen, L.K.; Vassileva, C.G. An overview of the composition and application of biomass ash. Part 1. Phase-mineral and chemical composition and classification. Fuel 2013, 105, 40–76. [Google Scholar] [CrossRef]
- Yang, Z.; Huddleston, J.; Brown, H. Effects of Wood Ash on Properties of Concrete and Flowable Fill. J. Mater. Sci. Chem. Eng. 2016, 4, 101–114. [Google Scholar] [CrossRef] [Green Version]
- EN 196-11:2019 Methods of testing Cement—Part 11: Heat of Hydration—Isothermal Conduction Calorimetry Method; CEN: Brussels, Belgium, 2019.
- EN 450-1:2013 Fly Ash for Concrete—Part 1: Definition, Specifications an Conformity Criteria; CEN: Brussels, Belgium, 2013.
- Carević, I.; Serdar, M.; Štirmer, N.; Ukrainczyk, N. Preliminary screening of wood biomass ashes for partial resources replacements in cementitious materials. J. Clean. Prod. 2019, 229, 1045–1064. [Google Scholar] [CrossRef]
- Siddique, R.; Cachim, P. Waste and Supplementary Cementitious Materials in Concrete; Woodhead Publishing: Sawston, UK, 2018; ISBN 978-0-08-102156-9. [Google Scholar]
- Sigvardsen, N.M.; Kirkelund, G.M.; Jensen, P.E.; Geiker, M.R.; Ottosen, L.M. Impact of production parameters on physiochemical characteristics of wood ash.pdf. Resour. Conserv. Recycl. 2019, 145, 230–240. [Google Scholar] [CrossRef]
- Abdullahi, M. Characteristics of Wood ASH/OPC Concrete. Leonardo Electron. J. Pract. Technol. 2006, 8, 9–16. [Google Scholar]
- Arjunan, P.; Kumar, A. Rapid techniques for determination of free lime and free magnesia in cement clinker and portlandite in hydrates. Cem. Concr. Res. 1994, 24, 343–352. [Google Scholar] [CrossRef]
- Chatterji, S. Mechanism of expansion of concrete due to the presence of dead-burnt CaO and MgO. Cem. Concr. Res. 1995, 25, 51–56. [Google Scholar] [CrossRef]
- Vassilev, S.V.; Baxter, D.; Andersen, L.K.; Vassileva, C.G. An overview of the chemical composition of biomass. Fuel 2010, 89, 913–933. [Google Scholar] [CrossRef]
- Vassilev, S.V.; Baxter, D.; Andersen, L.K.; Vassileva, C.G. An overview of the composition and application of biomass ash.: Part 2. Potential utilisation, technological and ecological advantages and challenges. Fuel 2013, 105, 19–39. [Google Scholar] [CrossRef]
- EN 196-2 Methods of Testing Cement—Part 2: Chemical Analysis of Cement; CEN: Brussels, Belgium, 2013.
- Maschio, S.; Tonello, G.; Piani, L.; Furlani, E. Fly and bottom ashes from biomass combustion as cement replacing components in mortars production: Rheological behaviour of the pastes and materials compression strength. Chemosphere 2011, 85, 666–671. [Google Scholar] [CrossRef]
- Rissanen, J.; Ohenoja, K.; Kinnunen, P.; Romagnoli, M.; Illikainen, M. Milling of peat-wood fly ash: Effect on water demand of mortar and rheology of cement paste. Constr. Build. Mater. 2018, 180, 143–153. [Google Scholar] [CrossRef]
- Naik, T.R.; Kraus, R.N.; McCormick, S. Recycling of wood ash in cement-based construction materials. In Proceedings of the 4th Biennial Residual Wood Conference, “Residue-to-Revenue”, Richmond, BC, Canada, 4–6 November 2001. [Google Scholar]
- Naik, T.R. Wood Ash: As A New Source of Pozzolanic Material. Concr. Int. 2003, 25, 55–62. [Google Scholar]
- Sklivaniti, V.; Tsakiridis, P.E.; Katsiotis, N.S.; Velissariou, D.; Pistofidis, N.; Papageorgiou, D.; Beazi, M. Valorisation of woody biomass bottom ash in Portland cement: A characterization and hydration study. J. Environ. Chem. Eng. 2017, 5, 205–213. [Google Scholar] [CrossRef]
- Cheah, C.B.; Part, W.K.; Ramli, M. The hybridizations of coal fly ash and wood ash for the fabrication of low alkalinity geopolymer load bearing block cured at ambient temperature. Constr. Build. Mater. 2015, 88, 41–55. [Google Scholar] [CrossRef]
- Wang, S.; Baxter, L.; Fonseca, F. Biomass fly ash in concrete: SEM, EDX and ESEM analysis. Fuel 2008, 87, 372–379. [Google Scholar] [CrossRef]
- Ukrainczyk, N.; Ukrainczyk, M.; Sipusic, J. XRD and TGA investigation of hardened cement paste. In Proceedings of the MATRIB 2006 International Conference on Materials, Processes, Friction and Wear, Vela Luka, Croatia, 22–24 June 2006. [Google Scholar]
- Tkaczewska, E.; Małolepszy, J. Hydration of coal-biomass fly ash cement. Constr. Build. Mater. 2009, 23, 2694–2700. [Google Scholar] [CrossRef]
- Snellings, R.; Kazemi-Kamyab, H.; Nielsen, P.; Van den Abeele, L. Classification and Milling Increase Fly Ash Pozzolanic Reactivity. Front. Built Environ. 2021, 7, 1–13. [Google Scholar] [CrossRef]
- Skibsted, J.; Snellings, R. Reactivity of supplementary cementitious materials (SCMs) in cement blends. Cem. Concr. Res. 2019, 124, 1190–1199. [Google Scholar] [CrossRef]
- Meko, B.; Ighalo, J.O. Utilization of Cordia Africana wood sawdust ash as partial cement replacement in C 25 concrete. Clean. Mater. 2021, 1, 100012. [Google Scholar] [CrossRef]
- Rajamma, R.; Senff, L.; Ribeiro, M.J.; Labrincha, J.A.; Ball, R.J.; Allen, G.C.; Ferreira, V.M. Biomass fly ash effect on fresh and hardened state properties of cement based materials. Compos. Part B Eng. 2015, 77, 1–9. [Google Scholar] [CrossRef]
- Chusilp, N.; Jaturapitakkul, C.; Kiattikomol, K. Effects of LOI of ground bagasse ash on the compressive strength and sulfate resistance of mortars. Constr. Build. Mater. 2009, 23, 3523–3531. [Google Scholar] [CrossRef]
- Leiva, C.; Vilches, L.F.; Vale, J.; Olivares, J.; Fernández-pereira, C. Effect of carbonaceous matter contents on the fire resistance and mechanical properties of coal fly ash enriched mortars. Fuel 2008, 87, 2977–2982. [Google Scholar] [CrossRef]
- Carević, I.; Banjad Pečur, I.; Štirmer, N. Utilization of Wood Biomass Ash (WBA) in the Cement Composites. In Proceedings of the ICBBM 2017—2nd International Conference on Bio-based Building Materials, Clermont-Ferrand, France, 21–23 June 2017; Amziane, S., Sonebi, M., Eds.; RILEM Publications S.A.R.L.: Paris, France, 2017; pp. 196–201. [Google Scholar]
- Carević, I.; Štirmer, N.; Pečur, I.B. Primjena pepela iz drvne biomase kao zamjena cementa u betonu. In Proceedings of the Zajednički Temelji 2017. Peti Skup Mladih Istraživača iz Područja Građevinarstva i Srodnih Tehničkih Znanosti, Zagreb, Croatia, 18–19 September 2021; Gilja, G., Haladin, I., Lukačević, I., Eds.; University of Zagreb, Faculty of Civil Engineering: Zagreb, Croatia, 2017; pp. 155–161. [Google Scholar]
- Sashidhar, C.; Sudarsana Rao, H. Durability Studies on Concrete With Wood Ash Additive. In Proceedings of the 35th Conference on Our World in Concrete Structures, Singapore, 25–27 August 2010. [Google Scholar]
- Udoeyo, F.F.; Dashibil, P.U. Sawdust Ash as Concrete Material. J. Mater. Civ. Eng. 2002, 14, 173–176. [Google Scholar] [CrossRef]
- Batt, A.S.; Garg, A. Partial Replacement of Wood Ash with Ordinary Portland Cement and Foundry Sand as Fine Aggregate. J. Civ. Environ. Eng. 2017, 7, 1–5. [Google Scholar] [CrossRef] [Green Version]
- Elahi, M.; Qazi, A.U.; Yousaf, M.; Akmal, U. Application of wood ash in the production of concrete. Sci. Int. 2015, 27, 1277–1280. [Google Scholar]
- Elinwa, A.U.; Mahmood, Y.A. Ash from timber waste as cement replacement material. Cem. Concr. Compos. 2002, 24, 219–222. [Google Scholar] [CrossRef]
- Cheah, C.B.; Ramli, M. Mechanical strength, durability and drying shrinkage of structural mortar containing HCWA as par-tial replacement of cement. Constr. Build. Mater. 2012, 30, 320–329. [Google Scholar] [CrossRef]
- Hamid, Z.; Rafiq, S. An experimental study on behavior of wood ash in concrete as partial replacement of cement. Mater. Today Proc. 2021, 46, 3426–3429. [Google Scholar] [CrossRef]
- EN 1340/AC 2007 Concrete Kerb Units—Requirements and test Methods; CEN: Brussels, Belgium, 2007.
- Garcia, M. da L.; Sousa-Coutinho, J. Strength and durability of cement with forest waste bottom ash. Constr. Build. Mater. 2013, 41, 897–910. [Google Scholar] [CrossRef]
- EN 12390-8:2019 Testing Hardened Concrete—Part 8: Depth of Penetration of Water under Pressure; CEN: Brussels, Belgium, 2019.
- Siddique, R. Utilization of wood ash in concrete manufacturing. Resour. Conserv. Recycl. 2012, 67, 27–33. [Google Scholar] [CrossRef]
- Nagrockienė, D.; Daugėla, A. Investigation into the properties of concrete modified with biomass combustion fly ash. Constr. Build. Mater. 2018, 174, 369–375. [Google Scholar] [CrossRef]
- CEN/TS 12390-9:2016 Testing Hardened Concrete—Part 9: Freeze-Thaw Resistance with De-Icing Salts—Scaling 2016; CEN: Brussels, Belgium, 2016.
- European Parliament and the Council Regulation (EU) No 305/2011. Off. J. Eur. Union 2011, L 88, 43–88.
WBAs | Combustion Properties | Biomass | |||
---|---|---|---|---|---|
WBA ID | Visual check | Technology | Temperature | Wood species | |
WBA1 | Fine, grayish, powdery material visually resembling cement, no impurities found. | Biograte | 680 °C | mixed wood | |
WBA2 | Fine powdery material of light gray color visually resembling cement, no impurities were found. | grate pulverized fuel combustion | 700–750 °C | beech, oak, hornbeam, mixed wood | |
WBA3 | Fine powdery material of taupe color visually resembling cement. No impurities were found. | grate combustion | 550 °C | beech, oak, fir, and spruce | |
WBA4 | Fine powdery material of dark gray color with a smaller percentage of impurities. | grate combustion | 980 °C | beech, oak, hornbeam, poplar, ash tree | |
WBA5 | Fine powdery material of dark gray color, small amount of charred wood and larger particles were found. | grate combustion | 700 °C | beech, poplar, pine, mixed wood |
Mix ID | CM0 | CM1 | CM2 | CM3 | CM4 | CM5 | ||
---|---|---|---|---|---|---|---|---|
Binder | Cement [kg] | 420 | 357 | |||||
WBA | [kg] | - | 63 | |||||
[wt%] | 15 | |||||||
Aggregate | 0–4 mm [%] | 47 | ||||||
4–8 mm [%] | 26 | |||||||
8–16 mm [%] | 27 | |||||||
Admixtures | Superplasticizer [%] | 0.50 | w/b = 0.44 | |||||
Air entrainer [%] | 0.10 |
Property | Test Period | Unit | Standard |
---|---|---|---|
Density | Prior to mixing | g/cm3 | ASTM C-188-17 |
Chemical composition | wt.% | ISO/TS 16996:2015 | |
Loss on ignition (LOI) | ASTM D 7348-13 | ||
pH value | - | EN ISO 10523:2005 | |

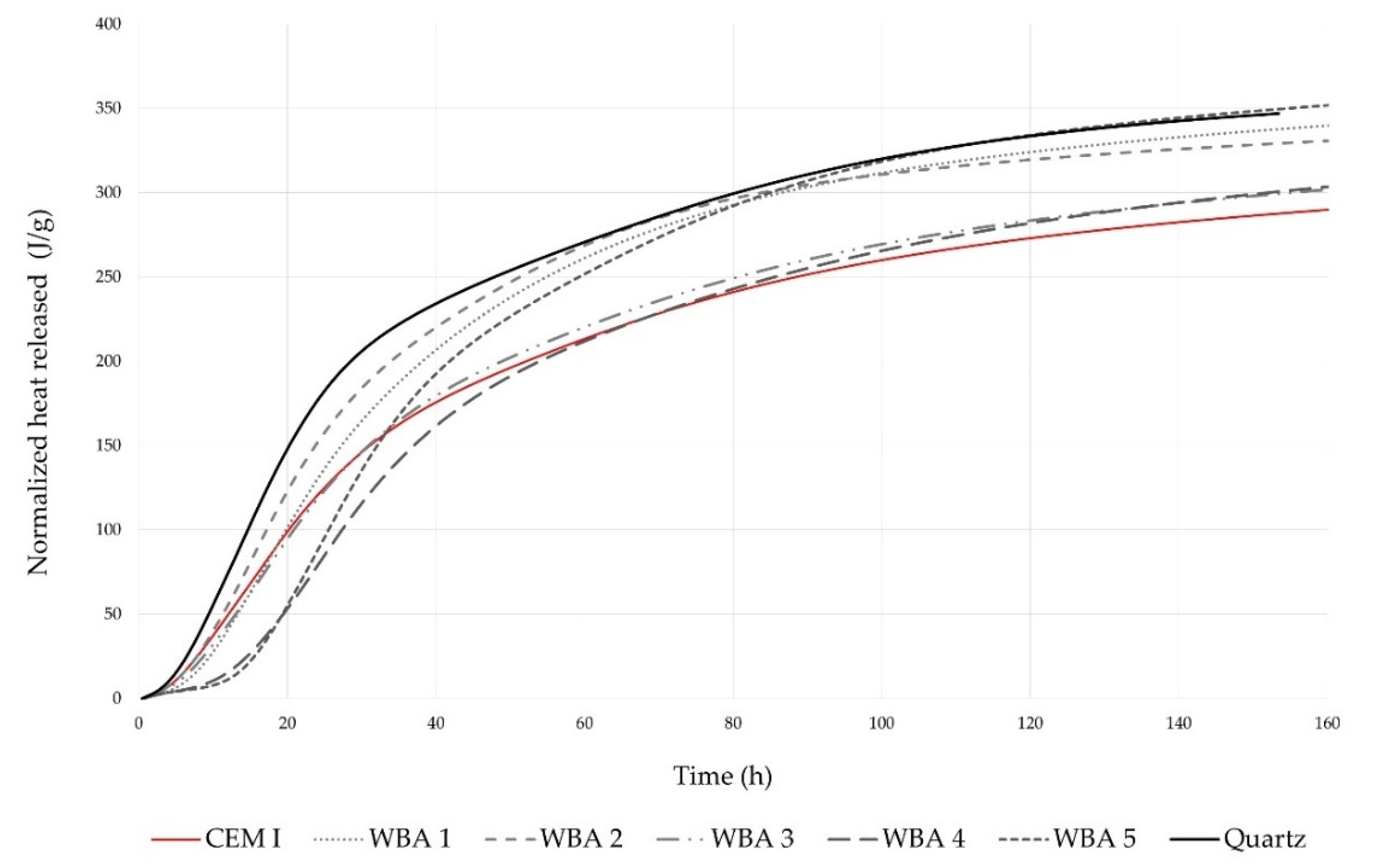

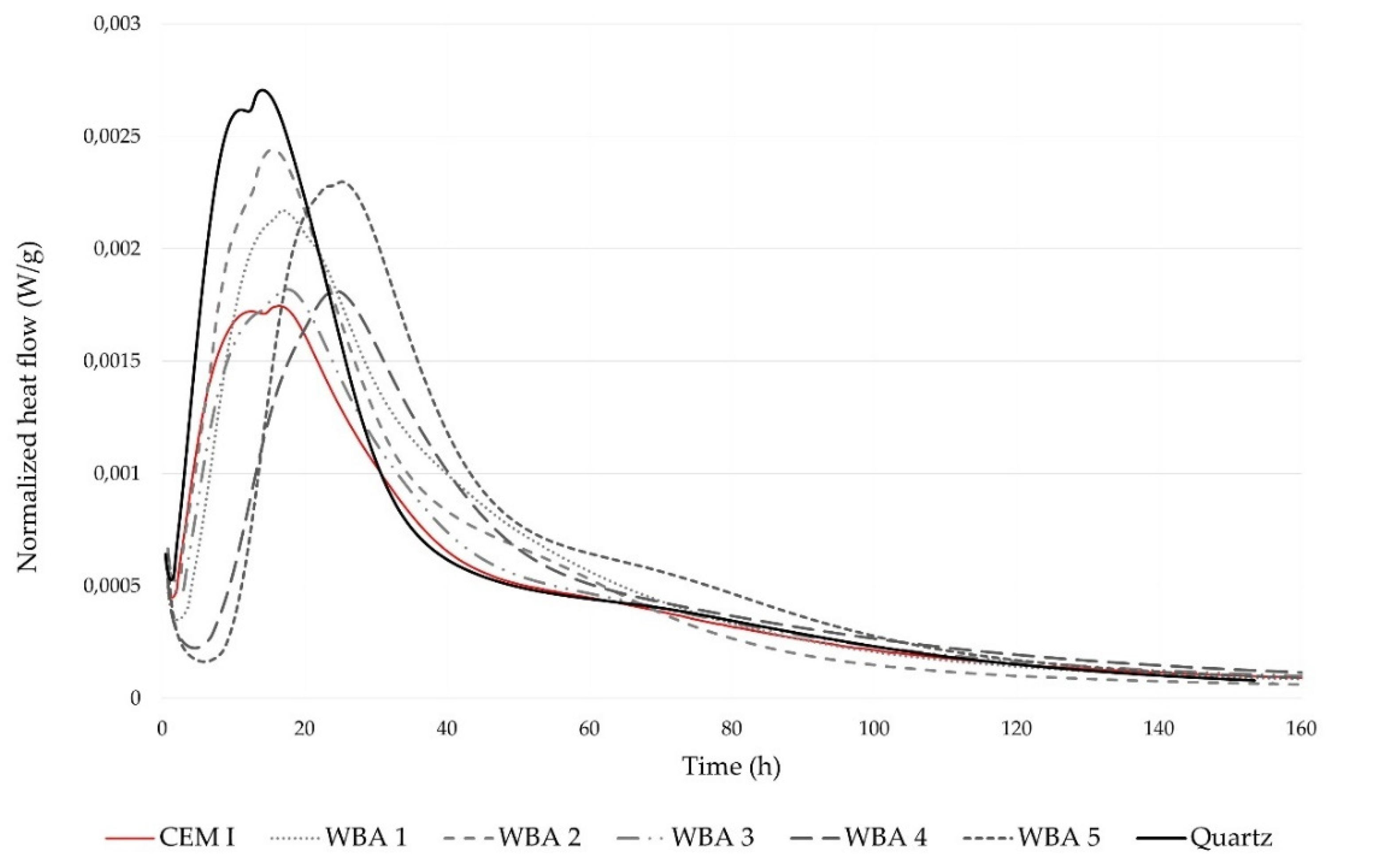

Heat of hydration | J | HRN EN 196-11:2019 | |
Particle size distribution | μm | Laser diffraction particle size analysis | |
Particle morphology | - | Scanning electron microscope (SEM) |
State | Property | Test Period | Unit | Standard |
---|---|---|---|---|
Fresh concrete | Density | Immediately upon mixing | kg/m3 | EN 12350-6: 2019 |
Temperature | °C | EN 12350-1: 2019 | ||
Air content | % | EN 12350-7: 2019 | ||
Consistence of fresh concrete by the slump test | mm | EN 12350-2: 2019 | ||
Hardened concrete | Compressive strength | After 1 and 28 days of curing | MPa | EN 12390-3: 2019 |
Capillary absorption | After min. 28 days of age | kg/m2h0.5 | EN 13057: 2003 | |
Total water absorption | % | EN 1340:2003 | ||
Depth of penetration of water under pressure | mm | EN 12390-8: 2019 | ||
Freeze–thaw resistance with de-icing salts | After 7,14, 28, 42, and 56 cycles | kg/m2 | CEN/TS 12390-9:2016 |
WBA Samples | WBA1 | WBA2 | WBA3 | WBA4 | WBA5 | Mean Value | EN 450-1 [55] | CEM I 42.5 R | |
---|---|---|---|---|---|---|---|---|---|
pH value | - | 12.90 | 13.51 | 13.04 | 12.89 | 12.85 | 13.04 | - | 12.66 |
LOI (950 °C) | wt.% | 6.2 | 19.7 | 8.80 | 24.1 | 5.1 | 12.78 | 9.0 | 5.5 |
P2O5 | 4.64 | 3.01 | 2.50 | 1.46 | 2.30 | 2.78 | 5.0 | 0.02 | |
Na2O | 0.84 | 1.30 | 0.56 | 0.92 | 3.01 | 1.33 | - | 0.63 | |
K2O | 8.73 | 13.82 | 4.78 | 3.50 | 6.24 | 7.41 | - | 1.16 | |
CaO | 42.75 | 51.68 | 58.24 | 54.99 | 18.97 | 45.33 | - | 51.72 | |
MgO | 5.56 | 4.57 | 3.81 | 2.86 | 3.91 | 4.14 | 4.0 | 1.49 | |
Al2O3 | 4.84 | 2.45 | 3.96 | 5.11 | 10.30 | 5.33 | - | 6.33 | |
TiO2 | 0.23 | 0.11 | 0.17 | 0.29 | 0.90 | 0.34 | - | 0.18 | |
Fe2O3 | 2.62 | 1.71 | 1.9 | 2.83 | 3.61 | 2.53 | - | 3.28 | |
SiO2 | 22.15 | 17.03 | 21.78 | 26.76 | 44.90 | 26.52 | - | 30.79 | |
MnO | 0.73 | 0.50 | 0,47 | 0.25 | 0.63 | 0.53 | - | 0.02 | |
SO3 | 6.93 | 3.42 | 1.84 | 1.06 | 5.24 | 3.70 | 3.0 | 4.33 | |
Na2Oeq | 6.58 | 10.39 | 3.71 | 3.22 | 7.12 | 6.20 | 5.0 | 1.39 | |
SiO2 + Fe2O3 + Al2O3 | 29.61 | 21.19 | 27.64 | 34.70 | 58.81 | 34.39 | 70 | 40.4 | |
(CaO + MgO)/SiO2 | 2.18 | 3.30 | 2.85 | 2.16 | 0.51 | 2.20 | - | 1.73 |

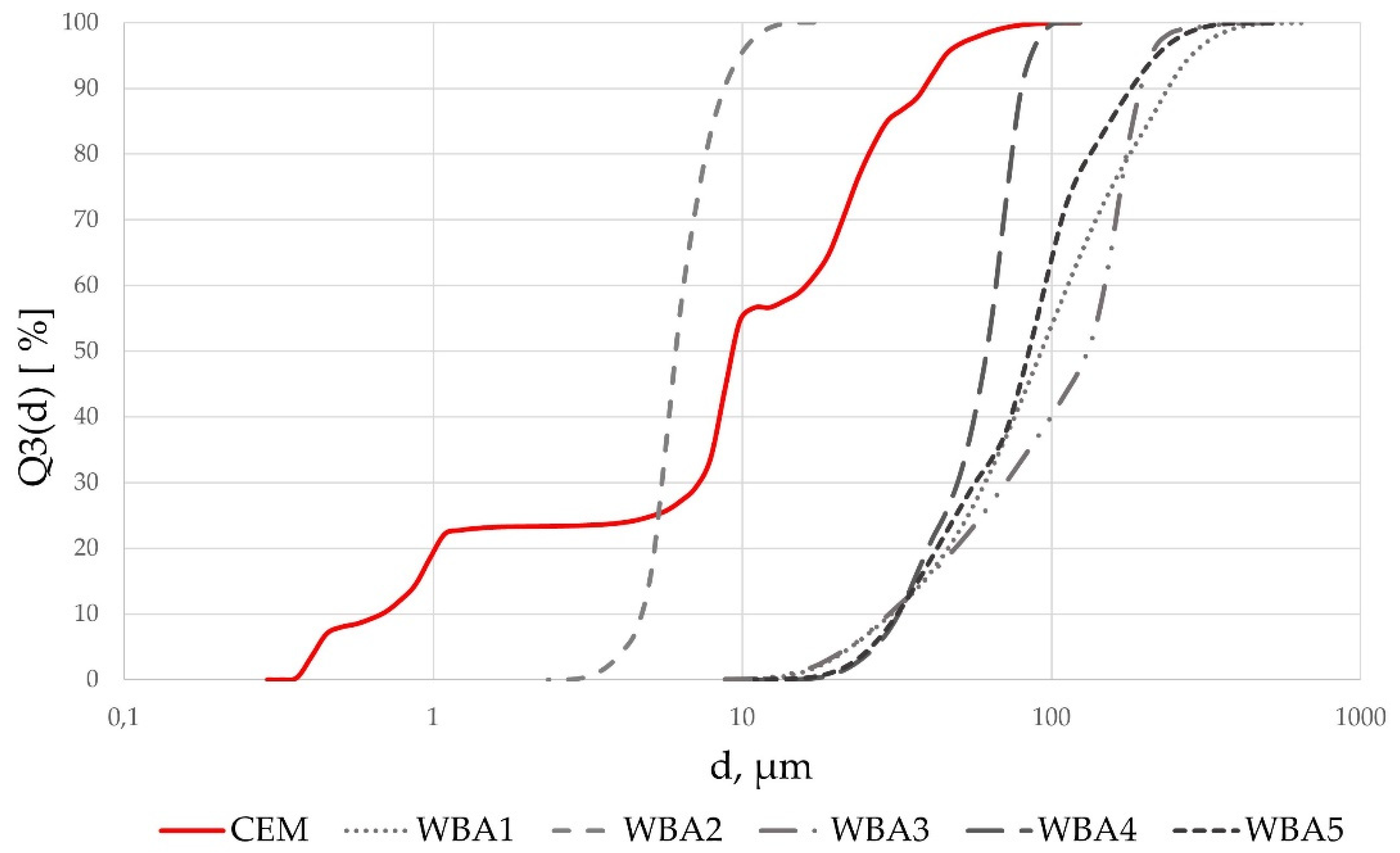

Sample ID | Density [g/cm3] | d50 [µm] |
---|---|---|
WBA1 | 2.67 | 92.95 |
WBA2 | 2.61 | 6.10 |
WBA3 | 2.59 | 129.52 |
WBA4 | 2.47 | 61.58 |
WBA5 | 2.21 | 84.48 |
CEM | 3.01 | 24.18 |
Mix ID | CM0 | CM1 | CM2 | CM3 | CM4 | CM5 | |
---|---|---|---|---|---|---|---|
Properties | |||||||
Density [kg/m3] | 2340 | 2260 | 2250 | 2230 | 2200 | 2230 | |
Temperature [°C] | 16.2 | 25.2 | 23.1 | 22.2 | 25.5 | 14.9 | |
Air content [%] | 5.0 | 5.2 | 4.4 | 6.5 | 6.5 | 4.9 | |
Consistence—Slump [mm] | 220 | 165 | 70 | 250 | 160 | 210 |
Mix ID | CM0 | CM1 | CM2 | CM3 | CM4 | CM5 |
---|---|---|---|---|---|---|
S (kg/m2√h) | 0.76 | 0.96 | 1.44 | 1.48 | 1.01 | 1.01 |
Min. value | 0.67 | 0.89 | 1.37 | 1.43 | 0.93 | 0.87 |
Max. value | 0.83 | 1.07 | 1.52 | 1.52 | 1.06 | 1.12 |
Mix ID | CM0 | CM1 | CM2 | CM3 | CM4 | CM5 | |
---|---|---|---|---|---|---|---|
Total water absorption Wa [%] | Specimen 1 | 4.4 | 5.2 | 6.4 | 6.9 | 5.9 | 6.4 |
Specimen 2 | 4.3 | 5.6 | 6.9 | 6.9 | 5.6 | 6.6 | |
Specimen 3 | 4.3 | 5.0 | 6.7 | 6.6 | 5.6 | 6.3 | |
Mean value | 4.3 | 5.3 | 6.7 | 6.8 | 5.7 | 6.4 |
Mix ID | CM0 | CM1 | CM2 | CM3 | CM4 | CM5 |
---|---|---|---|---|---|---|
LOI [%] | 5.5 | 6.2 | 19.7 | 8.80 | 24.1 | 5.1 |
Air content [%] | 5.0 | 5.2 | 4.4 | 6.5 | 6.5 | 4.9 |
Na2Oeq [%] | 1.39 | 6.58 | 10.39 | 3.71 | 3.22 | 7.12 |
Scaling after 28 cycles [kg/m2] | 0.10 | 0.37 | 1.51 | 1.08 | 0.25 | 1.24 |
Scaling after 56 cycles [kg/m2] | 0.22 | 0.41 | 3.09 | 1.69 | 0.30 | 1.51 |
Relevant Property | Standard Requirement | CM1 | CM2 | CM3 | CM4 | CM5 | |||
---|---|---|---|---|---|---|---|---|---|
Concrete manufacturer | Consistency—Slump [mm] | 100–150 | 165 | 70 | 250 | 160 | 210 | ||
Minimum air content [%] | 4 | 5.2 | 4.4 | 6.5 | 6.5 | 4.9 | |||
Compressive strength [MPa] | C 35/45 | 39.8 | 28.6 | 28.7 | 36.2 | 42.5 | |||
Water penetration under pressure [mm] | ≤15 | 19 | 29 | 22 | 19 | 23 | |||
Freeze–thaw resistance with de-icing salts [kg/m2] | ∆m ≤ 0.5 (56 cycles) | 0.41 | 3.09 | 1.69 | 0.3 | 1.51 | |||
EN 1340 | ∆m ≤ 1.0 (28 cycles) | 0.37 | 1.51 | 1.08 | 0.25 | 1.24 | |||
Total water absorption [%] | ≤6 | 5.3 | 6.7 | 6.8 | 5.7 | 6.4 | |||
Abrasion resistance [cm3/cm2] | ≤21 | Long-term research scope | |||||||
Bending strength [MPa] | Characteristic value | Minimum value | |||||||
≥3.5 | 2.8 | ||||||||
≥5.0 | 4.0 | ||||||||
≥6.0 | 4.8 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Šantek Bajto, J.; Štirmer, N.; Cerković, S.; Carević, I.; Kostanić Jurić, K. Pilot Scale Production of Precast Concrete Elements with Wood Biomass Ash. Materials 2021, 14, 6578. https://doi.org/10.3390/ma14216578
Šantek Bajto J, Štirmer N, Cerković S, Carević I, Kostanić Jurić K. Pilot Scale Production of Precast Concrete Elements with Wood Biomass Ash. Materials. 2021; 14(21):6578. https://doi.org/10.3390/ma14216578
Chicago/Turabian StyleŠantek Bajto, Jelena, Nina Štirmer, Sonja Cerković, Ivana Carević, and Karmen Kostanić Jurić. 2021. "Pilot Scale Production of Precast Concrete Elements with Wood Biomass Ash" Materials 14, no. 21: 6578. https://doi.org/10.3390/ma14216578
