In Situ Monitoring of Powder Bed Fusion Homogeneity in Electron Beam Melting
Abstract
:1. Introduction
2. Materials and Methods

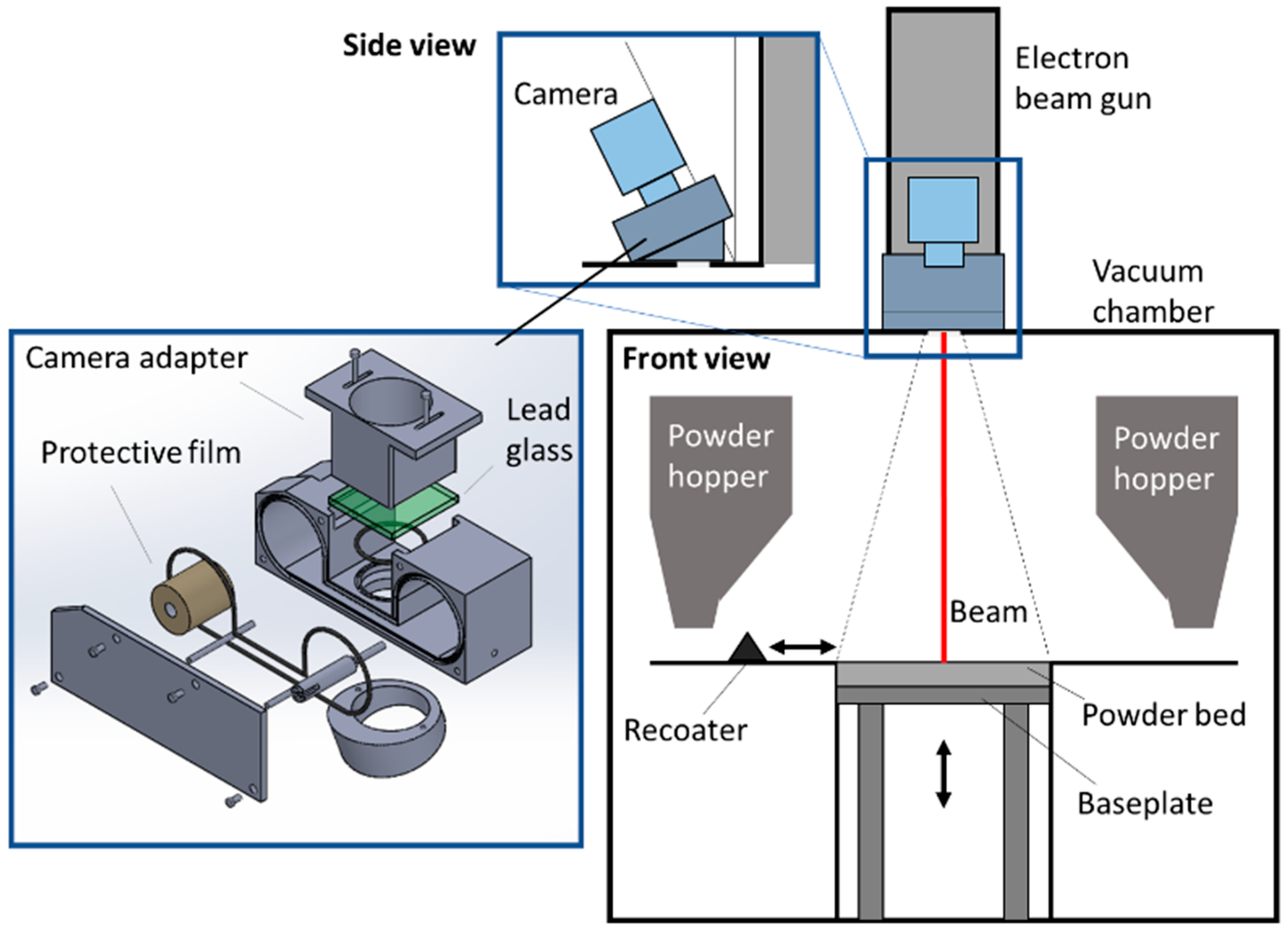

2.1. Powder Bed Imaging Setup

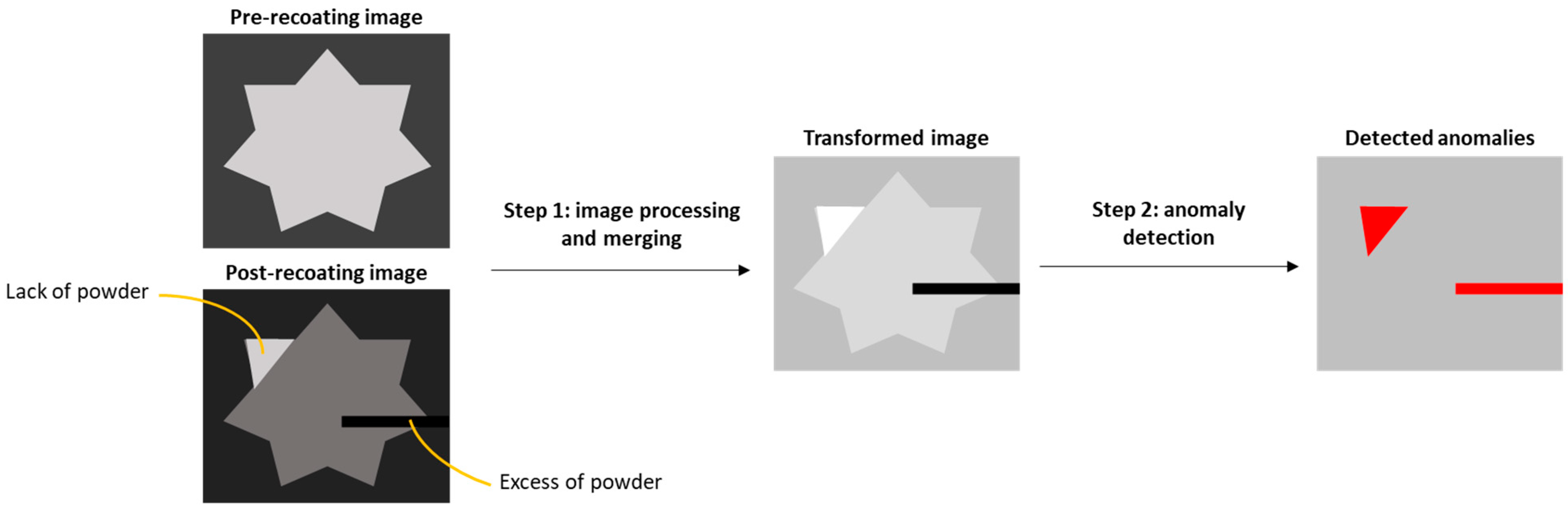

2.2. Image Preprocessing and Merging
- Correction of the image perspective error. This operation can be applied during the camera calibration stage. The reader is referred to [29] for an overview of calibration methods commonly applied in machine vision.
- Image filtering, applied to both input images in each layer. The aim is to reduce the noise of the image, smoothing pixel-wise intensity variations. A high image noise is caused by the lack of an external illumination source, which imposes the adoption of a sufficient integration time combined with a sufficient sensor sensitivity enhancement. Is this study, we advocate the use of a median filter applied to both pre- and post-recoating images. It is a nonlinear filter that is known to be quite effective for a simultaneous reduction in image noise and preservation of contours [30]. The pixel intensity in location is replaced by the median of pixel intensities in a neighborhood of pixels. A larger value of denotes more intense smoothing, with a loss of image details. A smaller value of denotes a higher preservation of edges but lower noise filtering. In this study, we adopted a median filtering with , but the parameter can be easily tuned during the image calibration phase to be carried out just once when exploiting sample images.

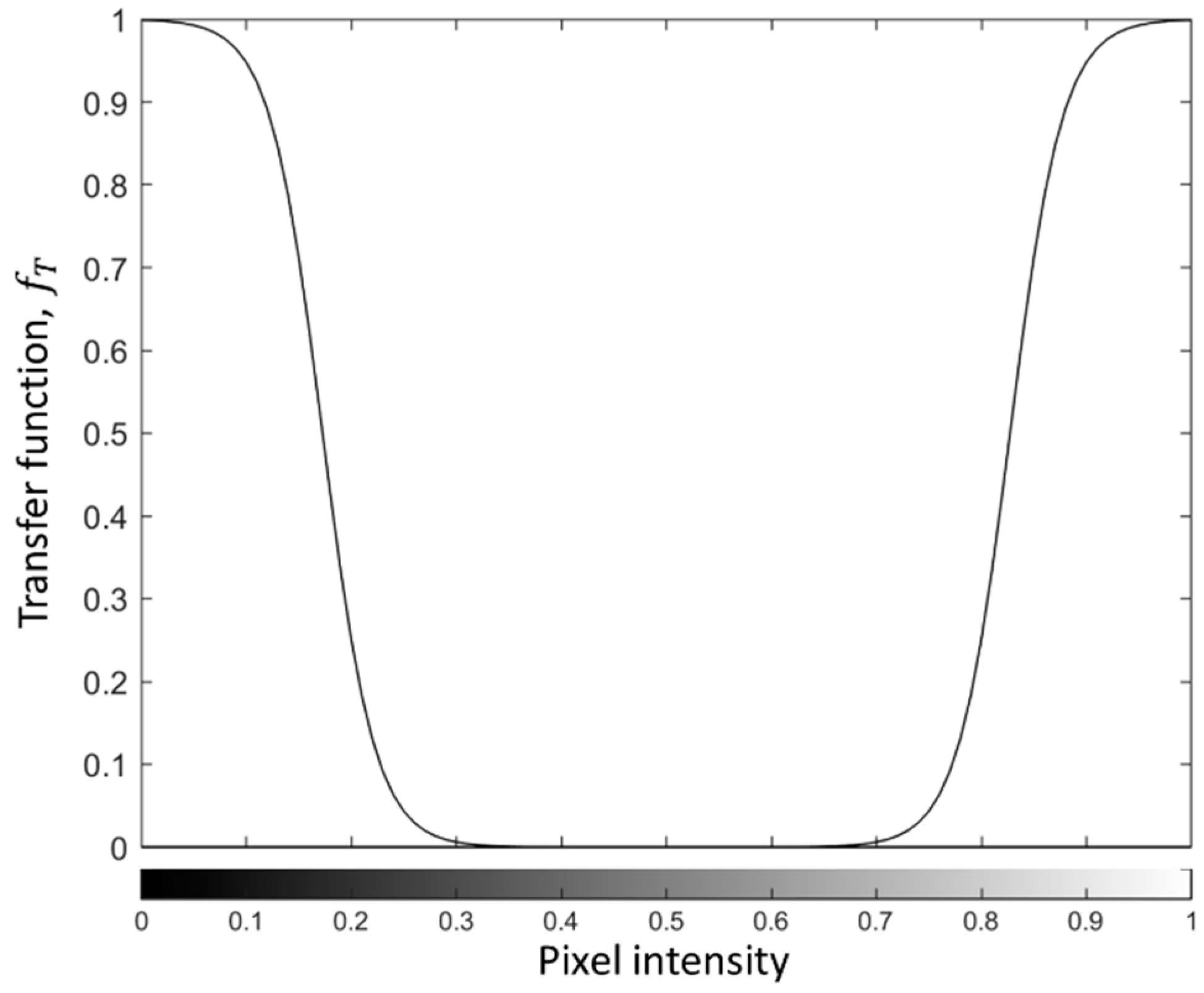

- Image transformation. Let be the filtered pre-recoating image in one layer and be the filtered post-recoating image in the same layer. Let and be the intensity of a pixel in location of and , respectively. In a grayscale 8 bit image, the pixel intensity is an integer value in the range 0–255, where 0 corresponds to the lowest intensity (black) and 255 corresponds to the highest intensity (white). The proposed way to merge the information in the two input images consists of applying the following transformation:
2.3. Automated Anomaly Detection
3. Results

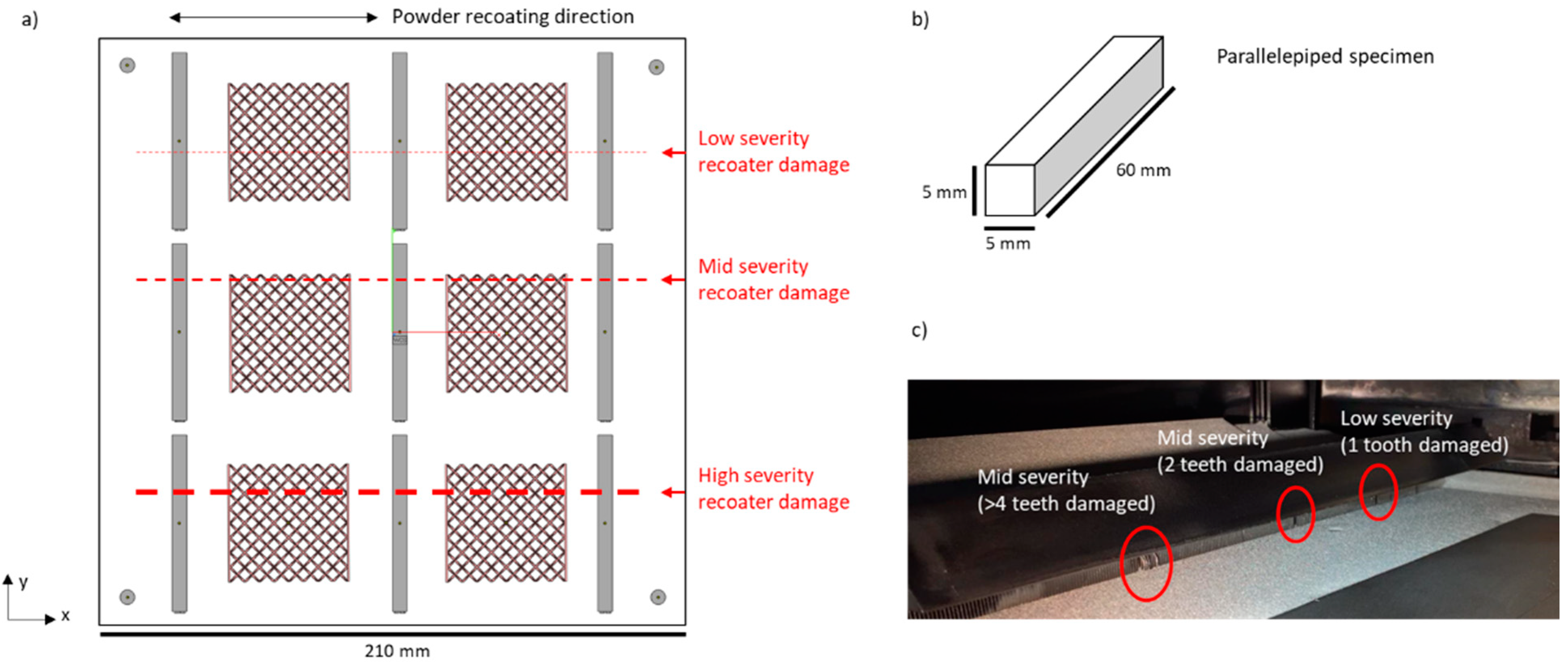

3.1. Case Study with Damaged Recoater
- Low-severity damage: only one tooth along one row was manually warped;
- Mid-severity damage: two teeth per row were removed;
- High-severity damage: 2 two per row were removed, and the neighboring teeth were manually warped.

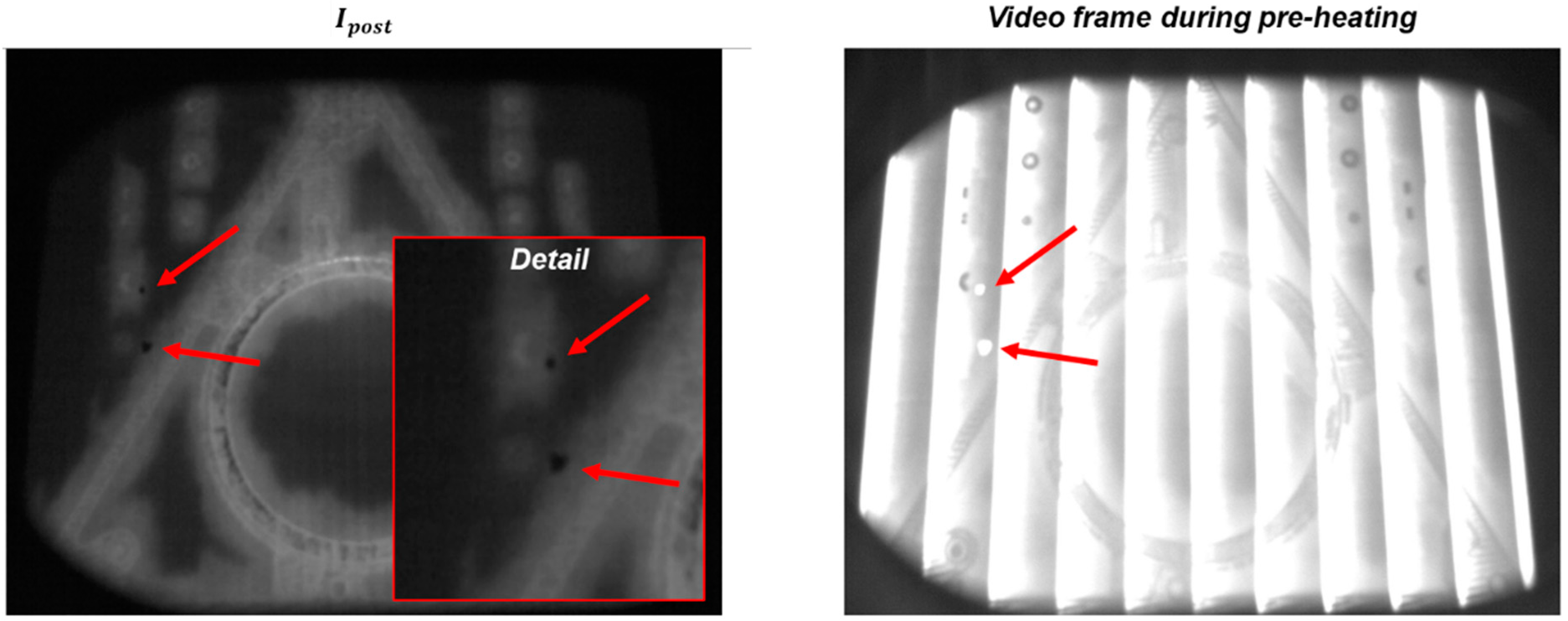

3.2. Other Examples

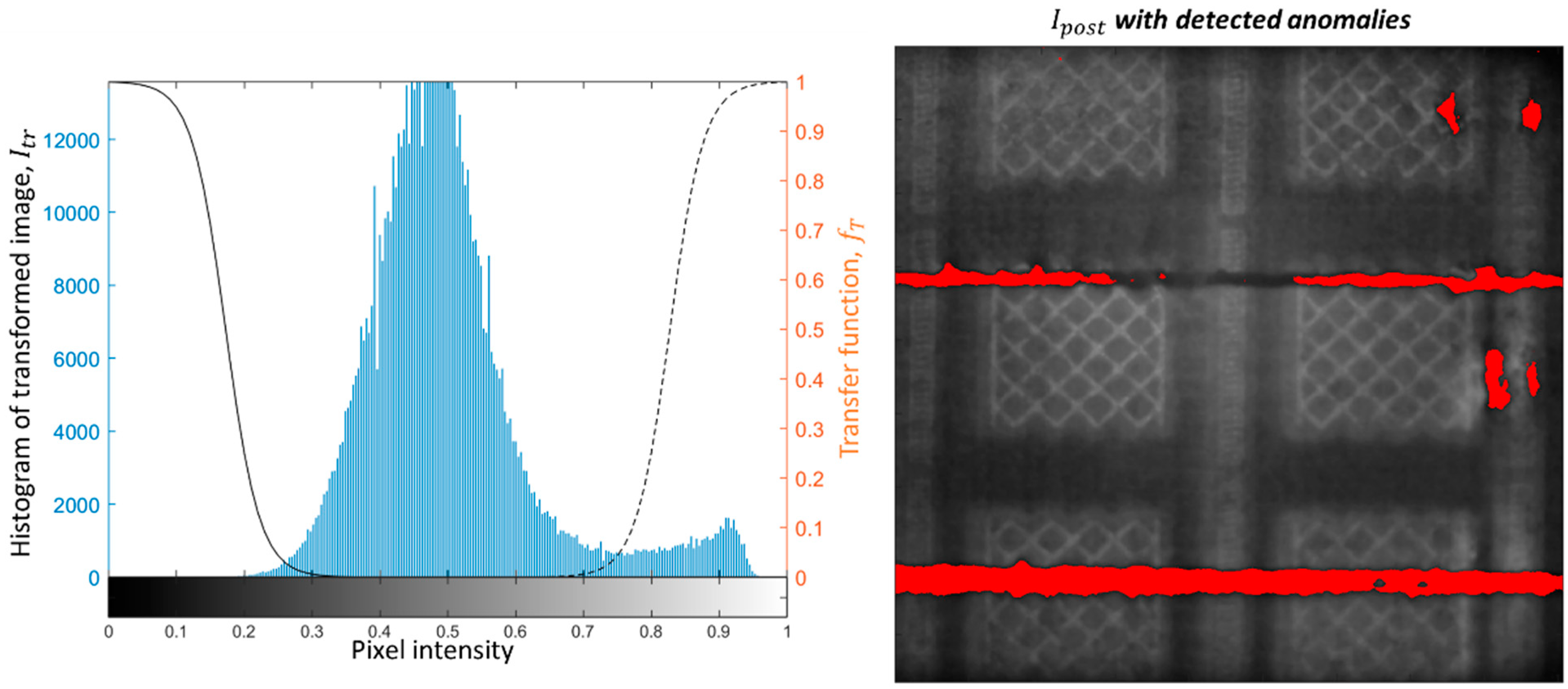

3.3. Influence of the Choice of the Transfer Function
4. Discussion
5. Conclusions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- McCann, R.; Obeidi, M.A.; Hughes, C.; McCarthy, É.; Egan, D.S.; Vijayaraghavan, R.K.; Joshi, A.M.; Garzon, V.A.; Dowling, D.P.; McNally, P.J.; et al. In-Situ sensing, process monitoring and machine control in Laser Powder Bed Fusion: A review. Addit. Manuf. 2021, 45, 102058. [Google Scholar] [CrossRef]
- Grasso, M.L.G.; Remani, A.; Dickins, A.; Colosimo, B.M.; Leach, R.K. In-situ measurement and monitoring methods for metal powder bed fusion–An updated review. Meas. Sci. Technol. 2021, 32, 112001. [Google Scholar] [CrossRef]
- Kleszczynski, S.; zur Jacobsmühlen, J.; Reinarz, B.; Sehrt, J.T.; Witt, G.; Merhof, D. Improving process stability of laser beam melting systems. In Proceedings of the Frauenhofer Direct Digital Manufacturing Conference, Aachen, Germany, 12–13 March 2014. [Google Scholar]
- zur Jacobsmühlen, J.; Kleszczynski, S.; Witt, G.; Merhof, D. Elevated region area measurement for quantitative analysis of laser beam melting process stability. In 2014 International Solid Freeform Fabrication Symposium; University of Texas at Austin: Austin, TX, USA, 2015; pp. 549–559. [Google Scholar]
- Foster, B.K.; Reutzel, E.W.; Nassar, A.R.; Hall, B.T.; Brown, S.W.; Dickman, C.J. Optical, layerwise monitoring of powder bed fusion. In 2014 International Solid Freeform Fabrication Symposium; University of Texas at Austin: Austin, TX, USA, 2015; pp. 295–307. [Google Scholar]
- Aminzadeh, M.; Kurfess, T.R. Online quality inspection using Bayesian classification in powder-bed additive manufacturing from high-resolution visual camera images. J. Intell. Manuf. 2019, 30, 2505–2523. [Google Scholar] [CrossRef]
- Gobert, C.; Reutzel, E.W.; Petrich, J.; Nassar, A.R.; Phoha, S. Application of supervised machine learning for defect detection during metallic powder bed fusion additive manufacturing using high resolution imaging. Addit. Manuf. 2018, 21, 517–528. [Google Scholar] [CrossRef]
- Abdelrahman, M.; Reutzel, E.W.; Nassar, A.R.; Starr, T.L. Flaw detection in powder bed fusion using optical imaging. Addit. Manuf. 2017, 15, 1–11. [Google Scholar] [CrossRef]
- Scime, L.; Siddel, D.; Baird, S.; Paquit, V. Layer-wise anomaly detection and classification for powder bed additive manufacturing processes: A machine-agnostic algorithm for real-time pixel-wise semantic segmentation. Addit. Manuf. 2020, 36, 101453. [Google Scholar] [CrossRef]
- Lu, Q.; Nguyen, N.; Hum, A.; Tran, T.; Wong, C. Identification and evaluation of defects in selective laser melted 316L stainless steel parts via in-situ monitoring and micro computed tomography. Addit. Manuf. 2020, 35, 101287. [Google Scholar] [CrossRef]
- Caltanissetta, F.; Grasso, M.; Petrò, S.; Colosimo, B.M. Characterization of in-situ measurements based on layerwise imaging in laser powder bed fusion. Addit. Manuf. 2018, 24, 183–199. [Google Scholar] [CrossRef]
- Pagani, L.; Grasso, M.; Scott, P.J.; Colosimo, B.M. Automated layerwise detection of geometrical distortions in laser powder bed fusion. Addit. Manuf. 2020, 36, 101435. [Google Scholar] [CrossRef]
- Gaikwad, A.; Imani, F.; Rao, P.; Yang, H.; Reutzel, E. Design Rules and In-Situ Quality Monitoring of Thin-Wall Features Made Using Laser Powder Bed Fusion. In Proceedings of the International Manufacturing Science and Engineering Conference, Erie, PA, USA, 10–14 June 2019; Volume 58745, p. V001T01A039. [Google Scholar]
- He, P.; Zhong, K.; Liu, X.; Zhou, G.; Wang, C.; Wei, Q.; Shi, Y.; Li, Z. A phase-guided method for extracting the contour of the fusion area in laser powder bed fusion. In Proceedings of the Seventh International Conference on Optical and Photonic Engineering (icOPEN 2019), Phuket, Thailand, 16 October 2019; Volume 11205, p. 112051H. [Google Scholar]
- Jacobsmühlen, J.Z.; Achterhold, J.; Kleszczynski, S.; Witt, G.; Merhof, D. In situ measurement of part geometries in layer images from laser beam melting processes. Prog. Addit. Manuf. 2018, 4, 155–165. [Google Scholar] [CrossRef]
- Dickins, A.; Widjanarko, T.; Sims-Waterhouse, D.; Thompson, A.; Lawes, S.; Senin, N.; Leach, R. Multi-view fringe projection system for surface topography measurement during metal powder bed fusion. J. Opt. Soc. Am. A 2020, 37, B93. [Google Scholar] [CrossRef]
- Kalms, M.; Narita, R.; Thomy, C.; Vollertsen, F.; Bergmann, R.B. New approach to evaluate 3D laser printed parts in powder bed fusion-based additive manufacturing in-line within closed space. Addit. Manuf. 2019, 26, 161–165. [Google Scholar] [CrossRef]
- Liu, Y.; Blunt, L.; Zhang, Z.; Rahman, H.A.; Gao, F.; Jiang, X. In-situ areal inspection of powder bed for electron beam fusion system based on fringe projection profilometry. Addit. Manuf. 2020, 31, 100940. [Google Scholar] [CrossRef]
- Liu, Y.; Blunt, L.A.; Gao, F.; Jiang, X.J. High-dynamic-range 3D measurement for E-beam fusion additive manufacturing based on SVM intelligent fringe projection system. Surf. Topogr. Metrol. Prop. 2021, 9, 034002. [Google Scholar] [CrossRef]
- Tan Phuc, L.; Seita, M. A high-resolution and large field-of-view scanner for in-line characterization of powder bed defects during additive manufacturing. Mater. Des. 2019, 164, 107562. [Google Scholar] [CrossRef]
- Barrett, C.; MacDonald, E.; Conner, B.; Persi, F. Micron-Level Layer-Wise Surface Profilometry to Detect Porosity Defects in Powder Bed Fusion of Inconel 718. JOM 2018, 70, 1844–1852. [Google Scholar] [CrossRef]
- Grasso, M.; Valsecchi, G.; Colosimo, B.M. Powder bed irregularity and hot-spot detection in electron beam melting by means of in-situ video imaging. Manuf. Lett. 2020, 24, 47–51. [Google Scholar] [CrossRef]
- Liu, Y.; Zhang, Z.; Blunt, L.; Saunby, G.; Dawes, J.; Blackham, B.; Rahman, H.A.; Smith, C.; Gao, F.; Jiang, X. In-situ inspection system for additive manufacturing based on phase measurement profilometry. In Proceedings of the 19th International Conference of the European Society for Precision Engineering and Nanotechnology, Bedford, UK, 3–7 June 2019; pp. 324–327. [Google Scholar]
- Wong, H.; Neary, D.; Jones, E.; Fox, P.; Sutcliffe, C. Benchmarking spatial resolution in electronic imaging for potential in-situ Electron Beam Melting monitoring. Addit. Manuf. 2019, 29, 100829. [Google Scholar] [CrossRef]
- Wong, H. Bitmap generation from computer-aided design for potential layer-quality evaluation in electron beam additive manufacturing. Rapid Prototyp. J. 2020, 26, 941–950. [Google Scholar] [CrossRef]
- Wong, H.; Garrard, R.; Black, K.; Fox, P.; Sutcliffe, C. Material characterisation using electronic imaging for Electron Beam Melting process monitoring. Manuf. Lett. 2019, 23, 44–48. [Google Scholar] [CrossRef]
- Arnold, C.; Pobel, C.; Osmanlic, F.; Körner, C. Layerwise monitoring of electron beam melting via backscatter electron detection. Rapid Prototyp. J. 2018, 24, 1401–1406. [Google Scholar] [CrossRef]
- Arnold, C.; Böhm, J.; Körner, C. In Operando Monitoring by Analysis of Backscattered Electrons during Electron Beam Melting. Adv. Eng. Mater. 2019, 22, 1901102. [Google Scholar] [CrossRef]
- Remondino, F.; Fraser, C. Digital camera calibration methods: Considerations and comparisons. Int. Arch. Photogramm. Remote. Sens. Spat. Inf. Sci. 2006, 36, 266–272. [Google Scholar]
- Lim, J.S. Two-Dimensional Signal and Image Processing; Prentice Hall: Englewood Cliffs, NJ, USA, 1990. [Google Scholar]
- Montgomery, D.C. Introduction to Statistical Quality Control; John Wiley & Sons: Hoboken, NJ, USA, 2020. [Google Scholar]
- Liu, Y.; Li, S.; Wang, H.; Hou, W.; Hao, Y.; Yang, R.; Sercombe, T.; Zhang, L. Microstructure, defects and mechanical behavior of beta-type titanium porous structures manufactured by electron beam melting and selective laser melting. Acta Mater. 2016, 113, 56–67. [Google Scholar] [CrossRef] [Green Version]
- Shanbhag, G.; Vlasea, M. Powder Reuse Cycles in Electron Beam Powder Bed Fusion—Variation of Powder Characteristics. Materials 2021, 14, 4602. [Google Scholar] [CrossRef] [PubMed]
- Popov, V.; Lobanov, M.; Stepanov, S.; Qi, Y.; Muller-Kamskii, G.; Popova, E.; Katz-Demyanetz, A.; Popov, A. Texturing and Phase Evolution in Ti-6Al-4V: Effect of Electron Beam Melting Process, Powder Re-Using, and HIP Treatment. Materials 2021, 14, 4473. [Google Scholar] [CrossRef]
Sensor | Spatial Resolution | Integration Time | Field of View |
---|---|---|---|
CMOS sensor, grayscale, visible range | 130 µm/pixel | 0.04 s | About 90% of build area |
% of False Alarms | Average Extension of False Alarm Regions | Max Extension of False Alarm Regions |
---|---|---|
9.7 × 10−5 | 4 pixels | 32 pixels |
% of False Alarms | |||
---|---|---|---|
Sigmoid function | |||
7.0 × 10−5 | 9.7 × 10−5 | 2.5 × 10−6 | |
Linear function | |||
9.1 × 10−5 | 1.3 × 10−4 | 5.6 × 10−4 | |
Step function | |||
5.2 × 10−5 | 4.4 | 58.7 |
Defects | |||
---|---|---|---|
Porosity | Geometrical Defects | Other | |
Lack of powder | Possible increase in over-melting porosity as a consequence of increased volumetric energy density | Swelling defects caused by intense remelting | Lack of powder lasting for multiple layers is expected to change the microstructural properties |
Excess of powder | Lack of fusion pores as a consequence of decreased volumetric energy density | Swelling defects caused by a thicker solidified layer; possible delamination in case of very severe lack of fusion | Possible microstructural variations caused by decreased volumetric energy density |
Contamination (large spatters, debris) | Possible lack of fusion pores as a consequence of beam attenuation/decreased volumetric energy density | Possible swelling defects in the presence of very severe contamination |
