1. Introduction
Concrete, the most widely used building material, has long been able to meet the growing needs of mankind. Concrete buildings have long been made up of many types of concrete, such as normal concrete, high-strength concrete (HSC), and high-performance concrete (HPC). For its improved mechanical characteristics and durability, HPC is increasingly used in high-rise buildings, bridges, and offshore constructions. High-strength concrete is described as concrete with a low water/binder ratio and an adapted aggregate-to-binder ratio to regulate its dimensional stability (i.e., drying shrinkage) and adequately water-cured (to control autogenous shrinkage) [
1]. The investigation of reinforced HPC with diverse materials has received much attention. A substantial amount of effort has gone into researching the different material characteristics of HPC. In this sense, the growing technique for utilizing industrial products to develop reinforced HPC has motivated the interest of researchers in recent years.
For optimal design in reinforced concrete structures, effective and dependable force transmission between reinforcement and concrete is essential [
2,
3]. Bonded concrete is a key structural characteristic that ensures strain compatibility and composite action to transmit stresses between concrete and the strengthening steel [
2]. The insufficient connection might result in a considerable loss of load capacity and structural rigidity [

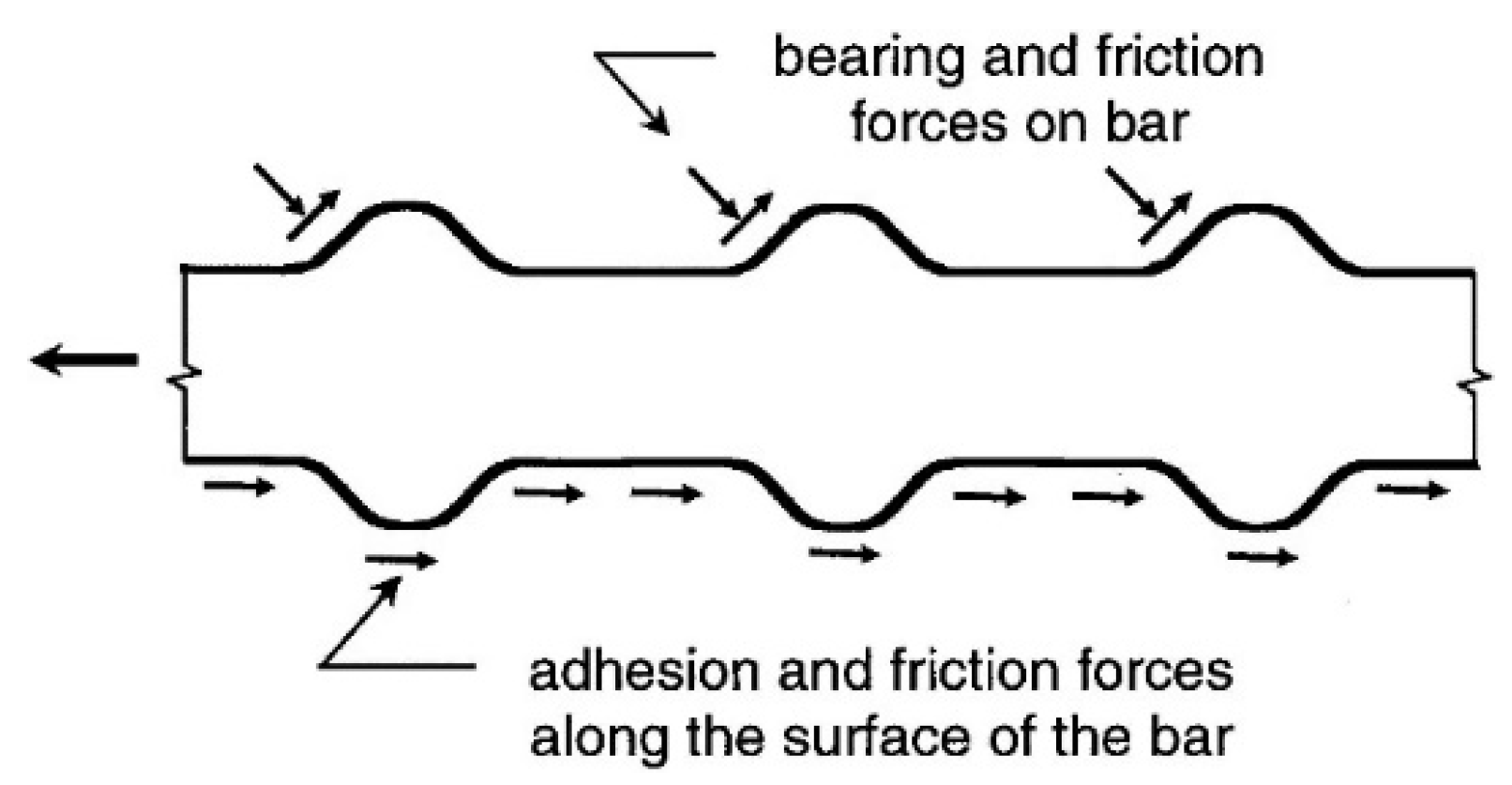

4]. For a deformed bar, chemical adhesion forces are transmitted from the reinforcing steel to the surrounding concrete, this bond causes frictional forces between the steel bar and the adjacent concrete [

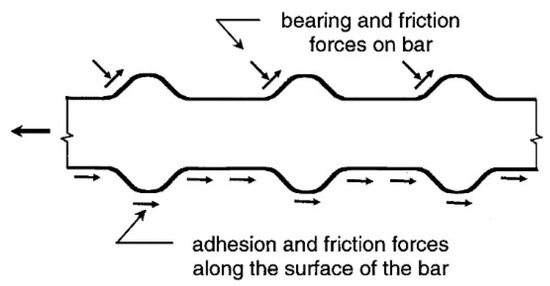

2]. The mechanical anchorage of the steel bar causes bearing stresses on the ribs against the concrete surface, as indicated in
Figure 1 [
5].
Previous studies have shown that bond strength is regulated by several parameters [
2]. For example, the compressive strength of the concrete, tensile strength, the cover thickness of concrete around the bar, embedded length, reinforcement in the transverse direction that confines concrete, and the bar shape [
6,
7,
8,
9,
10,

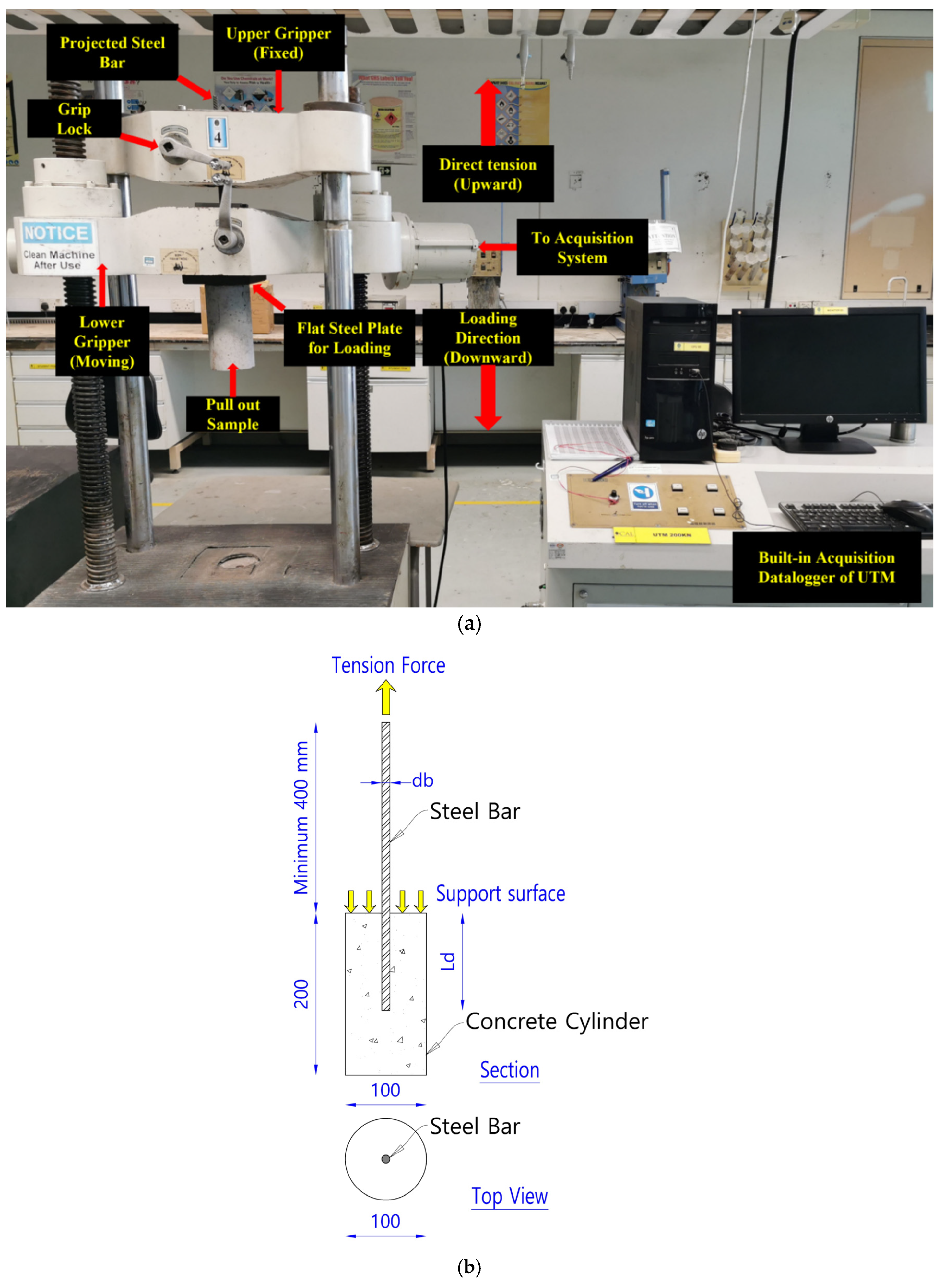

11]. One approach to analyzing the bond between concrete and steel is to study the evolution of the bond stress-slip typically achieved using conventional bar pullout tests [
12]. Several researchers examined the bond strength of HSC and HPC. For instance, Orangun et al. [
3], ACI committee 408R [
2], Hadi [
13], and Chapman and Shah [
14] proposed equations based on the compressive strength, side cover of the bar, bar diameter, and embedded length. Additionally, Esfahani and Rangan [
6] proposed an equation that considers the side cover of concrete, embedded length, and the concrete tensile strength.
On the contrary, current research efforts focus on finding new methods to improve concrete performance by nanoengineering the physicomechanical and chemical characteristics of cement, which is the major binding ingredient in the mix [
15]. Nanomaterials have been successfully incorporated into various products, as a result of advances in nanotechnology, including nano-CaCO
3 [
16], nano-SiO
2 [
17], and nano-TiO
2 [
18], as reinforcing materials in cement to prevent crack propagation at the nanoscale. Nano-cracks with their large aspect ratio have proved to be efficiently arrested by carbon nanotubes (CNT) and carbon nanofibers (CNFs) [
19,
20]. Konsta et al. [
21] reported that due to the ability of nano-reinforcements to manage nanosized cracks (at the initiation stage) before they grow into micro-sized cracks, nano-reinforcements in cementitious materials are more effective than traditional steel bar/fiber reinforcements (at mesoscale).
A new possibility for nanosized cementitious additives has emerged with the recent discovery of graphene [
22,
23], which may be employed in cementitious materials. Graphene nanoplatelets (GnP) and their oxides, particularly graphene oxide nanoplatelets (GONPs), are two kinds of graphene-based nanomaterials that are both low-cost nanoparticles [
24] made up of graphene stacks [
25,
26]. Graphene nanoplatelets have a 2D sheet shape with a nano-scale thickness (less than 10 nm). In addition to their inherited benefits from graphene, GnP also promises nano-sized additions and perfect reinforcement for structural materials.
A handful of recent research showed that the inclusion of graphene nanoplatelets in cementitious composites exhibited excellent mechanical properties. The review study of Rehman et al. [
27] demonstrated that graphene significantly improved the mechanical properties of cement-based composites. Additionally, the study of Peyvandi et al. [
28] resulted that the flexural strength of cement matrix may be increased by 27% to 73% by incorporating different types of GnPs and their oxides into the cement matrix at a rate of 0.13 wt.%. Moreover, Chuah et al. [
29] revealed that low concentrations of GONPs could enhance cement paste’s compressive strength by 46.2%. Furthermore, adding GONPs to cement at a level of 0.05 wt.% has resulted in a 15–33% improvement in compressive strength; in addition, the flexural strength has been increased by 41–59% [
30]. Additionally, Gong et al. [
31] reported that with GONPs within GONP/cement composite at 0.03 wt.%, compressive strength and tensile strength might be enhanced by more than 40%; also, the cement paste’s total porosity was reduced. Furthermore, Mokhtar et al. [
32] reported that with 0.02 wt.% and 0.03 wt.% of GONPs, the compressive and indirect tensile strengths were improved by 13% and 41%, respectively. Moreover, Rehman et al. [
33] indicated that GnP of 0.03% was able to enhance the load capacity and failure strain by 30 and 73%, respectively. Likewise, Meng et al. [
34] examined the impact of graphite nanoplatelets (GNPs) and carbon nanofibers (CNFs) on the mechanical characteristics of ultrahigh-performance concrete (UHPC). It was reported that flexural strength and toughness were enhanced by 59% and 276%, respectively, with the inclusion of 0.30% GNPs. Moreover, the tensile strength and energy absorption capacity improved by 40% and 187%, respectively, as the amount of GNPs was raised from 0 to 0.30% [
34]. Additionally, Chen et al. [
35] indicated that Graphene Oxide (GO) can improve the compressive strength, flexural strength, and elasticity modulus of concrete by 4.04–12.65%, 3.8–7.38%, and 3.92–10.97%, respectively. Furthermore, concrete’s compressive strength may be significantly improved by using GO nanosheets [
35]. Likewise, Rehman et al. [
36] revealed that the addition of GO nanosheets by 0.03% can increase the compressive strength of cement-based composites by 27%.
In accordance with the reported study by Konsta et al. [
21], which reported the ability of nano-reinforcements to manage nanosized cracks. The behavior of GnP can be similar to CNT; therefore, Qasem et al. [
37] examined the effect of CNT on the bond behavior between UHPC and steel bars, this research showed that 0.02 wt.% CNT enhanced the maximum bond stress of steel rebars with diameters of 12 mm and 16 mm by 34.7 and 48.5%, respectively.

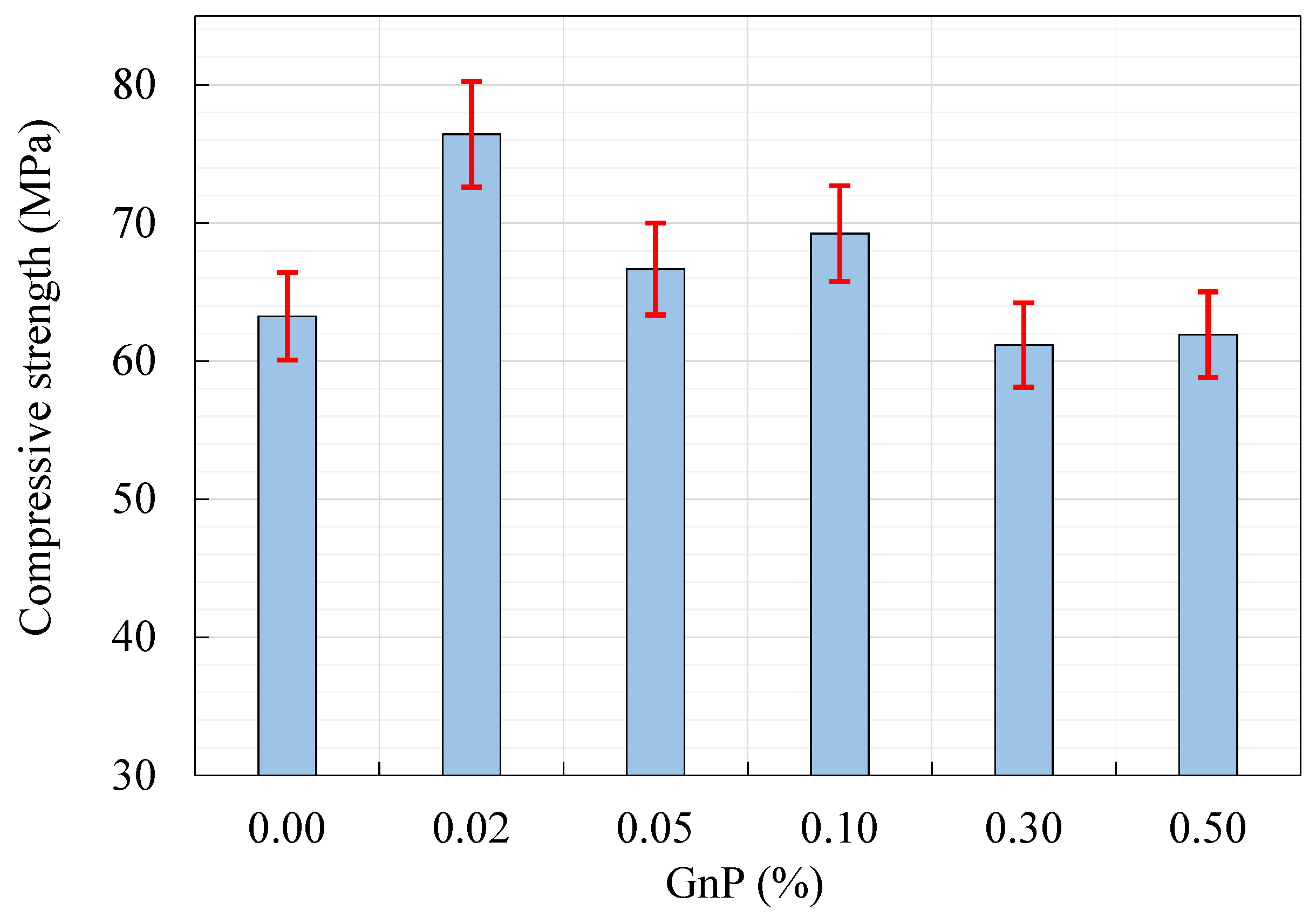

Reviewing the studies on the impact of graphene nanoplatelets on HPC and bond strength, no appreciable investigation has been conducted. Therefore, in this study, experimental tests and mathematical verification according to the available models were performed. The parameters affecting the bond strength (i.e., bar diameter, embedded length of the bar, and the effect of different dosage percentages of GnP) were examined. In order to accomplish this goal, the HPC compressive strength was first obtained at a curing age of 28 days. Then, 36-cylinder samples were tested for bond-slipping behavior between HPC-GnP and rebar. Finally, the pullout test results were analyzed, and the reliability of available models was studied.
4. Comparison between Prediction Models and Experimental Results
The bonding between the reinforcing bars and the concrete has been studied by several researchers. A selection of these models is described below. Using the following formula, Orangun et al. [
3] proposed:
where
is the minimum concrete cover in mm,
is the diameter of the steel reinforcement bars in mm,
is the embedded length of the bar, and
is the compressive strength of concrete for cylinder sample. The ACI committee 408R [
2] proposed the following formula:
where
is the minimum concrete cover in mm and
is the area of steel bar in
. To evaluate the bond stress of high-strength concrete, Hadi [
13] suggested the following formula for pullout testing:
where
is the minimum concrete cover in mm. The following formula for calculating the bond stress was suggested by Esfahani and Rangan [
6] for HPC having a compressive strength of 50 MPa or above:
where
is the tensile strength of concrete and taken as
. Another formula for calculating the bond stress was suggested by Chapman and Shah [
14]:
Table 8 shows the obtained bond stress results (Equation (1)) and the predicted bond stress using the equations of Orangun et al. [
3], ACI committee 408R [
2], Hadi [
13], Esfahani and Rangan [
6], and Chapman and Shah [

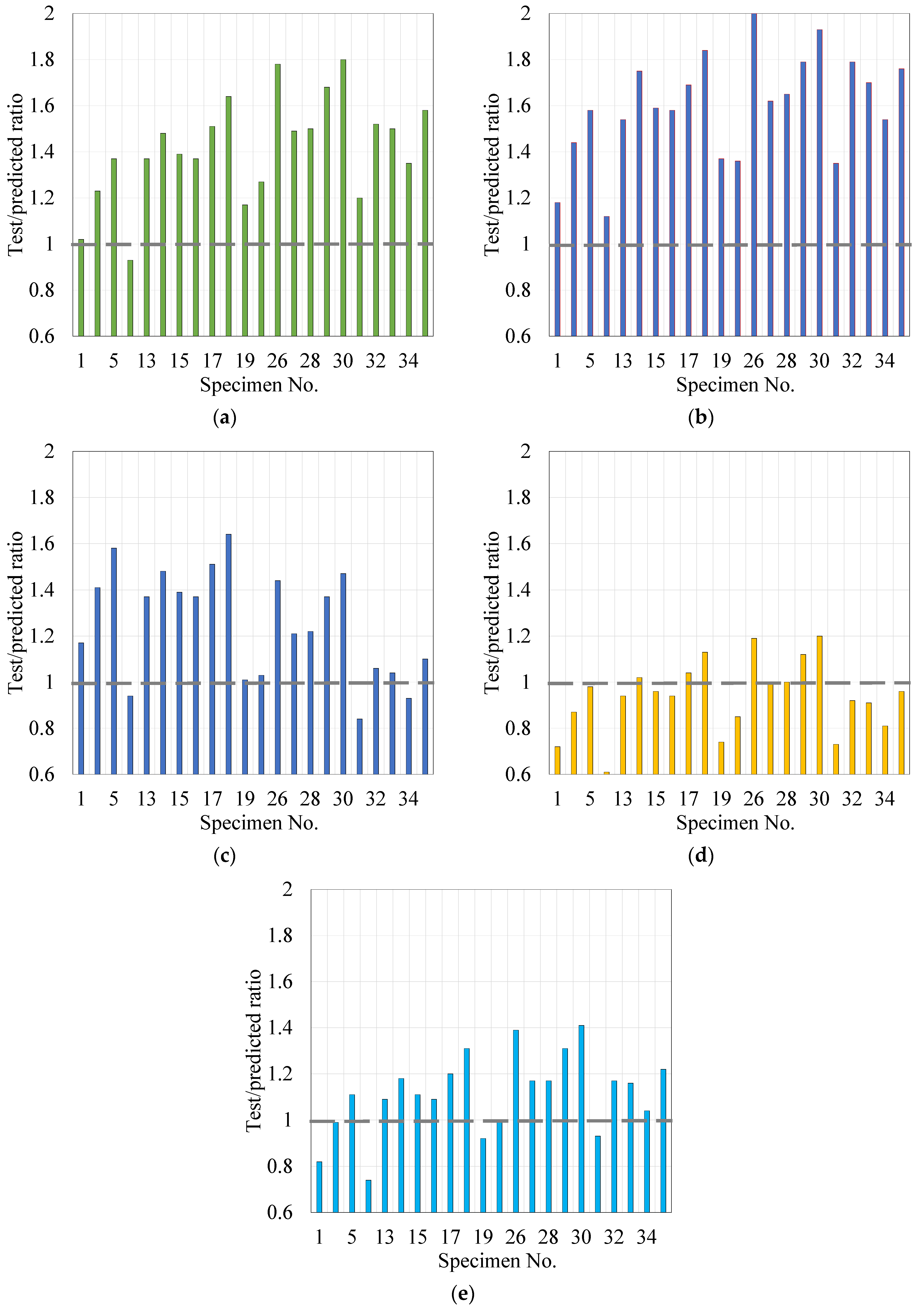

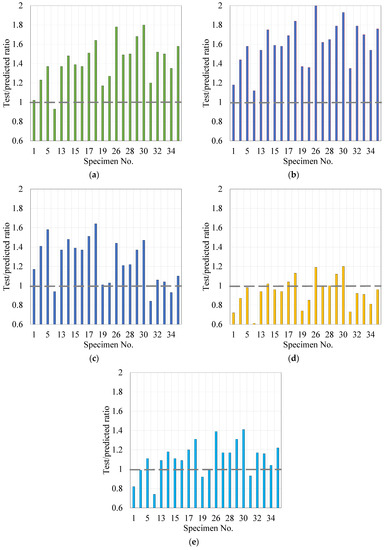

14] (Equations (2)–(6)). The comparison ratios between experimental and predicted results are illustrated in
Table 9 and
Figure 13. The proposed equations by Esfahani and Rangan, and Chapman and Shah match the test findings more closely than the other prediction equations. The mean ratio of experimental results to the equation of Esfahani and Rangan, and Chapman and Shah are 0.94, 1.12 with a standard deviation of 0.15 and 0.17, respectively. Accordingly, the ultimate bond stress values are higher than those anticipated by the Orangun et al., ACI, and Hadi equations, where the mean ratios of experimental results to the Orangun et al., ACI, and Hadi equations are 1.42, 1.60, and 1.25 with standard deviations of 0.22, 0.22, and 0.23, respectively. As a result, the preceding calculations of Orangun et al., ACI, and Hadi underestimated the bond stress. However, the prediction equation of Esfahani and Rangan overestimated the bond stress of control samples, but it was able to predict the bond stress of those samples, which had the GnP incorporation, with a mean ratio of 0.99 and a standard deviation of 0.12.
5. Conclusions

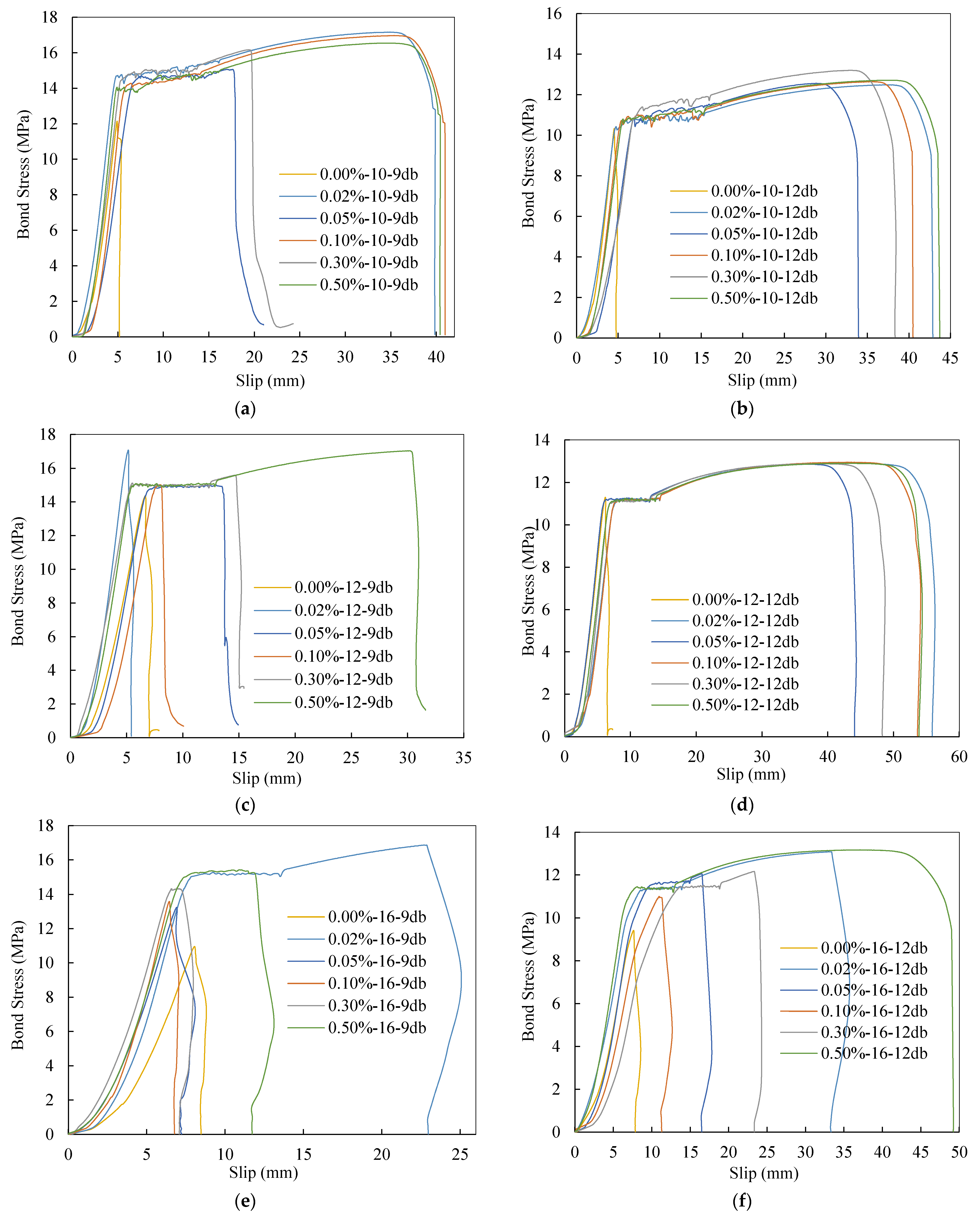

The bond stress behavior of HPC containing GnP was investigated in the current study using 36 samples. The bond stress and slip behavior between the rebar and concrete were evaluated and discussed after a pullout test on numerous experimental specimens. Furthermore, the influence of variables such as the diameter of the bar, embedded length of the bar, and percentage of GnP on the bond stress was assessed. Based on the findings of this research, the following conclusions may be drawn:
In comparison to HPC without GnP, the results indicated that HPC with GnP had improved bond stress due to the bridging and confinement action of GnP as a nano reinforcement.

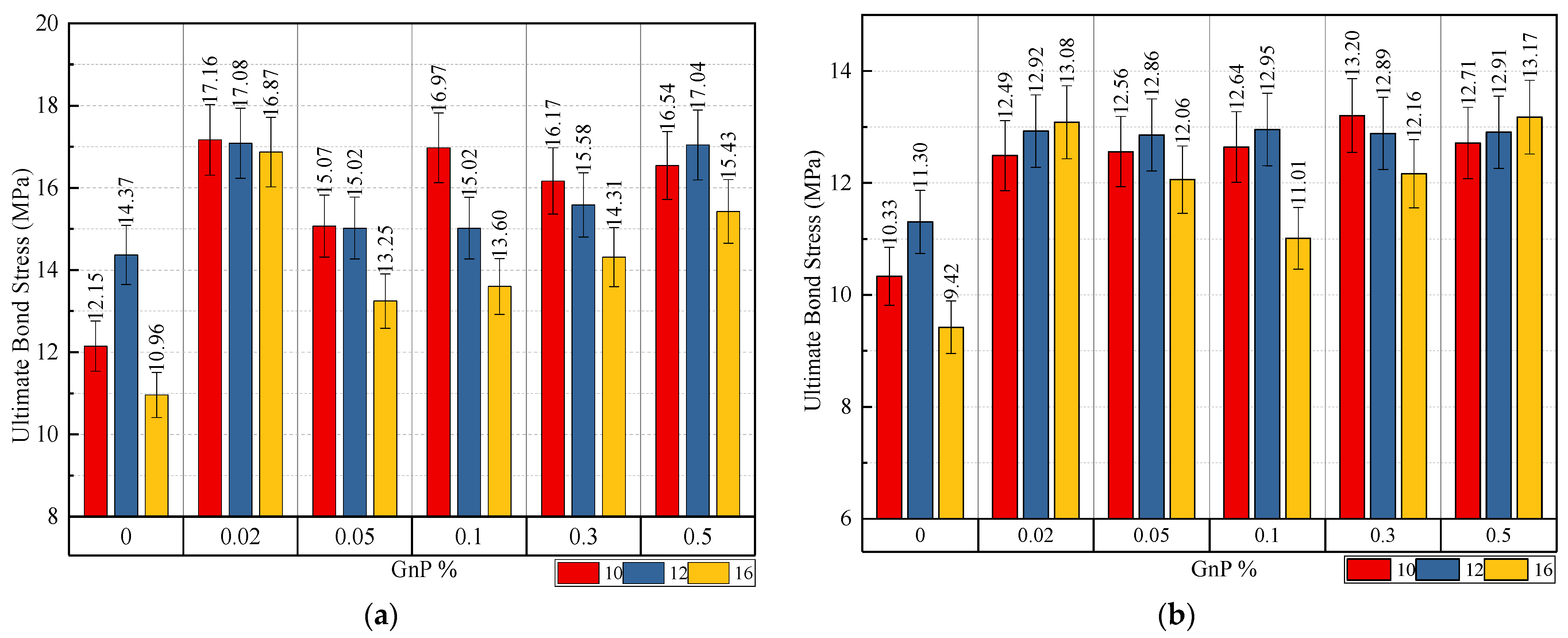

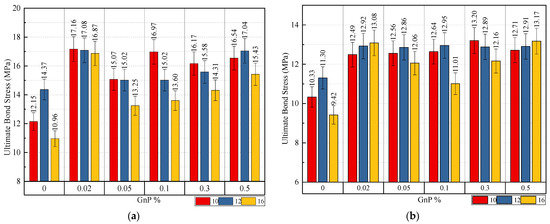

The results showed that the inclusion of 0.02 wt.% of GnP enhanced the bond stress by more than 41.28% for steel bars with 10 mm and 18.91% and 53.90% for steel bars with 12 and16 mm, respectively, at the same embedded length 9.
In comparison to the control samples, the inclusion of GnP caused a reduction in the initial slippage of the steel bar due to the enhanced adhesion between the bar and adjacent concrete.
However, the excessive dosage of GnP caused a reduction in the compressive strength of HPC, GnP at high doses (0.50 wt.%) showed improved bond stress, which was near to the same enhancement of 0.02 wt.% of GnP.
The use of GnP reinforced HPC can lead to a decrease in the length of anchoring required for deformed bars.
Esfahani and Rangan’s prediction equation was able to nearly predict the bond stress of GnP-incorporated samples with a mean ratio of 0.99 and a standard deviation of 0.12.
