Effect of Al Concentration on Microstructure and Properties of AlNbTiZr Medium-Entropy Alloy Coatings

1
The First Sub-Institute, Nuclear Power Institute of China, Chengdu 610041, China
2
Key Laboratory of Radiation Physics and Technology of Ministry of Education, Institute of Nuclear Science and Technology, Sichuan University, Chengdu 610064, China
*
Authors to whom correspondence should be addressed.
Materials 2021, 14(24), 7661; https://doi.org/10.3390/ma14247661
Submission received: 29 October 2021 / Revised: 21 November 2021 / Accepted: 28 November 2021 / Published: 12 December 2021
(This article belongs to the Special Issue Structural Materials for Nuclear Applications)

Abstract

:
The AlNbTiZr medium-entropy alloy (MEA) coatings with different Al contents were prepared on N36 zirconium alloy substrates by RF magnetron co-sputtering. The morphology, microstructure, mechanical properties, surface wettability and corrosion resistance of the AlNbTiZr MEA coatings were studied to evaluate the surface protection behavior of zirconium alloy cladding under operation conditions of a pressurized water reactor. The results showed that all the coatings were composite structures with amorphous and bcc-structured nanocrystals. With the increase of Al content, both the elastic modulus and hardness decreased first and then increased. The hydrophobicity of the coatings was enhanced compared with that of the substrate. The 10.2 at.% Al AlNbTiZr coating had the best corrosion resistance and the minimum oxygen penetration depth, which originated from the formation of a denser oxide layer consisting of Nb2Zr6O17 and ZrO2. This study provides an improved idea for the design and development of Al-containing MEA coating materials for accident tolerant fuel.

1. Introduction

After the Fukushima nuclear accident, scientists have carried out extensive research on accident tolerant fuel (ATF) projects for pressurized water reactors (PWRs) [1]. Under the loss of coolant accident (LOCA), the cladding materials will be oxidized rapidly and cause immeasurable loss [2]. In comparison, ATF cladding can delay the time of fuel rod swelling explosion and reduce the rate of cladding temperature rise, which can greatly delay the progress of severe accidents [3]. For ATF cladding, the most critical demand is to reduce the high-temperature steam oxidation rate when an accident happens [4]. The main research direction of ATF cladding is divided into two strategies: the first one is to develop new cladding materials instead of zirconium alloys, such as FeCrAl alloy, SiCf/SiC non-metallic composites materials and Mo alloys [5,6,7,8,9,10]. The second one is to prepare protective coatings on the surface of zirconium alloy cladding to ameliorate its high-temperature oxidation resistance, mainly representing metallic coatings (Cr, Mo, CrAl, FeCrAl, high entropy alloy, etc.) [11,12,13,14], ceramic coatings (CrC, SiC, CrN, MAX phase materials, etc.) [15,16,17,18,19,20] and composite coatings (Cr/CrN, TiN/TiAlN, etc.) [20,21]. Based on these results, although the above coatings exhibit excellent corrosion resistance in high-temperature pressurized water experiments, it is still an important topic to exploit new candidate coatings that can withstand LOCA accidents in PWR.
In recent years, medium-entropy alloys (MEAs) have attracted increasing research attention. It is usually composed of 2~4 main elements and its mixing entropy (ΔSmix) in the range of 0.69 R~1.61 R (R is the gas constant) [22,23,24,25]. As one kind of multi-principal element alloy with relatively few main elements and easily controlled chemical composition, it has ultra-high strength, high hardness, excellent corrosion resistance and super irradiation resistance, which is expected to be industrialized and applied in the field of nuclear materials [26,27,28]. Similarly, the MEA coatings also show similar advantages to their bulk materials counterparts. For instance, Feng et al. found that the corrosion resistance of CrCoNi MEA coating prepared by laser cladding was even higher than that of 304 stainless steel counterparts in 0.5 M H2SO4 solution [29]. Chai et al. found the CrNiTi MEA coating exhibited superior wear resistance and reported an approximately 10-fold improvement in wear resistance over the steel substrate [30]. Cao et al. [27] fabricated a multilayered CoCrNi/Ti MEA coating with nano-twin boundaries, observed in columnar CoCrNi grains, which helped to redistribute the stress and change plasticity of the coating. Wang et al. reported that the NiCoCr MEA exhibited excellent irradiation resistance compared to Ni under the same irradiation conditions, stemming from the random nature of the lattice position of MEA, which suppressed radiation-induced damage [28]. These properties could make the MEA coatings promising as a candidate material for surface protection of PWR structural materials.
In our work, the novel AlNbTiZr MEA coatings with various Al content were designed and investigated for the ATF cladding coating. Considering the application requirements of PWR under accident conditions, four metal elements (Al, Nb, Ti and Zr) were deliberately selected for the following causes [31,32,33,34,35]: (a) Avoid choosing elements that can undergo nuclear transmutation reactions with neutrons, and these selected elements should have low neutron absorption cross-sections, i.e., high melting point elements: Al (0.22 b, 660 °C), Nb (1.1 b, 2415 °C), Ti (5.6 b, 1670 °C) and Zr (0.18 b, 1850 °C). (b) Al, Nb, Ti are strong oxide-forming elements, which can form the dense oxide layer with excellent corrosion resistance. (c) The Al and Nb element show a strong tendency to form a bcc crystal structure. The bcc structure coating materials have good resistance to radiation expansion and radiation-induced segregation. (d) The choice of Zr element is to improve the coating-substrate bonding force by enhancing the metallurgical bonding. What calls for special attention is that the effect of Al content needs to be further explored because of its two-folds on the microstructure and properties of the coating system. On the one hand, as a strong oxidation-forming element, Al can easily form a dense oxide layer on the coating surface, which is beneficial for enhancing corrosion resistance. On the other hand, in critical water and supercritical water corrosion conditions, the Al2O3 easily reacts with water to generate the boehmite phase (AlOOH) and leads to the dissolution of Al2O3, which will greatly reduce the corrosion resistance [23,24]. Hence, the effect of Al content on the microstructure, wettability, mechanical properties and corrosion resistance of the AlNbTiZr MEA coatings were systematically evaluated.

2. Experimental Details

2.1. Coating Deposition

The five AlNbTiZr MEA coatings with different Al content were deposited on single-crystalline silicon wafers and N36 Zr alloy (Zr-1Sn-1Nb-0.3Fe in wt.%) substrates by RF magnetron co-sputtering. The size of zirconium alloy substrates was 10 × 10 × 0.5 mm3. The MEA targets with various Al contents were prepared by powder metallurgy technology using alloy with a purity of above 99.99%. All targets were 76.2 mm in diameter and 5 mm in thickness. The content of the Al element was set to 0 at.%, 10 at.%, 15 at.%, 25 at.% and 50 at.%, respectively. The other three elements were equal molar ratios. Before each deposition, the substrates were polished by using different grit SiC abrasive papers (grit size up to 3000#) and then ultrasonic cleaned with acetone to remove surface impurities. During the deposit process, the sputtering power and bias voltage of the AlNbTiZr MEA targets were fixed at ~200 W and −100 V, respectively. The target-substrate distance was kept at 9 cm. The base pressure of the deposition chamber was lower than 7.5×10−4 Pa, and the sputter pressure was maintained at 0.51 Pa. The Ar flow rate and the deposition time were controlled at 51 sccm and 150 min, respectively. The single-crystalline silicon and zirconium alloy substrates were rotated at 20 rpm to ensure the uniform thickness of all coatings. Deposition temperature was performed at 300 ℃ in the chamber. The detailed coatings preparation parameters are presented in Table 1.

2.2. Coating Characterization

The X-ray diffractometer (XRD, EMPYREAN, PANalytical, The Netherlands) was performed to characterize the crystalline phase of the as-deposited and corroded coatings. The scan range was from 20° to 90° with a resolution of 0.02° per step and a time step of 0.5 s. The microstructure of the coatings was characterized by transmission electron microscopy (TEM, Talos F200S, FEI, Hillsboro, OR, USA). The cross-sectional TEM coating samples were prepared by focused ion beam (FIB, Helios NanoLab 600i, FEI, Hillsboro, OR, USA) electron microscopy. The surface and cross-sectional morphologies, chemical composition and thickness of all the coatings were observed and calculated by field-emission scanning electron microscopy (FESEM, JSM-7500F, JEOL, Japan) equipped with an energy dispersive spectrometer (EDS, Ultim Extreme, Oxford, UK). A nanoindentation instrument (NHT2, Anton Paar, Graz, Austria) with the continuous stiffness method was applied to evaluate the hardness and elastic modulus of the coatings. Each sample was conducted five times, and then its average value was used. The indentation depth should be no more than 1/7 of the coating thickness to eliminate and reduce the substrate effect. The liquid-solid contact angle tester (JC2000D, POWEREACH, Shanghai, China) was used to characterize the surface wettability of the coatings. The corrosion experiments were operated in deionized water, concluding 1000 ppm boron, 3.5 ppm lithium at 360 °C for 30 days. The saturation pressure of the static autoclave was 18.6 MPa at this corresponding temperature value. The oxides scale thickness of the internal coatings was tested to evaluate the corrosion resistance of AlNbTiZr MEA coatings with different Al contents.

3. Results and Discussion

3.1. Chemical Composition, Phase and Microstructure

To verify whether the composition of coatings was consistent with the expected, the chemical compositions of all the coatings were characterized by EDS. The chemical composition (at.%), thickness and corresponding mixing entropy (∆Smix) of coatings are listed in Table 2. The contents of the Nb, Ti and Zr in AlNbTiZr MEA coatings remained approximately equal in molar ratios. The cross-sectional SEM images showed that the thickness of all the coatings was between 5.4 μm and 6.1 μm. The slight deviation of coating thickness and composition could result from the different sputtering rates of each element under the influence of Ar+ bombardment. As shown in Table 2, the Al content in AlNbTiZr MEA coatings were 0 at.%, 10.2 at.%, 15.6 at.%, 26.2 at.% and 54.7 at.%, respectively. The above results demonstrated that the as-prepared coatings meet the expectation. For the sake of simplicity, one equimolar NbTiZr MEA coating without Al element was named as Al0%. With the increase of Al content, four AlNbTiZr MEA coatings were named as Al10%, Al15%, Al26% and Al54%, respectively. The mixing entropy values (ΔSmix) were calculated, which increased with the increase Al content from 1.10 R to 1.39 R and then decreased to 1.19 R. Here, the gas constant, R, is equal to 8.314 J∙K−1∙mol−1. It shows that the addition of Al into the NbTiZr coating system still follows the rule of medium-entropy alloys (0.69 R ≤ ∆Smix ≤ 1.61 R). Figure 1 shows the surface and cross-sectional SEM morphologies of the as-deposited AlNbTiZr MEA coatings with various Al content. These images exhibited that the coatings were homogeneous and continuous, and no obvious defects, columnar crystals or holes were observed. Small circular particles appeared on the surface of all coatings. With the further addition of Al content, the SEM micrograph at high magnification revealed that the surface of the coatings became smoother, as presented in Figure 2. The results indicated that the coatings have a high deposition quality, which can be beneficial to improve the high-temperature pressurized water corrosion resistance.
Figure 3 exhibits the XRD patterns of the as-deposited AlNbTiZr MEA coatings with different Al contents. The as-deposited AlNbTiZr MEA coatings had distinct wide diffraction peaks between 36.1° and 38.2°, which implies a low crystallinity [36,37]. According to earlier studies, the broad halo diffraction peaks of these MEA coatings were usually caused by the formation of an amorphous or nanocrystalline phase [38,39]. With the increase of Al content in the coating system, the center position of broad diffraction peaks shifted to a higher angle, indicating that the average interatomic distance became smaller, i.e., a compression occurred. This could be due to the increase of lattice distortion caused by the addition of Al atoms with a smaller atomic radius. To further verify and determine the phase structure of the coatings, TEM analyses were performed on all the as-spun coatings, as shown in Figure 4.
The cross-sectional HRTEM images showed that all the coatings were mainly amorphous structures wrapped with tiny nanocrystals. The increase of atomic size difference in the coatings led to the collapse of distorted lattices and promoted the formation of an amorphous phase, which was one of the reasons that the microstructure of all the coatings was dominated by the amorphous phase. From Figure 4(a1)–(e1), the selected area electron diffraction (SAED) pattern exhibited three diffraction rings, corresponding to a stronger diffraction ring of the (100) plane and the weaker diffraction rings of the (200) and (211) planes of the bcc nanocrystalline structure were determined. Meanwhile, the number of bcc nanocrystals in the coatings increased significantly with the increase of Al content. This is not surprising because the Al element shows a strong tendency for forming a bcc crystalline structure. The microstructure of the AlNbTiZr MEA coatings may be due to the inhibition of grain growth by the non-thermodynamic equilibrium magnetron sputtering technology and the combined effect of entropy enhancement in the coatings [40,41]. Therefore, it can be seen that the results of the TEM analyses were in line with those of the XRD analyses.

3.2. Mechanical Properties

The mechanical properties of the AlNbTiZr MEA coatings with different Al contents were evaluated by nanoindentation tests. The value of hardness and elasticity modulus as a function of the Al content in the MEA coatings are presented in Figure 5a. To clarify the ability of the coatings to resist cracking and plastic deformation, the H3/E*2 ratio and H/E ratio were calculated [H is the nano-hardness, E* = E/(1 − v2) was the effective elasticity modulus with Poisson’s rate, v = 0.3], and the results are shown in Figure 5b. From Figure 5a, the hardness and elastic modulus decreased slightly initially and then gradually increased with the increasing of the Al content in the coating system. The Al content had little effect on the elastic modulus and hardness of the Al0%, Al10% and Al15% coatings. When the elastic modulus of different materials was similar, the materials with lower hardness tended to have lower brittleness and higher fracture toughness. This is because the stress wave propagation distance of the materials with lower hardness is short, and the local energy dissipation is large when acted on by external forces [42]. With the further increase of Al content in the coating, the value of hardness and elastic modulus increased successively. This may be related to the number of bcc nanocrystals in the coatings. The coatings containing more nanocrystals would have more grain boundaries, and the interaction with fine grain strengthening and solid solution strengthening would improve the hardness and strength of the coatings. Compared to other coatings, the Al10% coating was less likely to cause overall failure due to its relatively low hardness and modulus of elasticity. Figure 5b shows the values of H/E and H3/E*2 ratios of all the as-prepared coatings. As is well-known, the value of H/E and H3/E*2 ratios are the key parameters to evaluate the cracking and plastic deformation resistance of coatings, which are also closely related to the tribological properties of coatings. The high H/E and H3/E*2 ratio values mean that the material has stronger resistance to deformation. As shown in Figure 5b, the value of H/E and H3/E*2 ratios increased with the increase of Al content in the coatings, indicating that the anti-deformation ability was enhanced, but the overall difference of their values was not significant.

3.3. Surface Wettability

To assess the surface wettability of the AlNbTiZr MEA coatings with different aluminum contents, two microliters of deionized water were dropped on five as-spun coatings and N36 substrate, and their liquid-solid contact angles were tested. In order to reduce the experimental error, each sample was tested five times, and the average was taken. As shown in Figure 6, the contact angle of the substrate was 72.2° ± 4°, indicating a hydrophilic surface. For Al 0%, Al 10%, Al 15%, Al 26% and Al 54% coatings, the contact angles were 84.2° ± 3°, 88.8° ± 2°, 88.5° ± 4°, 88.5° ± 3° and 87.7° ± 3°, respectively. The contact angles of AlNbTiZr MEA coatings with different Al contents were approximately close, indicating that Al content had little influence on the contact angle of the coatings. Further, compared with the contact angle of the N36 substrate, the Al10% coating exhibited a stronger hydrophobicity due to its relatively large contact angle, which may effectively improve the corrosion resistance of the coating [43].

3.4. Autoclave Test

To clarify the high-temperature pressurized water corrosion resistance of the AlNbTiZr MEA coatings with various Al contents, the uncoated N36 substrate was also exposed to the same corrosion conditions for comparison. The surface morphologies of the corroded N36 substrate and corroded MEA coatings with different Al content are shown in Figure 7. Figure 7g–l shows an enlarged view of Figure 7a–f. After the corrosion of the N36 substrate, the disc-shaped oxide particles with different sizes were formed on the surface, as shown in Figure 7a. The surface morphologies of the AlNbTiZr MEA coatings with different Al content were obviously different after corrosion. Figure 7b,d shows that the dispersed oxide products were formed on the surface of Al 0% and Al 15% coatings. From Figure 7c,e,f, the uniform oxide scale was formed on the surface of Al10%, Al 26% and Al 54% coatings, which were square-shaped oxide particles on the Al 10% coating, although the oxide particles on the Al 26% and Al 54% coatings were mostly round. The oxide layers of different densities were formed on the surface of the coatings without cracks, delamination or peeling, which indicated that all the coatings have excellent adhesion and durability under high-temperature pressurized water corrosion environments. According to Figure 7, the chemical composition of the surface of each coating was also indicated. It can be found that the atomic percentage of oxygen in all the coatings was not very different, at about 65 at.%, to a certain extent, indicating that the oxygen content is basically saturated.
The phase structure of the corroded N36 substrate and corroded coatings were analyzed by XRD to ascertain the corrosion products, as indicated in Figure 8. The corrosion products of the substrate and AlNbTiZr coatings with various Al contents were ascertained to be orthorhombic Nb2Zr6O17 (PDF card index: 09-0251), cubic ZrO2 (PDF card index: 49-1642), which is consistent with the results of corrosion of AlCrMoNbZr HEA coating studied by Zhang et al. [23]. The order of the Gibbs free energy of formation of the involved oxides was Nb2O5 < Al2O3 < ZrO2 < TiO2 [44]. The formation order of corrosion products of the AlNbTiZr MEA coatings should be consistent with the order of formation of Gibbs free energy. The diffraction peaks of ZrO2 were observed in all coatings after corrosion, and it can be assumed that Nb2O5 and Al2O3 have been formed. Nevertheless, no diffraction peaks were observed for Nb2O5 and Al2O3. There are two main reasons for the absence of Al2O3 diffraction peaks in the XRD patterns of Al-containing MEA coatings: (1) Al2O3 has a higher crystallization temperature, the formation temperature of γ-Al2O3 is 450° and higher for α-Al2O3 [45]. (2) Al reacts easily with water to form the boehmite phase (AlOOH), which is partially dissolved in the high-temperature aqueous corrosion environment [31]. Meanwhile, Nb2O5 can dissolve with ZrO2 to form the Nb2Zr6O17 phase, which confirmed the test results in XRD patterns. The Nb2Zr6O17 phase has a high melting point, which can be used as a barrier to prevent the diffusion of oxygen into the N36 substrate, which can be effectively applied in LOCA conditions [46,47]. It is worth noting that the characteristic broad halo diffraction peaks of the AlNbTiZr MEA coatings were still identifiable after corrosion, indicating the coatings exhibited excellent structural stability.
For further determining the high-temperature pressurized water corrosion resistance of coatings, the cross-sectional SEM morphologies and EDS line scanning of the uncoated N36 substrate and the AlNbTiZr MEA coatings with various Al content were implemented to estimate the depth of the oxide scale, as shown in Figure 9. All the coatings were well bonded to the substrates with a flat and compact morphology with blanket morphologies. Furthermore, there were no spallation or cracks between the corrosion regions and the lower coatings, which ascribed to (a) the low residual stress and (b) the high adhesive strength of the scale to the lower coating. The thicknesses of corroded coatings increased due to the formation of oxidation products, which was in agreement with the results obtained by Chen et al. after the corrosion of CrCuFeMoNi HEA coatings with different compositions [25]. Moreover, Figure 9h–l shows the cross-sectional EDS line scanning results of the coatings after corrosion. It can be seen that the oxygen signal was only detected on the external surface of the coatings and did not reach the substrate, which showed that no oxide was formed in the matrix, and all the coatings act as the barrier to oxygen penetration. This showed that the AlNbTiZr MEA coatings with different Al content have excellent corrosion protection properties in high-temperature pressurized water conditions. This is mainly due to the lack of a rapid diffusion channel for oxygen in the disordered amorphous structure of the coatings and the sluggish diffusion effect of MEA coatings, which inhibited the diffusion and migration of elements. As shown in Figure 10, the oxide scale depth of the corroded AlNbTiZr MEA coatings were compared with the uncoated substrate. The thickness of the oxide scale on the uncoated N36 substrate was the largest at 3.36 μm. The oxidation thickness of the Al10% coating was the lowest, which was only 0.84 μm. With the increase of Al content, the oxide scale thickness of the coatings first decreased and then increased slightly and was still much thinner than the oxide scale thickness of the uncoated N36 substrate. Meanwhile, the oxide scale depth of the Al-containing coatings was thinner than that of the Al-free coating, indicating that the addition of the Al element into the NbTiZr coating system can effectively improve the corrosion resistance. Compared with other Al-containing AlNbTiZr MEA coatings, the Al10% coating showed the best corrosion resistance, which was attributed to the composition ratio of lower Al content and higher Nb, Ti and Zr content in the Al10% coating. This can reduce the formation of the boehmite phase, and a denser oxide layer containing Nb2Zr6O17 and ZrO2 oxide products can be formed on the coating surface. Based on the above discussions, this method of reducing Al content can provide an idea for the design of a more optimal Al-containing MEA coating for ATF cladding.

4. Conclusions

We used magnetron co-sputtering on the AlNbTiZr MEA coatings with various Al contents on the N36 substrate. The effect of Al content on the microstructure and properties of the MEA coatings were investigated by SEM, XRD, TEM, nano-indenter and contact angle tester. The main conclusions are summarized as follows:
  • The XRD and TEM analyses showed that all the coatings were composed of amorphous phase and tiny bcc nanocrystals; the number of nanocrystals in the coatings tends to increase with increasing Al content.
  • With the increase of Al content in the coatings, the hardness and modulus of elasticity decreased first and then increased, while the cracking resistance and plastic deformation resistance increased slightly.
  • Compared to the uncoated N36 substrate, the AlNbTiZr MEA coatings exhibited excellent corrosion resistance with a much thinner oxide layer and enhanced hydrophobicity.
  • Compared with other coatings, the best corrosion resistance of AlNbTiZr MEA coating was obtained by the addition of 10.2% Al; because of its more reasonable composition ratio, it can greatly reduce the formation probability of the boehmite phase.

Author Contributions

All authors contributed to the study design, data analysis and discussion, as well as to the writing and editing of the manuscript. Conceptualization, H.X. and J.M.; methodology, J.Y. (Jjiun Yang); software, W.Z.; validation, J.Y. (Jiaqi Yang), Z.N. and C.T.; formal analysis, C.M.; investigation, Q.C.; resources, L.W.; data curation, H.X.; writing—original draft preparation, H.X.; writing—review and editing, H.X.; visualization, H.X.; supervision, X.W.; project administration, X.W.; funding acquisition, X.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work has been financially supported by the National Natural Science Foundation of China (Grant No. U2067218), Science and Technology Department of Sichuan Province (Grant No. 21MZGC0400) and State Administration of Science, Technology and Industry for National Defence, PRC (Grant No. 6142A06190510).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data and results involved in this study have been presented in detail in the paper.

Acknowledgments

The authors would like to thank the associate editors and anonymous reviewers for their numerous constructive comments that improved the content of this paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Duan, Z.; Yang, H.; Satoh, Y.; Murakami, K.; Kano, S.; Zhao, Z.; Shen, J.; Abe, H. Current status of materials development of nuclear fuel cladding tubes for light water reactors. Nucl. Eng. Des. 2017, 316, 131–150. [Google Scholar] [CrossRef]
  2. Hirano, M.; Yonomoto, T.; Ishigaki, M.; Watanabe, N.; Maruyama, Y.; Sibamoto, Y.; Watanabe, T.; Moriyama, K. Insights from review and analysis of the Fukushima Daiichi accident. J. Nucl. Sci. Technol. 2012, 49, 1–17. [Google Scholar] [CrossRef] [Green Version]
  3. Zinkle, S.J.; Terrani, K.A.; Gehin, J.C. Accident tolerant fuels for LWRs: A perspective. J. Nucl. Mater. 2014, 448, 374–379. [Google Scholar] [CrossRef]
  4. Zinkle, S.J.; Was, G.S. Materials challenges in nuclear energy. Acta Mater. 2013, 61, 735–758. [Google Scholar] [CrossRef]
  5. Shimoda, K.; Hinoki, T.; Katoh, Y. Development of the tailored SiC/SiC composites by the combined fabrication process of ICVI and NITE methods. J. Nucl. Mater. 2009, 384, 103–108. [Google Scholar] [CrossRef]
  6. Pint, B.A.; Unocic, K.A.; Terrani, K.A. Effect of steam on high temperature oxidation behaviour of alumina-forming alloys. Mater. High Temp. 2015, 32, 28–35. [Google Scholar] [CrossRef]
  7. Pint, B.A. Performance of FeCrAl for accident-tolerant fuel cladding in high-temperature steam. Corros. Rev. 2017, 35, 232–240. [Google Scholar] [CrossRef]
  8. Unocic, K.A.; Yamamoto, Y.; Pint, B.A. Effect of Al and Cr Content on Air and Steam Oxidation of FeCrAl Alloys and Commercial APMT Alloy. Oxid. Met. 2017, 87, 431–441. [Google Scholar] [CrossRef]
  9. Cheng, B.; Kim, Y.-J.; Chou, P. Improving Accident Tolerance of Nuclear Fuel with Coated Mo-alloy Cladding. Nucl. Eng. Tech. 2016, 48, 16–25. [Google Scholar] [CrossRef] [Green Version]
  10. Cheng, B.; Chou, P.; Kim, Y.-J. Evaluations of Mo-alloy for light water reactor fuel cladding to enhance accident tolerance. EPJ Nucl. Sci. Technol. 2016, 2, 1–6. [Google Scholar] [CrossRef] [Green Version]
  11. Lee, Y.-H.; Park, J.-H.; Kim, I.-H.; Park, D.-J.; Jung, Y.-I.; Choi, B.-K.; Kim, H.-G. Enhanced wear resistance of CrAl-coated cladding for accident-tolerant fuel. J. Nucl. Mater. 2019, 523, 223–230. [Google Scholar] [CrossRef]
  12. He, L.X.; Liu, C.H.; Lin, J.H.; Chen, Q.S.; Yang, J.J.; Zhang, R.Q.; Yang, H.Y.; Wang, Y.; Wang, J.; Long, J.P.; et al. Microstructure, oxidation and corrosion properties of FeCrAl coatings with low Al content prepared by magnetron sputtering for accident tolerant fuel cladding. J. Nucl. Mater. 2021, 551, 152966. [Google Scholar] [CrossRef]
  13. Chen, Q.S.; Liu, C.H.; Zhang, R.Q.; Yang, H.Y.; Wei, T.G.; Wang, Y.; Li, Z.; He, L.X.; Wang, J.; Wang, L.; et al. Microstructure and high-temperature steam oxidation properties of thick Cr coatings prepared by magnetron sputtering for accident tolerant fuel claddings: The role of bias in the deposition process. Corros. Sci. 2020, 165, 108378. [Google Scholar] [CrossRef]
  14. Wu, J.J.; Shen, M.L.; Hu, M.; Guo, C.; Li, Q.; Zhu, S.L. High vacuum arc ion plating Cr films: Self-ion bombarding effect and oxidation behavior. Corros. Sci. 2021, 187, 109476. [Google Scholar] [CrossRef]
  15. Brachet, J.C.; Urvoy, S.; Rouesne, E.; Nony, G.; Dumerval, M.; Le Saux, M.; Ott, F.; Michaud, A.; Schuster, F.; Maury, F. DLI-MOCVD CrxCy coating to prevent Zr-based cladding from inner oxidation and secondary hydriding upon LOCA conditions. J. Nucl. Mater. 2021, 550, 152953. [Google Scholar] [CrossRef]
  16. Hui, R.; Cook, W.; Sun, C.; Xie, Y.; Yao, P.; Miles, J.; Olive, R.; Li, J.; Zheng, W.; Zhang, L. Deposition, characterization and performance evaluation of ceramic coatings on metallic substrates for supercritical water-cooled reactors. Surf. Coat. Technol. 2011, 205, 3512–3519. [Google Scholar] [CrossRef] [Green Version]
  17. Usui, T.; Sawada, A.; Amaya, M.; Suzuki, A.; Chikada, T.; Terai, T. SiC coating as hydrogen permeation reduction and oxidation resistance for nuclear fuel cladding. J. Nucl. Sci. Technol. 2015, 3131, 1–5. [Google Scholar] [CrossRef]
  18. Maier, B.R.; Garcia-Diaz, B.L.; Hauch, B.; Olson, L.C.; Sindelar, R.L.; Sridharan, K. Ti2AlC coatings for improved nuclear fuel cladding. J. Nucl. Mater. 2015, 466, 1–6. [Google Scholar] [CrossRef]
  19. Liu, J.K.; Hao, Z.; Cui, Z.X.; Ma, D.Y.; Lu, J.Q.; Cui, Y.G.; Li, C.; Liu, W.B.; Xie, S.J.; Hu, P.F.; et al. Oxidation behavior, thermal stability, and the coating/substrate interface evolution of CrN-coated Zircaloy under high-temperature steam. Corros. Sci. 2021, 185, 127228. [Google Scholar] [CrossRef]
  20. Li, Z.; Liu, C.H.; Chen, Q.S.; Yang, J.J.; Liu, J.M.; Yang, H.Y.; Zhang, W.; Zhang, R.Q.; He, L.X.; Long, J.P.; et al. Microstructure, high-temperature corrosion and steam oxidation properties of Cr/CrN multilayer coatings prepared by magnetron sputtering. Corros. Sci. 2021, 191, 109755. [Google Scholar] [CrossRef]
  21. Alat, E.; Motta, A.T.; Comstock, R.J.; Partezana, J.M.; Wolfe, D.E. Multilayer (TiN, TiAlN) ceramic coatings for nuclear fuel cladding. J. Nucl. Mater. 2016, 478, 236–244. [Google Scholar] [CrossRef] [Green Version]
  22. Yang, J.; Shi, K.; Zhang, W.; Chen, Q.; Ning, Z.; Zhu, C.; Liao, J.; Yang, Y.; Liu, N.; Zhang, W.; et al. A novel AlCrFeMoTi high-entropy alloy coating with a high corrosion-resistance in lead-bismuth eutectic alloy. Corros. Sci. 2021, 187, 109524. [Google Scholar] [CrossRef]
  23. Zhang, W.; Tang, R.; Yang, Z.B.; Liu, C.H.; Chang, H.; Yang, J.J.; Liao, J.L.; Yang, Y.Y.; Liu, N. Preparation, structure, and properties of an AlCrMoNbZr high-entropy alloy coating for accident-tolerant fuel cladding. Surf. Coat. Technol. 2018, 347, 13–19. [Google Scholar] [CrossRef]
  24. Zhang, W.; Tang, R.; Yang, Z.B.; Liu, C.H.; Chang, H.; Yang, J.J.; Liao, J.L.; Yang, Y.Y.; Liu, N. Preparation, structure, and properties of high-entropy alloy multilayer coatings for nuclear fuel cladding: A case study of AlCrMoNbZr/(AlCrMoNbZr)N. J. Nucl. Mater. 2018, 512, 15–24. [Google Scholar] [CrossRef]
  25. Chen, Q.S.; Liu, C.H.; Long, J.P.; Wang, J.; Zhang, R.Q.; Yang, H.Y.; Zhang, W.; Yao, F.Y.; Zhao, S.; Zhang, Q. Microstructure and corrosion characteristics of CrCuFeMoNi HEA coatings with different compositions in high-temperature and high-pressure water. Mater. Res. Express 2019, 6, 086511. [Google Scholar] [CrossRef]
  26. Guan, H.T.; Chai, L.J.; Wang, Y.Y.; Xiang, K.; Wu, L.; Pan, H.C.; Yang, M.B.; Teng, C.Q.; Zhang, W. Microstructure and hardness of NbTiZr and NbTaTiZr refractory medium-entropy alloy coatings on Zr alloy by laser cladding. Appl. Surf. Sci. 2021, 549, 149338. [Google Scholar] [CrossRef]
  27. Cao, F.Y.; Munroe, P.; Zhou, Z.F.; Xie, Z.H. Microstructure and mechanical properties of a multilayered CoCrNi/Ti coating with varying crystal structure. Surf. Coat. Technol. 2018, 350, 596–602. [Google Scholar] [CrossRef]
  28. Tong, Y.; Wang, G.X.; Barr, C.M.; Jin, K.; Bei, H.B.; Hattar, K.; Weber, W.J.; Zhang, Y.W.; More, K.L. Defect evolution in Ni and NiCoCr by in situ 2.8 MeV Au irradiation. J. Nucl. Mater. 2019, 523, 502–509. [Google Scholar]
  29. Feng, K.; Zhang, Y.; Li, Z.; Yao, C.; Yao, L.; Fan, C. Corrosion properties of laser cladded CrCoNi medium entropy alloy coating. Surf. Coat. Technol. 2020, 397, 126004. [Google Scholar] [CrossRef]
  30. Chai, L.; Wang, C.; Xiang, K.; Wang, Y.; Wang, T.; Ma, Y. Phase constitution, microstructure and properties of pulsed laser-clad ternary CrNiTi medium-entropy alloy coating on pure titanium. Surf. Coat. Technol. 2020, 402, 126503. [Google Scholar] [CrossRef]
  31. Alat, E.; Motta, A.T.; Comstock, R.J.; Partezana, J.M.; Wolfe, D.E. Ceramic coating for corrosion (c3) resistance of nuclear fuel cladding. Surf. Coat. Technol. 2015, 281, 133–143. [Google Scholar] [CrossRef] [Green Version]
  32. Fan, Y.; Sun, Q.; Fang, R.; Lin, H.; Chen, Z.; Zhang, X.; Zhang, J. Microstructure and properties of AlCoCrCuFeNi high-entropy alloy laser processing. J. Netshape Form. Eng. 2019, 11, 178–188. (In Chinese) [Google Scholar]
  33. Xiang, C.; Han, E.H.; Zhang, Z.M.; Fu, H.M.; Wang, J.Q.; Zhang, H.F.; Hu, G.D. Design of single-phase high-entropy alloys composed of low thermal neutron absorption cross-section elements for nuclear power plant application. Intermetallics 2019, 104, 143–153. [Google Scholar] [CrossRef]
  34. Zhao, S.; Liu, C.H.; Yang, J.J.; Zhang, W.; He, L.X.; Zhang, R.Q.; Yang, H.Y.; Wang, J.; Long, J.P.; Chang, H. Mechanical and high-temperature corrosion properties of AlTiCrNiTa high entropy alloy coating prepared by magnetron sputtering for accident-tolerant fuel cladding. Surf. Coat. Technol. 2021, 417, 127228. [Google Scholar] [CrossRef]
  35. Niu, P.; Li, R.; Yuan, T.; Wang, M.; Liu, Y. Research progress of high-entropy Alloys by Additive Manufacturing. J. Netshape Form. Eng. 2019, 11, 51–57. (In Chinese) [Google Scholar]
  36. Zhang, Y.; Zuo, T.T.; Tang, Z.; Gao, M.C.; Dahmen, K.A.; Liaw, P.K.; Lu, Z.P. Microstructures and properties of high-entropy alloys. Prog. Mater. Sci. 2014, 61, 1–93. [Google Scholar] [CrossRef]
  37. Tsai, D.C.; Shieu, F.S.; Chang, S.Y.; Yao, H.C.; Deng, M.J. Structures and characterizations of TiVCr and TiVCrZrY films deposited by magnetron sputtering under different Bias powers. J. Electrochem. Soc. 2010, 157, K52–K58. [Google Scholar] [CrossRef]
  38. Vishwanadh, B.; Sarkar, N.; Gangil, S.; Singh, S.; Tewari, R.; Dey, G.K.; Banerjee, S. Synthesis and microstructural characterization of a novel multicomponent equiatomic ZrNbAlTiV high entropy alloy. Scr. Mater. 2016, 124, 146–150. [Google Scholar] [CrossRef]
  39. Li, X.; Zheng, Z.; Dou, D.; Li, J. Microstructure and properties of coating of FeAlCuCrCoMn high entropy alloy deposited by direct current magnetron sputtering. Mater. Res. 2016, 19, 802–806. [Google Scholar] [CrossRef] [Green Version]
  40. Guo, S.; Hu, Q.; Ng, C.; Liu, C.T. More than entropy in high-entropy alloys: Forming solid solutions or amorphous phase. Intermetallics 2013, 41, 96–103. [Google Scholar] [CrossRef]
  41. Inoue, A. High strength bulk amorphous alloys with low critical cooling rates. Mater. Trans. JIM 1995, 36, 866–875. [Google Scholar] [CrossRef] [Green Version]
  42. Bao, Y.W.; Wang, W.; Zhou, Y.C. Investigation of the relationship between elastic modulus and hardness based on depth-sensing indentation measurements. Acta Mater. 2004, 52, 5397–5404. [Google Scholar] [CrossRef]
  43. Berlind, T.; Hellgren, N.; Johansson, M.P.; Hultman, L. Microstructure, mechanical properties, and wetting behavior of Si-C-N thin films grown by reactive magnetron sputtering. Surf. Coat. Technol. 2001, 141, 145–155. [Google Scholar] [CrossRef]
  44. Barin, I. Thermochemical Data of Pure Substances, 3rd ed.; VCH: New York, NY, USA, 1995; pp. 48–1692. [Google Scholar]
  45. Shang, P.; Xiong, S.; Li, L.; Tian, D.; Ai, W. Investigation on thermal stability of Ta2O5, TiO2 and Al2O3 coatings for application at high temperature. Appl. Surf. Sci. 2013, 285, 713–720. [Google Scholar] [CrossRef]
  46. Hassan, A.M.; Naga, S.M.; Awaad, M. Toughening and strengthening of Nb2O5 doped zirconia/alumina (ZTA) composites. Int. J. Refract. Met. Hard Mater. 2015, 48, 338–345. [Google Scholar] [CrossRef]
  47. Su, N.K.; Banjuraizah, J.; Idris, M.A.; Ahmad, Z.A. The role of Nb2Zr6O17 phase on the hardness and fracture toughness of ZTA/Nb2O5 by cold isostatic pressing. In Materials Science Forum; Trans Tech Publications Ltd.: Freienbach, Switzerland, 2017; Volume 888, pp. 126–130. ISSN 1662-9752. [Google Scholar]
Figure 1. The surface and cross-sectional morphologies of the MEA coatings with various Al content: (a) Al0%, (b) Al10%, (c) Al15%, (d) Al26%, (e) Al54%.
Figure 1. The surface and cross-sectional morphologies of the MEA coatings with various Al content: (a) Al0%, (b) Al10%, (c) Al15%, (d) Al26%, (e) Al54%.
Materials 14 07661 g001
Figure 2. Surface SEM micrograph at high magnification of (a) Al0%, (b) Al10%, (c) Al15%, (d) Al26% and (e) Al54% coating.
Figure 2. Surface SEM micrograph at high magnification of (a) Al0%, (b) Al10%, (c) Al15%, (d) Al26% and (e) Al54% coating.
Materials 14 07661 g002

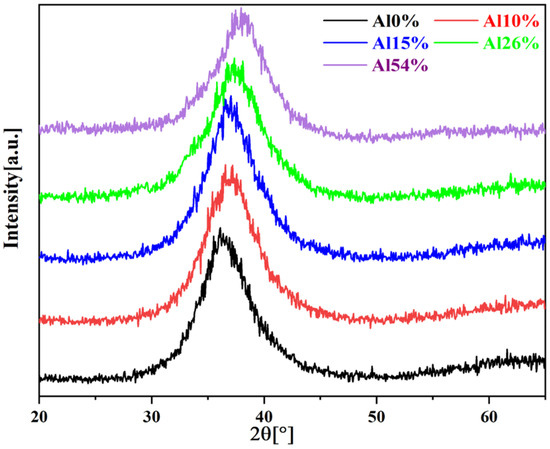

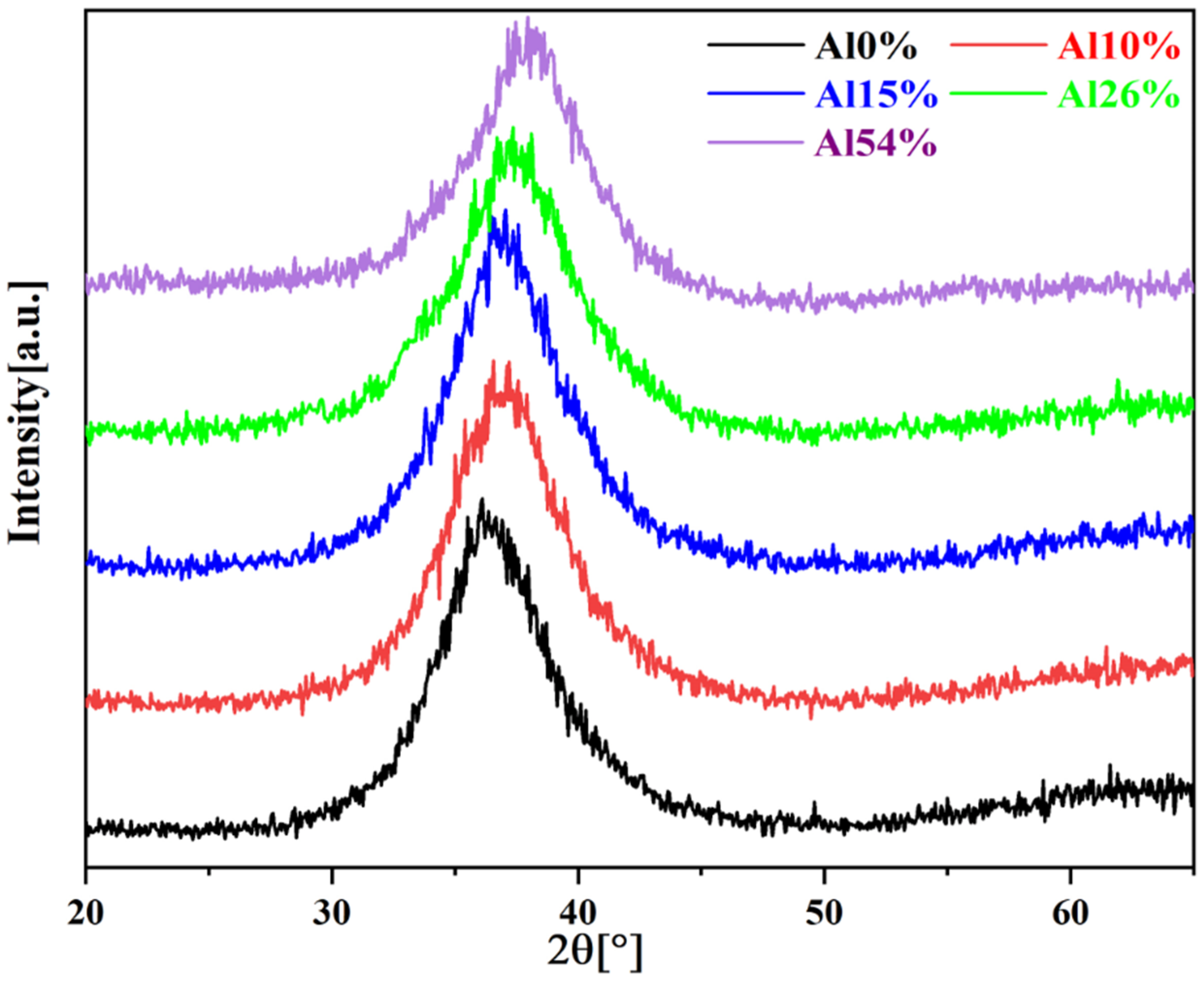

Figure 3. XRD patterns of the as-deposited AlNbTiZr MEA coatings with different Al contents.
Figure 3. XRD patterns of the as-deposited AlNbTiZr MEA coatings with different Al contents.
Materials 14 07661 g003

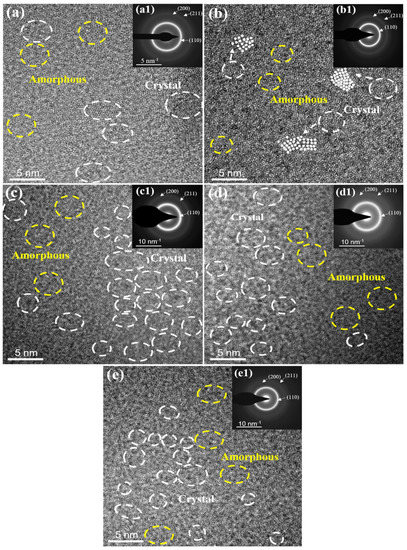

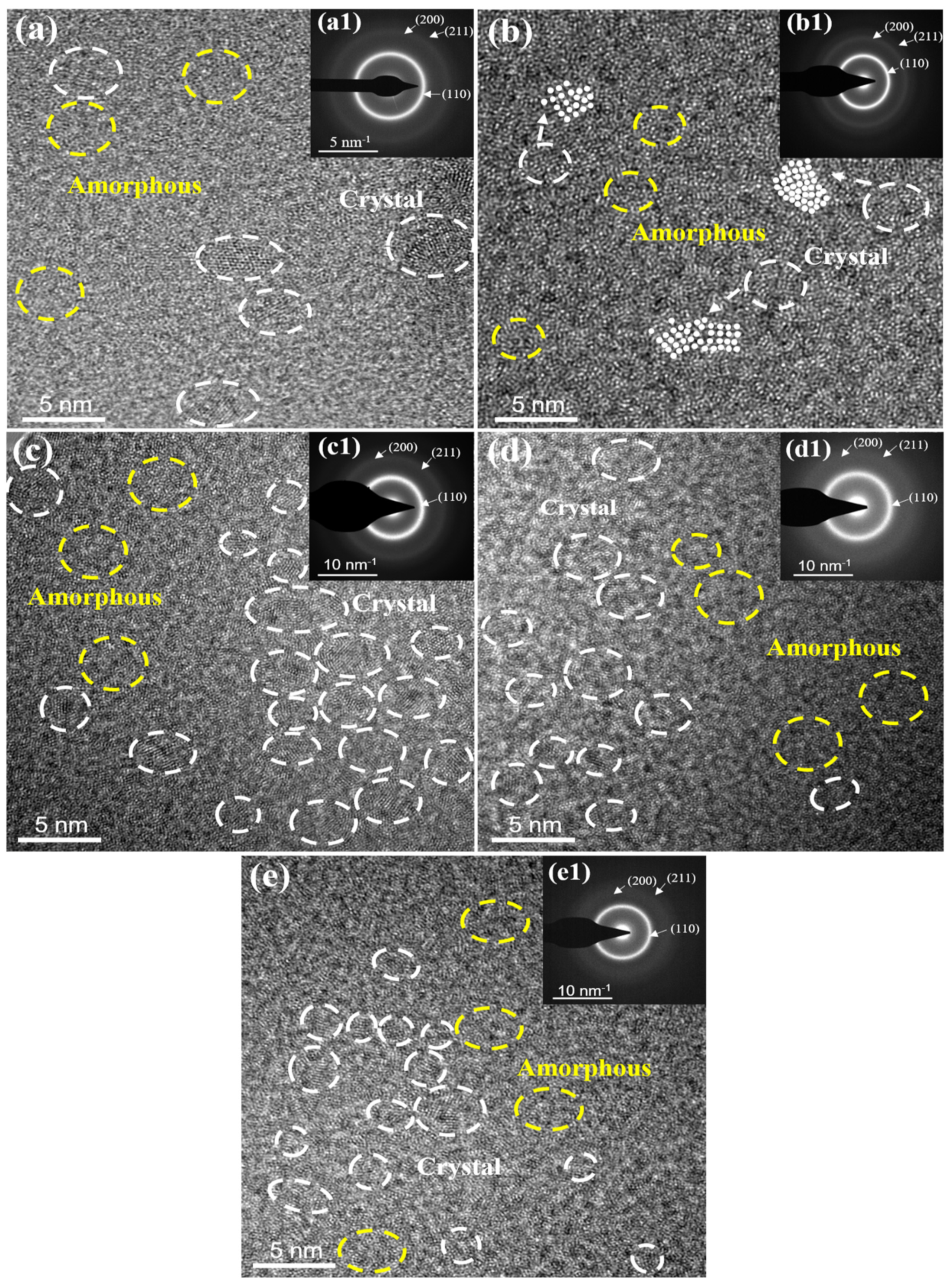

Figure 4. (ae) The cross-sectional HRTEM images and (a1e1) the corresponding SAED patterns of AlNbTiZr MEA coatings with increasing Al content.
Figure 4. (ae) The cross-sectional HRTEM images and (a1e1) the corresponding SAED patterns of AlNbTiZr MEA coatings with increasing Al content.
Materials 14 07661 g004

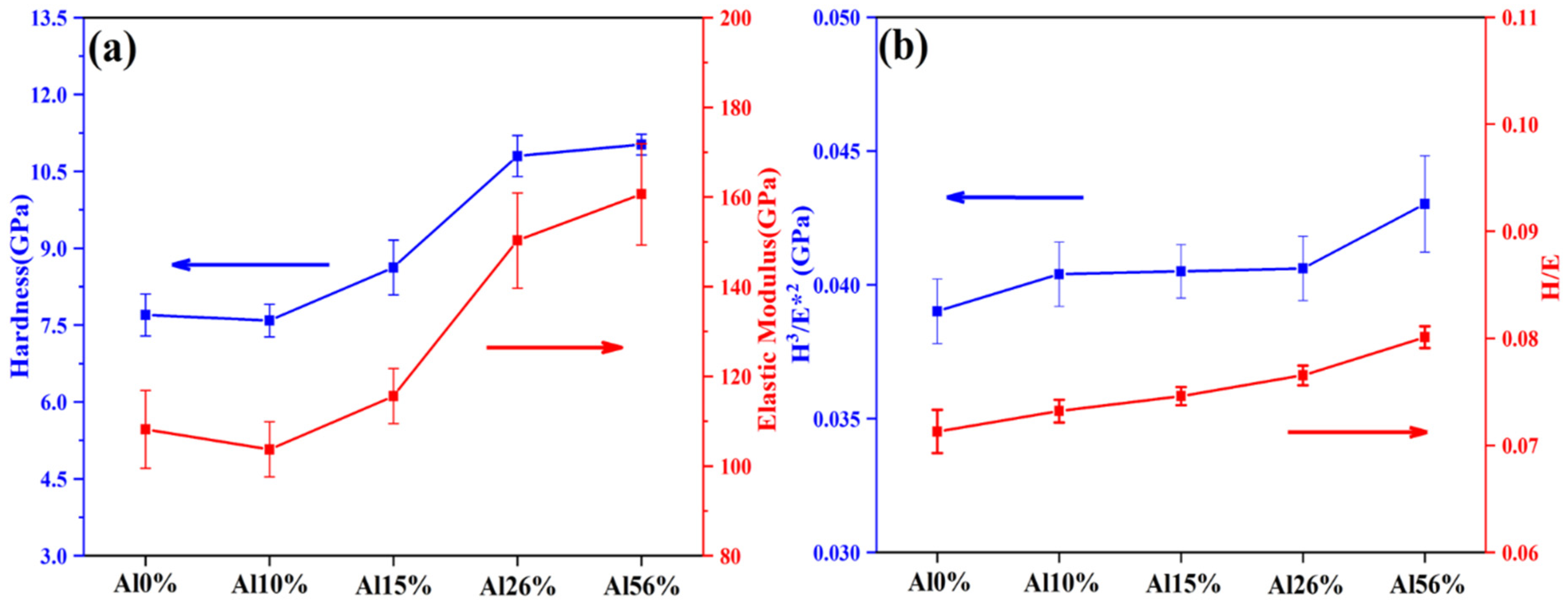

Figure 5. Hardness and elastic modulus (a) H/E and H3/E*2 (b) of the Al0%, Al10%, Al15%, Al26% and Al54% coating.
Figure 5. Hardness and elastic modulus (a) H/E and H3/E*2 (b) of the Al0%, Al10%, Al15%, Al26% and Al54% coating.
Materials 14 07661 g005
Figure 6. The apparent contact angles: (a) N36 substrate; (bf) AlNbTiZr MEA coatings with different Al content.
Figure 6. The apparent contact angles: (a) N36 substrate; (bf) AlNbTiZr MEA coatings with different Al content.
Materials 14 07661 g006

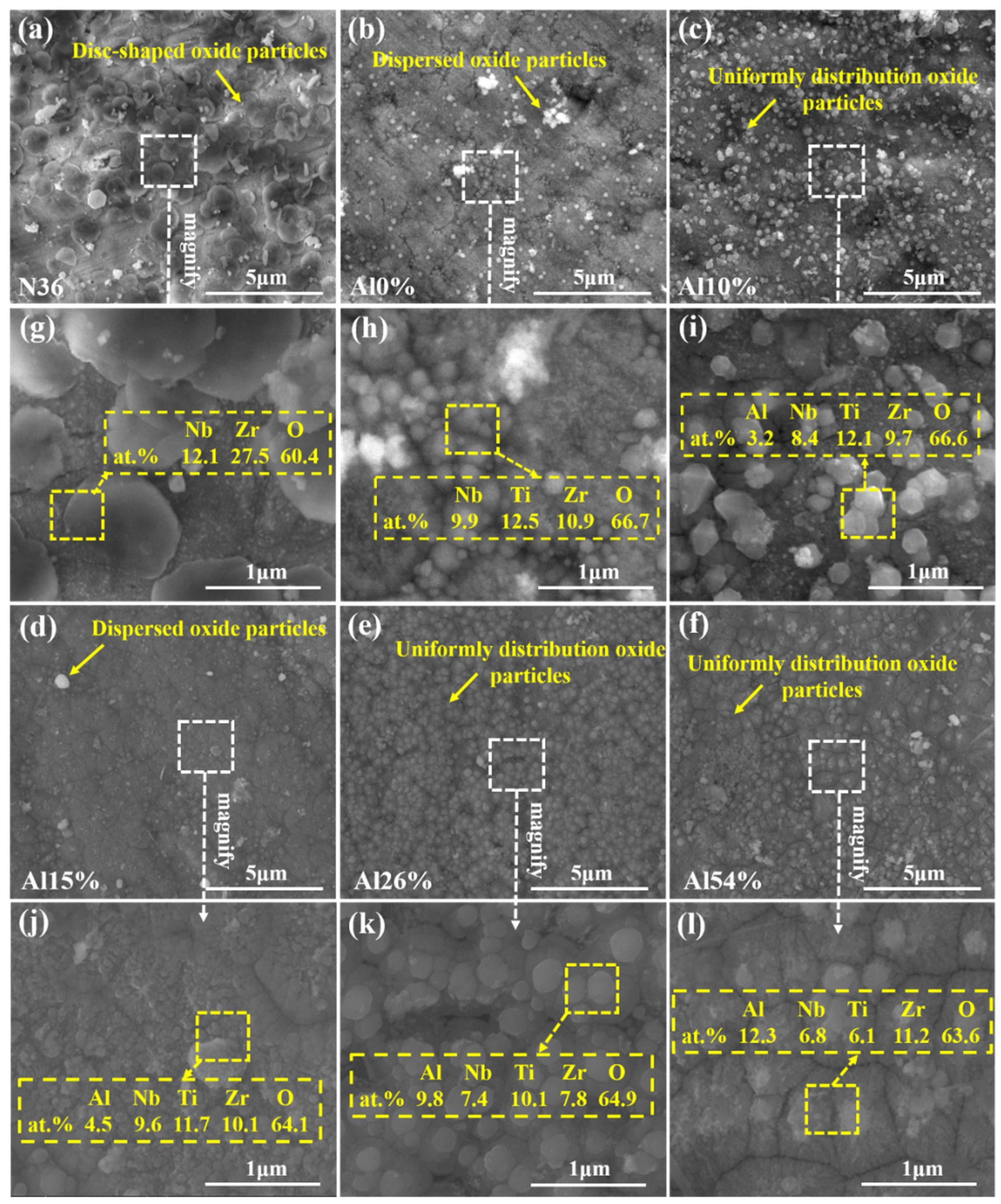

Figure 7. Surface SEM images of the N36 substrate and AlNbTiZr MEA coatings with different Al content after the autoclave tests: (a,g) N36 substrate; (b,h) Al0%; (c,i) Al10%; (d,j) Al15%; (e,k) Al26%; (f,l) Al54%.
Figure 7. Surface SEM images of the N36 substrate and AlNbTiZr MEA coatings with different Al content after the autoclave tests: (a,g) N36 substrate; (b,h) Al0%; (c,i) Al10%; (d,j) Al15%; (e,k) Al26%; (f,l) Al54%.
Materials 14 07661 g007

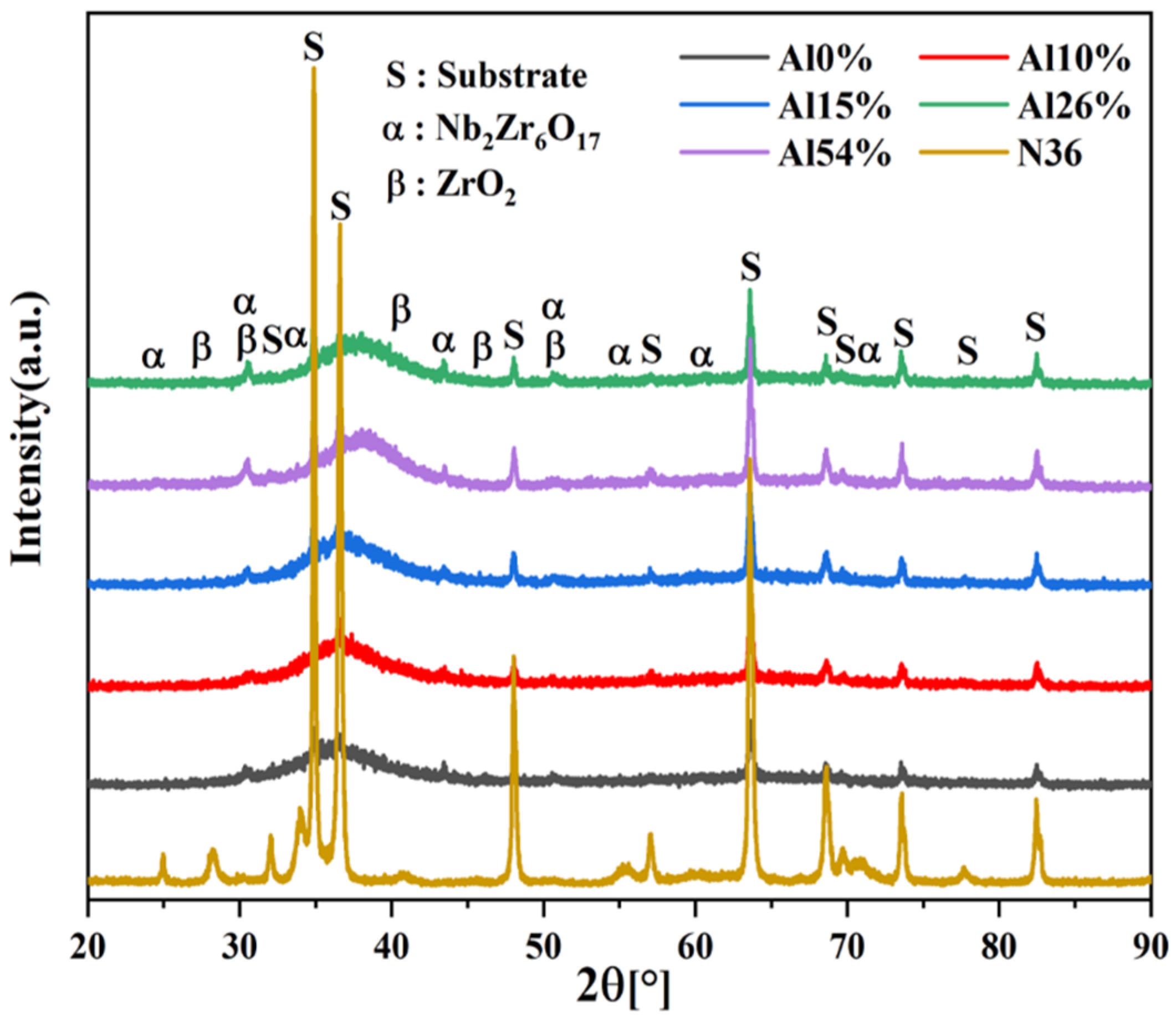

Figure 8. XRD patterns of the N36 substrate and the AlNbTiZr MEA coatings with different Al content after the autoclave test.
Figure 8. XRD patterns of the N36 substrate and the AlNbTiZr MEA coatings with different Al content after the autoclave test.
Materials 14 07661 g008

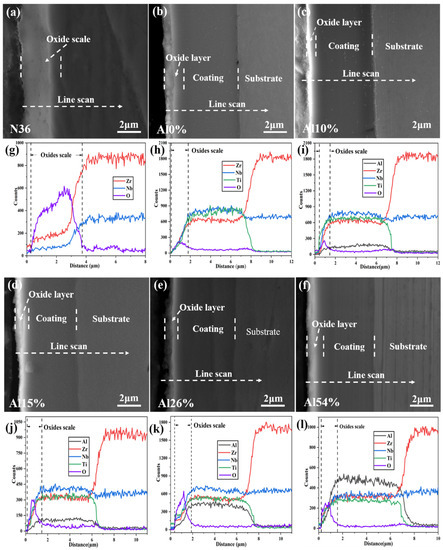

Figure 9. SEM cross-sectional images and corresponding EDS line scanning of the N36 substrate and AlNbTiZr MEA coatings with various Al content after the autoclave test: (a,g) N36 substrate, (b,h) Al 0%, (c,i) Al 10%, (d,j) Al 15%, (e,k) Al 26%, (f,l) Al 54%.
Figure 9. SEM cross-sectional images and corresponding EDS line scanning of the N36 substrate and AlNbTiZr MEA coatings with various Al content after the autoclave test: (a,g) N36 substrate, (b,h) Al 0%, (c,i) Al 10%, (d,j) Al 15%, (e,k) Al 26%, (f,l) Al 54%.
Materials 14 07661 g009

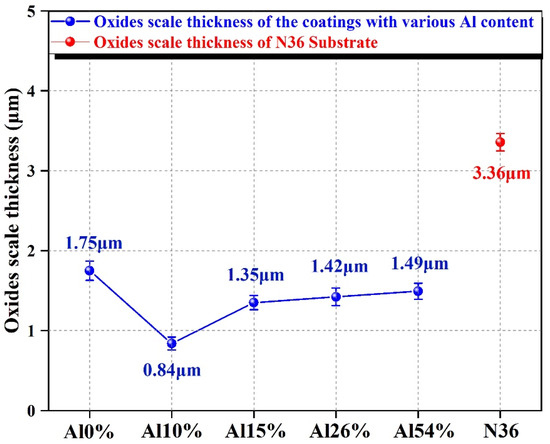

Figure 10. The oxide scale thickness of the AlNbTiZr MEA coatings with different Al content and the uncoated N36 substrate after autoclave test.
Figure 10. The oxide scale thickness of the AlNbTiZr MEA coatings with different Al content and the uncoated N36 substrate after autoclave test.
Materials 14 07661 g010
Table 1. Experimental deposition parameters of the AlNbTiZr MEA coatings.
Table 1. Experimental deposition parameters of the AlNbTiZr MEA coatings.
Base Pressure (Pa)Working Pressure
(Pa)
Working Temperature
(°C)
Ar Flow Rate
(sccm)
Substrate Bias Voltage(V)Sputtering Power
(W)
Deposition Time
(min)
7.5 × 10−40.5130051−100200150
Table 2. The chemical compositions, thickness and mixing entropy of five MEA coatings.
Table 2. The chemical compositions, thickness and mixing entropy of five MEA coatings.
Designated NameChemical Composition (at.%)Coating Thickness
(μm)
Mixing Entropy
(J∙K−1 mol−1)
AlNbTiZr
Al0%032.433.534.15.41.10R
Al10%10.229.729.430.75.71.32R
Al15%15.628.128.927.45.81.36R
Al26%26.124.424.125.45.71.39R
Al54%54.415.415.314.96.11.19R
