Effect of Ni on the Suppression of Sn Whisker Formation in Sn-0.7Cu Solder Joint

Abstract

The evolution of internal compressive stress from the intermetallic compound (IMC) Cu₆Sn₅ growth is commonly acknowledged as the key inducement initiating the nucleation and growth of tin (Sn) whisker. This study investigates the effect of Sn-0.7Cu-0.05Ni on the nucleation and growth of Sn whisker under continuous mechanical stress induced. The Sn-0.7Cu-0.05Ni solder joint has a noticeable effect of suppression by diminishing the susceptibility of nucleation and growth of Sn whisker. By using a synchrotron micro X-ray fluorescence (µ-XRF) spectroscopy, it was found that a small amount of Ni alters the microstructure of Cu₆Sn₅ to form a (Cu,Ni)₆Sn₅ intermetallic layer. The morphology structure of the (Cu,Ni)₆Sn₅ interfacial intermetallic layer and Sn whisker growth were investigated by scanning electron microscope (SEM) in secondary and backscattered electron imaging mode, which showed that there is a strong correlation between the formation of Sn whisker and the composition of solder alloy. The thickness of the (Cu,Ni)₆Sn₅ IMC interfacial layer was relatively thinner and more refined, with a continuous fine scallop-shaped IMC interfacial layer, and consequently enhanced a greater incubation period for the nucleation and growth of the Sn whisker. These verification outcomes proposes a scientifically foundation to mitigate Sn whisker growth in lead-free solder joint.

1. Introduction

Presently, the lead (Pb)-free solder has become a top priority in electronic industries. This is concurrent with the enactment of the EU Directive 2002/95/EC that states the use of lead (Pb) must either be eliminated or limited in a very low concentration in electrical and electronic equipment (EEE) [1,2,3,4,5,6,7,8]. The regulation to limit the use of lead in solder has brought back the Sn whiskers phenomenon and triggered numerous system failures [1,3,8,9,10,11,12,13]. Furthermore, the trends of electronics miniaturization in microelectronics packages have resulted in a serious reliability issue of lead-free solder in electronic devices [6,8,14,15]. Numerous studies have already been carried out, and researchers agree that the main inducement factor for Sn whisker nucleation and growth due to the stress progression from the development of a SnCu intermetallic compound (IMC) layer at room temperature [2,3,8,11,13,16,17,18,19]. A Cu₆Sn₅ IMC interfacial layer begins to form at the solder/substrate interface as the copper (Cu) atoms diffuse into the tin (Sn) layer. The growth of intermetallic particles into the tin (Sn) layer to reach the solution saturation limit can lead to a significant effect on thermal expansion mismatch, and thus create a residual stress gradient at the solder/substrate interface [20].

Illes et al. [21] surmise that the main source for whiskers growth is the non-uniform shape of IMC interfacial layers and expansion of the IMC interfacial layer at the solder/substrate interface layers [8,21,22]. As explained by Kim et al. [22], the Sn whisker prone to grow with irregularly shaped due to high residual compressive stresses concentrated at IMC interfacial layer. The natural surroundings of the Sn whisker development are spontaneous and slow-moving, and consequently, an assessment of the Sn whisker kinetic growth can often result in an unreliable and unpredictable growth rate [8]. It is most beneficial to have access to a fundamental study of the Sn whiskers phenomenon in a well-ordered stimulus condition [8]. Multiple studies have been carried out to study the acceleration behavior of Sn whisker formation and growth through mechanical stress induced [13,23], but only few works have shown continuous mechanical stress induced to accelerate Sn whisker nucleation and growth [2,8]. From previous studies, both nucleation and growth of Sn whisker are capable to form, even though there is no external induced stress applied. However, as determined by Lin et al. [2], the Sn whisker growth is longer and denser, with continuous mechanical stress induced [2]. In addition, Jagtap et al. [23] also claimed that the stress gradient in the solder/substrate interface layers accelerates the nucleation and growth of Sn whiskers with time evolvements under continuous mechanical stress induced by indentation test fixture [23].

Many existing studies have verified that lead (Pb) noticeably has a great suppression significance on the Sn whisker nucleation and formation by enhancing the stress relaxation behavior in the solder layer [3,9,18,20]. Much effort has been aimed at reliability improvement techniques, such as adding a third element [10,24,25], but a spot-on lead-free solder replacement has not yet been found to suppress whiskers formation as effectively as the addition of Pb in solder [14,22,26]. Many studies found similar results that specify the mechanism for the stress relaxation enhancement in solder layers with the addition of micro-alloying elements in the solder joint [11,15]. Considering the effects of adding micro-alloying elements in lead-free solder can certainly lead to the formation of new compounds in the IMC interfacial layer in addition to Cu₆Sn₅, and can significantly modify the properties of the IMC interfacial layer [7,27].

Micro-alloying with Ni indicates noticeably high solubility in Cu₆Sn₅ and pointedly influences the microstructure of the lead-free solder joint. Sn-0.7Cu-0.05Ni enables the nucleation of Cu₆Sn₅ and is possible to solidify as a eutectic, similar to tin lead solder [28]. It has been reported that Ni is able to reduce both magnitude [29] and expansion discontinuity of thermal expansion of Cu₆Sn₅ with the polymorphic phase transformation, mainly along the a-axis [27]. The distinctive properties of Sn-0.7Cu-0.05Ni could diminish the internal stress residual in solder joints, particularly during the thermal cyclic condition [27]. It has also been discovered that Ni micro-alloying can generate stabilization at high-temperature (around 250 °C) phase transition of the (Cu,Ni)₆Sn₅ IMC hexagonal phase [30] and is able to increase the stress relaxation in the layer with the formation of fine, needle-like (Cu,Ni)₆Sn₅ at the Sn–Cu interface [8]. In addition, Sn-0.7Cu-0.05Ni has good fluidity and oxidation resistance condition compared to the Sn–0.7Cu alloy, and also, (Cu,Ni)₆Sn₅ grows as an initial phase during solidification [27]. Therefore, it is remarkable to determine the correlation between the (Cu,Ni)₆Sn₅ IMC interfacial layer and Sn whisker formation with regard to the IMC interfacial layer suppression and stress relaxation enhancement for both the nucleation and growth of the Sn whisker.

This study investigated the effects of Sn-0.7Cu-0.05Ni solder joints on the nucleation and growth of the Sn whisker under continuous mechanical stress induced using scanning electron microscope (SEM), synchrotron microbeam X-ray fluorescence (µ-XRF) spectroscopy and atomic force microscopy (AFM). The findings resulted an in-depth understanding of the suppression effects of the (Cu,Ni)₆Sn₅ IMC interfacial layer on the nucleation and growth of the Sn whisker in the Sn-0.7Cu-0.05Ni solder joint.

2. Experimental Procedures

2.1. Materials

The raw materials of Sn-0.7Cu and Sn-0.7Cu-0.05 Ni solder alloy were provided by Nihon Superior (M) Sdn. Bhd., Ipoh, Perak, Malaysia. The solder alloys were prepared by melting ingots in a solder pot at a temperature of 265 °C. The industrial high-purity Cu above 99.9% were used as substrates with dimensions of 1.5 × 1.5 cm² and 1.0 cm in thickness.

Table 1. The chemical composition analysis of lead (Pb)-free solder alloy and substrate (wt.%).

Composition	Sn-0.7Cu (wt.%)	Sn-0.7Cu-0.05Ni (wt.%)	Cu Substrate (wt.%)
Sn	99.2276	99.2184	–
Cu	0.7683	0.6563	99.9426
Ni	–	0.0528	–
Sb	0.0024	0.0064	–
Pb	0.0013	0.0162	0.0053
Zn	<0.0002	<0.0002	0.0142
Fe	0.0042	0.0041	–
Al	0.0003	0.0004	0.0148
In	0.0012	0.0034	–

depicts the elemental composition analysis by arc spark spectrometer used throughout the study.

2.2. Sample Preparation

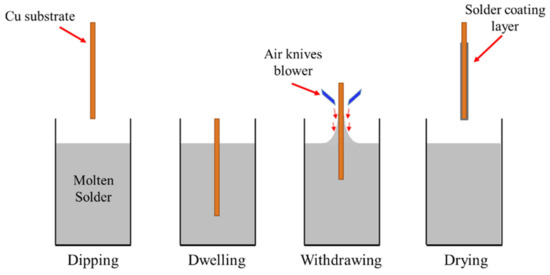

The hot-dipping approach was used to prepare Sn-0.7Cu and Sn-0.7Cu-0.05Ni solder joints. The Cu substrate was manually dipped into acid liquid solution comprised of 5% hydrochloric acid (HCl) and deionized water at ambient temperature for 5 min to get rid of surface oxides film and then rinsed with acetone (C₃H₆O) and distilled water, and subsequently air-dried to remove oil contamination. To enhance the soldering and for the removal of oxidation, substrate was immersed in a flux solution. A standard B-type solution flux based on Japanese Industrial Standards (JIS Z3198-4) was applied which contains of mixtures of resin, isopropyl alcohol and diethylamine hydrochloride.

The Cu substrate was then positioned on the pneumatic angular gripper of an automated solder-dip machine and then dipped in the molten solder bath with an immersion dwell time of 2 s and speeds of withdrawal of 10 mm/s. The temperature of the molten solder bath was held at 265 °C. During withdrawal, the surface of the solder coating was blown off using a compressed air knives blower with controllable angle and speed of pressure to remove the excess solder coating and to improve smoothness of the solder coating layer. Then, the samples were air-cooled and water-rinsed using an ultrasonic bath. Around 10–20 µm thickness of solder coating layer was applied on the substrate. Figure 1 shows the schematic diagram of the solder hot-dipping process. The solder hot-dipping temperature profile process is presented in

Table 2. Solder hot-dipping process parameters.

Hot-Dip Soldering Parameters	Value
Preheat Temperature (°C)	200
Preheat Time (s)	60
Preheat Rate (°C/s)	2.5
Peak Temperature (°C)	265
Immersion Withdrawal Speed (mm/s)	10
Immersion Dwell Time (s)	2

. After the hot-dip coating, samples were aged at room temperature for 48 h to saturate the internal residue stress induced by IMC formation.

2.3. Testing and Characterization Method

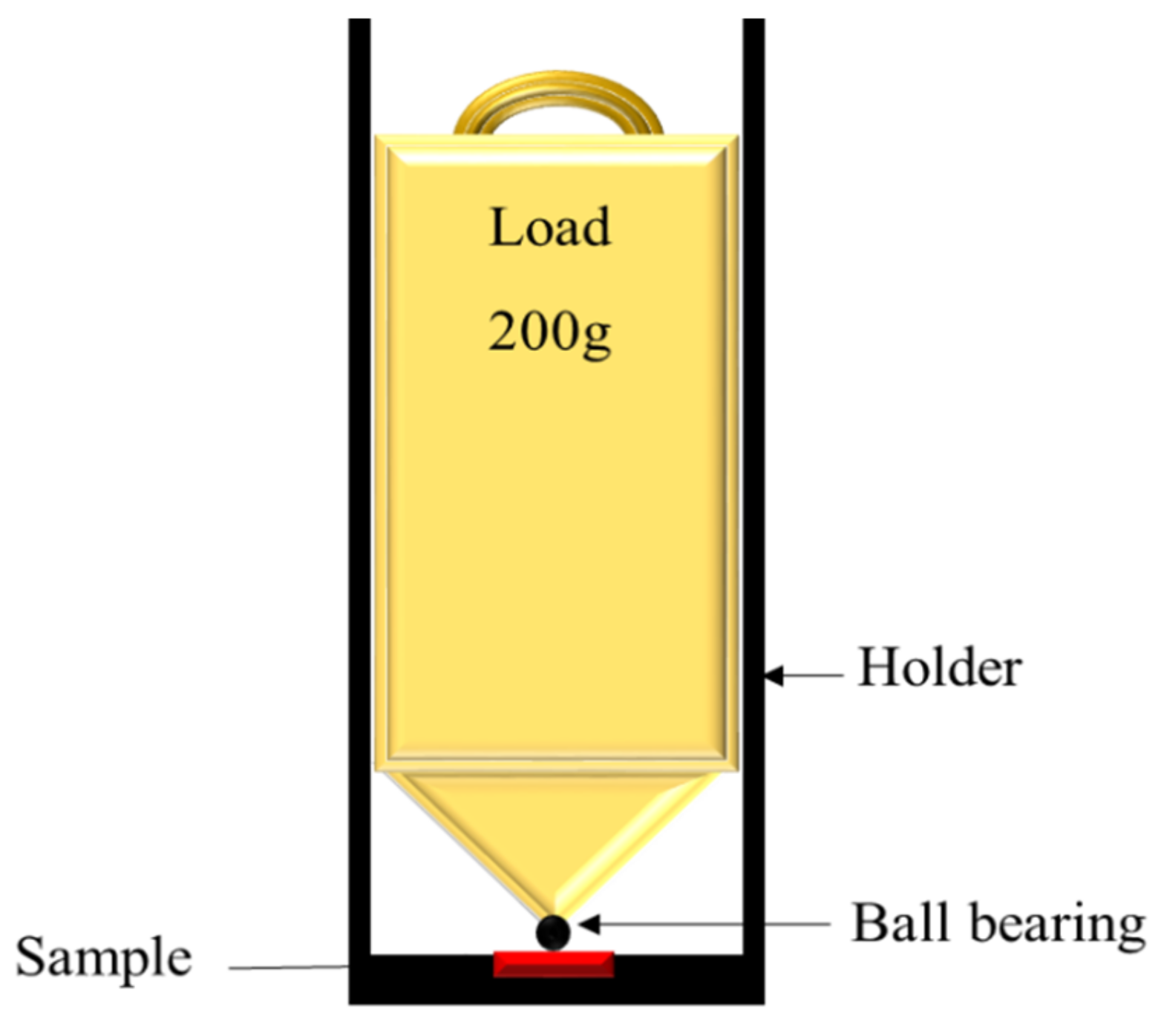

The micro-indentation test was employed to stimulate the Sn whiskers nucleation and growth through continuous mechanical stress induced with a constant load. This accelerated testing method increases the distribution of compressive stress that is transmitted to the weaker grain boundaries. Subsequently, the stress could be accumulated and promotes the nucleation and growth of Sn whiskers from surface flaws, such as from voids and cracks. Figure 2 illustrates the schematic of micro-indentation apparatus used in this study. The test apparatus was located in the clean room at ambient temperature. Periodic observations of the samples under continuous mechanically induced stress on the nucleation and growth of Sn whiskers were employed for each sample throughout 20 days using a JEOL JSM 6460LA scanning electron microscope (SEM), JEOL Ltd. Tokyo, Japan in secondary and backscattered electron imaging mode at an accelerating voltage at 20 KV. The Sn whisker morphology was observed with a 30° tilt angle. This investigation outcomes presented as a parameters to assess the trends of the Sn whisker nucleation and growth in Sn-0.7Cu-0.05Ni.

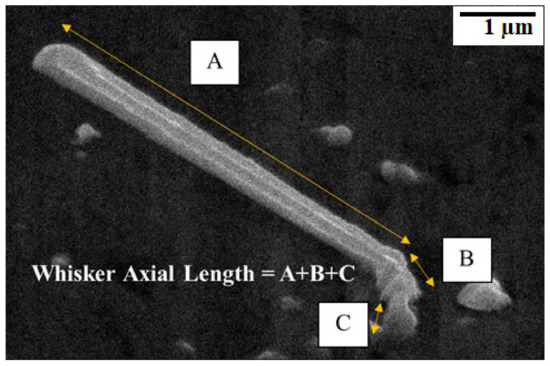

The length and density of the Sn whisker distribution were considered based on Whisker Standards (JESD22-A121A) of the Joint Electron Device Engineering Council (JEDEC) [8,15] by picking five equivalent sampling areas for each sample, using a Java image processing program, image-J Software with an average value of five interpretations per analysis. The measurement of axial Sn whisker length is calculated from the bottom of the Sn whisker growth to the whisker tip, whereas for bend, the Sn whisker is composed of the straight section of the whisker, as shown in Figure 3. The precision for the Sn whisker length and Sn whisker density calculation was about ±5%. It is essentially reliant on the magnification ratio of the particular image micrograph. The density of the Sn whisker is defined as the total number of Sn whiskers’ growth per unit area of the observed area and considered in a unit of pcs/µm². The error bars were measured from the standard deviation (SD) of the Sn whiskers’ distribution.

The samples were then mounted using a mixture of resin and hardener to cross-section, followed by a grinding and polishing process in order to measure an average IMC interfacial thickness of the solder joint. The IMC interfacial layer thickness (T), is equal to total IMC area (A), divided by total IMC length (L), and the unit is expressed in µm. With the purpose of observing the top view of the three-dimensional (3D) morphology of the IMC interfacial layer, the solder joint was then entirely deep-etched, consuming a mixed solution of 2% ortho-nitrophenol, 5% sodium hydroxide and 93% of distilled water at a temperature 70 °C to selectively eliminate the tin (Sn) element of the solder alloys. The shape, thickness and root mean square (RMS) roughness of the IMC interfacial layer were analyzed by JEOL JSM 6460LA scanning electron microscope (SEM) by JEOL Ltd. Tokyo, Japan, high-resolution of atomic force microscope (AFM) by Bruker Corporation, Billerica, MA, Statele Unite and Profilm online web based software program by Kla corporation, Milpitas, CA, Statele Unite. The procedure of AFM comprises scanning a sharp tip incorporated in a flexible cantilever across the sample surface, monitoring the tip–sample interaction to produce a 3D topographic micrograph figure of the surface. This technique permits to compute the surface properties, such as RMS roughness, particle size, step height, etc. Surface roughness provides the quantitative data of the surface features based on the statistical deviation from average height. Besides, AFM data able to generate a data containing information of surface roughness in a graphic arrangement to show the growth features of the IMC interfacial layer.

A methodology observation through synchrotron microbeam X-ray fluorescence (µ-XRF) spectroscopy was accomplished for elemental mapping to detect small trace metal element distribution, such as Cu (70 ppm) and Ni (500 ppm), in solder alloys. This analysis was performed at the Synchrotron Light Research Institute (SLRI), Kanchanaburi, Thailand. The BL6b beamline exploited the continuous synchrotron radiation that is emitted from the bending magnet of the 1.2 GeV storage ring with a micro-focused beam of 30 × 30 µm². Imaging analysis was processed using the PyMca 5.6.3-win64.exe software. In order to observe the elemental distribution mapping of the lead-free solder joint, samples of micro-XRF were mounted using a mixture of resin and hardener and polished in the cross-sectioned condition. The thicknesses of all solder coating layers were synthesized in the range from 200 to 300 µm due to the limits of spatial resolution level, with X-ray beam spot size in the order of 50 µm and above.

3. Results and Discussion

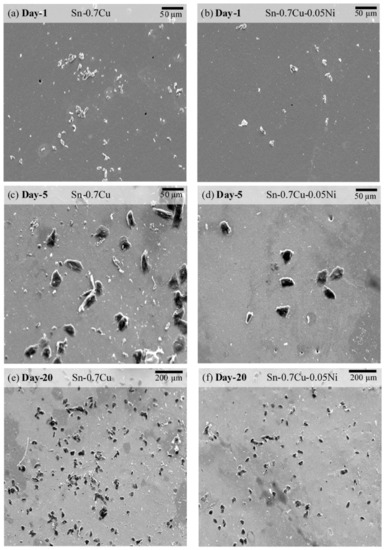

The surface morphologies of Sn-0.7Cu and Sn-0.7Cu-0.05Ni solder joints were periodically observed from day 1 up to day 20 under continuous mechanically induced stress. The observation of Sn whisker growth behavior resulted from two types of solder joint, Sn-0.7Cu and Sn-0.7Cu-0.05Ni, as shown in Figure 4. The observed distribution of Sn whisker growth was increasing over storage time. In Figure 4a,b, hillock- or nodule-shaped Sn whiskers were noticed on both of the solder joints on day 1. The Sn whiskers appear to progressively extrude from the surface of Sn-0.7Cu and Sn-0.7Cu-0.05Ni. It was evidently seen that the initial process of whiskering is a nucleation that protruded as a hillock or nodule shape on the surface. In response to the stress gradient of the IMC interfacial layer, hillock could probably to grow as a risky long filament-shaped Sn whisker [31]. With an increase of storage time from day 5 to day 20 (Figure 4c–f), the hillock-shaped Sn whisker rapidly grew and became larger on the surface of the solder joint. In contrast, Sn whiskers’ growth were found greater on the Sn-0.7Cu solder with the growth of filament-shaped and bent-shaped Sn whiskers, while on the surface of the Sn-0.7Cu-0.05Ni solder joint, the hillock shape was observed.

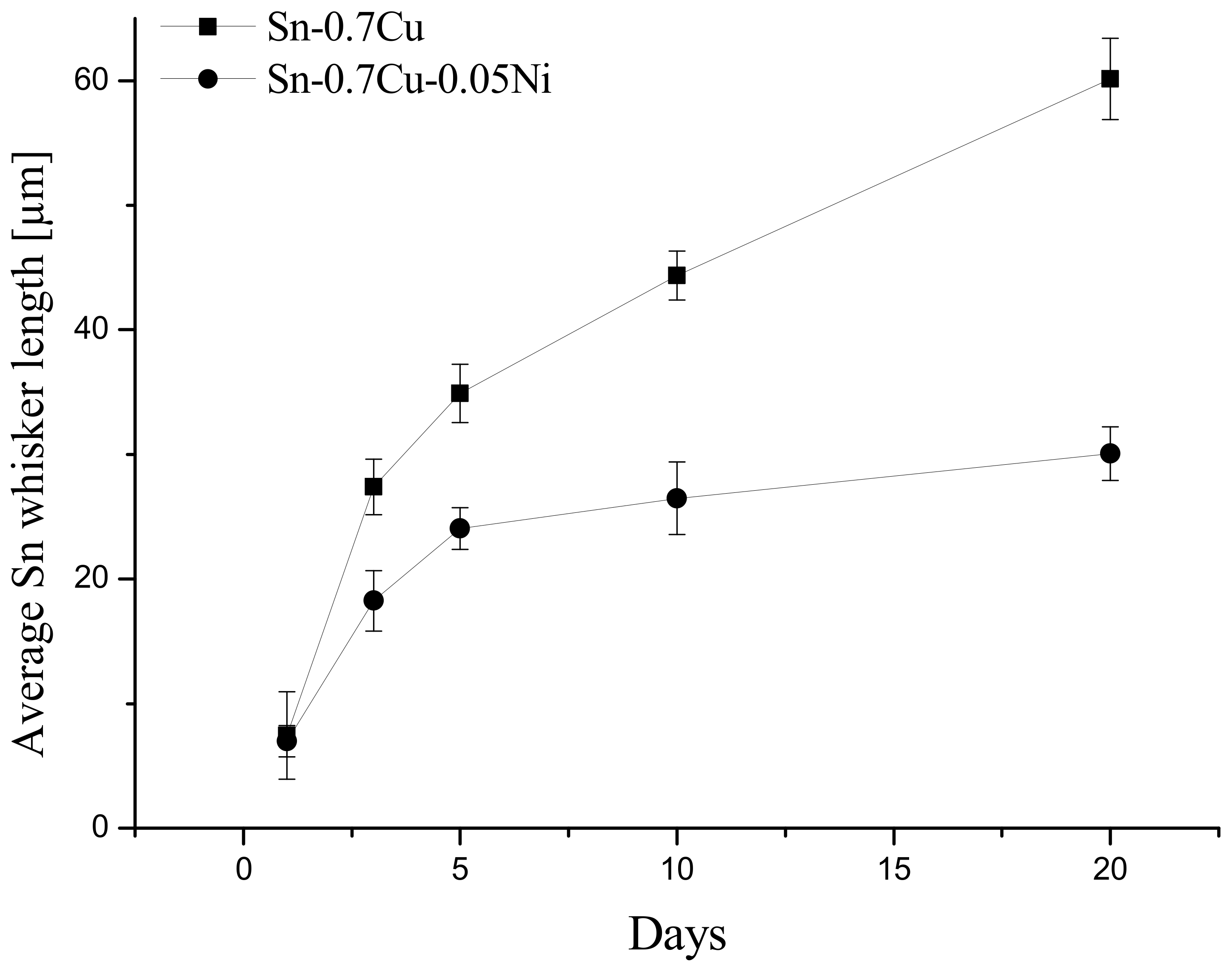

It can be observed that the growth trend of Sn whiskers’ length and density on Sn-0.7Cu and Sn-0.7Cu-0.05Ni solder joints increased as the storage time increased. As shown in Figure 5, the Sn whiskers’ length on Sn-0.7Cu was observed to be higher than on the Sn-0.7Cu-0.05Ni solder joint. The size of the average Sn whisker length on Sn-0.7Cu increased more rapidly at day 3 until day 20. This occurrence tends to contribute a high tendency to short-circuit fine pitch components in electronic packages and is considerably dangerous to microelectronic reliability.

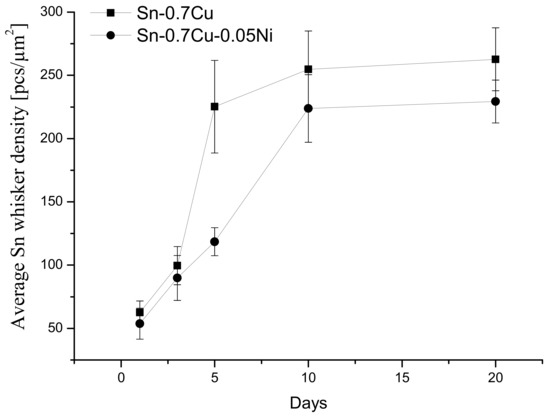

It can also be noticed that Sn whisker tendency, with respect to Sn whisker density, significantly increased with storage time and finally reached a saturated condition at day 20 for both Sn-0.7Cu and Sn-0.7Cu-0.05Ni solder joints. From this investigation, as presented in Figure 6, the average density of Sn-0.7Cu was obviously higher than the Sn-0.7Cu-0.05Ni solder joint, where the Sn-0.7Cu-0.05Ni solder joint has been found to be less prone to Sn whiskers. This observation also indicates that the density of Sn whiskers was greater as storage time progressed. The trend of Sn whisker nucleation and growth corresponds to the IMC interfacial growth and residual stress evolution that increases over time to reach the solution saturation [32]. Therefore, it could be concluded that there is a significant relationship between the Sn whisker growth and composition of the lead-free solder joint. The Sn-0.7Cu-0.05Ni solder joint has an obvious suppression effect by diminishing the susceptibility for Sn whisker growth and increase the incubation time for nucleation of Sn whiskers.

Since the residual stress and IMC interfacial reaction cannot be regulated, a methodical observation of Sn whisker nucleation and growth is very challenging. Apparently, the propensity for Sn whisker nucleation and growth is increased with the implementation of both internal residual stress and mechanical compressive stress induced in the solder layer. To generate well-regulated inducement of Sn whisker growth, a continuous mechanical compressive stress was induced in all samples of the Sn–Cu solder joint to accelerate the Sn whiskers’ growth by micro-indentation. Figure 7 show SEM images with a 30° tilt angle of the surface of the Sn-0.7Cu-0.05Ni solder joint that have been indented for 12 h. The indentation area indicates a localized effect and has a diameter of approximately 83.94 µm. It was observed that the hillock- or nodule-shaped Sn whisker growth was most abundant nearby the indentation area. The length of the hillock shape was found to vary from 0.5 to 3 µm in the Sn-0.7Cu-0.05Ni solder joint.

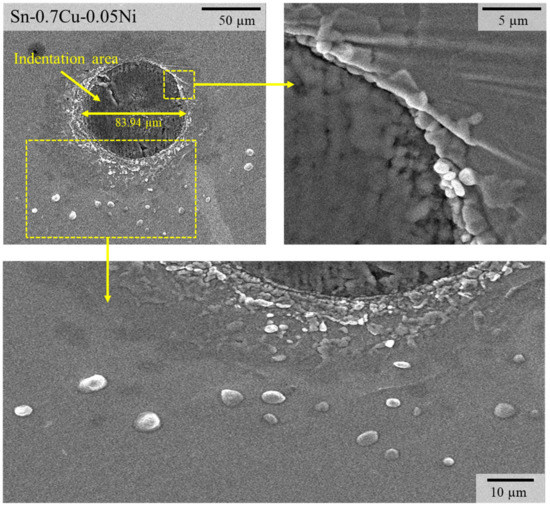

Regarding the morphology of Sn whisker nucleation growth, the primary nucleation takes place with the growth of a hillock or nodule shape, followed by protrusion of Sn whiskers. The nucleation kinetics of the Sn whisker revealed here are consistent with previous work [23] under a constant continuous mechanical stress using a clamping fixture, wherein the compressive stress extends into the region away from the punch, organized by the relaxation processes in the solder layer with the growth of the Sn whisker. The results revealed that the initiation of Sn whiskers’ growth is also consistent with Fei et al.’s [19] study. They claimed that a primary stage in the Sn whisker formation is nucleation, which is a Sn whisker extruding position. In addition, according to Skwarek et al. [33], the Sn whiskers grew out from the whole grains of the solder/substrate interface, not from the grain boundaries.

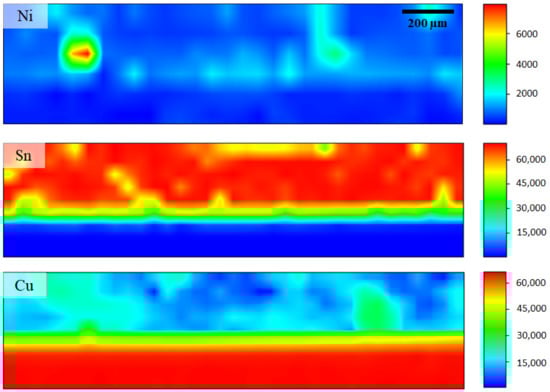

The composition and distribution analysis of Ni, Cu and Sn alloying elements in the Sn-0.7Cu-0.05Ni solder joint using synchrotron micro-XRF mapping are presented in Figure 8. The micro-XRF mapping area is ~450 × 1750 µm. The mapping of the blue area indicates low concentration or no element in the solder joint. The mapping of green and yellow areas indicates intermediate concentration, and the mapping of the red area indicates high concentration of specific composition. The small, well-distributed Ni and Cu have been found at primary IMC of the Sn-0.7Cu-0.05Ni solder joint. It is direct confirmation from the mapping result that a small amount of Ni (500 ppm) alters the microstructure of Cu₆Sn₅ to form a (Cu, Ni)₆Sn₅ intermetallic layer. The formation of new compounds in IMC interfacial layers is very significant to the phase equilibria of the system, and in addition, is able to modify the properties of the IMC interfacial layer. In the presence of Ni in Sn-0.7Cu, the Cu₆Sn₅ interfacial IMC layer takes the form of the (Cu, Ni)₆Sn₅ interfacial IMC layer, where Ni atoms occupy copper lattice sites [34]. A previous study documented that Ni is able to enhance the IMC interfacial formation with a fine scallop shape during liquid–solid interfacial reactions [27].

According to the literature [35], Ni is dispersed in a relatively homogeneous manner through the Cu₆Sn₅ IMC interfacial layer. However, in this study, Ni distribution was not fitting at the IMC interfacial layer due to the limits of spatial resolution level, with X-ray beam spot size at the order of 50 µm and above. It is believed that homogeneous concentration of Ni in Cu₆Sn₅ IMC Ni sustains the phase stability in the hexagonal form of the (Cu, Ni)₆Sn₅ IMC interfacial layer and prevents the transformation of polymorphic phase (hexagonal to monoclinic) of Cu₆Sn₅ [35]. This phase stability will minimize the stress concentrations in the IMC layer, and subsequently reduce the Sn whiskering potential on the surface of the solder joint.

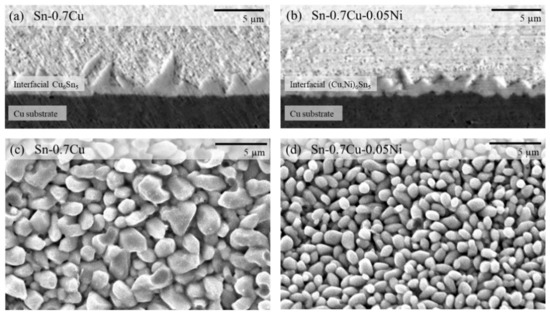

The morphology of Sn whiskers was intensely inclined to the shape and thickness of the interfacial intermetallic layer (IMC) [3,25]. A quantitative analysis was done to examine the correlation of the Sn whiskers’ formation and the IMC interfacial layer using SEM in secondary and backscattered electron imaging mode at an accelerating voltage of 20 kV. An image structure of the IMC interfacial layer that formed in Sn-0.7Cu and Sn-0.7Cu-0.05Ni solder joints is presented in Figure 9. It can be observed that from the cross-sectioned view of the morphology, the Cu₆Sn₅ IMC interfacial layer on Sn-0.7Cu (Figure 9a) is rougher than the (Cu, Ni)₆Sn₅ IMC layer on Sn-0.7Cu-0.05Ni (Figure 9b). The (Cu, Ni)₆Sn₅ IMC interfacial layer results in a finer grained, more continuous layer with stable shape of the IMC interfacial layer. Moreover, regarding the thickness of the IMC interfacial layer, the 1.76 µm thick scalloped Cu₆Sn₅ IMC layer was higher compared to the 1.28 µm thick (Cu, Ni)₆Sn₅ IMC layer, whereas Ni micro-alloying changed the thickness of the IMC interfacial layers significantly and revealed an approximately uniform height of the IMC grains.

Sn-0.7Cu-0.05Ni has a significant implication on the Sn whisker formation and growth behavior. The outcomes of this work appear to validate that the Sn whisker susceptibility is associated with the solder composition (refer to Figure 4) as well as the IMC interface topography. From the top view in Figure 9c and d, it can be noticeably observed that there is strong correlation between morphology and size of IMC interfacial intermetallic grains and compositions of the solder alloys. At the interface of solder/substrate in the Sn-0.7Cu-0.05Ni solder joint, significantly fine and almost uniform IMC grains formed compared to the interface of the solder/substrate in the Sn-0.7Cu solder joint. Remarkably, the grain size of (Cu,Ni)₆Sn₅ is significantly smaller than the Cu₆Sn₅ IMC interfacial layer. This means that the Ni micro-alloying decreased the IMC grain size. The uniform and smaller average size of IMC grains may possibly result in a lower residual stress and suppress the propensity of Sn whisker formation [33].

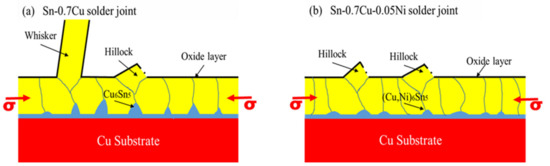

The significance of the IMC interfacial layer growth directly creates internal stress in the grain boundary of the solder layer, which can induce Sn whisker growth, as illustrated schematically in Figure 10. The rapid dissolution and growth of the thick scallop shape of the IMC interfacial layer with pyramid-like IMC grains significantly produced higher cumulative stress in the IMC interfacial layer and can lead to the formation of Sn whiskers [3]. In contrast, the thinner scallop shape of IMC interfacial layers can lead to lower stress of the IMC interfacial layer and thus suppress the growth of Sn whiskers [4]. This is also consistent with the work of Chason et al. [11], who showed that the stress relaxation processes are significantly more rapid and greater for thicker Sn solder. Therefore, the morphology structure of the (CuNi)₆Sn₅ IMC interfacial layer was relatively thinner and more refined, with a fine scallop shape thus suppressed the thickness of the IMC interfacial layer and enhanced longer incubation period for the formation and growth of Sn whiskers. Consistent with Illes et al. [21], the mitigation of Sn whisker formation and growth can be achieved by reducing the Sn whisker incubation time, which produces thicker layers of lead-free solder, since this formation improves the stress relaxation properties.

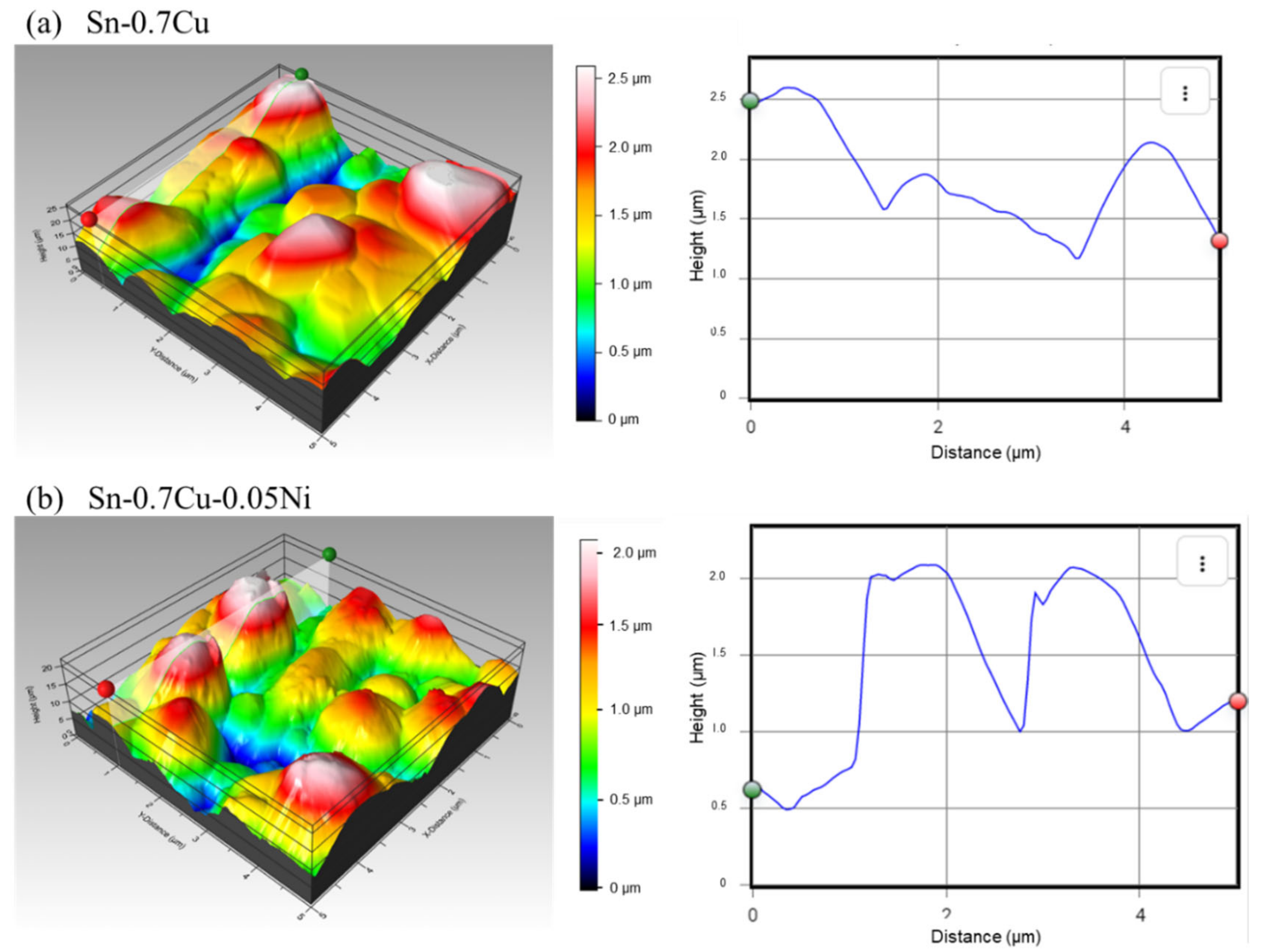

Figure 11 indicates the topographies of IMC interfacial properties of deep-etched Sn-0.7Cu and Sn-0.7Cu-0.05Ni solder joints by AFM. The scale of contrast of Cu₆Sn₅ and (Cu,Ni)₆Sn₅ IMC interfacial layers is 2.5 µm and 2.0 µm. The higher contrast enhanced the number of thicker and higher peaks of IMC grain that formed. It was observed that the three-dimensional shape morphology of the scallop-shaped Cu₆Sn₅ IMC interfacial layer on Sn-0.7Cu (Figure 10a) was significantly thicker and coarser compared to the (Cu,Ni)₆Sn₅ IMC interfacial layer on Sn-0.7Cu-0.05Ni (Figure 10b). These results corresponded with a quantitative analysis of the SEM, as shown in Figure 9. Comparing the 0.05 wt.% Ni addition to Sn-0.7Cu, the formation of the (Cu,Ni)₆Sn₅ IMC layer was relatively thinned and had a finer scallop shape, which has been found to be less prone to whiskers.

Investigation of the Cu₆Sn₅ and (Cu,Ni)₆Sn₅ IMC interfacial layer was further carried out by measuring the surface roughness values and the highest peak of the IMC interfacial layer. Surface roughness is an observation parameter for describing the surface features and is commonly signified in terms of the statistical deviation from average height [8]. It was established that the surface roughness values of the IMC interfacial layers Cu₆Sn₅ and (Cu,Ni)₆Sn₅ were 1.83 and 1.26 µm, respectively. Moreover, it was observed that the highest peak value of the Sn-0.7Cu IMC interfacial layer was ~2.641 μm, whereas the highest peak value of the Sn-0.7Cu-0.05Ni IMC interfacial layer was lower, at ~2.126 μm. This implies that a more uneven, higher peak of the IMC interfacial layer was observed to be more susceptible to Sn whisker nucleation and growth. This outcome indicates that Ni micro-alloying plays an important role in the IMC interfacial layer. The thinner thickness and fine scallop-shaped formation of the (Cu,Ni)₆Sn₅ IMC layer enhances stress relaxation and suppress the nucleation and growth of the Sn whisker.

Similar results were found in studies by Chason et al. [11], that validate that the stress relaxation is suppressed with small grain size of IMC interfacial layers. The growth of the IMC interfacial layer can have a significant impact on the residual stress of the solder joint as the stress gradient in the solder joints is induced by volume expansion of polymorphic phase transformation. It has been stated that (Cu,Ni)₆Sn₅ greatly reduced the volume change associated with the polymorphic phase transformation of Cu₆Sn₅ [27]. This is also consistent with a finding by Nogita et al. [29], who suggest that the phase stabilization of the hexagonal (Cu,Ni)₆Sn₅ may possibly prevent volume changes of the IMC interfacial layer that could provide the stress relaxation in the solder layer [8,36].

4. Conclusions

The effect of the Sn-0.7Cu-0.05Ni solder joint on the nucleation and growth of Sn whiskers under continuous mechanically induced stress was investigated. The correlation of the Sn whiskers’ growth and the IMC interfacial layer was also established. The following conclusions can be drawn:

• There was a noticeable correlation between the Sn whisker growth and the composition of the lead-free solder alloy. The Sn-0.7Cu-0.05Ni solder joint had a great suppression effect on the nucleation and growth of Sn whiskers of the Pb-free solder joint.
• The small amount of Ni addition (~500 ppm) was able to alter the microstructure of Cu₆Sn₅ to form a (Cu,Ni)₆Sn₅ IMC intermetallic layer, and it is very significant to the nucleation and growth of Sn whiskers.
• The methodic structure of the (Cu,Ni)₆Sn₅ IMC interfacial layer was relatively thinner and more refined, with a continuous fine scallop-shaped IMC interfacial layer consequently enhanced a greater incubation period for the nucleation and growth of the Sn whisker.
