Experimental Evaluation of PSC Structures from FRP with a Prestressing Strengthening Method
Abstract
:1. Introduction
2. Experimental Materials and Structural Test Details
2.1. Mixture Properties

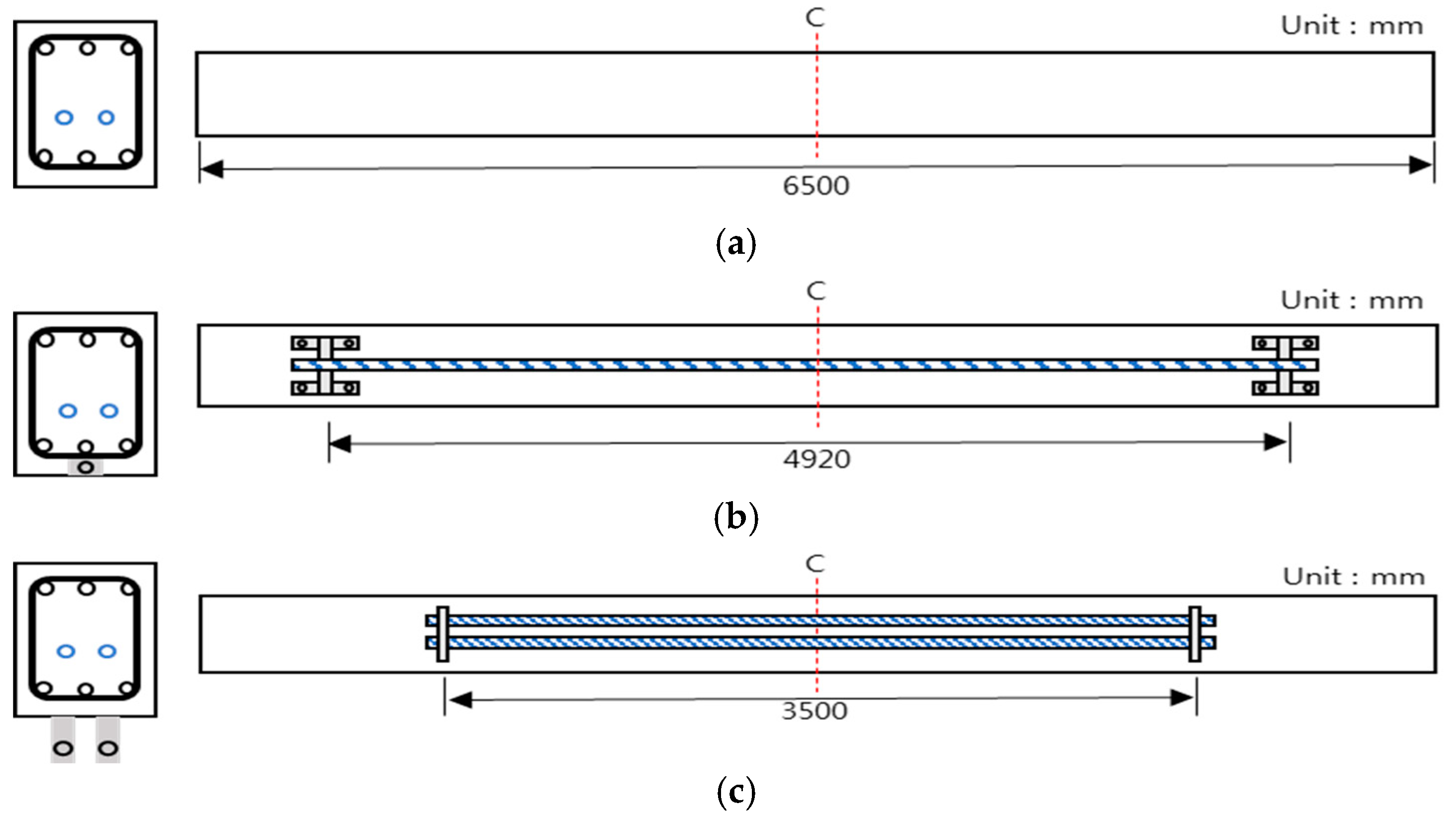

2.2. Test Specimen Design and Fabrication

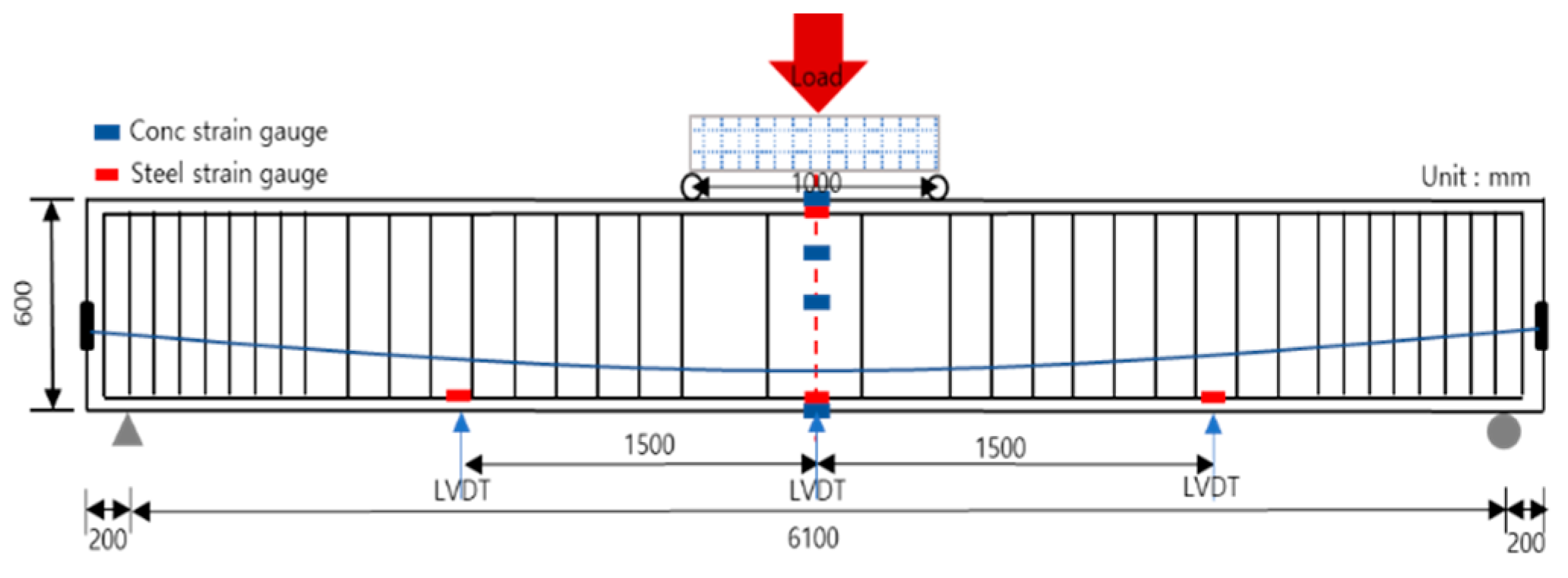

2.3. Test Method
3. Experimental Evaluation Results

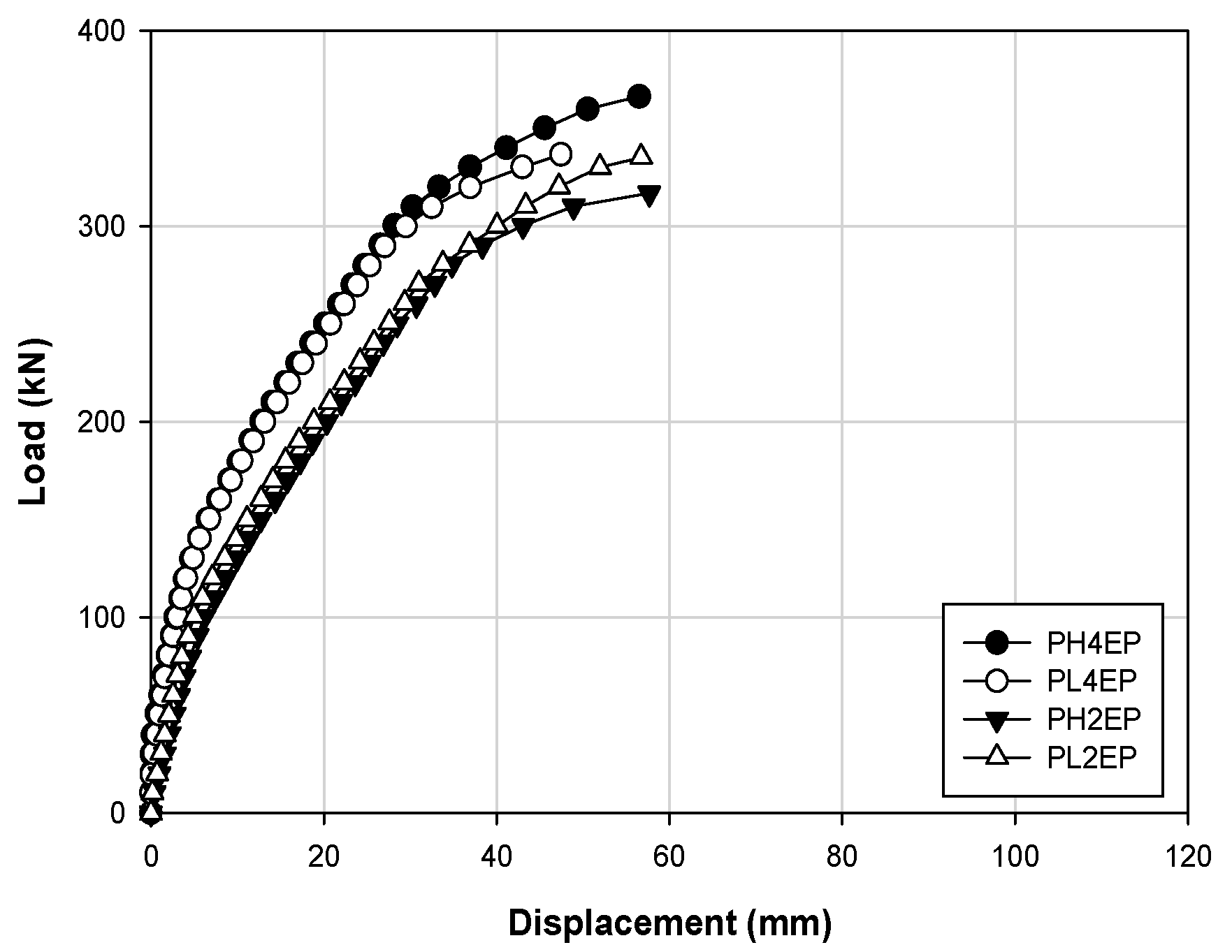

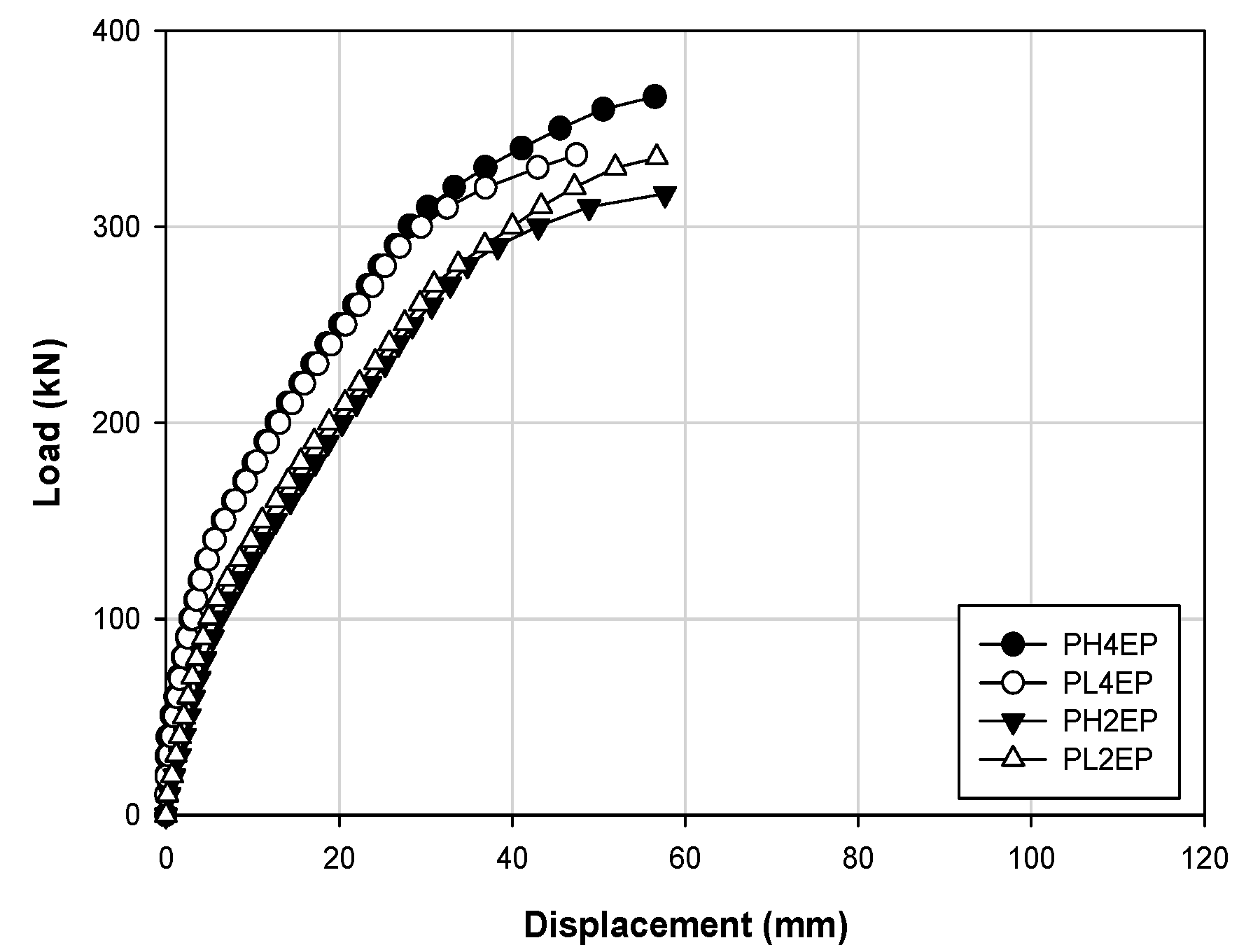

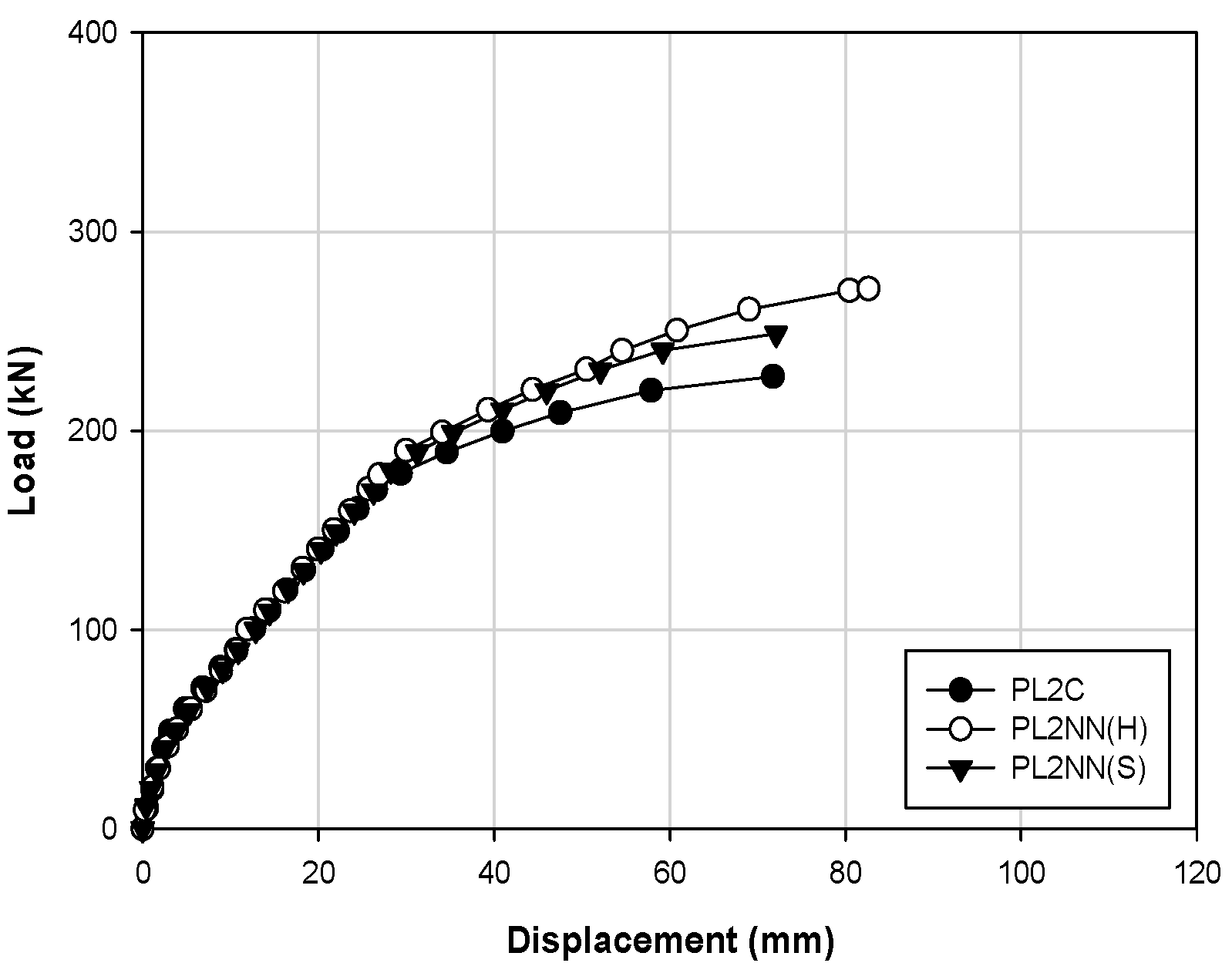

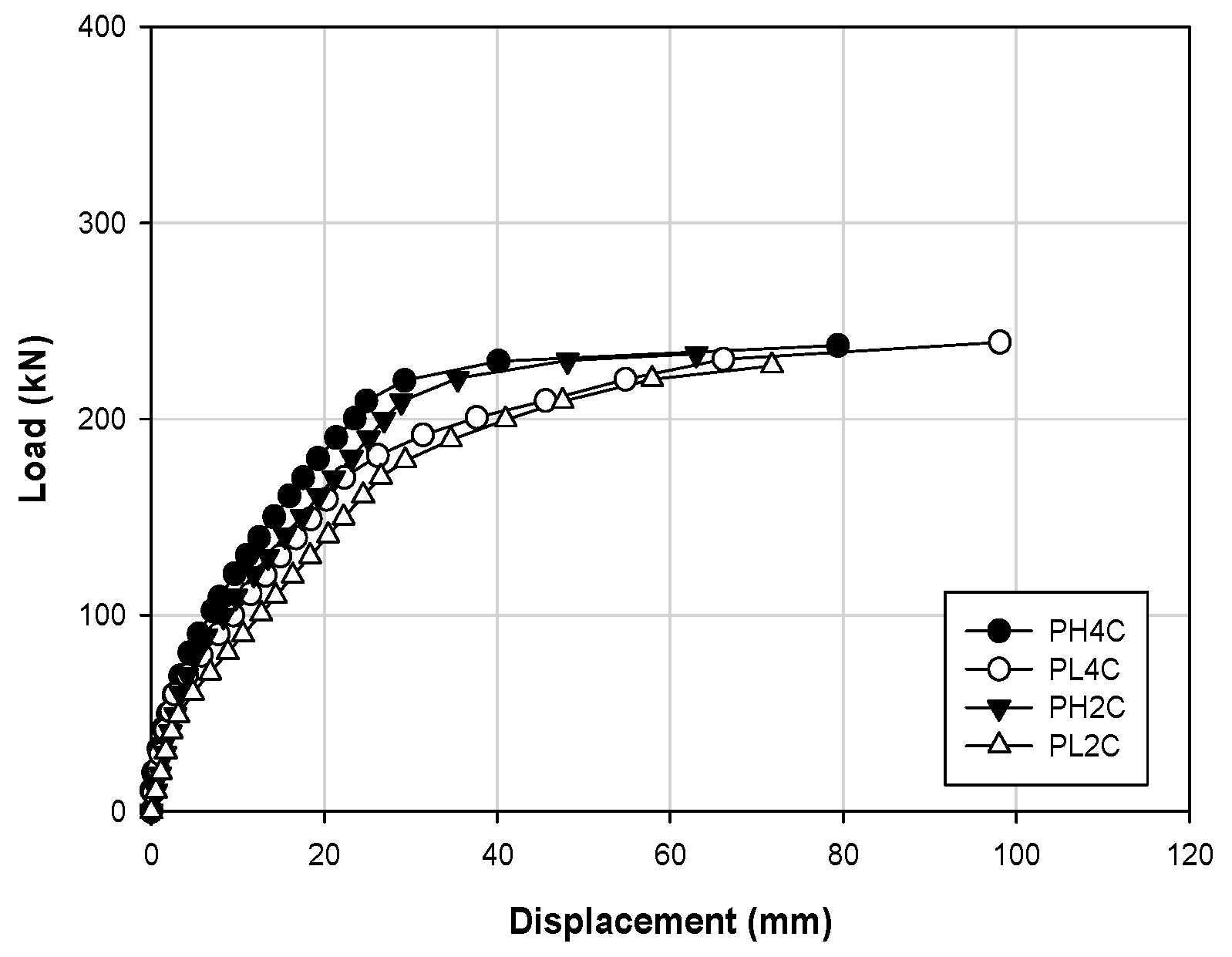

3.1. Load–Displacement Tests
3.2. Load–Displacement Test Outcomes

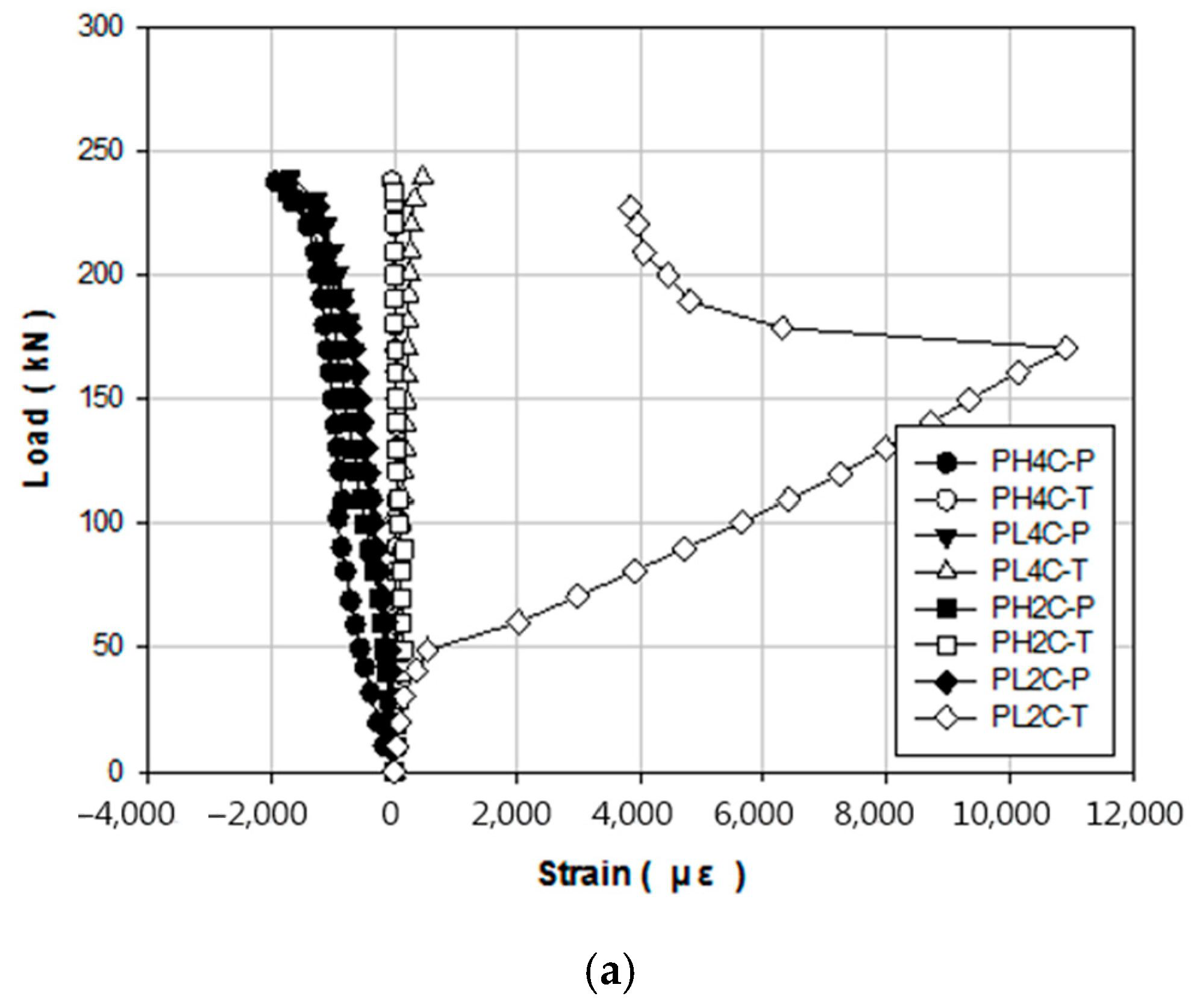

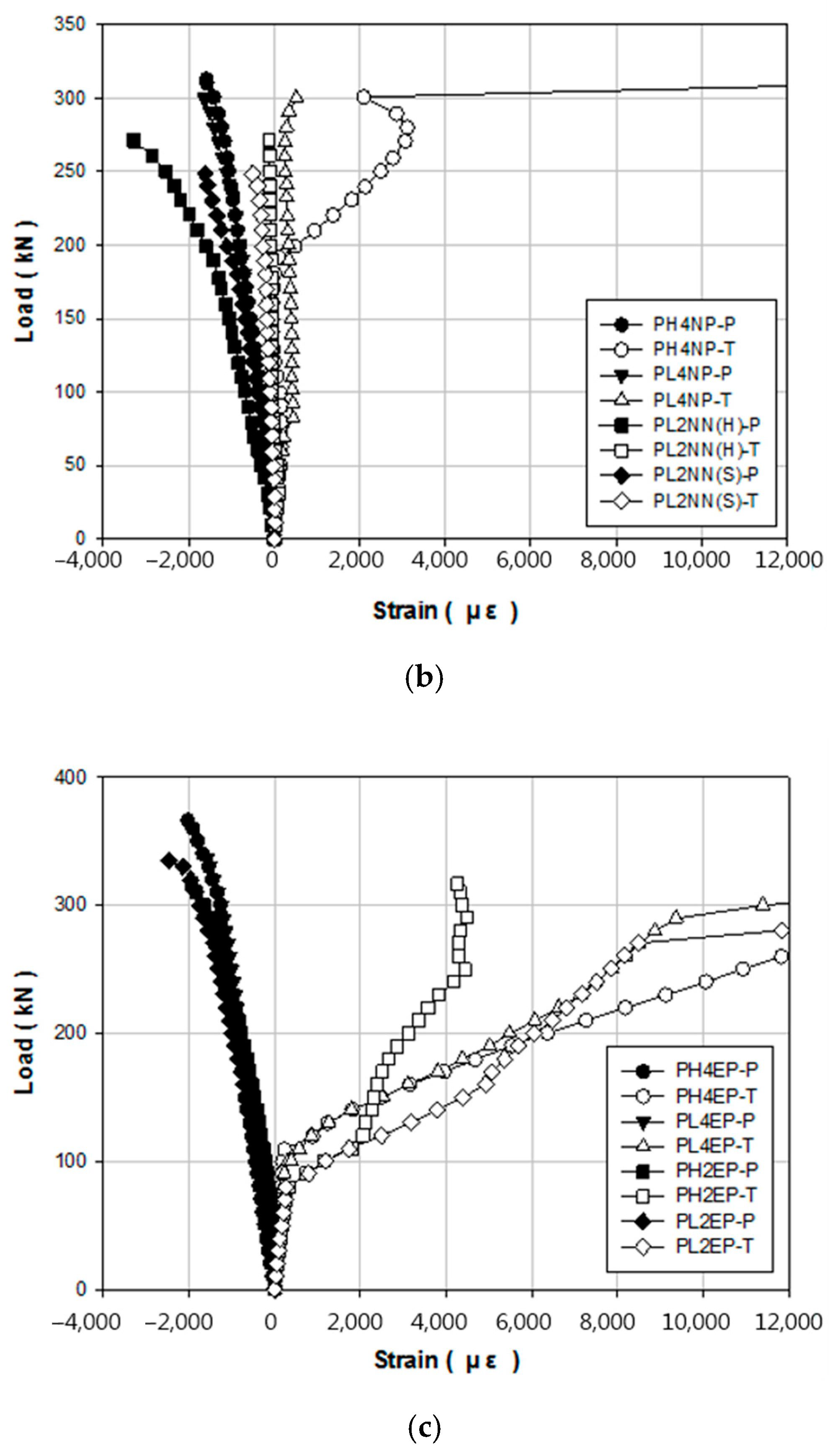

3.3. Concrete Strain Measurements

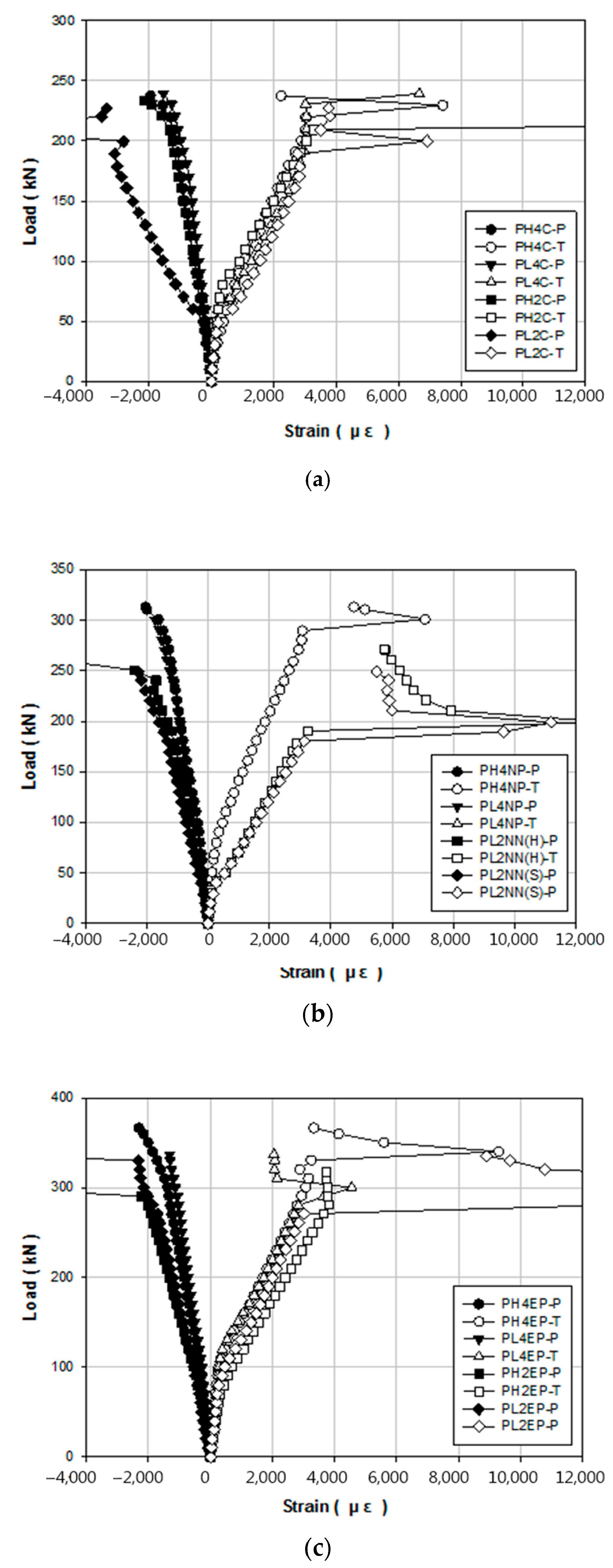

3.4. Steel Strain Measurements
4. Conclusions
- (1)
- When comparing the design and the experimental values, the crack load showed a large difference in the NSM (no prestressing) method, but in terms of yield load, all experimental values were higher than the design values. In addition, the EP method values were 1.5 to 2 times higher than the NSM (prestressing or no prestressing) method for each load.
- (2)
- Both the EP and NSM (prestressing) methods applied to high-strength (40 MPa) and low-strength (20 MPa) concrete showed 5% to 60% higher stiffness than that of the control specimen. As the internal prestress force increased, the stiffness increased. Owing to the additional prestressing of the reinforced material according to the strengthening method, the specimens of EP and NSM methods showed higher stiffness than the control specimen, but a brittle behavior was observed for these specimens.
- (3)

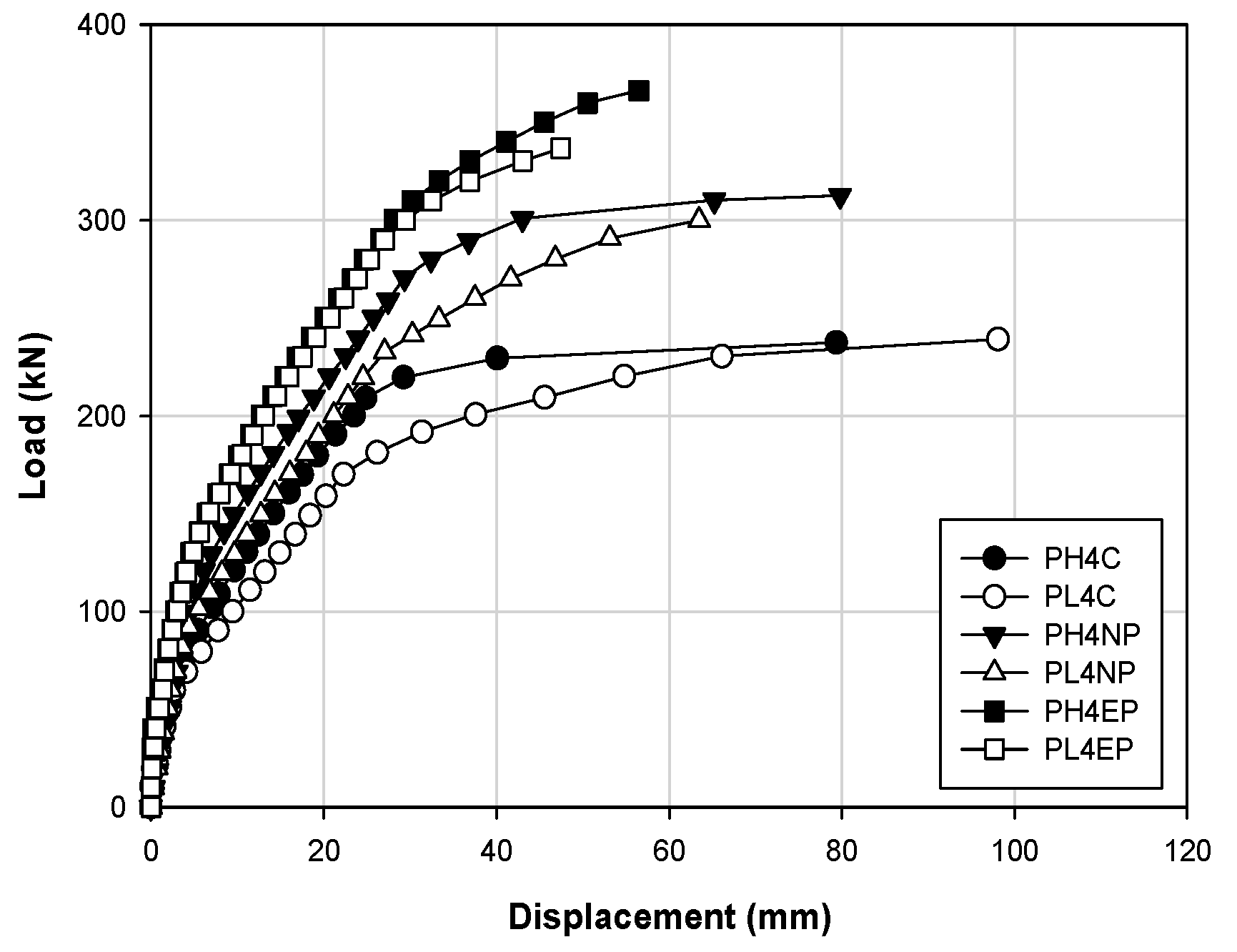

- When the load–displacement curves of all specimens were compared, the stiffness up to the yield load increased almost two times compared with that of the control specimen in the cases of PH4EP and PL4EP, but in the case of specimens tested with the NSM method (no prestressing), there was no increase in stiffness and the overall trend was similar to that of the control specimen (strengthening effect: EP > NSM (prestressing) > NSM (no prestressing).
- (4)
- The strain of the reinforced bar was 0.002 or higher, and both the NSM (prestressing) and EP methods showed a higher yield strength than the control specimen owing to the strengthening effect. However, the NSM (no prestressing) method yielded a strengthening effect similar to that of the control specimen. It is thought that in the process of applying the NSM method, the gap between the anchorage and concrete led to a decrease in the strengthening effect.
- (5)

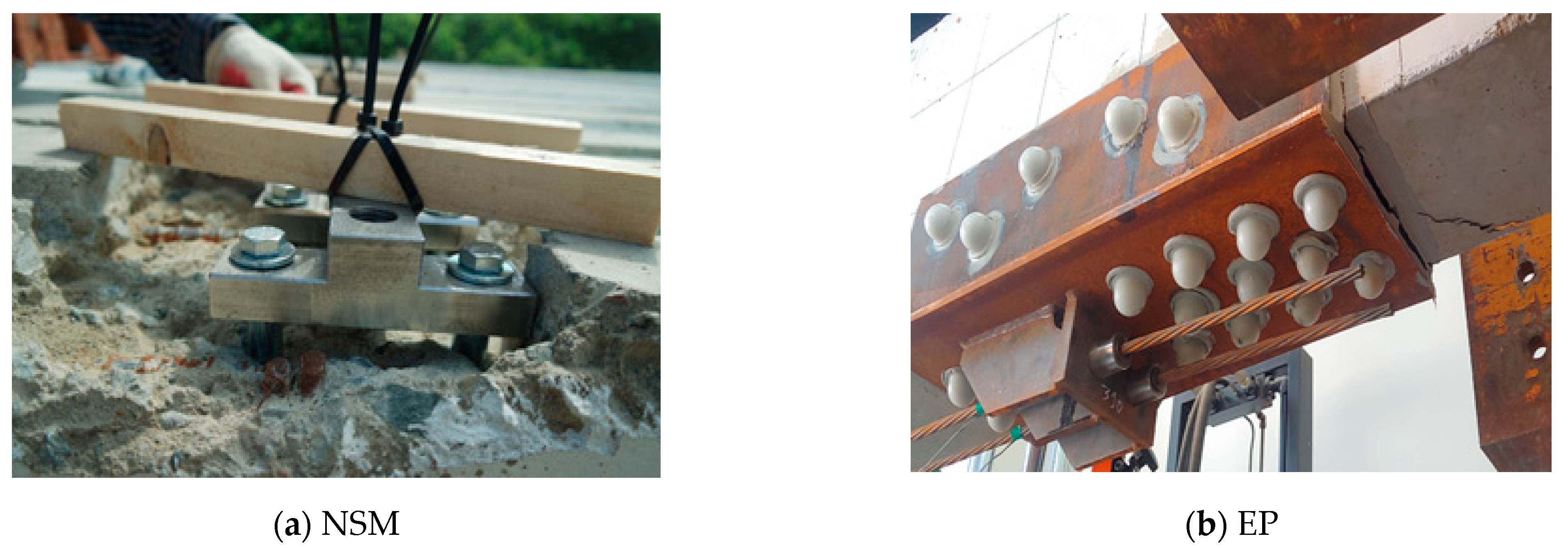

- Among the various strengthening methods discussed in this study, the EP method had problems at the interface between the anchorage and concrete, and the NSM method had problems with the gap between the anchorage and concrete, and with the integrated behavior of members. Furthermore, other common problems of different material characteristics were also noted depending on the manufacturer of the reinforced material. To address these problems, further investigations using a variety of strengthening methods, amounts of reinforced materials, and reinforced materials from different manufacturers are required.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Shin, H.M. Prestressed Concrete, 10th ed.; Dong Myeong: Paju City, Gyeonggi, Korea, 2012. [Google Scholar]
- Aslam, K. Structural Analysis, 3rd ed.; THOMSON: Toronto, ON, Canada, 2005. [Google Scholar]
- Cao, D.F.; Qin, X.C.; Meng, S.P.; Tu, Y.M.; Elfgren, L.; Sabourova, N.; Blanksvärd, T. Evaluation of prestress losses in prestressed concrete specimens subjected to freeze–thaw cycles. Struct. Infrastruct. Eng. 2016, 12, 159–170. [Google Scholar] [CrossRef]
- Guo, T.; Chen, Z.; Lu, S.; Yao, R. Monitoring and analysis of long-term prestress losses in post-tensioned concrete beams. Measurement 2018, 122, 573–581. [Google Scholar] [CrossRef]
- Garber, D.B.; Gallardo, J.M.; Deschenes, D.J.; Bayrak, O. Experimental investigation of prestress losses in full-scale bridge girders. ACI Struct. J. 2015, 112, 553. [Google Scholar] [CrossRef] [Green Version]
- Garber, D.B.; Gallardo, J.M.; Deschenes, D.J.; Bayrak, O. Prestress loss calculations: Another perspective. PCI J. 2016, 61, 68–85. [Google Scholar] [CrossRef]
- Burns, N.H.; Helwig, T.; Tsujimoto, T. Effective prestressing in continuous post-tensioned beams with unbonded tendons. ACI Struct. J. 1991, 88, 84–90. [Google Scholar]
- Pessiki, S.; Kaczinski, M.; Wescott, H.H. Evaluation of effective prestressing in 28-year-old prestressed concrete bridge beams. PCI J. 1996, 41, 78–89. [Google Scholar] [CrossRef]
- Sharif, A.; Taher, S.E.D.F.; Basu, P.K. Time-dependent losses in prestressed, continuous composite beams. J. Struct. Eng. 1993, 119, 3151–3168. [Google Scholar] [CrossRef]
- Tadros, M.K.; Ghali, A.; Meyer, A.W. Prestressed loss and deflection of precast concrete members. PCI J. 1985, 30, 114–141. [Google Scholar] [CrossRef]
- Zia, P.; Preston, H.K.; Scott, N.L.; Workman, E.B. Estimating prestress losses. Concr. Int. 1979, 1, 32–38. [Google Scholar]
- Tadros, M.K.; Ghali, A.; Dilger, W.H. Time-dependent prestress loss and deflection in prestressed concrete members. PCI J. 1975, 20, 86–98. [Google Scholar] [CrossRef]
- Abdel-Jaber, H.; Glisic, B. Monitoring of long-term prestress losses in prestressed concrete structures using fiber optic sensors. Struct. Health Monit. 2019, 18, 254–269. [Google Scholar] [CrossRef]
- Lee, H.; Jung, W.T.; Chung, W. Post-tension near-surface mounted strengthening system for reinforced concrete beams with changes in concrete condition. Compos. Part B Eng. 2019, 161, 514–529. [Google Scholar] [CrossRef]
- Jung, W.T.; Park, J.S.; Kang, J.Y.; Keum, M.S. Flexural behavior of concrete beam strengthened by near-surface mounted CFRP reinforcement using equivalent section model. Adv. Mater. Sci. Eng. 2017, 6, 1–16. [Google Scholar] [CrossRef] [Green Version]
- Jung, W.T.; Park, J.S.; Kang, J.Y.; Keum, M.S.; Park, Y.H. Flexural behaviour of RC beams strengthened with prestressed CFRP NSM tendon using new prestressing system. Int. J. Polym. Sci. 2017, 4a, 1–9. [Google Scholar] [CrossRef] [Green Version]
- Coelho, M.R.; Sena-Cruz, J.M.; Neves, L.A. A review on the bond behavior of FRP NSM systems in concrete. Constr. Build. Mater. 2015, 93, 1157–1169. [Google Scholar] [CrossRef] [Green Version]
- Herbrand, M.; Classen, M. Shear tests on continuous prestressed concrete beams with external prestressing. Struct. Concr. 2015, 16, 428–437. [Google Scholar] [CrossRef]
- Wang, X.; Shi, J.; Wu, G.; Yang, L.; Wu, Z. Effectiveness of basalt FRP tendons for strengthening of RC beams through the external prestressing technique. Eng. Struct. 2015, 101, 34–44. [Google Scholar] [CrossRef]
- Pisani, M.A. Behaviour under long-term loading of externally prestressed concrete beams. Eng. Struct. 2018, 160, 24–33. [Google Scholar] [CrossRef]
- Fan, Y.; Chen, L.; Fang, Q.; Wang, T. Blast resistance of externally prestressed RC Beam: A theoretical approach. Eng. Struct. 2019, 179, 211–224. [Google Scholar] [CrossRef]
- Senthil, R.; Manisekar, R. Ultimate flexural behaviour of externally prestressed new beams and distressed beams. J. Eng. Sci. Technol. 2015, 10, 461–484. [Google Scholar]
- Kaur, H.; Singh, J. A Review on external prestressing in concrete. Int. Res. J. Eng. Technol. 2017, 4, 1801–1805. [Google Scholar]
- Li, Y.Y.; Guo, B.; Liu, J. Research on reinforced concrete beam enlarged cross section method experiment and finite element simulation. Appl. Mech. Mater. 2014, 638, 208–213. [Google Scholar] [CrossRef]
- Oh, H.S.; Sim, J.S.; Lee, C.D.; Choi, O.C.; Hong, K.S.; Shin, Y.S. A Study on the Repair and Strengthening Effencs of R/C Beams with Enlarged Section. Proc. J. Korea Concr. Inst. 1996, 8, 416–424. (In Korean) [Google Scholar]
- Barros, J.A.; Dias, S.J.; Lima, J.L. Efficacy of CFRP-based techniques for the flexural and shear strengthening of concrete beams. Cem. Concr. Compos. 2007, 29, 203–217. [Google Scholar] [CrossRef]
- Mostofinejad, D.; Shameli, M. Performance of EBROG method under multilayer FRP sheets for flexural strengthening of concrete beams. Procedia Eng. 2011, 14, 3176–3182. [Google Scholar] [CrossRef] [Green Version]
- Sobuz, H.R.; Ahmed, E.; Sutan, N.M.; Hasan, N.M.S.; Uddin, M.A.; Uddin, M.J. Bending and time-dependent responses of RC beams strengthened with bonded carbon fiber composite laminates. Constr. Build. Mater. 2012, 29, 597–611. [Google Scholar] [CrossRef]
- American Concrete Institute (ACI). Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures; ACI 440. 2R-17; American Concrete Institute: Farmington Hills, MI, USA, 2017. [Google Scholar]
- Lee, H.Y.; Jung, W.T.; Chung, W. Flexural strengthening of reinforced concrete beams with pre-stressed near surface mounted CFRP systems. Compos. Struct. 2017, 163, 1–12. [Google Scholar] [CrossRef]
- Jumaat, M.Z.; Shukri, A.A.; Obaydullah, M.; Huda, M.; Hosen, M.; Hoque, N. Strengthening of RC beams using externally bonded reinforcement combined with near-surface mounted technique. Polymers 2016, 8, 261. [Google Scholar]
- Asplund, S.O. Strengthening bridge slabs with grouted reinforcement. ACI Struct. J. 1949, 45, 397–406. [Google Scholar]
- You, Y.J.; Kim, J.H.J.; Kim, S.J.; Park, Y.H. Methods to enhance the guaranteed tensile strength of GFRP rebar to 900 MPa with general fiber volume fraction. Constr. Build. Mater. 2015, 75, 54–62. [Google Scholar] [CrossRef]
- Bakis, C.E.; Bank, L.C.; Brown, V.; Cosenza, E.; Davalos, J.F.; Lesko, J.J.; Triantafillou, T.C. Fiber-reinforced polymer composites for construction—State-of-the-art review. J. Compos. Constr. 2002, 6, 73–87. [Google Scholar] [CrossRef] [Green Version]
- Korea Standards Association (KSA). Standard Test Method for Flexural Strength of Concrete; KS F 2408; Korean Standards Association: Seoul, Korea, 2016. [Google Scholar]
Design Strength (MPa) | Unit Weight (kg/m3) | ||||||
---|---|---|---|---|---|---|---|
OPC | W | G | S | FA | GGBS | AE | |
20 | 265 | 162 | 905 | 954 | 30 | - | 2.36 |
40 | 258 | 151 | 1039 | 626 | 77 | 180 | 5.37 |

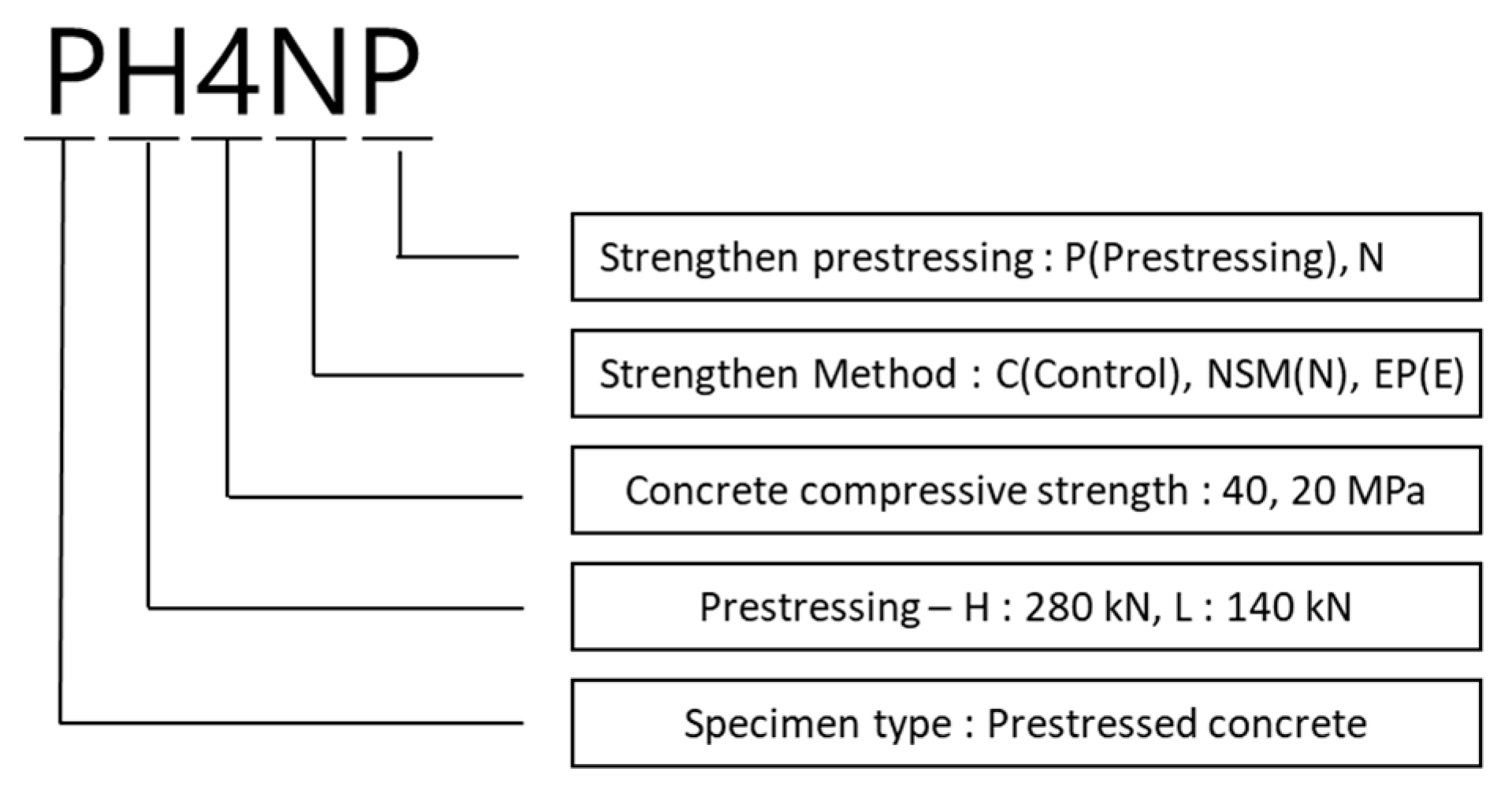

No. | Specimen | Specimen Prestressing (kN) | Strengthening Method | Strengthening Material | Strengthening Amount (ea) | Strengthening Prestressing |
---|---|---|---|---|---|---|
1 | PH4C | 280 | - | - | - | |
2 | PL4C | 140 | - | - | - | |
3 | PH2C | 280 | - | - | - | |
4 | PL2C | 140 | - | - | - | |
5 | PH4NP | 280 | near surface mounted (NSM) | carbon fiber-reinforced plastic or polymer (CFRP) | 1 | prestressing |
6 | PL4NP | 140 | NSM | CFRP | 1 | prestressing |
7 | PL2NN (H) | 140 | NSM | CFRP | 1 | - |
8 | PL2NN (S) | 140 | NSM | CFRP | 1 | - |
9 | PH4EP | 280 | external prestressing (EP) | steel | 2 | prestressing |
10 | PL4EP | 140 | EP | steel | 2 | prestressing |
11 | PH2EP | 280 | EP | steel | 2 | prestressing |
12 | PL2EP | 140 | EP | steel | 2 | prestressing |
Material Property | Steel Bar | CFRP Bar | Strands |
---|---|---|---|
Young’s modulus (GPa) | 200 | 165 | 200 |
yield stress (MPa) | 400 | - | 1597.9 |
ultimate stress (MPa) | 560 | 2750 | 1880.7 |
No. | Specimens | Crack Load (Pcr) (kN) | Yield Load (Py) (kN) | Ultimate Load (Pu) (kN) | ||||||
---|---|---|---|---|---|---|---|---|---|---|
Design * | Experimental | Displacement (mm) | Design * | Experimental | Displacement (mm) | Design * | Experimental | Displacement (mm) | ||
1 | PH4C | 96.0 | 94.5 | 5.90 | 198.7 | 218.8 | 28.14 | 227.5 | 237.6 | 79.35 |
2 | PL4C | 63.9 | 63.7 | 3.14 | 152.8 | 185.5 | 28.98 | 227.5 | 239.3 | 98.10 |
3 | PH2C | 81.3 | 83.3 | 5.58 | 194.8 | 219.6 | 33.29 | 213.7 | 233.3 | 63.03 |
4 | PL2C | 49.2 | 50.6 | 3.57 | 150.4 | 180.4 | 30.17 | 213.7 | 227.3 | 71.76 |
5 | PH4NP | 127.7 | 125.6 | 6.60 | 253.7 | 273.3 | 28.89 | 310.0 | 312.8 | 79.80 |
6 | PL4NP | 95.5 | 90.2 | 4.29 | 208.5 | 232.0 | 27.01 | 309.0 | 300.0 | 63.48 |
7 | PL2NN(H) | 56.9 | 46.2 | 3.36 | 168.4 | 198.1 | 32.32 | 227.0 | 271.4 | 82.64 |
8 | PL2NN(S) | 56.9 | 42.6 | 2.64 | 168.3 | 188.8 | 31.75 | 227.0 | 248.7 | 72.12 |
9 | PH4EP | 125.7 | 141.7 | 5.62 | 283.5 | 323.9 | 33.30 | 326.5 | 356.4 | 56.49 |
10 | PL4EP | 114.2 | 132.1 | 4.95 | 264.8 | 311.3 | 31.72 | 236.5 | 336.8 | 47.43 |
11 | PH2EP | 97.6 | 98.6 | 6.04 | 261.9 | 295.9 | 37.16 | 300.9 | 317.0 | 57.66 |
12 | PL2EP | 86.2 | 108.4 | 5.81 | 244.1 | 285.8 | 36.91 | 300.9 | 335.3 | 56.70 |
