Computer Aided Design Modelling and Finite Element Analysis of Premolar Proximal Cavities Restored with Resin Composites

by
Amanda Guedes Nogueira Matuda
1,
Marcos Paulo Motta Silveira
1,
Guilherme Schmitt de Andrade
1,
Amanda Maria de Oliveira Dal Piva
1,
João Paulo Mendes Tribst
2,
Alexandre Luiz Souto Borges
1,
Luca Testarelli
3,
Gabriella Mosca
4 and
Pietro Ausiello
4,*
1
Department of Dental Materials and Prosthodontics, Institute of Science and Technology, São Paulo State University (UNESP), São José dos Campos, SP 12245-000, Brazil
2
Department of Dentistry, University of Taubaté (UNITAU), Taubaté, SP 12020-270, Brazil
3
Department of Oral and Maxillo Facial Sciences, “Sapienza” University of Rome, 00161 Rome, Italy
4
Department of Neurosciences, Reproductive and Odontostomatological Sciences, School of Dentistry, University of Naples Federico II, 80138 Naples, Italy
*
Author to whom correspondence should be addressed.
Materials 2021, 14(9), 2366; https://doi.org/10.3390/ma14092366
Submission received: 12 April 2021 / Revised: 26 April 2021 / Accepted: 27 April 2021 / Published: 1 May 2021

Abstract

:
This study evaluated the stress distribution in five different class II cavities of premolar models restored with conventional or bulk-fill flowable composite by means of finite element analysis (FEA) under shrinkage and occlusal loading. An upper validated premolar model was imported in the software, and five class II cavities with different occlusal extensions and dimensions were prepared: horizontal cavity on the mesial surface (horizontal slot), mesio-occlusal cavity, mesial cavity (vertical slot), tunnel type cavity and direct access cavity. The models were restored with conventional or bulk-fill flowable resin composite. The tested materials were considered as homogeneous, linear, and isotropic. The Maximum Principal Stress criteria was chosen to evaluate the tensile stress results. The lowest shrinkage stress value was observed in the direct access cavity restored with bulk-fill flowable resin composite (36.12 MPa). The same cavity, restored with conventional composite showed a score of 36.14 MPa. The horizontal slot cavity with bulk-fill flowable showed a score of 46.71 MPa. The mesio-occlusal cavity with bulk-fill flowable had a score of 53.10 MPa, while with conventional composite this was 55.35 MPa. Higher shrinkage stress was found in the vertical slot cavity with conventional resin 56.14 MPa, followed by the same cavity with bulk-fill flowable 56.08 MPa. Results indicated that the use of bulk-fill flowable composite resin more significantly decreased the polymerization shrinkage stress magnitude. The larger the cavity and the volume of material necessary to restore the tooth, the greater the residual stress on enamel and dentin tissue.

1. Introduction

Caries is a common oral disease caused by initial demineralization of the tooth structure because of bacteria acid production in the presence of fermentable carbohydrates, and following enamel and dentin mechanical resistance loss [1]. The tooth decay can emerge in different forms, from a small, demineralized area in the enamel to a large cavity in the dentin with or without pulpal involvement [2]. In some cases, when proximal caries (class II) progress extensively in dentin, it is necessary to remove the intact marginal ridge to gain access to the carious lesion [1].
Currently, it is suggested the cavity design should be indicated exclusively by the caries extension, since nowadays the composite resin bond strength with the dental tissues allows a more conservative approach [3]. The principal advantage of this minimally invasive dentistry is to preserve the healthy dental structure as much as possible. Thus, it is reported that the survival of restorations decreases as the size and complexity of the cavities increase [4]. Class II preparations with marginal ridge involvement can reduce the tooth resistance [5]. There are alternative designs of class II cavities and approaches, such as tunnel restoration, that can increase the final integrity and resistance of the teeth, preserving the marginal ridge [6].
For these class II cavity models, the use of resin composites as a restorative material is the first option due to its ability to mimic the missing dental tissues, easy handling, proper adhesion, adequate mechanical resistance and mechanical behavior of enamel and dentin [7]. In order to attenuate inherent problems of resin composite restoration such as the polymerization shrinkage and the use of the several increments technique, the use of bulk-fill resin composite has been suggested because of lower shrinkage stress. Despite the proposed use of a composite single increment to restore 4 mm deep dental cavities, to optimize clinical time in small or medium size cavities, the clinical benefits of an extensive bulk-fill composite application requires more study [8]. It is known that the bulk-fill flowable resin composite has advantages in terms of shrinkage stress distribution versus the resin incremental filling technique, such as lower rate of polymerization shrinkage [9,10].
In order to study some complex problems, the finite element method can be used for quantitative and qualitative analysis of the mechanical behavior of dental structures [11,12]. Thus, the objective of this study was to evaluate the stress under vertical occlusal loading and polymerization shrinkage stress in five different models of class II cavities adhesively restored with conventional or bulk-fill flowable resin composites by means of finite element analysis (FEA).
The null hypothesis was (1): There would be no difference in the proximal cavities’ stress concentration with the application of a bulk or conventional resin composite. (2): The different cavities’ design would not exhibit similar stress magnitudes.

2. Materials and Methods

A first upper premolar model, previously validated [12], was imported into the computer aided design (CAD) software (version 4.0 SR8, McNeel North America, Seattle, WA, USA) as a standard model for all simulations. Different parts of the tooth, including pulp, dentin, enamel, periodontal ligament, cancellous bone and cortical bone were designed in this present study.
Different models of class II cavities with specific extensions, dimensions and final volumes (Table 1) were prepared in the teeth in the five groups of class II cavities based on the clinical approach used to restore proximal tooth decay: horizontal cavity on the mesial surface (horizontal slot), mesio-occlusal cavity, mesial cavity (vertical slot), tunnel type cavity or direct access cavity (preparation restricted to caries injury). The cavities were restored with conventional composite resin (Filtek Z350, 3M-Espe, Sumaré, Brazil) or bulk-fill flowable (Filtek Bulk Fill, 3M-Espe, Sumaré, Brazil) [13], except for the tunnel preparation, which was indicated as having received only the bulk-fill flowable (Figure 1).
The CAD models were exported as STEP files to the analysis software (ANSYS 17.2, ANSYS Inc., Houston, TX, USA). The mesh was created with tetrahedral elements, and the contacts were considered connected (Figure 2). The properties of each material were loaded and the models were considered linear, isotropic and homogeneous.
Polymerization shrinkage was simulated by thermal analogy [14]. The temperature was reduced by 1 °C, and the linear shrinkage value (post gel shrinkage) was simulated based on the coefficient of linear thermal expansion (Figure 2).
For the models restored with conventional resins, two increments were simulated. For this, the stress was generated in two steps (one for each portion of the resin composite) [15]. A static mechanical structural analysis was used to calculate the stress distribution after application of a 100 N occlusal load simultaneously [16]. The occlusal contact points were defined at the tips of the cusps using a stainless steel spherical loading device model [16] (Figure 3). The Von Mises criteria was used to observe the coherence of the numerical simulations. The Maximum Principal Stress criteria was chosen to evaluate the tensile stress results. All materials were considered homogeneous, linear, and isotropic, and their mechanical properties are summarized in Table 2.

3. Results

The stress distribution results for all groups are shown as colorimetric graphs in Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8. Different colorimetric fringes represent different stress magnitudes, visible in the horizontal scale. Hot colors mean higher tensile stress magnitude, while cold colors indicate lower tensile stress magnitude. In general, the composite resin factor and cavity geometry affected the stress distribution in the tooth. Regardless the cavity design, the restorations with conventional composite resulted in a higher stress concentration.
The stress peaks were recorded in two different moments; first, only the polymerization shrinkage stress effect was present as resultant from the resinous material applied to fill the cavity (Table 3). In the second moment, the resultant stress was calculated after the loads vertically applied on the cusps, simultaneously in combination with shrinkage effects (Table 4).
The resultant stress distributions for the models were compared and examined, and the Maximum Principal Stress was designated as analysis criteria. Regardless of the cavity design, the highest stress concentration in the enamel tissue occurred in the cavosurface angle at the restoration margin, except in the vertical slot design. In addition, the residual stress during the resin composite polymerization shrinkage was reflected in models with proportional stress magnitude after the compressive loading application.
The most favorable result, with the lowest shrinkage stress, was observed in the direct access cavity before compressive loading (10.09 MPa) and after compressive loading (36.12 MPa) The same cavity, restored with conventional resin, presented a slightly greater (11.13 and 36.14 MPa before and after loading) magnitude of shrinkage stress.
Favorable results were also found in the restoration of the horizontal slot cavity, where the bulk-fill flowable was able to reduce the stress in comparisons with the conventional resin composite; however, the stress data were higher than the horizontal slot. Tunnel cavity restorations with bulk-fill showed intermediate results.
In comparison with the direct access and horizontal slots, higher stress values were observed in the mesio-occlusal cavity design restoration for the bulk-fill flowable and conventional resin composites.
The results most prone to failure were calculated when restoring the vertical slot cavity with conventional resin, followed by restoring the same cavity with bulk-fill flowable. In this case, it was observed that the whole system was compromised, even when the bulk-fill flowable was used.

4. Discussion

The null hypothesis was that there would be no difference in the proximal cavities restored with the application of a bulk or conventional resin composite. The results showed that different cavity design exhibited different magnitudes, and could affect the dental treatment biomechanics. Thus, both the hypotheses were rejected.
The bond strength among restorative materials and dental tissues must be effective at the interface of the restored cavity, mimicking the mechanical properties of lost mineralized tissues and limiting marginal leakage and cusp deflection [19,20]. Morphology, function and esthetics must also be replicated [17].
The results of a literature review suggest that composite resin restorations can demonstrate clinically acceptable results in a long-term period of more than 15 years of follow-up [21]. According to the literature [22] the annual failure rate of direct composite resin restorations is 2.3% in class II cavities. One of the main causes is the shrinkage stress, which has been widely investigated in previous studies [14,23,24,25,26] and considered a significant factor in the clinical failure of direct adhesive restorations. According to the literature, cavity geometry, material properties and restoration techniques are some of the factors considered significant to the increase of polymerization shrinkage stresses [26,27,28].
The bond strength can decrease at the tooth-restoration interface or at the margins of the restoration, resulting in marginal stains, internal and marginal fissures, micro-cracks, secondary caries and premature restoration loss [29,30]. Restoration failure is consequently associated with a high magnitude of residual polymerization shrinkage stress [29,30,31,32,33,34,35,36,37,38,39,40].
According to the obtained results, cavities adhesively restored with conventional composite resin presented higher residual stress concentrations. Therefore, this result is in agreement with the literature which has reported that high modulus conventional resin composite can promote a significant effect on the marginal microleakage as a shrinkage, debonding or fracturing of the adhesive interface [15,34,35].
The bulk-fill flowable resin composites showed in this investigation less polymerization shrinkage stress because of the described presence of modulators and polymerization monomers capable to relieve stress [31,32,33,34,35,36,37,38,39,40,41]. The results of the present study corroborate previous theoretical findings, which conclude that the use of bulk-fill resins can contribute to reducing the undesirable effects of polymerization shrinkage [15,23].
For this study, different types of class II preparations were selected, with the aim of simulating the restorative procedures performed routinely in different patients. Direct access is performed mainly in cases of local carious lesions and with a reduced extension, removing only the necessary tissue with no needs for additional retentive forms. The preparation of the mesial cavity (vertical slot) occurs when there is involvement of the area affected by caries in the proximal region, with access to the rupture of the marginal ridge. In this case, the preparation is self-retaining because the buccal and lingual walls converge towards each other to the occlusal surface. Compared to the vertical slot, the preparation of a horizontal slot is more conservative because it is strictly proximal and can be achieved by buccal or lingual, preserving the occlusal surface and the marginal ridge. The mesio-occlusal cavity, on the other hand, is performed when the carious lesion compromises two sides of the dental structure, with the rupture of the marginal ridge and the occlusal surface. It is a more extensive cavity with a limited c-factor, and in this cavity design, the walls of the proximal box converge towards to the occlusal. In incipient caries located on the proximal surfaces of posterior teeth and with marginal ridges free of lesions, tunnel-type preparations can be performed where the marginal ridge is preserved, and access is granted through the occlusal surface [39].
In a previous study [13] that aimed to evaluate the effect of extension and type of class II cavity on the biomechanical properties of teeth, the authors concluded that bigger mesio-distal II cavities, as well as lower amounts of the mesial and distal remaining walls, increased the stress concentrations in the enamel [13]. This is according to the results obtained in this present study, where the larger preparations presented greater stress magnitude. Regarding the direct access preparation design, there are no studies in the literature that have evaluated it.
In relation to the types of cavities, larger restorations promote a greater increase in stress at the tooth-restoration interface [10]. According to previous studies [21,22,23,24] the use of resin-based bulk filling materials is not recommended for large MOD (mesio-occluso-distal) Class II adhesive restorations. Mechanical behavior under loading and shrinkage stress is monitored by several factors including the enamel and dentine volumes lost. In this present study, however, the analyzed class II cavities are limited to small–medium size volumes. Here the use of bulk-fill material was respective of not only the limited depth of the cavity, but mainly the influence of the c-factor and of the total refilling volumes.
The preparation of a tunnel-type cavity can be considered more difficult compared to the preparation of the other types of class II cavities [39]. It is reported that one of the main advantages of this type of preparation is the possibility of keeping the marginal ridge intact; however, there may be failures due to the fracture of the marginal ridge that continues to occur even after 24 months after completion of the restoration [31].
According to the data obtained in previous reports [40] and the results obtained in this study, the class II tunnel type design does not present any mechanical advantage to decrease the calculated stress magnitude. Due to the technical difficulties in performing this type of preparation, the horizontal slot or the direct access design should be preferred for the operative treatment of medium-sized class II proximal cavities [31].
Some intrinsic limits of the current finite element analysis involve the use of a model with an isotropic resin composite, without defect populations in the material, perfectly bonded in all cavities and with a linear behavior. Despite all the advantages of FEA [42,43,44], it must be taken into account that the precision of its results also has tolerance limits, which must be considered during the results interpretation [40,41,42,43,44].
This present study showed that the use of bulk-fill flowable resins could reduce the residual stress of small proximal cavities. In addition, class II preparations of the mesio-occlusal type and vertical slot, due to the size and geometry of the cavity, may present an increase in shrinkage stress and, consequently, greater stress at the tooth-restoration interface.
Despite the results reported with the present in silico evaluation, some limitations should be considered when interpreting them. The present analysis did not consider the pH variation simulation, cyclic loading, restoration adhesive failure, biofilm formation, temperature variation or different antagonists. In addition, the simulated materials were not orthotropic or anisotropic materials, and the obtained results were not calculated considering data deviation or systematic error that can be present in biological tissues and complex systems. However, further fatigue lifetime studies should be developed, considering the S–N curve, to provide a more complete in vitro evaluation prior to clinical trials using prospective studies.

5. Conclusions

Based on this information and despite the limitations of this study, it can be concluded that:
-
Regardless the cavity design, the use of bulk-fill flowable resin composite is a viable option to restore the missing dental tissue.
-
Smaller class II cavities can be conveniently restored with low shrinkage resin composites to reduce the residual stress and the adhesive failure risk.
-
Conservative preparations should be performed in order to reduce the volume of resin composite material, and the stress of the direct proximal restorations.

Author Contributions

Conceptualization, A.G.N.M., M.P.M.S., G.S.d.A., J.P.M.T., A.M.d.O.D.P., A.L.S.B. and P.A.; methodology, G.S.d.A., J.P.M.T., A.M.d.O.D.P., A.L.S.B. and P.A.; software, A.L.S.B.; validation, J.P.M.T., A.L.S.B., L.T. and P.A.; formal analysis, A.G.N.M., M.P.M.S. and A.L.S.B.; investigation, A.G.N.M., M.P.M.S., G.S.d.A., J.P.M.T., A.L.S.B., L.T. and P.A.; methodology, G.S.d.A., G.M., J.P.M.T., A.L.S.B. and P.A.; resources, A.L.S.B. and P.A.; data curation, G.S.d.A. and J.P.M.T.; writing—original draft preparation, A.G.N.M., M.P.M.S. and G.S.d.A.; writing—review and editing, J.P.M.T., A.L.S.B., A.M.d.O.D.P., L.T. and P.A.; visualization, A.G.N.M., M.P.M.S., G.M. and A.L.S.B.; supervision, J.P.M.T., A.L.S.B. and P.A.; project administration, G.S.d.A., J.P.M.T., A.L.S.B. and P.A.; funding acquisition, L.T. and P.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available on request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cardoso, M.; Coelho, A.; Lima, R.; Amaro, I.; Paula, A.; Marto, C.M.; Sousa, J.; Spagnuolo, G.; Ferreira, M.M.; Carrilho, E. Efficacy and Patient’s Acceptance of Alternative Methods for Caries Removal—A Systematic Review. J. Clin. Med. 2020, 9, 3407. [Google Scholar] [CrossRef]
  2. Lai, W.-K.; Lu, Y.-C.; Hsieh, C.-R.; Wei, C.-K.; Tsai, Y.-H.; Chan, F.-R.; Chan, Y. Developing Lactic Acid Bacteria as an Oral Healthy Food. Life 2021, 24, 268. [Google Scholar] [CrossRef]
  3. Ziwniewska, I.; Macieljczyk, M.; Zalewska, A. The Effect of Selected Dental Materials Used in Conservative Dentistry, Endodontics, Surgery, and Orthodontics as Well as during the Periodontal Treatment on the Redox Balance in the Oral Cavity. Int. J. Mol. Sci. 2020, 21, 9684. [Google Scholar] [CrossRef]
  4. Mackenzie, L.; Banerjee, A. Minimally invasive direct restorations: A practical guide. Br. Dent. J. 2017, 223, 163–171. [Google Scholar] [CrossRef]
  5. Zarow, M.; Vadini, M.; Chojnacka-Brozek, A.; Szczeklik, K.; Milewski, G.; Biferi, V.; D’Arcangelo, C.; De Angelis, F. Effect of Fiber Posts on Stress Distribution of Endodontically Treated Upper Premolars: Finite Element Analysis. Nanomater. 2020, 10, 1708. [Google Scholar] [CrossRef]
  6. Wiegand, A.; Attin, T. Treatment of proximal caries lesions by tunnel restorations. Dent. Mater. 2007, 23, 1461–1467. [Google Scholar] [CrossRef] [PubMed]
  7. Lynch, C.D.; Opdam, N.J.; Hickel, R.; Brunton, P.A.; Gurgan, S.; Kakaboura, A.; Shearer, A.C.; Vanherle, G.; Wilson, N.H.F. Guidance on posterior resin composites: Academy of Operative Dentistry - European Section. J. Dent. 2014, 42, 377–383. [Google Scholar] [CrossRef] [PubMed]
  8. Van Ende, A.; De Munck, J.; Lise, D.P.; Van Meerbeek, B. Bulk-Fill Composites: A Review of the Current Literature. J. Adhes. Dent. 2017, 19, 95–109. [Google Scholar] [CrossRef] [Green Version]
  9. Kaisarly, D.; Meierhofer, D.; El Gezawi, M.; Rösch, P.; Kunzelmann, K.H. Effects of flowable liners on the shrinkage vectors of bulk-fill composites. Clin. Oral Investig. 2021. [Google Scholar] [CrossRef]
  10. Campaner, L.M.; Silveira, M.P.M.; de Andrade, G.S.; Borges, A.L.S.; Bottino, M.A.; Dal Piva, A.M.d.O.; Lo Giudice, R.; Ausiello, P.; Tribst, J.P.M. Influence of Polymeric Restorative Materials on the Stress Distribution in Posterior Fixed Partial Dentures: 3D Finite Element Analysis. Polymers 2021, 13, 758. [Google Scholar] [CrossRef] [PubMed]
  11. Ausiello, P.; Dal Piva, A.M.d.O.; Borges, A.L.S.; Lanzotti, A.; Zamparini, F.; Epifania, E.; Mendes Tribst, J.P. Effect of Shrinking and No Shrinking Dentine and Enamel Replacing Materials in Posterior Restoration: A 3D-FEA Study. Appl. Sci. 2021, 11, 2215. [Google Scholar] [CrossRef]
  12. da Rocha, D.M.; Tribst, J.P.M.; Ausiello, P.; Dal Piva, A.M.d.O.; da Rocha, M.C.; Di Nicoló, R.; Borges, A.L.S. Effect of the restorative technique on load-bearing capacity, cusp deflection, and stress distribution of endodontically-treated premolars with MOD restoration. Restor. Dent. Endod. 2019, 44, e33. [Google Scholar] [CrossRef]
  13. Valian, A.; Moravej-Salehi, E.; Geramy, A.; Faramarzi, E. Effect of Extension and Type of Composite-Restored Class II Cavities on Biomechanical Properties of Teeth: A Three Dimensional Finite Element Analysis. J. Dent. 2015, 12, 140–150. [Google Scholar]
  14. de Andrade, G.S.; Pinto, A.B.A.; Tribst, J.P.M.; Chun, E.P.; Borges, A.L.S.; de Siqueira Ferreira Anzaloni Saavedra, G. Does overlay preparation design affect polymerization shrinkage stress distribution? A 3D FEA study. Comput. Methods Biomech. Biomed. Engin. 2021, 1–10. [Google Scholar] [CrossRef]
  15. Correia, A.M.O.; Andrade, M.R.; Tribst, J.P.M.; Borges, A.L.S.; Caneppele, T.M.F. Influence of Bulk-fill Restoration on Polymerization Shrinkage Stress and Marginal Gap Formation in Class V Restorations. Oper. Dent. 2020, 45, E207–E216. [Google Scholar] [CrossRef]
  16. Costa, V.L.S.; Tribst, J.P.M.; Borges, A.L.S. Influence of the occlusal contacts in formation of Abfraction Lesions in the upper premolar. Brazilian Dent. Sci. 2017, 20, 115. [Google Scholar] [CrossRef] [Green Version]
  17. Ausiello, P.; Ciaramella, S.; Garcia-Godoy, F.; Martorelli, M.; Sorrentino, R.; Gloria, A. Stress distribution of bulk-fill resin composite in class II restorations. Am. J. Dent. 2017, 30, 227–232. [Google Scholar] [PubMed]
  18. da Rocha, M.C.; da Rocha, D.M.; Tribst, J.P.M.; Borges, A.L.S.; Alvim-Pereira, F. Reduced Periodontal Support for Lower Central Incisor - A 3D Finite Element Analysis of Compressive Stress in the Periodontium. J. Int. Acad. Periodontol. 2021, 23, 65–71. [Google Scholar]
  19. Malysa, A.; Wezgowiec, J.; Orzeszek, S.; Florjanski, W.; Zietek, M.; Wieckiewicz, M. Effect of Different Surface Treatment Methods on Bond Strength of Dental Ceramics to Dental Hard Tissues: A Systematic Review. Molecules 2021, 26, 1223. [Google Scholar] [CrossRef]
  20. Mena-Álvarez, J.; Agustín-Panadero, R.; Zubizarreta-Macho, A. Effect of Fiber-Reinforced Composite and Elastic Post on the Fracture Resistance of Premolars with Root Canal Treatment—An In Vitro Pilot Study. Appl. Sci. 2020, 10, 7616. [Google Scholar] [CrossRef]
  21. Kodzaeva, Z.S.; Turkina, A.Y.; Doroshina, V.Y. The long-term results of teeth restoration with composite resin materials: A systematic literature review. Stomatologiya 2019, 98, 117. [Google Scholar] [CrossRef]
  22. Manhart, J.; Chen, H.; Hamm, G.; Hickel, R. Buonocore Memorial Lecture. Review of the clinical survival of direct and indirect restorations in posterior teeth of the permanent dentition. Oper. Dent. 2004, 29, 481–508. [Google Scholar] [PubMed]
  23. Ausiello, P.; Ciaramella, S.; Lanzotti, A.; Ventre, M.; Borges, A.L.S.; Tribst, J.P.M.; Dal Piva, A.M.d.O.; García-Godoy, F. Mechanical behavior of Class I cavities restored by different material combinations under loading and polymerization shrinkage stress. Am. J. Dent 2019, 32, 55–60. [Google Scholar]
  24. Ausiello, P.; Ciaramella, S.; De Benedictis, A.; Lanzotti, A.; Tribst, J.P.M.; Watts, D.C. The use of different adhesive filling material and mass combinations to restore class II cavities under loading and shrinkage effects: A 3D-FEA. Comput. Methods Biomech. Biomed. Engin. 2020, 1–11. [Google Scholar] [CrossRef] [PubMed]
  25. Nikolaidis, A.K.; Koulaouzidou, E.A.; Gogos, C.; Achilias, D.S. Synthesis and Characterization of Dental Nanocomposite Resins Filled with Different Clay Nanoparticles. Polymers 2019, 11, 730. [Google Scholar] [CrossRef] [Green Version]
  26. Watts, D.C.; Satterthwaite, J.D. Axial shrinkage-stress depends upon both C-factor and composite mass. Dent. Mater. 2008, 24, 1–8. [Google Scholar] [CrossRef] [PubMed]
  27. Davidson, C.L.; Feilzer, A.J. Polymerization shrinkage and polymerization shrinkage stress in polymer-based restoratives. J. Dent. 1997, 25, 435–440. [Google Scholar] [CrossRef]
  28. Tosco, V.; Vitiello, F.; Furlani, M.; Gatto, M.L.; Monterubbianesi, R.; Giuliani, A.; Orsini, G.; Putignano, A. Microleakage Analysis of Different Bulk-Filling Techniques for Class II Restorations: µ-CT, SEM and EDS Evaluations. Materials 2020, 14, 31. [Google Scholar] [CrossRef] [PubMed]
  29. Ferrini, F.; Sannino, G.; Chiola, C.; Capparé, P.; Gastaldi, G.; Gherlone, E. Influence of Intra-Oral Scanner (I.O.S.) on The Marginal Accuracy of CAD/CAM Single Crowns. Int. J. Environ. Res. Public Health 2019, 16, 544. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Bernauer, S.A.; Müller, J.; Zitzmann, N.U.; Joda, T. Influence of Preparation Design, Marginal Gingiva Location, and Tooth Morphology on the Accuracy of Digital Impressions for Full-Crown Restorations: An In Vitro Investigation. J. Clin. Med. 2020, 9, 3984. [Google Scholar] [CrossRef] [PubMed]
  31. Hörsted-Bindslev, P.; Heyde-Petersen, B.; Simonsen, P.; Baelum, V. Tunnel or saucer-shaped restorations: A survival analysis. Clin. Oral Investig. 2005, 9, 233–238. [Google Scholar] [CrossRef]
  32. Martorelli, M.; Ausiello, P. A novel approach for a complete 3D tooth reconstruction using only 3D crown data. Int. J. Interact. Des. Manuf. 2013, 7, 125–133. [Google Scholar] [CrossRef]
  33. Arbildo-Vega, H.I.; Lapinska, B.; Panda, S.; Lamas-Lara, C.; Khan, A.S.; Lukomska-Szymanska, M. Clinical Effectiveness of Bulk-Fill and Conventional Resin Composite Restorations: Systematic Review and Meta-Analysis. Polymers 2020, 12, 1786. [Google Scholar] [CrossRef] [PubMed]
  34. Elshazly, T.M.; Bourauel, C.; Sherief, D.I.; El-Korashy, D.I. Evaluation of Two Resin Composites Having Different Matrix Compositions. Dent. J. 2020, 8, 76. [Google Scholar] [CrossRef] [PubMed]
  35. Zhou, W.; Liu, S.; Zhou, X.; Hannig, M.; Rupf, S.; Feng, J.; Peng, X.; Cheng, L. Modifying Adhesive Materials to Improve the Longevity of Resinous Restorations. Int. J. Mol. Sci. 2019, 20, 723. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Marovic, D.; Par, M.; Crnadak, A.; Sekelja, A.; Negovetic Mandic, V.; Gamulin, O.; Rakić, M.; Tarle, Z. Rapid 3 s Curing: What Happens in Deep Layers of New Bulk-Fill Composites? Materials 2021, 14, 515. [Google Scholar] [CrossRef]
  37. Freitas, F.; Pinheiro de Melo, T.; Delgado, A.H.; Monteiro, P.; Rua, J.; Proença, L.; Caldeira, J.; Mano Azul, A.; Mendes, J.J. Varying the Polishing Protocol Influences the Color Stability and Surface Roughness of Bulk-Fill Resin-Based Composites. J. Funct. Biomater. 2020, 12, 1. [Google Scholar] [CrossRef]
  38. El-Askary, F.S.; Botros, S.A.; Özcan, M. Effect of Surface Treatment and Storage Time on Immediate Repair Bond Strength Durability of Methacrylate- and Ormocer-Based Bulk Fill Resin Composites. Appl. Sci. 2020, 10, 8308. [Google Scholar] [CrossRef]
  39. Preusse, P.J.; Winter, J.; Amend, S.; Roggendorf, M.J.; Dudek, M.-C.; Krämer, N.; Frankenberger, R. Class II resin composite restorations-tunnel vs. box-only in vitro and in vivo. Clin. Oral Investig. 2021, 25, 737–744. [Google Scholar] [CrossRef]
  40. Pilebro, C.E.; van Dijken, J.W. Analysis of factors affecting failure of glass cermet tunnel restorations in a multi-center study. Clin. Oral Investig. 2001, 5, 96–101. [Google Scholar] [CrossRef]
  41. Apicella, A.; Di Palma, L.; Aversa, R.; Ausiello, P. DSC kinetic characterization of dental composites using different light sources. J. Adv. Mater. 2002, 34, 22–25. [Google Scholar]
  42. Prati, C.; Tribst, J.P.M.; Dal Piva, A.M.d.O.; Borges, A.L.S.; Ventre, M.; Zamparini, F.; Ausiello, P. 3D Finite Element Analysis of Rotary Instruments in Root Canal Dentine with Different Elastic Moduli. Appl. Sci. 2021, 11, 2547. [Google Scholar] [CrossRef]
  43. Tribst, J.P.M.; Dal Piva, A.M.d.O.; Lo Giudice, R.; Borges, A.L.S.; Bottino, M.A.; Epifania, E.; Ausiello, P. The Influence of Custom-Milled Framework Design for an Implant-Supported Full-Arch Fixed Dental Prosthesis: 3D-FEA Study. Int. J. Environ. Res. Public Health 2020, 17, 4040. [Google Scholar] [CrossRef]
  44. Penteado, M.M.; Tribst, J.P.M.; Dal Piva, A.M.; Ausiello, P.; Zarone, F.; Garcia-Godoy, F.; Borges, A.L. Mechanical behavior of conceptual posterior dental crowns with functional elasticity gradient. Am. J. Dent. 2019, 32, 165–168. [Google Scholar] [PubMed]

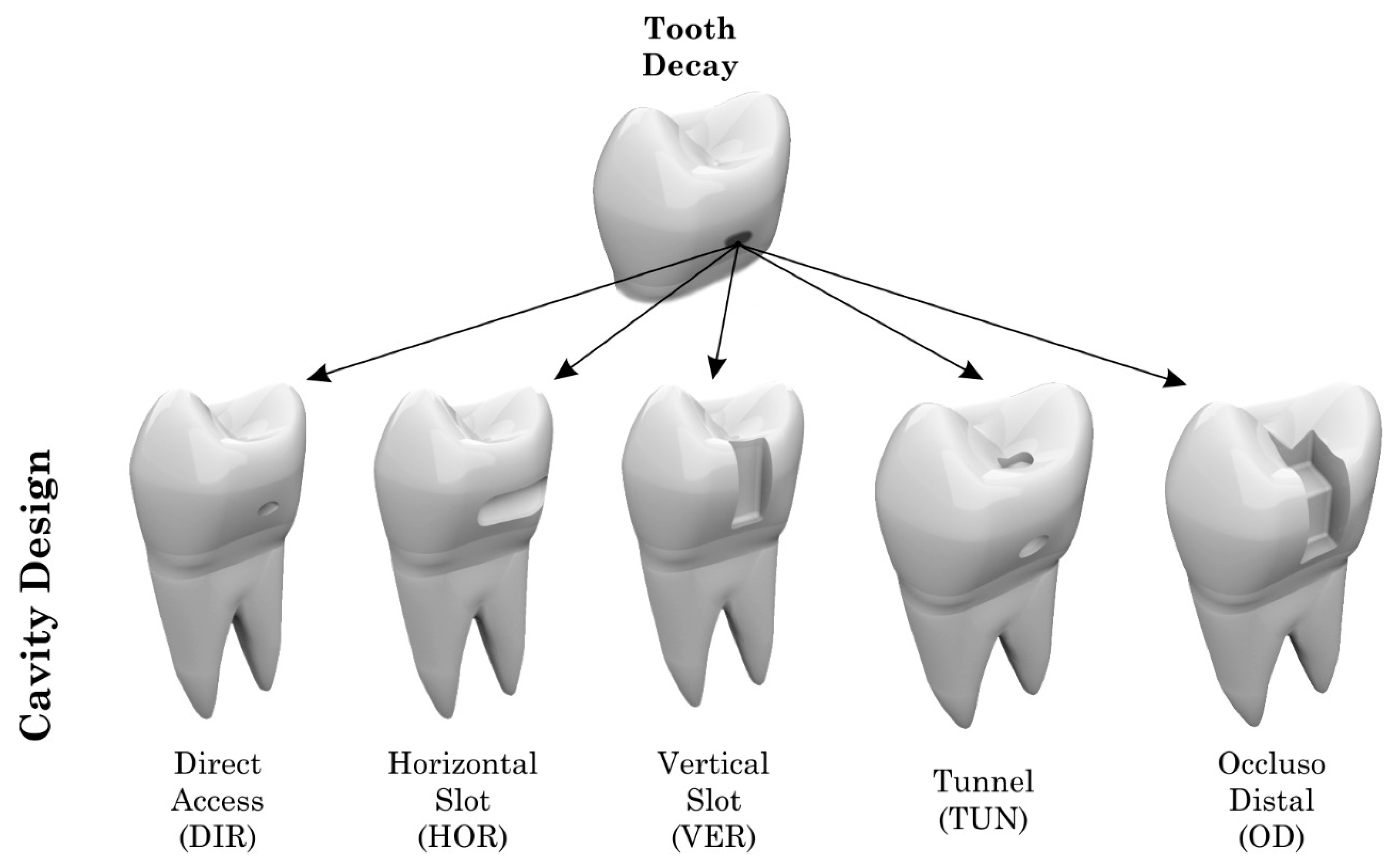

Figure 1. Different models of class II cavities evaluated in this study.
Figure 1. Different models of class II cavities evaluated in this study.
Materials 14 02366 g001

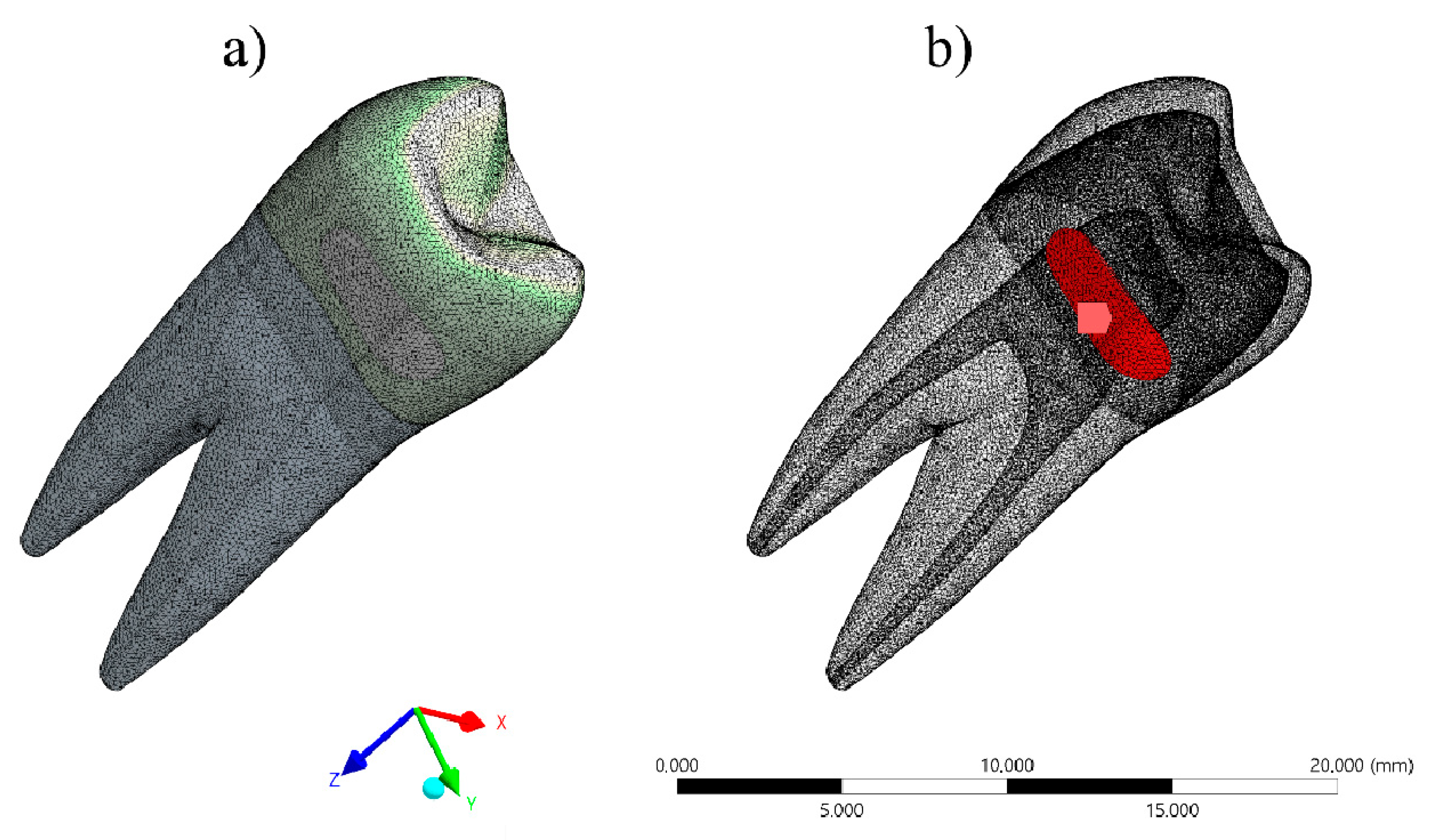

Figure 2. (a) Mathematical model during meshing process and (b) horizontal slot model with composite resin polymerization shrinkage as loading.
Figure 2. (a) Mathematical model during meshing process and (b) horizontal slot model with composite resin polymerization shrinkage as loading.
Materials 14 02366 g002

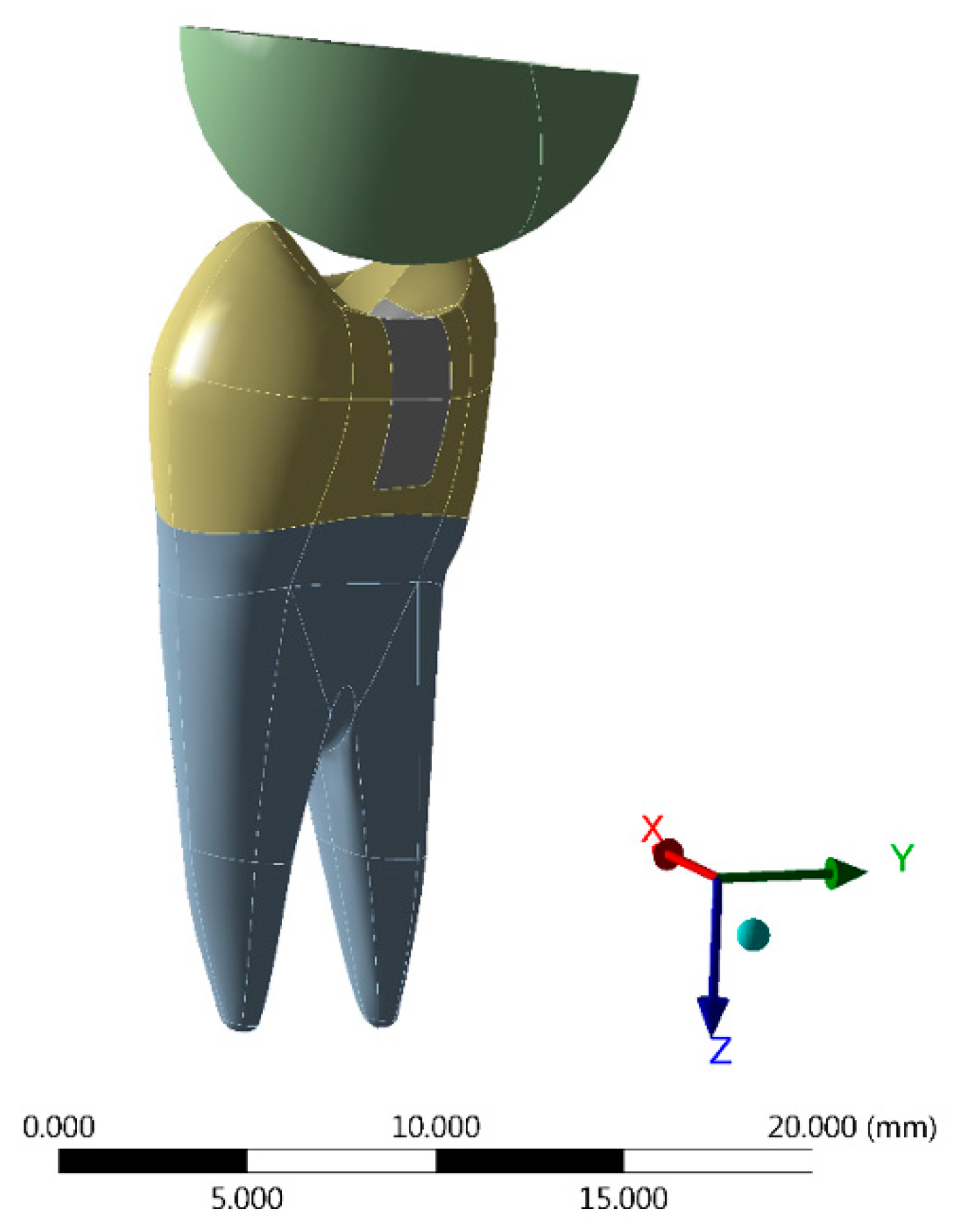

Figure 3. Loading method performed in the present simulation using a stainless steel spherical loading device.
Figure 3. Loading method performed in the present simulation using a stainless steel spherical loading device.
Materials 14 02366 g003

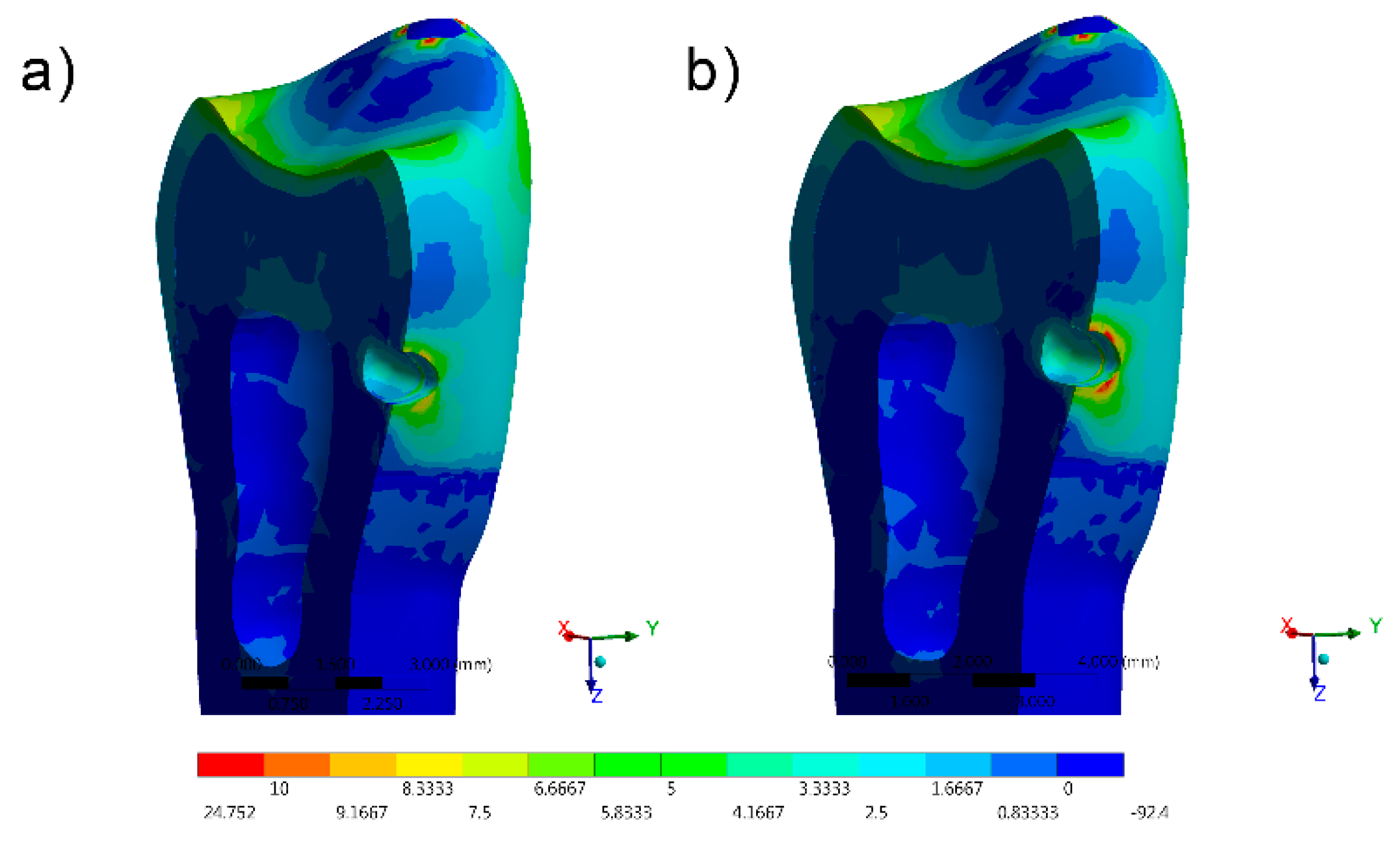

Figure 4. FEA Maximum Principal Stress results in the direct access design. (a) Bulk-fill flowable and (b) Conventional.Figure 5 FEA Maximum Principal Stress results in the mesio-occlusal design. (a) Bulk-fill flowable and (b) conventional.
Figure 4. FEA Maximum Principal Stress results in the direct access design. (a) Bulk-fill flowable and (b) Conventional.Figure 5 FEA Maximum Principal Stress results in the mesio-occlusal design. (a) Bulk-fill flowable and (b) conventional.
Materials 14 02366 g004

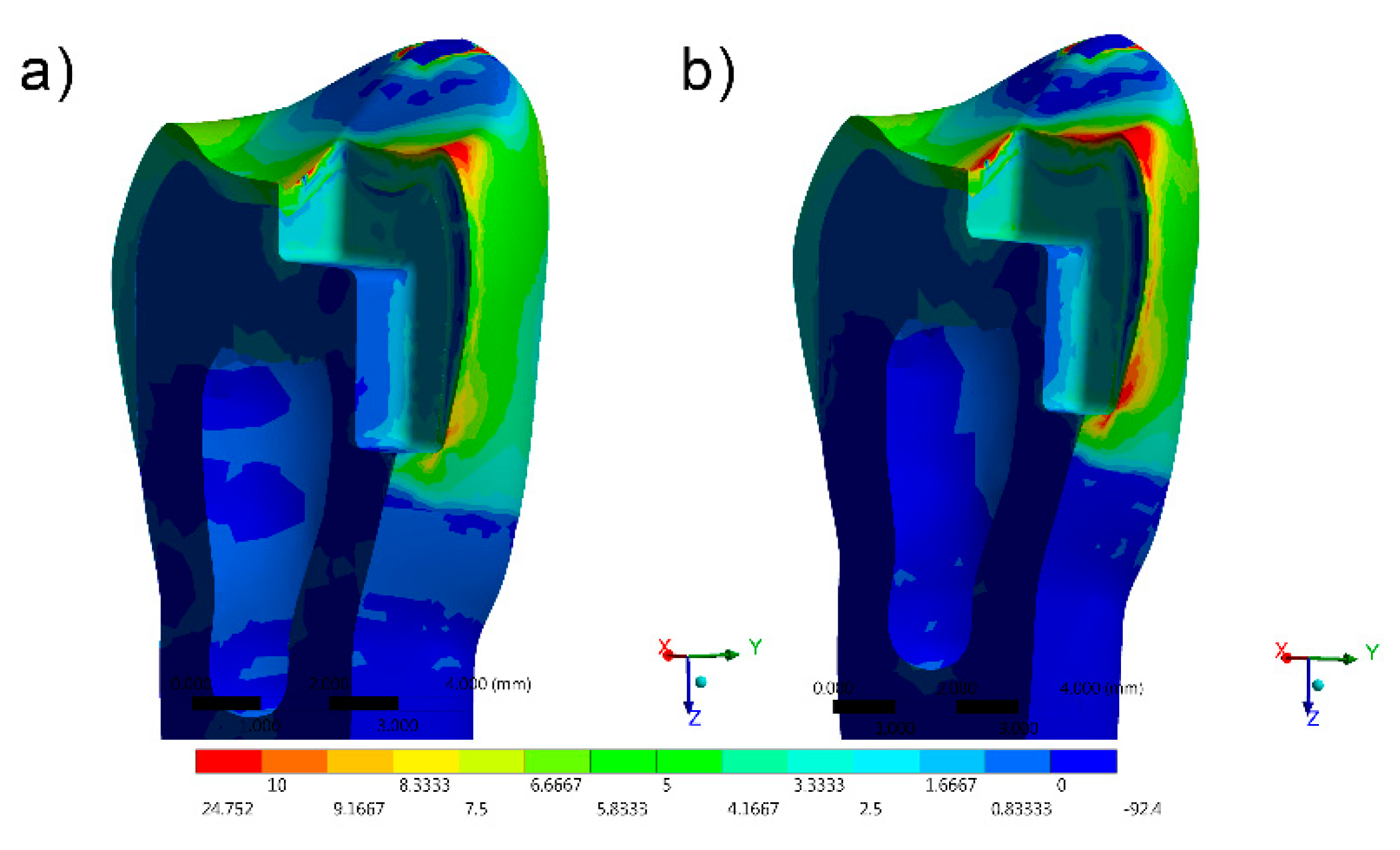

Figure 5. FEA Maximum Principal Stress results in the mesio-occlusal design. (a) Bulk-fill flowable and (b) conventional.
Figure 5. FEA Maximum Principal Stress results in the mesio-occlusal design. (a) Bulk-fill flowable and (b) conventional.
Materials 14 02366 g005
Figure 6. FEA Maximum Principal Stress results in the horizontal slot design. (a) Bulk-fill flowable and (b) conventional.
Figure 6. FEA Maximum Principal Stress results in the horizontal slot design. (a) Bulk-fill flowable and (b) conventional.
Materials 14 02366 g006

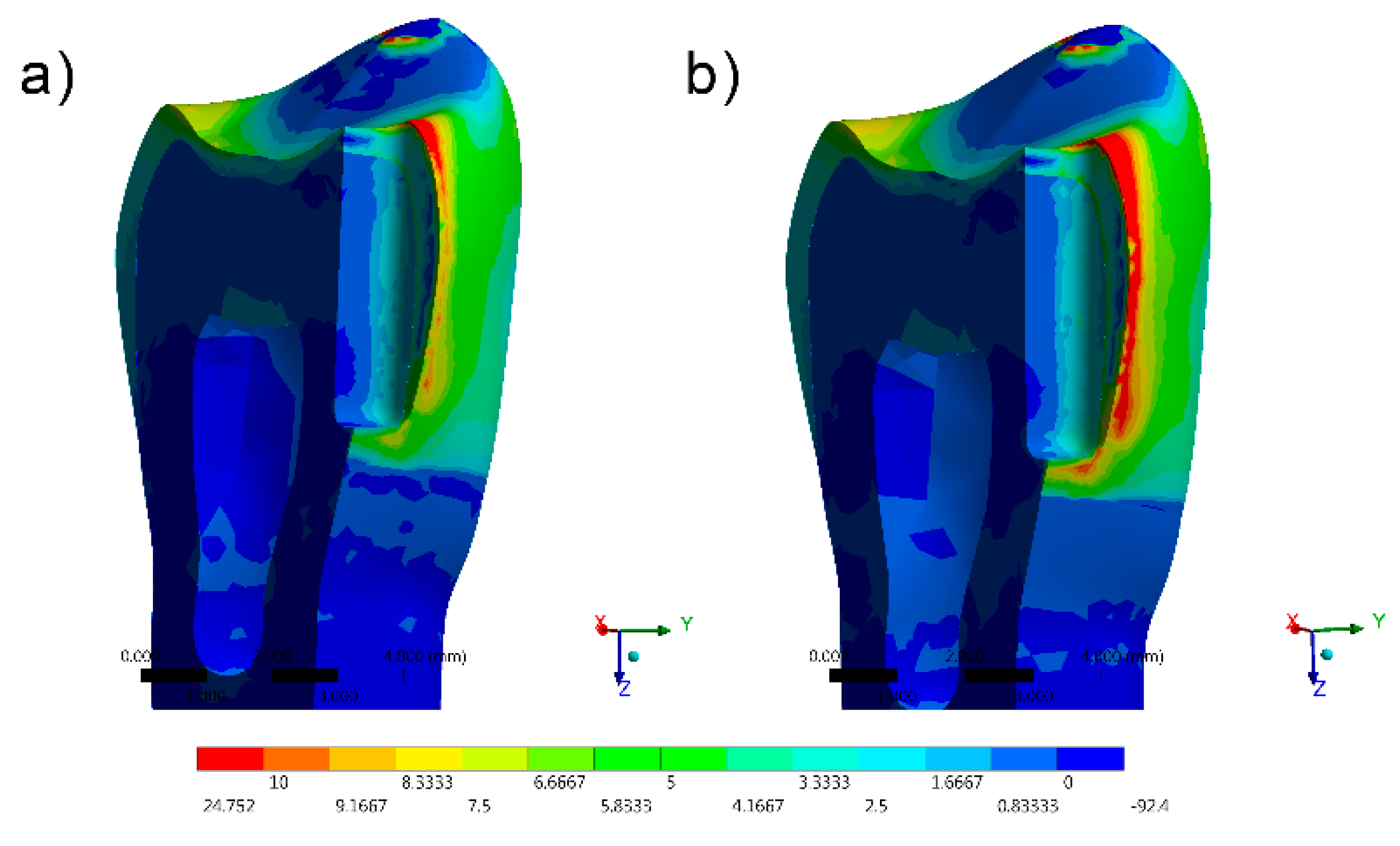

Figure 7. FEA Maximum Principal Stress results in the vertical slot design. (a) Bulk-fill flowable and (b) conventional.

Figure 7. FEA Maximum Principal Stress results in the vertical slot design. (a) Bulk-fill flowable and (b) conventional.
Materials 14 02366 g007
Figure 8. FEA Maximum Principal Stress results in the tunnel design with bulk-fill flowable resin.
Figure 8. FEA Maximum Principal Stress results in the tunnel design with bulk-fill flowable resin.
Materials 14 02366 g008
Table 1. Design inputs for each different type of proximal cavity simulated in the present study.
Table 1. Design inputs for each different type of proximal cavity simulated in the present study.
ModelHeightWidthDepthVolume
Mesio-Occlusal4.55 mm2.19 mm3.42 mm19.20 mm3
Direct Access0.94 mm1.47 mm1.34 mm0.87 mm3
Vertical Slot4.93 mm2.0 mm1.36 mm9.78 mm3
Horizontal Slot2.14 mm5.45 mm1.22 mm5.44 mm3
Tunnel4.25 mm1.49 mm3.30 mm6.50 mm3
Table 2. Mechanical properties of the materials used in the tests.
Table 2. Mechanical properties of the materials used in the tests.
StructureElastic Modulus (GPa)Poisson’s RatioCoefficient of Thermal ExpansionCompositionReference
Enamel80.00.30--[17]
Dentin18.00.23--[17]
Pulp0.0000030.45--[18]
Ligament0.01180.45--[18]
Filtek Z35013.450.170.00033Bis-GMA, UDMA, TEGDMA, Dimethacrylate
Filler content in 78.5 wt.% (Silica, zirconia, aggregated zirconia/silica)
[15]
Filtek Bulk Fill13.460.180.00025AUDMA, AFM, UDMA, DDDMA, EDMAB
Filler content in 76.5 wt.% (Silica, zirconia, ytterbium trifluoride, aggregated zirconia/silica)
[15]
Polyurethane3.600.30--[10]
Table 3. Stress peaks (MPa) during polymerization shrinkage measured in enamel and dentin tissue and the respective locations in the cavities.
Table 3. Stress peaks (MPa) during polymerization shrinkage measured in enamel and dentin tissue and the respective locations in the cavities.
Cavity Model and Restorative MaterialEnamel Stress Peak (MPa)LocationDentin Stress Peak (MPa)Location
Mesio-Occlusal
Bulk-fill flowable
11.81Cavo-surface angle2.19Lingual wall of the
proximal box
Mesio-Occlusal
Conventional
15.34Cavo-surface angle3.80Lingual wall of the
proximal box
Direct Access
Bulk-fill flowable
10.09Cavo-surface angle3.44Vestibular wall of the
cavity
Direct Access
Conventional
11.13Cavo-surface angle4.0Vestibular wall of the
cavity
Vertical Slot
Bulk-fill flowable
12.99Lingual wall of the proximal box2.6Dihedral linguogingival
Vertical Slot
Conventional
17.03Lingual wall of the proximal box3.5Dihedral linguogingival
Horizontal Slot
Bulk-fill flowable
12.31Cavo-surface angle1.15Vestibular wall of the
cavity
Horizontal Slot
Conventional
13.17Cavo-surface angle1.80Vestibular wall of the
cavity
Tunnel
Bulk-fill flowable
13.10Cavo-surface angle3.8Pulpal wall of the tunnel cavity
Table 4. Stress peaks (MPa) during polymerization shrinkage and loading effect measured in enamel and dentin tissue and the respective locations in the cavities.
Table 4. Stress peaks (MPa) during polymerization shrinkage and loading effect measured in enamel and dentin tissue and the respective locations in the cavities.
Cavity Model and Restorative MaterialEnamel Stress Peak (MPa)LocationDentin Stress Peak (MPa)Location
Mesio-Occlusal
Bulk-fill flowable
53.1Cavo-surface angle3.3Lingual wall of the
proximal box
Mesio-Occlusal
Conventional
55.35Cavo-surface angle3.9Lingual wall of the
proximal box
Direct Access
Bulk-fill flowable
36.12Cavo-surface angle3.12Vestibular wall of the
cavity
Direct Access
Conventional
36.14Cavo-surface angle4.34Vestibular wall of the
cavity
Vertical Slot
Bulk-fill flowable
56.08Lingual wall of the proximal box2.8Dihedral linguogingival
Vertical Slot
Conventional
56.14Lingual wall of the proximal box3.72Dihedral linguogingival
Horizontal Slot
Bulk-fill flowable
46.02Cavo-surface angle1.53Vestibular wall of the
cavity
Horizontal Slot
Conventional
46.10Cavo-surface angle2.01Vestibular wall of the
cavity
Tunnel
Bulk-fill flowable
46.71Cavo-surface angle4.01Pulpal wall of the tunnel cavity
