New Solid Solution and Phase Equilibria in the Subsolidus Area of the Three-Component CuO–V2O5–Ta2O5 Oxide System

by
Grażyna Dąbrowska
*,
Elżbieta Filipek
and
Piotr Tabero
Department of Inorganic and Analytical Chemistry, Faculty of Chemical Technology and Engineering, West Pomeranian University of Technology in Szczecin, Piastow Ave. 42, 71-065 Szczecin, Poland
*
Author to whom correspondence should be addressed.
Materials 2022, 15(1), 232; https://doi.org/10.3390/ma15010232
Submission received: 16 November 2021 / Revised: 17 December 2021 / Accepted: 23 December 2021 / Published: 29 December 2021
(This article belongs to the Section Materials Chemistry)
Browse Figures
Versions Notes

Abstract

:
The results of the study of the three-component system of CuO–V2O5–Ta2O5 oxides showed, inter alia, that in the air atmosphere in one of its cross-sections, i.e., in the CuV2O6–CuTa2O6 system, a new substitutional solid solution with the general formula CuTa2−xVxO6 and homogeneity range for x > 0.0 and x ≤ 0.3 is formed. The influence of the degree of incorporation of V5+ ions into the CuTa2O6 crystal lattice in place of Ta5+ ions on the unit cell volume, thermal stability and IR spectra of the obtained solid solution was determined. Moreover, the value of the band gap energy of the CuTa2−xVxO6 solid solution was estimated in the range of 0.0 < x ≤ 0.3, and on this basis, the new solid solution was classified as a semiconductor. On the basis of the research results, the studied system of CuO–V2O5–Ta2O5 oxides was also divided into 12 subsidiary subsystems.

1. Introduction

The three-component system of metal oxides CuO–V2O5–Ta2O5 has not been studied so far in terms of the phases formed in it, and also in order to determine the phase equilibria established in this system over the entire range of concentrations of components in the air atmosphere in the solid state. In turn, the CuO, V2O5 and Ta2O5 oxides, which are the components of the system selected for the study, belong to an interesting class of compounds, both in terms of their crystal structure and physicochemical properties. These oxides, due to their electrical and optical properties, are commercially important materials that are used in optoelectronic devices, energy conversion and as catalysts or photocatalysts [1,2,3,4,5,6,7,8,9,10,11,12]. Copper (II) oxide is used to obtain optical switches, field emission devices, lithium-ion electrode materials, gas sensors, biosensors and magnetic data carriers [1,2,3,4]. The applications of vanadium (V) oxide include catalytic processes and the production of field-effect transistors, gas sensors, infrared detectors, glass dyes [5,6,7,8,9,10]. Tantalum (V) oxide, due to its high dielectric constant, is used in the production of semiconductors used in DRAM memories, high-frequency CMOS integrated circuits and flash memories [11,12].
The literature data show that the reactivity of oxides in the binary CuO–V2O5, CuO–Ta2O5, V2O5–Ta2O5 systems constituting a side limitation of the three-component CuO–V2O5–Ta2O5 system was the subject of numerous studies. Most of the works concern the CuO–V2O5 system. They show that in the reactions between CuO and V2O5 oxides, the following compounds are formed in the air atmosphere: CuV2O6, Cu2V2O7, Cu3V2O8, Cu5V2O10 and Cu11V6O26 [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28]. The basic physicochemical properties of these phases and their thermal stability are known [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28]. Copper (II) metavanadate (V) has two polymorphic forms: the α-CuV2O6 form crystallizing in a triclinic system and the β-CuV2O6 form crystallizing in a monoclinic system [13,14]. The CuV2O6 compound melts incongruently at 650 °C with the release of α-Cu2V2O7 [15,16]. The Cu2V2O7 compound crystallizes in three polymorphs: orthorhombic α-Cu2V2O7 [17], monoclinic β-Cu2V2O7 [18] and triclinic γ-Cu2V2O7 [19]. The transition temperature of α→β-Cu2V2O7 is 712 °C [20]. The Cu2V2O7 compound melts congruently at 760 °C [15,21]. Cu3V2O8 has two polymorphs: triclinic α and monoclinic β [22,23] and is stable up to the temperature of 780 °C, where it melts incongruently with the release of Cu5V2O10 [20]. The compounds Cu5V2O10 and Cu11V6O26 do not have polymorphs [24,25,26]. Cu11V6O26 melts incongruently at 795 °C with the release of Cu5V2O10 [15]. Whereas Cu5V2O10 melts incongruently at 820 °C with the release of CuO [26]. Vanadates (V) of copper (II), and especially CuV2O6, are used as cathode materials in lithium batteries, as catalysts for SO3 decomposition during thermochemical reactions of hydrogen production, and as photocatalysts for water decomposition [27,28,29].
Less work has been conducted on the V2O5–Ta2O5 system [30,31,32,33,34,35,36,37]. It was found that vanadium (V) oxide reacts with tantalum (V) oxide in the air atmosphere with the formation of TaVO5 and Ta9VO25 compounds [30,31,32,33] and a substitution solid solution with a limited range of homogeneity with the structure of Ta9VO25, the existence of which was indicated only in work [34]. The TaVO5 compound has two polymorphs: orthorhombic and tetragonal [30,31,33]. The temperature of this transformation, depending on the source, is 880 °C [30] or 600 °C [33]. TaVO5 decomposes at 940 °C to Ta9VO25 and V2O5 [30]. Ta9VO25 is stable in the air atmosphere at least 1650 °C [31].
It is known from the available literature that the CuTa2O6 compound is formed in the binary system of CuO-Ta2O5 oxides [38,39,40,41]. Three crystallographic forms of CuTa2O6 are known: monoclinic, cubic and tetragonal [38,39,40]. Vincent and his colleagues report that there is also an orthorhombic form of the CuTa2O6 compound [41]. The temperature of transition of polymorphic monoclinic to tetragonal variety is 227 °C [38]. Due to its properties, the CuTa2O6 compound improves the piezoelectric properties of ceramics used in the production of transformers, transducers, ultrasonic motors and devices for surface acoustic waves [42,43,44].
The large variety of properties of the oxides that build the CuO–V2O5–Ta2O5 ternary system, as well as the compounds formed in its side systems, such as CuTa2O6 and CuV2O6, make them interesting for technical applications. Therefore, it seemed justified to study the mutual reactivity of both the oxides and the known compounds in order to find out whether they react with the formation of new phases with potential, interesting application properties.
The presented work also includes the results of research on phase equilibria established in the title three-component system of metal oxides in the entire range of concentrations of the components of this system. The results of these studies allowed us to determine, inter alia, the ranges of concentrations of the components of the tested system and the temperatures in which the identified phases (both known and obtained for the first time in this work) coexist in the solid state.

2. Materials and Methods

The following oxides were used for the tests: CuO p.a. (Aldrich, St. Louis, MO, USA), V2O5 p.a. (POCh, Gliwice, Poland) and Ta2O5 p.a. (Aldrich, St. Louis, MO, USA). The reactants were weighed in the appropriate amounts, homogenized by trituration, pelleted and heated in an air atmosphere under conditions that allowed the reaction to proceed in the solid phase. The samples were heated in the temperature range of 550–900 °C in several 24-h stages.
After each heating stage, the samples were left in the furnace until they cooled to room temperature and then were ground and tested by XRD to determine their phase composition.
The temperatures of the final stage of heating the samples and the kind of phases in equilibria are given in Table 1 and Table 2.
The powder diffractograms of the tested phases were recorded at room temperature using an Empyrean II diffractometer (CuKα radiation, graphite monochromator, semiconductor PIXcel3D detector, measuring step 0.013°, counting time in the measuring interval 70s, manufacturer PanAnalytical, The Netherlands). The phases were identified using the data from the ICDD 2021 PDF database. The Refinement program (DHN, Poland) was used to indexation the powder diffraction patterns.
DTA-TG studies were performed with the F. Paulik–L. Paulik–L. Erdey derivatograph, MOM Budapest, Hungary. The measurements were made in the air atmosphere, in the temperature range 20–1000 °C, with the galvanometer’s sensitivity of DTA 1/5 and the constant heating rate of 10 °C/min. All tests were performed in quartz crucibles. The mass of the tested samples was always 500 mg. The accuracy of the temperature reading, determined on the basis of iterations, was found to be ±5 °C.
Selected samples were tested by the DTA-TG method using the SDT 2960 from TA Instruments. Measurements were carried out in an air atmosphere, in the temperature range of 20–1500 °C, at a heating rate of 10 °C/min. Measurements were made in corundum crucibles. The mass of the tested samples was ~20 mg.
The IR spectra were recorded with the help of the SPECORD M 80 IR spectrometer, manufactured by Carl Zeiss, Jena, East Germany, using the KBr pellet pressing technique in a mass ratio of 1:300. Measurements were made in the range of wavenumber 1200–200 cm−1.
A UV-Vis-V-670 spectrophotometer (JASCO, Tokyo, Japan) with an integrating sphere PIV-756/PIN-757 was used for the UV-Vis spectroscopy tests. The optical absorption was measured in the 200–1000 nm range at room temperature.
As part of the presented work, tests of phase equilibria in the CuO–V2O5–Ta2O5 system were additionally carried out in the air atmosphere in a solid state. In this stage of the study, 20 samples made of oxides were synthesized in conditions ensuring achievement of the equilibrium state, and the achievement of such a state was found when the results of the samples, carried out with the XRD and DTA methods after two successive heating stages, were identical, and the number of phases was consistent with the extended Gibbs phase rule.

3. Results and Discussion

3.1. Reactivity of CuO and V2O5 with Ta2O5 in the Air

The study of the three-component system of CuO–Ta2O5–V2O5 oxides began with the examination of one of the hypothetical cross-sections of this system, i.e., CuV2O6–CuTa2O6. For this purpose, ten samples were prepared from the separately obtained compounds, i.e., CuTa2O6 and CuV2O6, with compositions selected to represent the entire range of concentrations of the components of the tested system (Table 1). The location of weighed samples′ compositions is marked in the area of the triangle of concentrations of the components of the CuO–Ta2O5–V2O5 system.
The synthesis of the compound CuTa2O6 was carried out in an air atmosphere according to the reaction equation below:
Ta2O5(s) + CuO(s) = CuTa2O6(s)
Under the following conditions: 900 °C (24 h) → 1000 °C (24 h) → 1050 °C (24 h) → 1200 °C (24 h). The obtained compound showed a green color, and the position of the lines in the diffraction pattern was consistent with the data given in the PDF card 00-032-0349, which proved that the tetragonal form of the CuTa2O6 compound was obtained.
In order to obtain copper (II) metavanadate (V), the sample consisting of oxides with the composition: 50 mol% CuO and 50 mol% V2O5 was weighed and subjected to two-stage 24-h heating at the following temperatures: 550 °C and 600 °C. A plum gray compound was obtained. X-ray phase analysis of the sample after the last heating step confirmed that the diffraction lines characterizing this compound are consistent with the data contained in the PDF card of the triclinic modification polymorph of the CuV2O6 compound with the number 00-045-1054, i.e., α-CuV2O6.
The results of the XRD analysis of the tested samples after the last heating stage and the temperature of the last heating stage are presented in Table 1.
The phase compositions of samples No. 1 and No. 2 in the equilibrium state presented in Table 1 and contained in the initial mixtures were 90.00 mol% CuV2O6 and 10.00 mol% CuTa2O6, and 75.00 mol% CuTa2O6 and 25.00 mol% CuV2O6, respectively, indicating that the samples reacted as:
3 CuV2O6(s) + CuTa2O6(s) = 2 Cu2V2O7(s) + 2 TaVO5(s)
In sample 1, the components CuV2O6 and CuTa2O6 in the reaction mixture remained in a molar ratio of 9:1; therefore, with respect to the stoichiometry of the reaction taking place in the reaction mixture, the CuV2O6 substrate is in excess and therefore, this compound is ultimately in equilibrium with the reaction products (2).
The phase composition of samples 3 and 4 at equilibrium shows that the CuV2O6 present in the samples reacted with CuTa2O6 with the formation of three compounds Cu2V2O7, TaVO5 and Ta9VO25. Thus, in sample No. 3, the initial mixture of which contained 66.67 mol% of CuV2O6 and 33.33 mol% CuTa2O6, the reaction proceeded according to the following reaction equation:
16 CuV2O6(s) + 8 CuTa2O6(s) = 12 Cu2V2O7(s) + 7 TaVO5(s) + Ta9VO25(s)
The presented results of the X-ray analysis of samples 5–9 after the last heating stage show that in these samples, the reaction between CuV2O6 and CuTa2O6 resulted in the formation of compounds, i.e., Cu2V2O7 and Ta9VO25. The excess substrate in these reactions is CuTa2O6. For sample No. 7, which in the initial mixture contained 40.00% mol of CuV2O6 and 60.00% mol of CuTa2O6, the reaction proceeded according to the reaction equation:
11 CuV2O6(s) + 9 CuTa2O6(s) = 10 Cu2V2O7(s) + 2 Ta9VO25(s)
Heating of sample 10 at the temperature of 900 °C resulted in the presence of only lines characterizing the compound CuTa2O6 in the diffraction pattern. These lines were slightly shifted towards the higher angles 2θ, i.e., they corresponded to smaller values of the dhkl interplanar distances. It was found that the shift of the diffraction lines belonging to the CuTa2O6 set and the absence of the Cu2V2O7 compound in the sample proves that a substitutional solid solution is formed in the sample, the matrix of which is CuTa2O6, according to the reaction equation:
(1 − 0.5x)·CuTa2O6(s) + 0.5x·CuV2O6(s) = CuTa2−xVxO6(s.s.)
In order to determine the homogeneity range of the formed solid solution, additional samples were prepared from the finished phases, i.e., CuTa2O6 and CuV2O6, containing 12.5 mol%, 15.00 mol% and 17.5 mol% CuV2O6, respectively, in the initial mixtures. X-ray phase analysis showed that only the samples with the initial composition of 12.5 mol% CuV2O6 and 87.50 mol% CuTa2O6 and 15.00 mol% CuV2O6 and 85 mol% CuTa2O6 were monophasic and contained CuTa1.75V0.25O6 and CuTa1.70V0.30O6 solid solution, respectively.
The chemical formula of the formed solid solution was determined on the basis of the composition of the initial mixture of substrates, taking into account their complete conversion, which was found on the basis of the X-ray phase analysis of the synthesized samples after the last stage of heating them at 900 °C (Table 2).
In the sample whose initial mixtures contained 17.50 mol% CuV2O6 and 82.50 mol% CuTa2O6, the phases: CuTa1.70V0.30O6, Cu2V2O7 and Ta9VO25 were present at equilibrium.
In Table 2, apart from the composition of the initial mixtures of substrates from which single-phase samples containing a solid solution were obtained, the phase composition of the sample after exceeding its homogeneity is given.
At this stage of the research, however, it cannot be ruled out that in the obtained single-phase samples containing the solid solution, no other phases are still present, but if so, they are in amounts not detectable by the XRD method. However, this does not affect the general formula of the obtained new solid solution and the proposed range of its homogeneity.
Based on the research, it was found that the CuTa2−xVxO6(s.s.) solid solution formed in the three-component CuO–V2O5–Ta2O5 oxide system has a homogeneity range of 0 < x ≤ 0.3, which shows that the maximum degree of incorporation of V5+ ions in place of ions Ta5+ in the CuTa2O6 crystal lattice is 15 mol%.
As part of the work, samples containing a CuTa2−xVxO6 solid solution, where x = 0.30 in equilibrium with other phases, were annealed at higher temperatures and then frozen (rapidly cooled to room temperature) in order to determine the change in their phase composition. XRD analysis did not show such a change, which means that the solubility range of the synthesized solution does not significantly depend on the temperature.
Figure 1 presents fragments of the powder diffraction patterns of the CuTa2O6 compound (fragment a) and the CuTa2-xVxO6 solid solution for x = 0.20; 0.25 and 0.30 (fragments b–d) showing changes in the angular positions of selected diffraction reflections with an increase in vanadium content in CuTa2−xVxO6 samples. The analysis of the presented diffractograms showed that with the increase of the degree of incorporation of vanadium ions into the crystal lattice of the CuTa2O6 matrix, the diffraction reflections shifted towards higher 2θ angles up to x = 0.30.
Indexing of the powder diffraction patterns of the CuTa2−xVxO6 solid solution for x = 0.20; 0.25 and 0.30 and the CuTa2O6 compound were made using the REFINEMENT program. The results of the indexing, presented in Table 3, indicate that with the increase of the degree of incorporation of V5+ ions in place of Ta5+ ions into the CuTa2O6 crystal lattice, the a = b and c parameters of unit cells and the volume of unit cells decrease, and the crystal lattice becomes contracted.
The thermal stability of the CuTa2−xVxO6 solid solution was determined by performing DTA-TG tests of all single-phase samples for x = 0.00, 0.20, 0.25 and 0.30. Meanwhile, in the DTA curves of all samples, made up to 1500 °C, one endothermic effect was recorded, with an onset temperature in the range of 1270–1350 °C, depending on the composition of the sample. The temperature of the onset of the effects recorded for all samples was always lower than the melting point of CuTa2O6, and it decreased with the increasing degree of incorporation of V5+ ions. DTA curves of the tested samples are not included in this work due to the recorded very small thermal effect.
In order to characterize the properties more closely and confirm the structure of the obtained CuTa2−xVxO6 solid solution, IR spectra of all its single-phase samples (x = 0.2, 0.25 and 0.3) and the CuTa2O6 matrix were recorded. Figure 2 shows the IR spectra of CuV2O6 (curve a), CuTa2−xVxO6 solid solution for x = 0.3, with the highest degree of incorporation of V5+ ions into the CuTa2O6 crystal lattice (curve b) and the CuTa2O6 compound (curve c). High distortion of MOx polyhedra characteristic for compounds of vanadium, tantalum and copper makes analysis of their IR spectra very difficult [45,46,47,48,49].
The IR spectrum of CuV2O6 comprised two broad absorption bands with maxima at 864 and 550 cm−1 (Figure 2, curve a). The absorption band with a maximum at 864 cm−1 can be ascribed to stretching vibrations of V-O bonds in distorted VO6 octahedra (characteristic for CuV2O6 structure) [48,50]. IR spectra of solid solution CuTa1.70V0.30O6 (x = 0.30), (Figure 2, curve b), and its matrix CuTa2O6 (Figure 2, curve c) contains four bands in the boundaries of 950–850 cm−1, 750–550 cm−1, 520–430 cm−1 and 380–300 cm−1 with maxima at about 890, 640, 460 and 330 cm−1. It follows from the literature survey that these bands are characteristic of solid tantalates (V) and vanadates (V) [48,50,51,52,53]. The similarity of these IR spectra corroborates that the solid solution adopts the CuTa2O6 structure. An intensive band with an absorption maximum registered in the region 950–850 cm−1 at ~870 cm−1 can be attributed to the stretching vibrations of Ta-O and V-O bonds in distorted TaO6 and TaO7 as well as VO4 and VO6 polyhedra [48,49,51,52,54]. Bands in the range of 750 to 550 cm−1 and 520–430 cm−1 can be attributed to the stretching vibrations of the Cu-O bonds in the distorted CuOx polyhedra [45,46] and the stretching vibrations of M-O (M = Ta, V) bonds in the moderately distorted MO7, MO6 and VO4 polyhedra [48,49,50,51,52,53,54]. The bands registered in the range of 350 to 330 cm−1 can be attributed to bending vibrations of the O-M-O bridges (M = Cu, Ta, V), or they are of mixed character [48,49,50,53].
The comparative analysis of positions and intensities of absorption bands in IR spectra of CuTa2O6 and CuTa2−xVxO6 solid solution samples has revealed that incorporation of vanadium ions in the crystal lattice of CuTa2O6 mainly affects the position of the band with a maximum at 600 cm−1, which shifts gradually towards higher wavenumbers with an increase of vanadium content reaching 640 cm−1 in the spectrum of CuTa2−xVxO6 for x = 0.3 (Figure 2, curve d). The affection of the position of only one absorption band as a result of the increase of vanadium content seems to indicate that the crystal structure of the solid solution is built up of at least two crystallographically-independent polyhedra, and this less distorted one is preferentially occupied by vanadium ions.
In the next stage of works, in order to qualify the new phase obtained by the class of conductors, insulators or semiconductors, single-phase samples containing the CuTa2−xVxO6 solid solution were tested by the UV-Vis-DRS method. The UV-vis diffuse reflectance spectra were converted to absorbance spectra by the Kubelka-Munk method [55]. Figure 3 shows the Uv-Vis absorption spectra of compounds: CuTa2O6 (curve a), CuV2O6 (curve b) and a solid solution of CuTa2−xVxO6 for x = 0.30 (curve c).

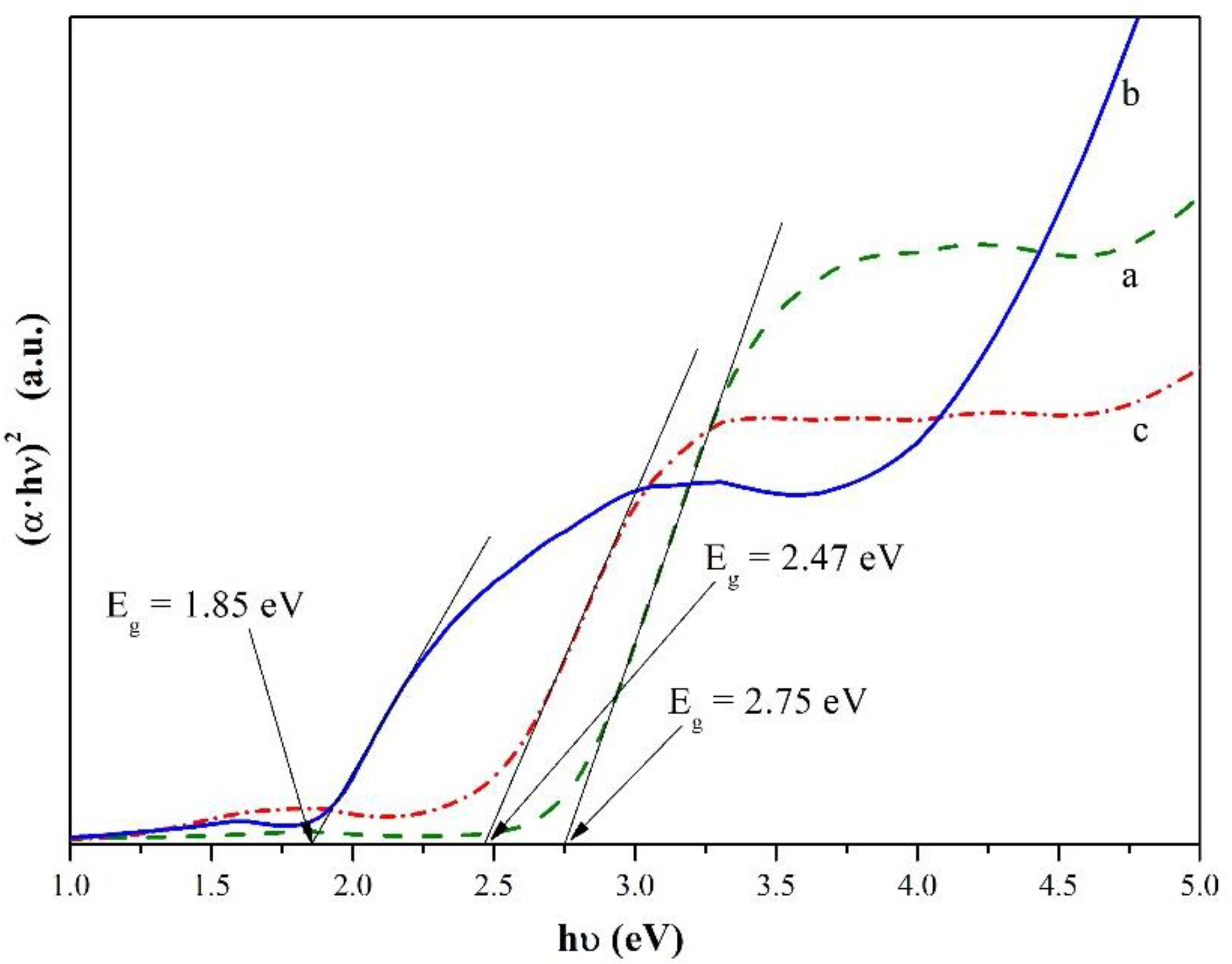

In addition, the values of the band gap energy were estimated for the CuTa2O6 and CuV2O6 compounds and the solid solution formed as a function of the degree of incorporation (x) of V5+ ions into the CuTa2O6 crystal lattice in place of Ta5+ ions. It was found that the value of the energy gap for CuV2O6 is 1.85 eV, and the energy gap for the CuTa2−xVxO6 solid solution ranges from 2.75 to 2.47 eV for 0.0 ≤ x ≤ 0.30 (Figure 4). These results show that the magnitude of the energy gap decreases with increasing the degree of incorporation of V5+ ions in the CuTa2O6 crystal lattice in place of Ta5+ ions.
The determined values of the band gap energy indicate that the new solid solution is a semiconductor.

3.2. Phase Equilibria in the Subsolidus Region of the CuO–Ta2O5–V2O5 System

The phase composition of the tested samples (1–10) after the last heating stage, i.e., in the state of equilibrium (Table 1), made it possible to distinguish seven partial subsystems in the CuO–Ta2O5–V2O5 system (Figure 5), i.e., I. V2O5–TaVO5–CuV2O6, II. CuV2O6–TaVO5–Cu2V2O7, III. Cu2V2O7–TaVO5–Ta9VO25, IV. Ta9VO25–CuTa2O6(s.s.)–Cu2V2O7, V. CuTa2O6(s.s.)–Ta9VO25, VI. CuTa2O6–Ta9VO25–Ta2O5, VII. Cu2V2O7–CuTa2O6(s.s.).
The final verification of the subsolidus area of the CuO–Ta2O5–V2O5 system consisted in the preparation of additional samples (Nos. 11–30) constituting mixtures of these phases, which, based on the results of previous studies, were considered to be equilibrium and represent real two-component systems (samples containing two phases in a state of equilibrium) or partial systems (samples containing three phases in equilibrium). The compositions of these mixtures, as calculated for the components of the CuO–Ta2O5–V2O5 system, corresponding to the compositions of the samples, are presented in Table 4.
The prepared mixtures of phases were subjected to long-term heating at temperatures slightly lower (by ~20°) than the temperatures of the first effects recorded on their DTA curves. XRD analysis of these preparations showed that despite many hours of heating at temperatures close to the onset of melting, the phase composition of the samples did not change. This proves that the initial mixtures corresponded with their composition to the predetermined coexisting phases in the equilibrium state in individual systems.
The data presented in Table 3 not only confirmed the conclusions resulting from previous studies on the CuV2O6–CuTa2O6 binary system, but also allowed us to divide the CuO–Ta2O5–V2O5 system into twelve partial systems (Figure 5), i.e.,
1.
V2O5–TaVO5–CuV2O6
2.
CuV2O6–TaVO5–Cu2V2O7
3.
Cu2V2O7–TaVO5–Ta9VO25(s.s)
4.
Ta9VO25(s.s.)–CuTa2O6(s.s.)–Cu2V2O7
5.
CuTa2O6(s.s.)–Ta9VO25(s.s.)
6.
CuTa2O6(s.s.)–Ta9VO25–Ta2O5
7.
CuTa2O6(s.s.)–Ta2O5
8.
Cu2V2O7–CuTa2O6(s.s.)–Cu3V2O8
9.
Cu3V2O8–CuTa2O6(s.s.)–Cu11V6O26
10.
Cu11V6O26–CuTa2O6(s.s.)–Cu5V2O10
11.
Cu5V2O10–CuTa2O6(s.s.)–CuO
12.
CuO–CuTa2O6(s.s.)
On the basis of the DTA tests of samples after the last heating stage, the temperatures to which the phases representing individual partial systems and the relevant real two-component systems coexist in the solid state were determined. The temperatures of the onset of the first endothermic effect, recorded on the DTA curves of preparations in the state of equilibrium, and corresponding to a given partial system or a real two-component system, were assumed as these temperatures. The melting points of the mixtures of the phases coexisting in the given system are given in Table 5.
The DTA curves of selected samples recorded in the air atmosphere up to 1000 °C are shown in Figure 6.
The presented DTA curves of selected samples in the equilibrium state showed, among others, that the partial V2O5–TaVO5–CuV2O6 system (Figure 6a) melts eutectically at a temperature of 625 ± 5 °C, which means that its components coexist in the solid state to this temperature. Determining the composition of the triple eutectic mixture formed in this constituent system is beyond the scope of this work and will be determined in future studies.
In this part of the study, it was also established that the components of the second partial system CuV2O6–TaVO5–Cu2V2O7 coexist in the subsolidus area up to the temperature of 640 ± 5 °C (Figure 6b). This temperature is related to the smelting of the eutectic mixture formed between CuV2O6 and Cu2V2O7 in the two-component V2O5–CuO system [13,14,15,16,17,18,19,20,21].
Based on the DTA curve of a sample containing TaVO5 at equilibrium with Cu2V2O7 and with a saturated solid solution of Ta9−xVxO25 (Figure 6c), it was found that these phases coexist in the solid state up to 730 ± 5 °C. In this case, it is related to the melting of the TaVO5 eutectic mixture with Cu2V2O7.
Moreover, it was found that the solid solution obtained as part of this work, with the structure of CuTa2O6 and the maximum degree of incorporation of V5+ ions, remains at equilibrium in the solid state with Ta9−xVxO25 and Cu2V2O7, as well as Cu2V2O7 and Cu3V2O8 up to 760 and 740 ± 5 °C, respectively (Figure 6d). The melting point of subsystem IV is related to the congruent melting of Cu2V2O7, and the VIII subsystem to the melting of the eutectic mixture formed between Cu2V2O7 and Cu3V2O8 [15,21].
It was additionally established that CuTa1.7V0.3O6 coexists in the subsolidus region with Cu3V2O8 and Cu11V6O26 to ~780 °C (Figure 6e) and with Cu11V6O26 and Cu5V2O10 to ~770 °C, while with Cu5V2O10 and CuO up to 820°C (Figure 6f). These results indicate that the fields IX and XI of the tested ternary oxide system V2O5–CuO–Ta2O5 (Figure 5) melt peritectically but X eutectically. It is related to both the incongruent melting of Cu3V2O8 and Cu5V2O10 compounds and the eutectic formed between Cu11V6O26 and Cu5V2O10 [15,20,26].
The exact melting points of the partial systems V-VII and XII were not determined because no thermal effects were recorded on the DTA curves of samples in equilibrium state, representing these fields, in the temperature range up to 1000 °C.
Nevertheless, on the basis of such observation, it can be stated without doubt that the mixtures of components of the mentioned subsystems melt above 1000 °C.
The results of these studies are of great practical importance, including when designing new multi-component materials, such as, e.g., catalysts. They provide important information on the type of phases formed in the CuO–V2O5–Ta2O5 system, and at what temperatures these phases coexist with each other in the solid state, i.e., their mixtures can be used without the risk of melting and the associated change in their composition.

4. Conclusions

The research results obtained as part of this work authorize the following conclusions:
1.
In the three-component system of CuO–V2O5–Ta2O5 oxides, a substitution solid solution is formed with a limited range of homogeneity and the general formula CuTa2−xVxO6 for 0 < x ≤ 0.3.
2.
The new solid solution is formed by the incorporation of V5+ ions in the CuTa2O6 crystal lattice in place of Ta5+ ions. The maximum degree of V5+ ion incorporation is 15 mol%.
3.
CuTa2−xVxO6 for 0 < x ≤ 0.3 crystallizes in the tetragonal system, and with the increase of the degree of incorporation of V5+ ions in place of Ta5+ ions into the CuTa2O6 crystal lattice, the parameters a = b and c and the volume of unit cells decrease, and the crystal lattice contracts.
4.
The CuTa2−xVxO6 solid solution is stable, depending on its composition, from a temperature of 1350 °C for x = 0.00 to 1270 °C for x = 0.30.
5.
The IR spectra of solid solution CuTa2−xVxO6 (0 < x ≤ 0.30) and its matrix CuTa2O6 are very similar what corroborates their isostructural character. IR spectra of these phases contain bands in the boundaries of 950–850 cm−1, indicating that crystal lattices of these phases are built up of considerably distorted polyhedra. The incorporation of vanadium ions in the crystal lattice of CuTa2O6 mainly affects the position of the band with a maximum at 600 cm−1, which shifts gradually reaching 640 cm−1 in the spectrum of CuTa2−xVxO6 for x = 0.30.
6.
The CuTa2−xVxO6 solid solution is a semiconductor, and the value of the energy gap for the solid solution ranges from 2.75 to 2.47 eV for 0.00 ≤ x ≤ 0.30.
7.
The three-component system of metal oxides CuO–V2O5–Ta2O5 consists of 12 partial systems, i.e., I. V2O5–TaVO5–CuV2O6, II. CuV2O6–TaVO5–Cu2V2O7, III. Cu2V2O7–TaVO5–Ta9VO25(s.s), IV. Ta9VO25(s.s.)–CuTa2O6(s.s.)–Cu2V2O7, V. CuTa2O6(s.s.)–Ta9VO25(s.s.), VI. CuTa2O6(s.s.)–Ta9VO25–Ta2O5, VII. CuTa2O6(s.s.)–Ta2O5, VIII. Cu2V2O7–CuTa2O6(s.s.)–Cu3V2O8, IX. Cu3V2O8–CuTa2O6(s.s.)–Cu11V6O26, X. Cu11V6O26–CuTa2O6(s.s.)–Cu5V2O10, XI. Cu5V2O10–CuTa2O6(s.s.)–CuO, XII. CuO–CuTa2O6(s.s.).

Author Contributions

Conceptualization, G.D. and E.F.; formal analysis, G.D., E.F. and P.T.; investigation, G.D.; methodology, G.D. and E.F.; software, G.D. and P.T.; supervision, E.F.; validation, G.D., E.F. and P.T.; visualization, G.D. and P.T.; writing—original draft, G.D., E.F. and P.T.; writing—review and editing, E.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hansen, B.J.; Kouklin, N.; Lu, G.; Lin, I.K.; Chen, J.; Zhang, X. Transport, analyte detection, and opto-electronic response of p-type CuO nanowires. J. Phys. Chem C 2010, 114, 2440–2447. [Google Scholar] [CrossRef]
  2. Feng, L.; Yan, H.; Li, H.; Zhang, R.; Li, Z.; Chi, R.; Yang, S.; Ma, Y.; Fu, B.; Liu, J. Excellent field emission properties of vertically oriented CuO nanowire films. AIP Adv. 2018, 8, 045109. [Google Scholar] [CrossRef] [Green Version]
  3. Xin Ch Zhang, N.; Sun, K. Facile fabrication of CuO mesoporous nanosheet cluster array electrodes with super lithium-storage properties. J. Mater. Chem. 2012, 22, 13637–13642. [Google Scholar] [CrossRef]
  4. Singh, J.; Kaur, G.; Rawat, M. A Brief Review on Synthesis and Characterization of Copper Oxide Nanoparticles and its Applications. J. Bioelectron. Nanotechnol. 2016, 1, 9. [Google Scholar] [CrossRef]
  5. Kim, G.T.; Muster, J.; Krstic, V. Field-effect transistor made of individual V2O5 nanofibers. Appl. Phys. Lett. 2000, 76, 1875–1877. [Google Scholar] [CrossRef]
  6. Schneider, K.; Lubecka, M.; Czapla, A. V2O5 thin films for gas sensor applications. Sens. Actuator B Chem. 2016, 236, 970–977. [Google Scholar] [CrossRef]
  7. Deepak, P.; Gupta, S.; Sridharan, M. Nanostructured V2O5 thin films deposited at low sputtering power. Mat. Sci. Semicon. Proc. 2015, 36, 426–432. [Google Scholar] [CrossRef]
  8. Vo, P.N.X.; Le-Phuc, N.; Tran, T.V.; Ngo, P.T.; Luong, T.N. Oxidative regeneration study of spent V2O5 catalyst from sulfuric acid manufacture. Reac. Kinet. Mech. Cat. 2018, 125, 887–900. [Google Scholar] [CrossRef]
  9. Rogers, O.; Pattisson, S.; Engel, R.V.; Jenkins, R.L.; Whiston, K.; Taylor, S.H.; Hutchings, G.J. Adipic acid formation from cyclohexanediol using vanadium catalysts: Elucidating the role of homogeneous species. Catal. Sci. Technol. 2020, 10, 4210–4218. [Google Scholar] [CrossRef]
  10. Gimeno, M.P.; Gascón, J.; Téllez, C.; Herguido, J.; Menéndez, M. Selective oxidation of o-xylene to phthalic anhydride over V2O5/TiO2: Kinetic study in a fluidized bed reactor. Chem. Eng. Process. 2008, 9, 1844–1852. [Google Scholar] [CrossRef]
  11. De Sousa, B.P.; Marcondes, L.M.; Maestri, S.A.; da Cunha, C.R.; Cassanjes, F.C.; Poirier, G.Y. Phosphate glasses with high tantalum oxide contents: Thermal, structural and optical properties. Mat. Chem. Phys. 2020, 239, 12199. [Google Scholar] [CrossRef]
  12. Kosiel, K.; Pągowska, K.; Kozubal, M.; Guziewicz, M.; Lawniczak-Jablonska, K.; Jakieła, R.; Syryanyy, Y.; Gabler, T.; Smietana, M. Compositional, structural, and optical properties of atomic layer deposited tantalum oxide for optical fiber sensor overlays. J. Vac. Sci. Technol. 2018, 36, 031505. [Google Scholar] [CrossRef]
  13. Calvo, C.; Manolescu, D. Refinement of the structure of CuV2O6. Acta Crystallogr. Sect. B Struct. Crystallogr. Cryst. Chem. 1973, 29, 1743–1745. [Google Scholar] [CrossRef]
  14. Lavaud, D.; Galy, J. Structure crystalline de CuV2O6. Bull. Soc. Fr. Mineral. Cristallogr. 1972, 95, 134–135. [Google Scholar]
  15. Dąbrowska, G.; Filipek, E. Reactivity of the oxides in the ternary V2O5–CuO–α-Sb2O4 system in air. J. Therm. Anal. Cal. 2008, 93, 839–845. [Google Scholar] [CrossRef]
  16. Prokofiev, A.V.; Kremer, R.K.; Assmus, W. Crystal growth and magnetic properties of α-CuV2O6. J. Cryst. Growth 2001, 231, 498–505. [Google Scholar] [CrossRef]
  17. Calvo, C.; Faggiani, R. α Cupric Divanadate. Acta Crystallogr. Sect. B Struct. Crystallogr. Cryst. Chem. 1975, 31, 603–605. [Google Scholar] [CrossRef]
  18. Mercurio, D.; Frit, M. Structure crystalline de la variete haute temperature dy pyrovanadate de cuivre: Cu2V2O7 β. CR Acad. Sci. Paris 1973, 277, 1001–1104. [Google Scholar]
  19. Krivovichev, S.V.; Filatov, S.K.; Cherepanksy, P.N.; Armbruster, T.; Pankratova, O.Y. Crystal structure of γ-Cu2V2O7 and its comparison to blossite (α-Cu2V2O7) and ziesite (β-Cu2V2O7). Can. Mineral. 2005, 43, 671–677. [Google Scholar] [CrossRef] [Green Version]
  20. Fleury, P. Etudes sur les systems V2O5–CuO ou Ag2O ou Tl2O3 et sur les combinaisons interoxydes correspondantes. Rev. Chim. Min. 1969, 6, 819–830. [Google Scholar]
  21. Clark, G.M.; Garlick, R. Formation and properties of copper(II) divanadate(V). J. Inorg. Nucl. Chem. 1978, 40, 1347–1349. [Google Scholar] [CrossRef]
  22. Coing-Boyat, J. Structure de la variete ordinaire, Triclinique, de l`orthovanadate de cuivre(II), Cu3(VO4)2. Acta Cryst. B 1982, 38, 1546–1548. [Google Scholar] [CrossRef]
  23. Shannon, R.; Calvo, C. Crystal structure of a new form of Cu3V2O8. Can. J. Chem. 1972, 50, 3944–3949. [Google Scholar] [CrossRef] [Green Version]
  24. Birnie, R.; Stoiberite, H.M. Cu5V2O10, a new copper vanadate from Izalco Volcano El Salvador. Am. Mineral. 1979, 64, 941–944. [Google Scholar]
  25. Finger, L. Fingerite, Cu11O2(VO4)6, a new vanadium sublimate from Izalco, El Salvador: Crystal structure. Am. Mineral. 1985, 70, 197–199. [Google Scholar]
  26. Brisi, C.; Moliniari, M. Il sistema ossido ramico-anidrive vanadica. Ann. Chim. Rome 1958, 48, 263–269. [Google Scholar]
  27. Cao, X.; Xie, J.; Zhan, H.; Zhou, Y. Synthesis of CuV2O6 as a cathode material for rechargeable lithium batteries from V2O5 gel. Mat. Chem. Phys. 2006, 98, 71–75. [Google Scholar] [CrossRef]
  28. Kawada, T.; Hinokuma, S.; Machida, M. Structure and SO3 decomposition acitivity of nCuO–V2O5/SiO2 (n = 0, 1, 2, 3 and 5) catalyst for solar thermochemical water splitting cycles. Catal. Today 2015, 242, 268–273. [Google Scholar] [CrossRef] [Green Version]
  29. Kim, M.; Joshi, B.; Ohm, T.; Kim, K.; Al-Deyab, S.; Yoon, S. Electrosprayed copper hexaoxidivanadate (CuV2O6) and pyrovanadate (Cu2V2O7) photoanodes for efficient solar water splitting. J. Alloys Compd. 2017, 708, 444–450. [Google Scholar] [CrossRef]
  30. Schadow, H.; Oppermann, H.; Wehner, B. Investigations on the Quasi-binary System V2O5-Ta2O5. Crys. Res. Technol. 1992, 27, 691–695. [Google Scholar] [CrossRef]
  31. Zuev, M.G. Phase Formation in the V2O5–Ta2O5–MoO3 System. Rus. J. Inorg. Chem. 2010, 55, 93–95. [Google Scholar] [CrossRef]
  32. Yamaguchi, O.; Mukaida, Y.; Shigeta, H. Preparation of Alkoxy-Derived Tantalum Vanadate. J. Am. Ceram. Soc. 1989, 72, 1914–1917. [Google Scholar] [CrossRef]
  33. Trunov, V.K.; Kovba, L.M.; Sirotkina, E.I. X-ray Study of the Double Oxides of Some Transition Metals. Dokl. Akad. Nauk SSSR 1963, 153, 1083–1088. Available online: http://mi.mathnet.ru/eng/dan/v153/i5/p1085 (accessed on 24 November 2021).
  34. Staus, P.; Dąbrowska, G. Synthesis and properties of compounds from the photocatalytic system of Ta2O5–V2O5 oxides. In Advances in Technology and Chemical Engineering; West Pomeranian University of Technology, Publishing House: Szczecin, Poland, 2021; pp. 250–260. ISBN 978-83-7663-326-8. [Google Scholar]
  35. Casais, M.T.; Gutierrez-Puebla, E.; Monge, M.A.; Rasines, I.; Ruiz-Valero, C. VM9O25 (M = Nb, Ta), a combination of tetrahedral VO4 and octahedral MO6 Units. J. Solid State Chem. 1993, 102, 261–266. [Google Scholar] [CrossRef]
  36. Salke, N.P.; Rao, R.; Achary, S.N.; Nayak Ch Garg, A.B.; Krishna, P.S.R.; Shinde, A.B.; Jha, S.N.; Bhattacharyya, D.; Jagannath Tyagi, A.K. Negative thermal expansion: Mechanisms and materials. Inorg. Chem. 2018, 57, 6973–6980. [Google Scholar] [CrossRef]
  37. Wang, X.; Huang, Q.; Deng, J.; Yu, R.; Chen, J.; Xing, X. Phase Transformation and Negative Thermal Expansion in TaVO5. Inorg. Chem. 2011, 50, 2685–2690. [Google Scholar] [CrossRef]
  38. Golubev, A.; Dinnebier, R.E.; Schulz, A.; Kremer, R.K.; Langbein, H.; Senyshyn, A.; Law, J.M.; Hansen, T.C.; Koo, H.J.; Whangbo, M.H. Structural and magnetic properties of the trirutile-type 1D-Heisenberg anti-ferromagnet CuTa2O6. Inorg. Chem. 2017, 56, 6318–6329. [Google Scholar] [CrossRef] [PubMed]
  39. Krabbes, I.; Langbein, H. Herstellung von CuTa2O6 von der Trirutil- zur Perowskit-Struktur. Z. Naturforsch. B 1996, 51, 1605–1610. [Google Scholar] [CrossRef]
  40. Longo, J.M.; Sleight, A.W. CuTa2O6–crystal growth and characterization. Mater. Res. Bull. 1975, 10, 1273–1277. [Google Scholar] [CrossRef]
  41. Vincent, H.; Bochu, B.; Aubert, J.J.; Joubert, J.C.; Marezio, M. Structure cristalline de CuTa2O6. J. Solid State Chem. 1978, 24, 245–253. [Google Scholar] [CrossRef]
  42. Miura, K.; Yokota, Y. Preparation of CuO–Ta2O5 composites using a simple Co-sputtering method. J. Chem. Eng. Mater. Sci. 2015, 3, 47–51. [Google Scholar] [CrossRef] [Green Version]
  43. Weng, C.-M.; Tsai, C.-C.; Hong, C.-S.; Lin, C.-C.; Chen, C.-C.; Chu, S.-Y.; Sheen, J.; Chen, Z.-Y.; Su, H.-H. of Non-Stoichiometry on the Microstructure, Oxygen Vacancies, and Electrical Properties of KNN-Based Thin Films. J. Solid State Sci. Technol. 2016, 5, 49. [Google Scholar] [CrossRef]
  44. Yang, S.; Chen, S.; Tsai, C.; Hong, C. Fabrication of high-power piezoelectric transformers using lead-free ceramics for application in electronic ballasts. IEEE Trans. Ultrason. Ferroelectr. Freq. Control. 2013, 60, 408–413. [Google Scholar] [CrossRef] [PubMed]
  45. Debbichi, L.; Marco de Lucas, M.C.; Pierson, J.F.; Krüger, P. Vibrational Properties of CuO and Cu4O3 from First-Principles Calculations, and Raman and Infrared Spectroscopy. J. Phys. Chem. C 2012, 116, 10232–10237. [Google Scholar] [CrossRef]
  46. Azmirad, R.; Safa, S.; Akhavan, O. Hydrothermally Synthesized CuO Powders for Photocatalytic Inactivation of Bacteria. Acta Phys. Pol. A 2015, 127, 1727–1731. [Google Scholar] [CrossRef]
  47. Hristea, A.; Popovici, E.J.; Muresana, L.; Stefana, M.; Grecua, R.; Johanssonc, A.; Boman, M. Morpho-structural and luminescent investigations of niobium activated yttrium tantalate powders. J. Alloys Compd. 2009, 471, 524–529. [Google Scholar] [CrossRef]
  48. Tabero, P. Formation and properties of the new Al8V10W16O85 and Fe8-xAlxV10W16O85 phases with the M-Nb2O5 structure. J. Therm. Anal. Calorim. 2010, 101, 560–566. [Google Scholar] [CrossRef]
  49. Tabero, P.; Frackowiak, A.; Filipek, E.; Dąbrowska, G.; Homonnay, Z.; Szilágyi, P.Á. Synthesis, thermal stability and unknown properties of Fe1-xAlxVO4 solid solution. Ceram. Int. 2018, 44, 17759–17766. [Google Scholar] [CrossRef]
  50. Vaz, T.; Salker, A.V. Comparatively Low Temperature Synthesis, Characterization and Some Physical Studies on Transition Metal Vanadates. J. Sci. Res. 2021, 13, 571–578. [Google Scholar] [CrossRef]
  51. Xu, T.; Zhao, X.; Zhu, Y. Synthesis of hexagonal BaTa2O6 nanorods and influence of defects on the photocatalytic activity. J. Phys. Chem. B 2007, 110, 5825–5832. [Google Scholar] [CrossRef]
  52. Mukherjee, R.; Duttay, A.; Sinhaz, T.P. Octahedral distortion-driven electrical and vibrational properties of A2ErTaO6 (A ¼ Sr and Ca) double perovskite oxides. J. Adv. Dielectr. 2018, 8, 1850025. [Google Scholar] [CrossRef] [Green Version]
  53. Husson, E.; Repelin, Y.; Brusset, H.; Cerez, A. Spectres de vibration et calcul du champ de force des antimoniates et des tantalates de structure trirutile. Spectrochim. Acta A 1979, 35, 1177–1187. [Google Scholar] [CrossRef]
  54. Dąbrowska, G.; Kurzawa, M.; Tabero, P. Phase Relations in the Al2O3–V2O5–MoO3 system in the solid state. The crystal structure of AlVO4. J. Phase Equilibria Diffus. 2009, 30, 220–229. [Google Scholar] [CrossRef]
  55. Kubelka, P.; Munk, F. Ein Beitrag Zur Optik der Farbanstriche. Z. Tech. Phys. 1931, 12, 593–601. [Google Scholar]
Materials 15 00232 g001 550

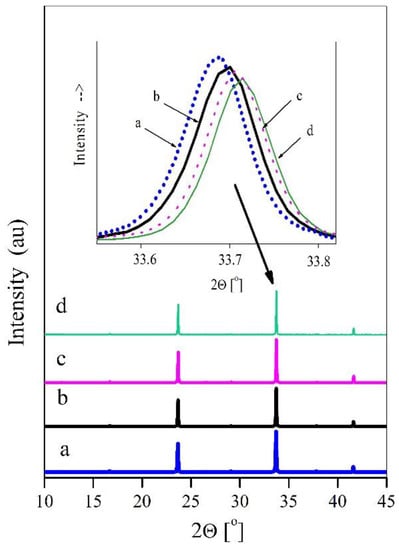

Figure 1. Fragments of X-ray diffraction patterns of: (a) CuTa2O6 (x = 0), (b) CuTa1.80V0.20O6 (x = 0.20), (c) CuTa1.75V0.25O6 (x = 0.25), (d) CuTa1.70V0.30O6 (x = 0.30).
Figure 1. Fragments of X-ray diffraction patterns of: (a) CuTa2O6 (x = 0), (b) CuTa1.80V0.20O6 (x = 0.20), (c) CuTa1.75V0.25O6 (x = 0.25), (d) CuTa1.70V0.30O6 (x = 0.30).
Materials 15 00232 g001
Materials 15 00232 g002 550

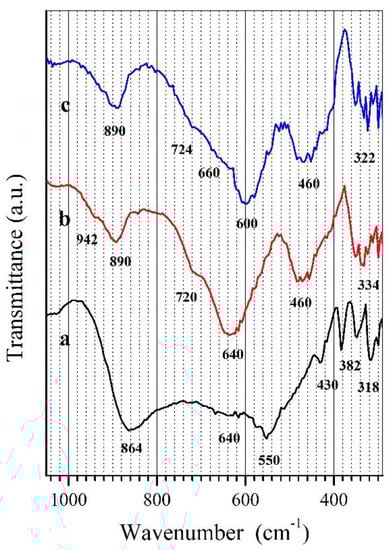

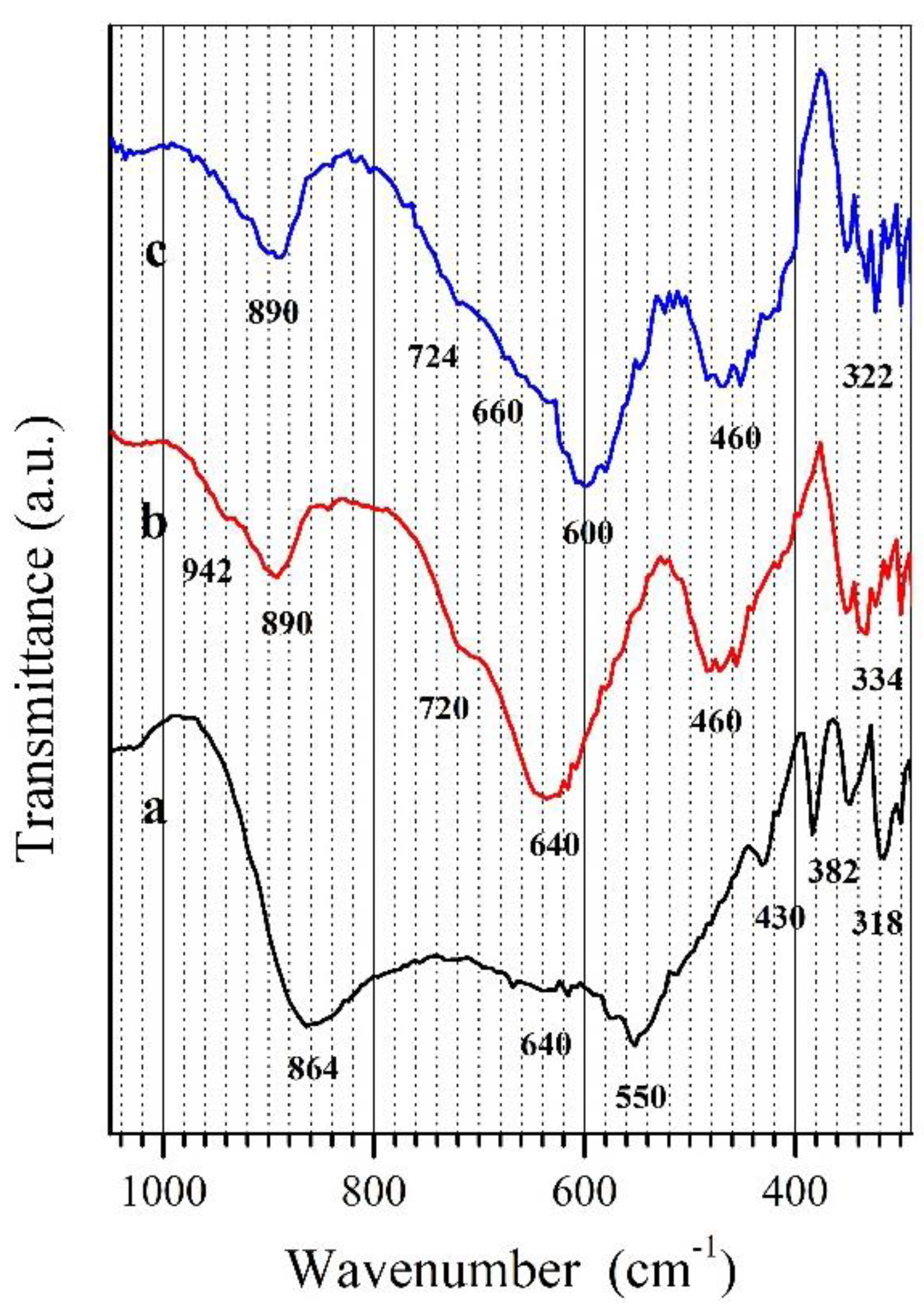

Figure 2. IR spectra of: (a) CuV2O6, (b) CuTa1.70V0.30O6 (x = 0.30), (c) CuTa2O6.
Figure 2. IR spectra of: (a) CuV2O6, (b) CuTa1.70V0.30O6 (x = 0.30), (c) CuTa2O6.
Materials 15 00232 g002
Materials 15 00232 g003 550

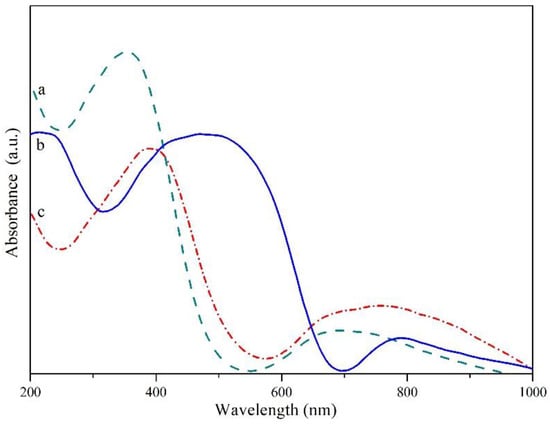

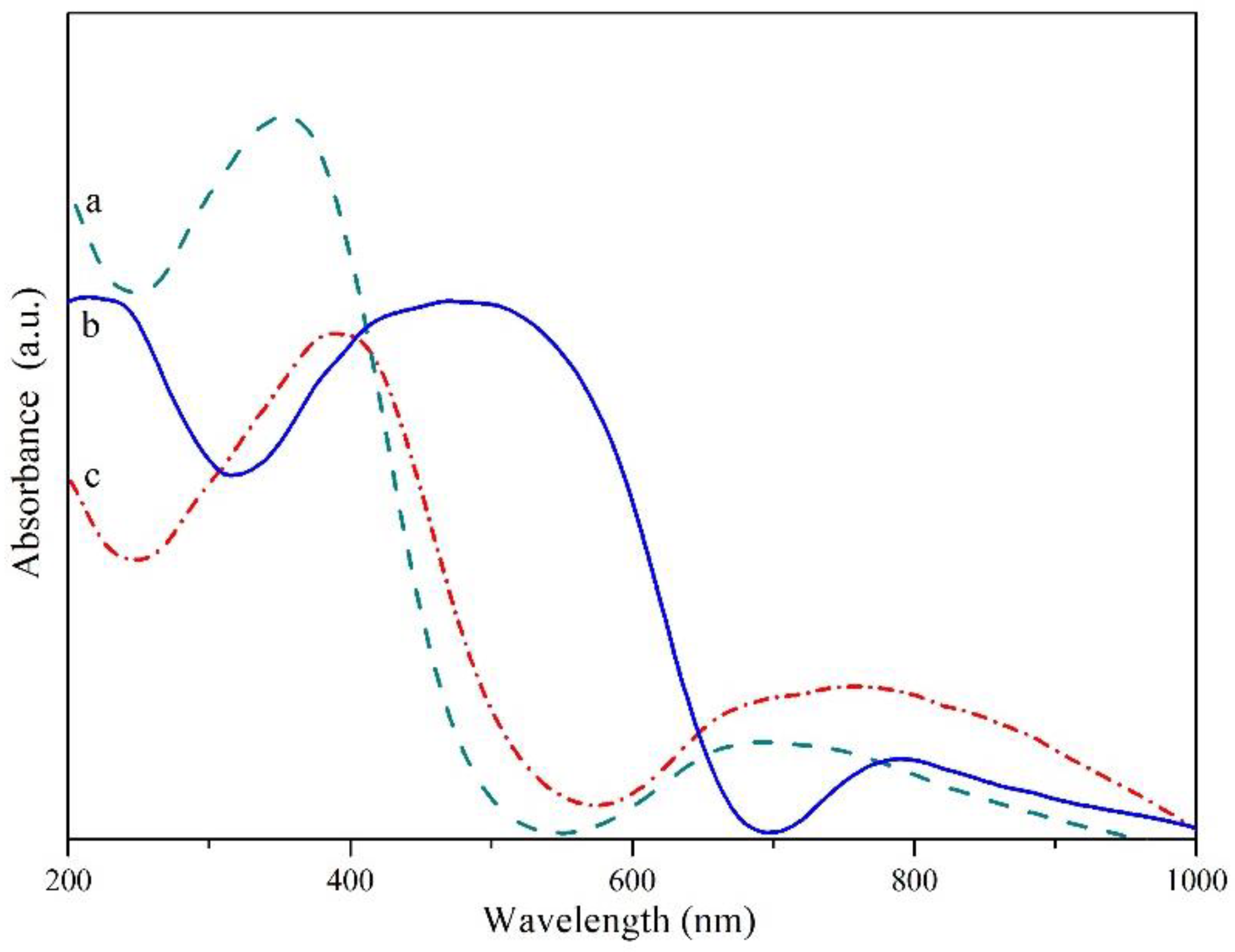

Figure 3. UV-Vis absorption spectra of: (a) CuTa2O6 (x = 0), (b) CuV2O6, (c) CuTa1.70V0.30O6 (x = 0.30).
Figure 3. UV-Vis absorption spectra of: (a) CuTa2O6 (x = 0), (b) CuV2O6, (c) CuTa1.70V0.30O6 (x = 0.30).
Materials 15 00232 g003
Materials 15 00232 g004 550
Figure 4. Estimated band gap energy of: (a) CuTa2O6 (x = 0), (b) CuV2O6, (c) CuTa1.70V0.30O6 (x = 0.30).
Figure 4. Estimated band gap energy of: (a) CuTa2O6 (x = 0), (b) CuV2O6, (c) CuTa1.70V0.30O6 (x = 0.30).
Materials 15 00232 g004
Materials 15 00232 g005 550

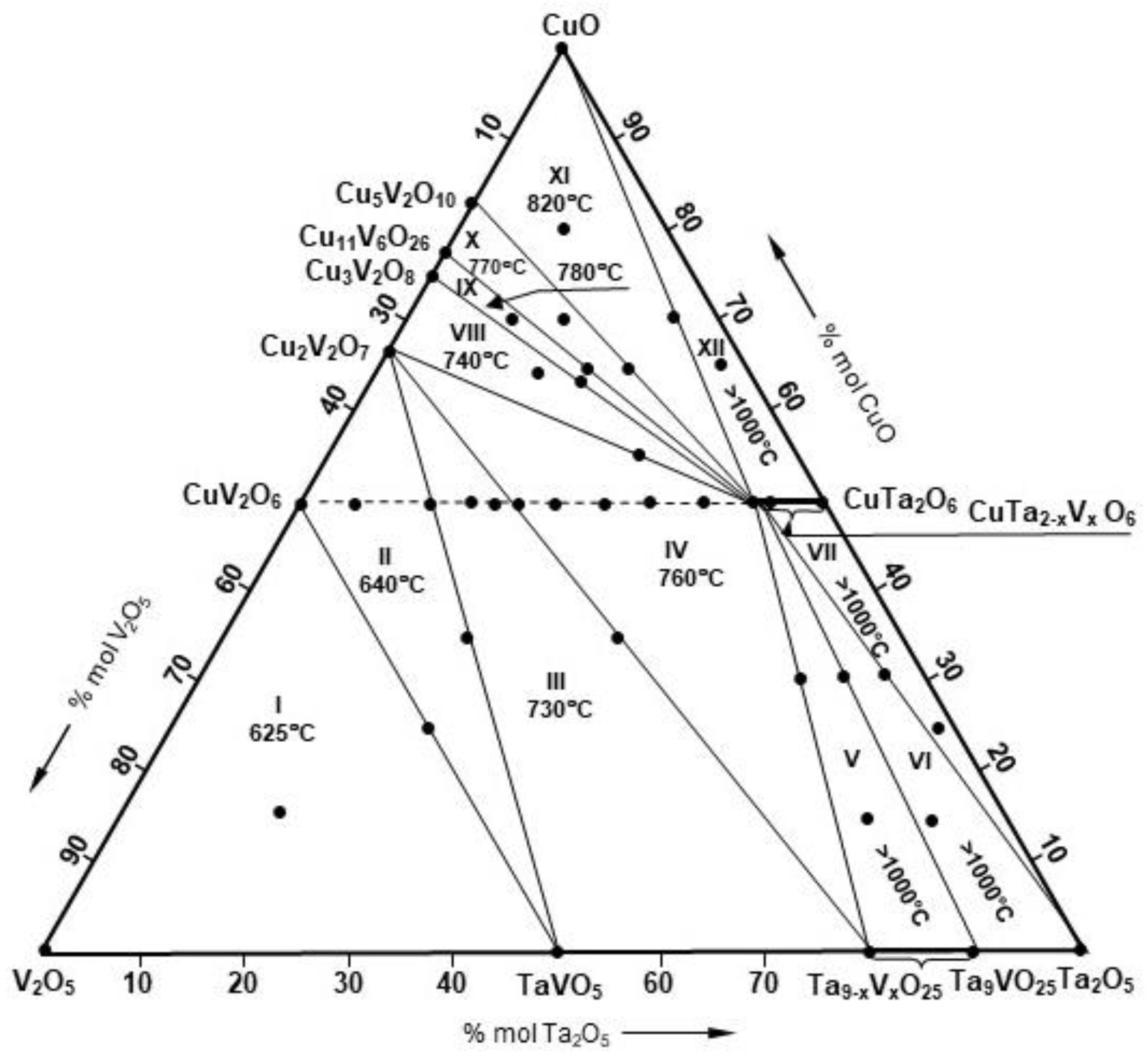

Figure 5. Division of the CuO–Ta2O5–V2O5 ternary system into partial subsystems.
Figure 5. Division of the CuO–Ta2O5–V2O5 ternary system into partial subsystems.
Materials 15 00232 g005
Materials 15 00232 g006 550

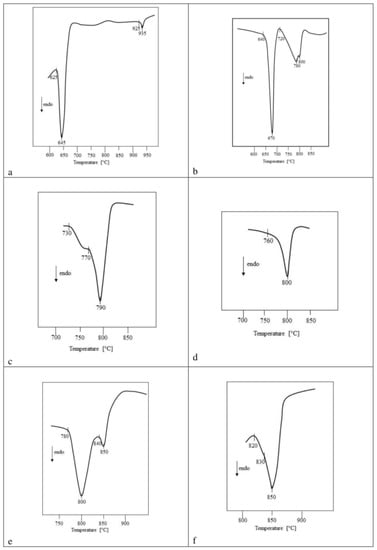

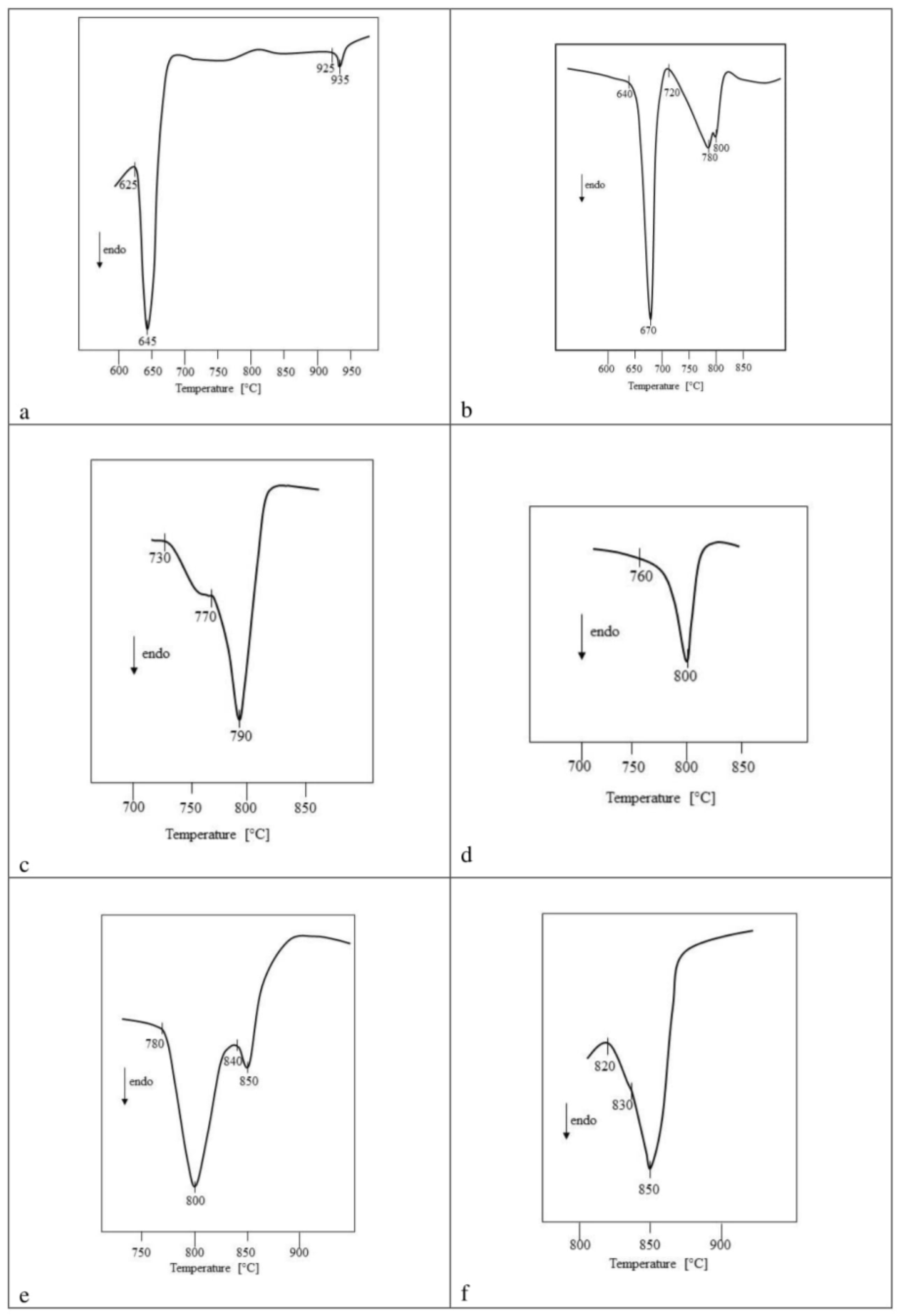

Figure 6. Fragment of DTA curves of samples containing coexisting phases: (a) CuV2O6, TaVO5, V2O5 (subsystem I), (b) CuV2O6, TaVO5, Cu2V2O7 (subsystem II), (c) TaVO5, Cu2V2O7; Ta9VO25(s.s.) (subsystem III), (d) Cu2V2O7, CuTa2O6(s.s.), Ta9VO25(s.s.) (subsystem IV), (e) Cu3V2O8, CuTa2O6(s.s.), Cu11V6O26 (subsystem IX), (f) Cu5V2O10, CuTa2O6(s.s.), CuO (subsystem XI).
Figure 6. Fragment of DTA curves of samples containing coexisting phases: (a) CuV2O6, TaVO5, V2O5 (subsystem I), (b) CuV2O6, TaVO5, Cu2V2O7 (subsystem II), (c) TaVO5, Cu2V2O7; Ta9VO25(s.s.) (subsystem III), (d) Cu2V2O7, CuTa2O6(s.s.), Ta9VO25(s.s.) (subsystem IV), (e) Cu3V2O8, CuTa2O6(s.s.), Cu11V6O26 (subsystem IX), (f) Cu5V2O10, CuTa2O6(s.s.), CuO (subsystem XI).
Materials 15 00232 g006
Table
Table 1. The composition of initial mixtures and the results of phase XRD analysis of the samples from the CuV2O6–CuTa2O6 system after the last heating stage.
Table 1. The composition of initial mixtures and the results of phase XRD analysis of the samples from the CuV2O6–CuTa2O6 system after the last heating stage.
No.Composition of Initial Mixtures
[Mol%]		Composition of Initial Mixtures Calculated as Oxides [Mol%]Final Heating Temperature [°C]Composition of Samples at Equilibrium
CuV2O6CuTa2O6CuOV2O5Ta2O5
190.0010.0050.0045.005.00620CuV2O6,
TaVO5,
Cu2V2O7
275.0025.0050.0037.5012.50Cu2V2O7, TaVO5
366.6733.3350.0033.3316.67720Ta9VO25(s.s.),
Cu2V2O7,
TaVO5
463.6436.3650.0031.8218.18
560.0040.0050.0030.0020.00700CuTa2O6(s.s.), Ta9VO25(s.s.),
Cu2V2O7
650.0050.0050.0025.0025.00
740.0060.0050.0020.0030.00725
833.3366.6750.0016.6733.33
920.0080.0050.0010.0040.00
1010.0090.0050.005.0045.00900CuTa2O6(s.s.)
Table
Table 2. The composition of initial mixtures and the results of phase XRD analysis of additional samples from the CuTa2O6–CuV2O6 system at equilibrium state.
Table 2. The composition of initial mixtures and the results of phase XRD analysis of additional samples from the CuTa2O6–CuV2O6 system at equilibrium state.
No.Composition of Initial Mixtures
[Mol%]		Composition of Initial Mixtures Calculated as Oxides [Mol%]Parameter X in the Obtained Solid Solution with Formula CuTa2−xVxO6(s.s)Composition of Samples at Equilibrium
CuV2O6CuTa2O6CuOV2O5Ta2O5
1.10.0090.0050.005.0045.000.20CuTa1.80V0.20O6
2.12.5087.5050.006.2543.750.25CuTa1.75V0.25O6
3.15.0085.0050.007.5042.500.30CuTa1.70V0.30O6
4.17.5082.5050.008.7541.250.30 (theoretical 0.35)CuTa1.70V0.30O6, Cu2V2O7, Ta9VO25
Table
Table 3. Unit cell parameters and volumes for the CuTa2O6 (x = 0) and solid solution CuTa2-xVxO6 for x = 0.20, 0.25 and 0.30.
Table 3. Unit cell parameters and volumes for the CuTa2O6 (x = 0) and solid solution CuTa2-xVxO6 for x = 0.20, 0.25 and 0.30.
xa = b [nm]c [nm]V [nm3]dcal. [g/cm3]dexp. [g/cm3]
0.007.52213.7582212.646438.143557.9775
0.207.51883.7572212.403367.746337.9368
0.257.51723.7568212.290377.648767.8163
0.307.51503.7560212.120957.55317.5088
Table
Table 4. The compositions of the initial mixtures of oxides and the results of the XRD analysis of the samples after the last heating stage.
Table 4. The compositions of the initial mixtures of oxides and the results of the XRD analysis of the samples after the last heating stage.
No.Composition of the Initial Mixtures [Mol%]Final Stage of Heating [°C]Phase Composition of the Samples in Equilibrium State
CuOV2O5Ta2O5
11.15.0070.0015.00620CuV2O6, TaVO5, V2O5
12.25.0050.0025.00625CuV2O6, TaVO5
1335.0041.0024.00725Cu2V2O7, TaVO5
14.35.0023.0042.00Cu2V2O7, Ta9VO25(s.s.)
15.30.0014.0056.00900CuTa2O6(s.s.), Ta9VO25(s.s.)
16.15.0013.0072.00900CuTa2O6(s.s.), Ta9VO25(s.s.)
17.30.009.0061.00900CuTa2O6(s.s.), Ta9VO25
18.15.007.0078.00900Ta9VO25, CuTa2O6(s.s.), Ta2O5
19.30.004.0066.00900CuTa2O6(s.s.), Ta2O5
20.25.002.0073.00900CuTa2O6(s.s.), Ta2O5
21.54.0011.0035.00725Cu2V2O7, CuTa2O6(s.s.)
22.65.0025.0010.00725Cu2V2O7, CuTa2O6(s.s.), Cu3V2O8
23.64.0016.0020.00725Cu3V2O8, CuTa2O6(s.s.)
24.70.0018.0012.00750Cu3V2O8, CuTa2O6(s.s.), Cu11V6O26,
25.65.0015.0020.00750Cu11V6O26, CuTa2O6(s.s.)
26.70.0013.0017.00750Cu11V6O26, CuTa2O6(s.s.), Cu5V2O10
2765.0012.0023.00750Cu5V2O10, CuTa2O6(s.s.)
2880.0010.0010.00750CuO, Cu5V2O10, CuTa2O6(s.s.)
2970.005.0025.00900CuO, CuTa2O6(s.s.)
3065.003.0032.00900CuO, CuTa2O6(s.s.)
Table
Table 5. Melting point of the samples in equilibrium state.
Table 5. Melting point of the samples in equilibrium state.
No.Phases at EquilibriumMelting Point [°C]
1.V2O5–TaVO5–CuV2O6625
2.CuV2O6, TaVO5650
3.CuV2O6–TaVO5–Cu2V2O7640
4.Cu2V2O7, TaVO5730
5.Cu2V2O7–TaVO5–Ta9VO25(s.s.)730
6.Cu2V2O7–Ta9VO25(s.s.)760
7.Ta9VO25(s.s.)–CuTa2O6(s.s.)–Cu2V2O7760
8.CuTa2O6(s.s.)–Ta9VO25(s.s.)>1000
9.Cu2V2O7–CuTa2O6(s.s.)760
10.Cu2V2O7–CuTa2O6(s.s.)–Cu3V2O8740
11.Cu3V2O8–CuTa2O6(s.s.)750
12.Cu3V2O8–CuTa2O6(s.s.)–Cu11V6O26780
13.Cu11V6O26–CuTa2O6(s.s.)780
14.Cu11V6O26–CuTa2O6(s.s.)–Cu5V2O10770
15.Cu5V2O10–CuTa2O6(s.s.)810
16.Cu5V2O10–CuTa2O6(s.s.)–CuO820
17Ta9VO25(s.s.)–CuTa2O6(s.s.)–Ta2O5>1000
18.CuO–CuTa2O6(s.s.)>1000
19.CuTa2O6(s.s.)–Ta2O5>1000
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Dąbrowska, G.; Filipek, E.; Tabero, P. New Solid Solution and Phase Equilibria in the Subsolidus Area of the Three-Component CuO–V2O5–Ta2O5 Oxide System. Materials 2022, 15, 232. https://doi.org/10.3390/ma15010232

AMA Style

Dąbrowska G, Filipek E, Tabero P. New Solid Solution and Phase Equilibria in the Subsolidus Area of the Three-Component CuO–V2O5–Ta2O5 Oxide System. Materials. 2022; 15(1):232. https://doi.org/10.3390/ma15010232

Chicago/Turabian Style

Dąbrowska, Grażyna, Elżbieta Filipek, and Piotr Tabero. 2022. "New Solid Solution and Phase Equilibria in the Subsolidus Area of the Three-Component CuO–V2O5–Ta2O5 Oxide System" Materials 15, no. 1: 232. https://doi.org/10.3390/ma15010232

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
