Efficient Photothermal Elimination of Formaldehyde under Visible Light at Room Temperature by a MnOx-Modified Multi-Porous Carbon Sphere

by
Wanpeng Liu
1,
Liu Shi
2,
Rongyang Yin
2,
Pengfei Sun
2,
Jinming Ren
1 and
Yongming Wang
1,*
1
Power China Huadong Engineering Corporation, Hangzhou 311122, China
2
Department of Chemistry, Key Laboratory of Surface & Interface Science of Polymer Materials of Zhejiang Province, Zhejiang Sci-Tech University, Hangzhou 310018, China
*
Author to whom correspondence should be addressed.
Materials 2022, 15(13), 4484; https://doi.org/10.3390/ma15134484
Submission received: 7 April 2022 / Revised: 24 May 2022 / Accepted: 28 May 2022 / Published: 25 June 2022
(This article belongs to the Topic Materials and Catalysts for Pollutants and CO2 Capture and Transformation)
Browse Figures
Versions Notes

Abstract

:
Volatile organic compounds (VOCs) exert a serious impact on the environment and human health. The development of new technologies for the elimination of VOCs, especially those from non-industrial emission sources, such as indoor air pollution and other low-concentration VOCs exhaust gases, is essential for improving environmental quality and human health. In this study, a monolithic photothermocatalyst was prepared by stabilizing manganese oxide on multi-porous carbon spheres to facilitate the elimination of formaldehyde (HCHO). This catalyst exhibited excellent photothermal synergistic performance. Therefore, by harvesting only visible light, the catalyst could spontaneously heat up its surface to achieve a thermal catalytic oxidation state suitable for eliminating HCHO. We found that the surface temperature of the catalyst could reach to up 93.8 °C under visible light, achieving an 87.5% HCHO removal efficiency when the initial concentration of HCHO was 160 ppm. The microporous structure on the surface of the carbon spheres not only increased the specific surface area and loading capacity of manganese oxide but also increased their photothermal efficiency, allowing them to reach a temperature high enough for MnOx to overcome the activation energy required for HCHO oxidation. The relevant catalyst characteristics were analyzed using XRD, measurement of BET surface area, scanning electron microscopy, HR-TEM, XPS, and DRS. Results obtained from a cyclic performance test indicated high stability and potential application of the MnOx-modified multi-porous carbon sphere.

1. Introduction

Volatile organic compounds (VOCs) have been widely associated with ecological damage and human health problems [1]. For the removal of different types of VOCs, such as those emitted through industrial production processes, waste incineration, and medical waste, current technologies use methods such as catalytic oxidation, biological drip filtration, or even direct combustion [2,3]. These methods effectively reduce VOC emissions, thereby suppressing environmental pollution. However, these methods demand large technical input and management costs, making them unsuitable for scenarios such as indoor VOCs air pollution or when low concentrations of VOCs are emitted by small businesses. In view of this, new VOC-removal methods have been developed, such as photocatalysis, which uses photocatalytic materials to generate excited electrons under visible or ultraviolet light, resulting in the oxidative decomposition of VOC molecules at the catalyst surface [4]. Through constantly improving the performance of photocatalysts, this method is being increasingly recognized in the field of VOC purification.
In recent years, synergistic photothermocatalysis has been considered an efficient and low-carbon technology for the removal of VOCs. This technology has the advantages of both photocatalysis and thermocatalysis, which enables the catalyst to be activated by a natural light source without the need for extra energy and stimulates the rising surface temperature of the catalyst to the level required for VOC oxidation. Transition metal oxides (TMOs) are always selected as the main active ingredients for photothermocatalytic materials because their relatively large d-orbital splitting energy absorbs UV-vis and partial infrared light, resulting in an efficient photothermal conversion [5,6]. The variable valence states and active redox properties of TMOs are also favorable for the oxidative removal of low-concentration VOCs [7]. In addition, black carbonaceous materials have been introduced, which can cause efficient absorption of near-infrared wavelengths and a rapid increase in the temperature of the reaction surface, thereby enabling modified TMOs to overcome the activation energy required for VOC oxidation [8,9].
In this study, multi-porous carbon spheres were prepared using available glucose, which was then used to load stable manganese oxide impregnated with potassium permanganate (KMnO4) solution, forming typical photothermal catalysts. Formaldehyde (HCHO), one of the most common indoor VOC pollutants, was selected as a probe for testing the performance of the photothermal catalysts. We found that the surface temperature of the catalysts could reach up to 93.8 °C and achieved a maximum HCHO removal efficiency of 87.5% under visible light only. The surface properties of the catalysts were characterized using X-ray diffraction (XRD), Brunauer-Emmett-Teller (BET) surface area, scanning electron microscopy (SEM), HR-TEM, X-ray photoelectron spectroscopy (XPS), and UV-Vis-NIR diffuse-reflectance spectroscopy (DRS), whereas results obtained from the cyclic performance showed high stability of the catalysts, implying a high application potential.

2. Materials and Methods

2.1. Catalyst Synthesis

Commercially available glucose (C6H12O6) was used for the experiments. An aliquot of 4.0 g glucose was dissolved in 40 mL distilled water, transferred into a Teflon-lined stainless-steel autoclave, and maintained at 180 °C for 10 h. After cooling down to room temperature, the brown powder was obtained by filtration, which was then washed repeatedly with deionized water and finally dried at 80 °C under a vacuum. The obtained sample was named CNS.
The prepared CNS was then immersed into a ZnCl2 solution and stirred for 6 h. Thereafter, the powder was dried at 120 °C and treated at 400 °C, 500 °C, and 600 °C under nitrogen for 2 h each. These treated powders were then washed in 0.5 M HCl and distilled water alternatively to remove a zinc oxide and dried at 80 °C under a vacuum. Based on the treated temperature, these counterpart samples were denoted as PCNS-400, PCNS-500, and PCNS-600.
The Mn-modified CNS and PCNS samples were prepared by immersing them in KMnO4 solutions with different concentrations, and the catalysts obtained were labeled as xMnC-y and xMnC-y-z. For example, the catalyst named 0.05MnC-30 was prepared by immersing CNS into 0.05 mol·L−1 of a KMnO4 solution and stirred for 30 min; the catalyst named 0.05MnC-30-500 was prepared by immersing PCNS-500 into 0.05 mol·L−1 of a KMnO4 solution and stirred for 30 min. All KMnO4-treated samples were dried at 60 °C for 5 h before being used for HCHO removal.

2.2. Characterizations

XRD with Cu Kα radiation was used to characterize the crystal structure on a DX-2700 diffractometer (Dandong Haoyuan Instrument Co. Ltd., Dandong, China). Morphology and microstructure analyses were conducted on a scanning electron microscope (HITACHI SU8100, Tokyo, Japan) equipped with an energy-dispersive X-ray spectrometer. Transmission electron microscopy (TEM) images were obtained using transmission electron microscopy (TEM, JEOL JEM-2100, Tokyo, Japan).
The BET surface area was determined using N2 physisorption at 77 K, Micromeritics ASAP 2020 surface area, and a porosity analyzer. Catalyst degassing pre-treatment was conducted at 150 °C for 2 h under a vacuum. The surface area was calculated from the N2 isotherm data using the BET model [10]. Micropore volume and micropore diameter were measured using t-plot analyses [11].
XPS measurements were conducted using a Thermo (Waltham, MA, USA) ESCALAB 250 spectrometer with Al Kα X-ray (hν = 1486.6 eV) radiation as the excitation source. Charging of the catalysts was calibrated by setting the binding energy (BE) of adventitious carbon (C1s) to 284.6 eV.
UV-Vis-NIR diffuse-reflectance spectra were analyzed on a spectrophotometer (U-4100, HITACHI, Tokyo, Japan). A certain quality of catalyst powder is pressed in the specific grinding tool provided by this spectrophotometer to obtain the same thickness as the tested sample.
The surface temperature increases of the different catalysts under a xenon lamp irradiation were detected by an AT-600 infrared thermometer (Smart Sensor, Dongguan, China). All sample powder was daubed on a glass sheet and was put into the reactor to receive light irradiation.

2.3. Catalytic Tests for HCHO Removal

The photothermal catalytic reaction was carried out using a 300 W xenon lamp (HSX-F300, Beijing NBet, Beijing, China) as a light source, and the HCHO removal activity of different samples was obtained using a 500 mL gas-phase reactor. First, the sample was placed in the center of the gas-phase reactor. After 2.0 μL of HCHO (37%) solution was injected into the reactor, we preheated the gas-phase reactor for less than 10 °C to make the HCHO solution completely evaporate to a stable 160 mg/L gas state. The xenon lamp was turned on to initiate the photothermal catalytic reaction. The HCHO removal activity of the catalyst was indirectly evaluated by measuring absorbance, which was obtained using phenol reagent spectrophotometry. The concentration change of HCHO in the reactor was analyzed using a gas chromatograph (Agilent 6890, Santa Clara, CA, USA) equipped with a flame ionization detector. For the catalyst cycle test, the used catalyst was placed in a transparent drying oven for 24 h before the next round of experiments.

3. Result and Discussion

3.1. HCHO Removal Efficiency

Impregnation times were used to test HCHO removal efficiency. As shown in Figure 1, the removal efficiency of HCHO can reach up to ca.75% within 40 min when KMnO4 concentration is 0.05 mol/L during the catalyst synthesis process. However, an extension of impregnation time during the catalyst synthesis process would, to some extent, improve the HCHO removal performance. This is especially the case when, as shown in Figure 1C, the removal efficiency of HCHO had reached ca.71.6% within the first 10 min, compared to the situations depicted in Figure 1A,B. The surface carbon of CNS reduces KMnO4 to produce loaded MnOx, causing the oxidation of HCHO [12], and KMnO4 concentration and immersion time determine the quality of the MnOx attached to the CNS surface. According to the above orthogonal test results, a synthesis condition of 0.05 mol/L of KMnO4 impregnated for 30 min can achieve a satisfactory HCHO removal rate.
Figure 2A shows the removal efficiency of HCHO by the Mn-PCNS catalyst under different PCNS-treated temperatures. We found that the catalyst synthesized by PCNS-500 with 0.05 mol/L of KMnO4 had the best HCHO removal efficiency, primarily due to it having a more optimized pore structure and HCHO adsorption capacity. As shown in Figure 3 and Table 1, the nitrogen-sorption isotherms of PCNS-500 are type IV mesoporous materials and the average pore diameter (nm) of PCNS-500 is clearly wider than those of PCNS-400 and PCNS-600. For PCNS-600, the two isotherms almost coincide, indicating that the pore structure effect is poor, which is probably due to the sintering shrinkage of the surface caused by too high a roasting temperature. The isotherms of PCNS-400 are also different from PCNS-500, which exhibits a typical curve of activated carbon type with narrow crack pores, and have not presented a typical mesoporous hysteresis loop [13,14]. Figure 2B shows a comparison of HCHO elimination rate under xenon light irradiation between 0.05MnC-30, PCNS-500, and 0.05MnC-30-500. The 0.05MnC-30-500 achieved a HCHO removal rate of 87.5%, which increased by ca.25% in 0.05MnC-30. The 0.05MnC-60-500 catalyst was also synthesized to investigate the influence of an impregnation time of up to 60 min on the performance of the catalyst, and the result did not show any significant difference between the 0.05MnC-60-500 and 0.05MnC-30-500 catalysts.

3.2. Influence of Light Irradiation

Figure 4A,B show that the activity of the catalysts is optimal under light. In the absence of light, the HCHO removal performance of catalysts Mn-PCNS and Mn-CNS is less than 20%, which is primarily due to the adsorption of the materials themselves. Figure 4C shows the UV-Vis-NIR DRS test of CNS, 0.05MnC-30, PCNS-500, and 0.05MnC-30-500. We found that the near-infrared (wavelength region > 780 nm) absorption was greater in the PCNS catalysts than in the CNS catalysts. As is known, the surface temperature of materials can rise by absorption of near-infrared light [15]. In Figure 4D, the surface temperature of the PCNS catalyst is clearly higher than those of the CNS catalysts, and the maximum of 93.8 °C can be reached for the 0.05MnC-30-500 catalyst after close contact illumination of xenon lamp light for 14 min. Thus, it was concluded that the optimized mesoporous structure of Mn-PCNS catalysts promoted the absorption of near-infrared light to a greater degree than CNS, which promoted an increase in the surface temperature and the Mars-van Krevelen mechanism of MnOx for the HCHO oxidation [16].

3.3. XRD Analysis

Figure 5 shows the XRD profiles of CNS, PCNS-500, and 0.05MnC-30-500. As shown in Figure 5A,B, the characteristic peak at approximately 22.5° is ascribed to carbon for CNS, PCNS-500, and 0.05MnC-30-500. After being treated with ZnCl2 and calcined at 500 °C, the Zn-CNS sample without that had no acid washing developed a hexagonal ZnO phase at 2 theta = 30–70° [17], which implies that the activation process of CNS converted ZnCl2 into ZnO. The Zn-CNS sample was then washed using 0.5 M of HCl, and the obtained sample (PCNS-500) had only carbon, indicating that the ZnO formed at the surface was removed, leaving a porous structure. Figure 5B shows an akhtenskite phase (2 theta = 36.5°) for 0.05MnC-30-500 [18,19], which indicates the stable formation of MnOx at the surface of the carbon spheres with porous structures after being immersed in 0.05 mol/L of KMnO4 solution.

3.4. Morphological Characteristics

The morphologies of PCNS-500 and 0.05MnC-30-500 were also characterized using SEM, as shown in Figure 6A–F, where the PCNS-500 and 0.05MnC-30-500 both exhibit optimal ball shapes in the size range of 300–500 nm. For the 0.05MnC-30-500 sample, the surface of the carbon sphere showed a certain burr and concave-convex feeling, which was due to the formation of MnOx on the surface of the carbon sphere. The HR-TEM of the 0.05MnC-30-500 catalyst (see Figure 7), which has a d-spacing of 0.49 nm, matching the interlayer distance of (100) facet of MnOx crystal, also proves this [18,19].

3.5. Surface Properties

XPS analyses of the 0.05Mn-C-30-500 and 0.05MnC-30 samples were conducted to identify the states of the surface chemical elements. As shown in Figure 8A, the BEs at 642.1 and 653.1 eV were ascribed to Mn 2p3/2 and Mn 2p1/2 spin-orbit peaks for MnO2 [20,21]. The energy separation between Mn 2p3/2 and Mn 2p1/2 was 11.57 eV, which illustrates that Mn has a +4 valency. In Figure 8B, the O 1s spectra of 0.05Mn-C-30-500 and 0.05C-30 can be separated into three peaks at 529.6, 531.2, and 533.1 eV, respectively. The peak at 533.1 eV can be ascribed to carbon-oxygen bonds (OC-O) [22], the peak at 532.1 eV can be ascribed to surface reactive oxygen species (Osur) [23,24], and the peak at 533.1 eV can be ascribed to lattice oxygen (Olat) [21,25]. According to the Mn2p spectra, the peak intensity of 0.05Mn-C-30-500 is much stronger than that of 0.05MnC-30, which indicates that more manganese oxide will be doped on the surface of the porous carbon sphere. The increased MnO2 formed will cause an increase in the content of Osur and Olat, the former having interacted with the Mn atom via a covalent coordination bond or a hydrogen bond, which will be the key oxygen species involved in the surface oxidation of HCHO [21,26]. The surface lattice oxygen will also induce the Mars-van Krevelen (MVK) mechanism for the oxidation of C-H with an increase in reaction temperature [20,21]. It can also be seen from Table 1 that the percentage of Osur on the surface of 0.05Mn-C-30-500 is 34.2%, which is higher than that of 0.05MnC-30, indicating that 0.05Mn-C-30-500 has a better HCHO removal performance.
In Figure 8C, the C1s spectra of the 0.05Mn-C-30-500 and 0.05MnC-30 can be separated into four main components at 284.4, 285.1, 286.3, and 288.2 eV, respectively, which are assigned to sp2-hybridized graphite-like C=C bonding [27], sp3 C-C [28], C-O [29], and O-C=O groups [30]. The oxygen-rich groups of C-O and O-C=O at the surface of the carbon spheres are also produced by doped MnO2, proving that an increase in MnO2 content results in an increase in the C-O and O-C=O contents. The peaks at 295.3 eV and 292.7 eV in Figure 8C are characteristic of potassium oxide [31], which is generated by the residual K+ of used KMnO4.

3.6. Catalyst Recycling Performance

The recycling performance of the 0.05MnC-30-500 sample was also tested to verify its application potential. As shown in Figure 9, this catalyst exhibits a very stable HCHO removal rate, as shown by five recycling tests conducted, and its HCHO removal efficiency always remains at ca. 87%. This result proved that the synthetic 0.05MnC-30-500 has extremely high stability under visible light irradiation, which shows great application potential in indoor HCHO elimination or related application scenario where removal of low concentration VOCs are desired.

4. Conclusions

In this work, a MnOx-modified multi-porous carbon sphere was synthesized by common glucose and was used for indoor formaldehyde purification. It was found the synthesized catalyst exhibits good photothermal conversion performance, which can caused the surface temperature of the reaction interface reach to 93.8 °C at maximum under xenon light illumination. The surface-modified MnOx exhibited good oxidation performance at this temperature and achieved an 87.5% HCHO removal efficiency due to abundant Osur and surface Olat. BET analysis result demonstrated the surface mesoporous structure of synthetic carbon spheres by ZnCl2 treatment, which further increased the adsorption and removal efficiency of formaldehyde. This work is of great significance for the development of indoor VOC purification materials and the expansion of relevant literature.

Author Contributions

W.L.: investigation, writing original draft; L.S.: methodology, validation, formal analysis; R.Y.: methodology, validation; J.R.: validation, formal analysis, Review & Editing; P.S.: supervision, Review & Editing; Y.W.: conceptualization, Review & Editing, Supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Natural Science Foundation of Zhejiang Province (LQ19B070001), National Natural Science Foundation of China (Grant No. 51908491) and Science Fund of Zhejiang Sci-Tech University (21062255-Y).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare that they have no known competing financial interest or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Zhang, Q.; Shao, M.; Li, Y.; Lu, S.H.; Yuan, B.; Chen, W.T. Increase of ambient formaldehyde in Beijing and its implication for VOC reactivity. Chin. Chem. Lett. 2012, 23, 1059–1062. [Google Scholar] [CrossRef]
  2. Qiu, P.; Zhao, T.; Zhu, X.; Thokchom, B.; Yang, J.; Jiang, W.; Wang, L.; Fan, Y.; Li, X.; Luo, W. A confined micro-reactor with a movable Fe3O4 core and a mesoporous TiO2 shell for a photocatalytic Fenton-like degradation of bisphenol A. Chin. Chem. Lett. 2021, 32, 1456–1461. [Google Scholar] [CrossRef]
  3. Wang, R.; He, C.; Chen, W.; Zhao, C.; Huo, J. Rich B active centers in Penta-B2C as high-performance photocatalyst for nitrogen reduction. Chin. Chem. Lett. 2021, 32, 3821–3824. [Google Scholar] [CrossRef]
  4. Yu, L.; Wang, L.; Sun, X.; Ye, D. Enhanced photocatalytic activity of rGO/TiO2 for the decomposition of formaldehyde under visible light irradiation. J. Environ. Sci. 2018, 73, 138–146. [Google Scholar] [CrossRef]
  5. Peng, S.; Yang, X.; Strong, J.; Sarkar, B.; Jiang, Q.; Peng, F.; Liu, D.; Wang, H. MnO2-decorated N-doped carbon nanotube with boosted activity for low-temperature oxidation of formaldehyde. J. Hazard. Mater. 2020, 396, 122750. [Google Scholar] [CrossRef]
  6. Wang, J.; Zhang, G.; Zhang, P. Graphene-assisted photothermal effect on promoting catalytic activity of layered MnO2 for gaseous formaldehyde oxidation. Appl. Catal. B Environ. 2018, 239, 77–85. [Google Scholar] [CrossRef]
  7. Xu, Z.H.; Wang, N.H.; Yan, Z.X.; Luo, T.T.; Zhang, Y.; Li, Q.; Shi, L. In Situ tuning of bi-component manganese oxides supported Pt nanostructure for enhanced catalytic decomposition of formaldehyde. Appl. Surf. Sci. 2020, 510, 145500. [Google Scholar] [CrossRef]
  8. Cao, K.; Dai, X.; Wu, Z.; Weng, X. Unveiling the Importance of Reactant Mass Transfer in Environmental Catalysis: Taking Catalytic Chlorobenzene Oxidation as an Example. Chin. Chem. Lett. 2021, 23, 1206–1209. [Google Scholar] [CrossRef]
  9. Zhang, Q.; Xu, W.; Wang, X. Carbon nanocomposites with high photothermal conversion efficiency. Sci. China Mater. 2018, 61, 905–914. [Google Scholar] [CrossRef] [Green Version]
  10. Brunauer, S.; Emmett, P.H.; Teller, E. Adsorption of gases in multimolecular layers. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar] [CrossRef]
  11. Lippens, B.; Linsen, B.; de Boer, J. Studies on pore systems in catalysts I. The adsorption of nitrogen; apparatus and calculation. J. Catal. 1964, 3, 32–37. [Google Scholar] [CrossRef]
  12. Wang, Z.; Yu, H.; Xiao, Y.; Guo, L.; Zhang, L.; Dong, X. Polydopamine mediated modification of manganese oxide on melamine sponge for photothermocatalysis of gaseous formaldehyde. J. Hazard. Mater. 2021, 407, 124795. [Google Scholar] [CrossRef] [PubMed]
  13. Groen, J.C.; Peffer, L.A.; Pérez-Ramırez, J. Pore size determination in modified micro-and mesoporous materials. Pitfalls and limitations in gas adsorption data analysis. Microporous Mesoporous Mater. 2003, 60, 1–17. [Google Scholar] [CrossRef]
  14. Ra, E.J.; Kim, T.H.; Yu, W.J.; An, K.H.; Lee, Y.H. Ultramicropore formation in PAN/camphor-based carbon nanofiber paper. Chem. Commun. 2010, 46, 1320–1322. [Google Scholar] [CrossRef]
  15. Miao, L.; Xie, Y.F.; Xia, Y.T.; Zou, N.; Wang, J.L. Facile photo-driven strategy for the regeneration of a hierarchical C@MnO2 sponge for the removal of indoor toluene. Appl. Surf. Sci. 2019, 481, 404–413. [Google Scholar] [CrossRef]
  16. Wang, C.; Zou, X.H.; Liu, H.B.; Chen, T.H.; Suib, S.L.; Chen, D.; Xie, J.J.; Li, M.X.; Sun, F.W. A highly efficient catalyst of palygorskite-supported manganese oxide for formaldehyde oxidation at ambient and low temperature: Performance, mechanism and reaction kinetics. Appl. Surf. Sci. 2019, 486, 420–430. [Google Scholar] [CrossRef]
  17. Dai, Y.; Zhang, Y.; Li, Q.; Nan, C. Synthesis and optical properties of tetrapod-like zinc oxide nanorods. Chem. Phys. Lett. 2002, 358, 83–86. [Google Scholar] [CrossRef]
  18. Ye, J.; Zhou, M.; Le, Y.; Cheng, B.; Yu, J. Three-dimensional carbon foam supported MnO2/Pt for rapid capture and catalytic oxidation of formaldehyde at room temperature. Appl. Catal. B Environ. 2020, 267, 118689. [Google Scholar] [CrossRef]
  19. Yang, Y.; Li, Y.Z.; Zhang, Q.; Zeng, M.; Wu, S.W.; Lan, L.; Zhao, X.J. Novel photoactivation and solar-light-driven thermocatalysis on epsilon-MnO2 nanosheets lead to highly efficient catalytic abatement of ethyl acetate without acetaldehyde as unfavorable by-product. J. Mater. Chem. A 2018, 6, 14195–14206. [Google Scholar] [CrossRef]
  20. Qu, J.; Shi, L.; He, C.; Gao, F.; Li, B.; Zhou, Q.; Hu, H.; Shao, G.; Wang, X.; Qiu, J. Highly efficient synthesis of graphene/MnO2 hybrids and their application for ultrafast oxidative decomposition of methylene blue. Carbon 2014, 66, 485–492. [Google Scholar] [CrossRef]
  21. Lu, L.; Tian, H.; He, J.; Yang, Q. Graphene–MnO2 hybrid nanostructure as a new catalyst for formaldehyde oxidation. J. Phys. Chem. C 2016, 120, 23660–23668. [Google Scholar] [CrossRef]
  22. Hu, Z.; Zhao, Y.; Liu, J.; Wang, J.; Zhang, B.; Xiang, X. Ultrafine MnO2 nanoparticles decorated on graphene oxide as a highly efficient and recyclable catalyst for aerobic oxidation of benzyl alcohol. J. Colloid Interface Sci. 2016, 483, 26–33. [Google Scholar] [CrossRef] [PubMed]
  23. Hu, W.; Gao, X.; Deng, Y.; Qu, R.; Zheng, C.; Zhu, X.; Cen, K. Deactivation mechanism of arsenic and resistance effect of SO42− on commercial catalysts for selective catalytic reduction of NOx with NH3. Chem. Eng. J. 2016, 293, 118–128. [Google Scholar] [CrossRef] [Green Version]
  24. Russo, N.; Fino, D.; Saracco, G.; Specchia, V. Studies on the redox properties of chromite perovskite catalysts for soot combustion. J. Catal. 2005, 229, 459–469. [Google Scholar] [CrossRef]
  25. Li, Q.; Wang, Y.; Zeng, J.; Wu, Q.; Wang, Q.; Sun, L.; Xu, L.; Ye, T.; Zhao, X.; Chen, L. Phosphating-induced charge transfer on CoO/CoP interface for alkaline H2 evolution. Chin. Chem. Lett. 2021, 32, 3355–3358. [Google Scholar] [CrossRef]
  26. Sun, P.; Yu, H.; Liu, T.; Li, Y.; Wang, Z.; Xiao, Y.; Dong, X. Efficiently photothermal conversion in a MnOx-based monolithic photothermocatalyst for gaseous formaldehyde elimination. Chin. Chem. Lett. 2022, 33, 2564–2568. [Google Scholar] [CrossRef]
  27. Wang, X.; Liu, J.; Xu, W. One-step hydrothermal preparation of amino-functionalized carbon spheres at low temperature and their enhanced adsorption performance towards Cr (VI) for water purification. Colloids Surf. A Physicochem. Eng. Asp. 2012, 415, 288–294. [Google Scholar] [CrossRef]
  28. Chen, C.; Liang, B.; Lu, D.; Ogino, A.; Wang, X.; Nagatsu, M. Amino group introduction onto multiwall carbon nanotubes by NH3/Ar plasma treatment. Carbon 2010, 48, 939–948. [Google Scholar] [CrossRef]
  29. Mas, A.; Jaaba, H.; Schué, F.; Belu, A.M.; Kassis, C.M.; Linton, R.W.; Desimone, J.M. XPS analysis of poly [(3-hydroxybutyric acid)-co-(3-hydroxyvaleric acid)] film surfaces exposed to an allylamine low-pressure plasma. Macromol. Chem. Phys. 1997, 198, 3737–3752. [Google Scholar] [CrossRef]
  30. He, L.; Cui, B.; Liu, J.; Song, Y.; Wang, M.; Peng, D.; Zhang, Z. Chemical structure of hollow carbon spheres and polyaniline nanocomposite. Data Brief 2018, 17, 796–800. [Google Scholar] [CrossRef]
  31. Sun, P.; Wang, W.; Weng, X.; Dai, X.; Wu, Z. Alkali potassium induced HCl/CO2 selectivity enhancement and chlorination reaction inhibition for catalytic oxidation of chloroaromatics. Environ. Sci. Technol. 2018, 52, 6438–6447. [Google Scholar] [CrossRef] [PubMed]
Materials 15 04484 g001 550

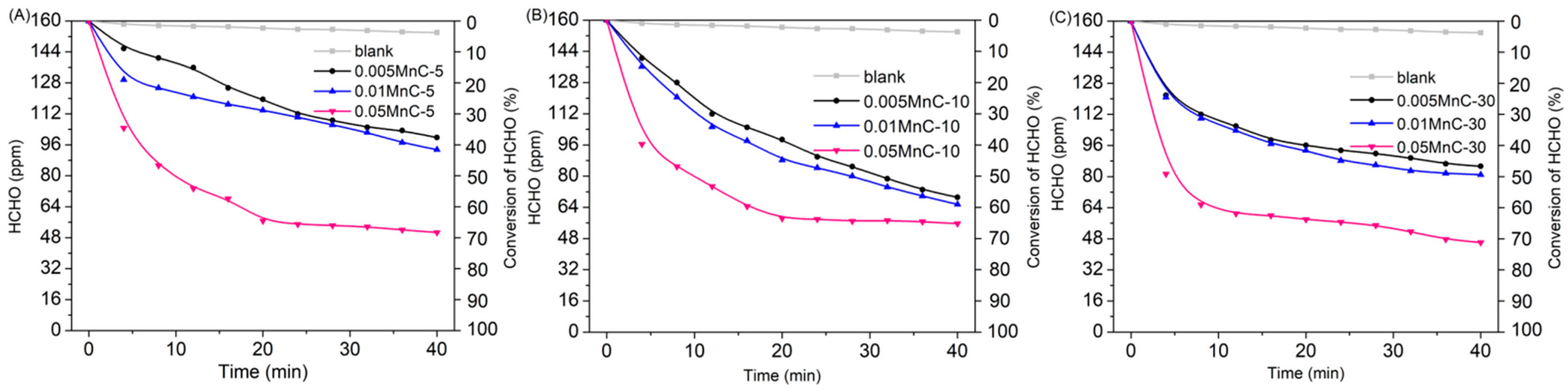

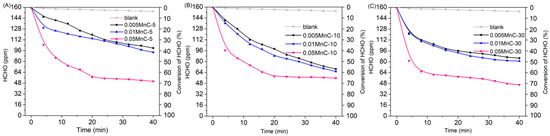

Figure 1. The HCHO elimination rate under xenon light irradiation by Mn-modified CNS catalysts with different synthesis conditions: (A) 0.005, 0.01, and 0.05 mol/L of potassium permanganate impregnated for 5 min; (B) 0.005, 0.01, and 0.05 mol/L of potassium permanganate impregnated for 10 min; and (C) 0.005, 0.01, and 0.05 mol/L of potassium permanganate impregnated for 30 min.
Figure 1. The HCHO elimination rate under xenon light irradiation by Mn-modified CNS catalysts with different synthesis conditions: (A) 0.005, 0.01, and 0.05 mol/L of potassium permanganate impregnated for 5 min; (B) 0.005, 0.01, and 0.05 mol/L of potassium permanganate impregnated for 10 min; and (C) 0.005, 0.01, and 0.05 mol/L of potassium permanganate impregnated for 30 min.
Materials 15 04484 g001
Materials 15 04484 g002 550

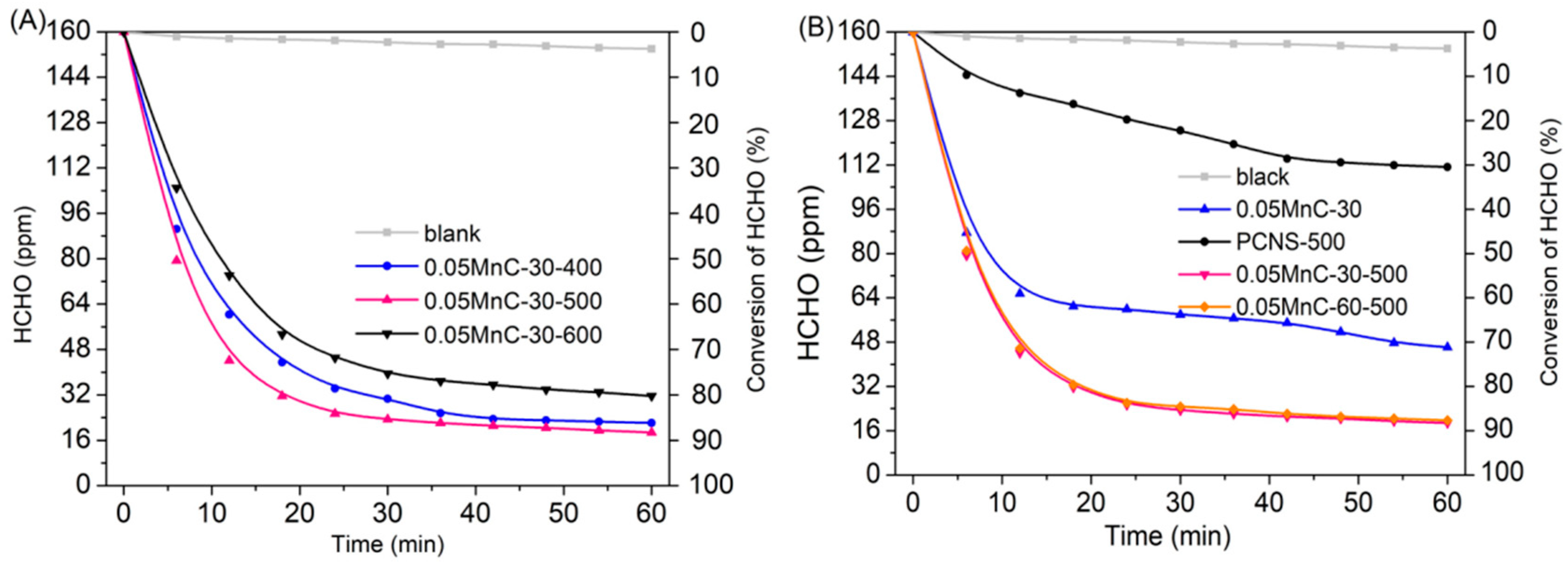

Figure 2. (A) The HCHO elimination rate under xenon light irradiation by Mn-PCNS catalysts under processing temperatures. (B) The HCHO elimination rate under xenon light irradiation by 0.05MnC-30, PCNS-500, 0.05MnC-30-500, and 0.05MnC-60-500 catalysts.
Figure 2. (A) The HCHO elimination rate under xenon light irradiation by Mn-PCNS catalysts under processing temperatures. (B) The HCHO elimination rate under xenon light irradiation by 0.05MnC-30, PCNS-500, 0.05MnC-30-500, and 0.05MnC-60-500 catalysts.
Materials 15 04484 g002
Materials 15 04484 g003 550

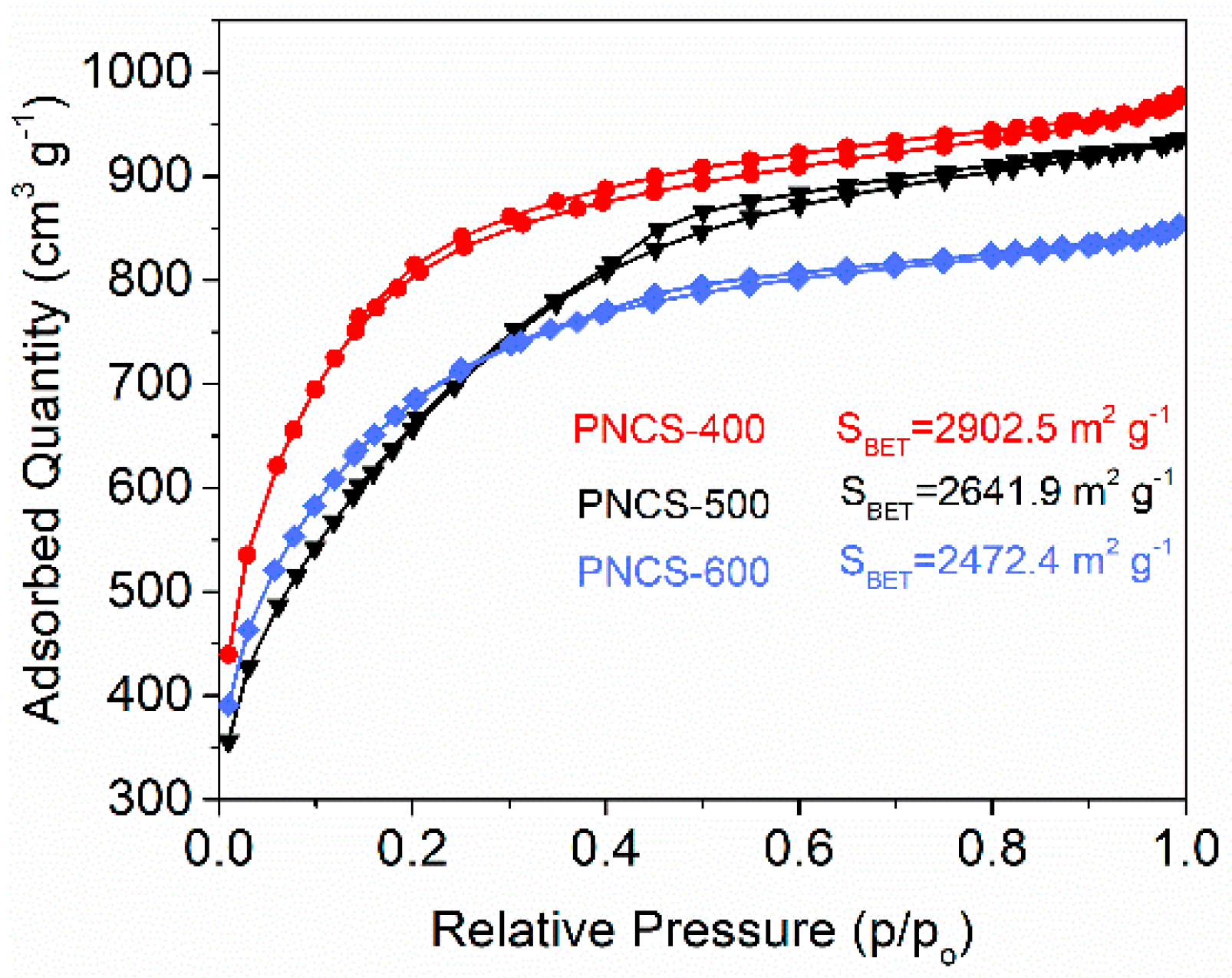

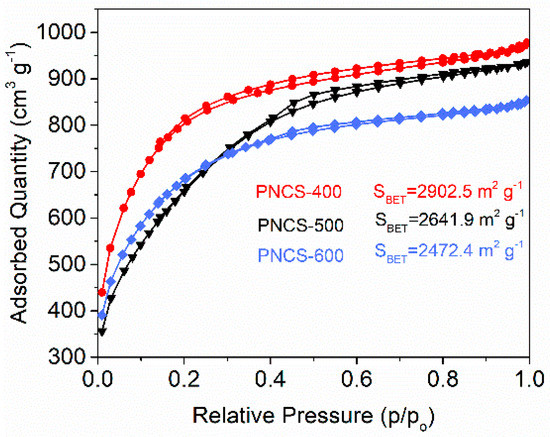

Figure 3. N2 adsorption (full symbols)–desorption (empty symbols) isotherms of PCNS-400, PCNS-500, and PCNS-600.
Figure 3. N2 adsorption (full symbols)–desorption (empty symbols) isotherms of PCNS-400, PCNS-500, and PCNS-600.
Materials 15 04484 g003
Materials 15 04484 g004 550

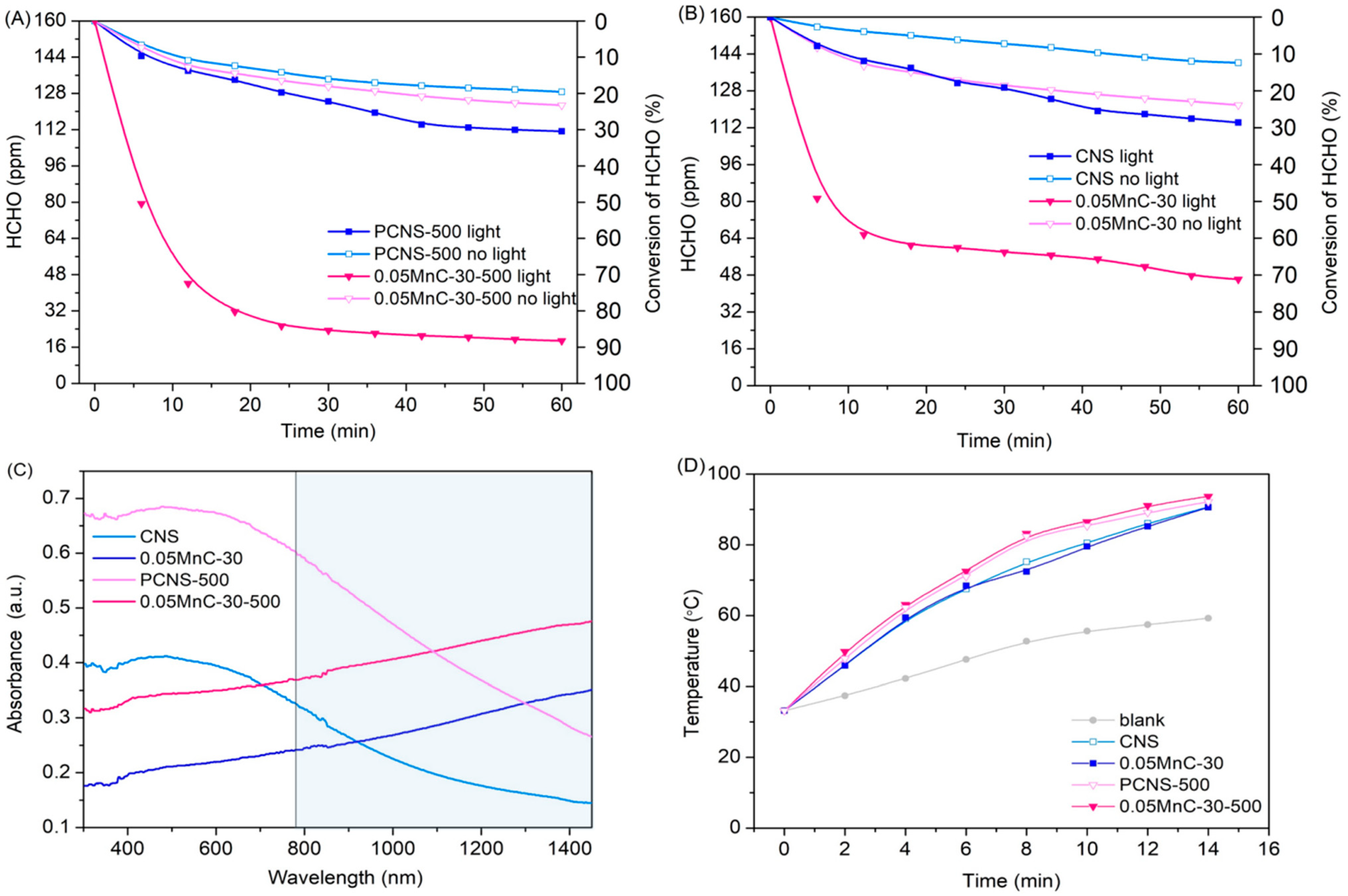

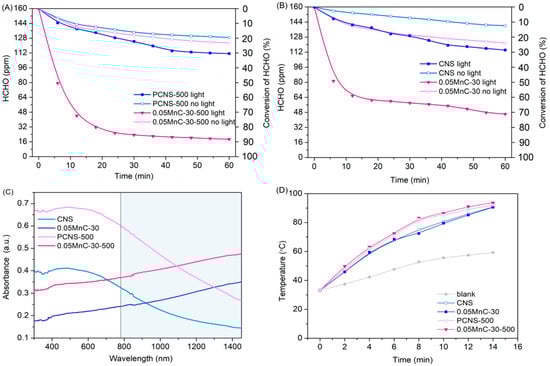

Figure 4. (A) Catalytic performance of PCNS and Mn-PCNS for HCHO elimination with and without irradiation. (B) Catalytic performance of CNS and Mn-CNS for HCHO elimination with and without irradiation; (C)UV-Vis-NIR DRS profiles of CNS, 0.05MnC-30, PCNS-500, and 0.05MnC-30-500. (D) Change in surface temperature of catalysts under visible light irradiation.
Figure 4. (A) Catalytic performance of PCNS and Mn-PCNS for HCHO elimination with and without irradiation. (B) Catalytic performance of CNS and Mn-CNS for HCHO elimination with and without irradiation; (C)UV-Vis-NIR DRS profiles of CNS, 0.05MnC-30, PCNS-500, and 0.05MnC-30-500. (D) Change in surface temperature of catalysts under visible light irradiation.
Materials 15 04484 g004
Materials 15 04484 g005 550

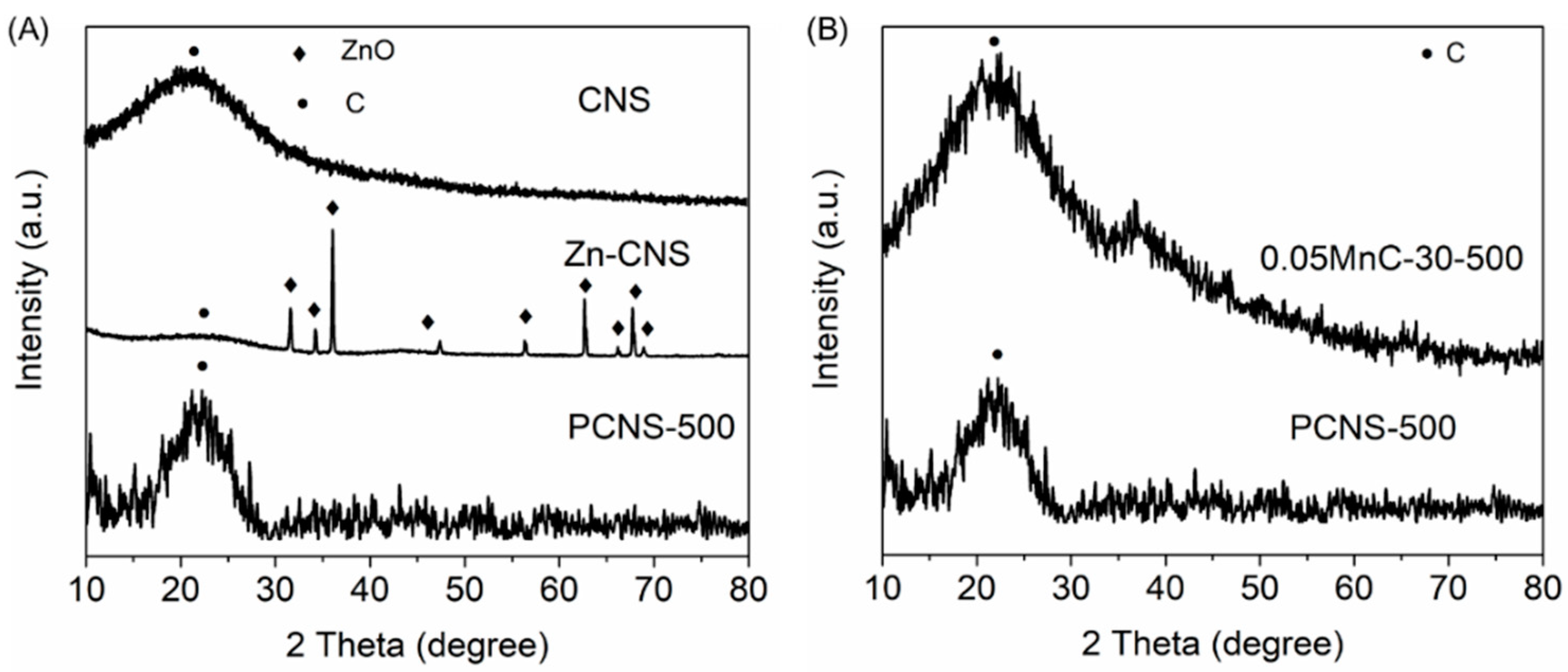

Figure 5. (A) XRD profiles of CNS, Zn-CNS, and PCNS-500; (B) XRD profiles of 0.05MnC-30-500 and PCNS-500.
Figure 5. (A) XRD profiles of CNS, Zn-CNS, and PCNS-500; (B) XRD profiles of 0.05MnC-30-500 and PCNS-500.
Materials 15 04484 g005
Materials 15 04484 g006 550
Figure 6. SEM images of PCNS-500 (A–C), SEM images of Mn modified PCNS-5000 with 0.05 mol/L of potassium permanganate impregnated for 30 min (D–F), EDX-mapping test of element Mn, C, and O of Mn modified PCNS-500 ((G–I) related to SEM image of (E)).
Figure 6. SEM images of PCNS-500 (A–C), SEM images of Mn modified PCNS-5000 with 0.05 mol/L of potassium permanganate impregnated for 30 min (D–F), EDX-mapping test of element Mn, C, and O of Mn modified PCNS-500 ((G–I) related to SEM image of (E)).
Materials 15 04484 g006
Materials 15 04484 g007 550
Figure 7. HR-TEM profile of sample 0.05MnC-30-500.
Figure 7. HR-TEM profile of sample 0.05MnC-30-500.
Materials 15 04484 g007
Materials 15 04484 g008 550

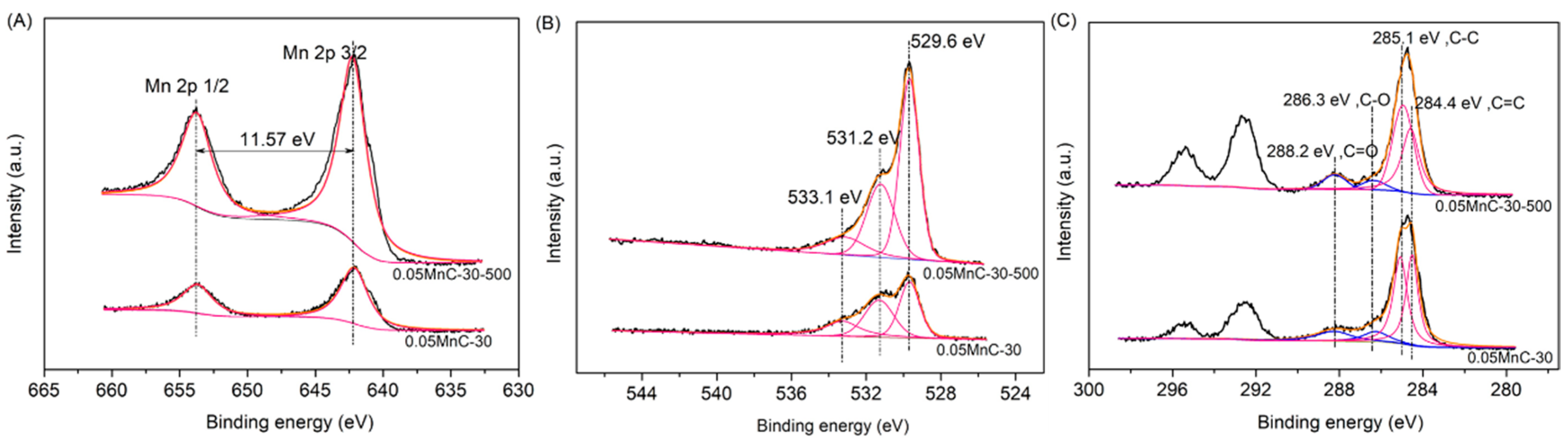

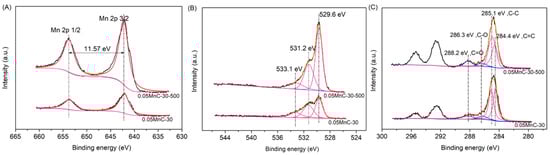

Figure 8. XPS spectrum of 0.05Mn-C-30-500 and 0.05MnC-30: (A) Mn2p; (B) O1s: (C) C1s.
Figure 8. XPS spectrum of 0.05Mn-C-30-500 and 0.05MnC-30: (A) Mn2p; (B) O1s: (C) C1s.
Materials 15 04484 g008
Materials 15 04484 g009 550

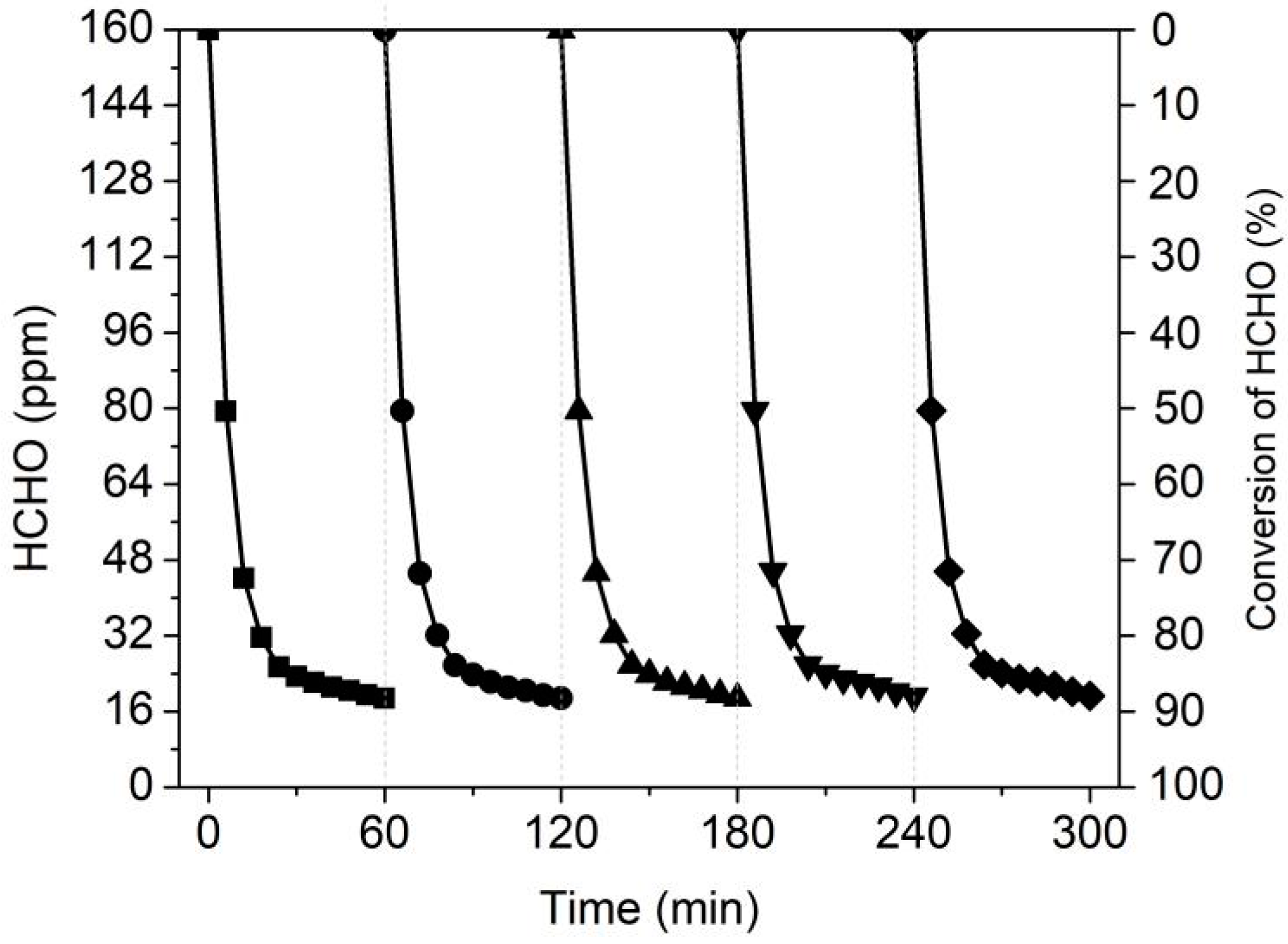

Figure 9. Cyclic performance test of 0.05MnC-30-500 for HCHO removal.
Figure 9. Cyclic performance test of 0.05MnC-30-500 for HCHO removal.
Materials 15 04484 g009
Table
Table 1. Pore parameters of PCNS treated at different calcination temperature and XPS result of O1s for 0.05MnC-30-500 and 0.05MnC-30.
Table 1. Pore parameters of PCNS treated at different calcination temperature and XPS result of O1s for 0.05MnC-30-500 and 0.05MnC-30.
Pore ParametersXPS
CatalystBET Surface Area
(m2/g)		Micropore Volume (cm3/g)Average
Pore Diameter (nm)		CatalystO1S
OlatOsur
(%)		OC-O
PCNS-4002902.50.341.590.05MnC-30-50051.734.513.8
PCNS-5002641.90.712.730.05MnC-3050.432.517.1
PCNS-6002472.40.161.46
